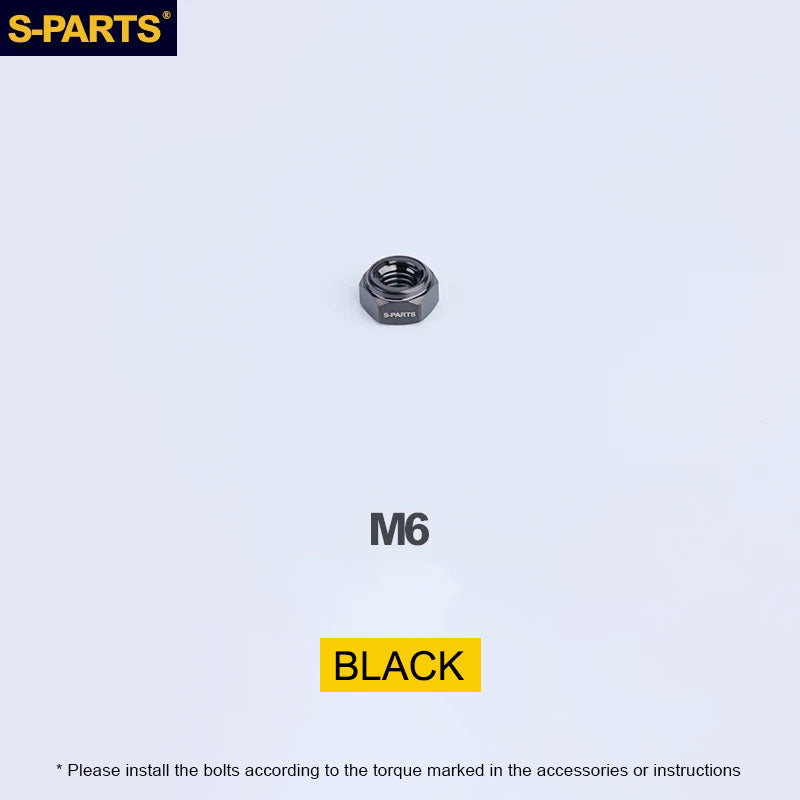

Titanium Hex Flange Lock Nuts – M4 / M5 / M6 / M8 / M10 for Motorcycles & Cars
Titanium Hex Flange Lock Nuts – M4 / M5 / M6 / M8 / M10 for Motorcycles & Cars
Couldn't load pickup availability

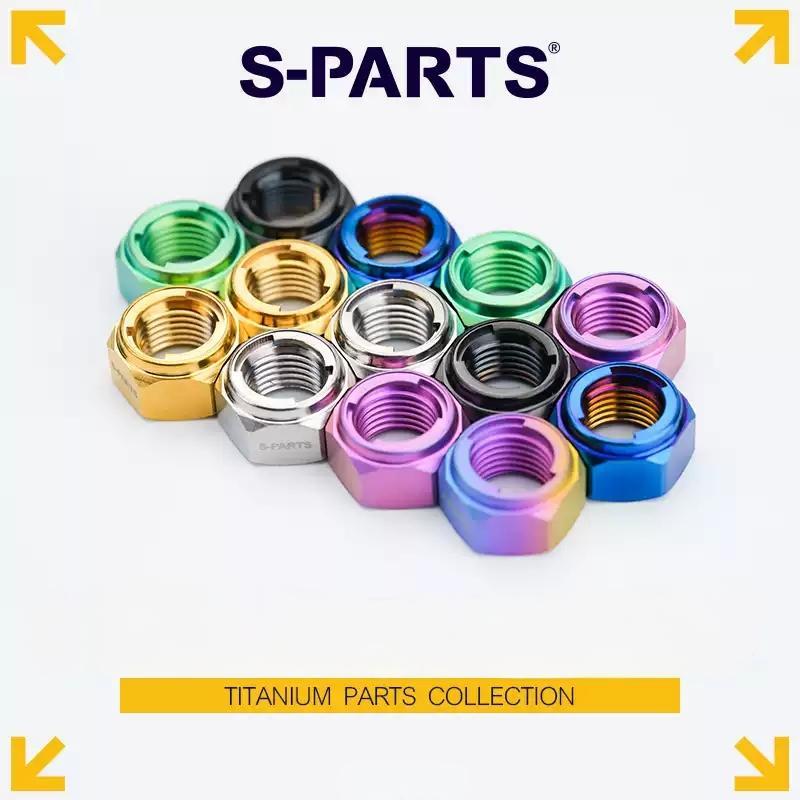

Upgrade your build with S-PARTS Titanium Hex Flange Lock Nuts, designed for motorcycles, cars, and high-performance applications. Made from Grade 5 Titanium (Ti-6Al-4V), these lock nuts combine exceptional strength, lightweight performance, and superior corrosion resistance.
Each nut is hot-forged using exclusive S-PARTS molds, with every die limited to no more than 300 strikes at 650℃, ensuring precision and durability. Final machining is performed on aerospace-grade CNC equipment, maintaining micron-level tolerances for smooth and secure threading.
For aesthetics and extra protection, the nuts are finished with anodizing or PVD vacuum coating, available in Gold, Titanium, Blue, Black, Green, Purple, and Candy.
Perfect for riders and builders who demand strength, style, and reliability in every detail.
- Material: Titanium Alloy
- Thread Size: M4, M5, M6, M8, M10, M12
- Quantity: 1 count

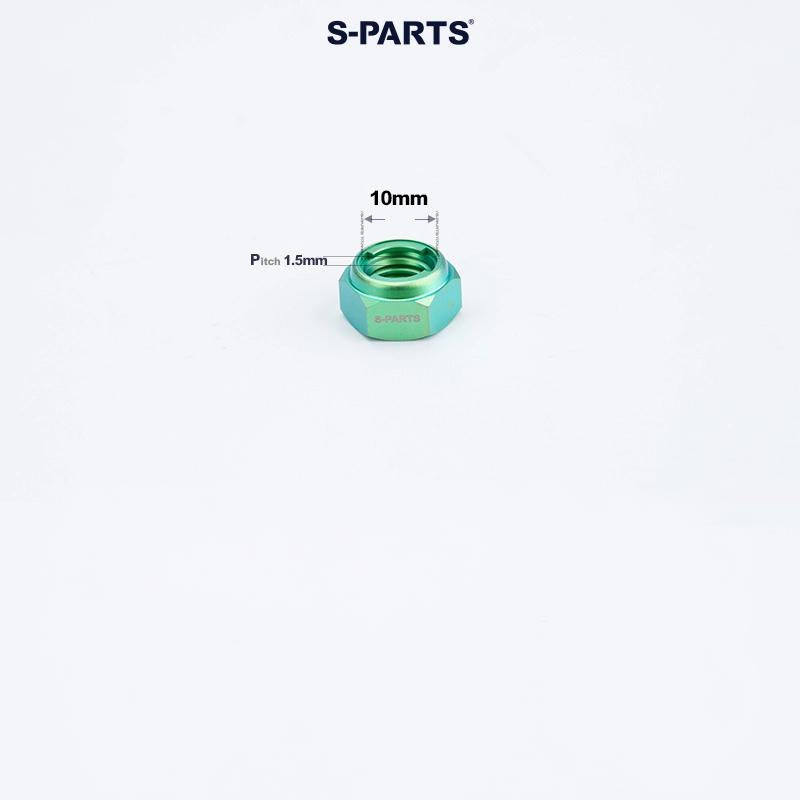

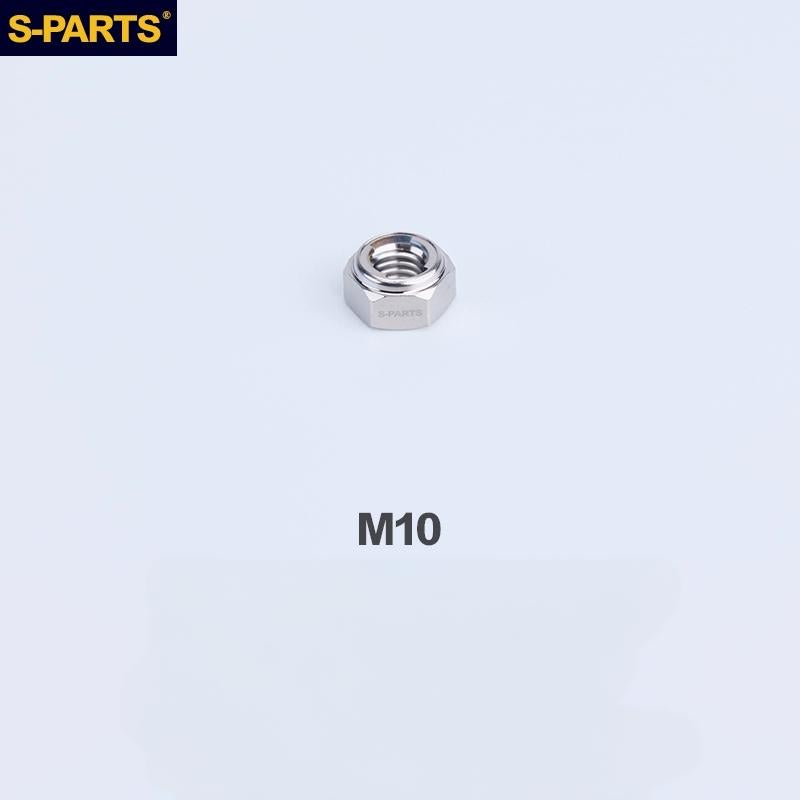

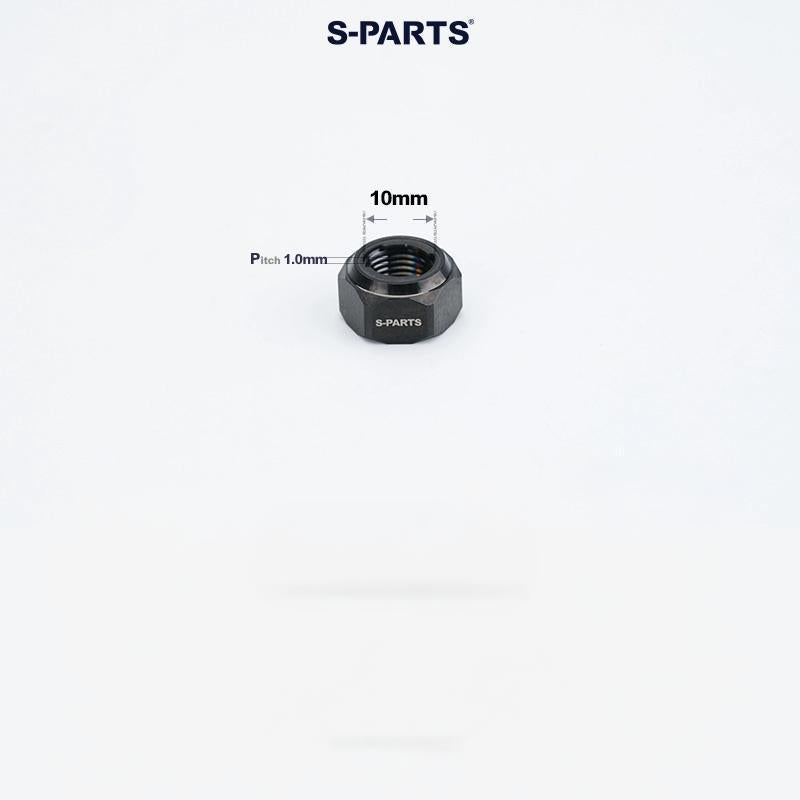

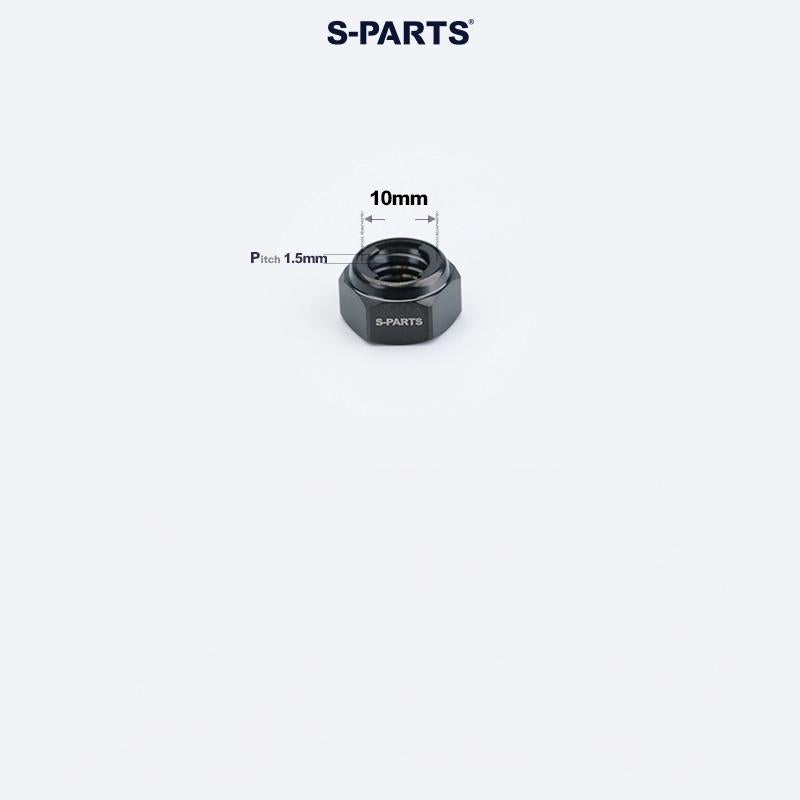

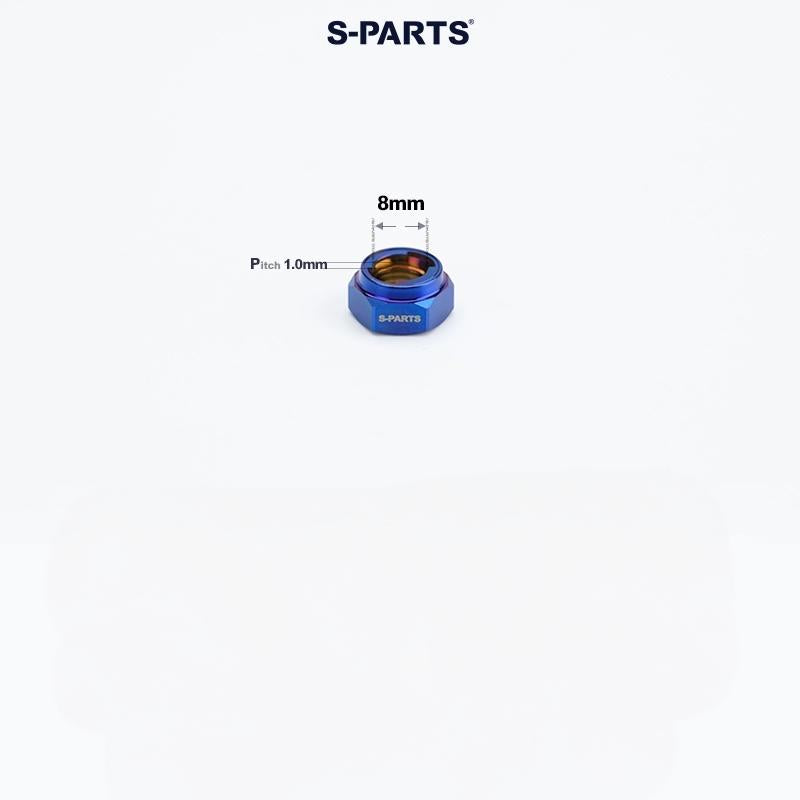

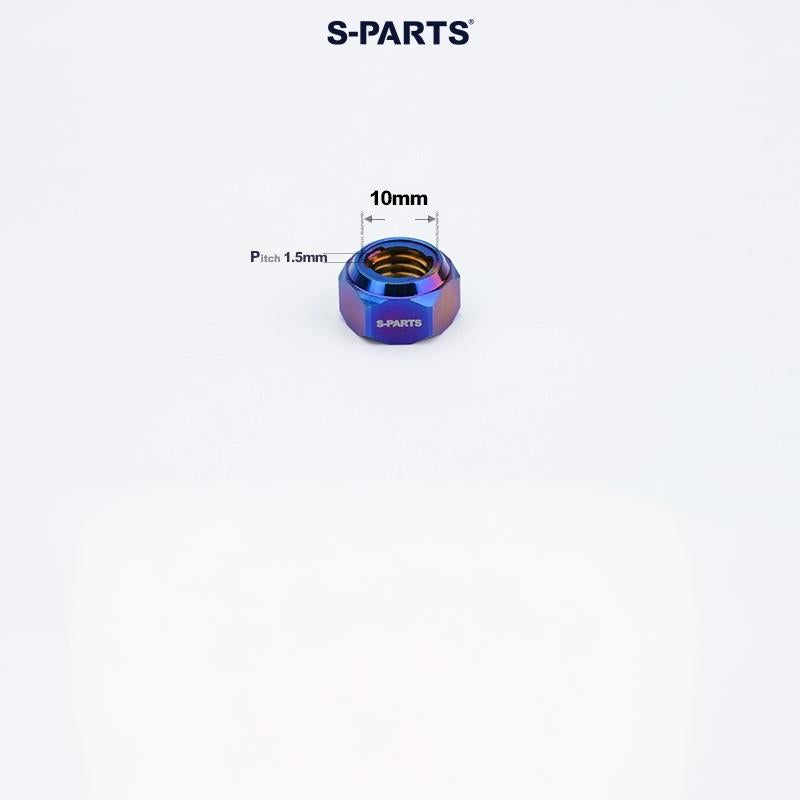

- Color: Gold, Titanium, Black, Blue, Green, Purple, Candy

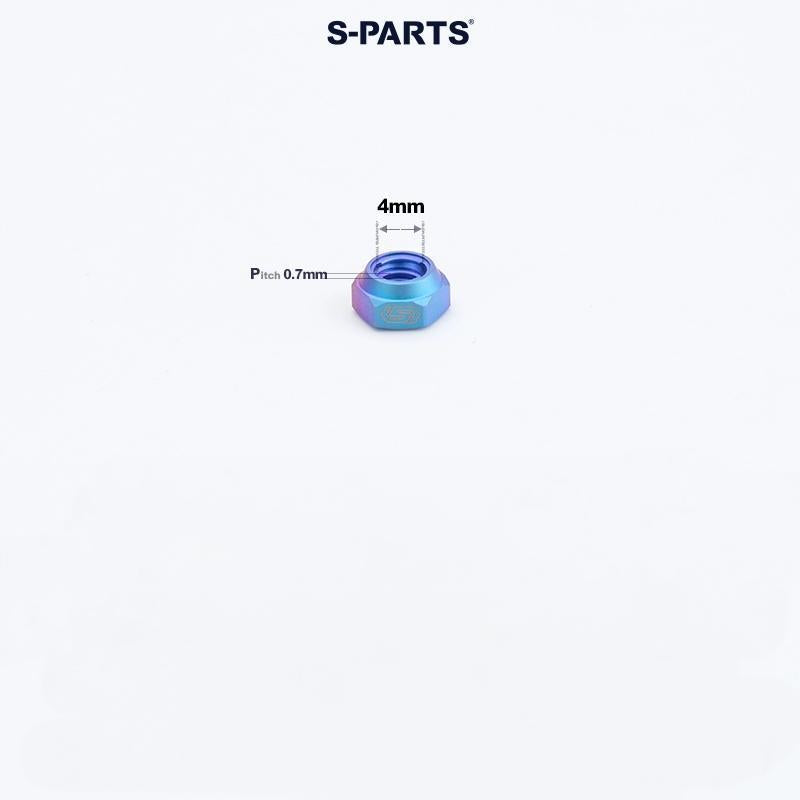

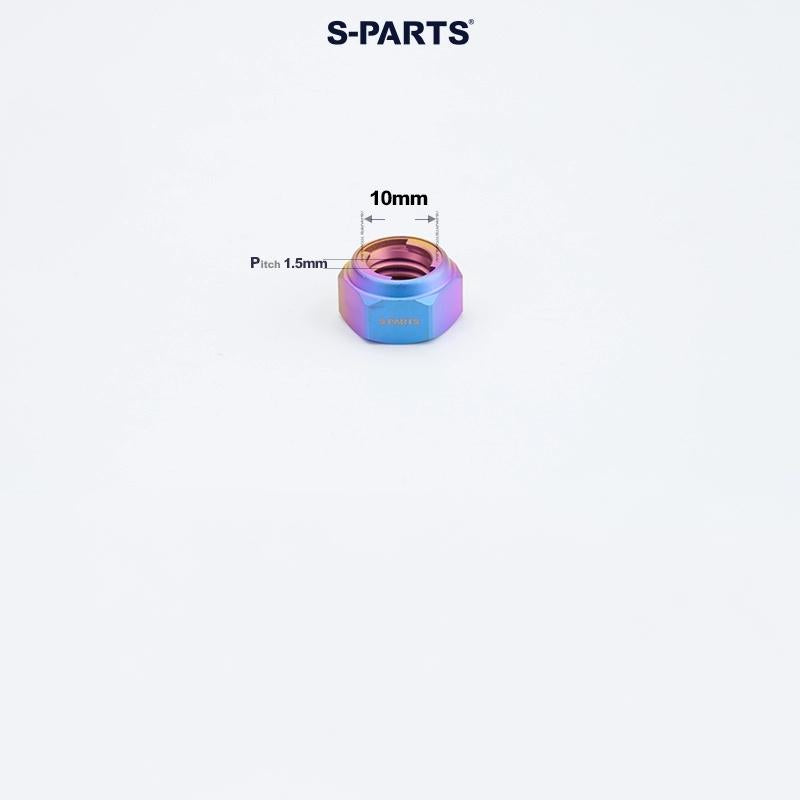

- Candy-colored, the overall hues exhibit a sense of fluidity due to the coloring process, with the colors being somewhat unpredictable.
- Notice: Some screws may have 'white lines' on the threads, which is a normal result of the coloring process. Rest assured, they are safe to use.
🔧 Product Specifications
Size | Thread (Pitch) | Max Outer Diameter | Thickness | Weight (g) | Tool Size (Socket) |
---|---|---|---|---|---|

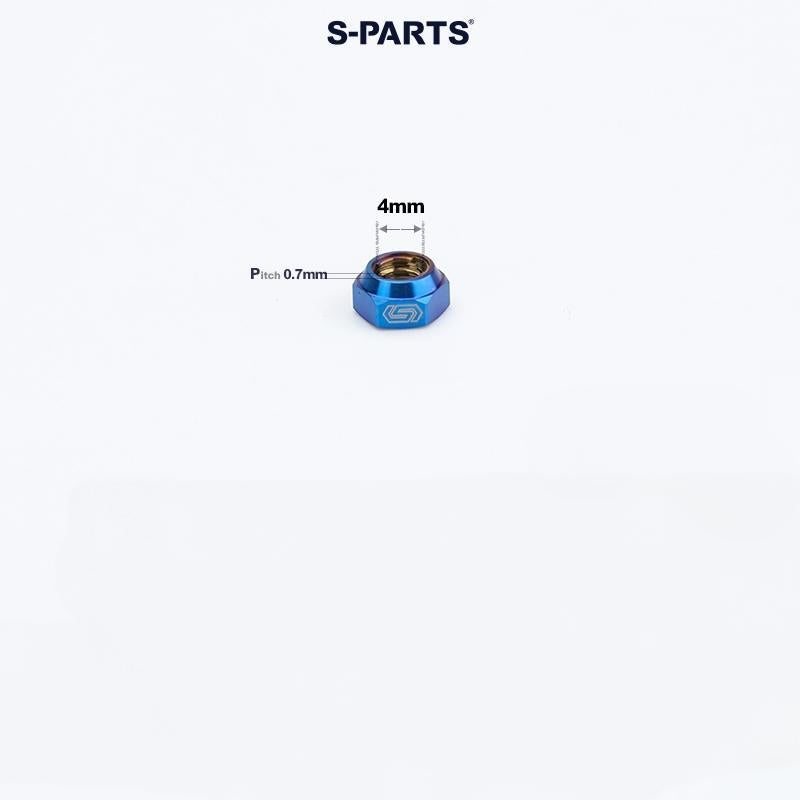

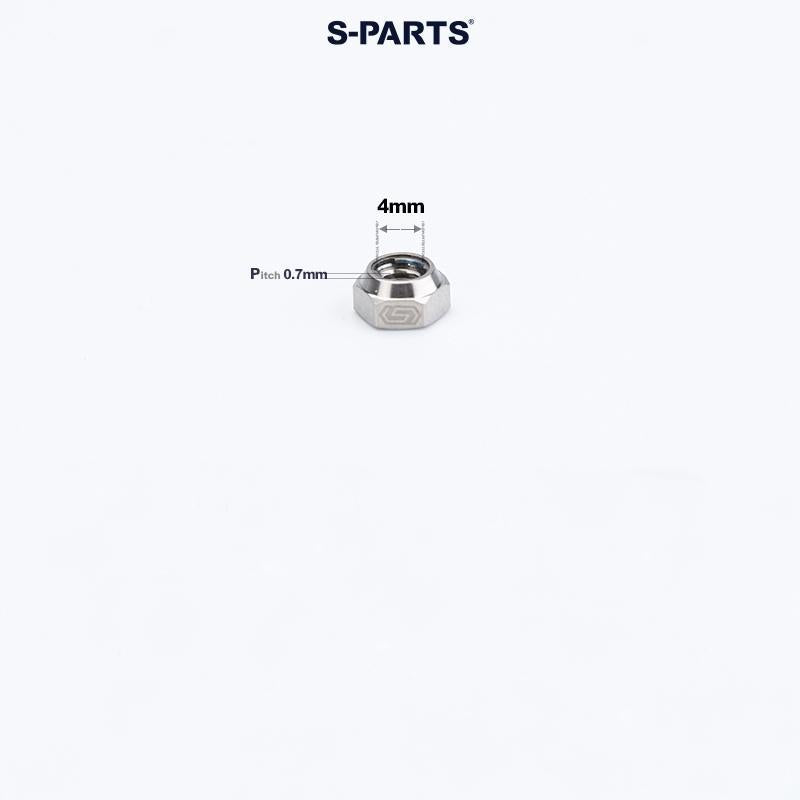

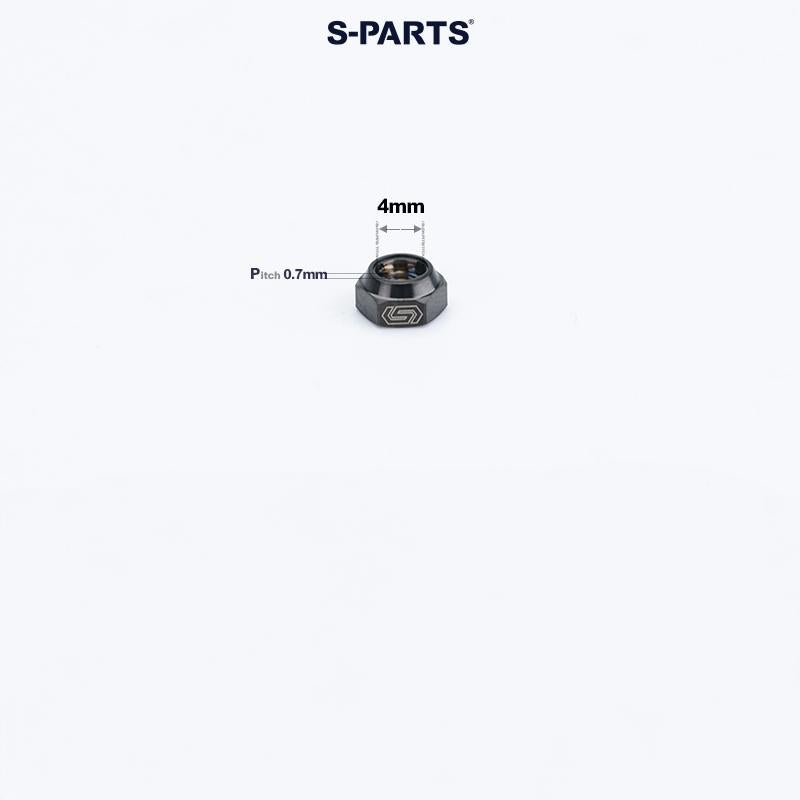

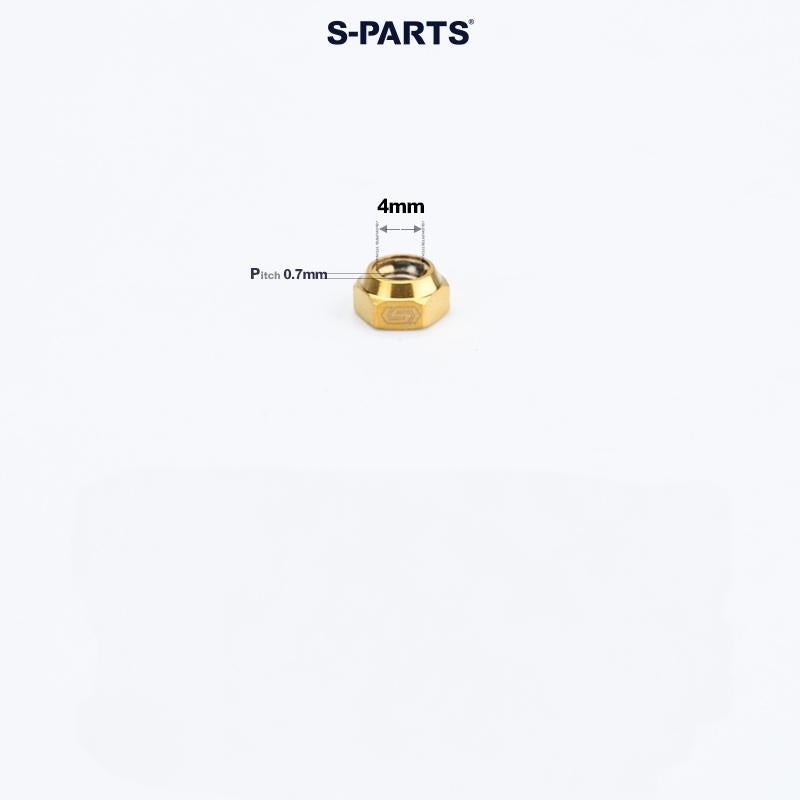

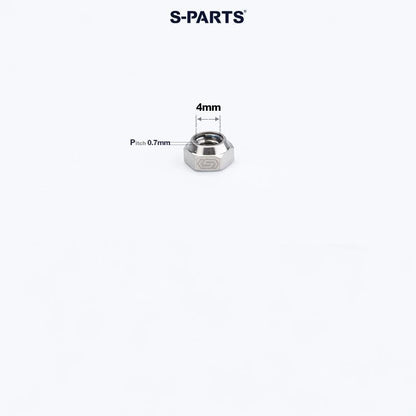

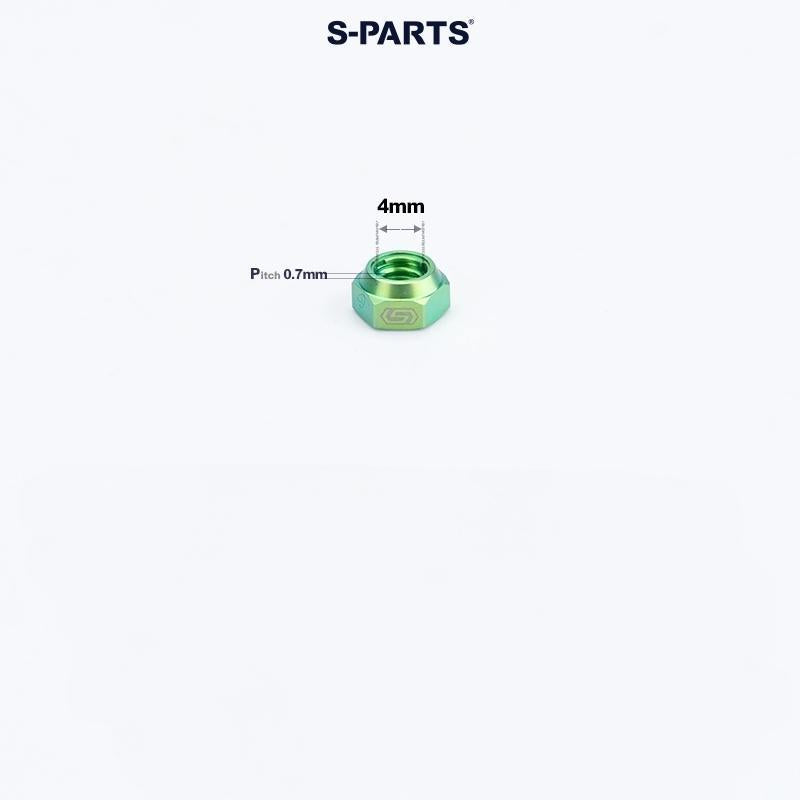

M4 | 0.7 mm | 8 mm | 4 mm | 0.44 g | 7 mm |

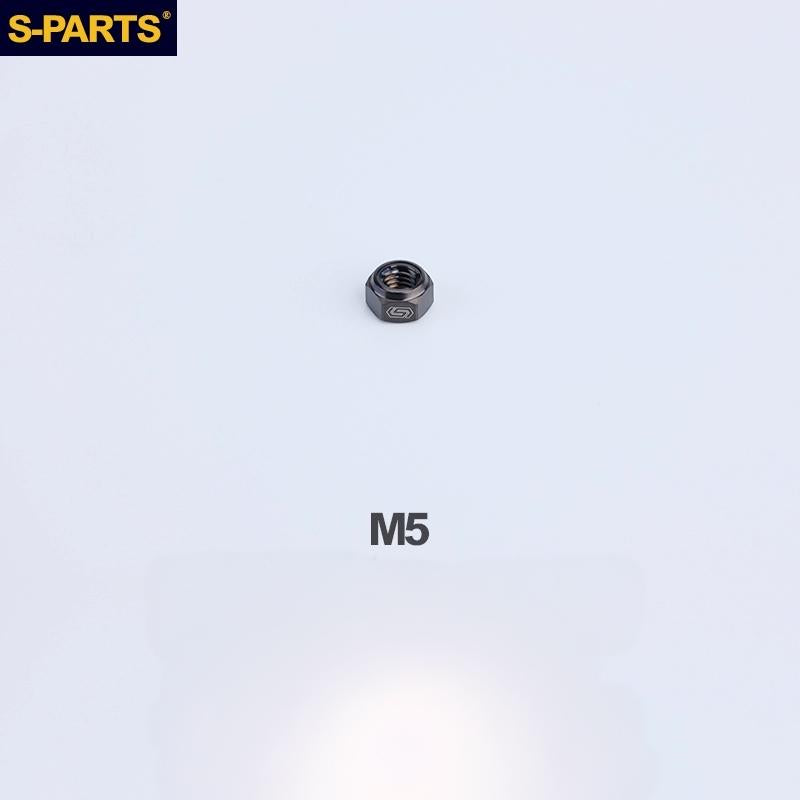

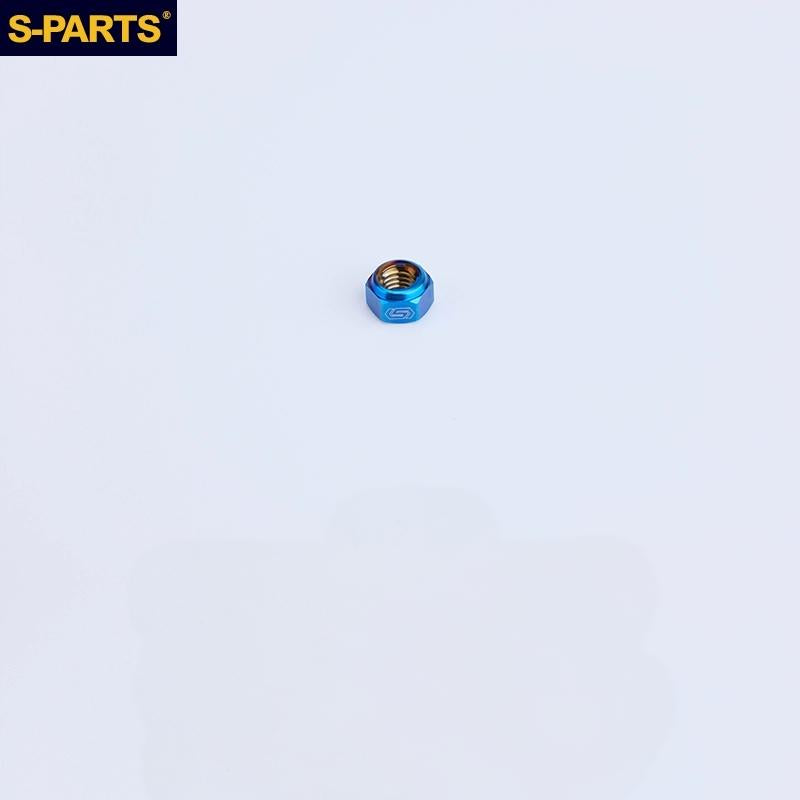

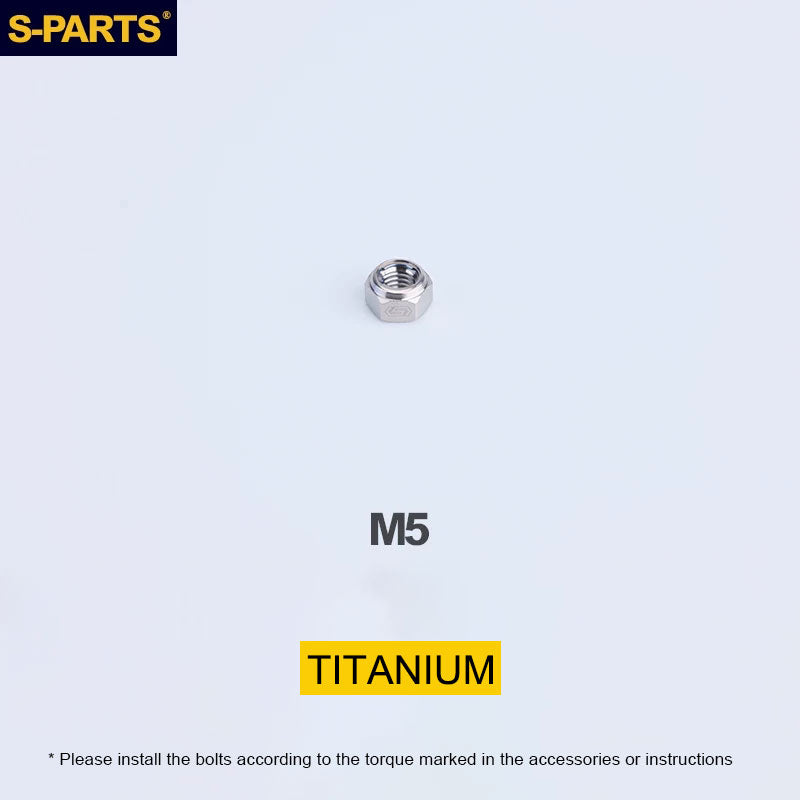

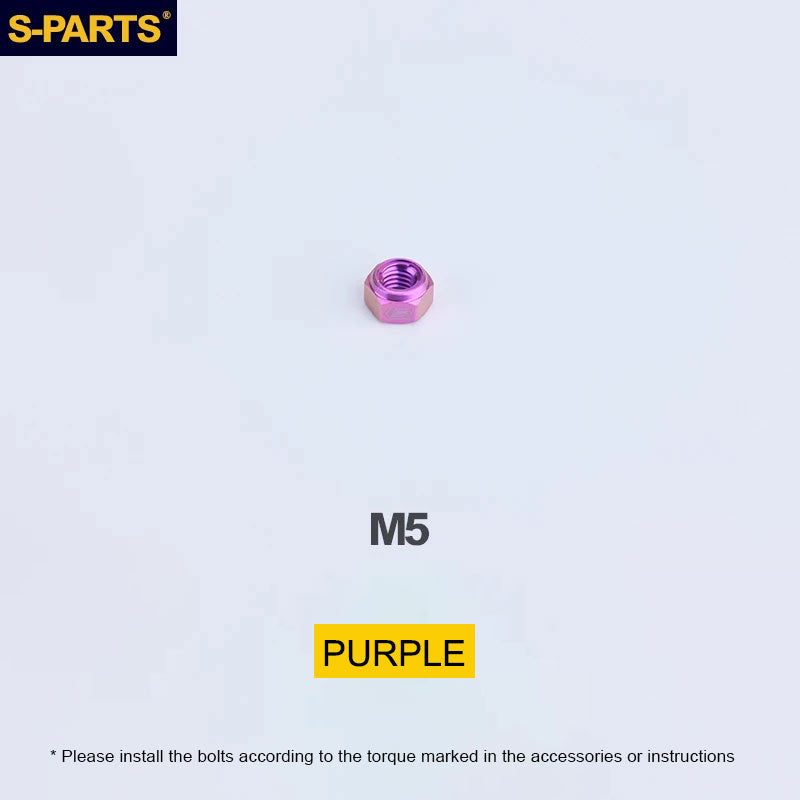

M5 | 0.8 mm | 9 mm | 5 mm | 0.67 g | 8 mm |

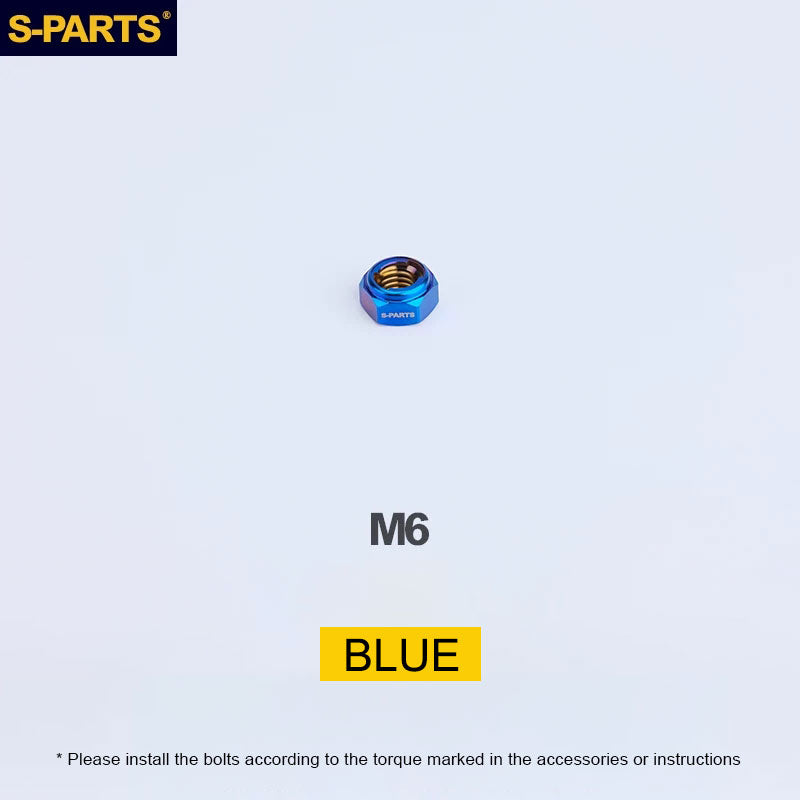

M6 | 1.0 mm | 11 mm | 6 mm | 1.35 g | 10 mm |

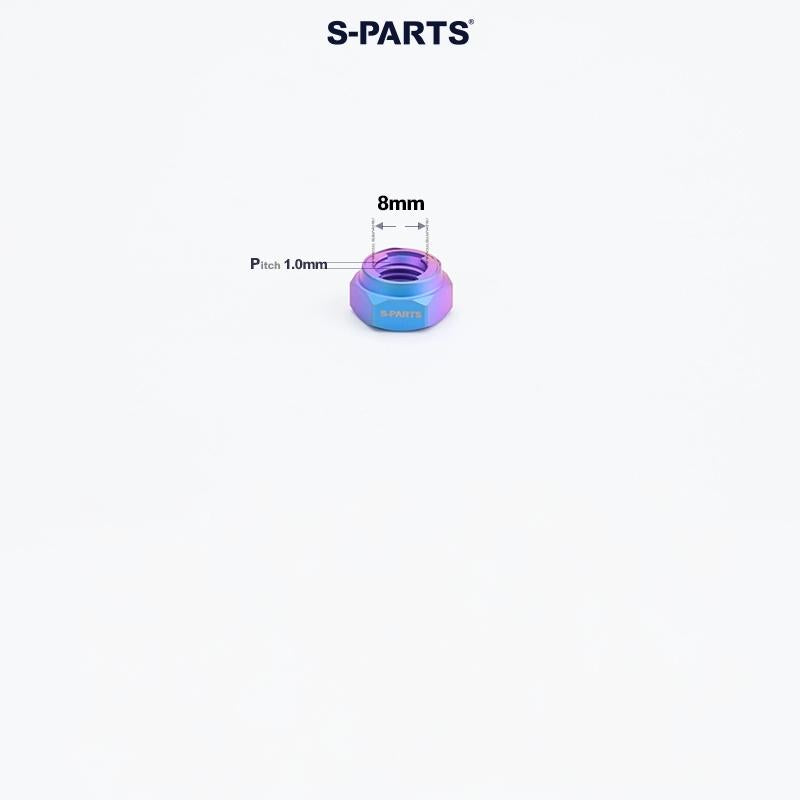

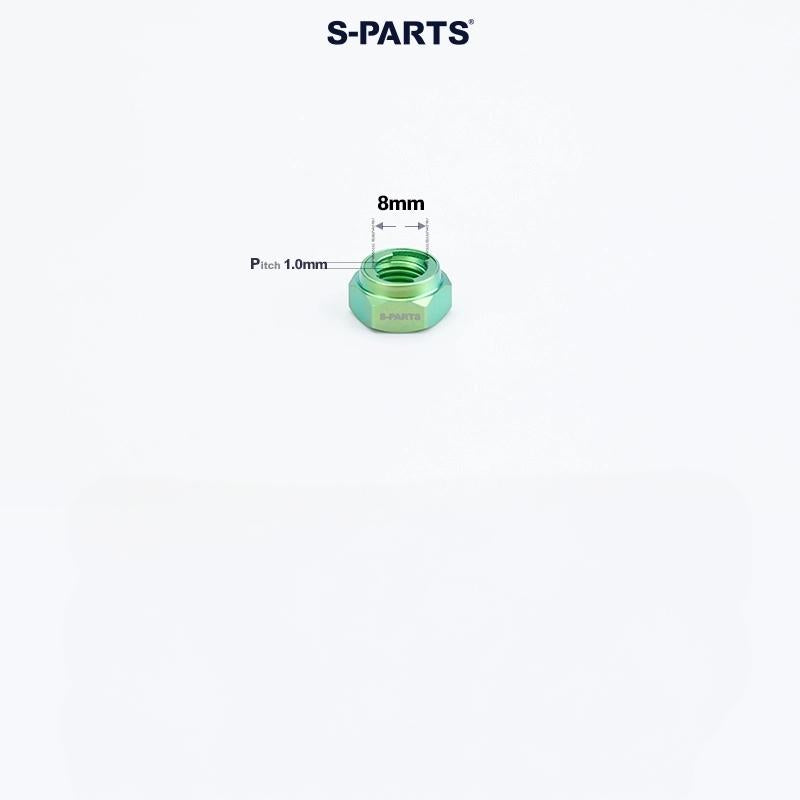

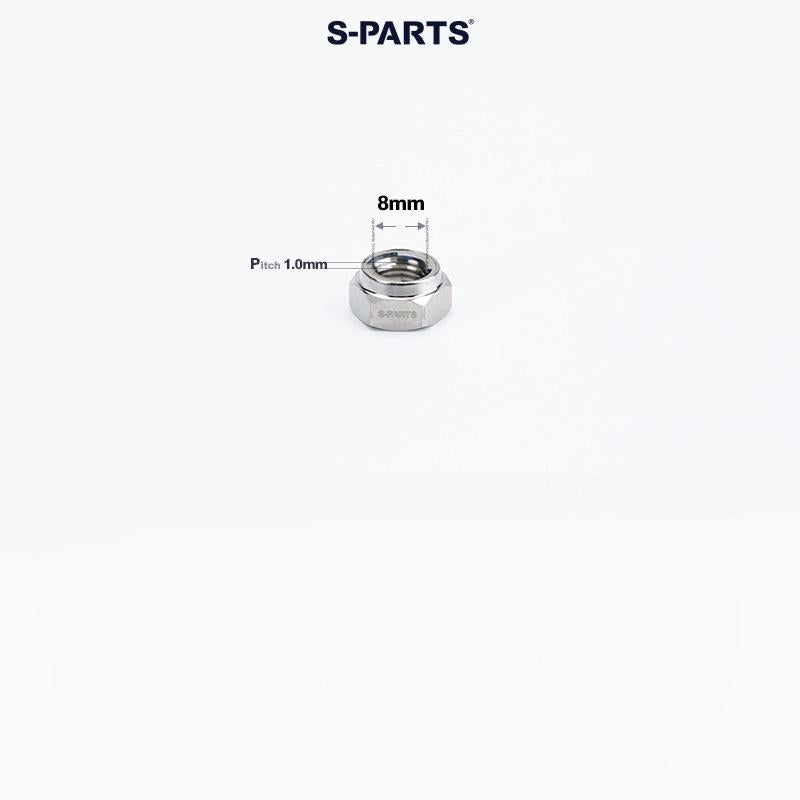

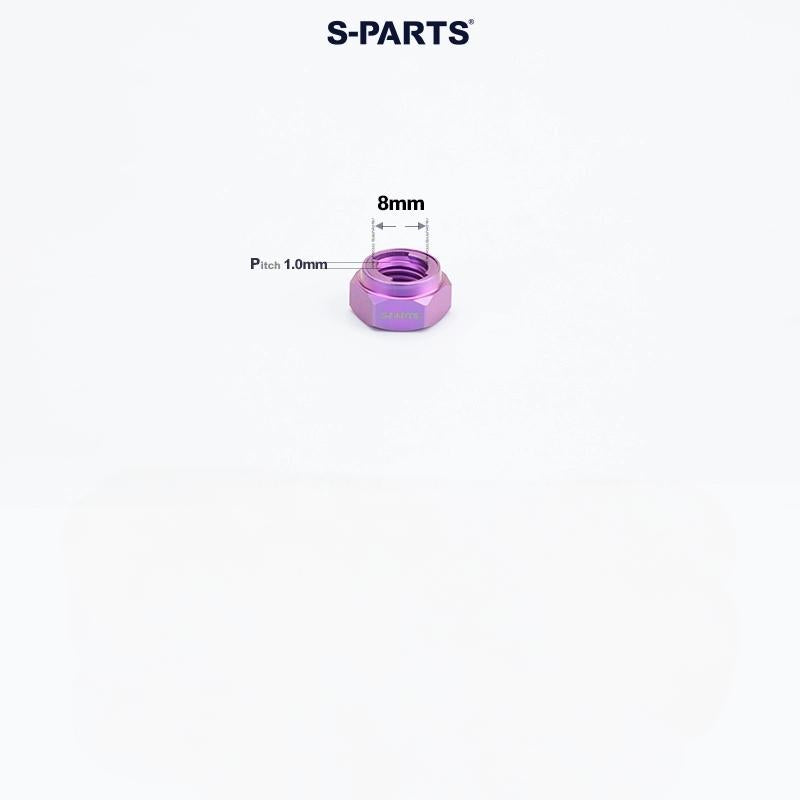

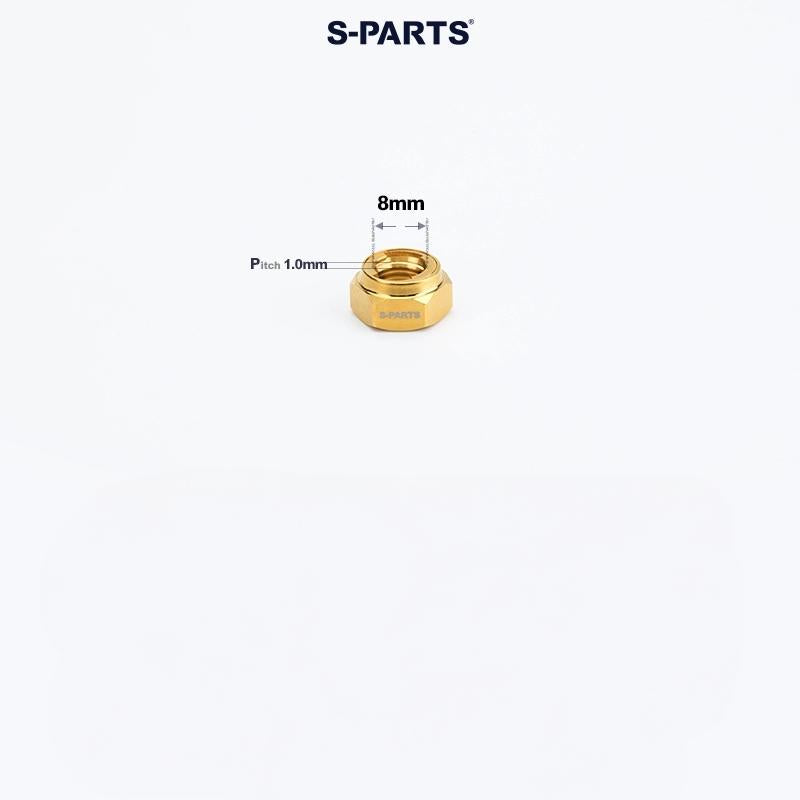

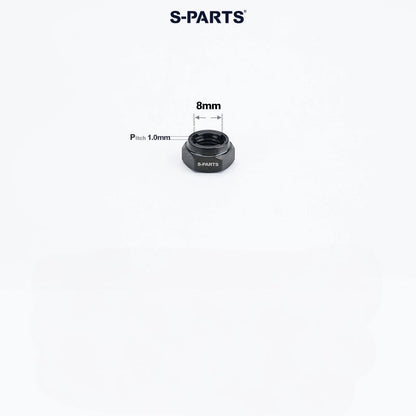

M8 | 1.0 mm | 15 mm | 7 mm | 2.72 g | 13 mm |

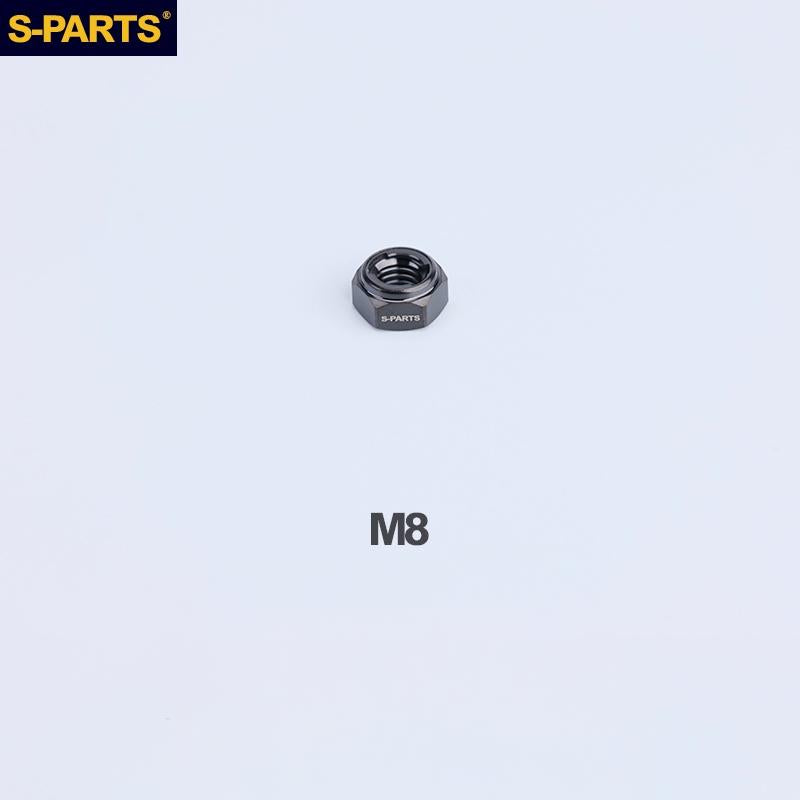

M8 | 1.25 mm | 15 mm | 7.5 mm | 2.77 g | 13 mm |

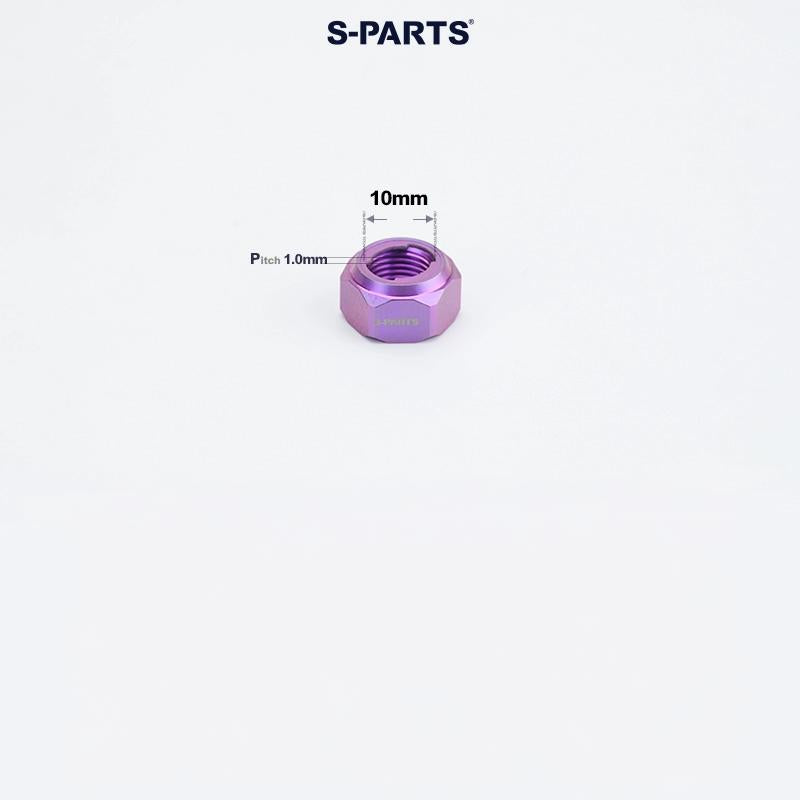

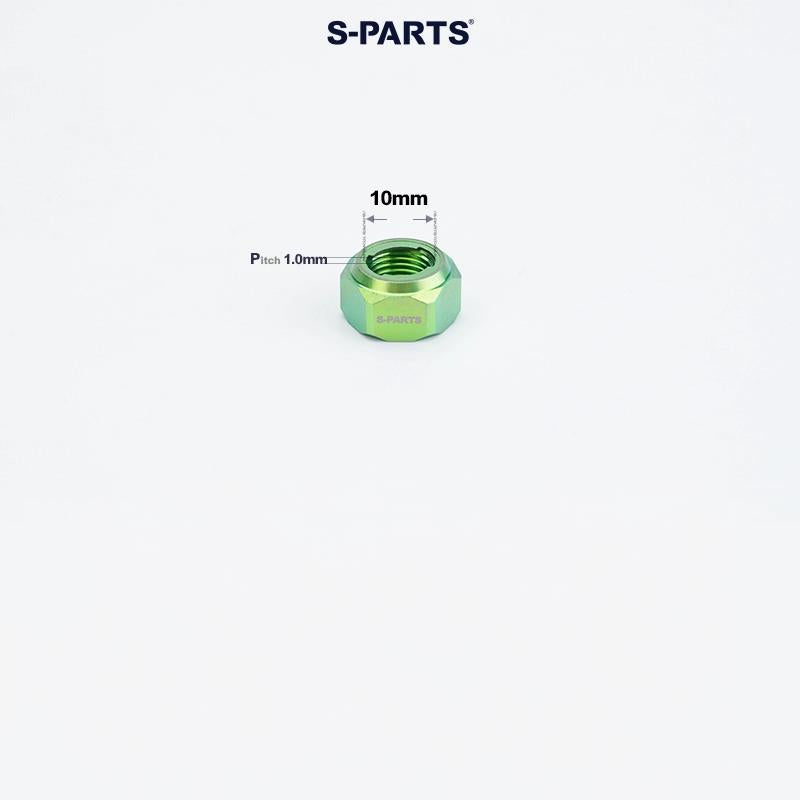

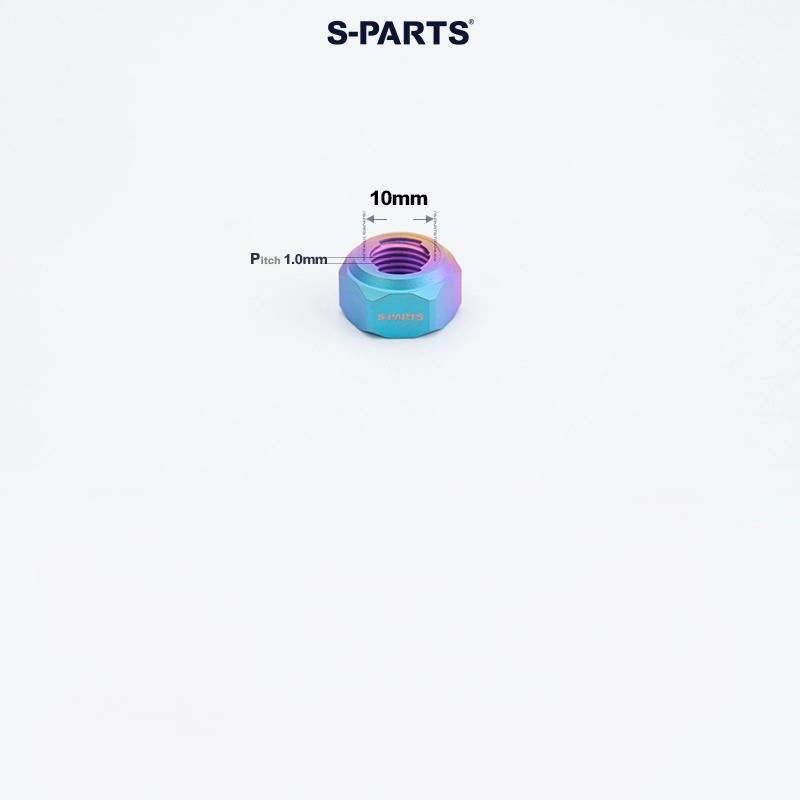

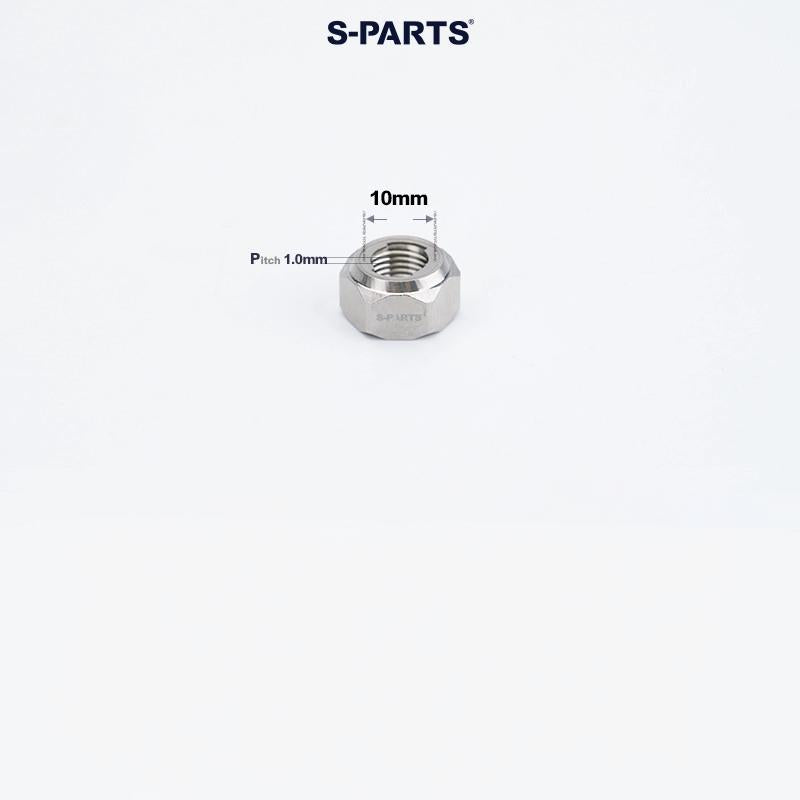

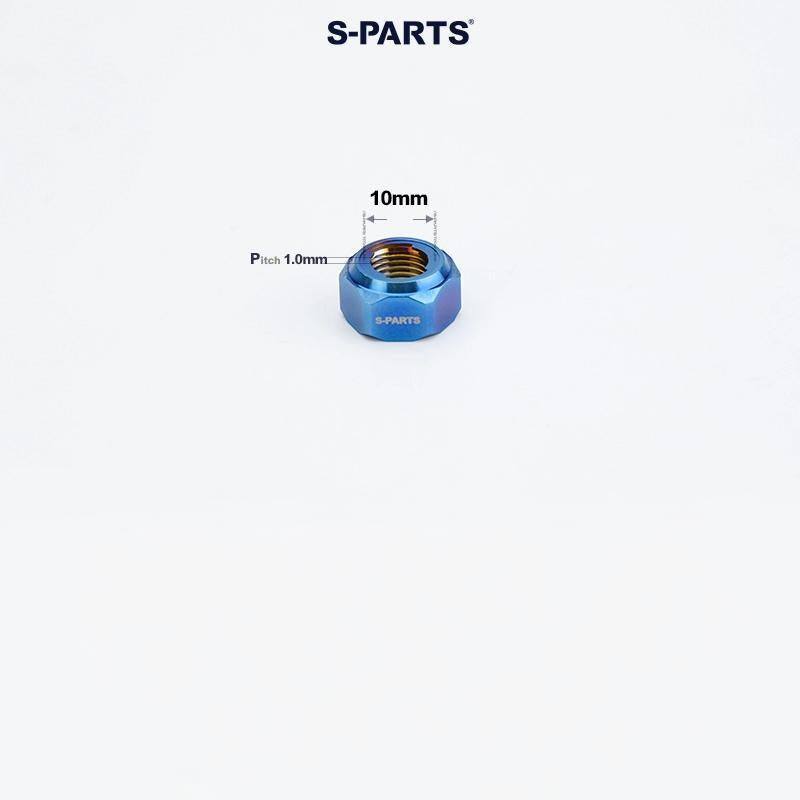

M10 | 1.0 mm | 18 mm | 10 mm | 5.45 g | 16 mm |

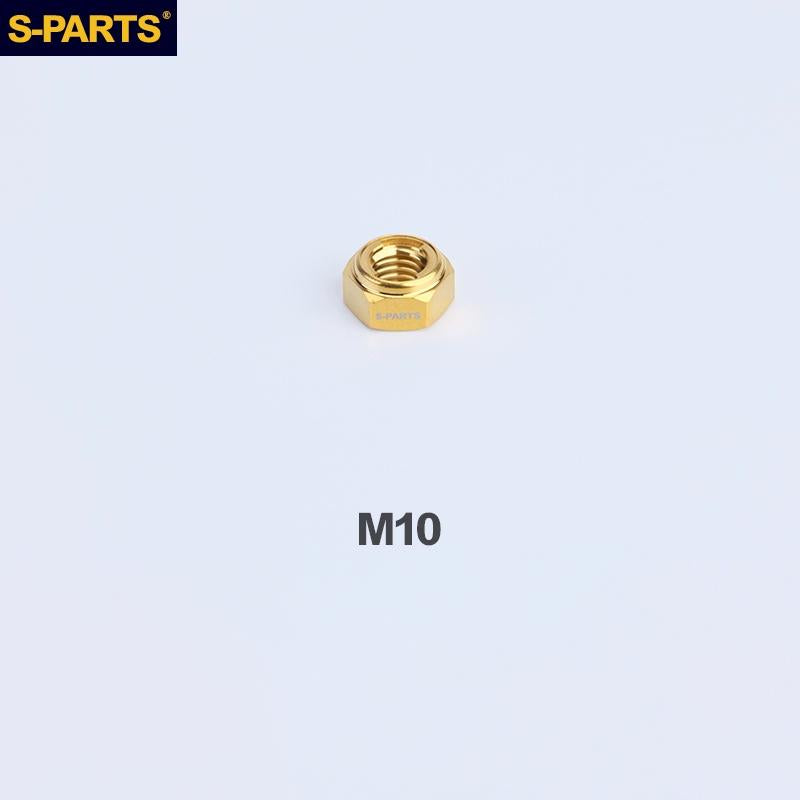

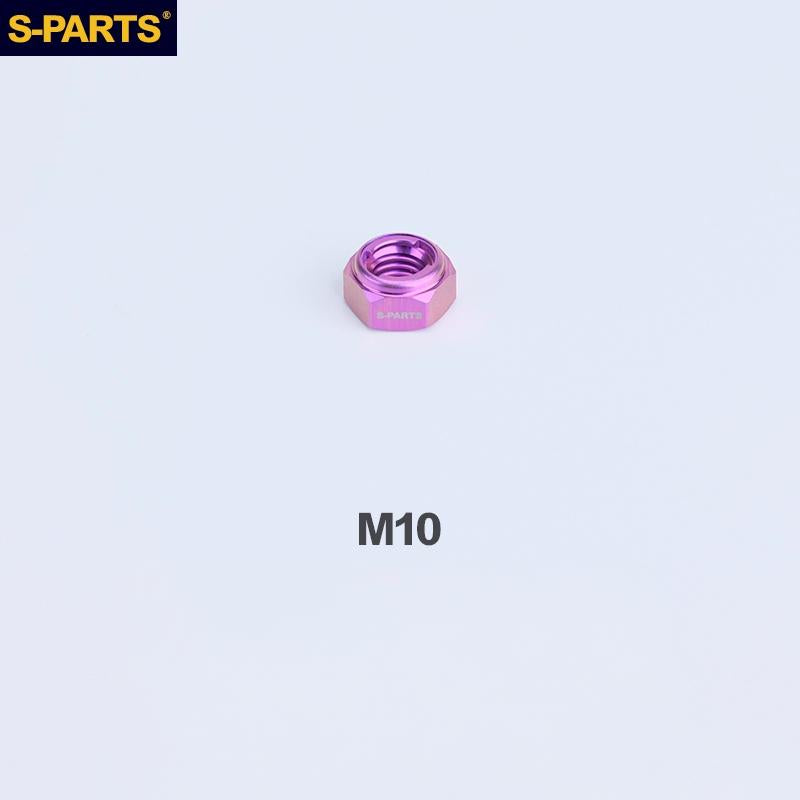

M10 | 1.25 mm | 18 mm | 10 mm | 5.67 g | 16 mm |

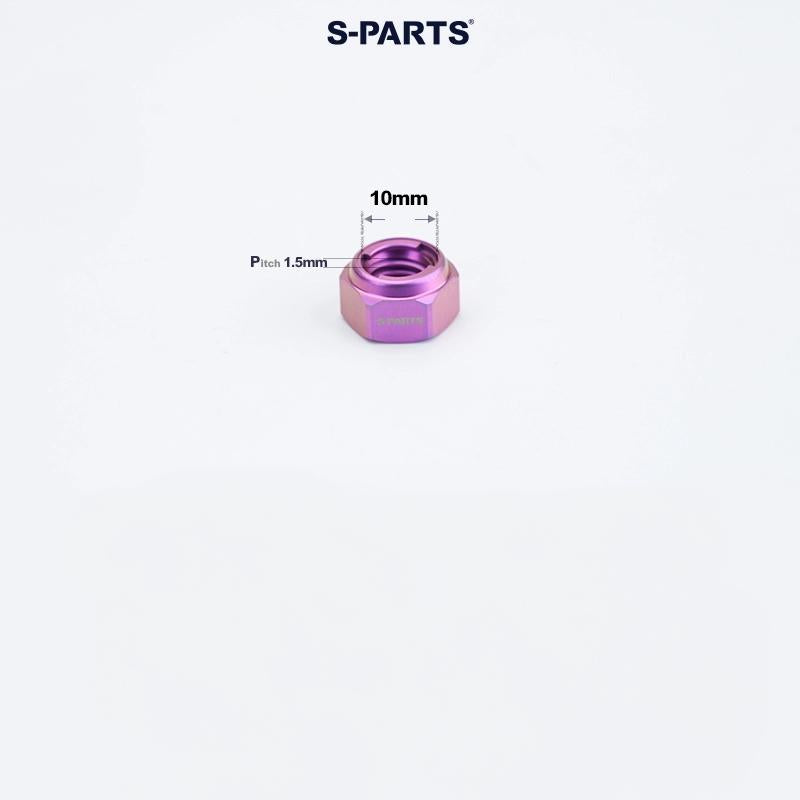

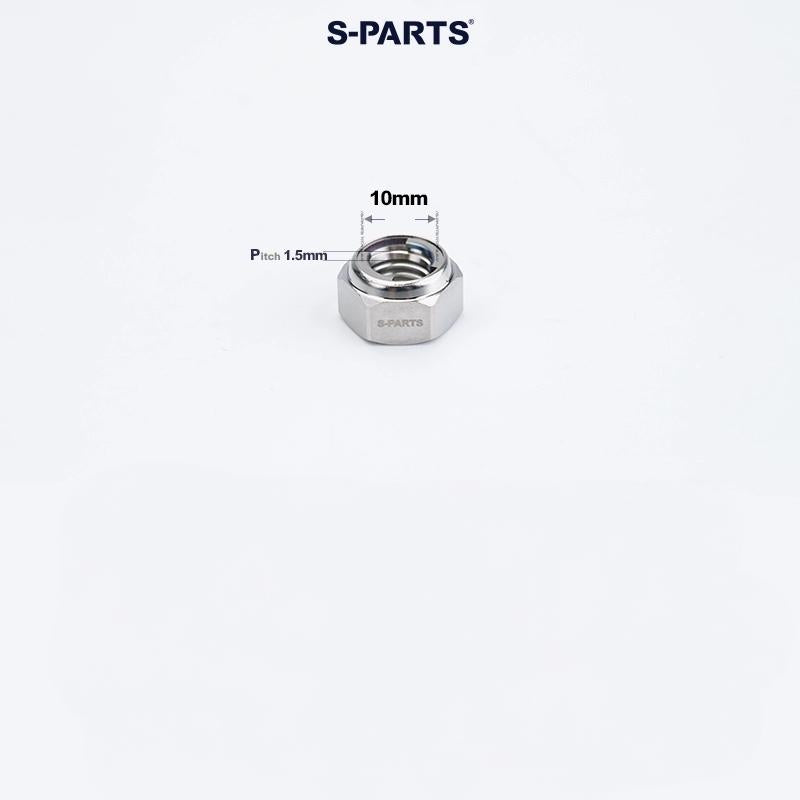

M10 | 1.5 mm | 18 mm | 10 mm | 5.60 g | 16 mm |

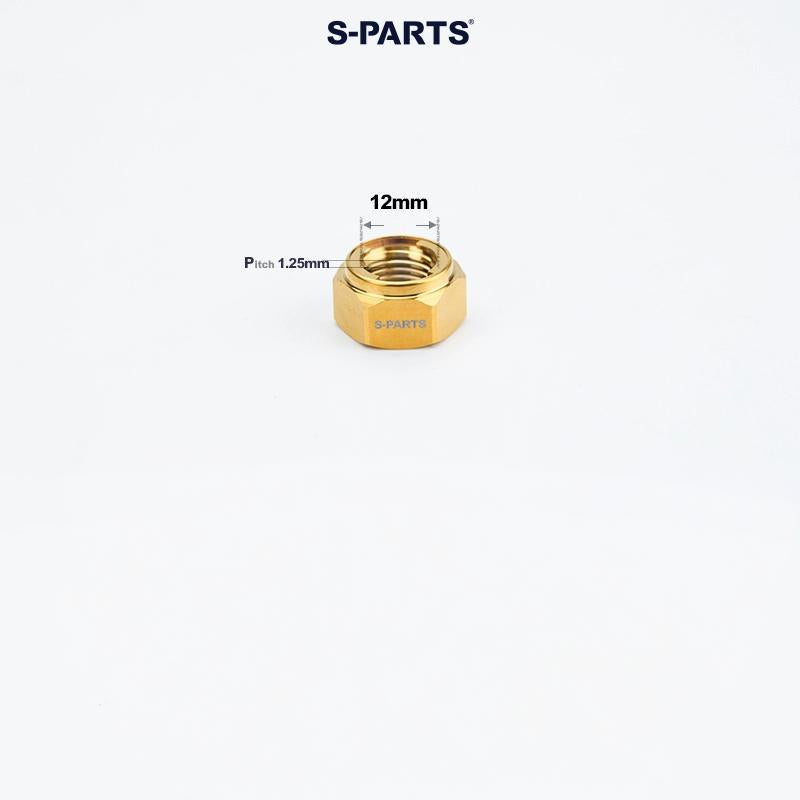

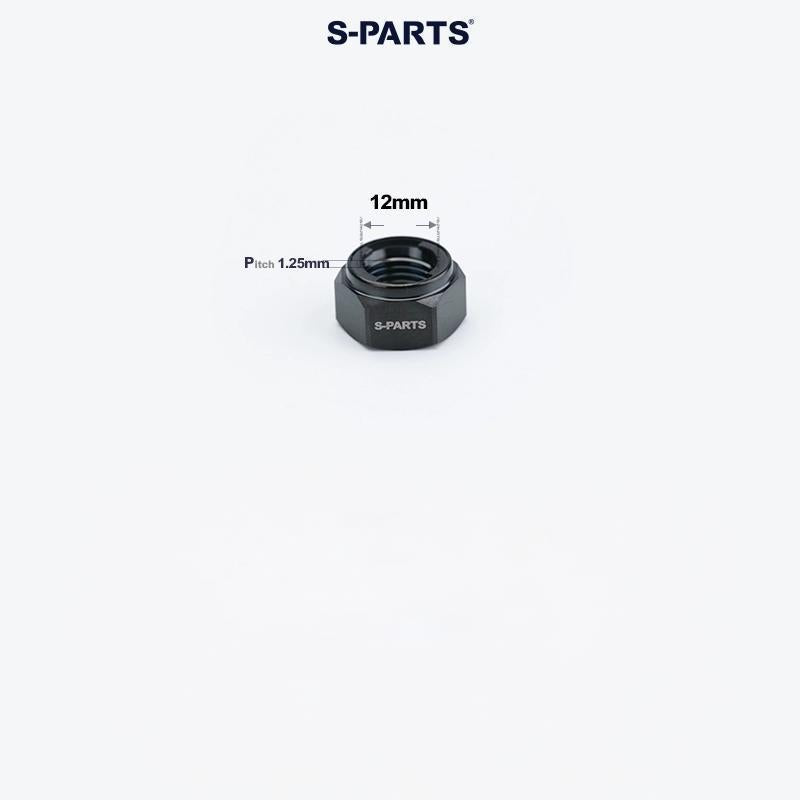

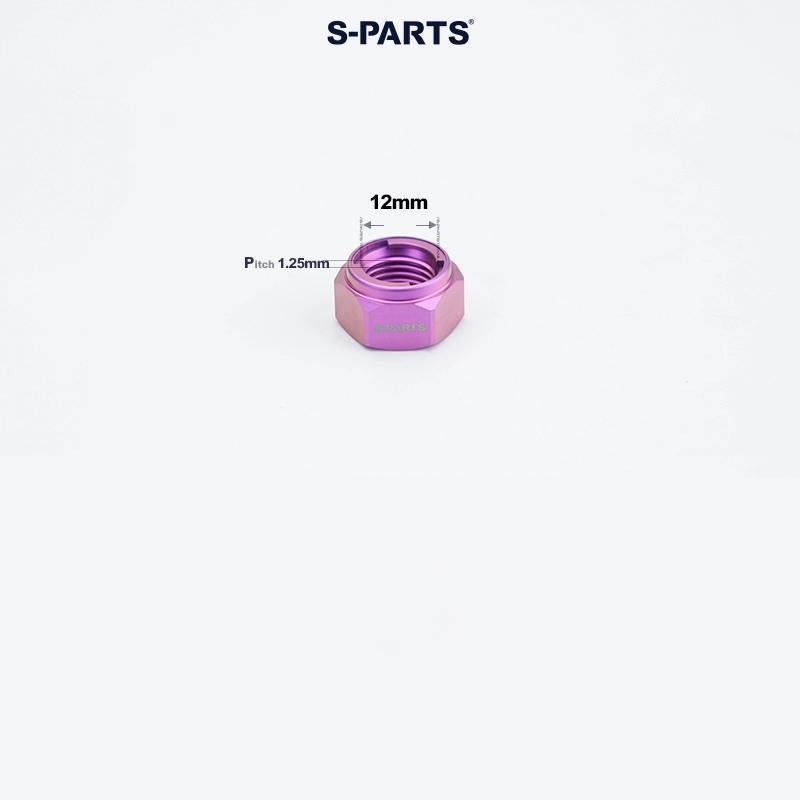

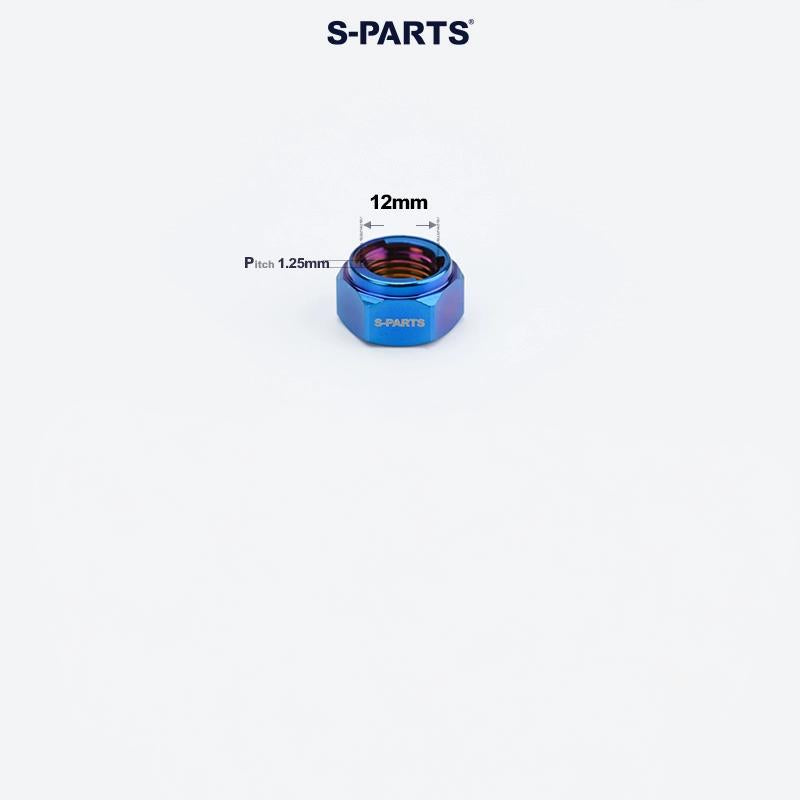

M12 | 1.25 mm | 20 mm | 11 mm | 7.34 g | 18 mm |
