Titanium Hardware Upgrade Kit for Brembo RCS Corsa Corta Master Cylinder – 8PCS Brake Components
Titanium Hardware Upgrade Kit for Brembo RCS Corsa Corta Master Cylinder – 8PCS Brake Components
Couldn't load pickup availability
Product Description
Where Precision Engineering Meets Lightweight Performance

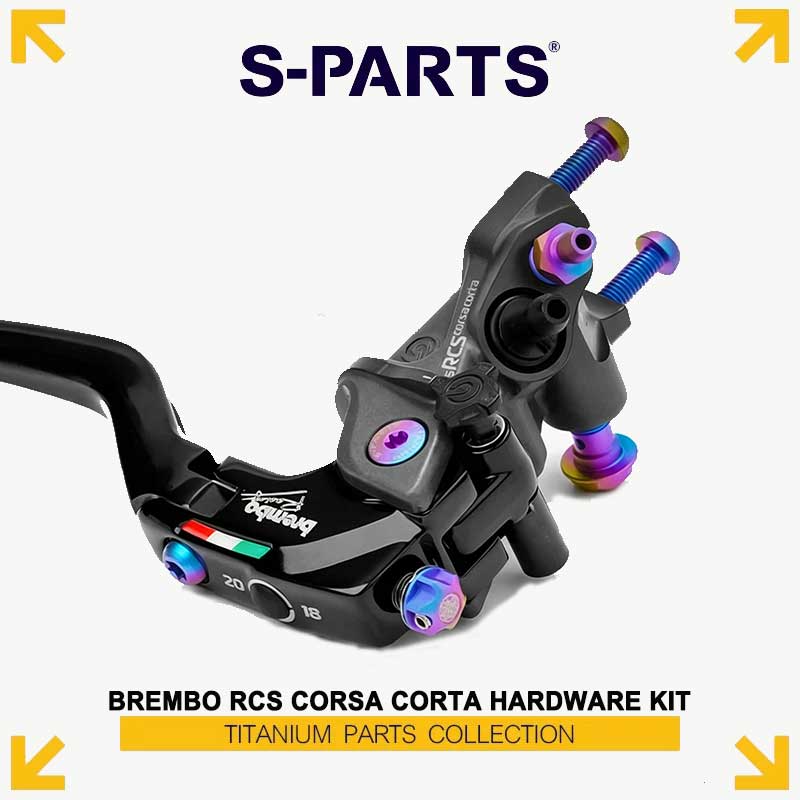

Upgrade your Brembo RCS Corsa Corta (RCS CC) radial master cylinder with the S-PARTS premium titanium hardware upgrade kit.
Designed for riders seeking improved aesthetics, reduced weight, and long-term durability, this 8-piece upgrade set replaces selected OEM hardware with precision-machined Ti-6Al-4V Titanium Alloy (ASTM Grade 5) components.
Through strict material selection and manufacturing control, S-PARTS titanium hardware achieves an average tensile strength exceeding 1050 MPa, surpassing the ASTM Grade 5 minimum requirement.
Compared with traditional steel hardware, titanium provides exceptional strength-to-weight performance while reducing weight by approximately 50%.
Technical Specifications
| Attribute | Details |
|---|---|
| Product Type | Titanium Brake Master Cylinder Hardware Upgrade Kit |
| Application | Brembo RCS Corsa Corta (RCS CC) Master Cylinder |
| Material | Ti-6Al-4V Titanium Alloy (ASTM Grade 5) |
| Kit Quantity | 8PCS / Set |
| Manufacturing Process | 650°C Hot Forging + Precision CNC Machining |
| Tensile Strength | Average ≥1050 MPa |
| Weight Reduction | Approx. 50% lighter than equivalent steel hardware |
| Surface Treatment | PVD Coating / Titanium Anodizing / Natural Titanium Finish |
| Available Colors | Gold, Black, Blue, Green, Purple, Candy, Titanium |

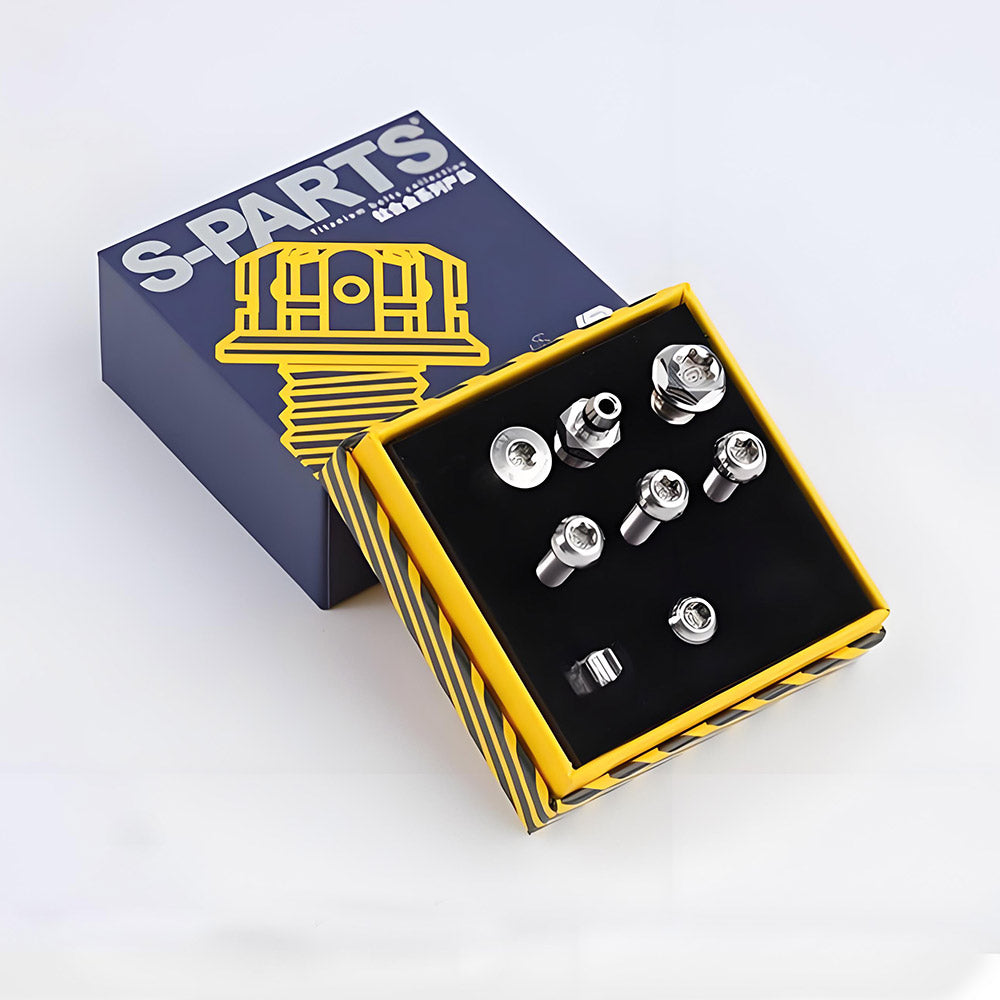

What's Included in the S-PARTS Kit
Actual package contains 8 titanium replacement components.

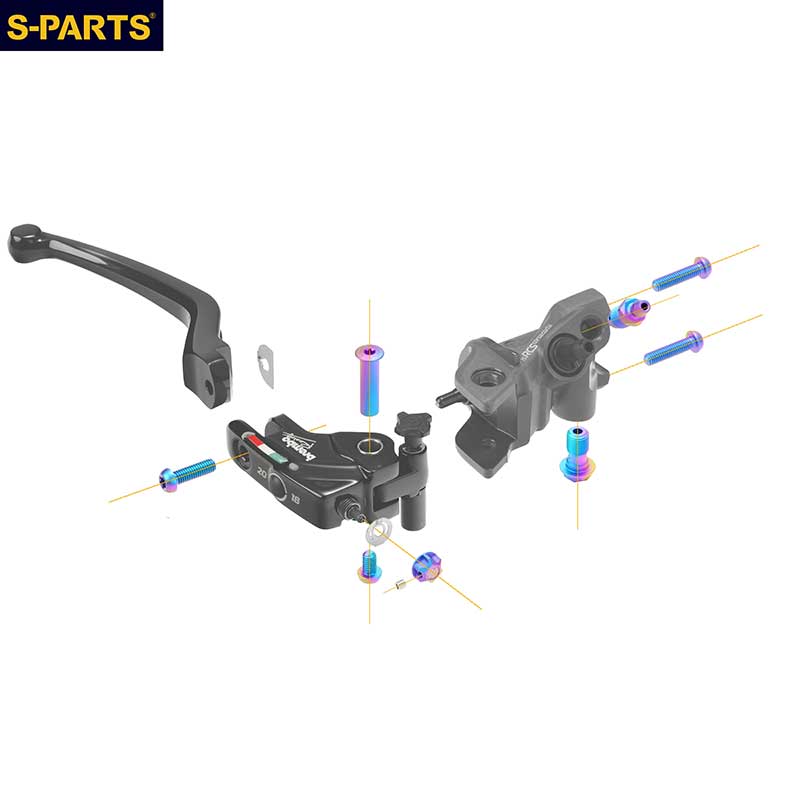

The exploded diagram contains 11 reference positions to show the complete Brembo RCS Corsa Corta structure. OEM components not included in this kit are clearly marked below.
| Component | Quantity |
|---|---|
| Master Cylinder Main Pivot Bolt | 1PCS |
| Pivot Pin Locking Screw | 1PCS |
| Brake Hose Banjo Bolt | 1PCS |
| Bleed Screw / Bleeder Valve | 1PCS |
| Handlebar Clamp Base Mounting Bolts | 2PCS |
| Span Adjustment Knob | 1PCS |
| Lever Pivot Fixing Screw | 1PCS |

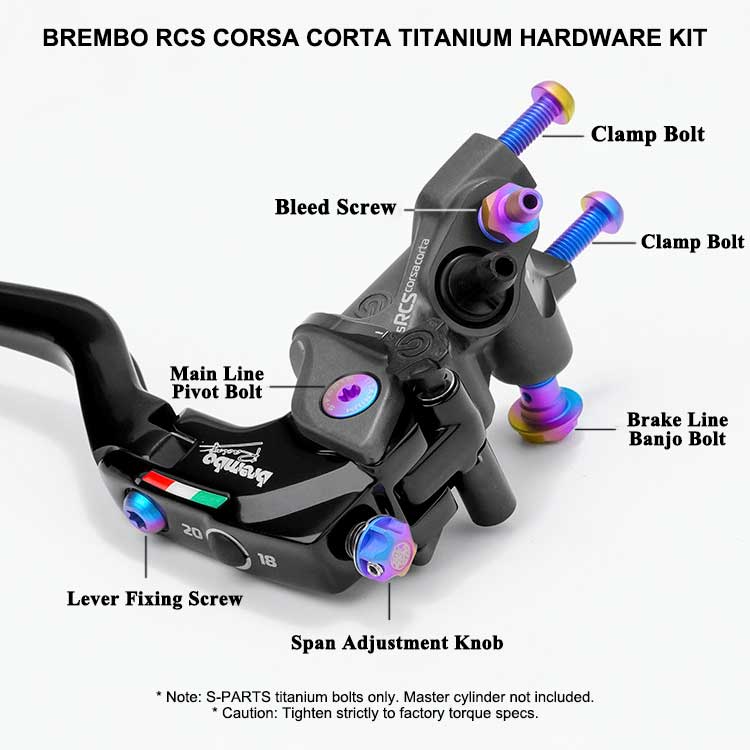

Brembo RCS Corsa Corta Assembly Reference
Use the following table to identify each component position, required tools, and installation requirements.
| No. | Component Name | Qty | Required Tool | Installation Notes | Availability |
|---|---|---|---|---|---|
| 1 | Span Adjustment Knob | 1 | 2mm Hex | — | Included in S-PARTS Kit |
| 2 | Preload Adjustment Screw | 1 | 1.5mm Hex | — | Retain Original Brembo Component |
| 3 | Preload Adjustment Rod | 1 | — | — | Retain Original Brembo Component |
| 4 | Bleeder Valve / Bleed Screw | 1 | 11mm Open-End Wrench | — | Included in S-PARTS Kit |
| 5 | Brake Hose Banjo Bolt | 1 | T50 Torx | Reuse OEM sealing washers | Included in S-PARTS Kit |
| 6 | Handlebar Clamp Base | 1 | — | — | Retain Original Brembo Component |
| 7 | Clamp Base Mounting Bolts | 2 | 10mm Hex Wrench / Socket | Apply Titanium Anti-Seize Paste | Included in S-PARTS Kit |
| 8 | Master Cylinder Main Pivot Bolt | 1 | T30 Torx | Main lever pivot hardware replacement | Included in S-PARTS Kit |
| 9 | Pivot Pin Locking Screw | 1 | T30 Torx | Apply Medium Strength Threadlocker | Included in S-PARTS Kit |
| 10 | Lever Pivot Fixing Screw | 1 | T30 Torx | Apply Titanium Anti-Seize Paste | Included in S-PARTS Kit |
| 11 | Brake Lever | 1 | — | — | Retain Original Brembo Component |
Note: The assembly diagram contains 11 reference positions. Only the components marked “Included in S-PARTS Kit” are supplied. Original Brembo components should be retained unless specifically replaced.
S-PARTS Manufacturing Process
650°C Hot Forging + Precision CNC Machining
S-PARTS combines advanced forging technology with precision machining to achieve exceptional mechanical consistency.
Selected titanium components are manufactured through a controlled 650°C hot forging process, improving material density and structural stability.
To maintain consistent production accuracy, each custom forging mold is strictly controlled and retired after no more than 300 production cycles.
After forging, every component undergoes precision CNC machining with micron-level tolerance control.
This ensures:
- Accurate thread engagement
- Smooth installation
- Reliable fastening performance
- Consistent dimensional accuracy
Premium Titanium Surface Finishes
PVD Vacuum Nitride Coating
Available Colors: Gold / Black / Blue
A dense metallic nitride coating is formed on the titanium surface through PVD vacuum technology.
Benefits:
- Increased surface hardness
- Improved wear resistance
- Enhanced impact protection
- Long-lasting color durability
Titanium Anodizing
Available Colors: Green / Purple / Candy
A chemical-free electrochemical oxidation process creates controlled oxide layers on the titanium surface.
The unique colors are produced through natural light interference caused by different oxide layer thicknesses.
No dyes are used.
Benefits:
- Excellent corrosion resistance
- Unique titanium appearance
- Premium racing aesthetics
Natural Titanium Finish
Available Color: Titanium
The Titanium version maintains the natural appearance of Ti-6Al-4V titanium without additional coating.
Depending on finishing process:
- Media blasted titanium
- Polished titanium
The original aerospace-grade metallic appearance is preserved.
Installation Notes
Titanium fasteners provide excellent performance, but correct installation is essential.
Prevent Thread Galling
When titanium contacts aluminum or steel components, improper installation may cause thread galling.
We strongly recommend applying titanium-compatible Anti-Seize Paste to:
- No.7 Clamp Base Mounting Bolts
- No.10 Lever Pivot Fixing Screw
Secure Critical Fasteners
Apply Medium Strength Threadlocker to:
- No.9 Pivot Pin Locking Screw
This helps prevent loosening caused by continuous motorcycle vibration.
Torque Recommendation
Always:
- Use proper T30 / T50 Torx tools
- Avoid worn tools that may damage the titanium surface
- Follow Brembo recommended torque specifications
- Do not over-tighten titanium fasteners
Why Choose S-PARTS Titanium Hardware?
Aerospace-Grade Ti-6Al-4V Titanium
Exceptional strength-to-weight ratio with excellent corrosion resistance.
Precision Brembo RCS CC Fitment
Designed specifically for Brembo RCS Corsa Corta master cylinder systems.
Lightweight Performance Upgrade
Approximately 50% lighter than equivalent steel hardware.
Racing-Inspired Custom Appearance
Multiple premium finishes for personalized brake system styling.
Professional Installation Support
Clear hardware identification and correct anti-seize/threadlocker guidance.
