Titanium Bolt Kit for Shimano XT/XTR M8200 M8250 M9200 M9250 – 18-Piece Kit or Individual Parts

Titanium Bolt Kit for Shimano XT/XTR M8200 M8250 M9200 M9250 – 18-Piece Kit or Individual Parts

Regular price $159.99 USD
Regular price Sale price $159.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
OPTION
COLOR: Gold

Product Description

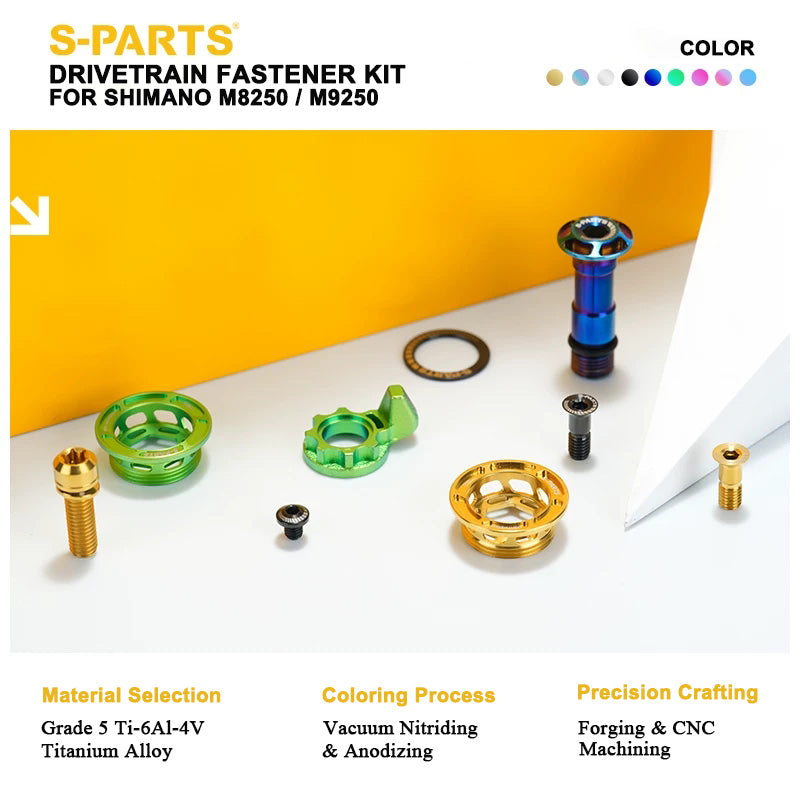

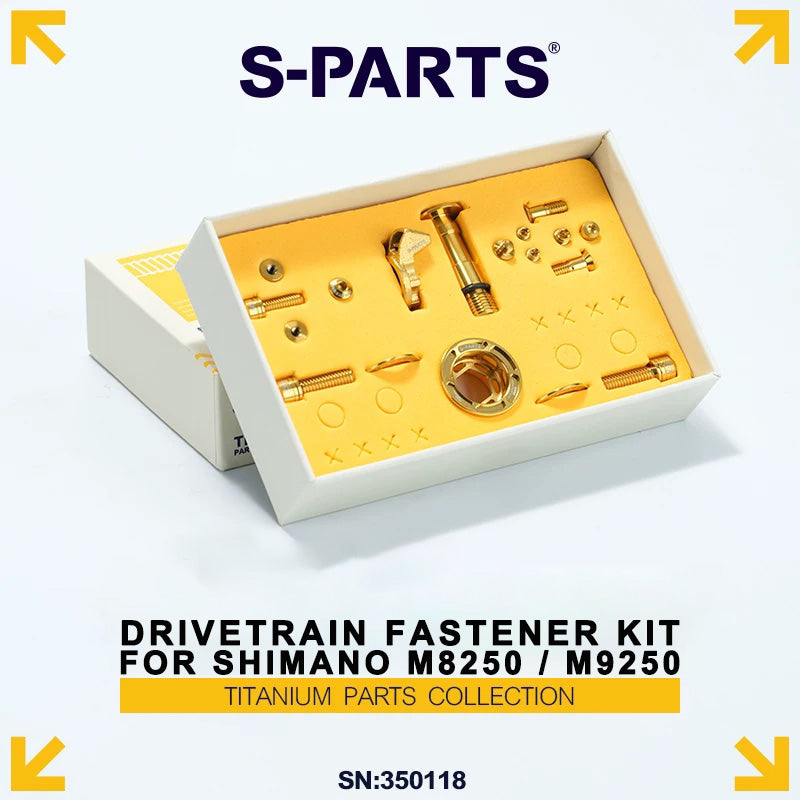

Upgrade your Shimano drivetrain with S-PARTS Grade 5 titanium bolts, compatible with Shimano DEORE XT M8200 / M8250 and XTR M9200 / M9250 components. Choose the complete 18-piece kit for the shifter, rear derailleur and crankset, or buy individual parts separately. Available in 10 colors.

Key Specifications

  • Compatibility: Shimano XT M8200 / M8250, XTR M9200 / M9250

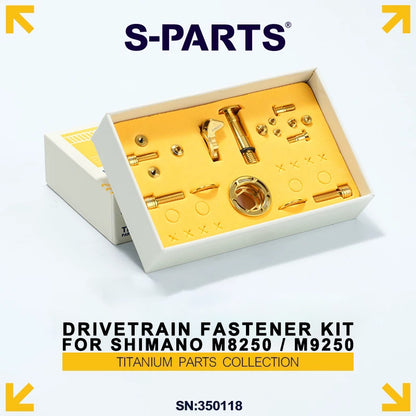

  • Purchase Options: Complete 18-piece kit or individual parts
  • Material: Grade 5 Titanium (Ti-6Al-4V)
  • Average Tensile Strength: Over 1,050 MPa (industry minimum reference: 895 MPa)
  • Manufacturing: Hot-forged heads + precision CNC machining
  • Colors: Gold, Rainbow, Titanium, Black, Blue, Green, Purple, Candy, Indigo, Copper

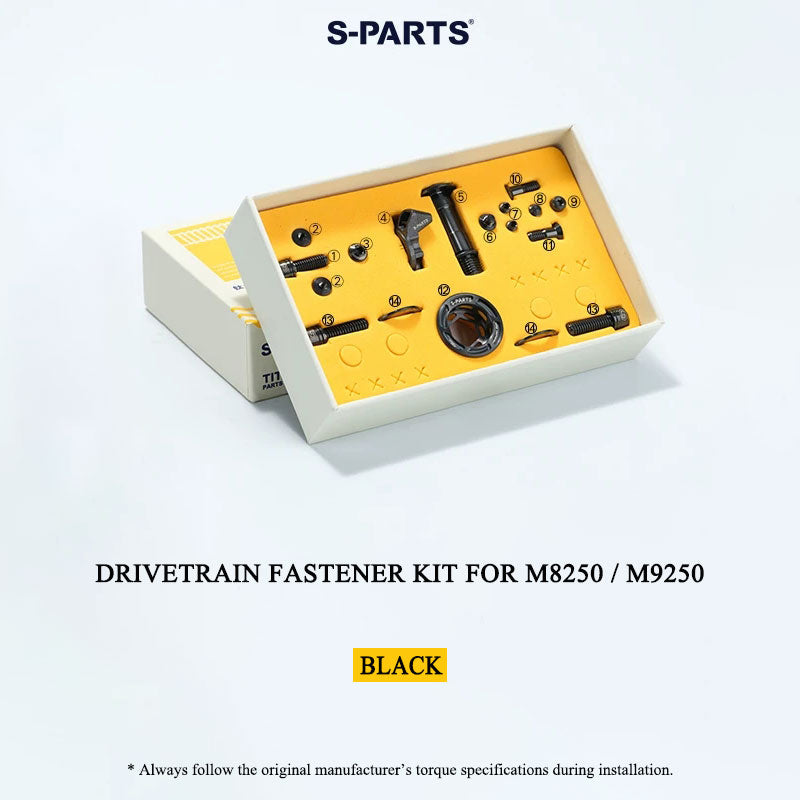

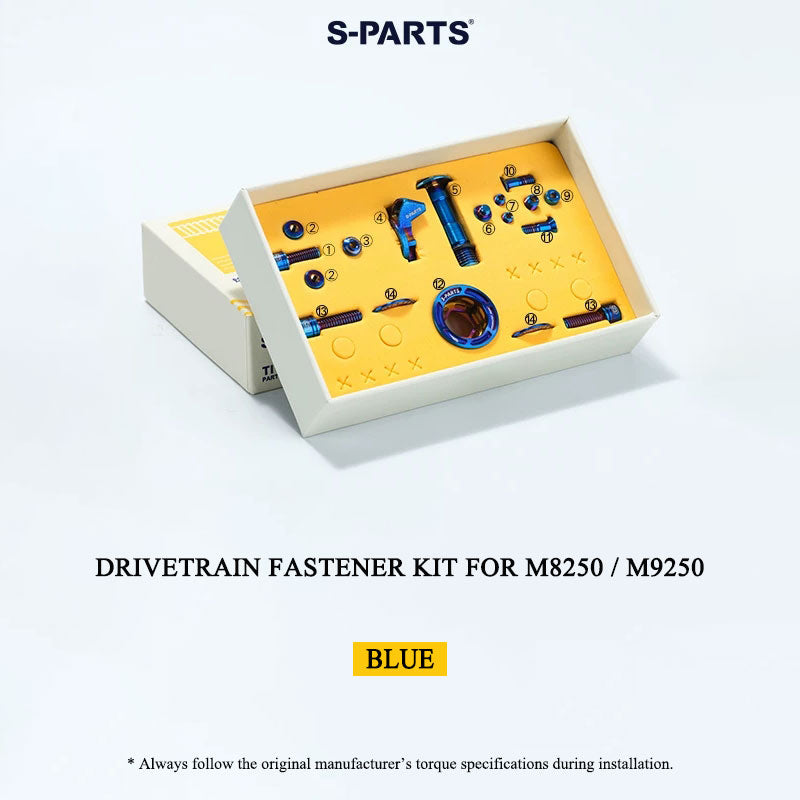

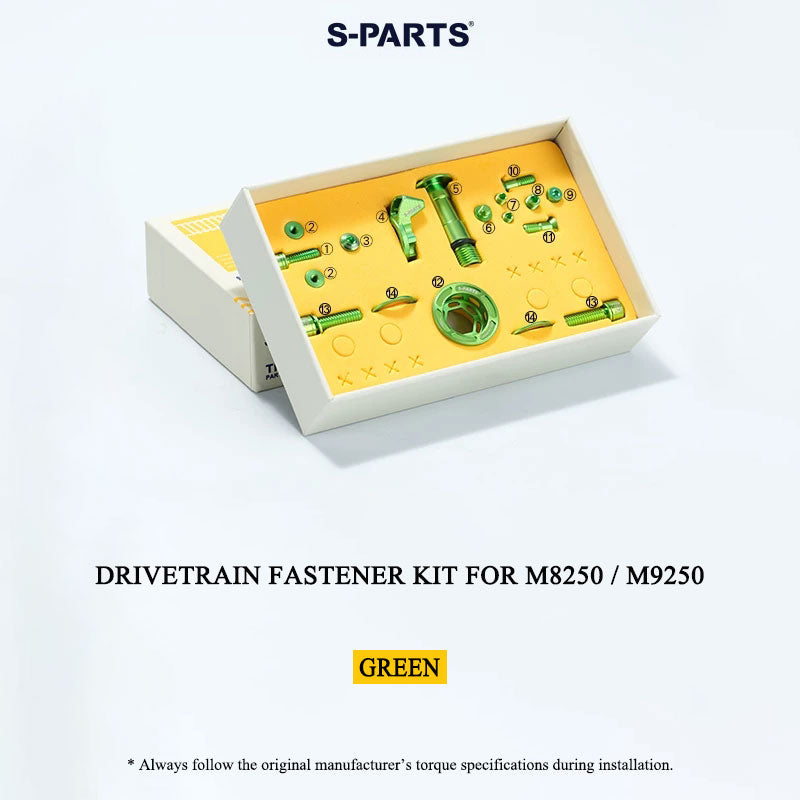

Parts & Specifications

No. Part Size Weight Tool Kit Qty
① Shifter Clamp Bolt M5 × 14 mm 1.86 g T25 Torx 1
② Shifter Button Fixing Nut — 0.77 g 3 mm Hex 2
③ Shifter Top Cover Bolt M4 × 5 mm 0.4 g 2.5 mm Hex 1
④ Rear Derailleur Positioning Plate — 4.23 g — 1
⑤ Rear Derailleur Pivot Axle (with 1 rubber O-ring) — 5.9 g 5 mm Hex 1
⑥ Rear Derailleur Link Pin — 1.0 g 3 mm Hex 1
⑦ Limit Screw M4 × 16 mm 0.55 g 2 mm Hex 2
⑧ B-Tension Screw M5 × 16 mm 1.0 g — 1
⑨ Decorative Cover Bolt M3 × 6 mm 0.35 T10 Torx 1
⑩ Guide Pulley Bolt M5 × 13.5 mm 0.83 g 3 mm Hex 1
⑪ Tension Pulley Bolt — — — 1
⑫ Crank Cover M20 2.7 g 10 mm Hex 1
⑬ Crank Fixing Bolt M6× 19 mm 3.3 g T30 Torx 2
⑭ Pedal Washer M14, 20 mm OD × 14 mm ID × 1 mm thick 0.64 g — 2

Weights are per piece. Each individual part option is sold as 1 piece unless otherwise stated. The complete kit contains the quantities shown in the table. The rear derailleur pivot axle comes with 1 rubber O-ring.

IMPORTANT INSTALLATION NOTE

The included rubber O-ring must be used to replace the original factory snap ring (circlip) during installation.

Installed Showcase

Titanium hardware installed on a Shimano shifter, rear derailleur and crankset.

S-PARTS titanium bolts installed on Shimano XT XTR shifter, rear derailleur and crankset

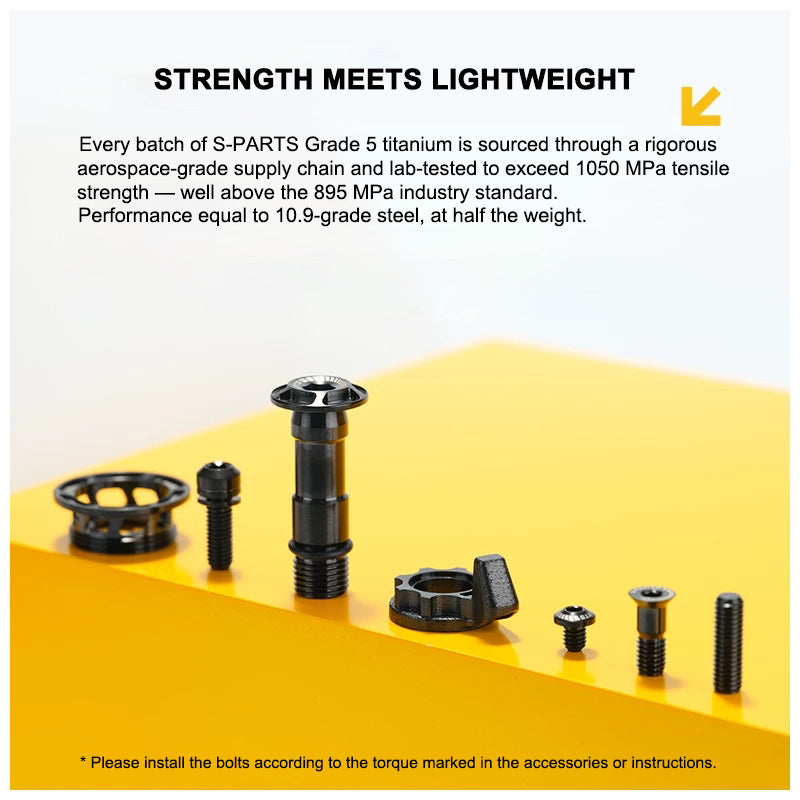

Grade 5 Titanium: High Strength, Low Weight

S-PARTS works with a metal-material supply chain serving the civilian aerospace industry in Xi'an and selects Grade 5 titanium (Ti-6Al-4V) that meets its own material standards after long-term laboratory comparison testing.

The material has an average tensile strength above 1,050 MPa, well over the 895 MPa industry minimum reference. Under comparable conditions, its mechanical performance is comparable to 10.9-grade steel hardware, at approximately half the weight.

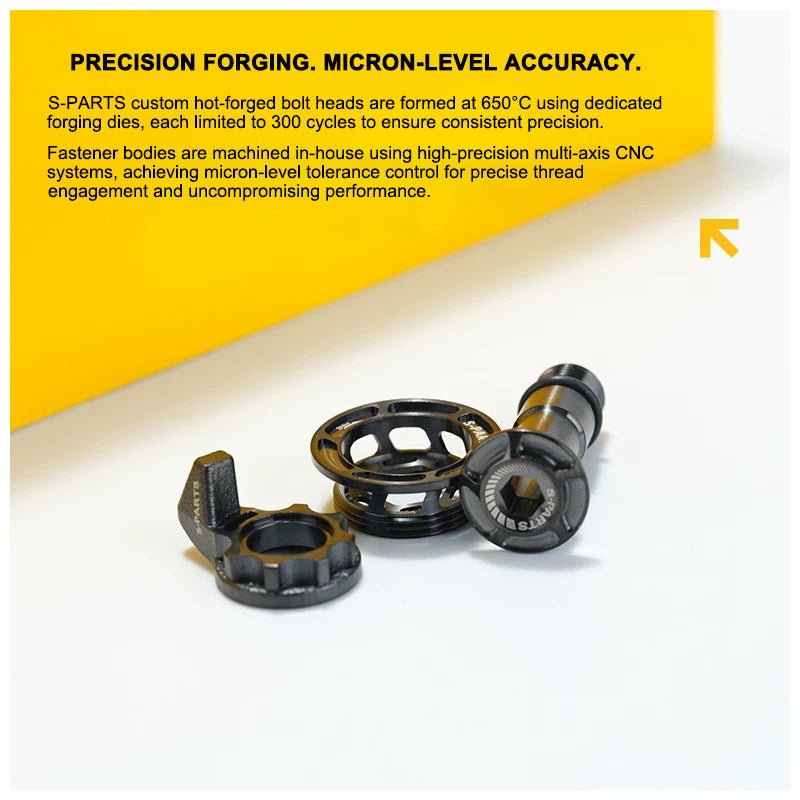

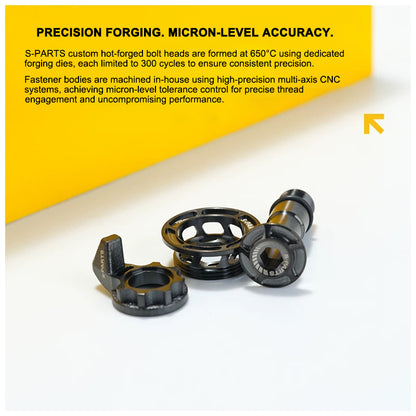

Precision Manufacturing

  • Hot-forged heads: formed in custom S-PARTS dies at approximately 650°C. Each die is used for no more than 300 cycles to keep forming consistent.
  • CNC-machined bodies: made on precision CNC machines with micron-level tolerance control for accurate threads and a consistent fit.

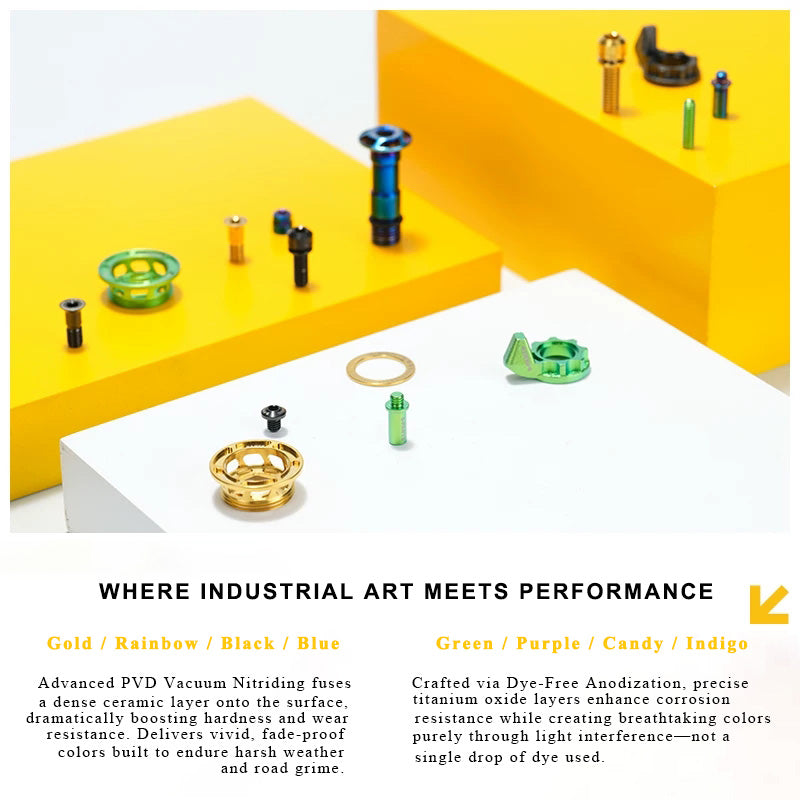

Colors & Surface Finishes

PVD Vacuum Nitriding: Gold, Rainbow, Black, Blue and Copper. Forms a dense nitride coating that improves surface hardness and impact resistance. The finish resists discoloration during normal use, although severe abrasion may affect the coating.

Anodizing: Green, Purple, Candy and Indigo. Forms an oxide layer that improves surface hardness and corrosion resistance. The colors come from light interference in the oxide layer, with no dyes used.

  • Candy color: The color has a flowing, varied look and the pattern is random, so each piece looks slightly different.
  • Thread Color Note: White lines on the threads are a normal result of the coloring process and do not affect use.

Installation & Torque Warning

Always follow the original component manufacturer's torque values. Use a calibrated torque wrench and the correct tools. Do not assume the torque specification for the original steel hardware can be increased for titanium hardware.

Improper installation or torque can cause fastener damage, loosening or component failure. If you are unsure, professional installation is recommended.
