Product Description

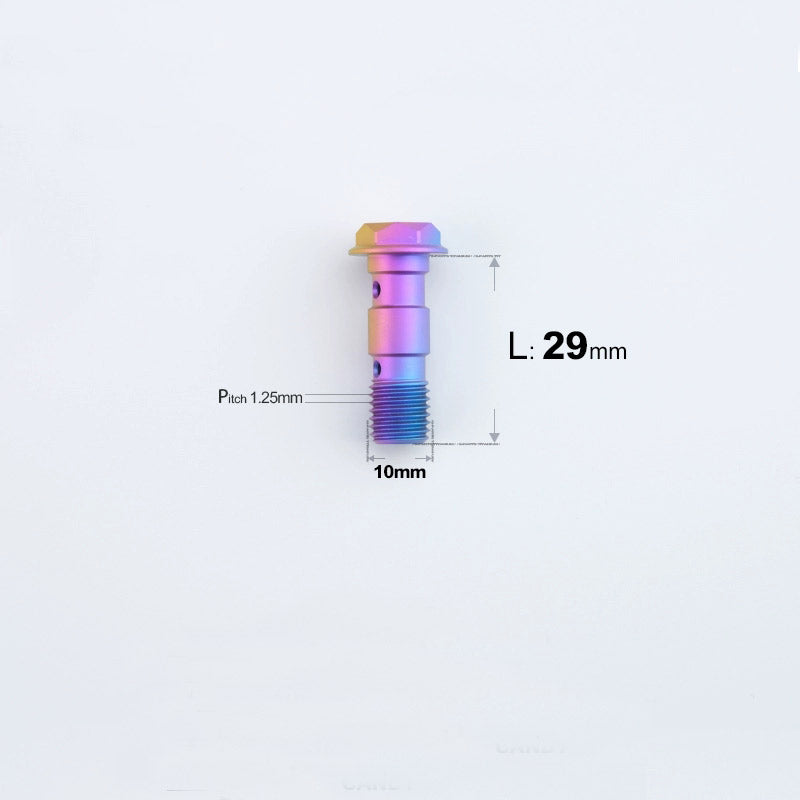

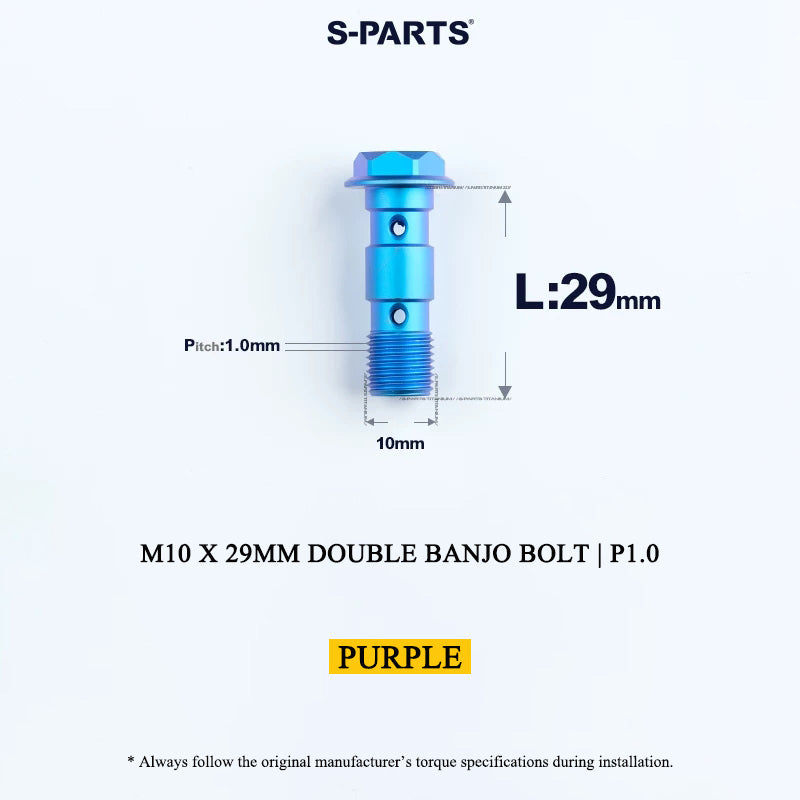

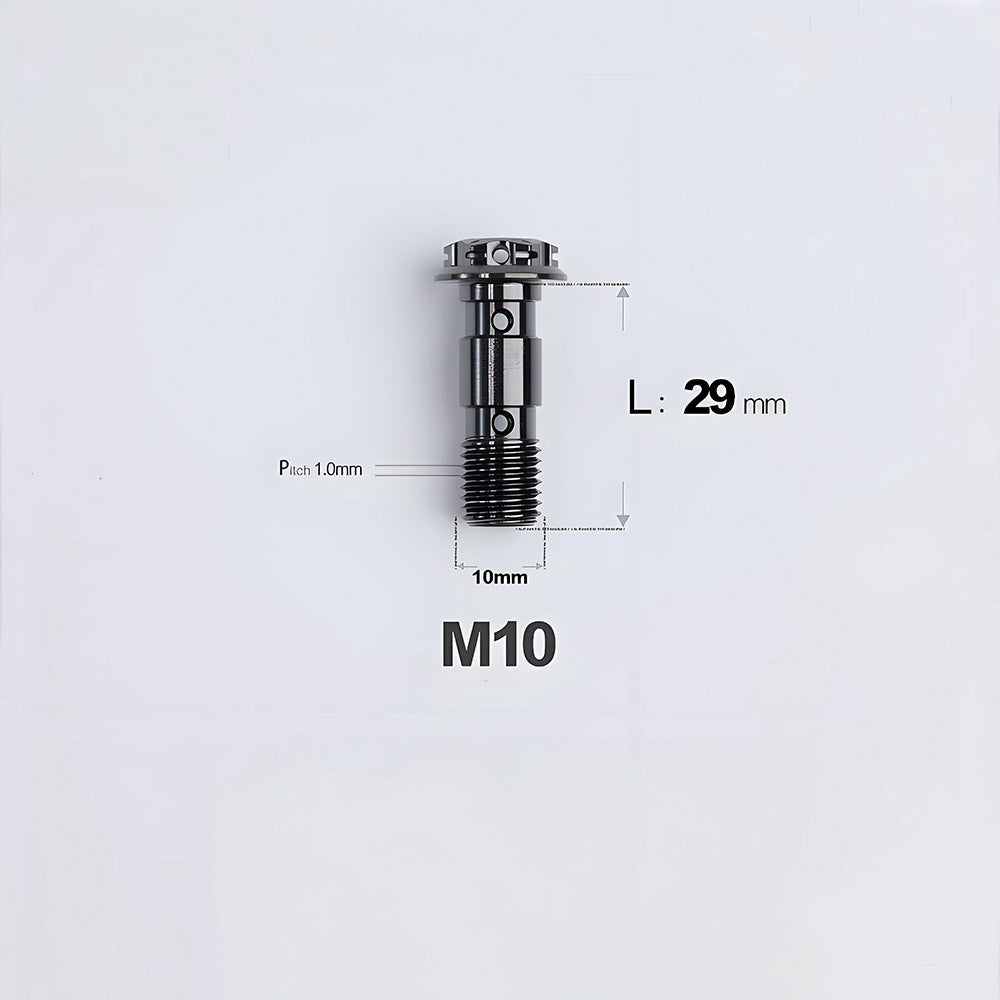

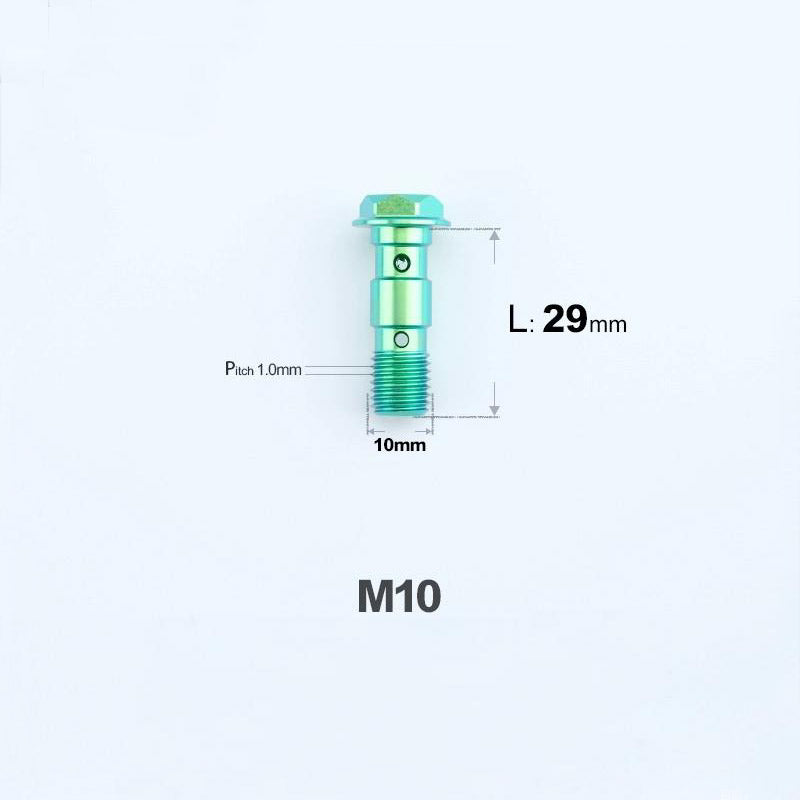

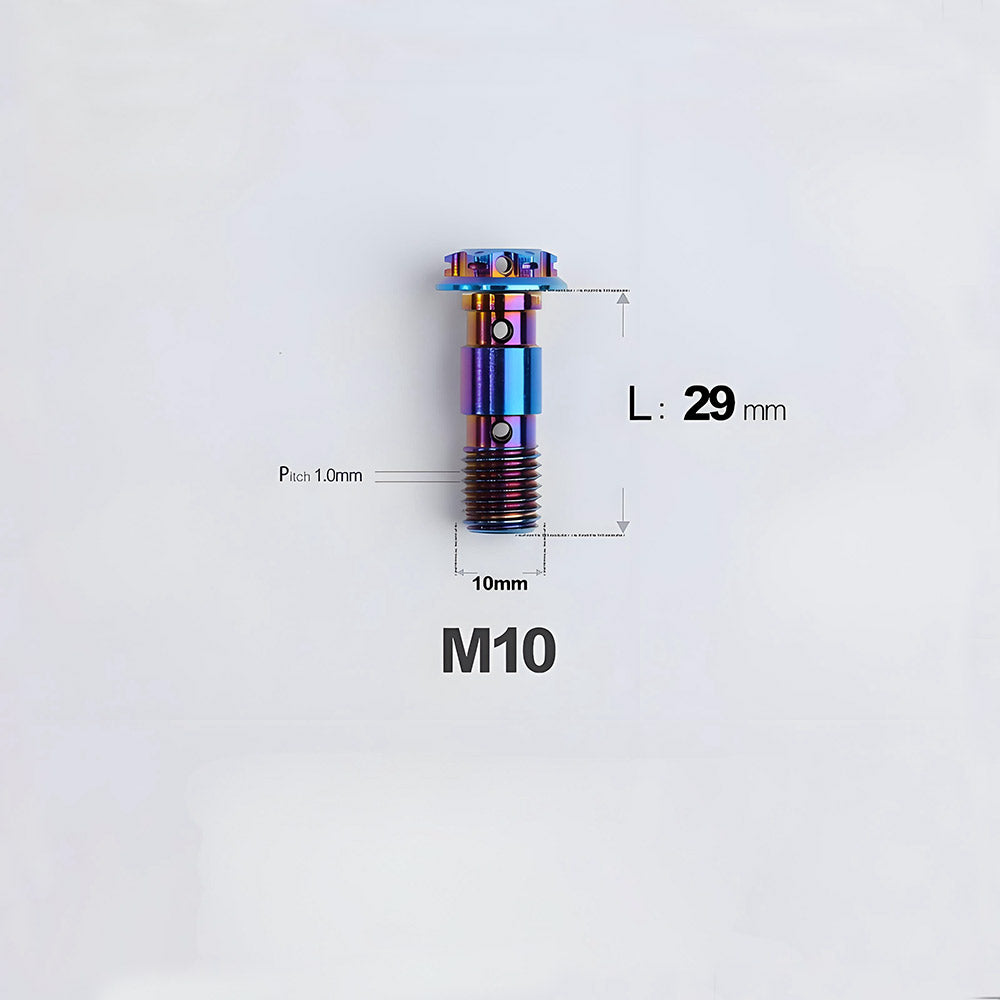

S-PARTS Titanium Double Banjo Bolt M10 × 29mm

Designed for hydraulic brake systems requiring dual hose connections, the S-PARTS titanium double banjo bolt combines high-strength titanium construction with precision manufacturing.

Available in M10 × 29mm with P1.0mm or P1.25mm thread pitch options, allowing riders to select the correct specification for their brake system.

Key Specifications

Variant Options

Flanged Faceted Head

• Size: M10 × 29mm
• Thread Pitch: P1.0mm
• Weight: 9.20g each
• Tool: T50 Torx

Available Colors:

• Titanium
• Green
• Purple
• Candy
• Indigo

Standard Torx Head

• Size: M10 × 29mm
• Thread Pitch:
  • P1.0mm
  • P1.25mm
• Weight: 9.46g each
• Tool: T50 Torx

Available Colors:

Vacuum Nitrided Finish

• Gold
• Black
• Blue
• Rainbow

Titanium Anodized Finish

• Titanium
• Green
• Purple
• Candy
• Indigo

Grade 5 Ti-6Al-4V Titanium Construction

S-PARTS uses carefully selected Grade 5 Ti-6Al-4V titanium alloy with continuous material verification.

With an average tensile strength exceeding:

≥1050 MPa

This titanium construction provides:

• High strength-to-weight ratio
• Approximately 50% weight reduction compared with equivalent steel hardware
• Excellent corrosion resistance
• Long-lasting performance in demanding riding conditions

Precision Manufacturing

Each titanium banjo bolt is produced through:

650°C precision hot forging + multi-axis CNC machining

Customized forging dies and strict process control ensure:

• High material density
• Accurate dimensions
• Smooth thread engagement
• Reliable installation performance

Each forging mold is used for no more than 300 cycles to maintain consistent quality.

Titanium Surface Finishes

Vacuum Nitrided Finish

Available Colors:

• Gold
• Black
• Blue
• Rainbow

A dense protective surface layer is created through vacuum treatment technology, improving surface hardness and durability while maintaining a premium metallic appearance.

Titanium Anodized Finish

Available Colors:

• Green
• Purple
• Candy
• Indigo

The anodizing process creates natural titanium oxide layers. Different oxide thicknesses produce vibrant metallic colors through light interference without using dyes or paint.

Installation Notes

• Confirm the required M10 thread pitch (P1.0mm or P1.25mm) before ordering.
• Always use new crush washers when installing hydraulic brake line bolts.
• Tighten according to the manufacturer's recommended torque specification using a calibrated T50 Torx tool.
