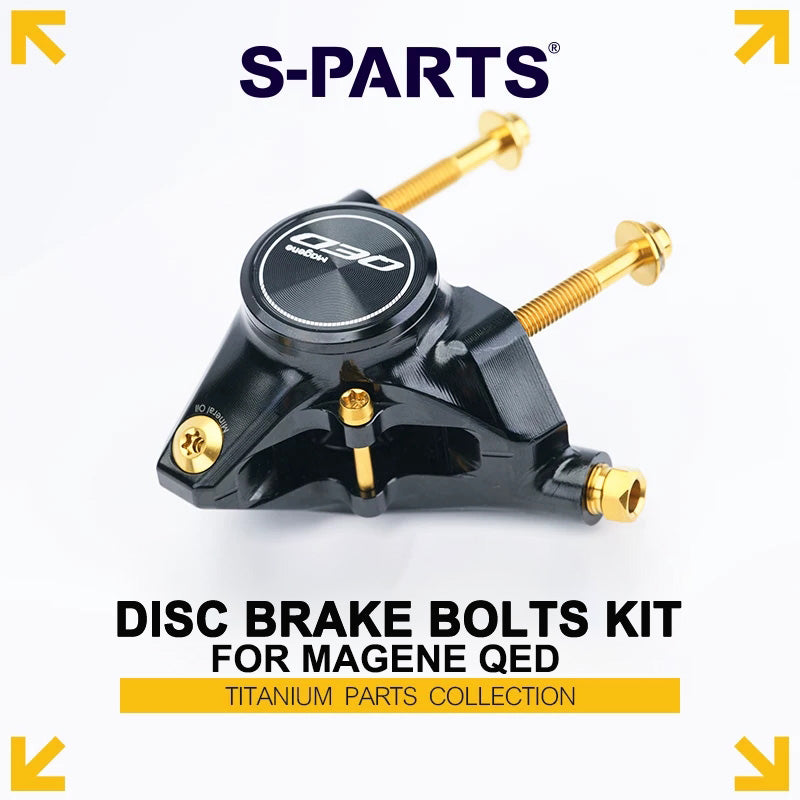

Designed specifically for the MAGENE QED hydraulic disc brake system, the S-PARTS titanium bolt range is made from Grade 5 Titanium (Ti-6Al-4V). The complete 18-piece kit weighs 22.4 g, with individual replacement bolts also available to suit your setup.
Available Variants & Hardware Specifications
Component / Item Name
Dimensions / Notes
Weight
Tool Required

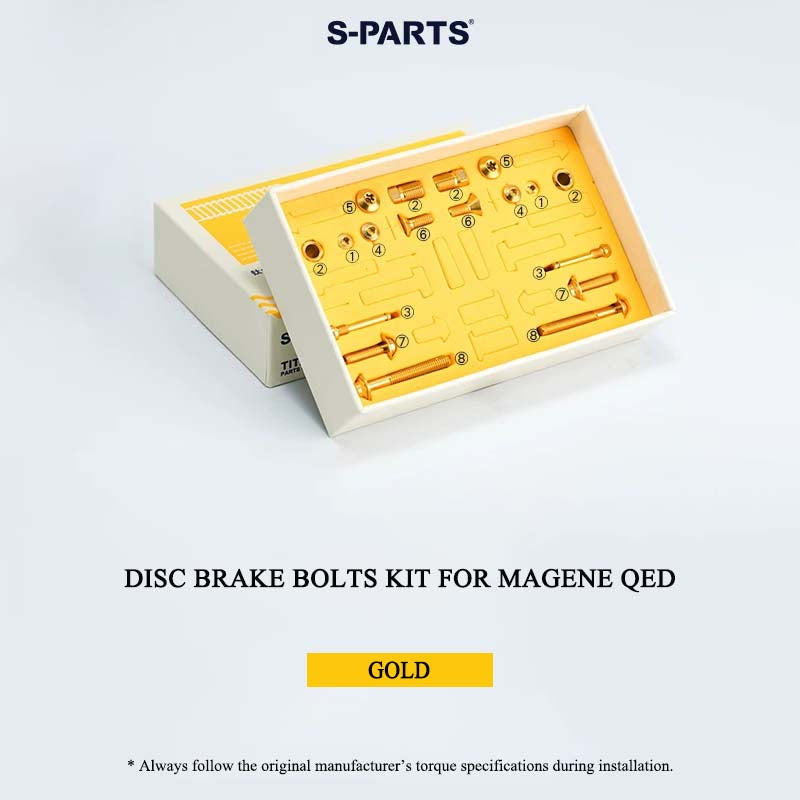

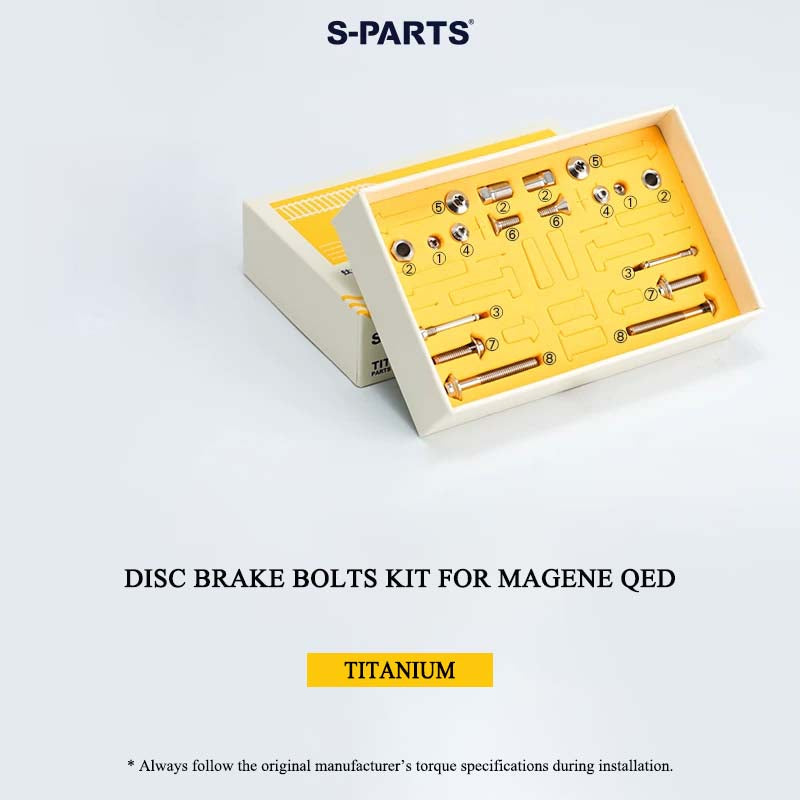

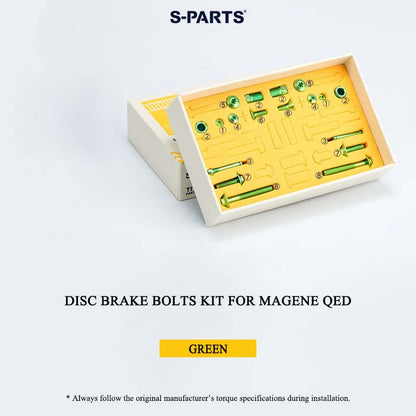

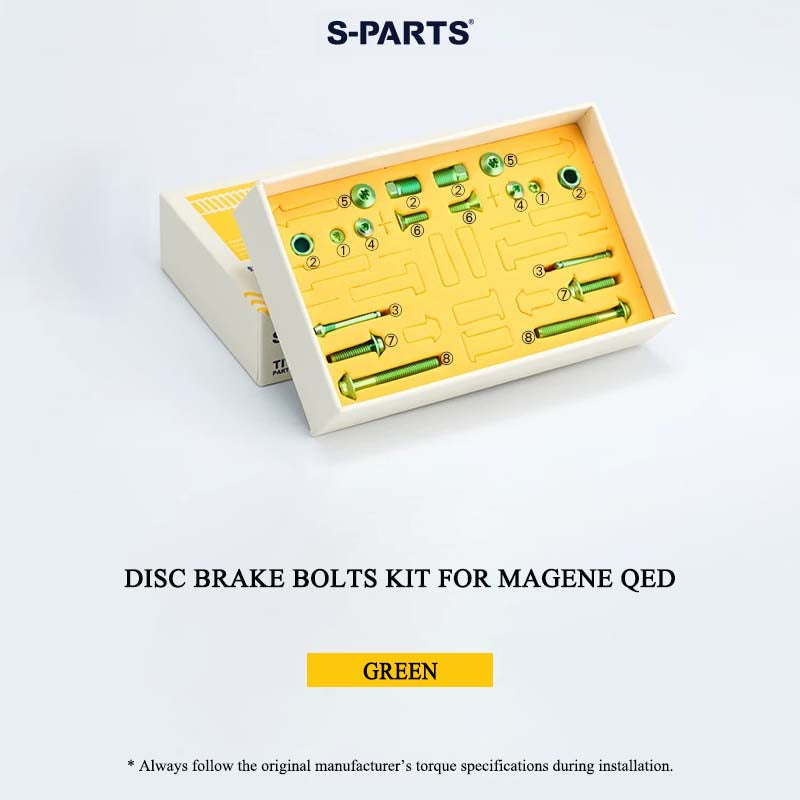

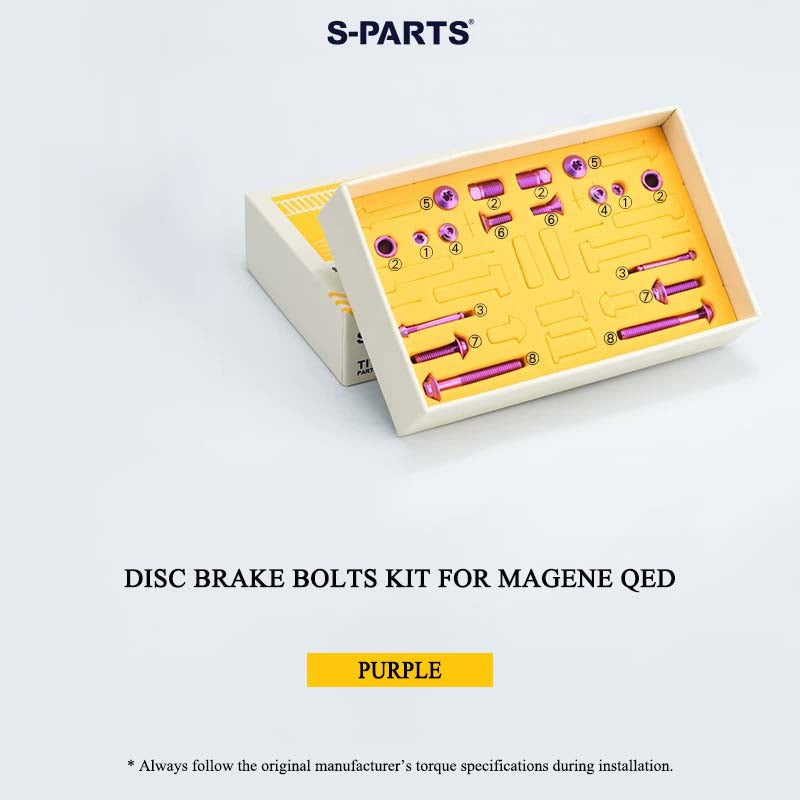

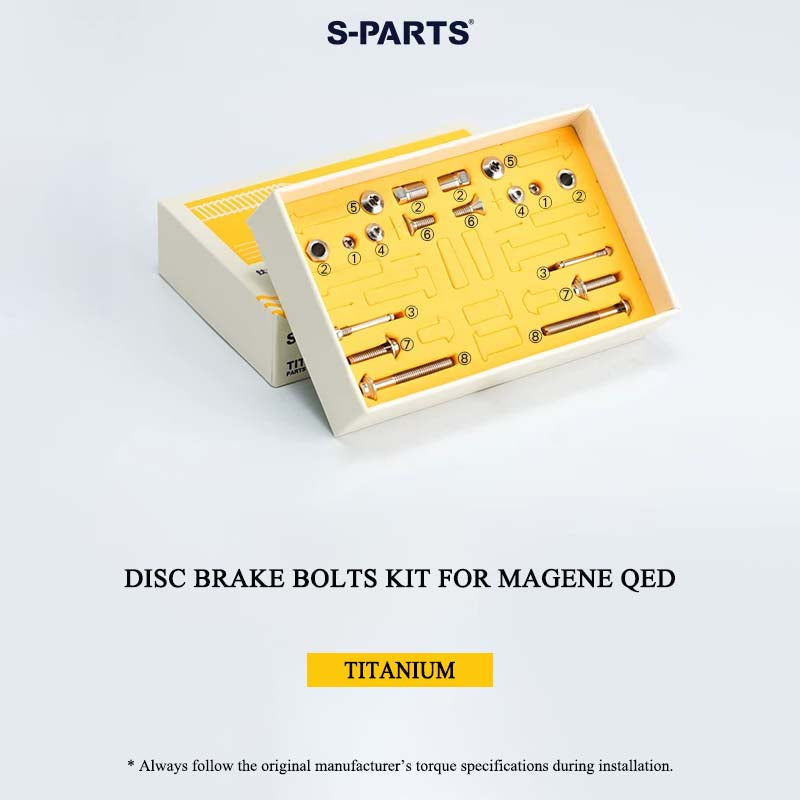

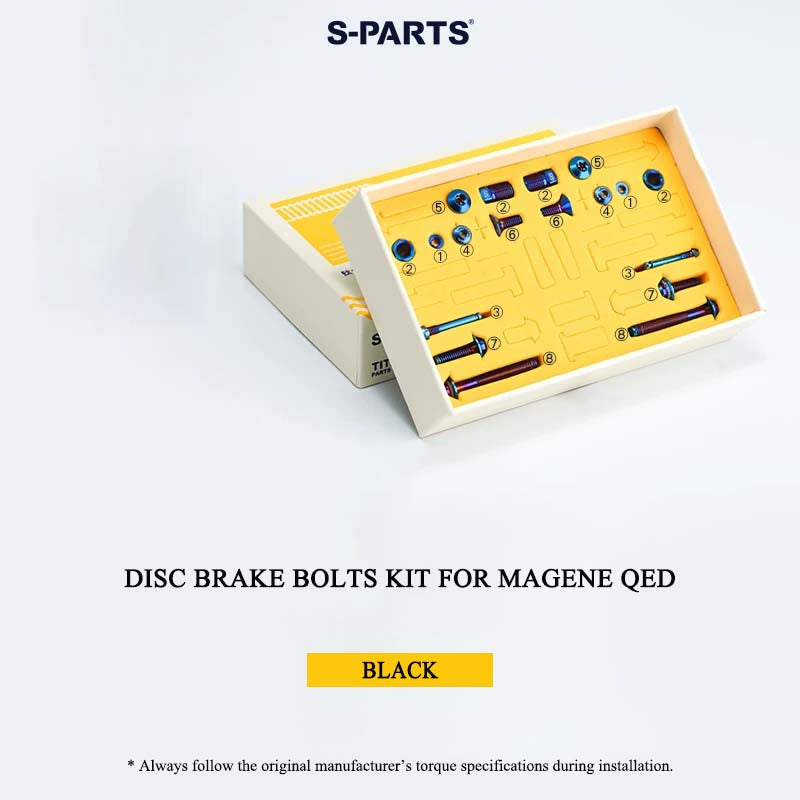

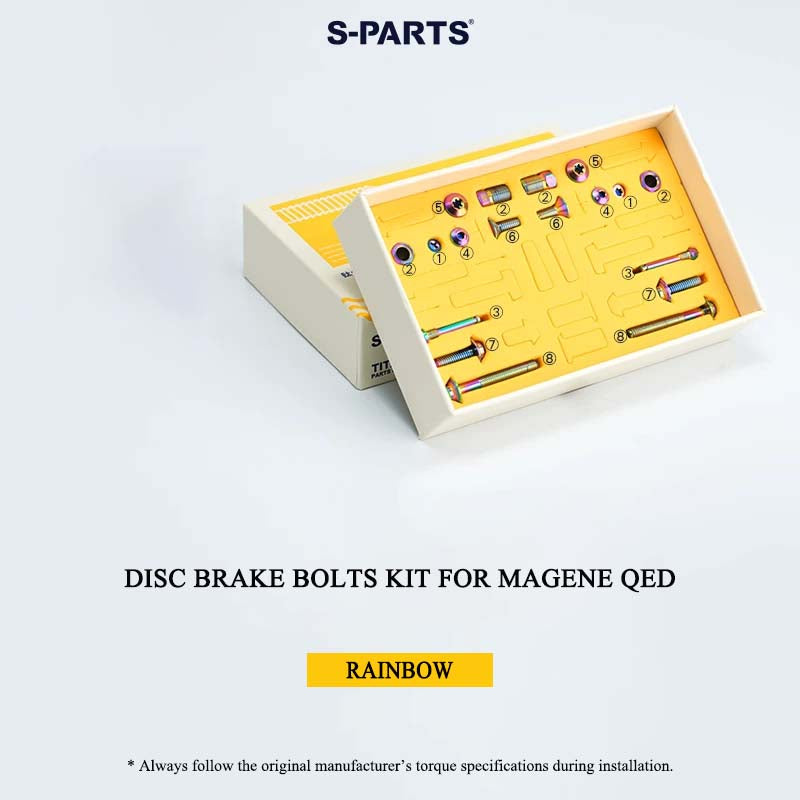

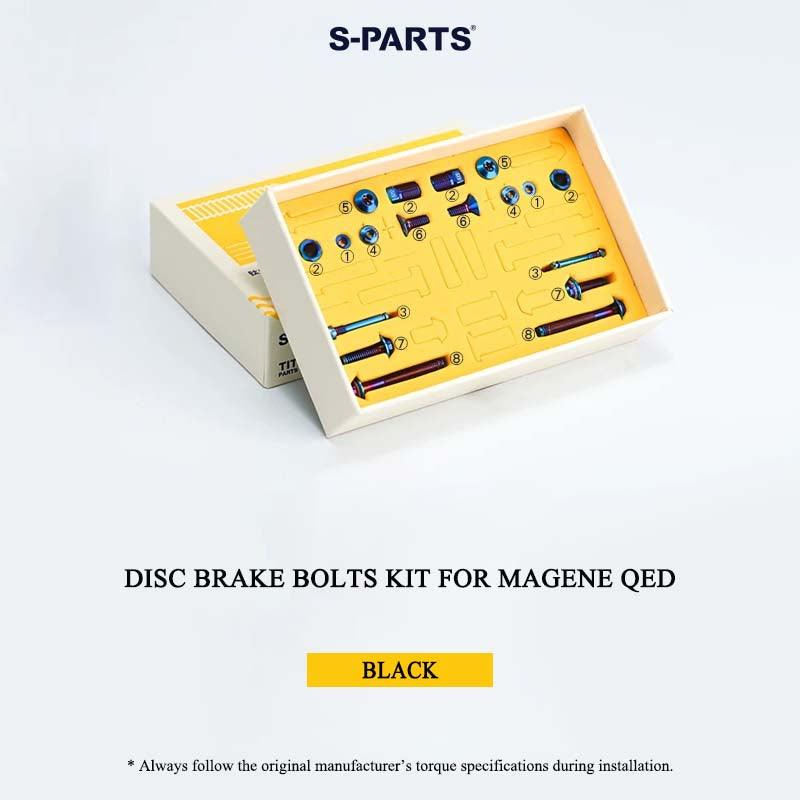

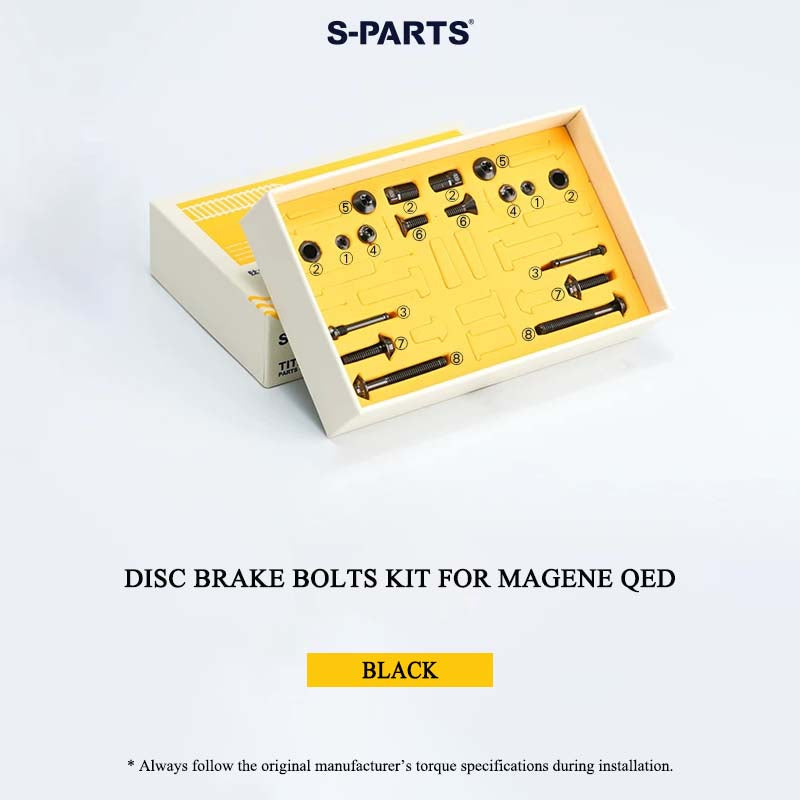

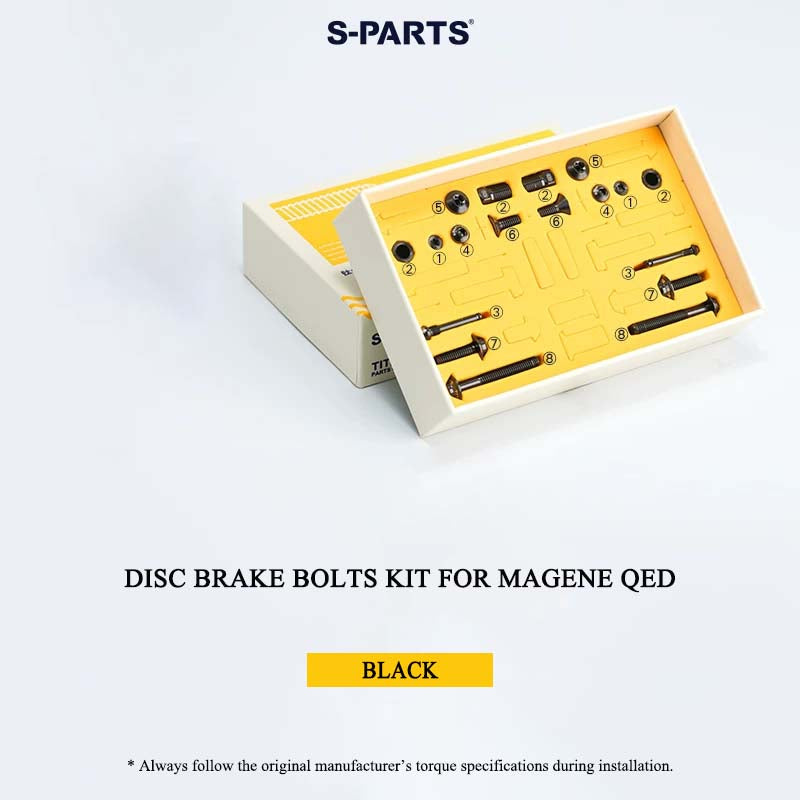

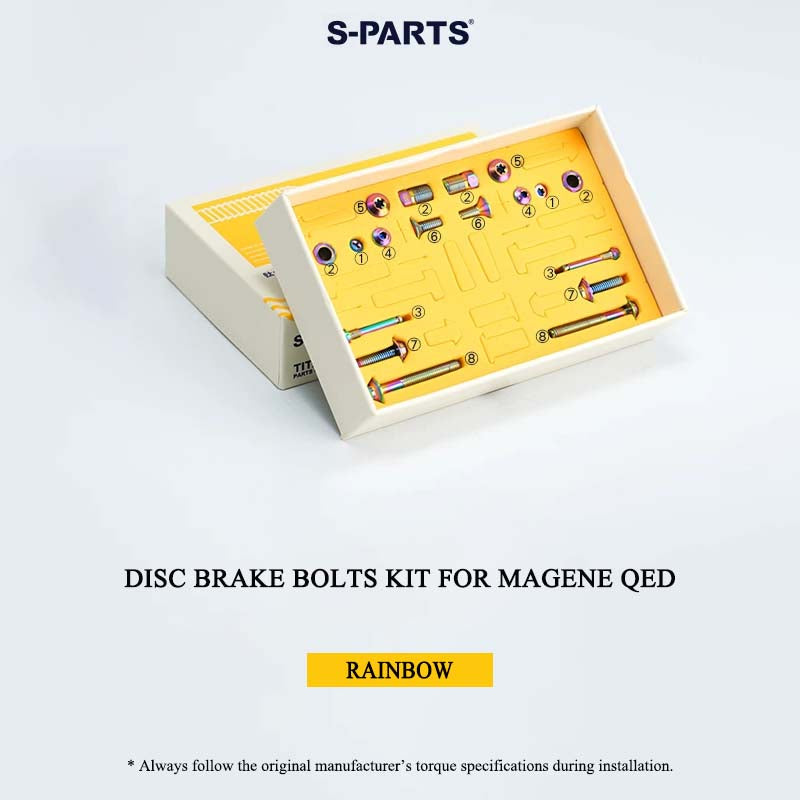

Complete MAGENE QED Titanium Brake Bolt Kit
18-piece complete kit (Includes all 8 component types below)
approx. 22.4 g / set
Various

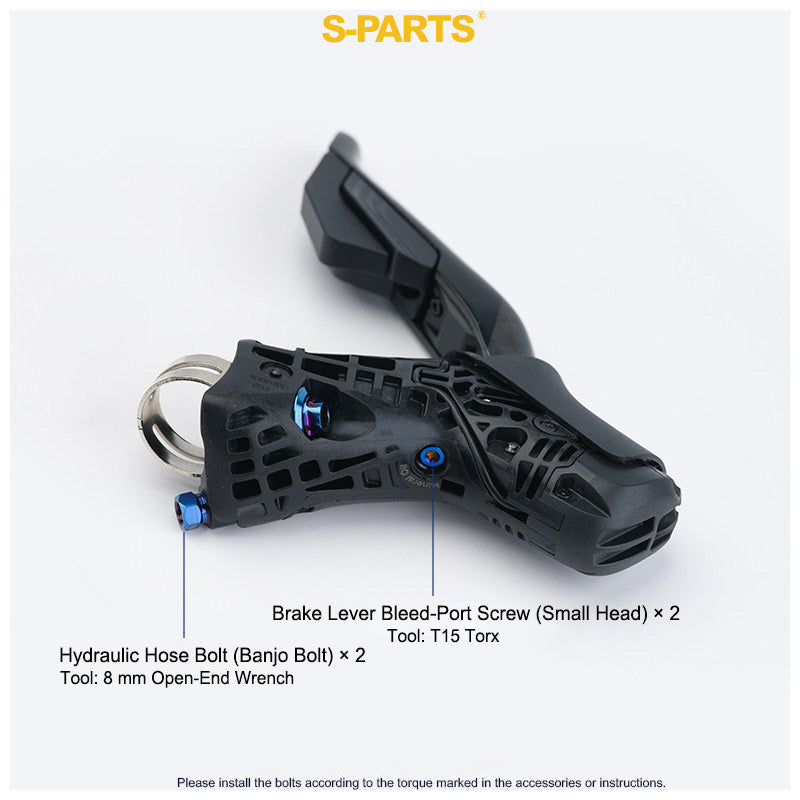

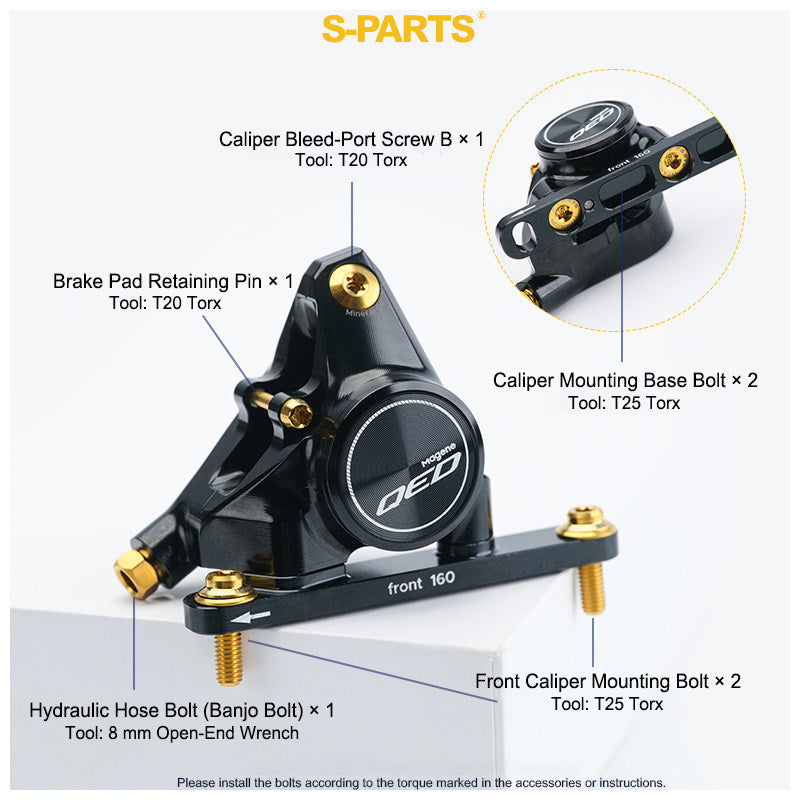

Brake Lever Bleed-Port Screw
Small head profile (Use with original rubber seal)
0.7 g / pc
T15 Torx

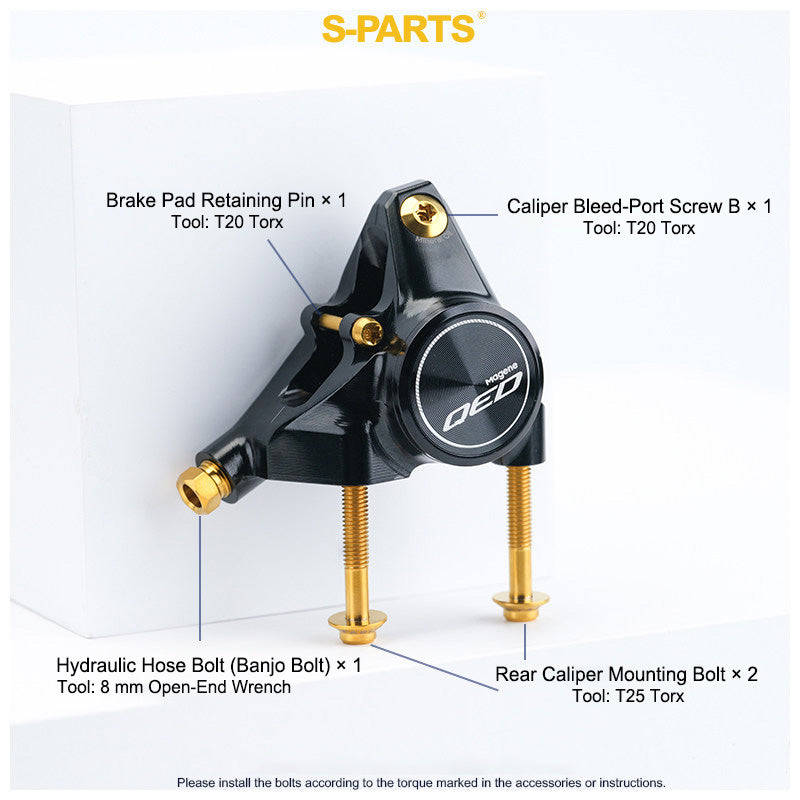

Hydraulic Hose Bolt (Banjo Bolt)
For brake lever & caliper hose connections
1.65 g / pc
8 mm Open-End Wrench
Brake Pad Retaining Pin
Pad retaining pin
0.94 g / pc
T20 Torx
Caliper Bleed-Port Screw A
M4 × 5 mm
0.4 g / pc
2.5 mm Hex Key

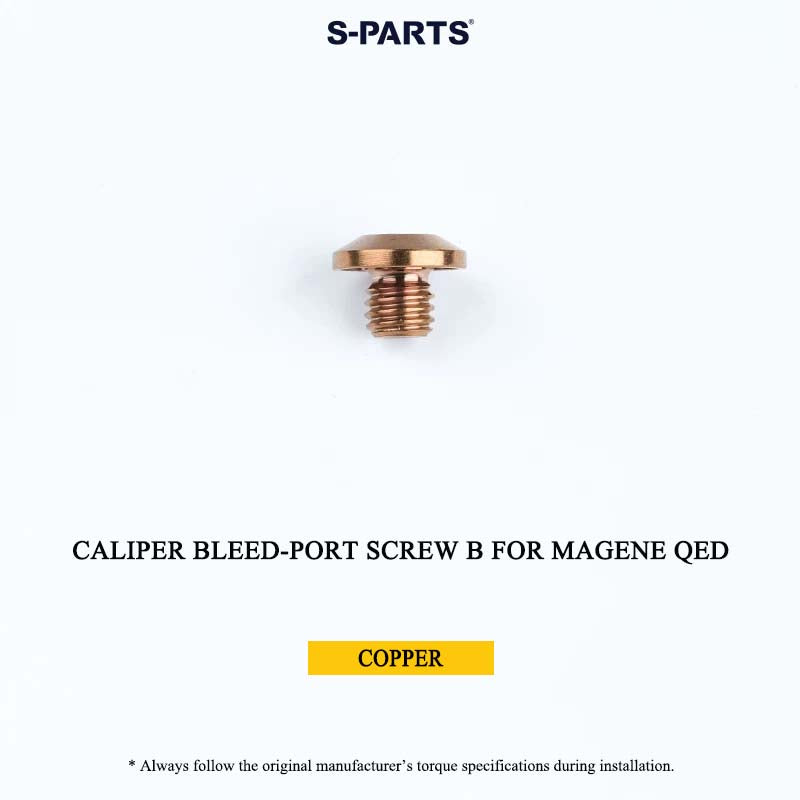

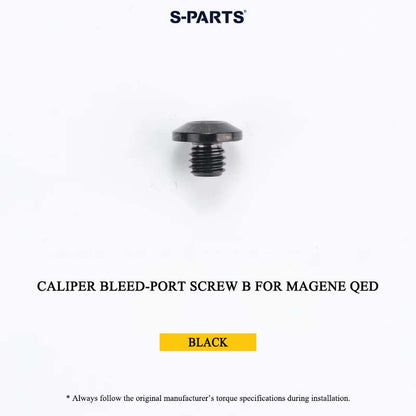

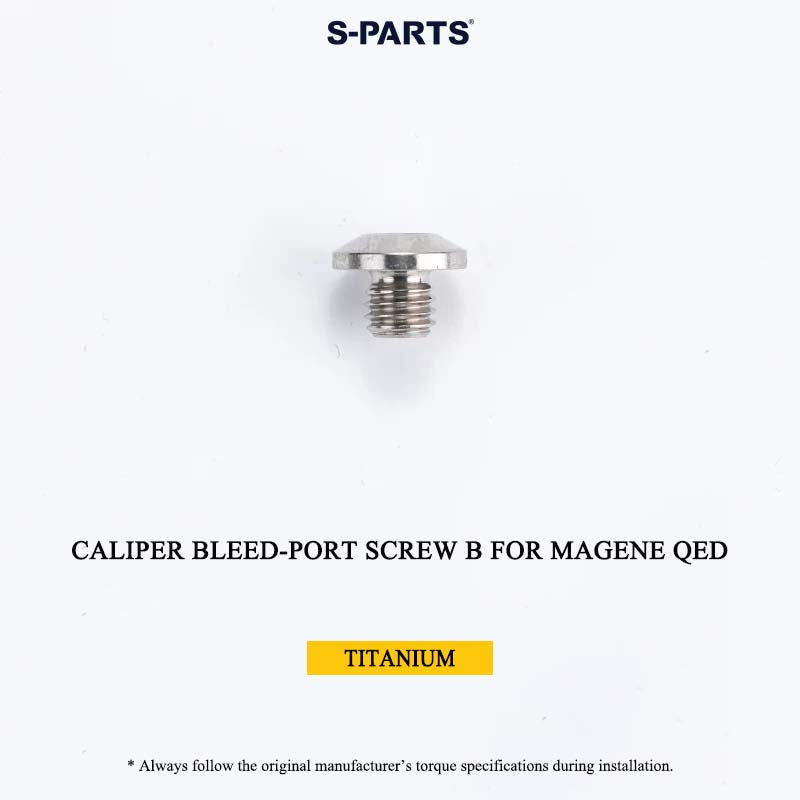

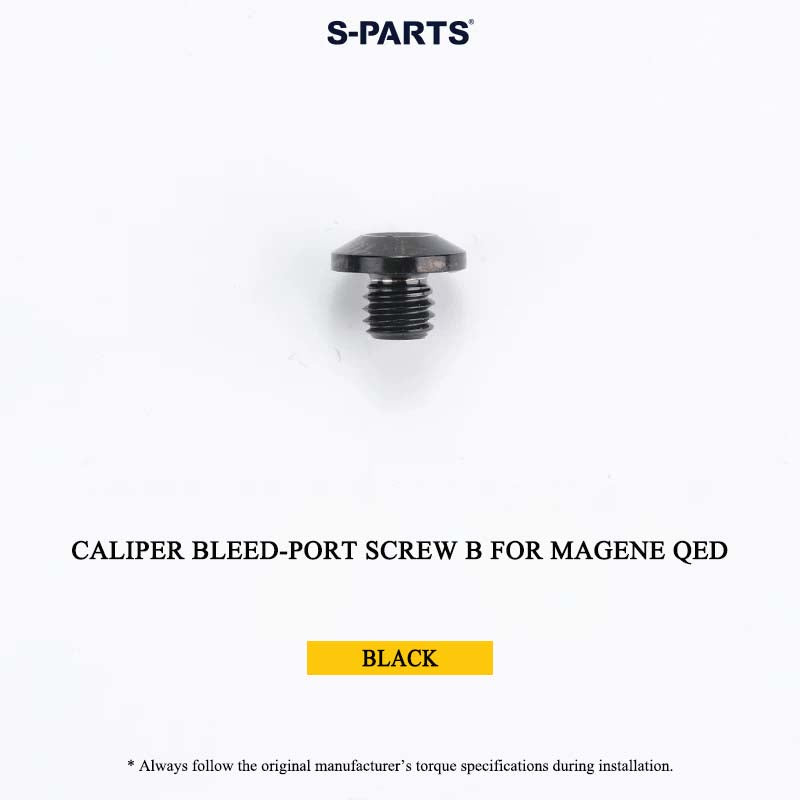

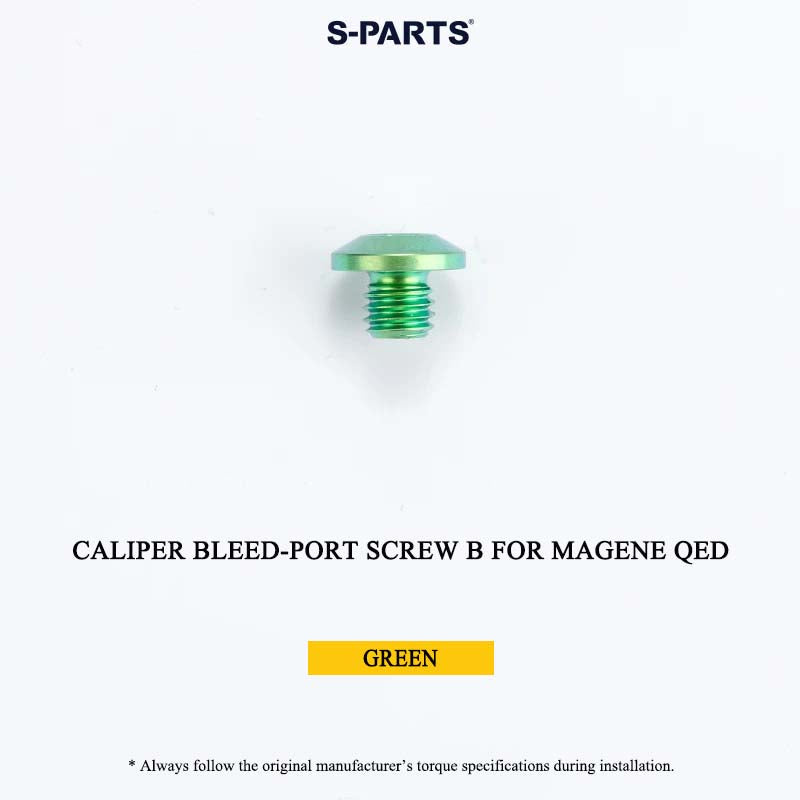

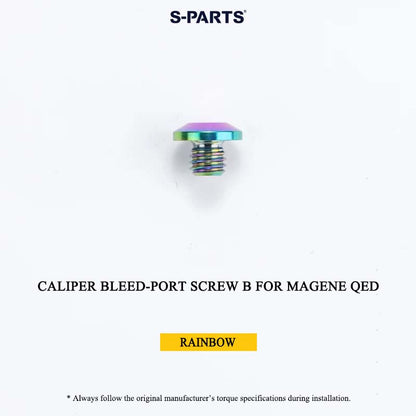

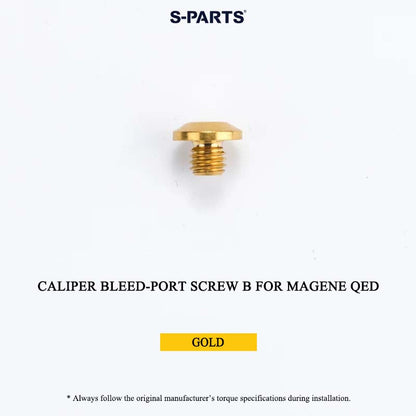

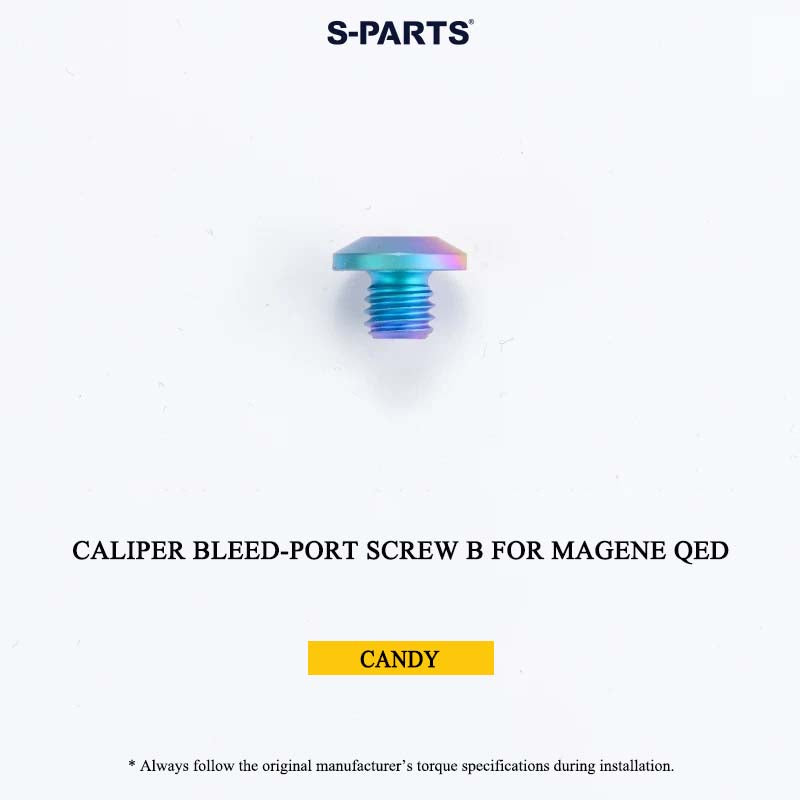

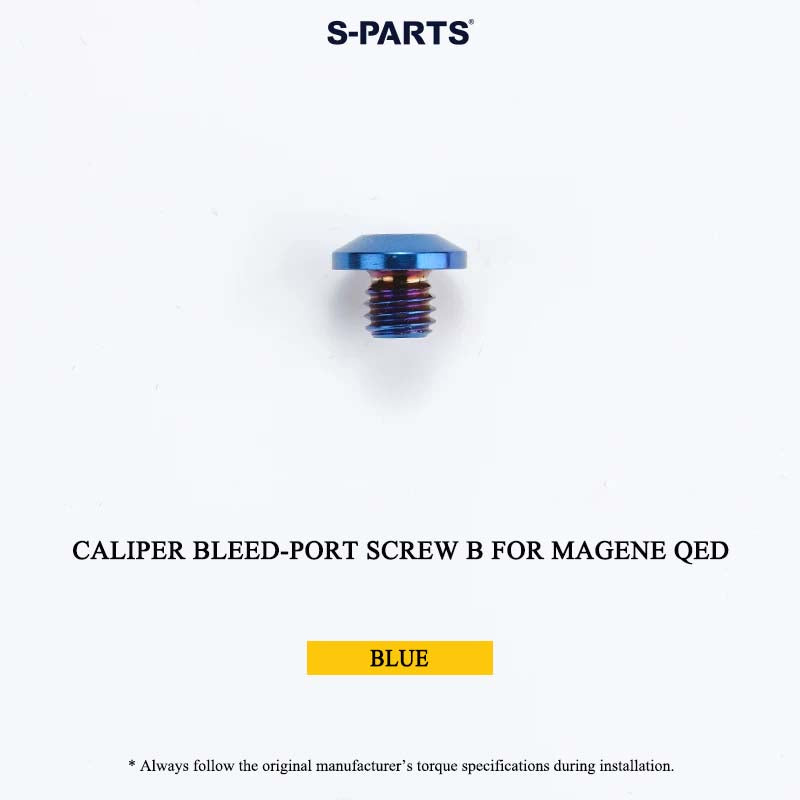

Caliper Bleed-Port Screw B
M5 × 4 mm (Head Diameter: 9 mm)
0.54 g / pc
T20 Torx
Caliper Mounting Base Bolt
M5 × 12 mm
1.12 g / pc
T25 Torx
Front Caliper Mounting Bolt
M5 × 16 mm (Verify the required bolt length for your frame. Do not force installation.)
1.8 g / pc
T25 Torx

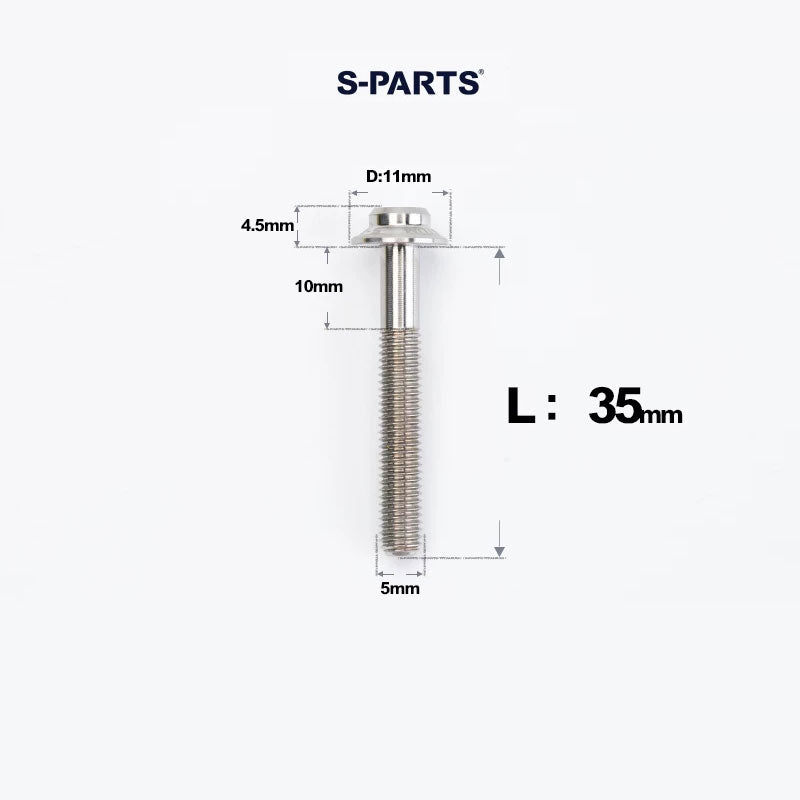

Rear Caliper Mounting Bolt
M5 × 35 mm (Verify the required bolt length for your frame. Do not force installation.)

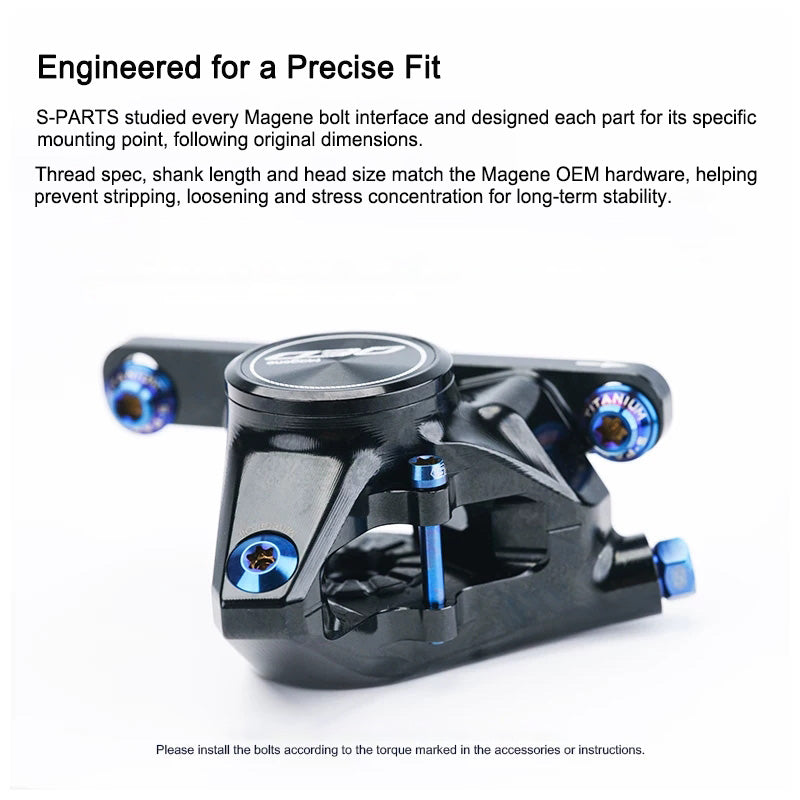

S-PARTS develops these bolts around the mounting points of the MAGENE QED brake system, with attention to thread specifications, bolt lengths, and head dimensions for compatibility with the corresponding mounting points.
Grade 5 Titanium Construction

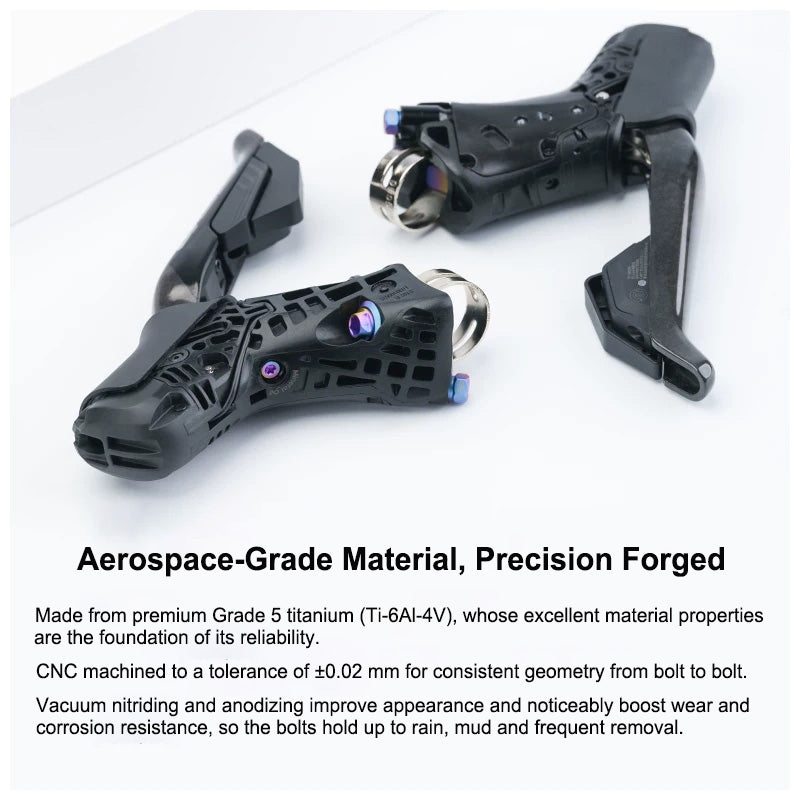

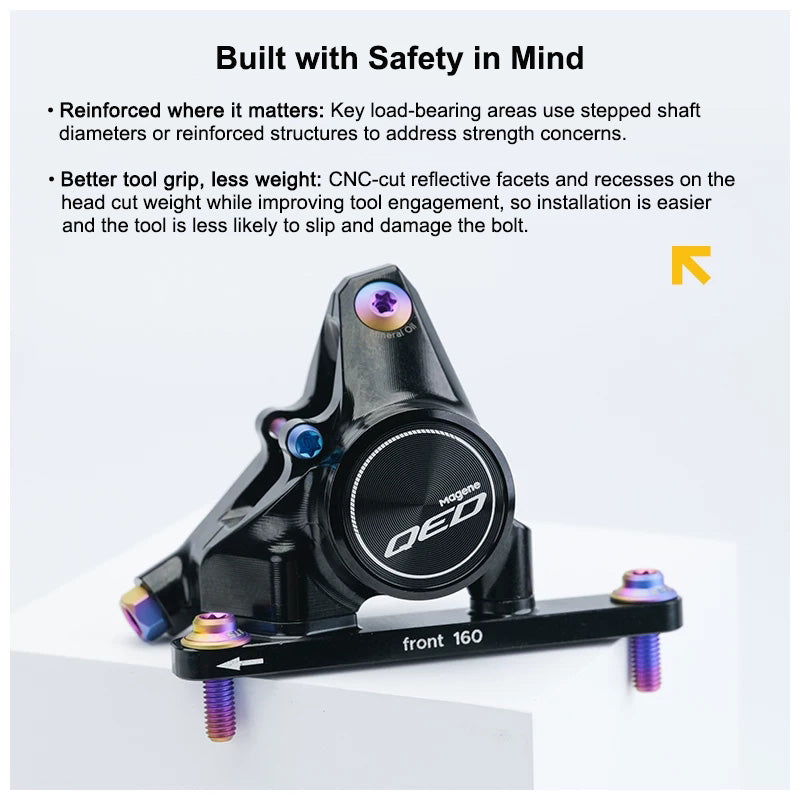

Manufactured from Grade 5 Titanium (Ti-6Al-4V) and CNC-machined to a stated tolerance of ±0.02 mm for geometric consistency. Selected designs feature stepped diameters or structural reinforcement in key load-bearing areas.
Surface Finishes & Color Options
PVD Vacuum Nitriding Coating (Gold, Rainbow, Black, Blue): Forms a dense surface layer designed to improve surface hardness and wear resistance, helping maintain appearance under normal use and riding conditions.

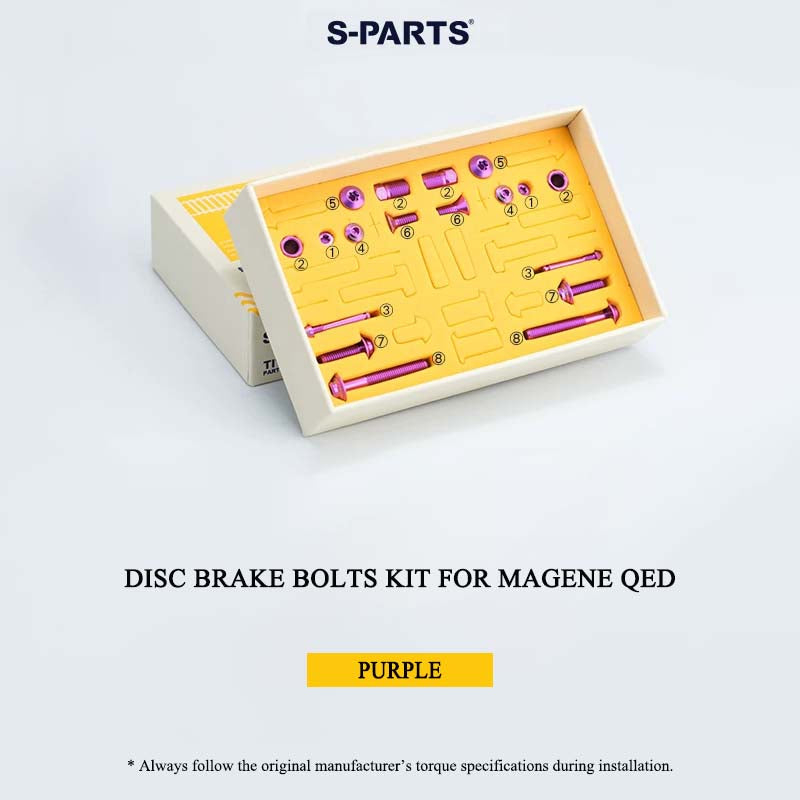

Electrochemical Anodizing (Green, Purple, Candy, Indigo): Creates titanium oxide layers of varying thickness that generate vivid, dye-free colors through light interference while enhancing corrosion resistance.

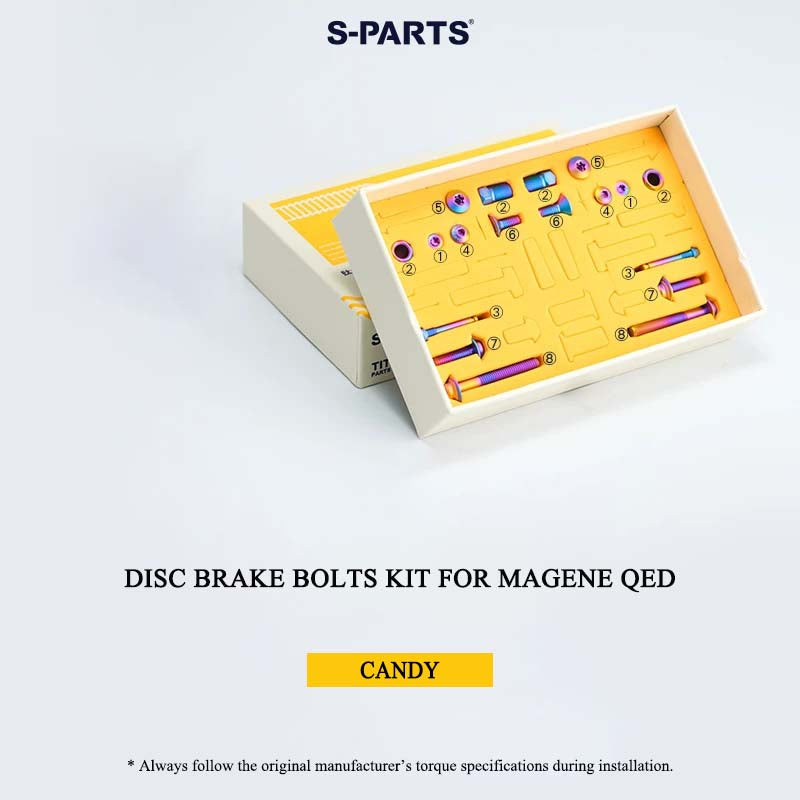

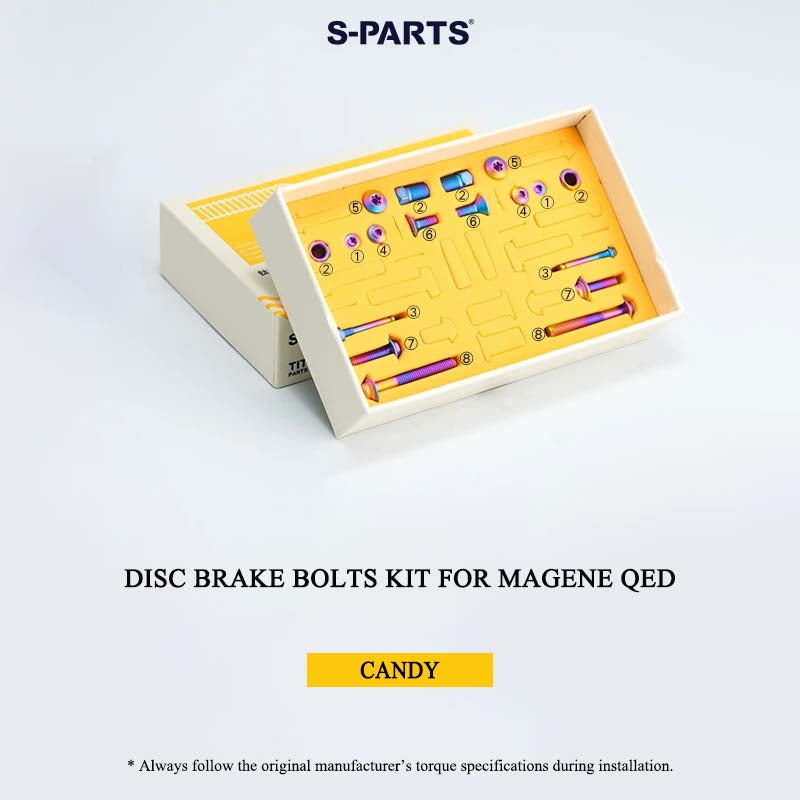

Candy Finish & Thread Line Characteristics: The Candy finish features flowing, irregular color patterns, so the visual appearance may vary from piece to piece. Fine white lines around threaded areas can occur as a normal result of the coloring process.
Tool Engagement
CNC-machined head surfaces and drive recesses are designed to provide secure tool engagement during installation, helping reduce tool slippage.
Important Installation Notice
Frame dimensions vary. Please verify the required bolt length for your specific frame before installing front and rear caliper bolts. Do not force installation.
