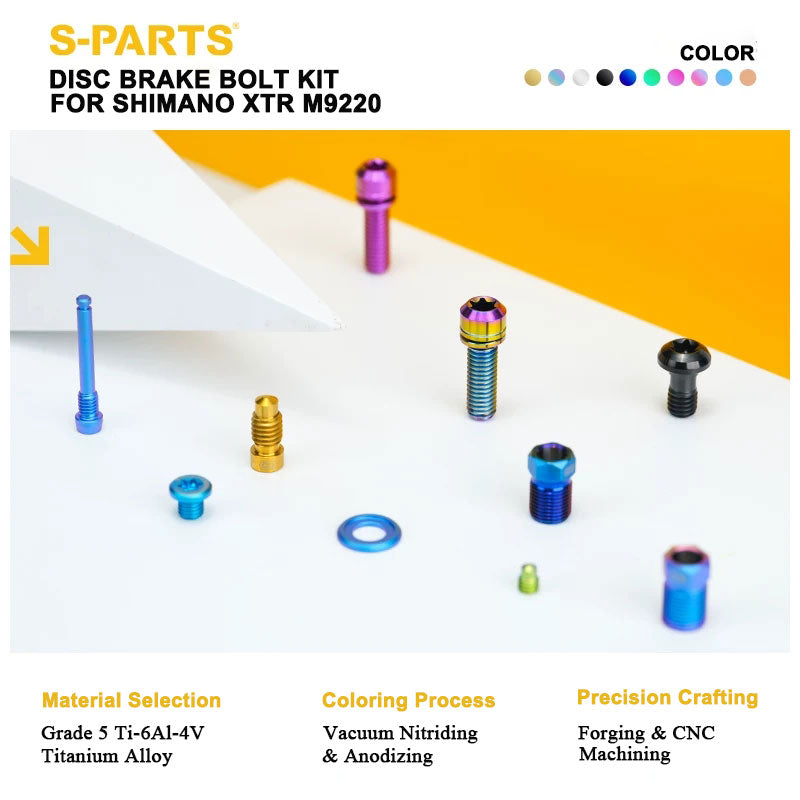

Titanium Disc Brake Bolt Kit for Shimano XTR M9220 | Grade 5 Ti-6Al-4V | 26 pcs
Titanium Disc Brake Bolt Kit for Shimano XTR M9220 | Grade 5 Ti-6Al-4V | 26 pcs
Couldn't load pickup availability
Product Description
The S-PARTS Titanium Brake Bolt Kit is engineered for Shimano XTR M9220 hydraulic disc brake systems. Crafted from Grade 5 titanium alloy (Ti-6Al-4V), this 26-piece hardware kit offers a lightweight upgrade solution weighing approximately 33.3 g in total.
Key Specifications
| Compatibility | Shimano XTR M9220 Disc Brake System |
|---|---|
| Material | Grade 5 Titanium Alloy (Ti-6Al-4V) |
| Total Quantity | 26 pcs / set |
| Total Weight | approx. 33.3 g / set |
| Manufacturing Process | Precision compound CNC machining |
| Available Finishes | 10 color options (PVD & anodized) |

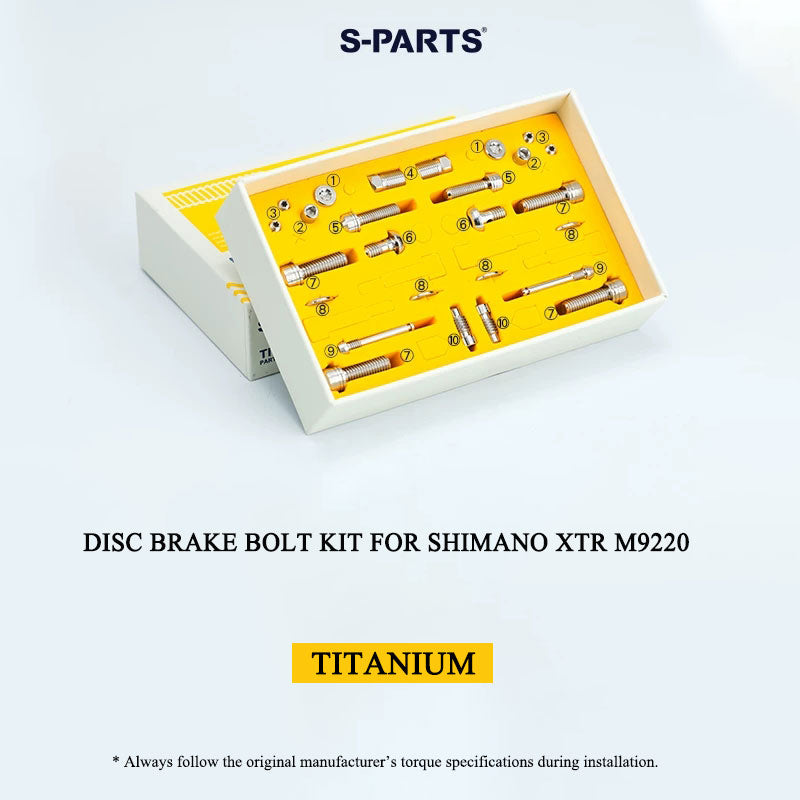

Kit Package Contents (26 Pieces Total)
| No. | Component Name | Quantity |
|---|---|---|
| 1 | Brake Lever Bleed Screw | 2 pcs |
| 2 | Brake Lever Adjustment Screw | 2 pcs |
| 3 | Caliper Bleed Screw M4 | 4 pcs |
| 4 | Brake Lever Hose Bolt | 2 pcs |
| 5 | Brake Lever Clamp Bolt | 2 pcs |
| 6 | 5-Line Screw | 2 pcs |
| 7 | Caliper Mounting Bolt | 4 pcs |
| 8 | Caliper Mounting Washer | 4 pcs |
| 9 | Brake Pad Retaining Pin | 2 pcs |
| 10 | Caliper Bleed Screw M6 | 2 pcs |
Important Installation Notice: When replacing the brake lever adjustment screws, do not overtighten them, as excessive torque may cause damage to the hydraulic cylinder.

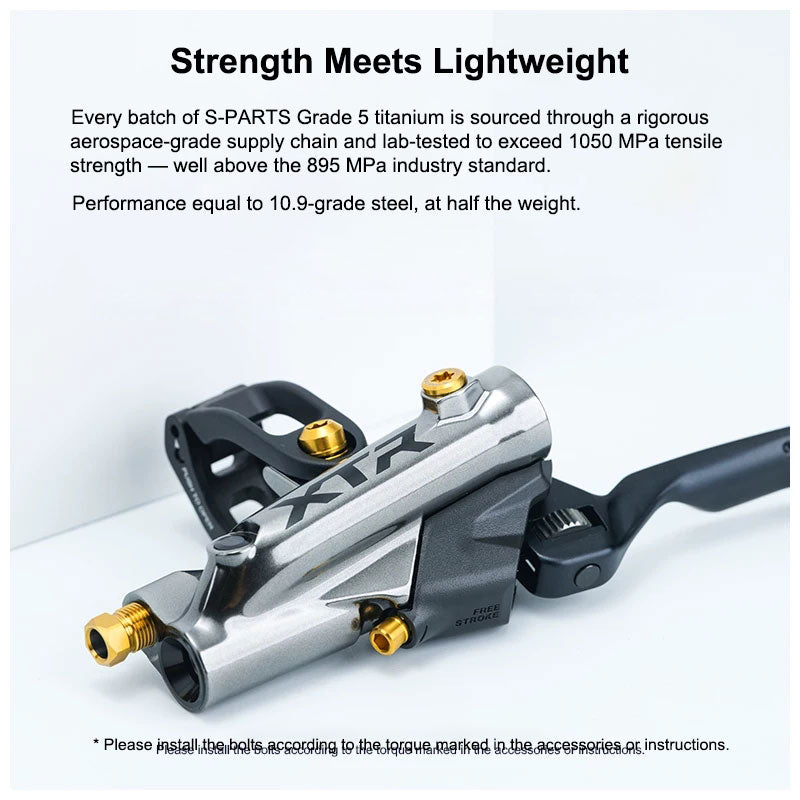

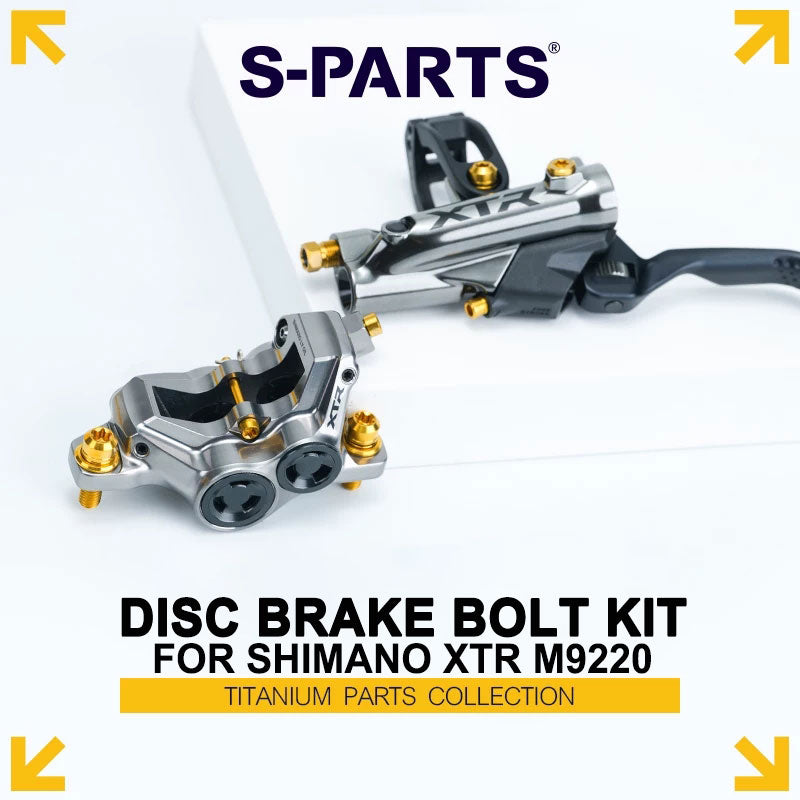

Installation Example

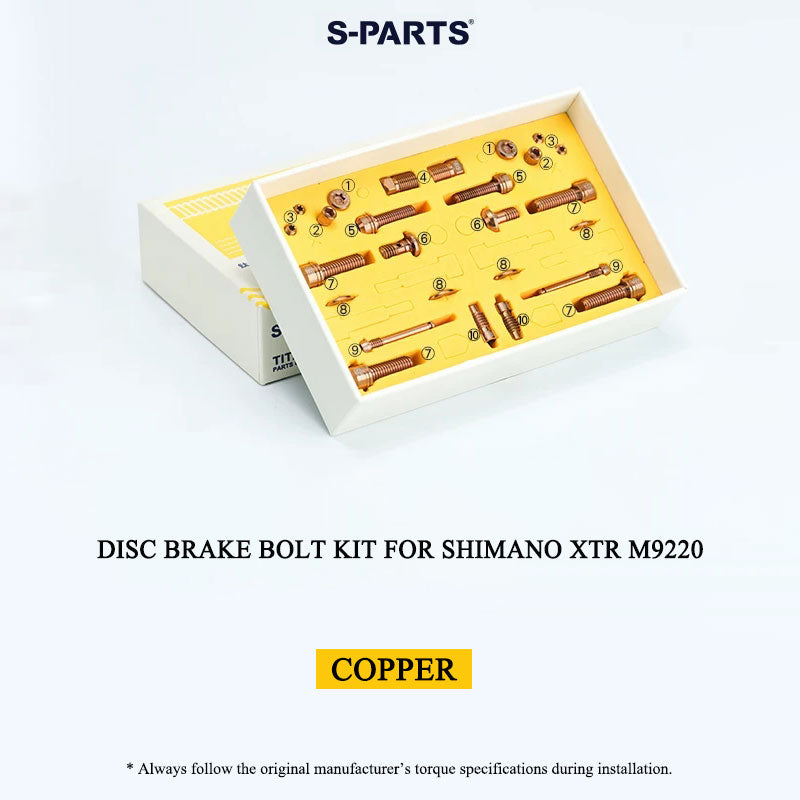

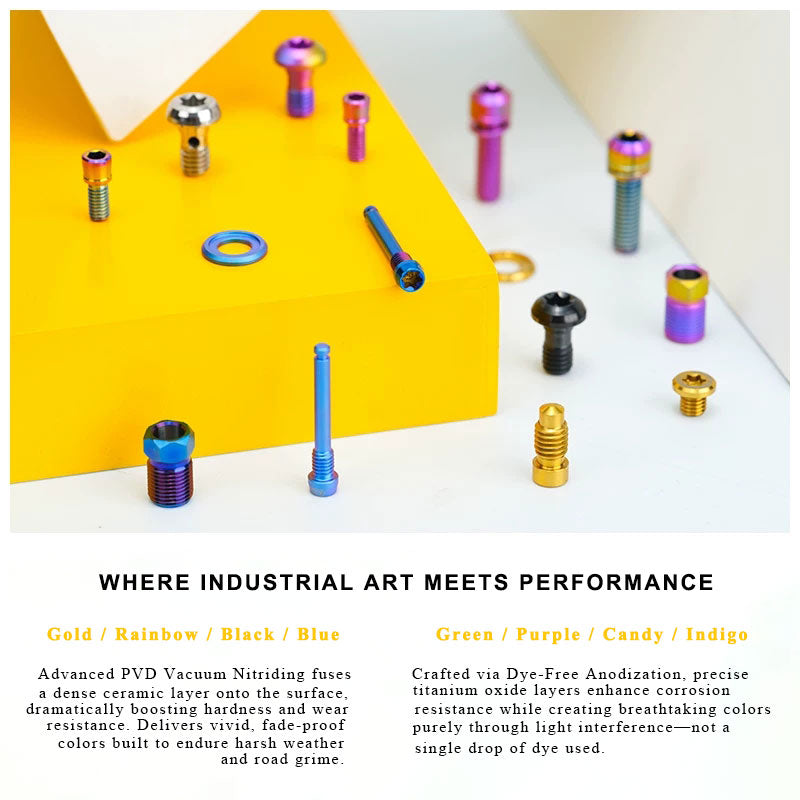

Surface Finishing & Color Options

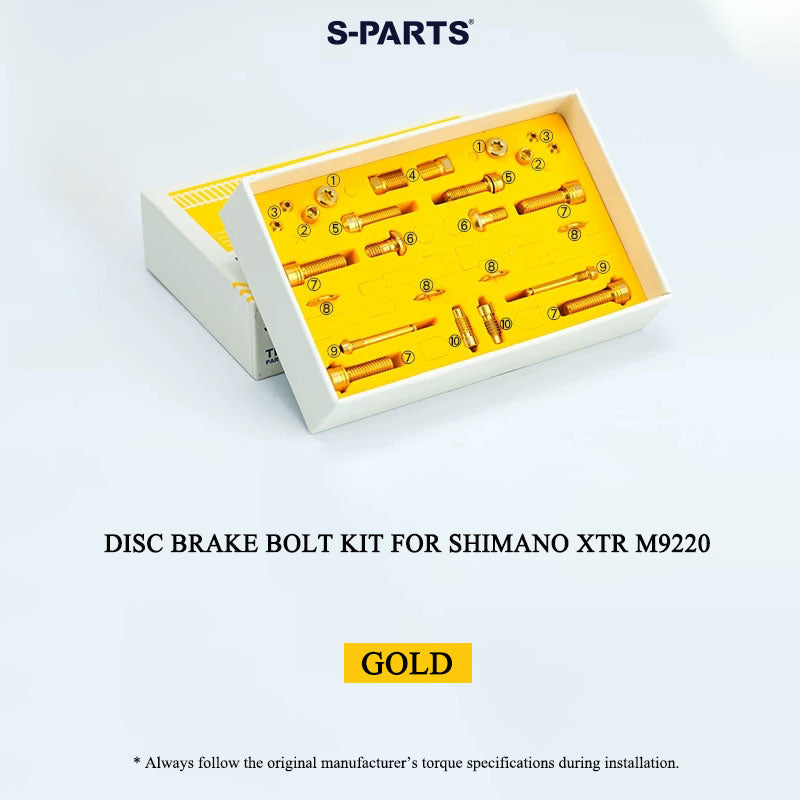

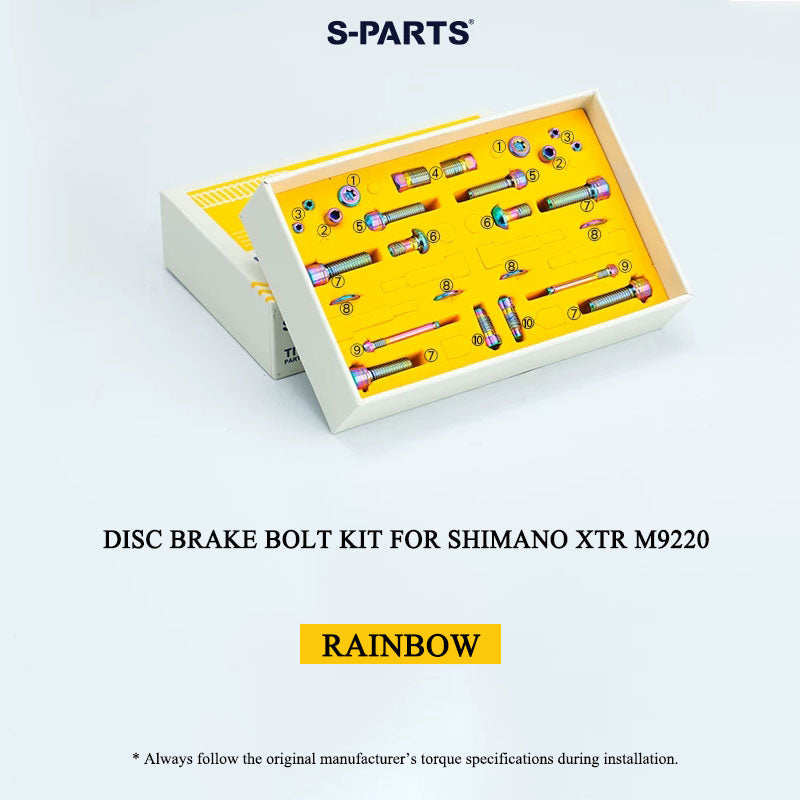

Color List: Gold, Multicolor, Titanium, Black, Blue, Green, Purple, Candy, Indigo, Walnut.

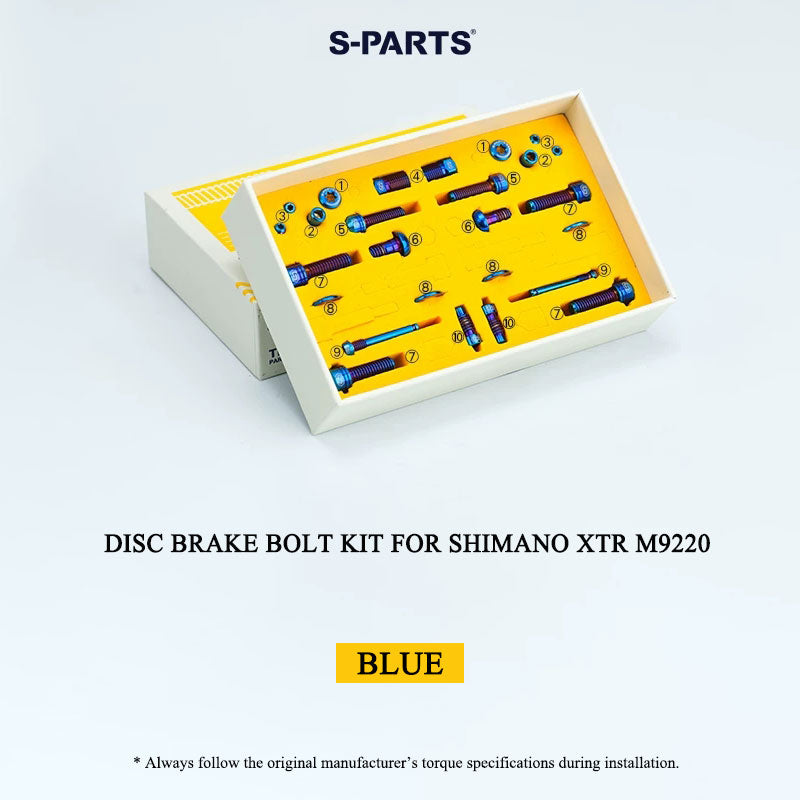

PVD Vacuum Coating Options (Gold, Multicolor, Black, Blue)
Utilizing a PVD (Physical Vapor Deposition) vacuum nitriding process, a dense metal nitride layer is formed on the surface. This enhances surface hardness and impact resistance. The color integrates into the surface layer, preventing natural discoloration without aggressive physical wear.

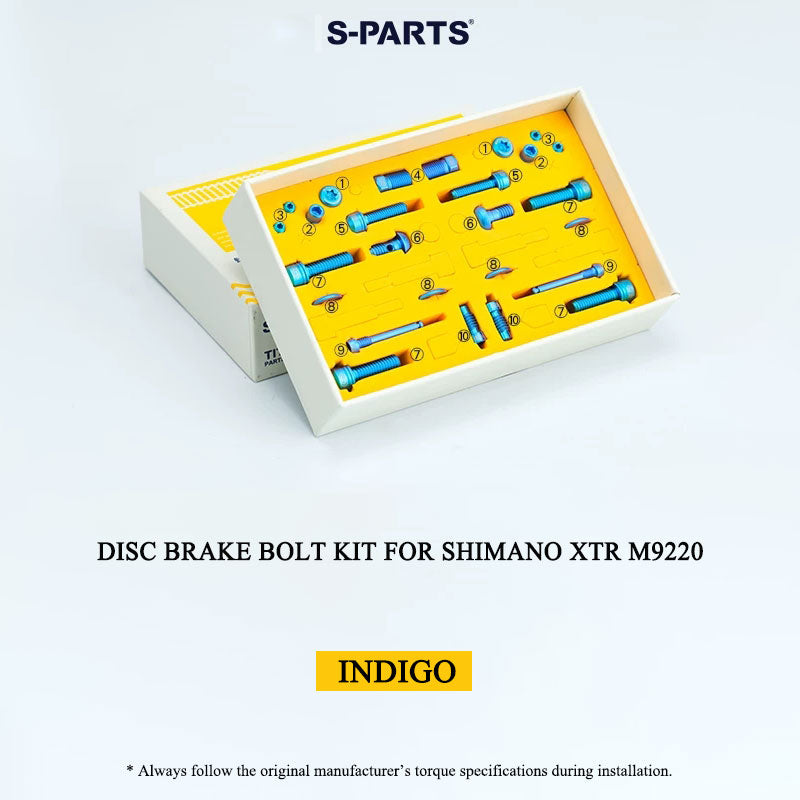

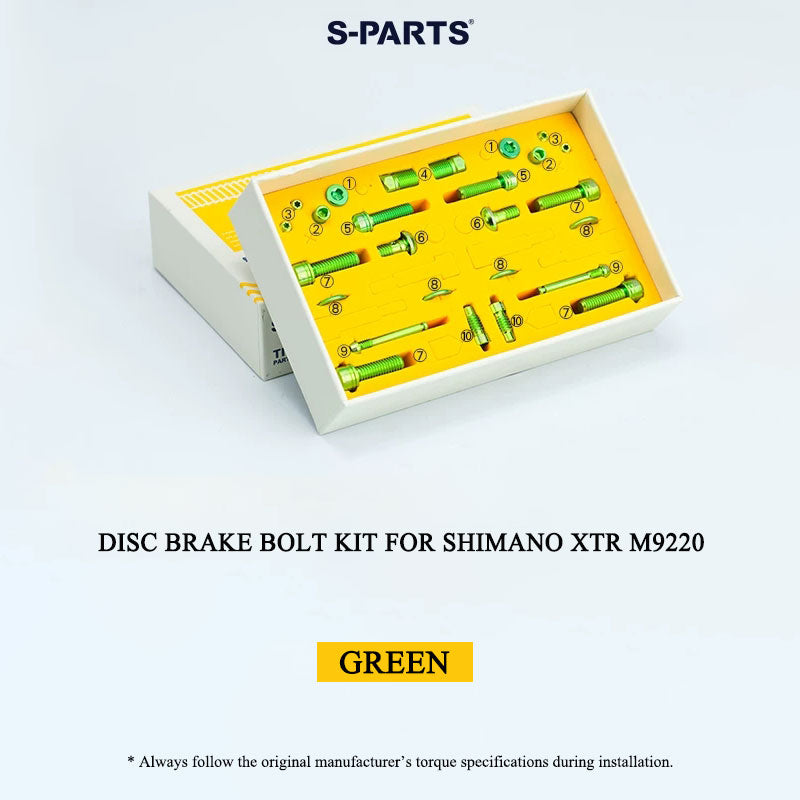

Electrolytic Anodizing Options (Green, Purple, Candy, Indigo)
Electrolytic anodizing forms oxide film layers of varying thickness on the titanium surface. Color variation is generated through light interference across the oxide layer without using dyes, increasing both surface hardness and corrosion resistance.

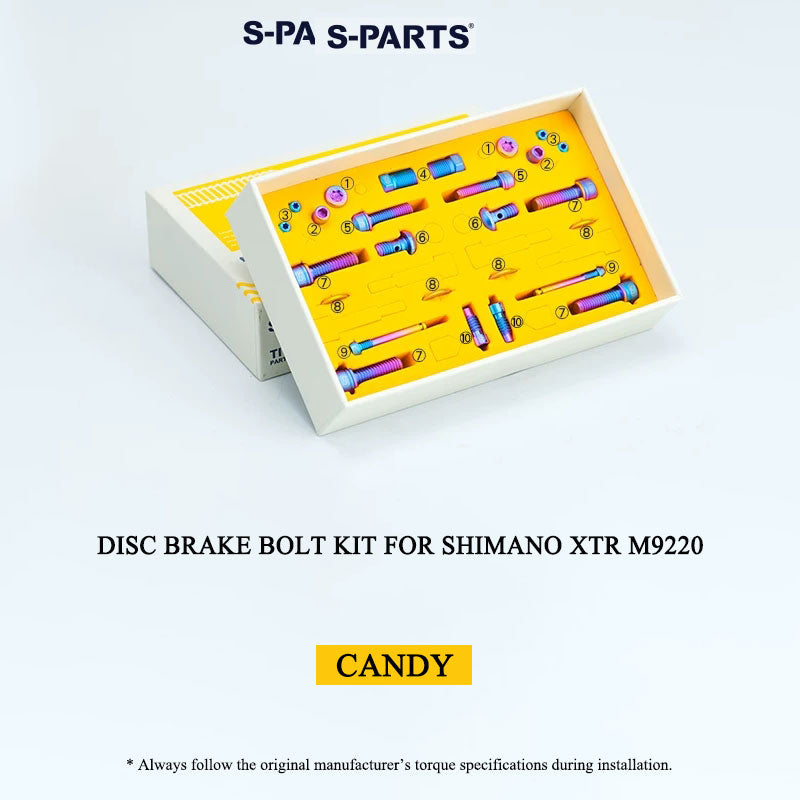

*Finish Notes: The Candy finish features visual color fluidity with slight random variations between individual pieces due to the coloring process. Fine white lines may naturally appear around thread roots as a result of the coloring process and do not affect performance or product quality.

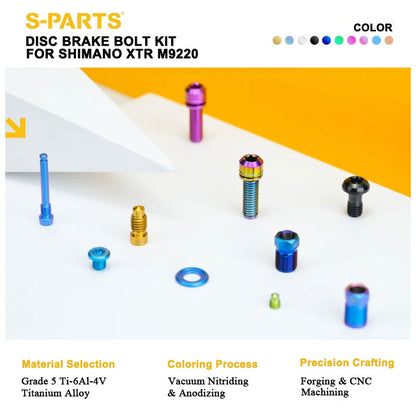

Material Properties & Manufacturing
The Grade 5 titanium material used by S-PARTS is sourced in cooperation with a civil aerospace-industry metal supply chain in Xi'an and verified against S-PARTS internal testing standards. In laboratory comparative testing, the selected material achieves an average tensile strength exceeding 1,050 MPa, far exceeding the industry standard of ≥895 MPa.
- Strength-to-Weight Ratio: Under comparable conditions, S-PARTS states that its titanium fasteners offer mechanical performance comparable to Grade 10.9 steel fasteners while weighing approximately half as much as their steel counterparts.

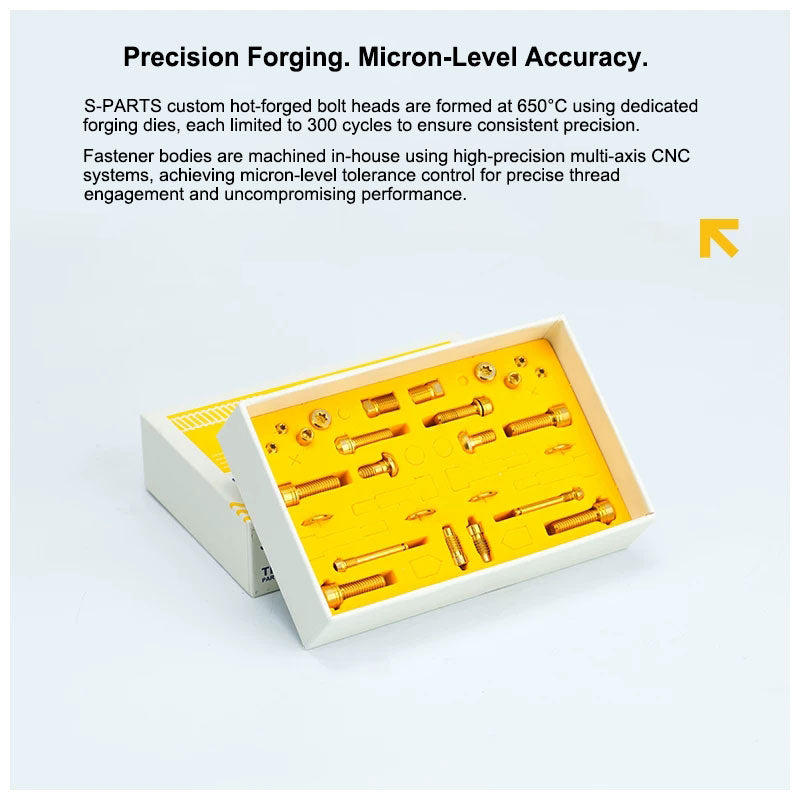

- Precision Machining: Threaded components are produced in-house using precision compound CNC machines, managing tolerances at the micron level to ensure smooth thread engagement.
