Product Description

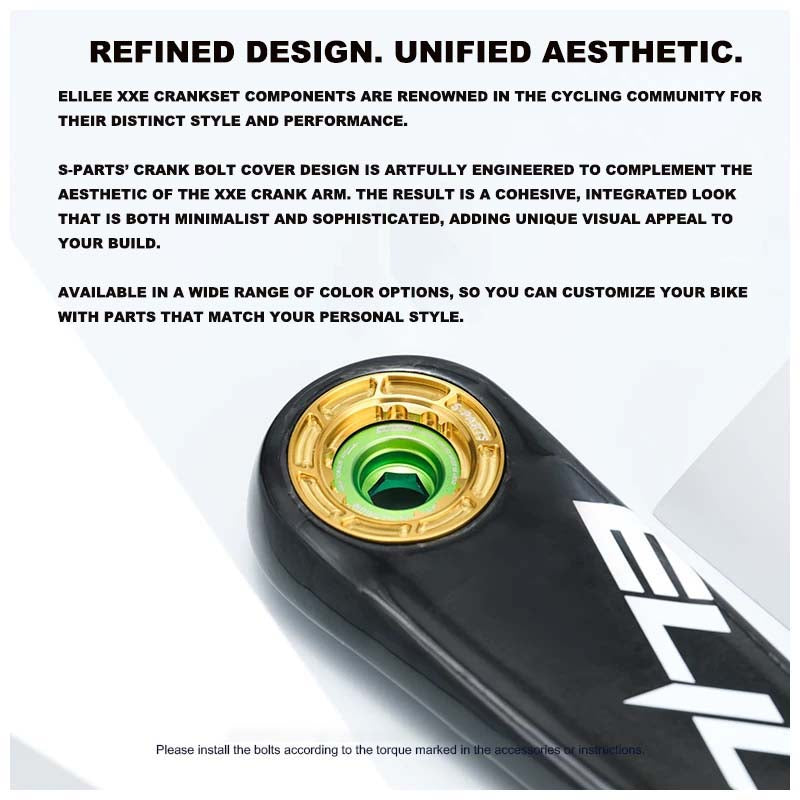

Precision Titanium Upgrade Kit for ELILEE XXE Cranksets

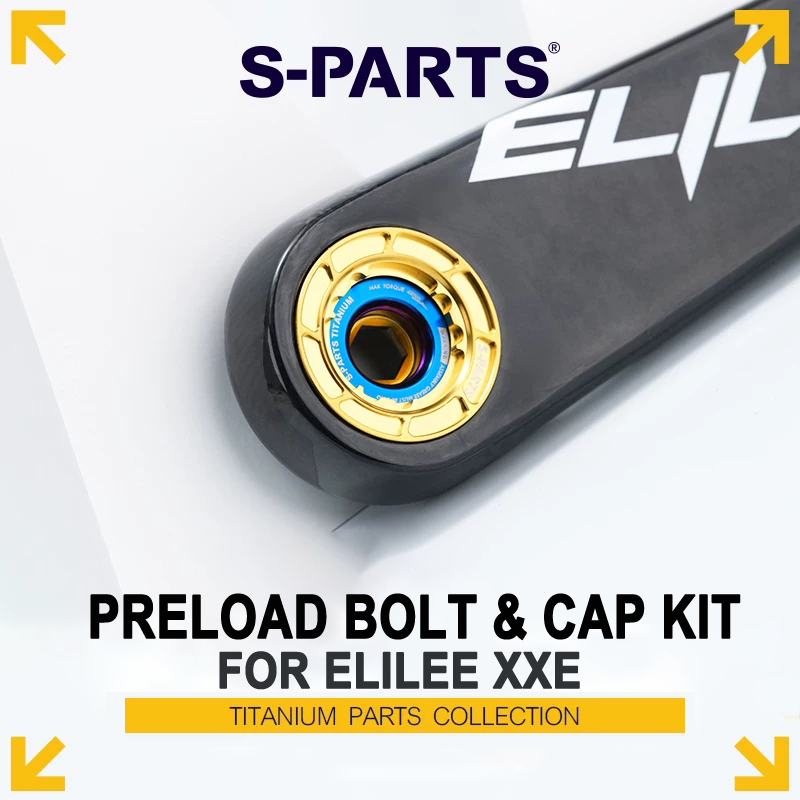

This S-PARTS Titanium Crank Preload Bolt & Self-Extracting Cap Kit is a precision-engineered upgrade system designed specifically for ELILEE XXE cranksets.
The kit includes a right-hand threaded preload bolt and a left-hand threaded self-extracting cap, working together to deliver secure preload adjustment, enhanced anti-loosening performance, and a refined mechanical interface.

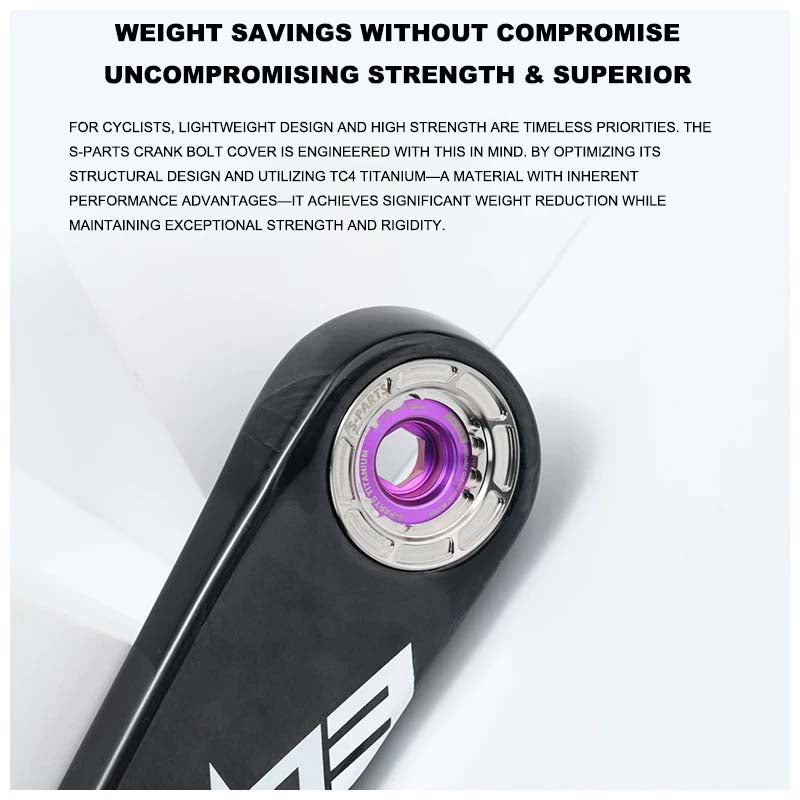

Machined from Grade 5 titanium, this upgrade improves durability, reduces weight, and elevates the overall aesthetic of high-end road and MTB builds.
Specifications
Material: Grade 5 Titanium (Ti-6Al-4V)
Weight: approx. 10.51 g per set
Weight Saving: approx. 2.5 g vs. stock hardware
Thread & Torque Specifications (Important)
- Crank Bolt (Right-hand thread): 40 Nm
- Self-Extracting Cap (Left-hand reverse thread): 10 Nm
👉 Dual thread directions are engineered to enhance mechanical stability and prevent loosening under riding loads.
Tool Requirements:
- 10 mm hex wrench (standard tool)
- ELILEE XXE preload tool required
Key Features
Integrated Dual-Component System
Includes both preload bolt and self-extracting cap, forming a complete upgrade solution for ELILEE XXE cranksets.
High-Strength Titanium Construction
Manufactured from Grade 5 titanium, offering excellent strength-to-weight ratio and corrosion resistance.

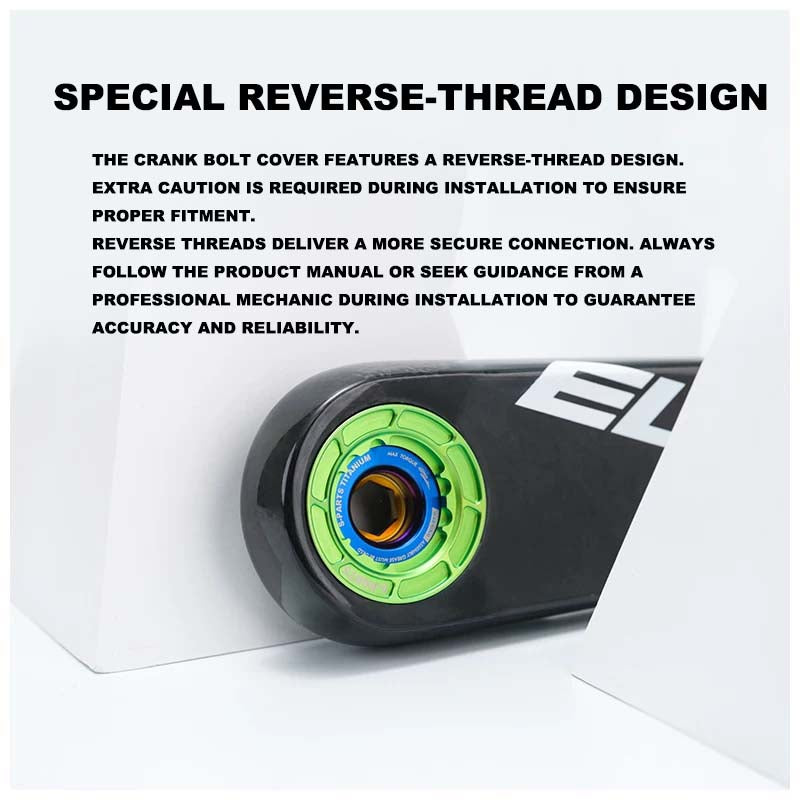

Anti-Loosening Thread Design
Reverse-thread cap structure helps resist loosening caused by crank rotation and vibration.
Precision CNC Machining
Tight tolerances ensure accurate fitment, smooth installation, and long-term reliability.

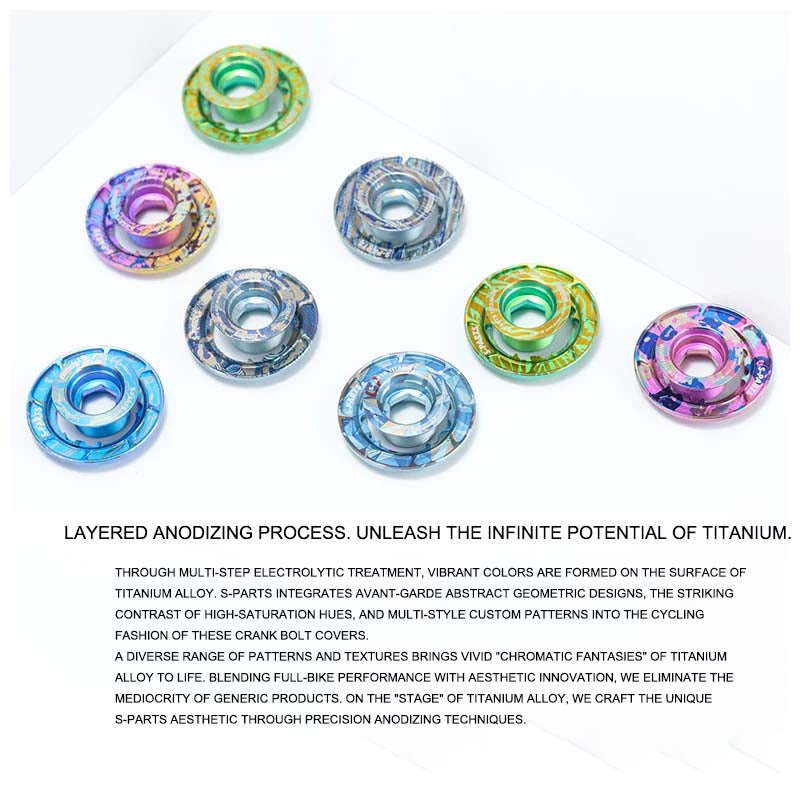

Premium Anodized Finishes
Durable, high-quality anodizing provides consistent color and a premium visual finish.

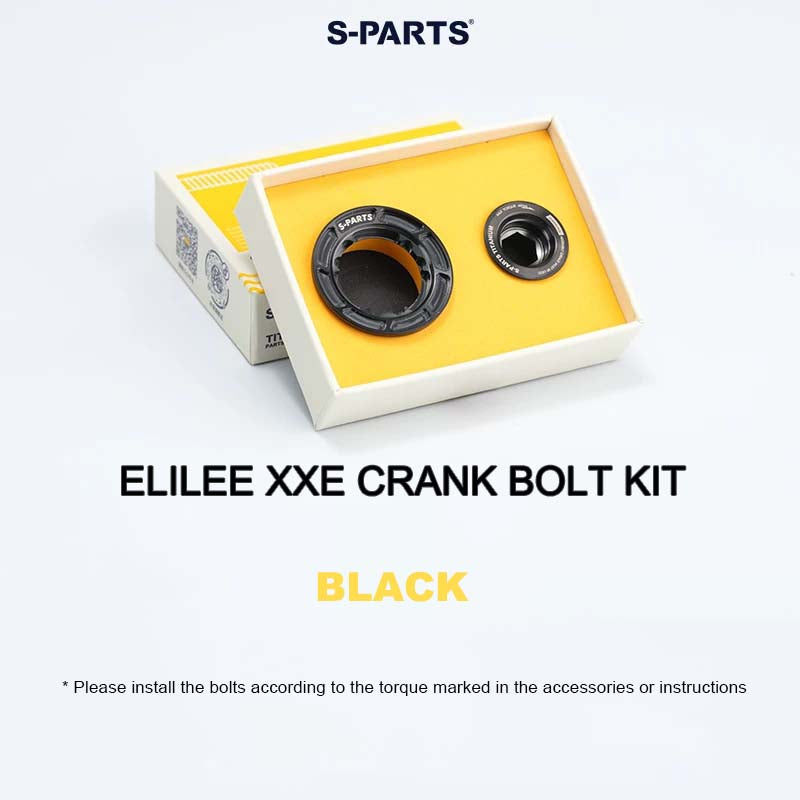

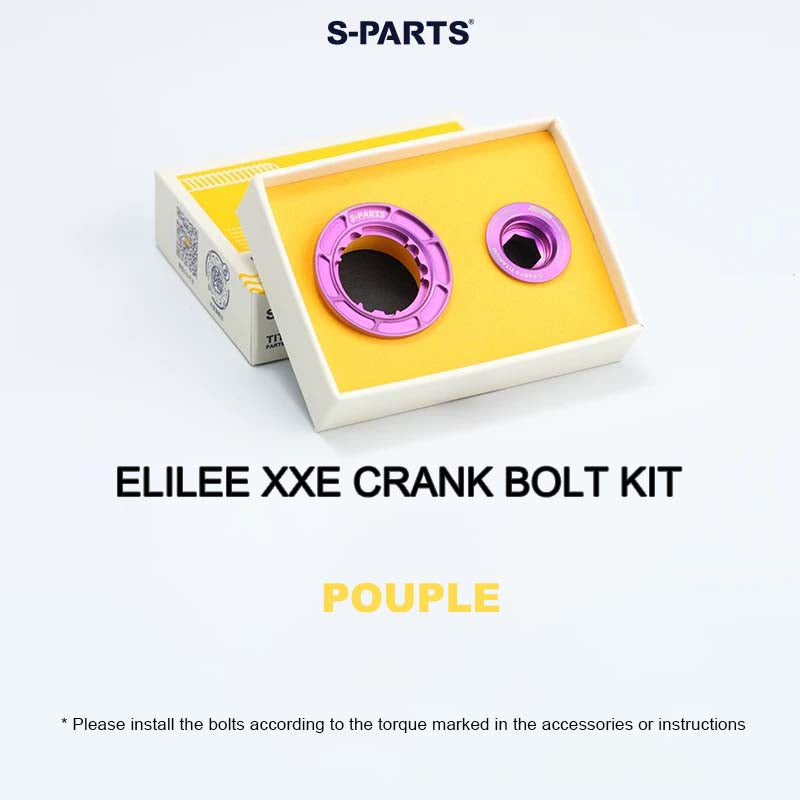

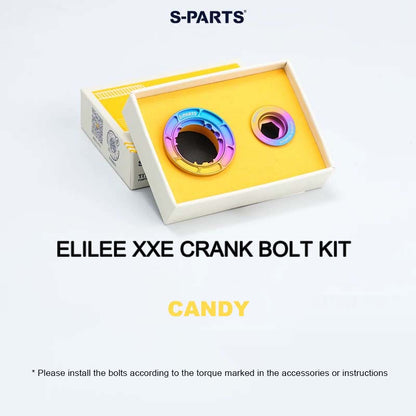

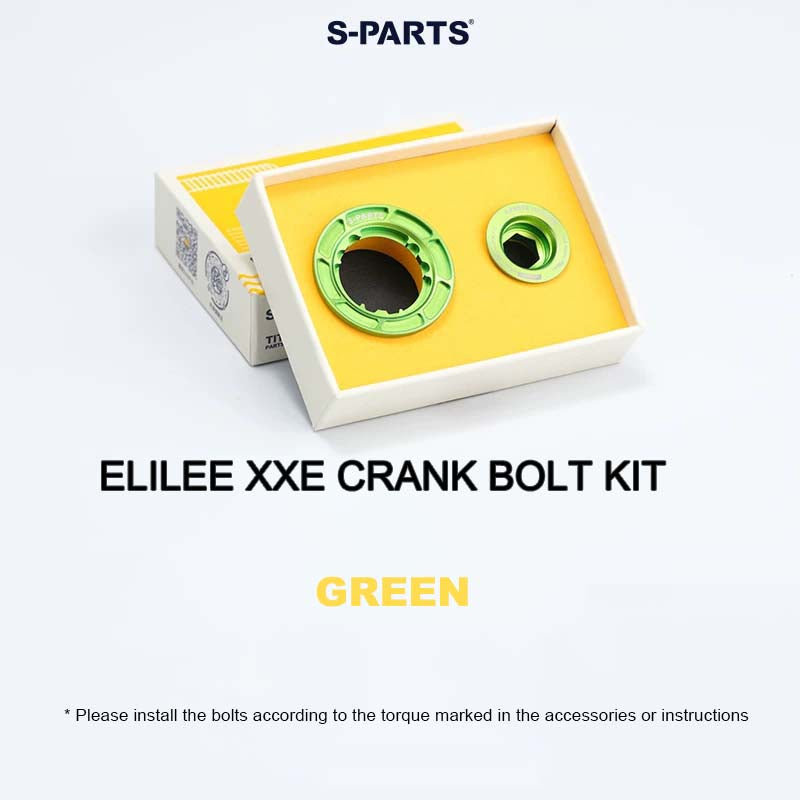

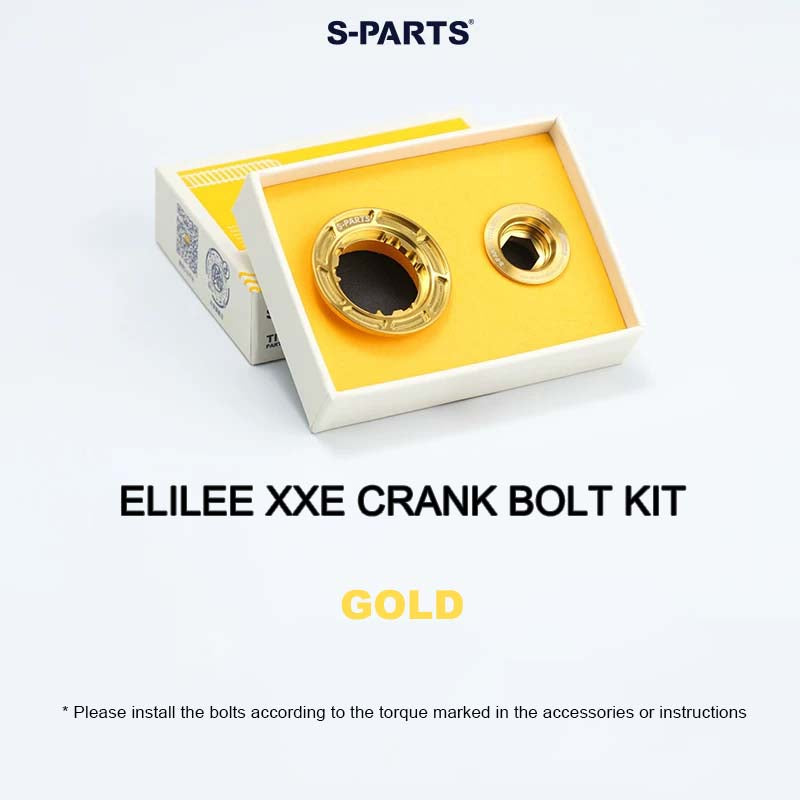

Available Colors:

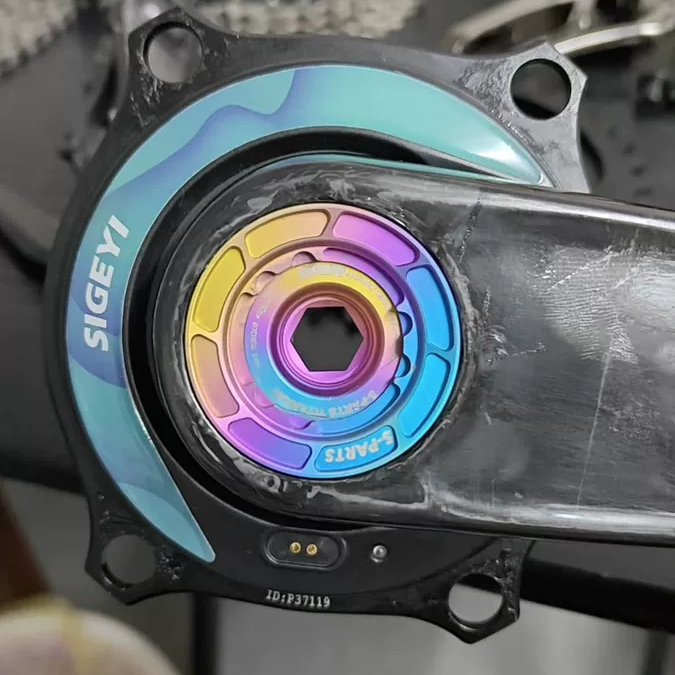

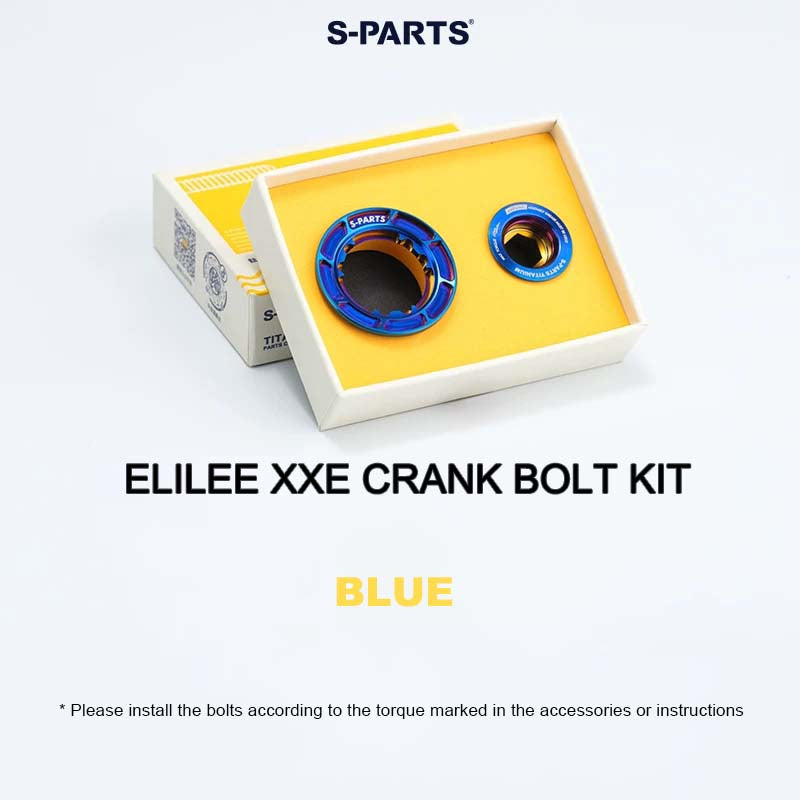

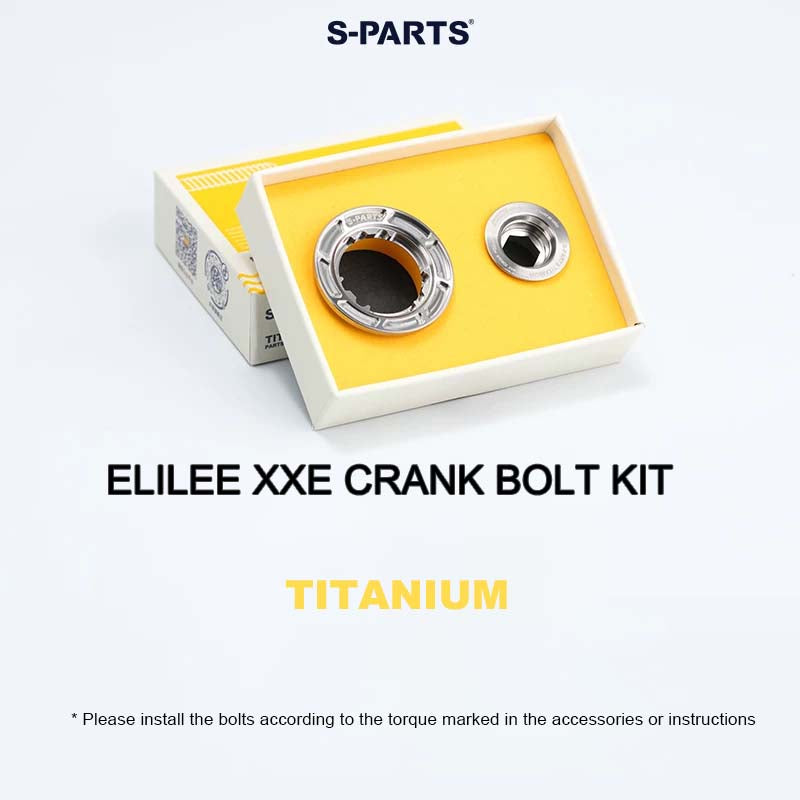

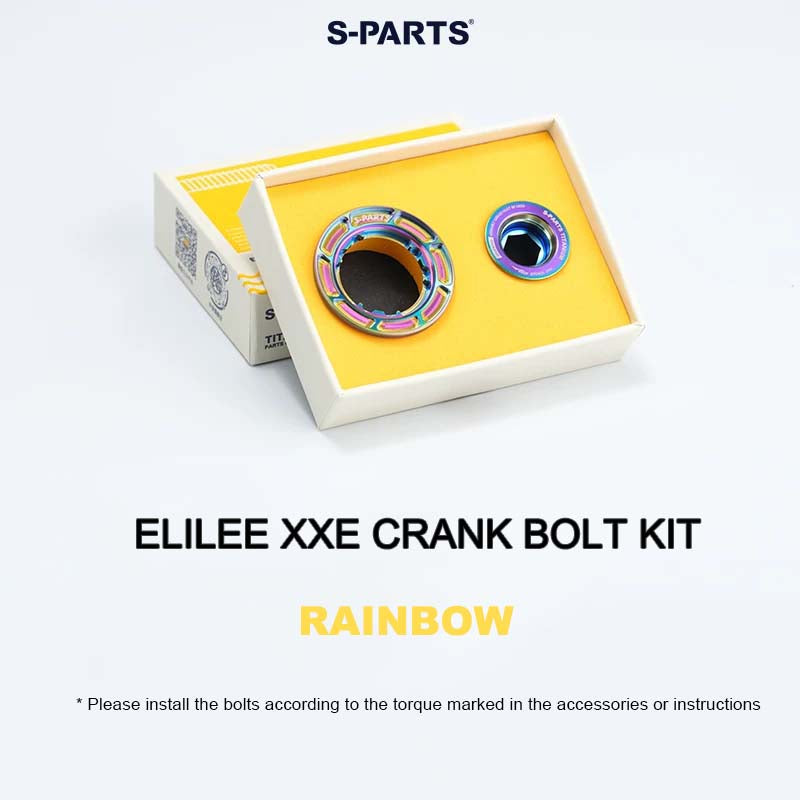

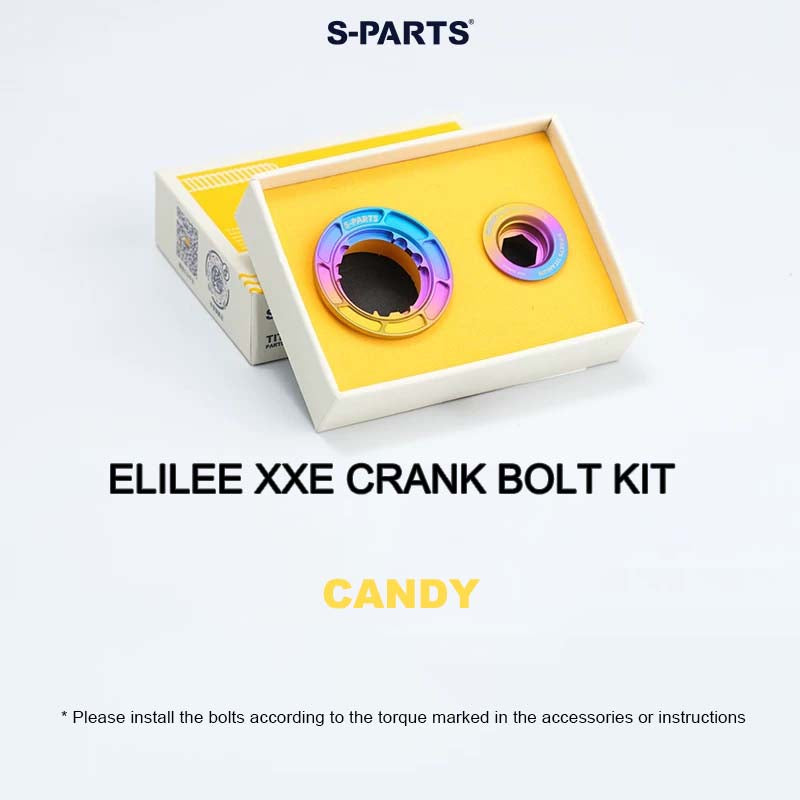

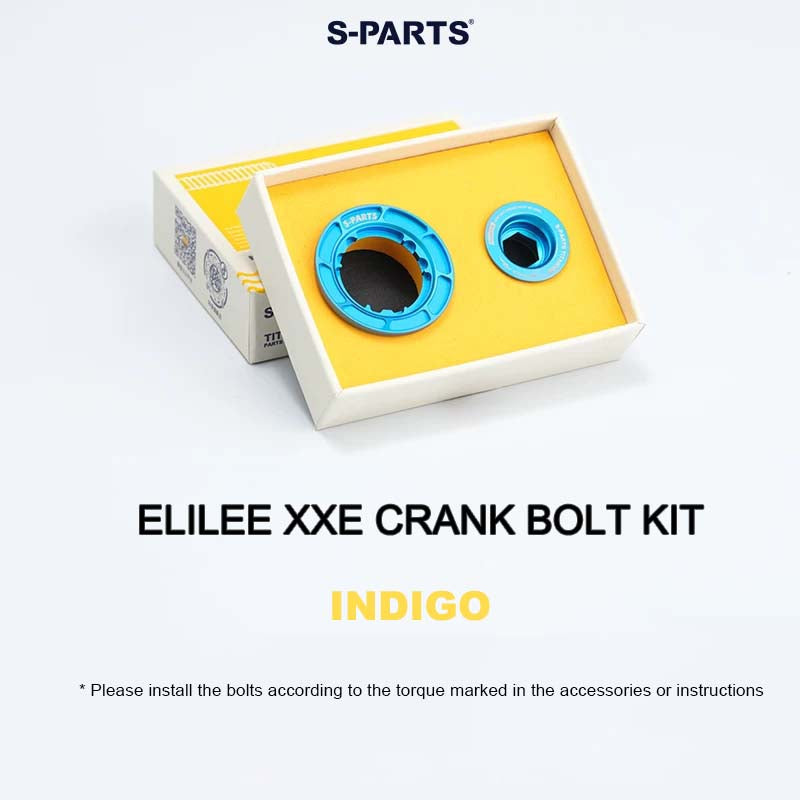

Gold, Black, Titanium, Blue, Purple, Green, Rainbow, Candy, Indigo
Signature Finishes (Artisan Collection):

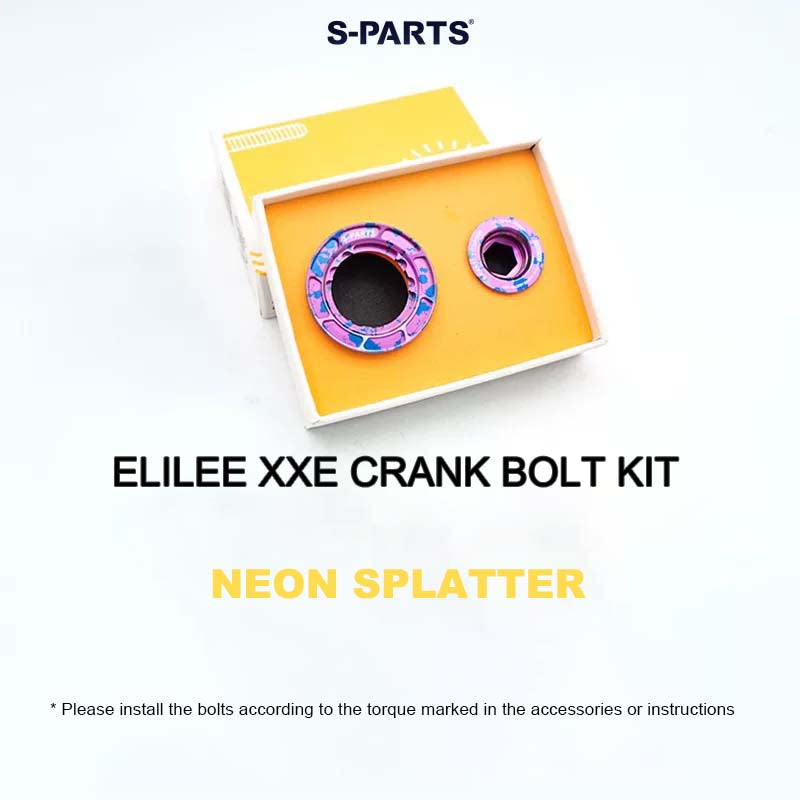

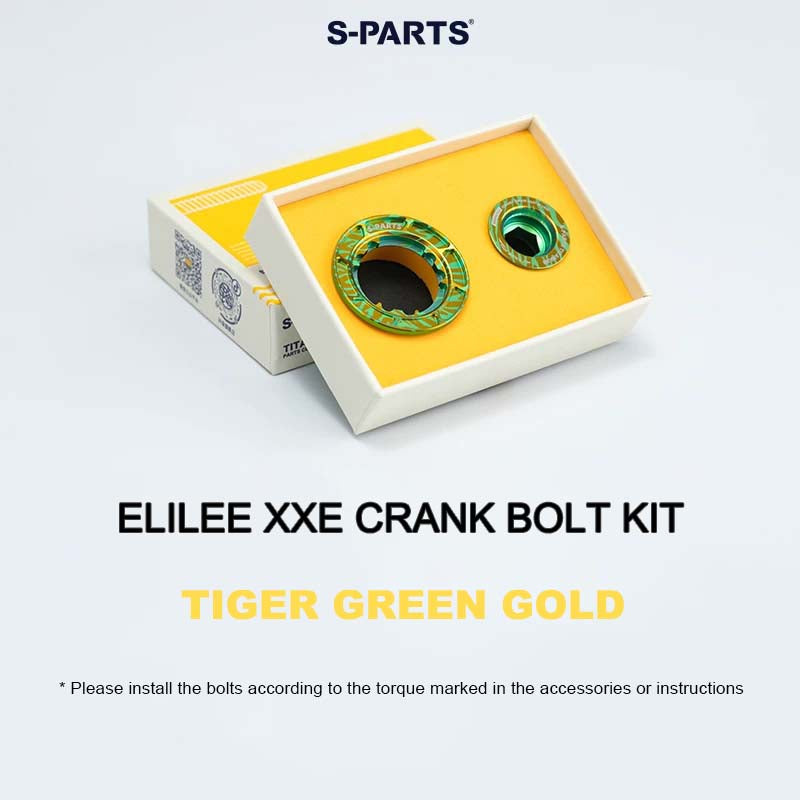

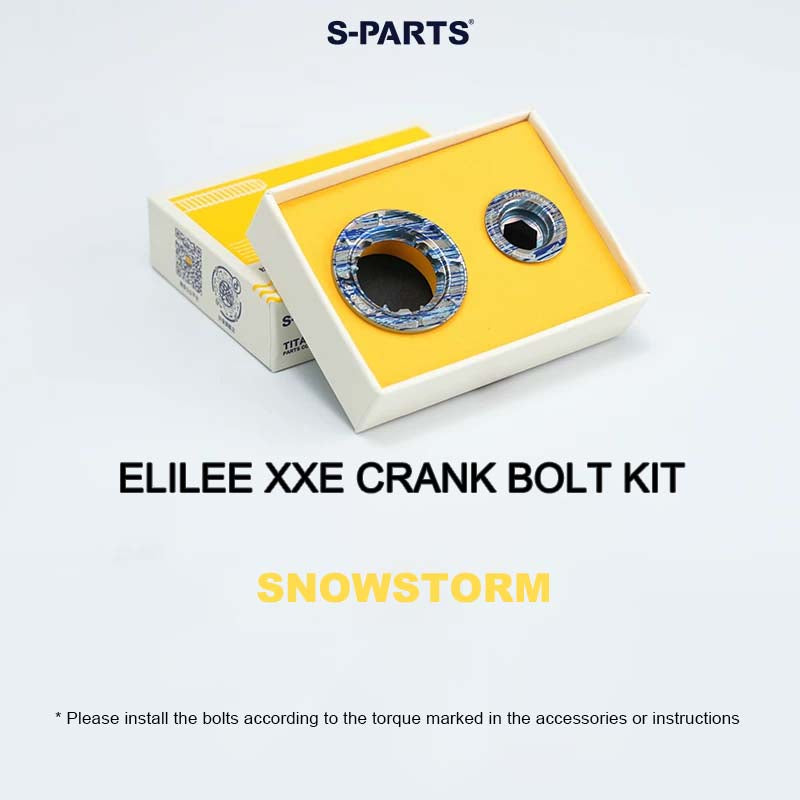

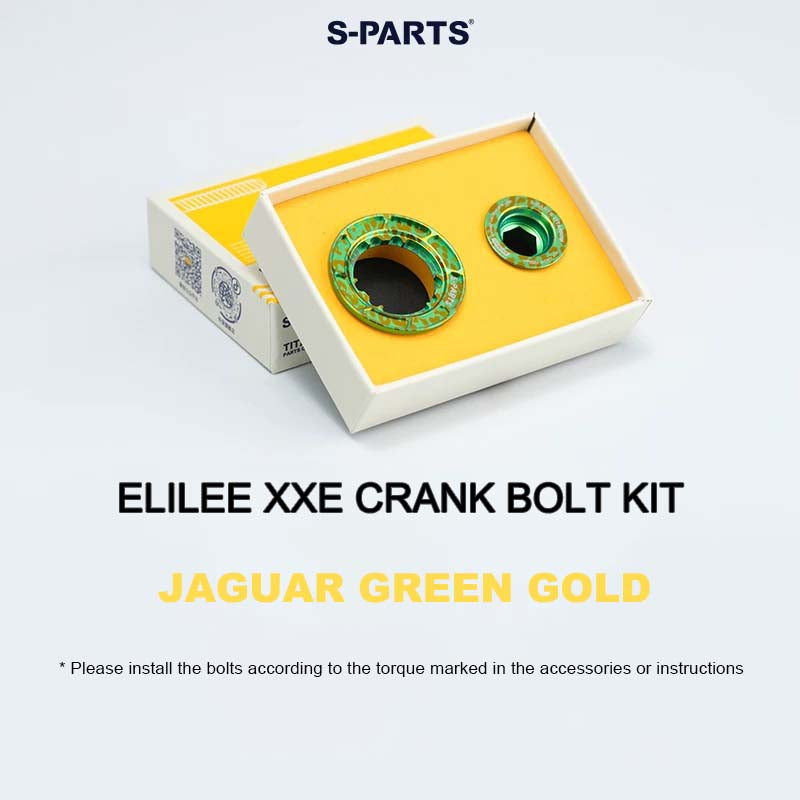

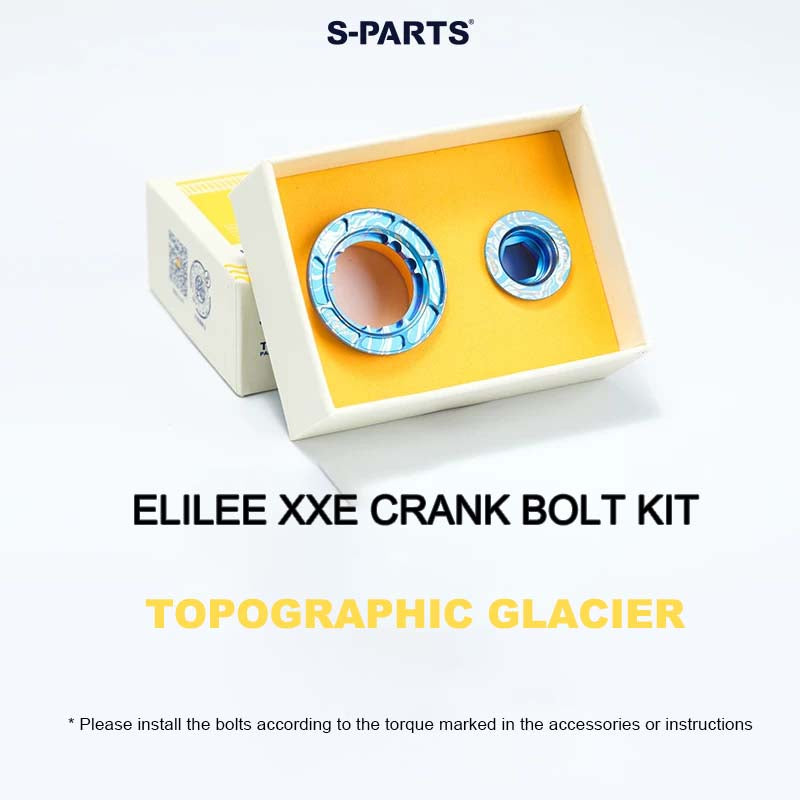

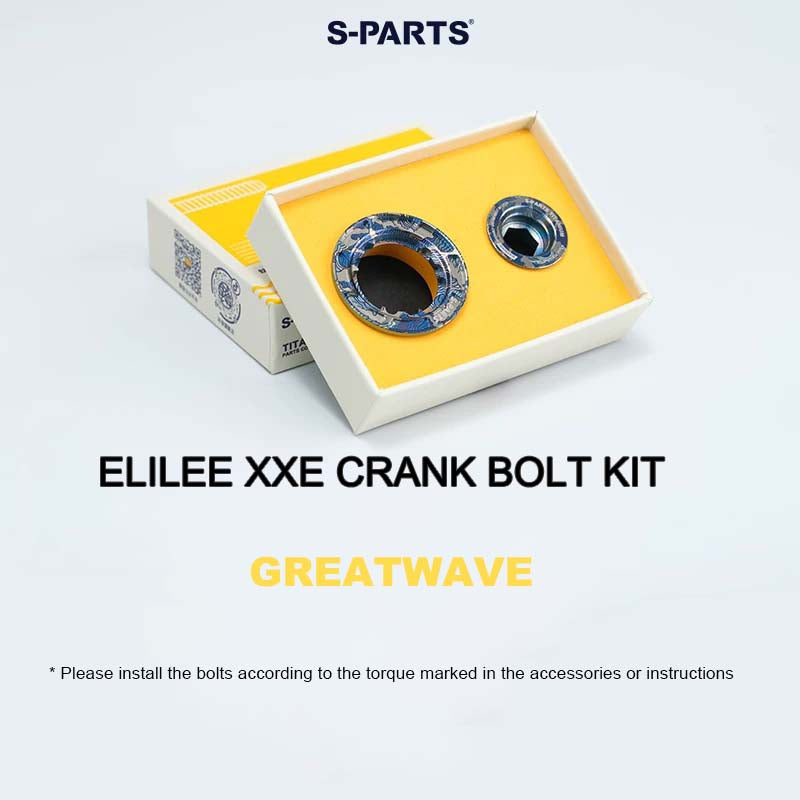

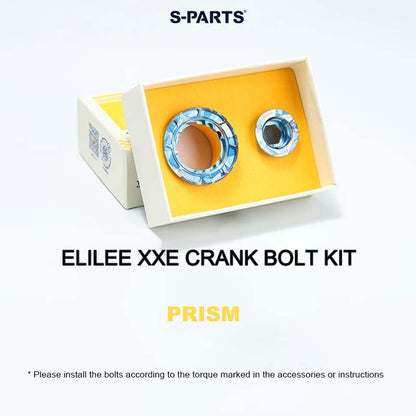

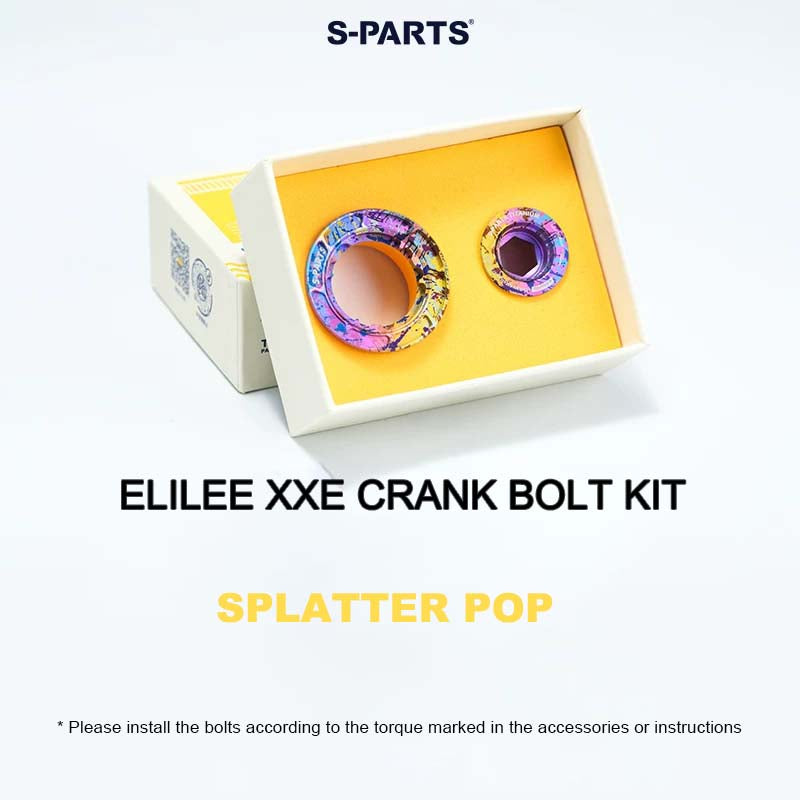

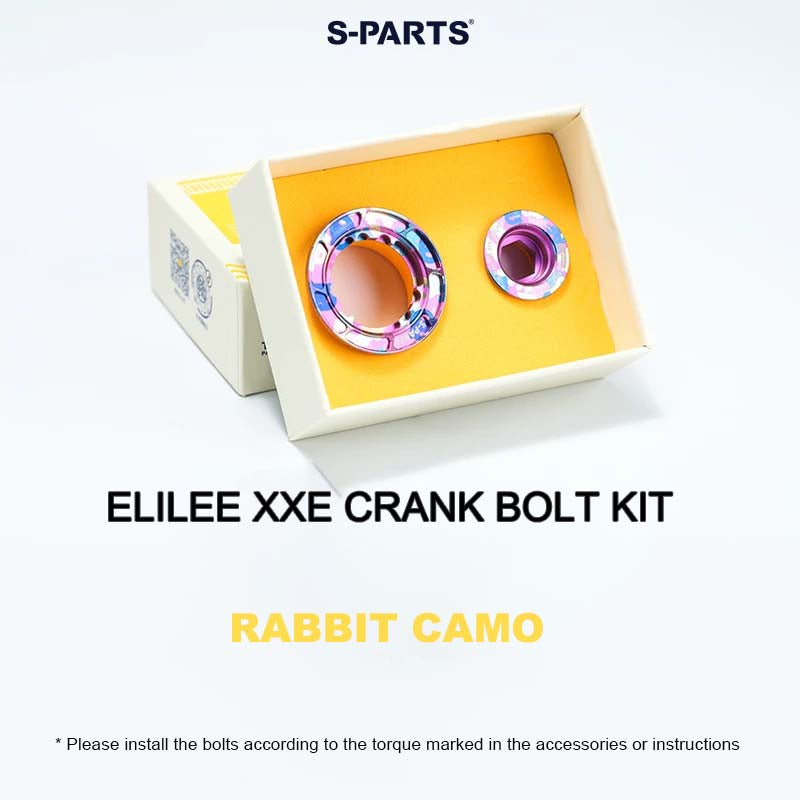

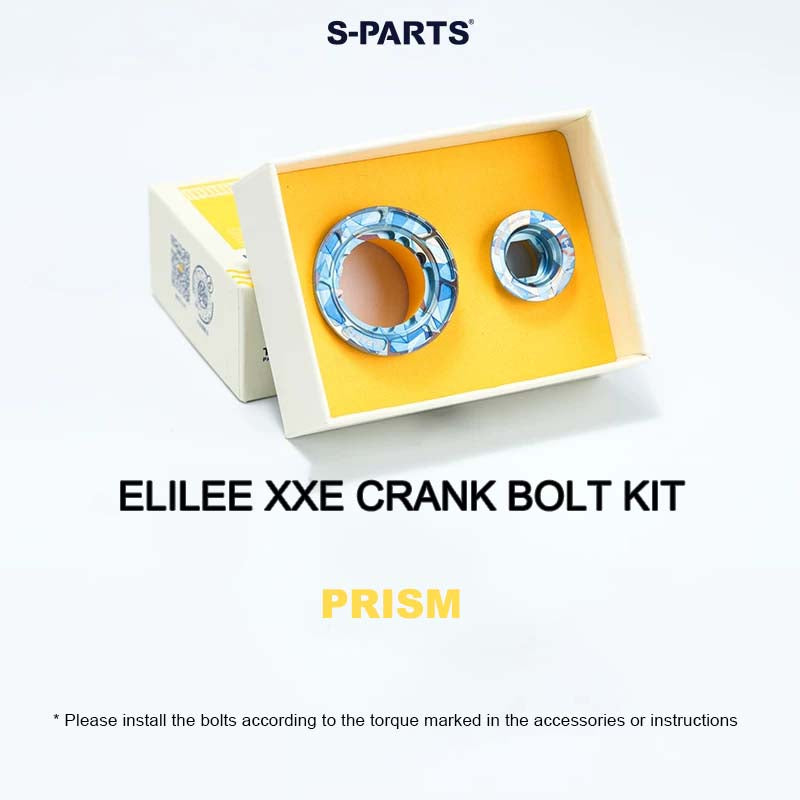

Plasma, Prism, Splatter Pop, Neon Splatter, Rabbit Camo, Great Wave, Tiger Green-Gold, Jaguar Green-Gold, Snowstorm, Topographic Glacier
Important Compatibility Note
- Not compatible with carbon fiber crank axles
- Designed for drive-side installation only
Installation Notes
Includes two components (preload bolt + cap)
Ensure correct thread direction during installation
Apply specified torque values
Professional installation recommended
Why Choose S-PARTS
S-PARTS titanium components are engineered for riders who demand precision, weight efficiency, and refined design.
This kit is not just a replacement - it’s a performance-focused upgrade for modern high-end drivetrain systems.
