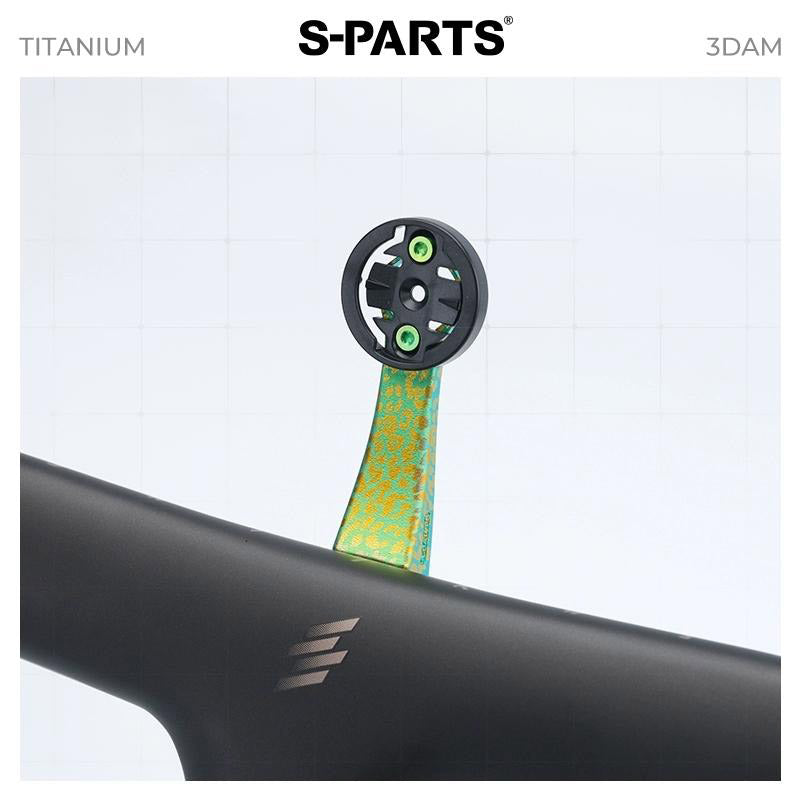

Titanium Computer Mount Kit for BIGROCK Gen 2 Integrated Handlebars – 3D Metal Printed

Product Description

Overview
Crafted with advanced 3D metal additive manufacturing, the S-PARTS Titanium Computer Mount Kit is purpose-built for BIGROCK Gen 2 integrated handlebars. Designed for performance-focused riders, it offers exceptional strength, precision fit, and ultra-light weight, while supporting a wide range of cycling computers.

Precision Engineering

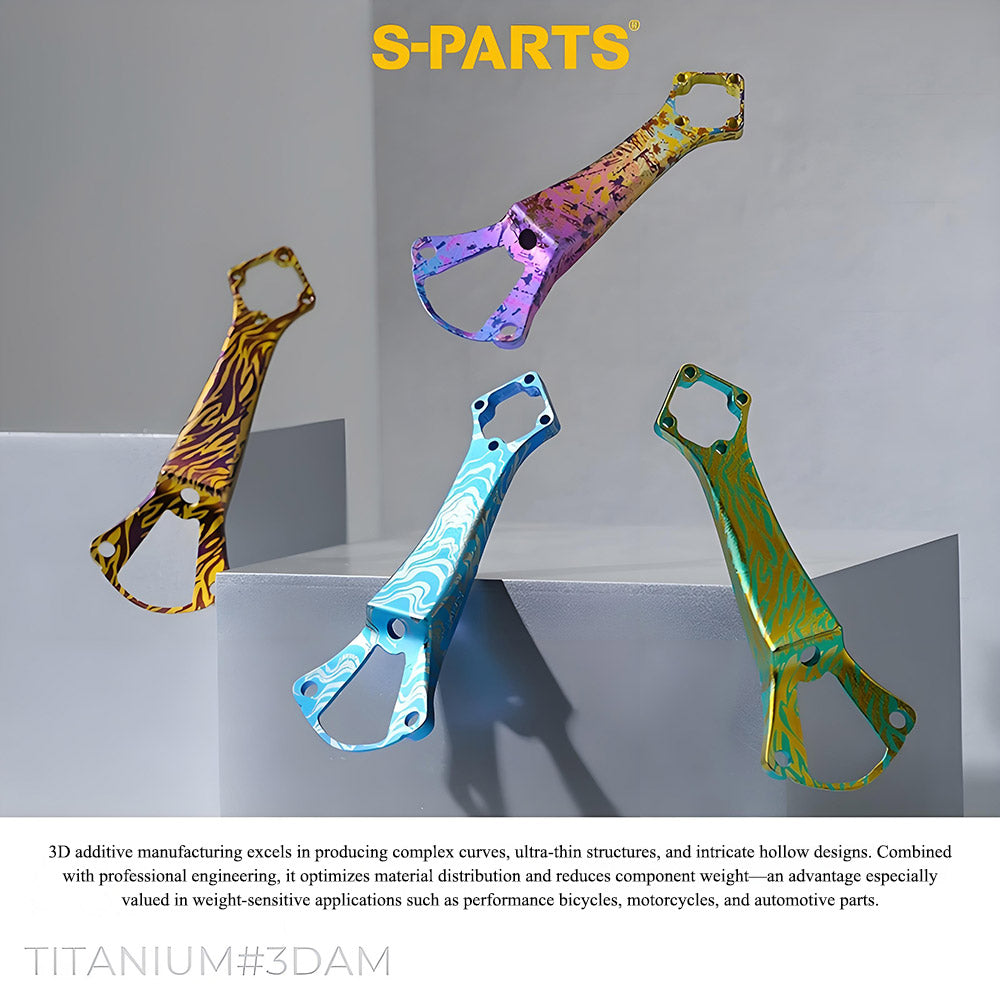

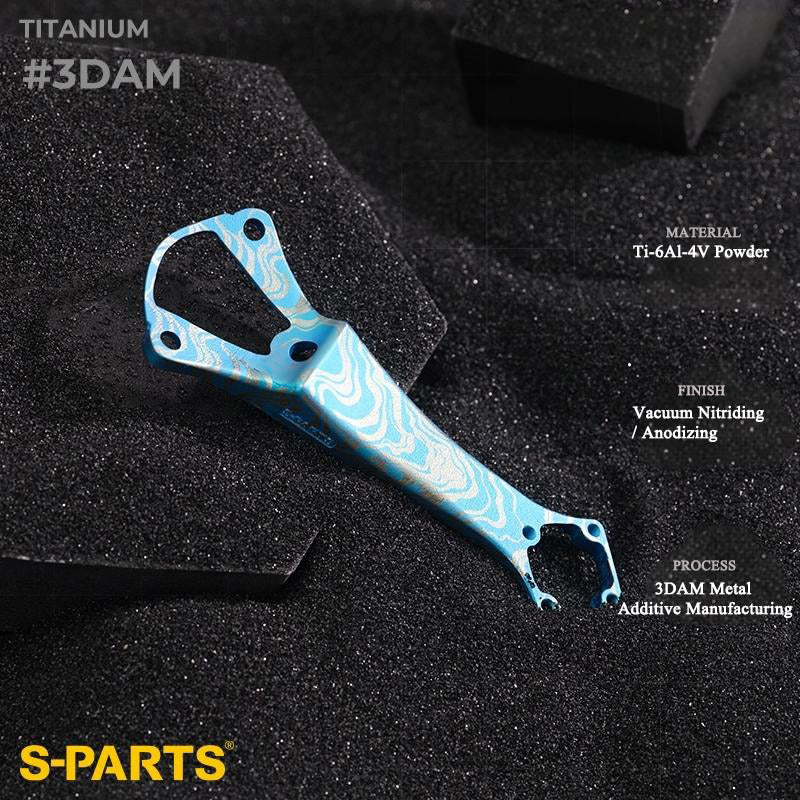

Using professional simulation-based mechanical analysis, wall thickness is optimized for specific stress points, ensuring an outstanding strength-to-weight ratio. Unlike traditional subtractive machining, our SLM (Selective Laser Melting) process builds each mount layer by layer from high-purity Grade 5 titanium (Ti-6Al-4V) powder. This allows for complex curves, ultra-thin walls, and precision hollow structures to reduce weight without sacrificing durability.

Premium Material & Performance

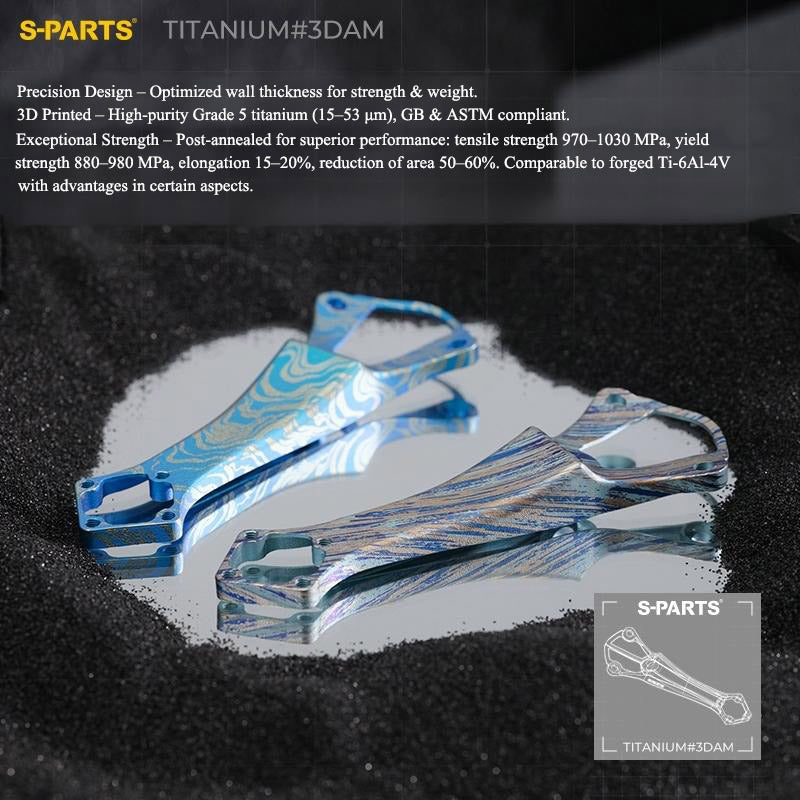

Manufactured using a BLT SLM metal laser sintering system with titanium powder graded 15–53 μm, fully compliant with GB and ASTM standards. Post-annealing delivers mechanical properties comparable to forged Ti-6Al-4V, and in some aspects superior:

• Tensile strength: 970–1030 MPa
• Yield strength: 880–980 MPa
• Elongation: 15-20%
• Reduction of area: 50–60%

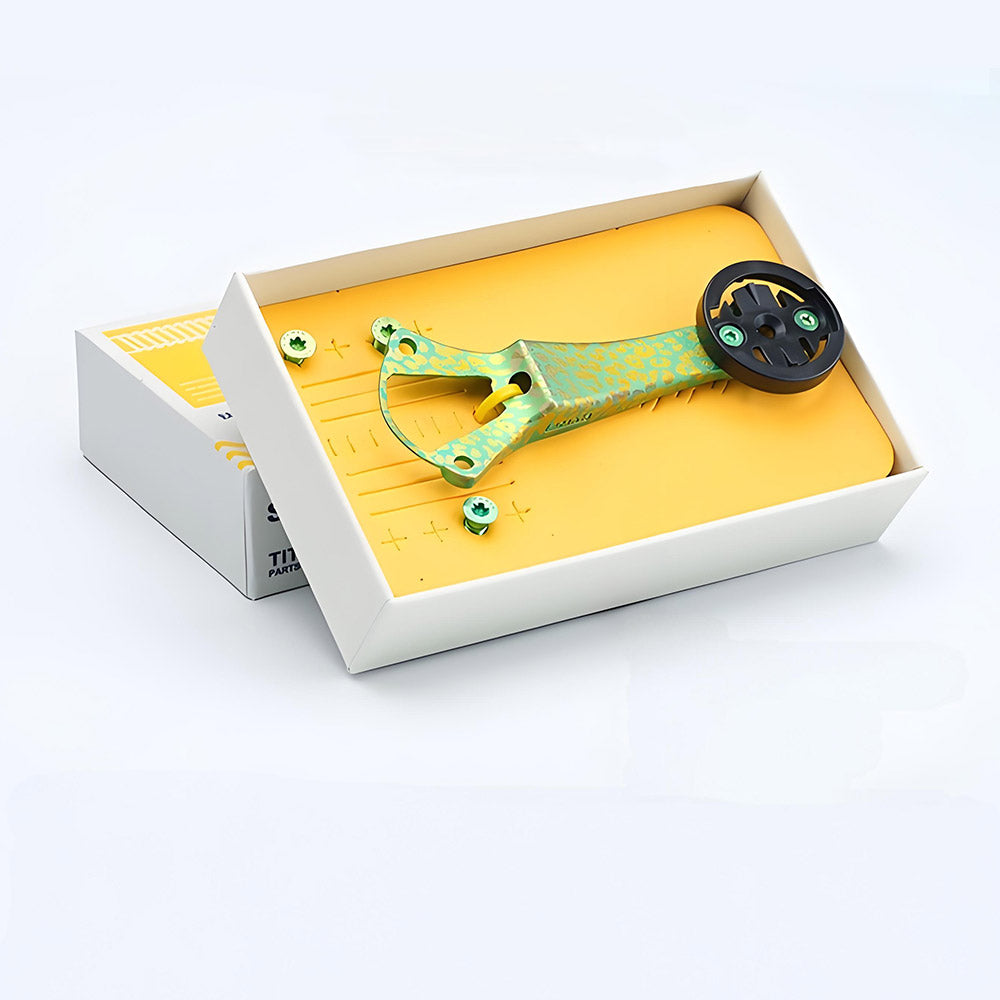

Package Includes
1 × BIGROCK Gen 2 Computer Mount
1 × M5 D7.8 Countersunk Screw (for BIGROCK)
2 × M3 × 6 mm Countersunk Screws
2 × M4 × 14 mm Countersunk Screws
1 × Plastic Threadless Computer Base

Specifications

• Material: Grade 5 Titanium (Ti-6Al-4V) powder
• Weight: 14.6 g/set (excluding base)
• Computer Base Weight: ~2.3 g
• Tools Required: T10 & T20 Torx wrenches

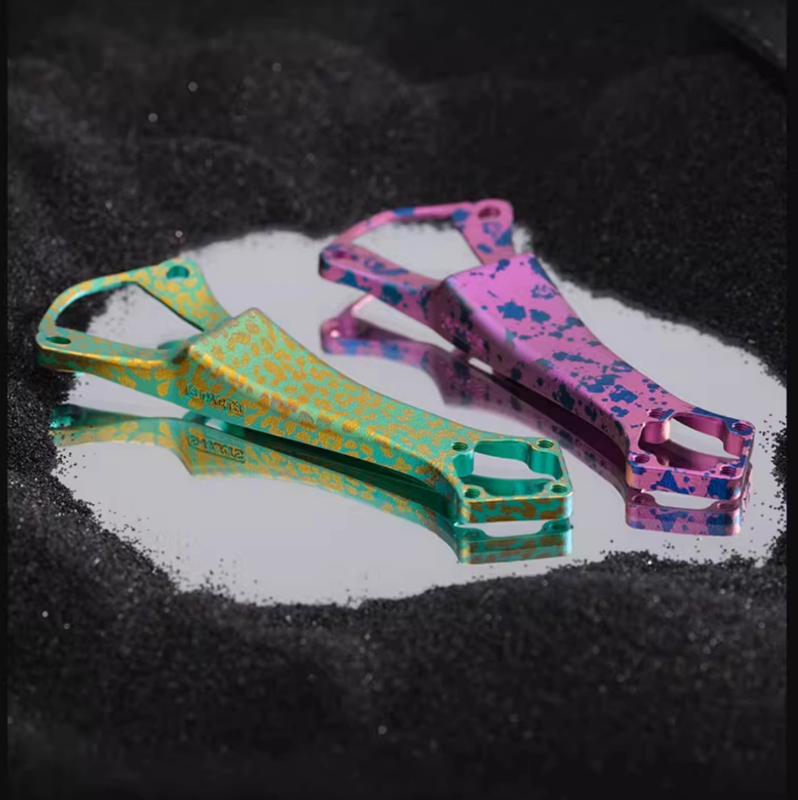

Available Finishes

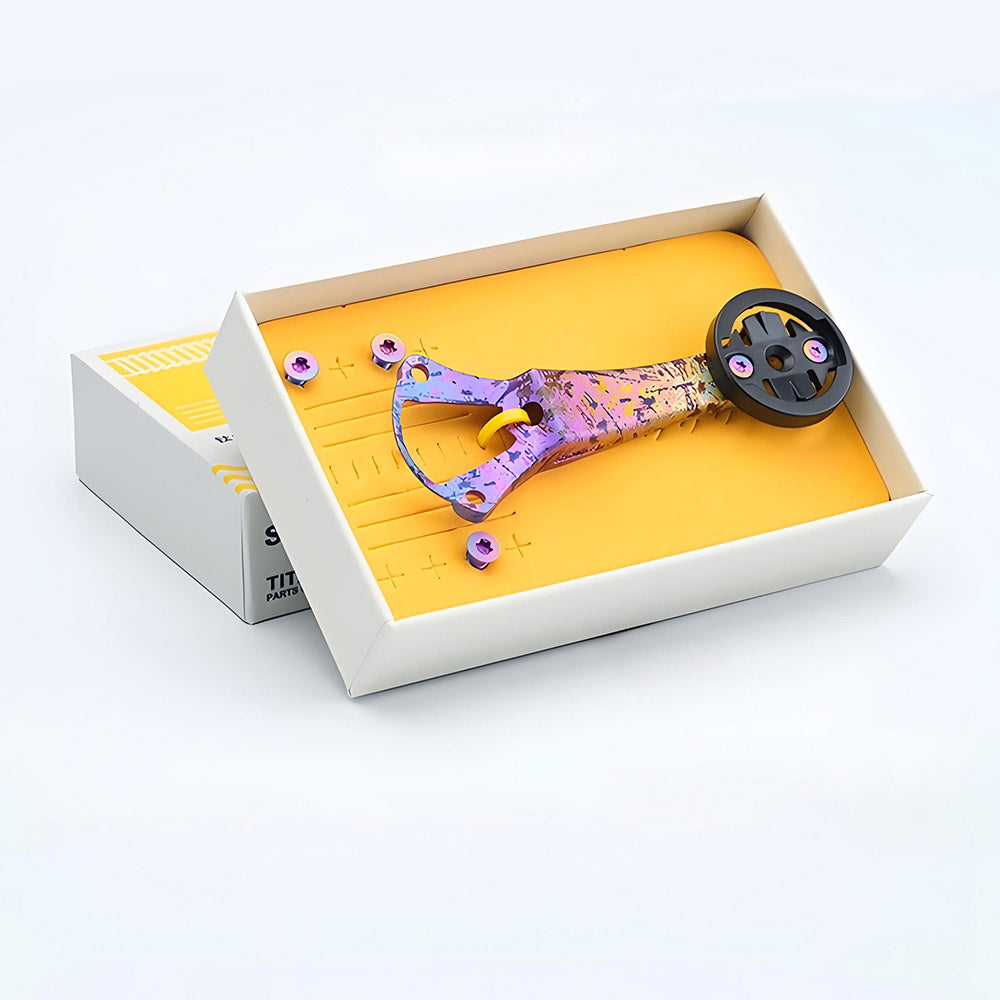

• Hawaiian

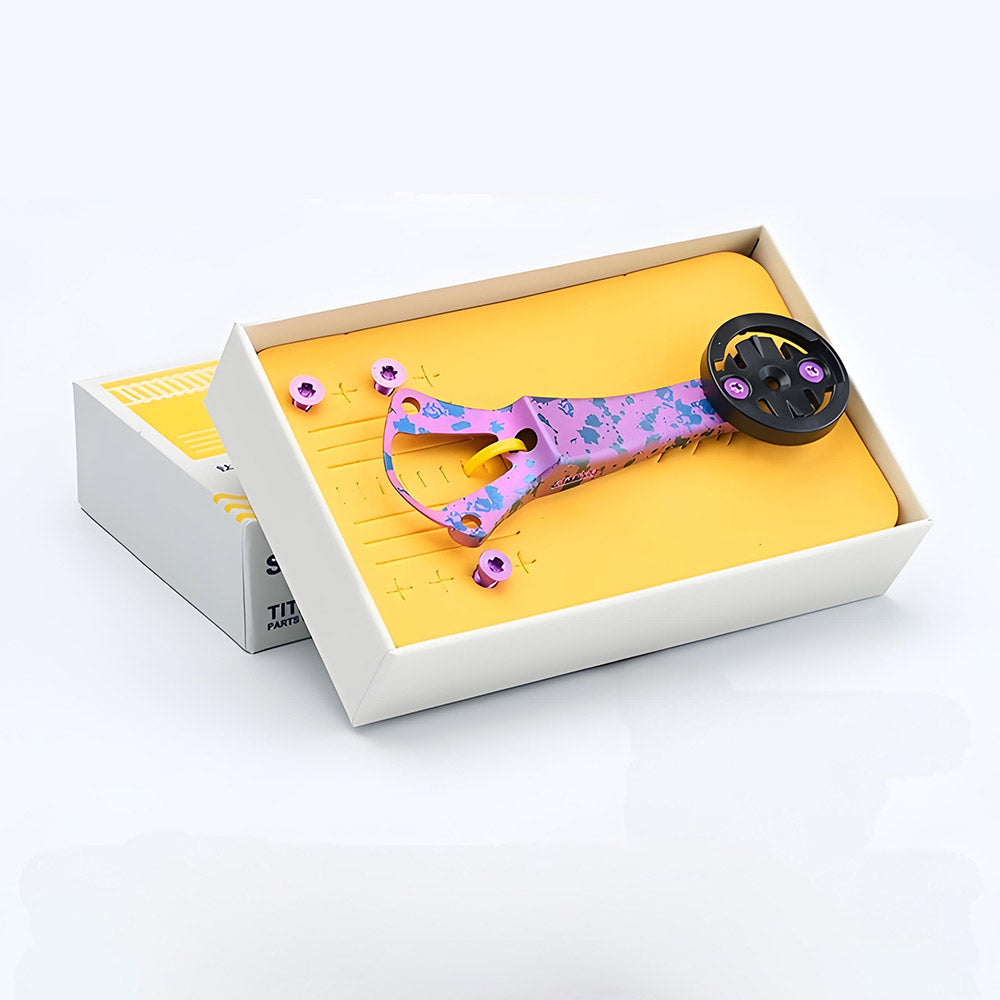

• Nebula
• Tiger Purple

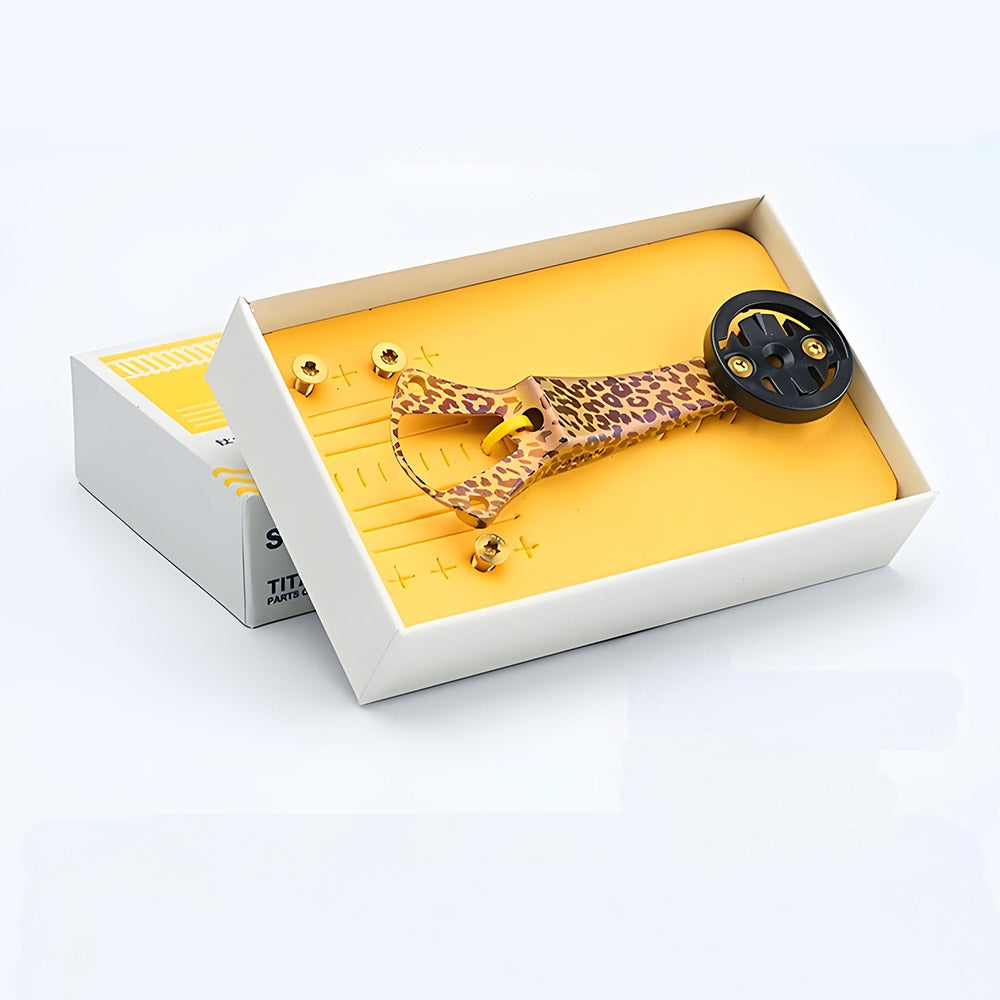

• Jaguar Purple

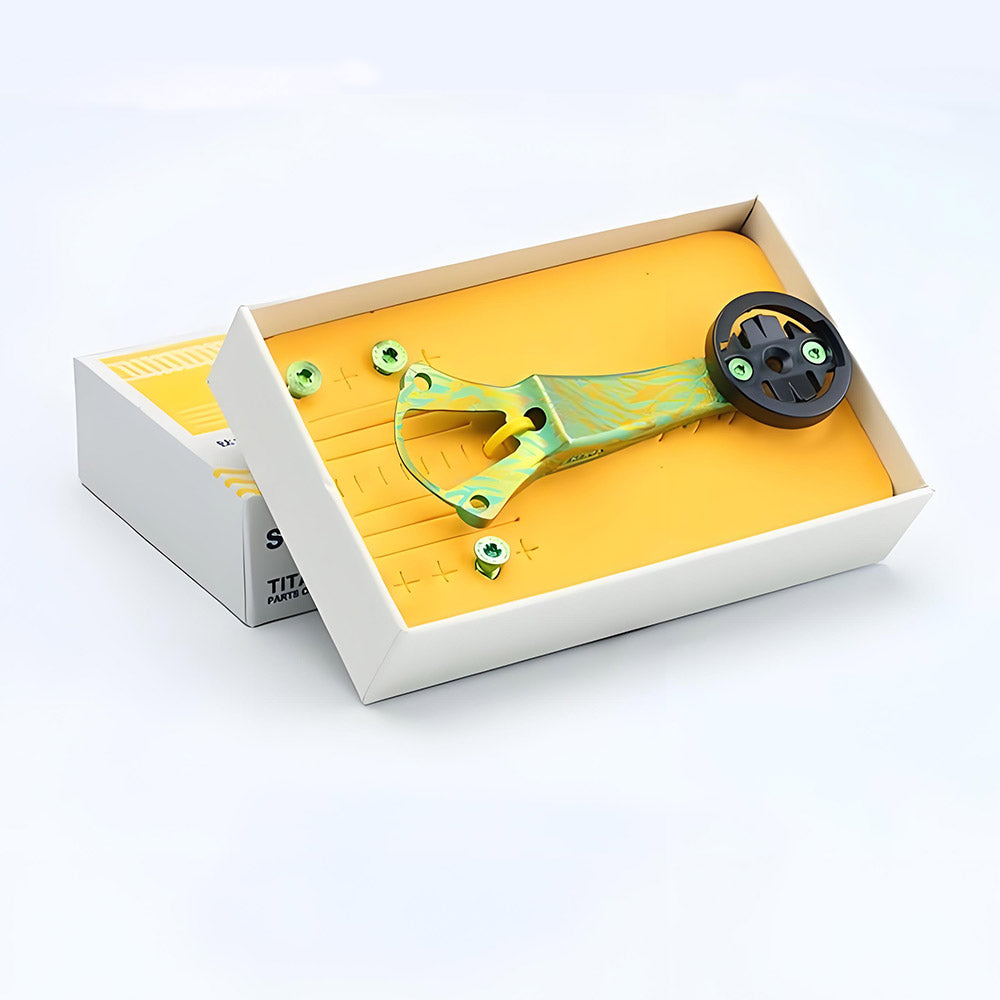

• Tiger Green-Gold
• Jaguar Green-Gold

Notice: Not designed for under-mounted accessories like lights or cameras.
