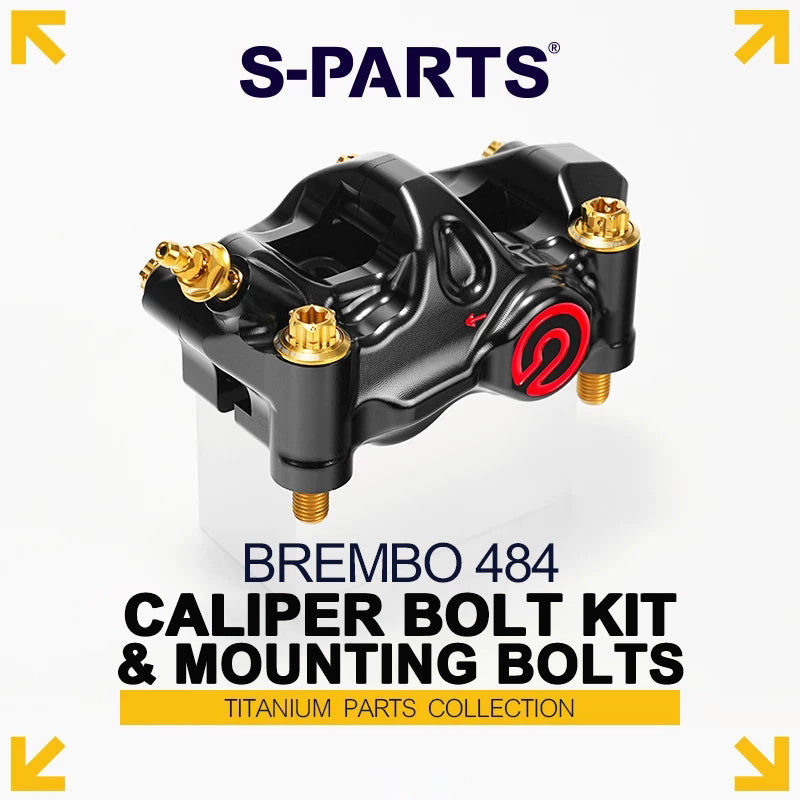

Titanium Caliper Bolt Kit & Mounting Bolts for Brembo .484 (484) Caliper
Titanium Caliper Bolt Kit & Mounting Bolts for Brembo .484 (484) Caliper
Couldn't load pickup availability
Product Description

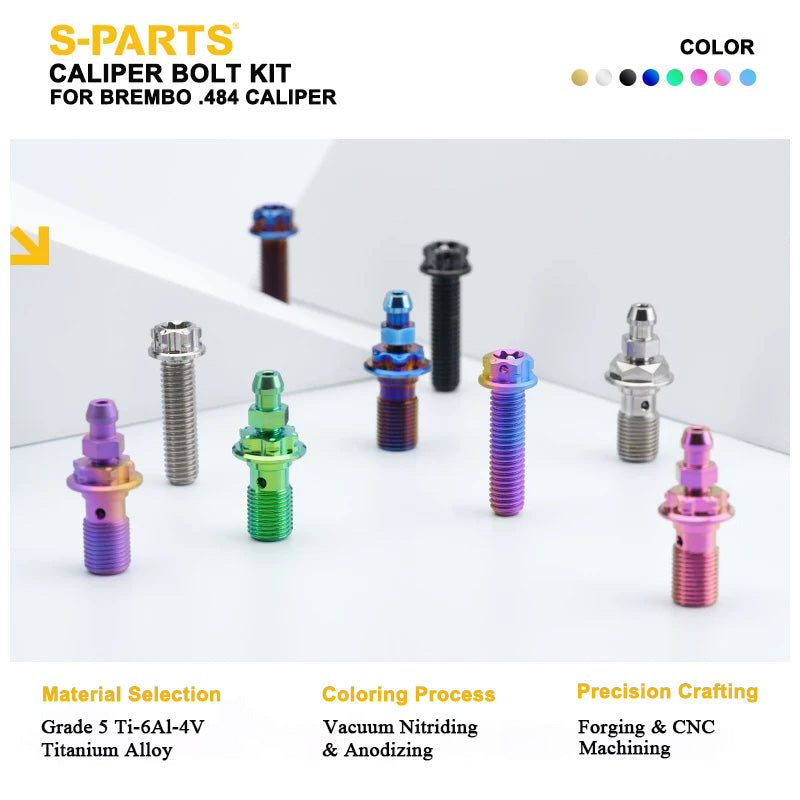

Upgrade your Brembo .484 (484) caliper with S-PARTS Grade 5 titanium hardware, available as a bolt kit, individual M10 mounting bolts or M10 washers.
Key Specifications
- Compatibility: Brembo .484 (484) caliper
- Material: Grade 5 Titanium (Ti-6Al-4V)
- Colors: Gold, Titanium, Black, Blue, Green, Purple, Candy and Indigo. Rainbow is also available for Variants 2-6.
Variants & Specifications
| Variant | Specifications | Weight | Tool |
|---|---|---|---|

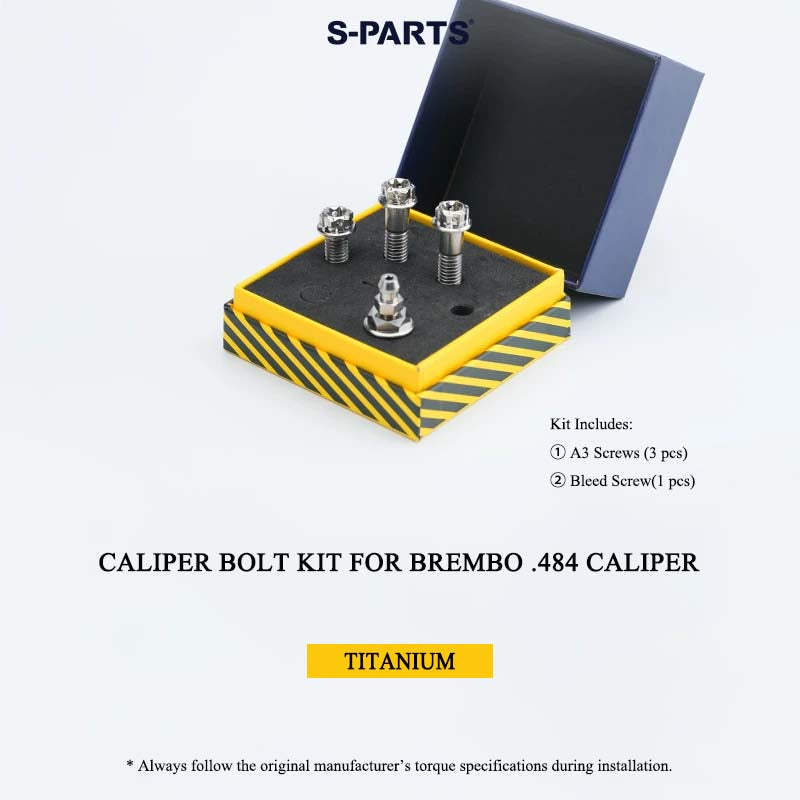

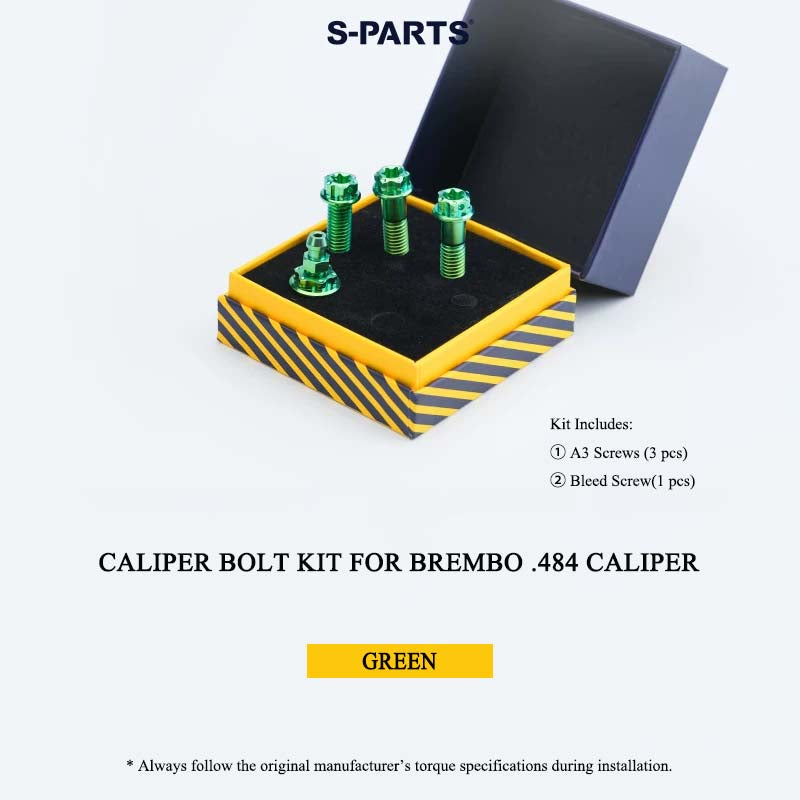

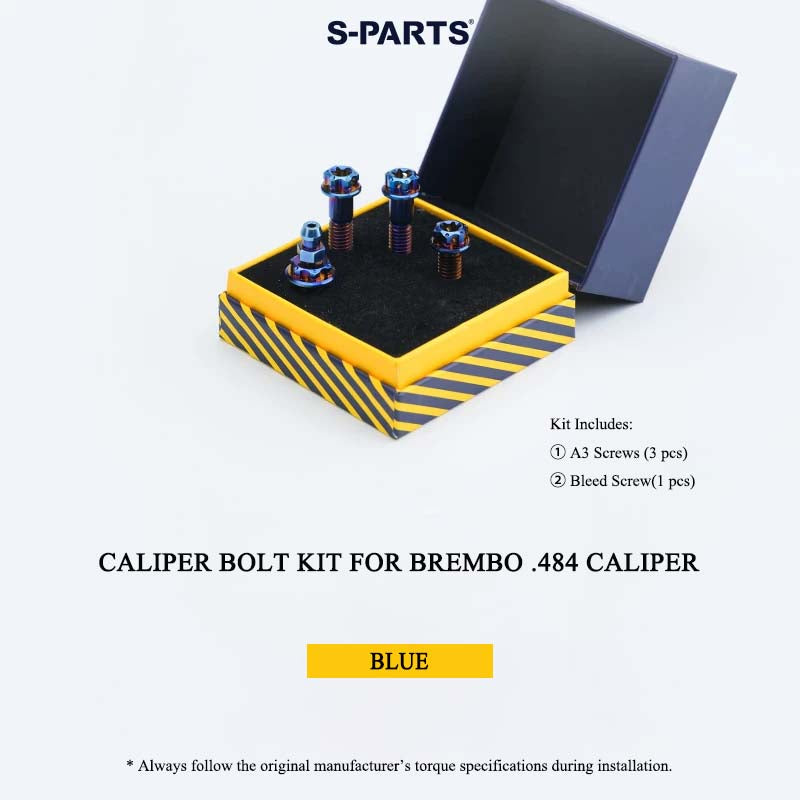

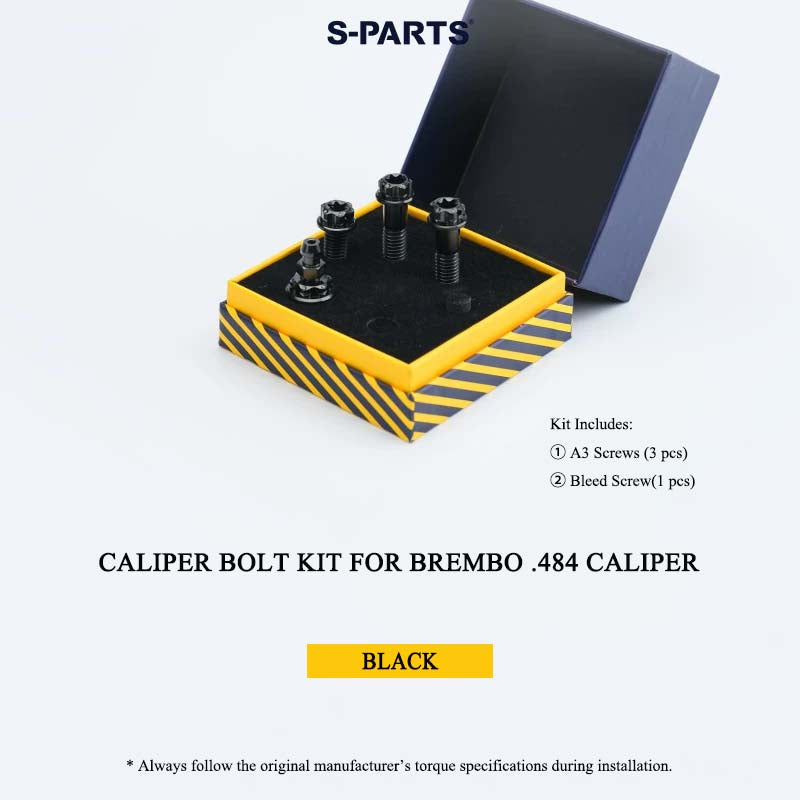

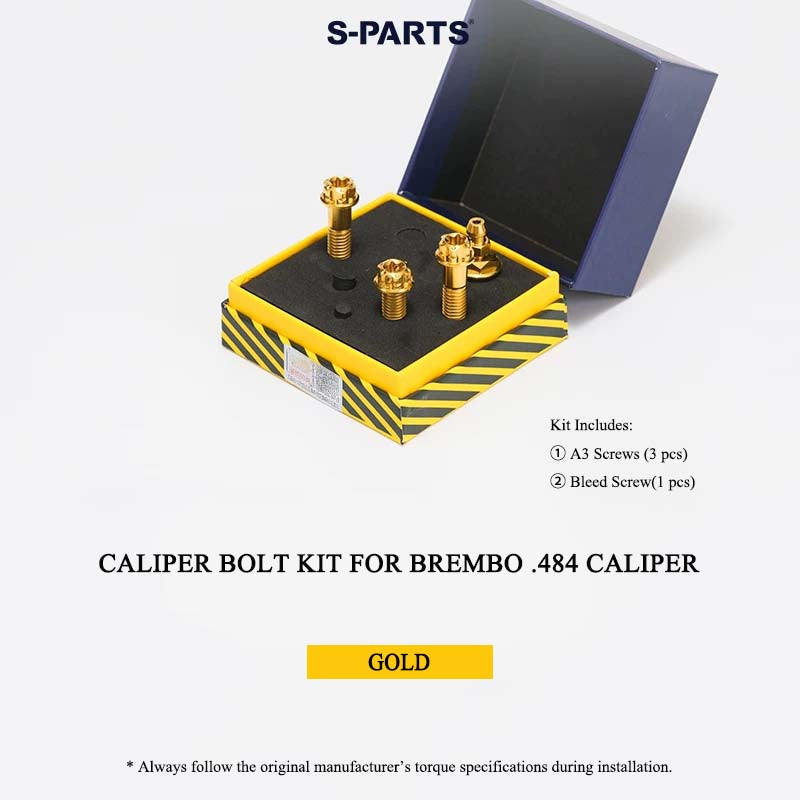

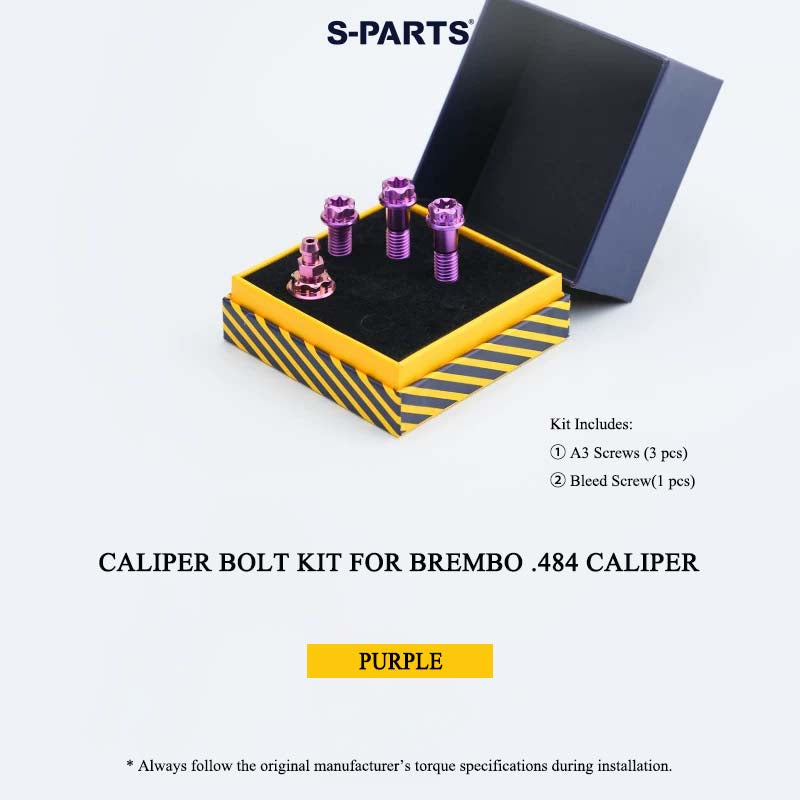

| 1. Caliper Bolt Kit | 2 × M8 × 40 mm bolts, 1 × M8 × 30 mm bolt, 1 × single-hole banjo bolt, P1.0 | 35 g/set | - |
| 2. Caliper Mounting Bolt | M10 × 50 mm, P1.25 | 18.26 g/pc | T50 Torx |

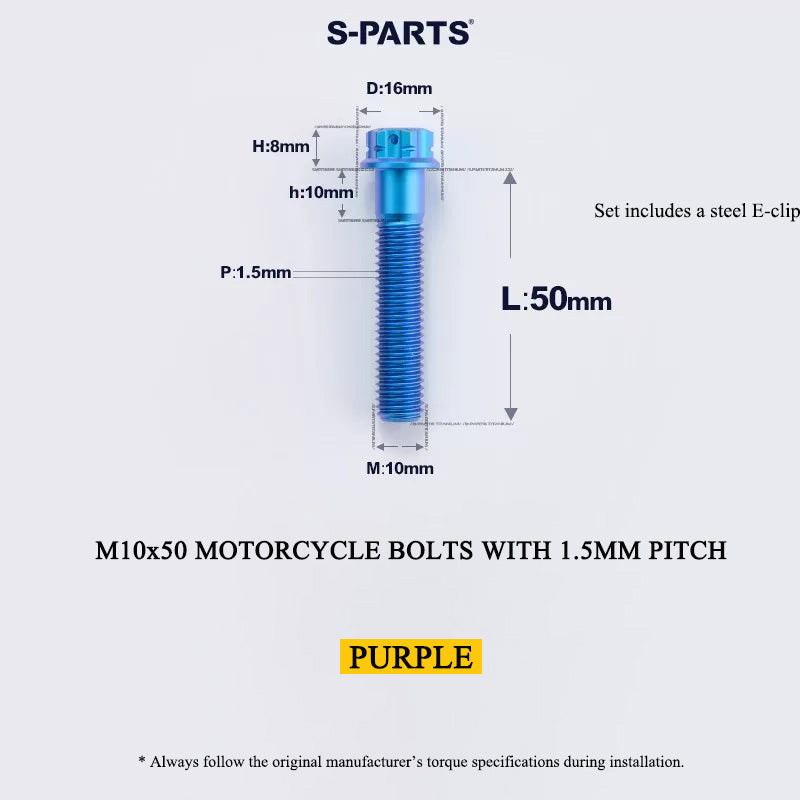

| 3. Caliper Mounting Bolt | M10 × 50 mm, P1.5 | 18.06 g/pc | T50 Torx |
| 4. Caliper Mounting Bolt | M10 × 55 mm, P1.25 | 19.9 g/pc | T50 Torx |

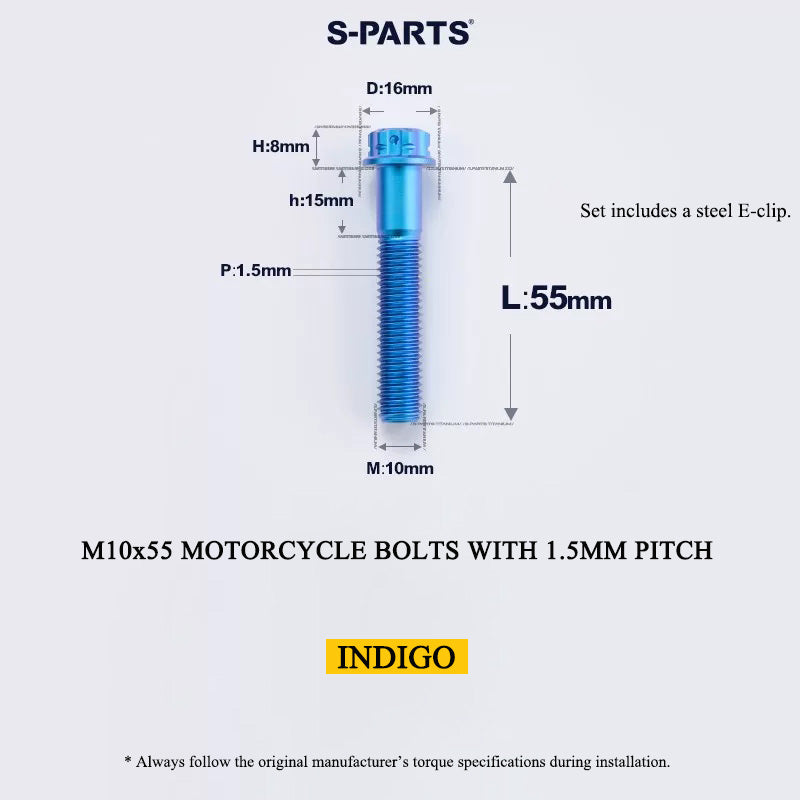

| 5. Caliper Mounting Bolt | M10 × 55 mm, P1.5 | 19.7 g/pc | T50 Torx |

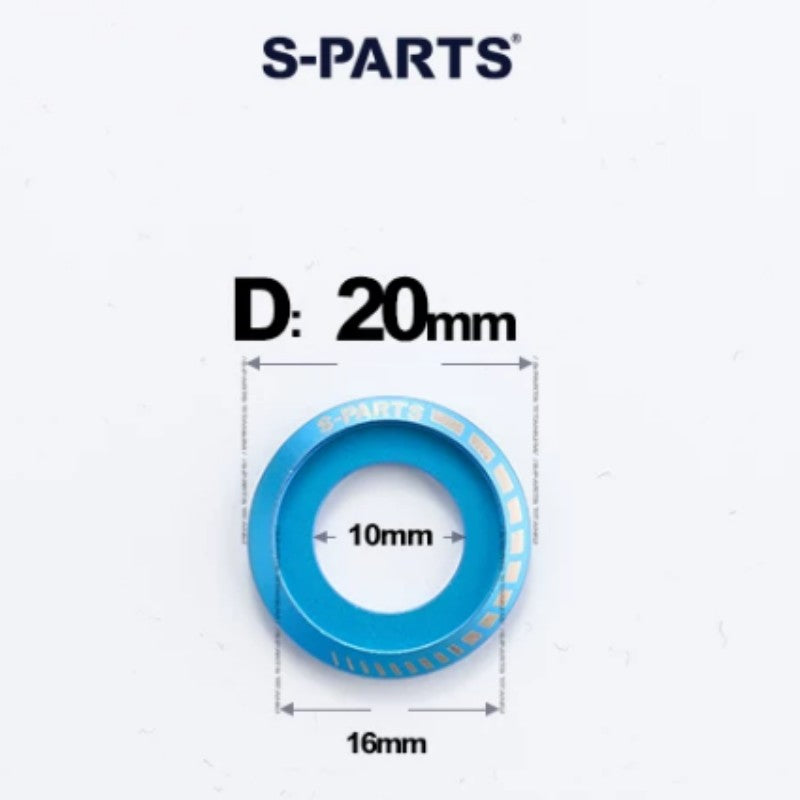

| 6. M10 Washer | 20 mm diameter, 2.5 mm thickness, 1 mm groove thickness | 1.53 g/pc | - |
Variant 1 does not include caliper mounting bolts. Variants 2-5 are sold as individual bolts, and Variant 6 as an individual washer.
Lightweight Grade 5 Titanium

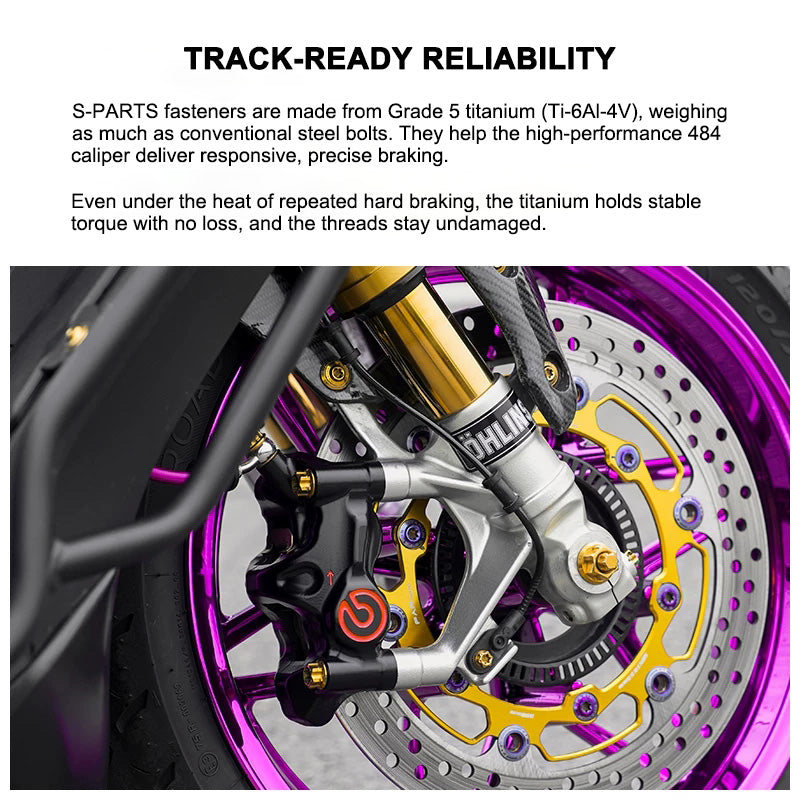

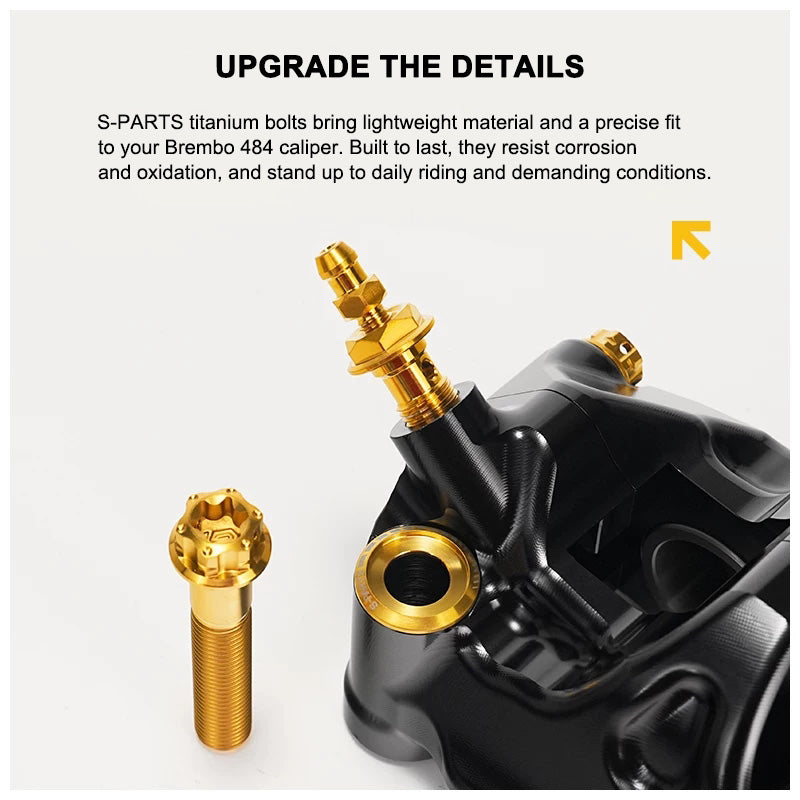

S-PARTS titanium fasteners weigh only about 45% as much as conventional steel bolts. The titanium construction offers corrosion and oxidation resistance for daily riding and demanding conditions.
Design & Machining

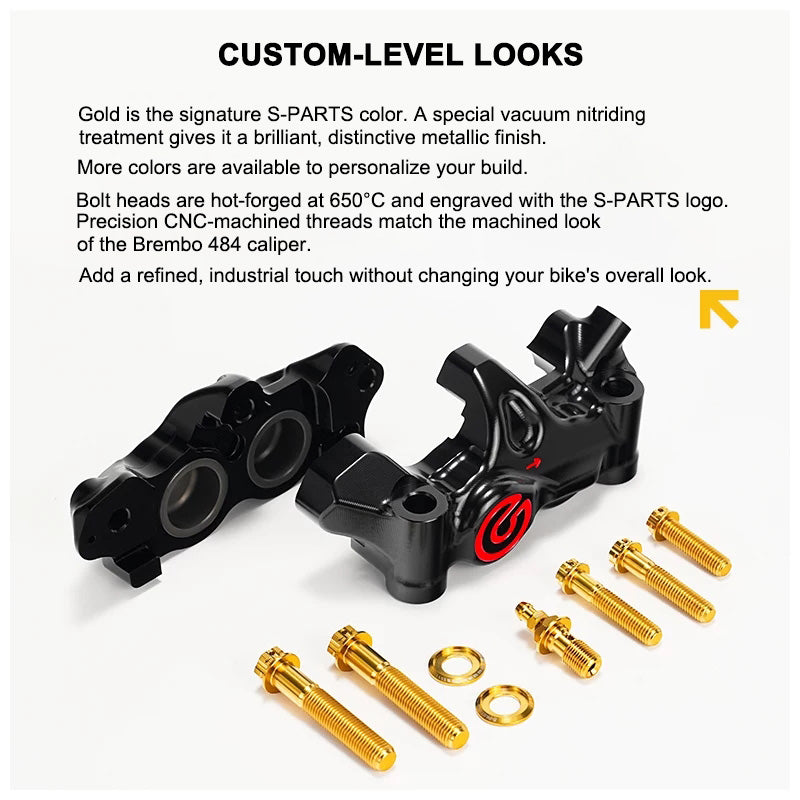

The bolt heads are hot-forged at 650°C and engraved with the S-PARTS logo. CNC-machined threads complement the machined, industrial look of the Brembo .484 caliper. Gold is the signature S-PARTS color, finished with vacuum nitriding, and other colors let you personalize your build.
Fitment & Installation
Check the required bolt length and thread pitch before ordering. Follow the caliper and motorcycle manufacturer's installation instructions and specified tightening torque.

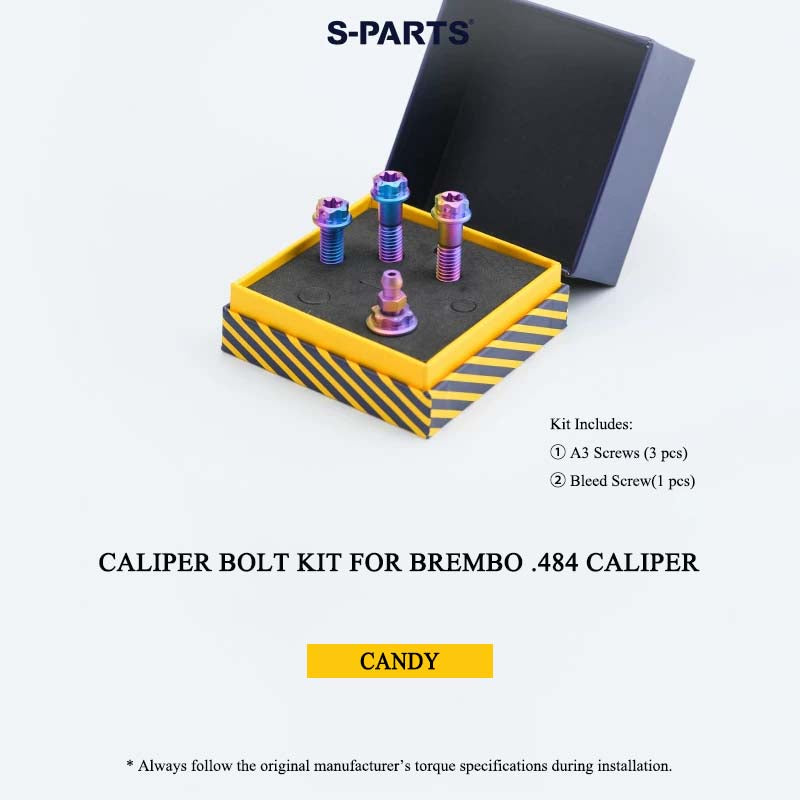

Candy Color Notice
Candy finishes feature flowing color patterns. The color distribution is random and varies from piece to piece.
Threaded Area Notice: White lines may appear around the threads of some bolts. This is a normal result of the coloring process and does not affect use.
