Product Description

Precision Titanium Upgrade for SRAM Road Hydraulic Brakes

Enhance the durability and aesthetics of your braking system with the S-PARTS Titanium Brake Hose Compression Nut, specifically designed for SRAM road hydraulic disc brake levers.

Machined from aerospace-grade Grade 5 Titanium (Ti-6Al-4V), this lightweight component delivers exceptional strength, corrosion resistance, and long-term reliability while weighing only 1.24 g.

Ideal for high-end road bikes and performance builds, this titanium upgrade provides both functional reliability and a refined cockpit appearance.

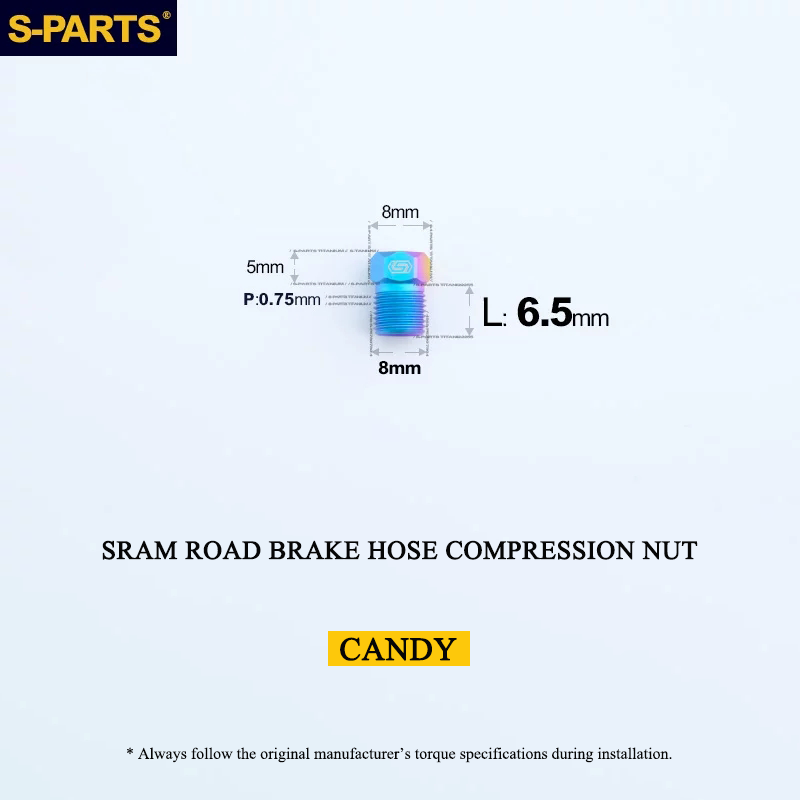

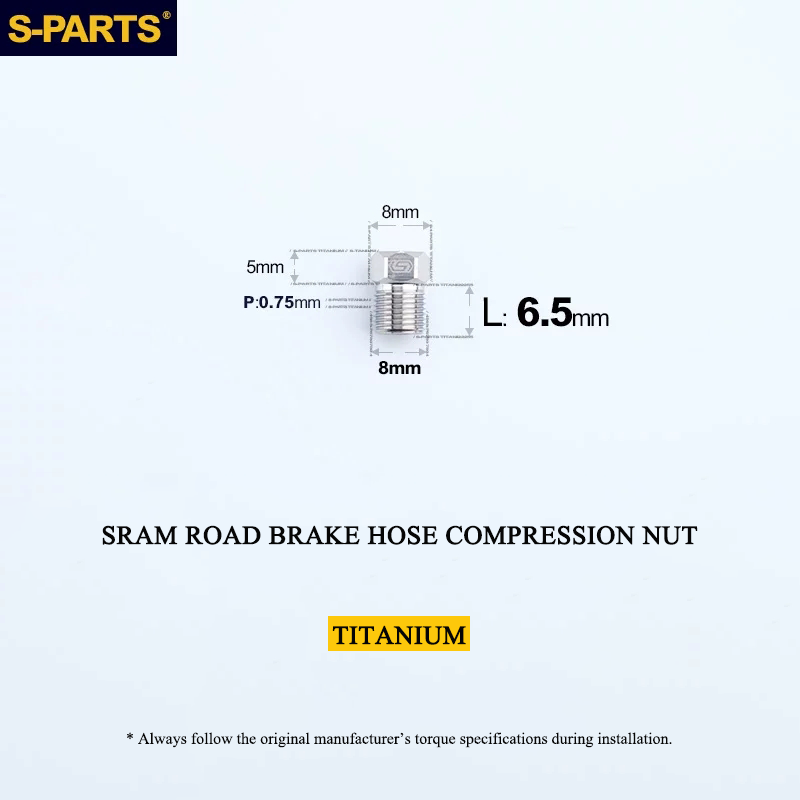

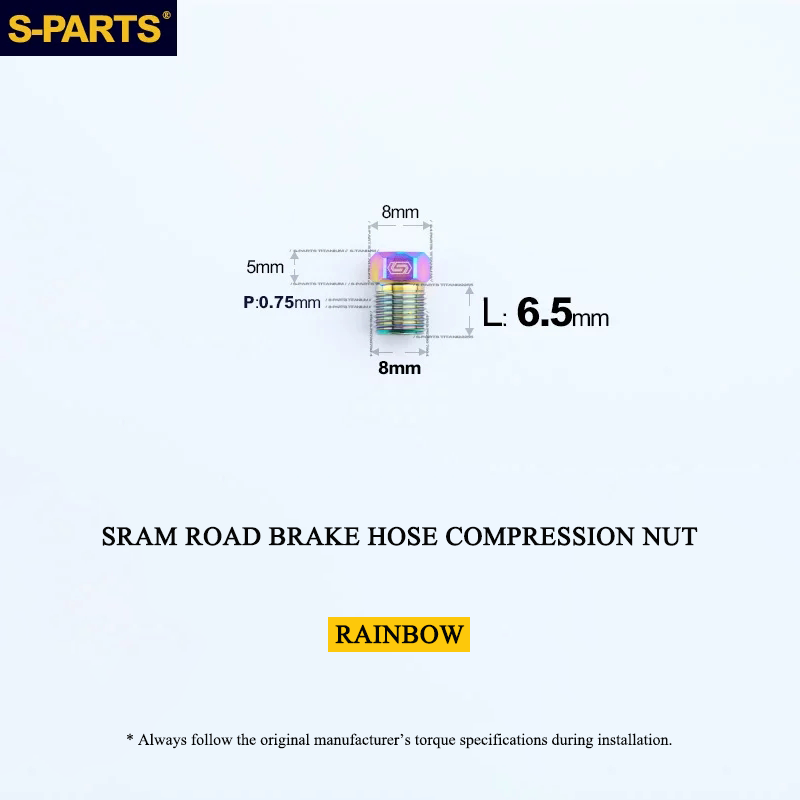

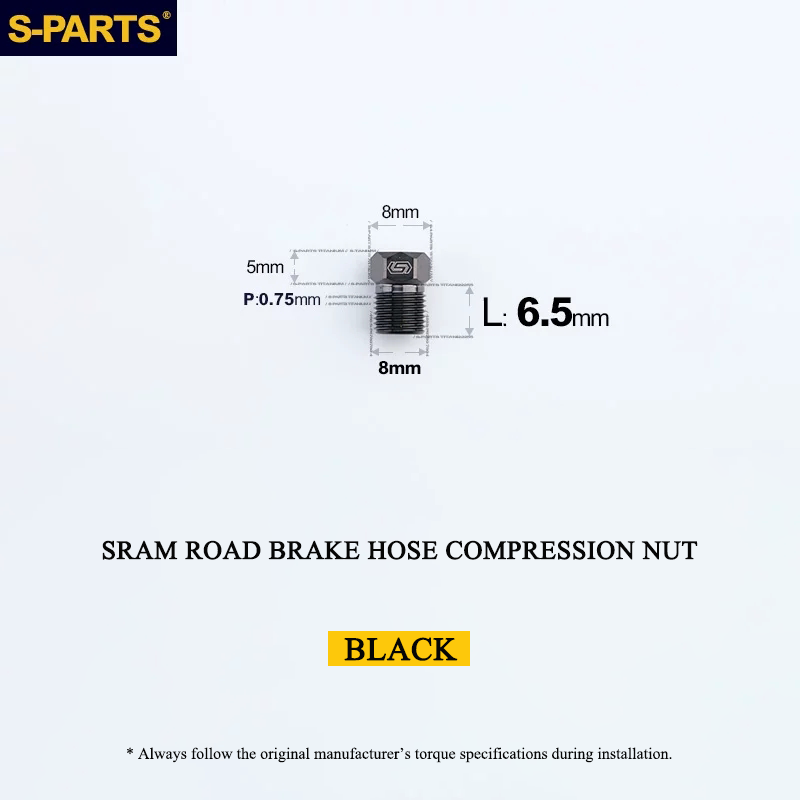

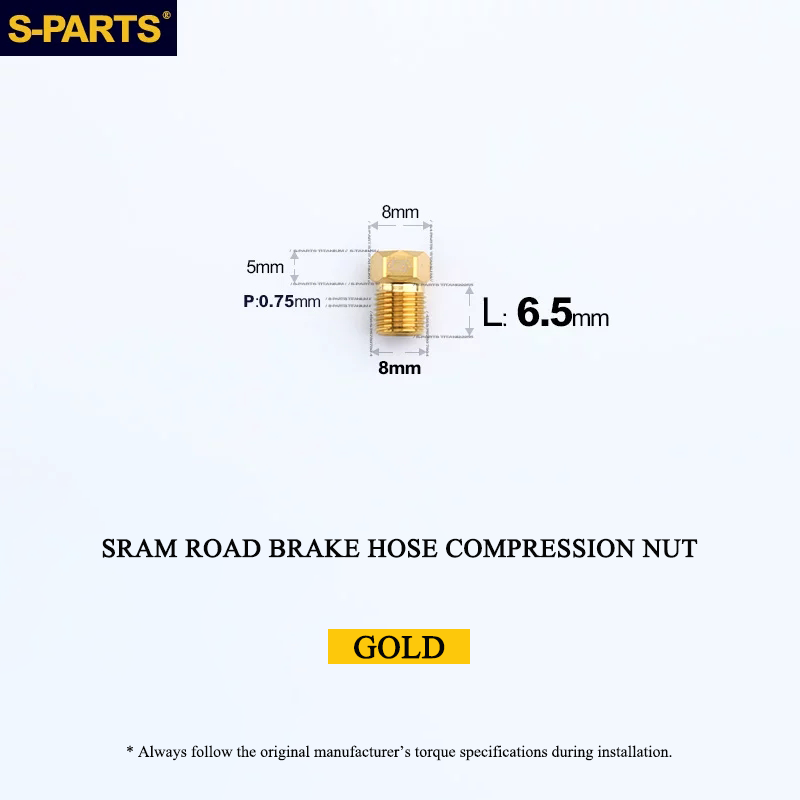

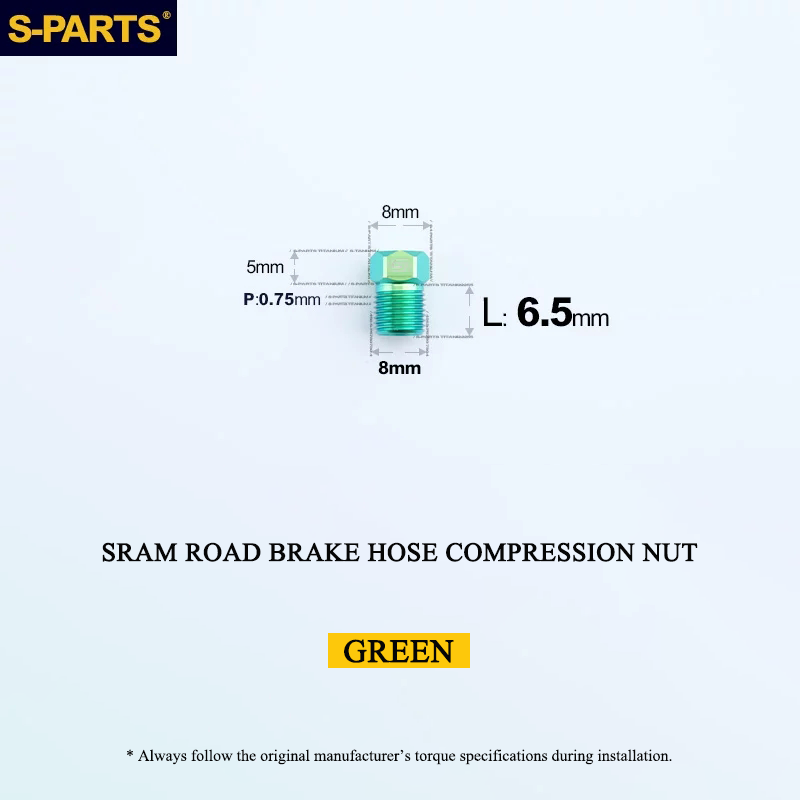

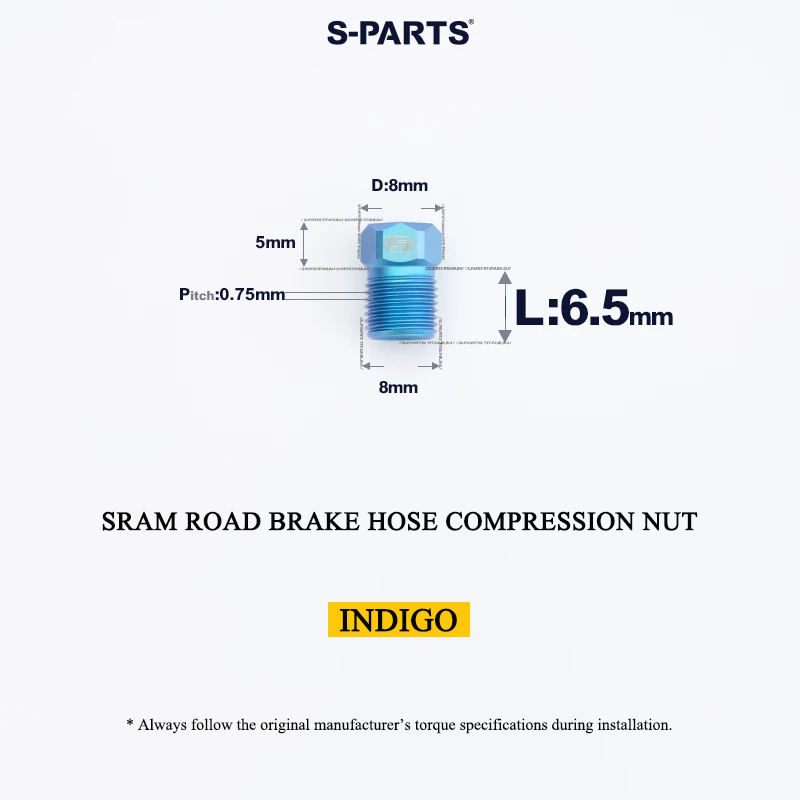

Technical Specifications

• Material: Grade 5 Titanium (Ti-6Al-4V)
• Compatibility: SRAM Road Hydraulic Disc Brake Levers
• Size: M8 × 6.5 mm
• Thread Pitch: 0.75 mm
• Nut Diameter: 8 mm
• Nut Thickness: 5 mm
• Thread Diameter: 8 mm
• Thread Length: 6.5 mm
• Weight: 1.24 g / piece
• Tool Required: 8 mm Open-End Wrench
• Color Options: Gold, Black, Titanium, Blue, Purple, Green, Rainbow, Candy, Indigo

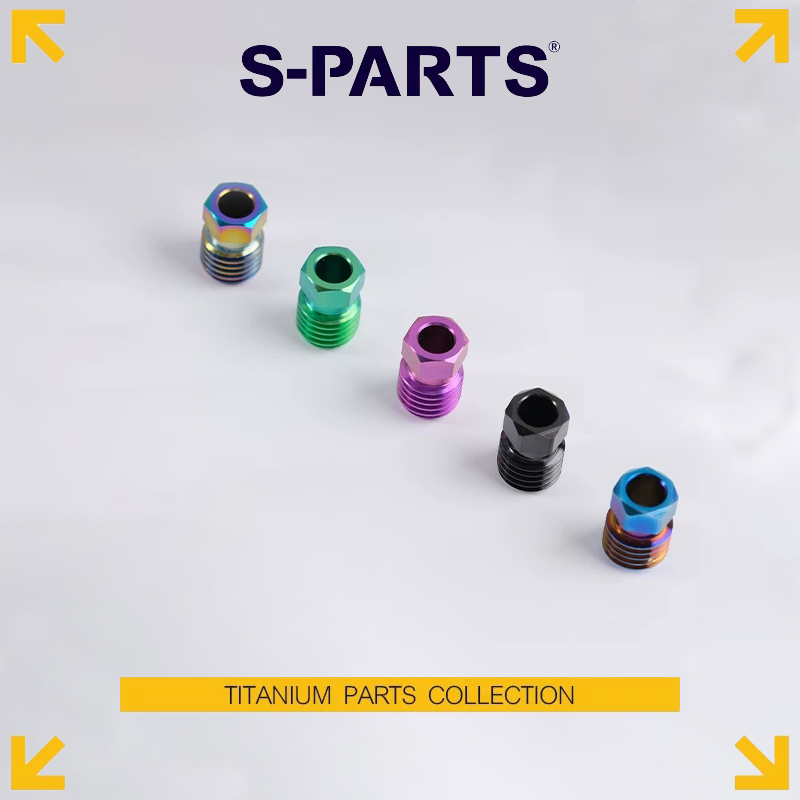

Color Options

Available in multiple premium finishes to match different bike builds.

PVD Vacuum Coating

(Gold / Rainbow / Blue / Black)

Features:

• Deep and vibrant colors
• Color bonded to the metal surface
• Excellent wear resistance
• Long-lasting finish
• Anodized Finish

(Green / Purple / Candy / Indigo)

Features:

• Electrolytic anodizing process
• Lightweight and corrosion-resistant
• Unique custom appearance

Natural Titanium

Clean original titanium color with a minimalist finish.

Compatibility

Designed for SRAM road hydraulic disc brake systems.

This compression nut secures the hydraulic brake hose at the brake lever connection, ensuring proper hose compression and a reliable hydraulic seal.

Key Features

Aerospace-Grade Titanium Construction

Manufactured from Grade 5 Titanium (Ti-6Al-4V), a high-performance alloy widely used in aerospace engineering and professional motorsports due to its exceptional strength-to-weight ratio.

Exceptional Strength-to-Weight Ratio

With an average tensile strength exceeding 1050 MPa, this titanium fastener offers mechanical performance comparable to 10.9-grade steel hardware, while weighing approximately 50% less.

Weight per piece: 1.24 g

Precision CNC Machining

Each component is precision CNC-machined to ensure accurate threads and a secure fit for SRAM hydraulic brake systems.

Corrosion Resistance for All Conditions

Titanium naturally resists corrosion, making it ideal for riding conditions involving rain, sweat, mud, and road salt.

Material Advantages

S-PARTS uses premium Grade 5 Titanium (Ti-6Al-4V) for its superior mechanical properties.

Key benefits include:

• Average tensile strength exceeding 1050 MPa
• Higher than the typical 895 MPa industry benchmark
• Comparable strength to 10.9-grade steel fasteners
• Approximately 45-50% lighter than steel

This advanced material is widely used in aerospace engineering, Formula 1, and MotoGP racing, where lightweight strength and durability are critical.
