Product Description

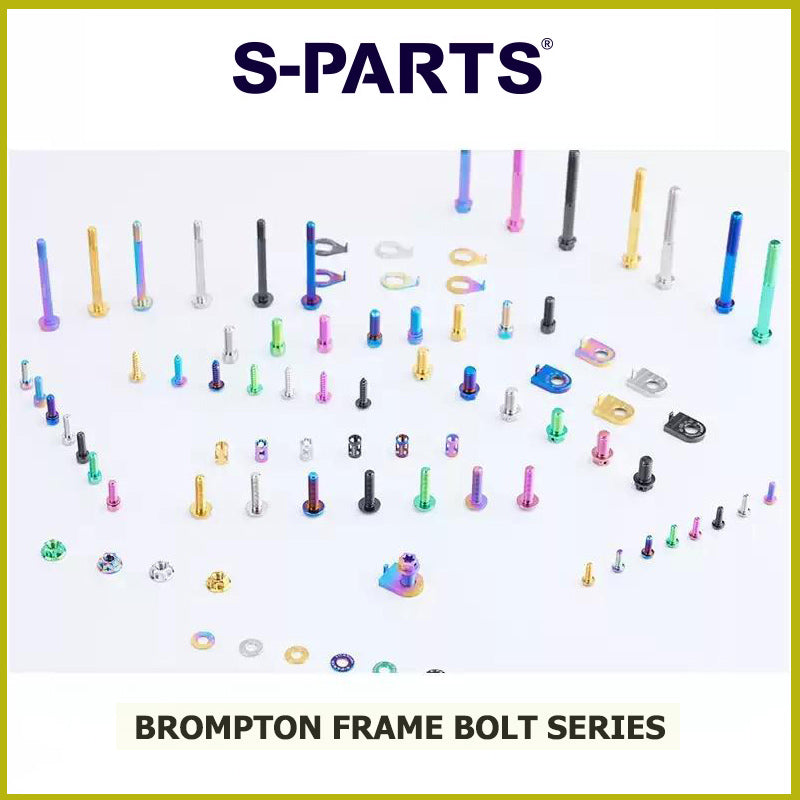

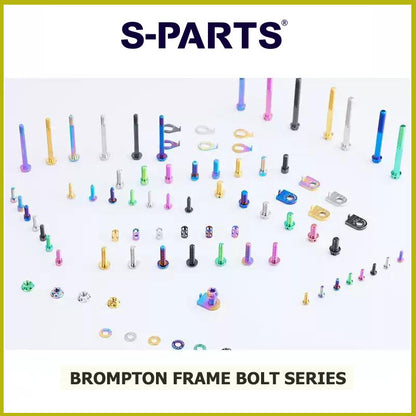

S-PARTS Titanium Bolts & Hardware for Brompton

A selection of Grade 5 Titanium (Ti-6Al-4V) bolts and hardware for selected Brompton C Line, P Line and T Line applications. Choose individual replacement and upgrade components for the frame, folding mechanism, wheels, suspension, mudguards, drivetrain and saddle.

Key Specifications

• Material: Grade 5 Titanium (Ti-6Al-4V)
• Average Tensile Strength: >1,050 MPa
• Weight: Approximately 50% of comparable steel hardware
• Finishes: Gold, Rainbow, Titanium, Black, Blue, Candy
• Applications: Frame, folding, suspension, carrier, Eazy Wheel, wheel, mudguard, drivetrain and saddle hardware

Select the correct variant according to your Brompton model, component location, original hardware and required dimensions.

Frame & Folding Hardware

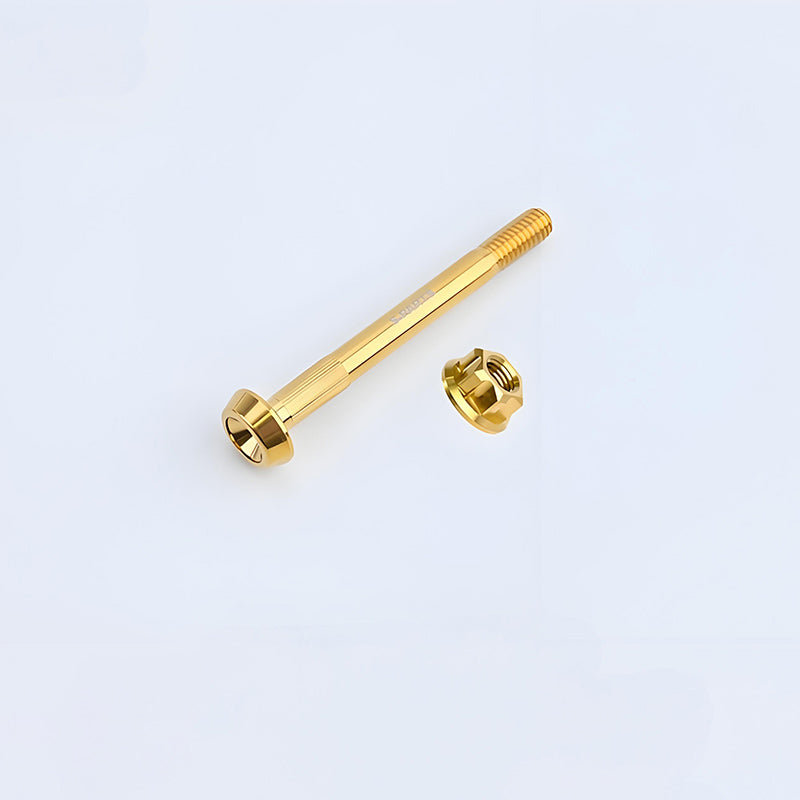

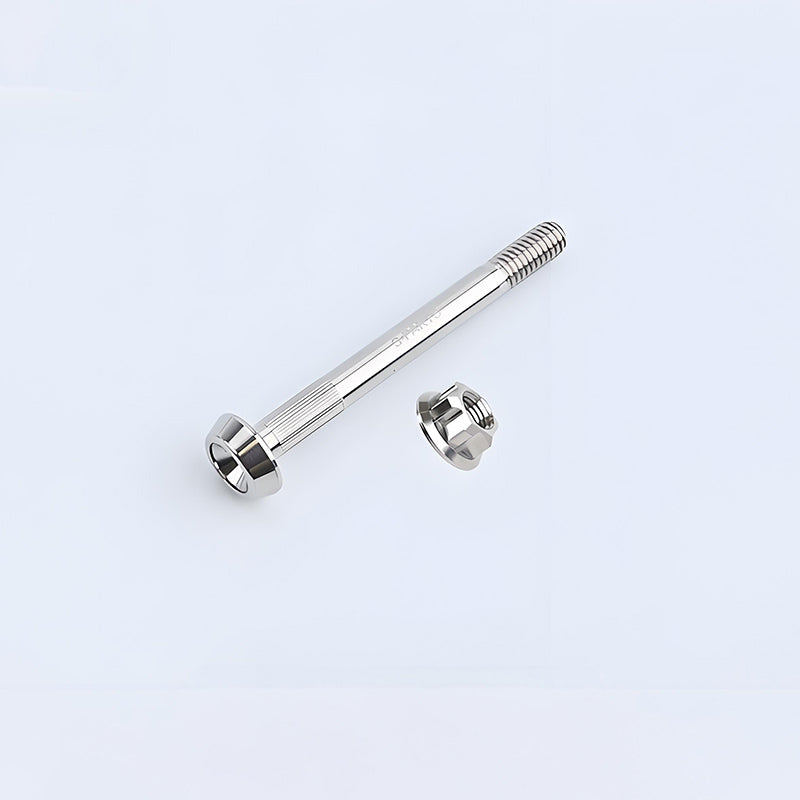

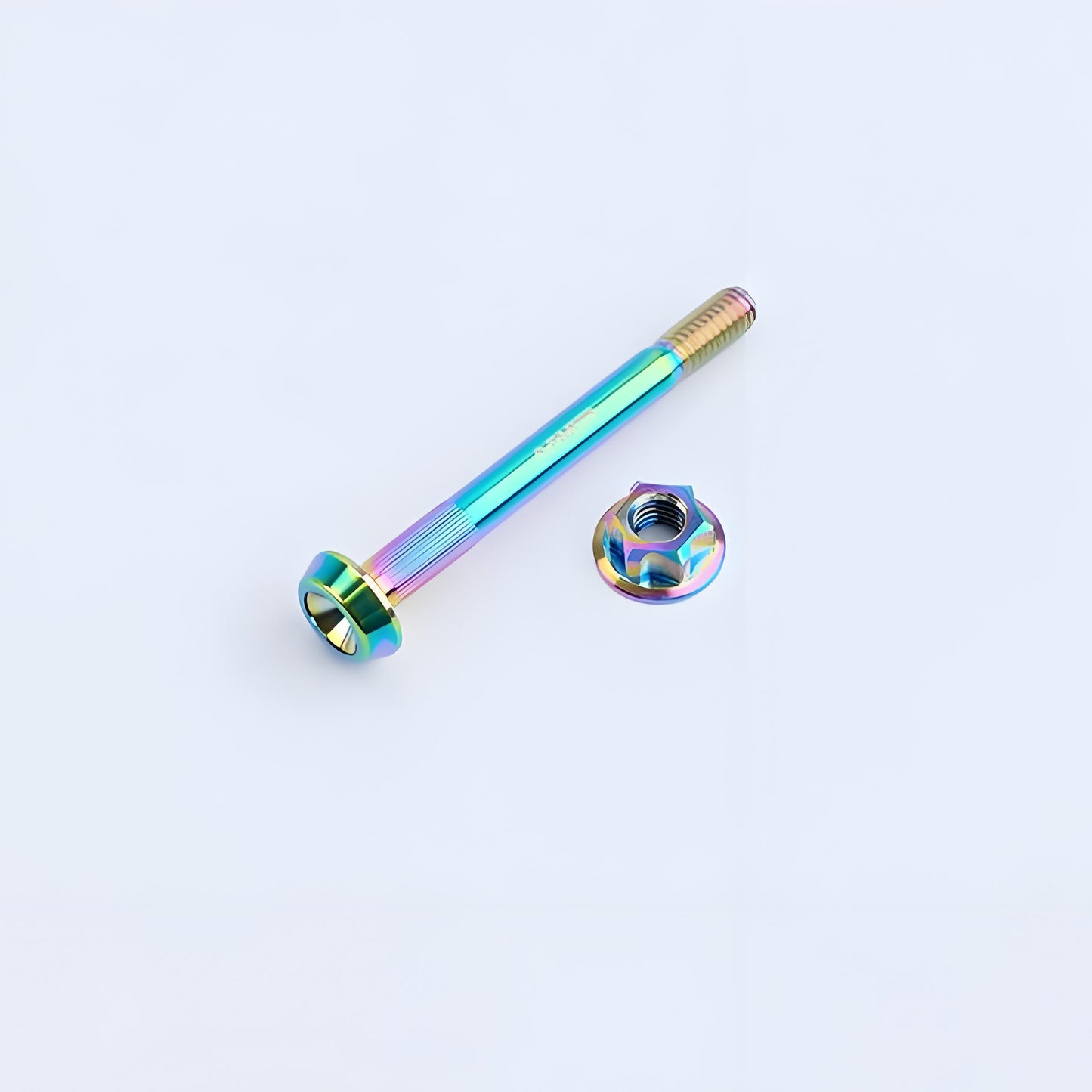

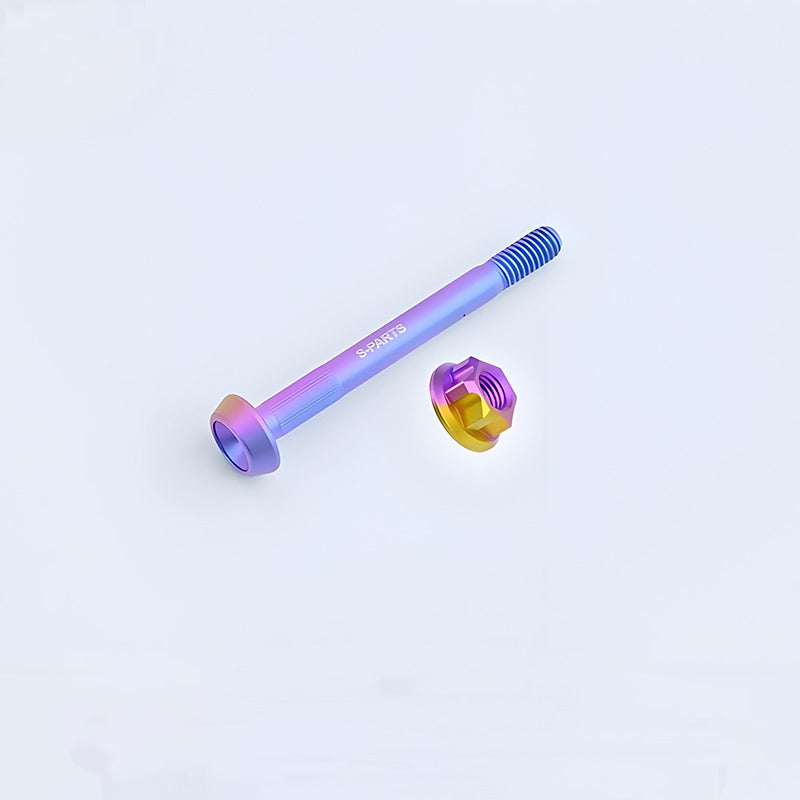

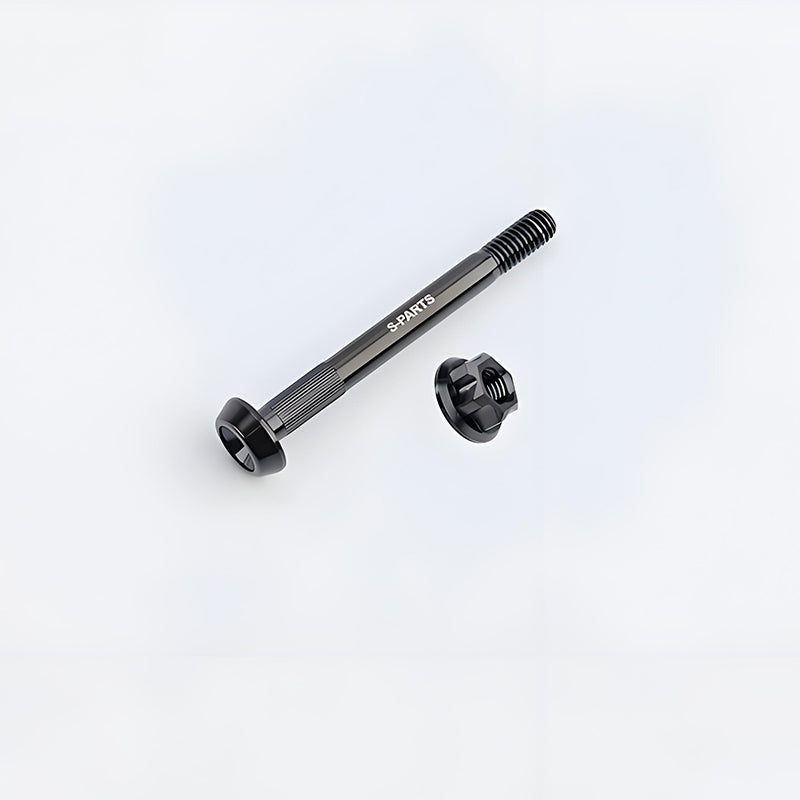

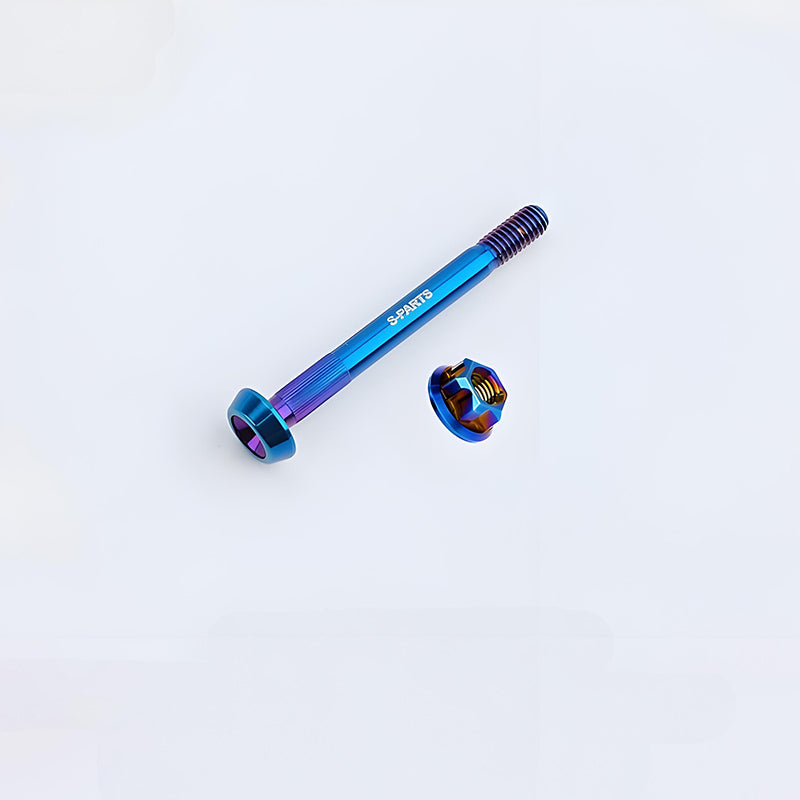

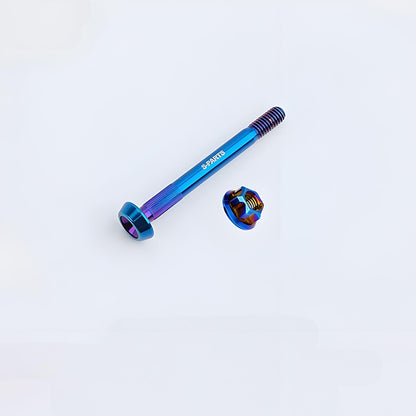

Variant 1 — Rear Suspension Block Hardware Set

• 2 pcs/set
• Weight: 10.97 g/set

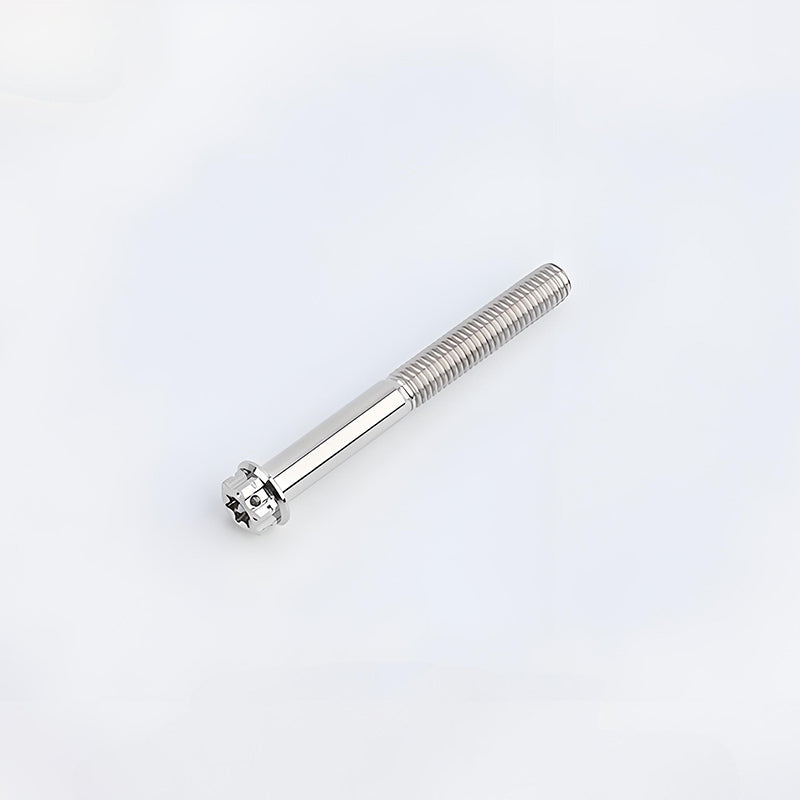

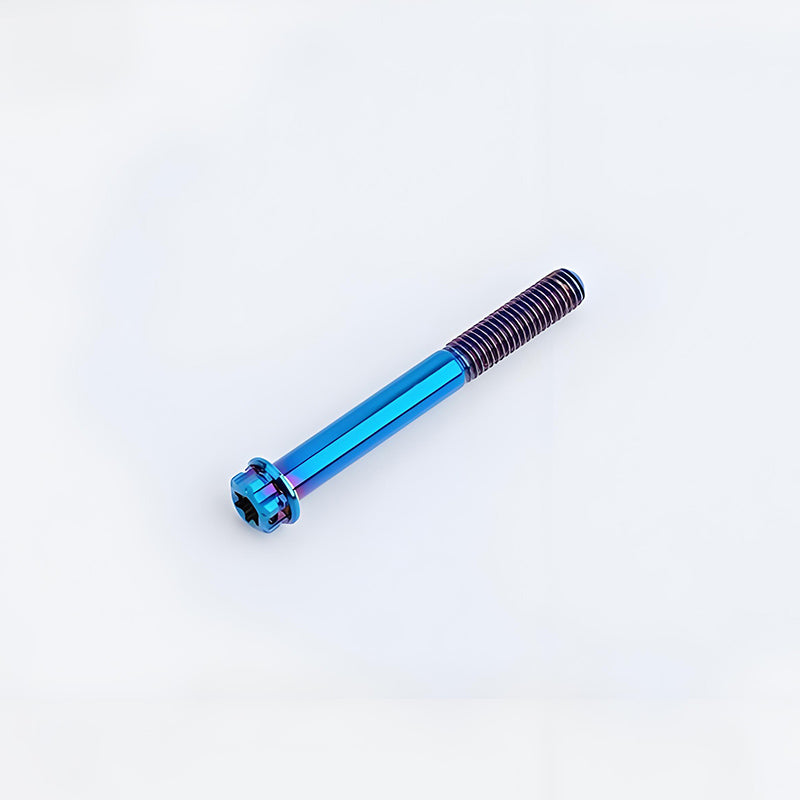

Variant 3 — Headset Expander Bolt

• M6 × 70 mm
• Thread Pitch: 1.25 mm
• T40 Torx
• 1 pc
• Weight: 15.42 g/pc

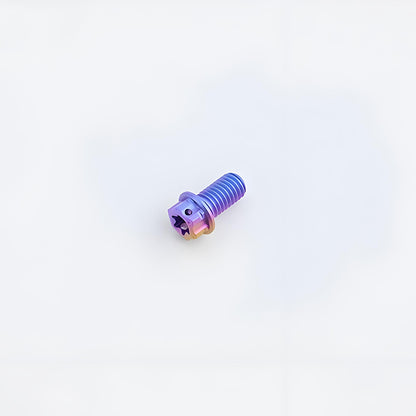

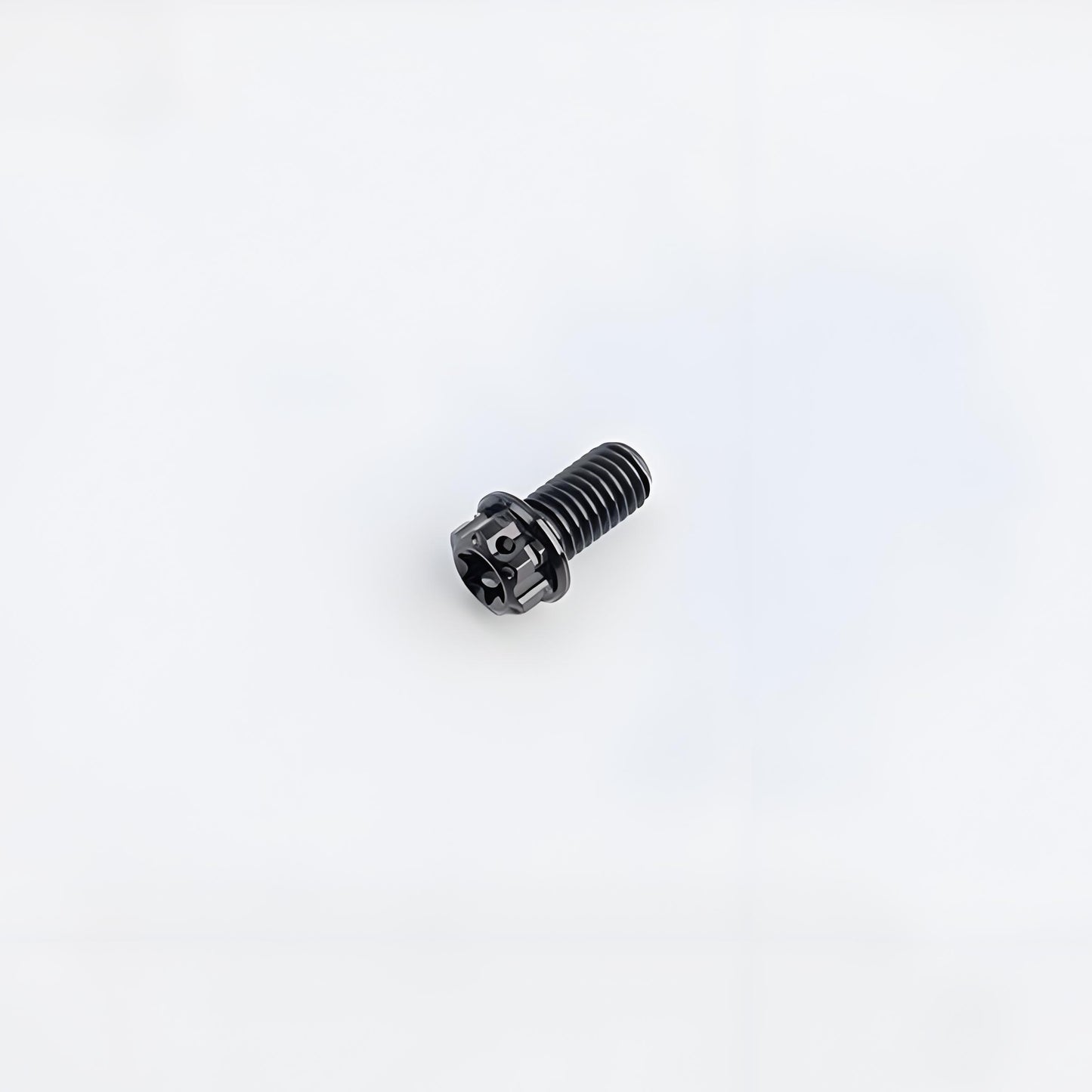

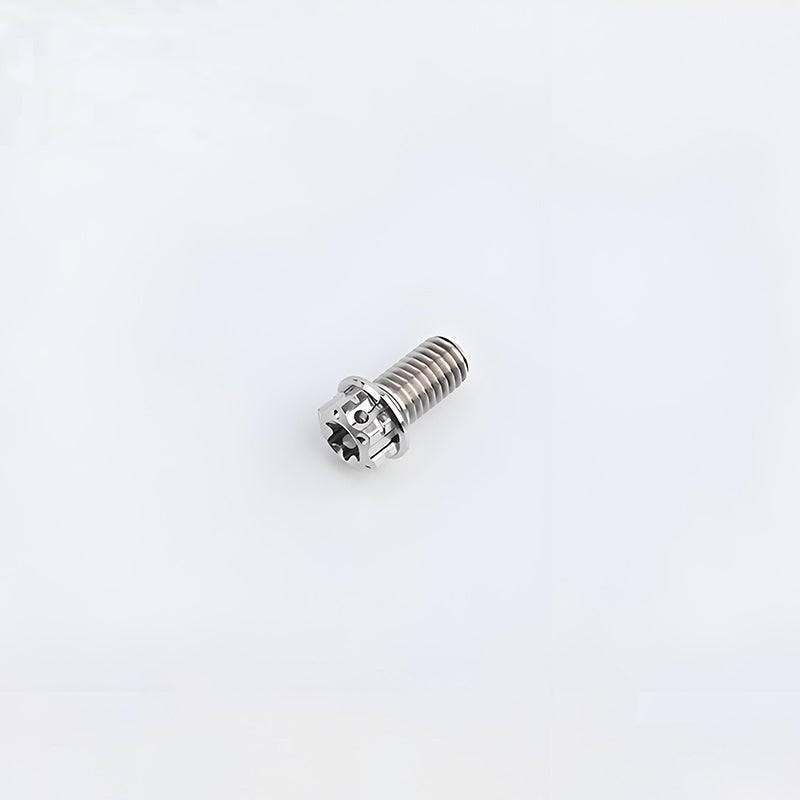

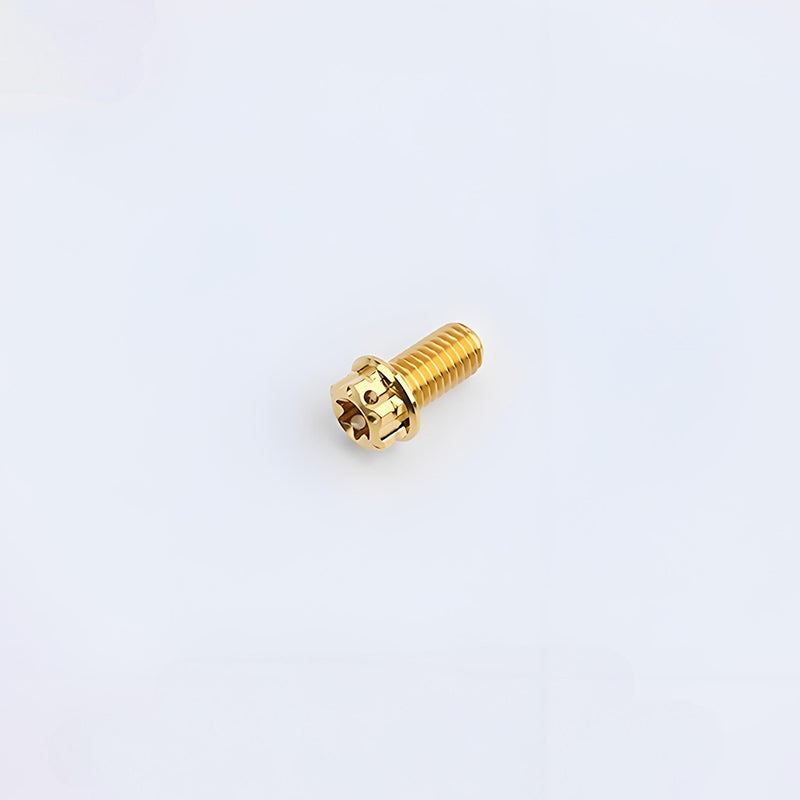

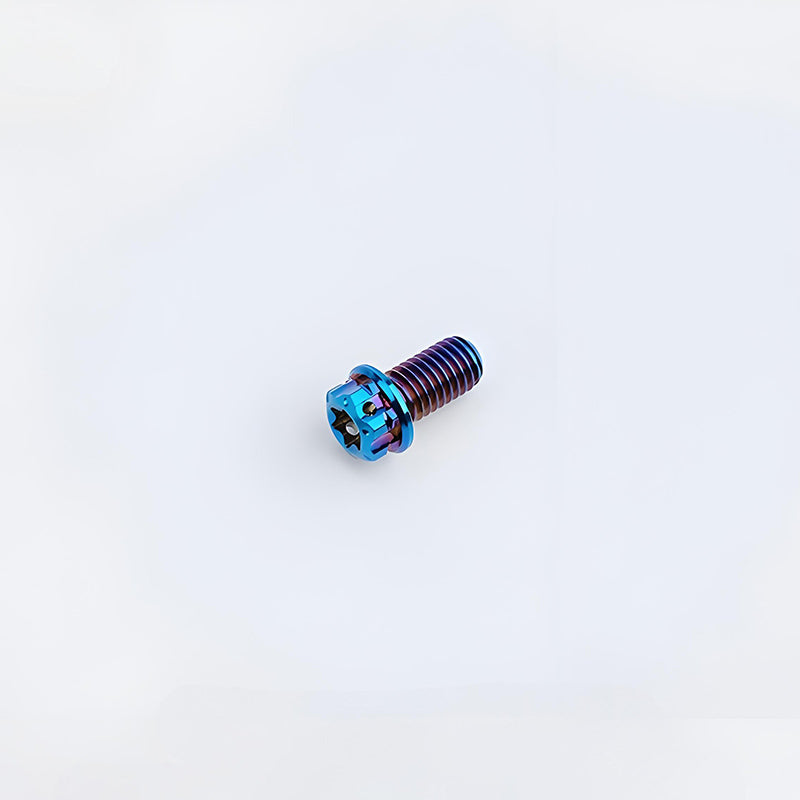

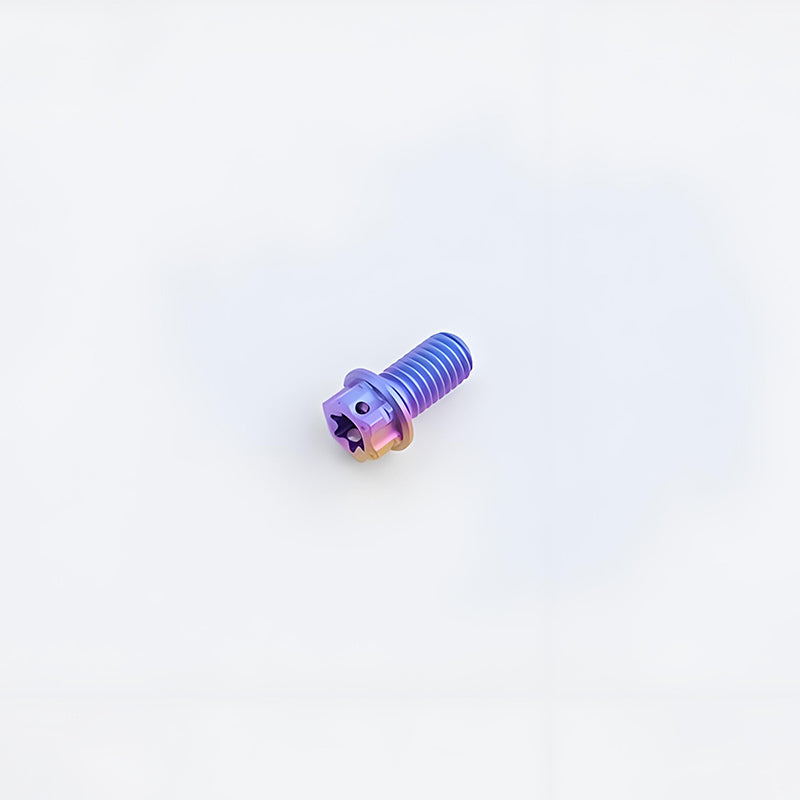

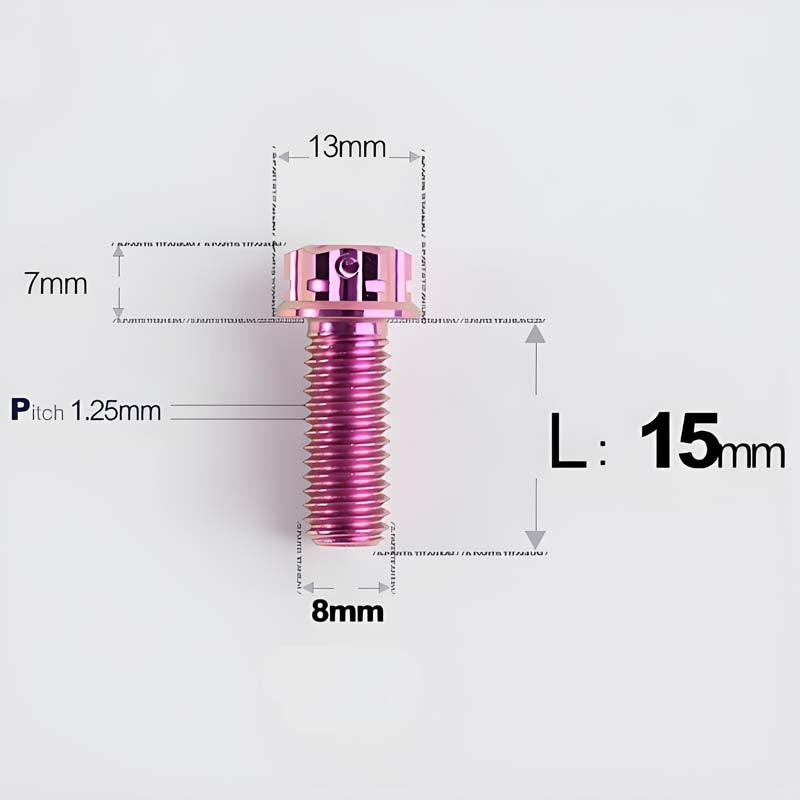

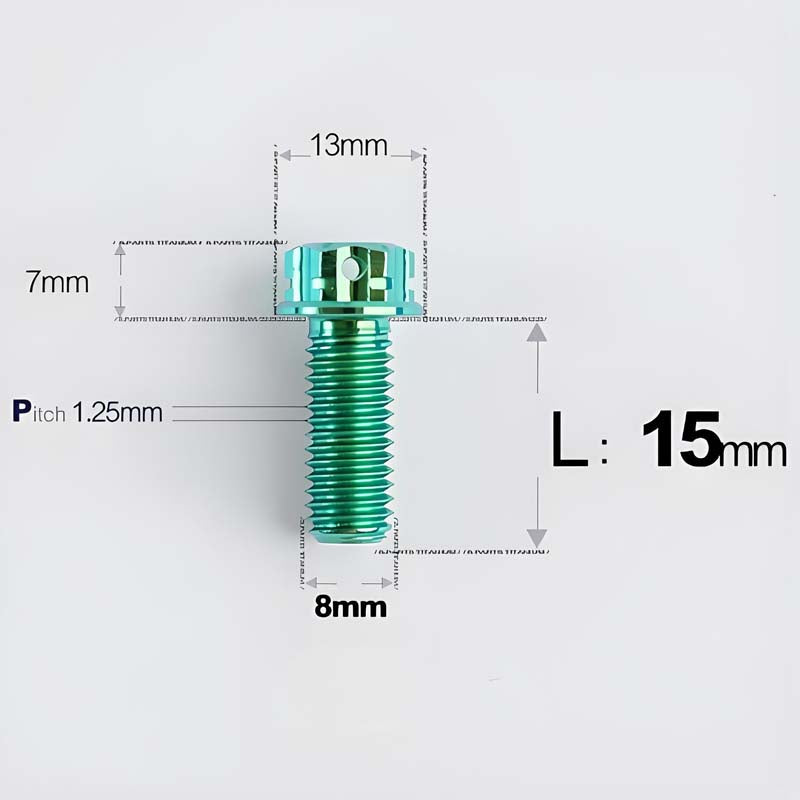

Variant 4 — Head Tube Folding Hinge Clamp Bolt

• M8 × 15 mm
• Thread Pitch: 1.25 mm
• T40 Torx
• 1 pc
• Weight: 4.57 g/pc

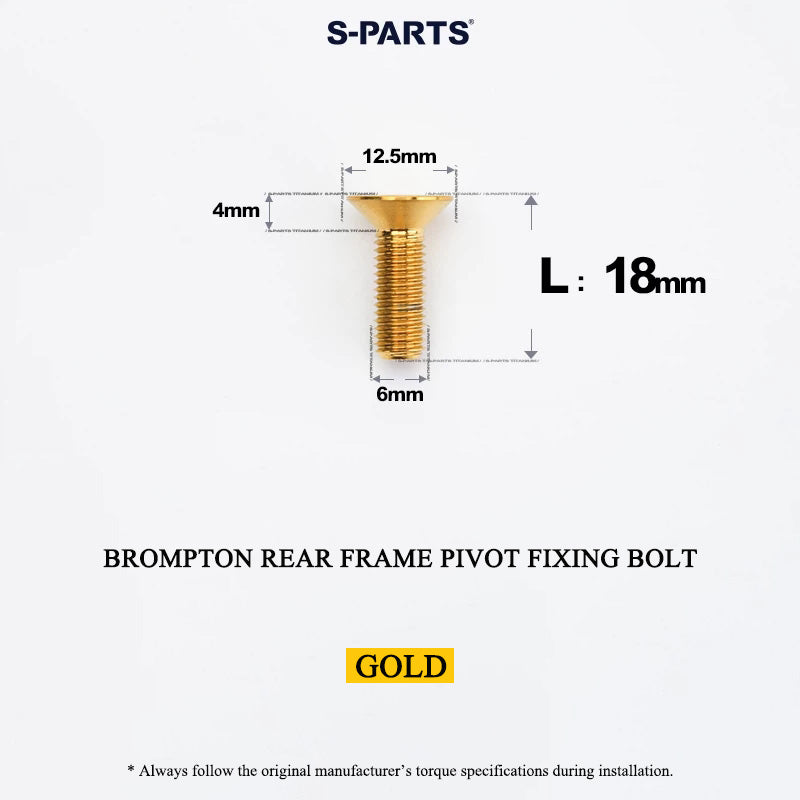

Variant 14 — Rear Frame Pivot Fixing Bolt

• M6 × 18 mm
• T30 Torx
• 1 pc
• Weight: 2.75 g/pc

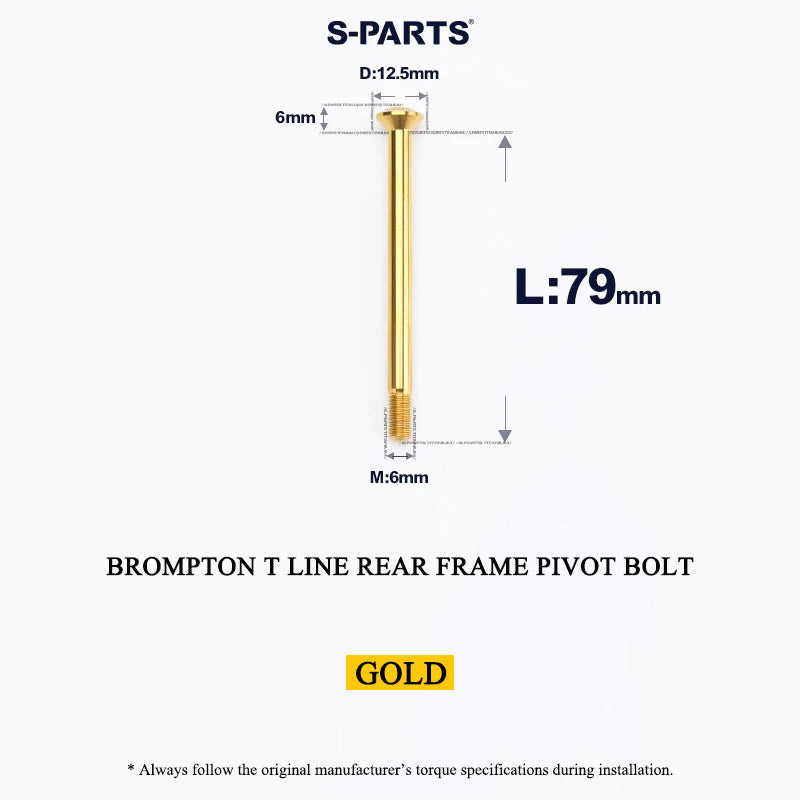

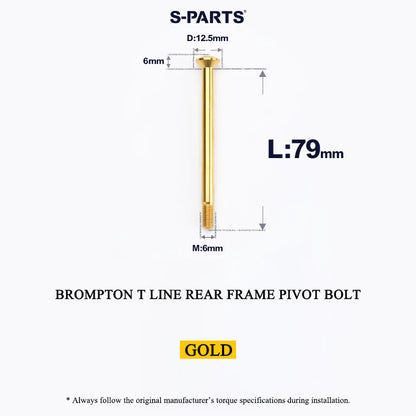

Variant 18 — T Line Rear Frame Pivot Bolt

• M6 × 79 mm
• 5 mm hex key
• 1 pc
• Weight: 12.1 g/pc

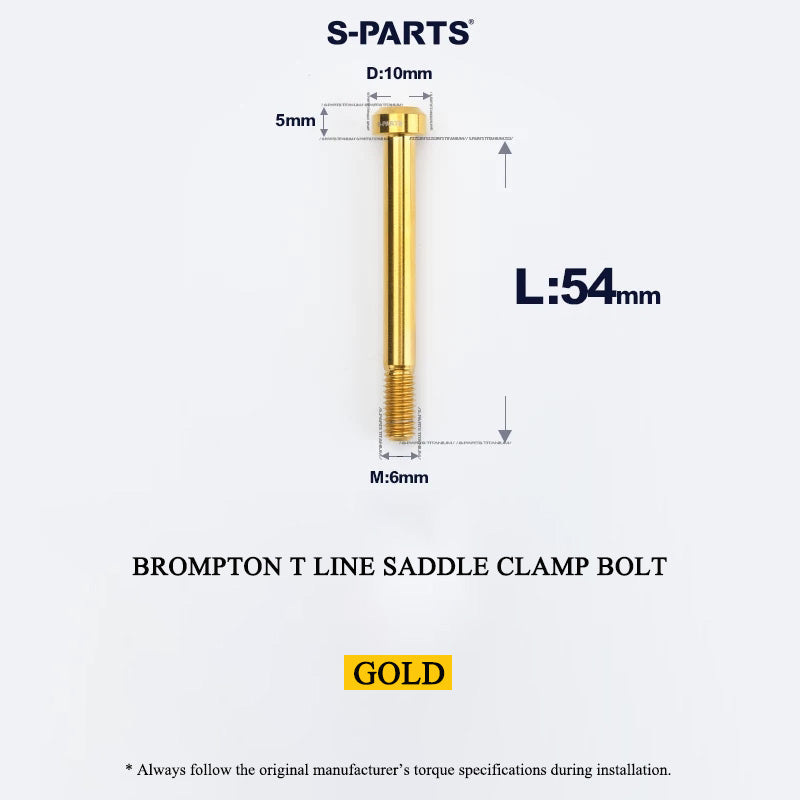

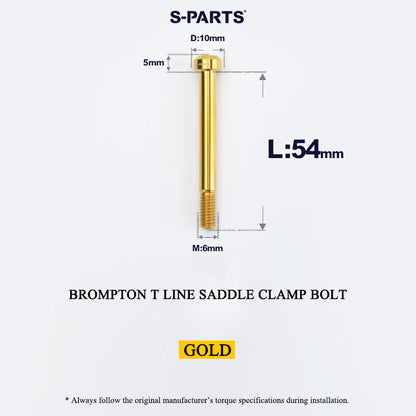

Variant 19 — T Line Saddle Clamp Bolt

• M5 × 54 mm
• 5 mm hex key
• 1 pc
• Weight: 7.4 g/pc

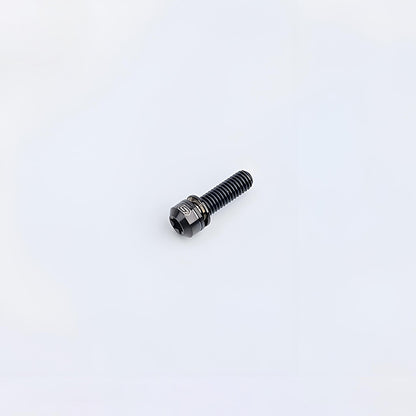

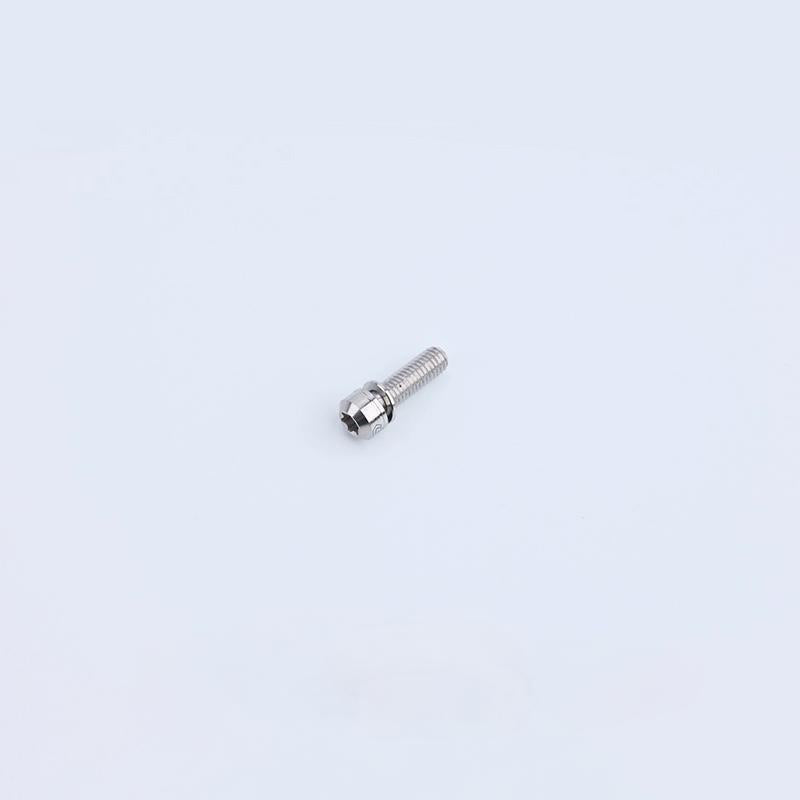

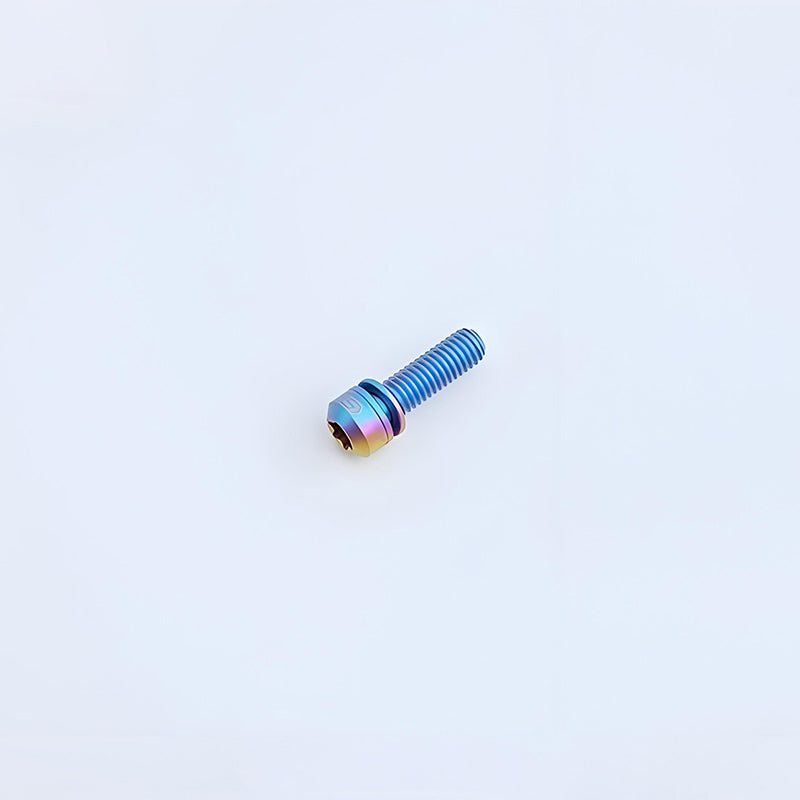

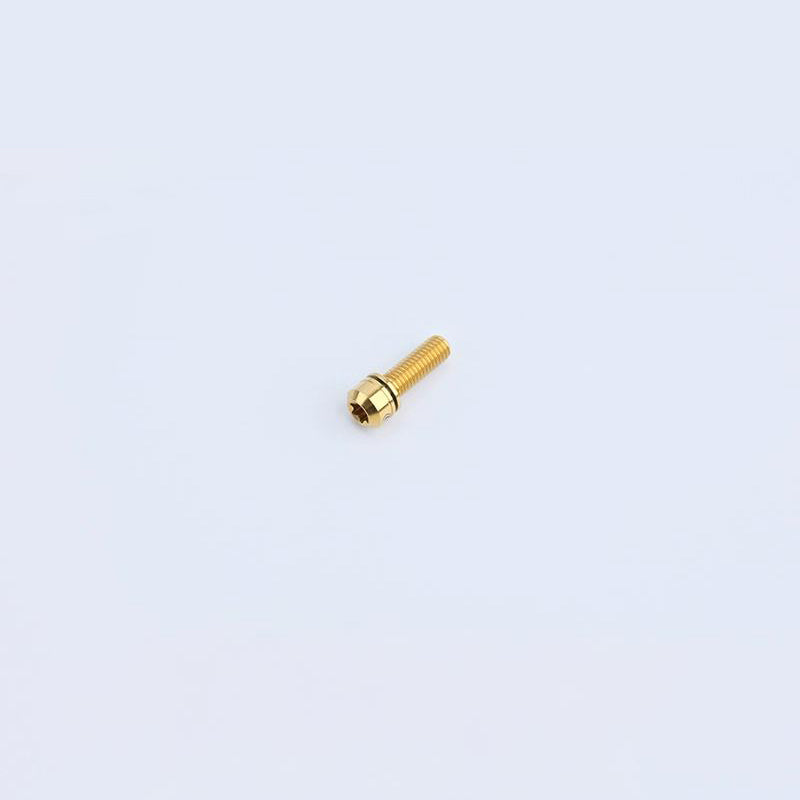

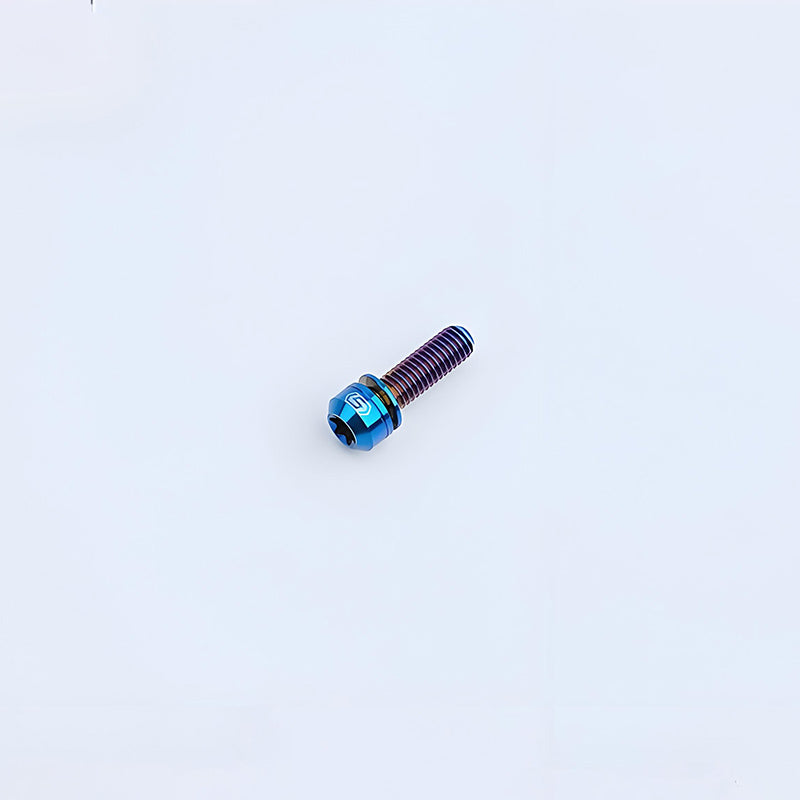

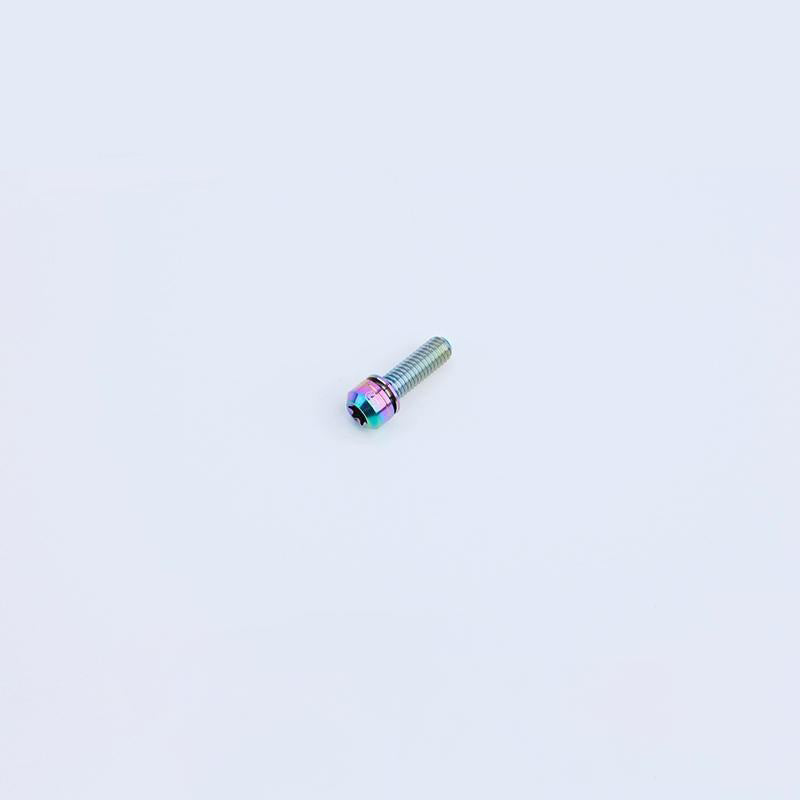

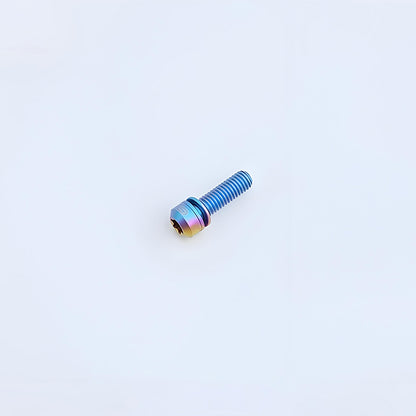

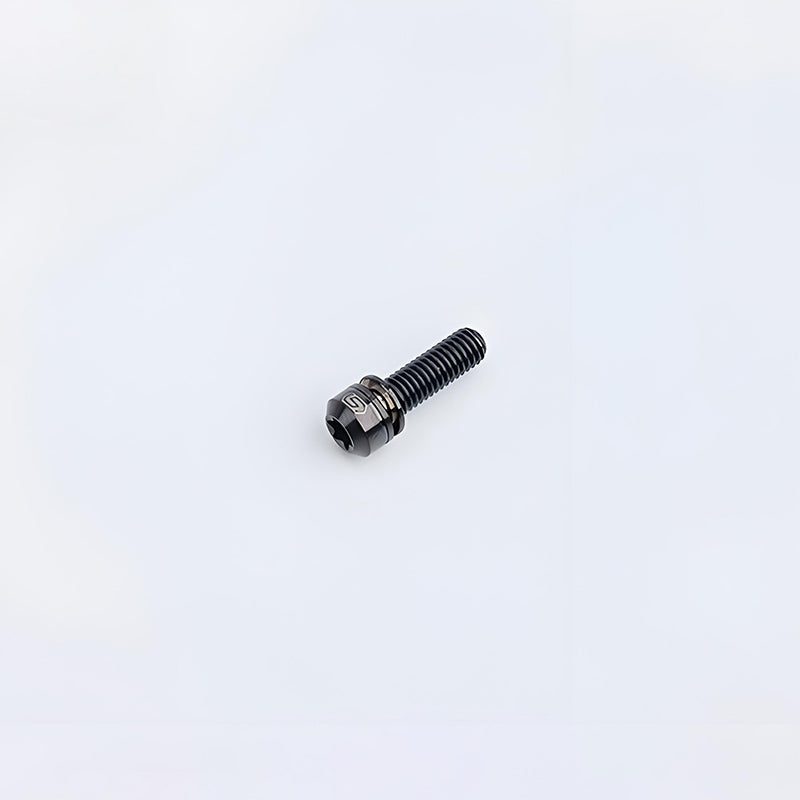

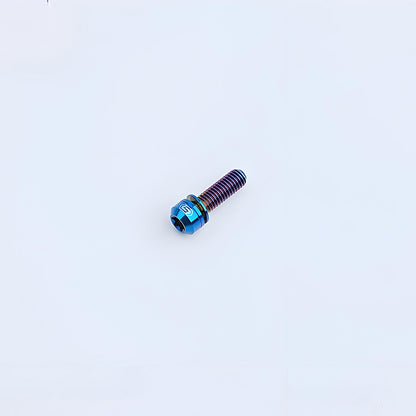

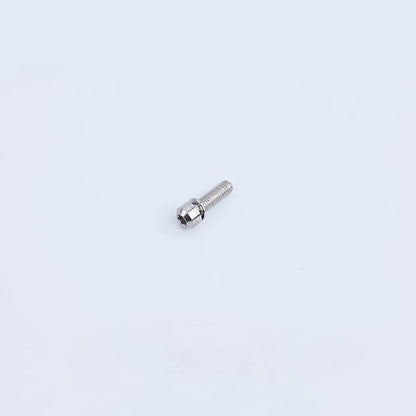

Variant 23 — Handlebar Fixing Bolt

• 1 pc
• Weight: 4.6 g/pc
• Drive: T30 or T40 Torx, depending on production batch

Important: Variant 23 is produced with either a T30 or T40 drive depending on batch. Please compare your original bolt carefully and confirm the required drive type before ordering.

Carrier & Eazy Wheel Hardware

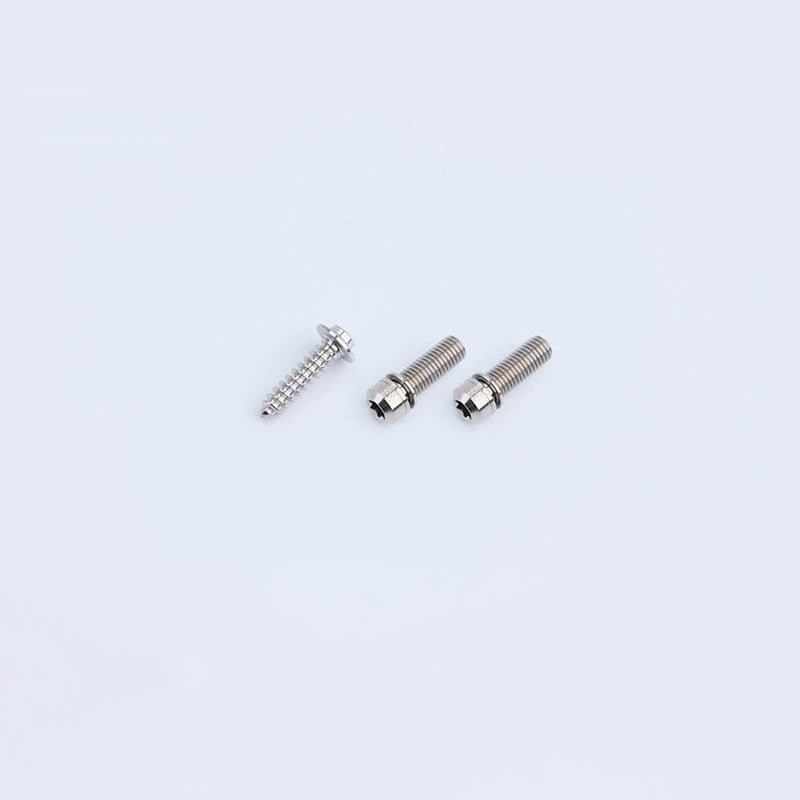

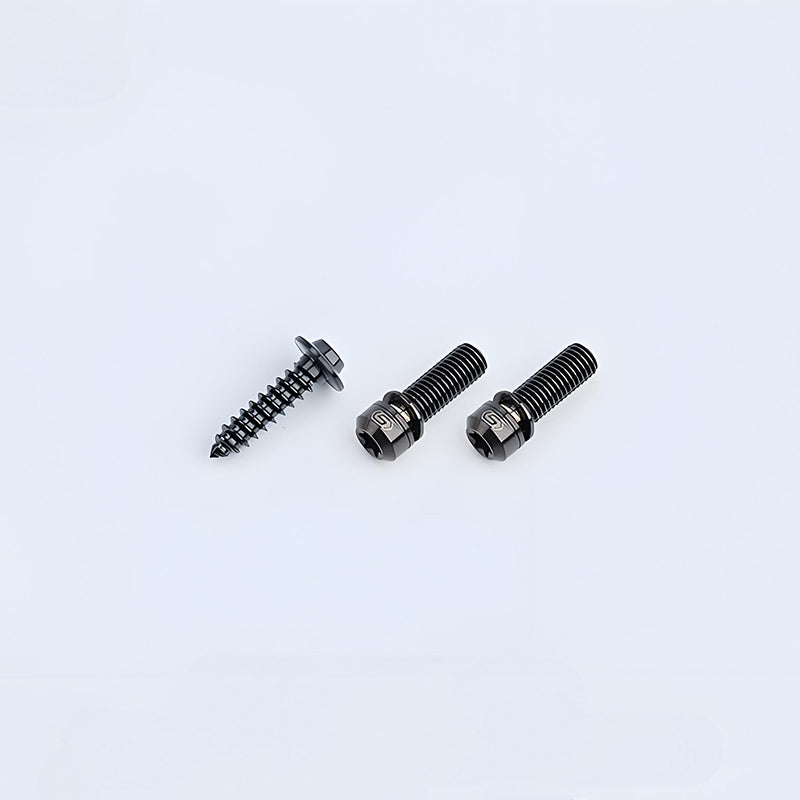

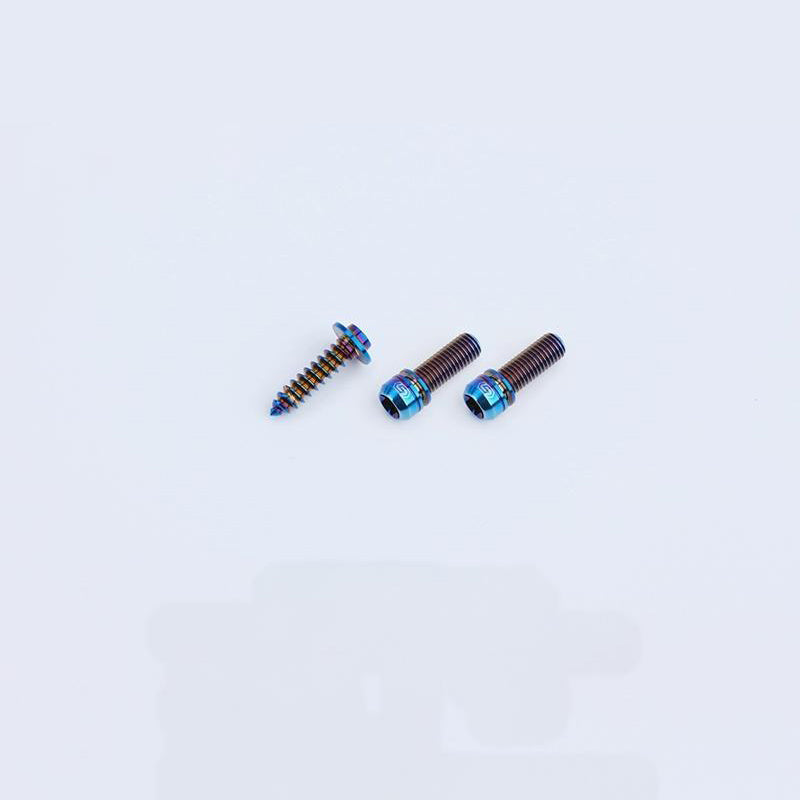

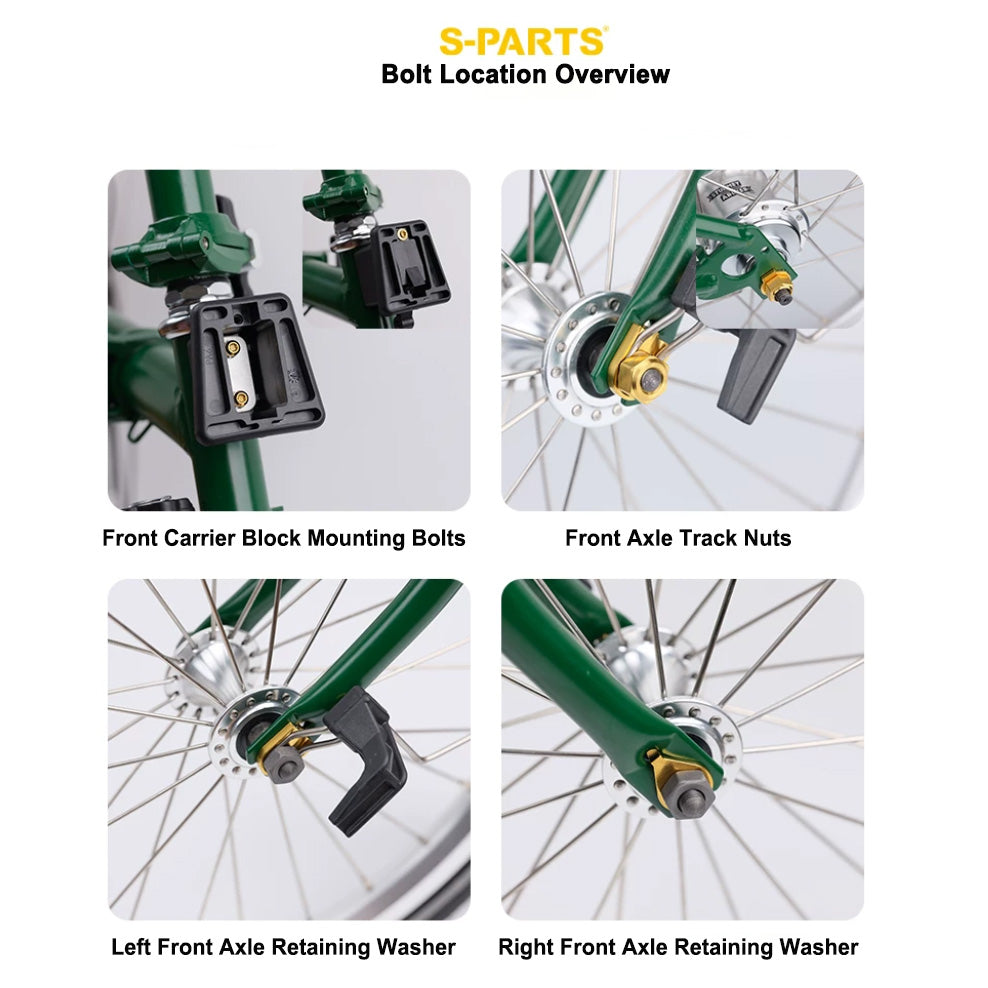

Variant 2 — Front Carrier Block Bolts

• 3 pcs/set
• T25 Torx
• Weight: 3.5 g/set

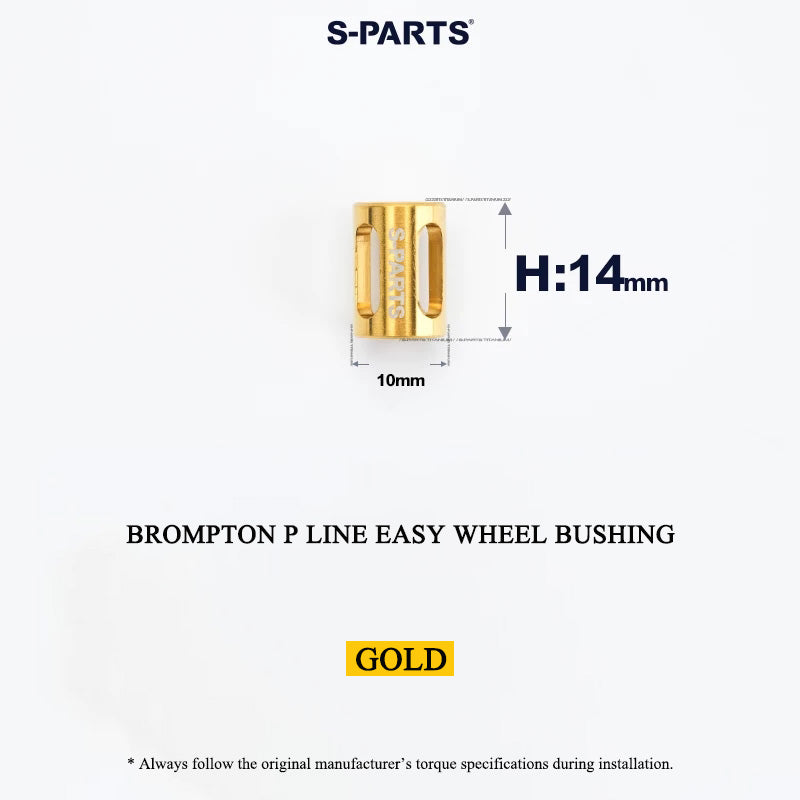

Variant 17 — P Line Easy Wheel Bushing

• M10 × 14 mm
• 1 pc
• Weight: 1.83 g/pc

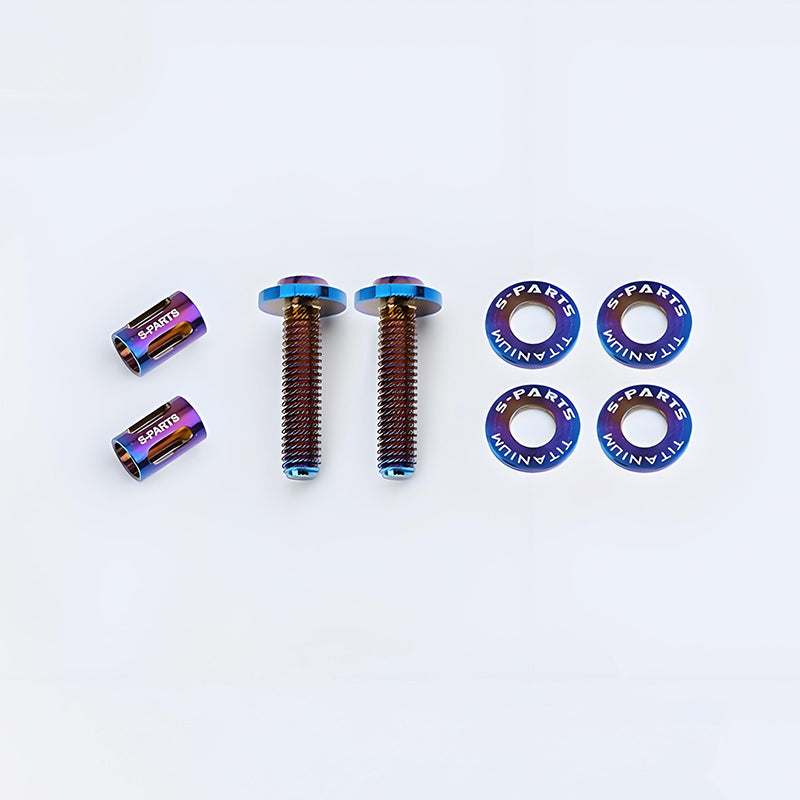

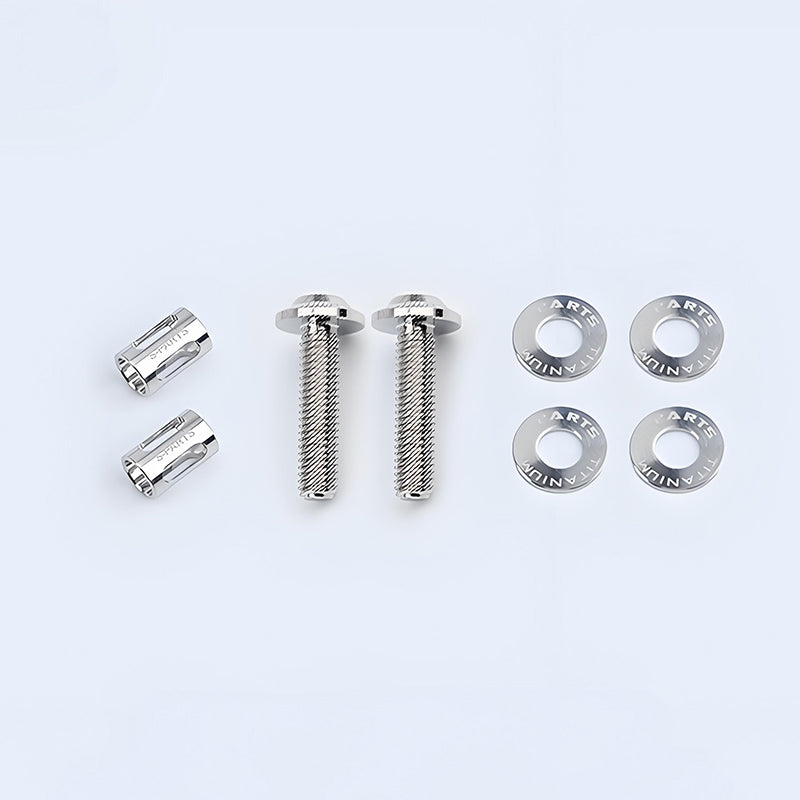

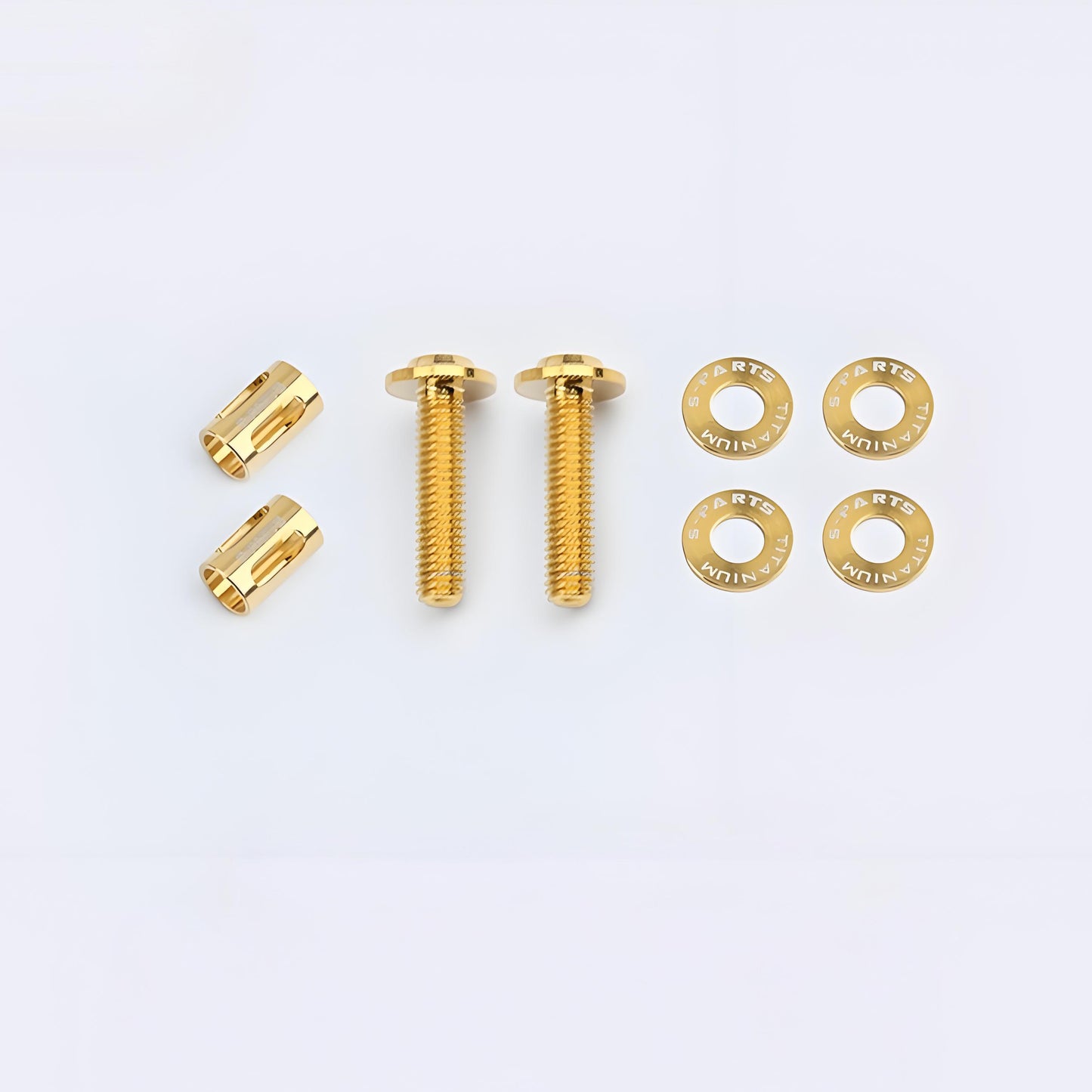

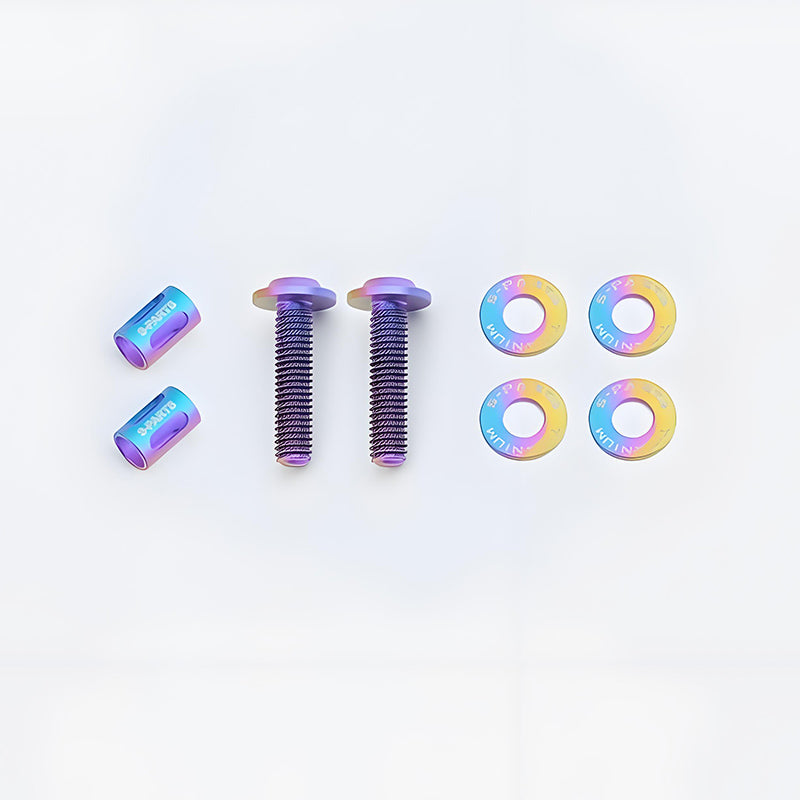

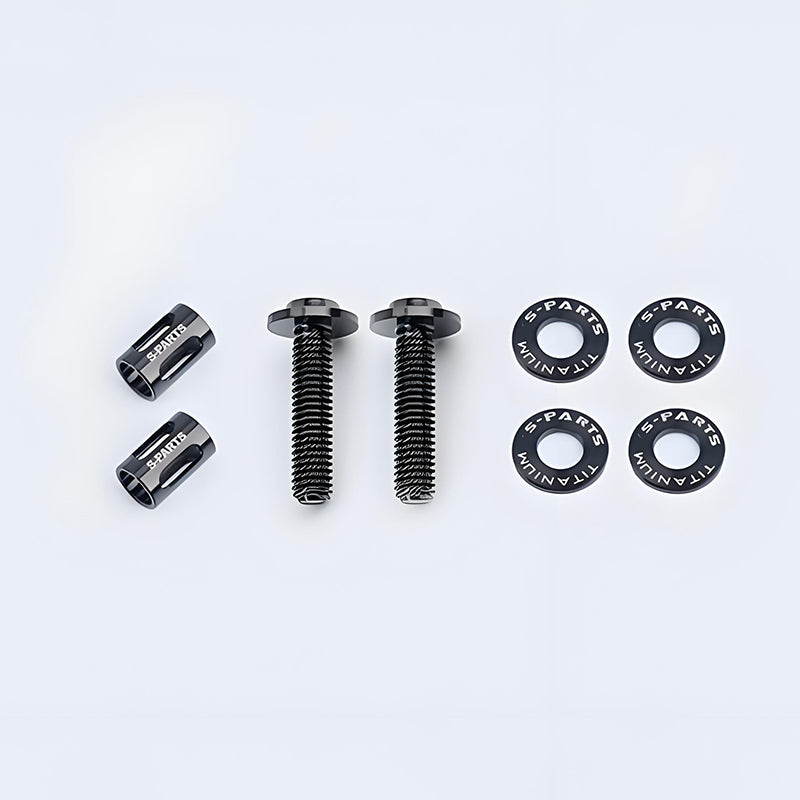

Variant 24 — C Line Eazy Wheel Fixing Bolts

• 8 pcs/set
• T30 Torx
• Weight: 5.73 g/set

Mudguard Hardware

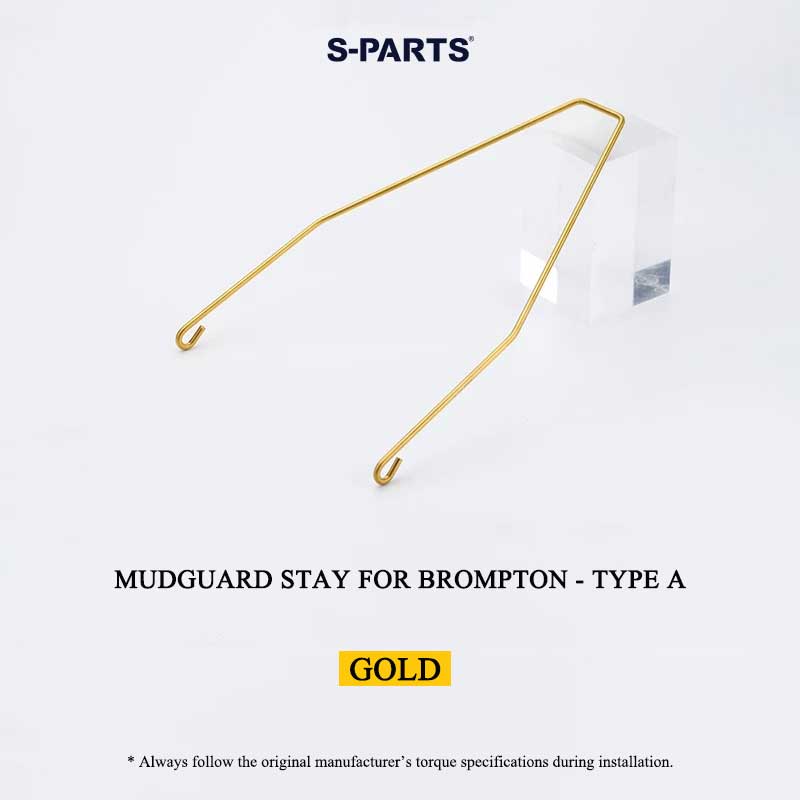

Variant 5 — Mudguard Stay for Brompton - Type A

• 1 pc
• Weight: 15.5 g/pc

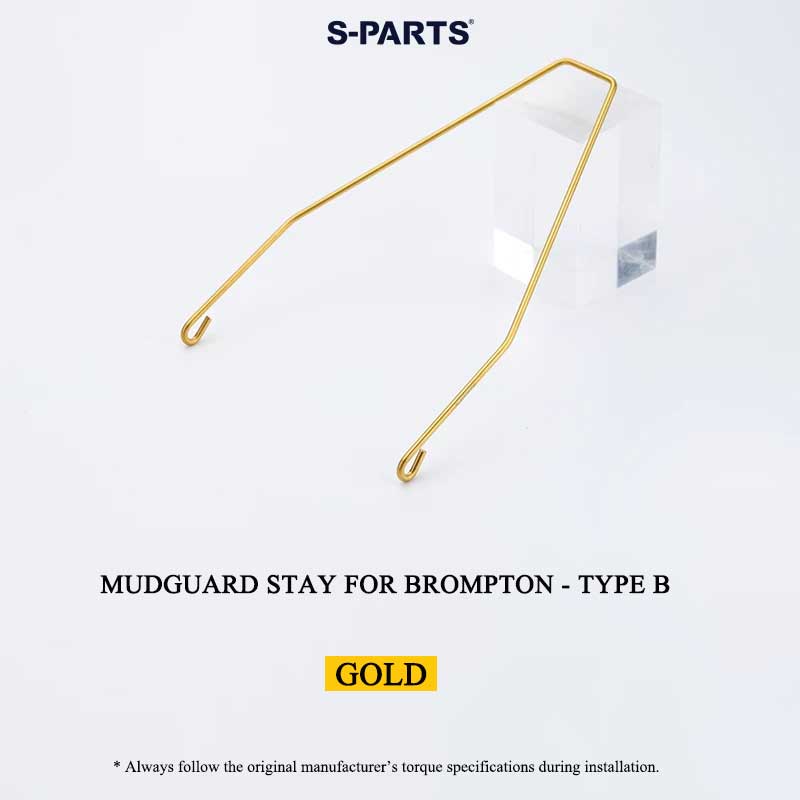

Variant 6 — Mudguard Stay for Brompton - Type B

• 1 pc
• Weight: 14.5 g/pc

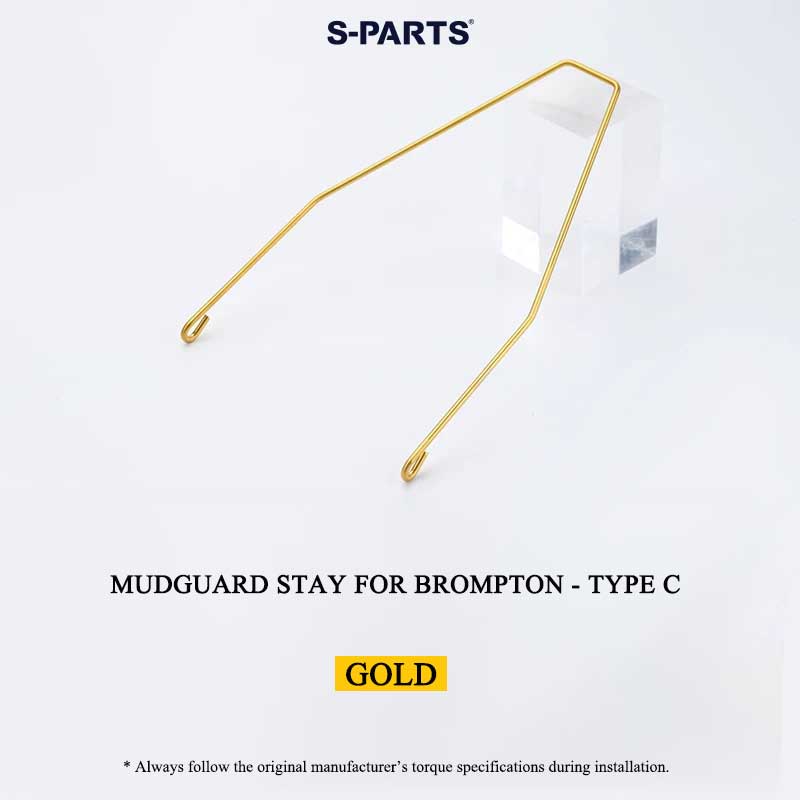

Variant 7 — Mudguard Stay for Brompton - Type C

• 1 pc
• Weight: 15.0 g/pc

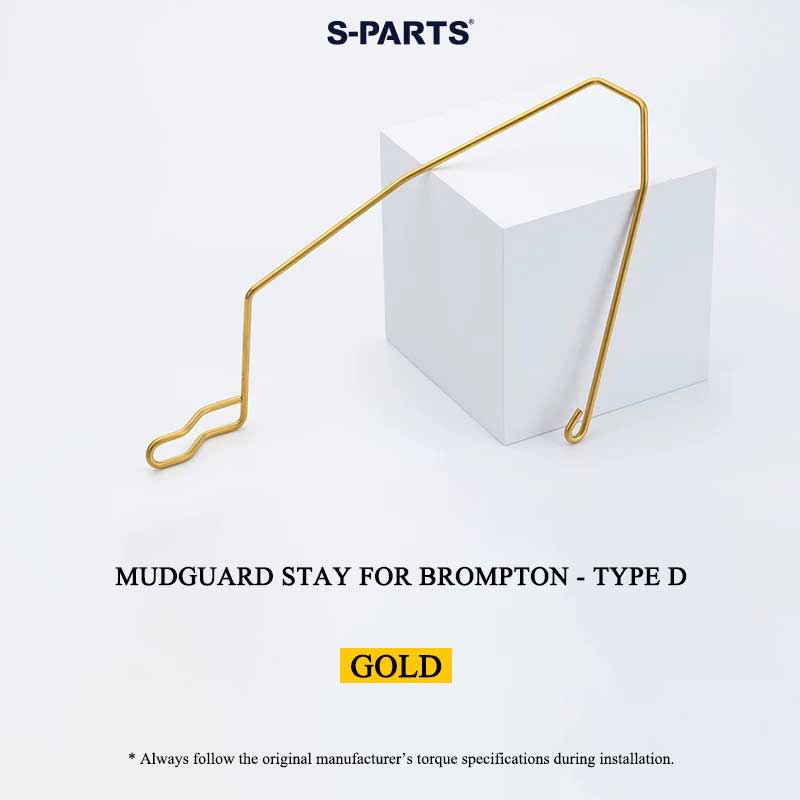

Variant 8 — Mudguard Stay for Brompton - Type D

• 1 pc
• Weight: 15.8 g/pc

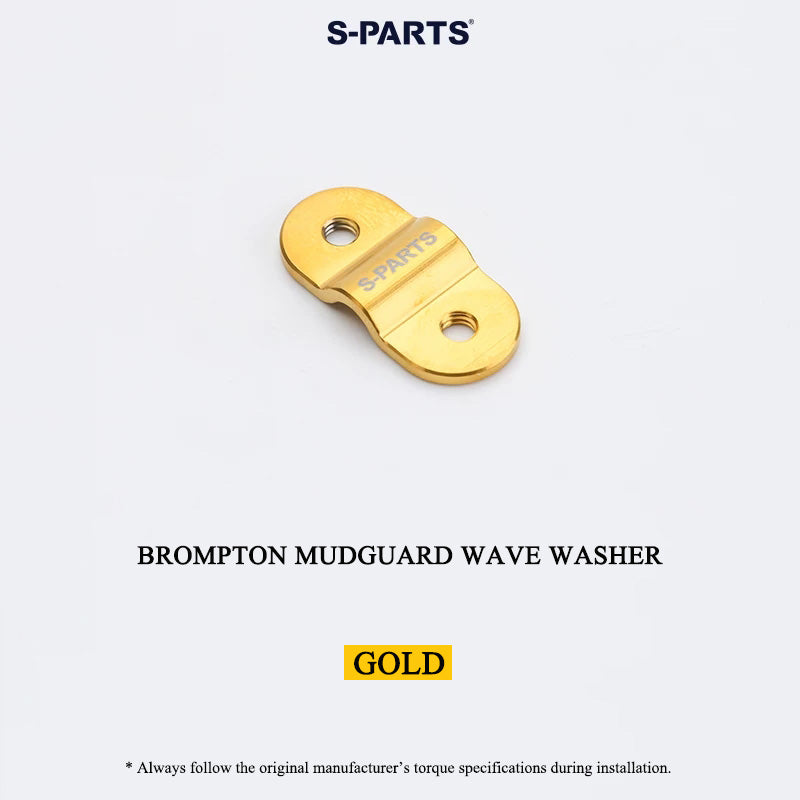

Variant 9 — Mudguard Wave Washer

• 1 pc
• Weight: 3.3 g/pc

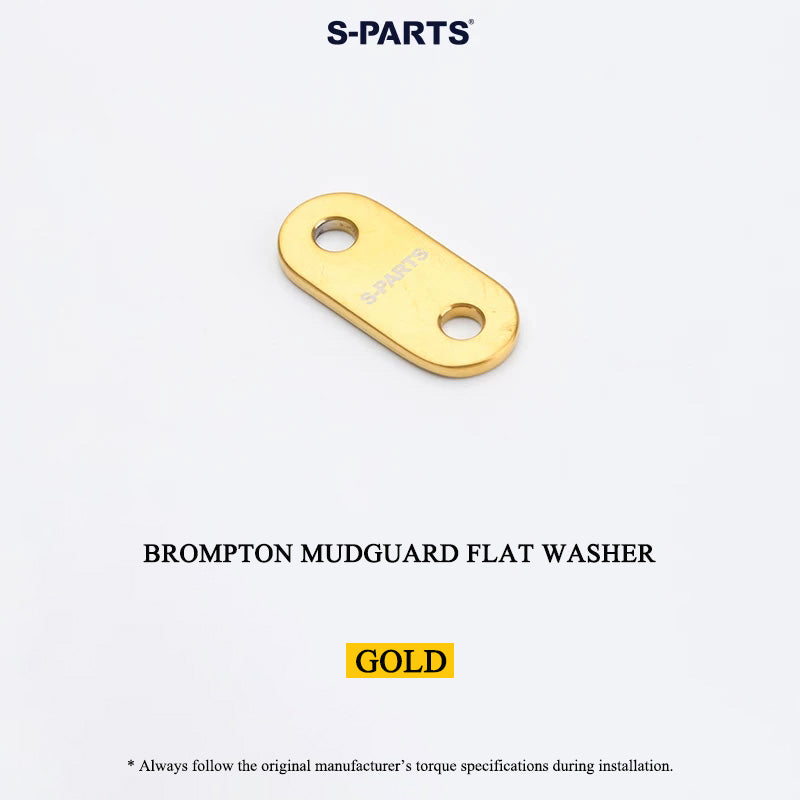

Variant 10 — Mudguard Flat Washer

• 1 pc
• Weight: 3.0 g/pc

For Variants 5–8: Brackets A–D have different shapes/configurations. Please refer to the variant photos and match the bracket with your original part before ordering.

Wheel & Axle Hardware

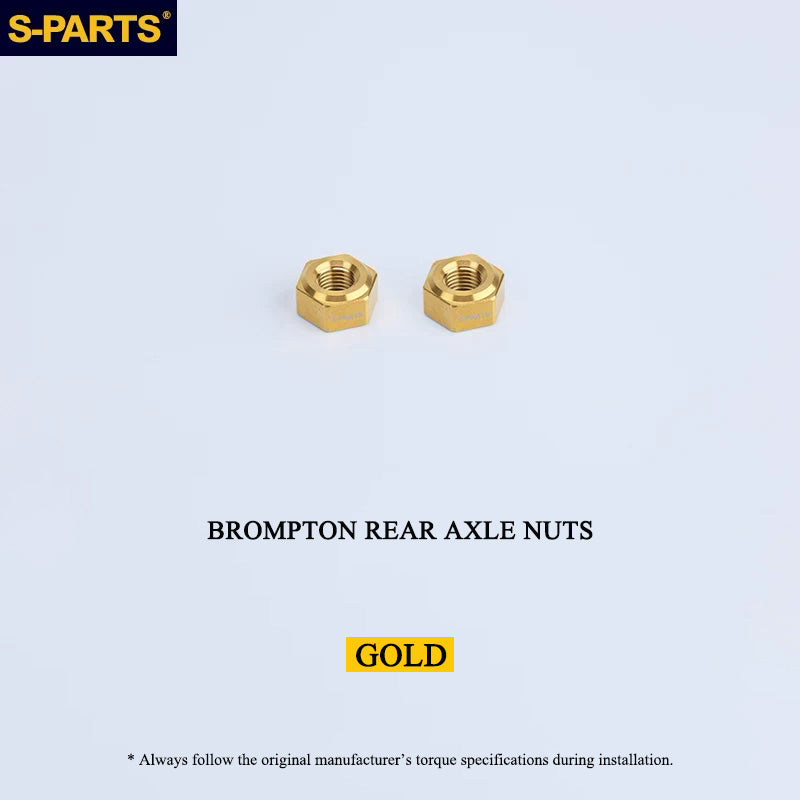

Variant 15 — Rear Axle Nuts

• 2 pcs/pair
• Weight: 8.24 g/pair

Variant 16 — Front Axle Nuts

• 2 pcs/pair
• Weight: 9.54 g/pair

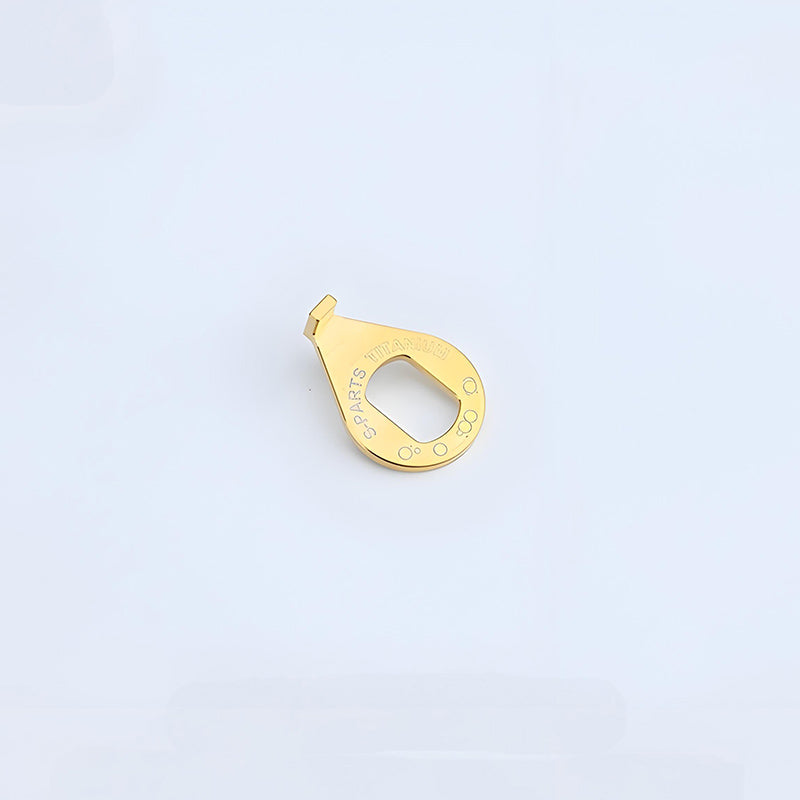

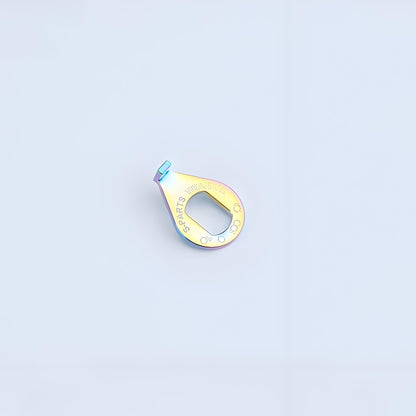

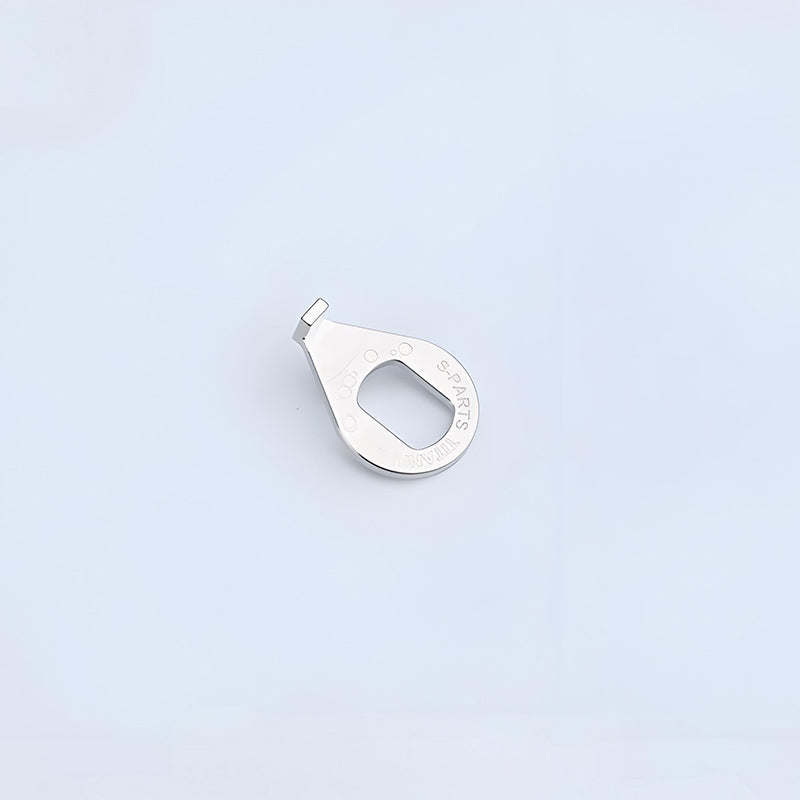

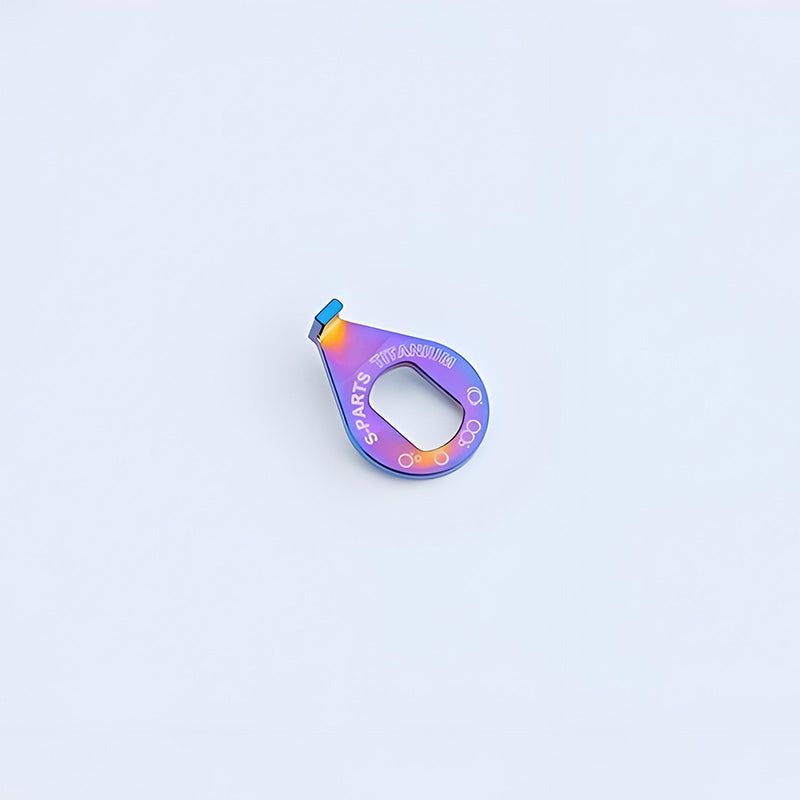

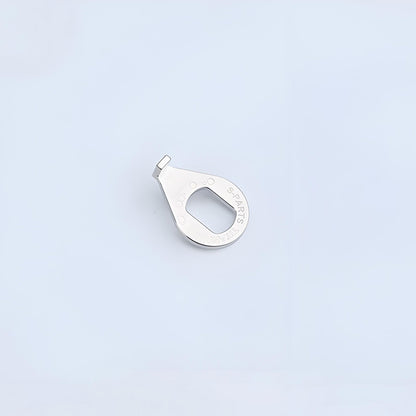

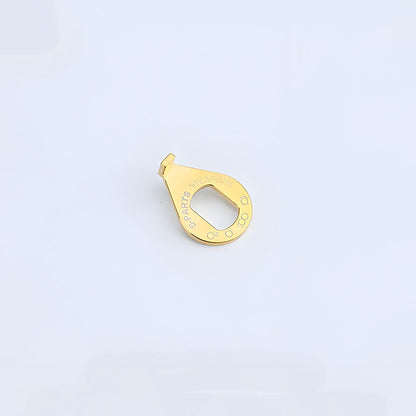

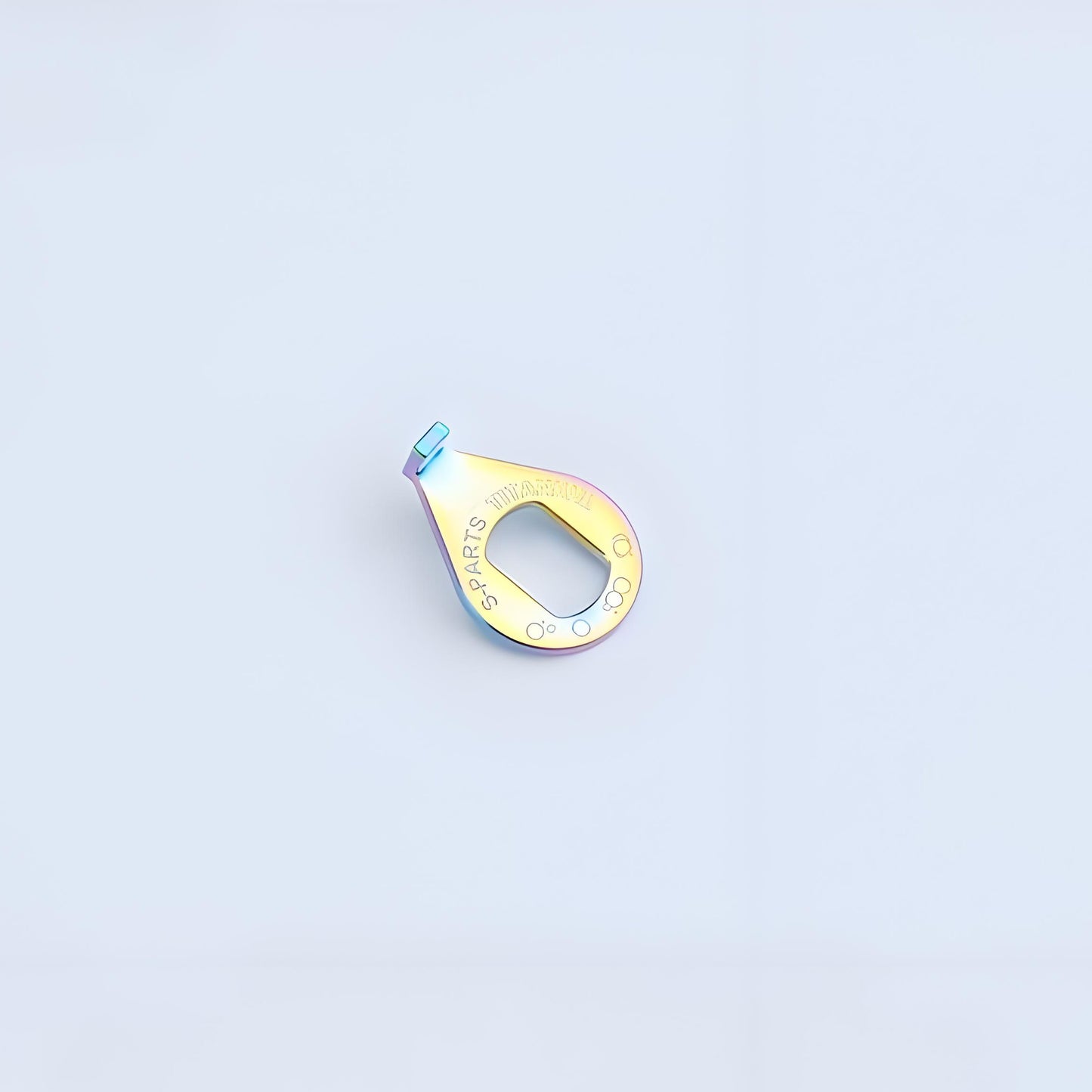

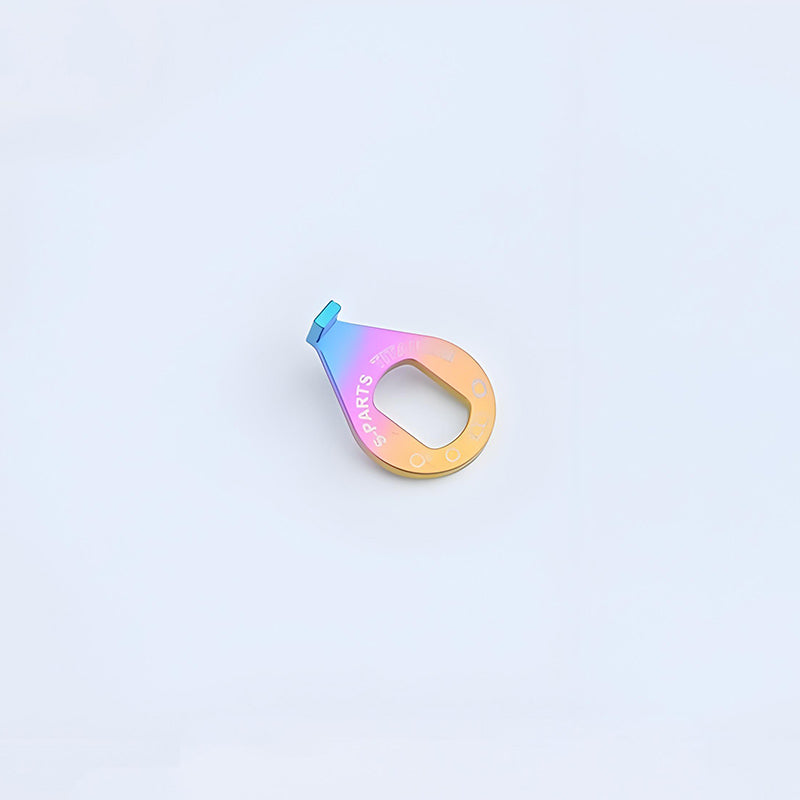

Variant 20 — Right Front Axle Stop Washer

• 1 pc
• Weight: 1.82 g/pc

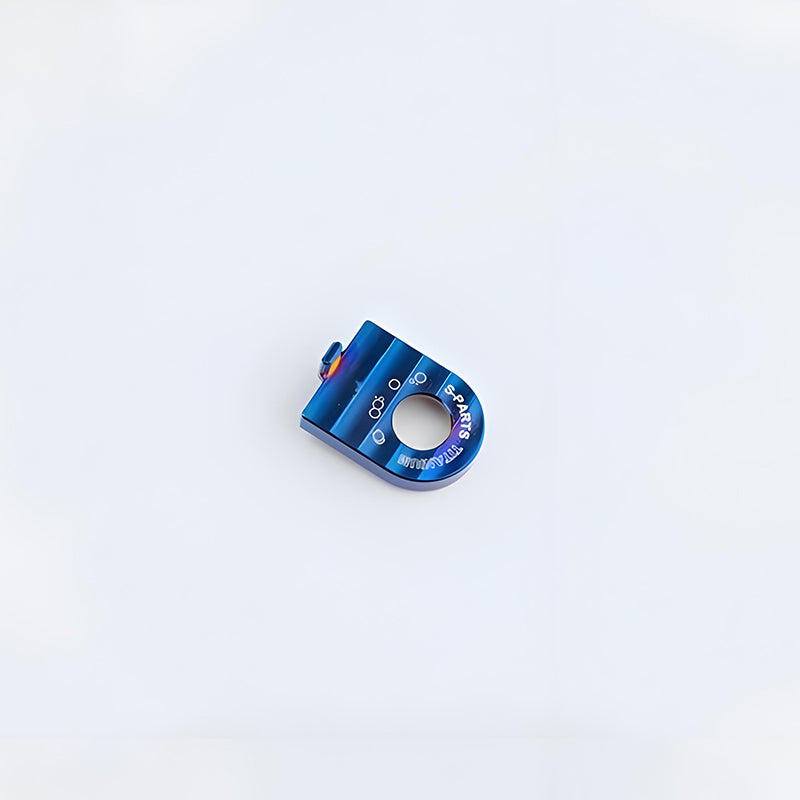

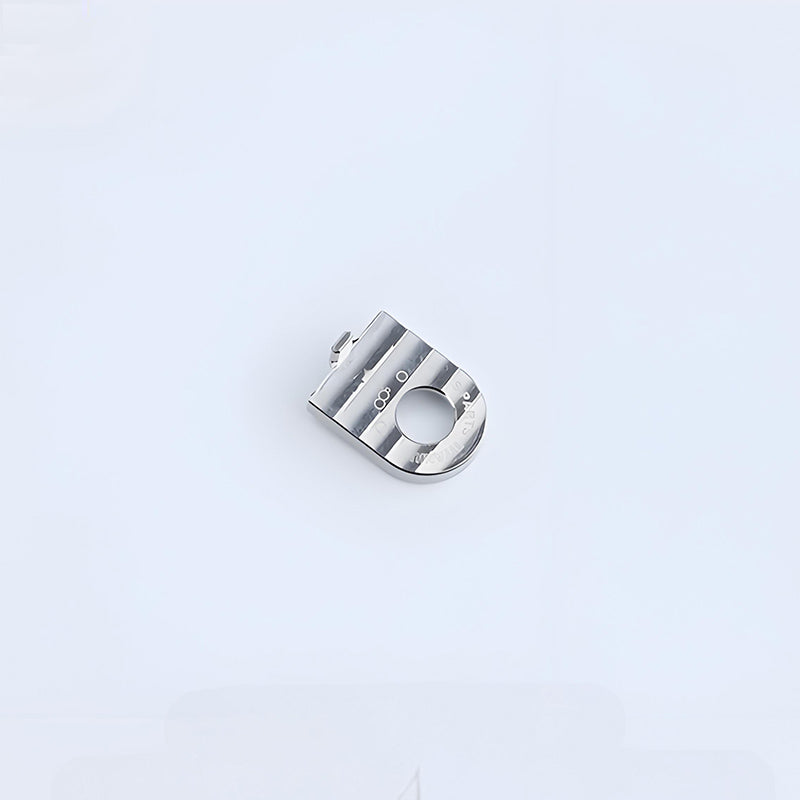

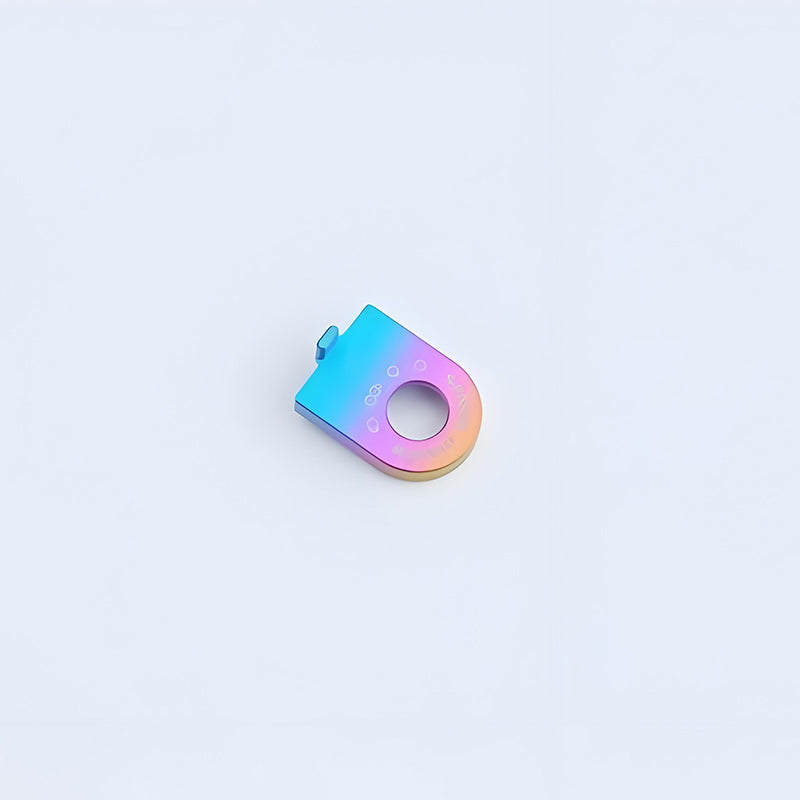

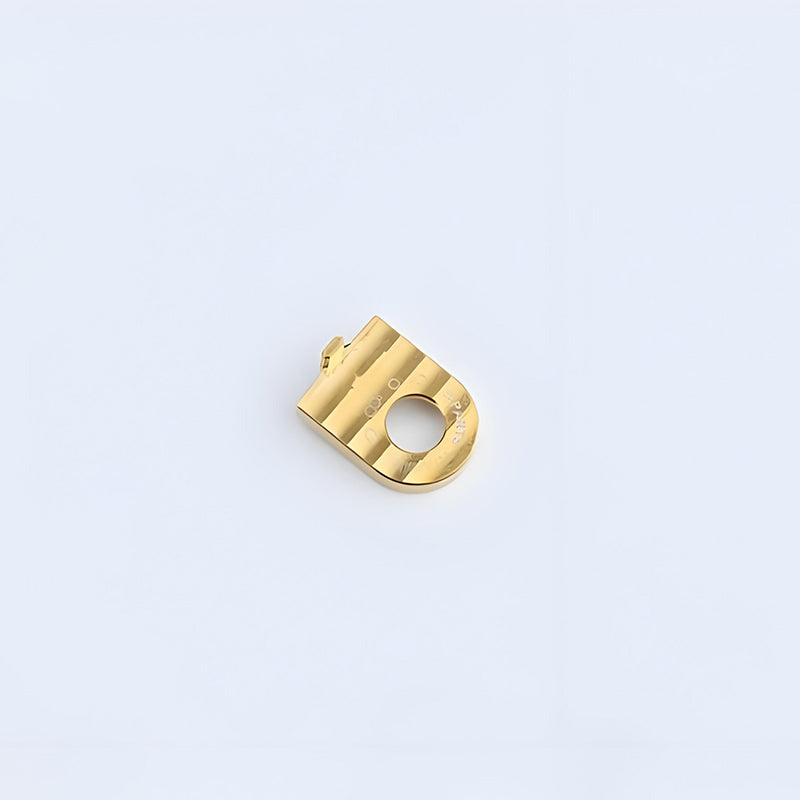

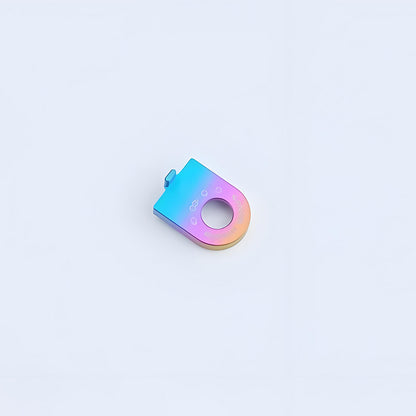

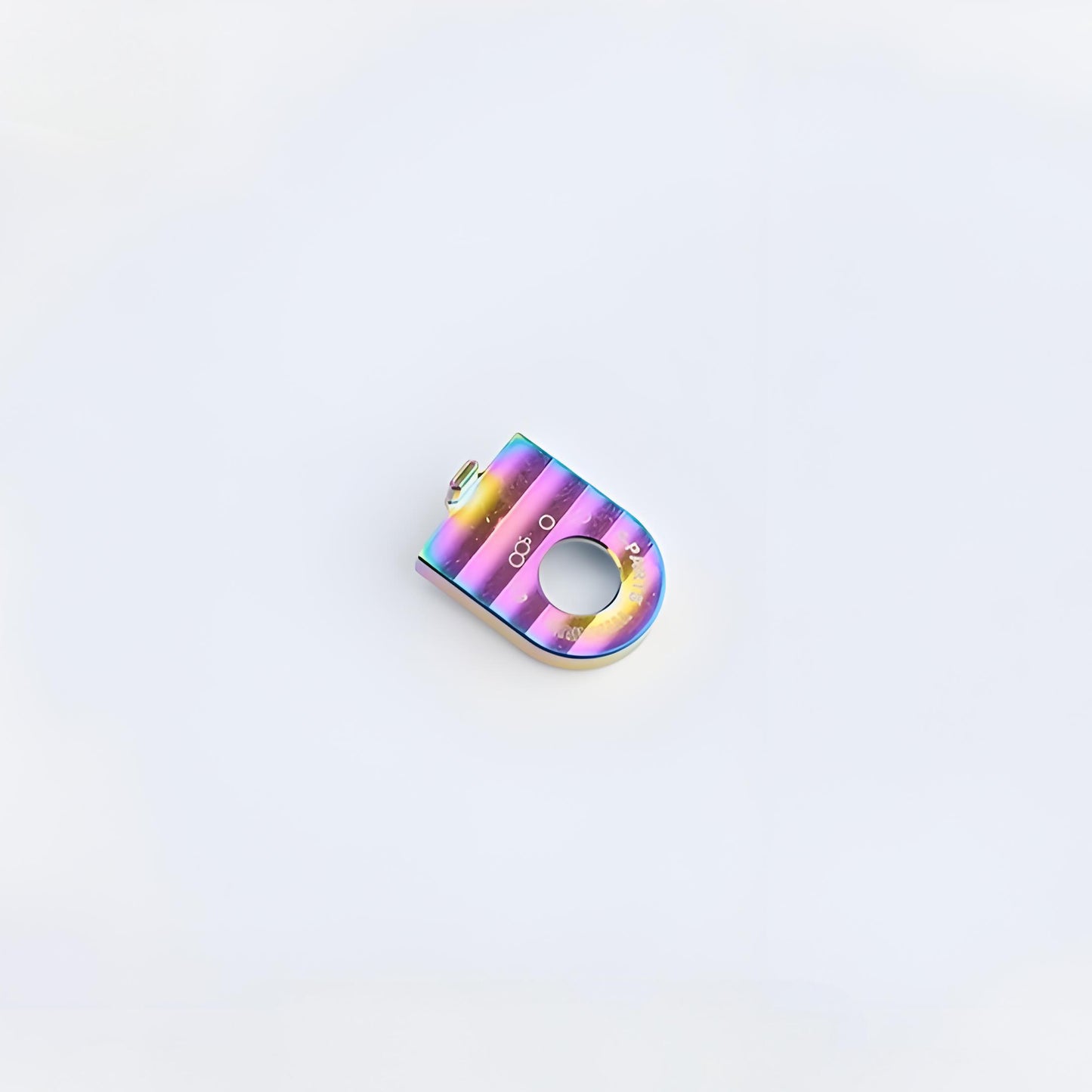

Variant 21 — Left Front Axle Stop Washer

• 1 pc
• Weight: 3.15 g/pc

Drivetrain & Internal Gear Hardware

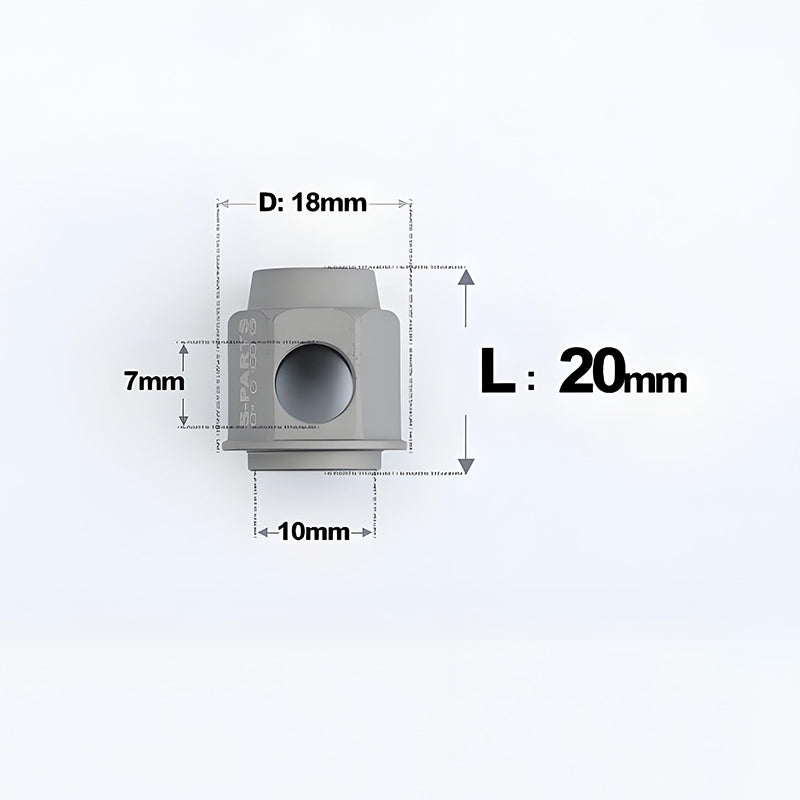

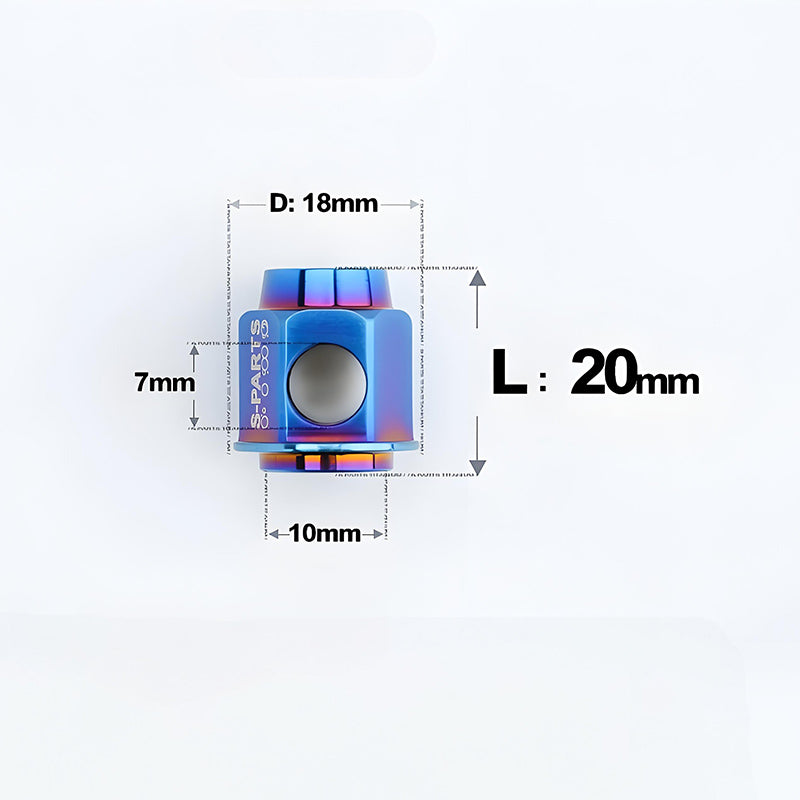

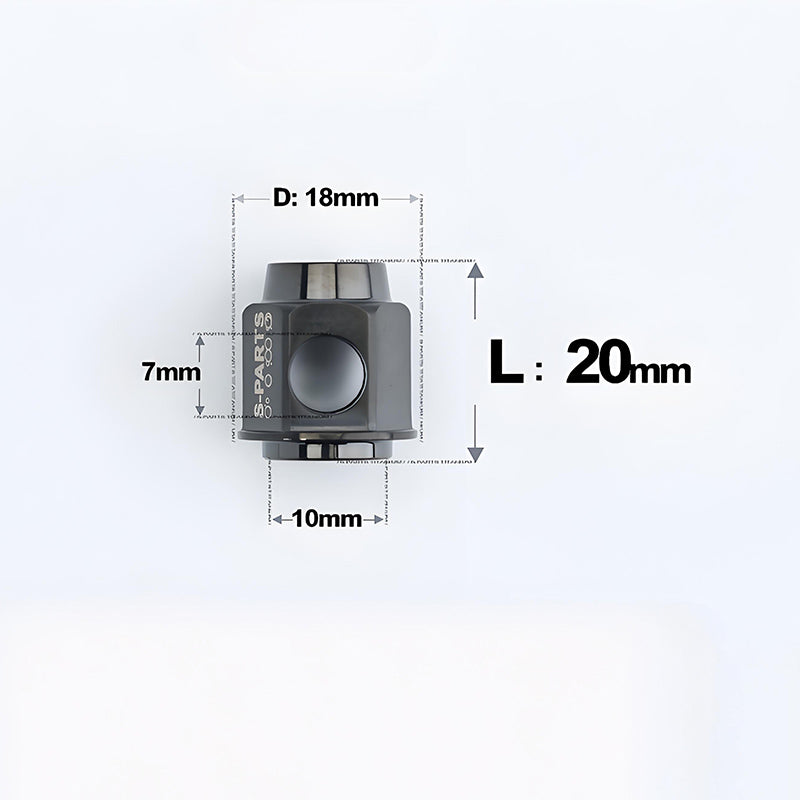

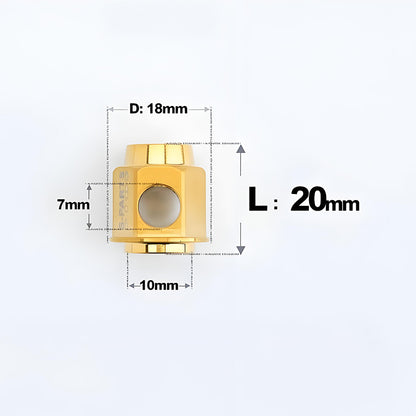

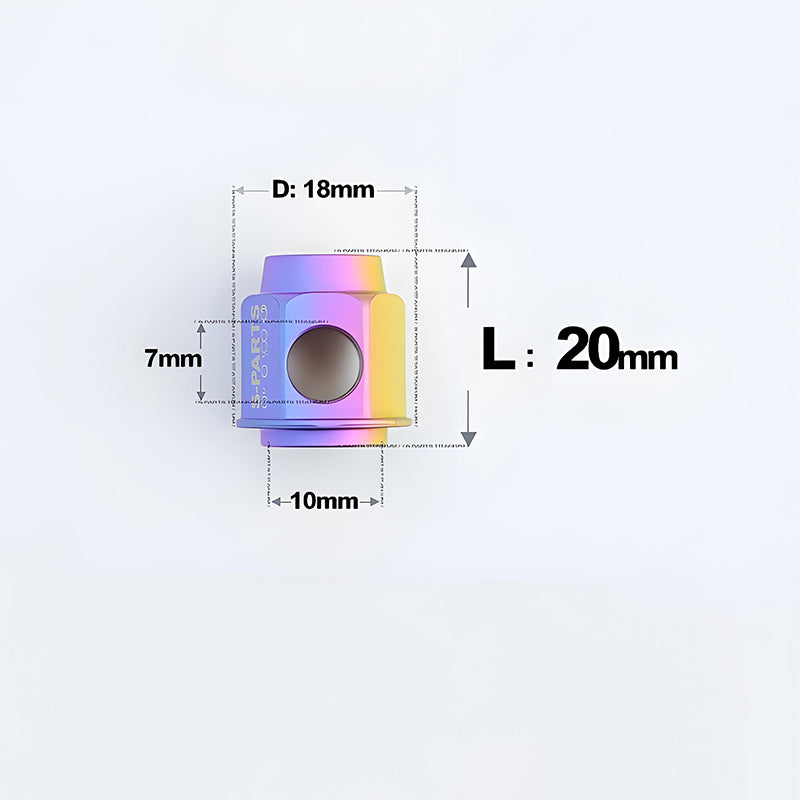

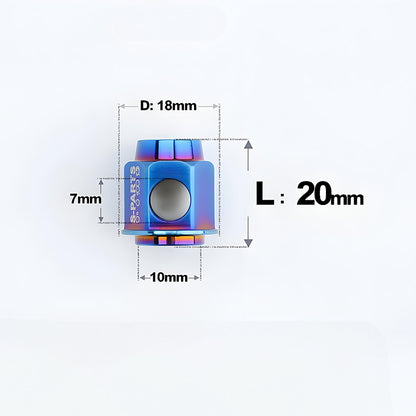

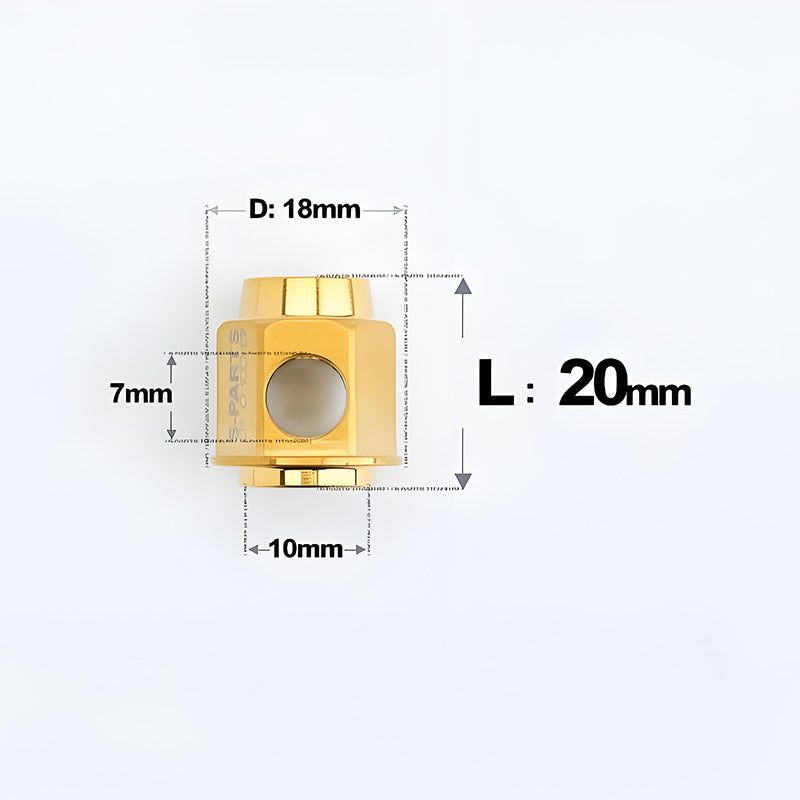

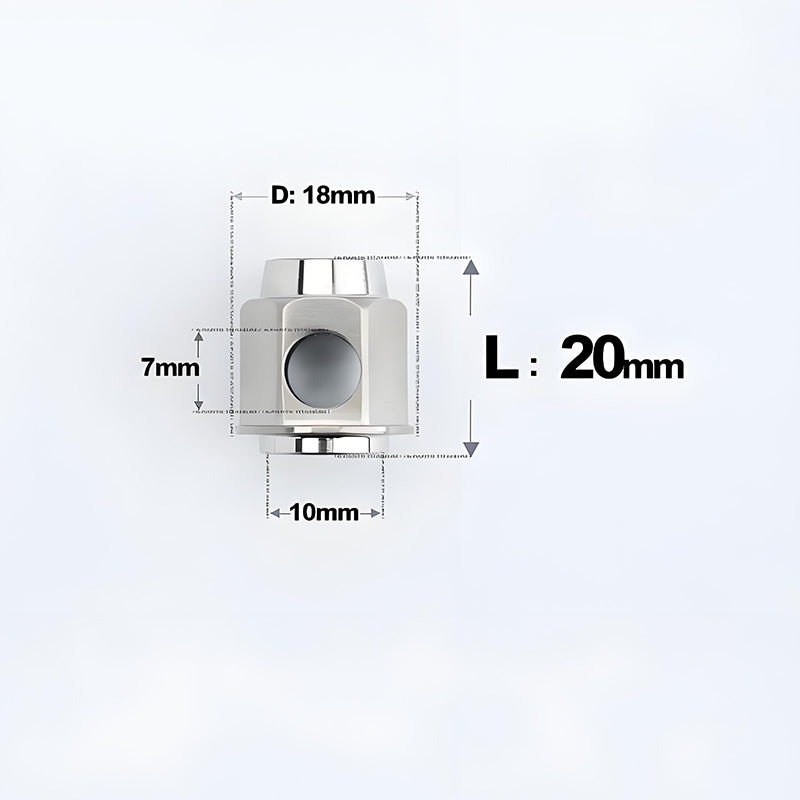

Variant 11 — Chain Tensioner Nut

• M10 × 20 mm
• 15 mm open-end wrench
• 1 pc
• Weight: 8.67 g/pc

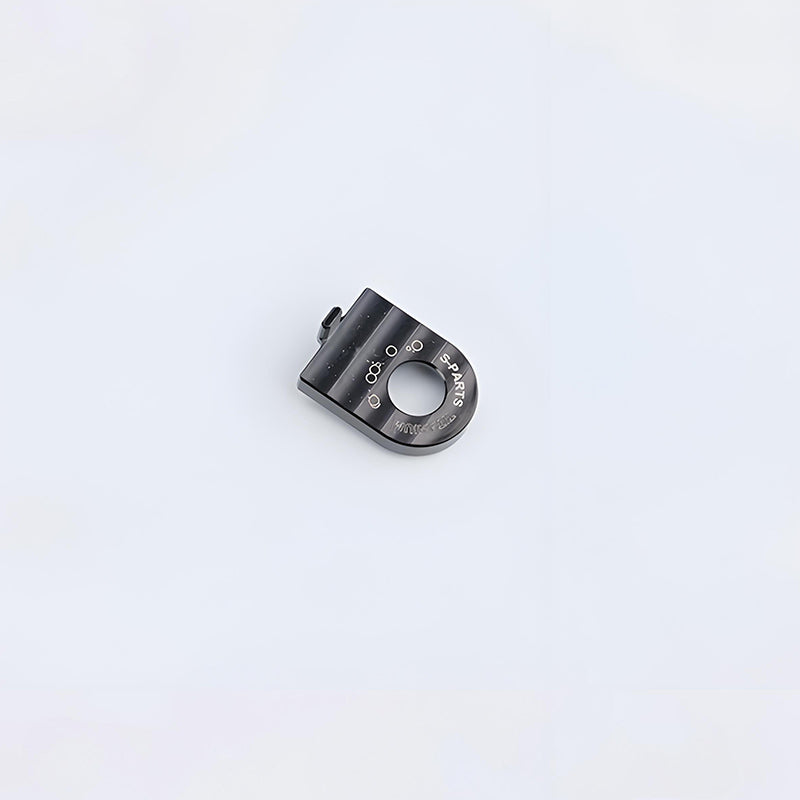

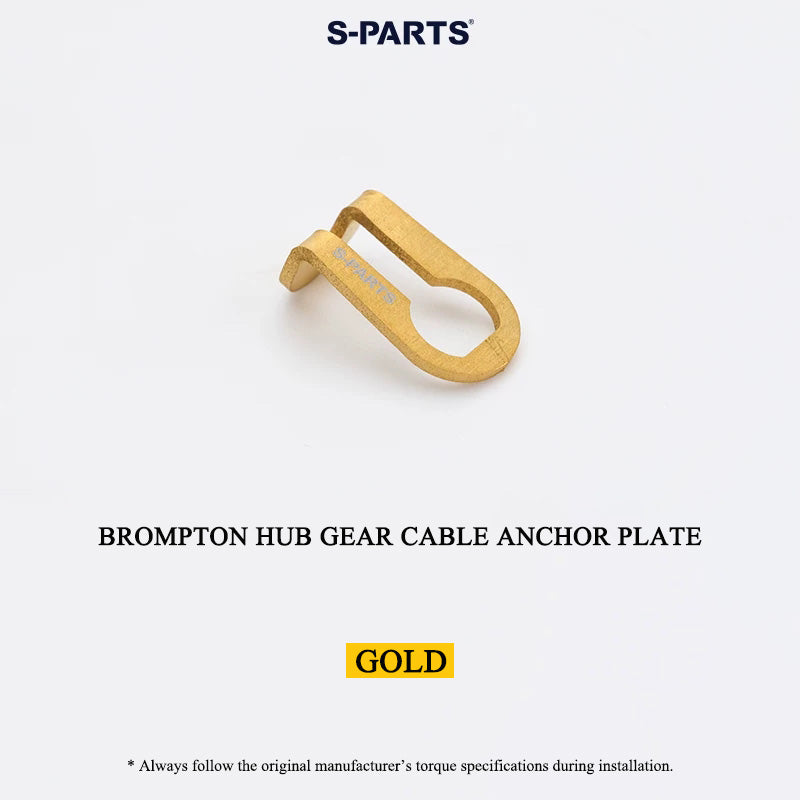

Variant 12 — Hub Gear Cable Anchor Plate

• 1 pc
• Weight: 0.5 g/pc

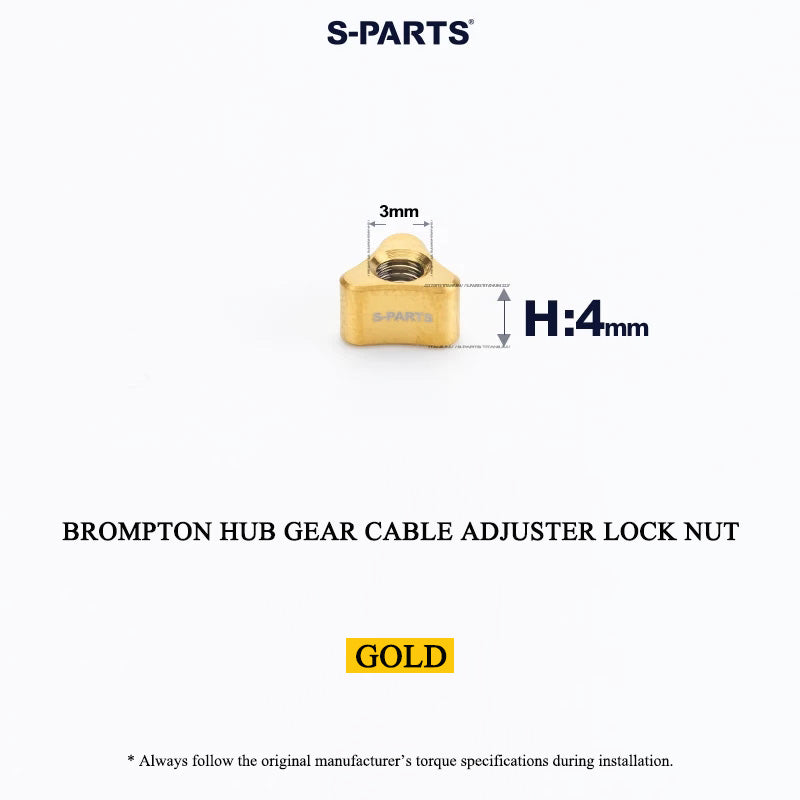

Variant 13 — Hub Gear Cable Adjuster Lock Nut

• M3
• 1 pc
• Weight: 0.3 g/pc

Saddle Hardware

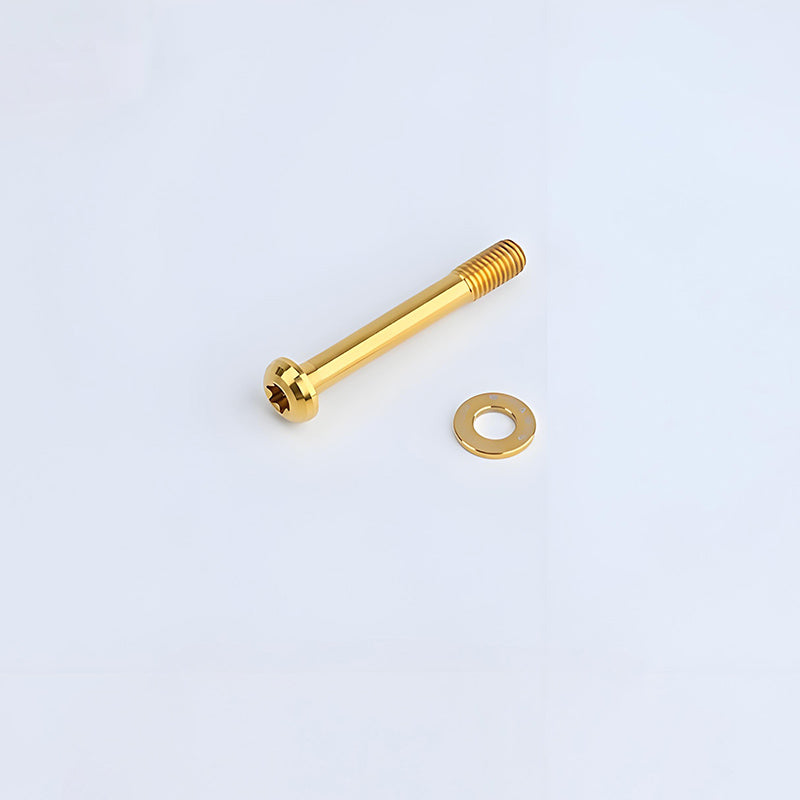

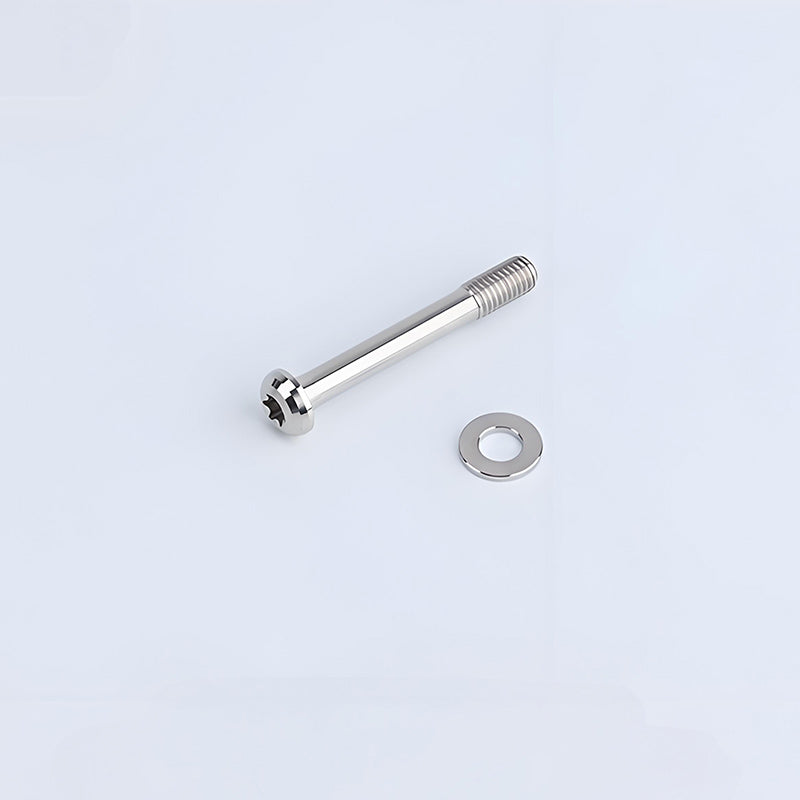

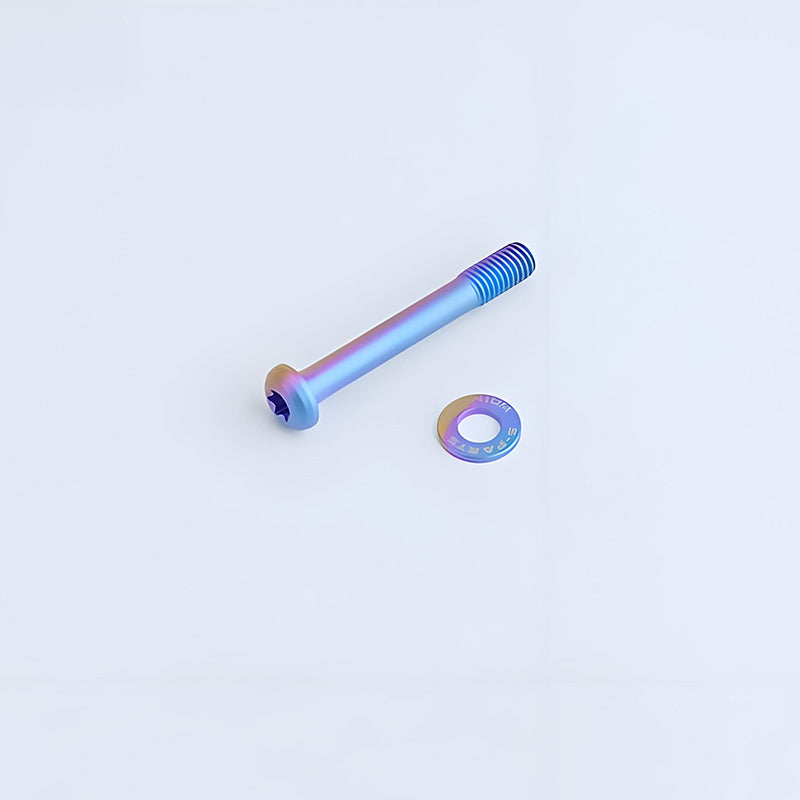

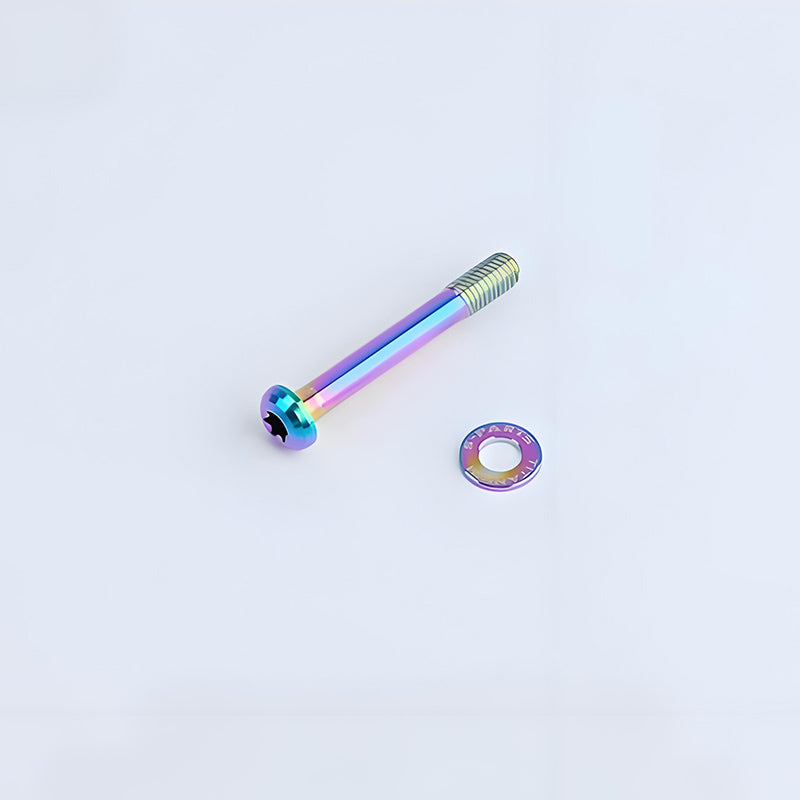

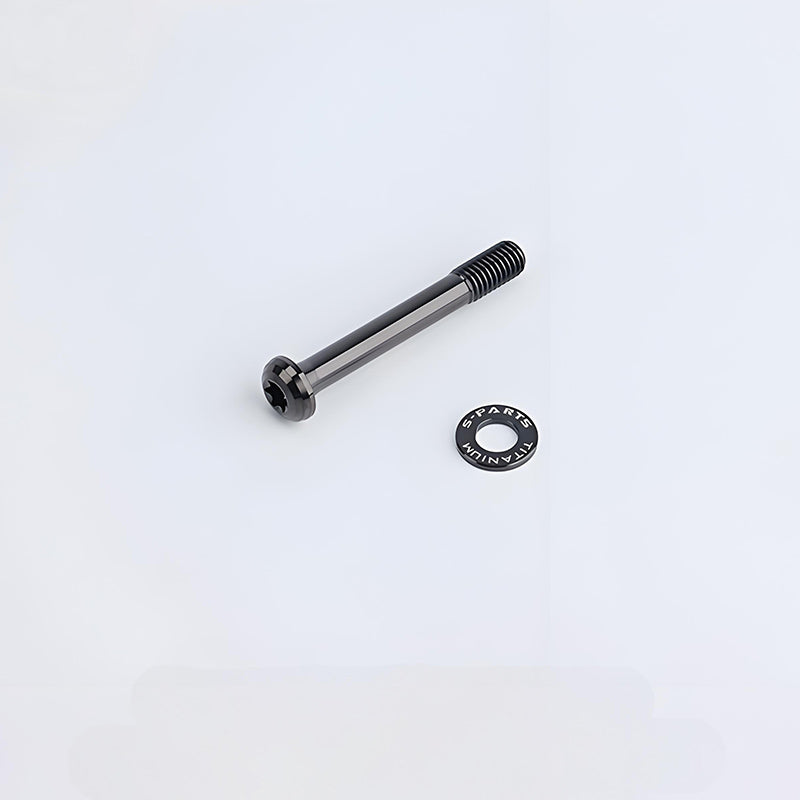

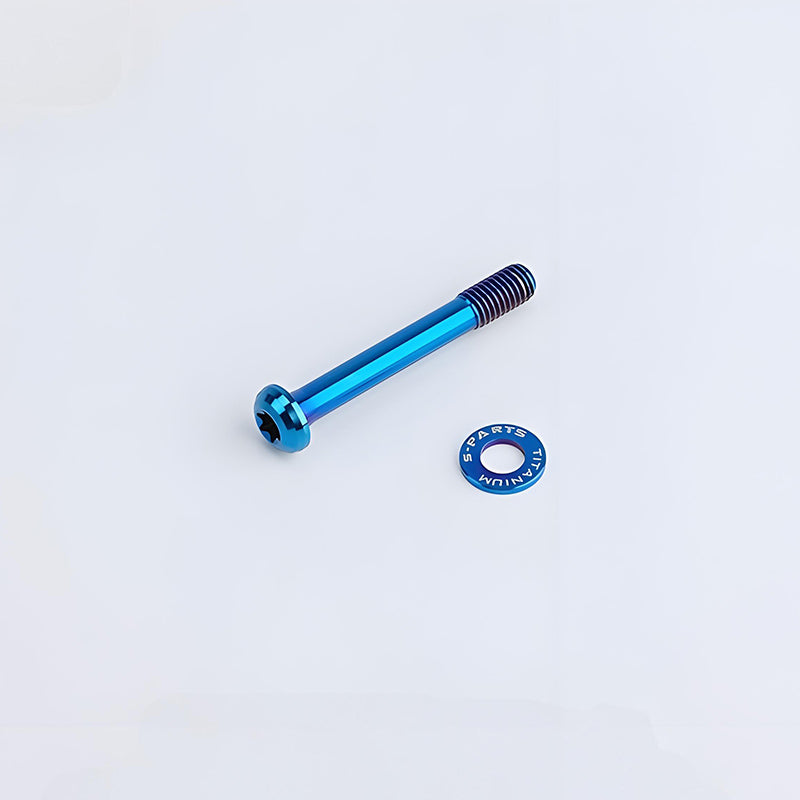

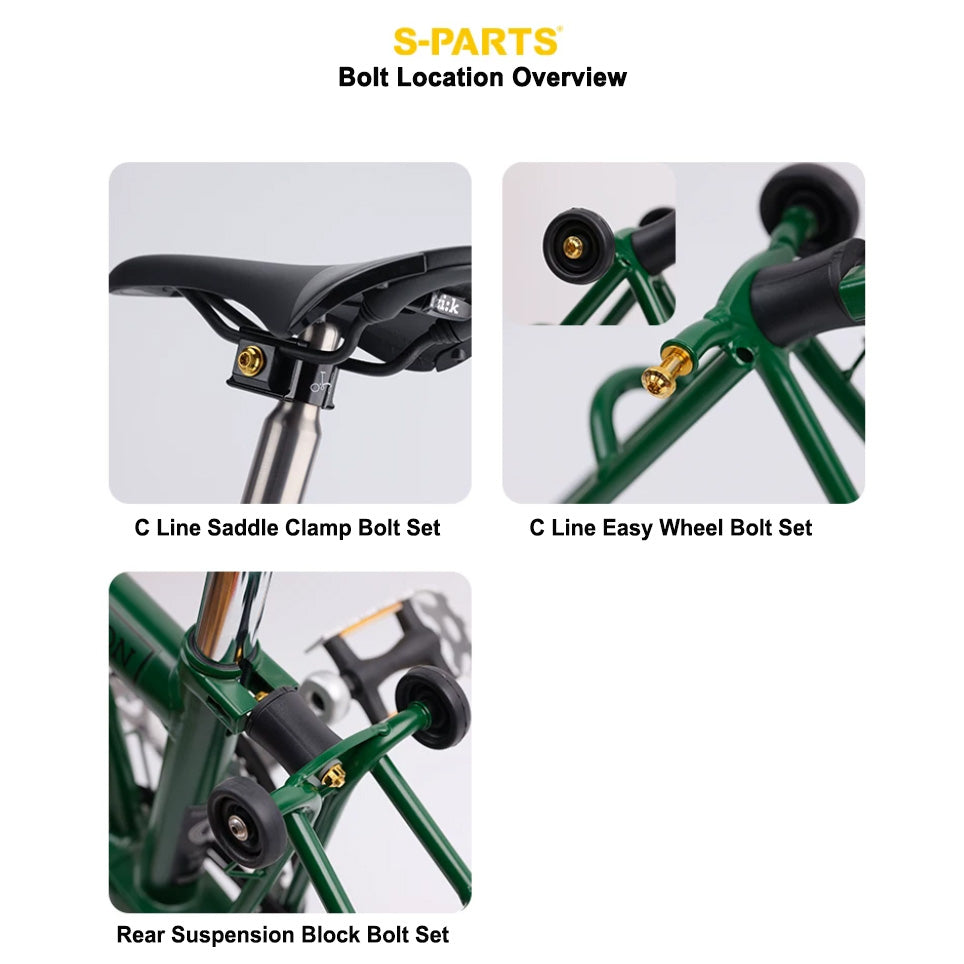

Variant 25 — C Line Saddle Clamp Bolt Set

• 1 set
• T40 Torx
• Weight: 12.8 g/set

Grade 5 Titanium Performance

Made from Grade 5 Titanium (Ti-6Al-4V), internationally recognized as the alloy commonly referred to as TC4 in China. The selected material has an average tensile strength exceeding 1,050 MPa, above the stated 895 MPa industry benchmark, while the finished hardware weighs approximately half as much as comparable steel components.

Under comparable conditions, its mechanical performance is comparable to commonly used 10.9-grade steel hardware, delivering an excellent strength-to-weight ratio for lightweight bicycle upgrades.

Precision Manufacturing

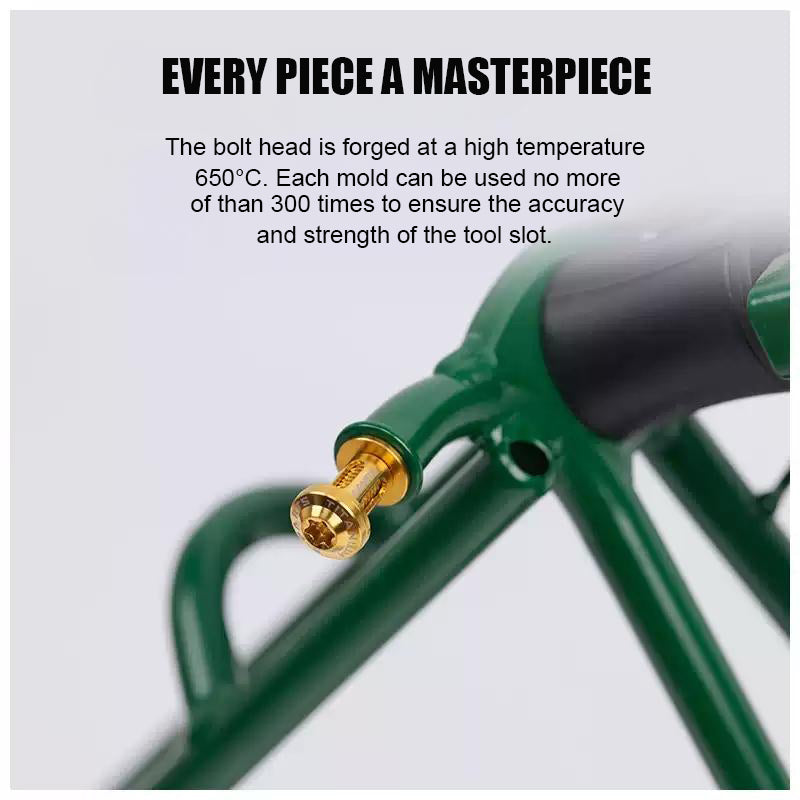

• Hot Forging: Custom bolt-head dies operate at approximately 650°C.
• Die Life: Each dedicated forging die is used for no more than 300 cycles to help maintain forming consistency.
• CNC Machining: Precision multi-axis CNC machining with micron-level dimensional control for accurate threads and fitment.

Titanium Color Finishes

Available finishes include Gold, Rainbow, Titanium, Black, Blue and Candy.

PVD-based finishes provide a durable surface layer with enhanced hardness and wear resistance. Anodized titanium colors are created through electrochemical oxidation and light interference rather than conventional paint or dye.

The Candy finish has naturally variable color distribution due to the anodizing process, so the final color may vary from piece to piece.

A white line or light-colored mark around the threaded area may occasionally appear as a normal result of the coloring process. This does not affect normal use.

Important Ordering Notes

• This listing contains 24 selectable variants, not one complete hardware kit.
• Each variant is sold separately unless specifically described as a set or pair.
• Always verify the model, component position, dimensions, thread specification and original hardware before ordering.
• For Variants 5–8, use the variant photos to match the original mudguard bracket shape.
• For Variant 23, verify whether your original bolt uses a T30 or T40 Torx drive before ordering.
• Installation should follow the original component specifications and appropriate torque requirements.
• Brompton® is a trademark of Brompton Bicycle Ltd. S-PARTS is an independent aftermarket manufacturer and this product is not manufactured, sponsored or endorsed by Brompton Bicycle Ltd.
