Product Description

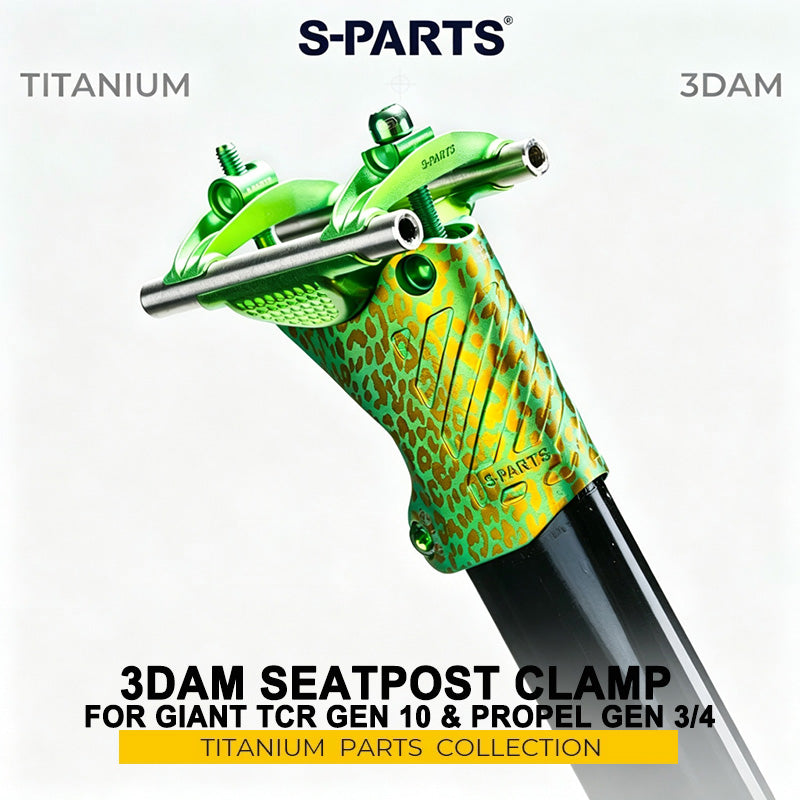

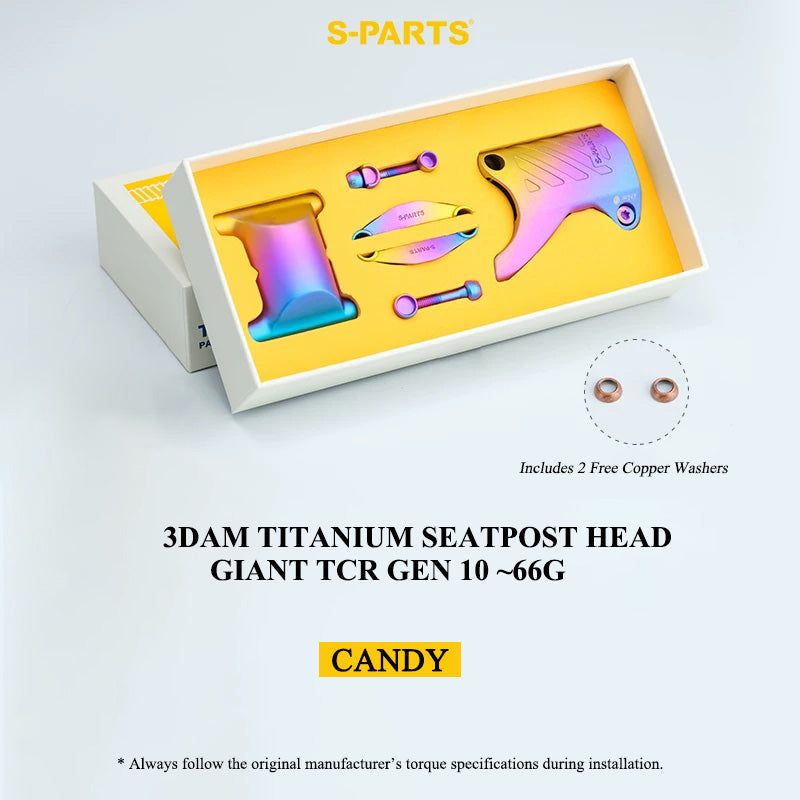

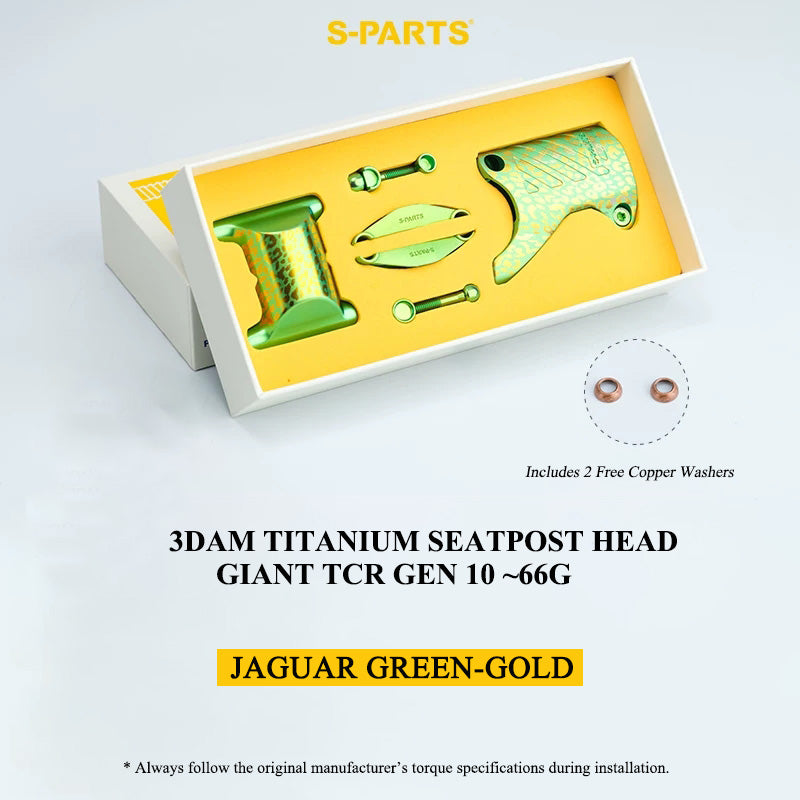

Upgrade your compatible Giant integrated seatpost with the S-PARTS 3DAM Titanium Integrated Seatpost Head Assembly.
Designed specifically for the Giant TCR Gen 10 and Propel Gen 3 / Gen 4, this complete assembly replaces the original saddle rail clamping system with a combination of 3D-printed Grade 5 titanium (Ti-6Al-4V) components and precision-machined hardware.
Up to 42% lighter than the OEM assembly.
Quick Highlights
-
Weight: 66.0g (TCR Gen 10) | 68.0g (Propel Gen 3/4)
-
Material: 3D-Printed Grade 5 Titanium (Ti-6Al-4V) + CNC-Machined Titanium Hardware
-
Fitment: Direct replacement for compatible Giant TCR Gen 10 & Propel Gen 3/4 integrated seatposts
-
Tool: 4mm Hex Key
Specifications
| Specification |
Details |
| Product Type |
Integrated Seatpost Head / Saddle Rail Clamp Assembly |
| Compatible Models |
Giant TCR Gen 10 / Propel Gen 3 / Propel Gen 4 |
| Main Components |
3D-Printed Grade 5 Titanium (Ti-6Al-4V) |
| Fasteners |
Grade 5 Titanium (Ti-6Al-4V) |
| Locking Bolt |
M4 × 12 mm (1 pc) |
| Seatpost Clamp Bolts |
M5 × 30 mm (2 pcs) |
| 3DAM Pressure Blocks |
Ø6.4 mm (2 pcs) |
| Barrel Nut 1 |
M5 × 15 mm / Ø7.9 mm (1 pc) |
| Barrel Nut 2 |
M5 × Ø9.5 mm × 12 mm (1 pc) |
| Half-Round Support Washer |
M5 × Ø9.5 mm × 12 mm (1 pc) |
| Included Bonus |
Copper Washers (2 pcs) |
| Tool Required |
4mm Hex Key |
| Weight — TCR Gen 10 Version |
66.0g/set |
| Weight — Propel Gen 3/4 Version |
68.0g/set |
Choose Your Version

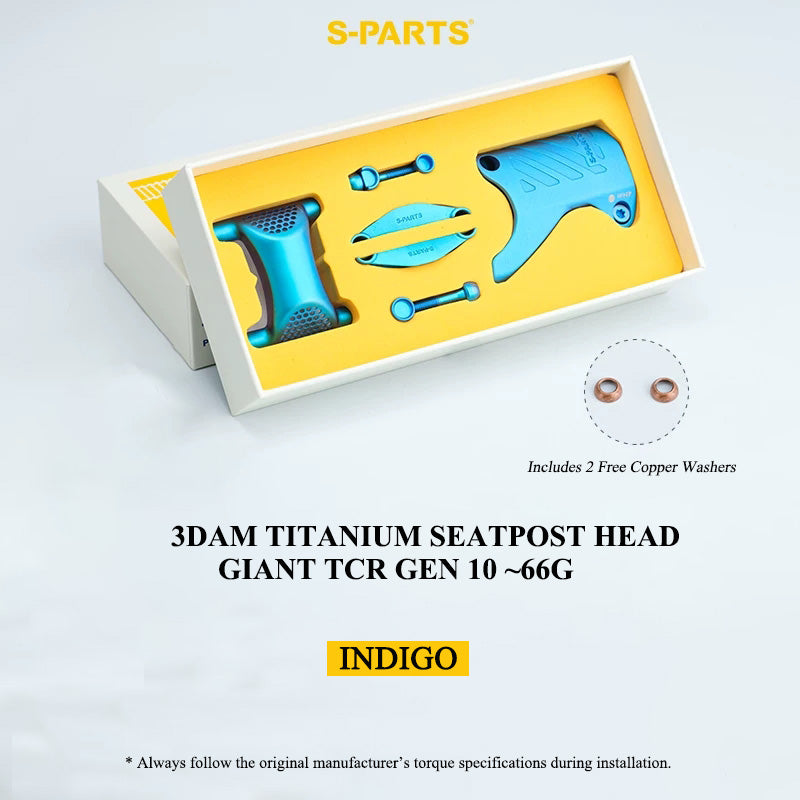

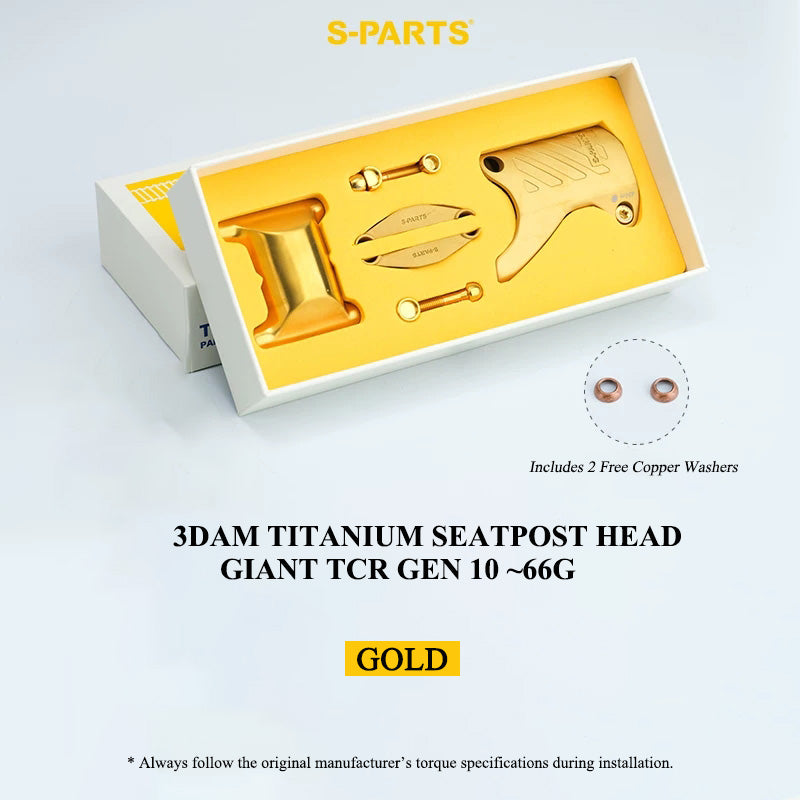

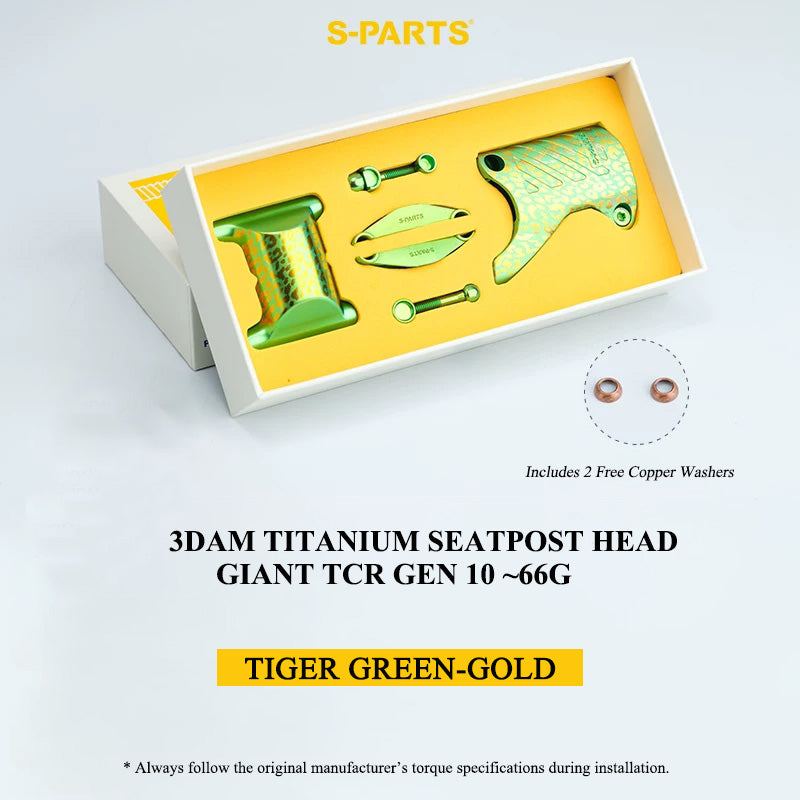

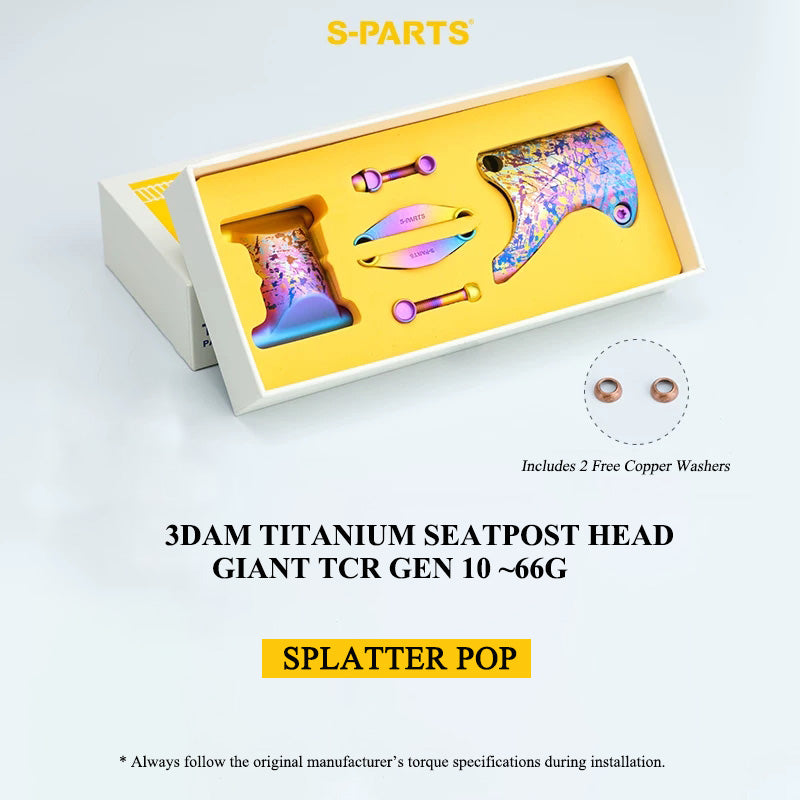

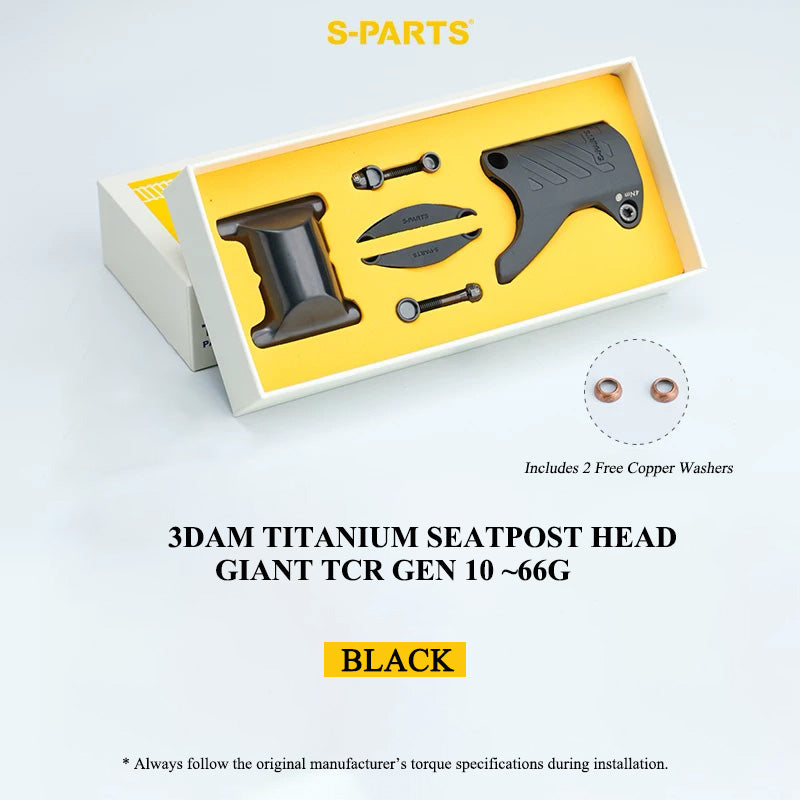

TCR Gen 10 Version — 66.0g
Includes:
- 3DAM Titanium Seatpost Head
- 3DAM Lower Saddle Rail Support
- M4 × 12 mm Locking Bolt (1 pc)
- M5 × 30 mm Seatpost Clamp Bolts (2 pcs)
- Ø6.4 mm 3DAM Pressure Blocks (2 pcs)
- M5 × 15 mm / Ø7.9 mm Barrel Nut (1 pc)
- M5 × Ø9.5 mm × 12 mm Barrel Nut (1 pc)
- M5 × Ø9.5 mm × 12 mm Half-Round Support Washer (1 pc)
- Copper Washers (2 pcs)

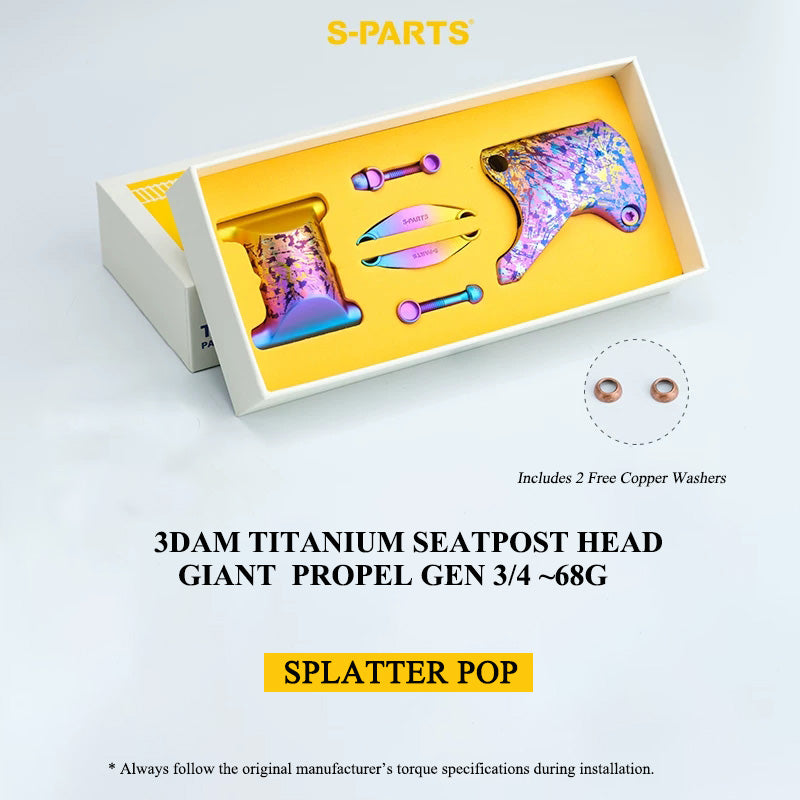

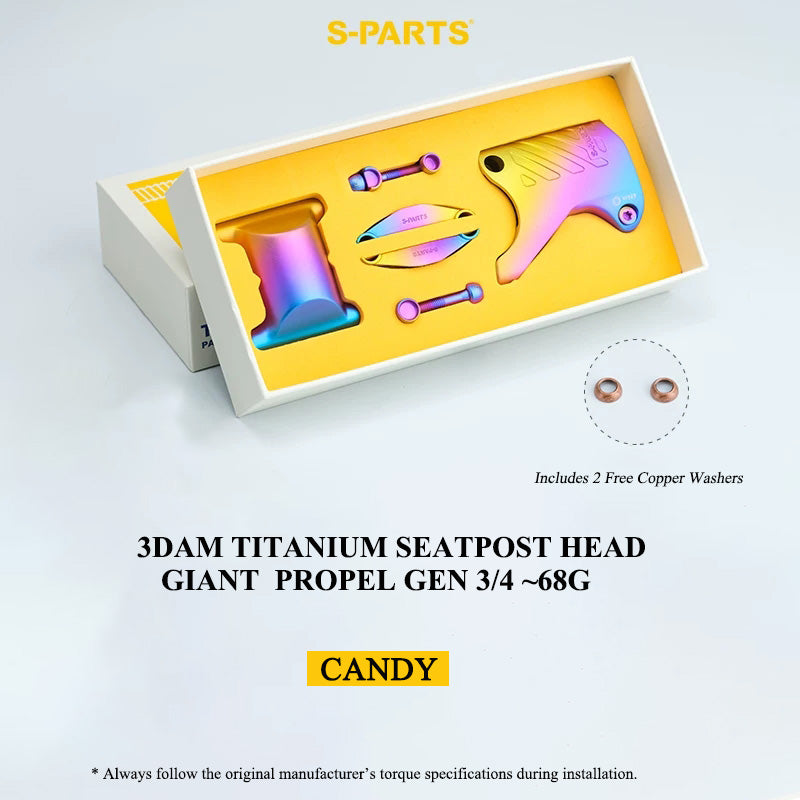

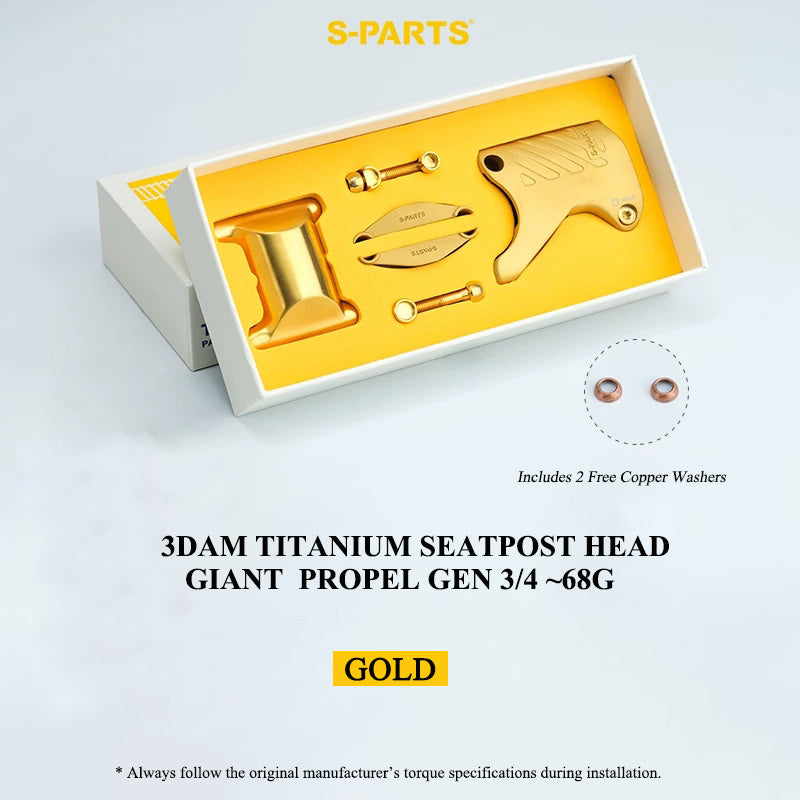

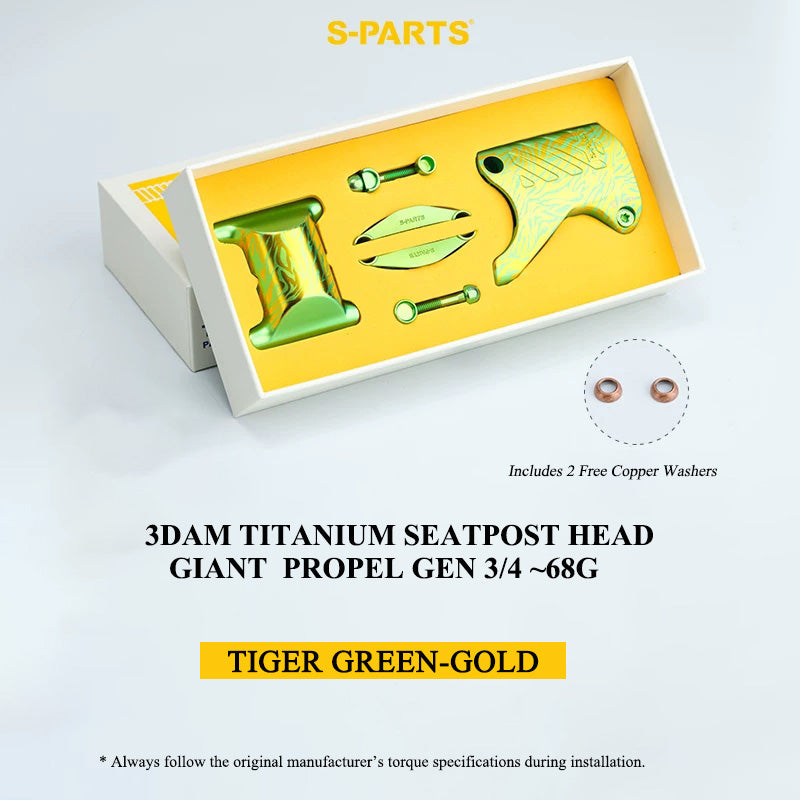

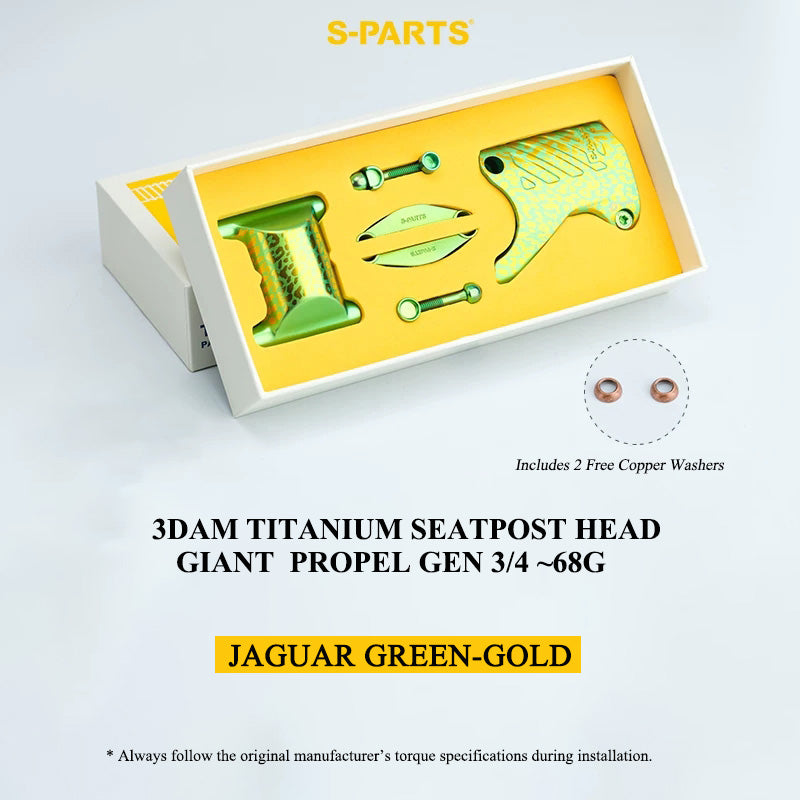

Propel Gen 3 / Gen 4 Version — 68.0g
Includes:
- 3DAM Titanium Seatpost Head
- 3DAM Lower Saddle Rail Support
- M4 × 12 mm Locking Bolt (1 pc)
- M5 × 30 mm Seatpost Clamp Bolts (2 pcs)
- Ø6.4 mm 3DAM Pressure Blocks (2 pcs)
- M5 × 15 mm / Ø7.9 mm Barrel Nut (1 pc)
- M5 × Ø9.5 mm × 12 mm Barrel Nut (1 pc)
- M5 × Ø9.5 mm × 12 mm Half-Round Support Washer (1 pc)
- Copper Washers (2 pcs)

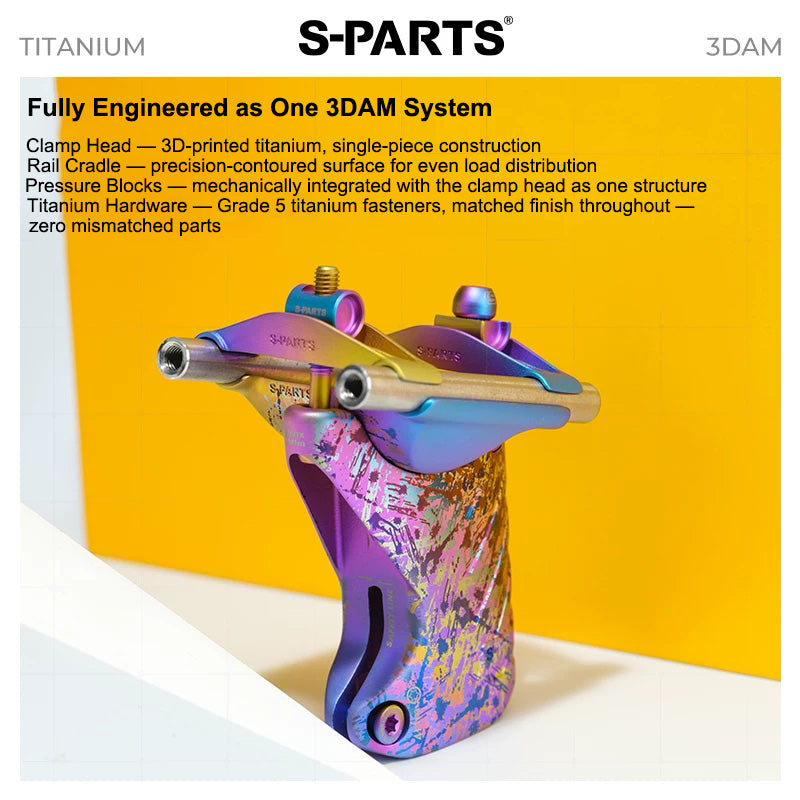

Engineered as a Complete System
Most upgrades replace only individual bolts or small clamp components.
The S-PARTS 3DAM system takes a different approach. The seatpost head, lower support, pressure blocks and titanium hardware are developed as a complete assembly, allowing the components to work together as one integrated system.

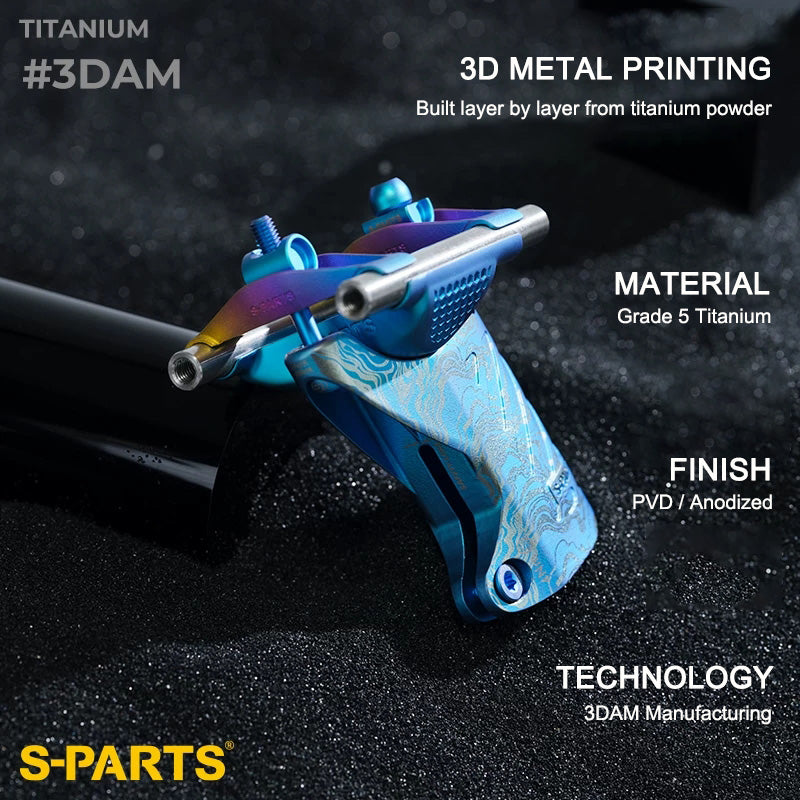

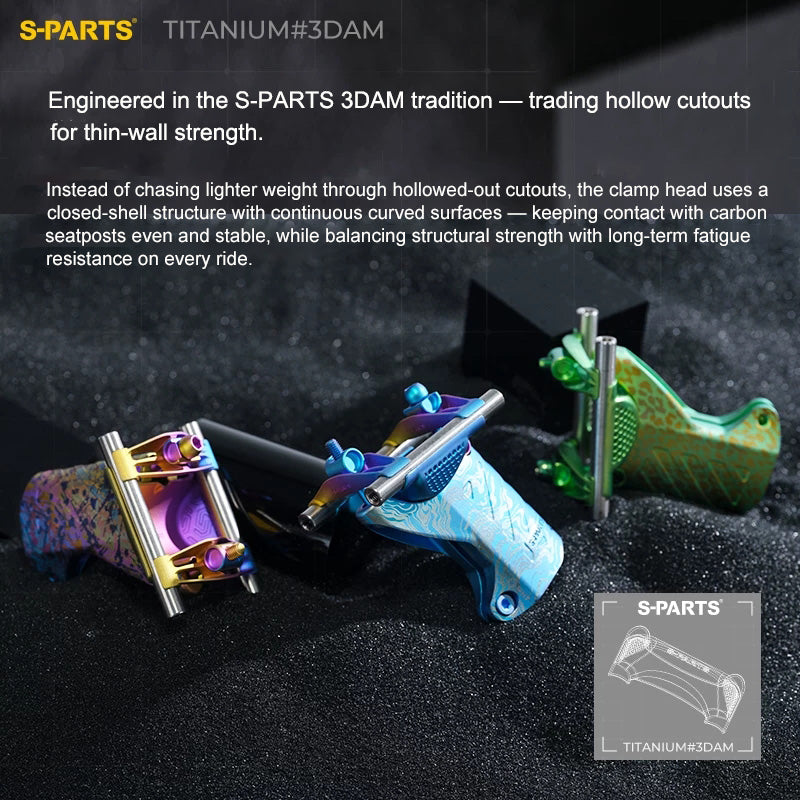

The main structure uses 3D-printed Grade 5 titanium, combining a lightweight shell design with continuous curved surfaces to balance weight reduction, structural support and stable load distribution across the saddle rail interface.
3D Printing Meets Precision CNC Machining
The 3DAM series combines titanium additive manufacturing with precision CNC machining.
After 3D printing, components undergo stress-relief heat treatment, support removal and surface finishing before final assembly.
The result combines the design freedom of titanium 3D printing with the precision of CNC-machined components.

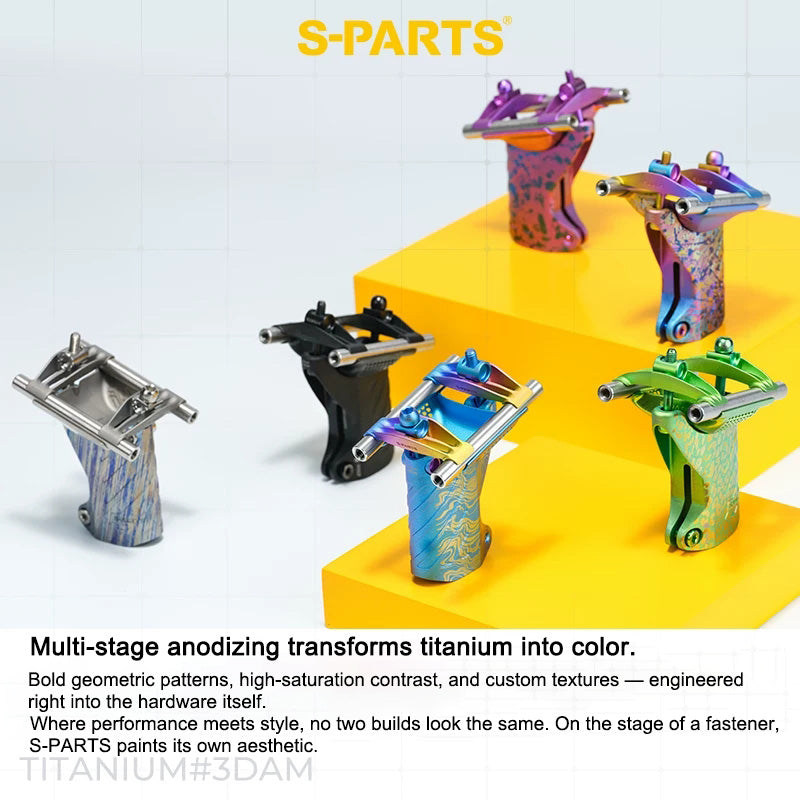

Custom Titanium Finishes
Available in:
- Gold
- Black
- Candy
- Indigo
- Splatter Pop
- Neon Splatter
- Tiger Green-Gold
- Jaguar Green-Gold

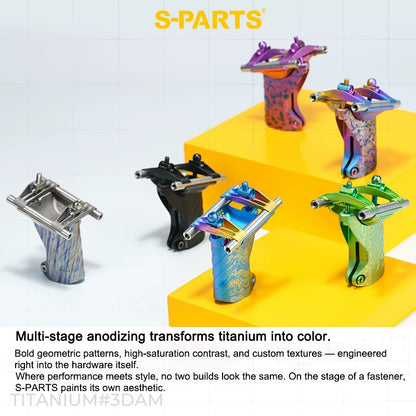

Multi-stage anodic coloring creates vibrant colors and distinctive custom finishes.
Because anodized and patterned finishes are individually processed, slight variations in color and pattern are normal.
Key Features
- Complete integrated seatpost head assembly
- Designed for compatible Giant TCR Gen 10 & Propel Gen 3/4 platforms
- 3D-printed Grade 5 Titanium (Ti-6Al-4V)
- Precision CNC-machined titanium hardware
- Up to 42% lighter than the OEM assembly
- 66.0g for TCR Gen 10
- 68.0g for Propel Gen 3/4
- Direct replacement design
- Multiple anodized and custom-pattern finishes
- Copper washers included
- Installation with a standard 4mm hex key
Important Compatibility Note
Please select the correct version for your bike before ordering.
Professional installation is recommended. Follow the bicycle manufacturer's recommended installation procedure and torque specifications. Do not exceed the recommended tightening torque.
