Description

Overview

Upgrade your suspension hardware with S-PARTS M8 Titanium Shock Mount Shoulder Bolts, precision-engineered for Santa Cruz mountain bike rear shock and linkage applications.

Manufactured from Grade 5 Titanium (Ti-6Al-4V), these bolts deliver an exceptional balance of strength, weight reduction, and corrosion resistance—designed for aggressive trail riding, enduro use, and long-term durability in demanding conditions.

Size Specifications & Fitment (Important)

Each bolt length features a dedicated shoulder length, ensuring correct bearing spacing, smooth pivot rotation, and proper suspension alignment.

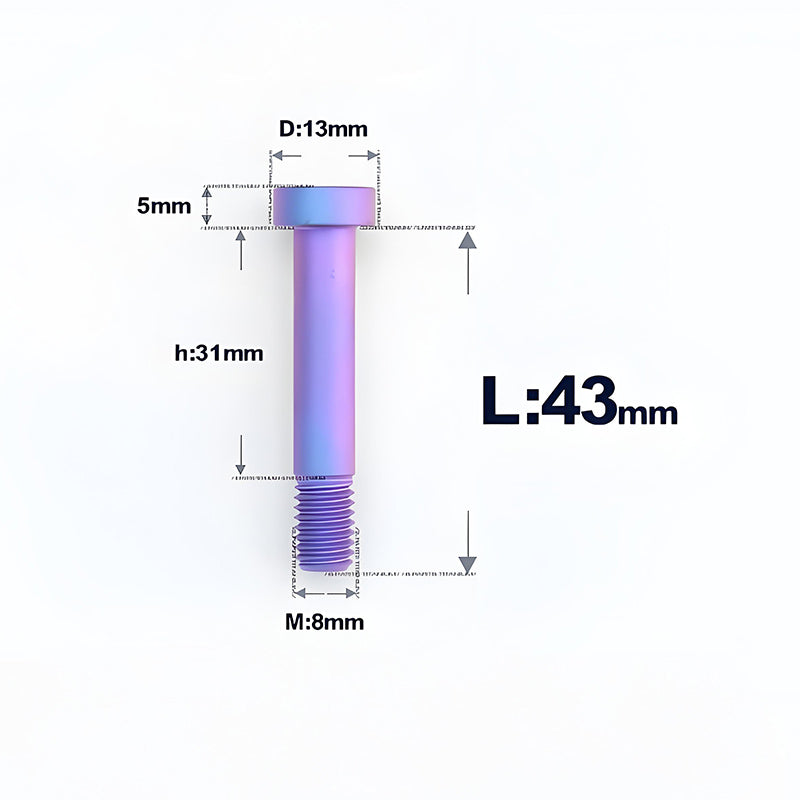

Note: Dimension diagrams may show the M8 × 35mm version. Shoulder length and weight vary by size.

Technical Details

• Material: Grade 5 Titanium (Ti-6Al-4V)
• Thread Size: M8
• Thread Pitch: 1.25mm
• Bolt Type: Shock Mount Shoulder Bolt
• Drive Type: T40 Torx (high torque transfer, reduced risk of stripping)
• Threading: Partially threaded for smooth pivot rotation
• Finish: PVD vacuum coating for durable, long-lasting colors

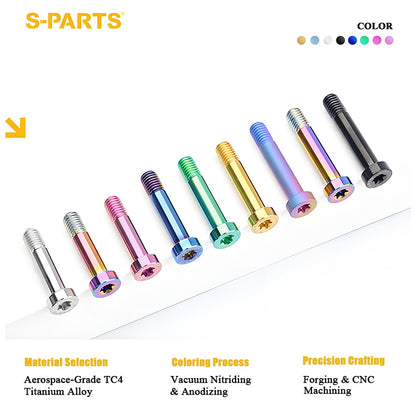

Available Colors: Gold, Black, Blue, Purple, Green, Titanium, Rainbow, Candy

Candy-colored bolts feature natural color flow variations due to the coating process. Color patterns may vary slightly.

Why Choose S-PARTS Titanium?

• Significant Weight Reduction
  Up to 40-50% lighter than typical steel shock bolts.
• Exceptional Corrosion Resistance
  Ideal for wet, muddy, and high-humidity riding conditions.
• High Strength & Reliability
  Designed to withstand the loads of modern full-suspension MTB frames.
• Purpose-Built Shoulder Design
  Correct shoulder dimensions ensure smooth suspension movement and long-term bearing life.

Application & Compatibility (Primary)

• Rear shock mount hardware
• Frame-to-shock pivot points
• Compatible with Santa Cruz full-suspension MTB frames using M8 shock hardware

High-Load Suspension Application (Reference)

The images below show real-world usage on motorcycle and electric scooter suspension systems.

While this product is primarily listed for mountain bike shock mount applications, these reference examples demonstrate the bolt’s strength, corrosion resistance, and performance under higher load conditions.

Compatibility for non-bicycle applications must be verified by the user.


Image captions

• Left: Example of use on a motorcycle suspension system (reference only).
• Right: Rainbow finish shown on an electric scooter linkage (reference only).

Important Fitment Note

These bolts are designed for M8 shock mount applications.
Please verify both overall length and shoulder length before ordering to ensure proper fitment.

How to Confirm the Correct Shock Bolt Size

To ensure proper fitment, please check both the overall bolt length and the shoulder length required by your frame.

Step 1: Remove the original shock bolt from your frame.
Step 2: Measure the overall length (from under the head to the end of the threads).
Step 3: Measure the shoulder length (the smooth, unthreaded section).
Step 4: Match your measurements with the size table above.

Important: The threaded length is fixed at 8mm for all sizes.
Selecting the correct shoulder length is critical for proper bearing spacing and smooth suspension movement.

If you’re unsure which size to choose, feel free to contact us—we’re happy to help.
