Product Description

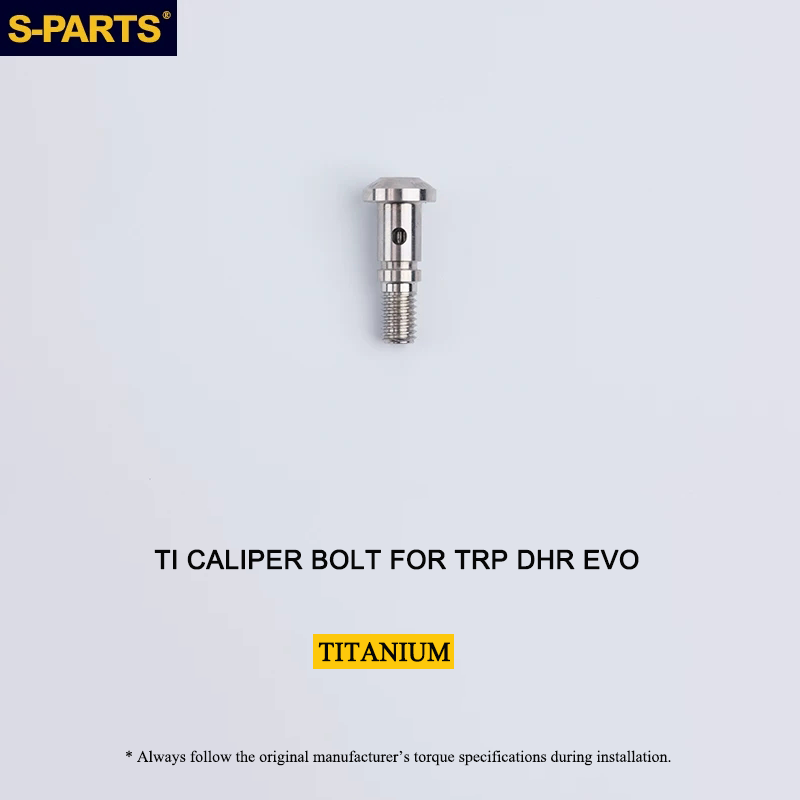

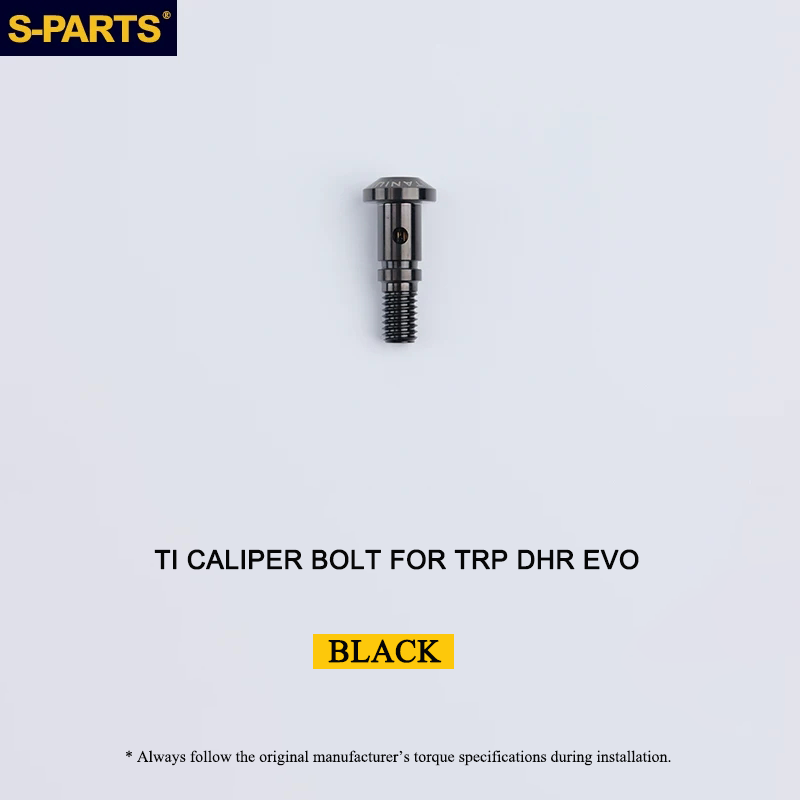

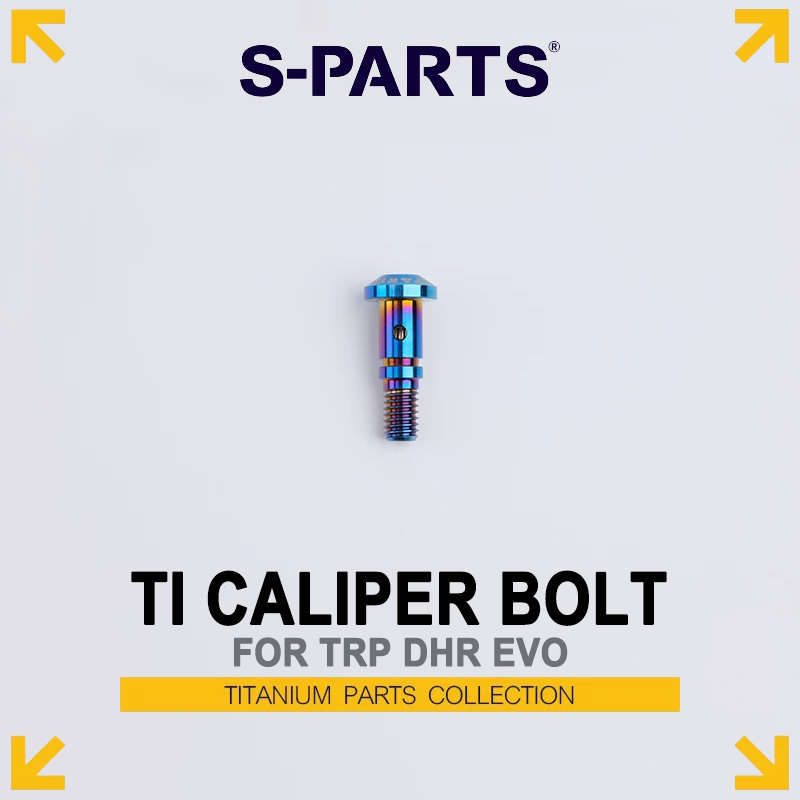

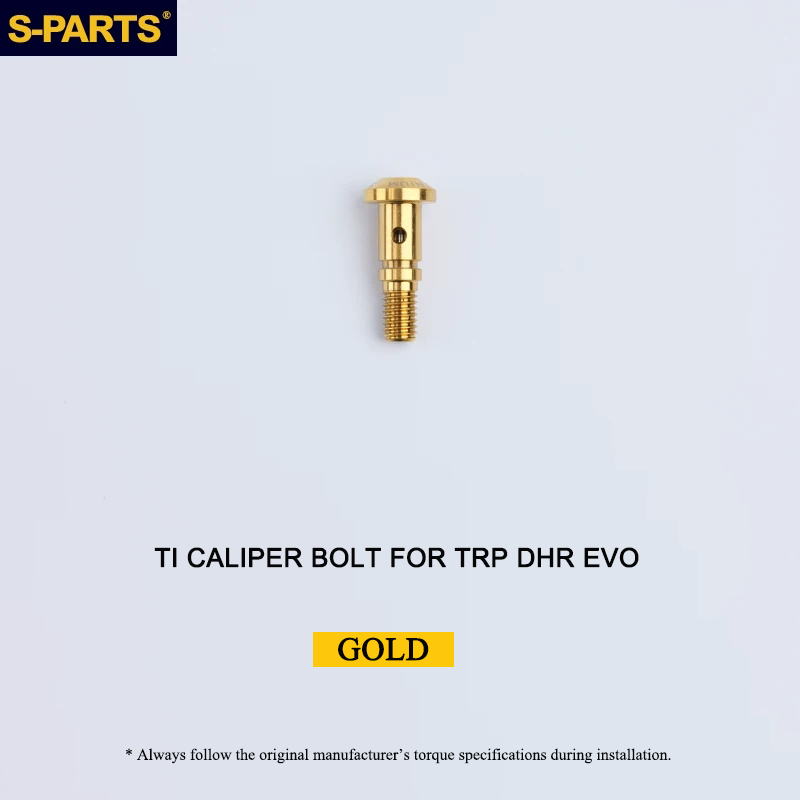

Upgrade your TRP DHR EVO braking system with a precision CNC-machined M6 x 23mm titanium caliper body bolt. Made from Ti-6Al-4V (Grade 5), it delivers exceptional strength, corrosion resistance, and up to 45% weight reduction compared to steel bolts.

Core Specifications

Engineered specifically for high-load downhill braking systems, this Type A titanium caliper body bolt is optimized for TRP DHR EVO disc brake setups.

• Application: TRP DHR EVO Disc Brake
• Type: Caliper Body Bolt (Stepped Type A)
• Size: M6 x 23mm
• Head Diameter: 7mm
• Head Height: 3mm
• Weight: 4.1g per bolt
• Material: Ti-6Al-4V Titanium (ASTM Grade 5)
• Machining: Full CNC Precision (Tolerance ±0.02mm)

Finish Options

• PVD Coating (Gold / Black / Rainbow / Blue / Titanium)
  Advanced vacuum nitride coating that bonds color into the surface for long-lasting, fade-resistant performance.
• Anodized Finish (Candy Series)
  Electrochemical anodizing process delivering vibrant, lightweight finishes.

Complete Your TRP DHR EVO Upgrade

Looking to upgrade your full brake system? Explore matching titanium components:

🔧 Full Upgrade Kit

• 24PCS Titanium Bolt Upgrade Kit

🔩 Caliper Components

• Caliper Mount Bolts (M6×19)
• Caliper Body Bolts - Type B
• Caliper Bridge Bolts

🛠 Brake Lever Parts

• Brake Lever Clamp Bolts
• Reservoir Cover Screws

💧 Hydraulic System

• Bleed Port Screws (for bleeding)
• Brake Hose Compression Nuts

⚙️ Small Parts

• Brake Pad Retaining Bolts
• Bleed Port Plug

Performance & Material Advantages

• 1050 MPa High Tensile Strength
  Manufactured using premium-grade Ti-6Al-4V with strength exceeding typical industry standards (895 MPa).
• Superior Strength-to-Weight Ratio
  Comparable to Grade 10.9 steel fasteners while reducing weight by approximately 45-50%.
• Precision CNC Machining
  Tight tolerances (±0.02mm) ensure perfect fitment and consistent torque transfer.
• Corrosion Resistance
  Ideal for aggressive riding conditions including wet, muddy, and long-term outdoor use

Why Upgrade This Bolt?

• Reduce overall bike weight without compromising braking performance
• Improve long-term durability and resistance to corrosion
• Enhance the premium look of your build with custom finishes
• Specifically optimized for TRP DHR EVO high-performance braking systems

Race-Inspired Engineering

Developed with reference to aerospace and motorsport-grade fastening standards, S-PARTS titanium hardware brings elite-level material performance to high-end cycling applications—especially in demanding downhill and gravity riding conditions.

⚠️ Note

• Please confirm compatibility before purchase
• Professional installation is recommended
