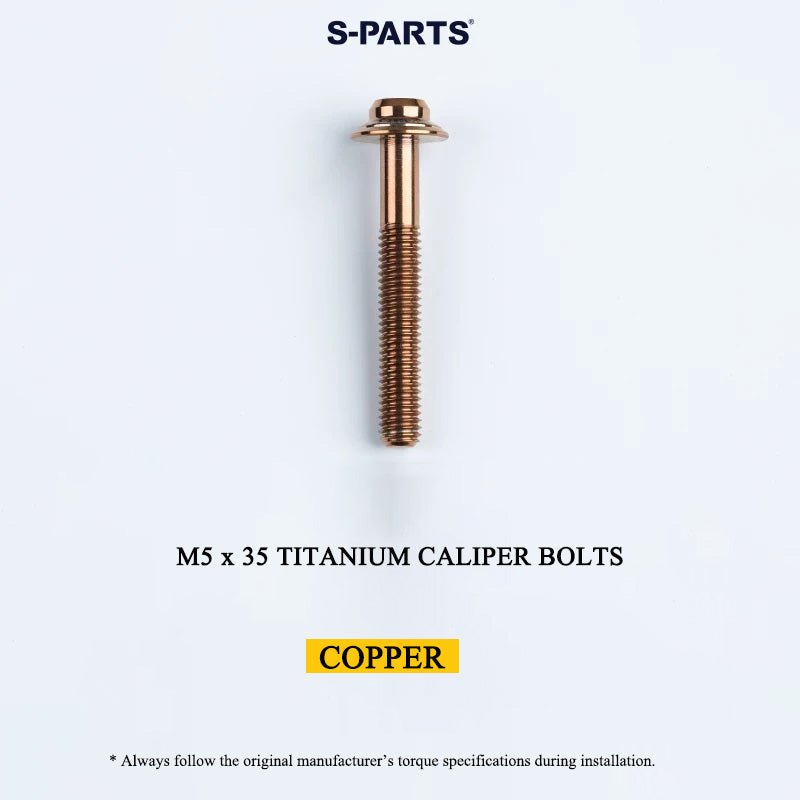

M5 Titanium Caliper Bolts for Shimano Flat Mount - R9270 / R8170 / R8070 / R7170

Short Description

High-performance Grade 5 titanium bolts engineered for Shimano flat-mount road systems. Precision-machined for significant weight reduction and uncompromising clamping security across all riding conditions.

🔧Product Description

The S-PARTS M5 Titanium Caliper Bolts are the ultimate hardware upgrade for performance-driven road cyclists. Specifically designed for the Shimano Flat Mount standard (including Dura-Ace R9270 and Ultegra R8170/R8070), these bolts replace heavy standard OEM hardware with aerospace-grade Ti-6Al-4V.

S-PARTS combines technical precision with cycling aesthetics, ensuring your calipers stay perfectly aligned while adding a premium, custom finish to your build.

📋 Specifications

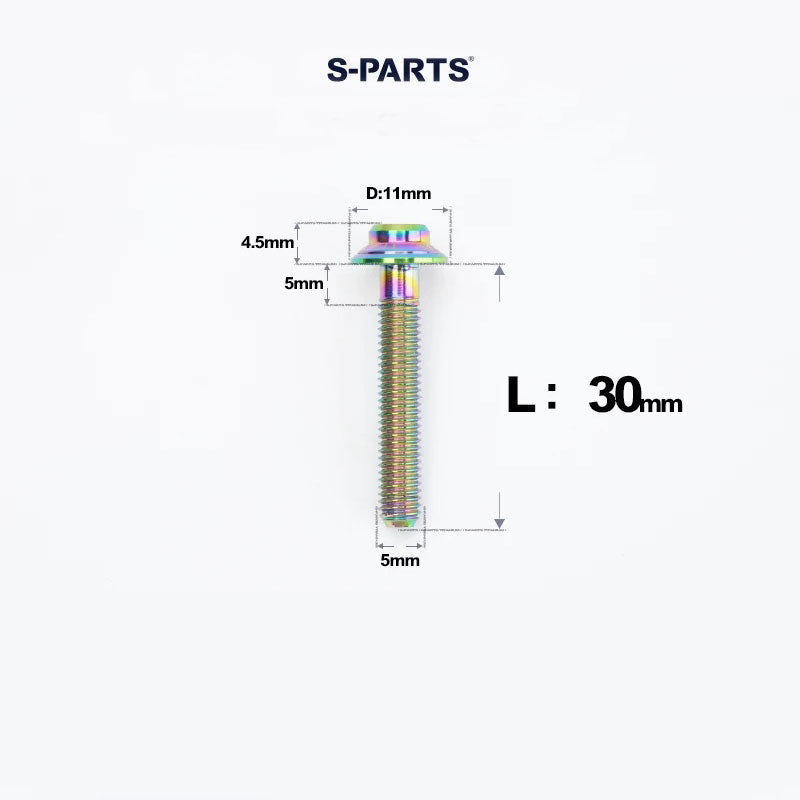

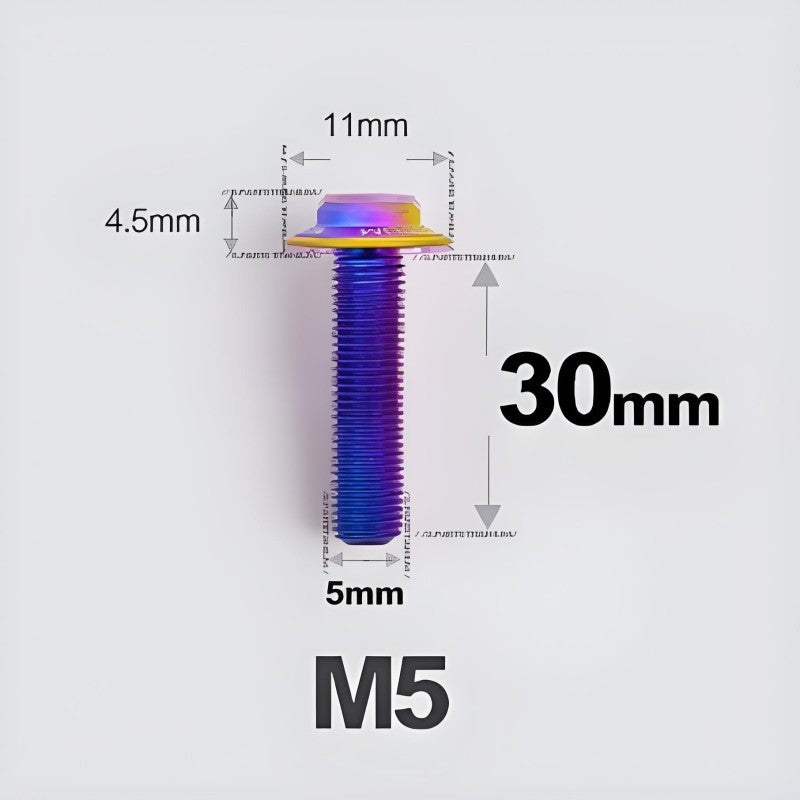

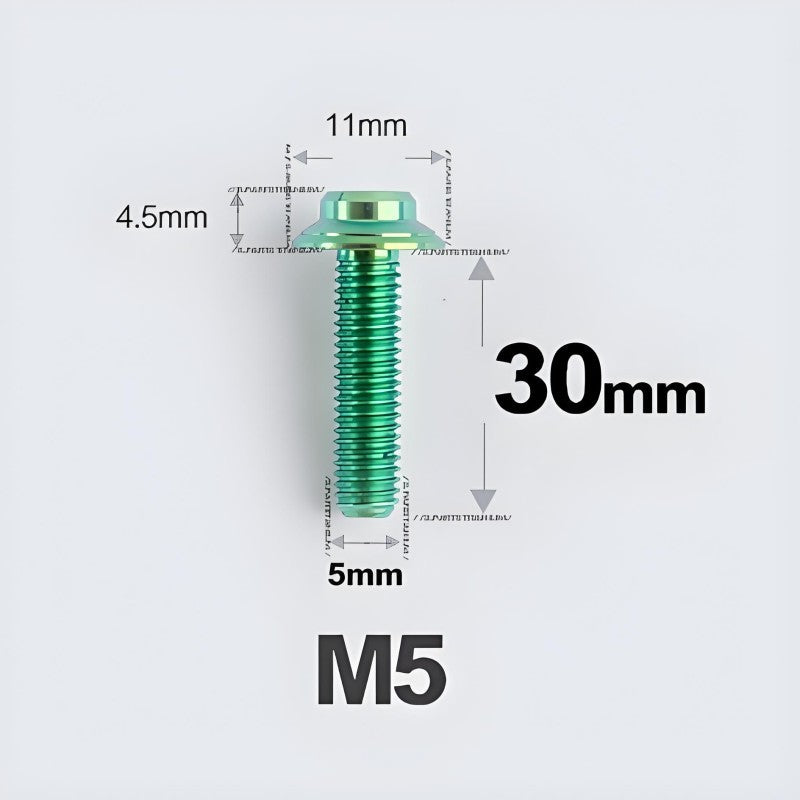

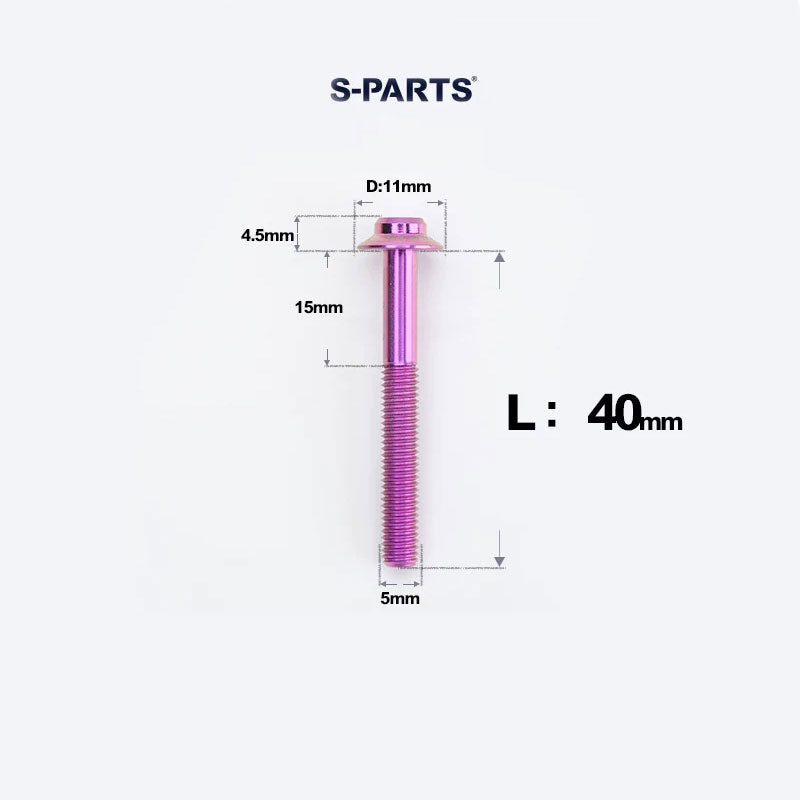

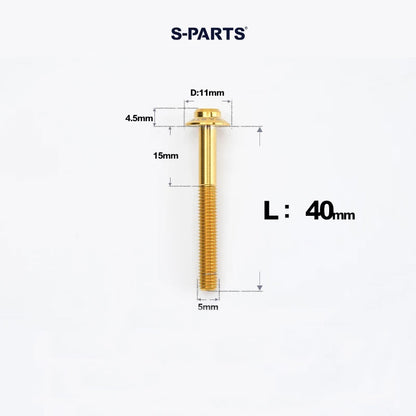

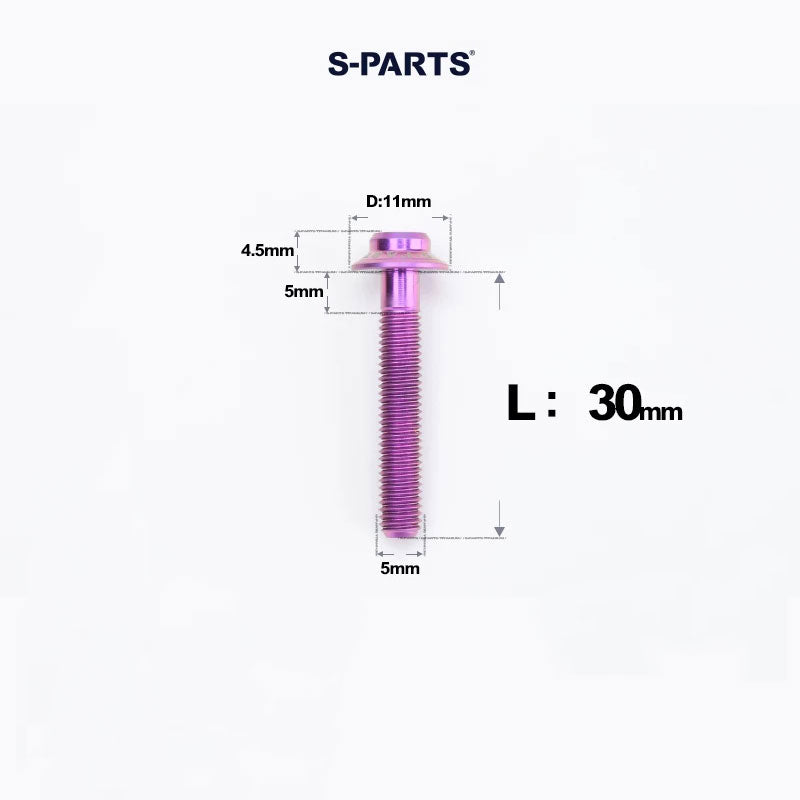

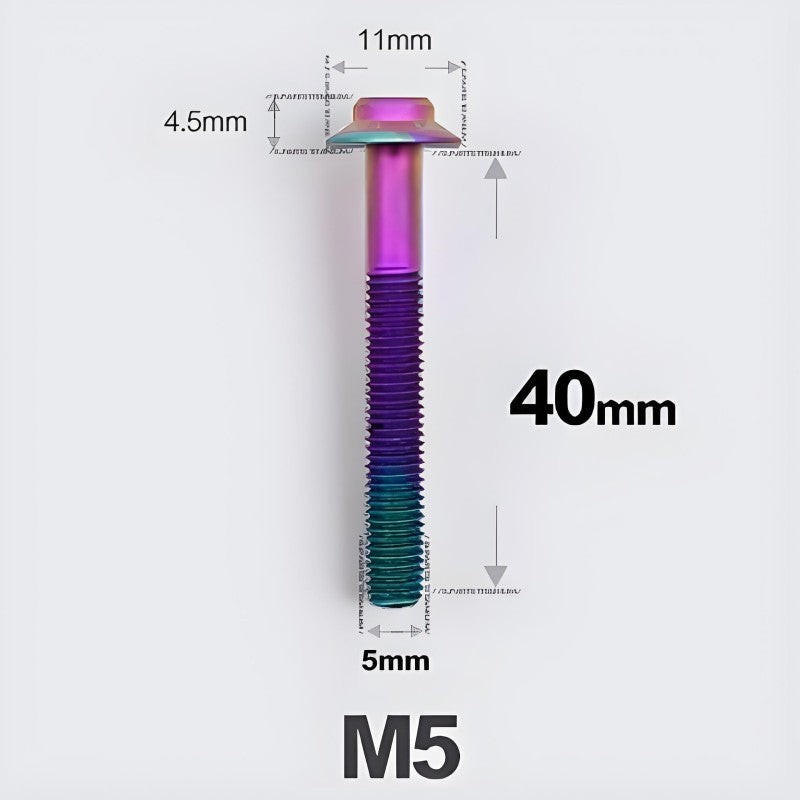

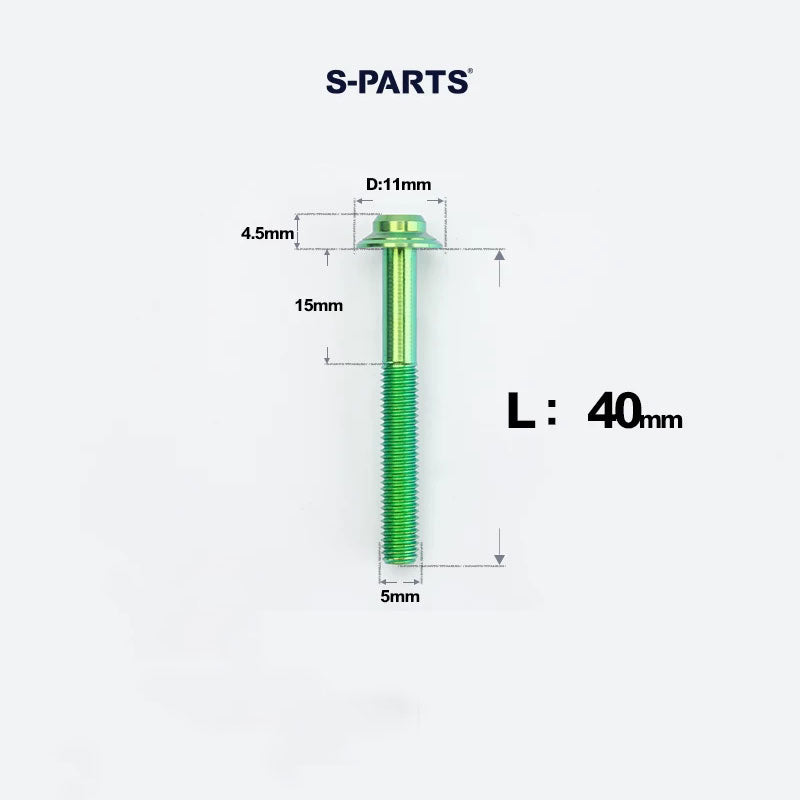

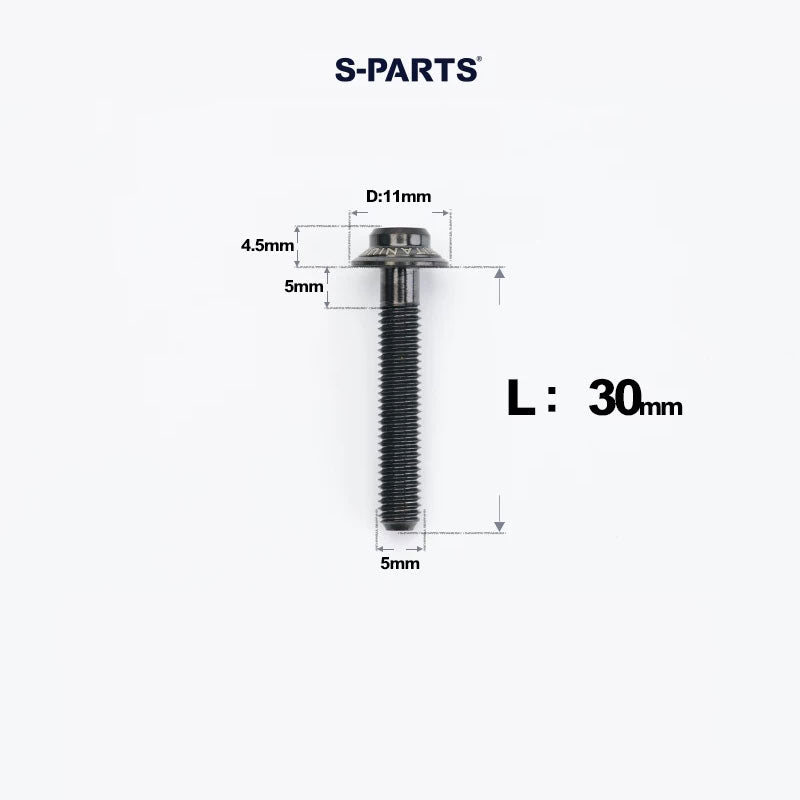

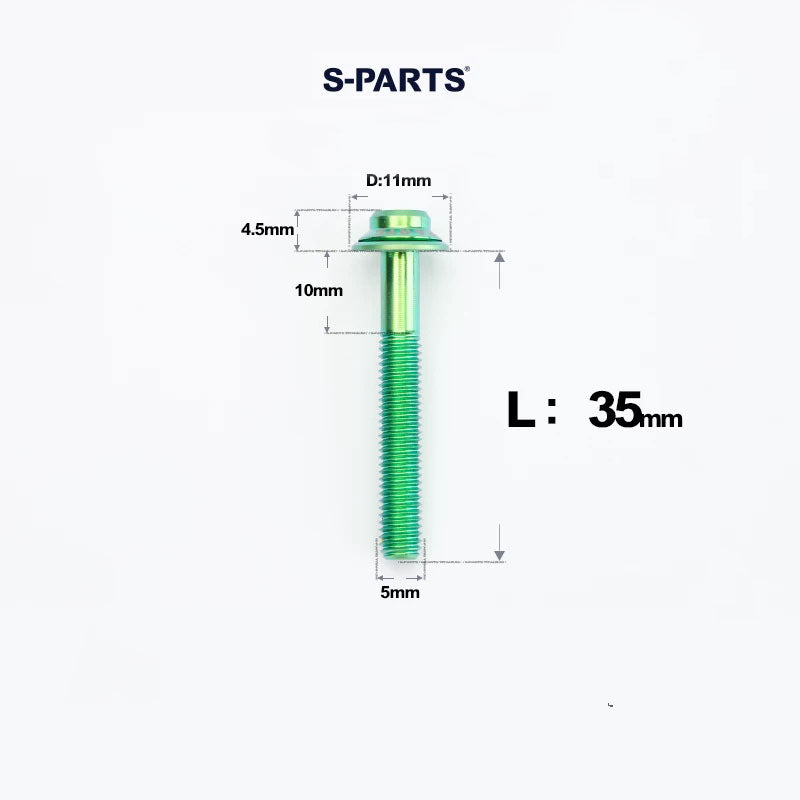

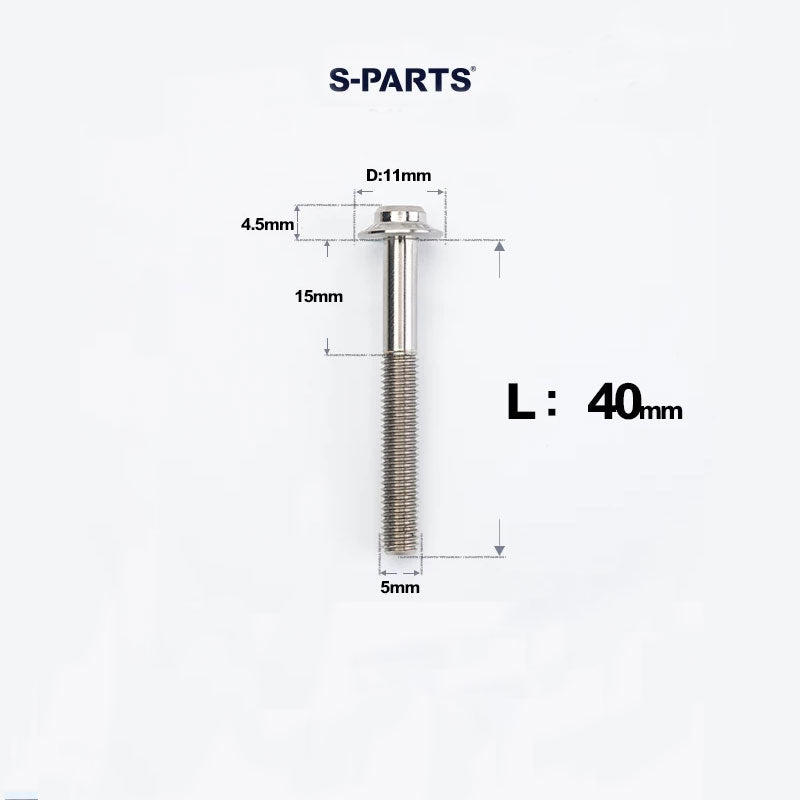

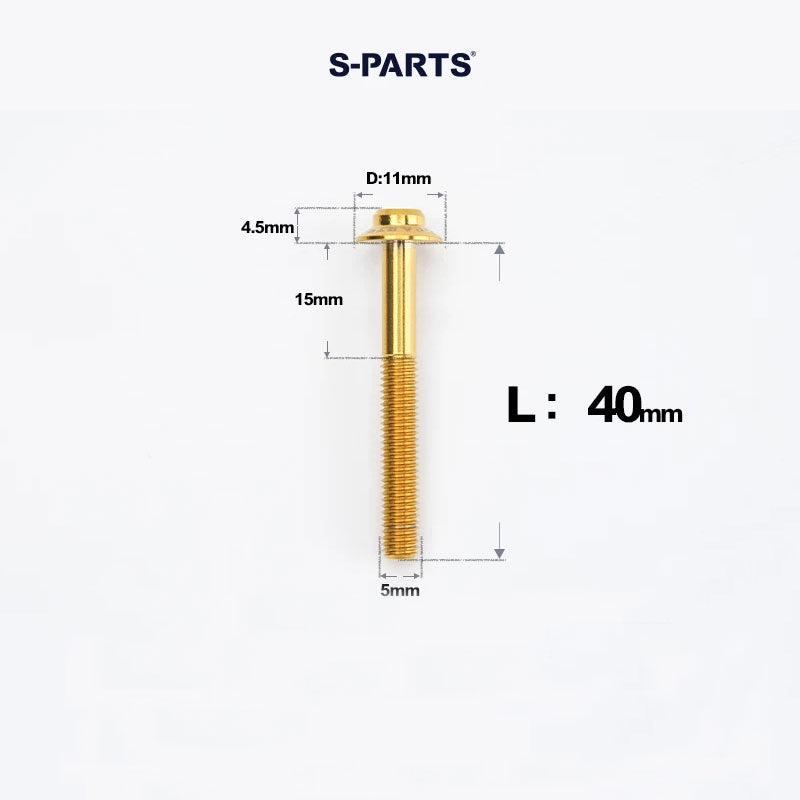

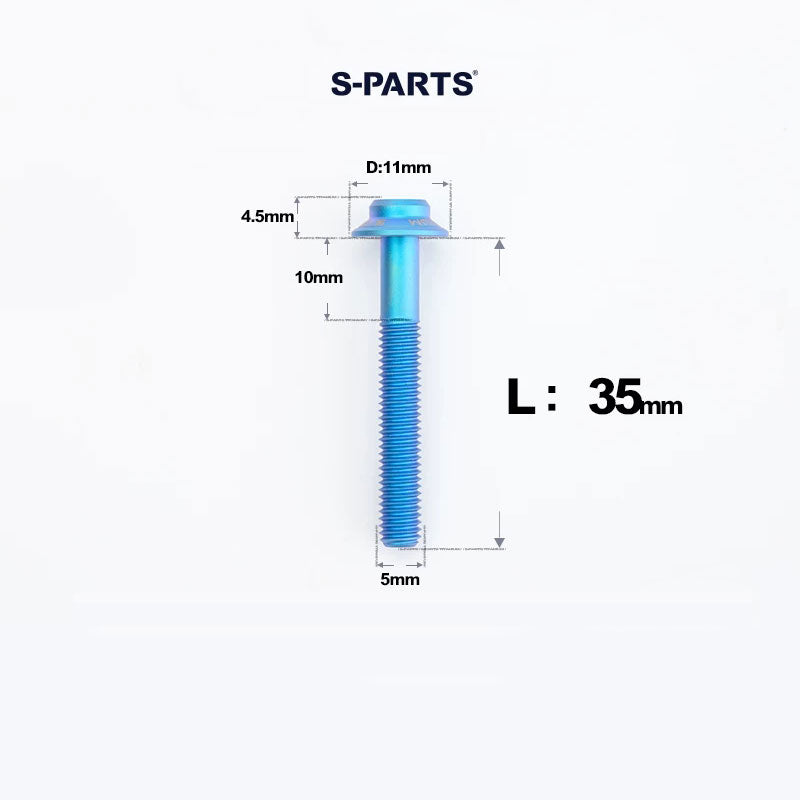

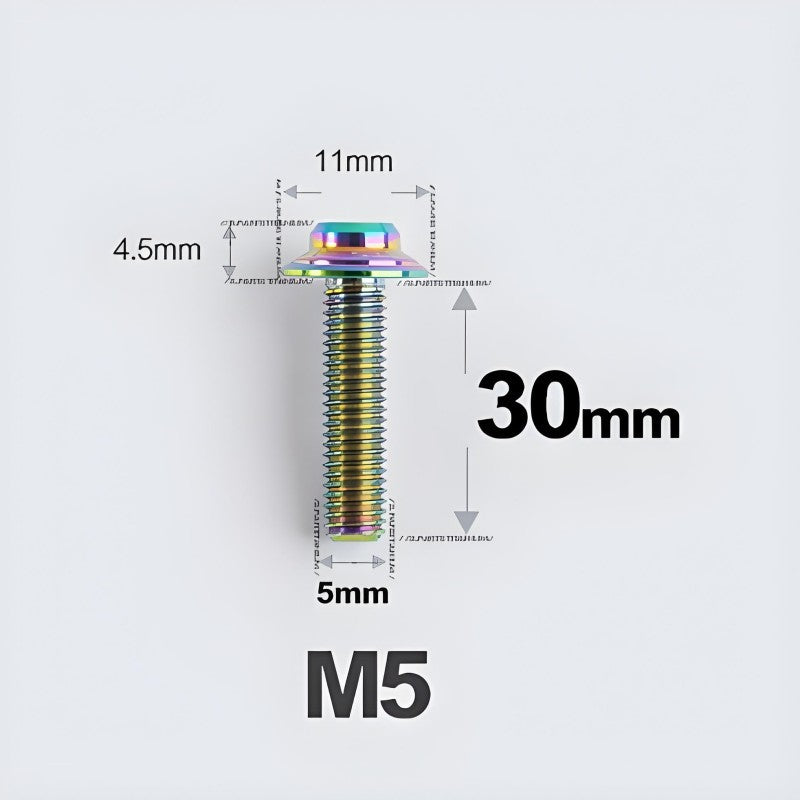

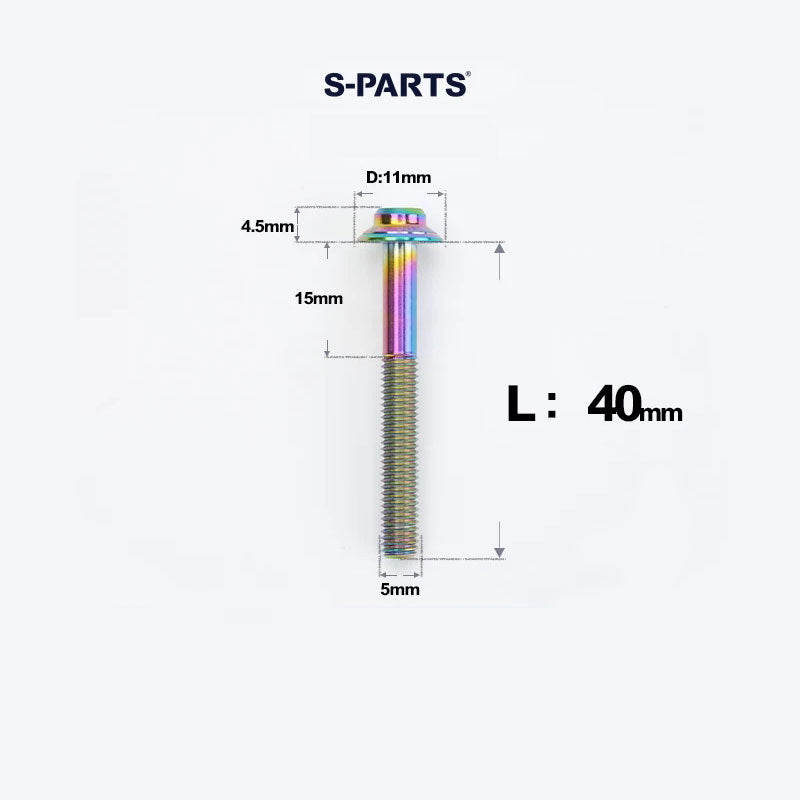

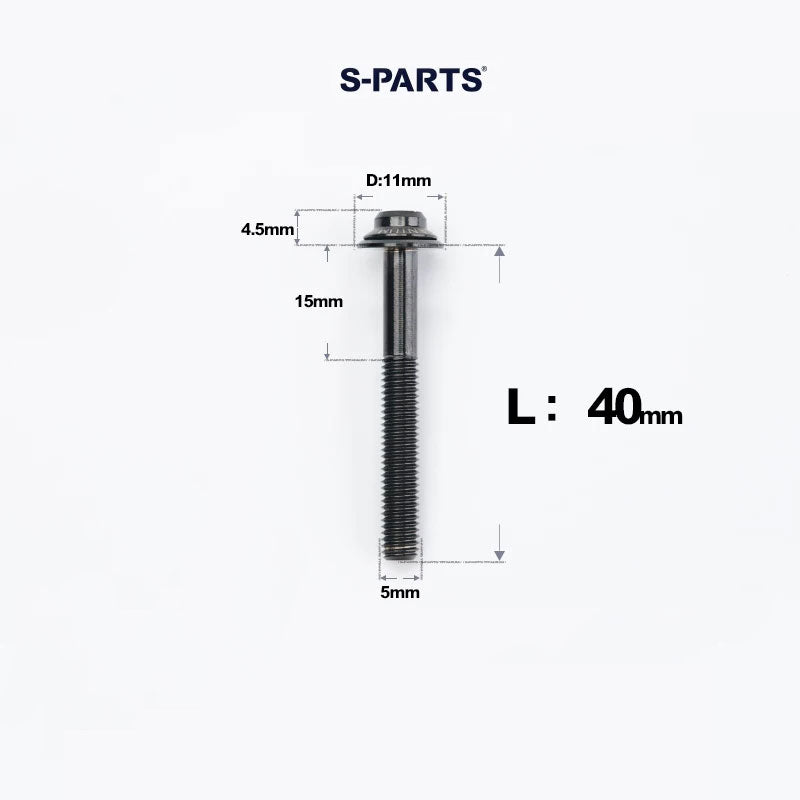

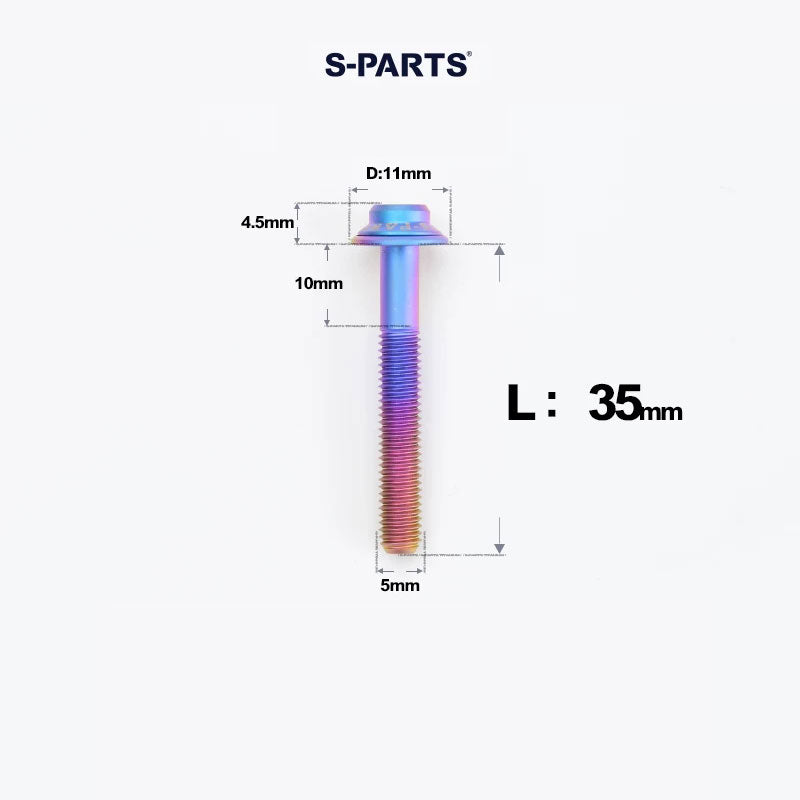

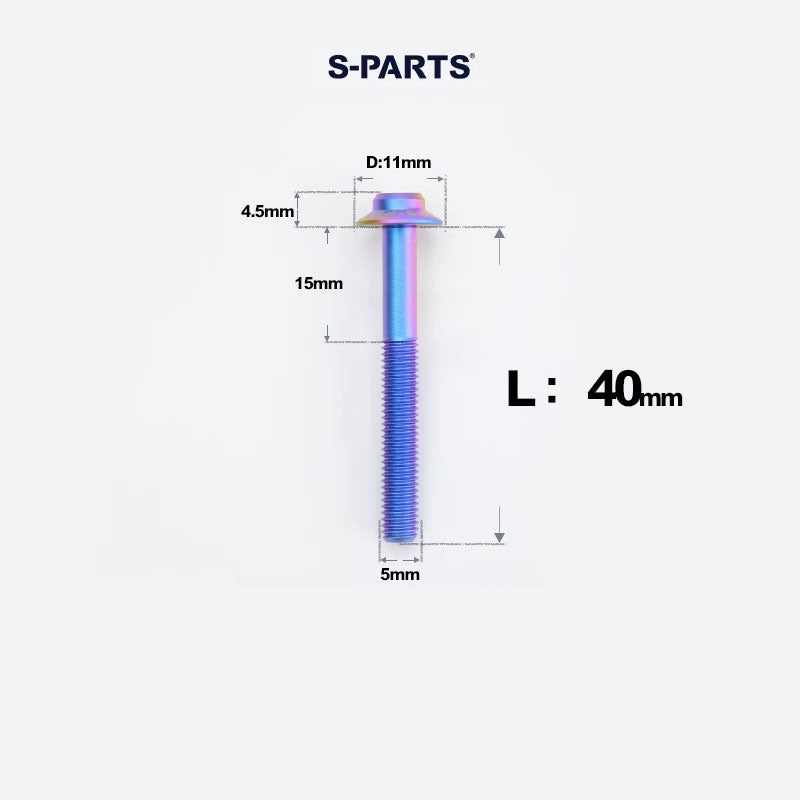

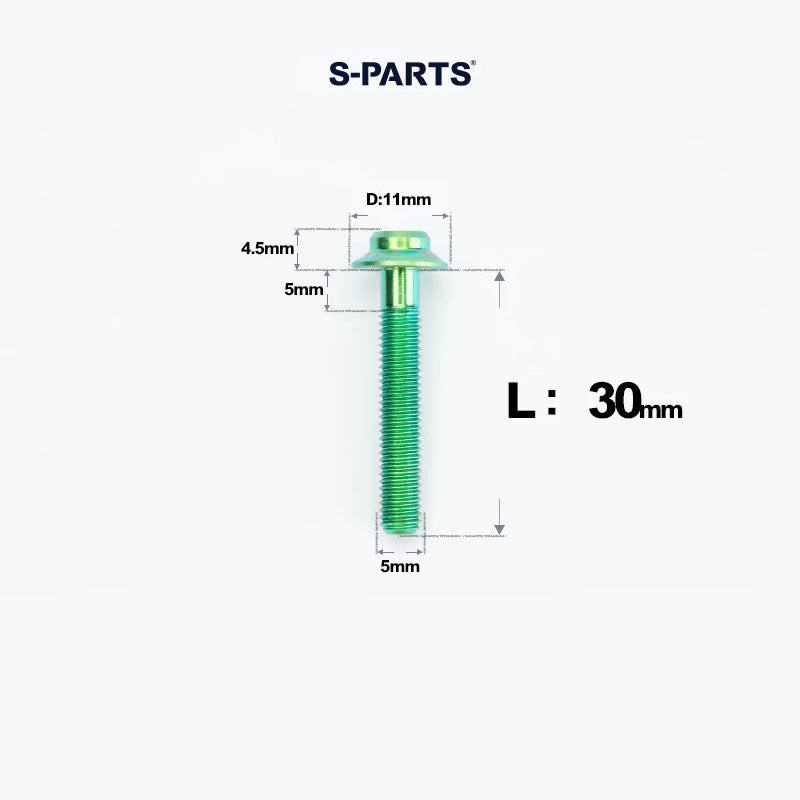

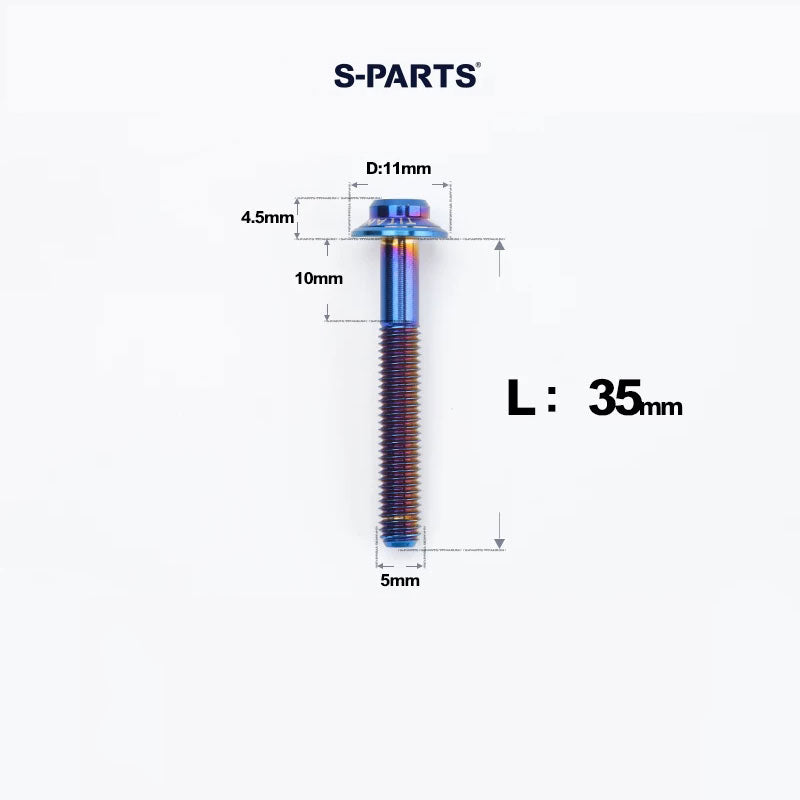

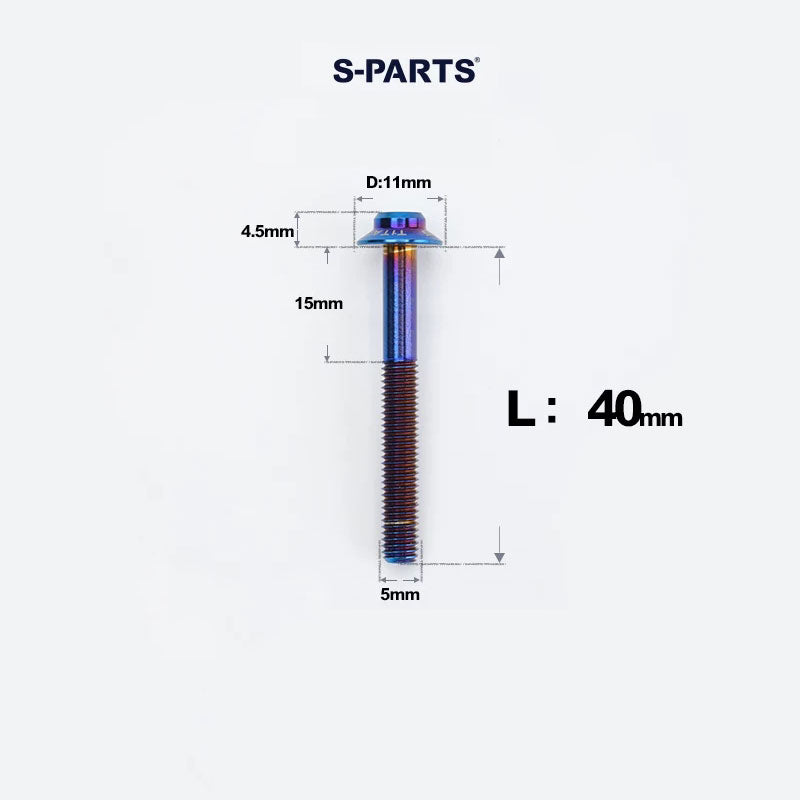

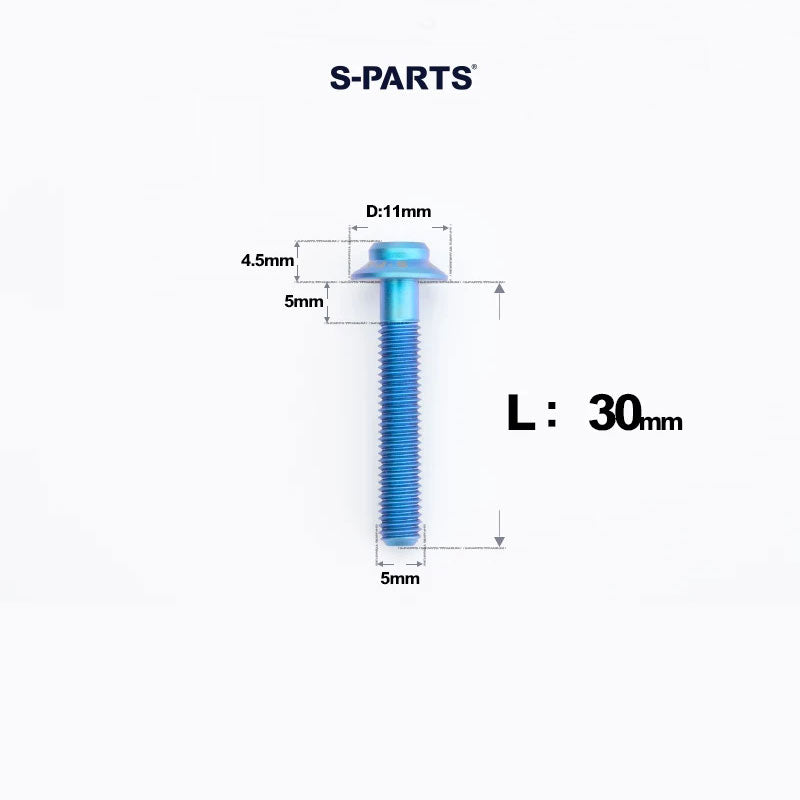

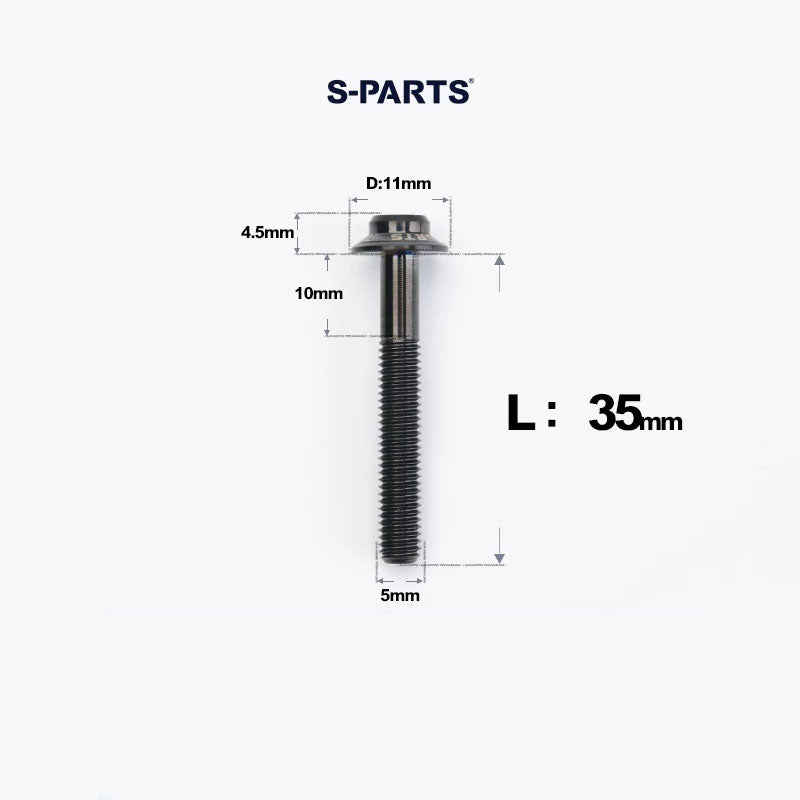

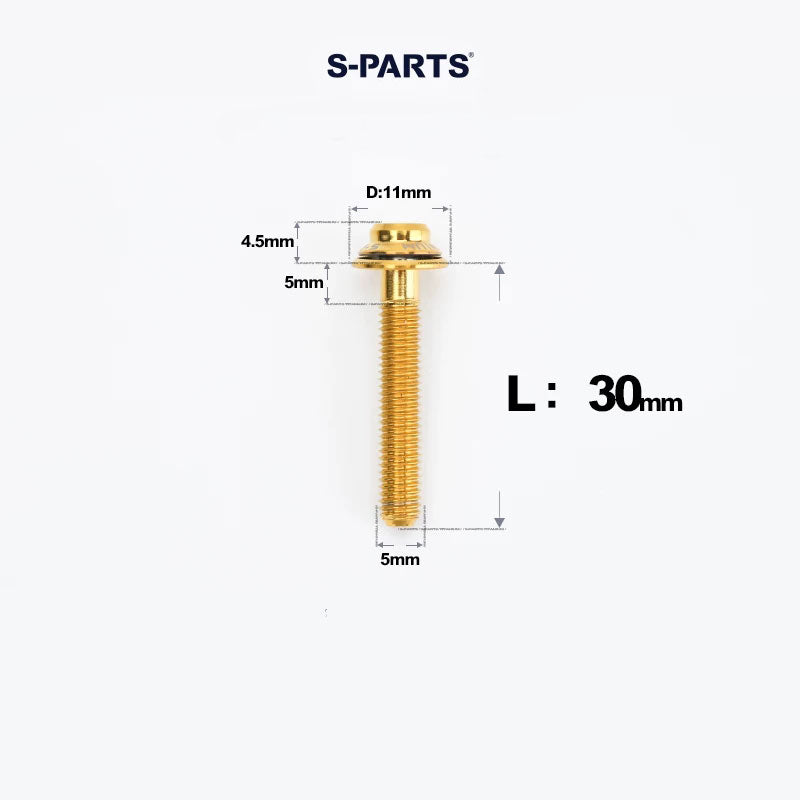

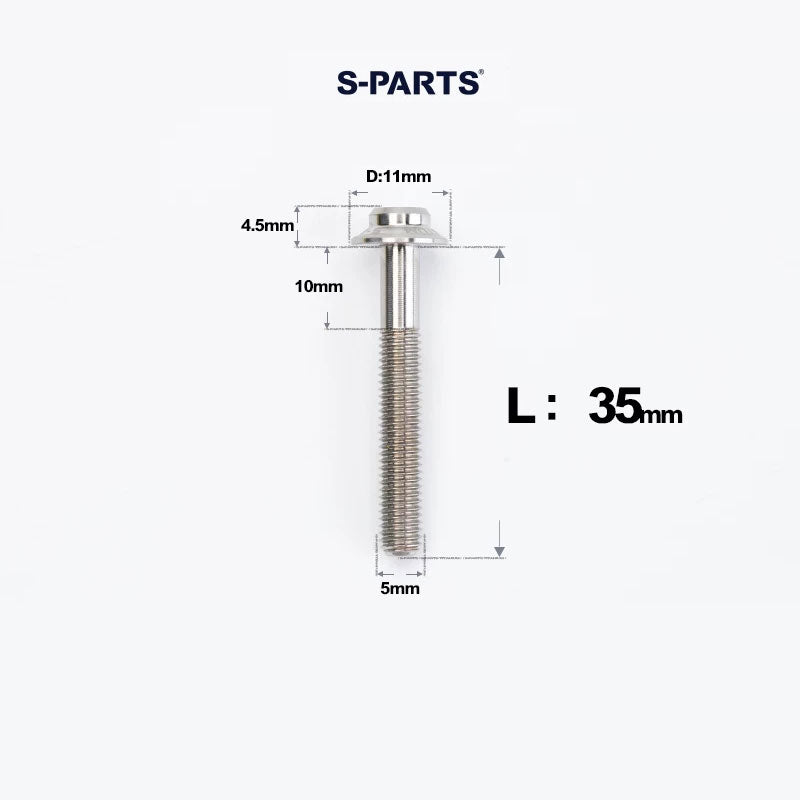

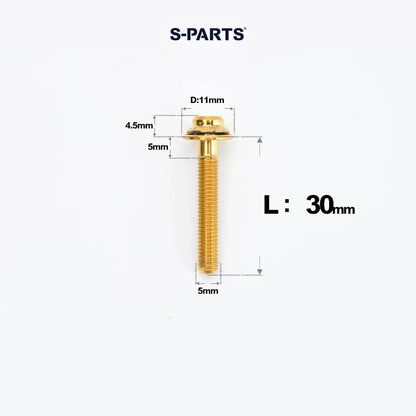

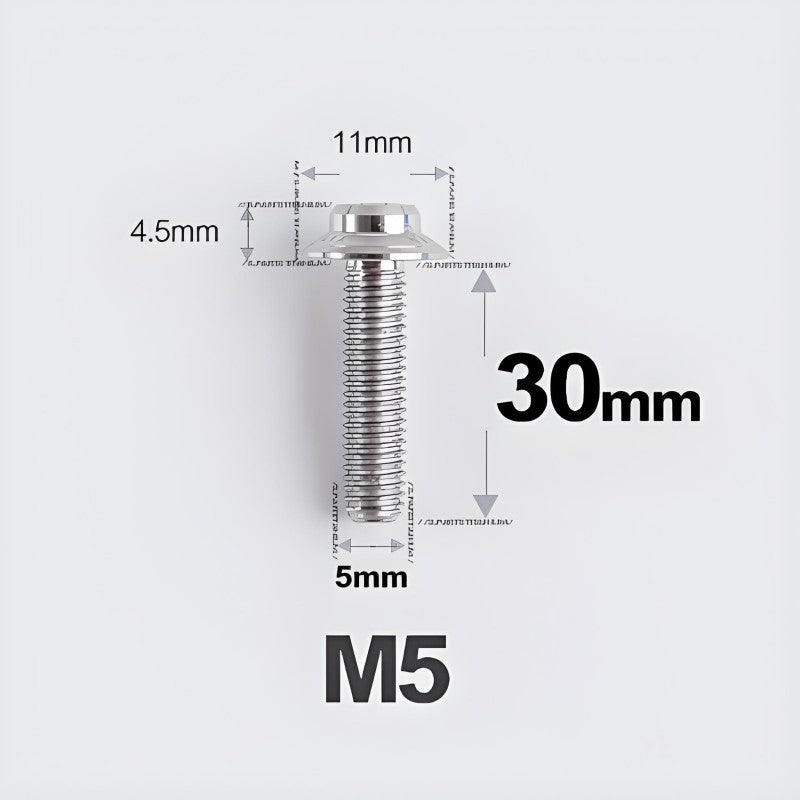

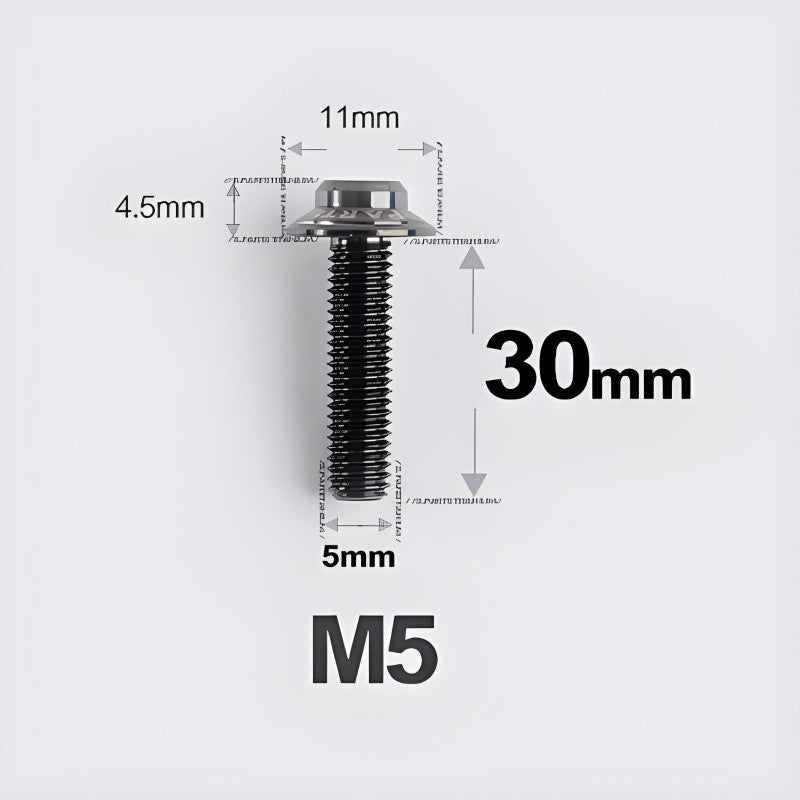

• Material: Aerospace-Grade Ti-6Al-4V (Grade 5 Titanium)
• Thread Size: M5
• Lengths: 16 / 20 / 25 / 30 / 35 / 40 / 45 mm
• Head Diameter: 11mm
• Tool Interface: T25 Torx (High-torque engagement)
• Mount Standard: Flat Mount Disc Brake
• Finishes: Anodized & PVD (depending on color)

• SN: 28090101-28090110, 28090201-28090210, 28090301-28090310, 28090401-28090410, 28090501-28090510,28090601-28090610, 28090701-28090710

• Notice: Some screws may have 'white lines' on the threads, which is a normal result of the coloring process. Rest assured, they are safe to use.

✨ Advanced Surface Craftsmanship

To achieve vibrant aesthetics and long-term durability, we utilize two distinct high-end coloring processes:

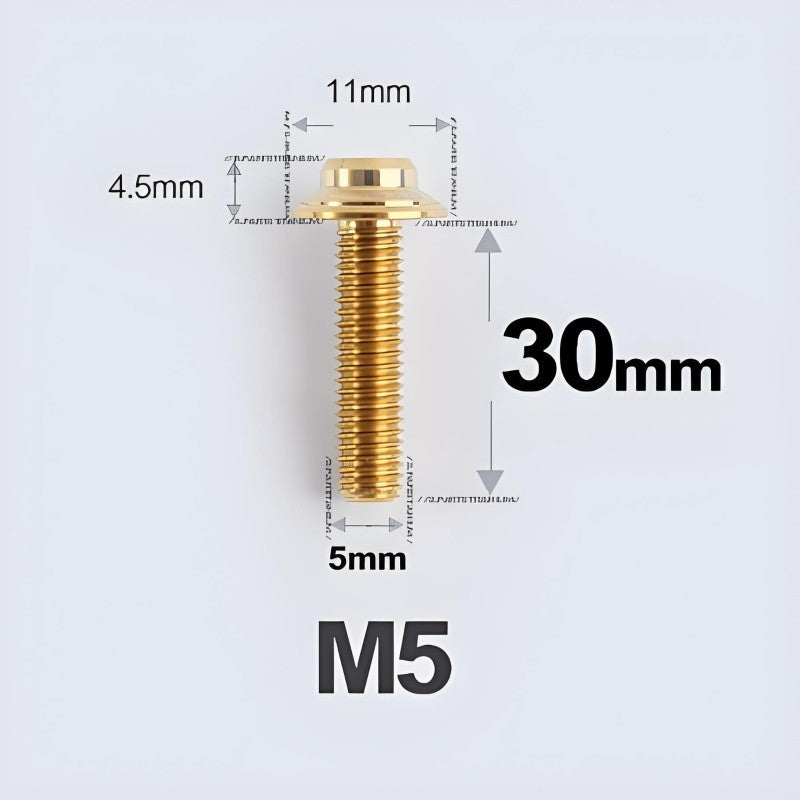

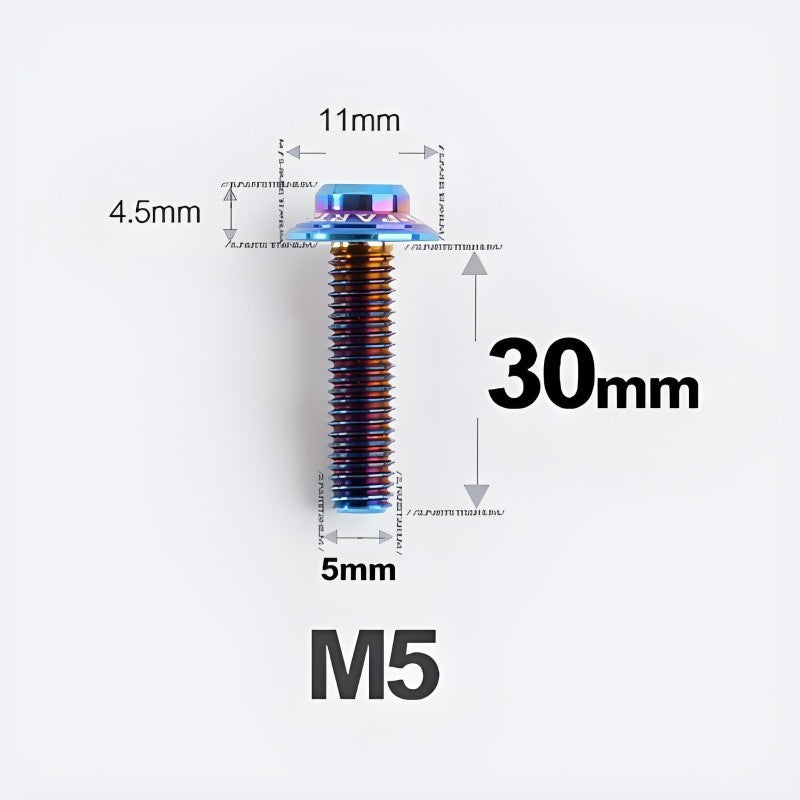

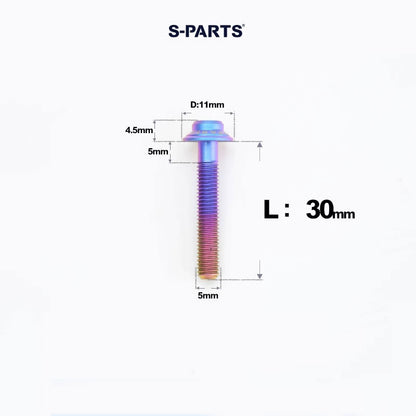

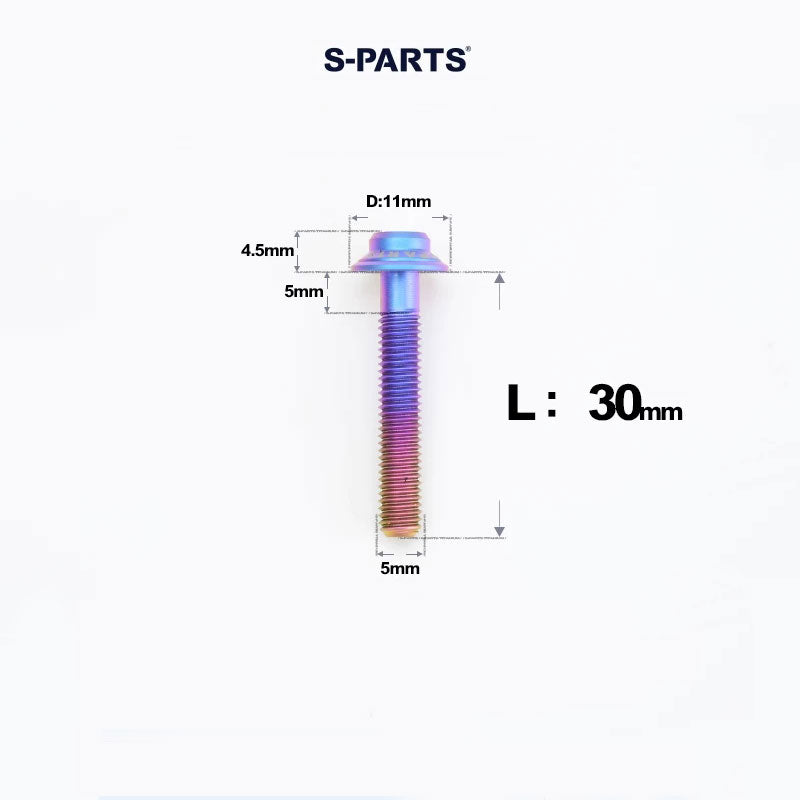

• PVD Vacuum Nitriding (Gold / Black / Blue / Rainbow): A molecular-level coating process that creates an ultra-hard, scratch-resistant surface with a high-gloss finish.

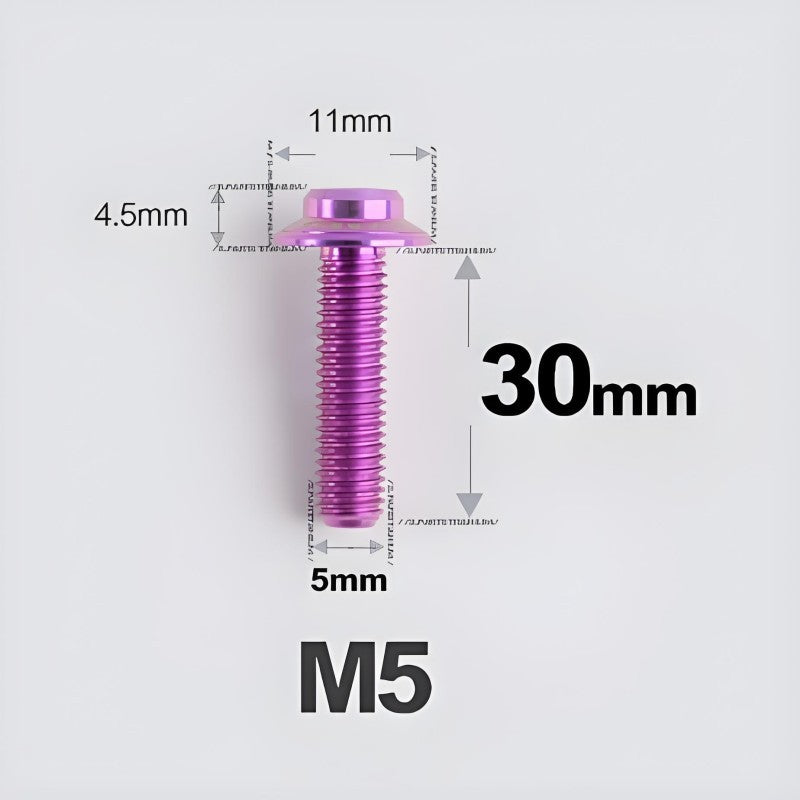

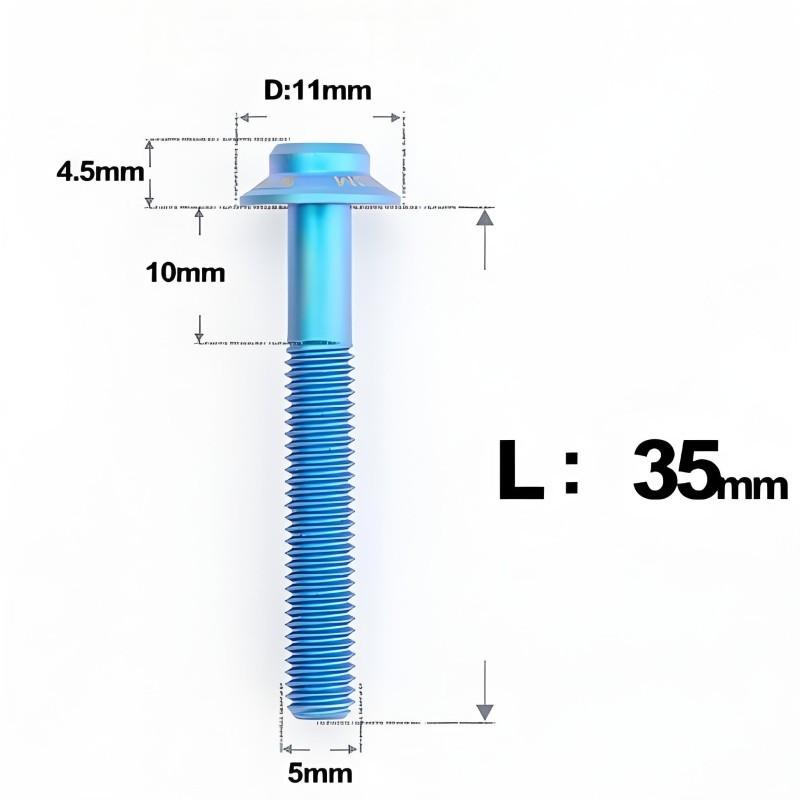

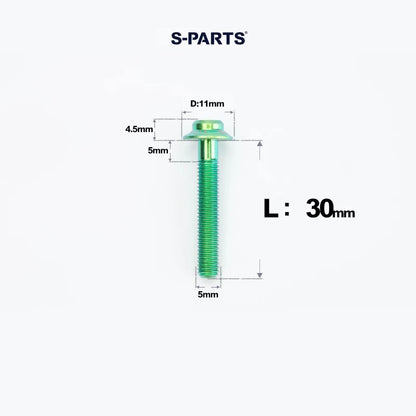

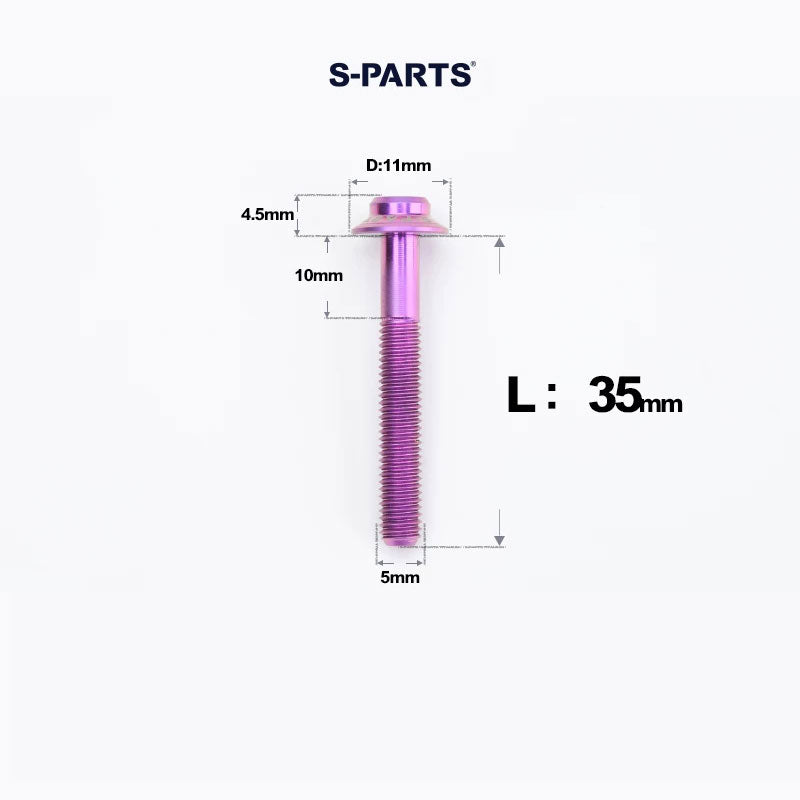

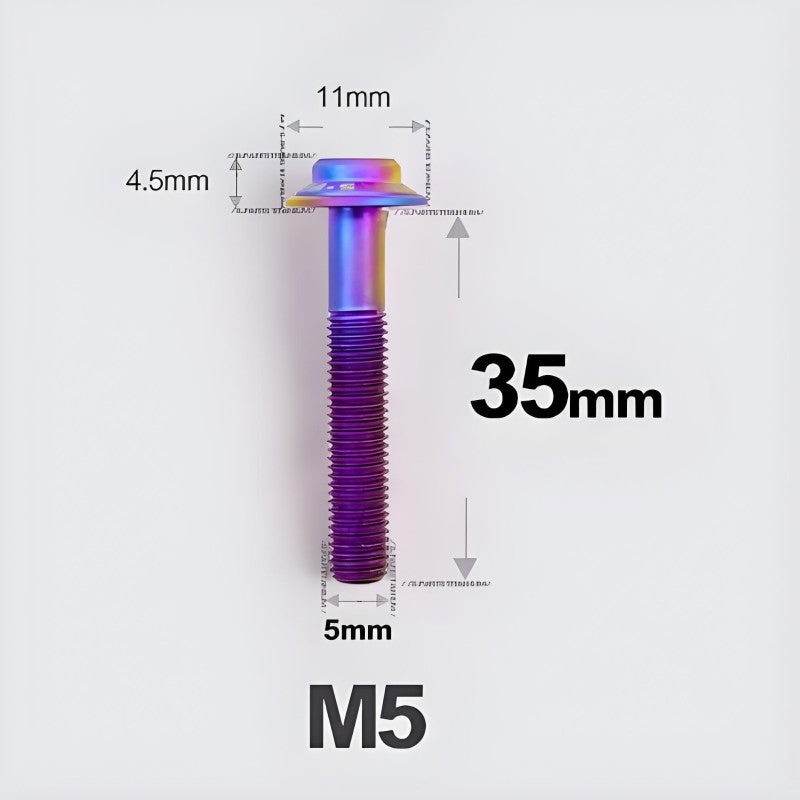

• Anodic Oxidation (Purple / Green / Candy / Indigo): An electrolytic process that produces rich, saturated hues while preserving the natural metallic texture of the titanium.

🚀 Why S-PARTS Titanium?

• Significant Weight Reduction: Substantially lighter than standard OEM steel bolts (exact weight savings vary by bolt length).
• Extreme Fatigue Resistance: Designed to withstand repeated thermal expansion and vibration under heavy braking loads.
• T25 Torx Drive: Features a precision T25 interface for superior tool engagement, significantly reducing the risk of bolt stripping compared to standard hex drives.
• All-Weather Durability: Naturally 100% rust-proof and resistant to road salt, sweat, and corrosion.

🔩 Compatibility & Fitmen

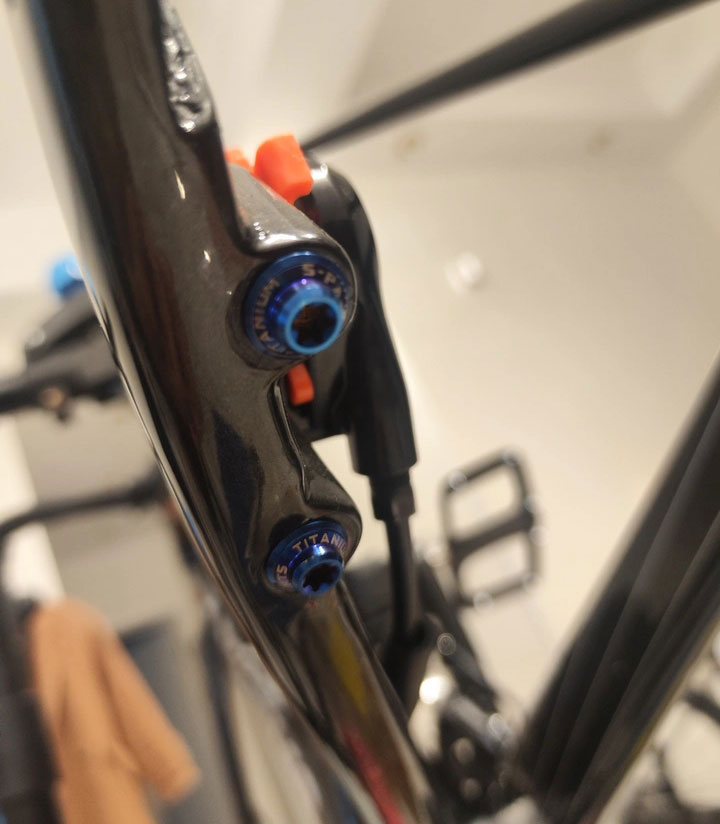

• Shimano Road: R9270, R8170, R8070, R7170, R7070.
• Other Systems: Compatible with any Flat Mount caliper or adapter requiring M5 mounting bolts.
• Important: Please measure your frame or fork thickness carefully. Ensure the bolt length provides sufficient thread engagement according to your frame manufacturer's requirements.

💡 Pro Tip

Always use a calibrated torque wrench for installation to ensure safety and performance. Please follow the official torque specifications provided by Shimano and your frame manufacturer for your specific setup (commonly around 6-8 Nm depending on application). We recommend applying a small amount of anti-seize or assembly paste to the threads before installation.
