⚠️ IMPORTANT: CHECK OEM BOLT DIMENSIONS BEFORE INSTALLATION
Compare these bolts with your original Honda bolts for size and thread compatibility before installing.
S-PARTS Grade 5 titanium bolts and screws for the 2026 Honda XADV 750 / X-ADV 750. Choose from 48 individual mounting-location options or a 201-piece option covering all existing OEM locations. Applications include body panels, brake components, footpegs, exhaust mounts and selected aftermarket accessories.
Key Specifications
Fitment: Honda XADV 750 / X-ADV 750 (2026 model)
Material: Grade 5 Titanium (Ti-6Al-4V)
Drive Type: Torx (T10–T50, depending on option); rear sprocket bolts use an open-end wrench or socket
Average Tensile Strength: Over 1,050 MPa according to S-PARTS testing, well above the 895 MPa industry benchmark

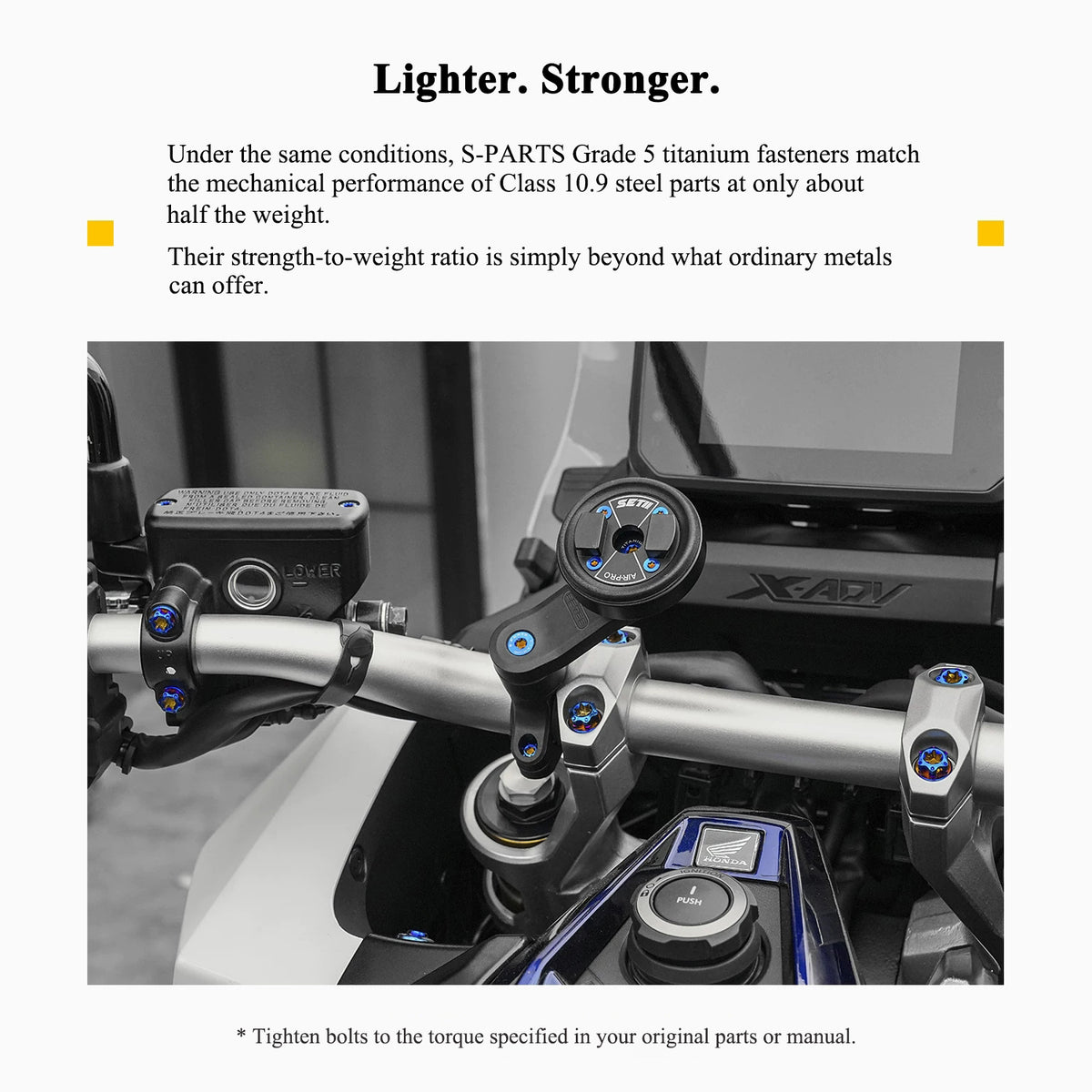

Weight: Mechanical performance comparable to Class 10.9 steel fasteners at approximately half the weight
Available Options
Select your mounting location and check the quantity and tool size for each option.
Option
Mounting Location
Qty.
Required Tool

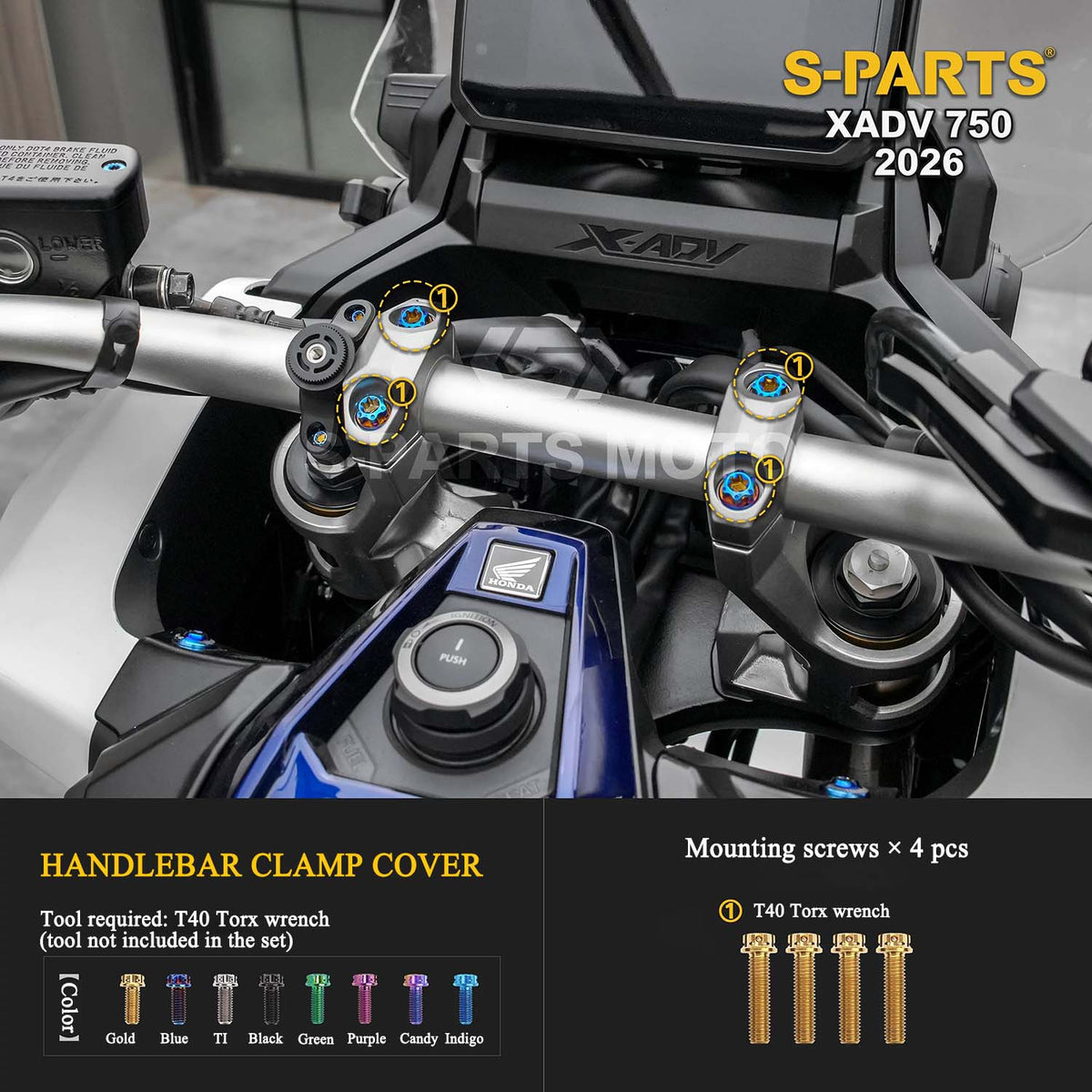

1
Handlebar Clamp Cover
4
T40 Torx
2

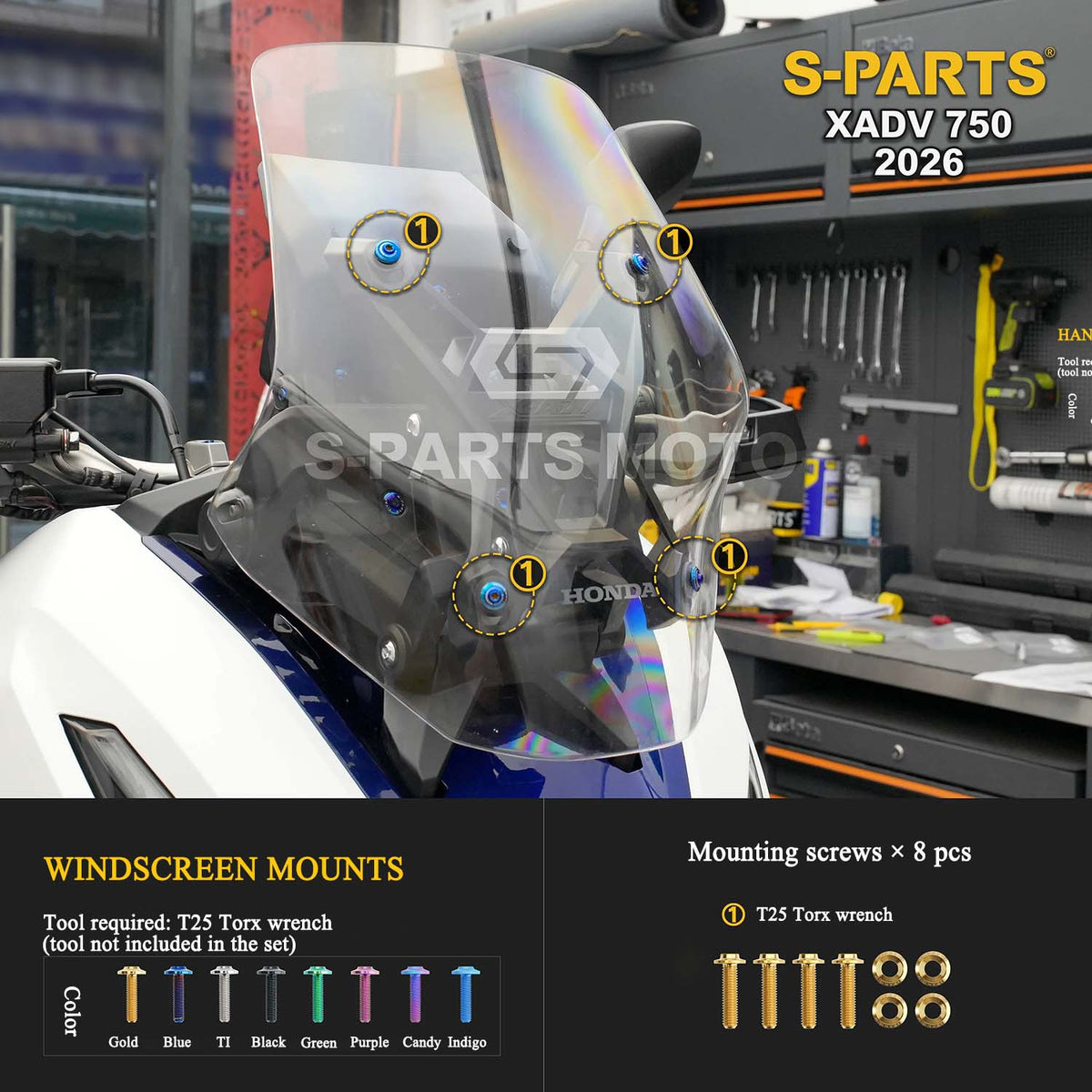

Windscreen Mounts
8
T25 Torx
3

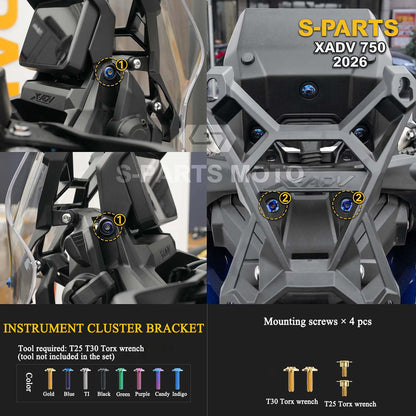

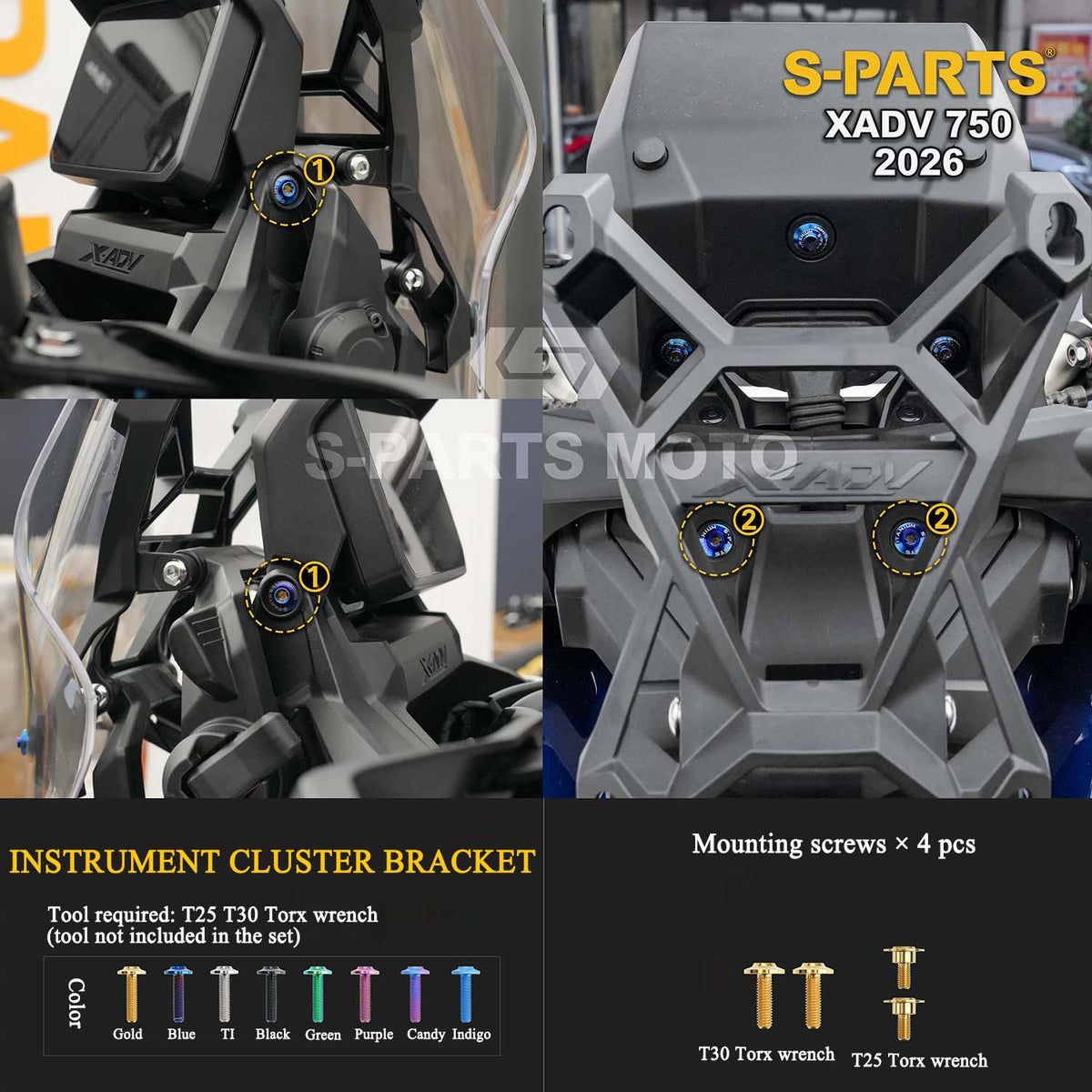

Instrument Cluster Bracket
4
T25 / T30 Torx

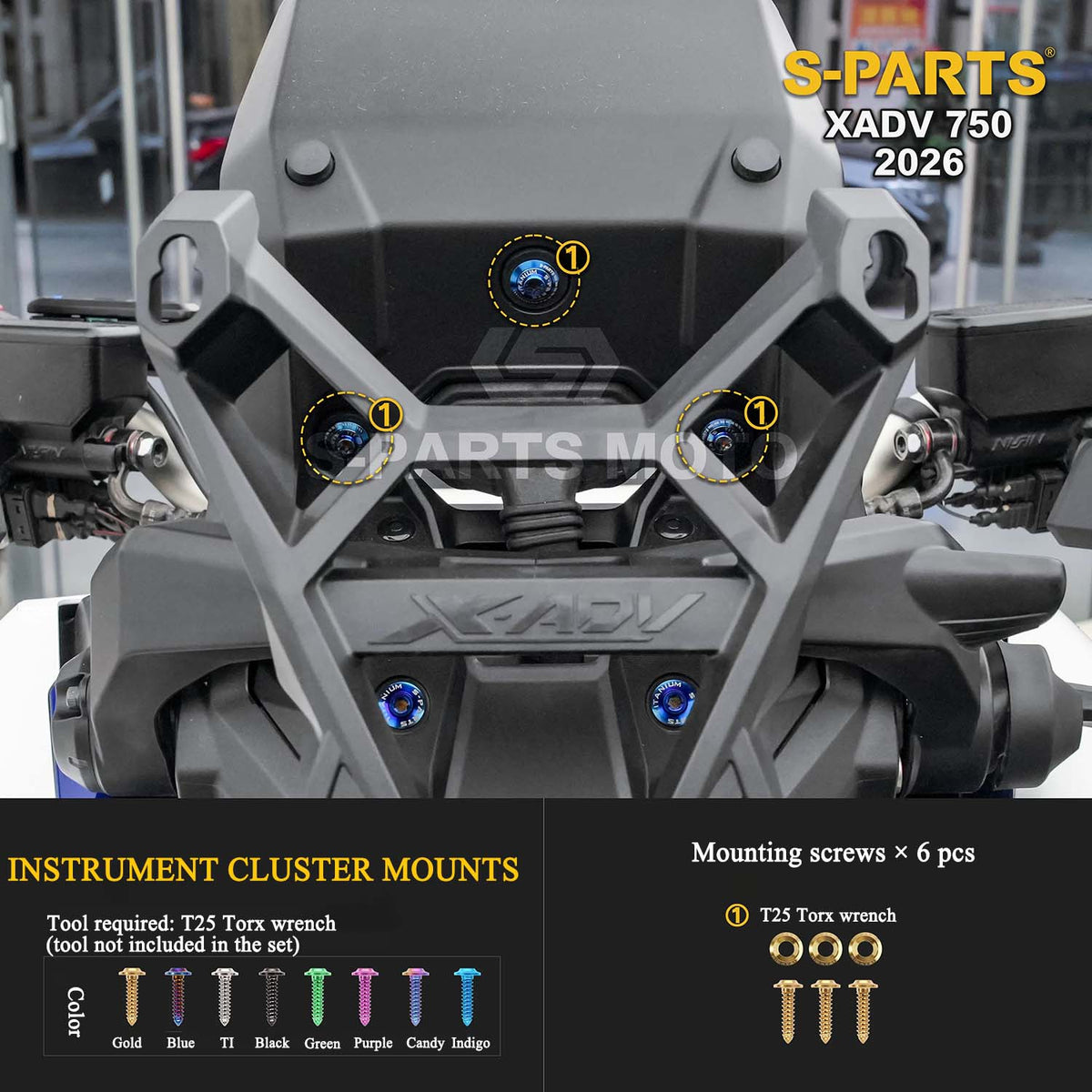

4
Instrument Cluster Mounts
6
T25 Torx

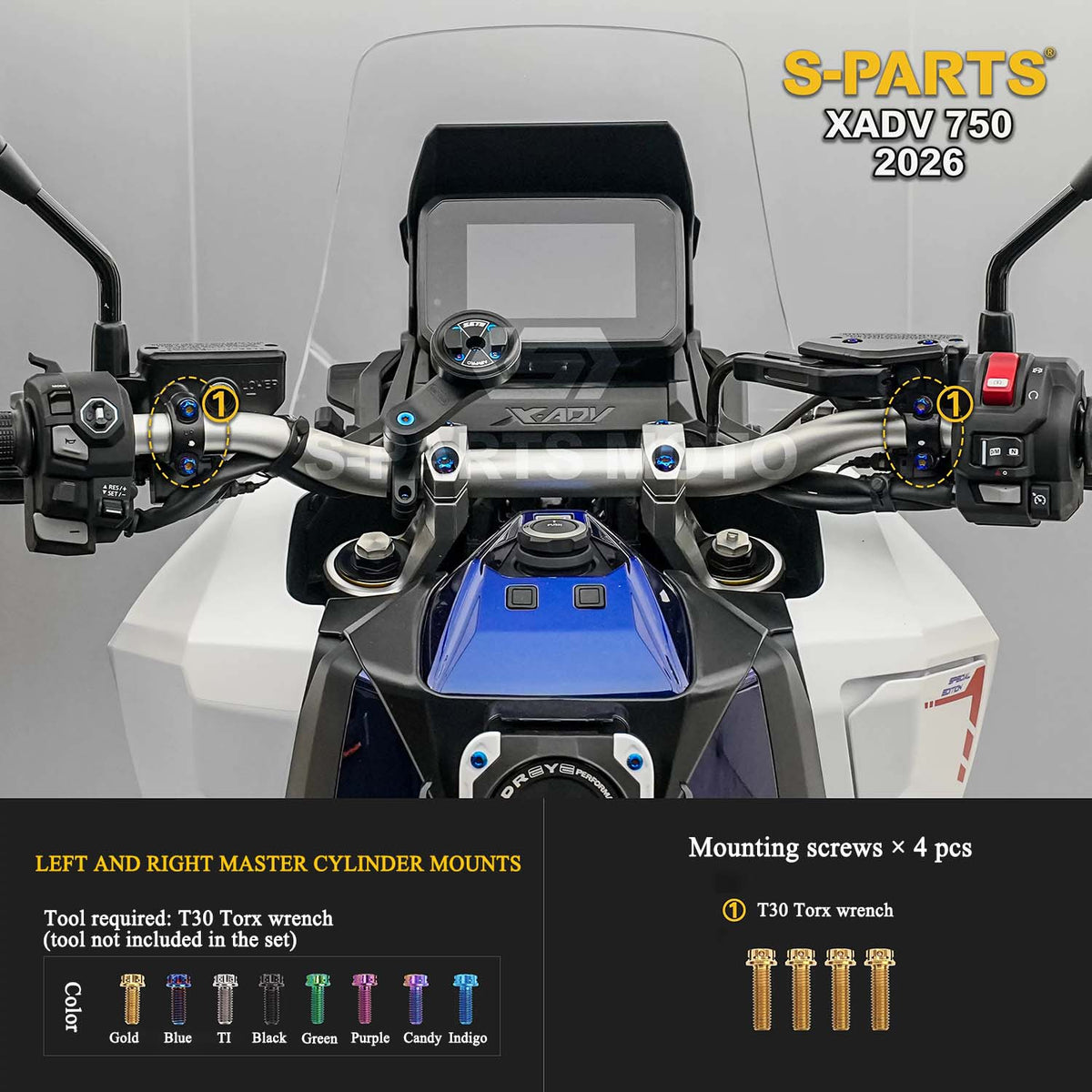

5
Left and Right Master Cylinder Mounts
4
T30 Torx
6
Left and Right Master Cylinder Reservoir Covers
4
T20 Torx

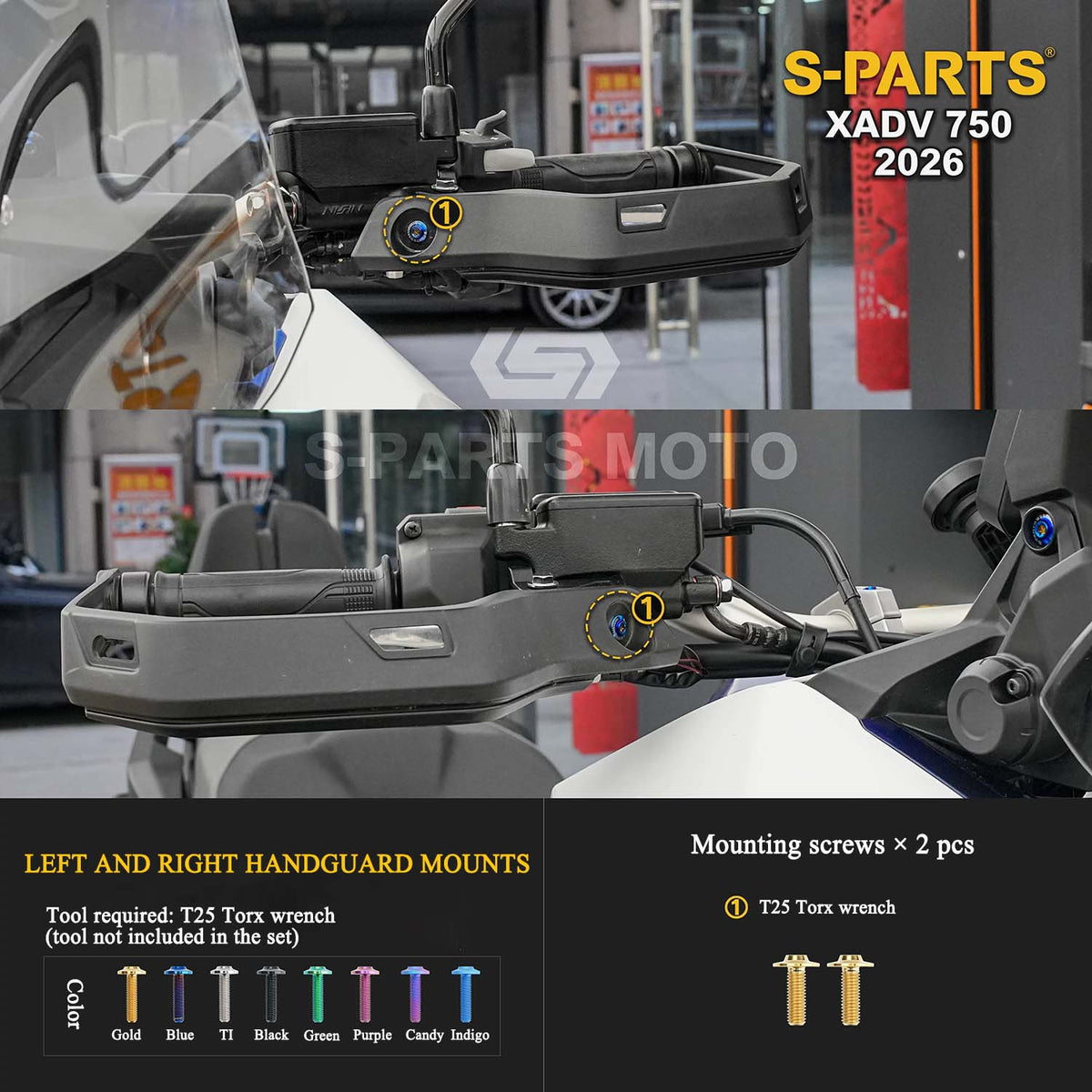

7
Left and Right Handguard Mounts
2
T25 Torx

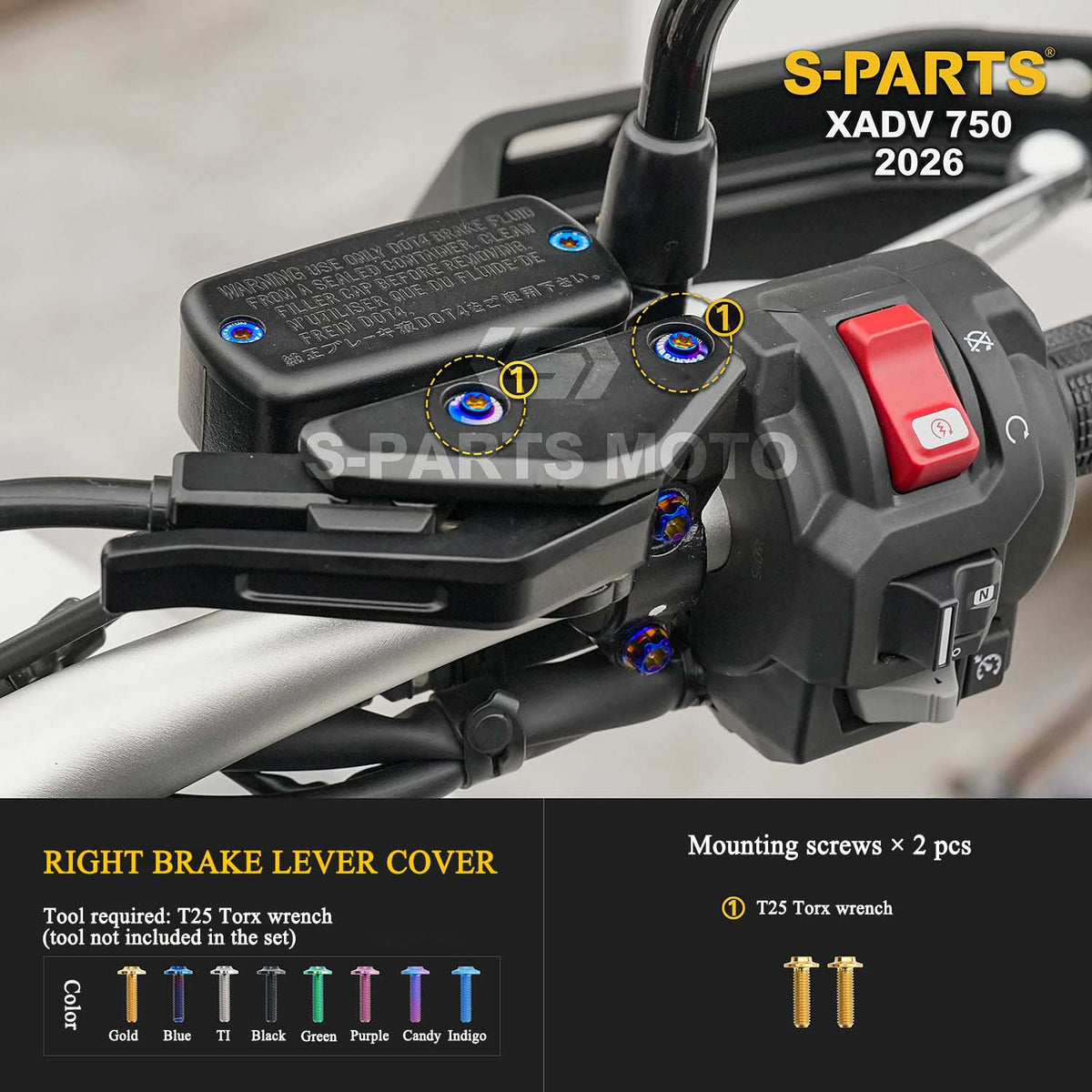

8
Right Brake Lever Cover
2
T25 Torx

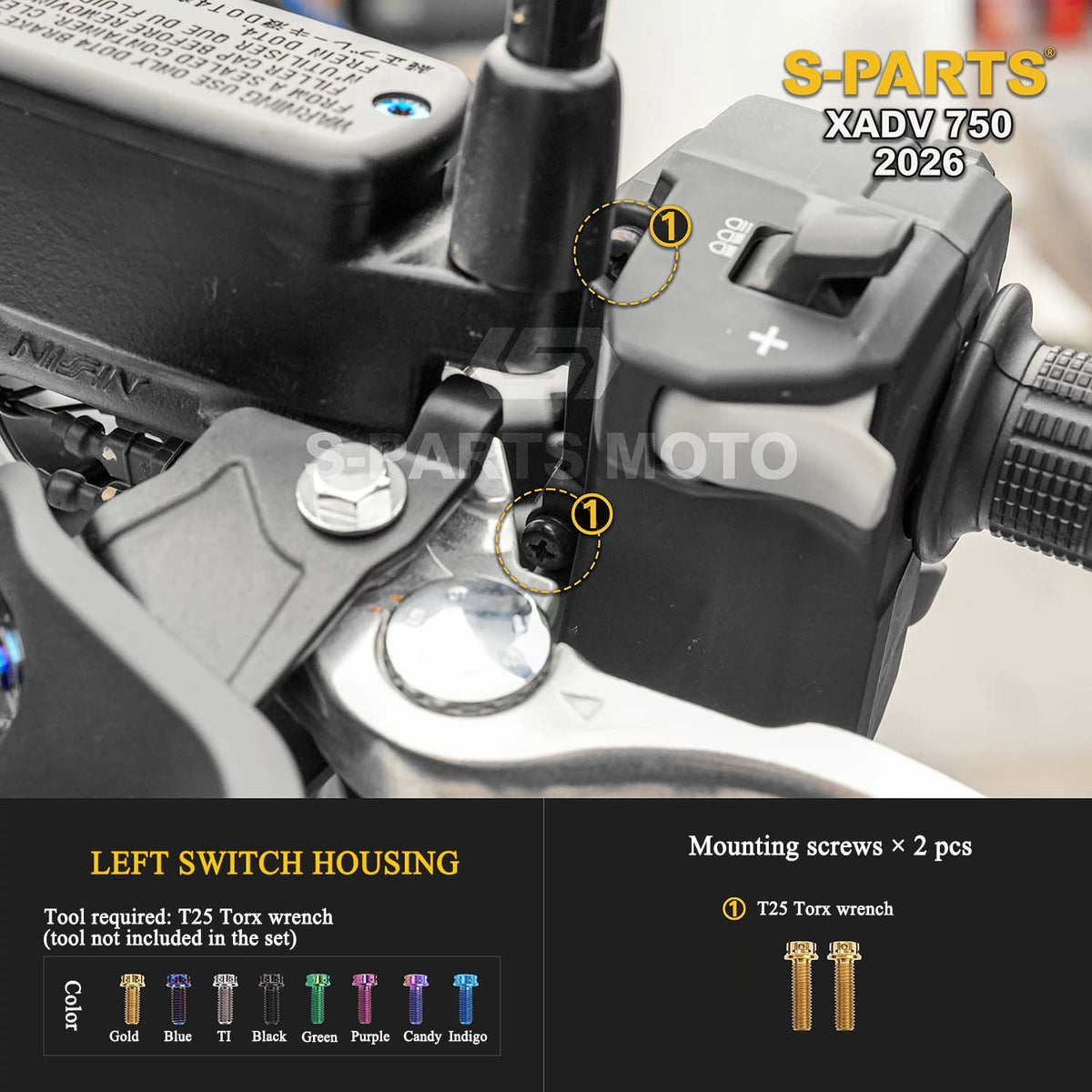

9
Left Switch Housing
2
T25 Torx

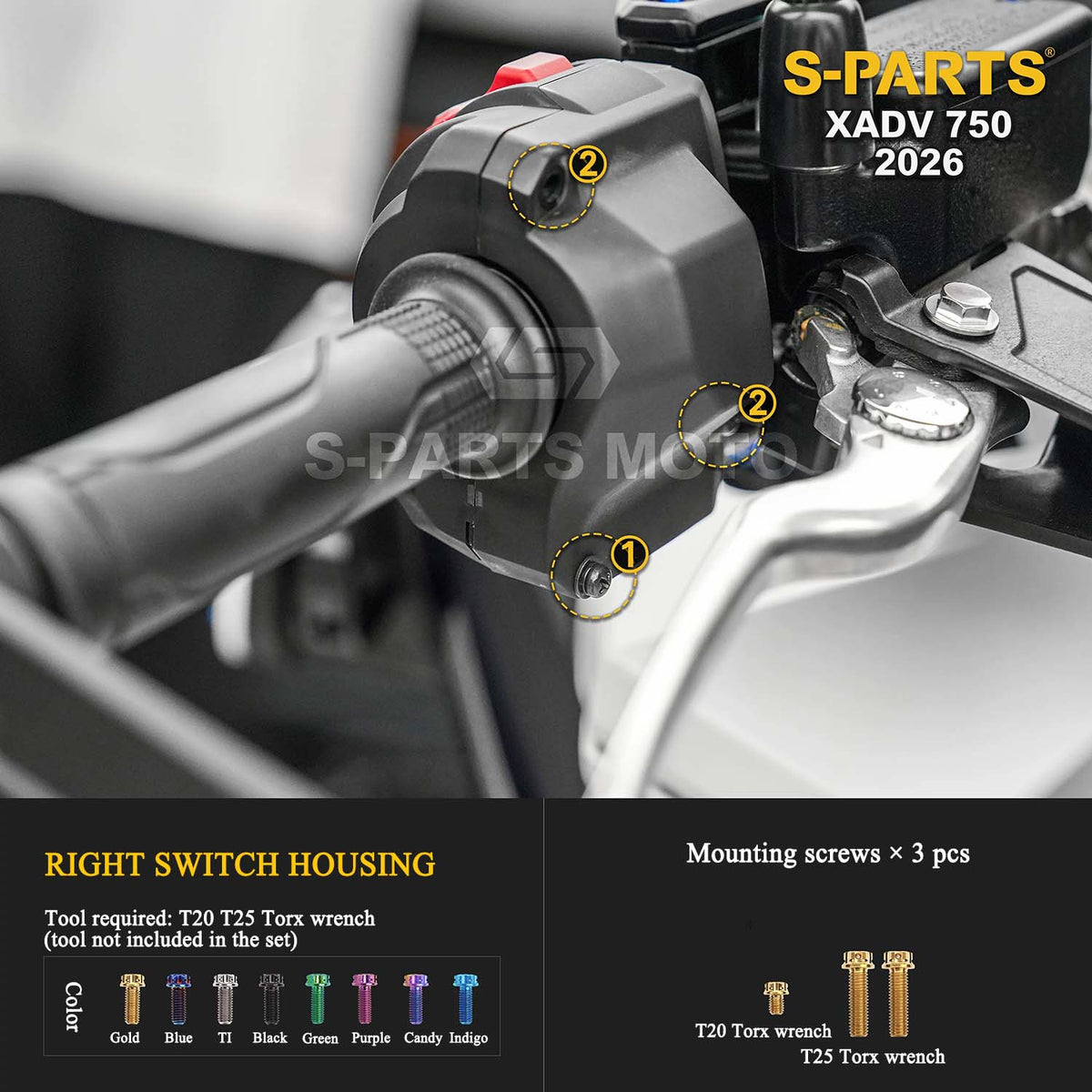

10
Right Switch Housing
3
T20 / T25 Torx

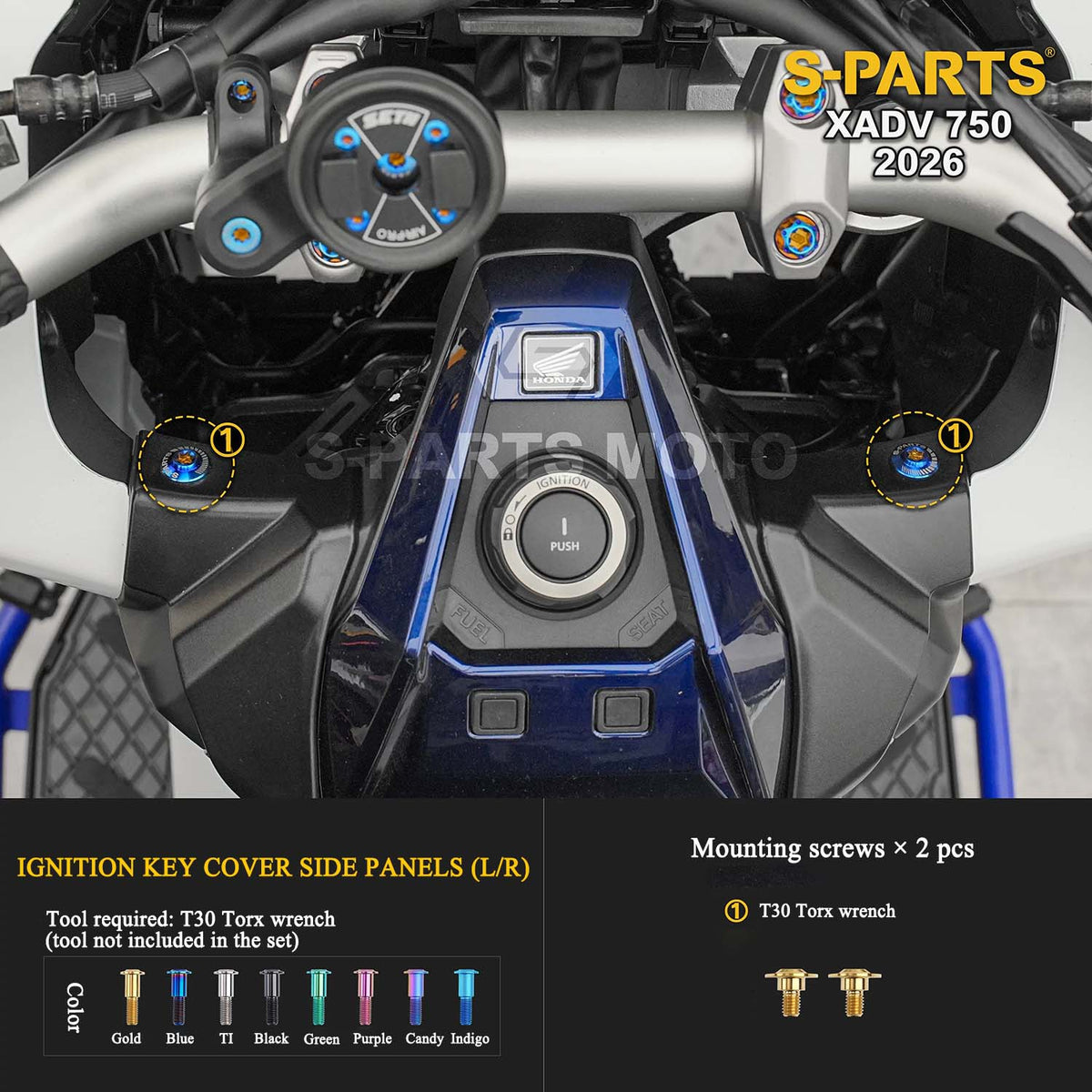

11
Ignition Key Cover Side Panels (L/R)
2
T30 Torx
12

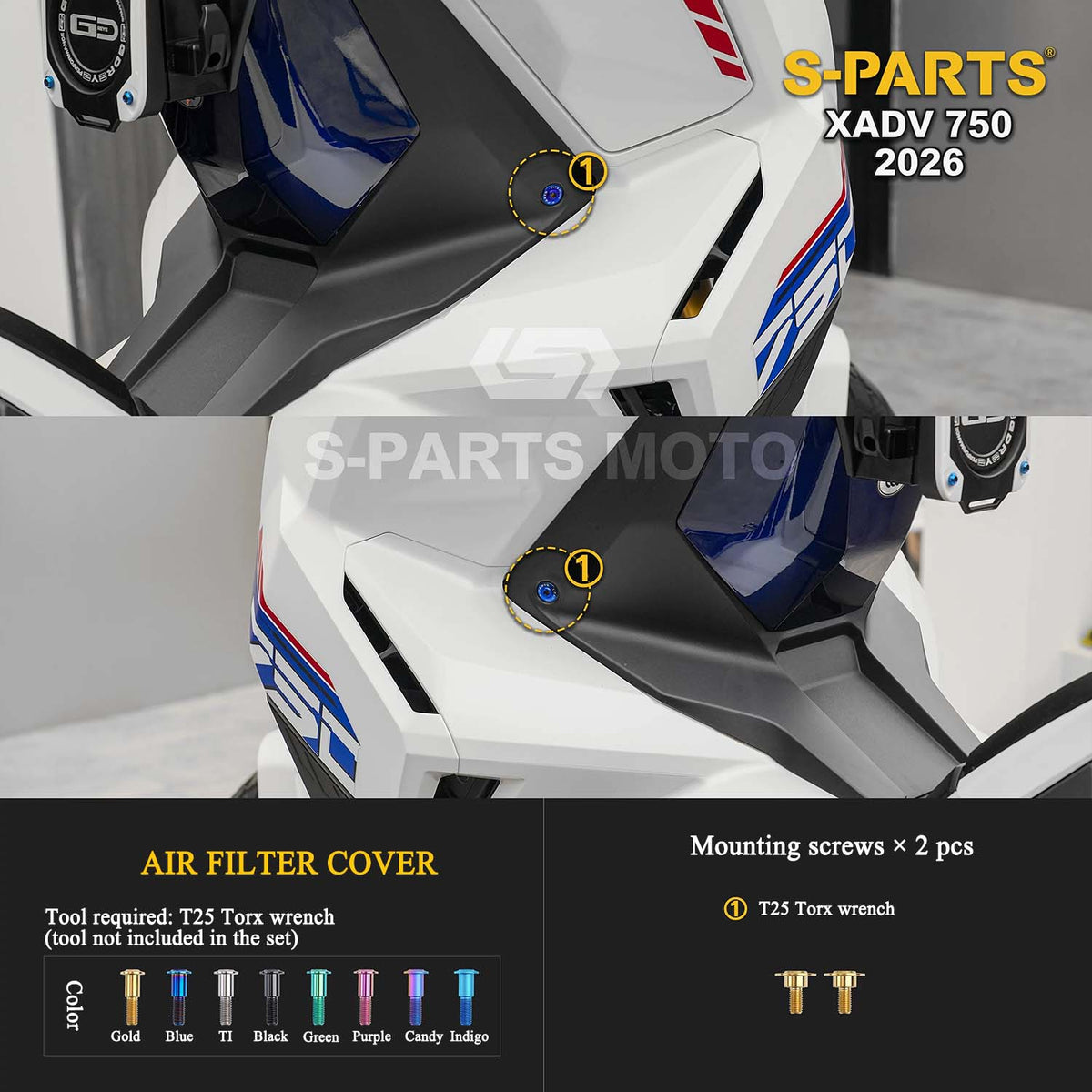

Air Filter Cover
2
T25 Torx

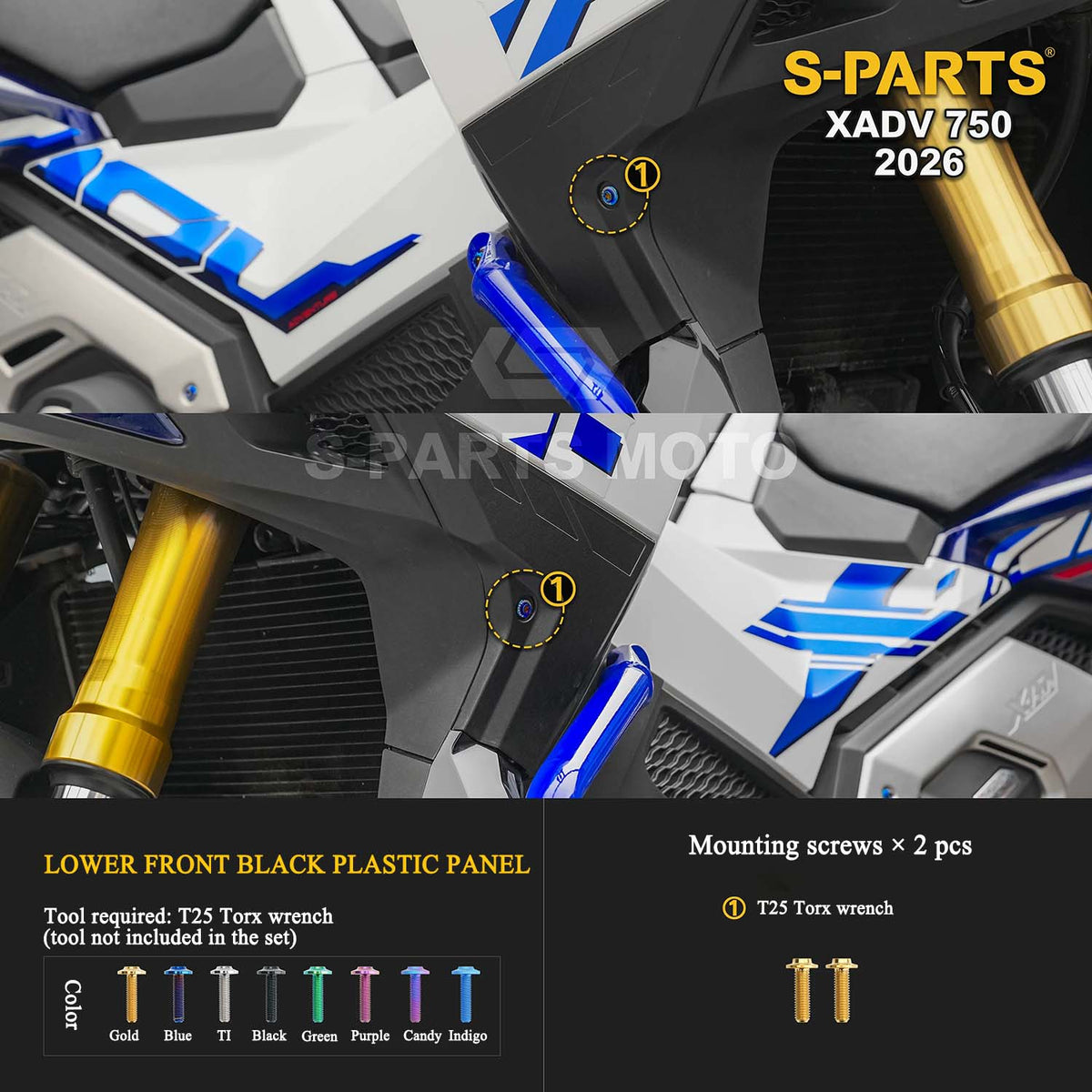

13
Lower Front Black Plastic Panel
2
T25 Torx
14

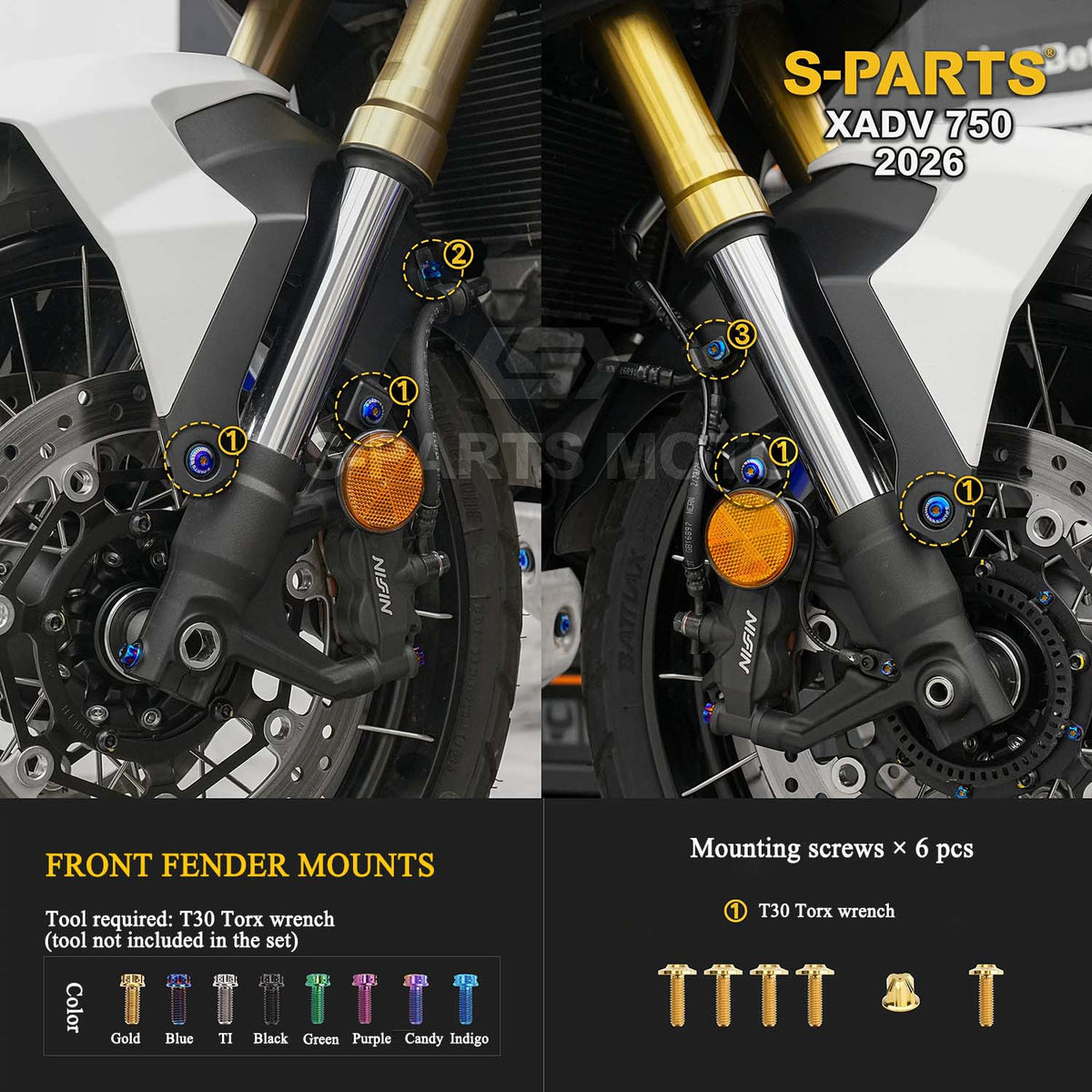

Front Fender Mounts
6
T30 Torx

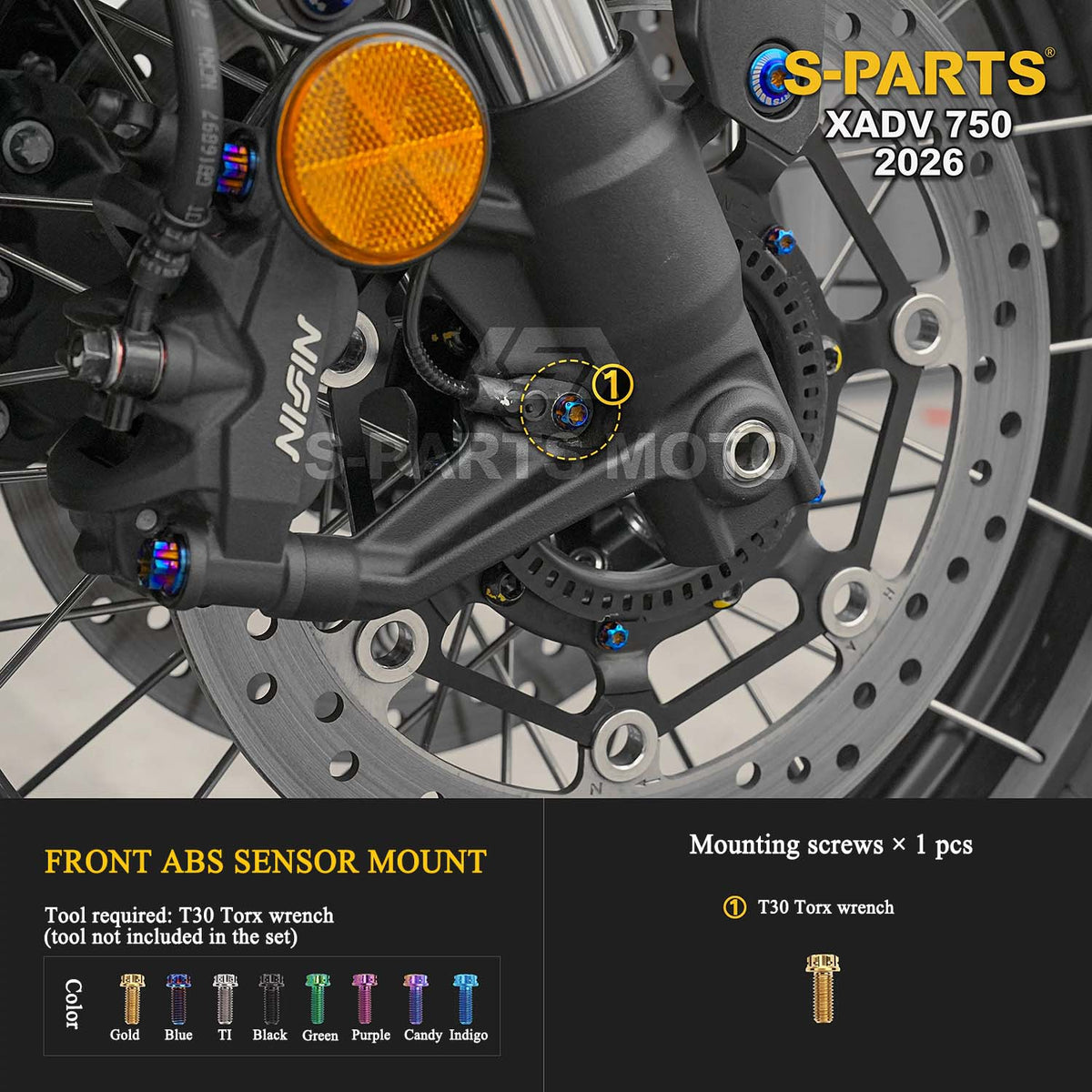

15
Front ABS Sensor Mount
1
T30 Torx
16
Front ABS Ring Bolts
5
T25 Torx
17

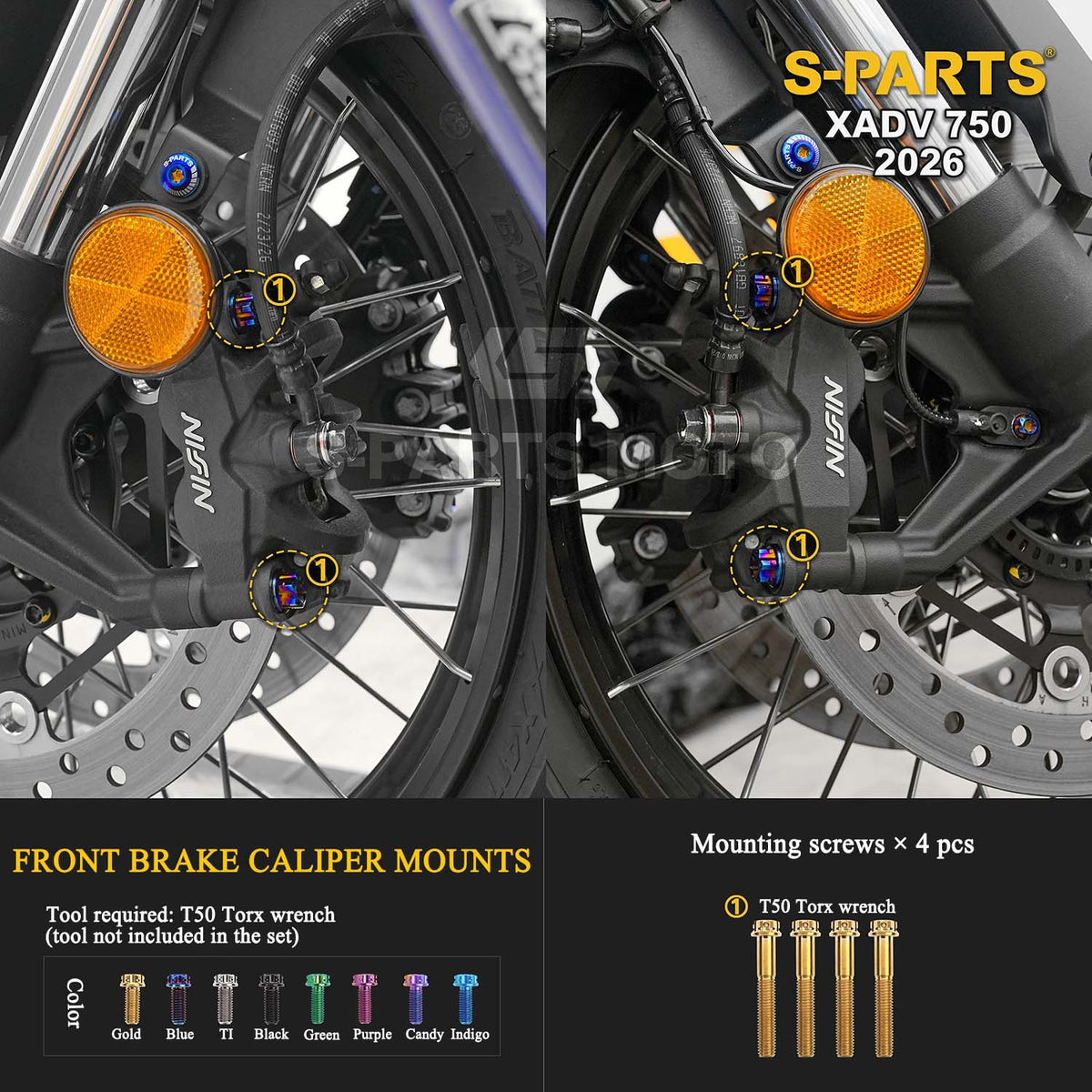

Front Brake Caliper Mounts
4
T50 Torx
18

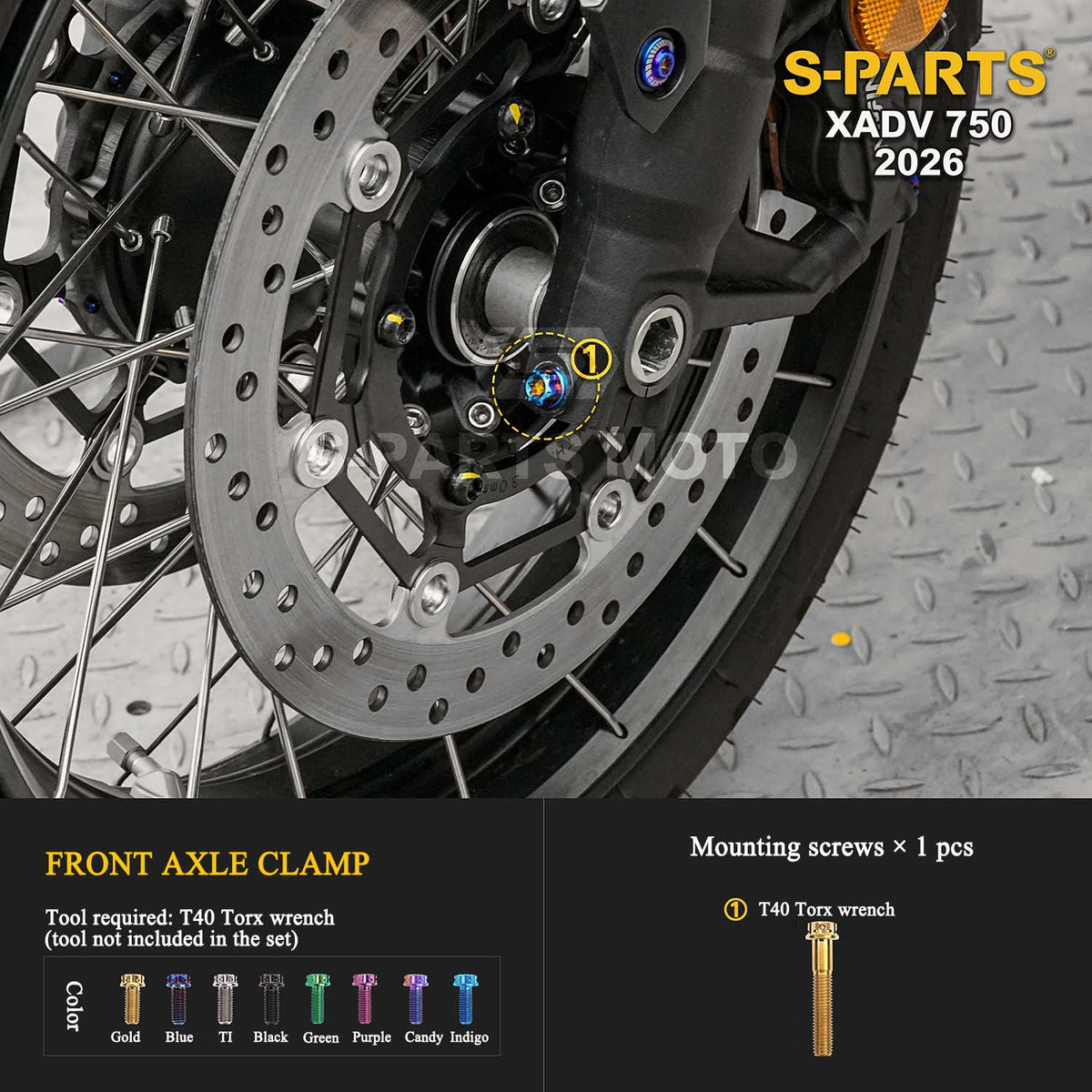

Front Axle Clamp Bolts
1
T40 Torx

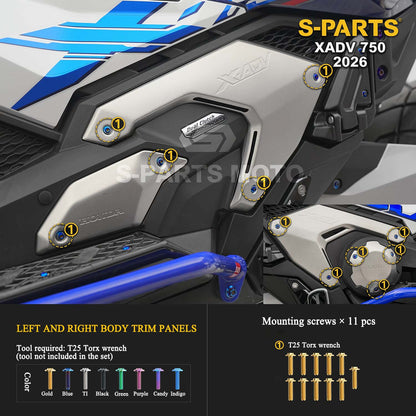

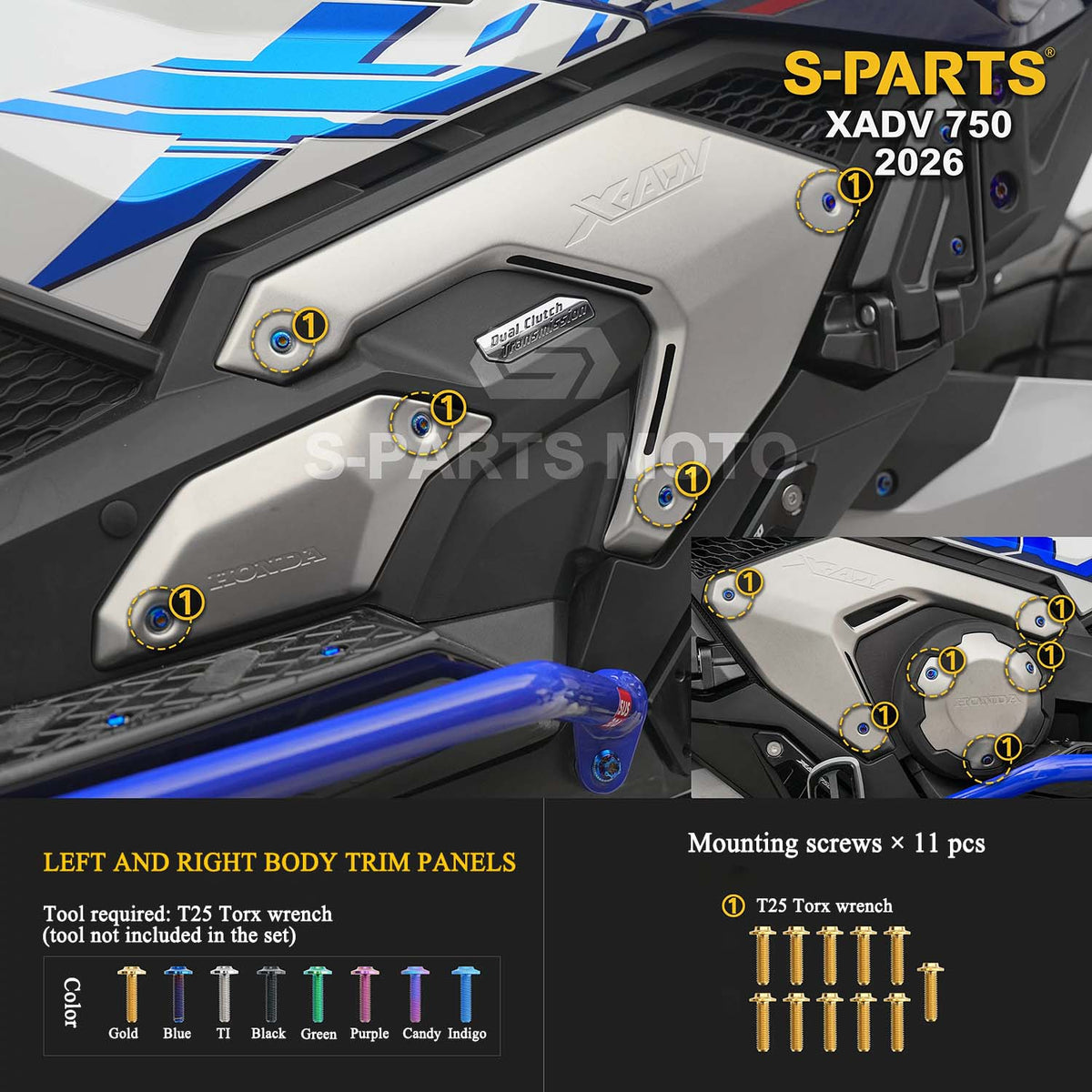

19
Left and Right Body Trim Panels
11
T25 Torx
20

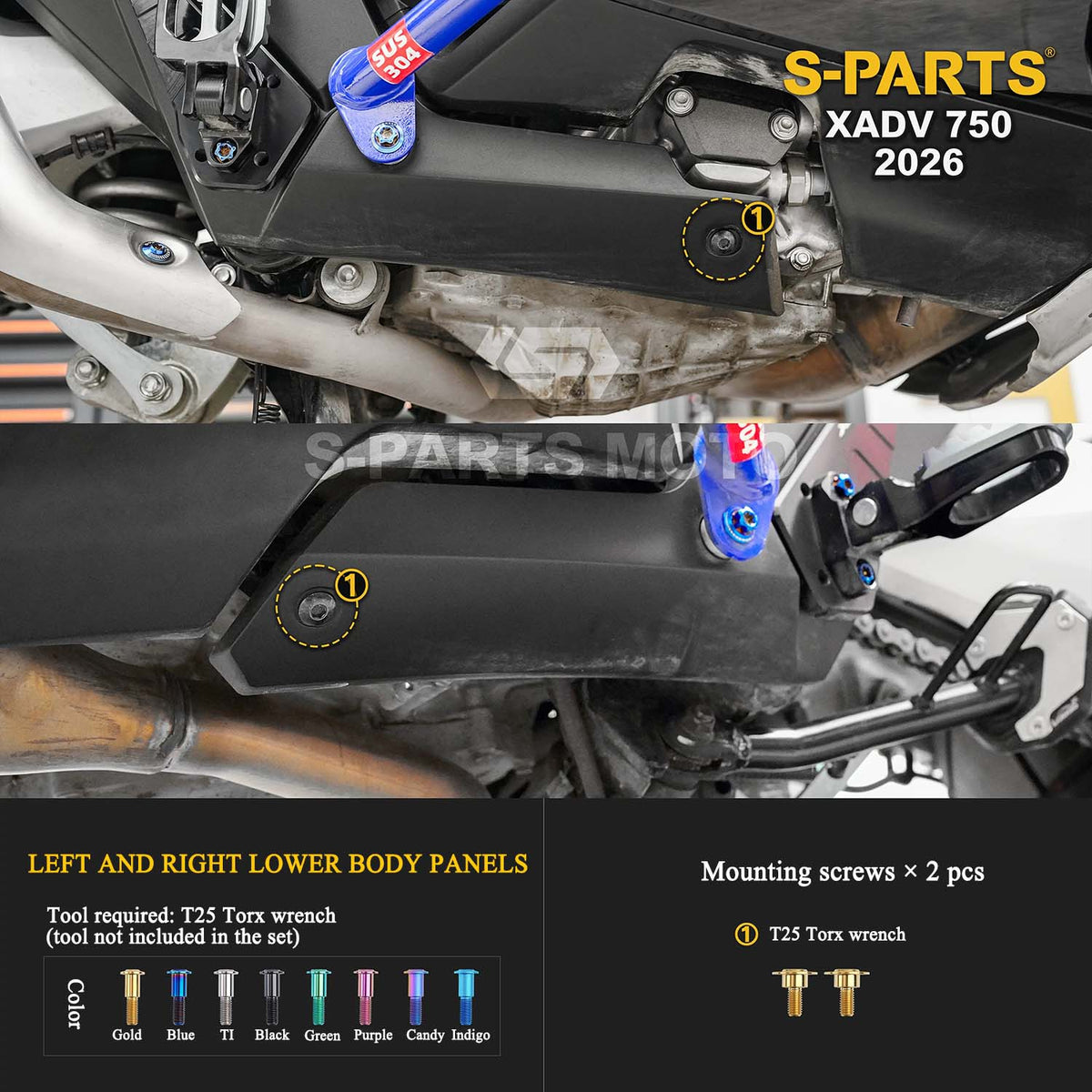

Left and Right Lower Body Panels
2
T25 Torx
21
Left and Right Rear Lower Body Panels
4
T40 Torx
22

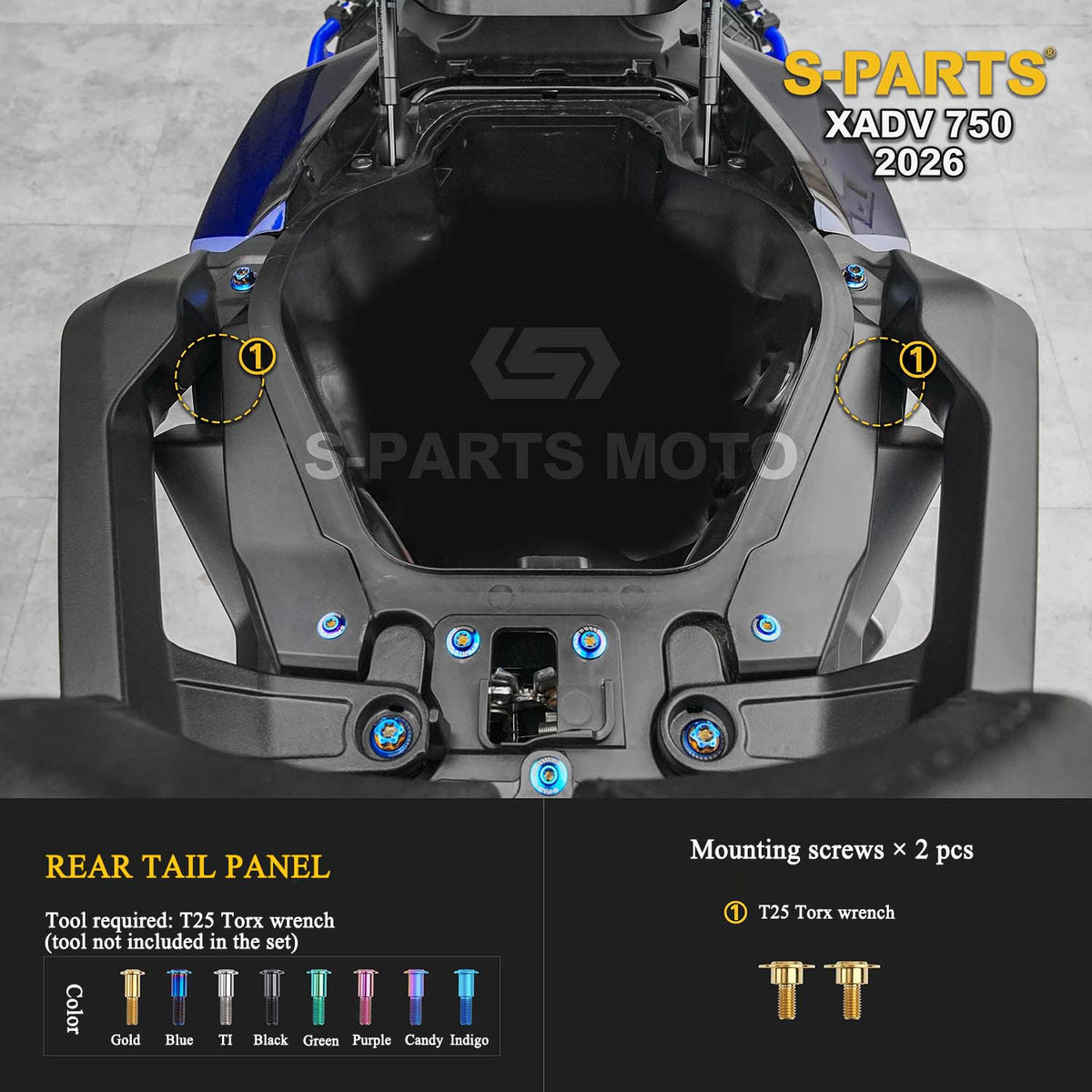

Rear Tail Panel
2
T25 Torx

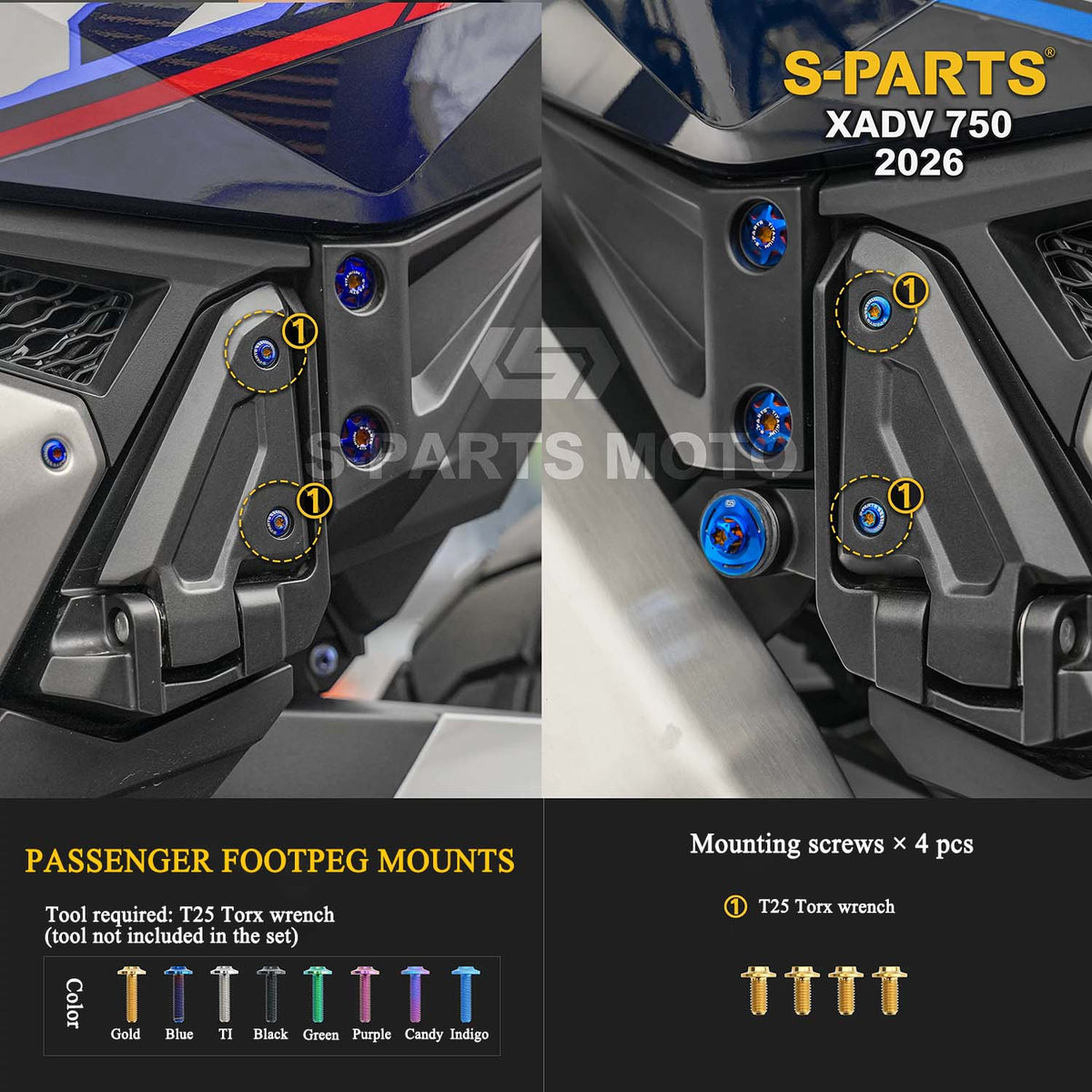

23
Passenger Footpeg Mounts
4
T25 Torx
24
Rider Footpeg Mounts (OEM)
4
T40 Torx

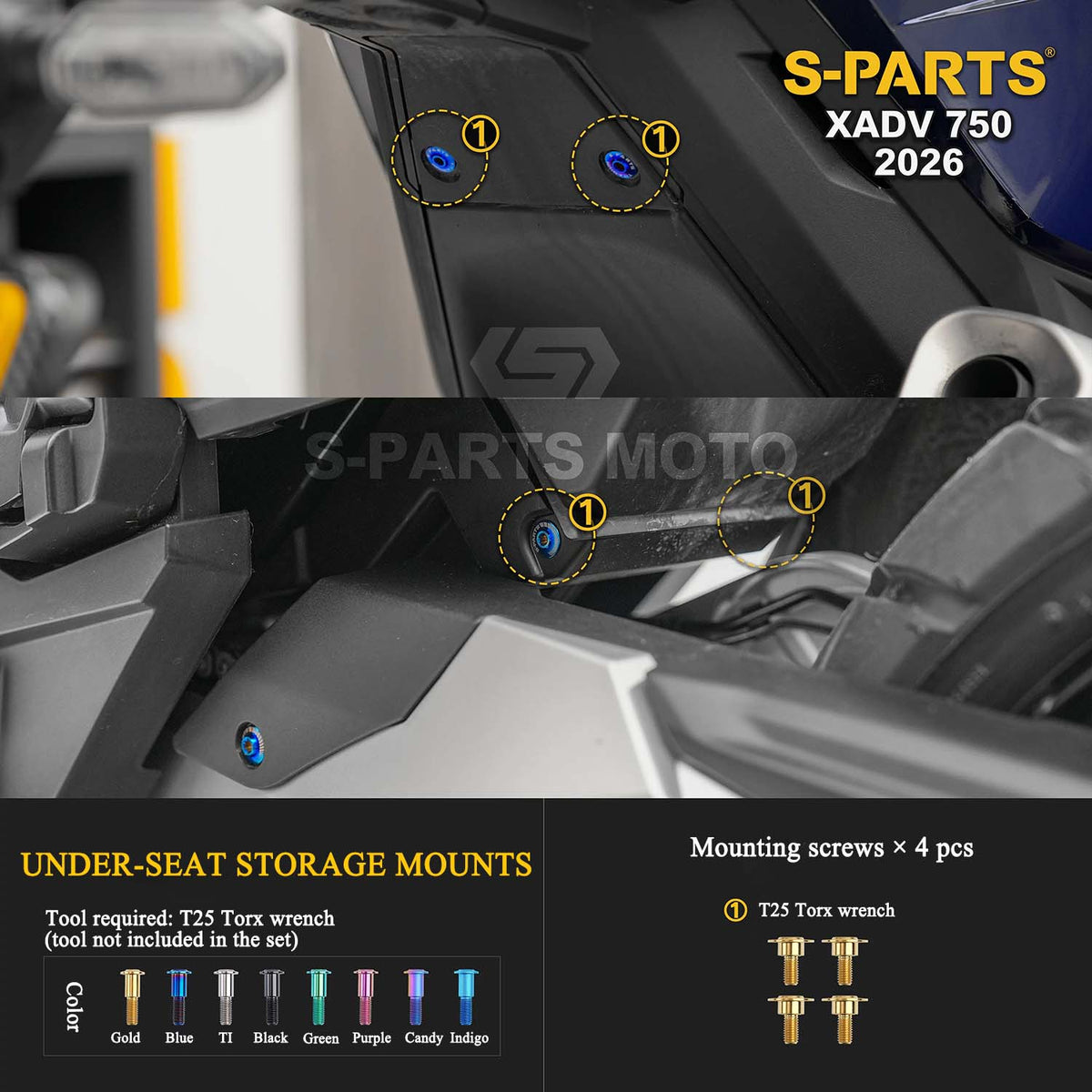

25
Under-Seat Storage Mounts
4
T25 Torx

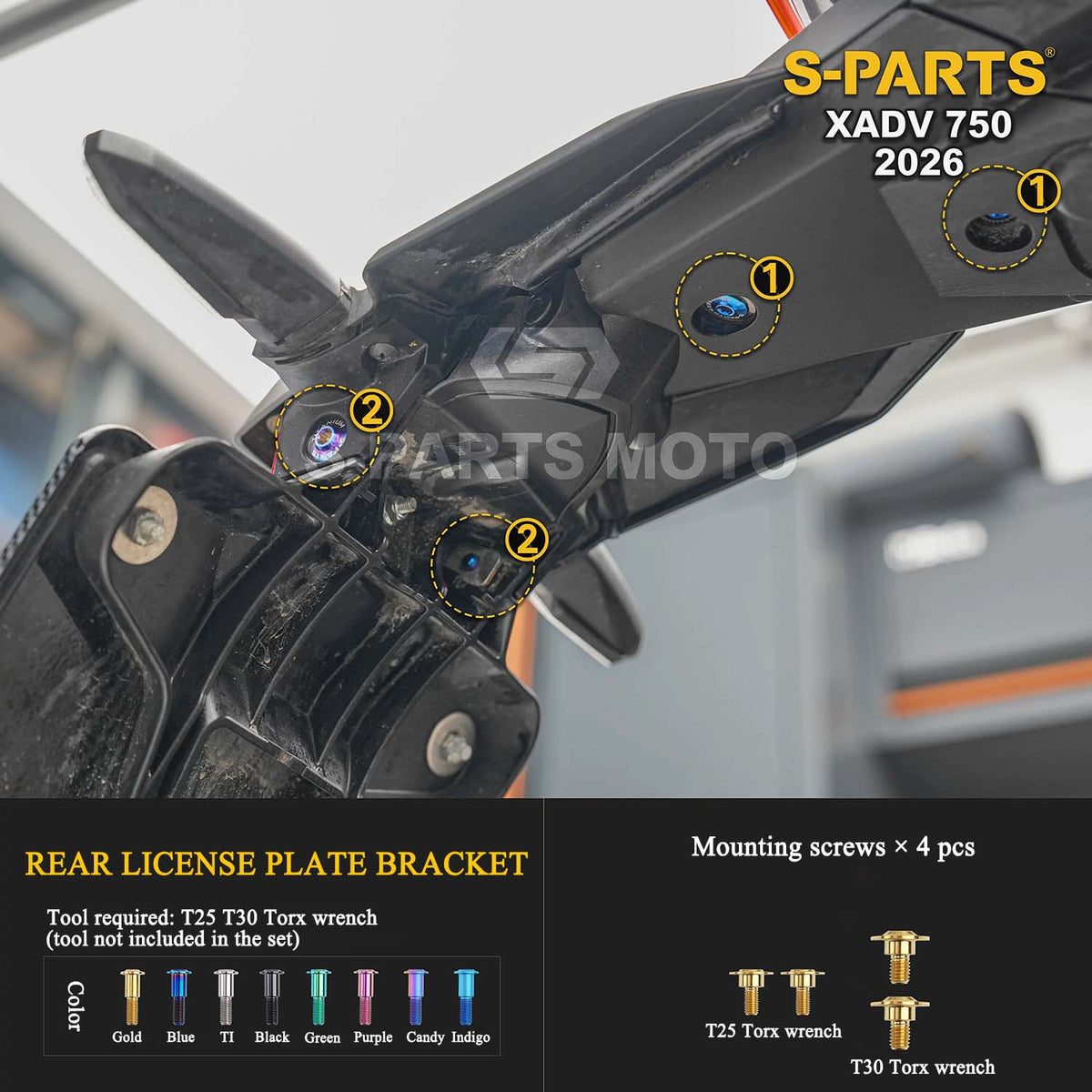

26
Rear License Plate Bracket
4
T25 / T30 Torx

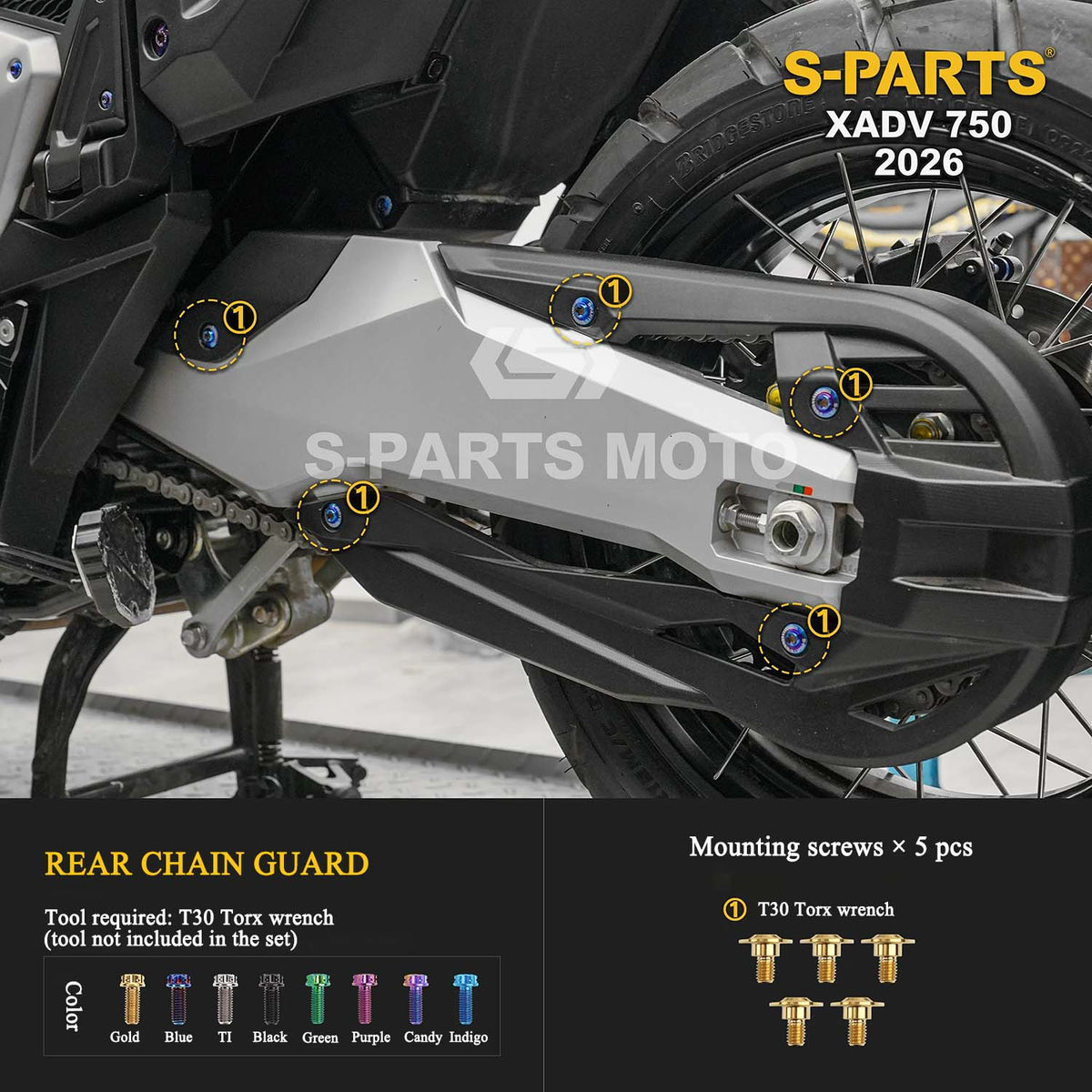

27
Rear Chain Guard
5
T30 Torx
28
Rear Chain Guard Inner Bracket
2
T30 Torx

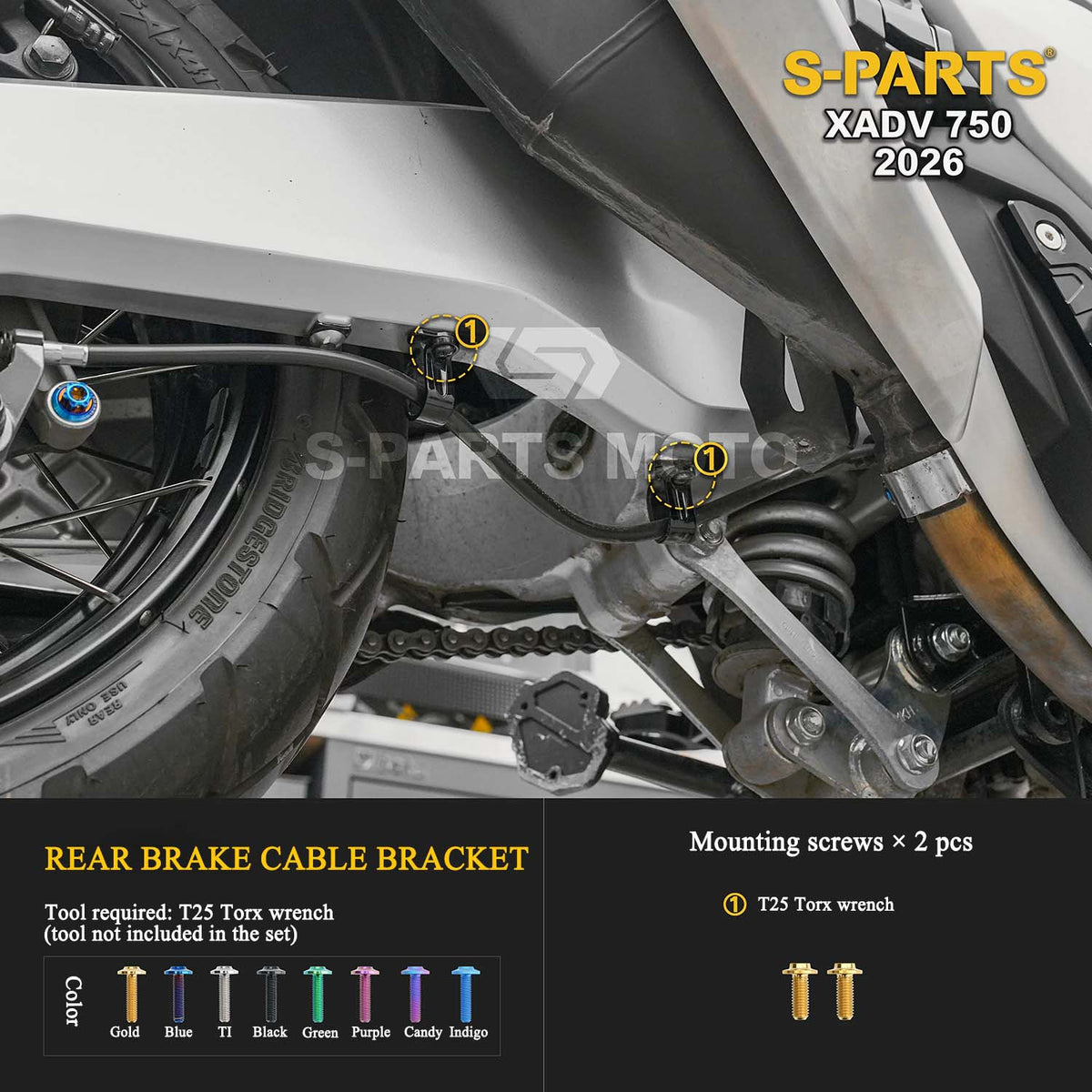

29
Rear Brake Cable Bracket
2
T25 Torx

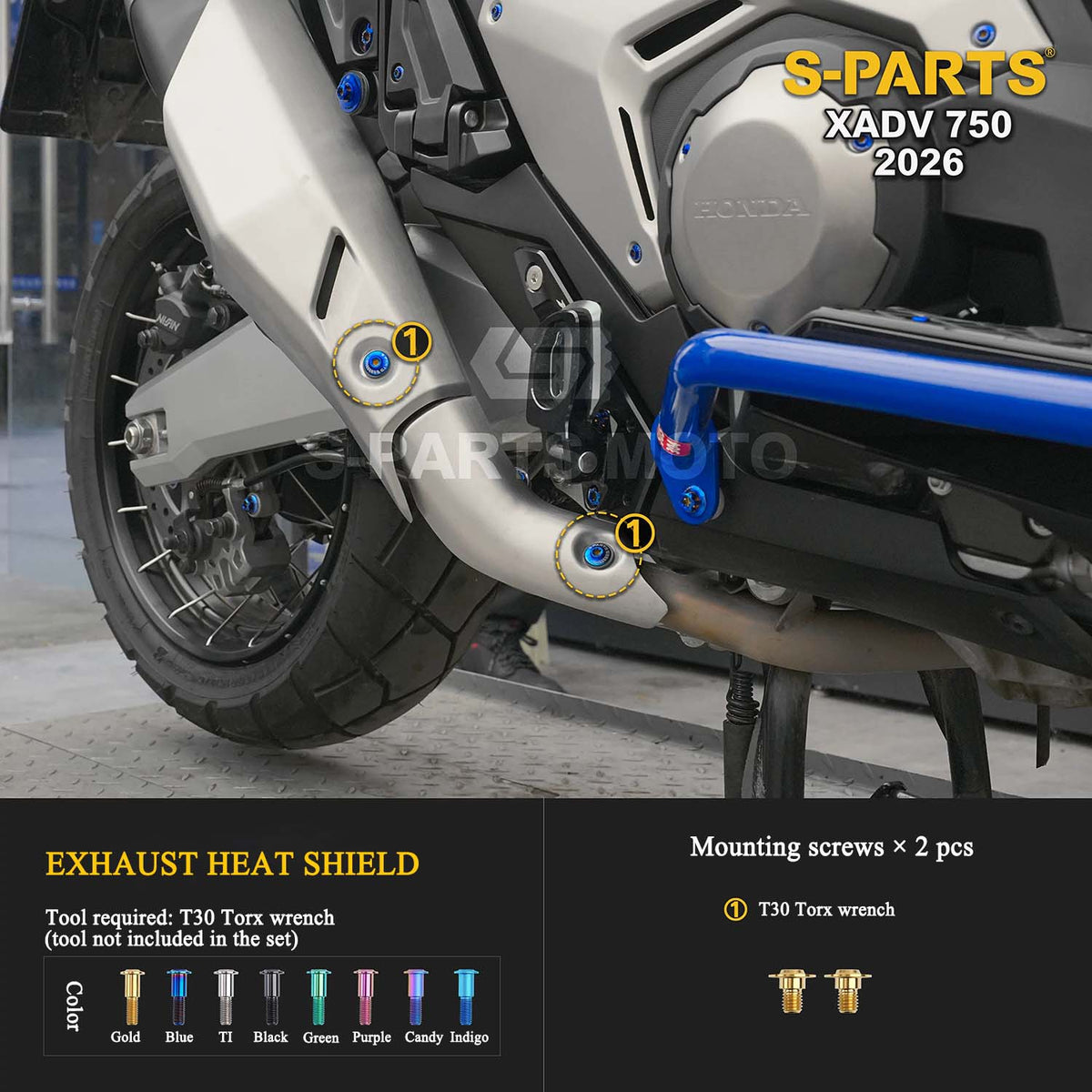

30
Exhaust Heat Shield
2
T30 Torx
31

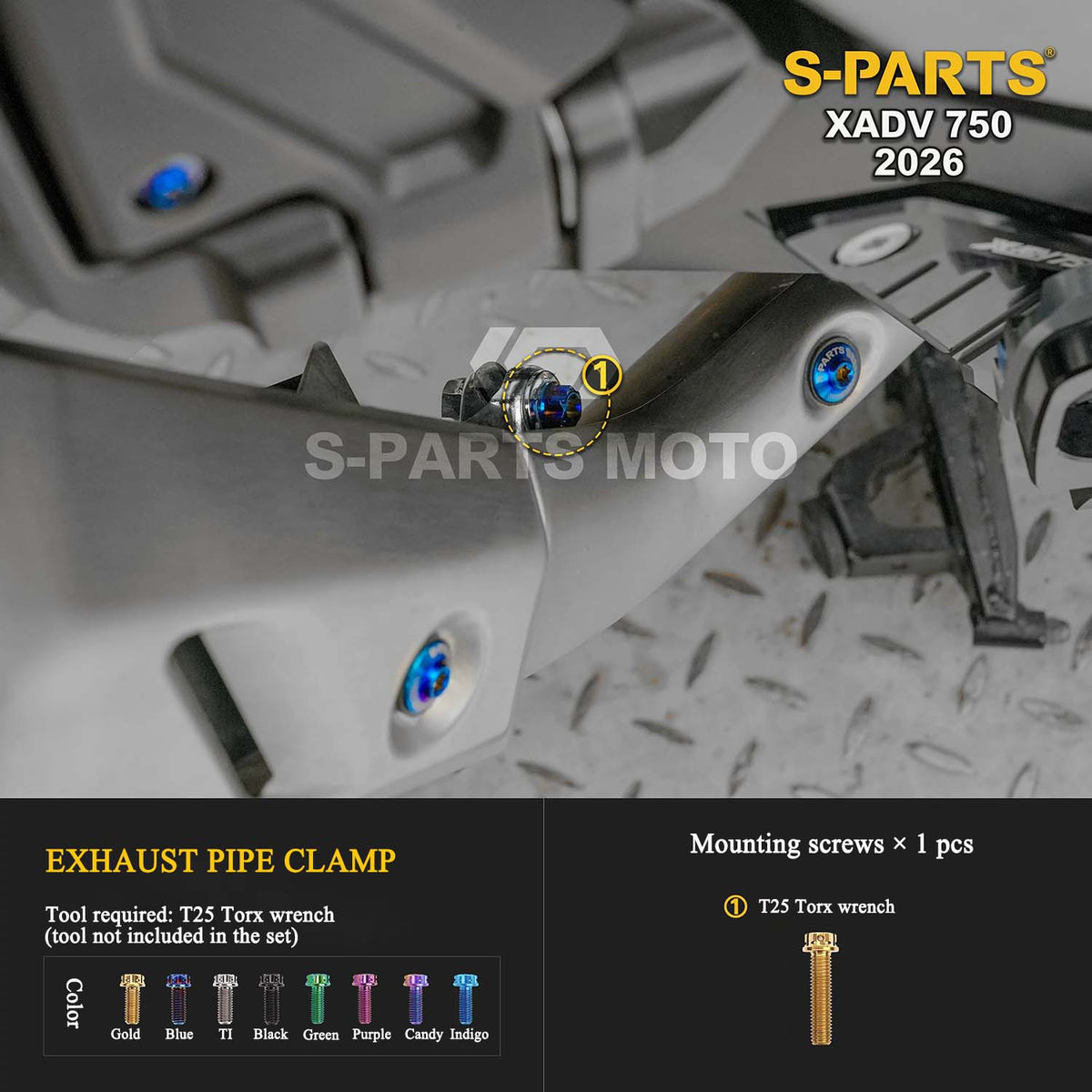

Exhaust Pipe Clamp
1
T25 Torx
32

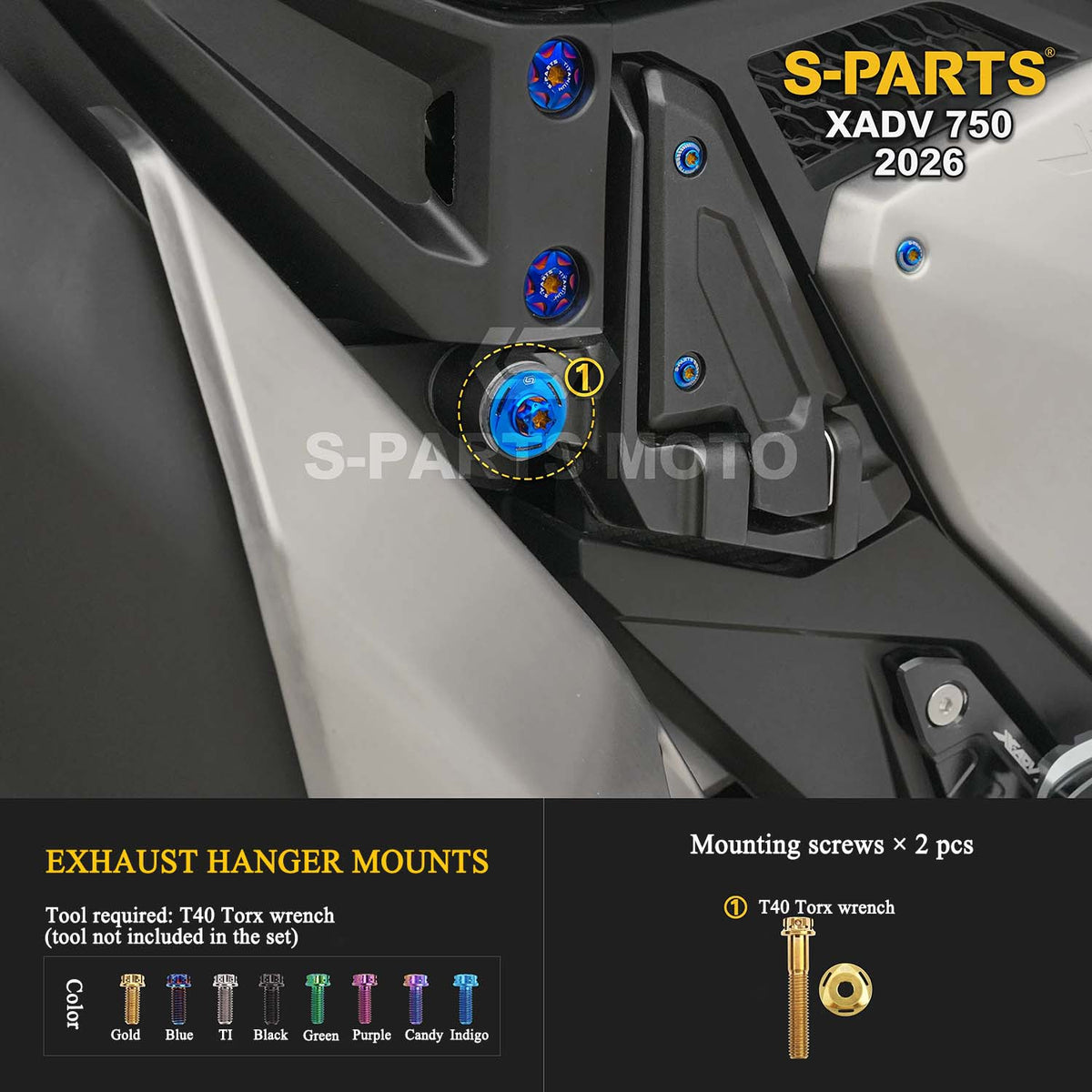

Exhaust Hanger Mounts
2
T40 Torx
33

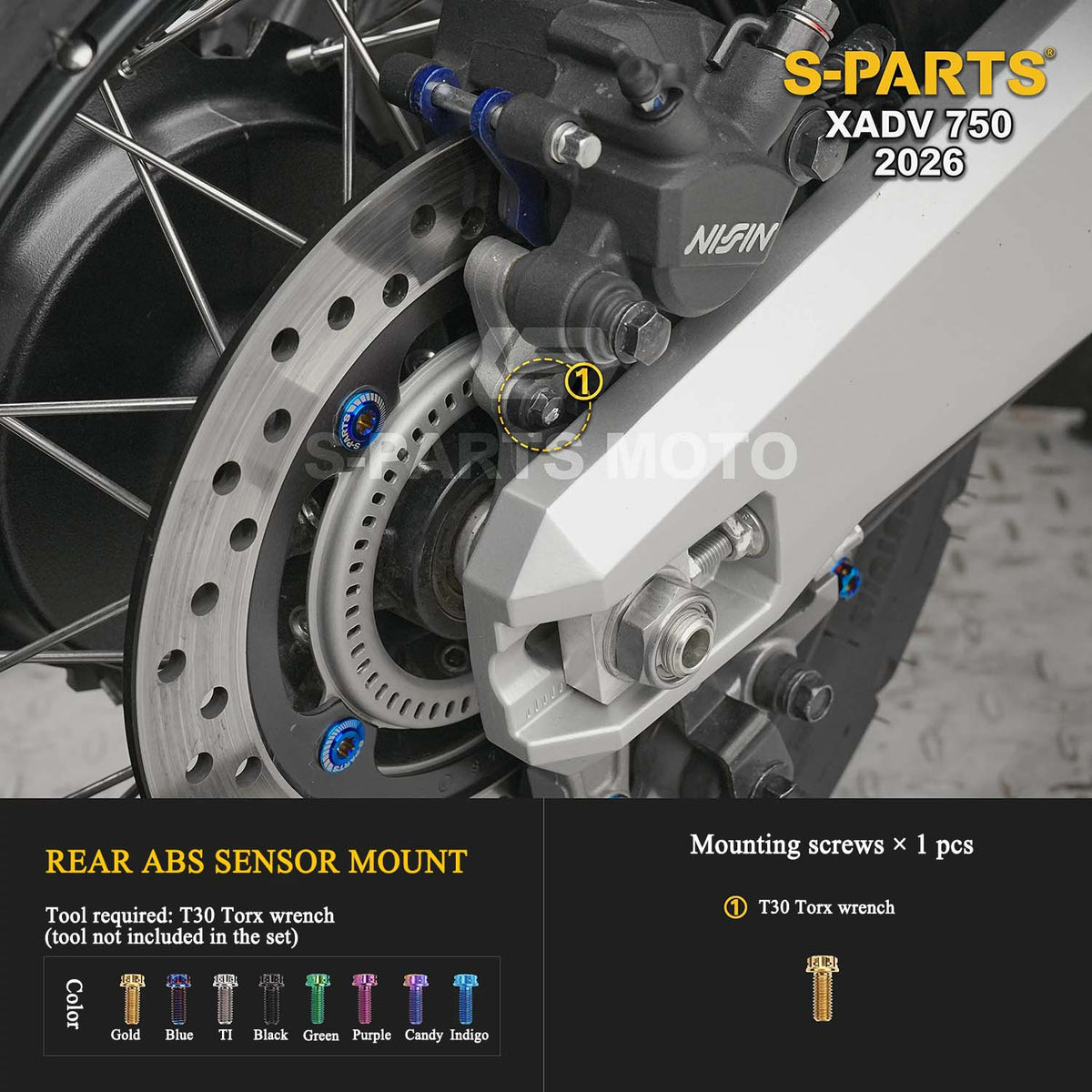

Rear ABS Sensor Mount
1
T30 Torx
34
Left-Side Rear Brake Caliper Mount
1
T40 Torx
35

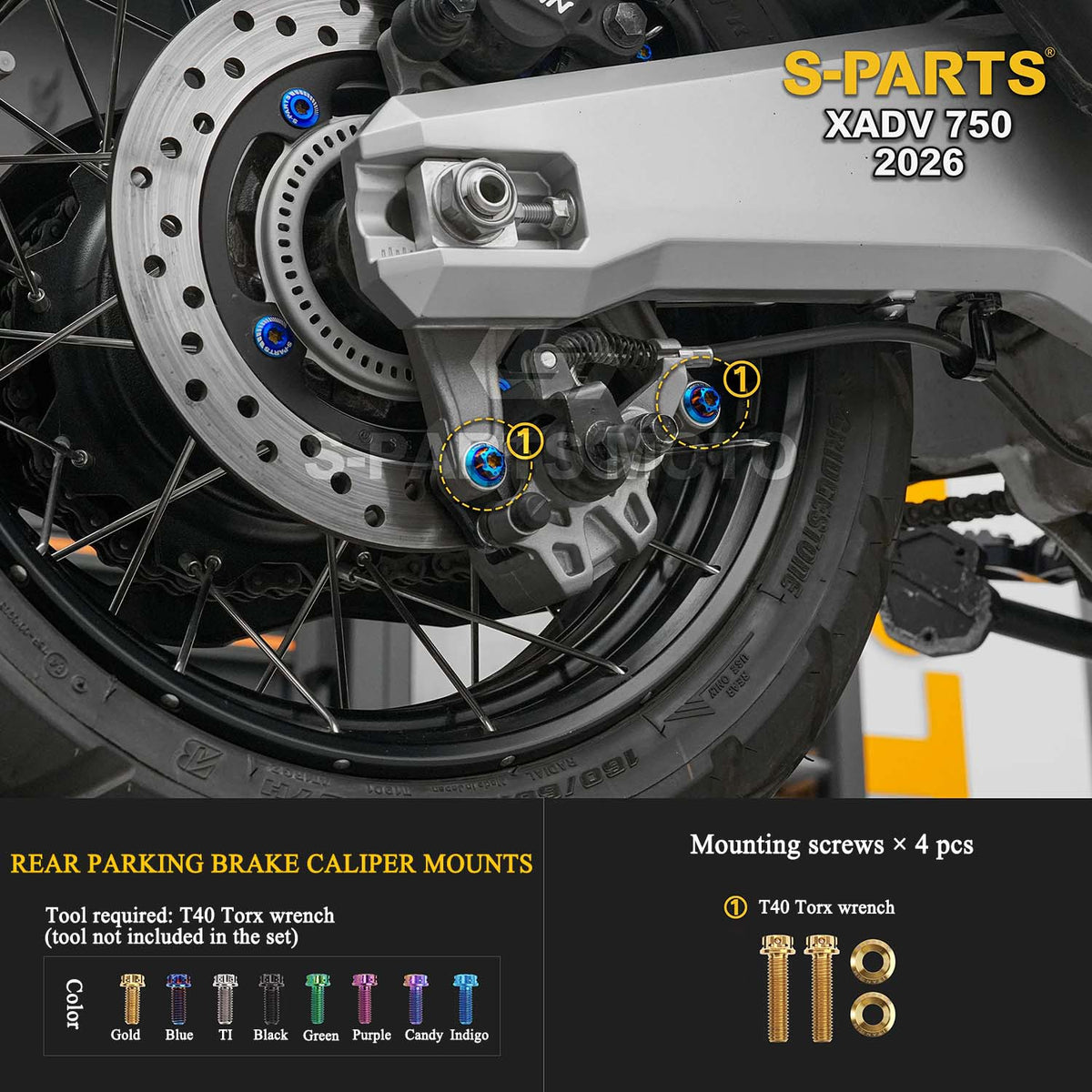

Rear Parking Brake Caliper Mounts
4
T40 Torx
36

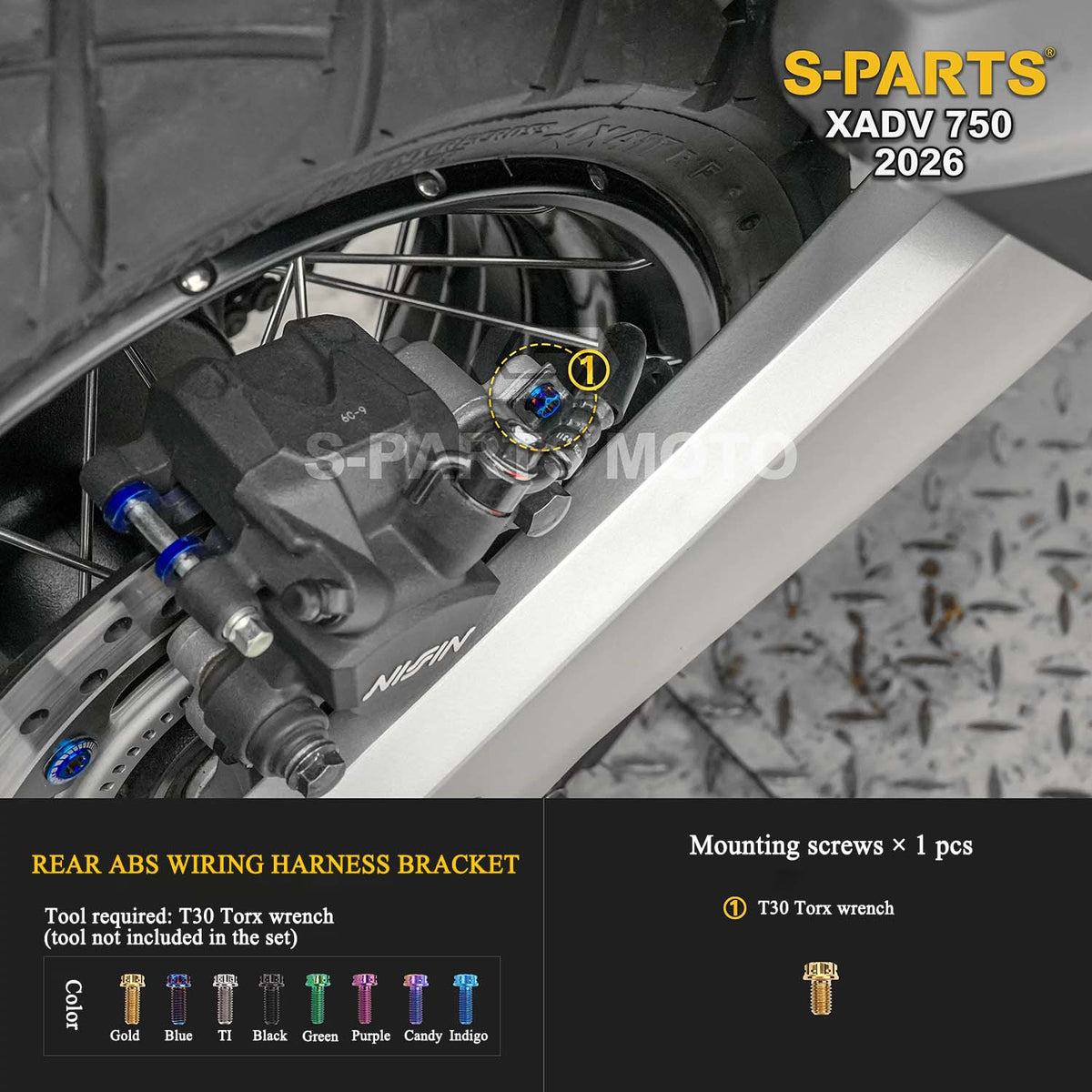

Rear ABS Wiring Harness Bracket
1
T30 Torx
37

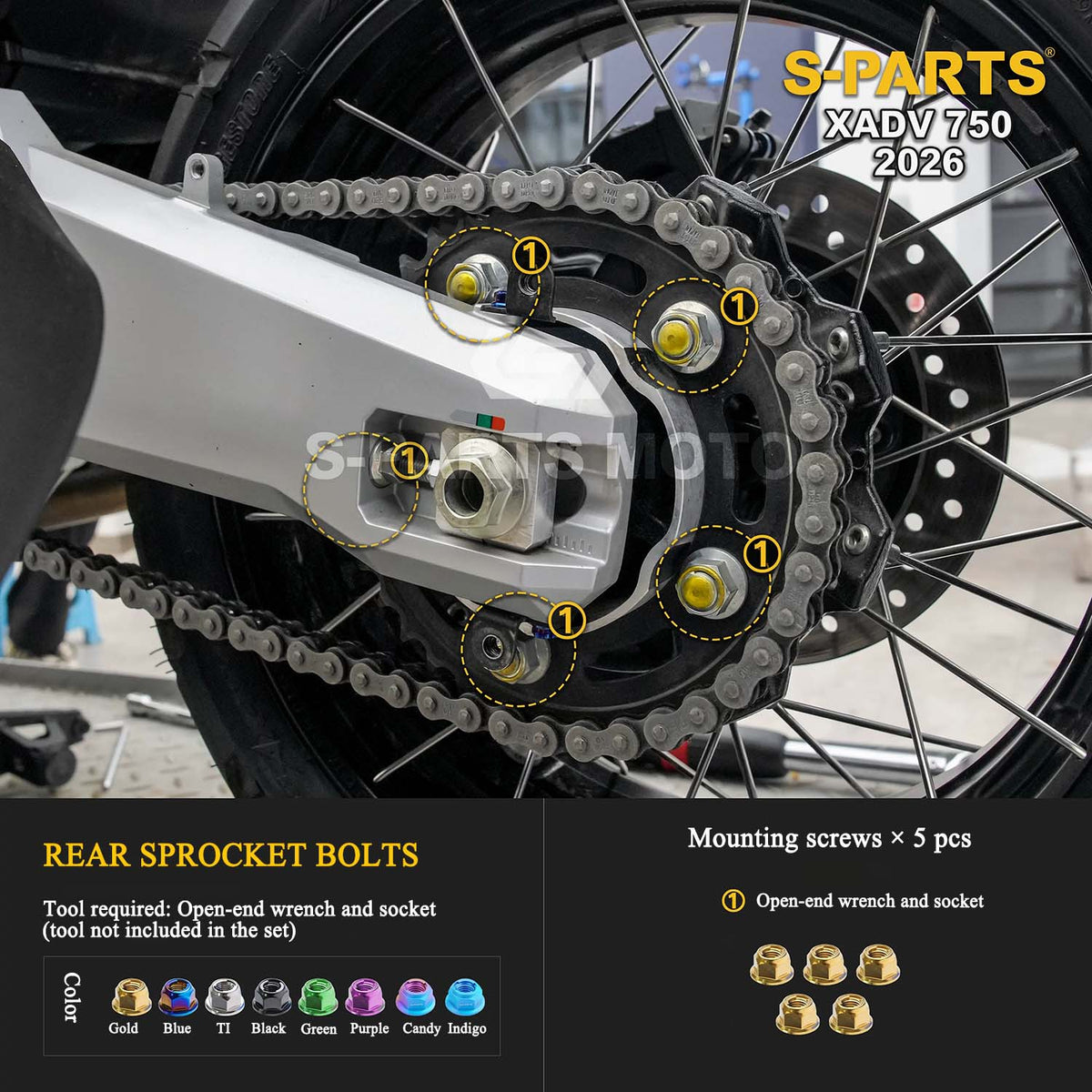

Rear Sprocket Bolts
5
Open-End Wrench or Socket

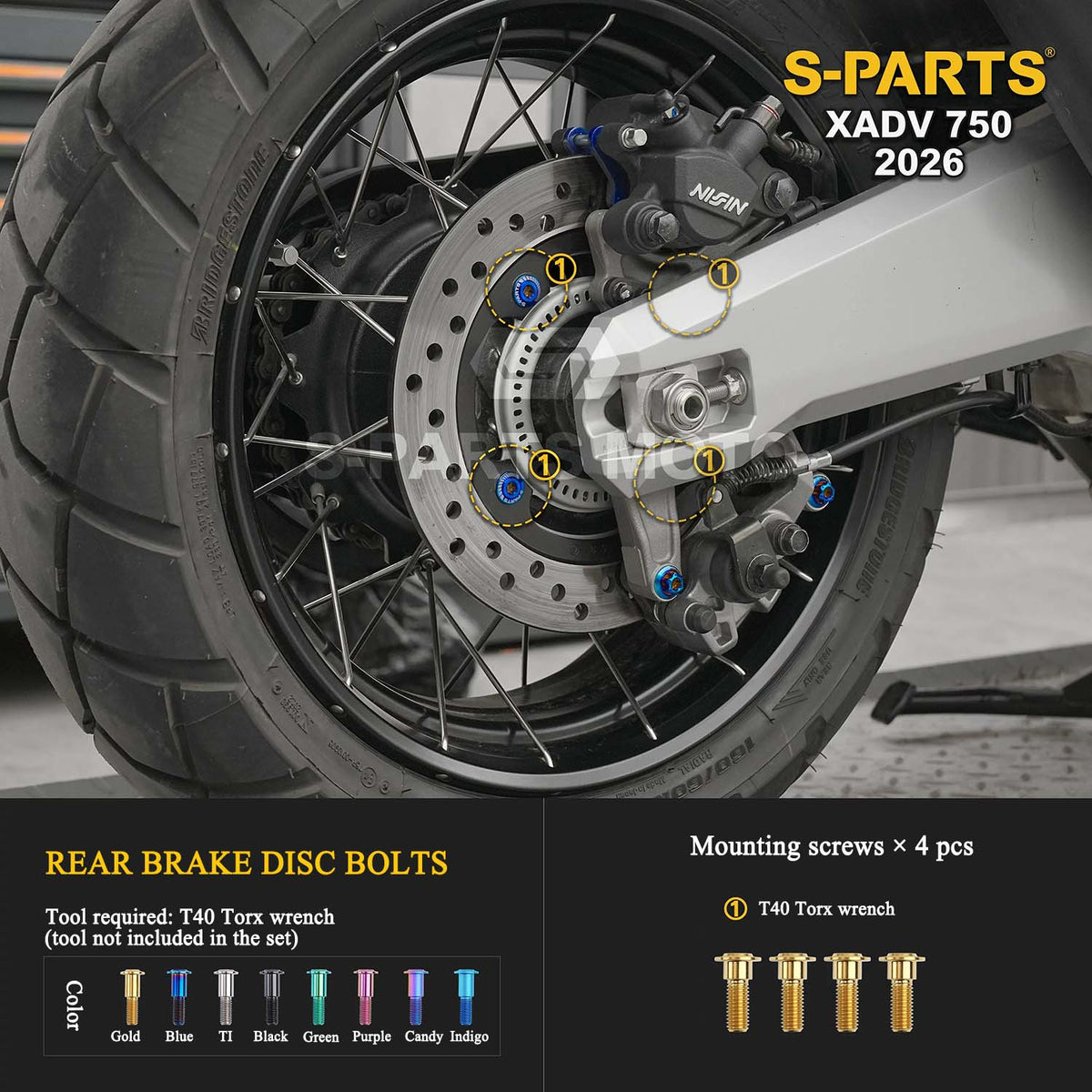

38
Rear Brake Disc Bolts
4
T40 Torx
39

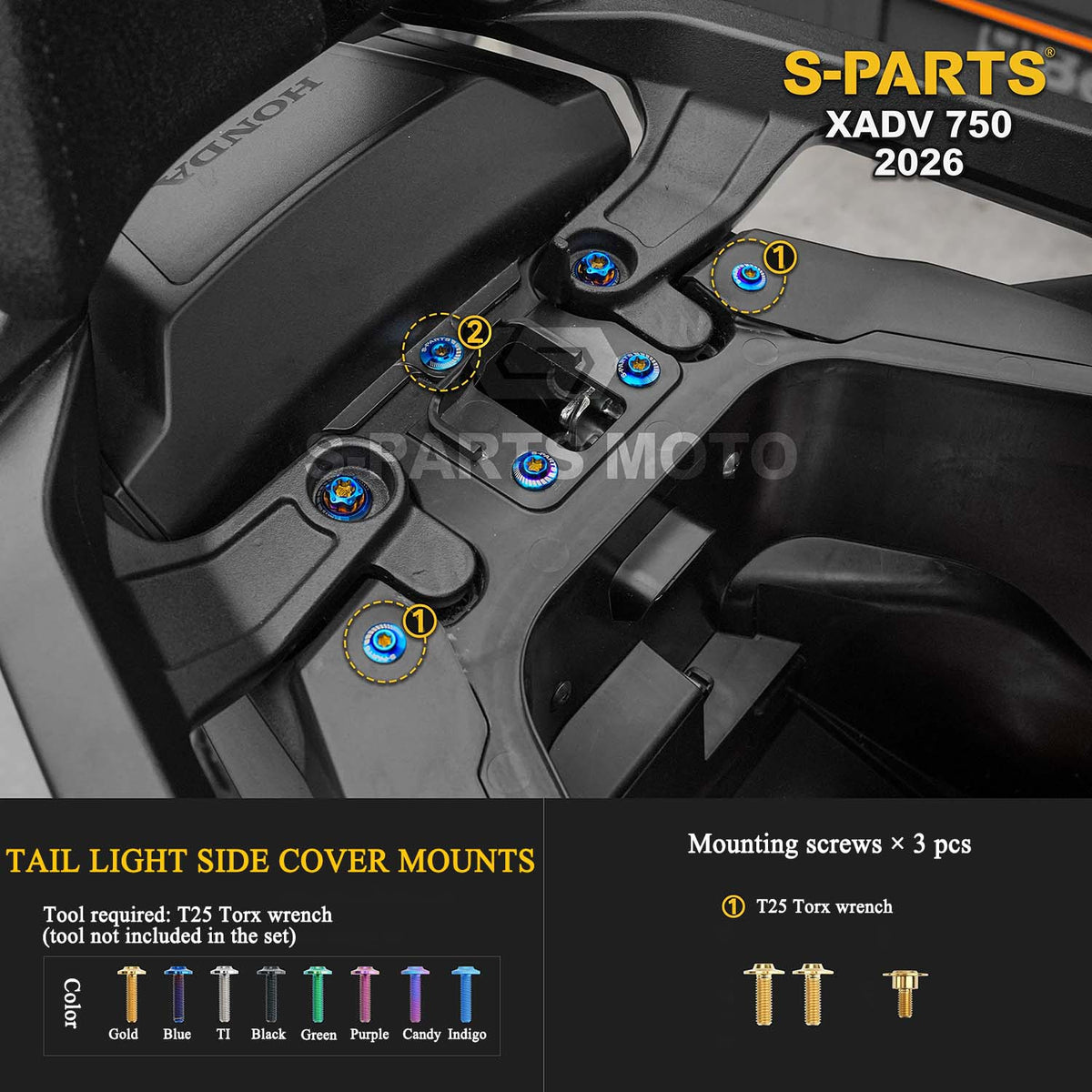

Tail Light & Side Cover Mounts
3
T25 Torx

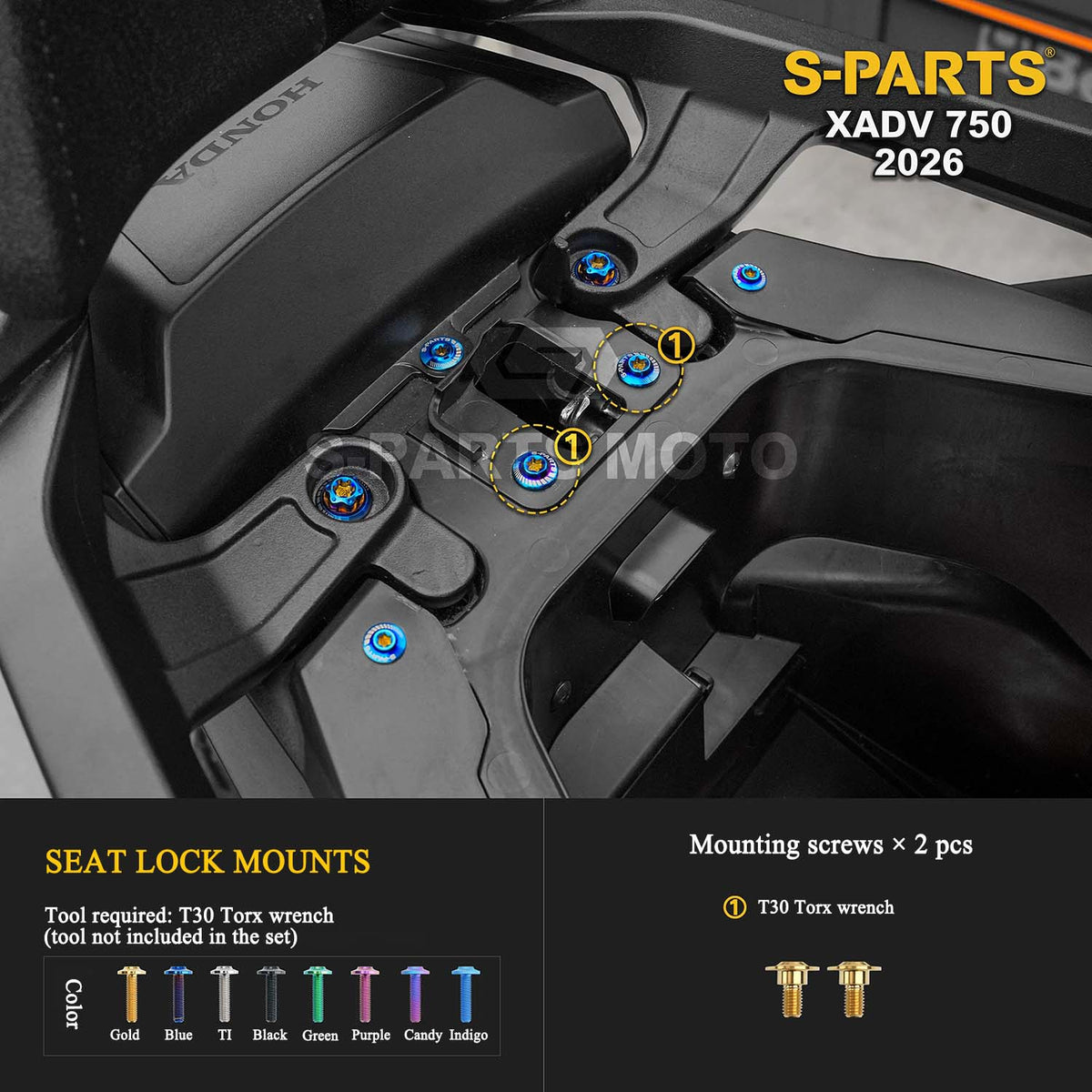

40
Seat Lock Mounts
2
T30 Torx

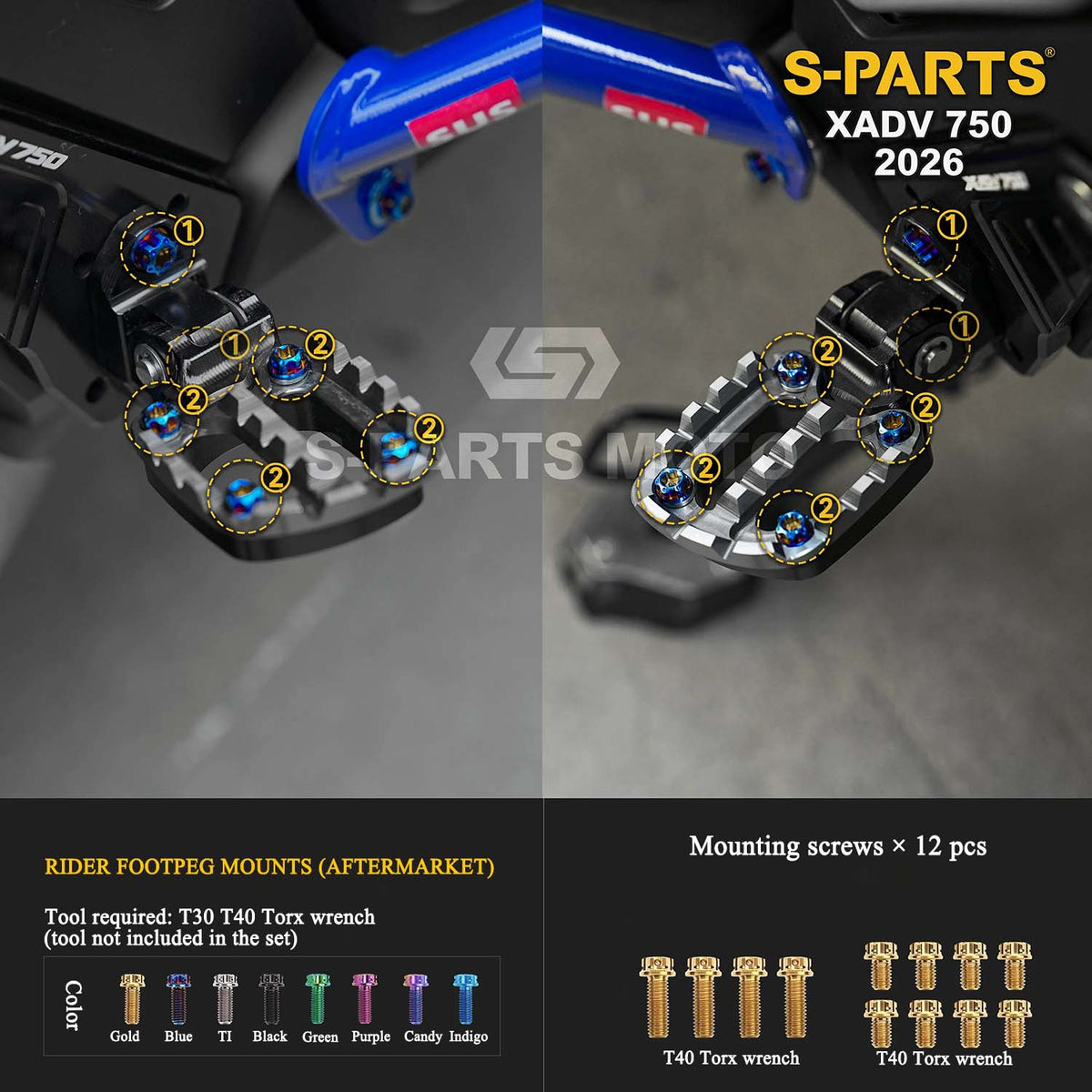

41
Rider Footpeg Mounts (Aftermarket)
12
T30 / T40 Torx
42

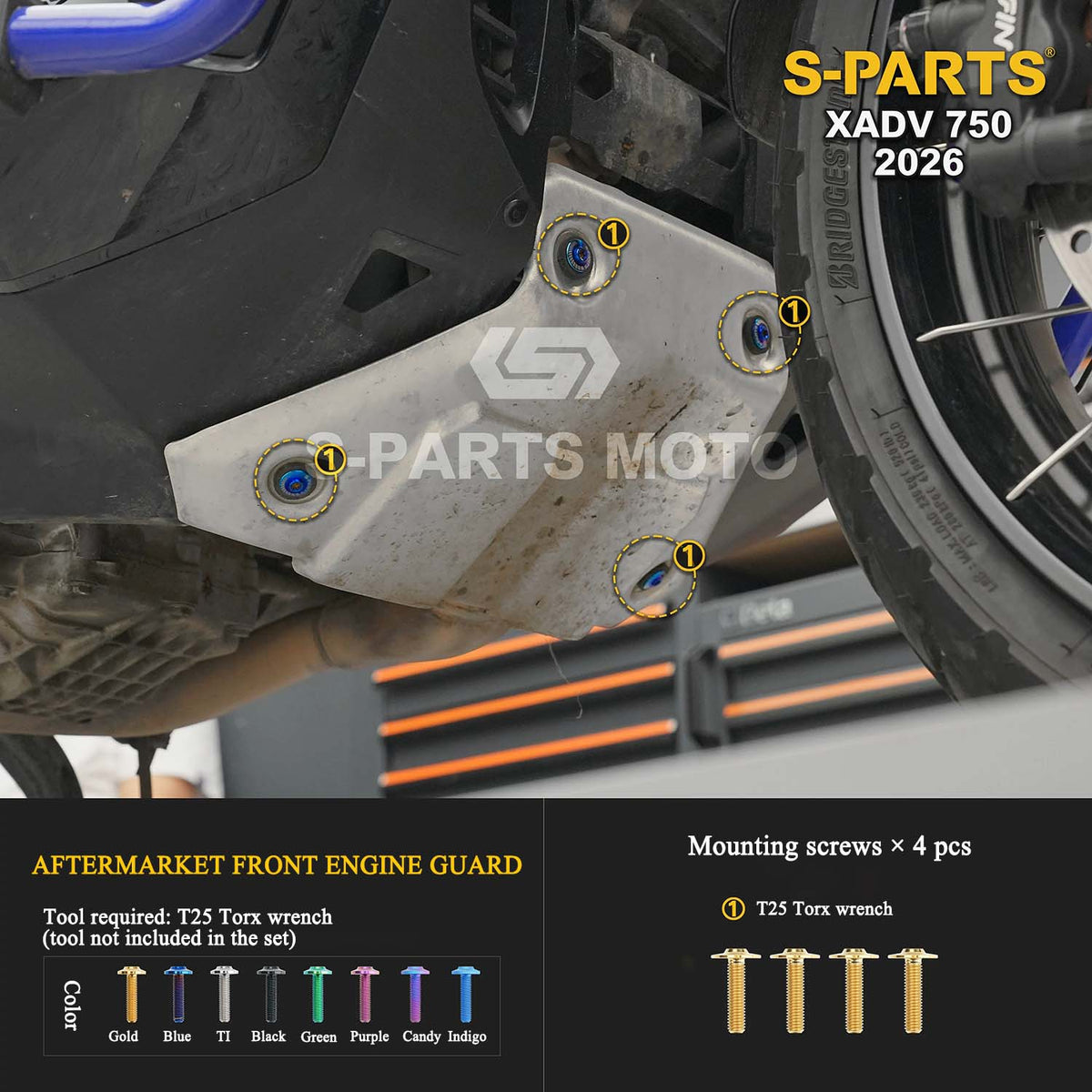

Aftermarket Front Engine Guard
4
T25 Torx
43

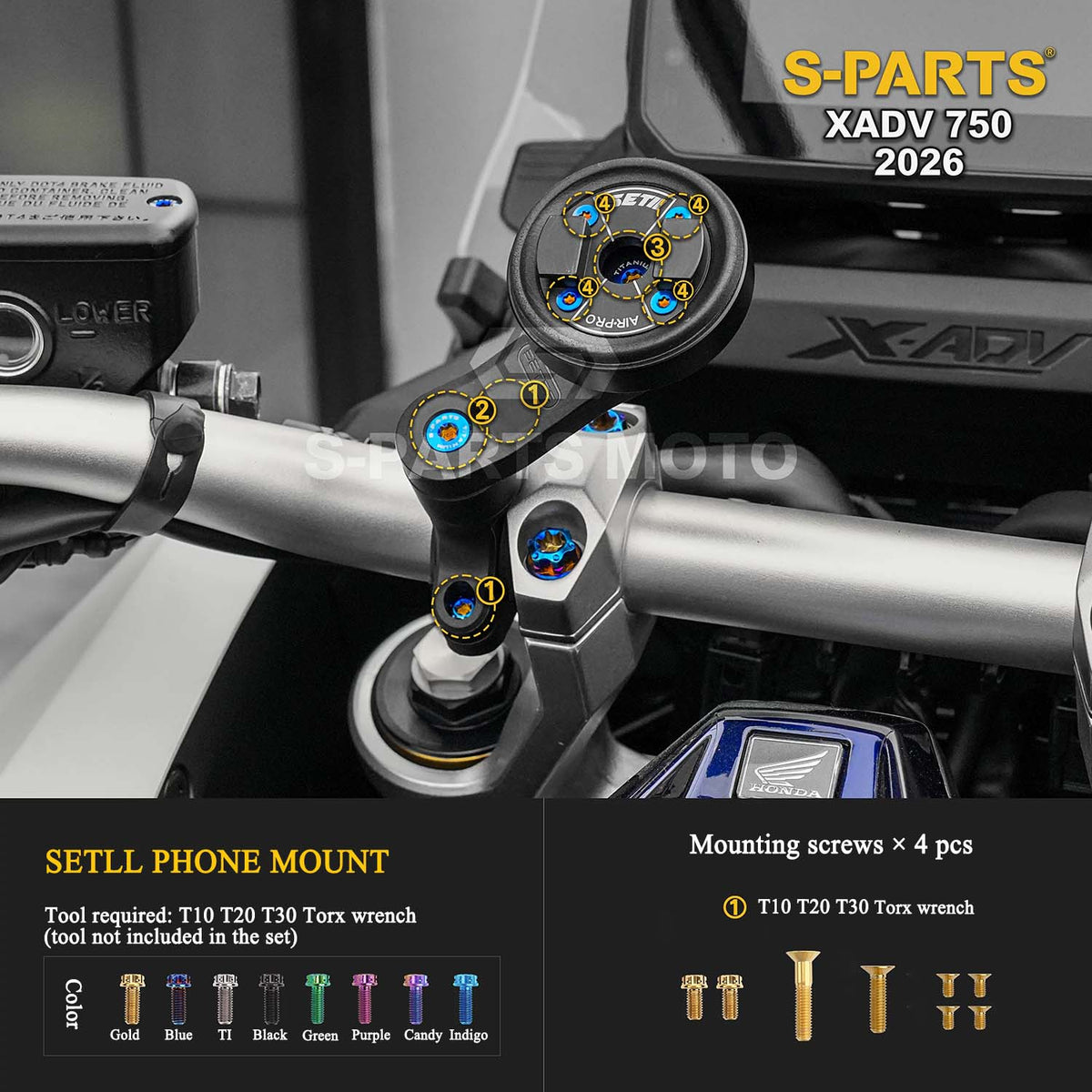

SETLL Phone Mount
8
T10 / T20 / T30 Torx

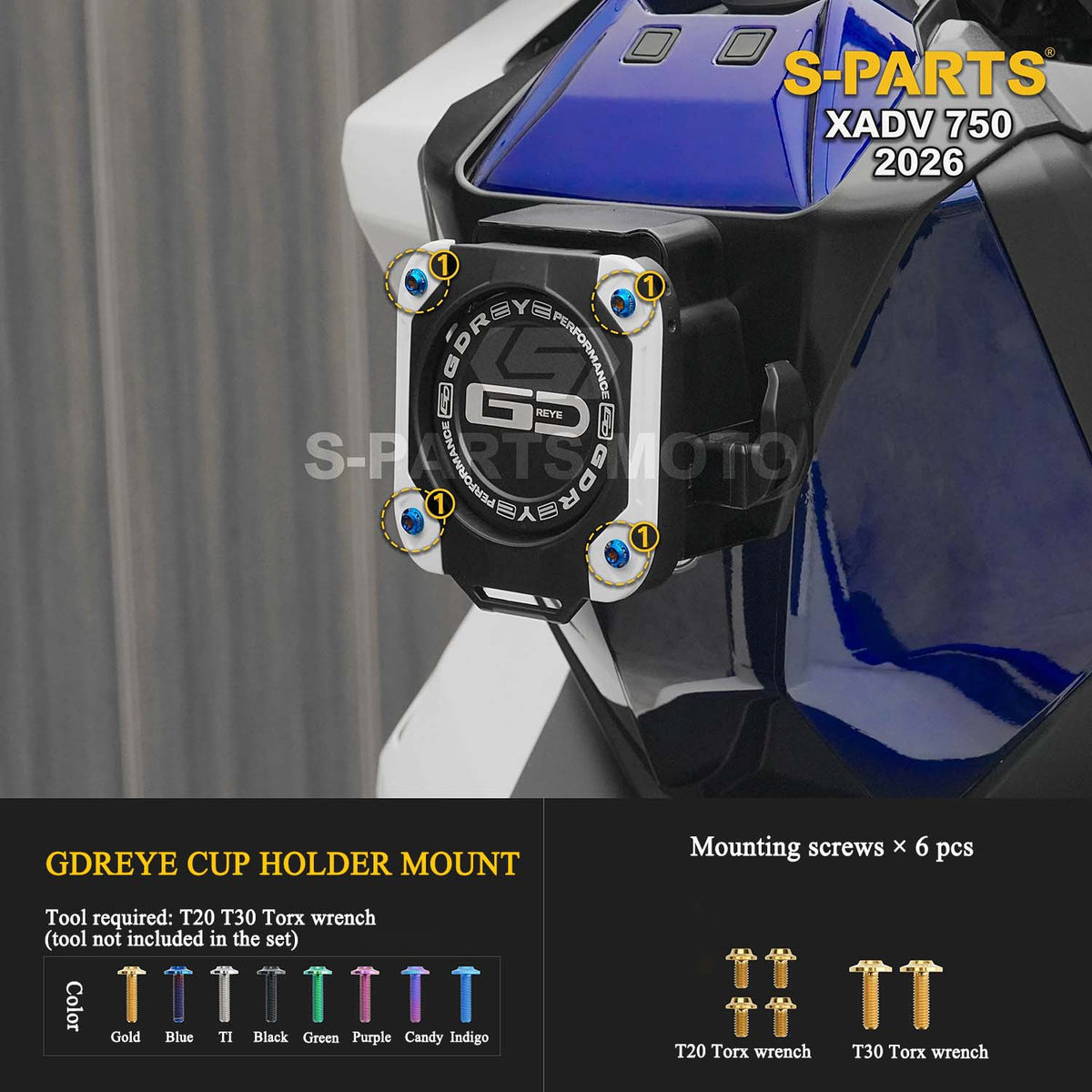

44
GDREYE Cup Holder Mount
6
T20 / T30 Torx

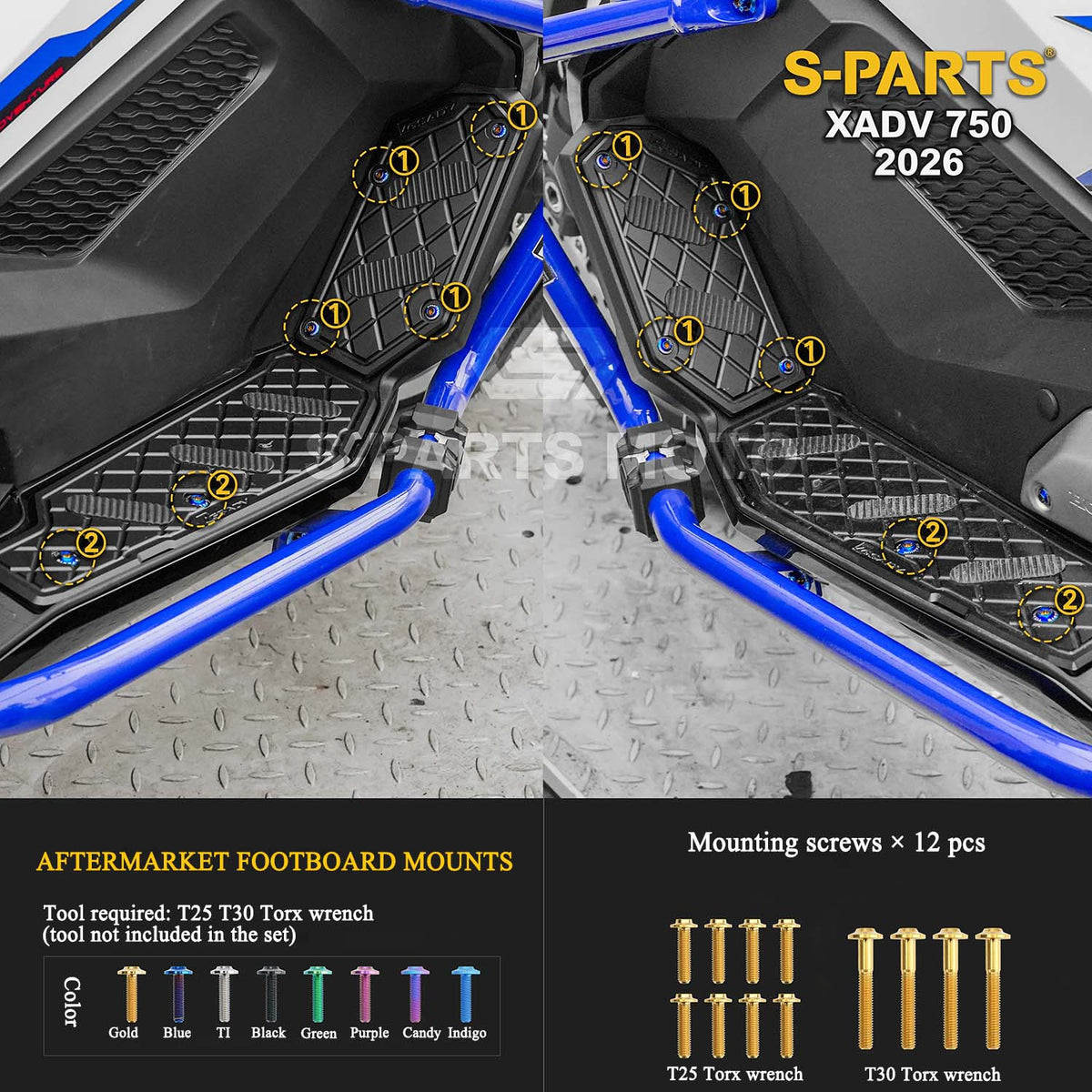

45
Aftermarket Footboard Mounts
12
T25 / T30 Torx
46
GSADV Crash Bar Mounts
12
T40 Torx
47

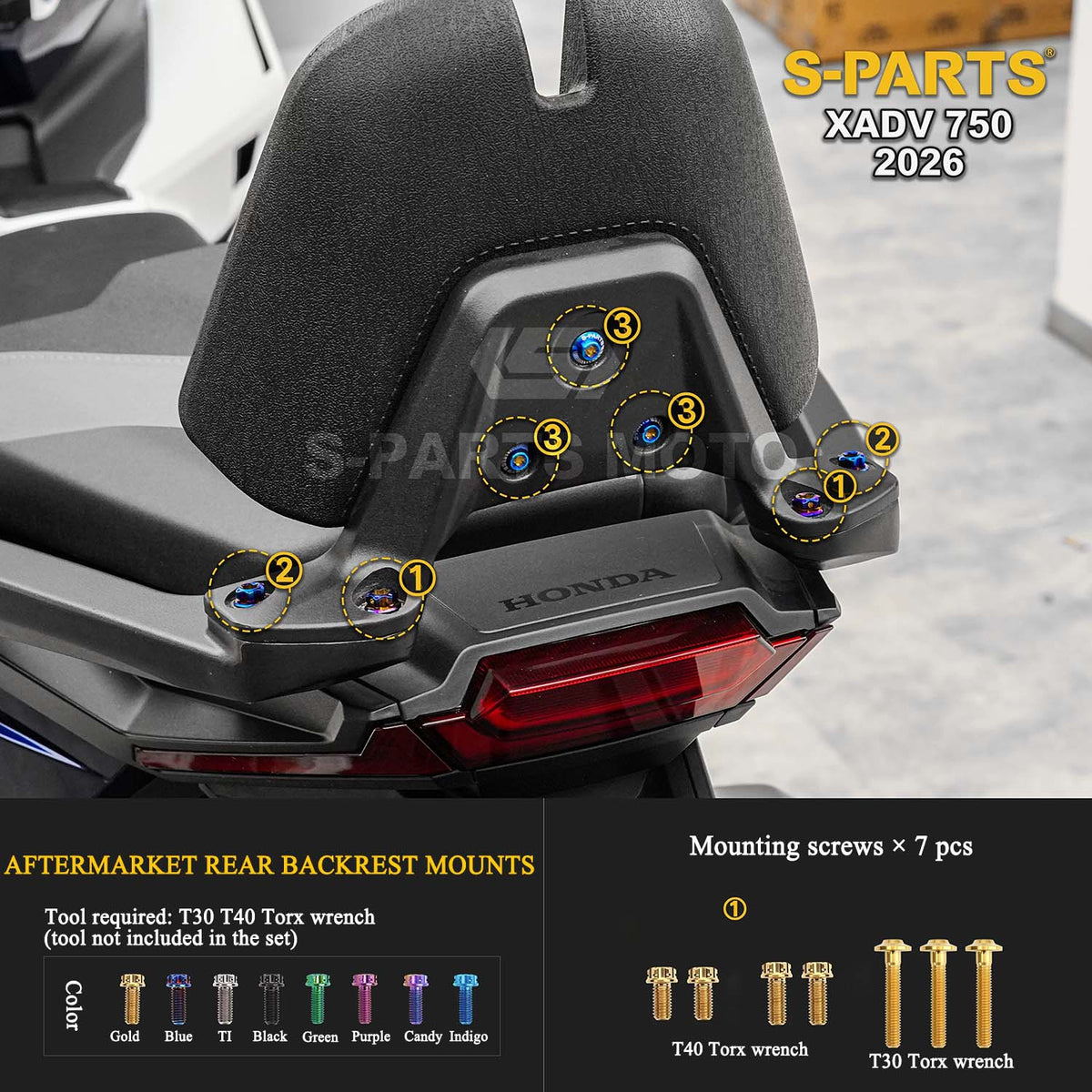

Aftermarket Rear Backrest Mounts
7
T30 / T40 Torx
48

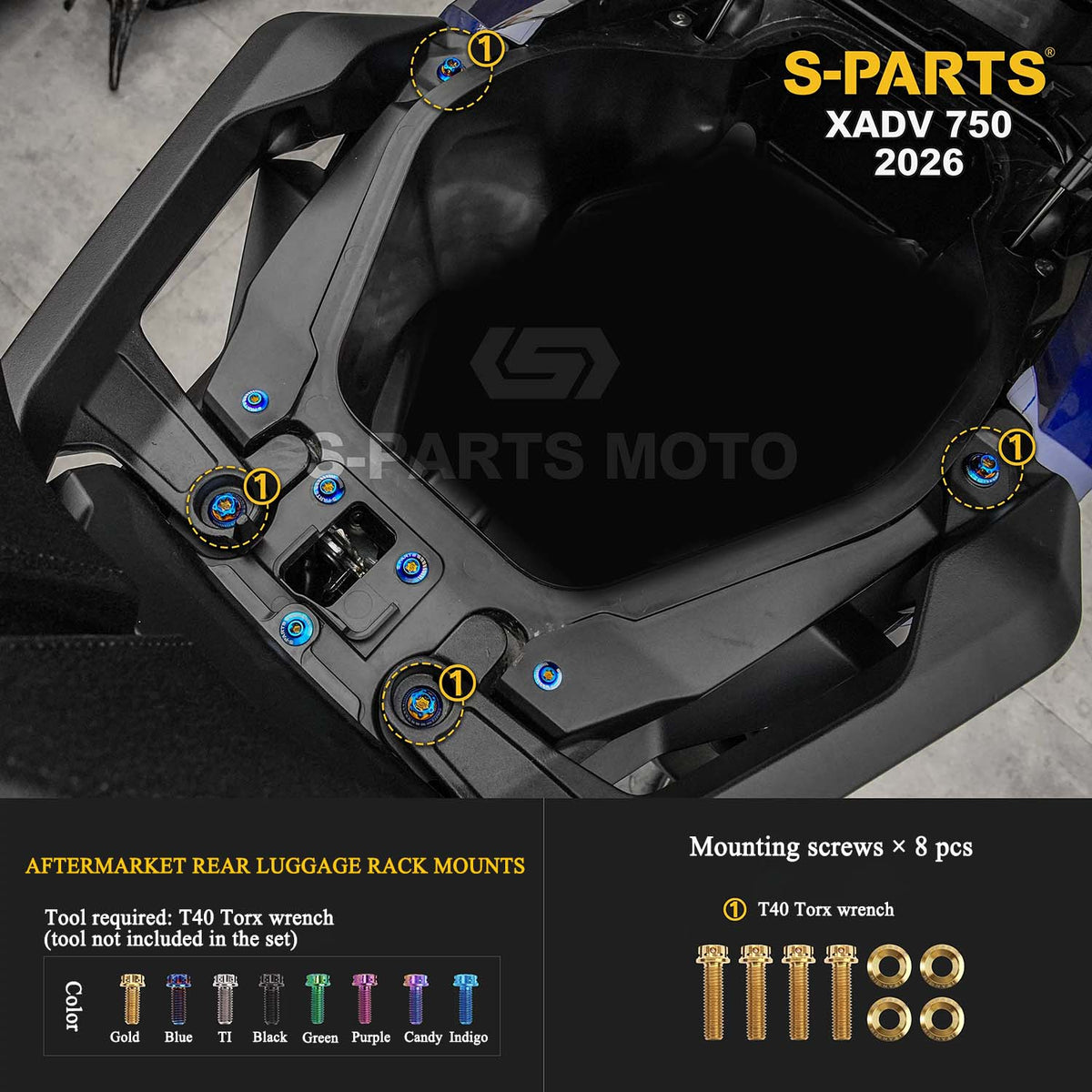

Aftermarket Rear Luggage Rack Mounts
8
T40 Torx
49
All Existing OEM Locations – Honda XADV 750 (2026)
201
Varies by location

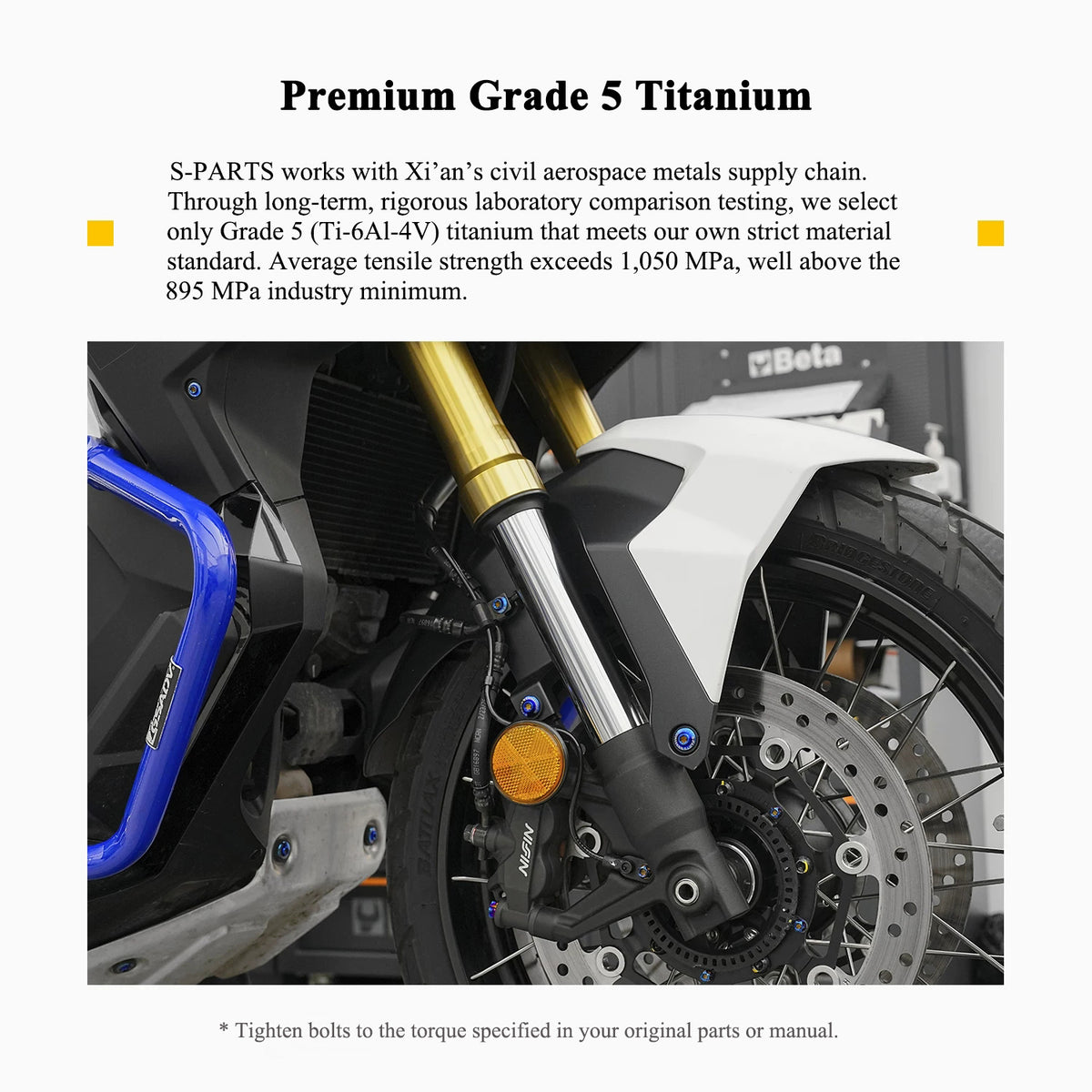

Material and Manufacturing
S-PARTS sources titanium through Xi'an's civil aerospace metals supply chain and selects materials through ongoing laboratory comparison and testing against its own standards.

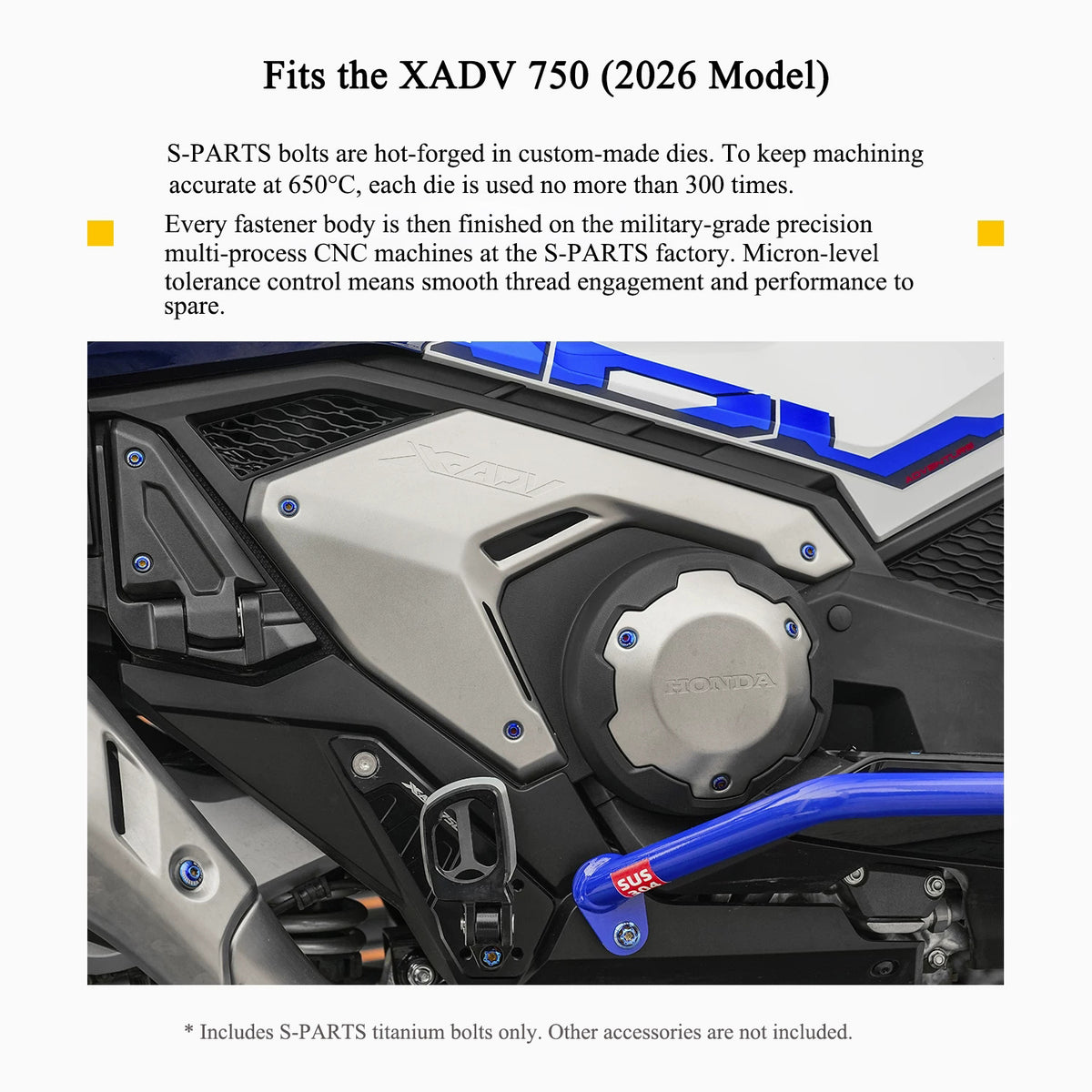

Bolts are formed using custom forging dies in a 650°C hot-forging process, with each die used no more than 300 times to help maintain precision. Fastener bodies are then machined on military-grade precision multi-process CNC equipment with micron-level tolerance control for precise thread engagement.

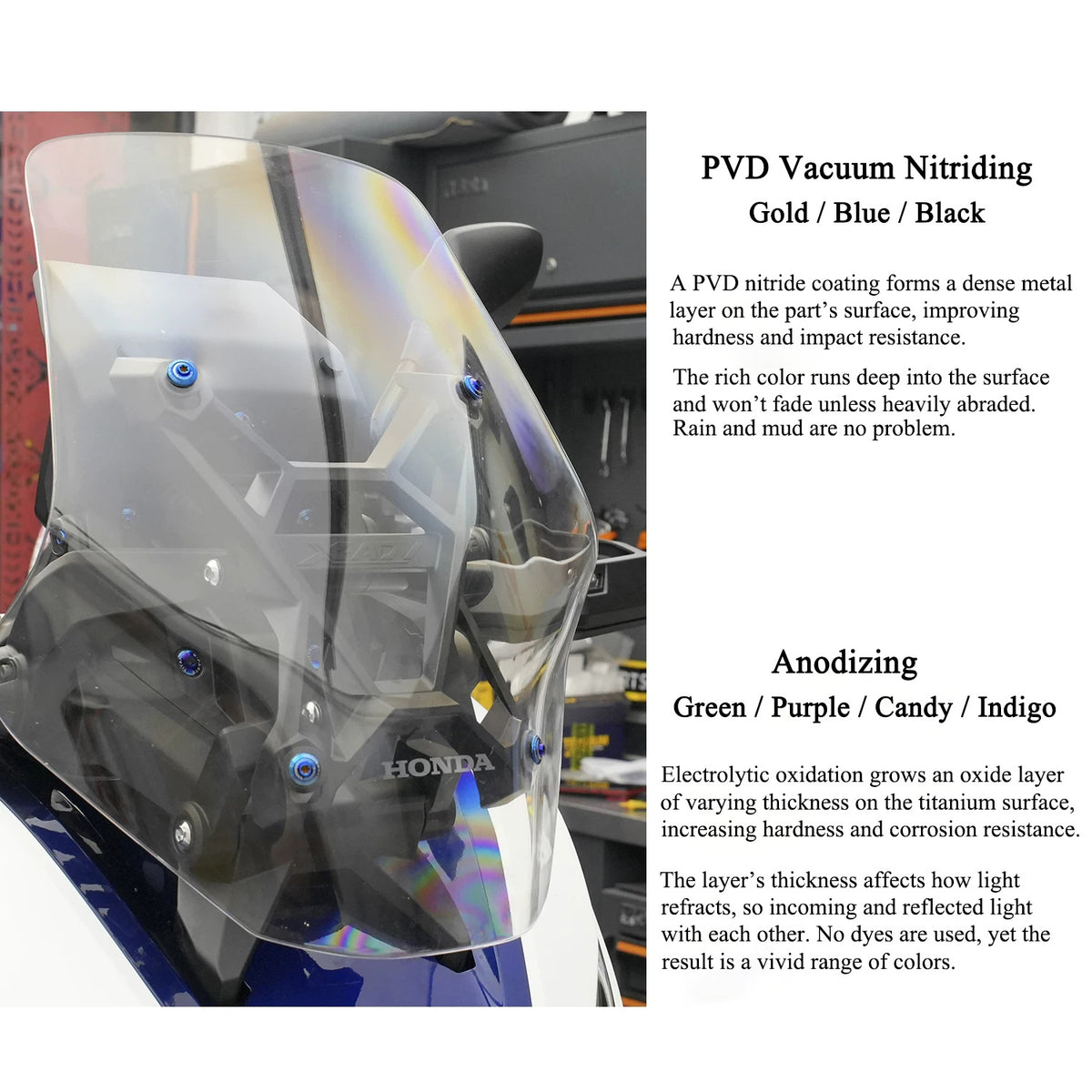

Surface Finishes
PVD Vacuum Nitriding – Gold, Blue and Black: A dense metal nitride coating improves surface hardness and impact resistance. The color penetrates the surface layer, resists fading under normal use and stands up to rain and mud. Severe abrasion may affect the coating.
Anodizing – Green, Purple, Candy and Indigo: An oxide layer on the titanium surface improves surface hardness and corrosion resistance. Color comes from light interference within the oxide layer, with no dyes used.
Candy Finish Notice
Due to the coloring process, Candy finishes have a flowing appearance with naturally variable color patterns. White lines may appear around the threads of some bolts as a normal result of the finishing process and do not affect use.
