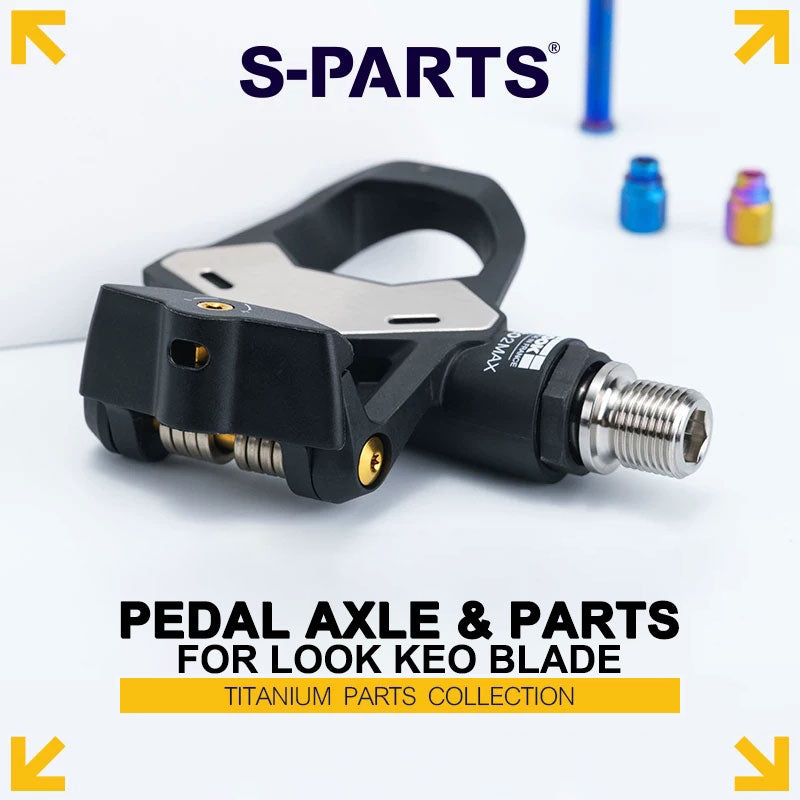

S-PARTS titanium pedal components for compatible LOOK KEO BLADE pedals, with individual options for the pedal spindle, spring pins, end caps, and pedal-specific tools. Select the variant you need for your pedal setup.
| Variant |
Item |
Weight |
Tool |
Available Colors |
| 1 |

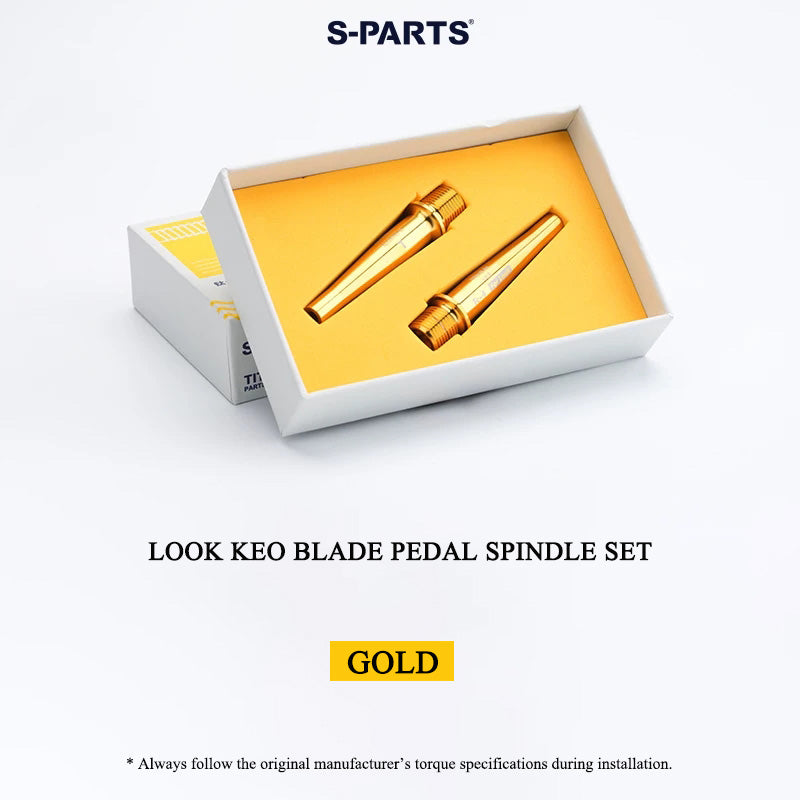

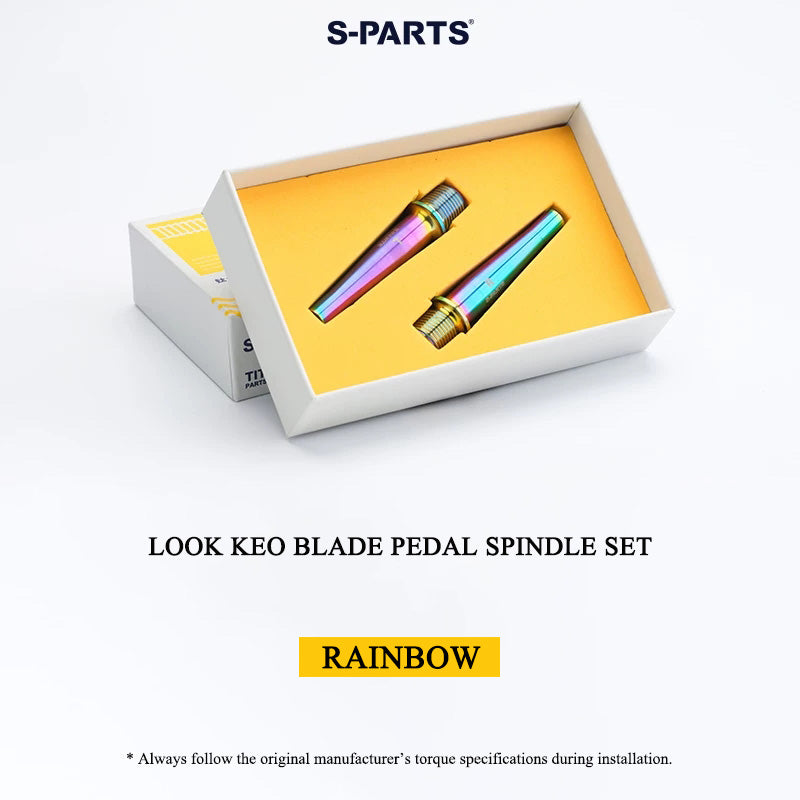

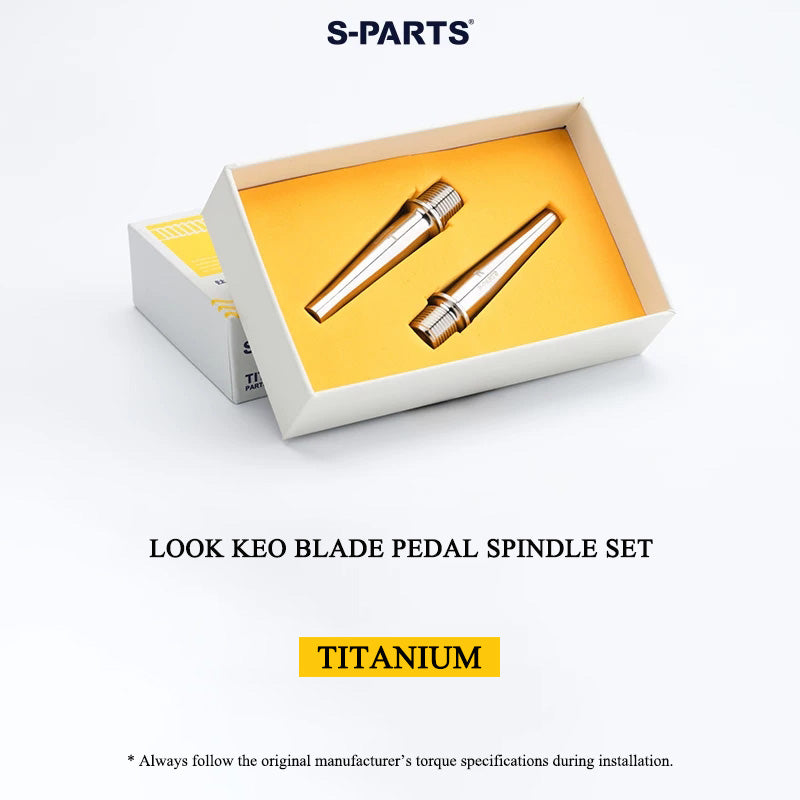

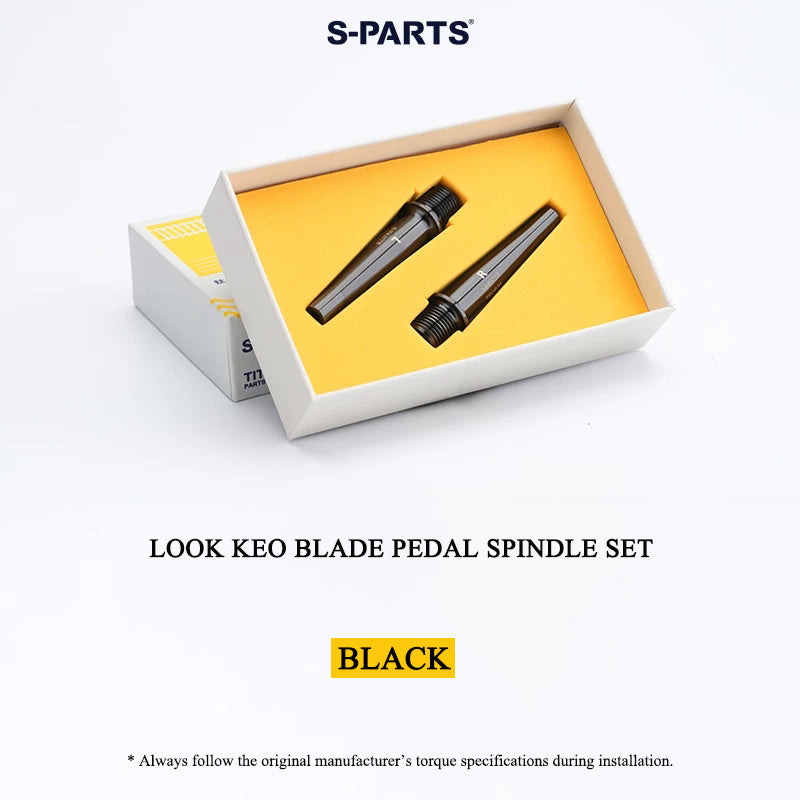

KEO BLADE Pedal Spindle Set |
52.9 g/set |
8 mm hex key* |
Gold, Candy, Natural Titanium, Black, Blue |
| 2 |

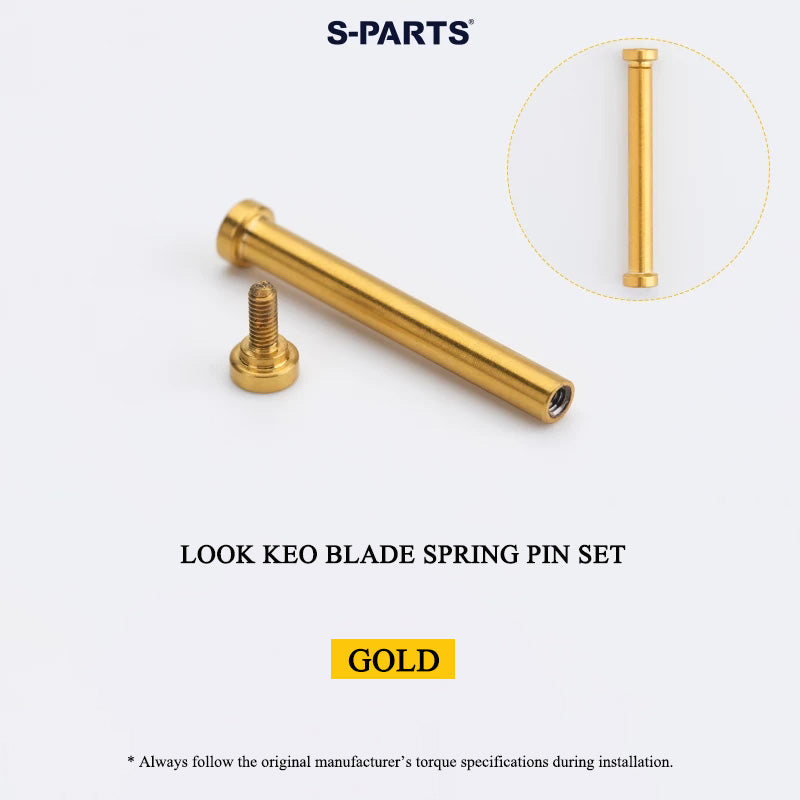

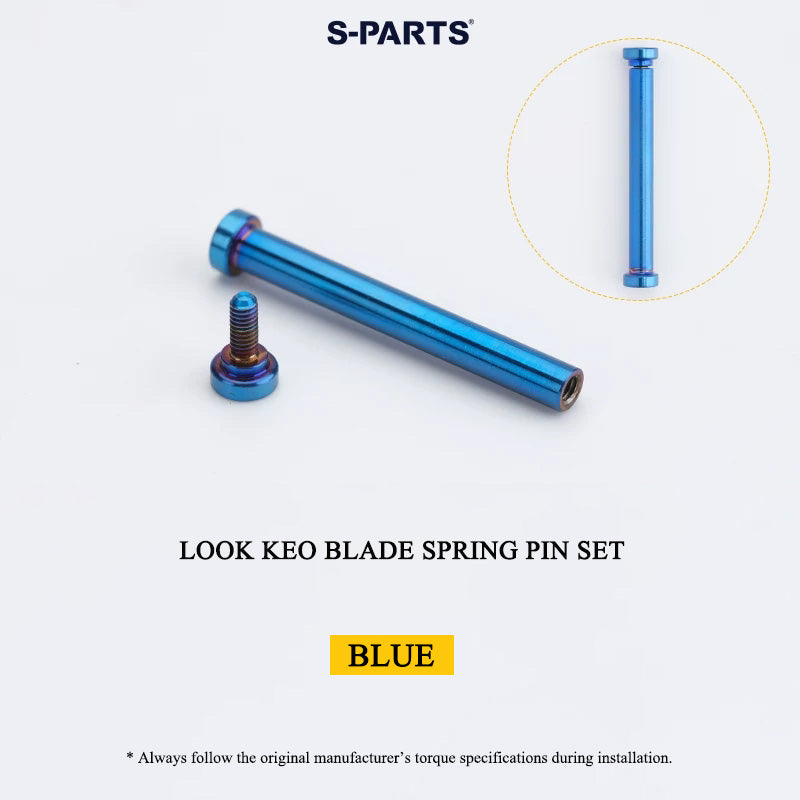

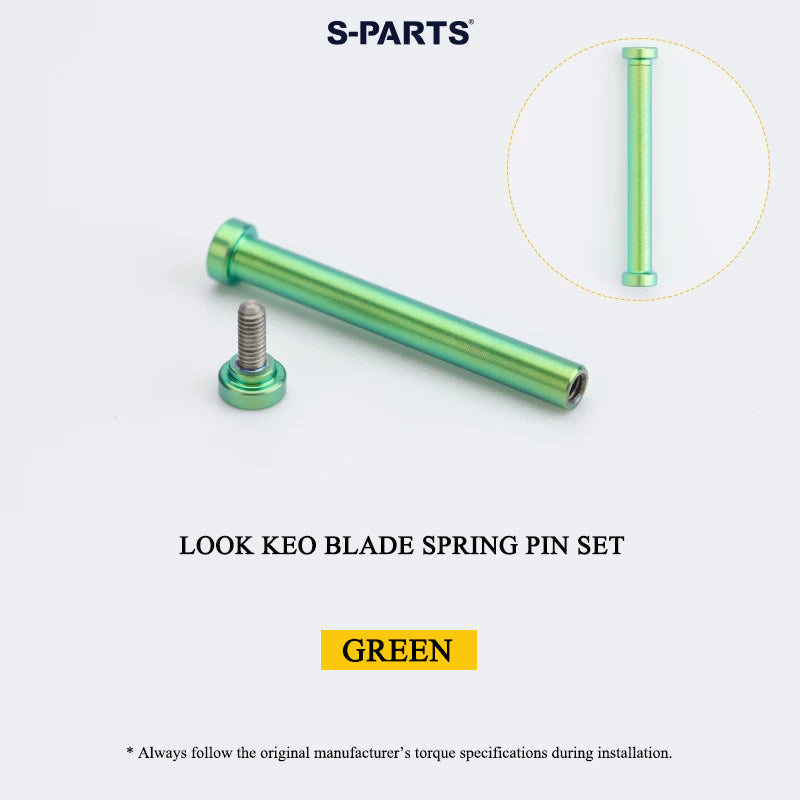

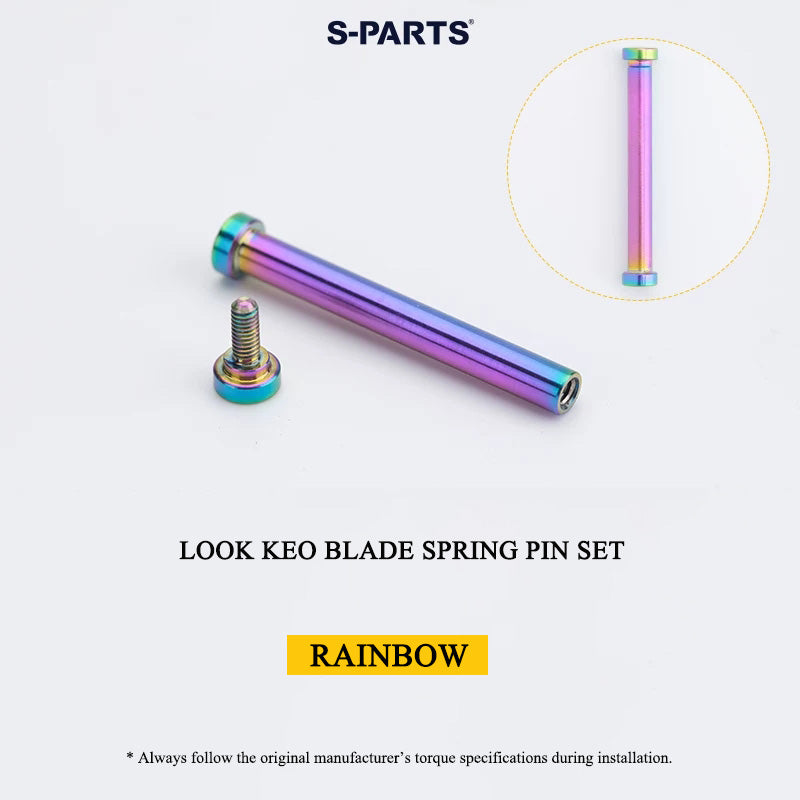

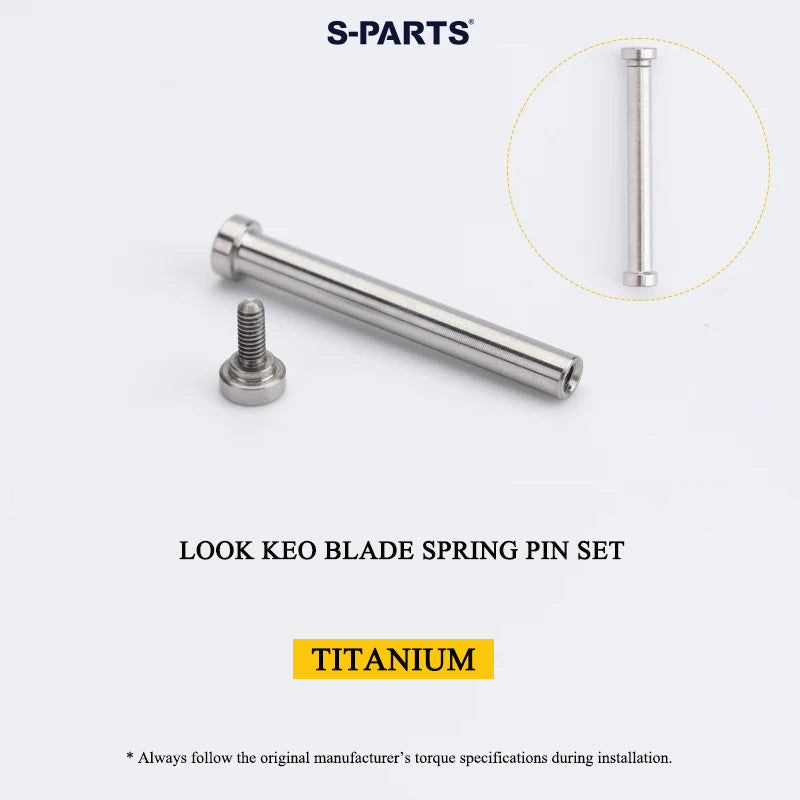

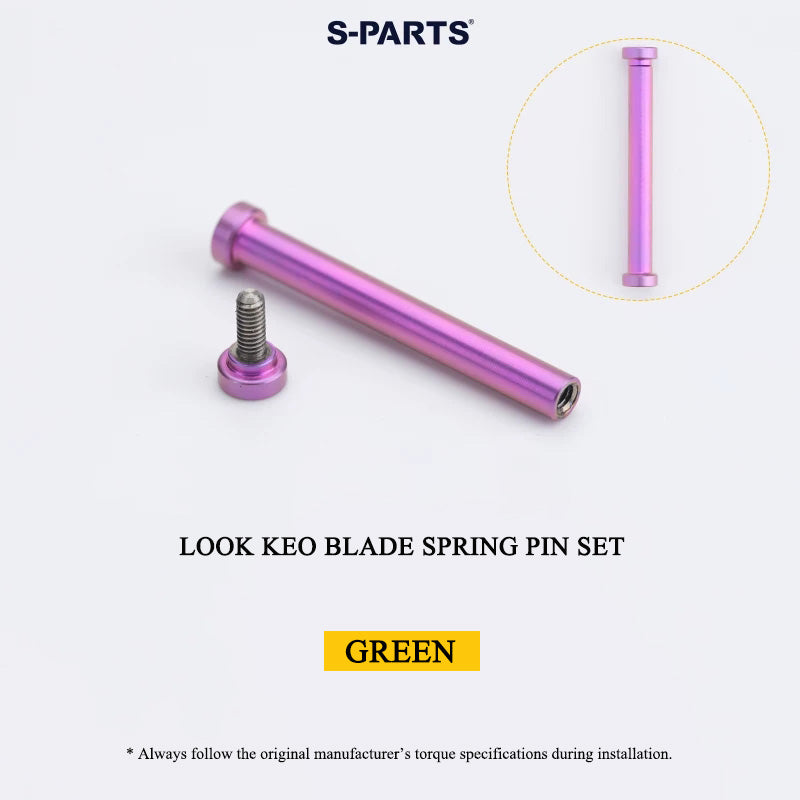

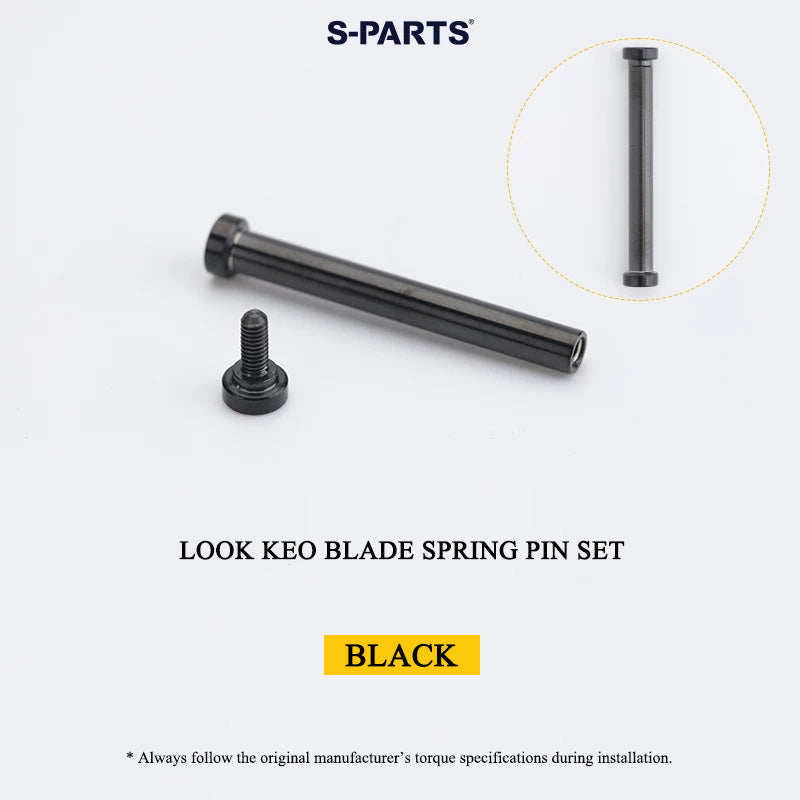

KEO BLADE Spring Pin Set |
2.2 g/set |
T8 Torx key |
Gold, Candy, Natural Titanium, Black, Blue, Green, Purple, Walnut |
| 3 |

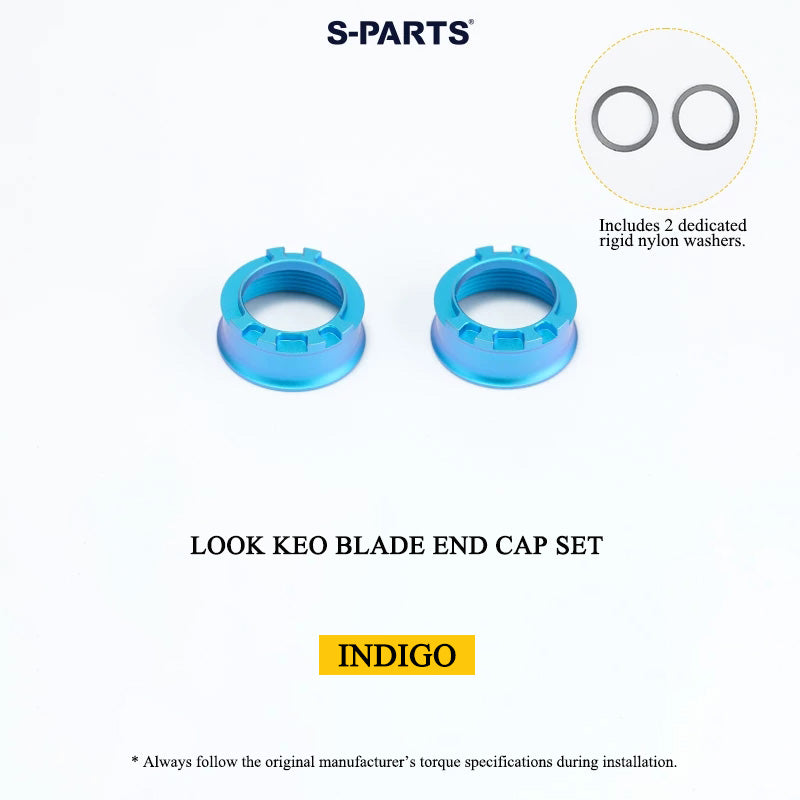

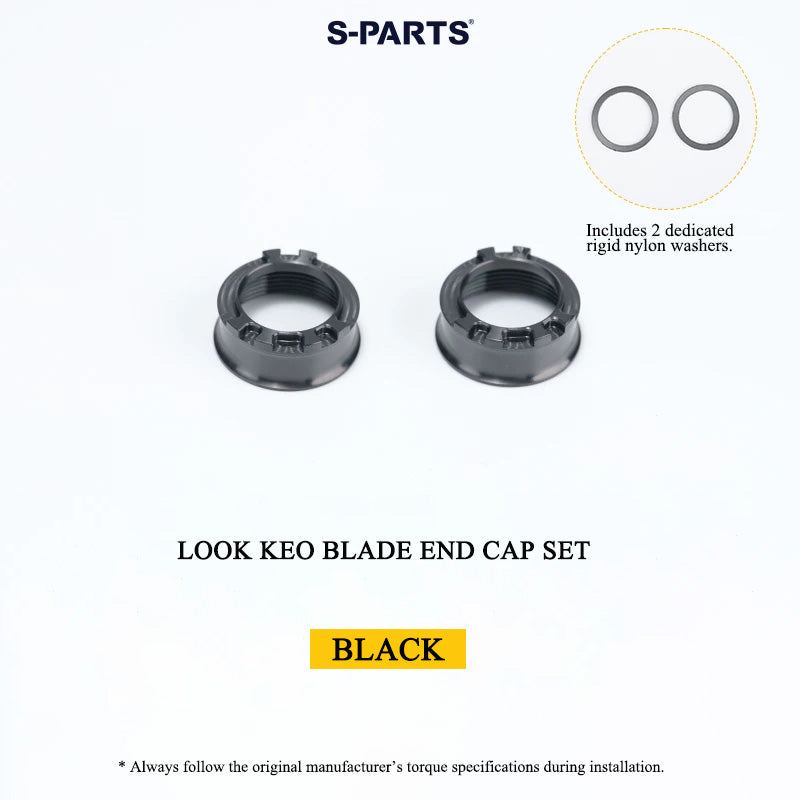

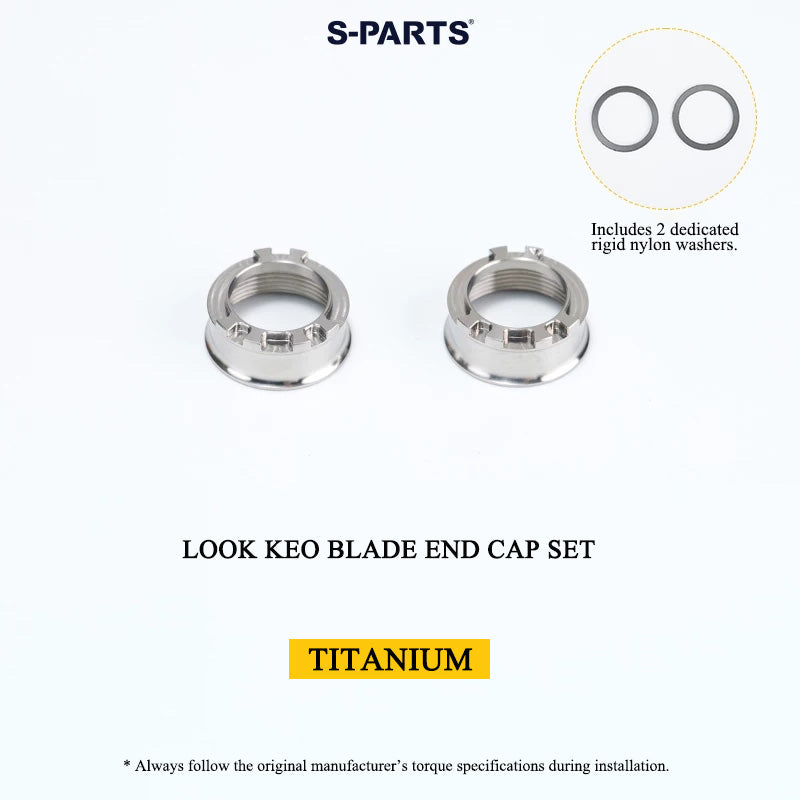

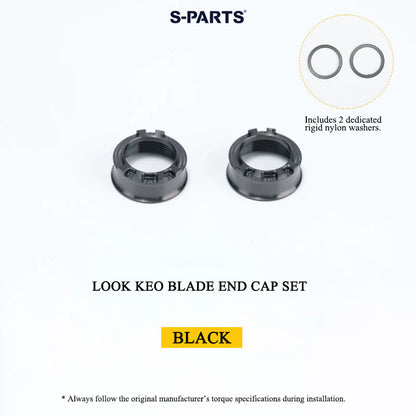

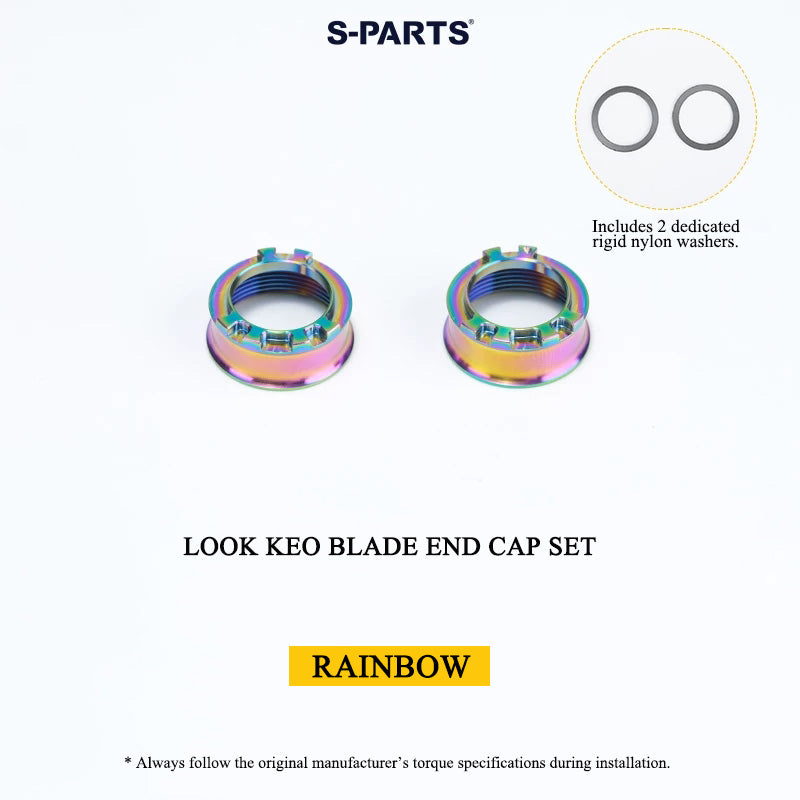

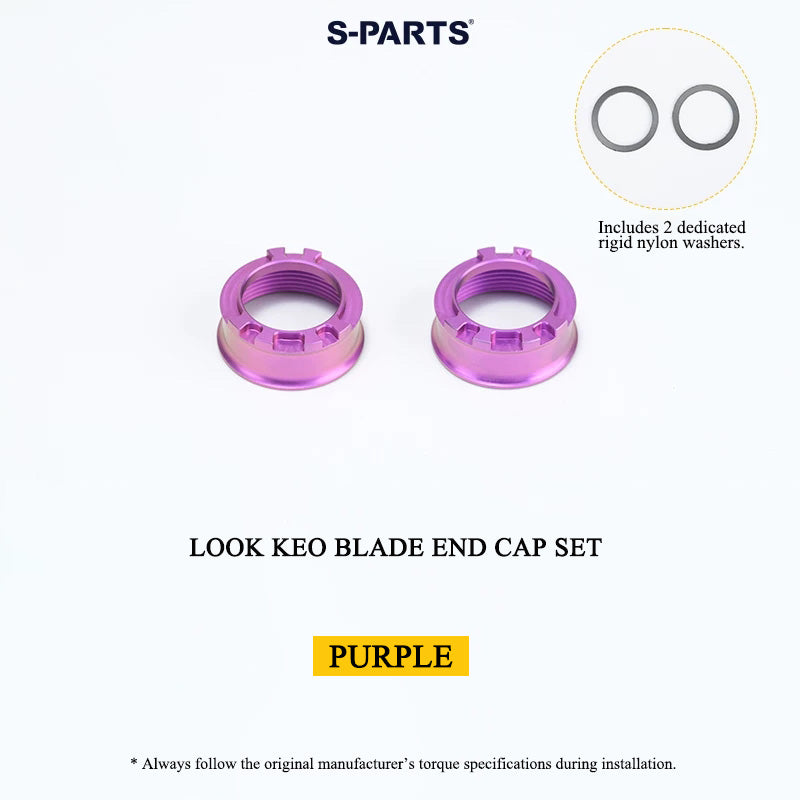

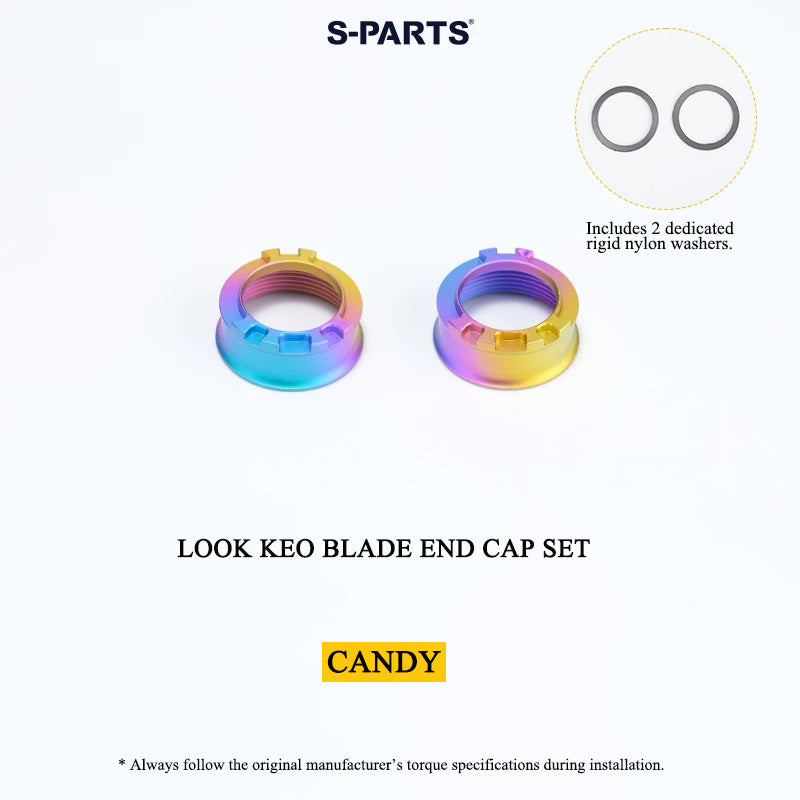

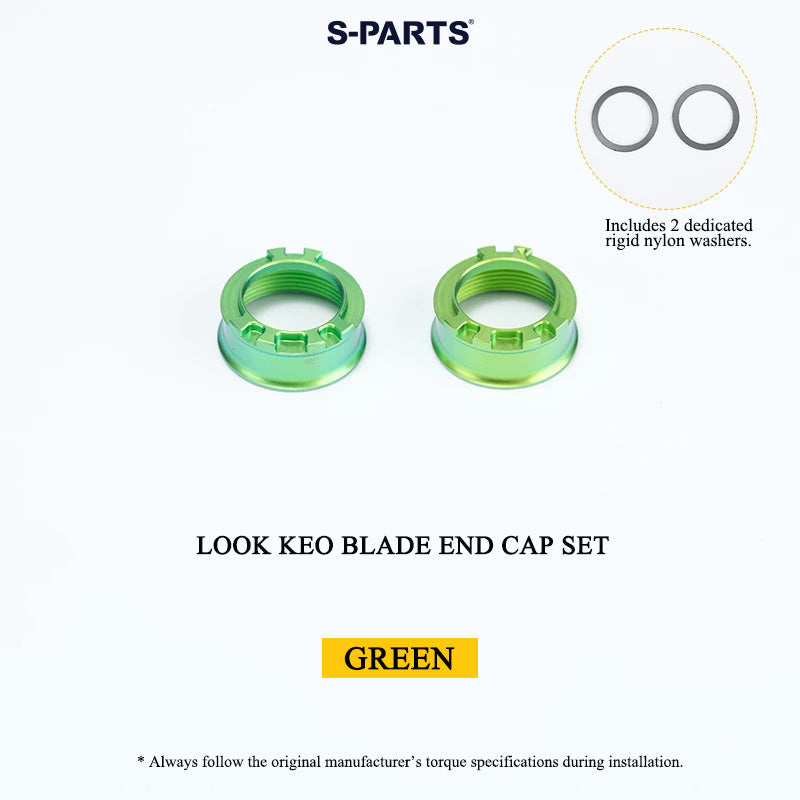

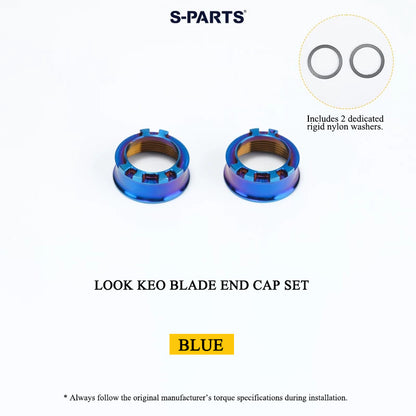

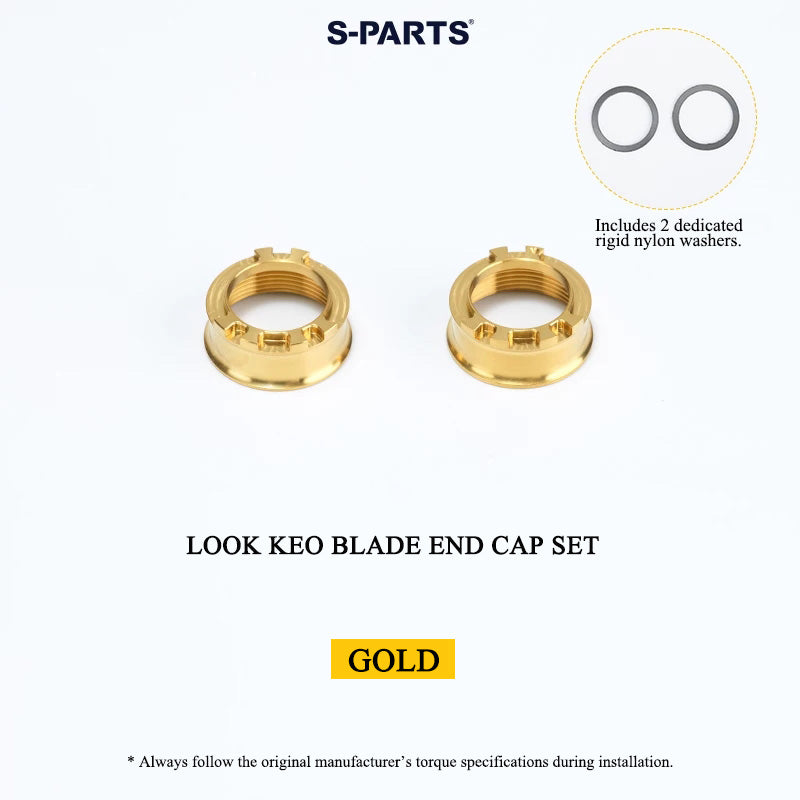

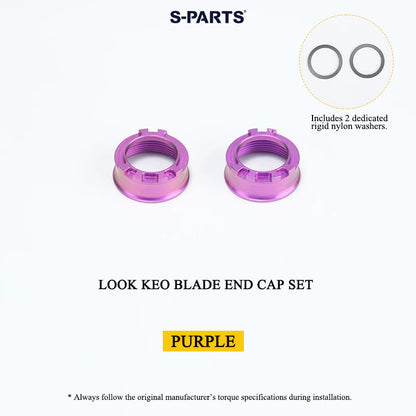

LOOK KEO BLADE End Cap Set |
6.6 g/set |
— |
Gold, Candy, Natural Titanium, Black, Blue, Green, Purple, Indigo |
| 4 |

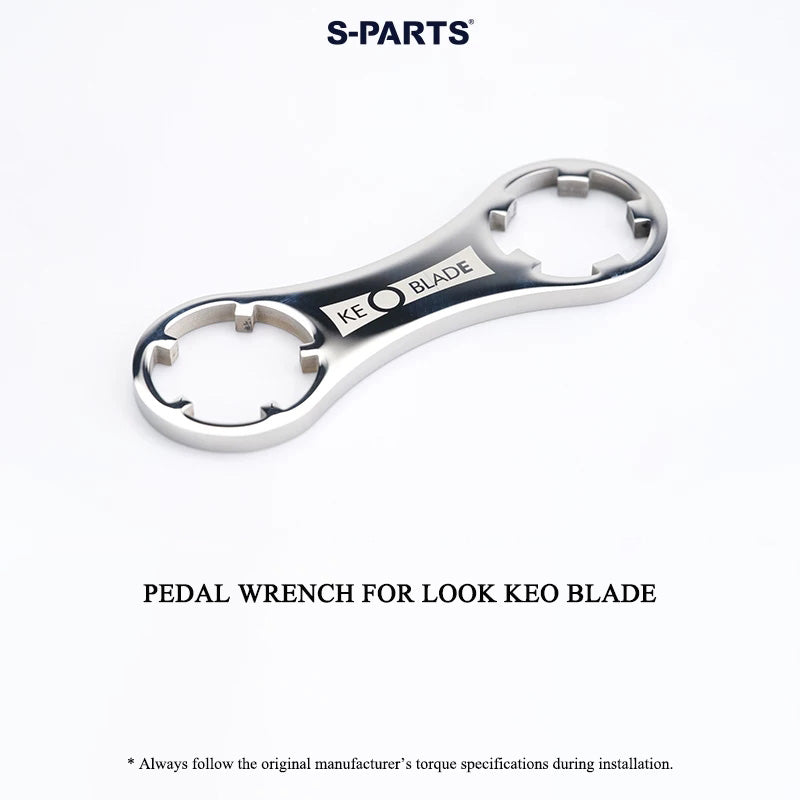

KEO BLADE Pedal Wrench |
34.9 g/pc |
— |
— |
| 5 |
LOOK Pedal Bearing Removal Press |
32.4 g/pc |
— |
— |
| 6 |
LOOK Pedal Axle Installation Press |
20.9 g/pc |
— |
— |
LOOK KEO BLADE End Cap Size: M22 thread, 10 mm height, 25 mm diameter*
Titanium Construction
Variants 1–3 are made from Grade 5 Titanium (Ti-6Al-4V). Titanium construction provides a lightweight option for riders looking to reduce component weight while maintaining the strength expected from titanium hardware.
The available finishes add color options to the pedal components, making it possible to mix and match the hardware with colored titanium screws for a more personalized setup while maintaining a coordinated look with the original LOOK pedal body.
Finish & Color Notes
Selected colored finishes are produced using a vacuum nitriding process. The finish options include Gold, Candy, Black, Blue, Green, Purple, Walnut, and Indigo, depending on the variant.
The colored finish is intended to provide a distinctive appearance while helping the components resist fading and corrosion from use in muddy or wet riding conditions.

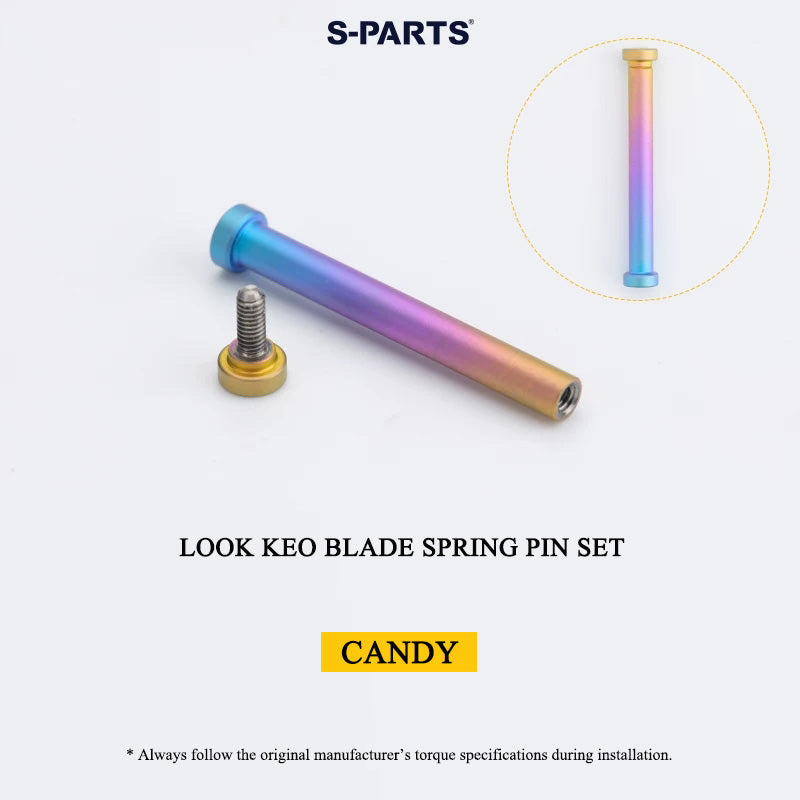

Candy Color: Due to the coloring process, Candy has a fluid, varied appearance, so the overall color pattern is random and may vary from piece to piece.
White Lines on Threads: Some threaded areas may show white lines caused by the coloring process. This is a normal characteristic of the finish and does not affect normal use.
* The specifications marked with an asterisk should be confirmed against the final product drawing or supplier specification before publication.
