Grade 5 Titanium (Ti-6Al-4V) pedal axle, spring pins, and tension adjustment hardware for LOOK KEO 2 MAX pedals, available in multiple finishes. Variants 1–3 are titanium components; Variants 4–6 are dedicated pedal service tools.
Variants & Specifications
| Variant |
Component |
Weight |
Tool |
Available Colors |
| 1 |

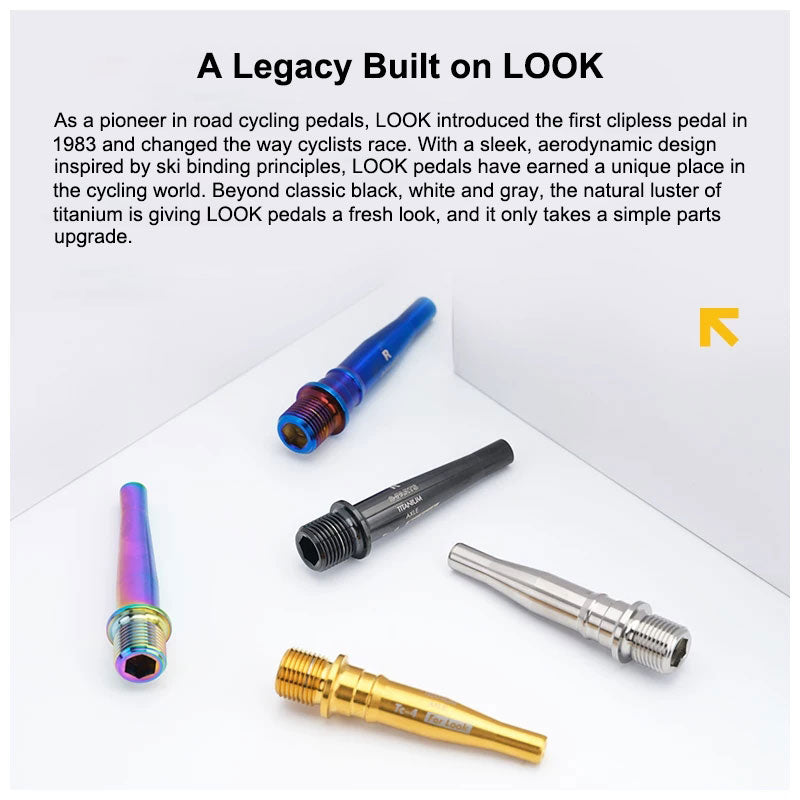

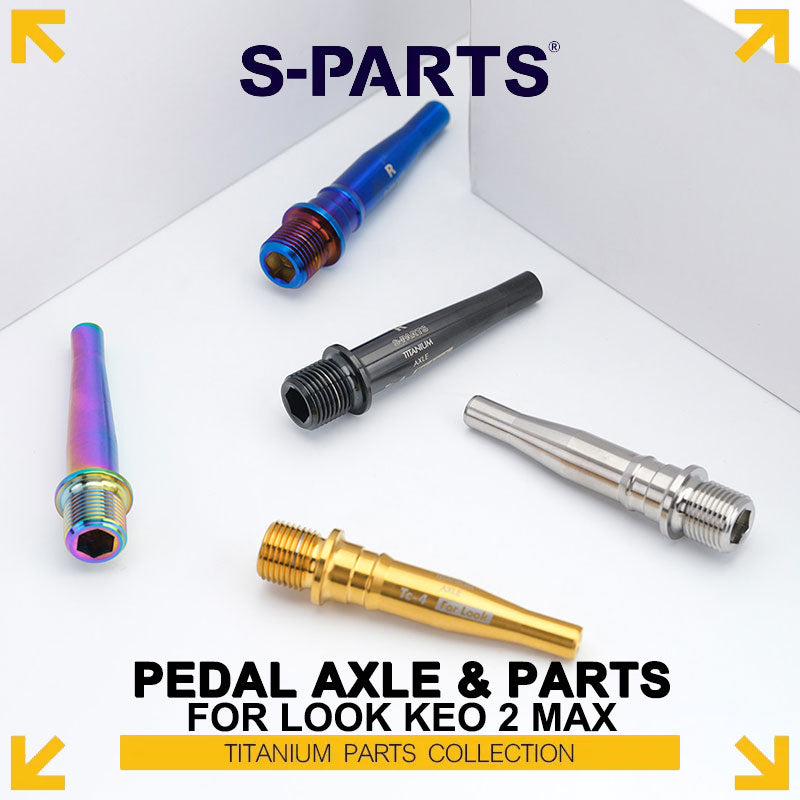

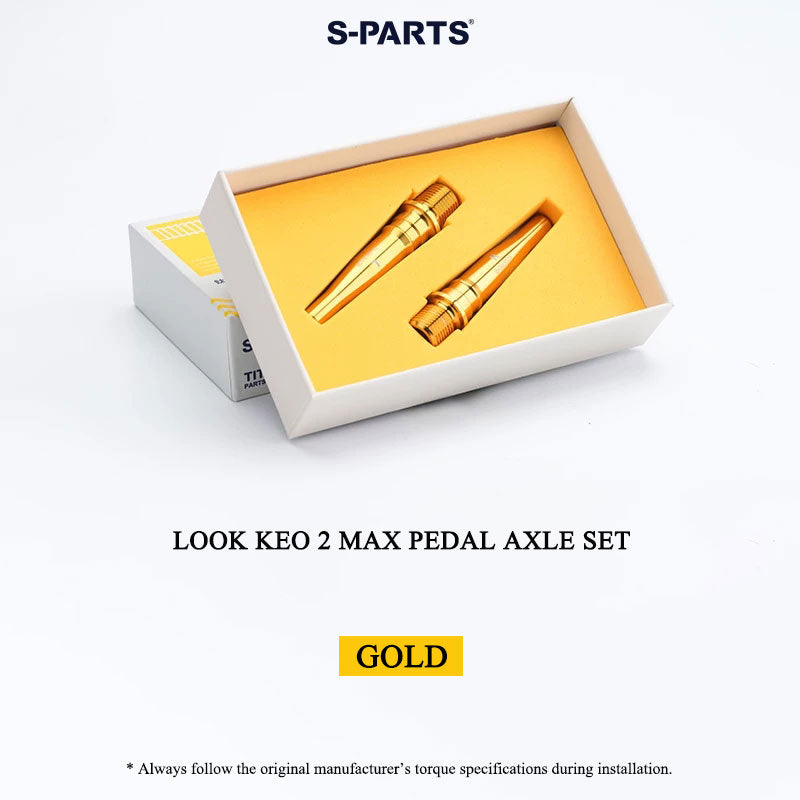

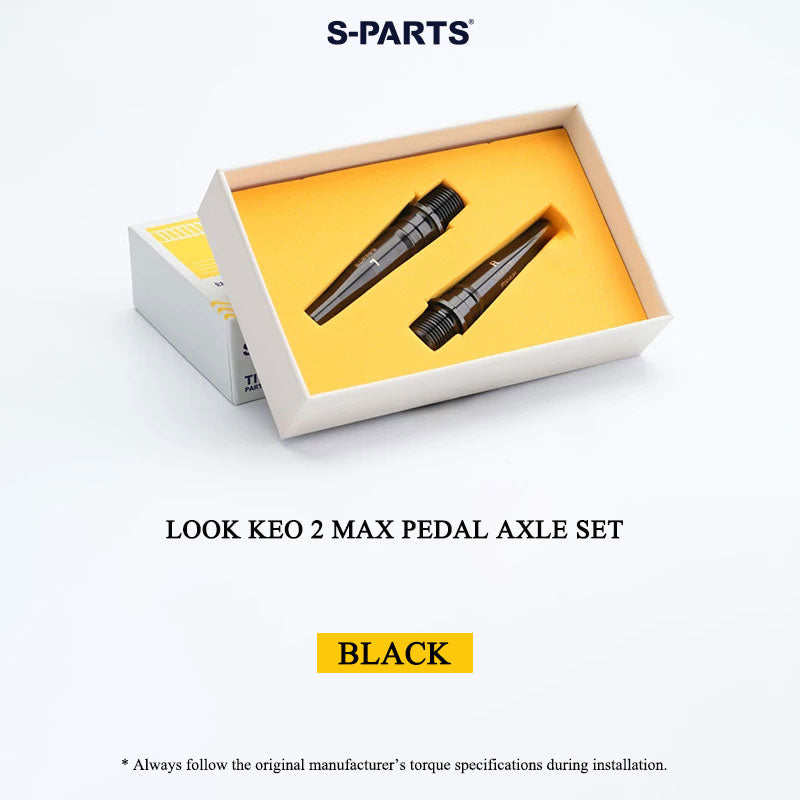

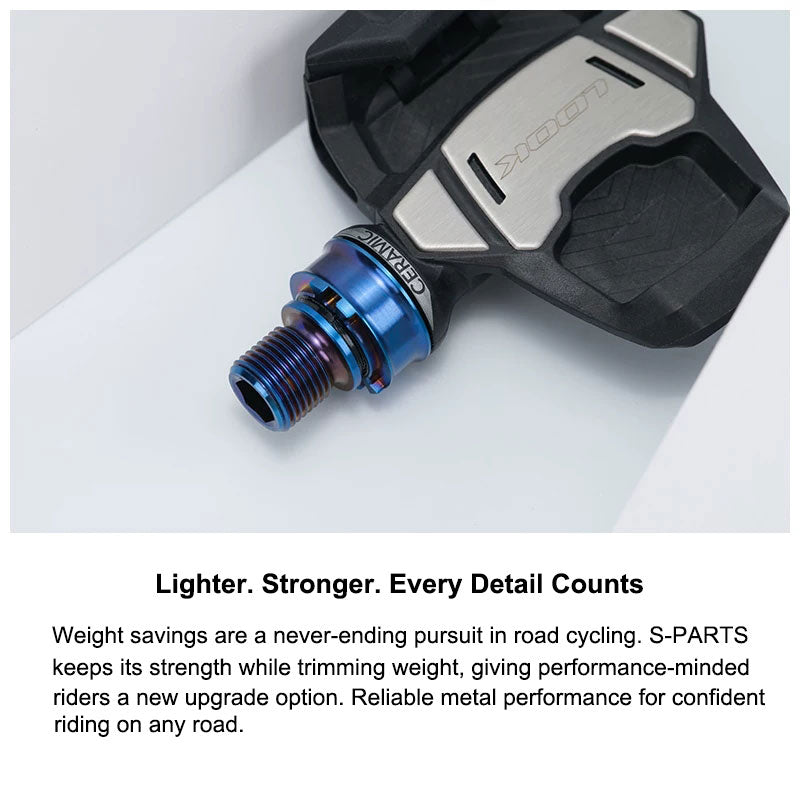

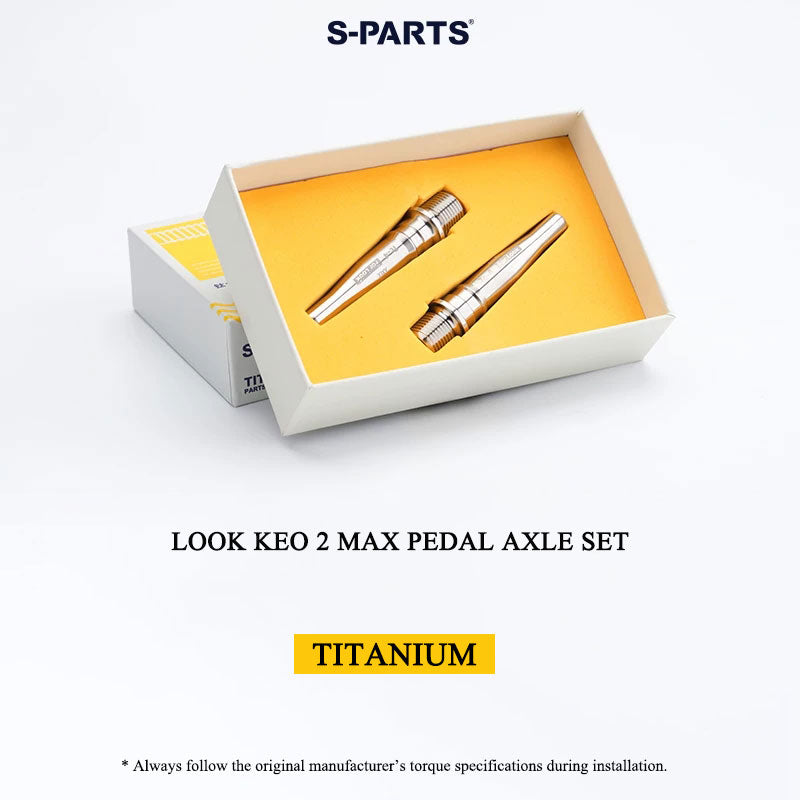

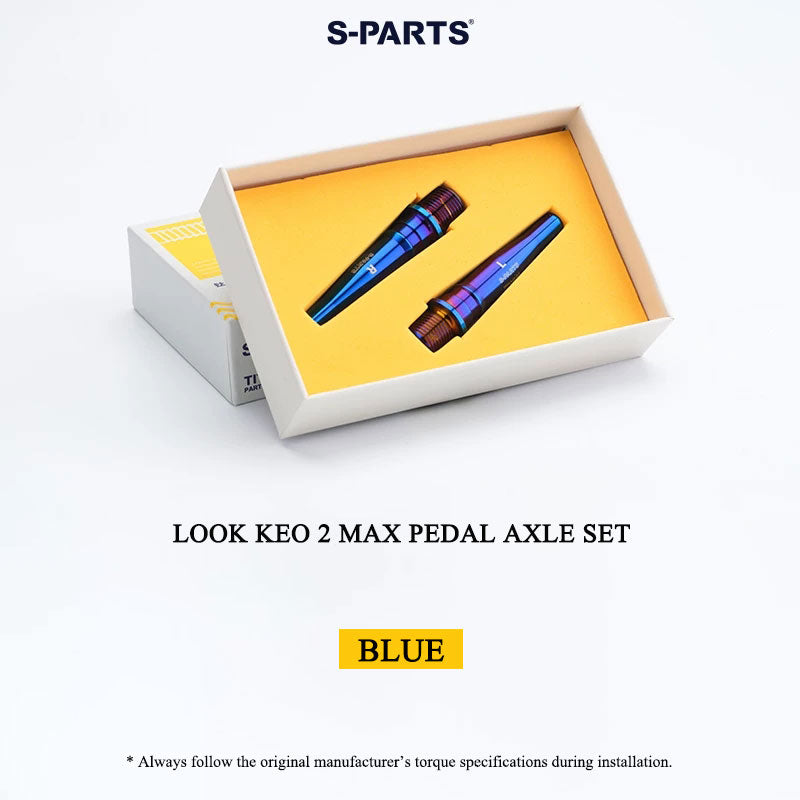

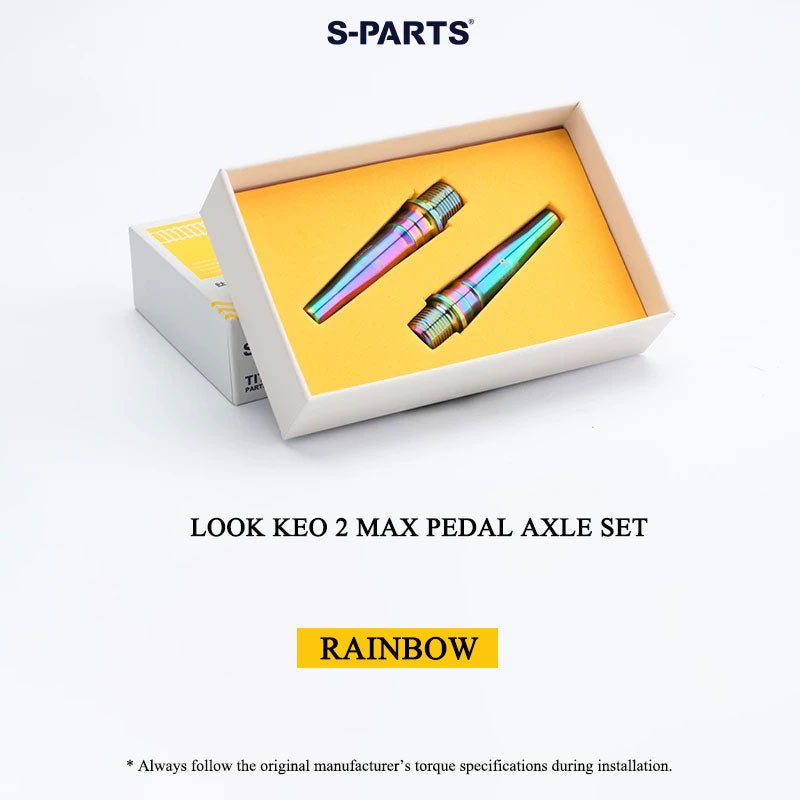

KEO 2 MAX Pedal Axle Set |
60.5 g/set |
8 mm Hex Key |
Gold, Candy, Natural Titanium, Black, Blue |
| 2 |

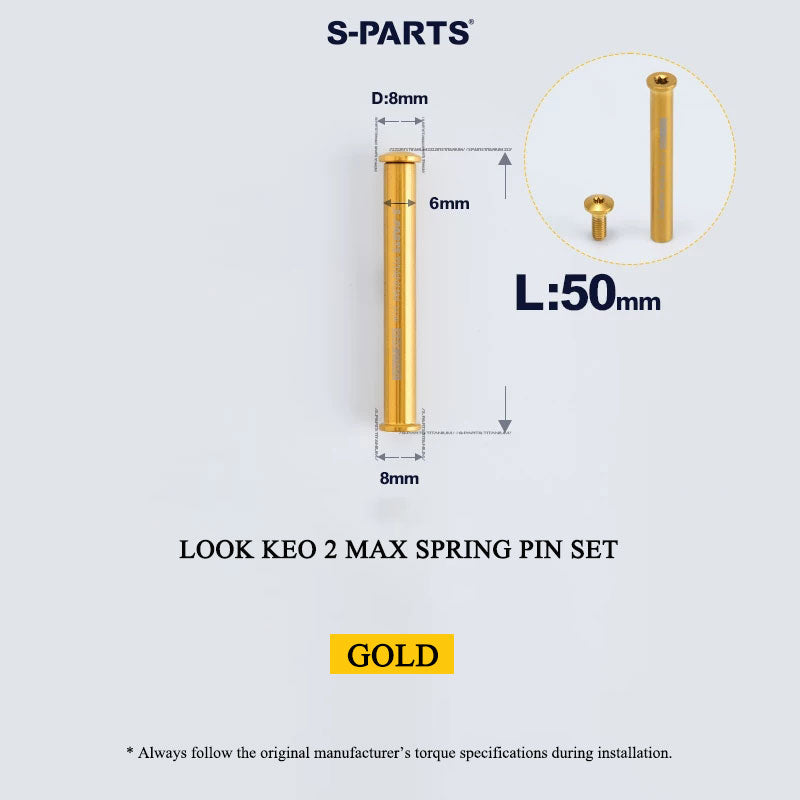

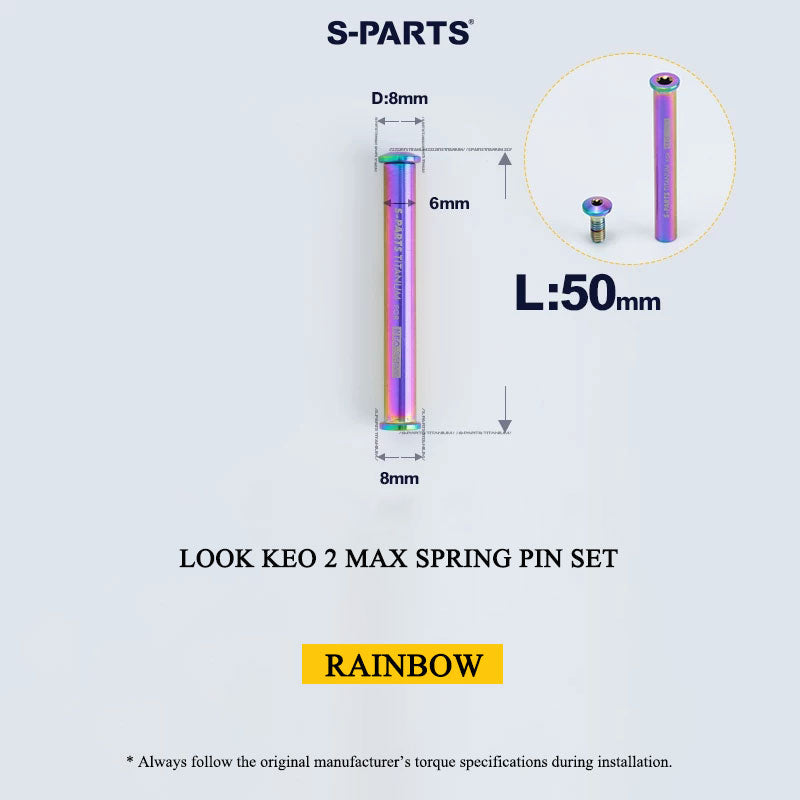

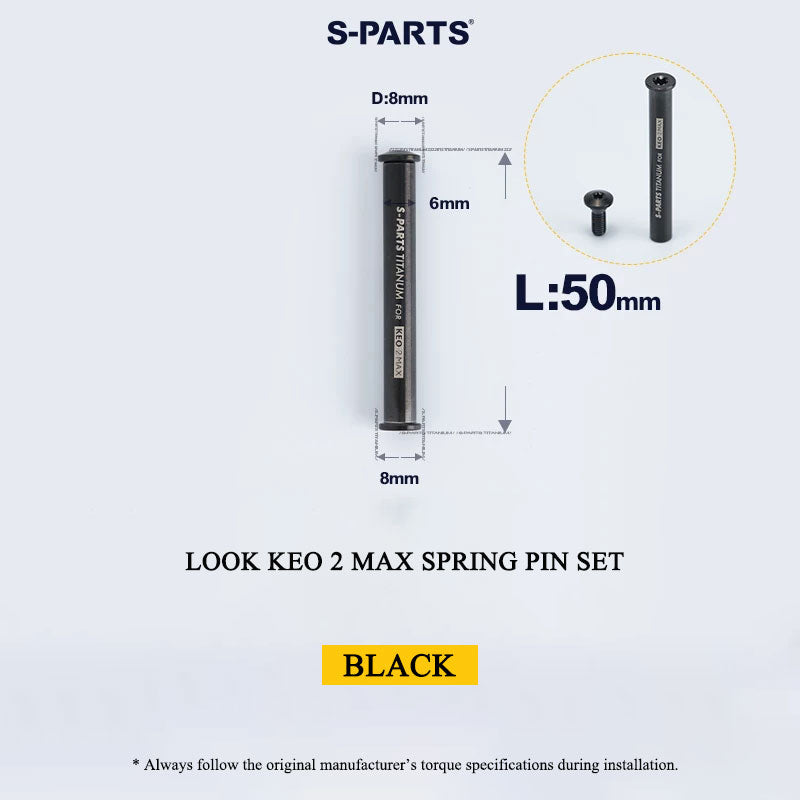

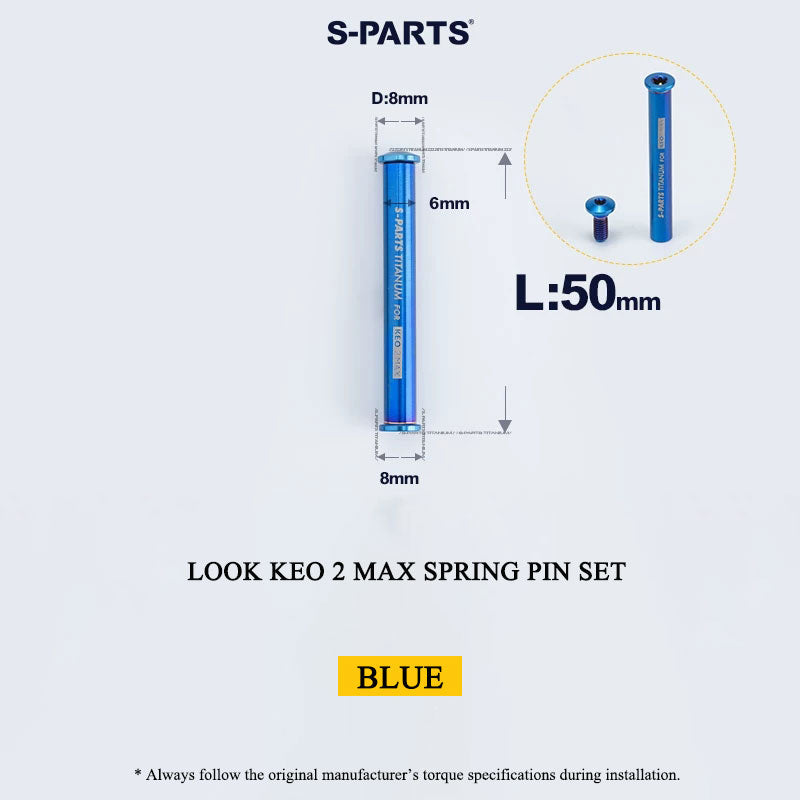

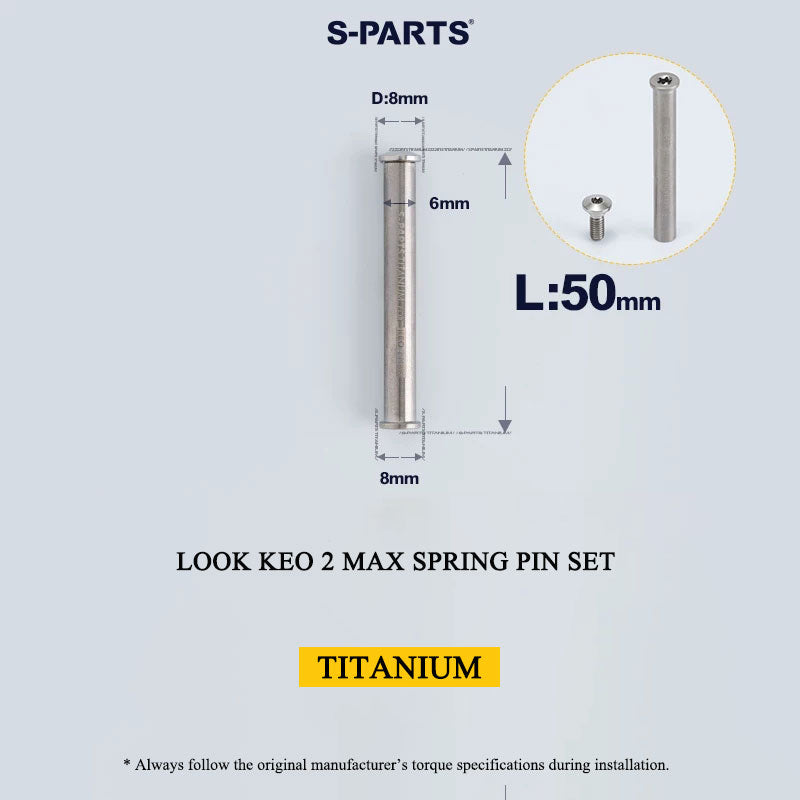

KEO 2 MAX Spring Pin Set |
4.9 g/set |
T10 / T20 Torx Key |
Gold, Candy, Natural Titanium, Black, Blue, Walnut |
| 3 |

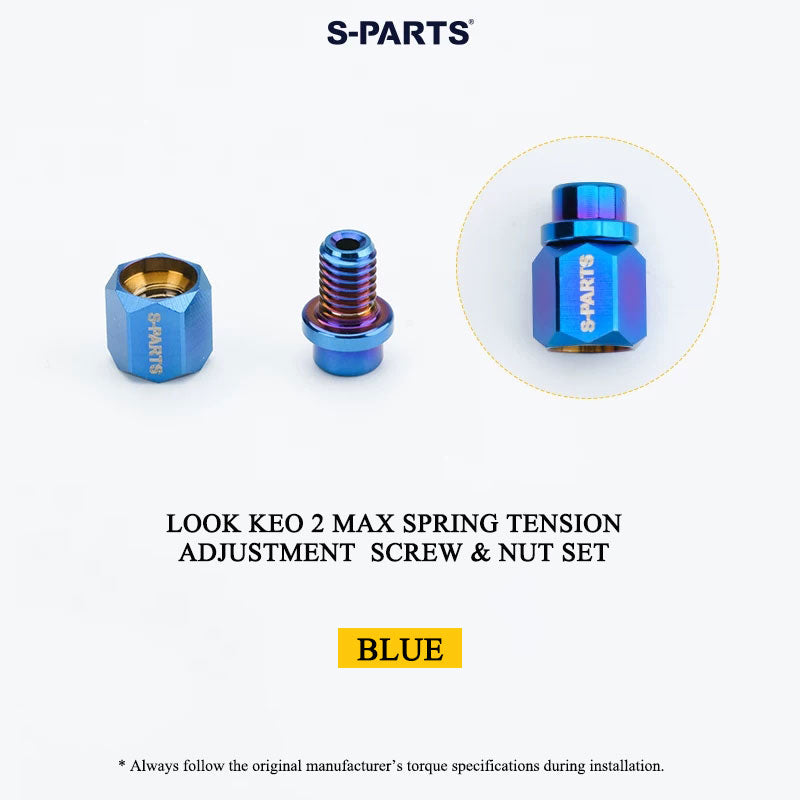

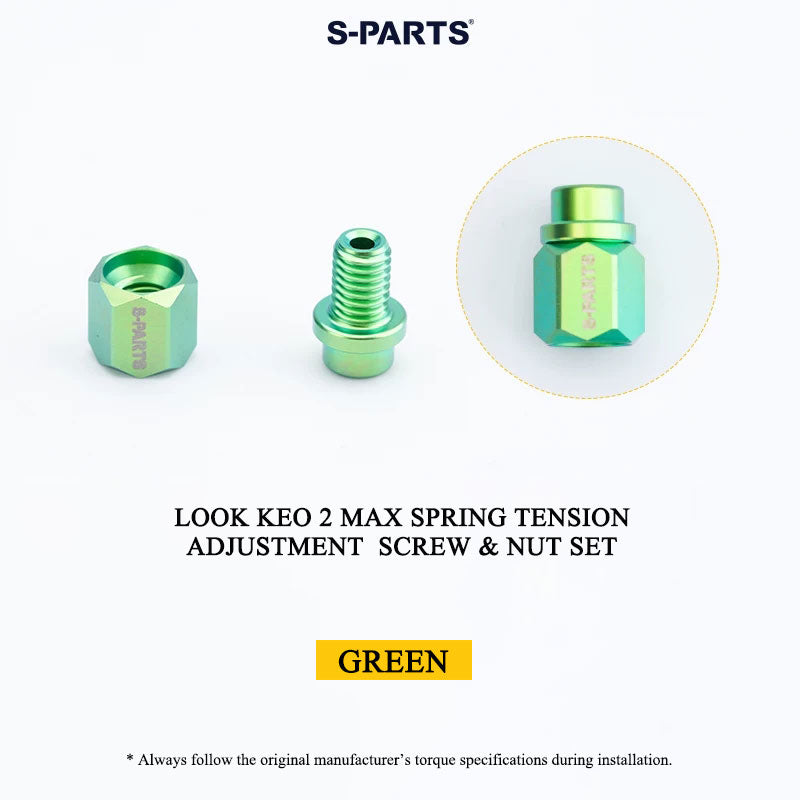

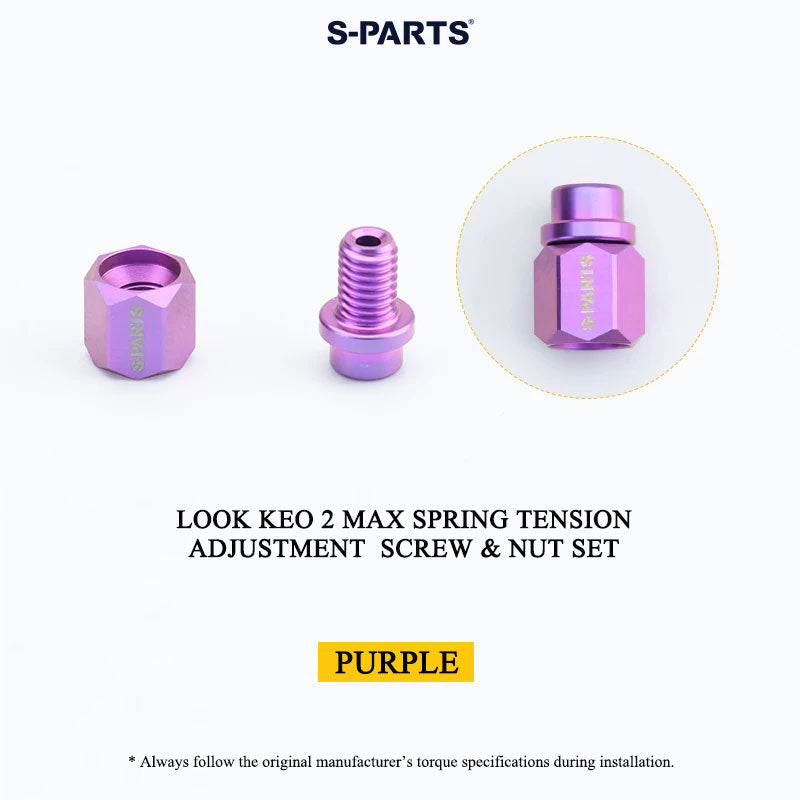

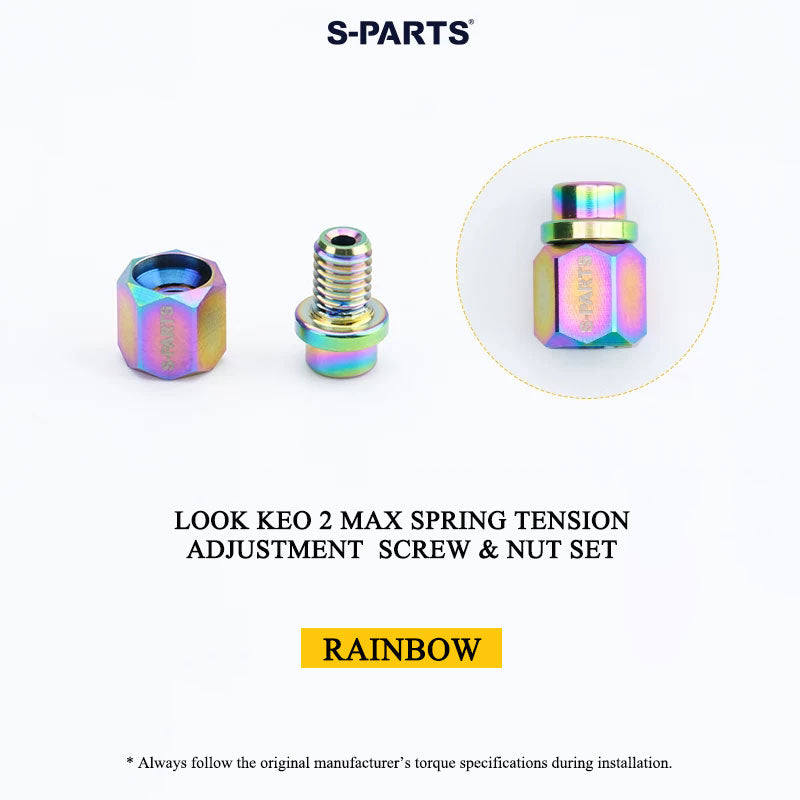

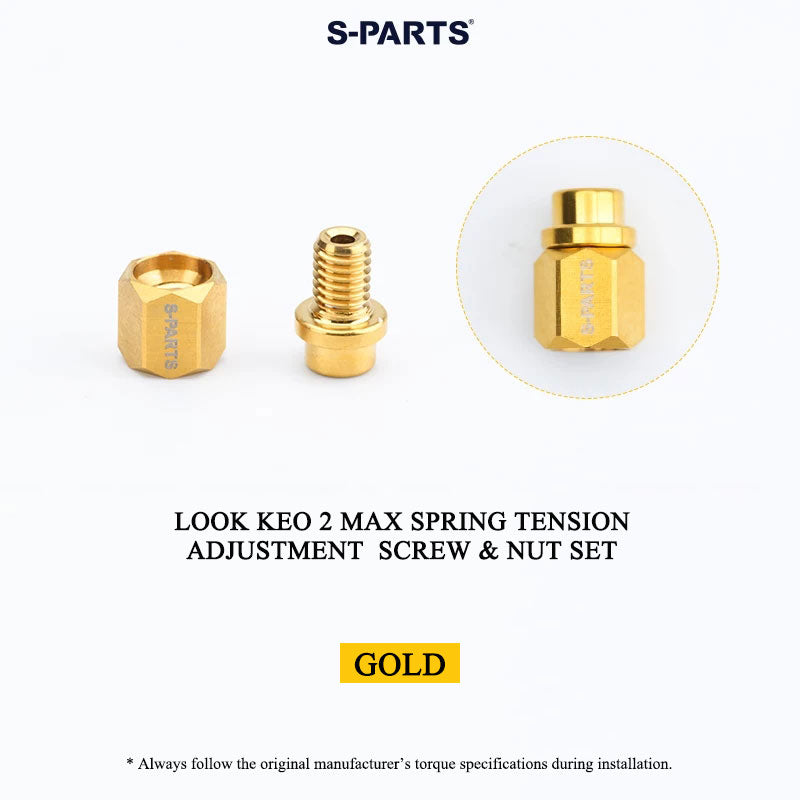

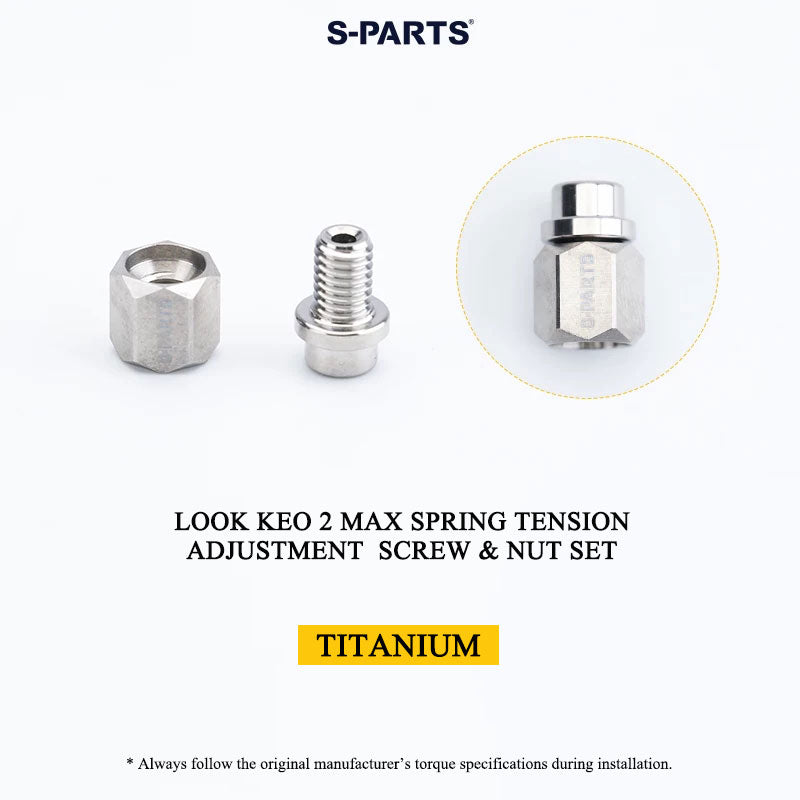

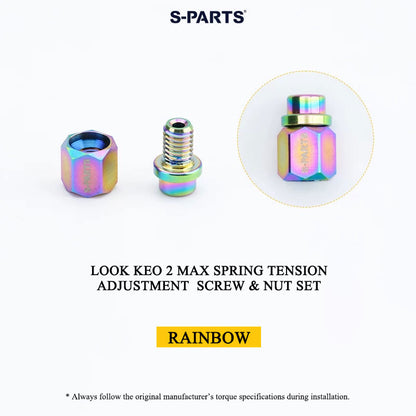

KEO 2 MAX Spring Tension Adjustment Screw & Nut Set |
2.0 g/set |
3 mm Hex Key, 8 mm Socket Wrench |
Gold, Candy, Natural Titanium, Black, Blue, Green, Purple, Walnut |
| 4 |

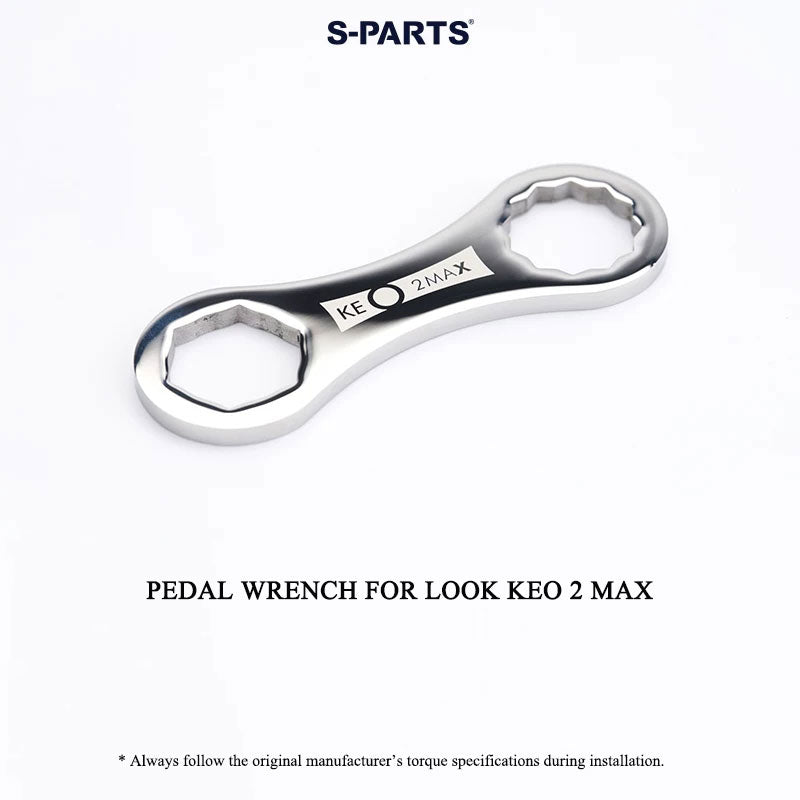

KEO 2 MAX Pedal Wrench |
42.5 g/pc |
— |
— |
| 5 |

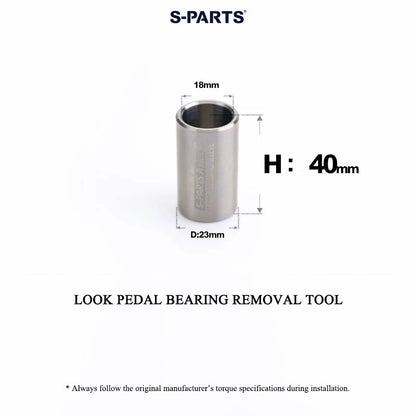

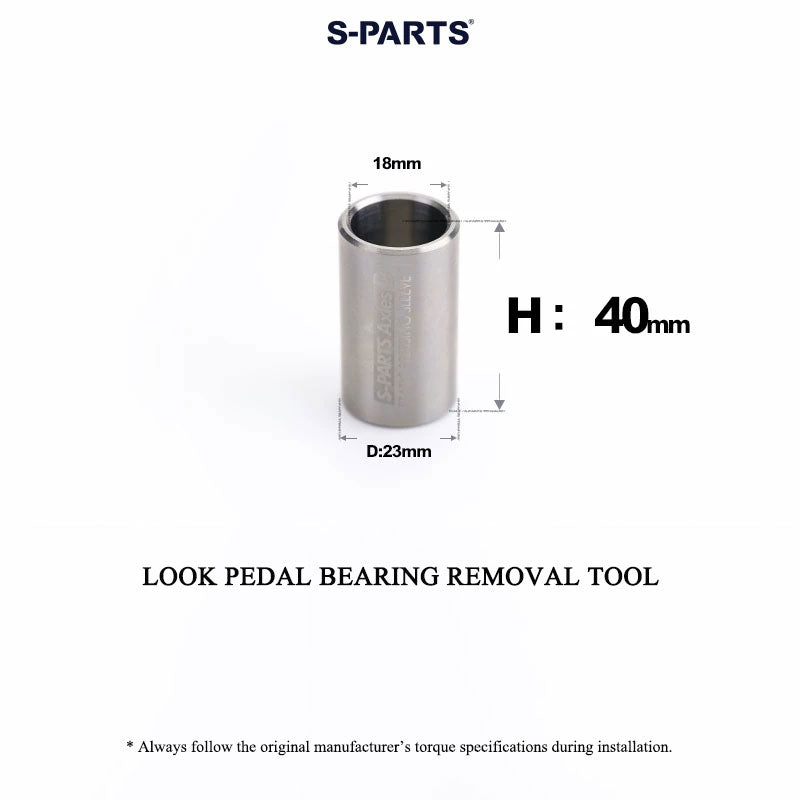

LOOK Pedal Bearing Removal Tool |
32.4 g/pc |
— |
— |
| 6 |

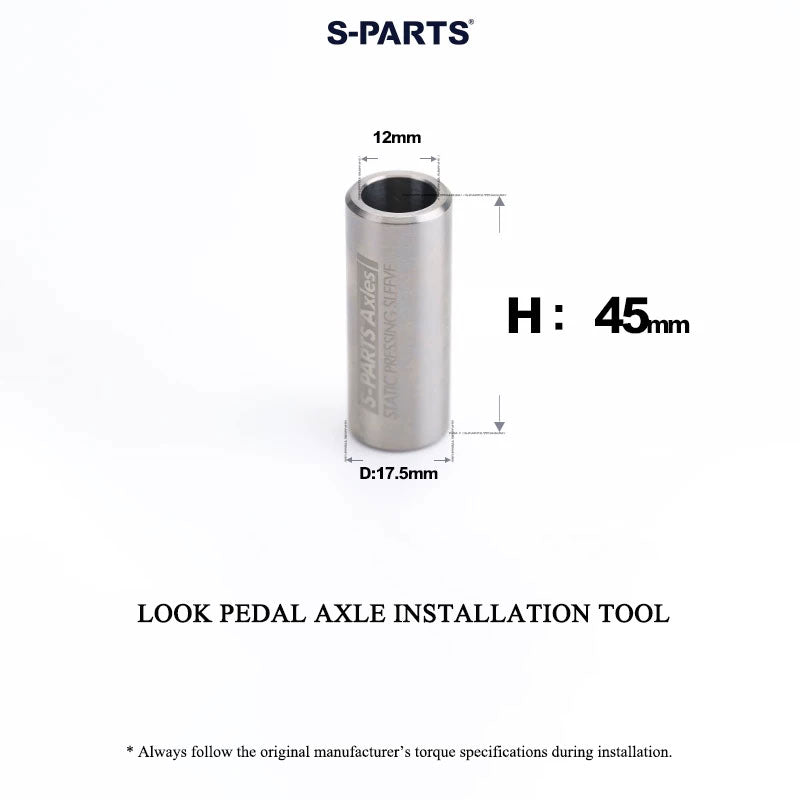

LOOK Pedal Axle Installation Tool |
20.9 g/pc |
— |
— |
Variants 1–3 are made from Grade 5 Titanium (Ti-6Al-4V).
Key Features
-

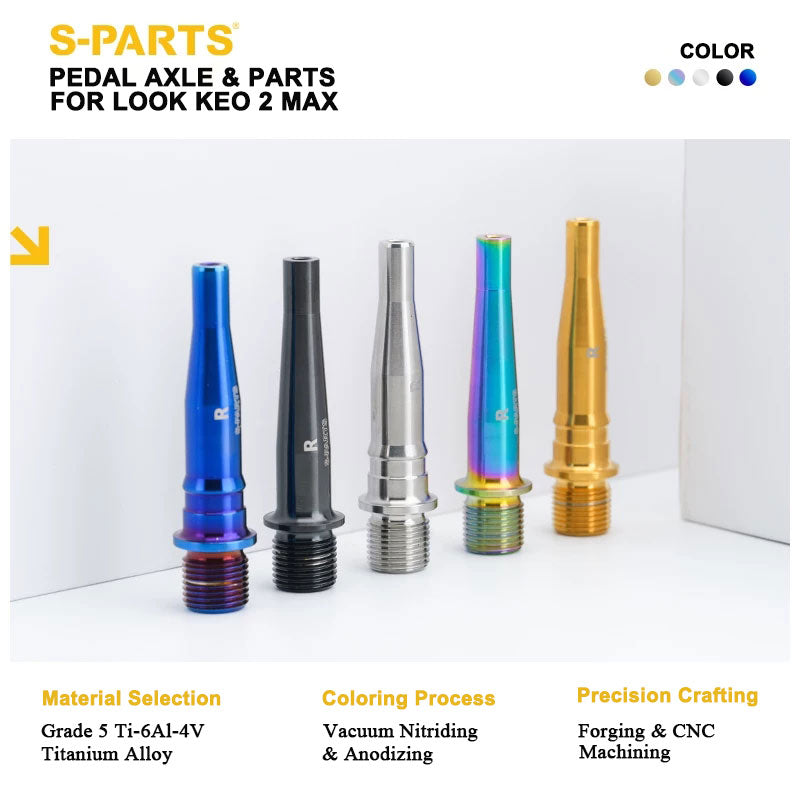

Vacuum-nitrided finish: The titanium components use a vacuum nitriding process for their colored finishes. This finish is designed for use around muddy and wet riding conditions, helping the color remain stable during use and providing resistance to corrosion from water and mud.
-
Color-matching options: Choose from multiple finishes and combine different colored components to create a personalized look while maintaining visual harmony with the original LOOK pedal body.
-
Weight-conscious upgrade: The titanium components are designed with weight optimization in mind while retaining the material characteristics of Grade 5 Titanium.
Color Notes

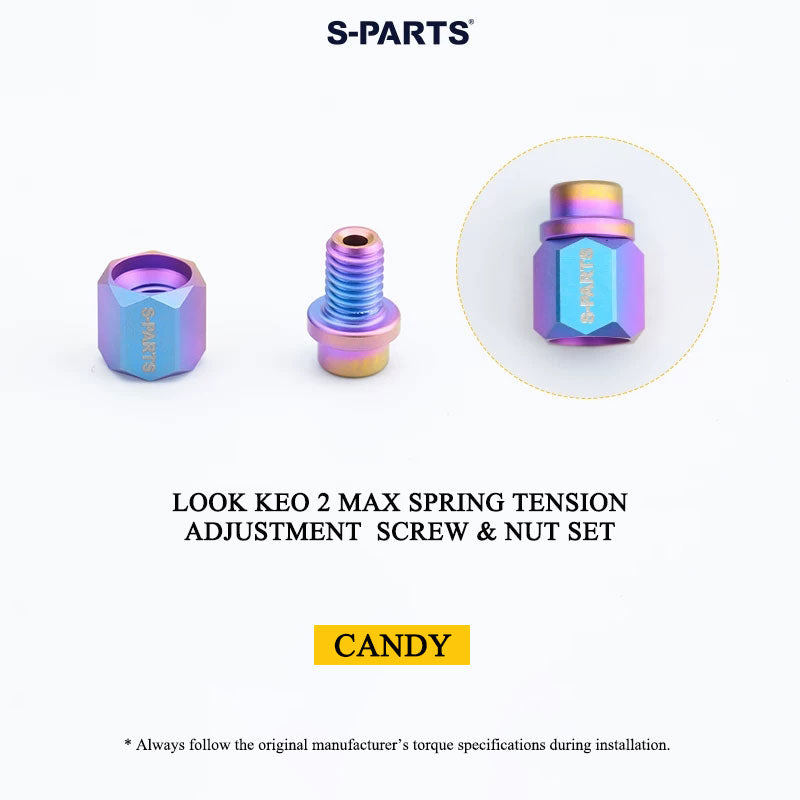

The Candy finish has naturally fluid and variable color transitions due to the coloring process, so the exact appearance may vary from one component to another.
Some threaded areas may show white lines created during the coloring process. This is a normal characteristic of the finish and does not affect normal use.
Application
-
Variants 1–4: LOOK KEO 2 MAX pedals
-
Variants 5–6: LOOK pedals
