Product Description

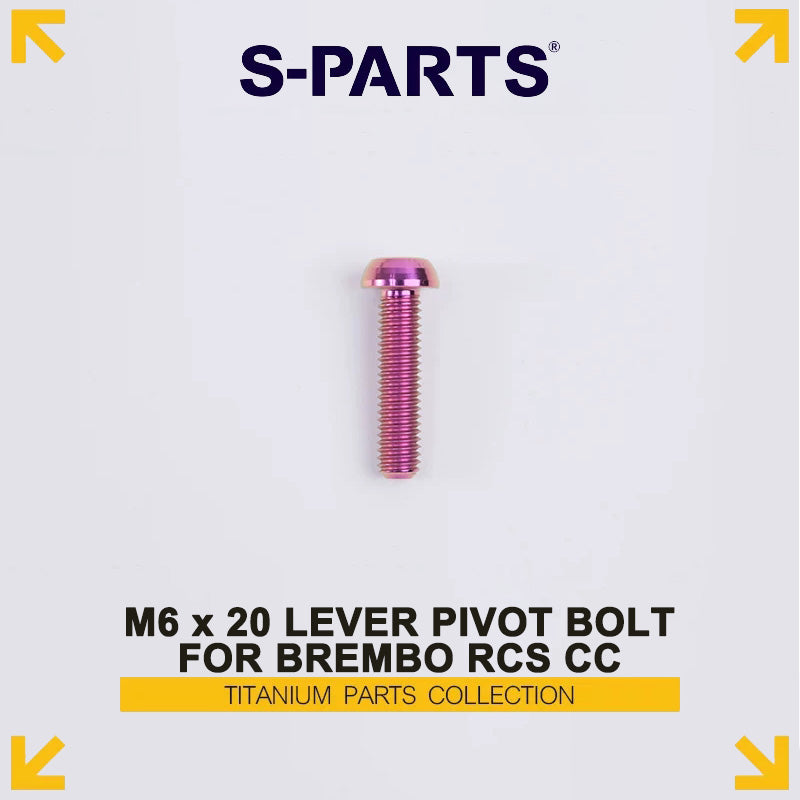

S-PARTS Titanium Lever Pivot Bolt for Brembo RCS Corsa Corta Master Cylinder

Replace the original steel lever pivot fastener with the S-PARTS Grade 5 Titanium Lever Pivot Bolt, engineered specifically for the Brembo RCS Corsa Corta (RCS CC) master cylinder.

Manufactured from premium Ti-6Al-4V titanium alloy, this lightweight upgrade delivers exceptional strength, corrosion resistance, and precision fitment while adding a premium racing-inspired appearance to your brake system.

Quick Specifications

• Application: Brembo RCS Corsa Corta (RCS CC) Master Cylinder
• Part Type: Brake Lever Pivot Bolt
• Material: Grade 5 Titanium (Ti-6Al-4V)
• Size: M6 × 20mm
• Tool: T30 Torx
• Weight: Only 2.97g / pcs
• Surface Options: Gold, Rainbow, Titanium, Black, Blue, Green, Purple, Candy

Grade 5 Titanium (Ti-6Al-4V) Construction

Lightweight Strength Without Compromise

S-PARTS selects premium Ti-6Al-4V Grade 5 titanium alloy (equivalent to Chinese TC4 titanium grade) through a carefully controlled material supply chain and continuous laboratory verification.

Each batch of titanium fasteners undergoes strict quality testing to meet S-PARTS performance standards, achieving an average tensile strength of over:

1050 MPa

This exceeds the industry standard requirement for Grade 5 titanium fasteners:

≥895 MPa

Compared with conventional steel hardware, Ti-6Al-4V titanium delivers:

• Exceptional strength-to-weight ratio
• Approximately 50% lighter weight than comparable steel hardware
• Outstanding corrosion resistance
• Excellent fatigue resistance for long-term durability

With tensile strength performance comparable to high-strength 10.9 grade steel hardware, S-PARTS titanium fasteners provide racing-level strength while significantly reducing unnecessary weight.

Precision Forged & CNC Machined

Manufactured for Exact Brembo Fitment

Every S-PARTS titanium pivot bolt is produced through a controlled precision manufacturing process.

To maintain consistent dimensional accuracy:

• Forging dies are operated under strict quality control at high temperatures up to 650℃
• Each forging die is retired after no more than 300 production cycles
• Final machining is completed using precision CNC equipment
• Thread accuracy is controlled through micron-level manufacturing standards

The result is precise thread engagement, reliable installation, and a factory-level fit with Brembo RCS CC components.

Premium Titanium Surface Finishes

PVD Vacuum Coating

Gold, Rainbow, Black, and Blue finishes use advanced PVD vacuum coating technology.

The process creates a dense protective coating layer that improves:

• Surface hardness
• Wear resistance
• Impact resistance
• Long-term color stability

The finish is integrated into the titanium surface and designed to withstand normal riding environments.

Titanium Anodized Colors

Green, Purple, and Candy finishes are created through titanium anodizing.

Unlike painted finishes, titanium anodizing uses controlled oxide layers to produce natural colors through light interference without adding dyes.

Benefits include:

• Unique titanium color appearance
• Enhanced corrosion protection
• Lightweight surface treatment
• Premium racing aesthetics

Key Features

✔ Designed for Brembo RCS Corsa Corta

Precision-developed specifically for the Brembo RCS CC master cylinder lever pivot assembly.

✔ Grade 5 Titanium Upgrade

Made from Ti-6Al-4V titanium alloy for maximum strength, lightweight performance, and corrosion resistance.

✔ Ultra Lightweight Design

Only 2.97g per piece, reducing unnecessary weight while maintaining mechanical reliability.

✔ Precision T30 Torx Interface

Designed for secure installation with accurate torque control.

✔ Multiple Premium Finishes

Available in Gold, Rainbow, Titanium, Black, Blue, Green, Purple, and Candy colors.

✔ Built for Performance Riders

A premium hardware upgrade for motorcycle enthusiasts seeking improved details, weight savings, and racing-inspired aesthetics.

Installation Notes

• Apply medium-strength thread locker during installation.
• Use a quality T30 Torx tool to avoid damaging the bolt head.
• Follow Brembo recommended tightening torque specifications.

Package Includes

1 × S-PARTS Titanium Lever Pivot Bolt for Brembo RCS Corsa Corta Master Cylinder
