Product Description

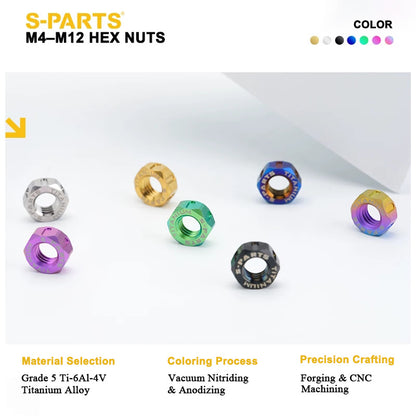

Upgrade your motorcycle, electric motorcycle, bicycle, e-bike, or custom build with lightweight, high-strength Grade 5 titanium hex nuts from S-PARTS.

Available from M4 to M12, this range includes multiple thread pitches and nut heights to suit different fastening requirements. Both standard and fine thread options are available depending on the selected size.

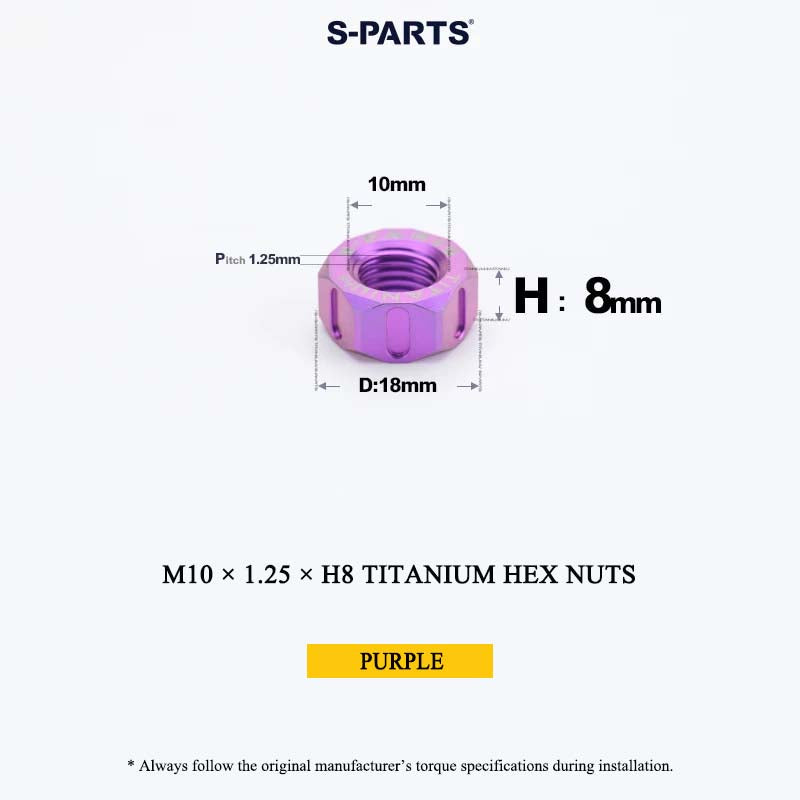

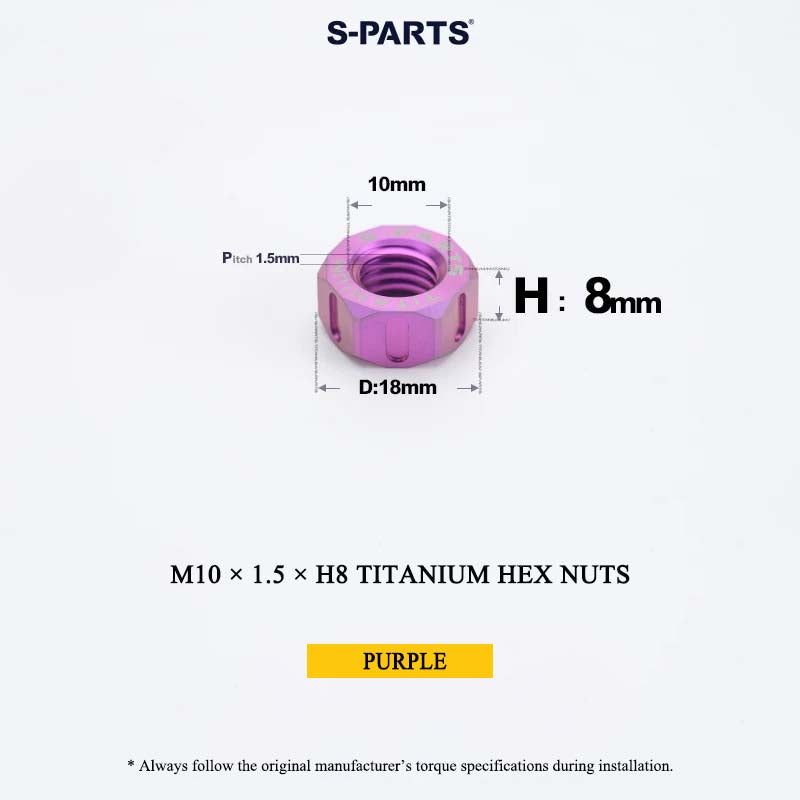

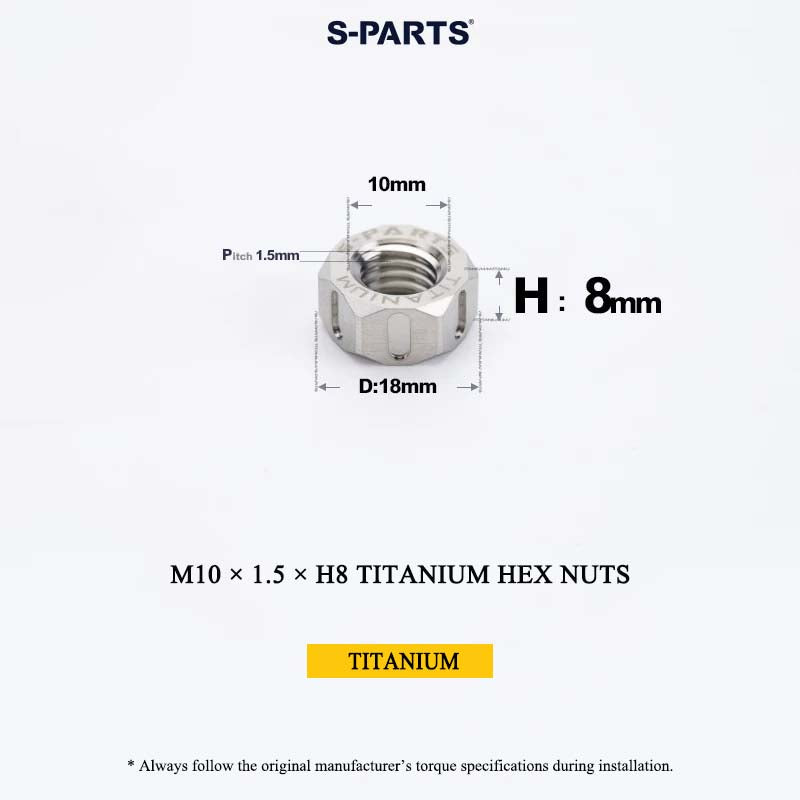

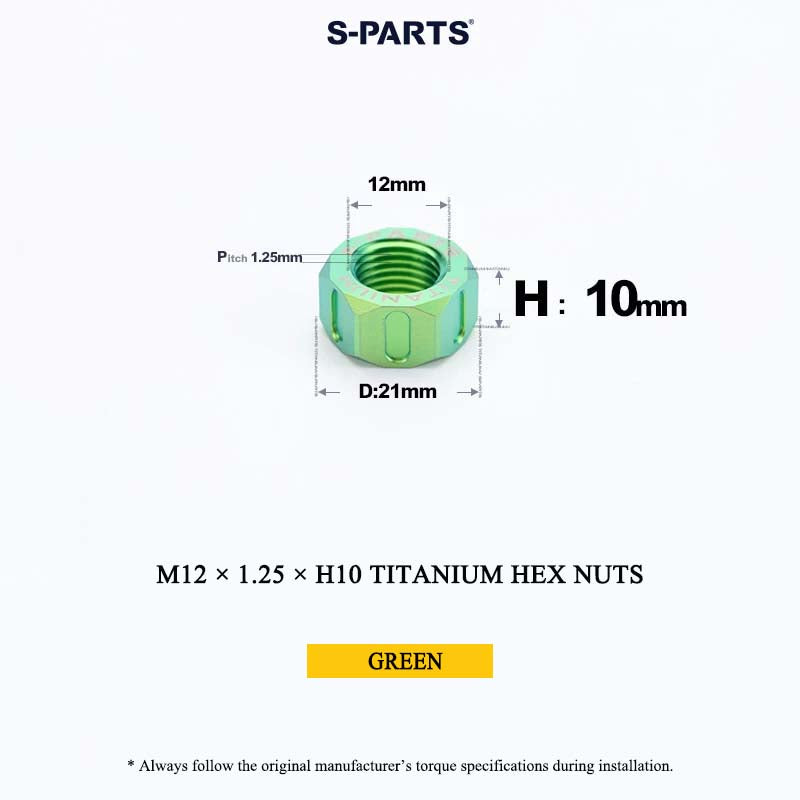

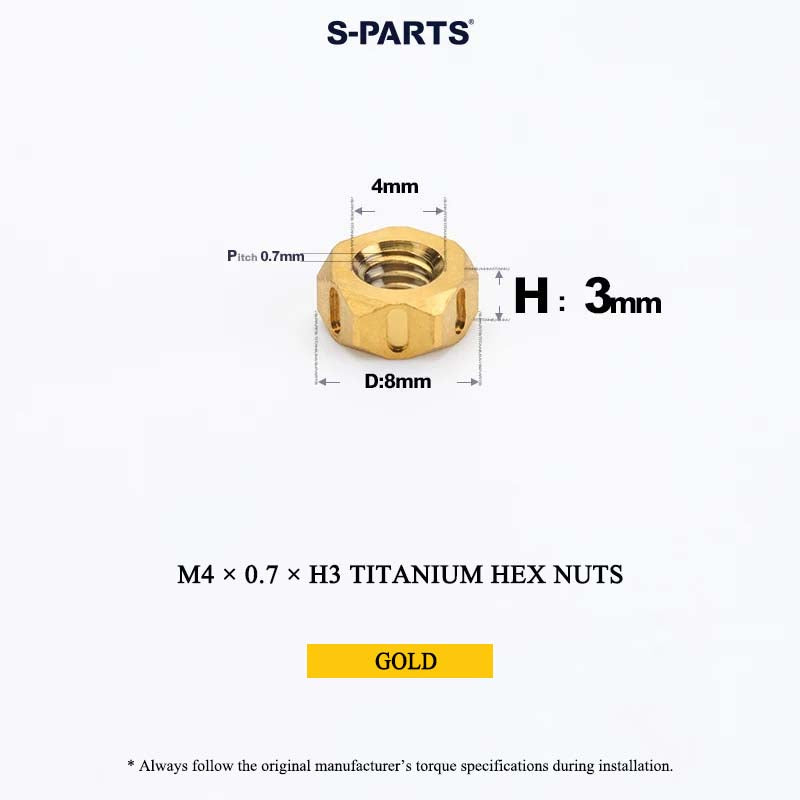

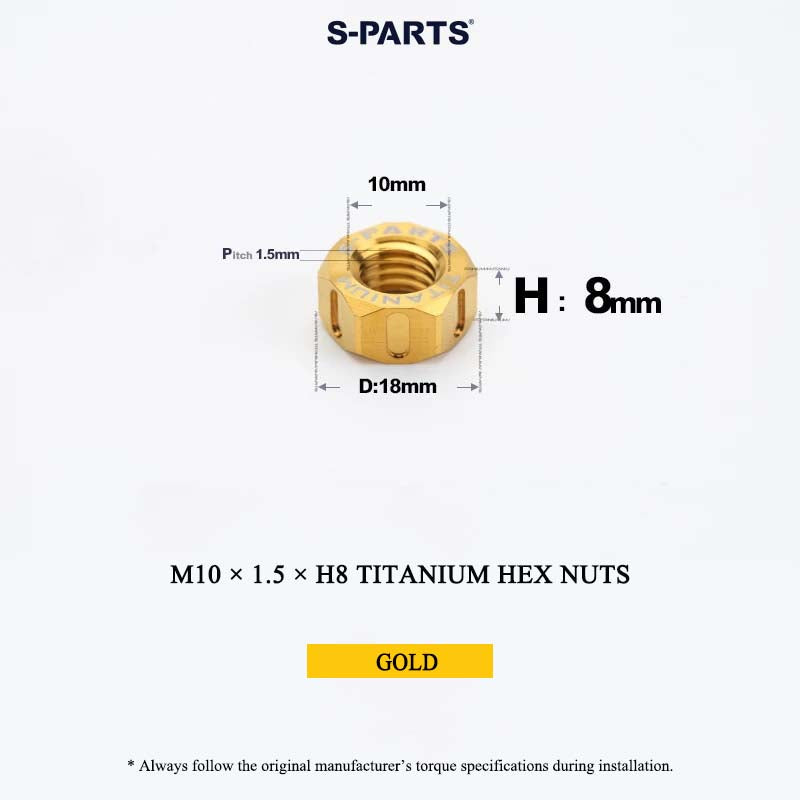

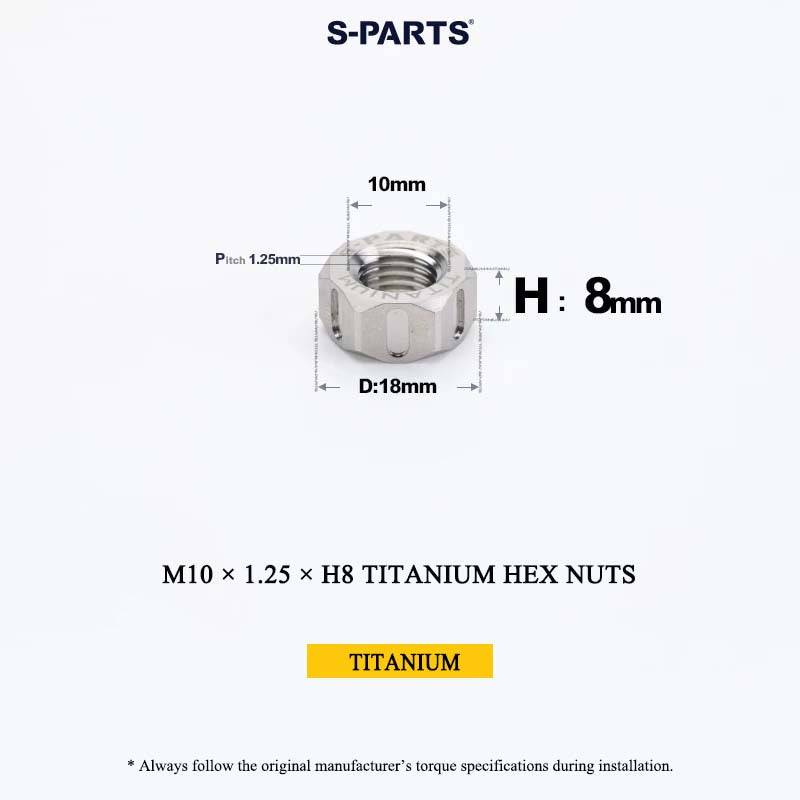

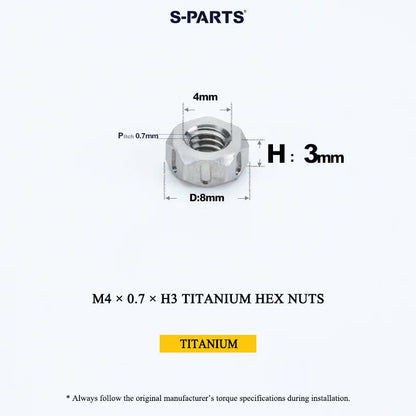

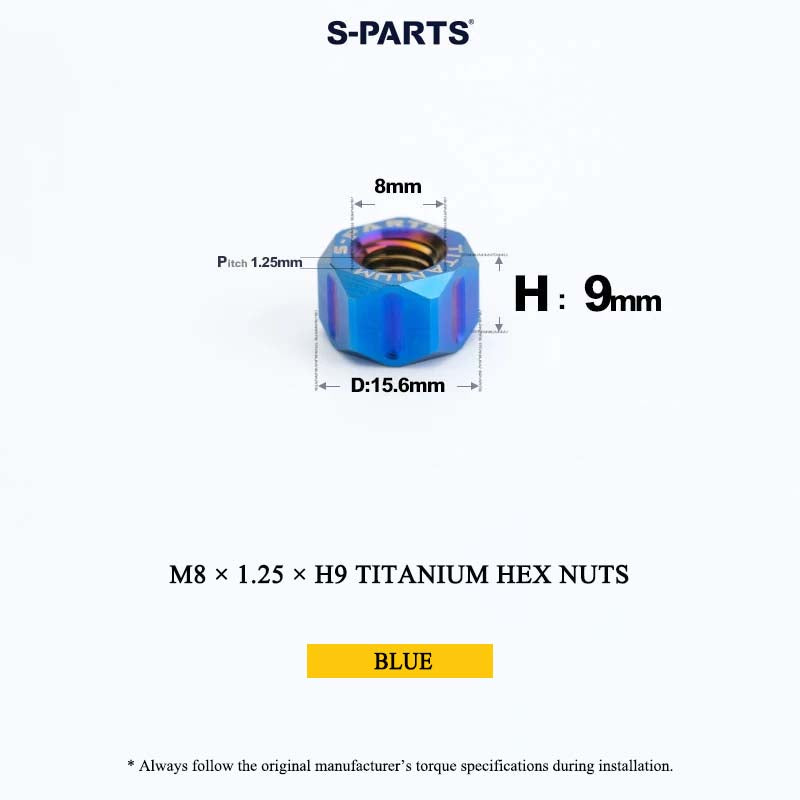

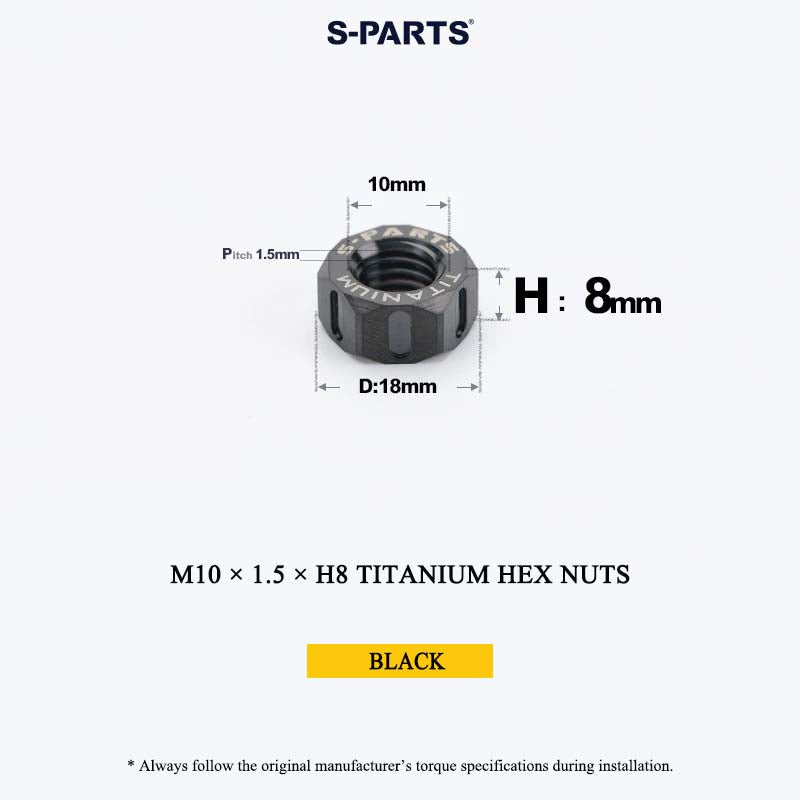

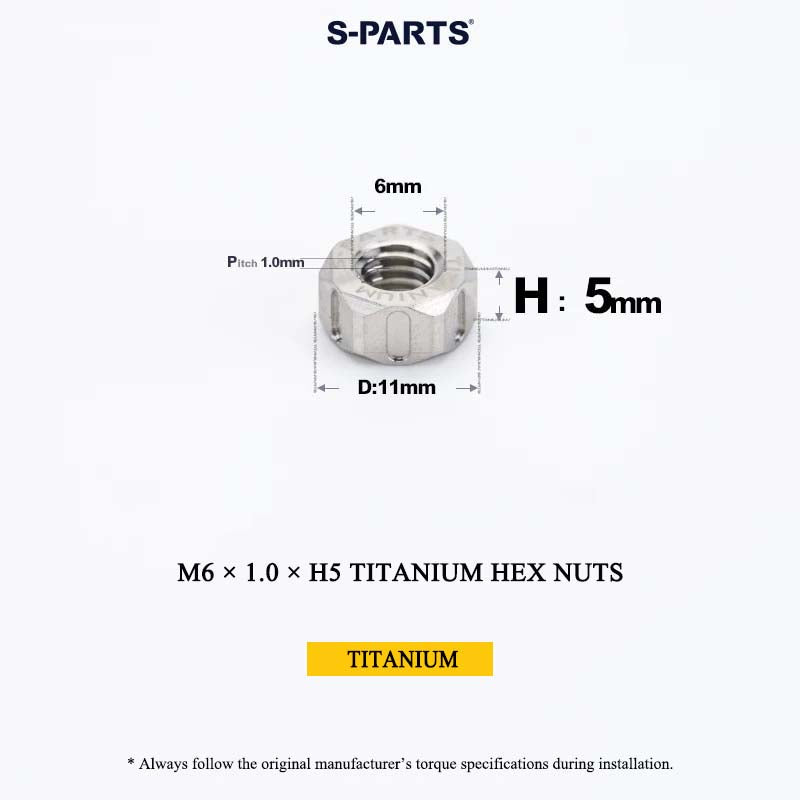

Each variant is clearly identified by its thread diameter, thread pitch, nut height, weight, and required wrench size, making it easier to select the correct specification for your application.

Please carefully confirm the thread diameter and thread pitch before ordering. Fasteners with the same nominal diameter but different thread pitches are not interchangeable.

Specifications

Key Specifications

• Product Type: Hex Nut
• Material: Grade 5 Titanium Alloy
• Thread Sizes: M4 / M5 / M6 / M8 / M10 / M12
• Thread Pitches: 0.7 / 0.8 / 1.0 / 1.25 / 1.5 mm
• Nut Heights: 3 / 4 / 5 / 6 / 8 / 9 / 10 mm
• Weight: 0.4–8.5 g per piece, depending on variant
• Drive Type: External Hex
• Tool Size: 7 / 8 / 10 / 13 / 16 / 19 mm, depending on variant
• Quantity: 1 pc
• Brand: S-PARTS

Important: Please confirm the thread diameter, thread pitch, and required nut height before ordering. Fasteners with the same nominal diameter but different thread pitches are not interchangeable.

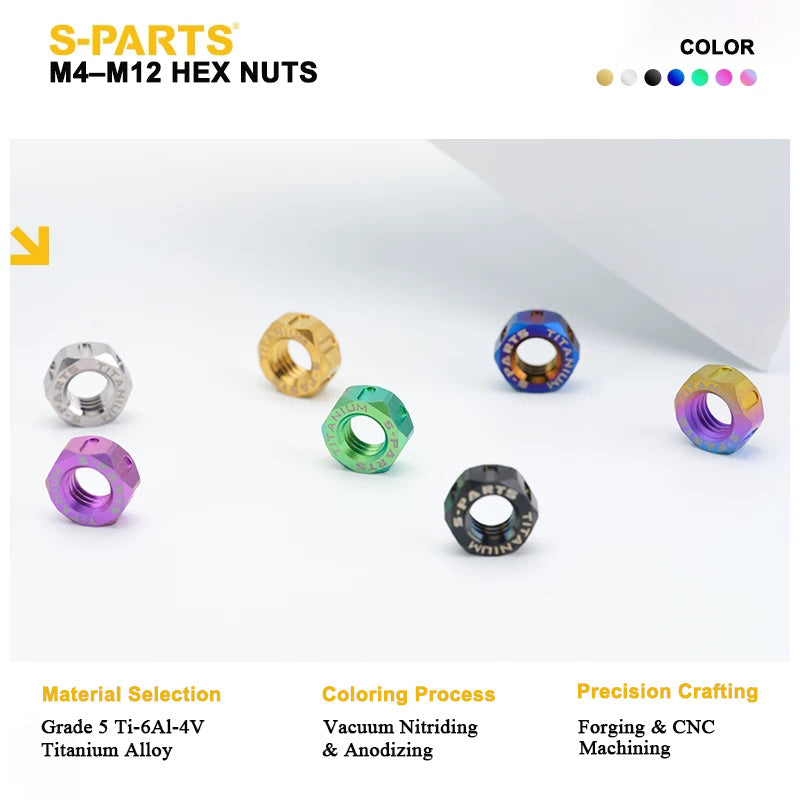

Available Colors

• Gold
• Rainbow
• Titanium
• Black
• Blue
• Green
• Purple
• Candy
• Indigo

Color Variation Notice

The Candy finish features naturally flowing and variable color transitions due to the characteristics of the coloring process. As a result, each piece may display a slightly different color pattern.

On some colored nuts, light-colored lines or uncolored areas may appear on the threaded section. These are normal characteristics of the surface coloring process and do not affect normal use.

During anodizing, electrical current passes through designated electrical contact points to complete the surface treatment. Areas where the component is held or electrically contacted may receive less or no anodized coloration, which can result in visible light-colored marks.

These marks are normal process characteristics and are not product defects.

High Strength. Low Weight.

S-PARTS works with a titanium material supply chain serving the civil aerospace industry in Xi'an and conducts ongoing material comparison and testing to select titanium alloy materials that meet our internal standards.

The Grade 5 titanium alloy selected for S-PARTS fasteners delivers an average tensile strength of over 1050 MPa, exceeding the commonly referenced minimum requirement of 895 MPa.

Under comparable conditions, S-PARTS Grade 5 titanium fasteners offer an overall balance of mechanical performance comparable to Grade 10.9 steel fasteners, while weighing approximately half as much as comparable steel hardware.

This exceptional strength-to-weight ratio makes titanium an excellent choice for riders and builders looking to reduce unnecessary hardware weight while maintaining high-performance fastening components.

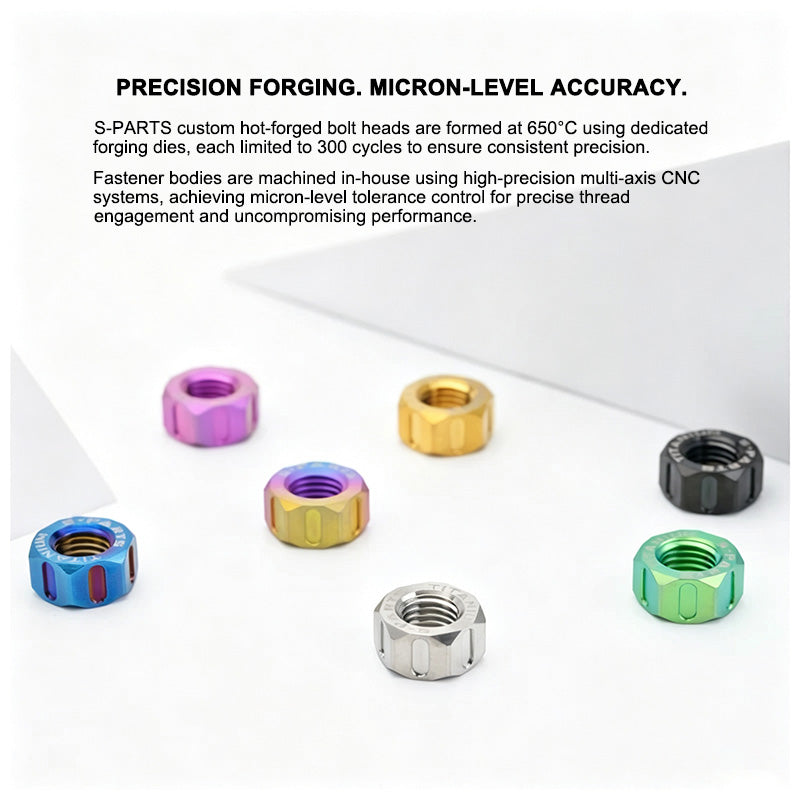

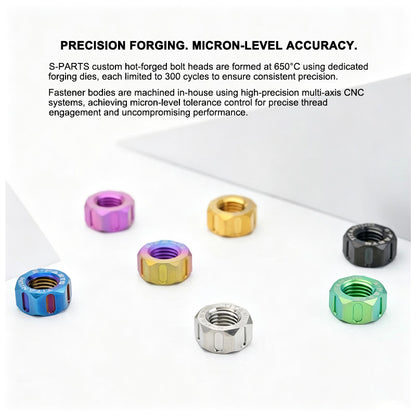

Precision Forged and CNC-Machined

Each S-PARTS titanium nut begins with a precision hot-forging process using dedicated custom tooling.

To maintain consistent forming accuracy during high-temperature production at approximately 650°C, each stamping die is limited to no more than 300 production cycles.

The fastener body is then precision-machined using high-precision CNC equipment. Tight tolerance control throughout the manufacturing process helps ensure accurate dimensions, consistent threads, and reliable fitment.

The result is a precision-made titanium fastener designed for smooth thread engagement and dependable performance.

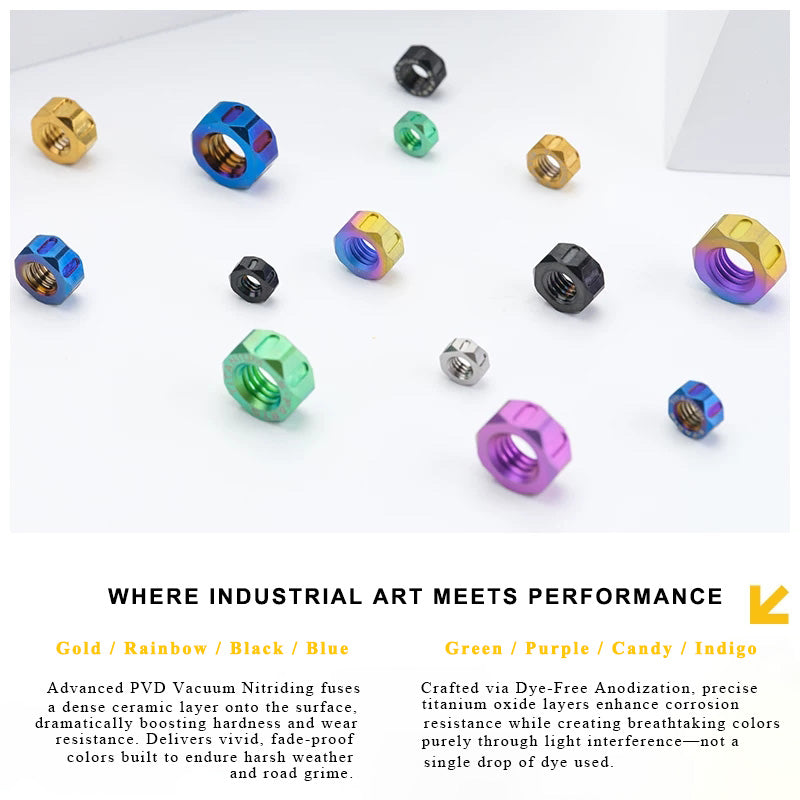

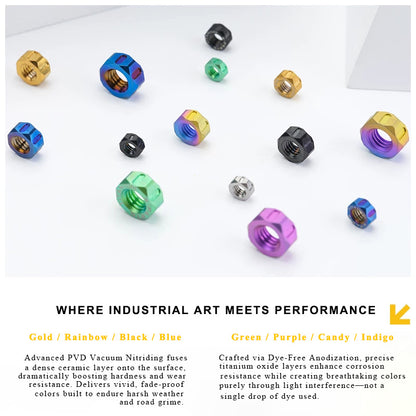

Advanced Surface Finishes

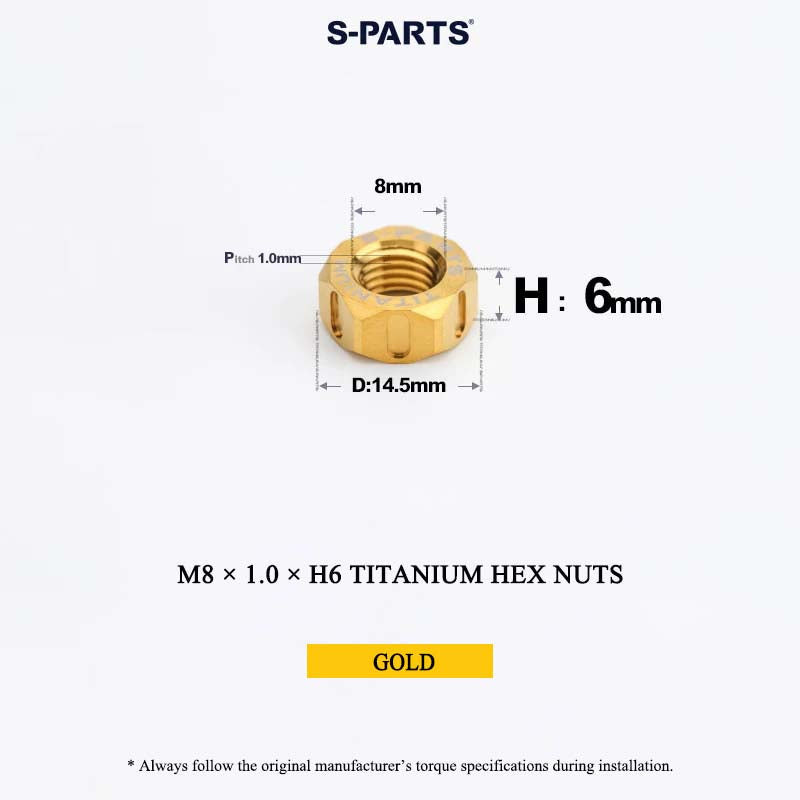

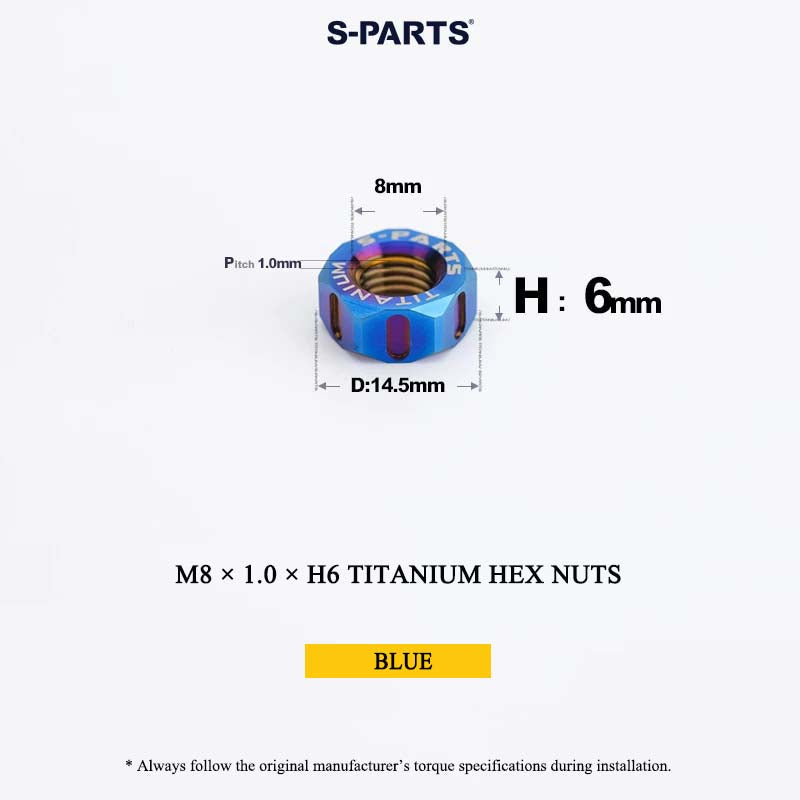

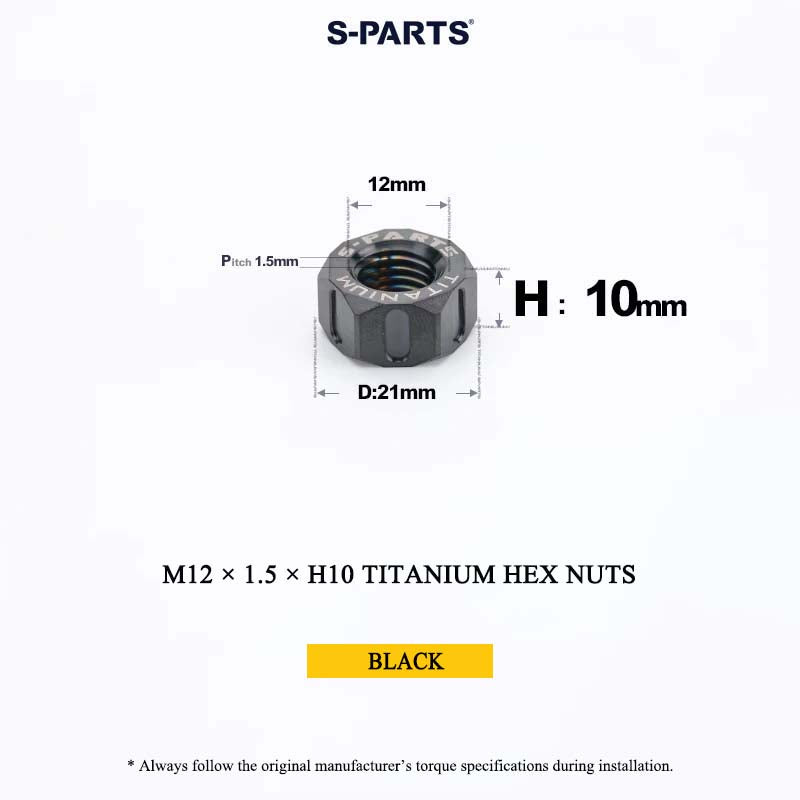

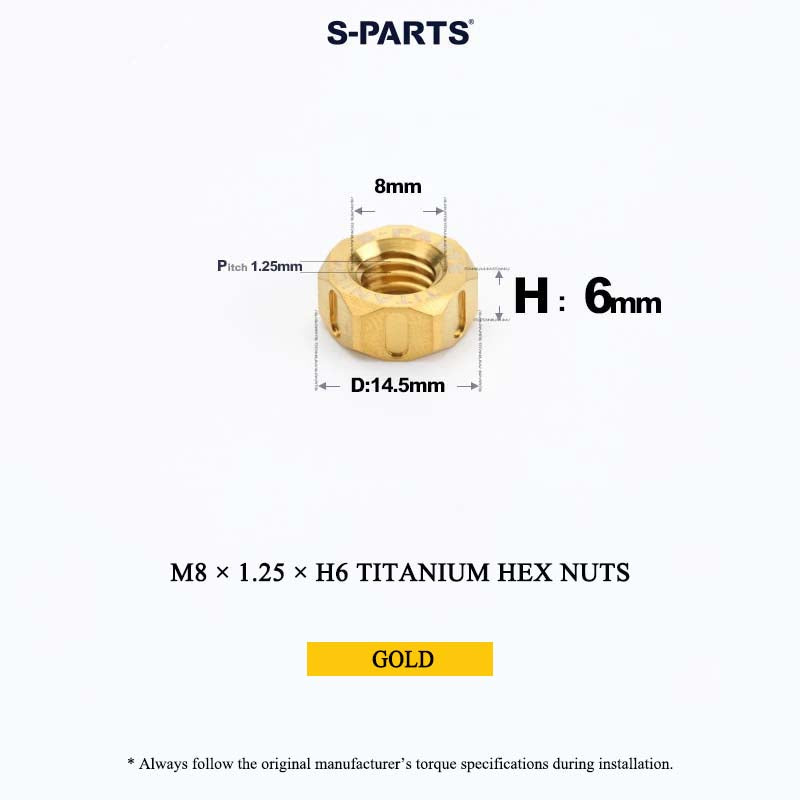

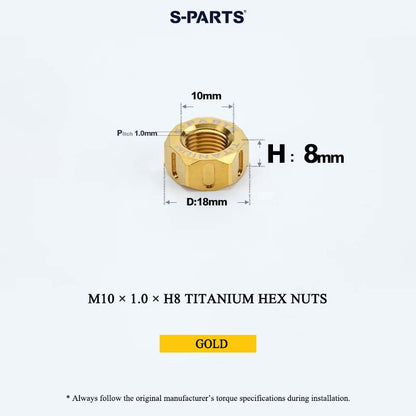

Gold, Rainbow, Black and Blue

These finishes are produced using a PVD vacuum coating process, forming a dense surface layer that helps improve surface hardness and impact resistance.

The resulting finish delivers rich color and improved resistance to everyday wear and environmental exposure.

Green, Purple, Candy and Indigo

These colors are created through an electrochemical anodizing process.

A controlled oxide film is formed on the titanium surface. By precisely varying the thickness of this oxide layer, the interaction between incoming and reflected light changes.

As light passes through and reflects from the oxide film, different wavelengths interact and interfere with one another, producing the distinctive colors associated with anodized titanium.

No conventional dyes are used.

The color is created through the physical interaction between light and the precisely controlled oxide-film thickness, giving each finish its distinctive titanium appearance.

Why Choose S-PARTS Titanium Hex Nuts?

• Grade 5 titanium alloy
• Available from M4 to M12
• Multiple standard and fine thread pitch options
• Multiple nut heights available
• Lightweight with an excellent strength-to-weight ratio
• Mechanical performance comparable to Grade 10.9 steel fasteners under comparable conditions
• Approximately half the weight of comparable steel hardware
• Precision hot-forged and CNC-machined
• Clearly specified weight and wrench size for every variant
• Available in multiple PVD-coated and anodized colors
• Suitable for motorcycles, electric motorcycles, bicycles, e-bikes, and custom hardware applications

Choose the correct thread diameter, pitch, and nut height for your application before ordering.
