Product Description

Key Specifications

Complete Headset Top Cap & Bolt Set

Designed for the Specialized ROVAL 3DAM Integrated Cockpit, this S-PARTS set includes both the Grade 5 Titanium headset top cap and dedicated M6 × 30 mm headset bolt.

The complete set weighs only 6.83 g, combining lightweight titanium construction with precision machining and distinctive multi-layer anodized finishes.

This is a complete replacement set rather than a top cap supplied without hardware.

Grade 5 Titanium (Ti-6Al-4V)

The headset top cap and dedicated bolt are made from Grade 5 Titanium (Ti-6Al-4V), offering a high strength-to-weight ratio together with the lightweight characteristics expected from titanium components.

S-PARTS screens each production batch against its internal S-Class titanium quality standard before entering production.

The selected titanium material has an average tensile strength exceeding 1,050 MPa, compared with the industry reference value of ≥895 MPa.

Under comparable conditions, Grade 5 titanium fasteners offer mechanical performance comparable to 10.9-grade steel components, while weighing approximately half as much as steel.

Precision Forged & CNC Machined

The titanium components are formed using S-PARTS dedicated forging dies and controlled hot-forging processes.

Forging is carried out at approximately 650°C, with each dedicated forging die limited to no more than 300 production cycles to help maintain consistent forming accuracy.

The fastener components are then precision-machined using CNC equipment, with micron-level dimensional control applied throughout the machining process.

This combination of controlled forging and precision CNC machining helps achieve clean threads, consistent dimensions, and accurate component fit.

Multi-Layer Anodized Finish

The titanium top cap features a multi-layer anodized finish created through controlled electrochemical treatment.

By combining layered anodizing with custom graphic designs, S-PARTS creates vivid colors and distinctive patterns that give the cockpit a more personalized appearance.

The collection includes both color-based finishes and graphic patterns, ranging from the deep tones of Plasma and Prism to the distinctive designs of Rabbit Camo, Great Wave, Snowstorm, and Topographic Glacier.

Available Finishes

• Plasma
• Prism
• Splatter Pop
• Neon Splatter
• Rabbit Camo
• Great Wave
• TIGER Purple
• JAGUAR Purple
• Tiger Green-Gold
• Jaguar Green-Gold
• Snowstorm
• Topographic Glacier

Key Features

• Complete headset top cap + dedicated bolt set
• Designed for Specialized ROVAL 3DAM Integrated Cockpit
• Grade 5 Titanium (Ti-6Al-4V)

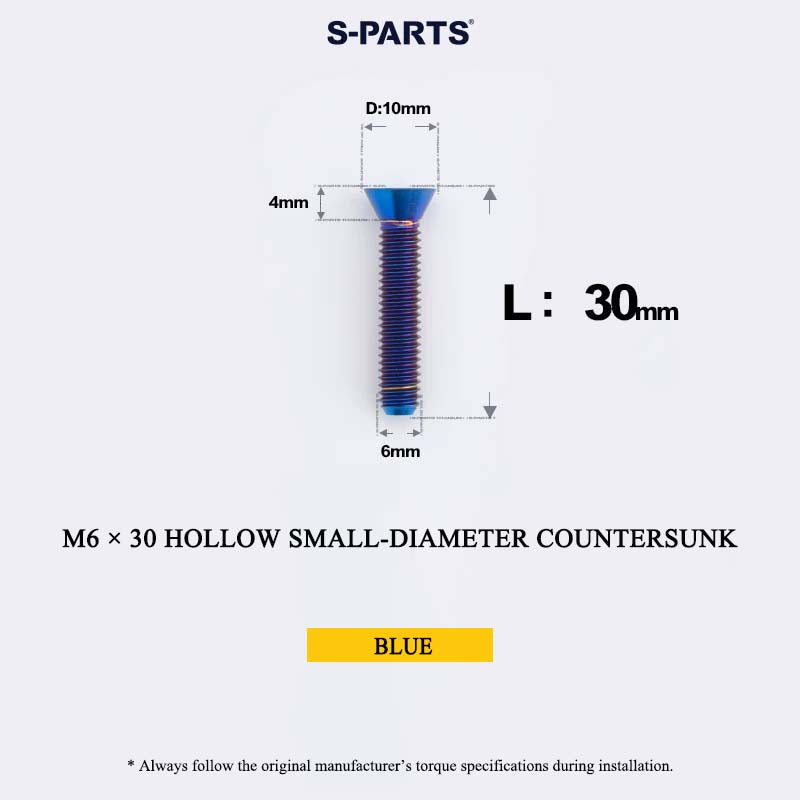

• M6 × 30 mm dedicated headset bolt
• Only 6.83 g/set
• 4 mm Hex interface
• Precision CNC machining
• Controlled hot forging at approximately 650°C
• Dedicated forging dies limited to 300 production cycles
• S-PARTS internal S-Class titanium quality standard
• Multi-layer anodized finishes
• Multiple custom color and graphic options

Package Includes

• 1 × Grade 5 Titanium Headset Top Cap
• 1 × M6 × 30 mm Dedicated Headset Bolt

Installation

• Tool Interface: 4 mm Hex
• Always install and tighten the bolt according to the torque specification provided by the original component manufacturer or your bike's instruction manual.
• Do not exceed the specified torque.
• Confirm compatibility with the original cockpit configuration before installation.

Compatibility Notice

Designed for the Specialized ROVAL 3DAM Integrated Cockpit.

This product is an independent aftermarket component and is not affiliated with, endorsed by, or sponsored by Specialized or ROVAL.

Please verify your cockpit model and original hardware configuration before ordering.

Anodized Finish Note

Titanium anodizing is produced through an electrochemical surface treatment. Color appearance may vary slightly depending on lighting, viewing angle, and the natural characteristics of the titanium surface.

Patterned finishes may also show individual variations, making each piece visually distinctive.
