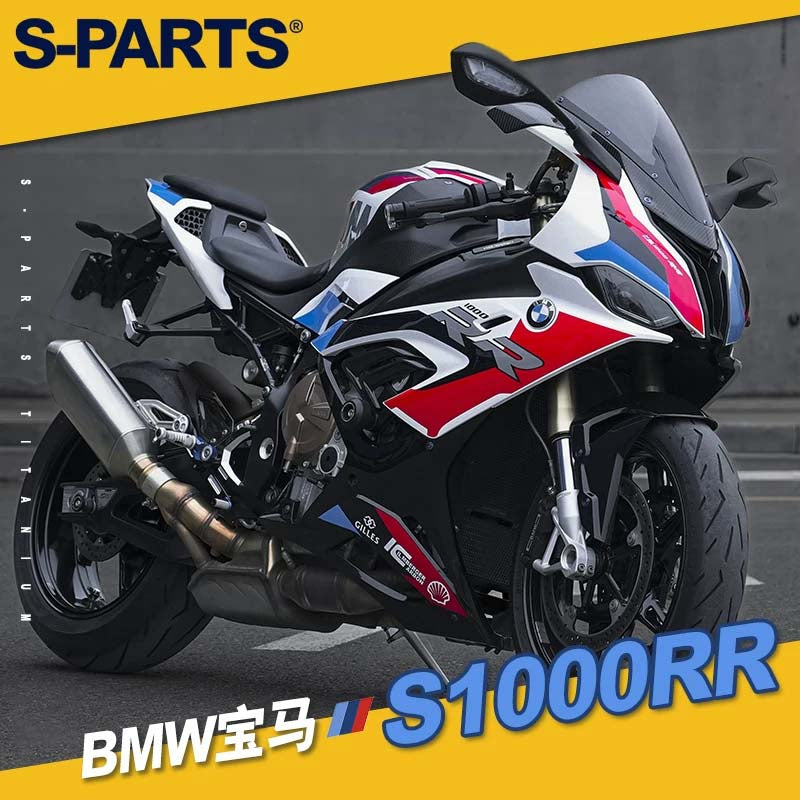

Grade 5 Titanium Bolts & Fasteners for 2021 BMW S1000RR

Grade 5 Titanium Bolts & Fasteners for 2021 BMW S1000RR

$70.99 USD
$70.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
OPTION
COLOR: Gold

Product Description

⚠️ IMPORTANT: CHECK OEM BOLT DIMENSIONS BEFORE INSTALLATION

Compare these bolts with your original BMW bolts for size and thread compatibility before installing.

S-PARTS Grade 5 titanium bolts and screws for the 2021 BMW S1000RR. Choose from 62 individual mounting-location options or a 200-piece OEM option (aftermarket parts not included). Applications include fairings, brakes, triple clamps, footpegs, exhaust mounts, engine covers and selected aftermarket parts.

Key Specifications

  • Fitment: BMW S1000RR (2021 model); includes a 2023-model caliper option and M Version options
  • Material: Grade 5 Titanium (Ti-6Al-4V)
  • Drive Type: Torx (T20–T50, depending on option); open-end wrench for mirror, rear sprocket nut and rear shock sensor options
  • Colors: Gold, Titanium, Black, Blue, Green, Purple, Candy and Indigo
  • Weight Advantage: Mechanical performance comparable to Class 10.9 steel fasteners at approximately half the weight

Available Options

Select your mounting location and check the quantity and tool size for each option. Tools are not included.

Option Mounting Location Qty. Required Tool

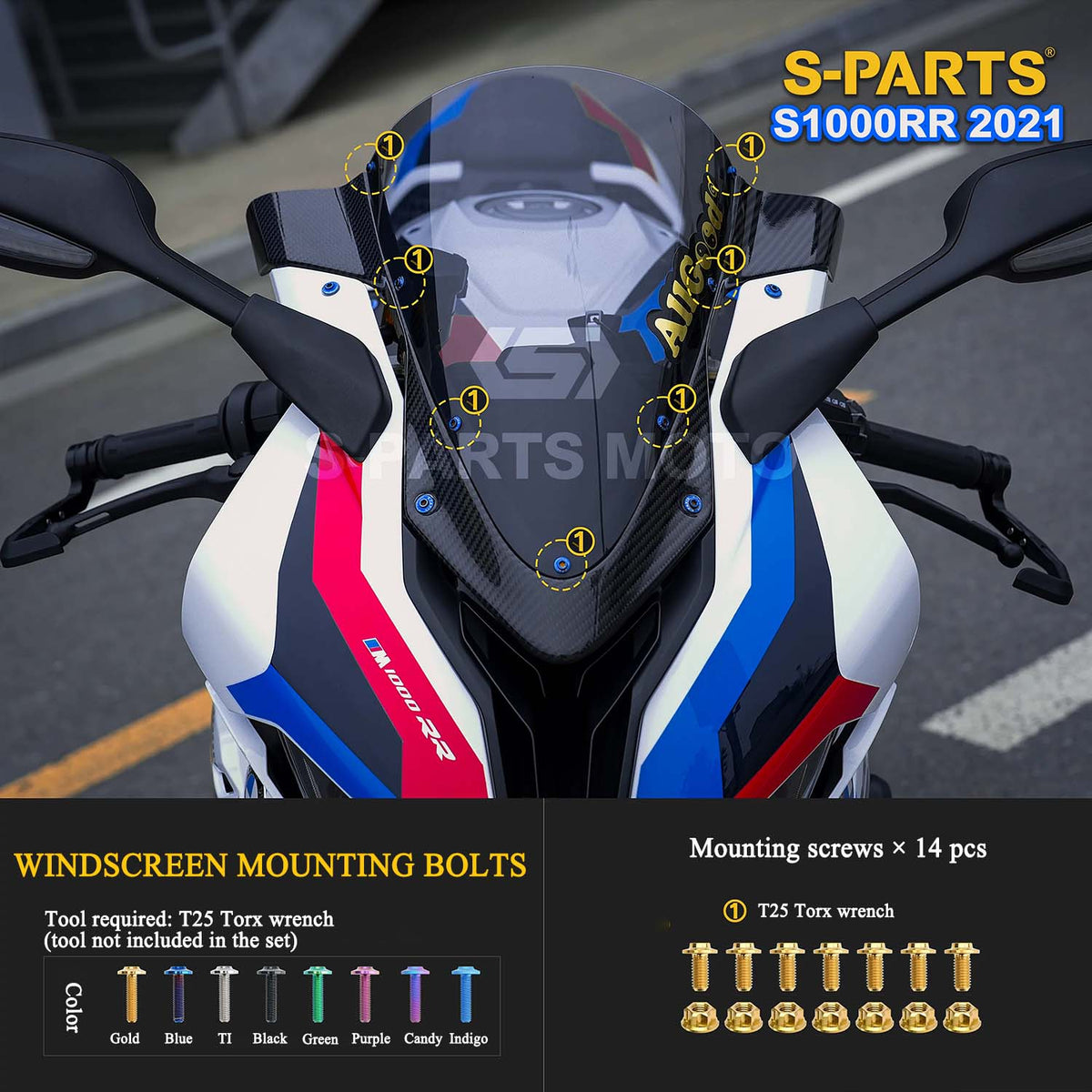

1 Windscreen Mounting Bolts 14 T25 Torx

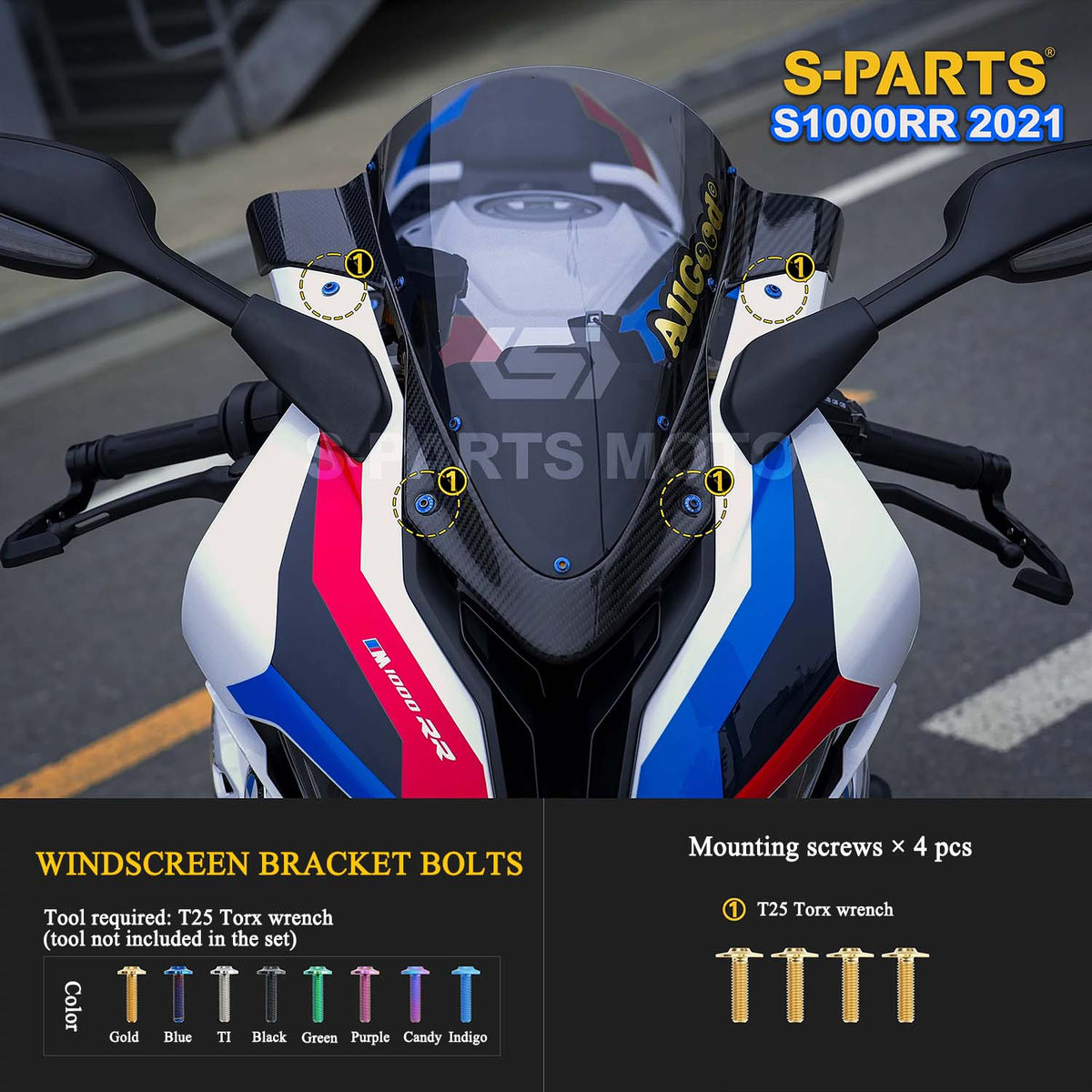

2 Windscreen Bracket Bolts 4 T25 Torx

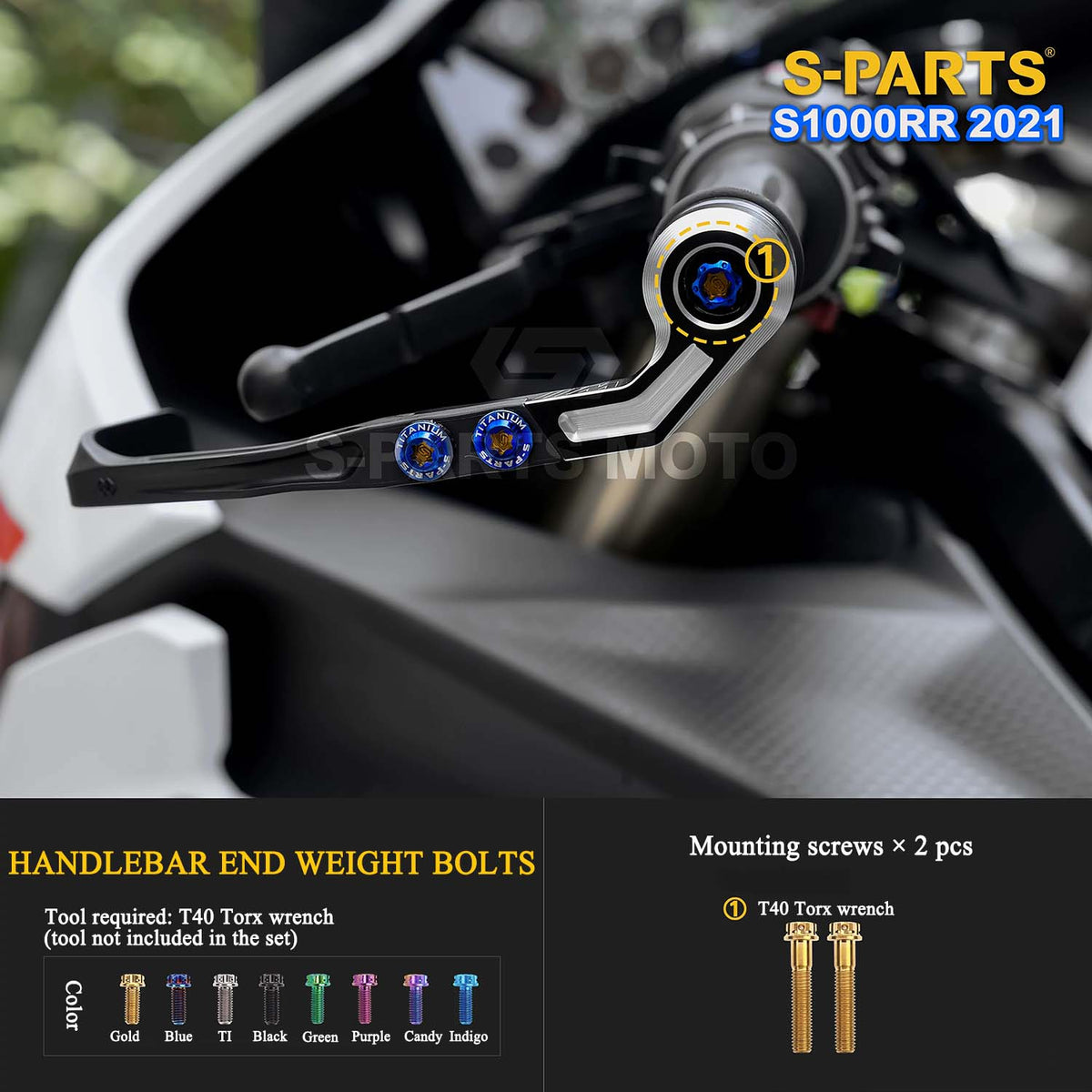

3 Handlebar End Weight Bolts 2 T40 Torx
4 Aftermarket Handguard Bolts 4 T30 Torx

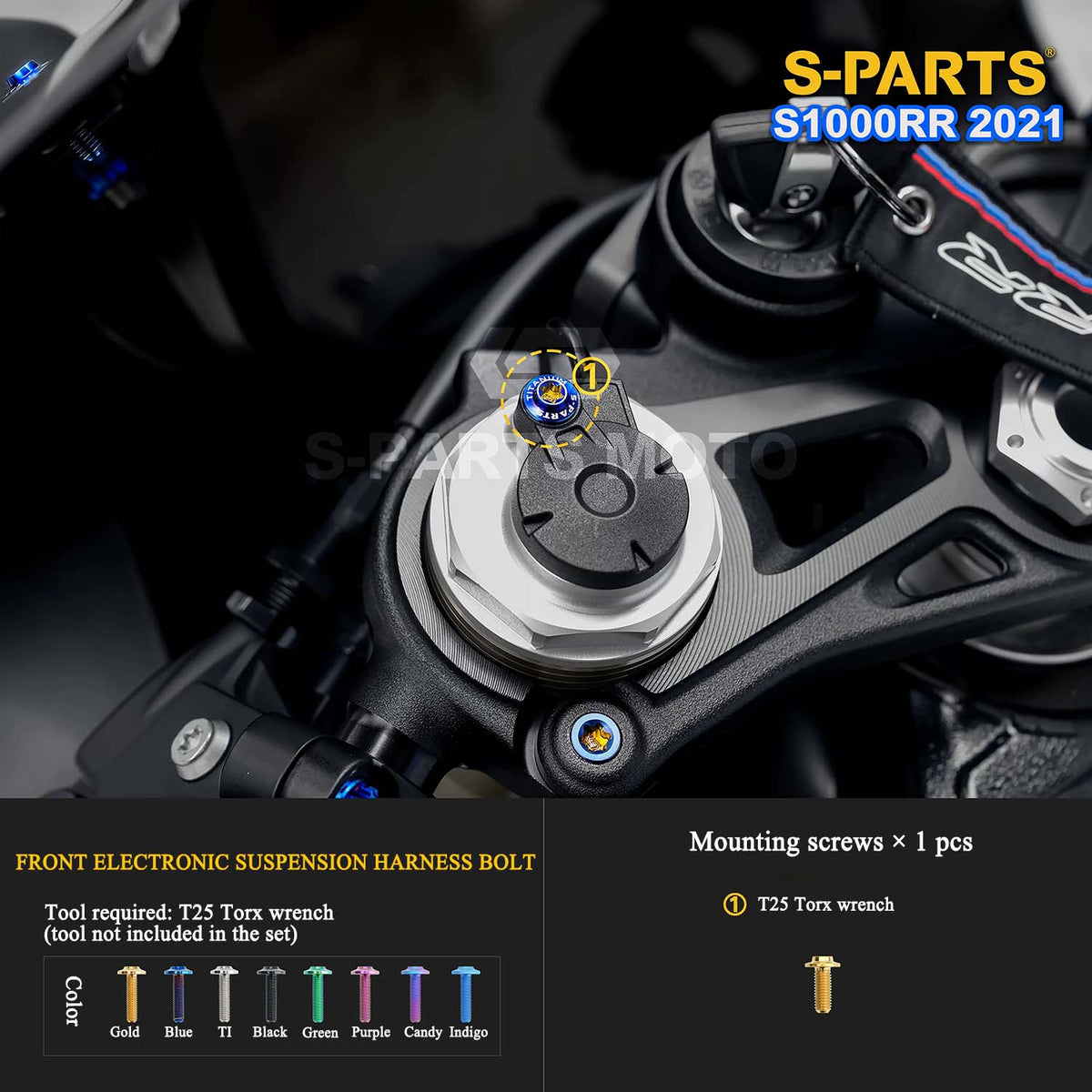

5 Front Electronic Suspension Harness Bolt 1 T25 Torx

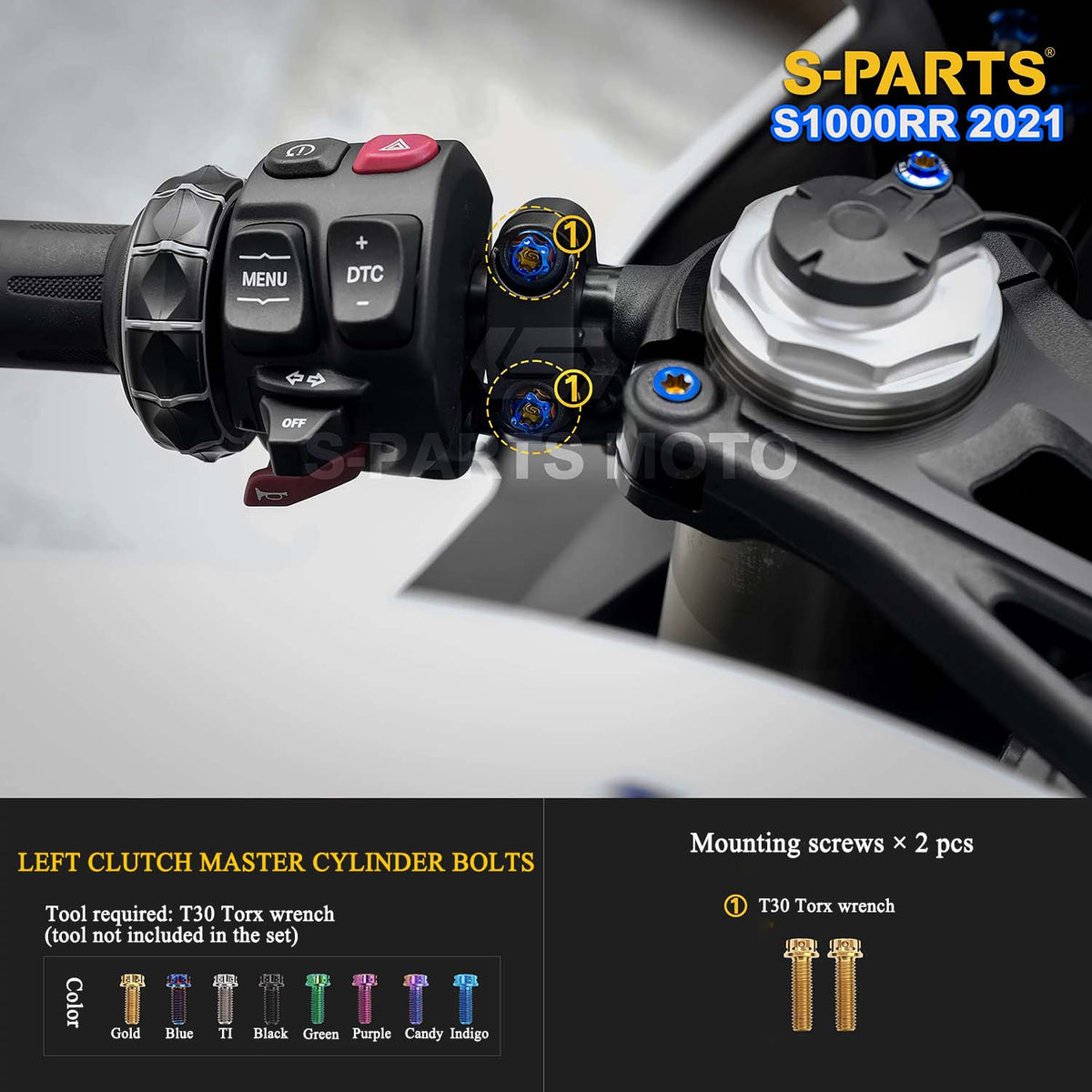

6 Left Clutch Master Cylinder Bolts 2 T30 Torx

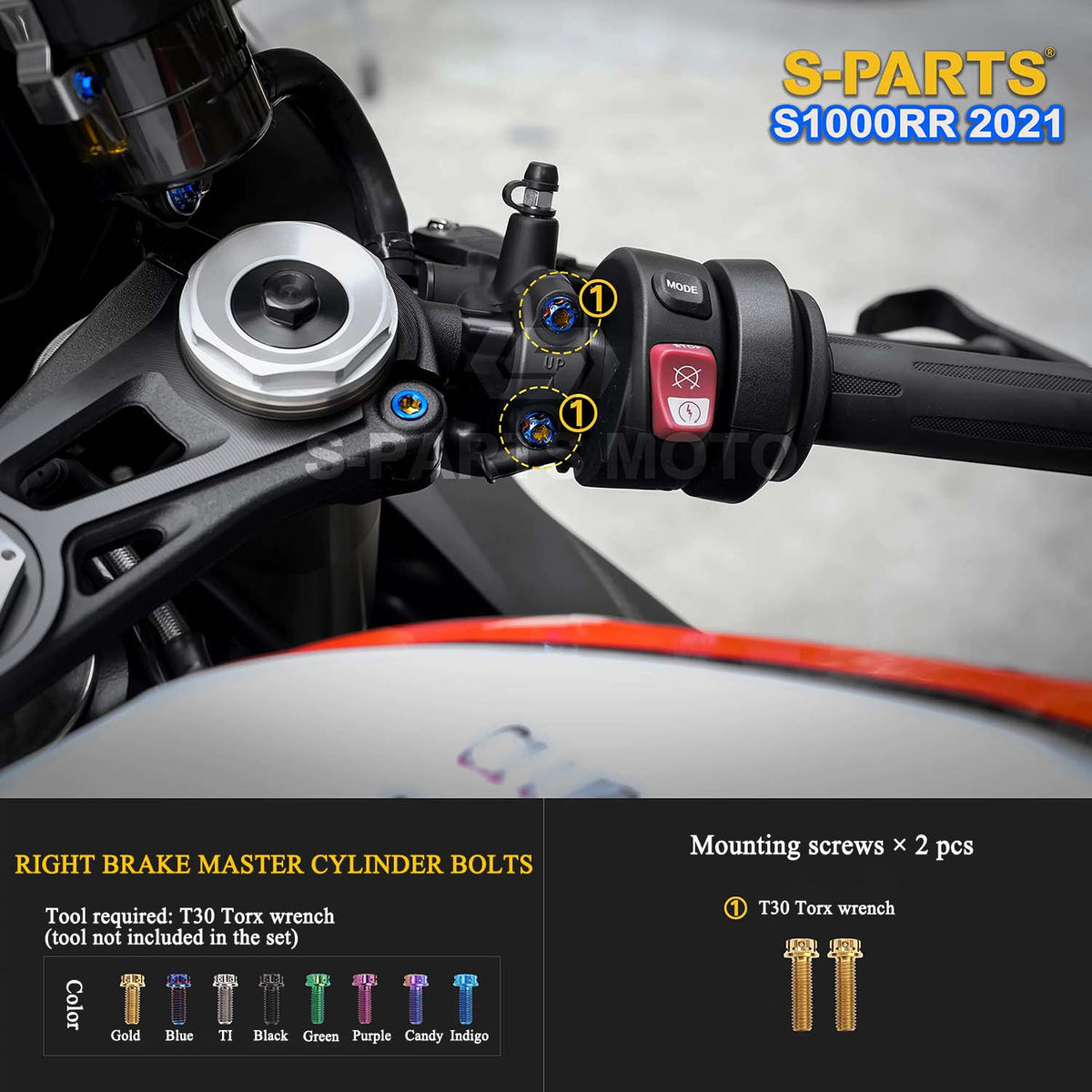

7 Right Brake Master Cylinder Bolts 2 T30 Torx

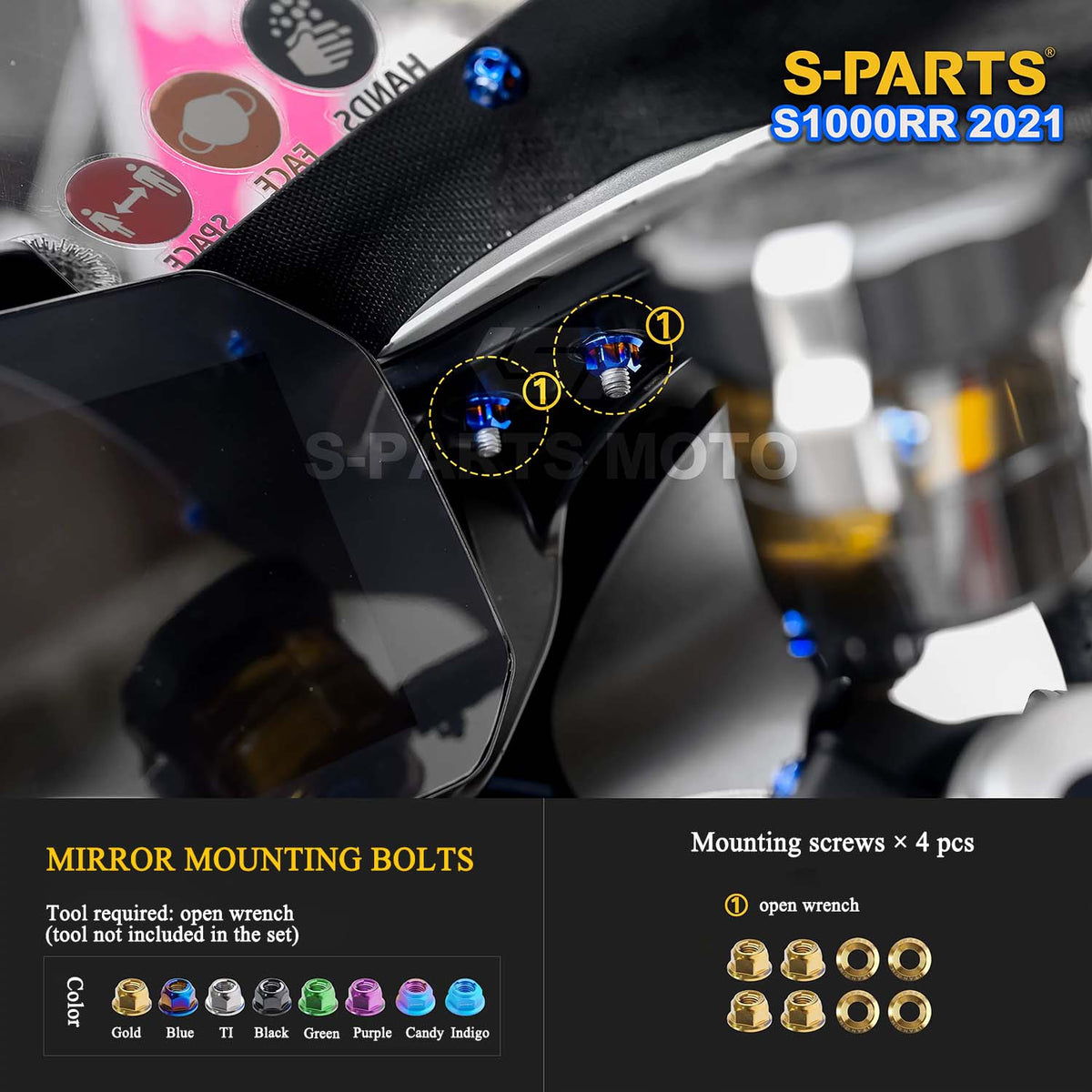

8 Mirror Mounting Bolts 8 Open-End Wrench

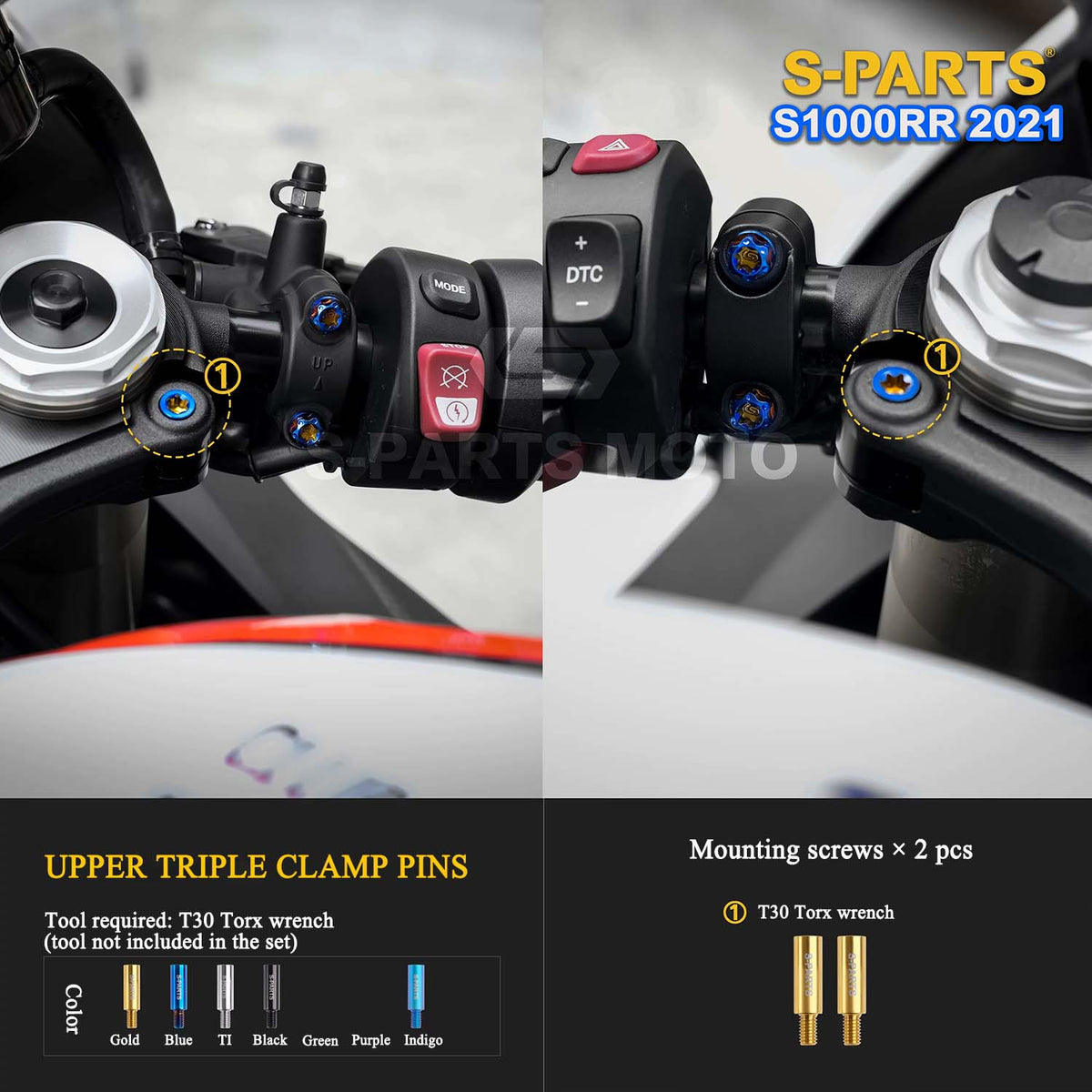

9 Upper Triple Clamp Pins 2 T30 Torx
10 Upper Triple Clamp Bolts 2 T40 Torx

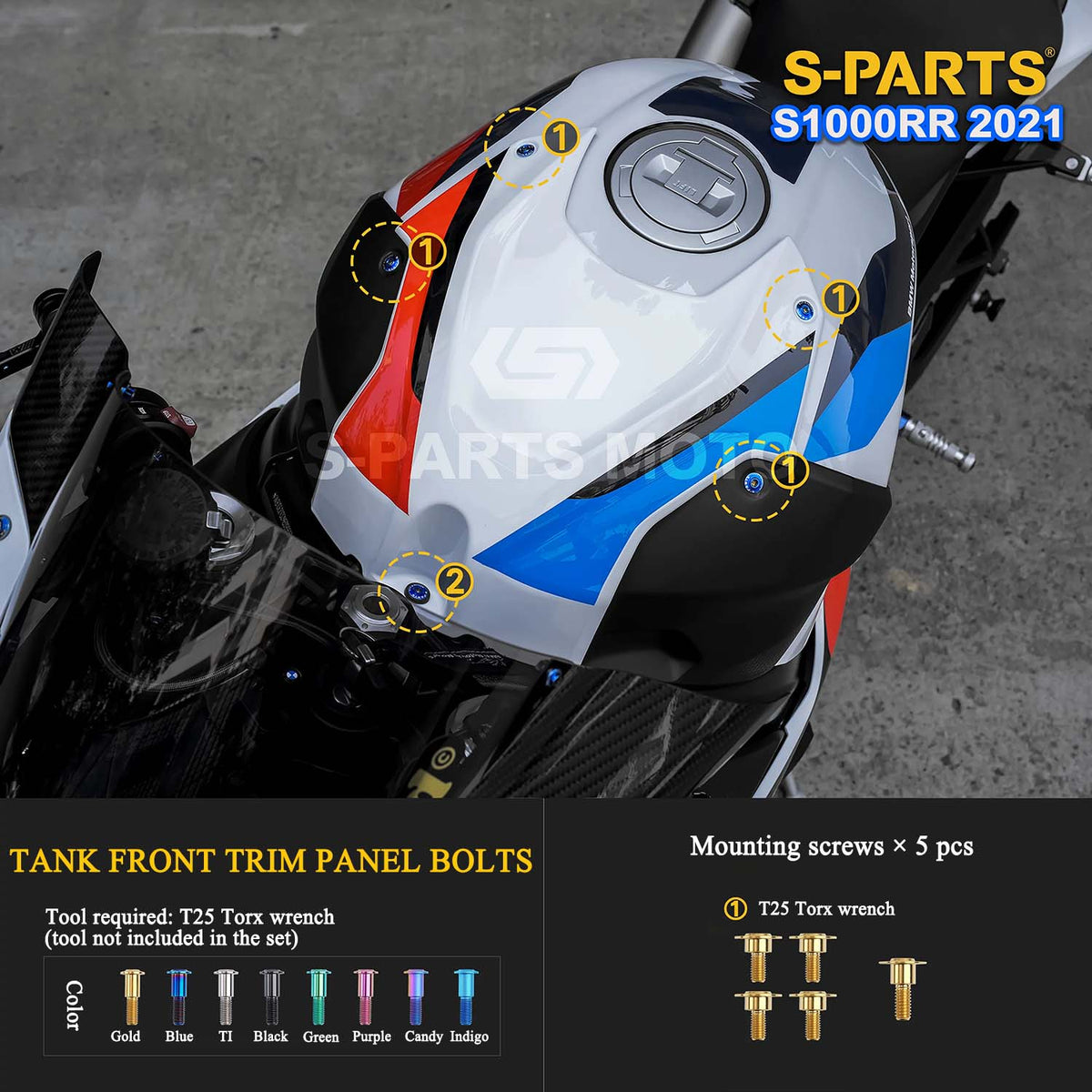

11 Tank Front Trim Panel Bolts 5 T25 Torx

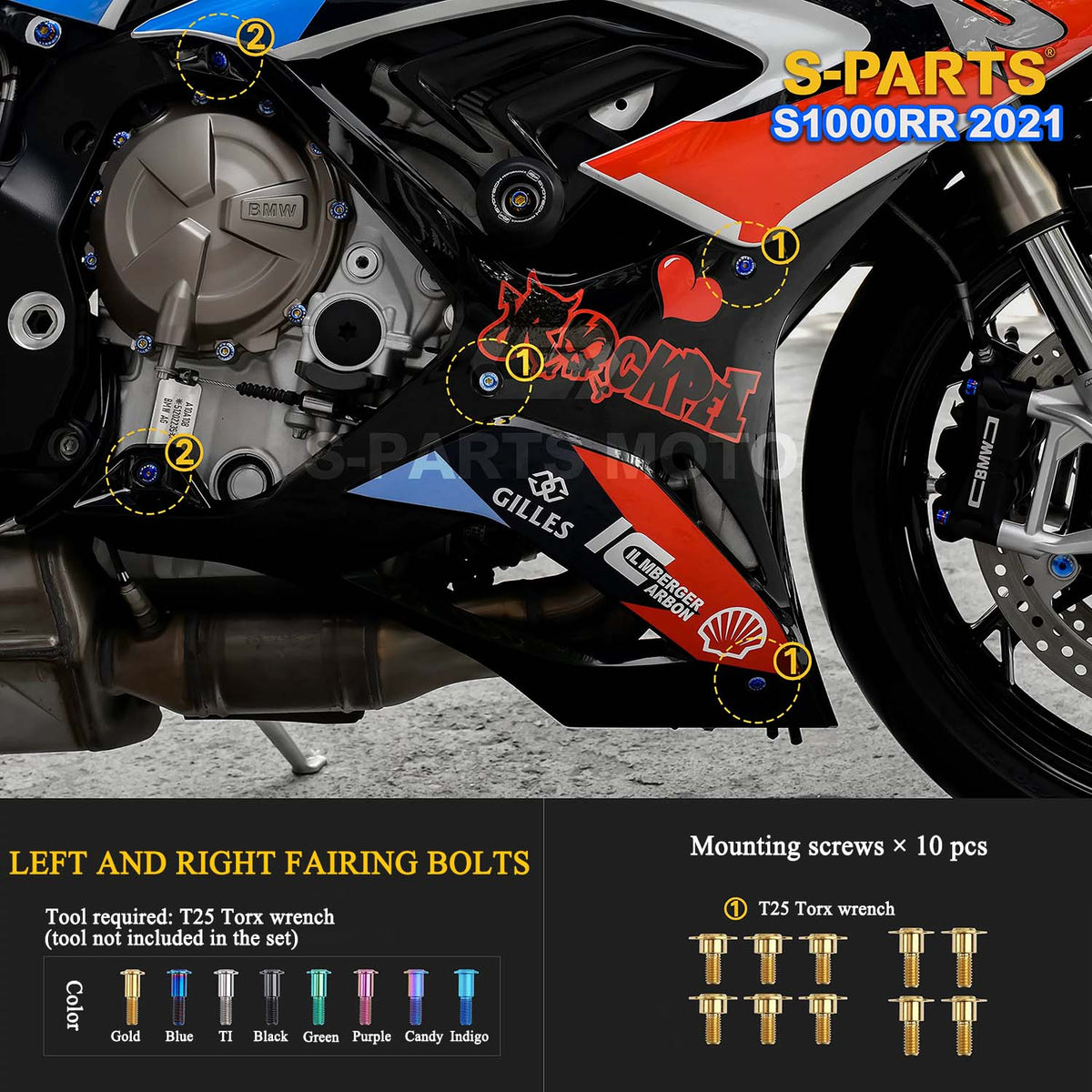

12 Left and Right Fairing Bolts 10 T25 Torx

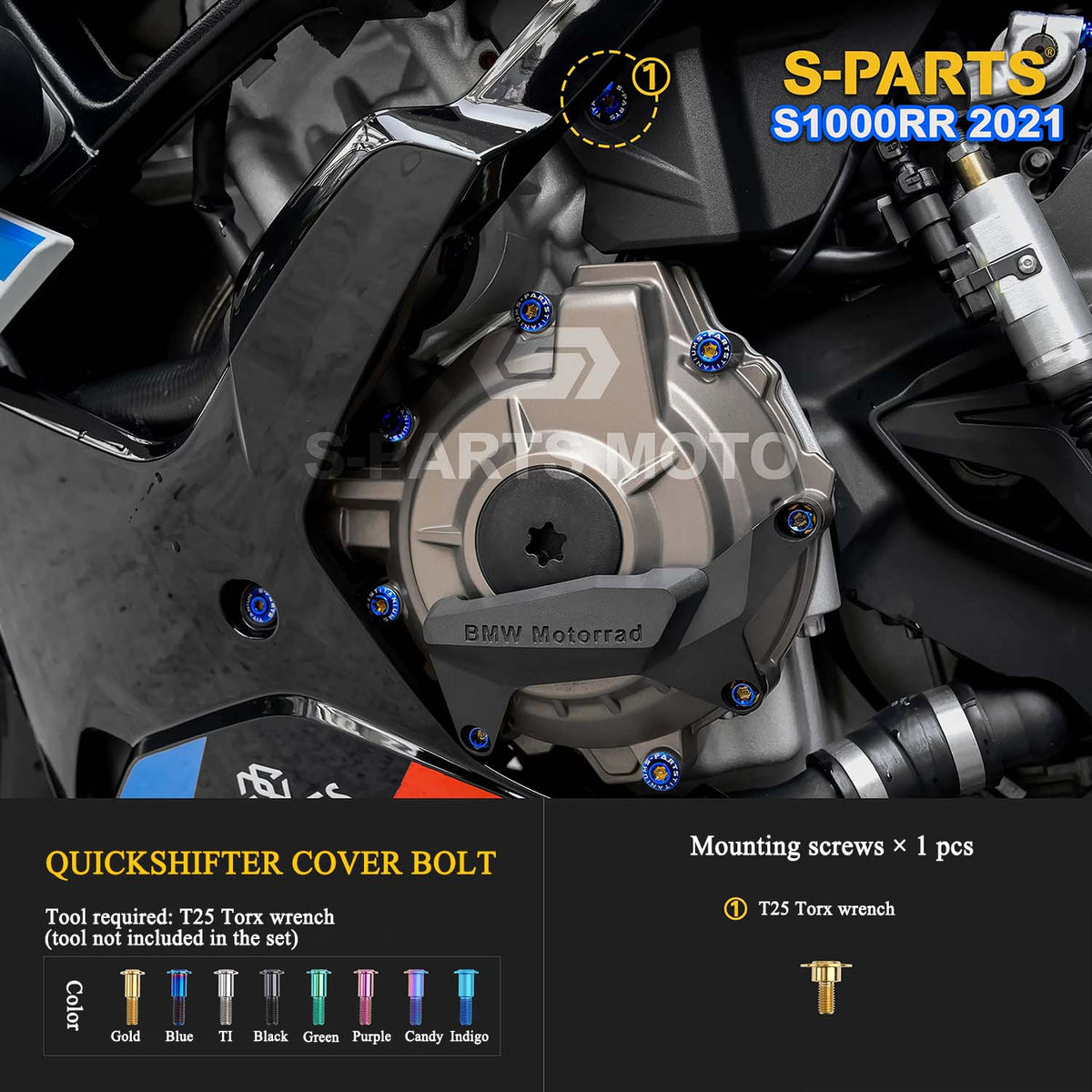

13 Quickshifter Cover Bolt 1 T25 Torx

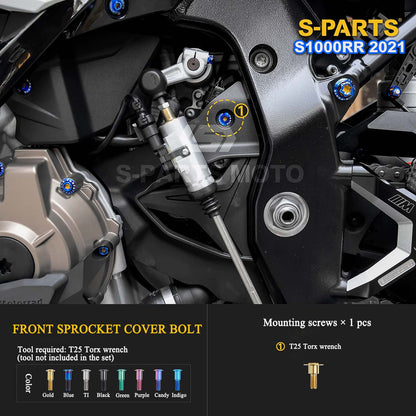

14 Front Sprocket Cover Bolt 1 T25 Torx

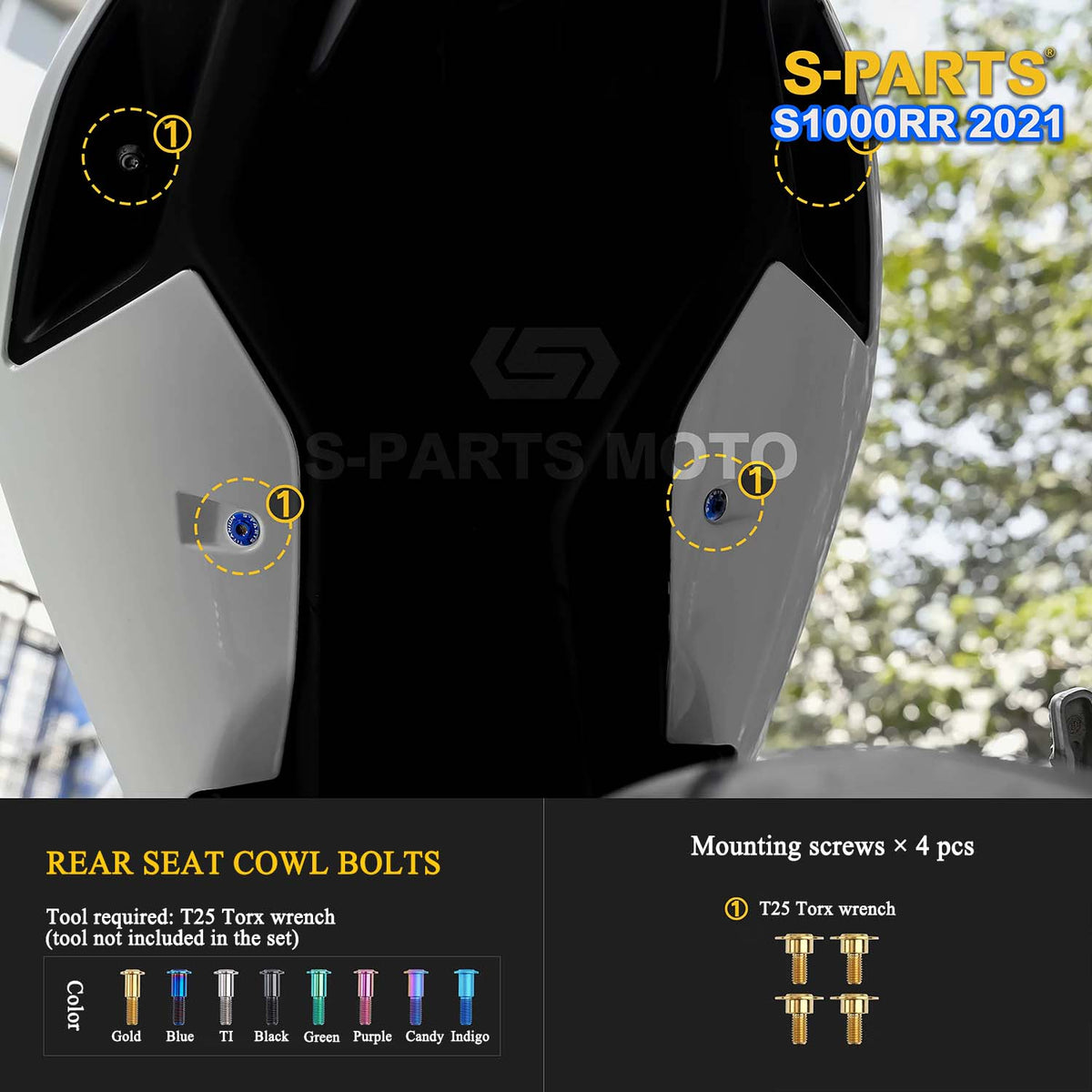

15 Rear Seat Cowl Bolts 4 T25 Torx

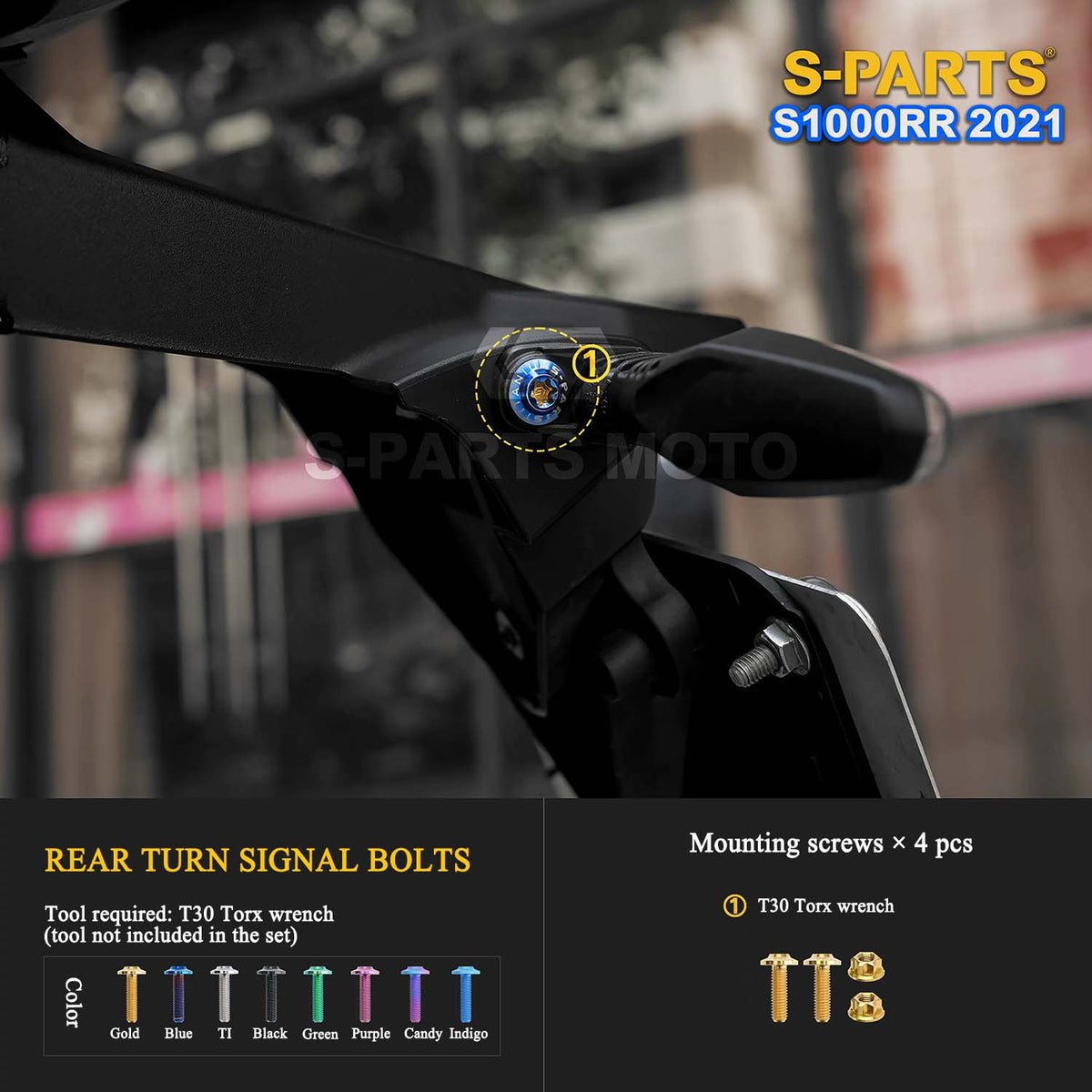

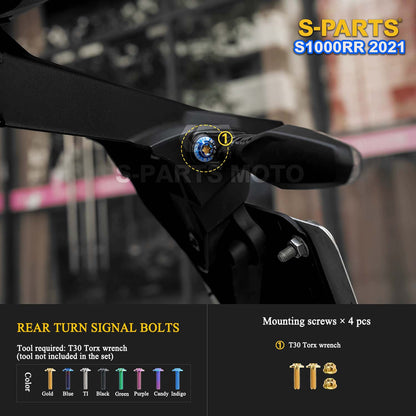

16 Rear Turn Signal Bolts 4 T30 Torx

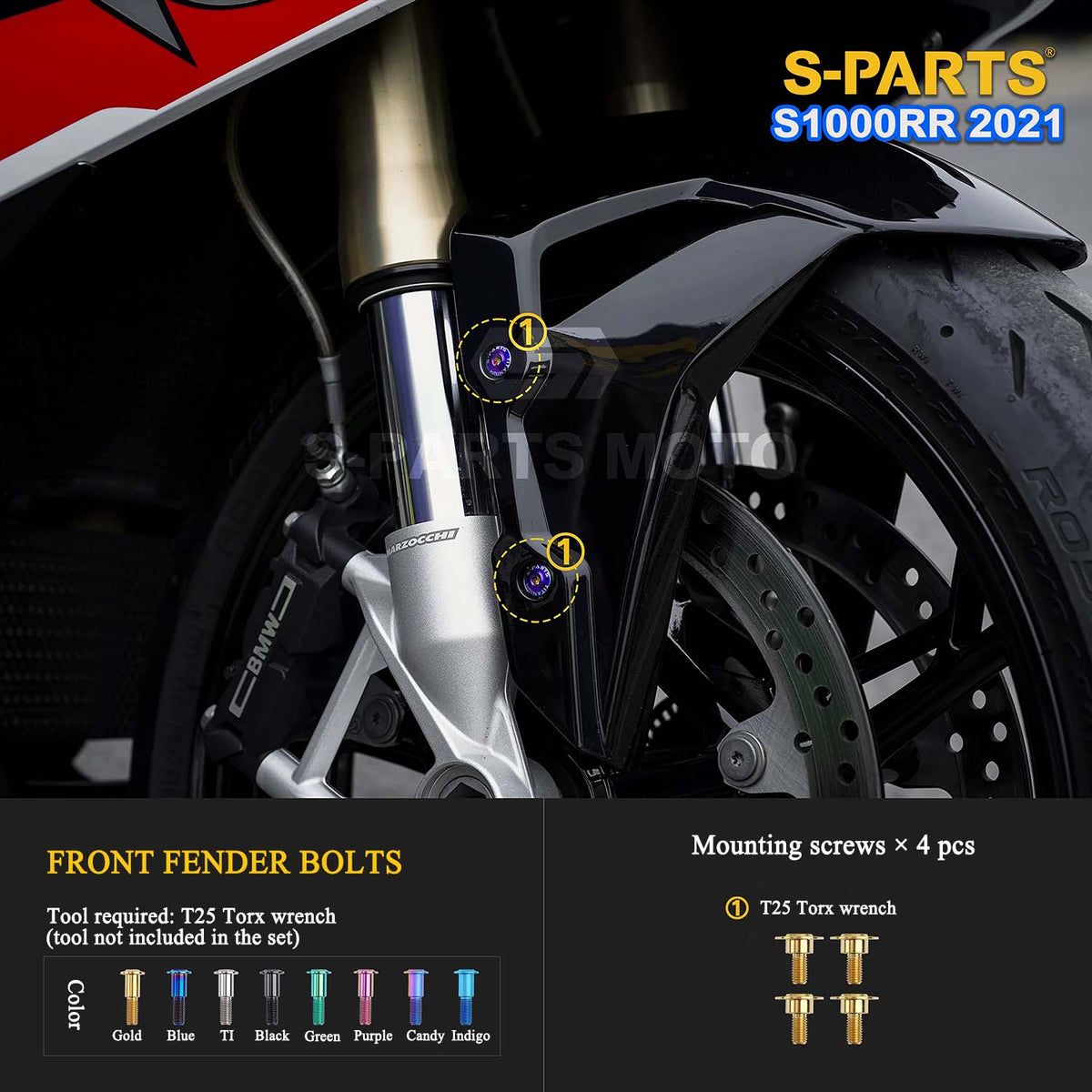

17 Front Fender Bolts 4 T25 Torx

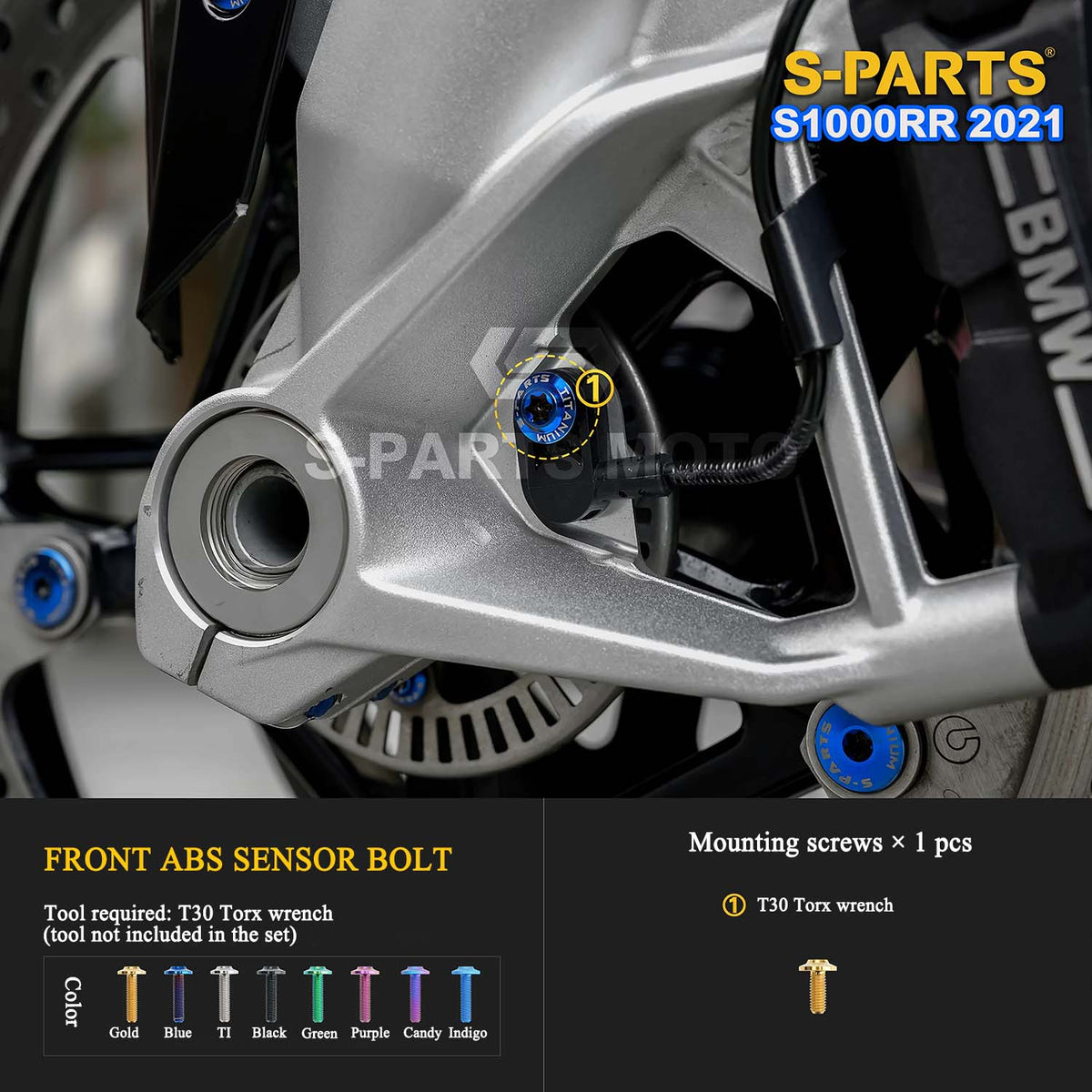

18 Front ABS Sensor Bolt 1 T30 Torx

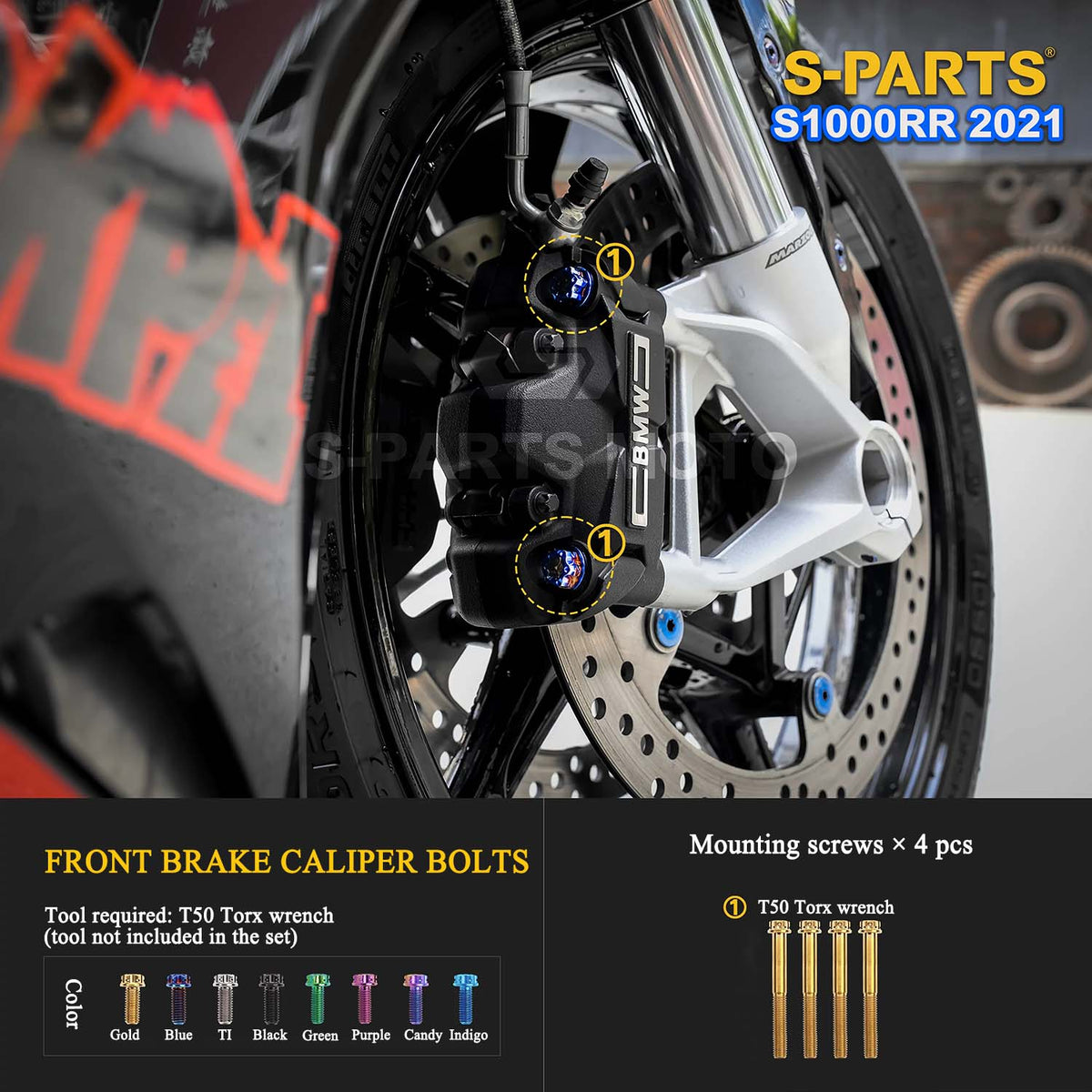

19 Front Brake Caliper Bolts 4 T50 Torx

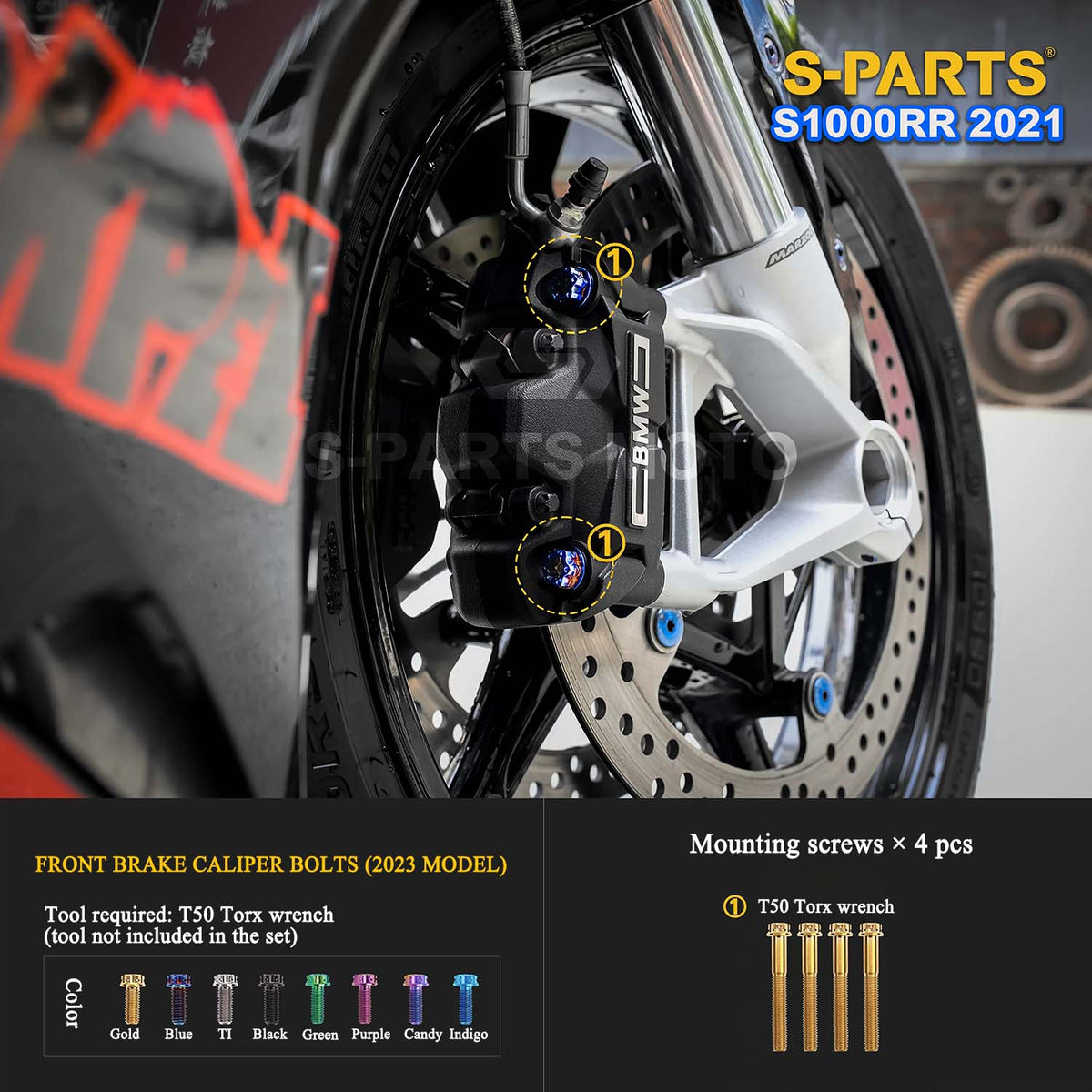

20 Front Brake Caliper Bolts (2023 Model) 4 T50 Torx

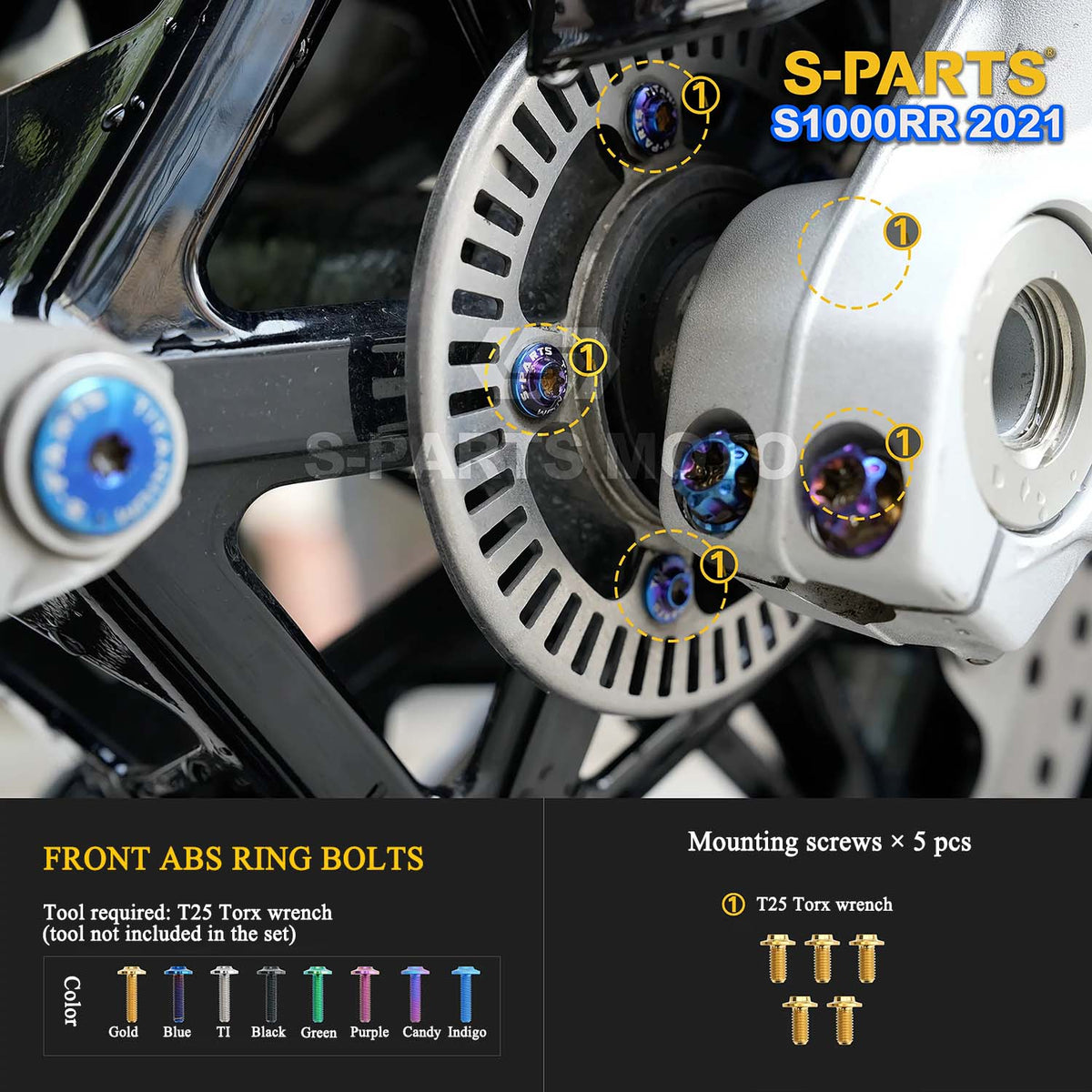

21 Front ABS Ring Bolts 5 T25 Torx

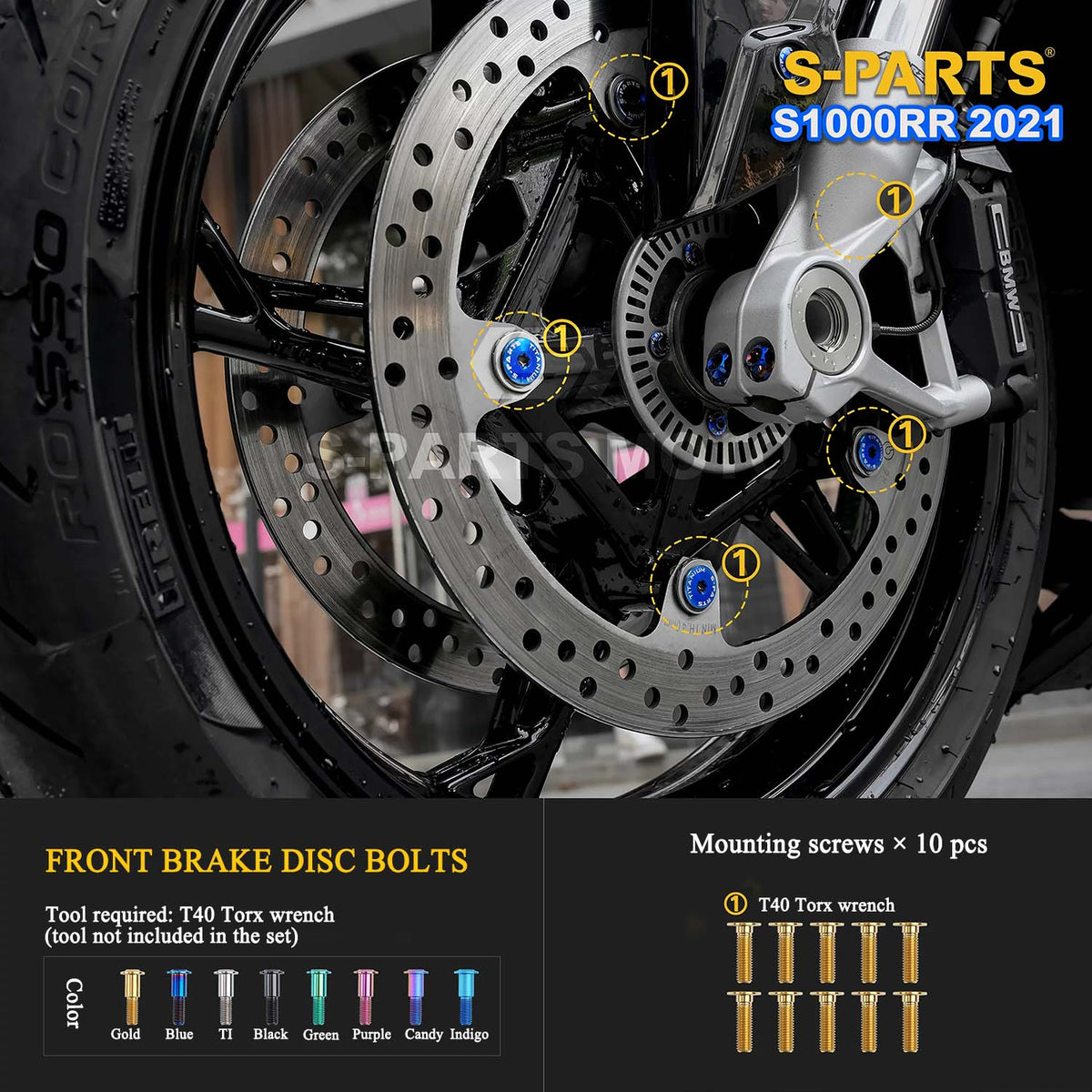

22 Front Brake Disc Bolts 10 T40 Torx

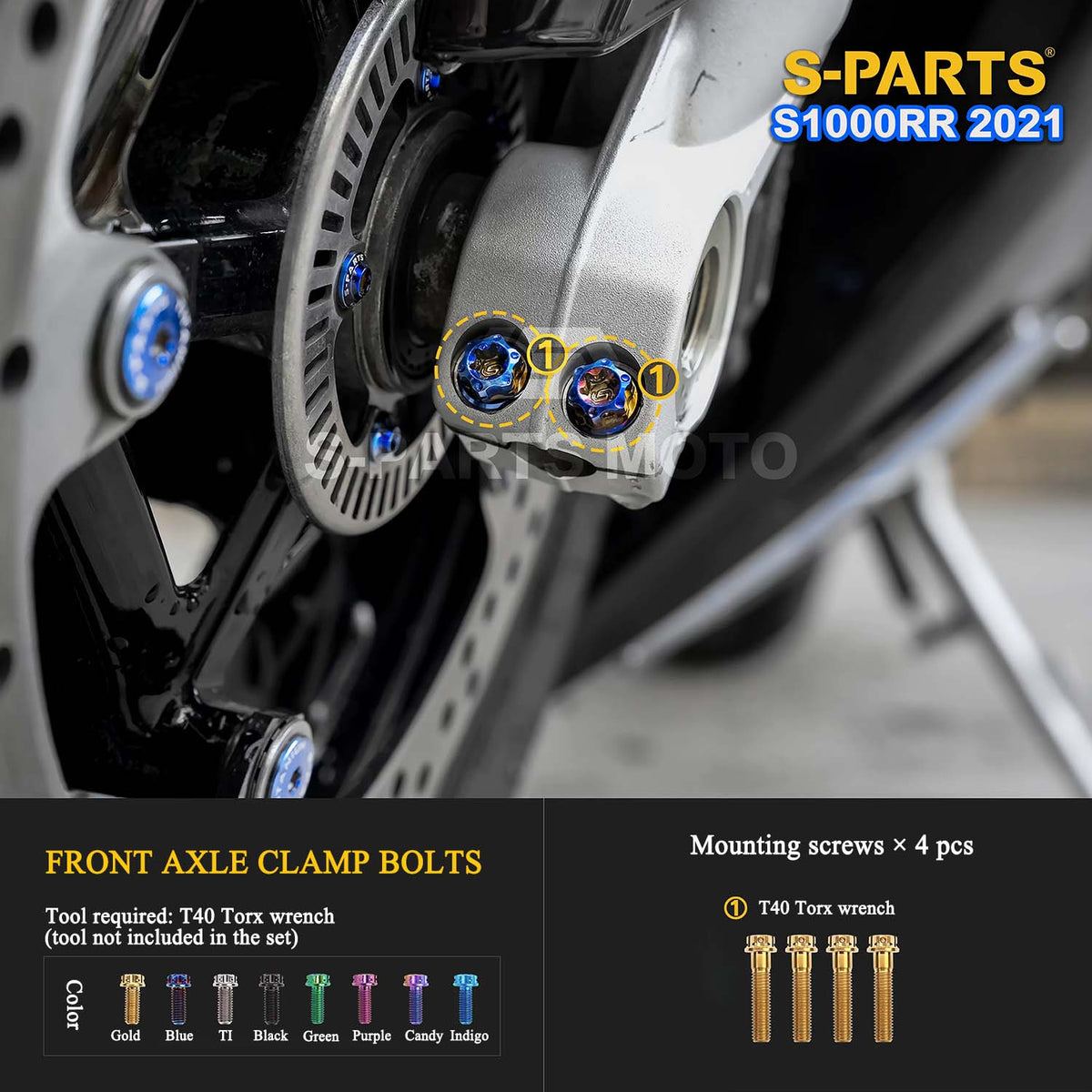

23 Front Axle Clamp Bolts 4 T40 Torx

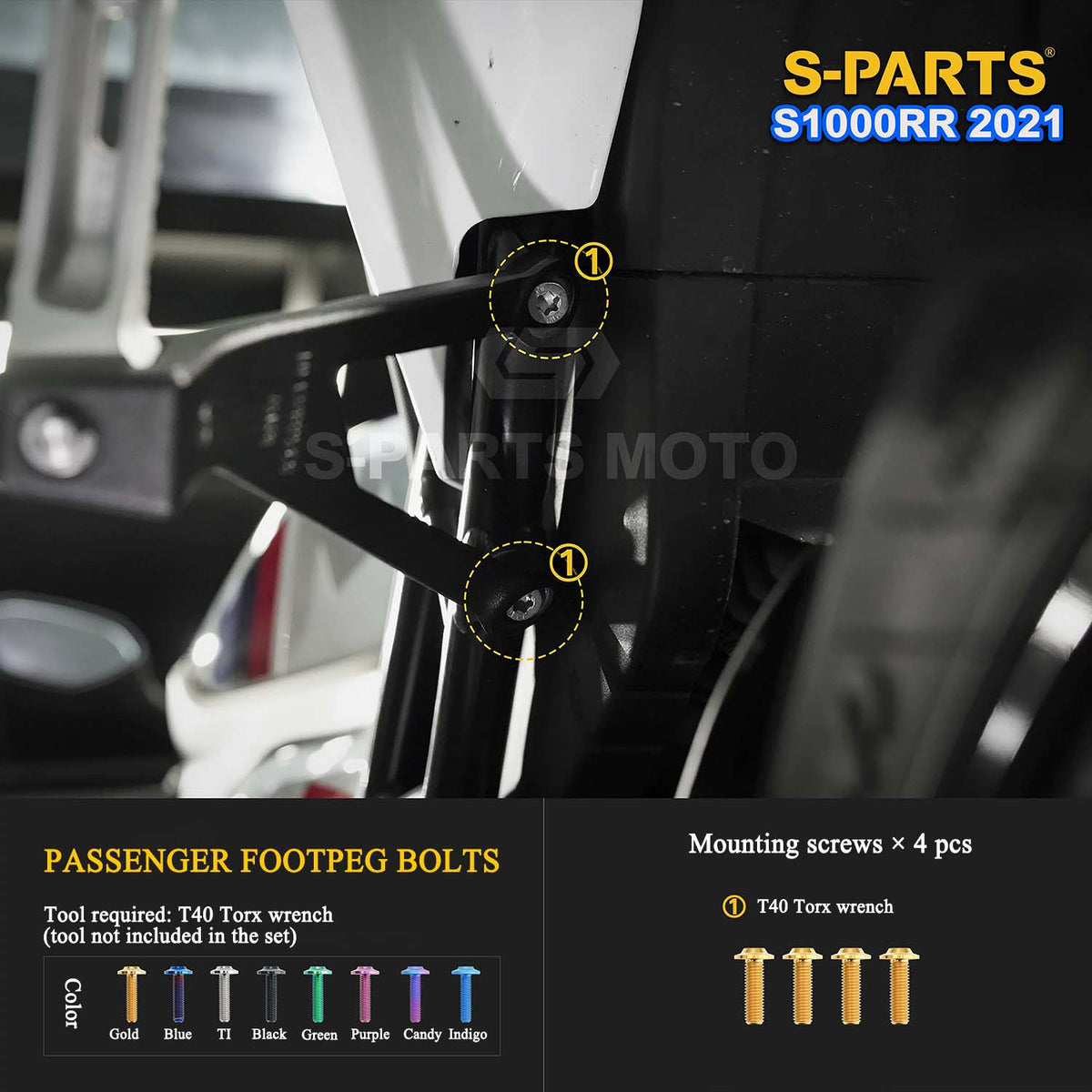

24 Passenger Footpeg Bolts 4 T40 Torx
25 Passenger Footpeg Delete Bolts (Footpegs Removed) 4 T40 Torx

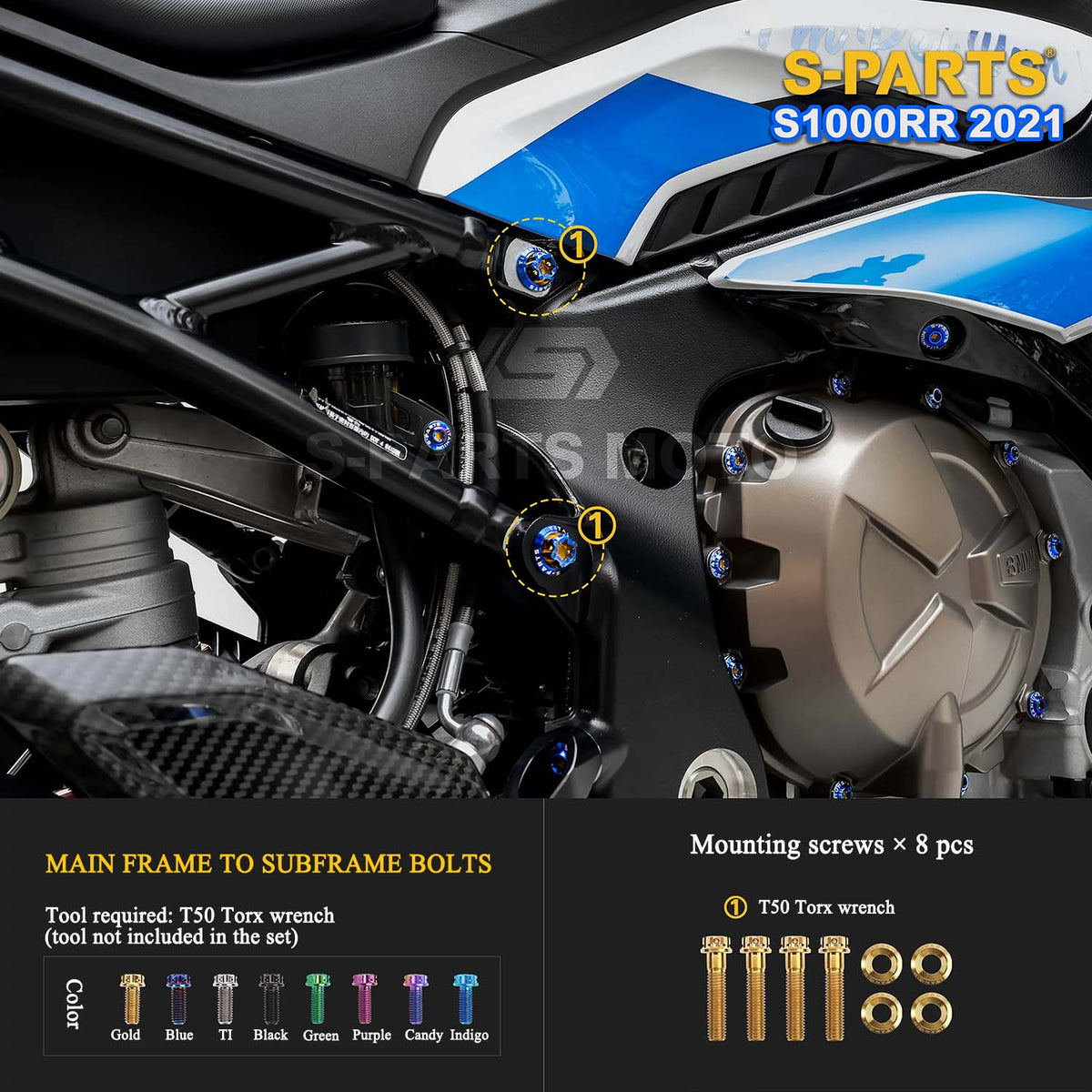

26 Main Frame to Subframe Bolts 8 T50 Torx

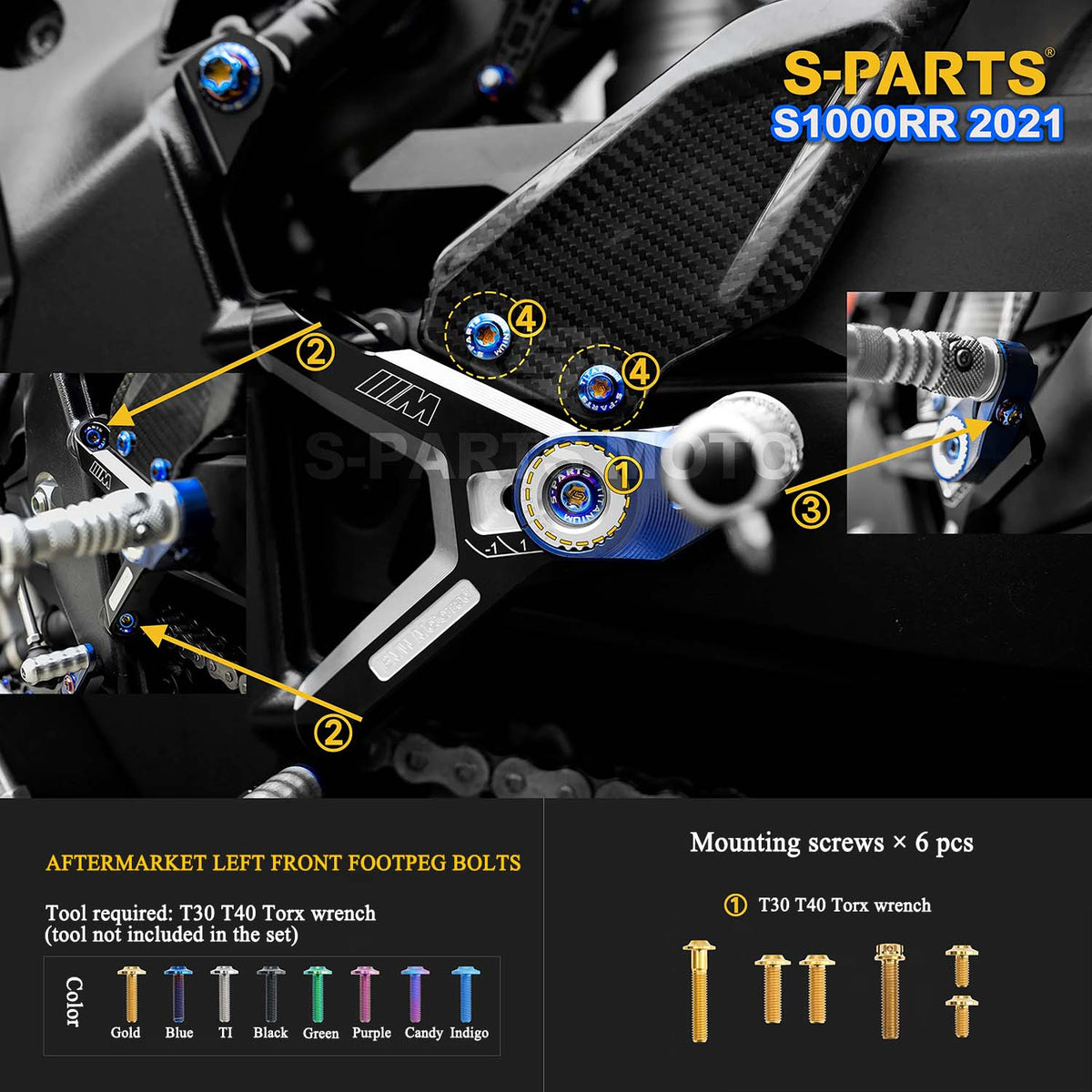

27A Aftermarket Left Front Footpeg Bolts 6 T30 / T40 Torx

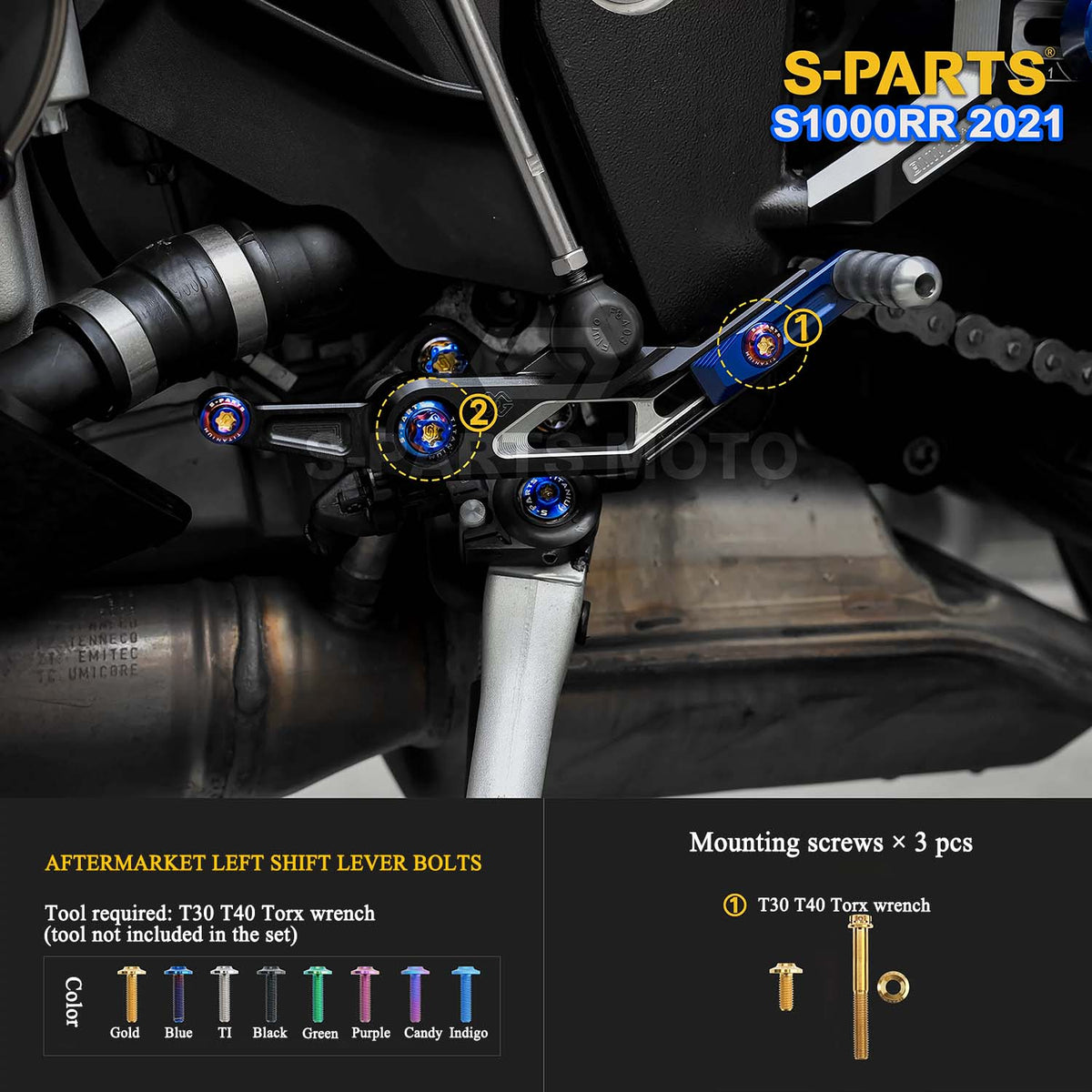

27B Aftermarket Left Shift Lever Bolts 3 T30 / T40 Torx

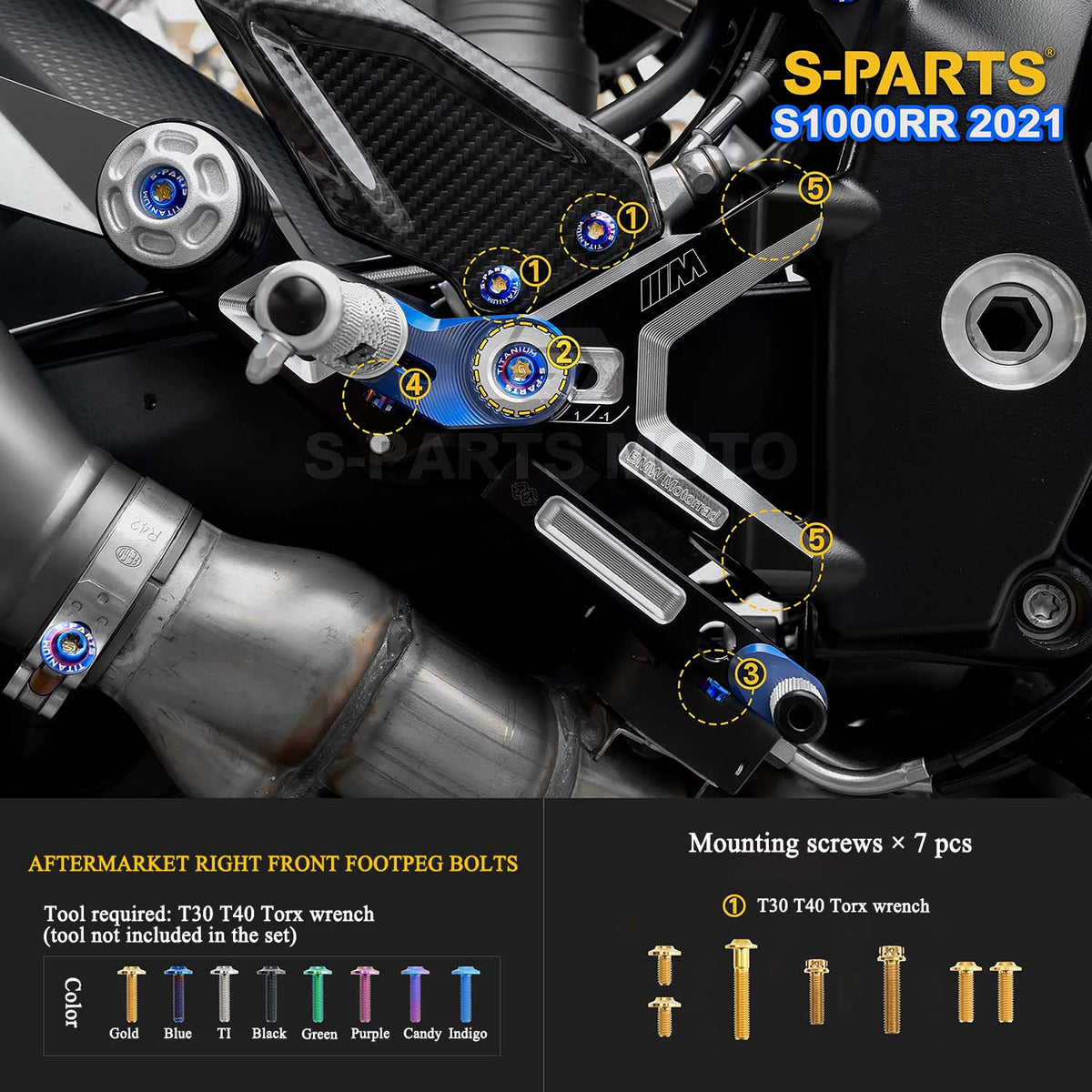

28 Aftermarket Right Front Footpeg Bolts 7 T30 / T40 Torx

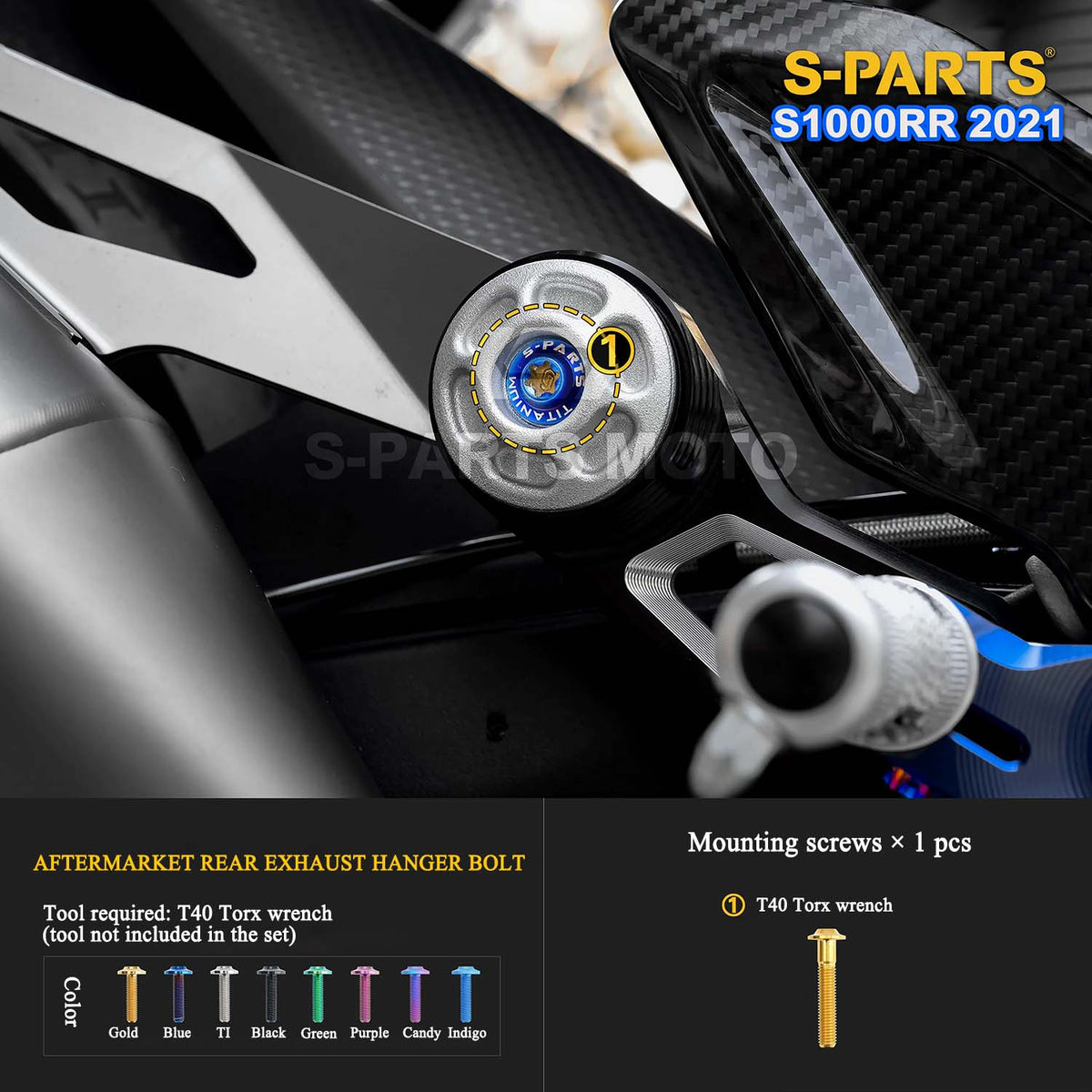

29 Aftermarket Rear Exhaust Hanger Bolt 1 T40 Torx

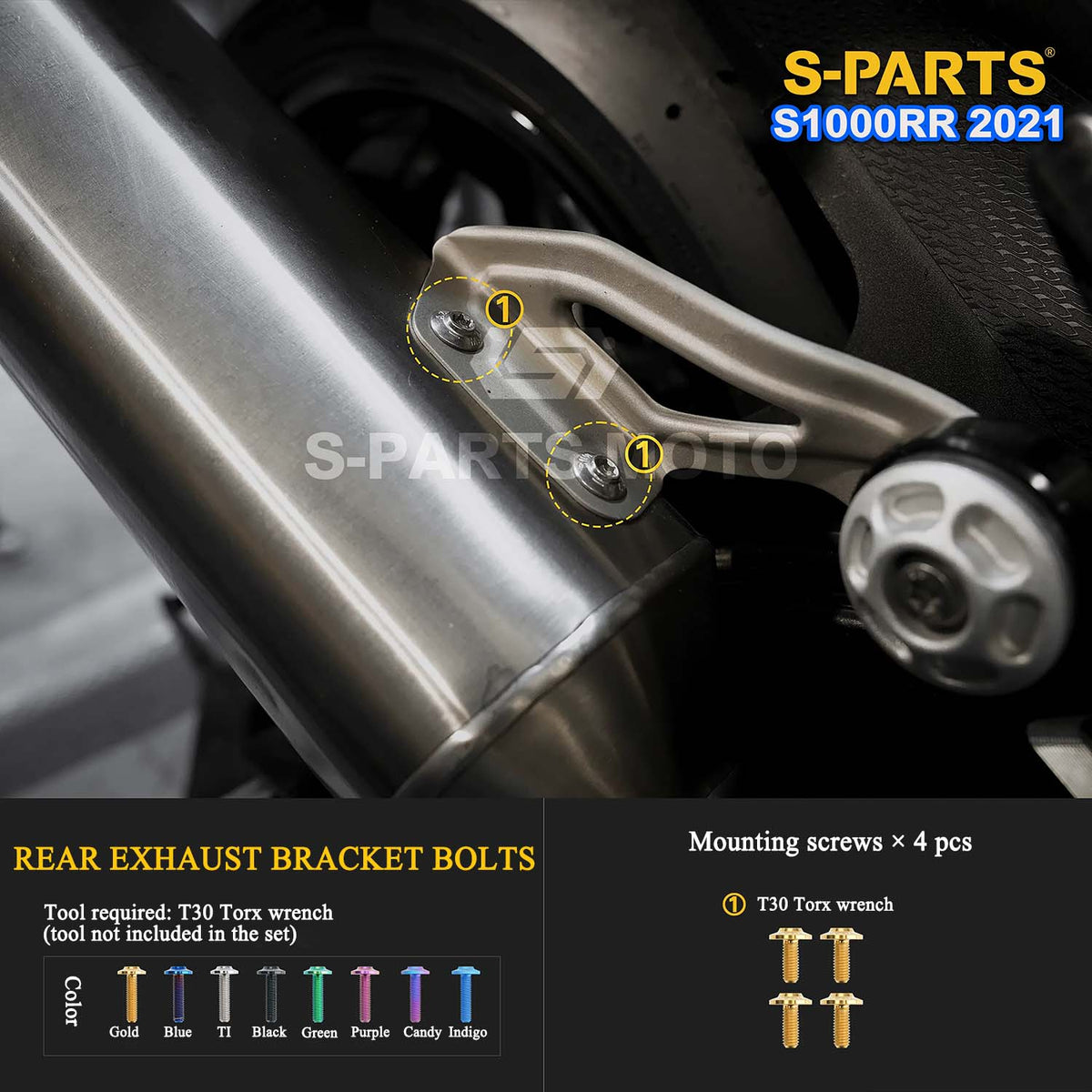

30 Rear Exhaust Bracket Bolts 4 T30 Torx

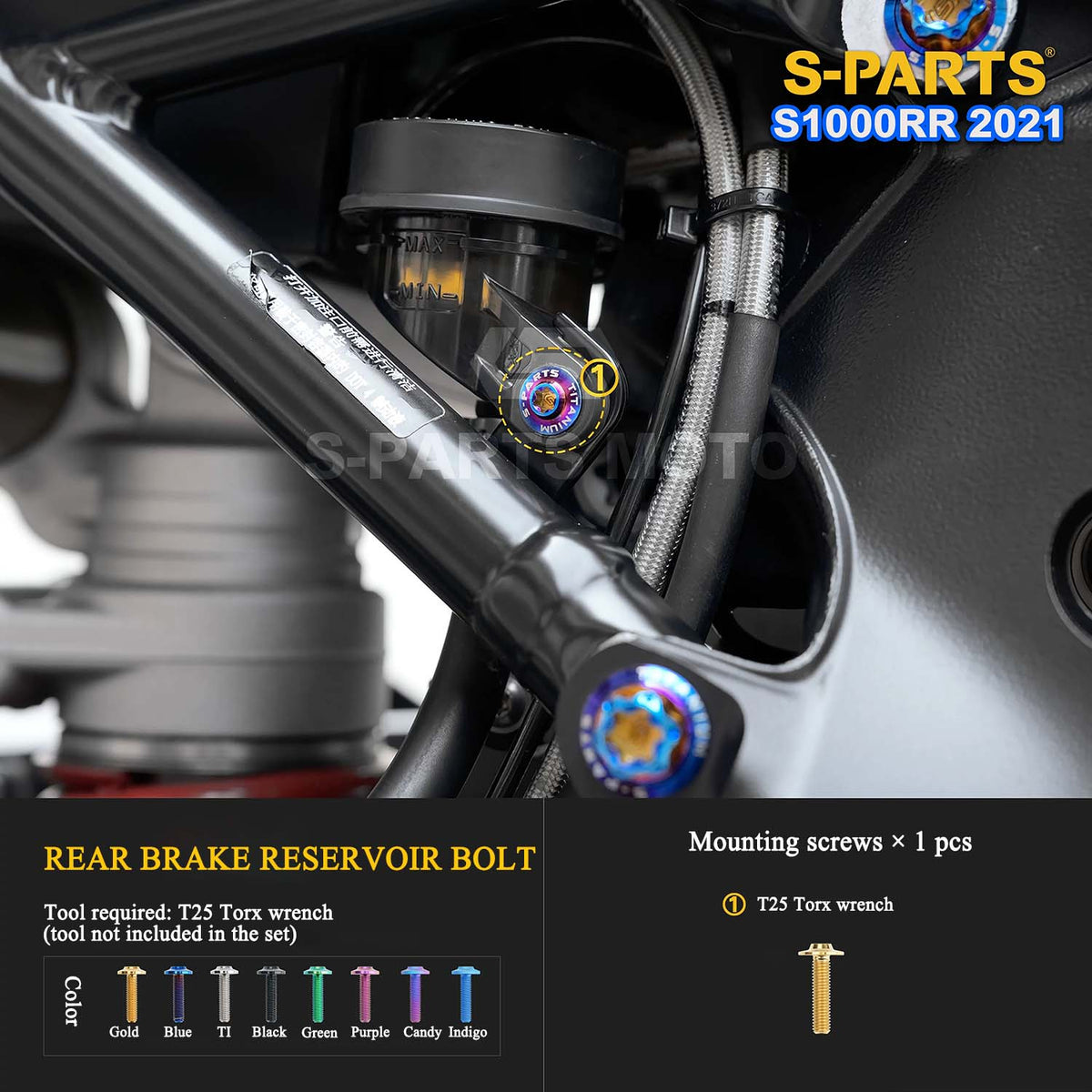

31 Rear Brake Reservoir Bolt 1 T25 Torx

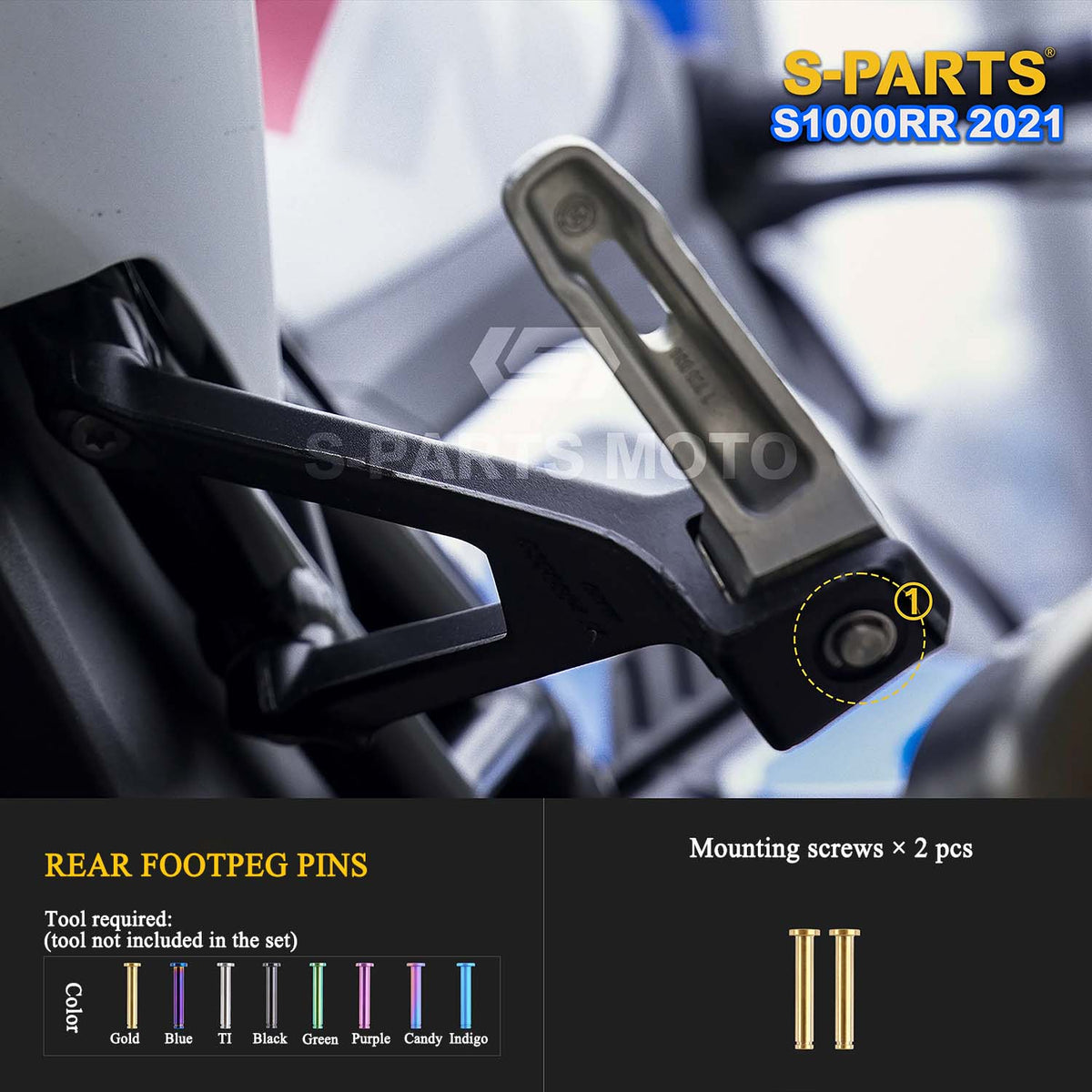

32 Rear Footpeg Pins 2 —

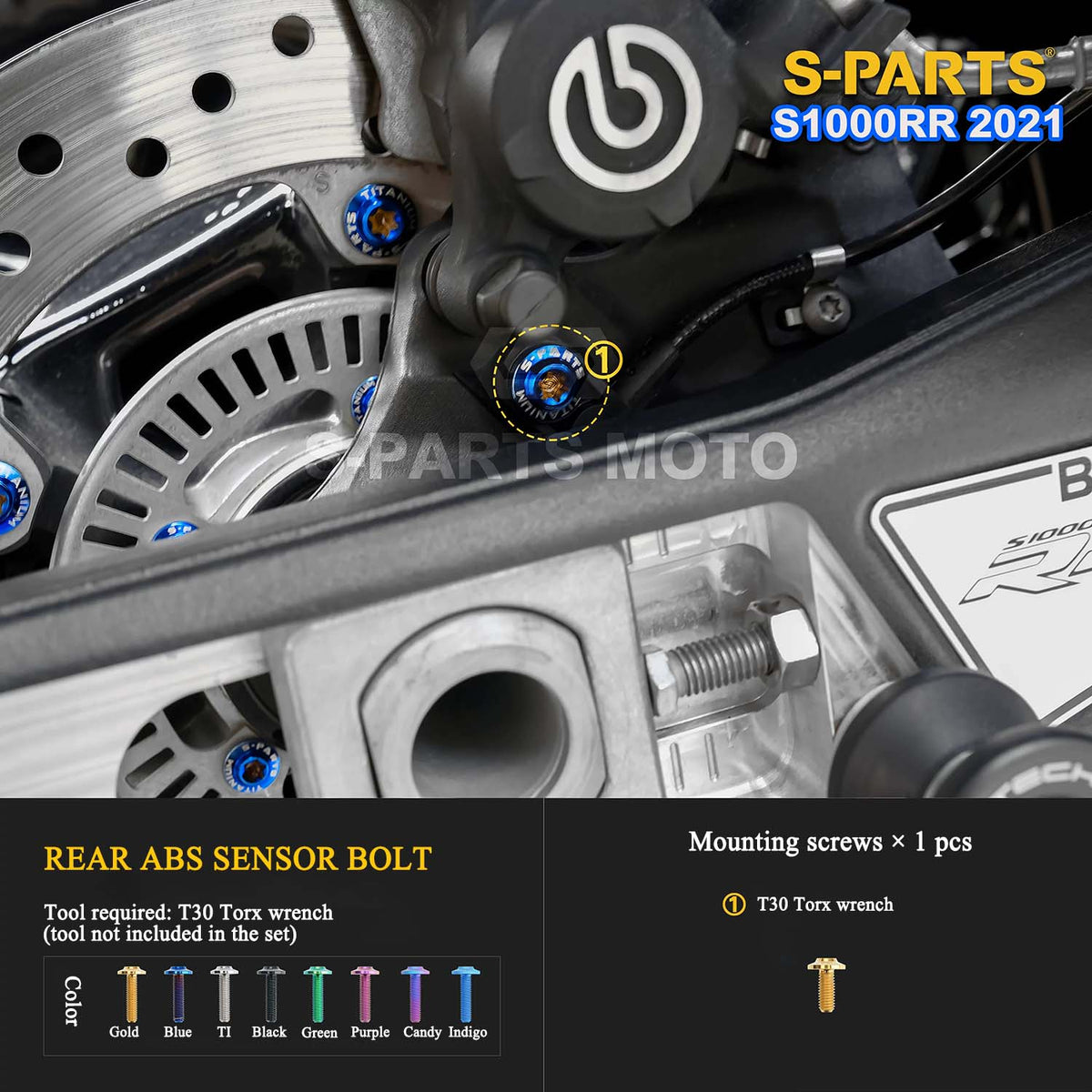

33 Rear ABS Sensor Bolt 1 T30 Torx

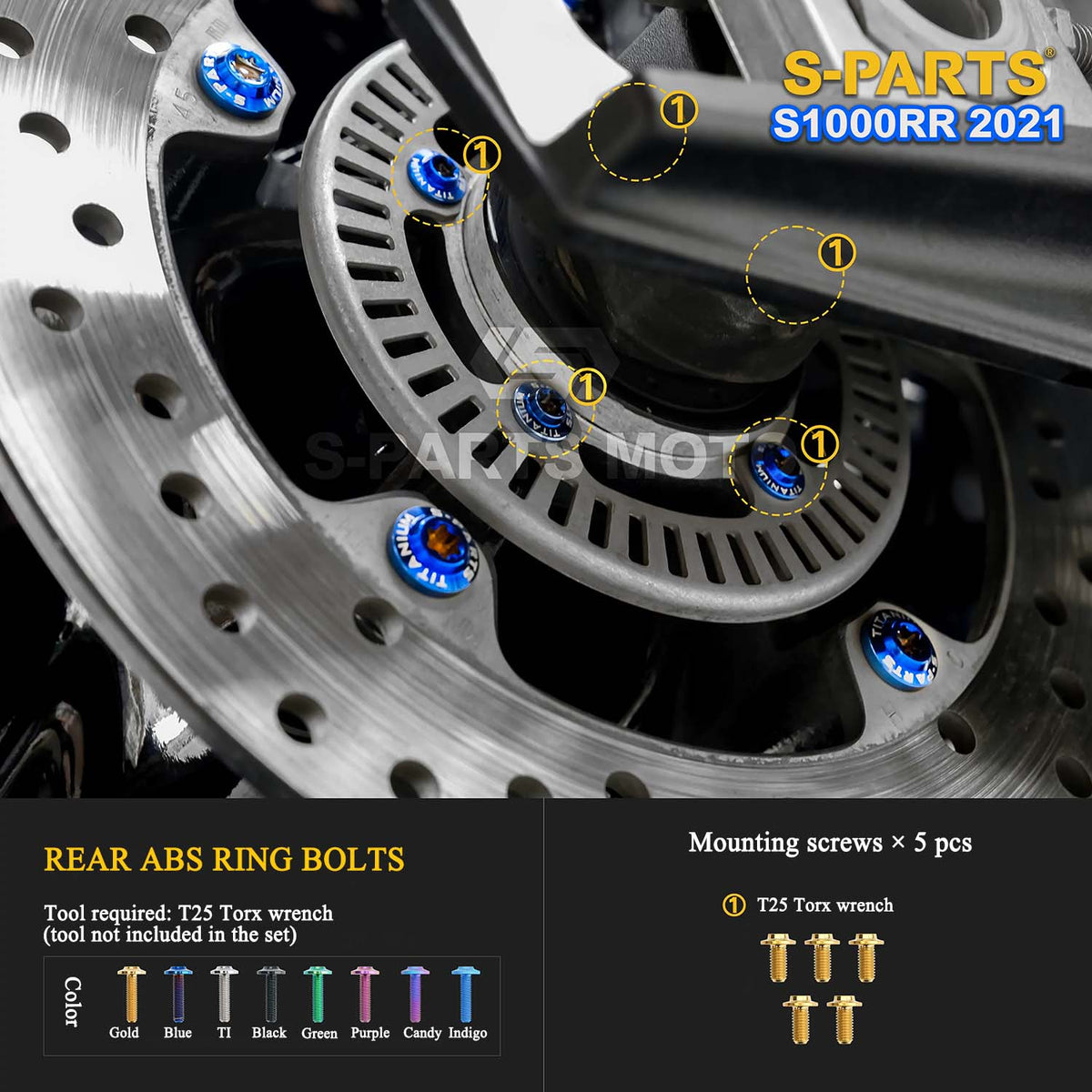

34 Rear ABS Ring Bolts 5 T25 Torx

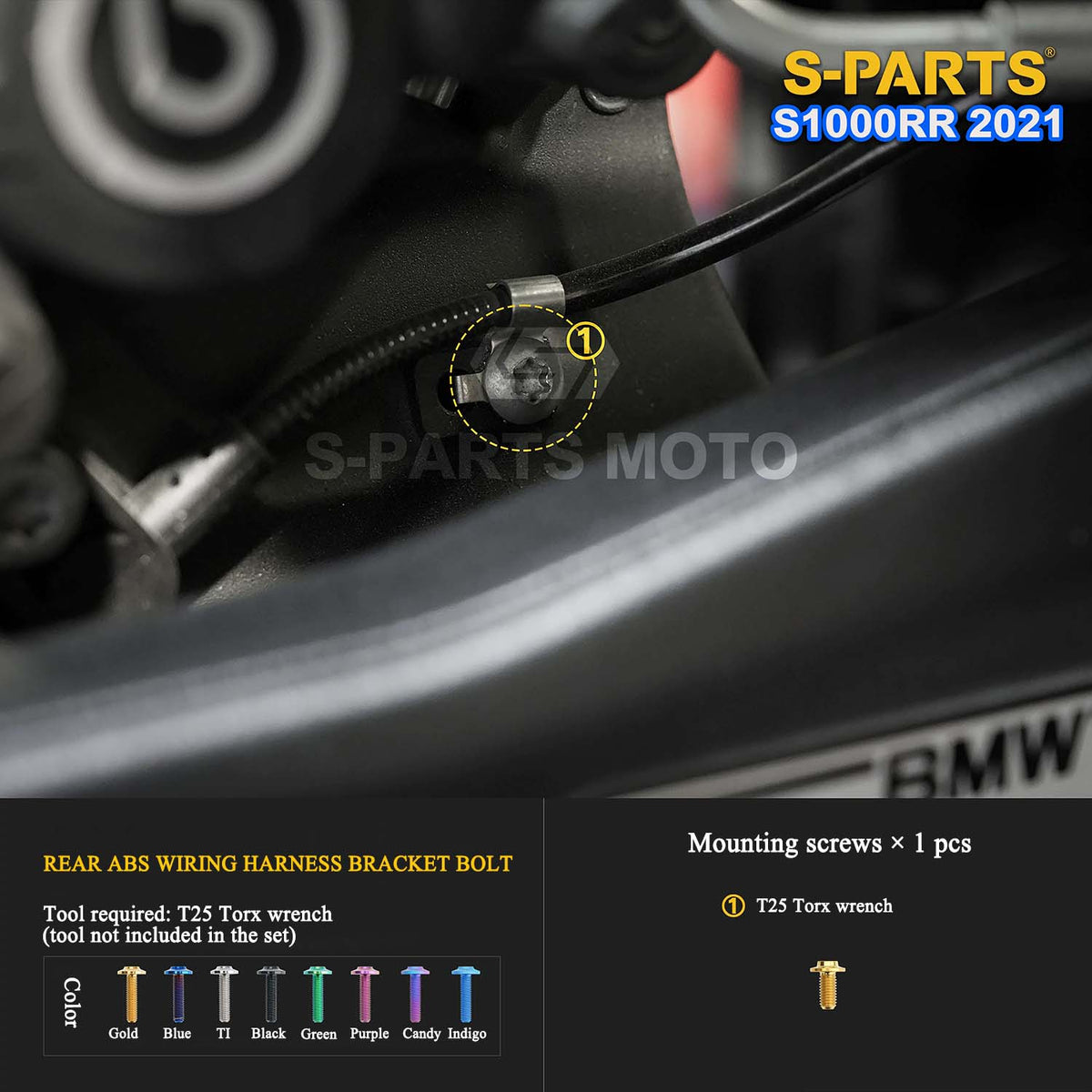

35 Rear ABS Wiring Harness Bracket Bolt 1 T25 Torx

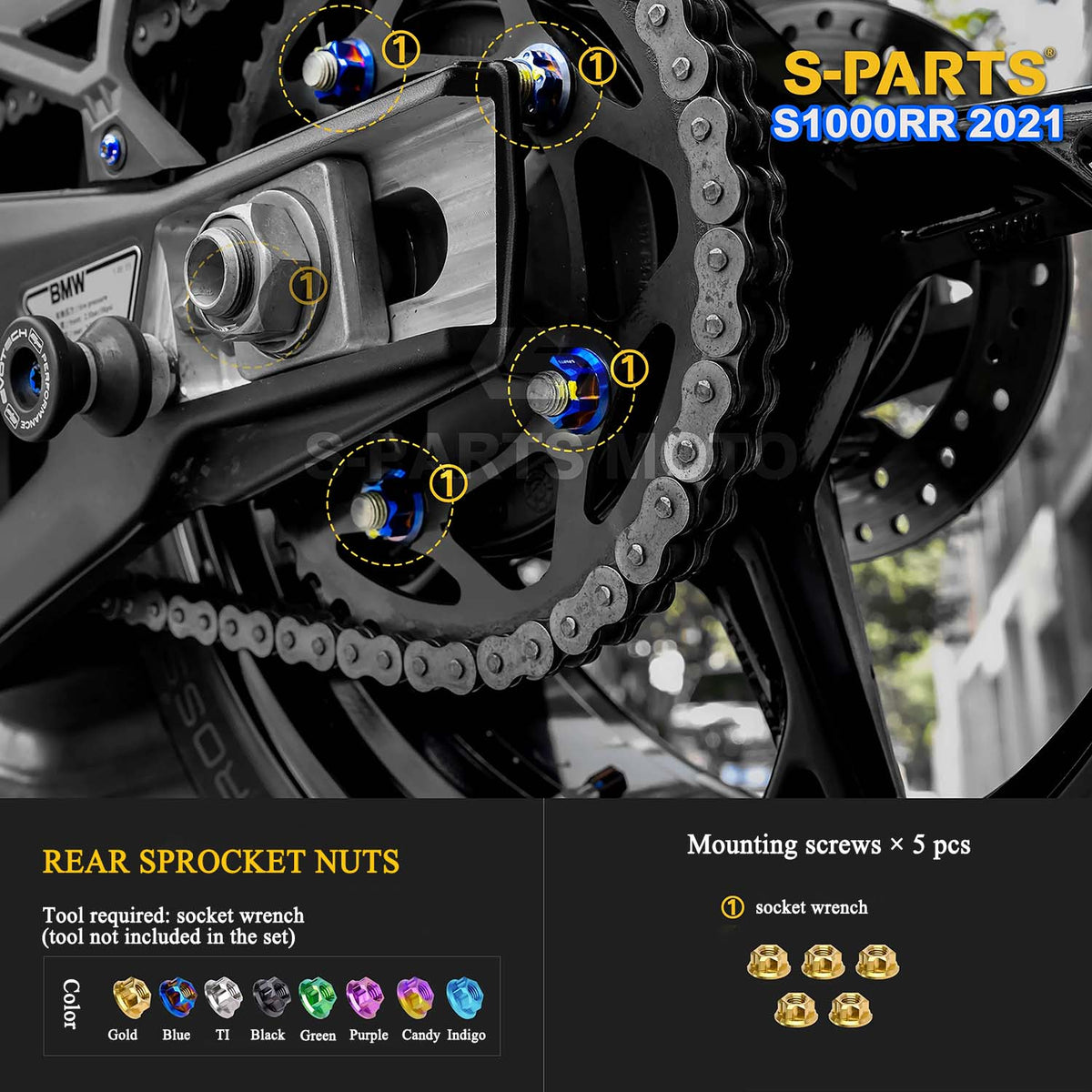

36 Rear Sprocket Nuts 5 Open-End Wrench

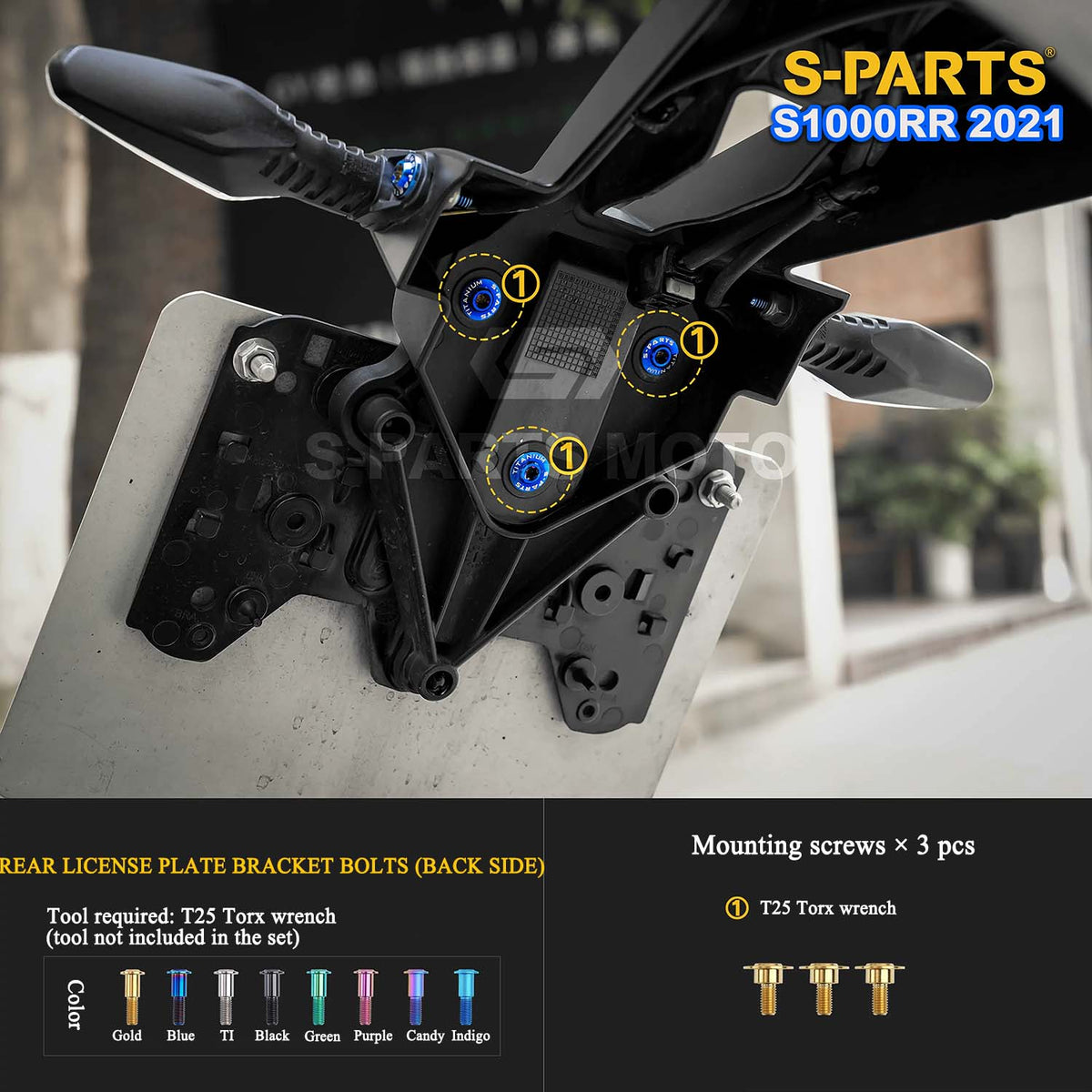

37 Rear License Plate Bracket Bolts (Back Side) 3 T25 Torx

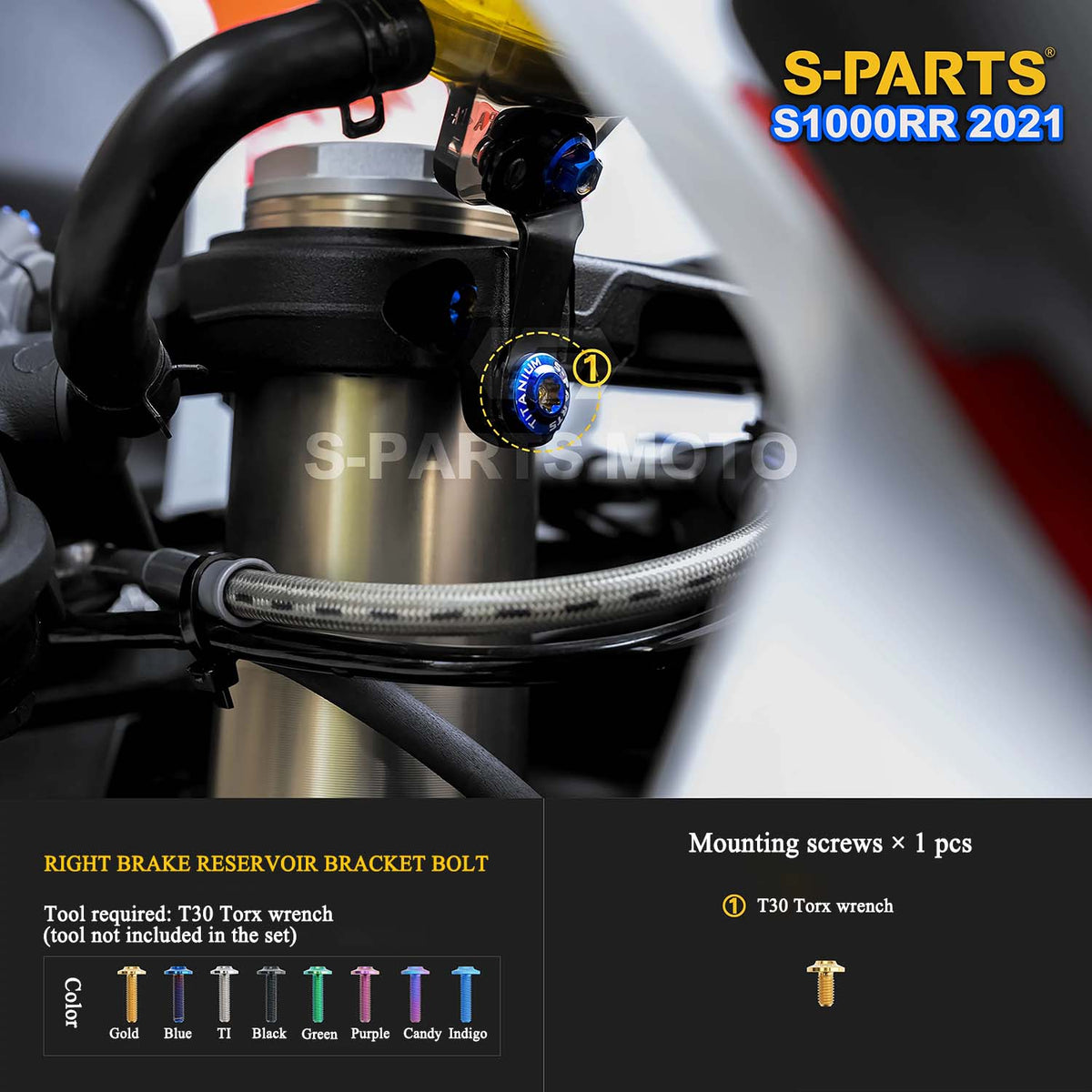

38 Right Brake Reservoir Bracket Bolt 1 T30 Torx

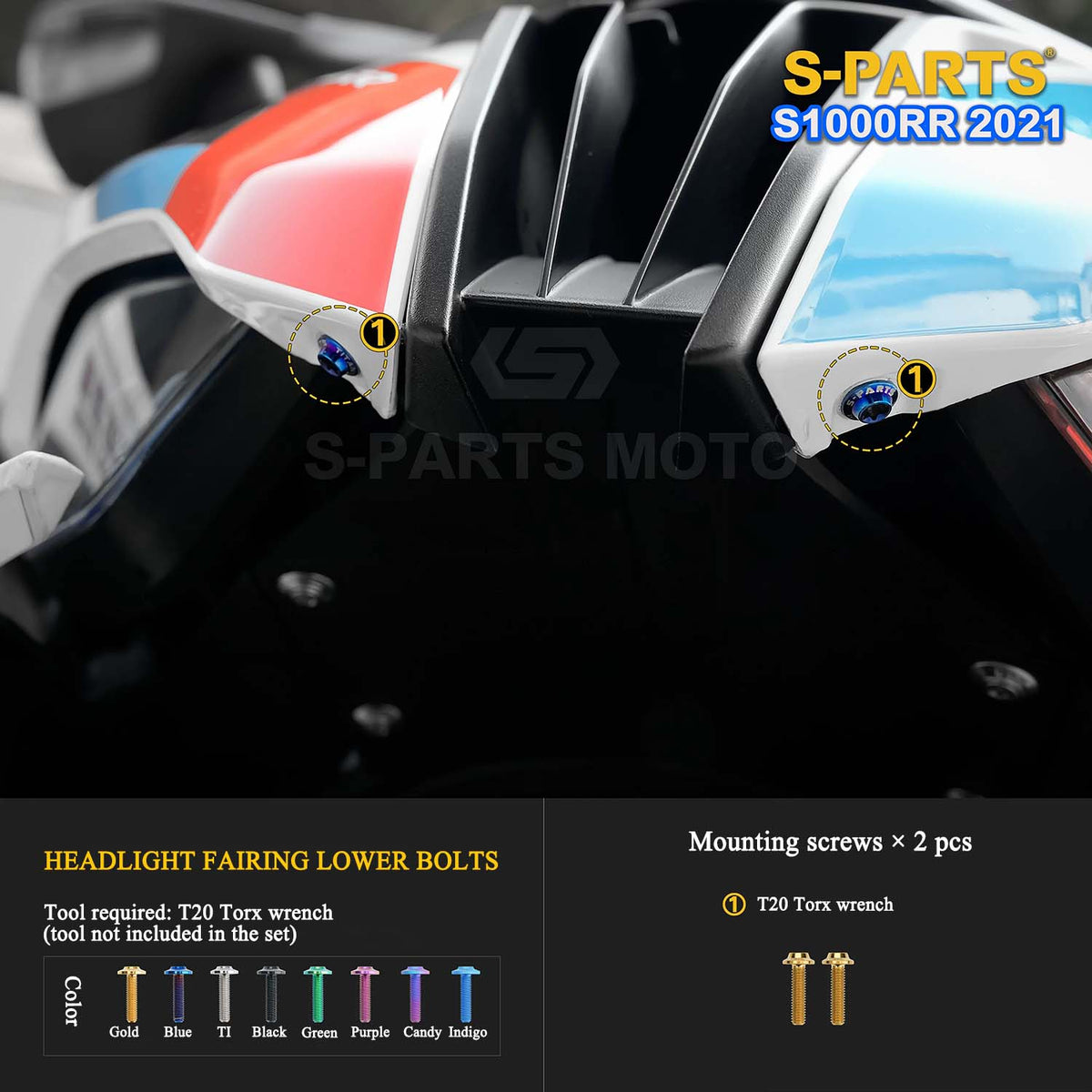

39 Headlight Fairing Lower Bolts 2 T20 Torx

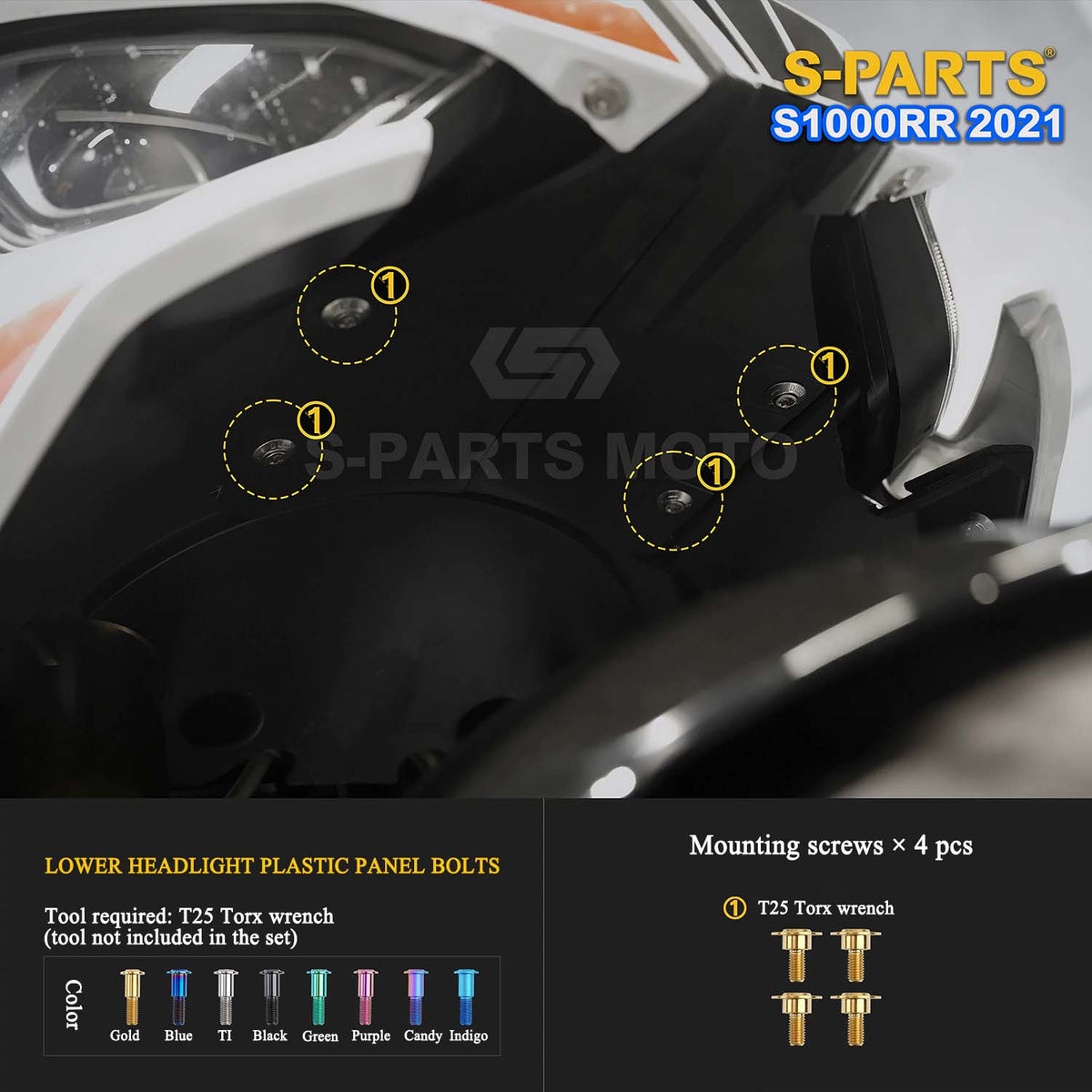

40 Lower Headlight Plastic Panel Bolts 4 T25 Torx

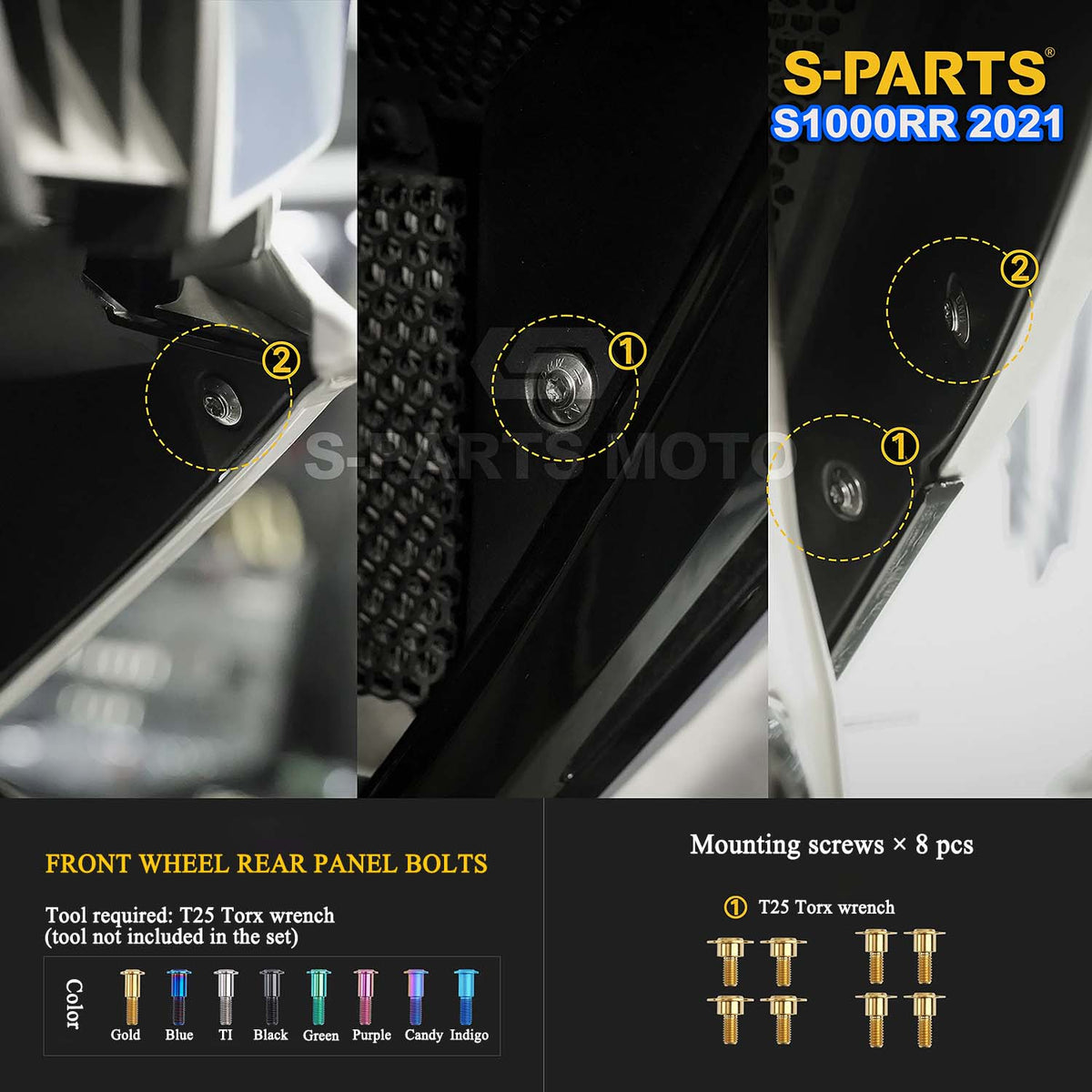

41 Front Wheel Rear Panel Bolts 8 T25 Torx

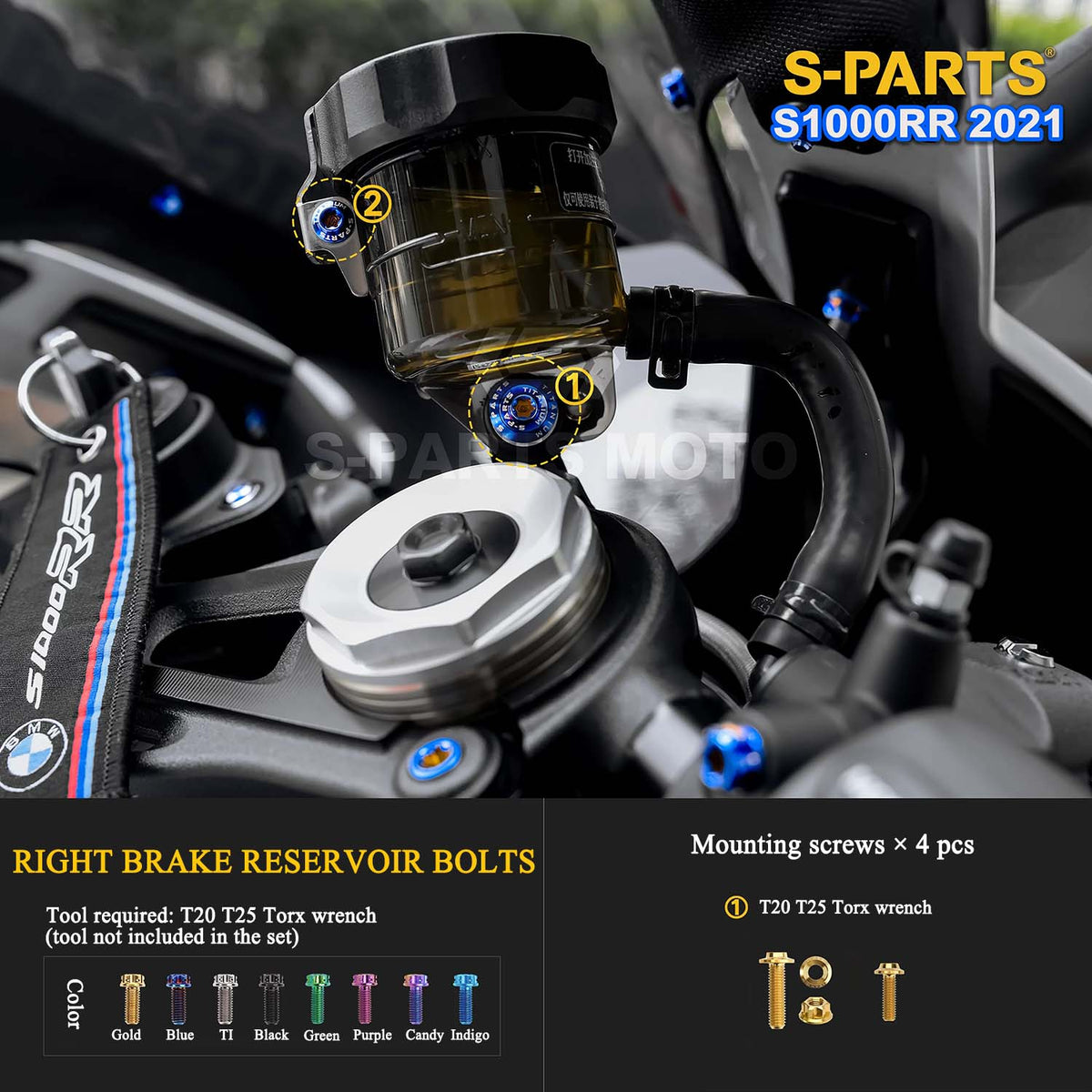

42 Right Brake Reservoir Bolts 4 T20 / T25 Torx

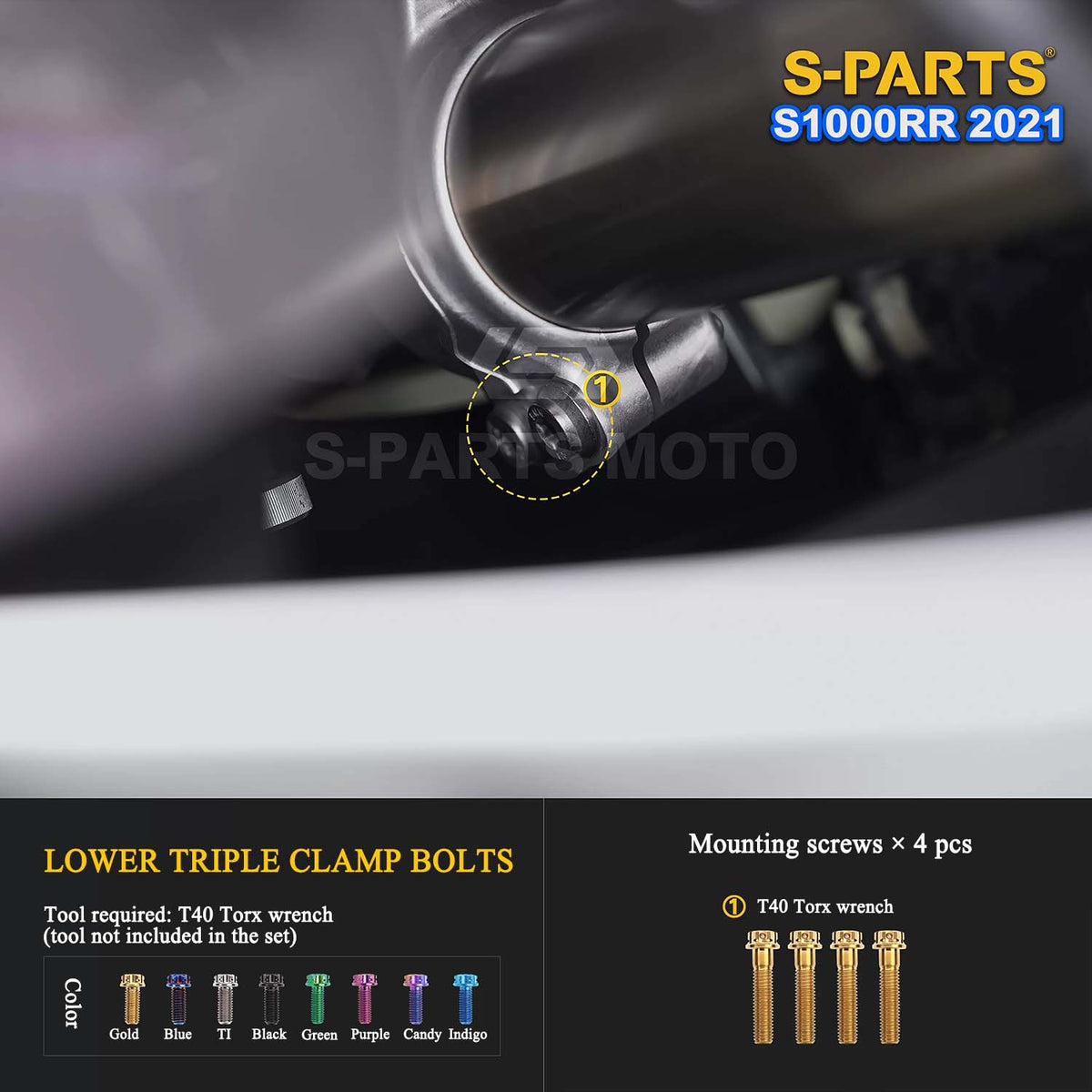

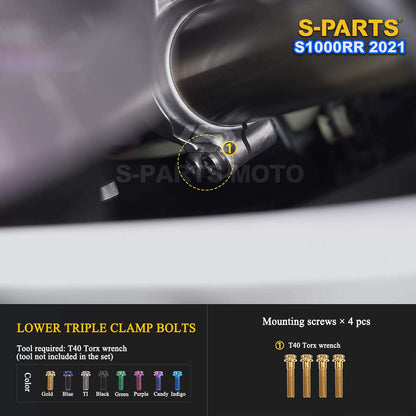

43 Lower Triple Clamp Bolts 4 T40 Torx

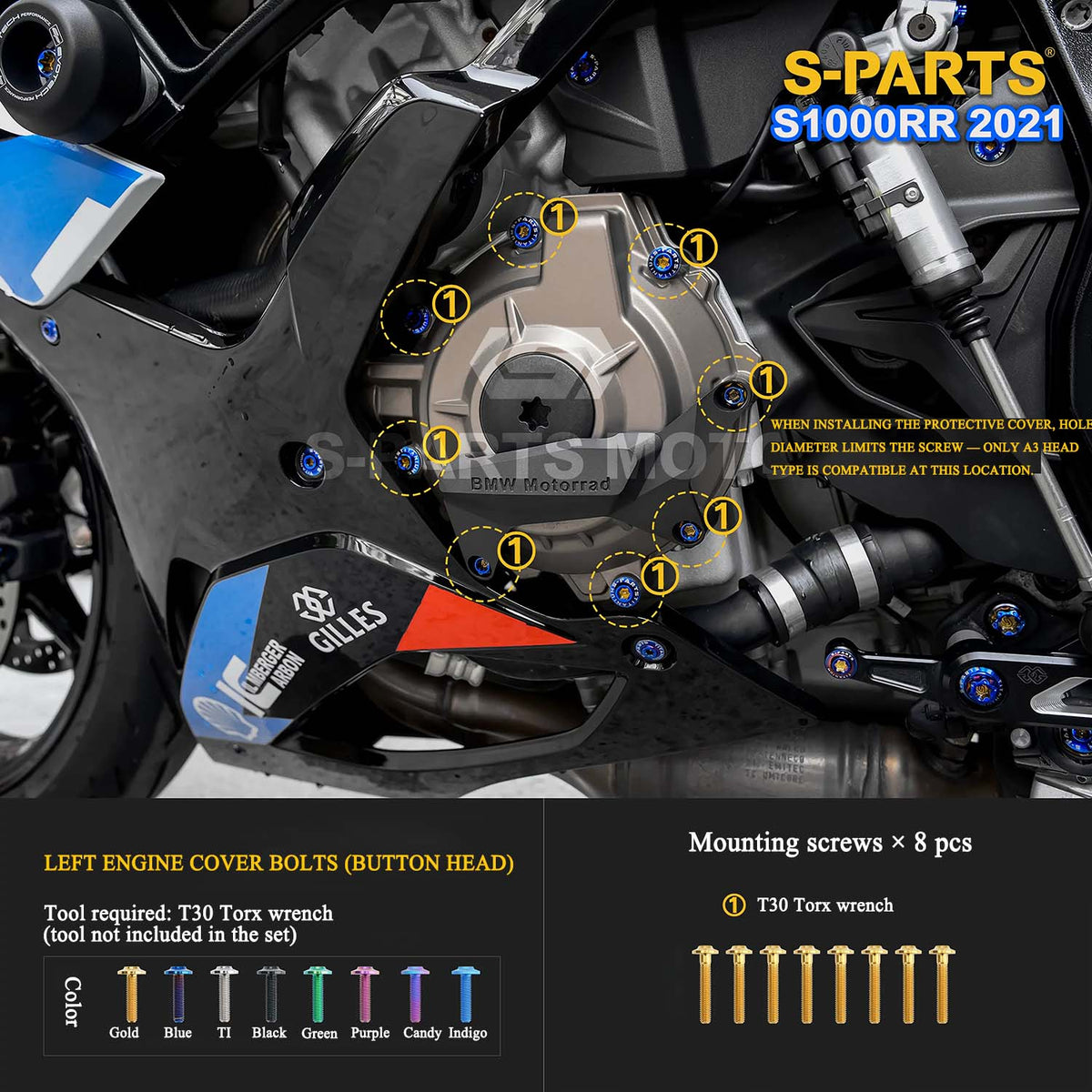

44 Left Engine Cover Bolts (Button Head) 8 T30 Torx

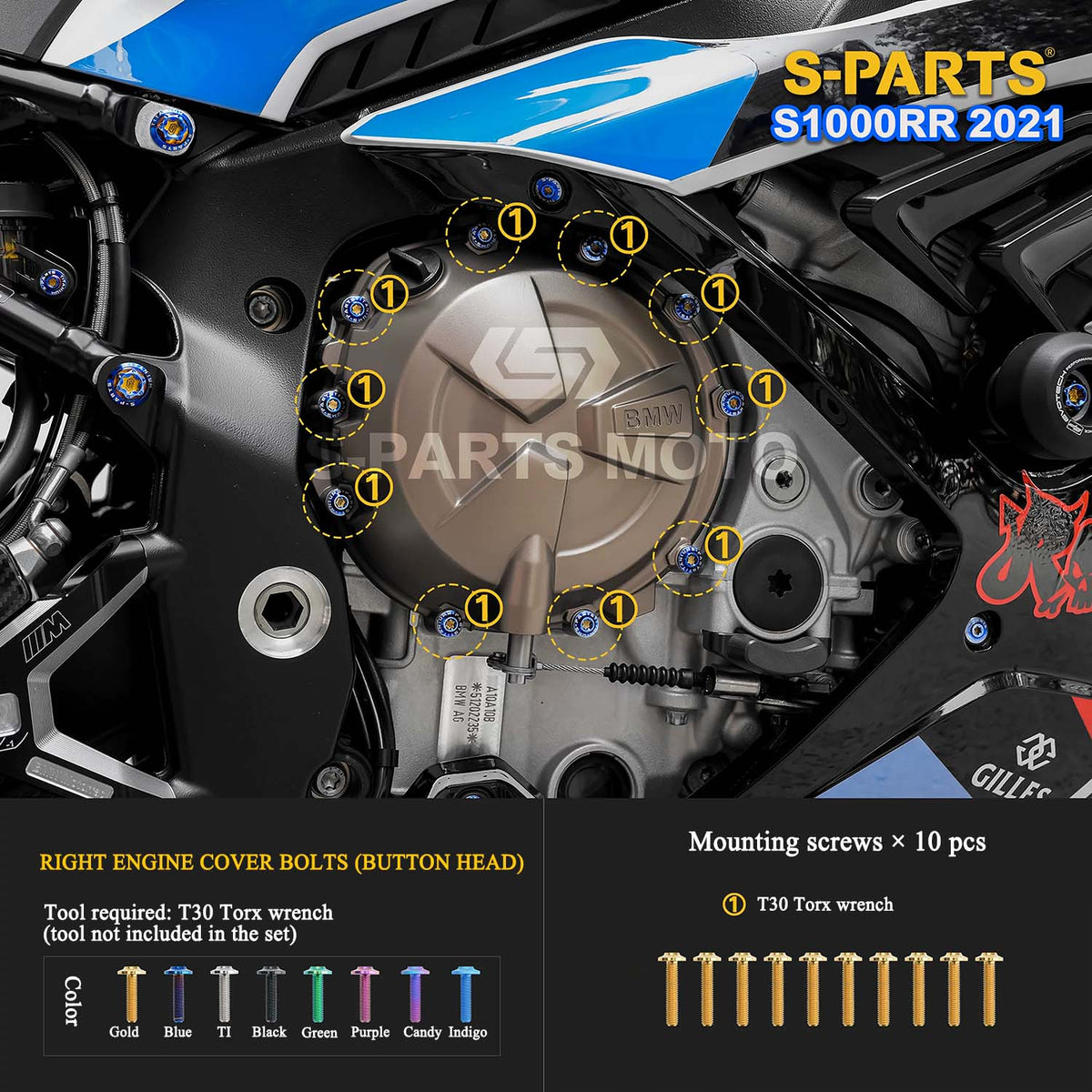

45 Right Engine Cover Bolts (Button Head) 10 T30 Torx
46 Engine Hanger Bolt 1 T50 Torx

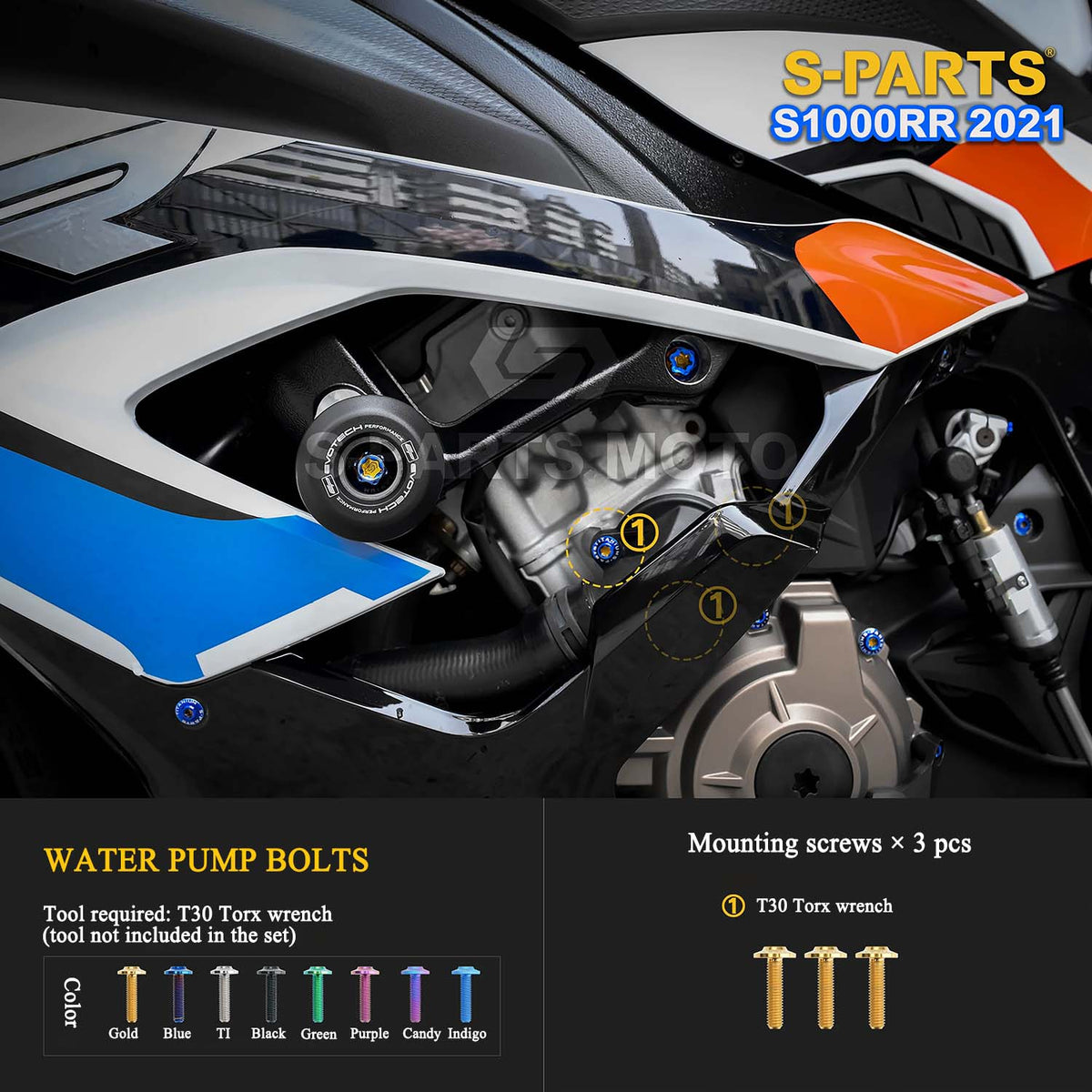

47 Water Pump Bolts 3 T30 Torx

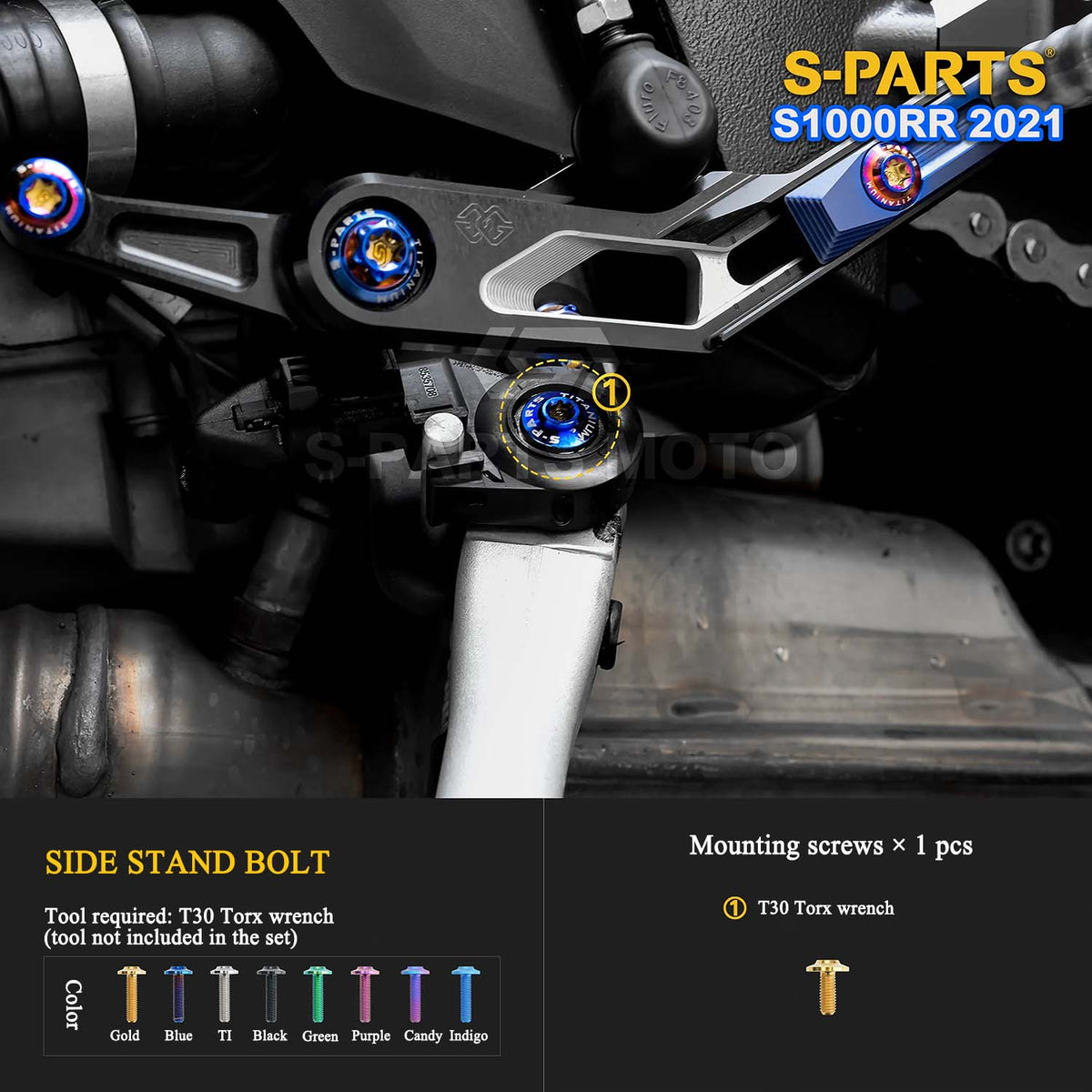

48 Side Stand Bolt 1 T30 Torx
49 Rear Shock Sensor Bolt 1 Open-End Wrench

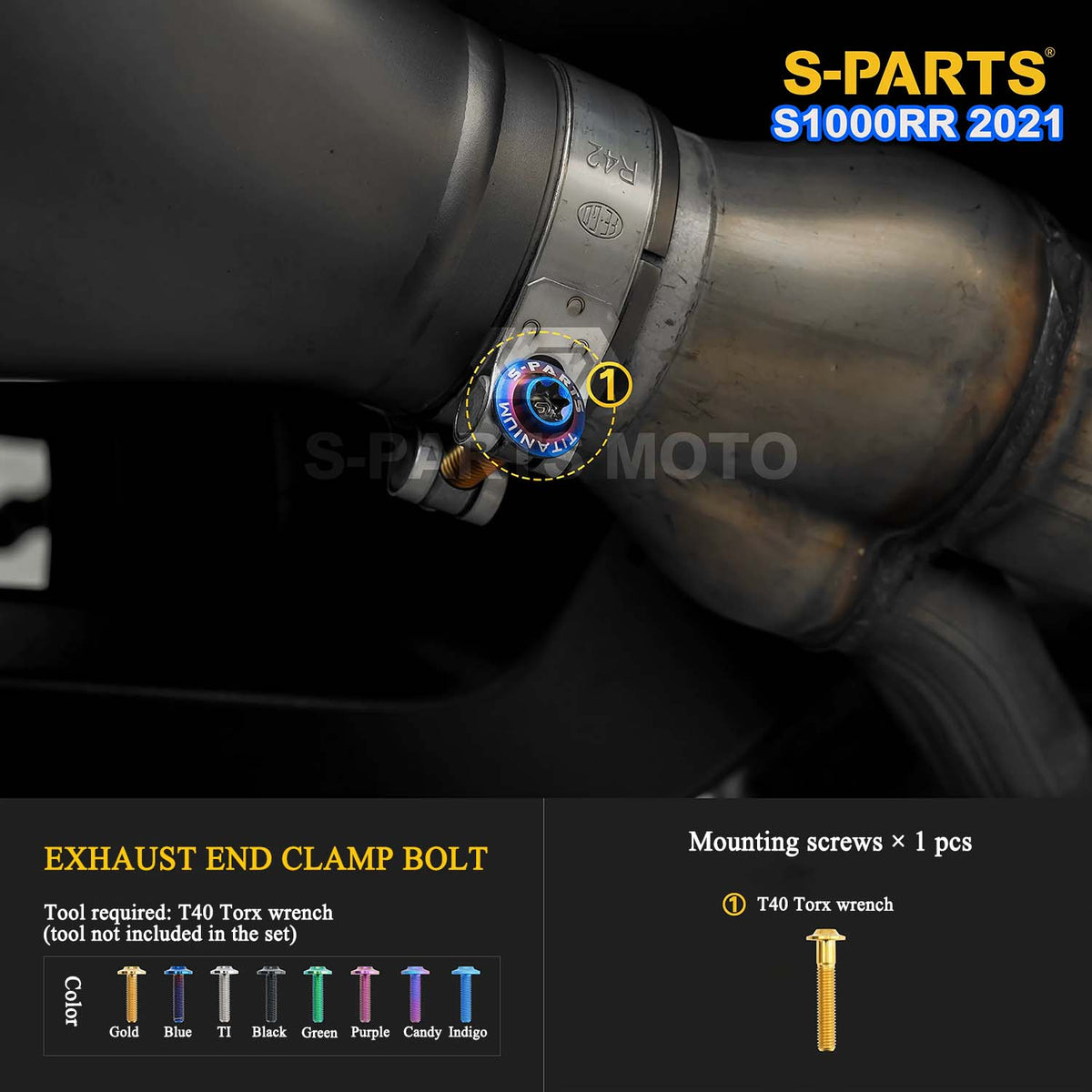

50 Exhaust End Clamp Bolt 1 T40 Torx

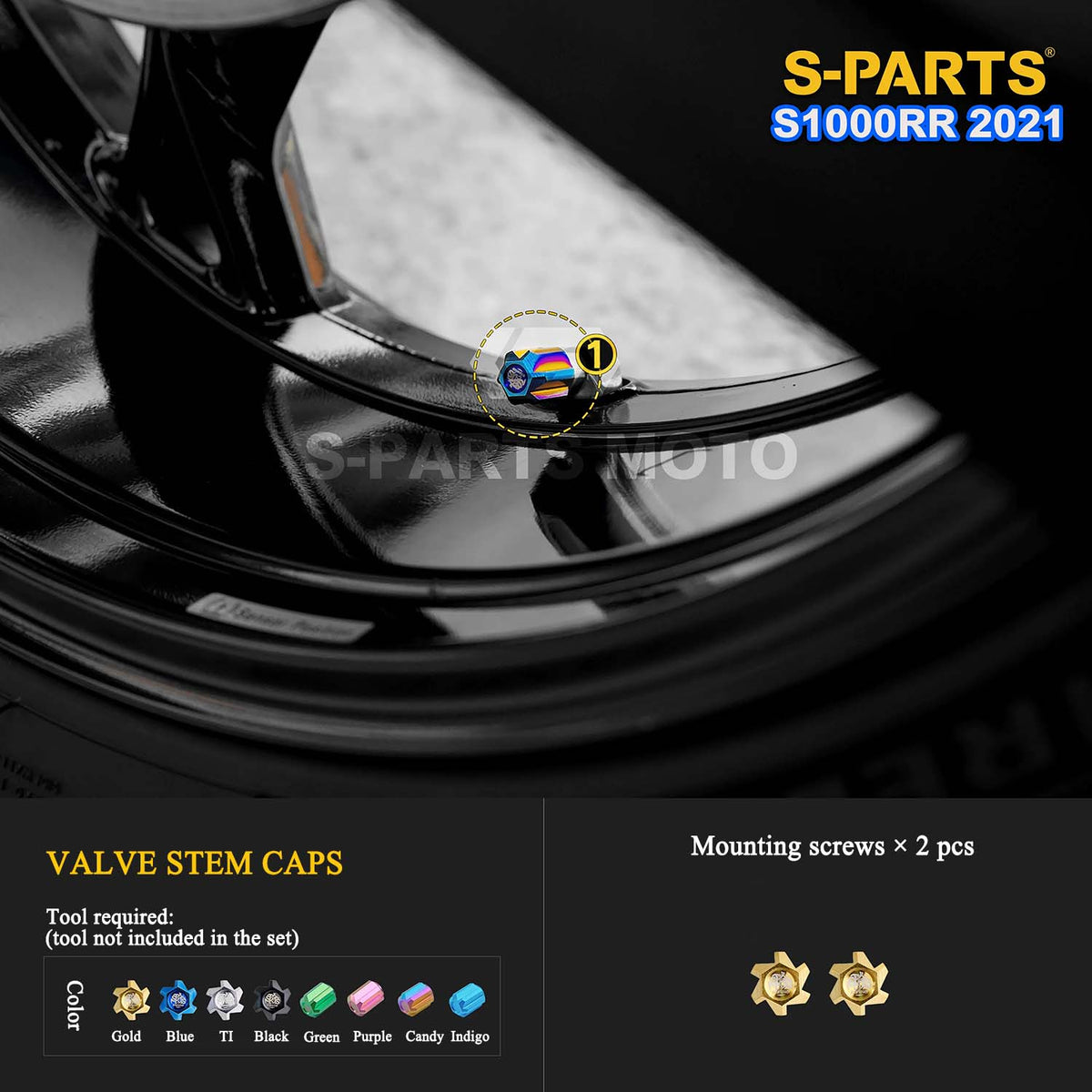

51 Valve Stem Caps 2 —

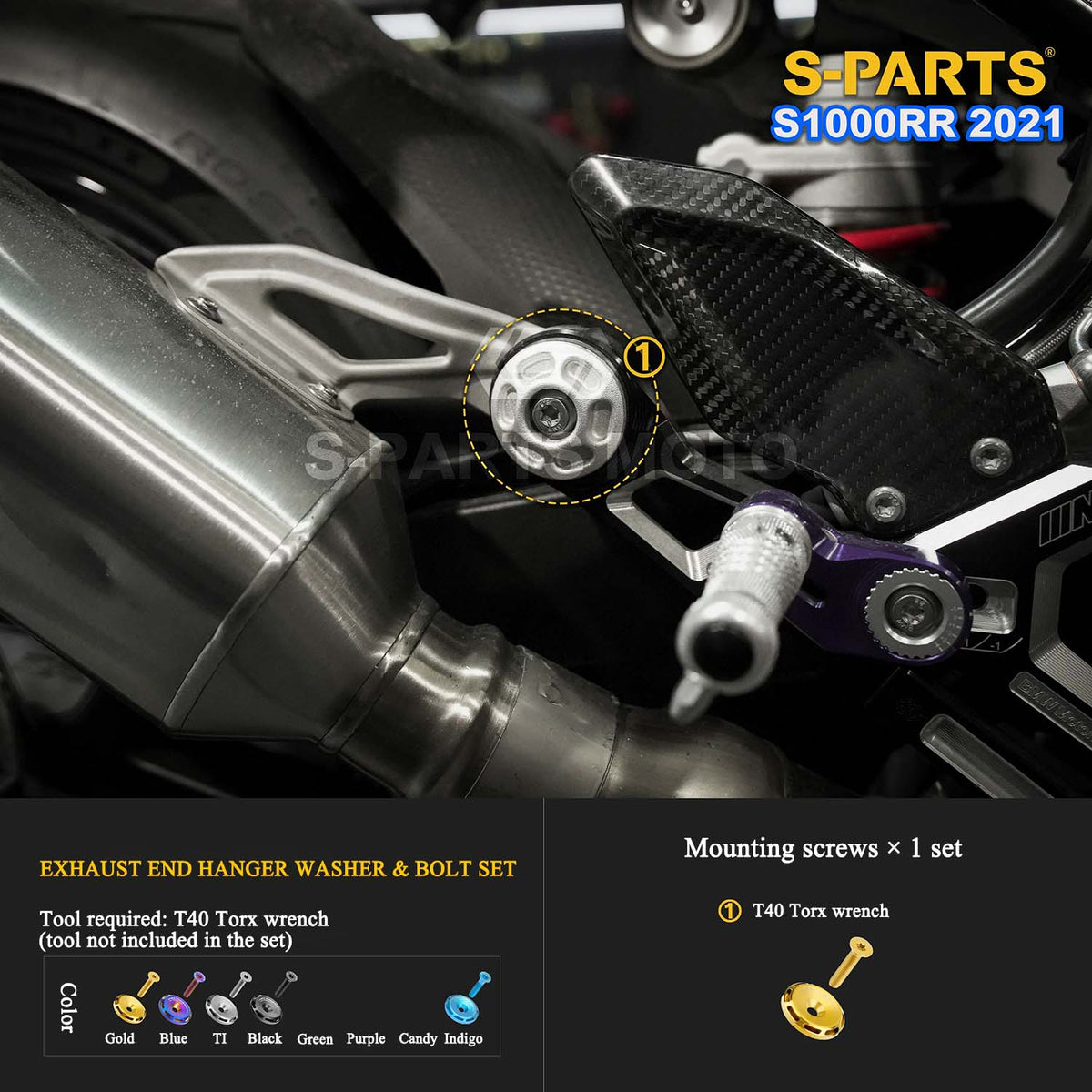

52 Exhaust End Hanger Washer & Bolt Set 1 set T40 Torx
53 Aftermarket MOTO-TRON Right Engine Cover Bolts 10 T30 Torx
54 M Version Front Brake Caliper Bolts 4 T50 Torx
55 M Version Front Brake Disc Bolts 12 T40 Torx
56 Aftermarket M Version Front Caliper Bolts 4 T50 Torx
57 GBR Aftermarket Stator Cover Bolts 8 T30 Torx
58 GBR Aftermarket Clutch Cover Bolts (Without Timing Cover) 10 T30 Torx
59 GBR Aftermarket Clutch Cover Bolts (With Timing Cover) 8 T30 Torx
60 GBR Aftermarket Clutch Timing Inspection Cover Bolts 3 T30 Torx
61 GBR Aftermarket Water Pump Cover Bolts 3 T30 Torx
62 200-Piece OEM Fastener Option – BMW S1000RR (2021), Aftermarket Parts Not Included 200 Varies by location

Tighten bolts to the torque specified in your original parts or manual.

Grade 5 Titanium

S-PARTS uses high-quality Grade 5 (Ti-6Al-4V) titanium. It is strong, corrosion resistant and difficult to machine, and is commonly used in aerospace and top-level racing such as F1 and MotoGP.

Bolt heads are forged at 650°C in custom dies with the S-PARTS logo. Each die is used no more than 300 times to keep the Torx recess precise and strong.

Lighter and Stronger

Under the same conditions, S-PARTS Grade 5 titanium fasteners match the mechanical performance of Class 10.9 steel parts at only about half the weight, with a strength-to-weight ratio ordinary metals can't match.

Surface Finishes

  • PVD Vacuum Nitriding – Gold, Blue and Black: A dense metal nitride coating improves surface hardness and impact resistance. The color runs deep into the surface and is designed to hold up in normal riding, including rain and mud. Heavy abrasion can wear the coating.
  • Anodizing – Green, Purple, Candy and Indigo: An oxide layer on the titanium surface improves surface hardness and corrosion resistance. Color comes from light interference within the oxide layer, with no dyes used.

Candy Finish Notice

Due to the coloring process, Candy finishes have a flowing appearance with naturally variable color patterns. White lines may appear around the threads of some bolts as a normal result of the finishing process and do not affect use.
