Grade 5 Titanium Bolt Kit for Shimano Deore XT M8200 / M8220 MTB Disc Brakes
Grade 5 Titanium Bolt Kit for Shimano Deore XT M8200 / M8220 MTB Disc Brakes
Couldn't load pickup availability
Product Description

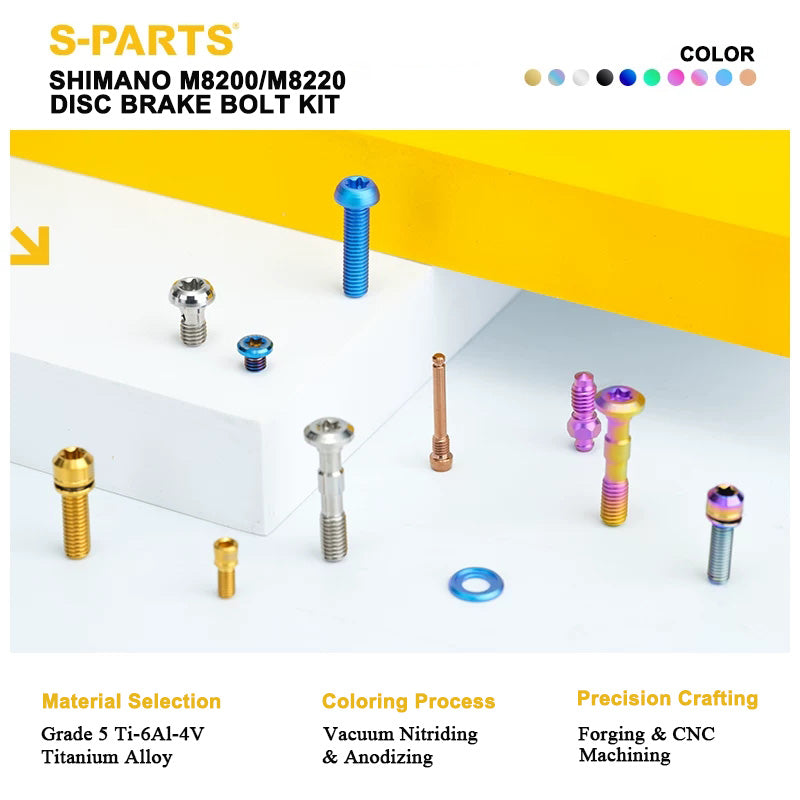

Upgrade selected fasteners on your Shimano Deore XT M8200 or M8220 MTB disc brakes with this S-PARTS Grade 5 Titanium (Ti-6Al-4V) bolt kit. Each 26-piece set weighs 47.4 g and includes precision-machined lever and caliper bolts, mounting washers, and pad pins.
Key Specifications
| Variant 1 | For Shimano Deore XT M8200 (includes caliper bleed screws) |
|---|---|
| Variant 2 | For Shimano Deore XT M8220 (includes caliper oil plug screws) |
| Pieces per Set | 26 pcs/set |
| Weight | 47.4 g/set |
| Material | Grade 5 Titanium (Ti-6Al-4V / S-Grade TC4) |
| Colors | Gold, Oil Slick / Rainbow, Raw Titanium, Black, Blue, Green, Purple, Candy, Indigo, Copper |

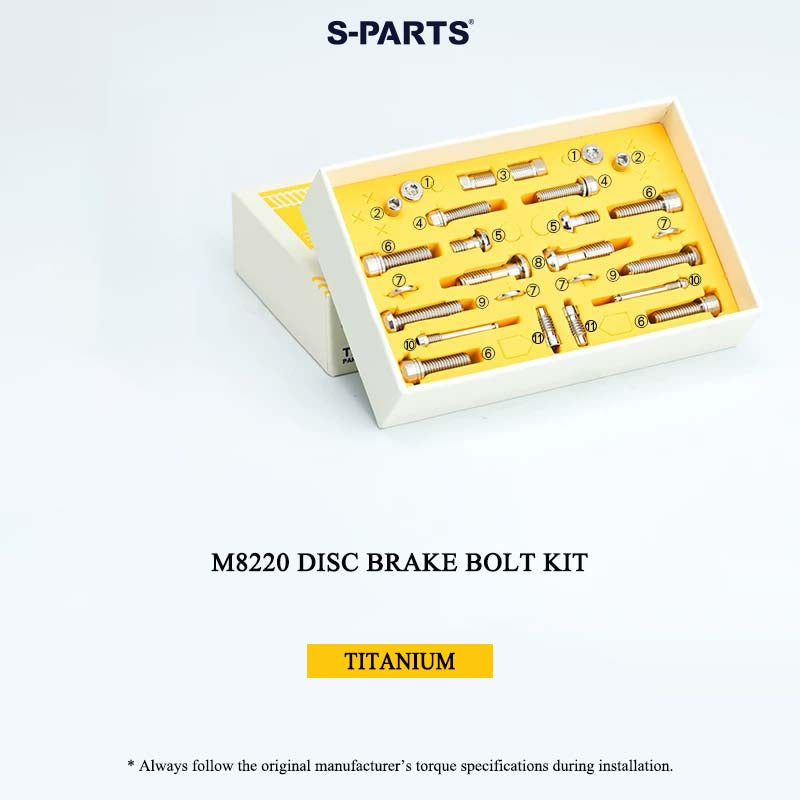

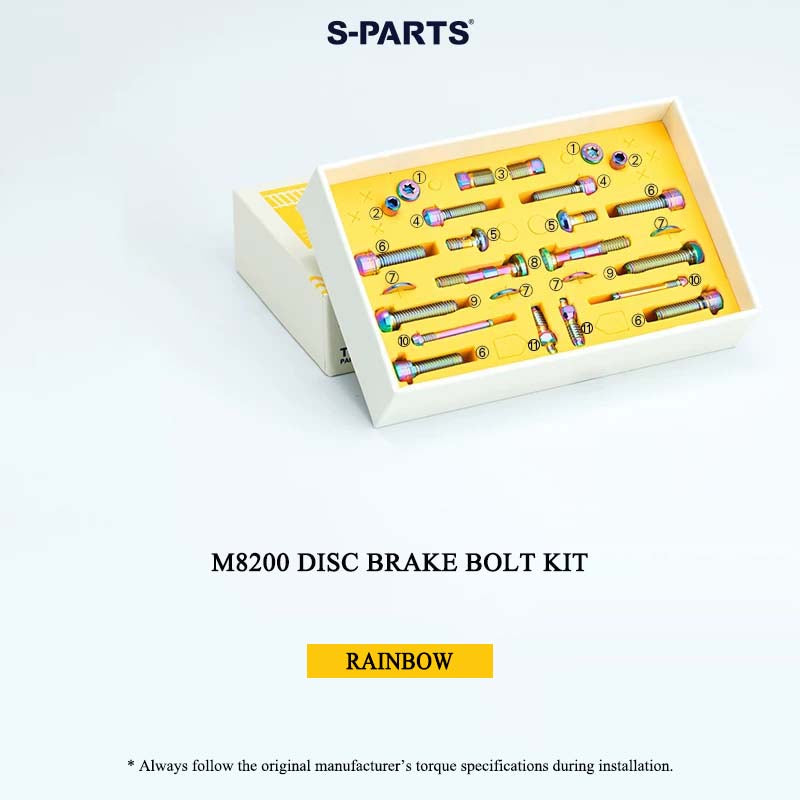

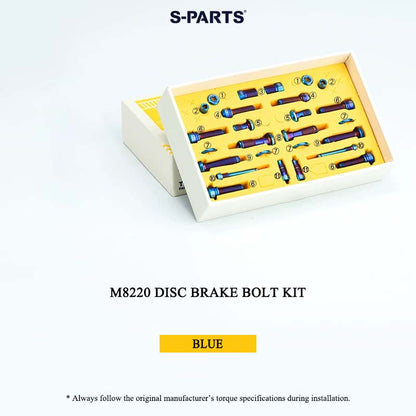

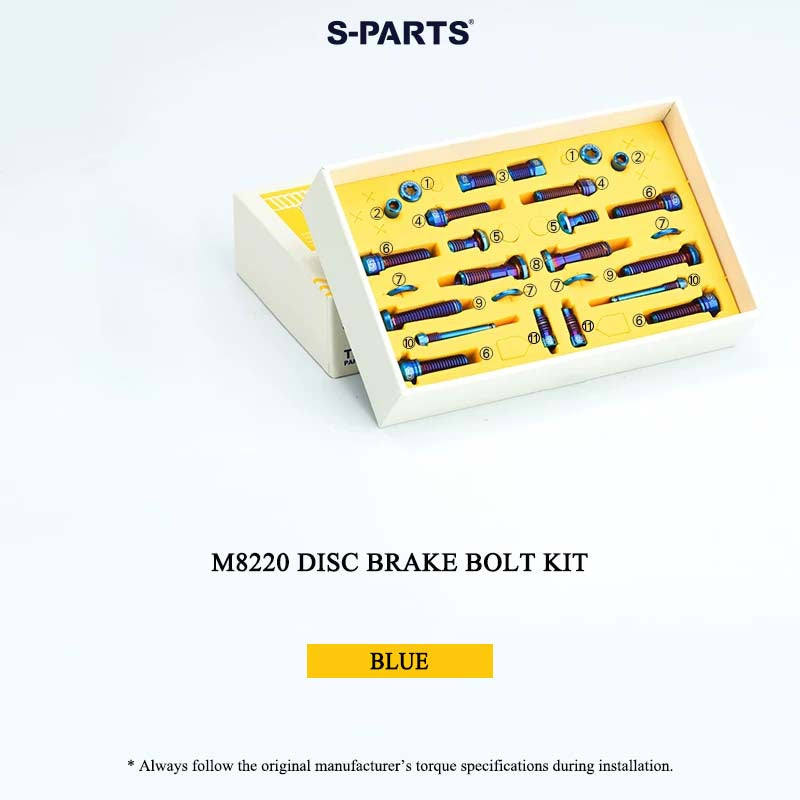

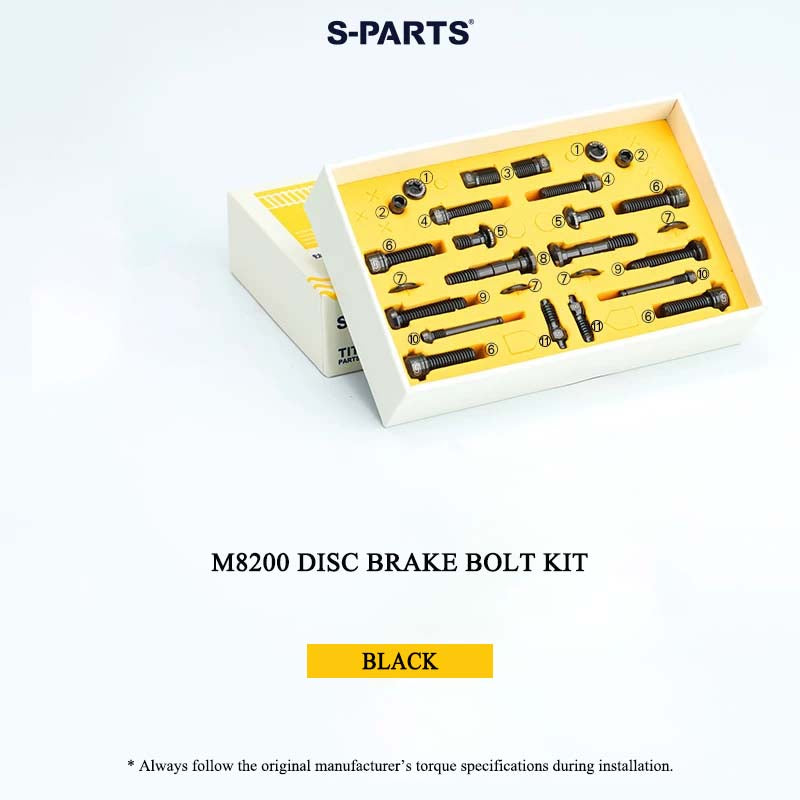

What's in the Kit
| Location | Part Description | Qty |
|---|---|---|

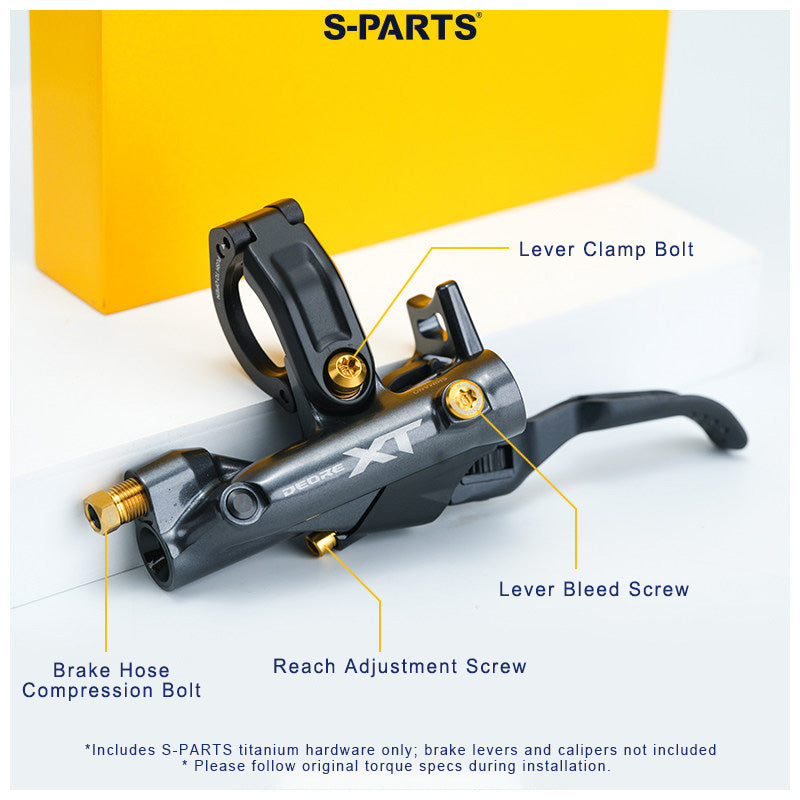

| Brake Lever | Brake Lever Bleed Screw | 2 |
| Brake Lever Reach Adjustment Screw | 2 | |
| Brake Hose Bolt at Lever | 2 | |
| Brake Lever Clamp Bolt | 2 | |

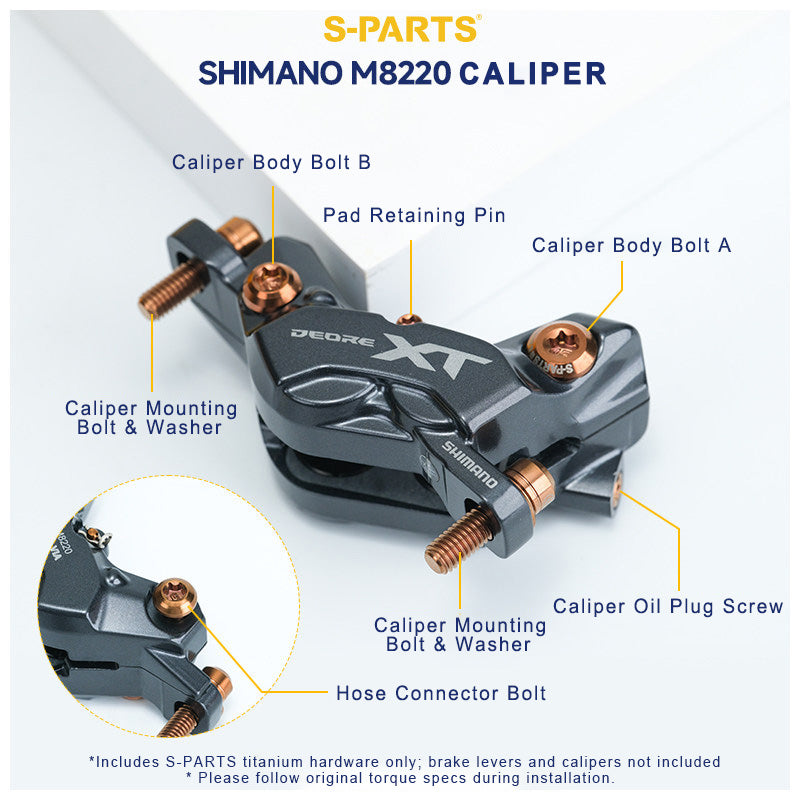

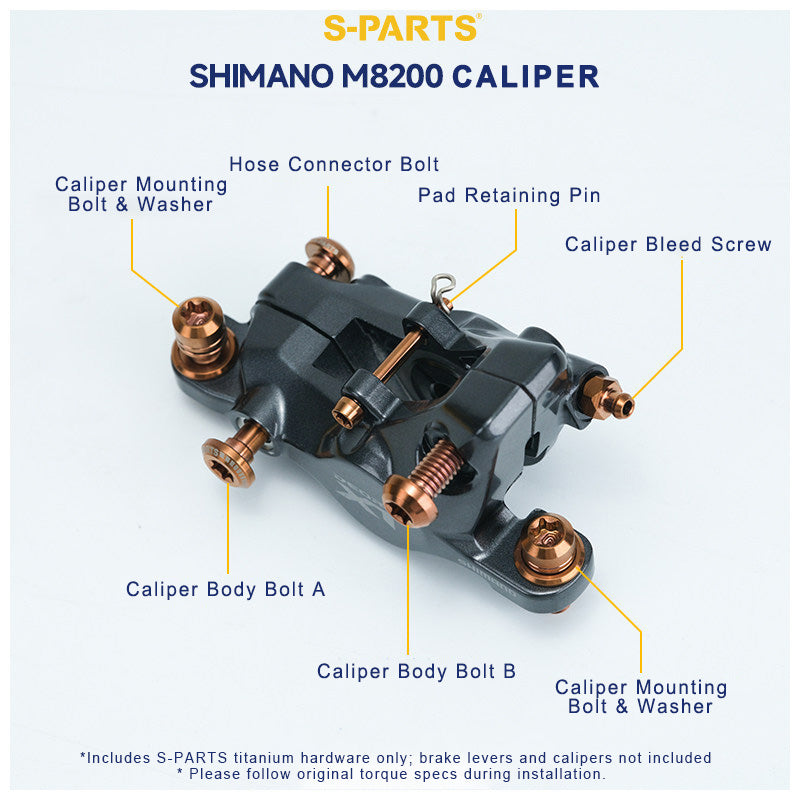

| Brake Caliper | Caliper Hose Connector / Banjo Bolt | 2 |
| Caliper Mounting Bolt & Washer Set | 4 sets | |
| Caliper Body Bolt A | 2 | |
| Caliper Body Bolt B | 2 | |
| Brake Pad Retaining Pin | 2 | |
| Caliper Bleed Screw (M8200 Kit) / Oil Plug Screw (M8220 Kit) | 2 |
⚠ CAUTION: Do not overtighten the brake lever reach adjustment screws. Excessive torque can crack or damage the internal master cylinder reservoir.

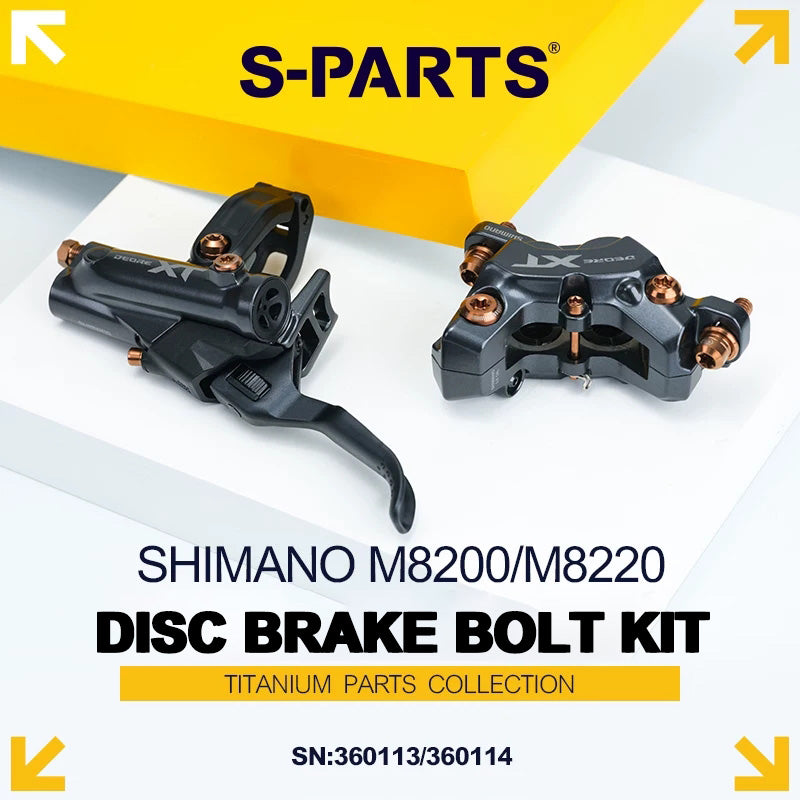

Installed Examples

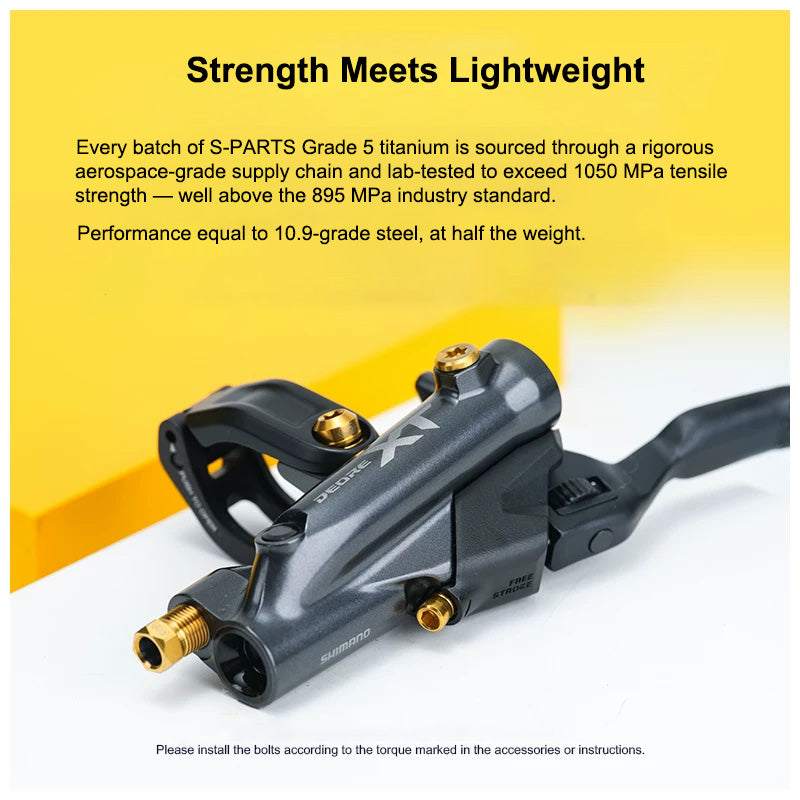

Grade 5 Titanium: High Strength, Low Weight
S-PARTS Grade 5 Titanium has an average tensile strength above 1,050 MPa, well beyond the 895 MPa industry reference. Under comparable conditions, S-PARTS Grade 5 titanium fasteners offer overall mechanical performance comparable to Grade 10.9 steel fasteners at approximately half the weight.
Material Selection & Testing
S-PARTS sources titanium through a metal raw-material supply chain serving the civilian aerospace industry in Xi'an, China. Materials are selected through ongoing laboratory comparison testing against S-PARTS standards.
Precision CNC Machining
S-PARTS fasteners are machined in the brand's factory using high-precision CNC equipment. Micron-level tolerance control supports precise thread engagement and dimensional consistency.

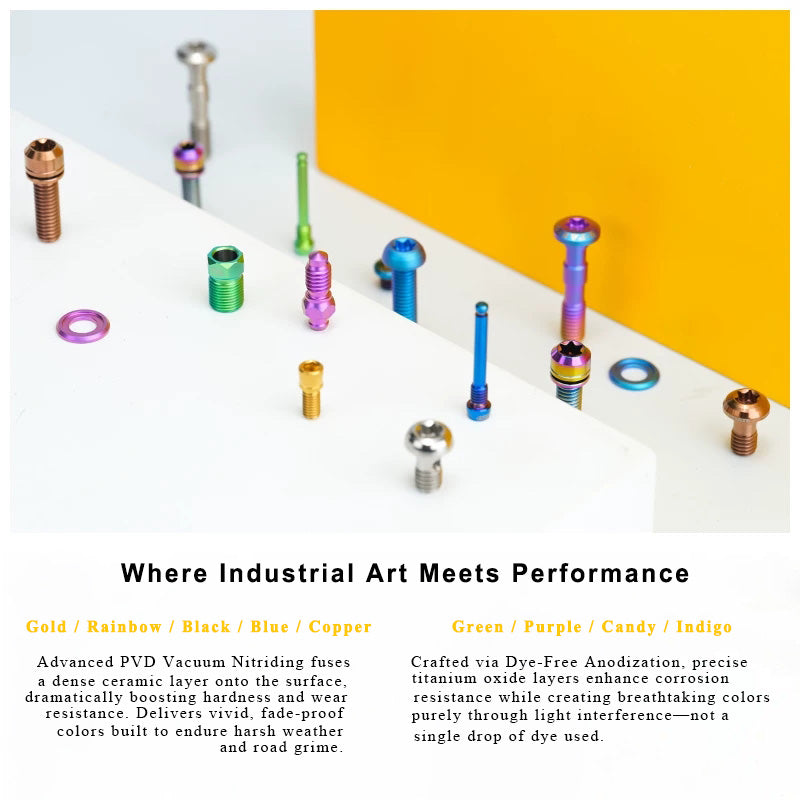

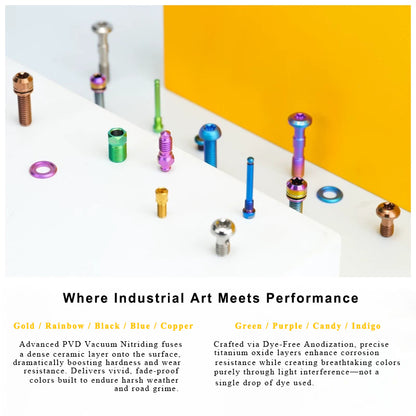

Color & Finish Options

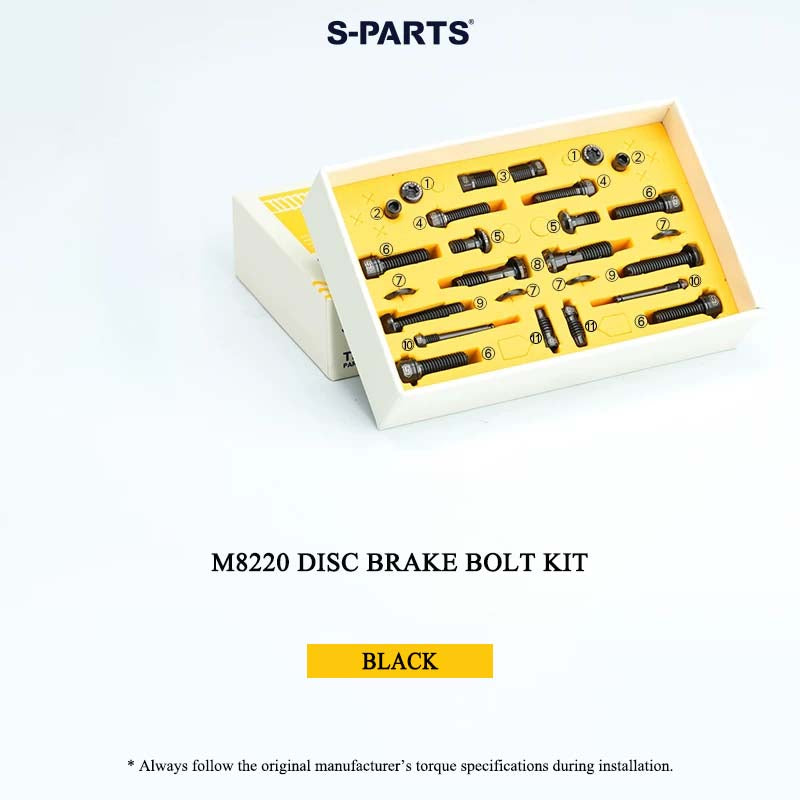

PVD Nitride Coating: Gold, Oil Slick / Rainbow, Black, Blue, Copper
A dense metal nitride film forms on the surface, increasing surface hardness and impact resistance. The color is bonded into the surface layer and resists normal wear, rain and mud. Heavy abrasion can still wear the coating.

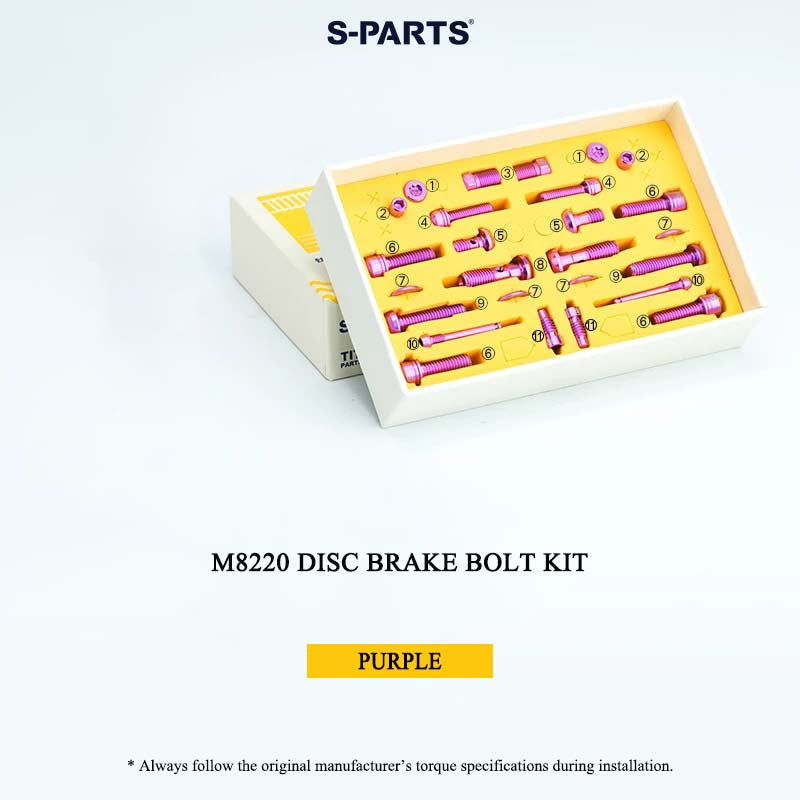

Anodizing: Green, Purple, Candy, Indigo
Electrolytic oxidation builds an oxide layer on the titanium that increases surface hardness and corrosion resistance. The colors come from light interference within the oxide layer, with no dyes used.
Raw Titanium: Natural uncoated titanium finish.
Finish Notes

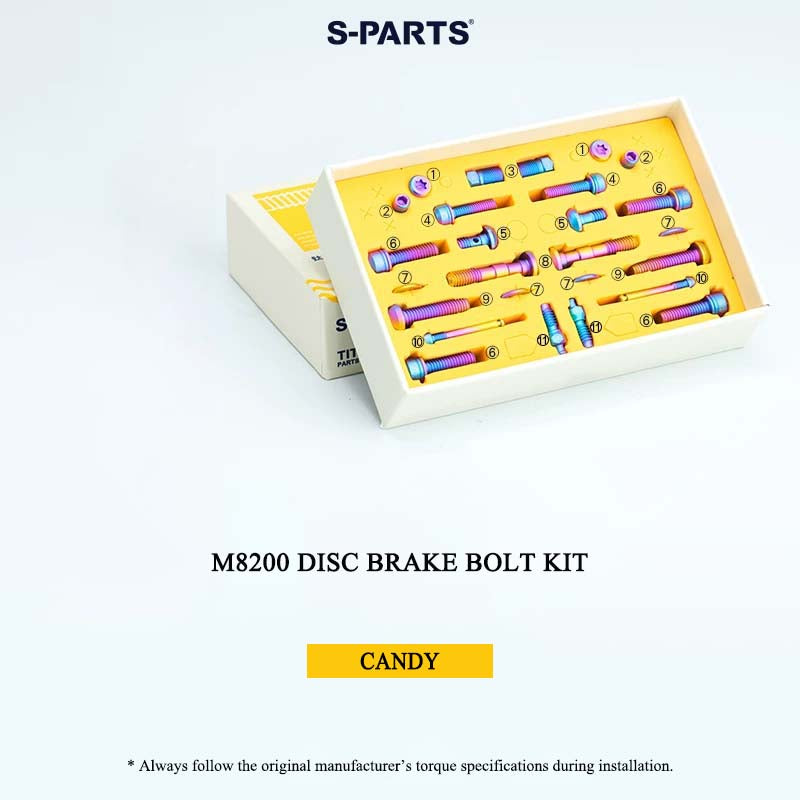

Candy: The Candy finish has a flowing, irregular color pattern due to the coloring process. Color distribution may vary from piece to piece.
Thread appearance: Fine white lines may appear near the threads on colored bolts. This is a normal result of the electrical contact process during coloring and does not affect use or strength.
Before You Order
- Choose Variant 1 for Shimano Deore XT M8200 or Variant 2 for Shimano Deore XT M8220.
- This kit includes S-PARTS titanium fasteners only. Brake levers and calipers are not included.
- Install the bolts and parts to the torque specified on the original components or in the manufacturer's instructions.
