Product Description

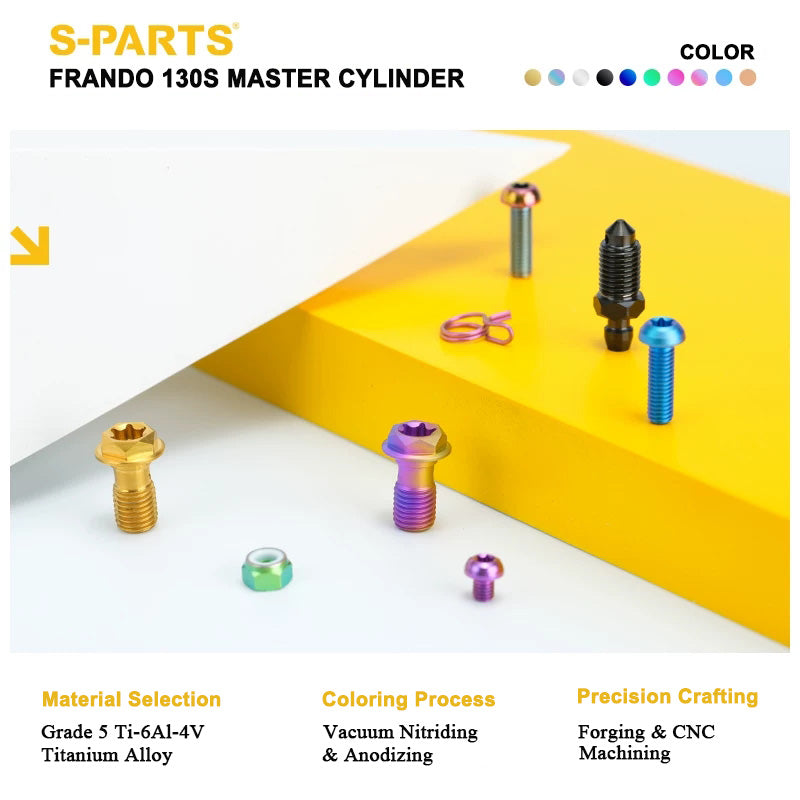

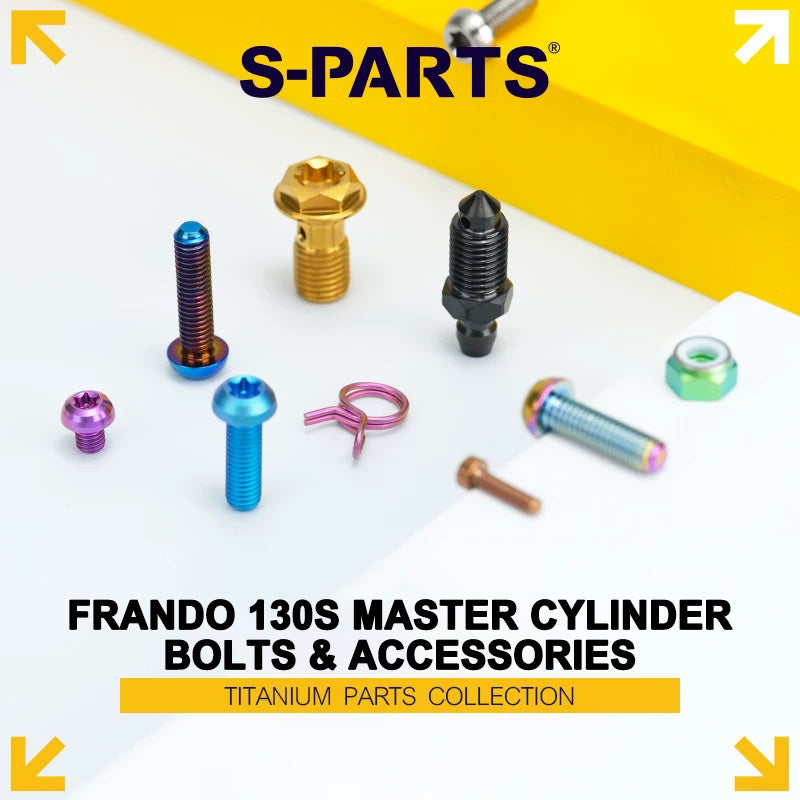

Grade 5 titanium bolts and accessories for the FRANDO 130S master cylinder, available in 9 individual options and 10 colors. Options include a banjo bolt set, bleed screw, mounting bolts, lever bolts, reservoir hardware and brake line circlips.

Specifications

No.	Part	Size	Weight	Tool

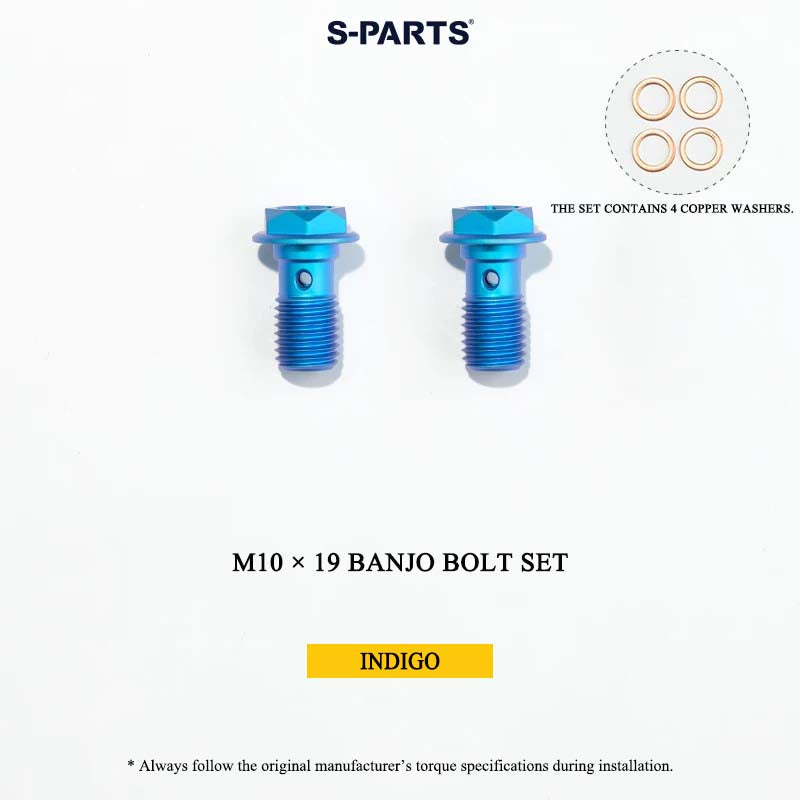

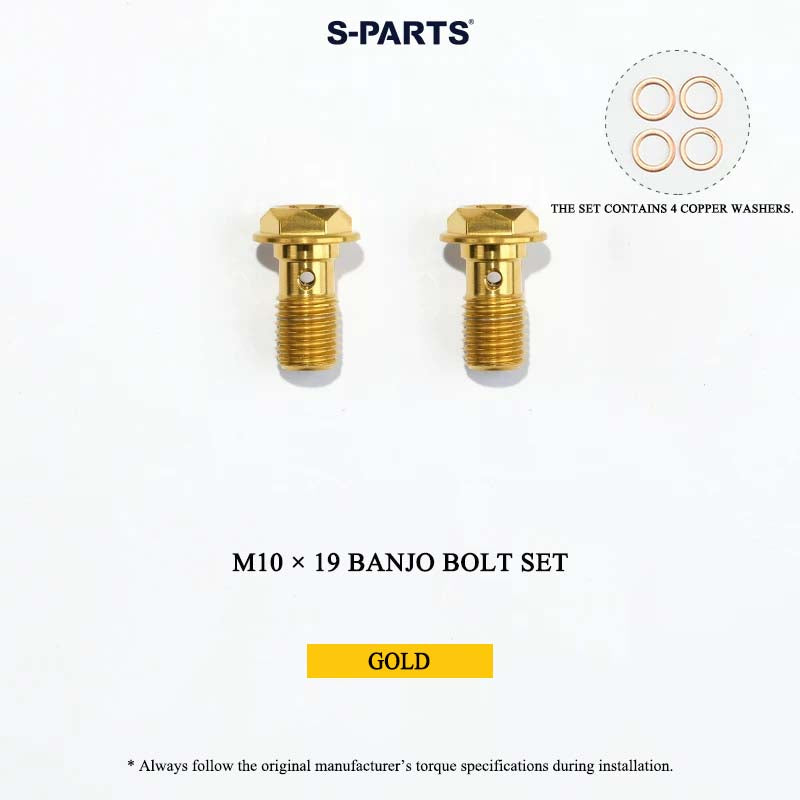

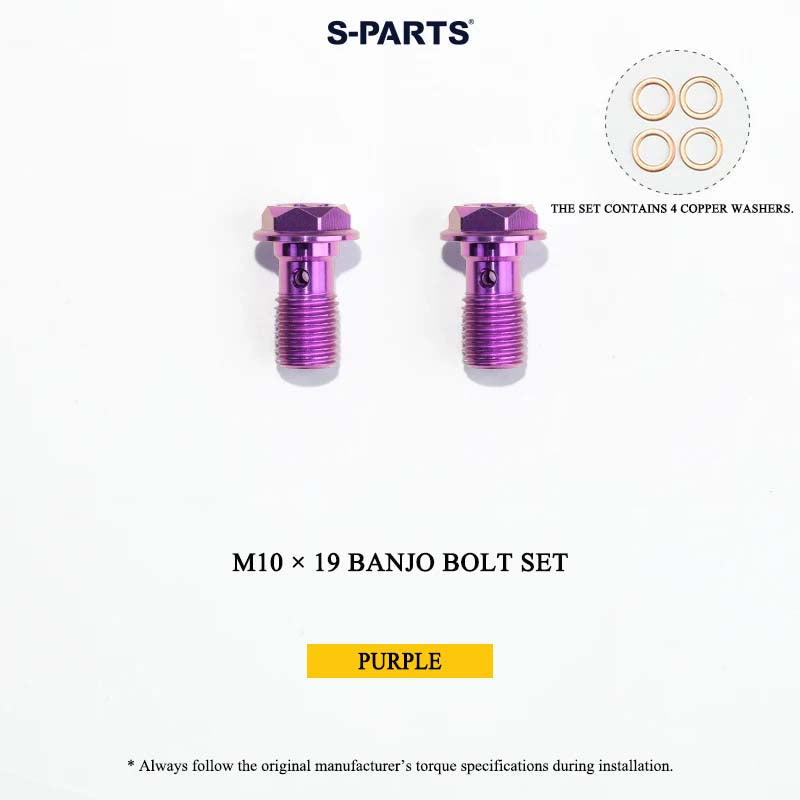

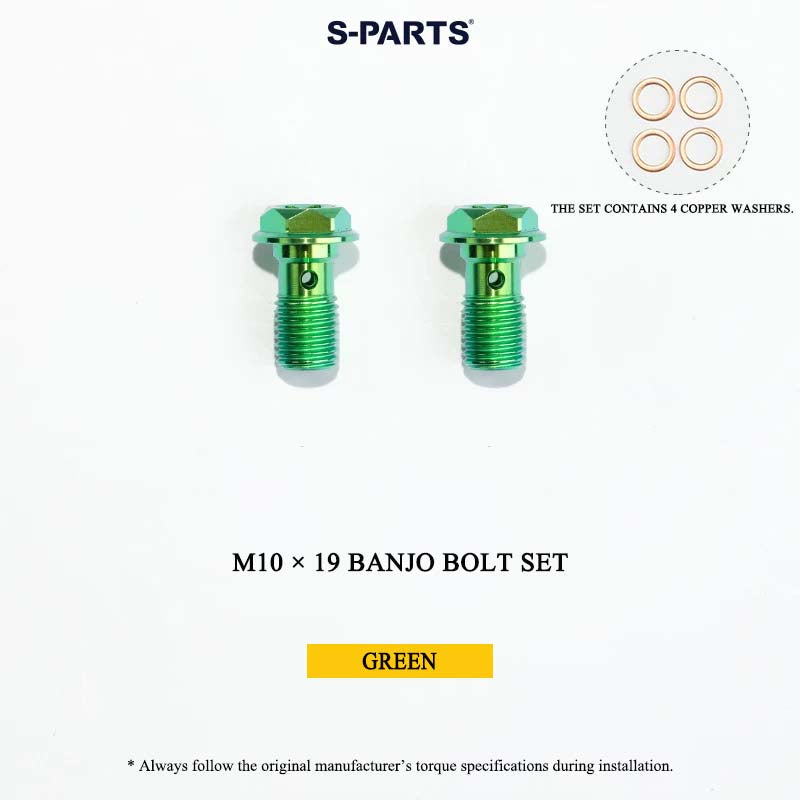

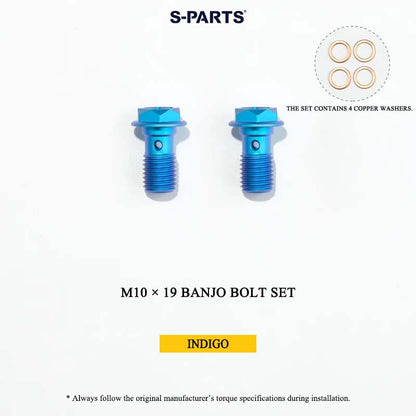

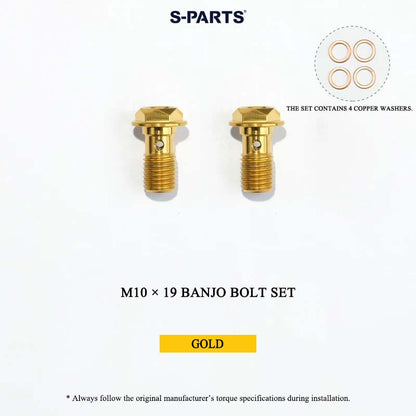

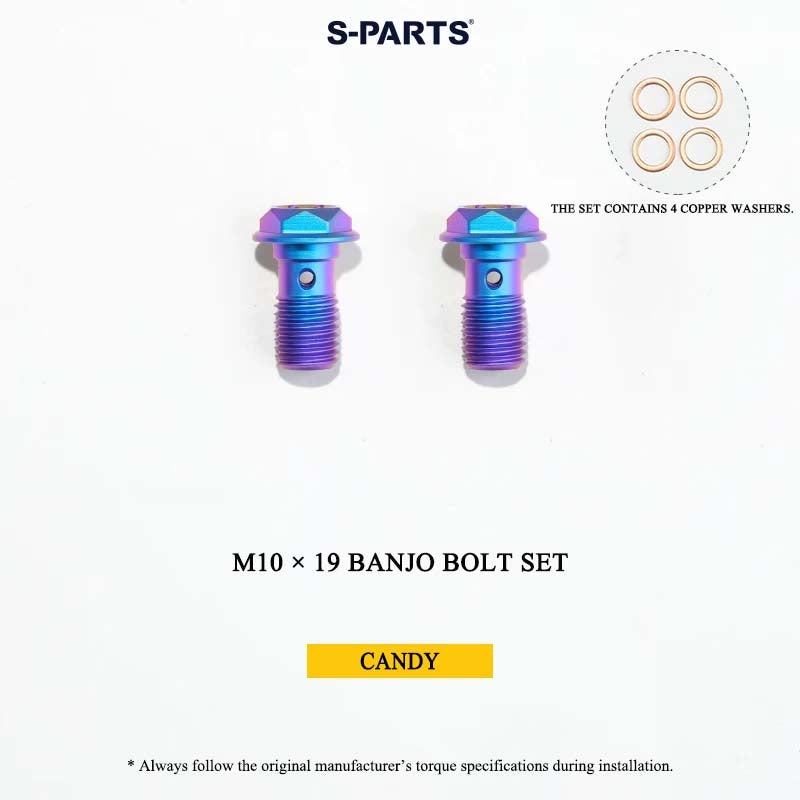

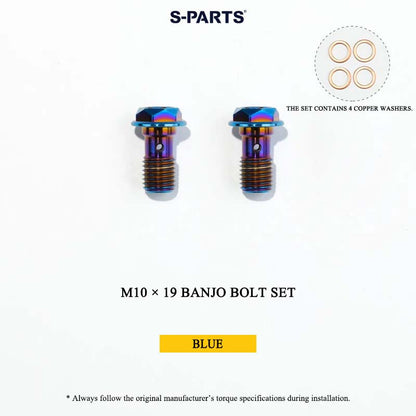

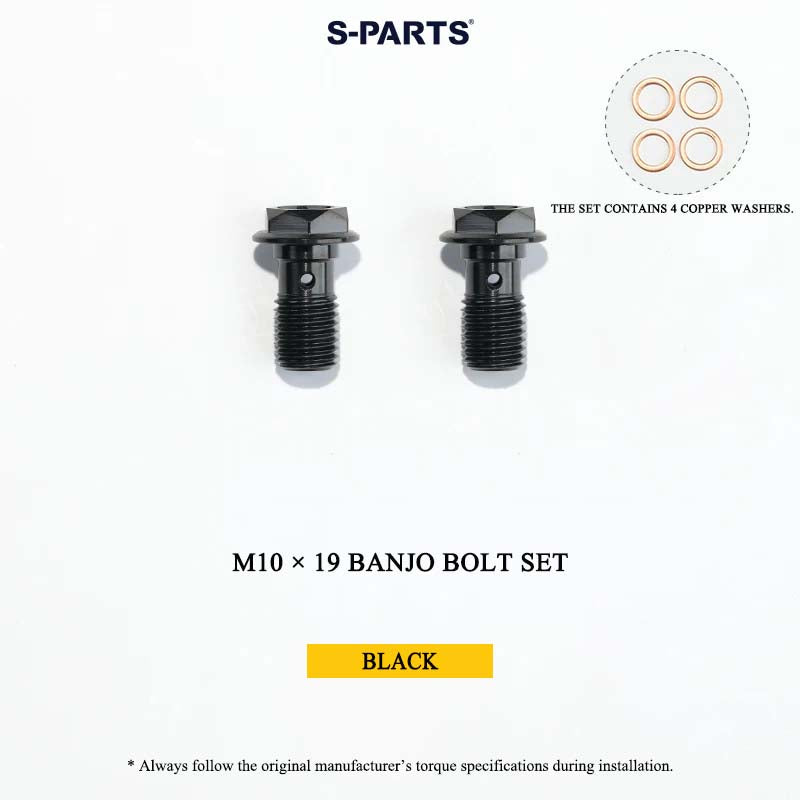

1	Banjo Bolt Set (2 bolts, includes 4 copper washers)	M10 × 1.25, 19 mm length	13.2 g/set	T50 Torx

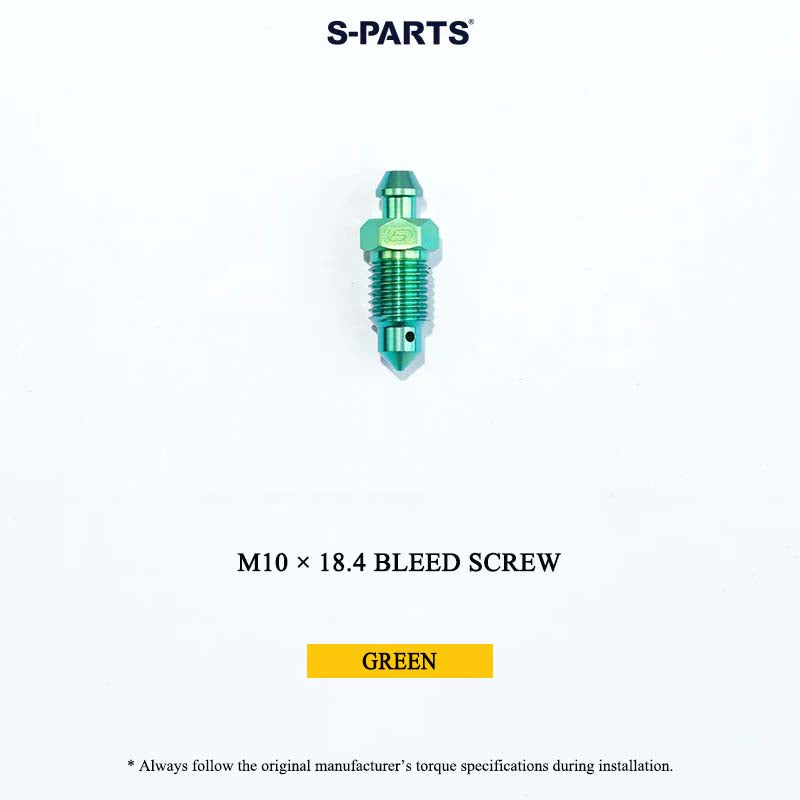

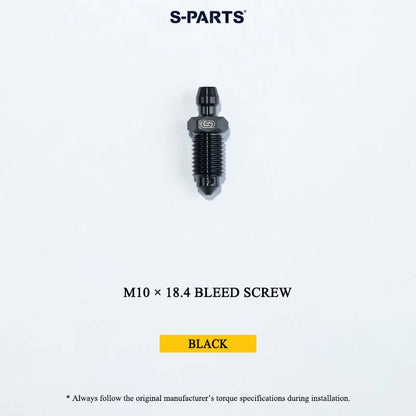

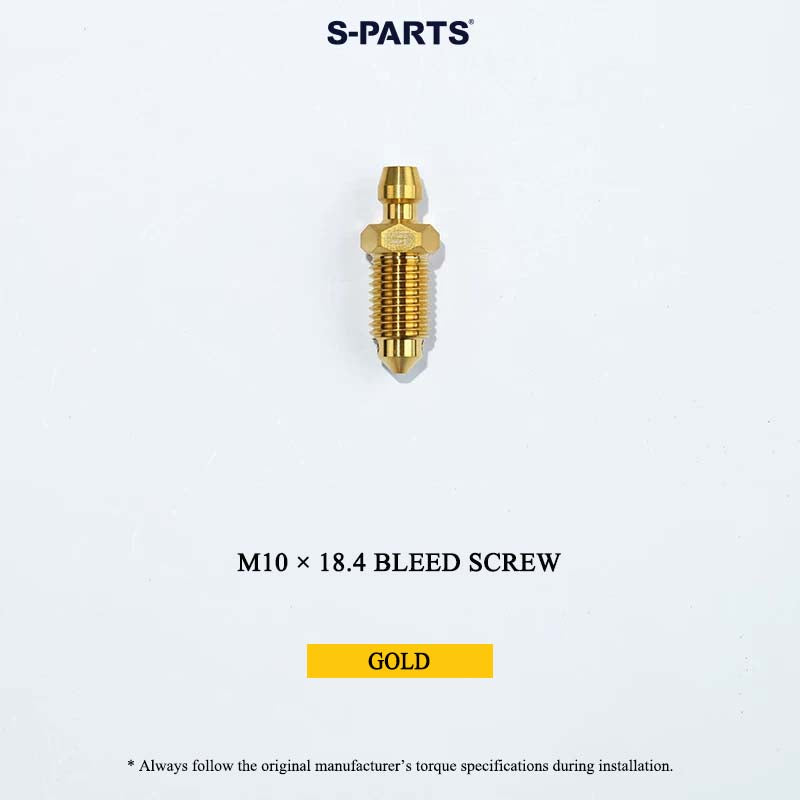

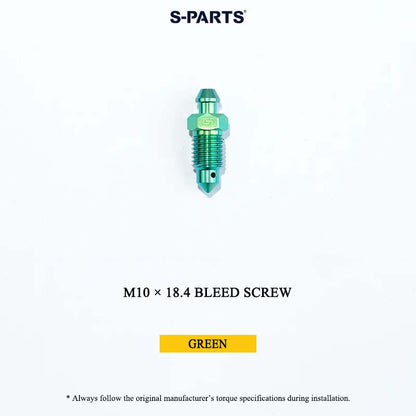

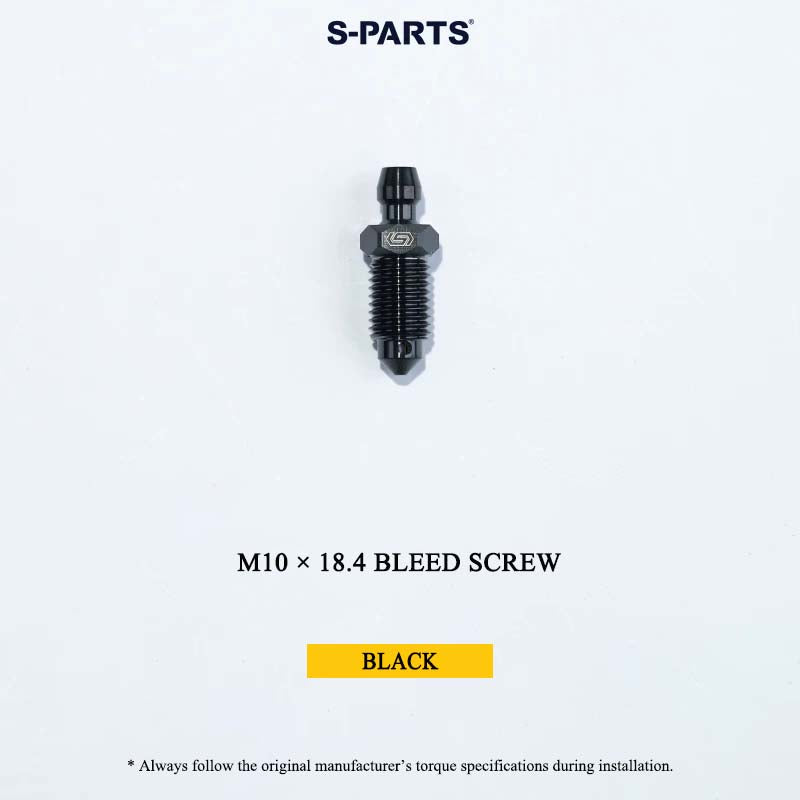

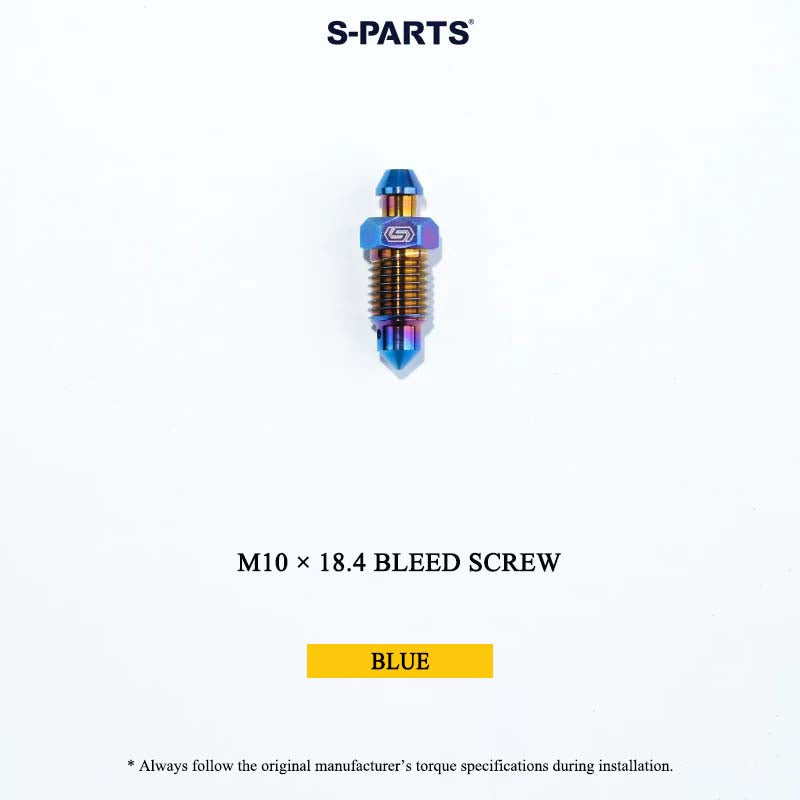

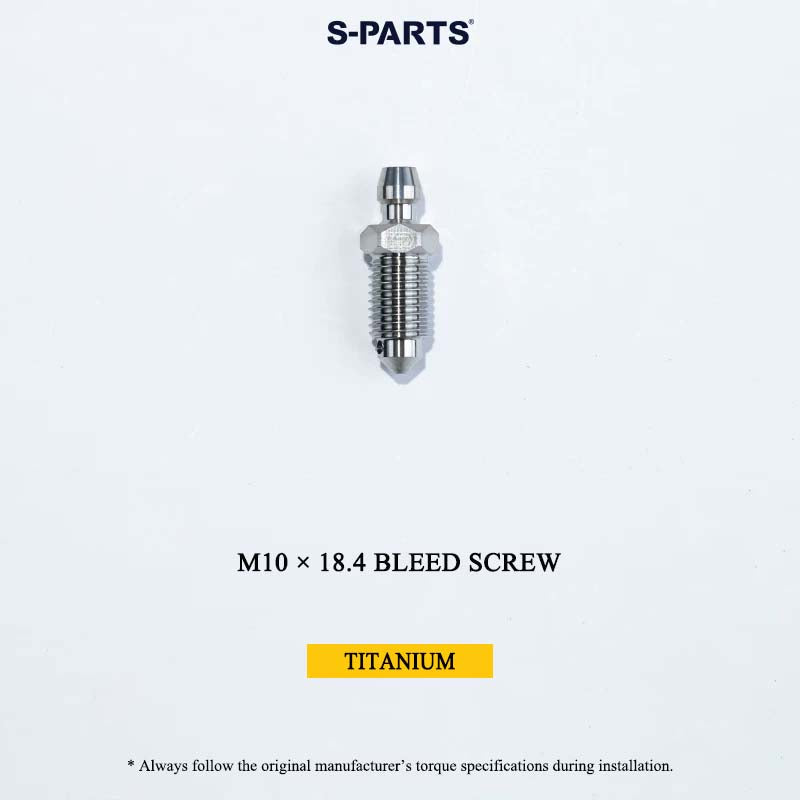

2	Bleed Screw	M10 × 1.25, 18.4 mm length	6.45 g each	11 mm open-end wrench

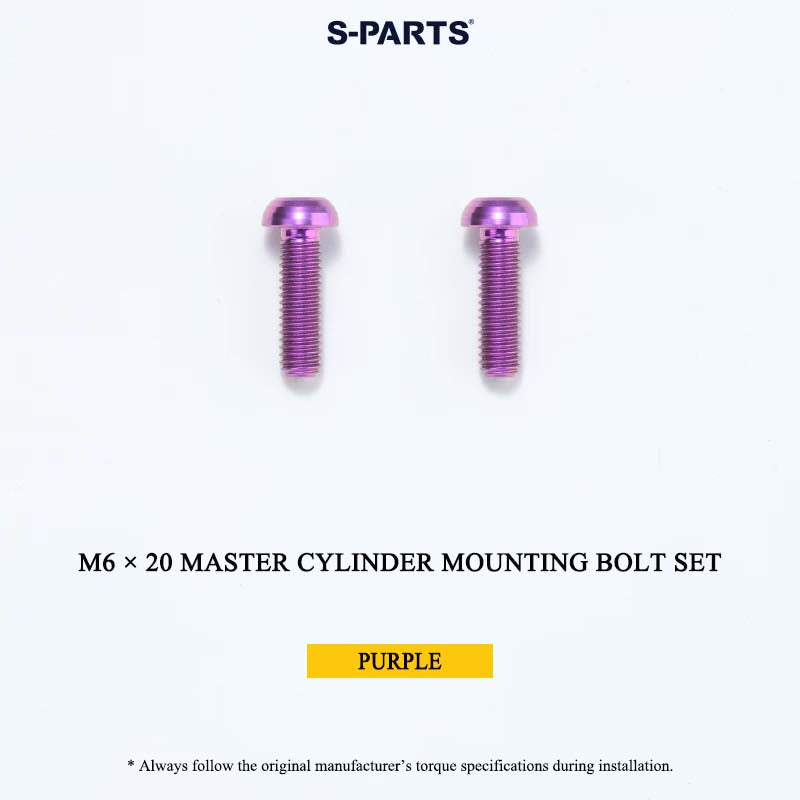

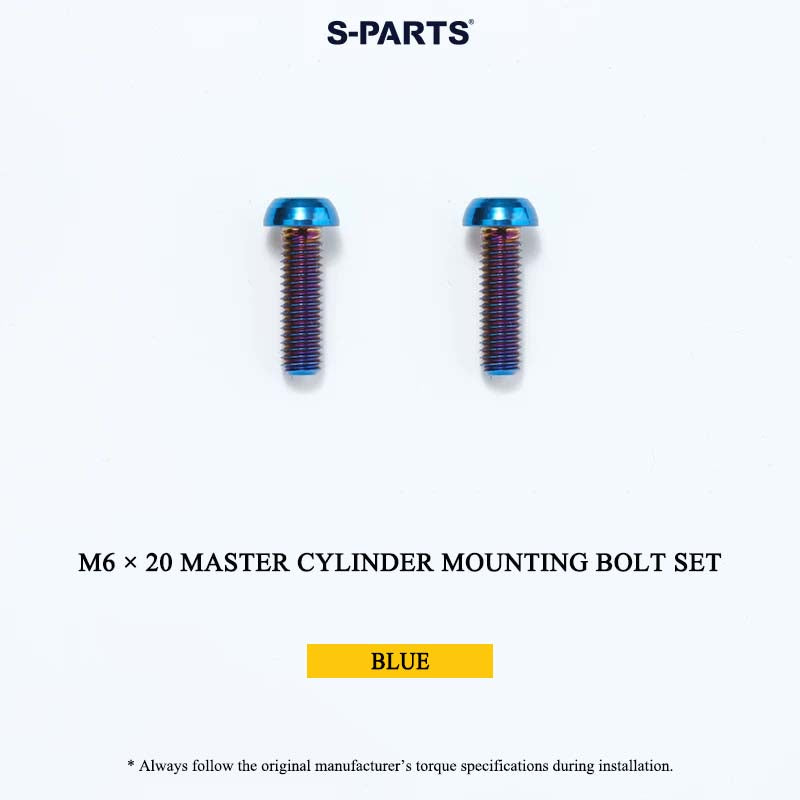

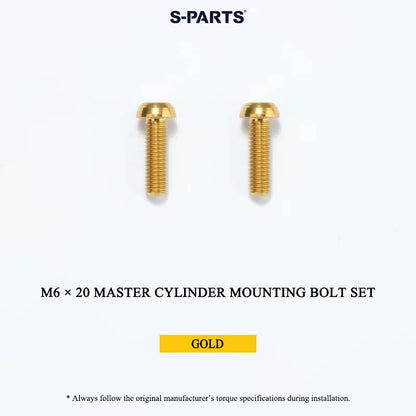

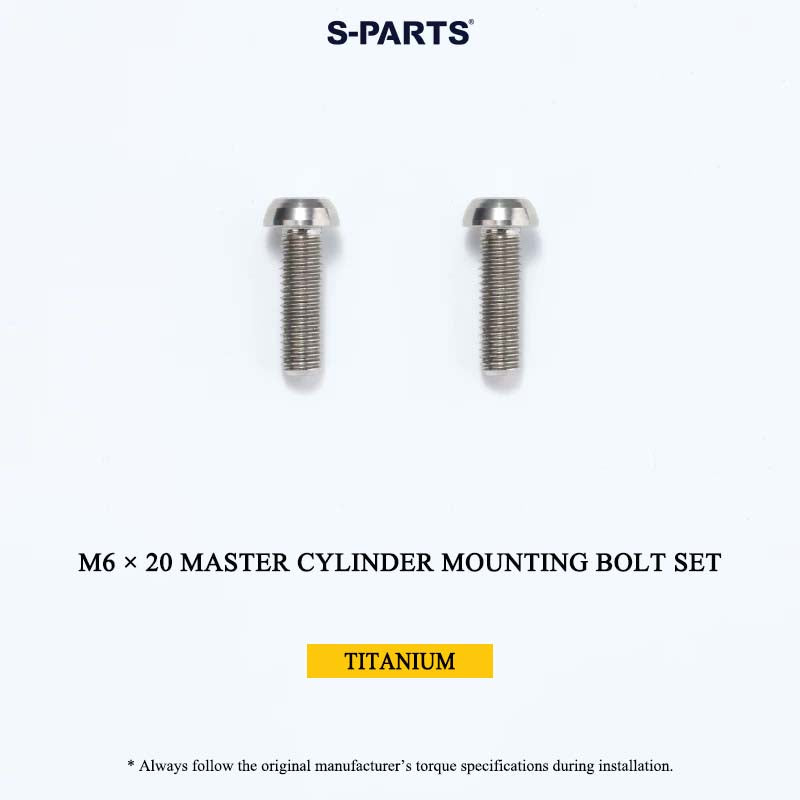

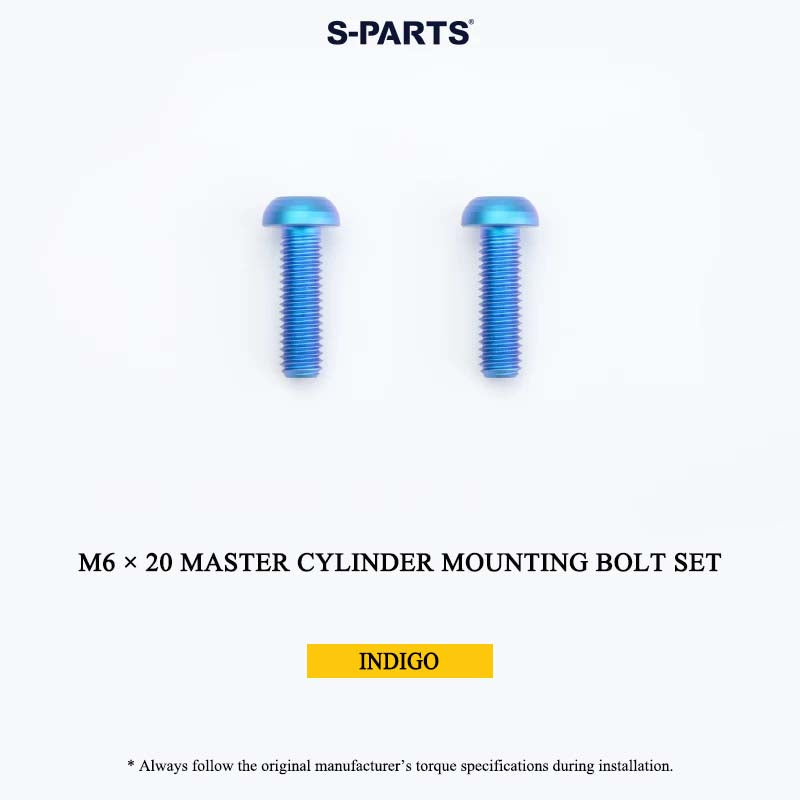

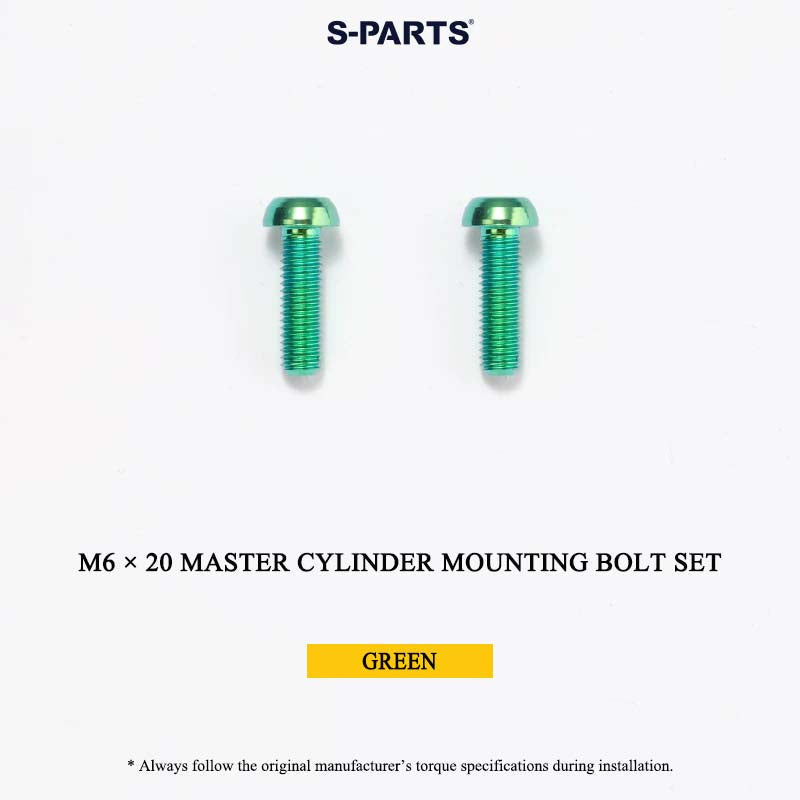

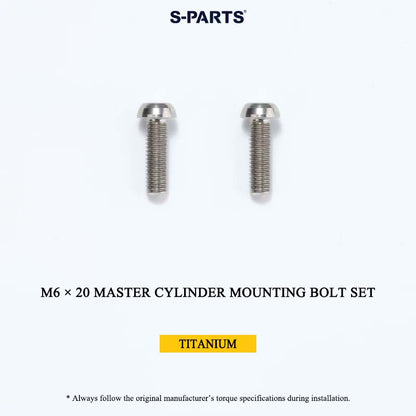

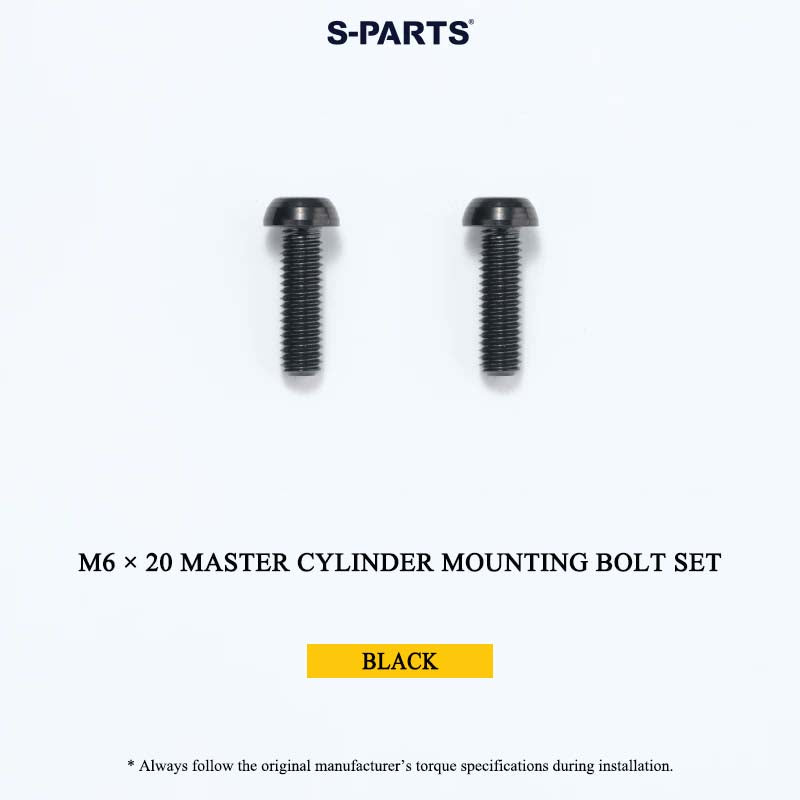

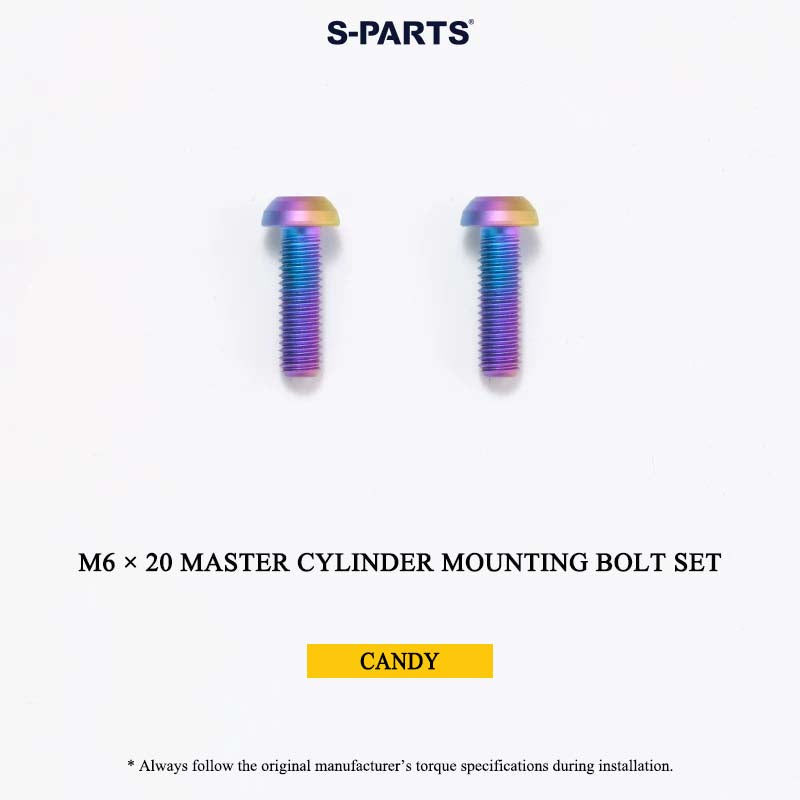

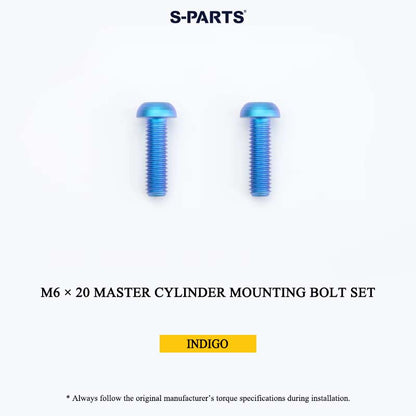

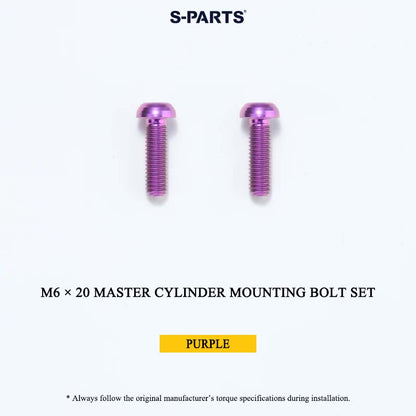

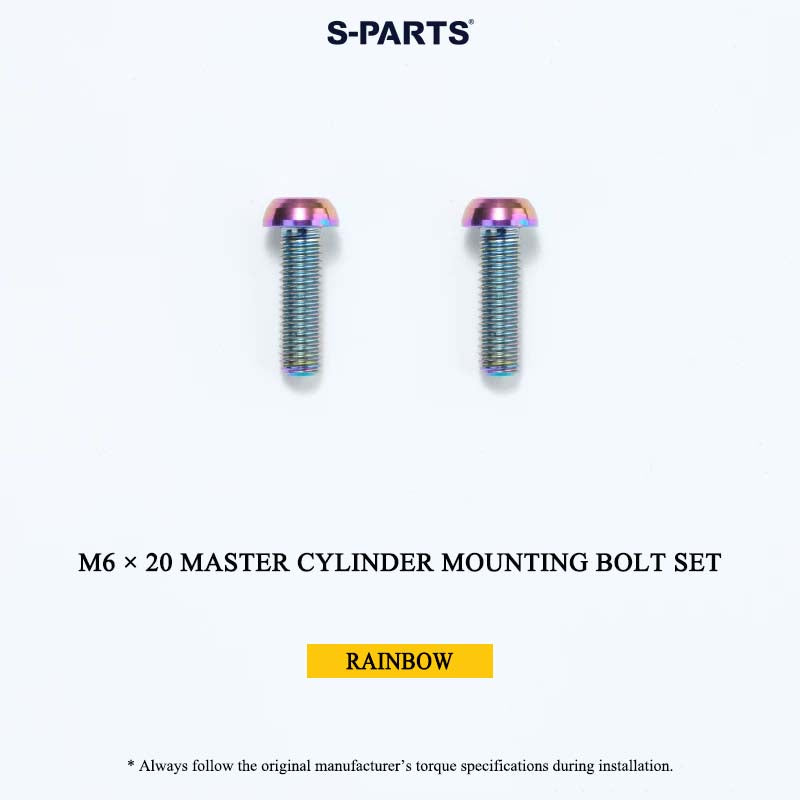

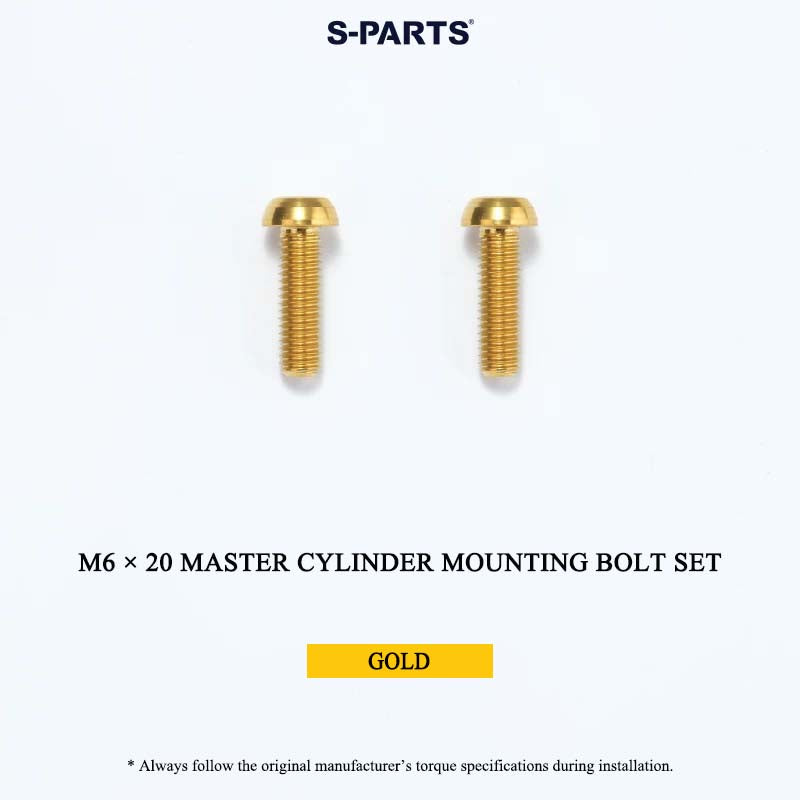

3	Master Cylinder Mounting Bolt Set (2 bolts)	M6 × 20	6.0 g/set	T30 Torx
4	Lever Fixing Bolt	M6 × 16	2.46 g each	T30 Torx

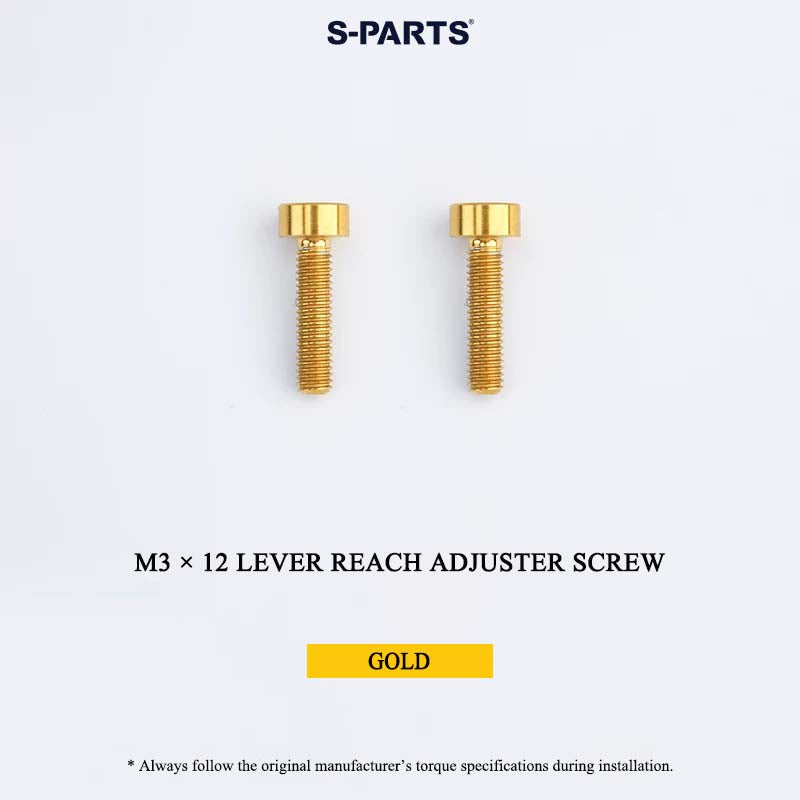

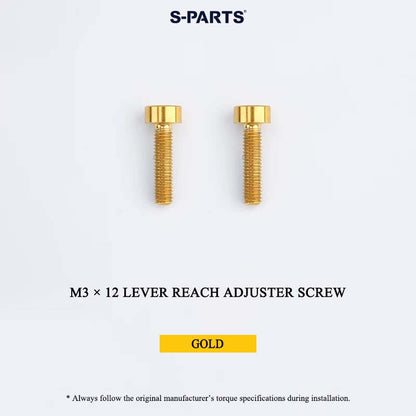

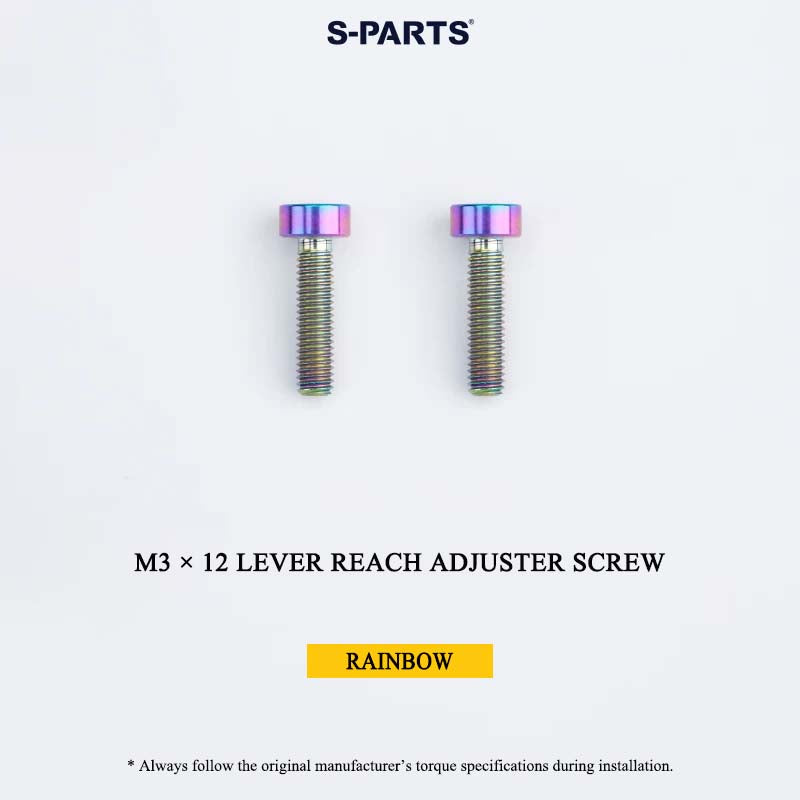

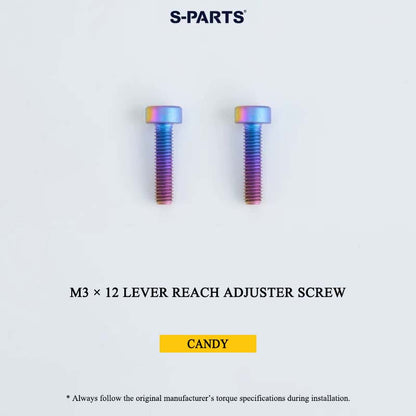

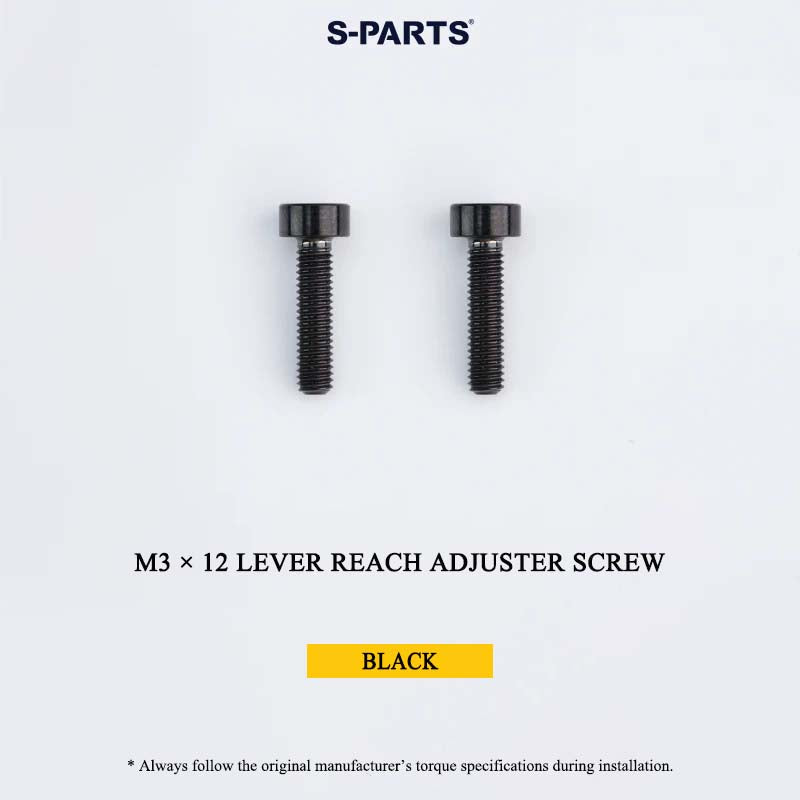

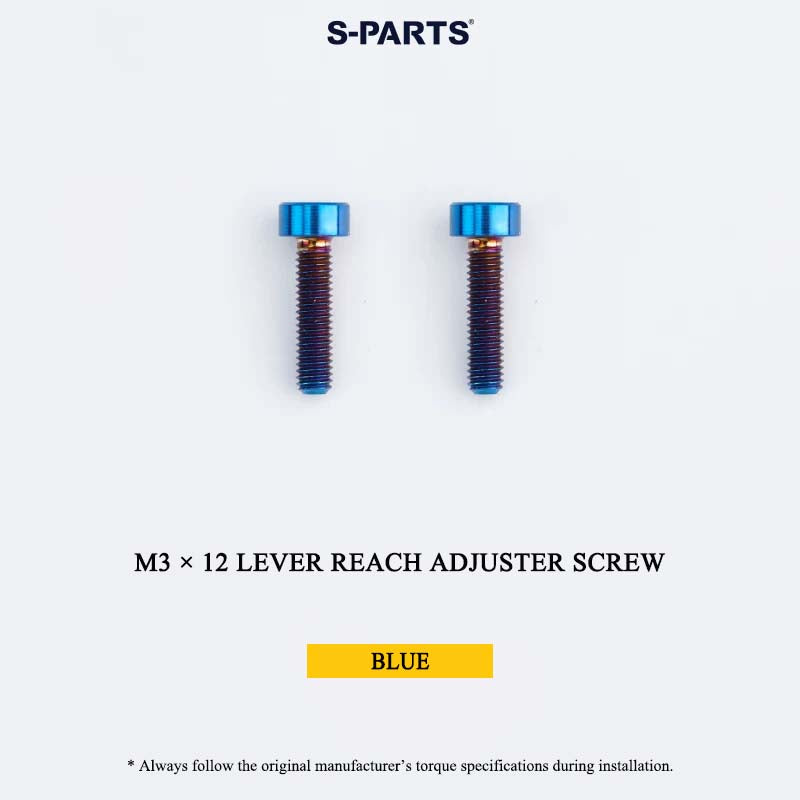

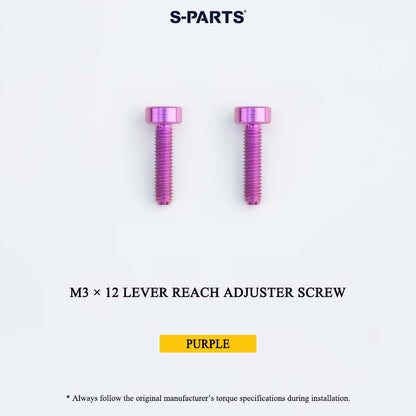

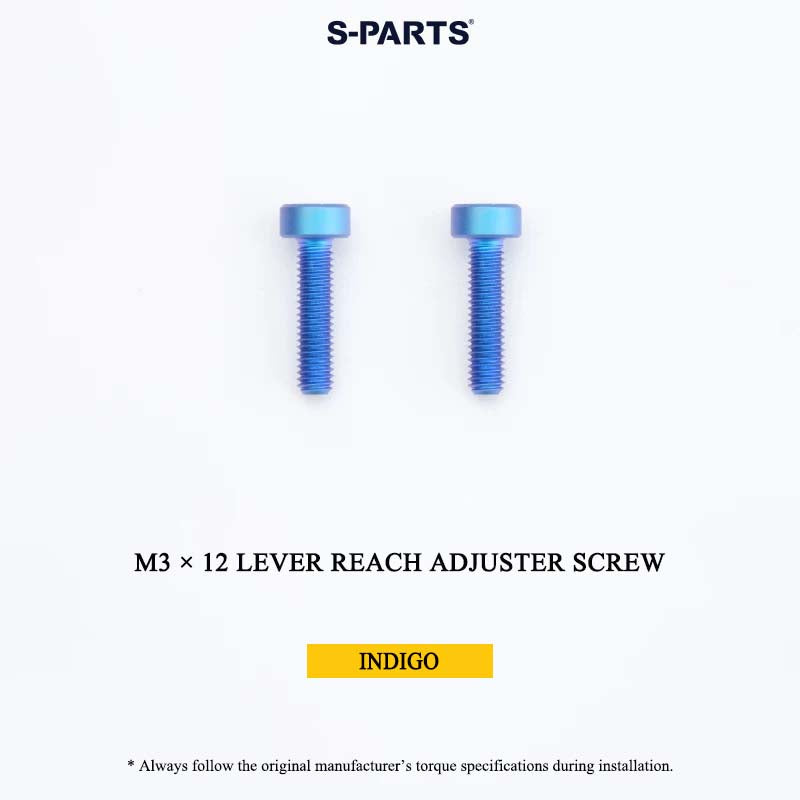

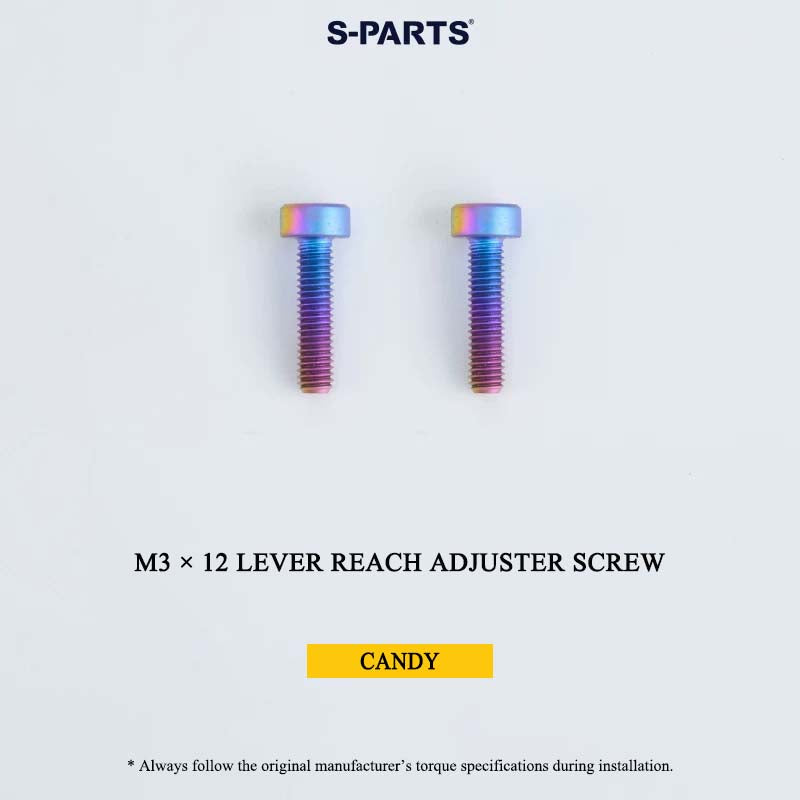

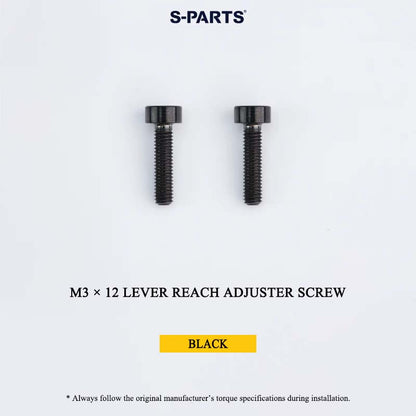

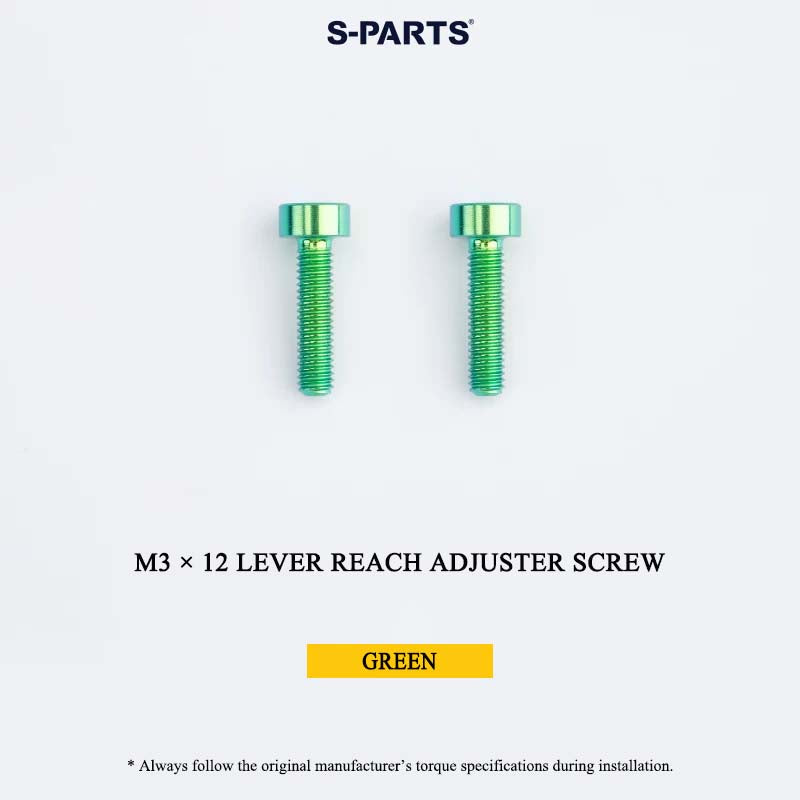

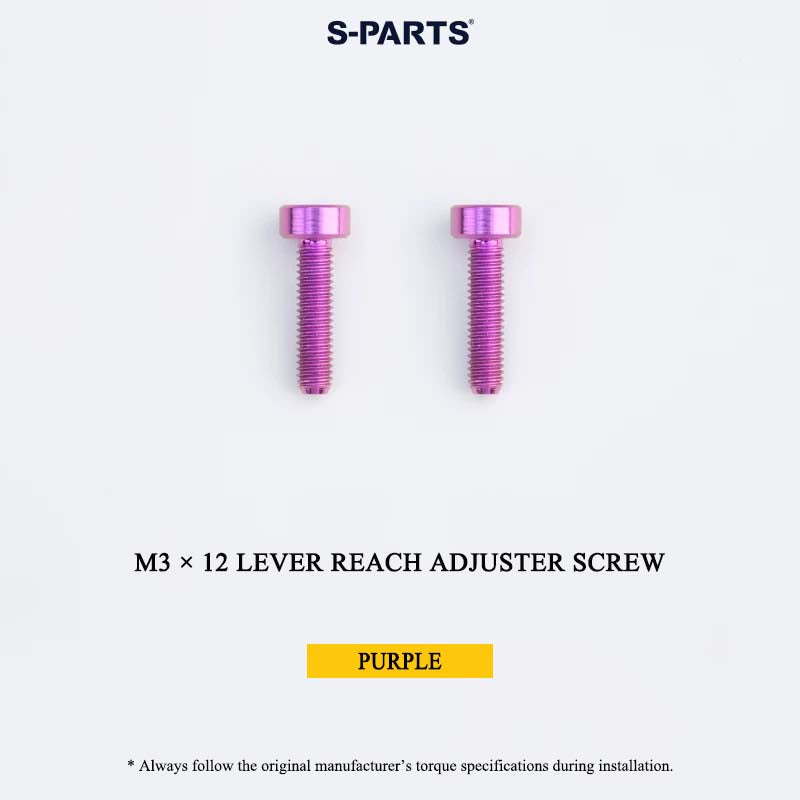

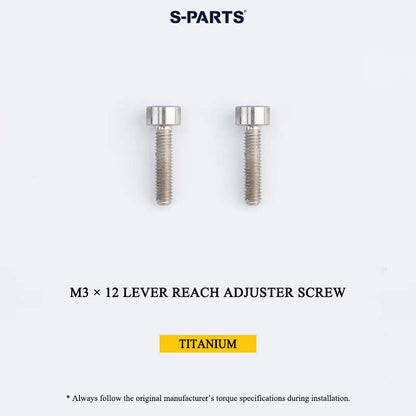

5	Lever Reach Adjuster Screw (2 pcs)	M3 × 12	1.0 g/set	T10 Torx
6	Oil Reservoir Fixing Bolt	M6 × 25	3.44 g each	T30 Torx
7	Oil Reservoir Nut	M6, 6 mm thick, 11 mm OD	1.35 g each	10 mm open-end wrench

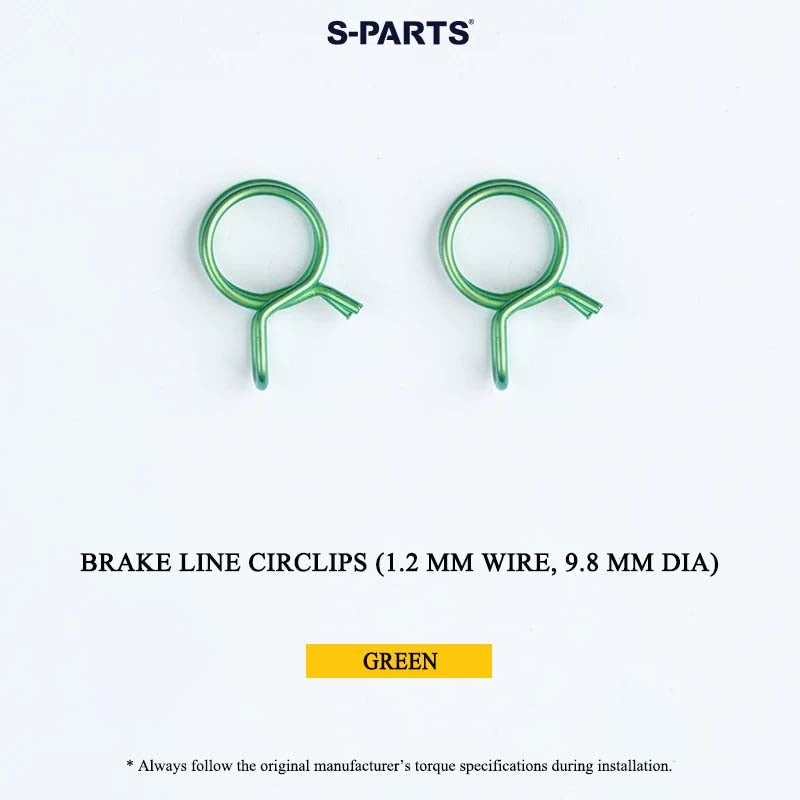

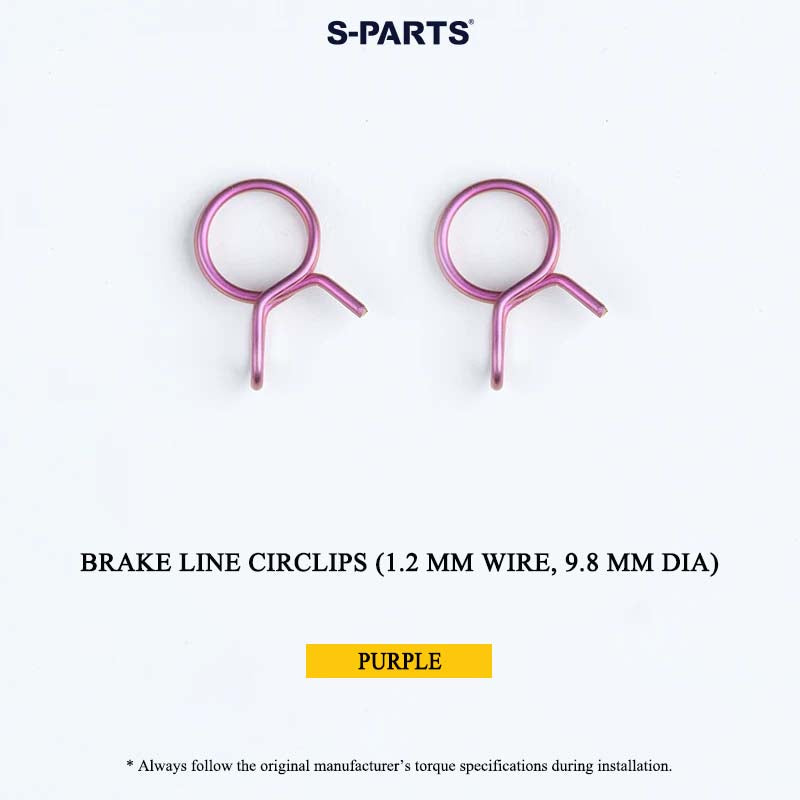

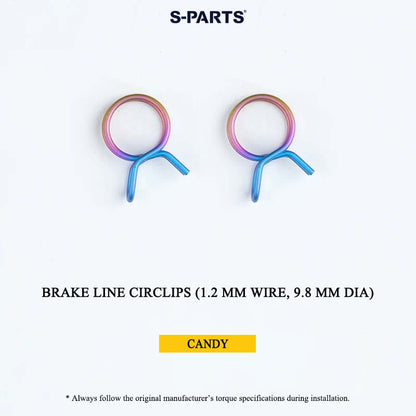

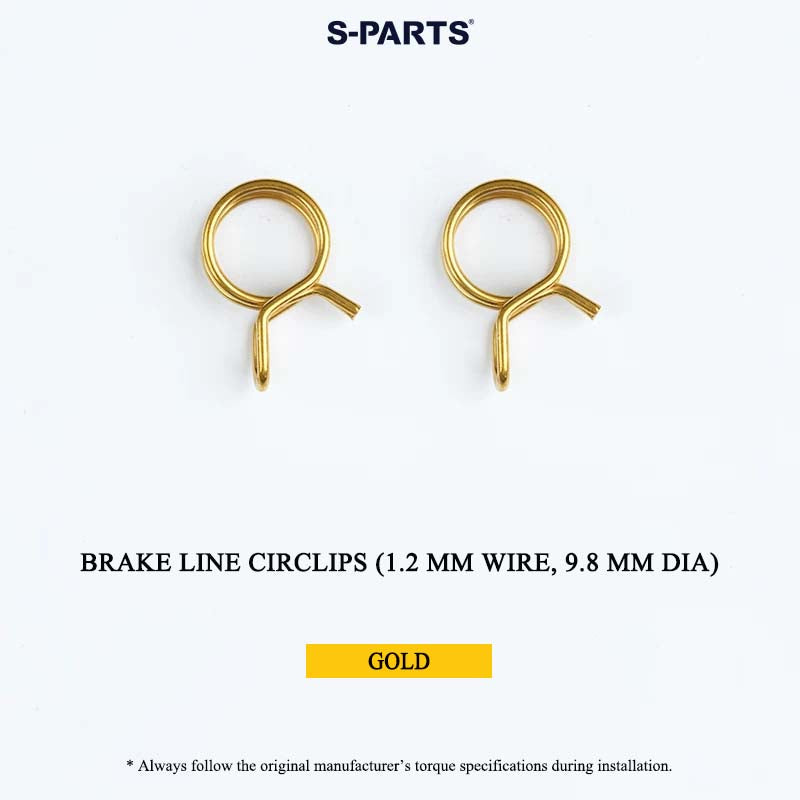

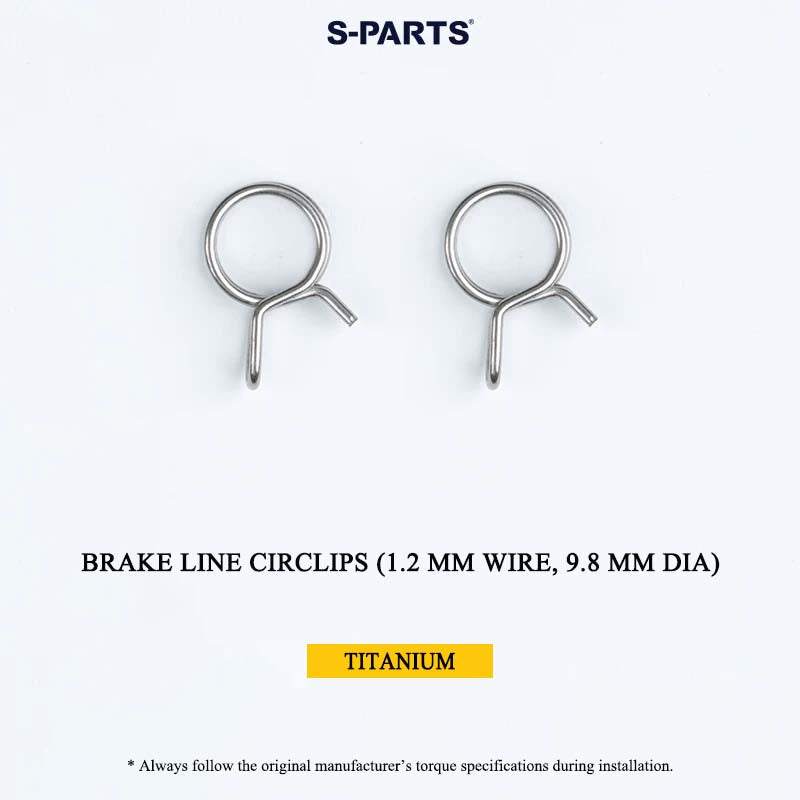

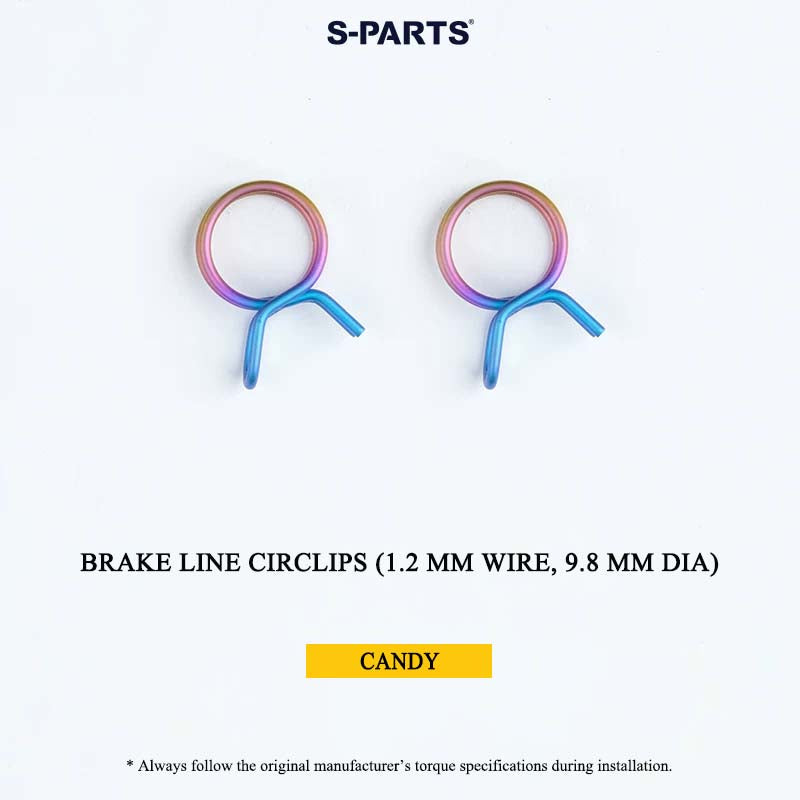

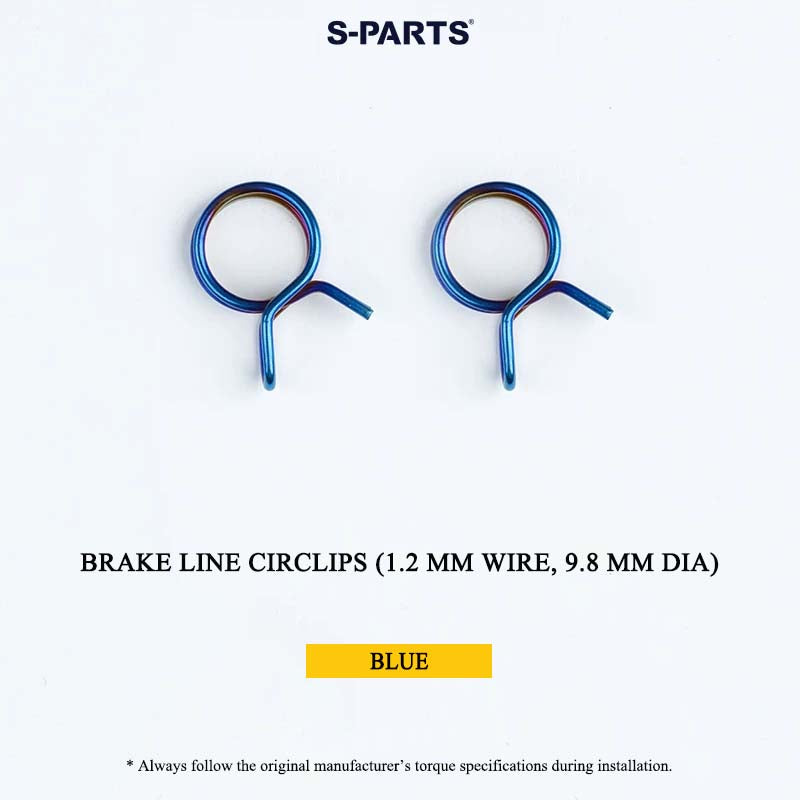

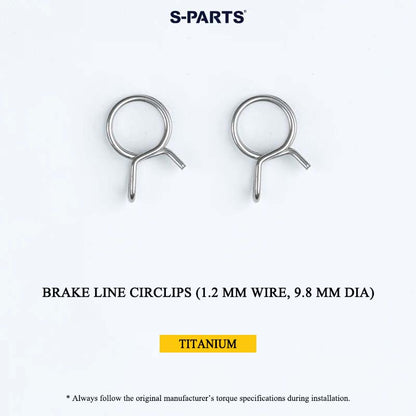

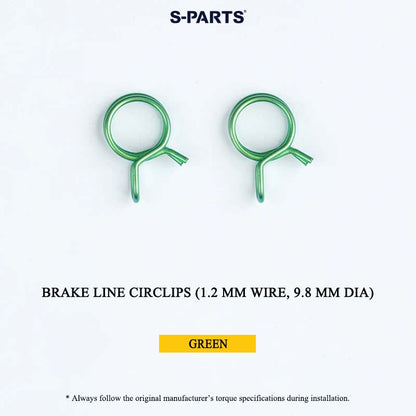

8	Brake Line Circlips (2 pcs)	1.2 mm wire, 9.8 mm dia.	1.0 g/set	-

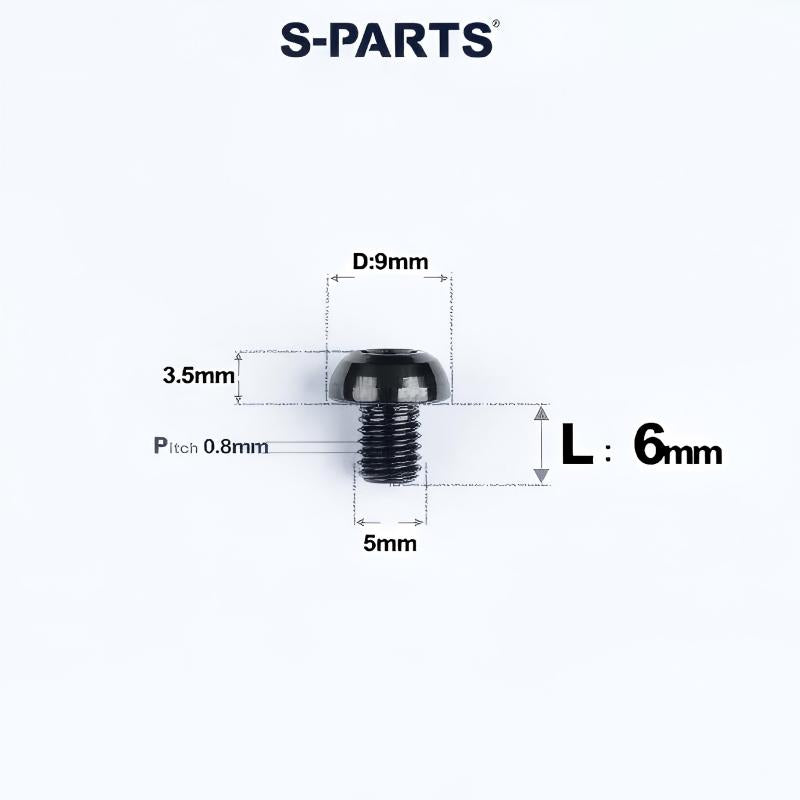

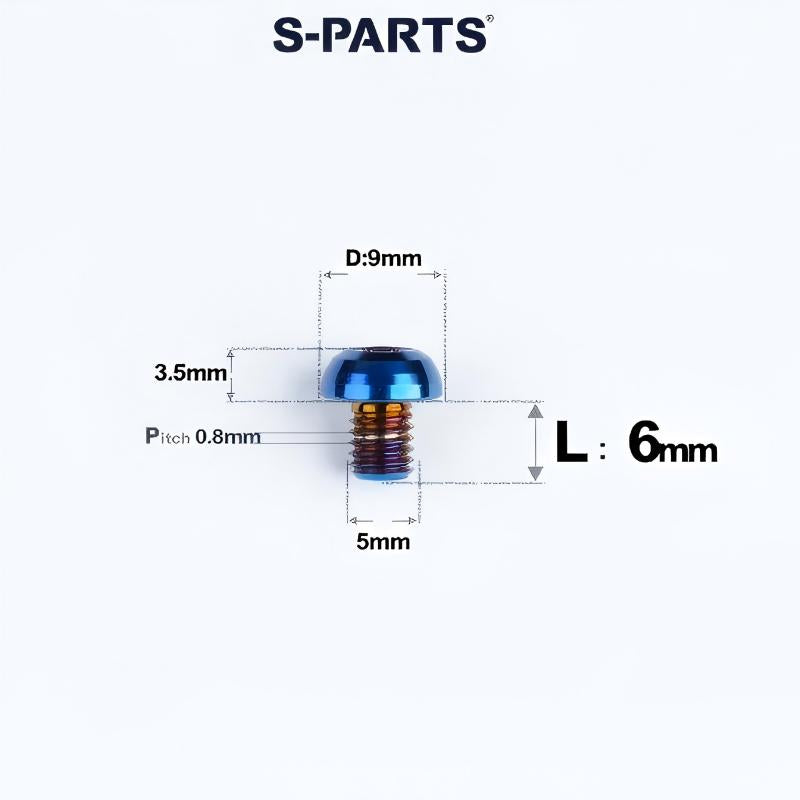

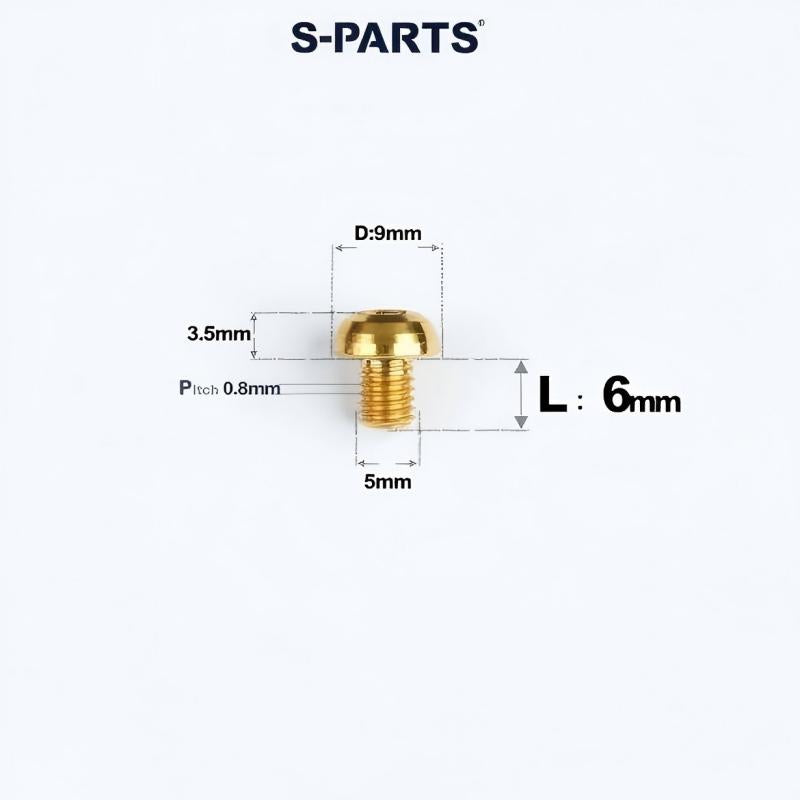

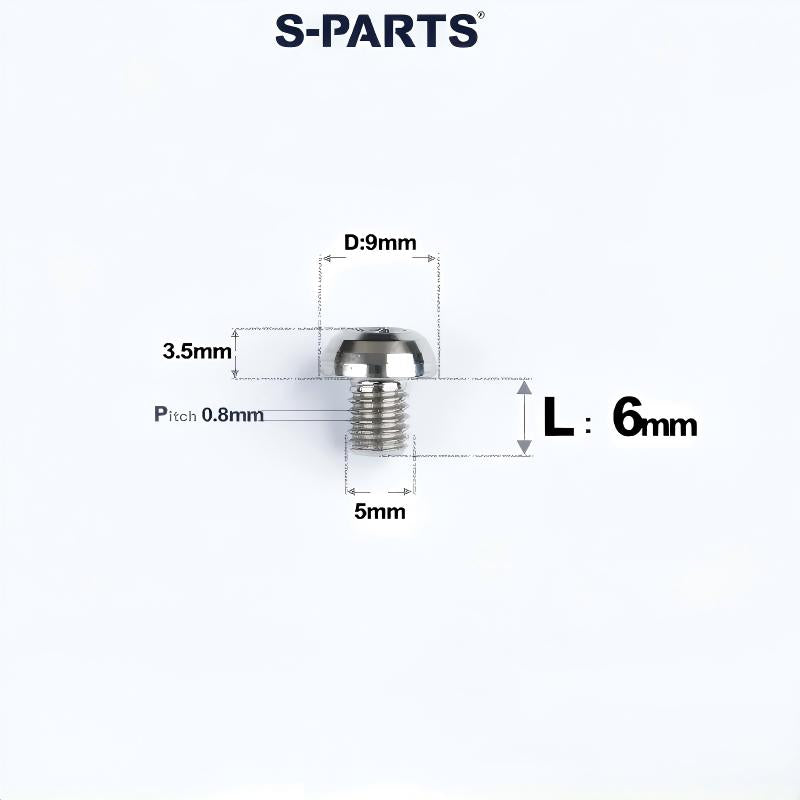

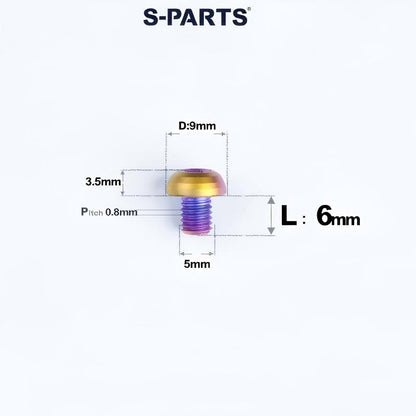

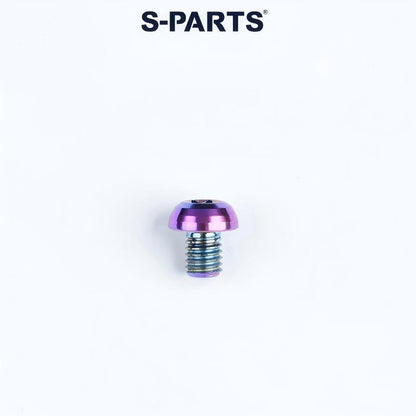

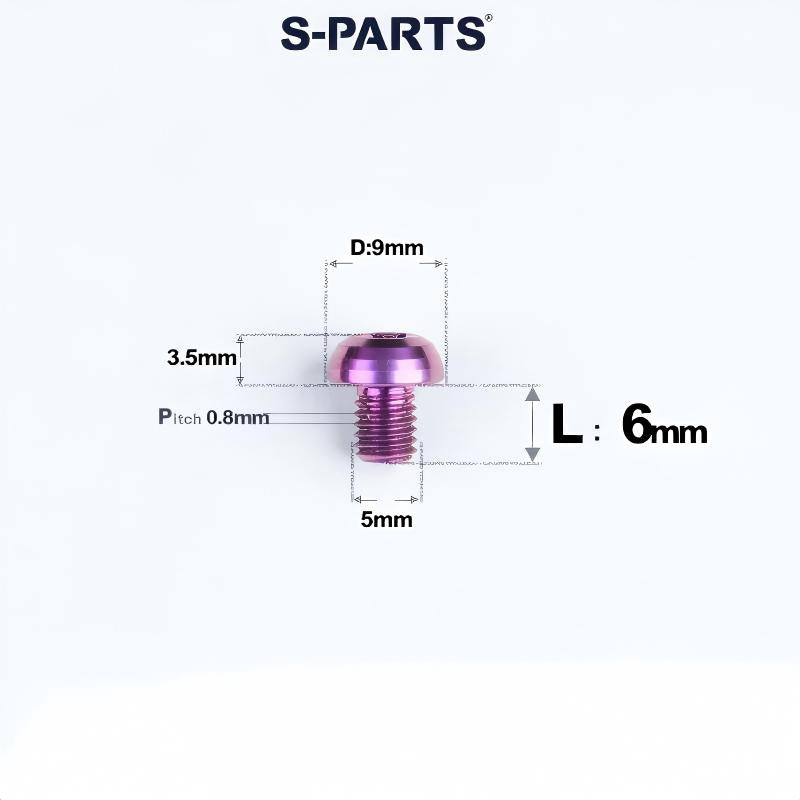

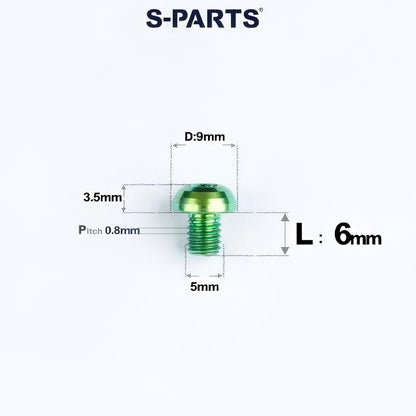

9	Oil Reservoir Bracket Fixing Bolt	M6 × 6	1.07 g each	T25 Torx

Material: Grade 5 Titanium (Ti-6Al-4V)
Colors: Gold, Rainbow, Titanium, Black, Blue, Green, Purple, Candy, Indigo, Copper

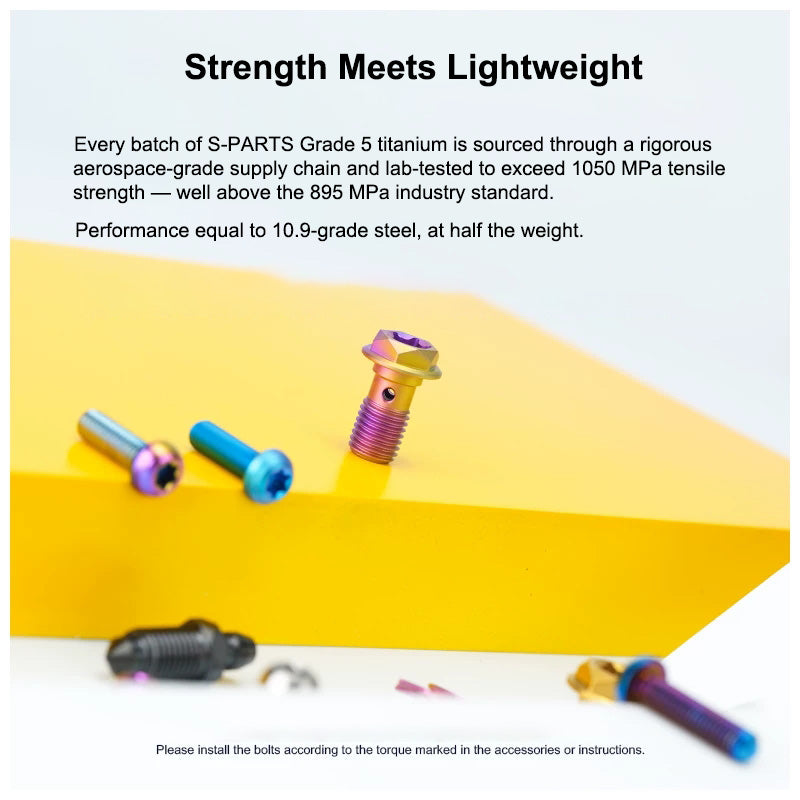

Strong and Lightweight

S-PARTS works with a metal raw-material supply chain serving Xi'an's civilian aerospace industry. Through long-term laboratory comparison testing, it carefully selects Grade 5 titanium alloy stock that meets its standards, with an average tensile strength exceeding 1,050 MPa, above the 895 MPa industry standard.

Under comparable conditions, S-PARTS titanium alloy fasteners deliver overall performance equivalent to Grade 10.9 steel parts at approximately half the weight.

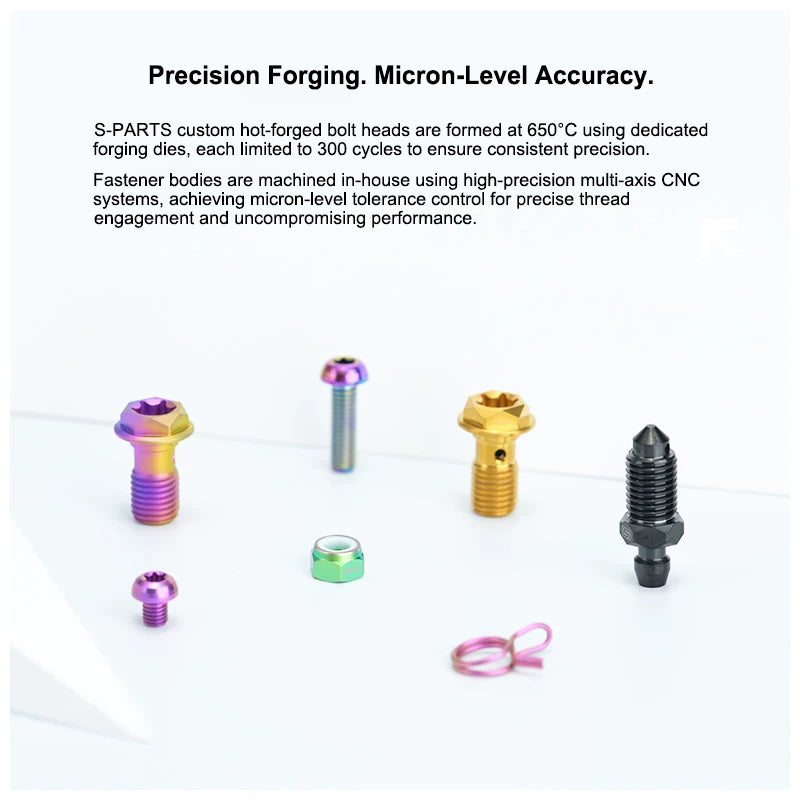

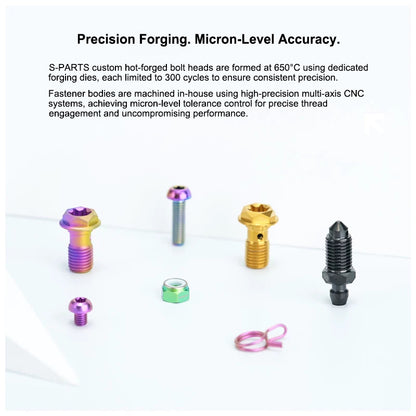

Precision Hot Forging and CNC Machining

Screw heads are hot forged in custom S-PARTS dies at 650°C, and each die is used no more than 300 times to keep precision high. The fasteners are then machined on military-grade precision multi-process CNC machines, with micron-level tolerance control for an accurate thread fit.

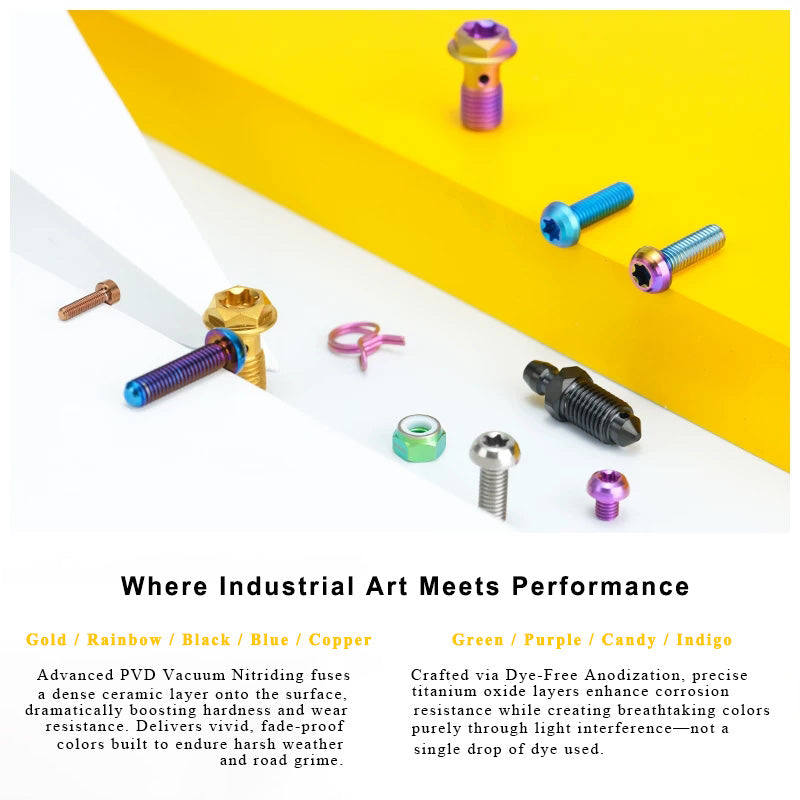

Color Finishes

PVD vacuum nitride coating (Gold, Rainbow, Black, Blue, Copper): A dense nitride layer increases surface hardness and impact resistance. The color goes deep into the surface layer and holds up under normal use.

Anodized (Green, Purple, Candy, Indigo): Anodizing forms an oxide layer of varying thickness on the titanium, improving surface hardness and corrosion resistance. The colors come from light interference in this layer. No dye is used.

Please Note

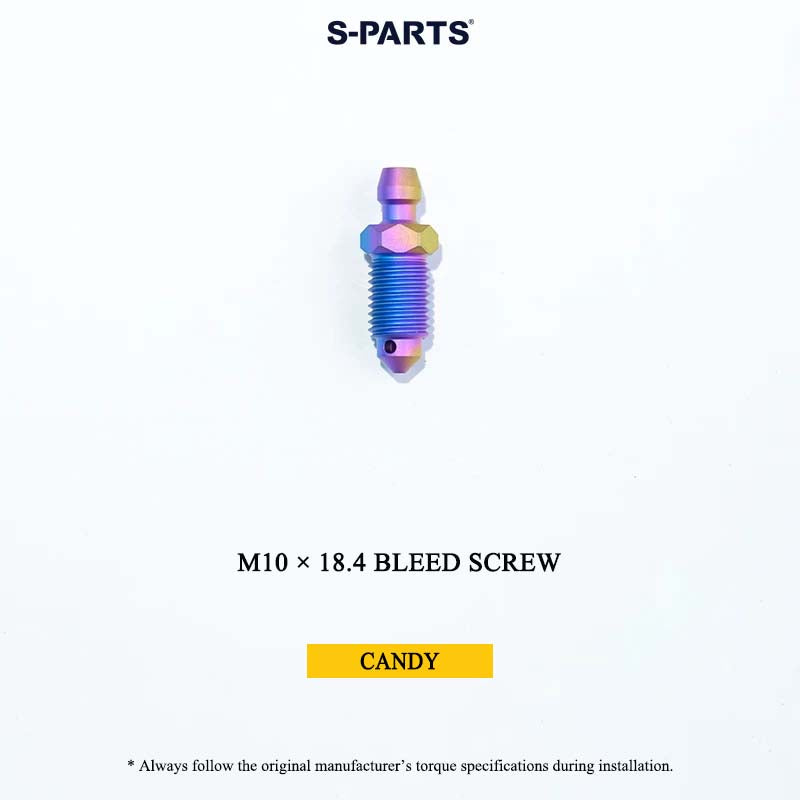

The Candy finish features flowing color transitions, and the color pattern varies from piece to piece due to the anodizing process.

White lines may appear around the threaded areas of some screws as a normal result of the coloring process. They are safe to use.
