Product Description
S-PARTS Grade 5 Titanium Hardware for COLNAGO Y1RS

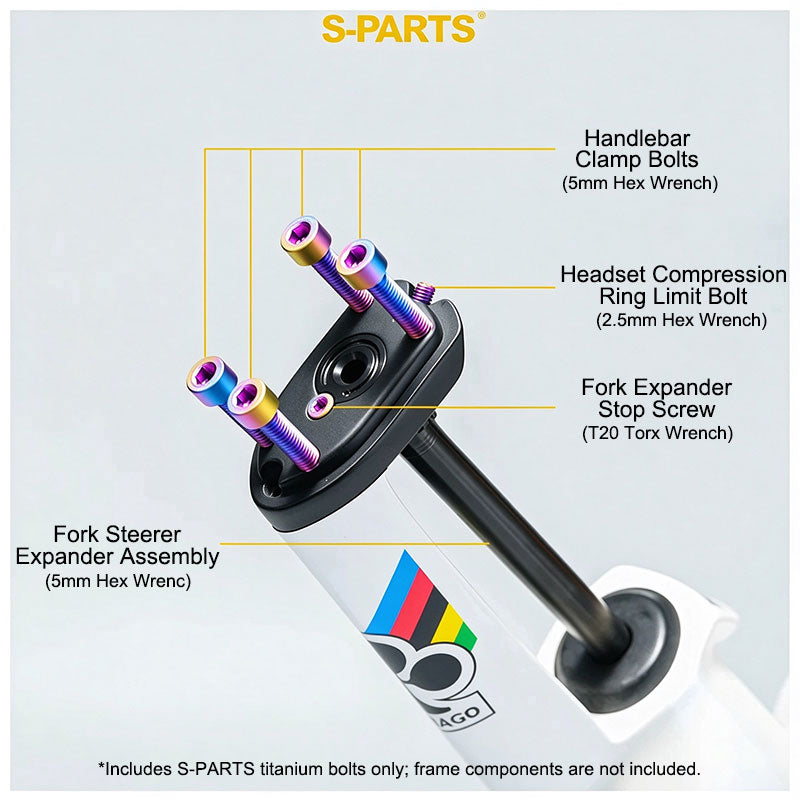

Designed for the COLNAGO Y1RS, this S-PARTS titanium hardware range covers key fastening points throughout the bike, including the handlebar, fork steerer expander, fairing, bottle cage, front derailleur, computer mount and thru axle system.
Made from Grade 5 Titanium (Ti-6Al-4V), the range combines low weight with high strength while providing a coordinated titanium hardware upgrade across multiple mounting points.
Key Specifications
| Specification |
Details |
| Compatibility |
COLNAGO Y1RS |
| Material |
Grade 5 Titanium (Ti-6Al-4V) |
| Available Finishes |
Gold, Rainbow, Raw Titanium, Black, Blue, Green, Purple, Candy, Indigo, Copper |
| Handlebar Bolt Tool |
5mm Hex |
| Other Tool Interfaces |
T10, T20, T25 Torx; 5mm and 6mm Hex, depending on variant |
| Product Options |
Handlebar bolts, fork steerer expander components, fairing screw, bottle cage bolts, front derailleur hanger bolts, computer mount hardware and thru axle set |
Available Variants
| Variant |
Product |
Quantity |
Weight |
Tool |
| 1 |

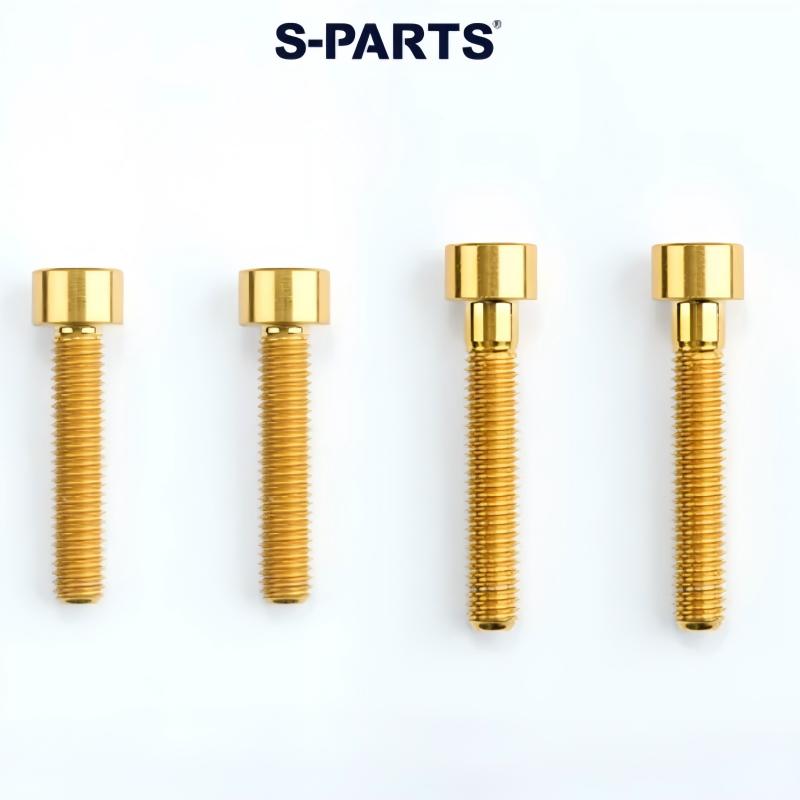

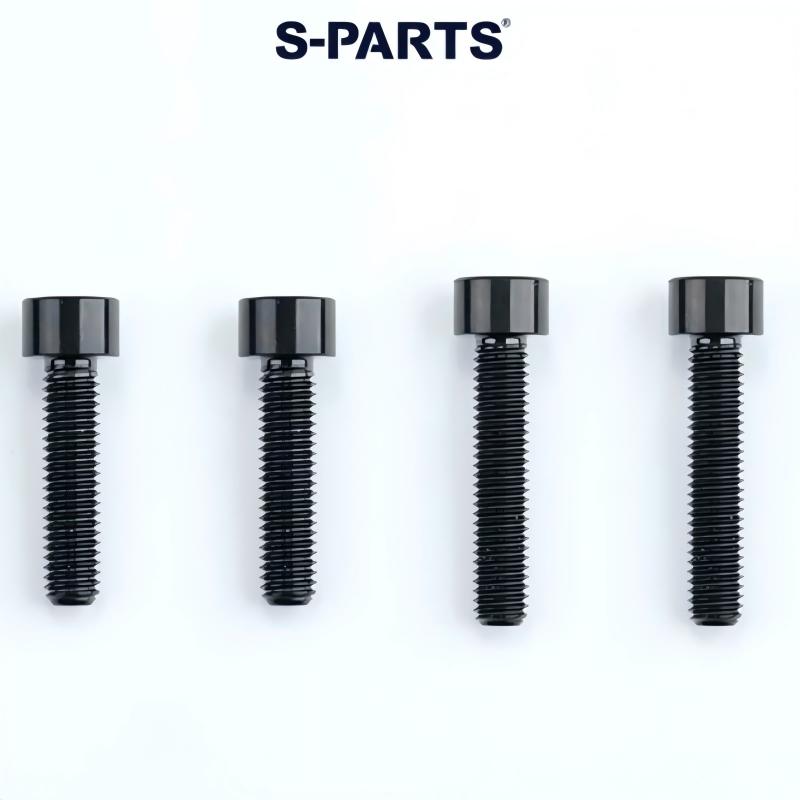

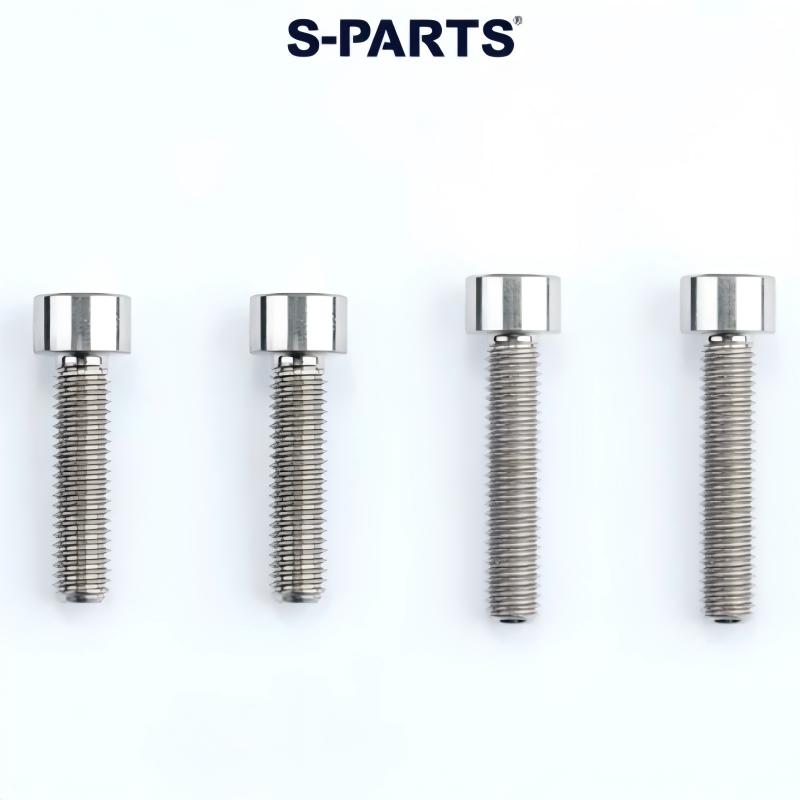

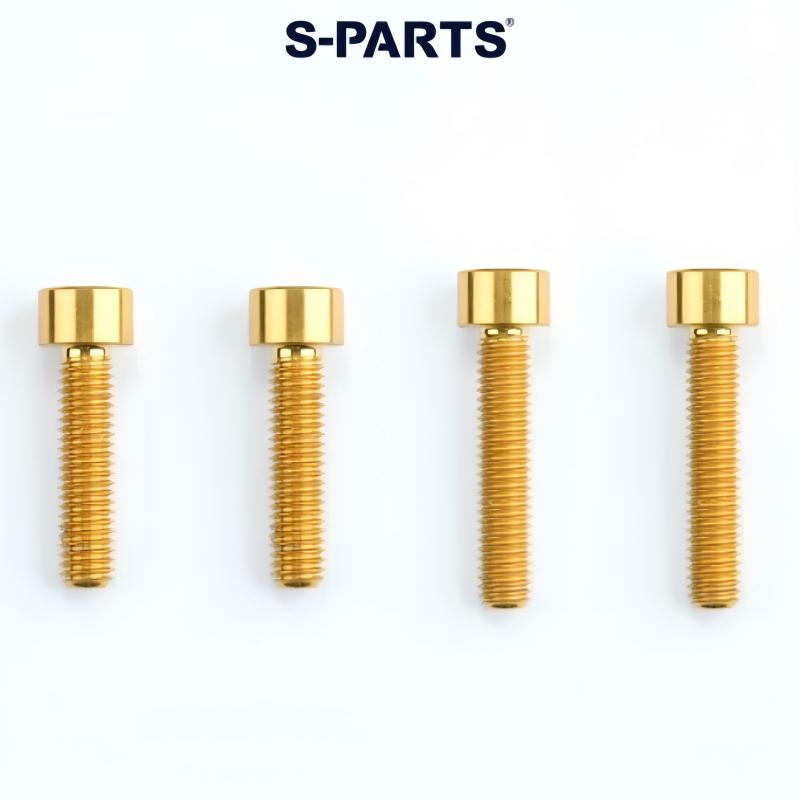

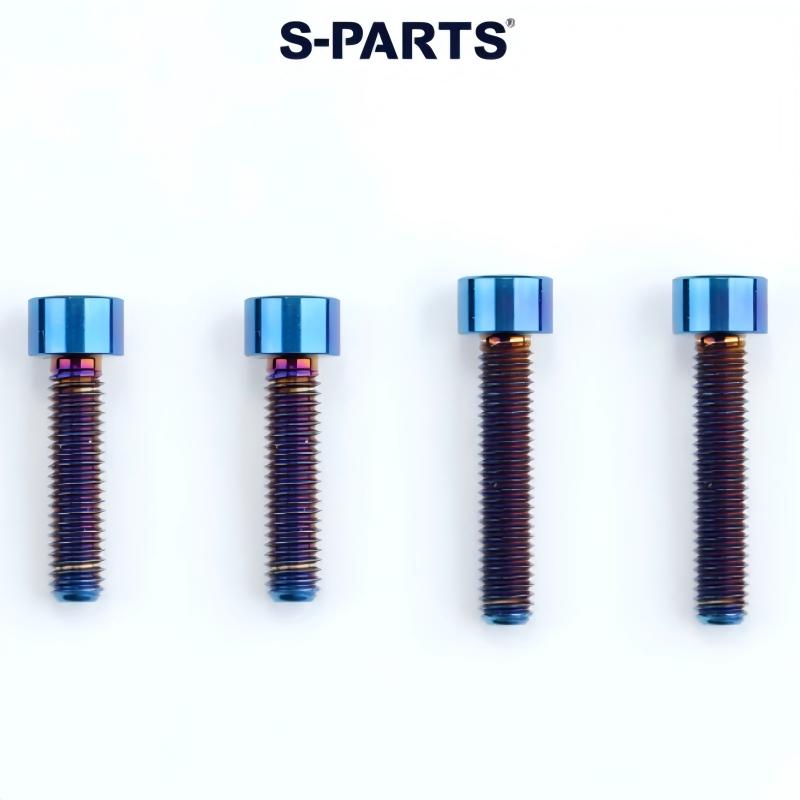

Handlebar Clamp Bolts – No Spacer Stack |
4 pcs/set |
17.4 g/set |
5mm Hex |
| 2 |

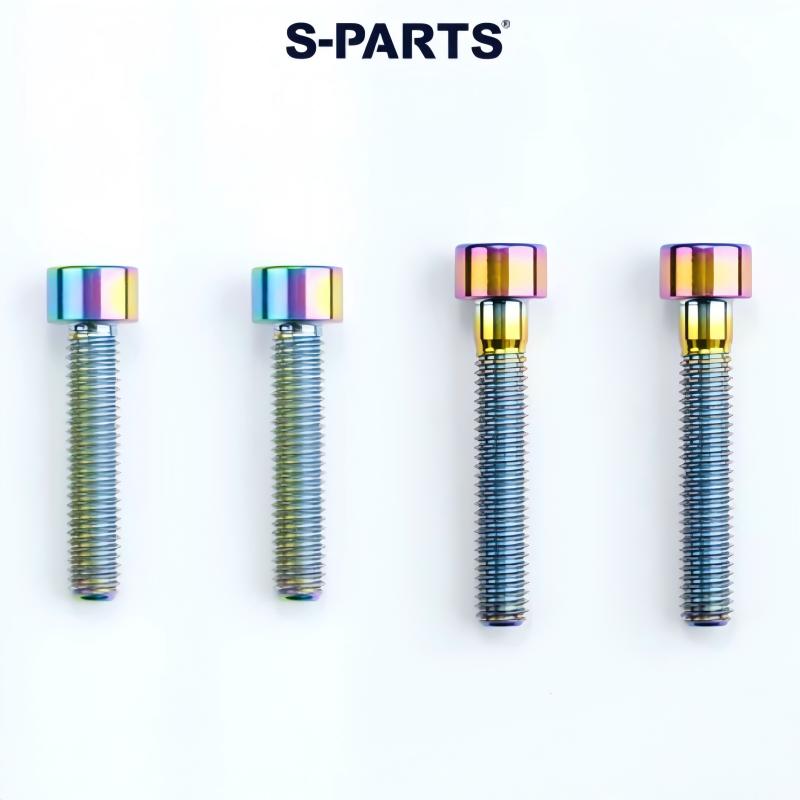

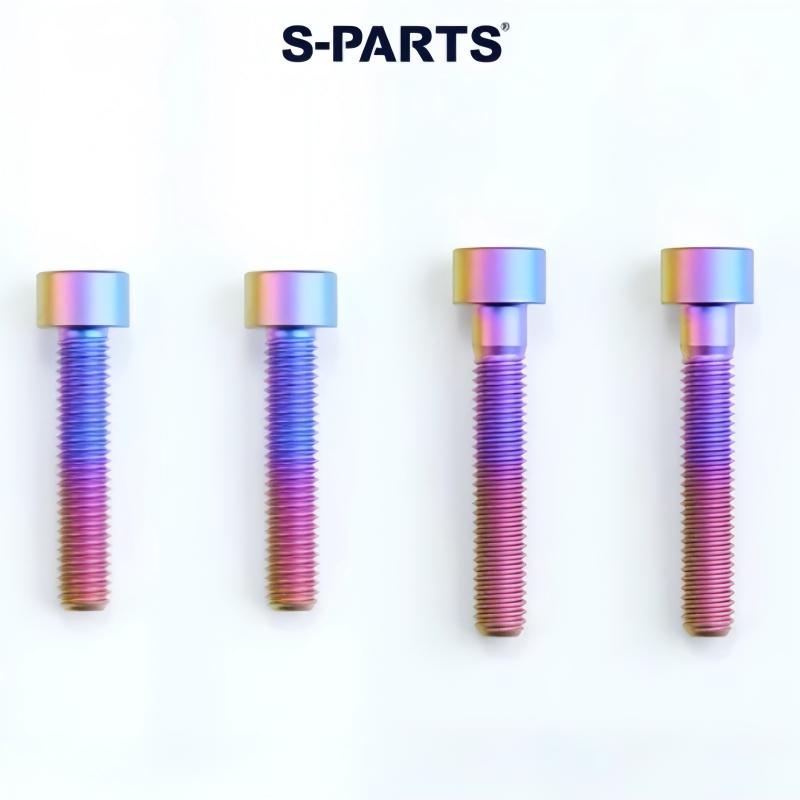

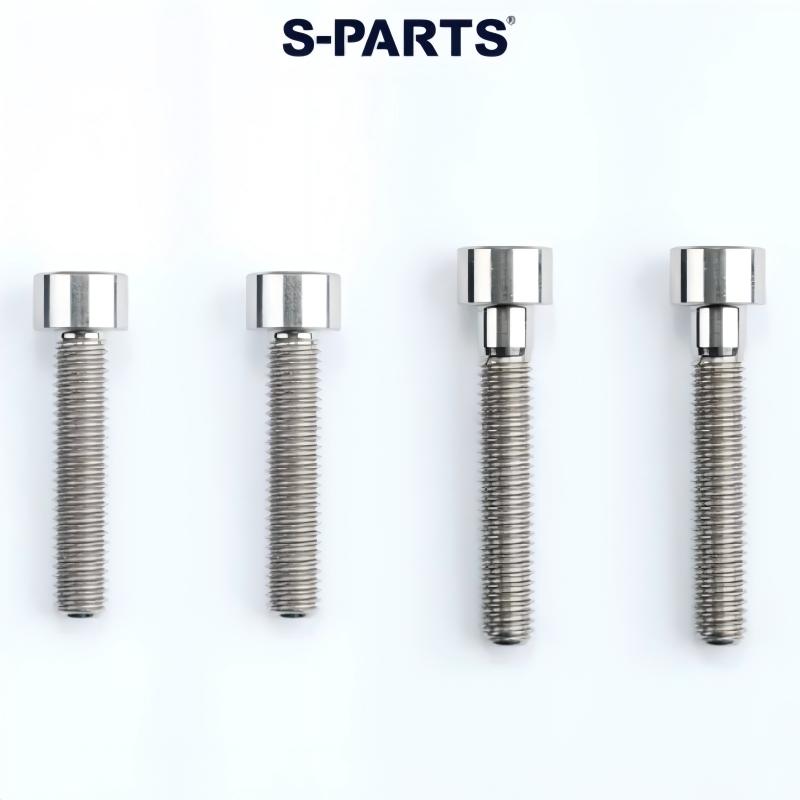

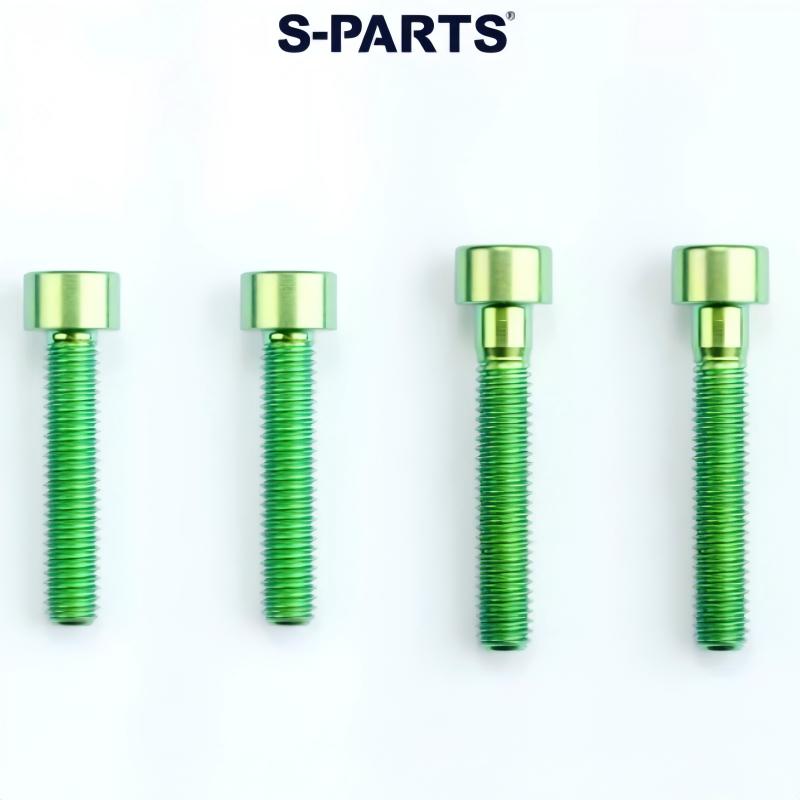

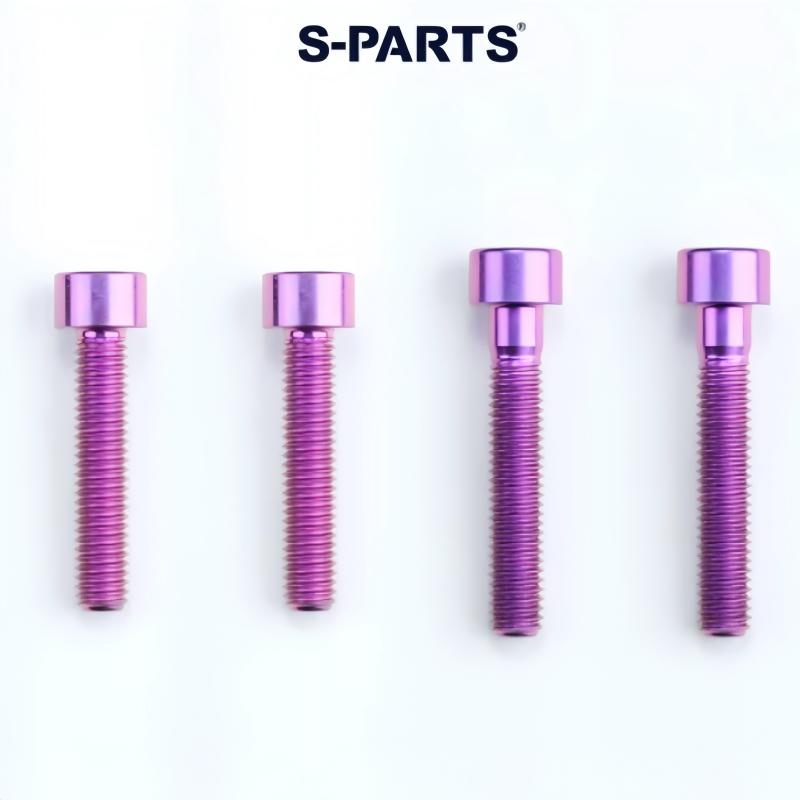

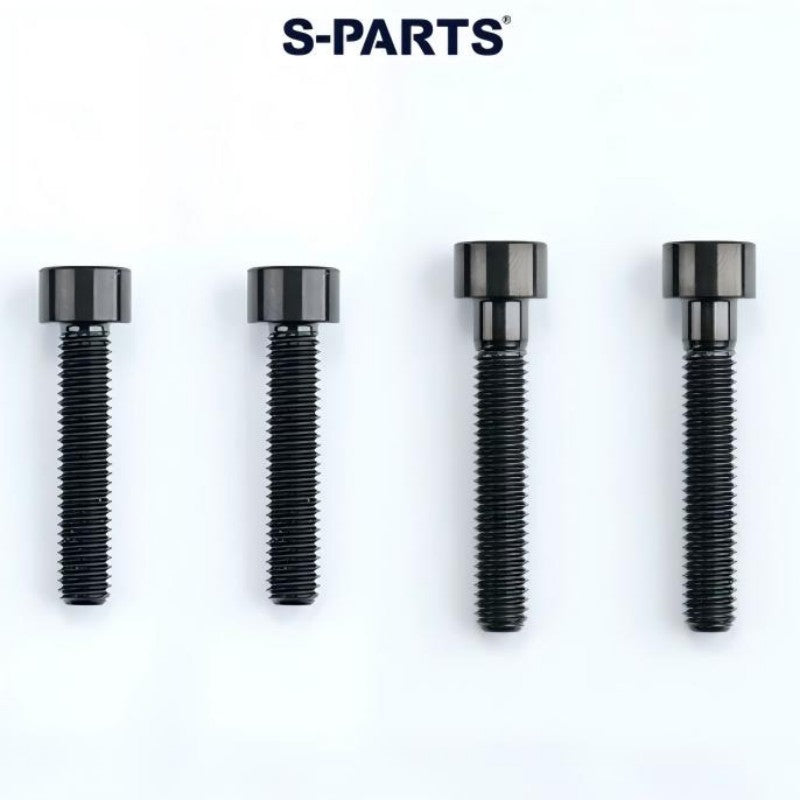

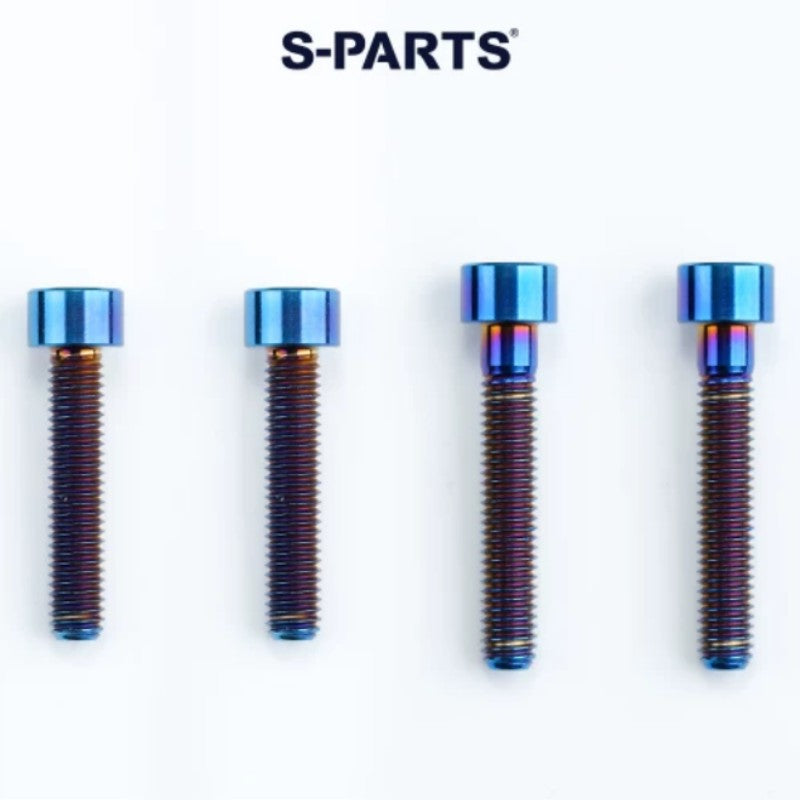

Handlebar Clamp Bolts – For 5mm Spacer Stack |
4 pcs/set |
19.5 g/set |
5mm Hex |
| 3 |

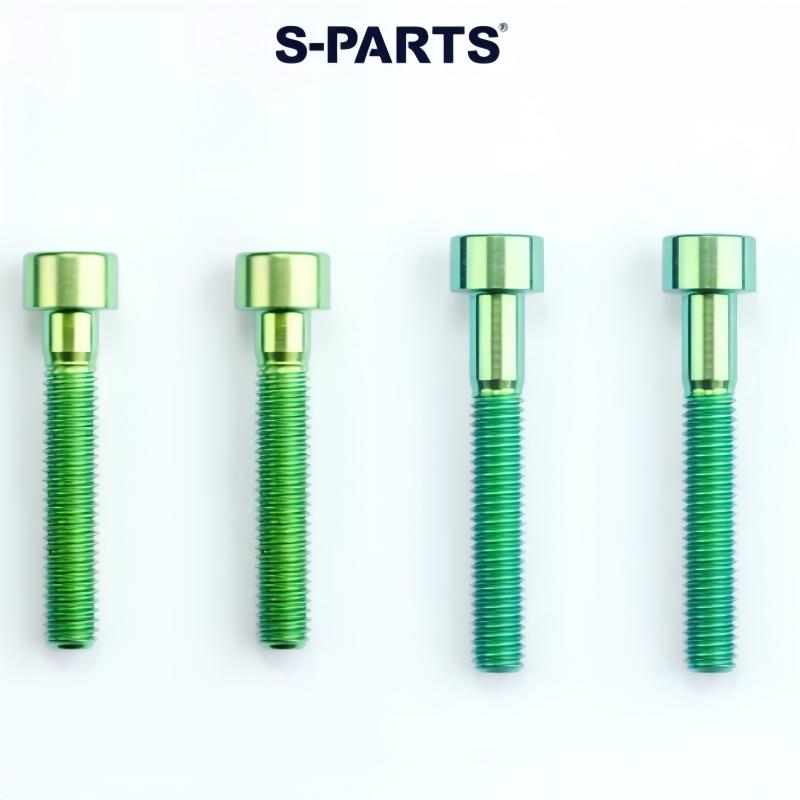

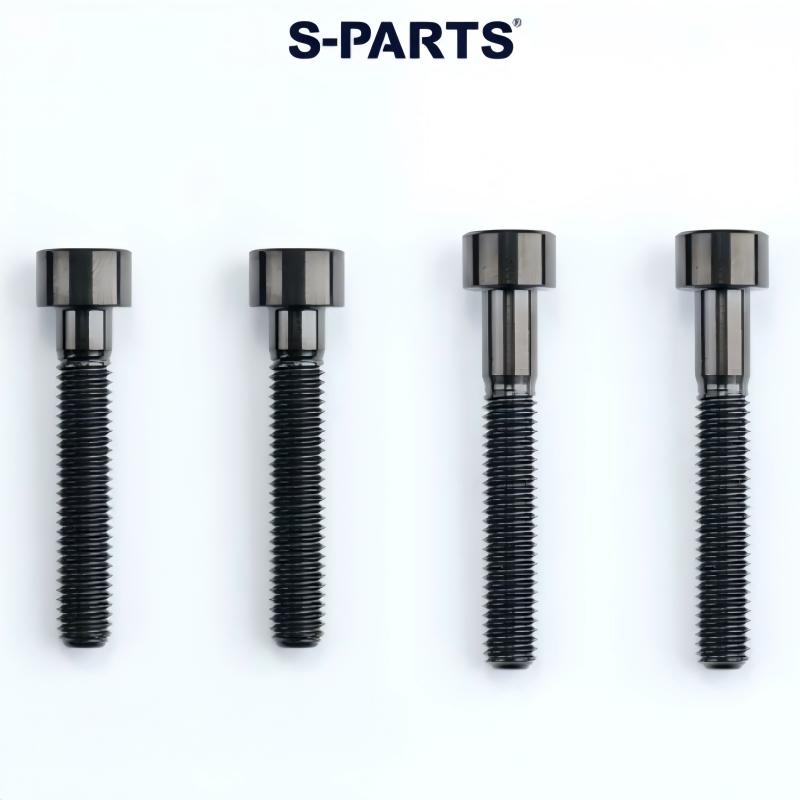

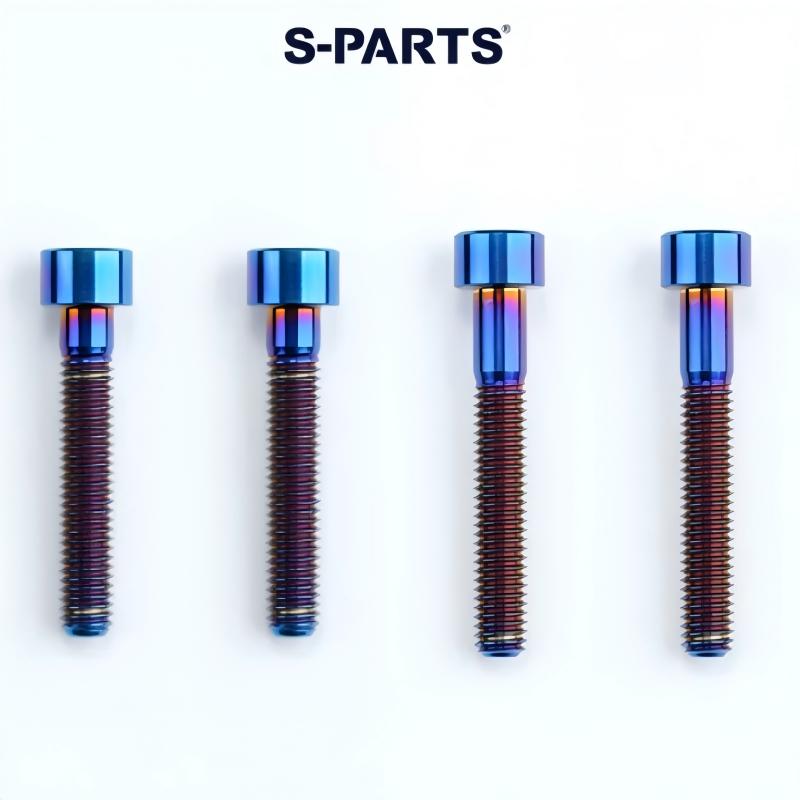

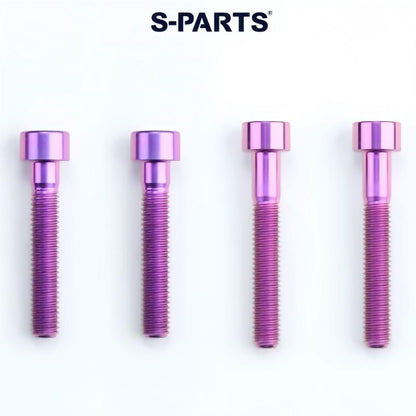

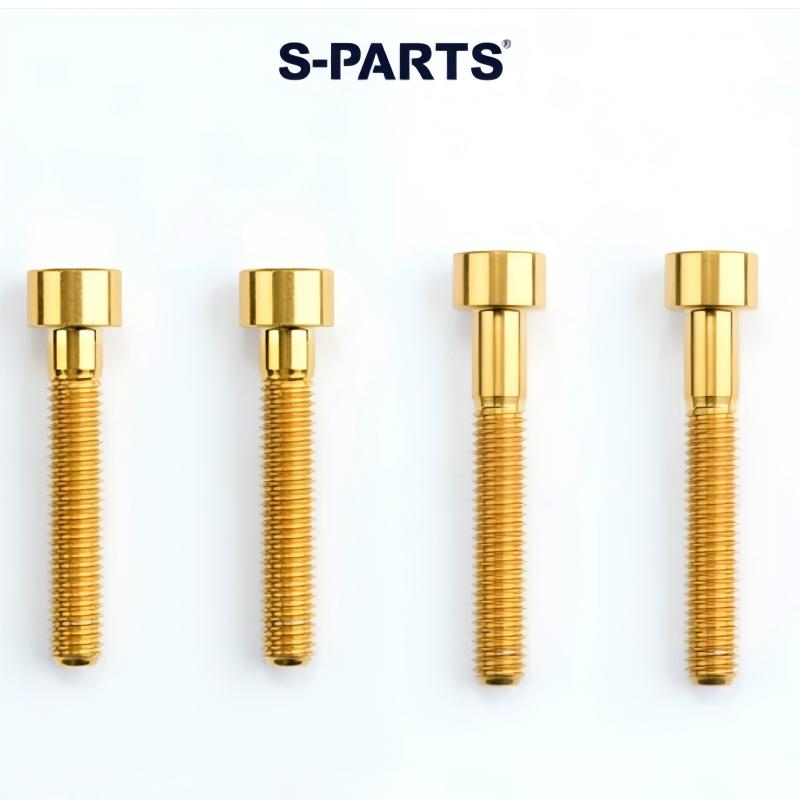

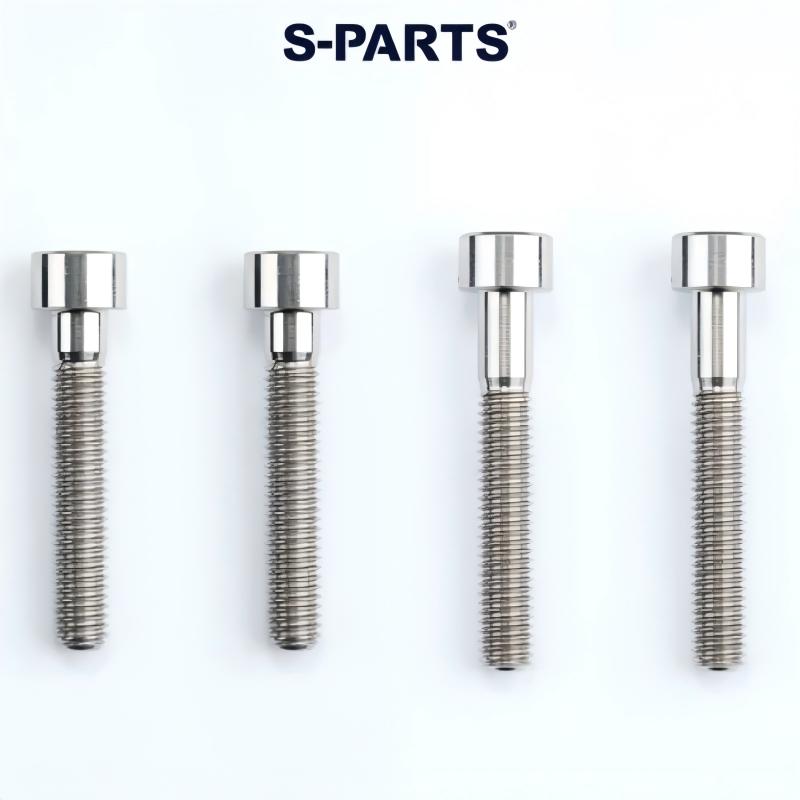

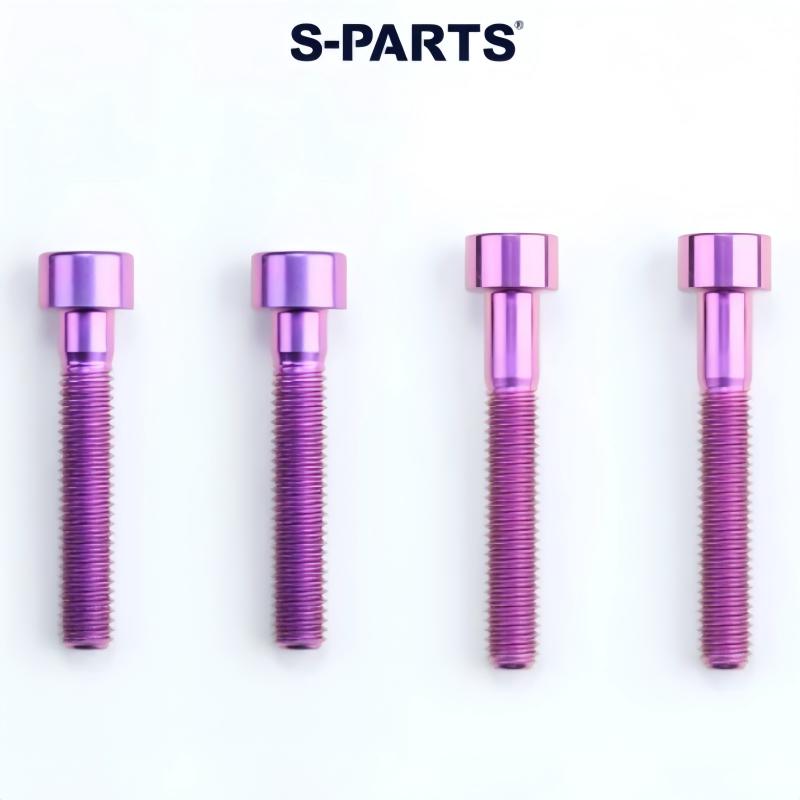

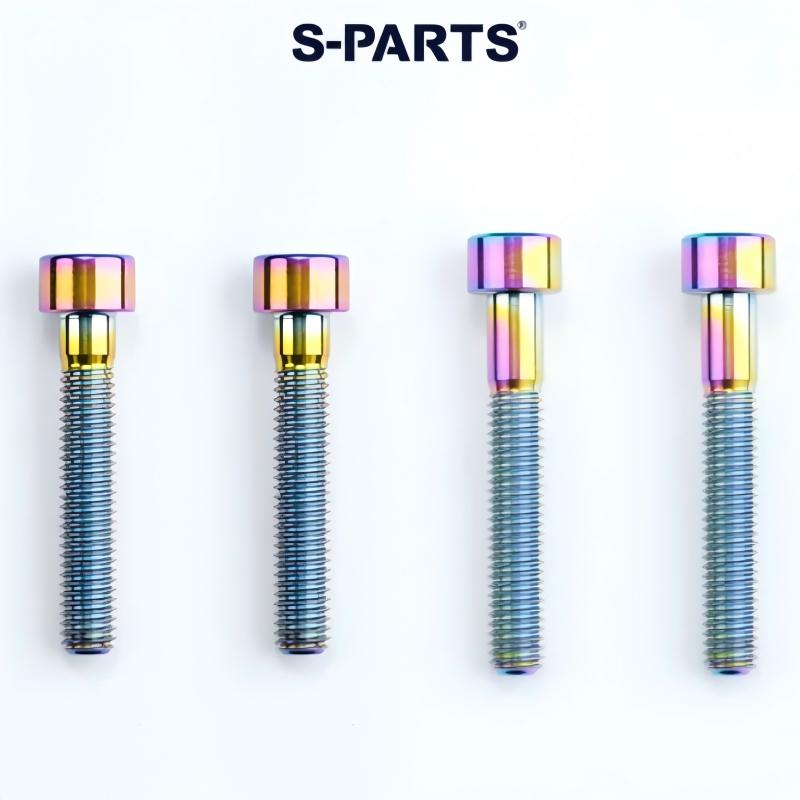

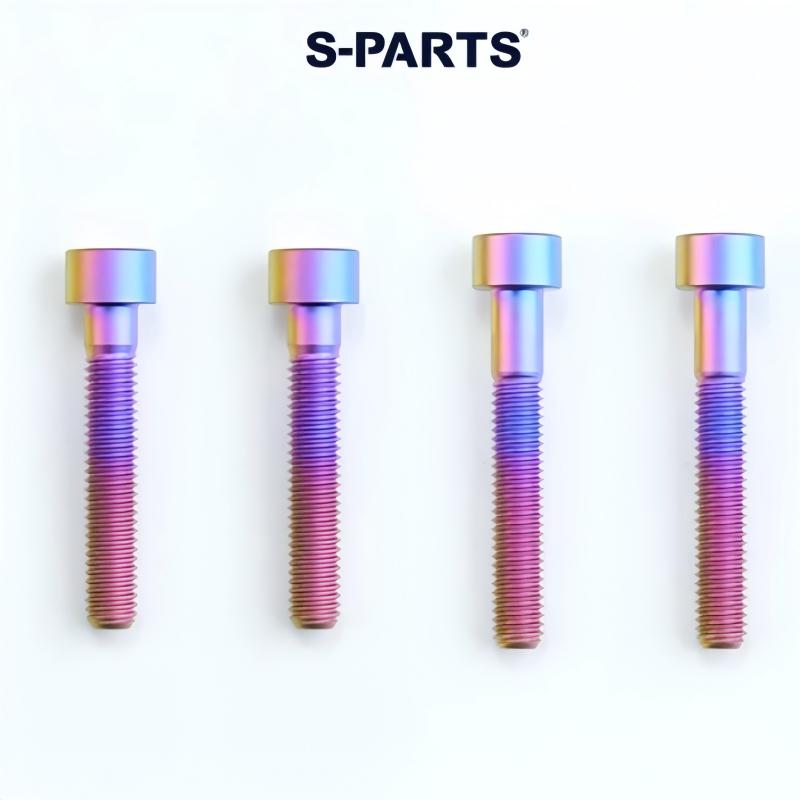

Handlebar Clamp Bolts – For 10mm Spacer Stack |
4 pcs/set |
21.8 g/set |
5mm Hex |
| 4 |

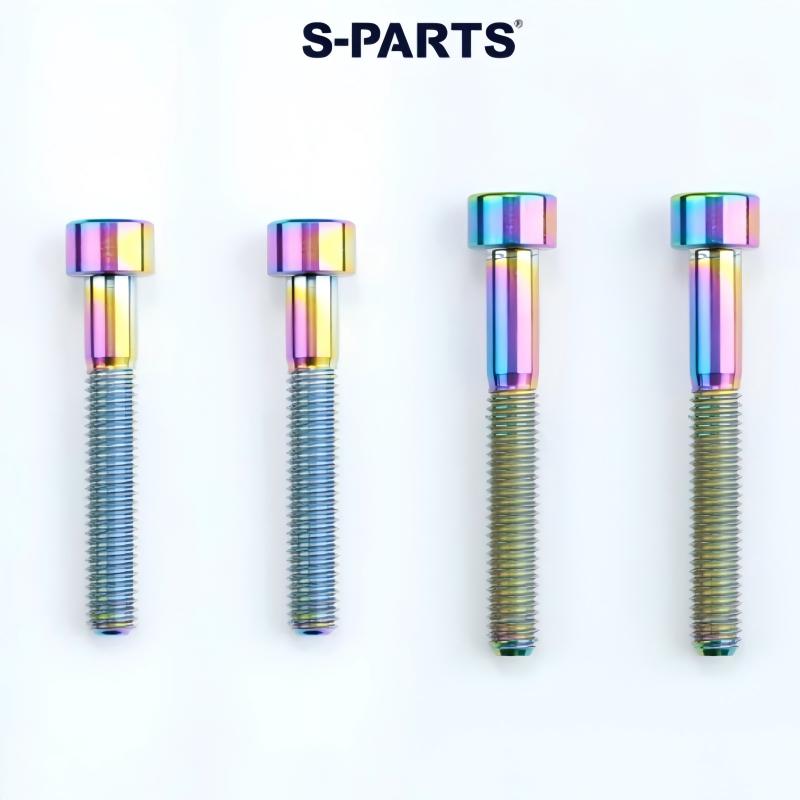

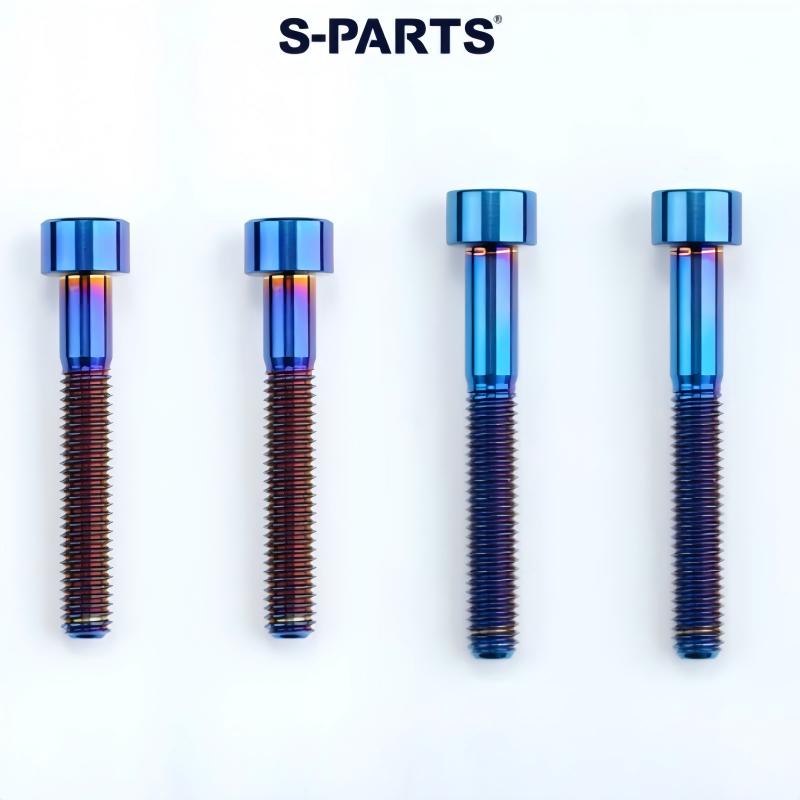

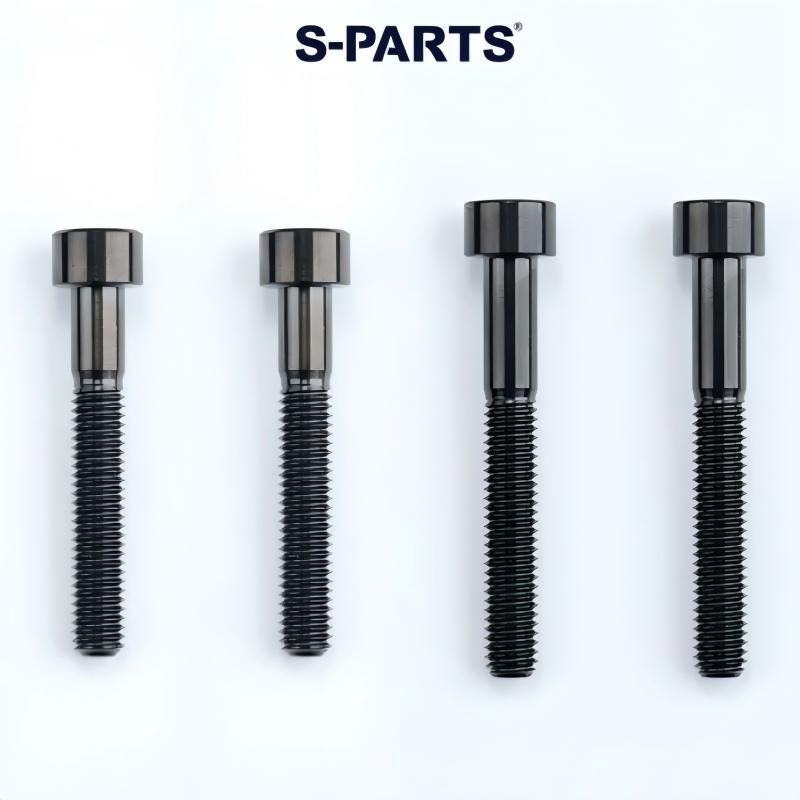

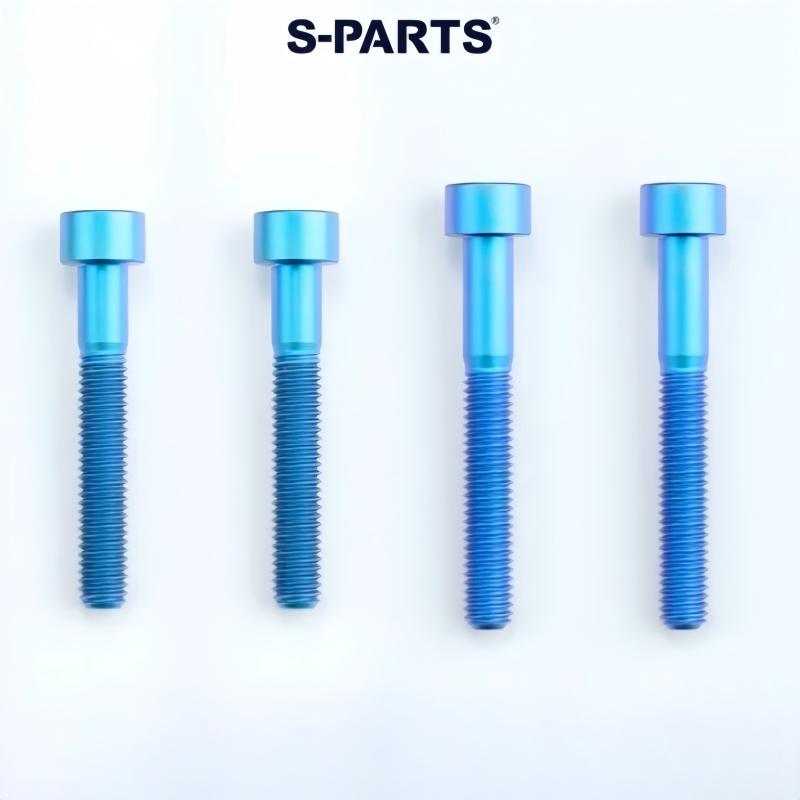

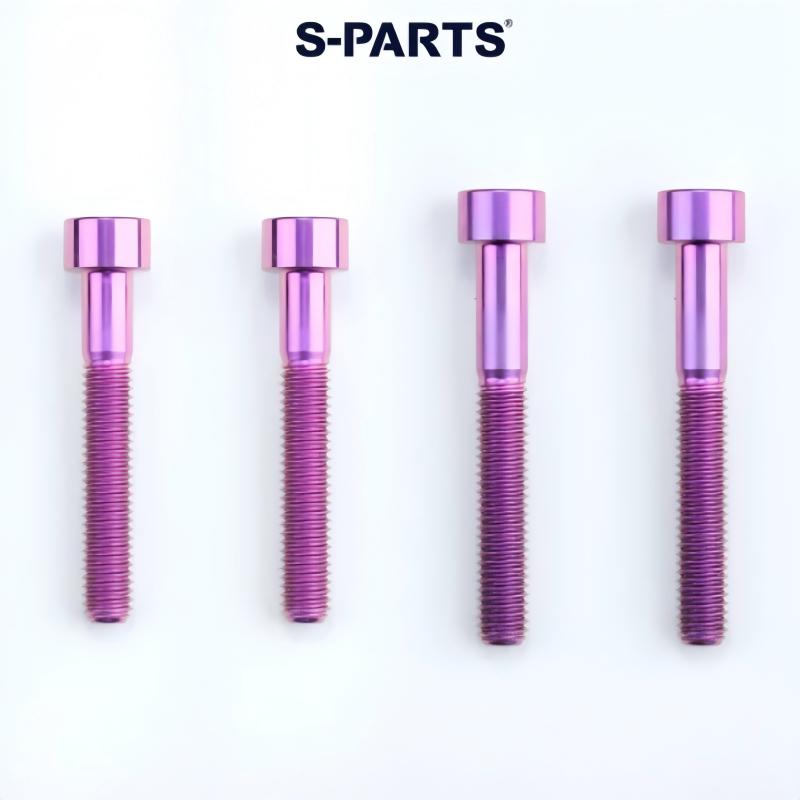

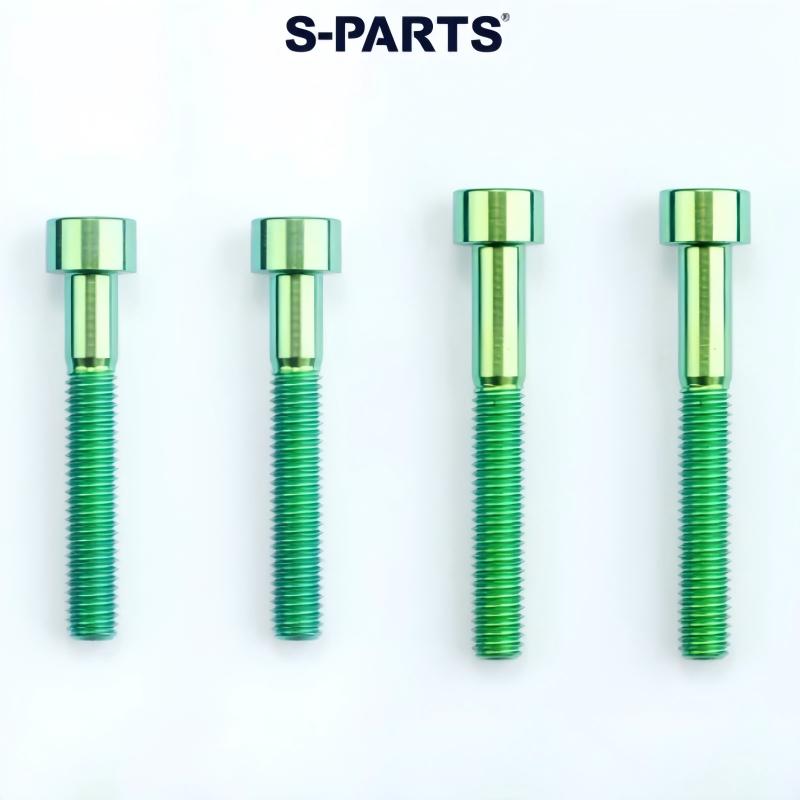

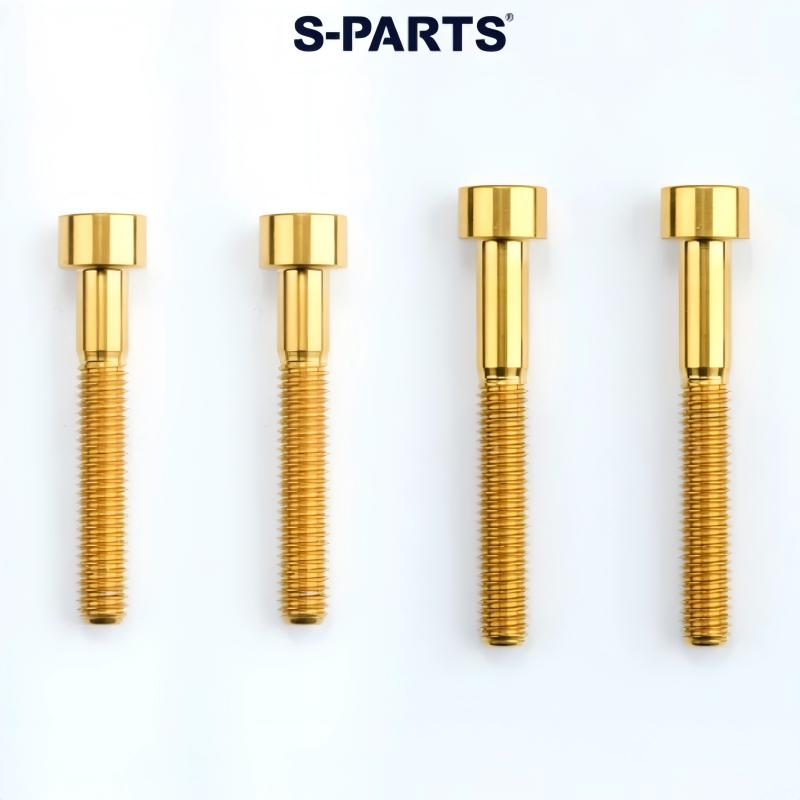

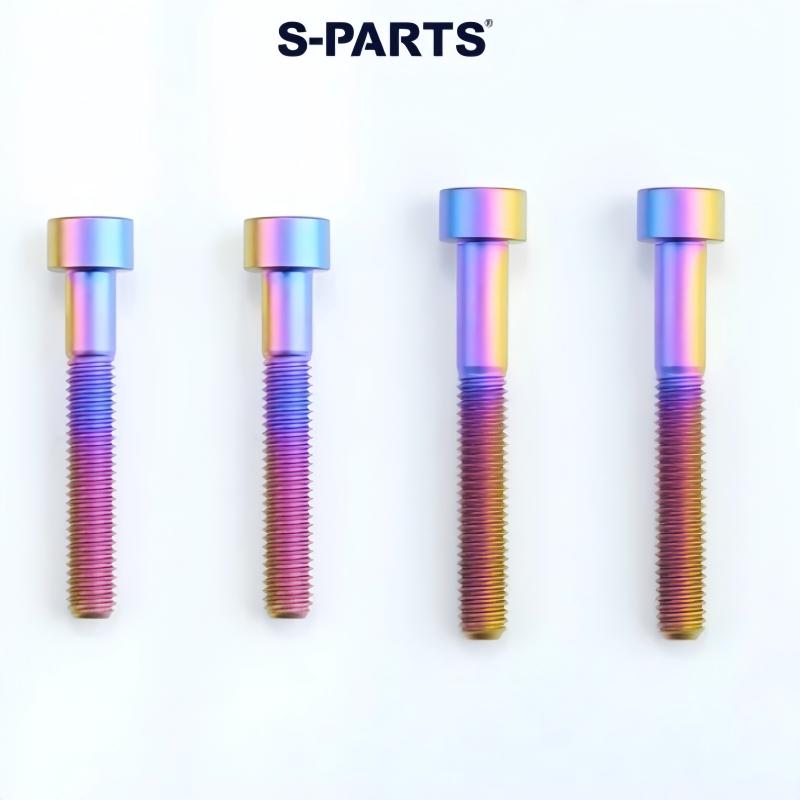

Handlebar Clamp Bolts – For 15mm Spacer Stack |
4 pcs/set |
24.3 g/set |
5mm Hex |
| 5 |

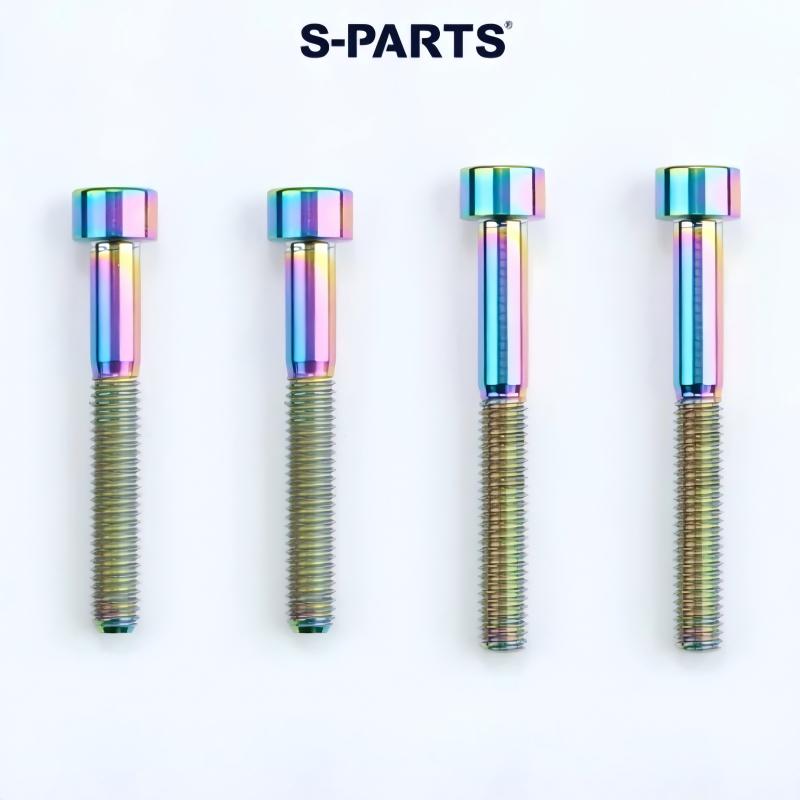

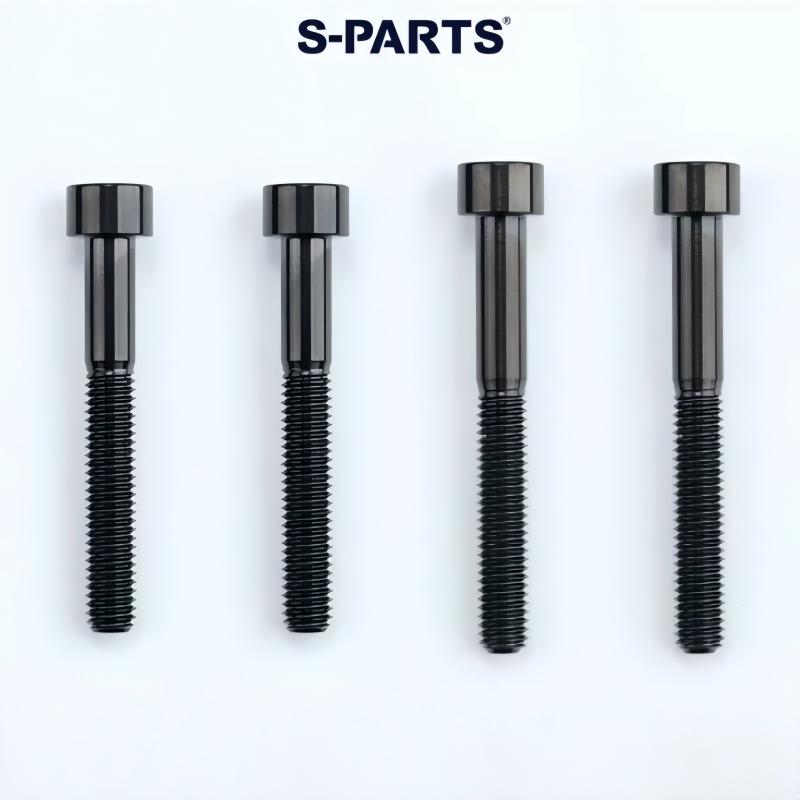

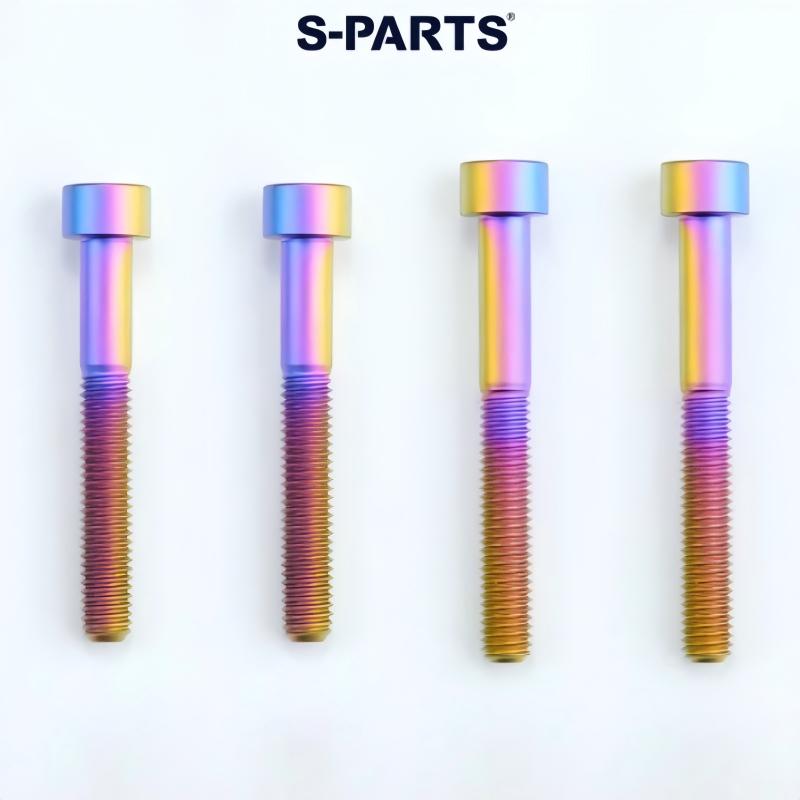

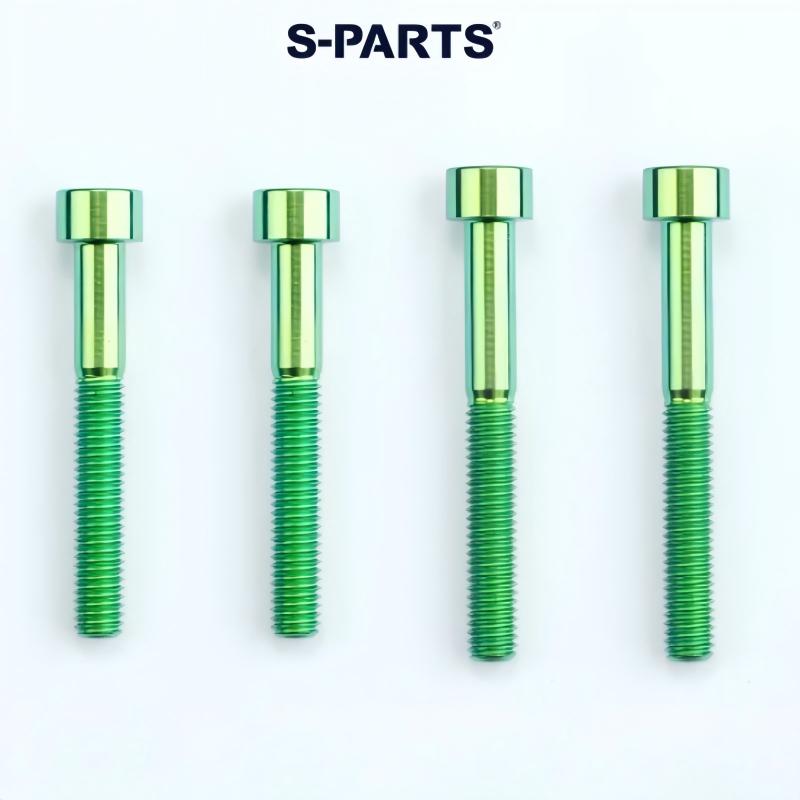

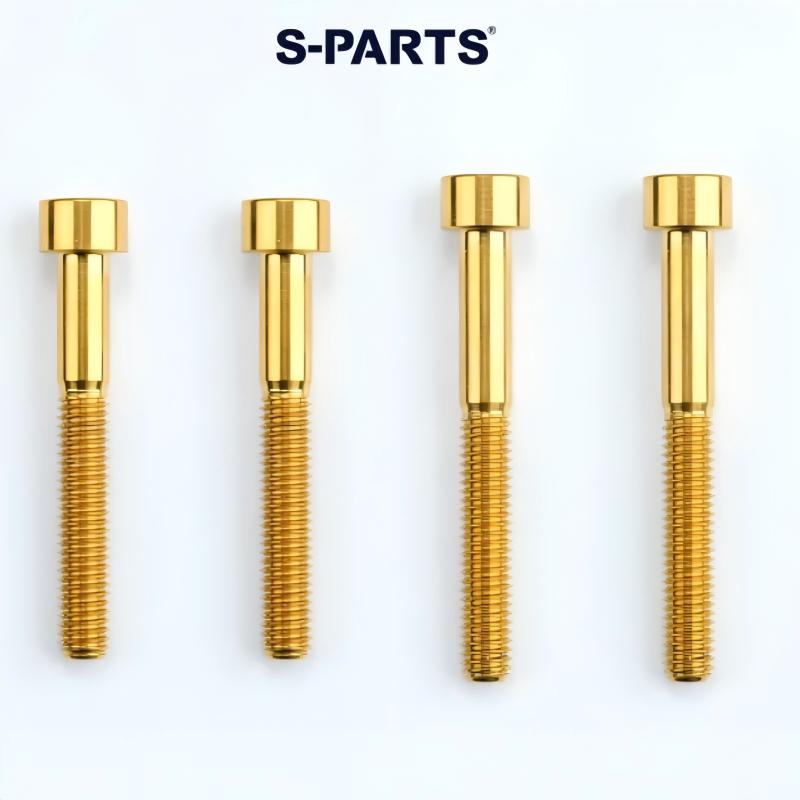

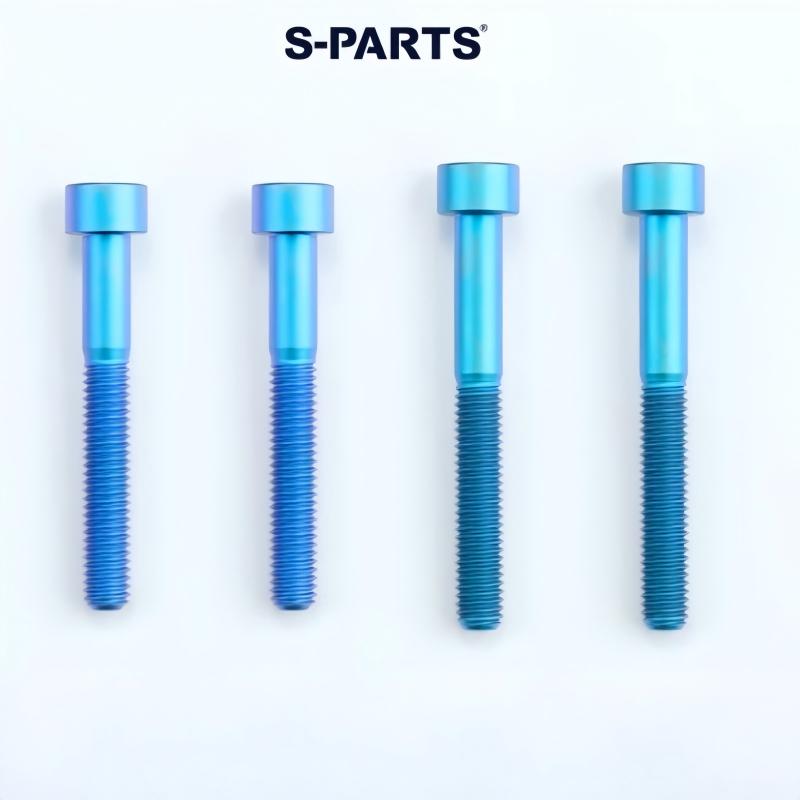

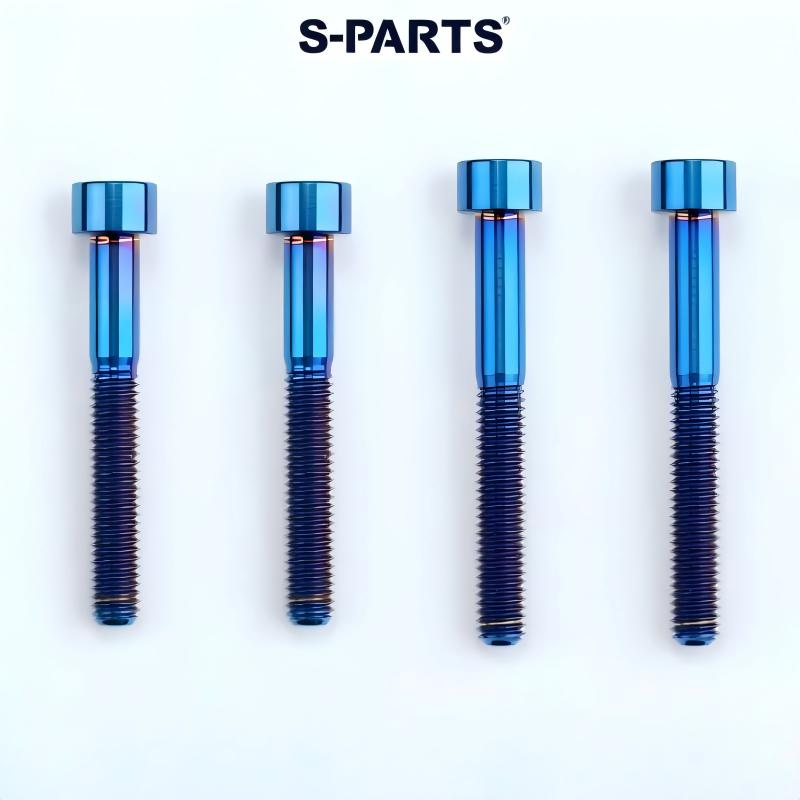

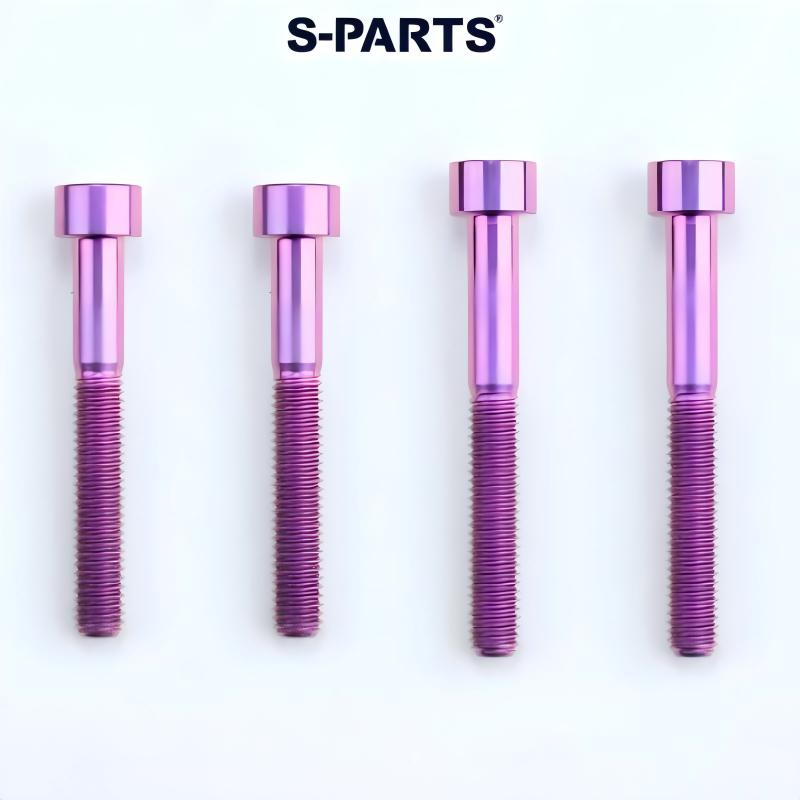

Handlebar Clamp Bolts – For 20mm Spacer Stack |
4 pcs/set |
26.8 g/set |
5mm Hex |
| 6 |

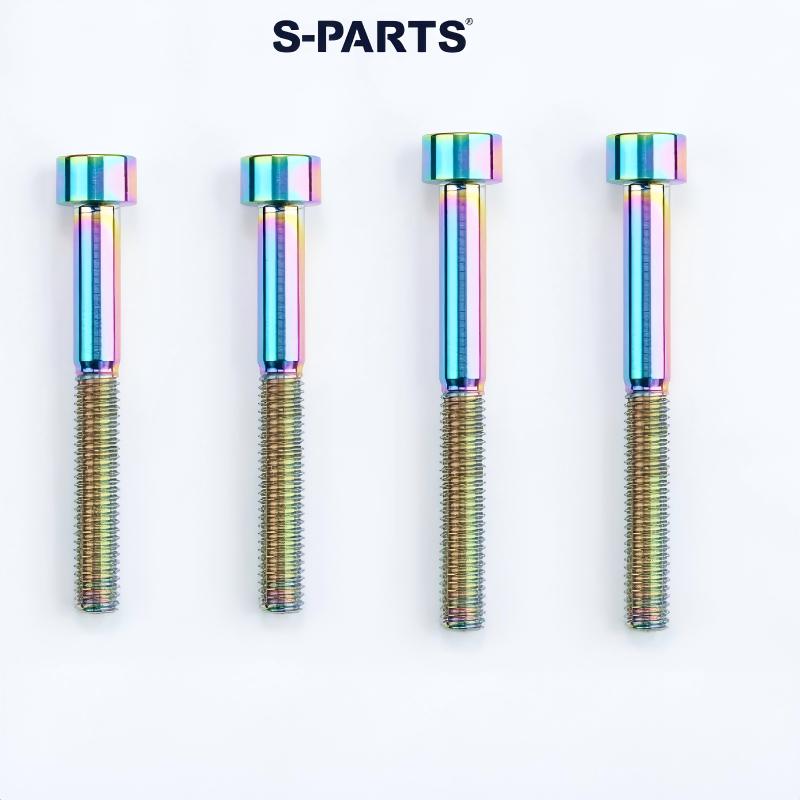

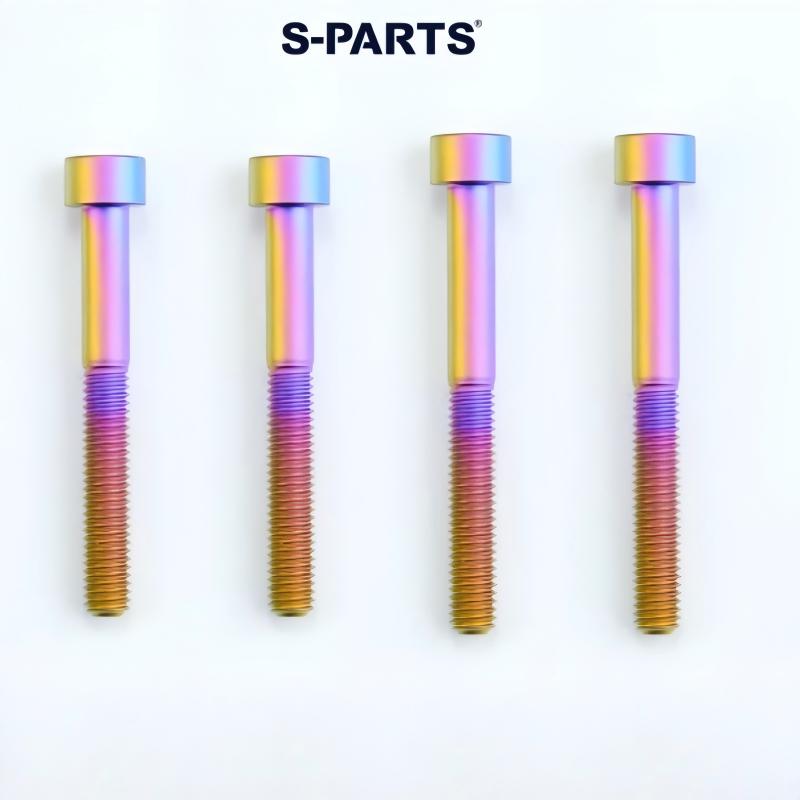

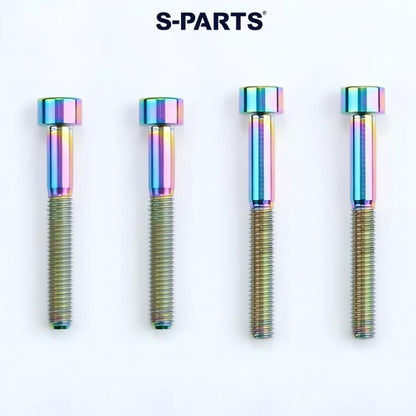

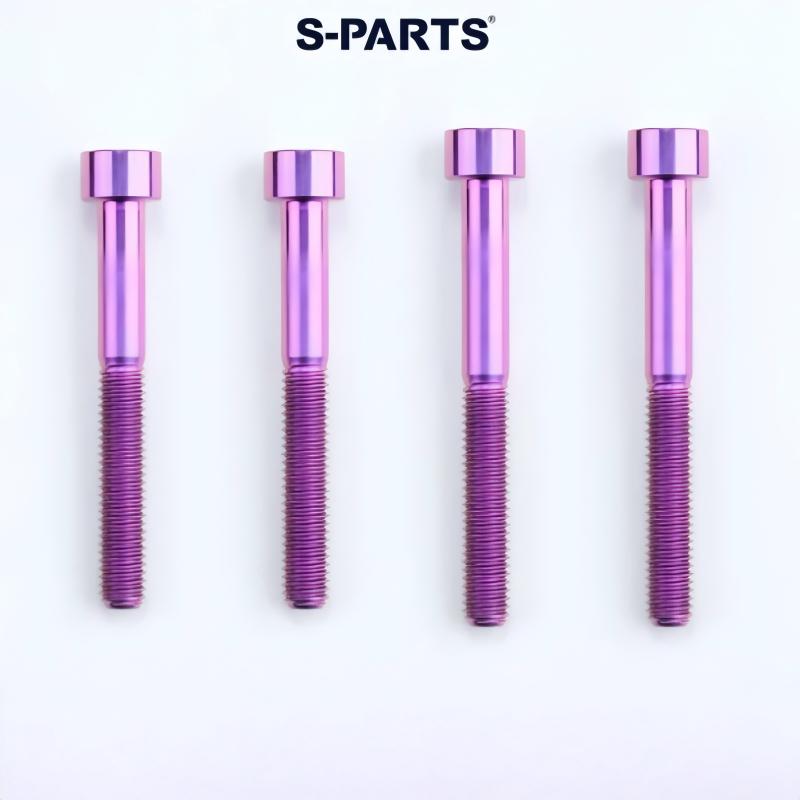

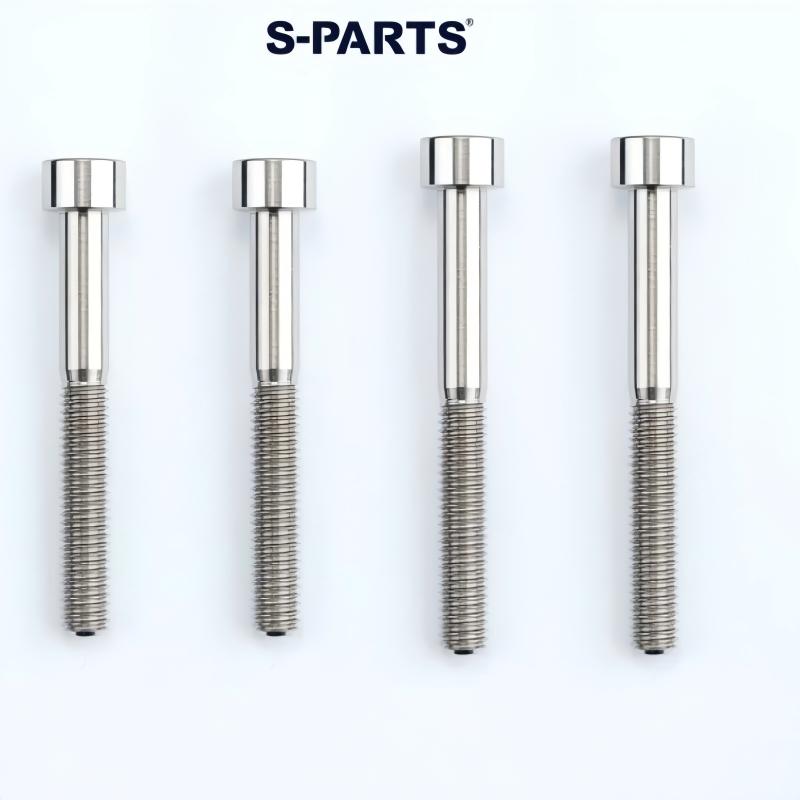

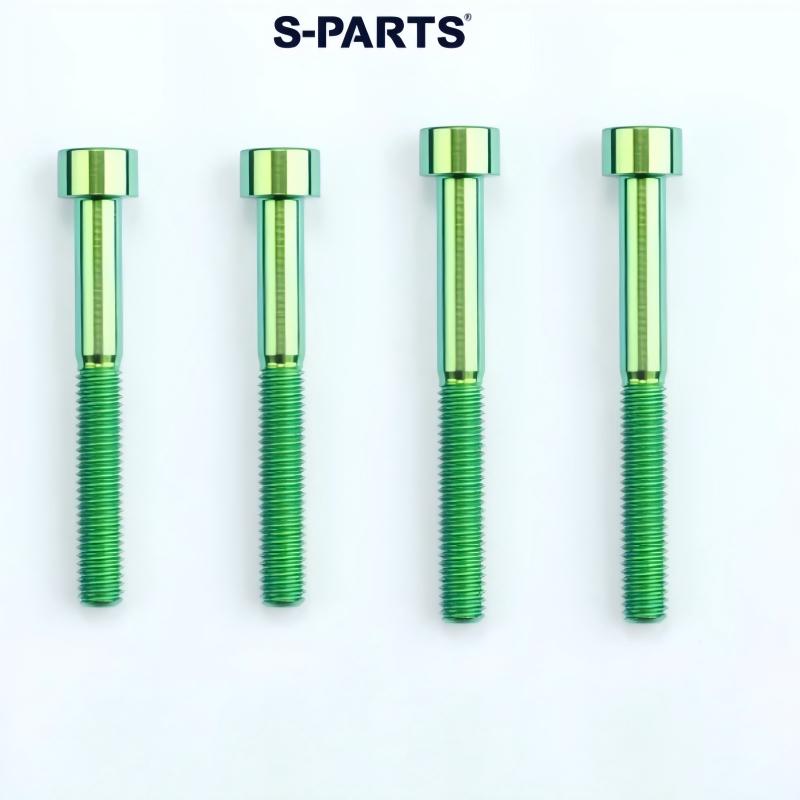

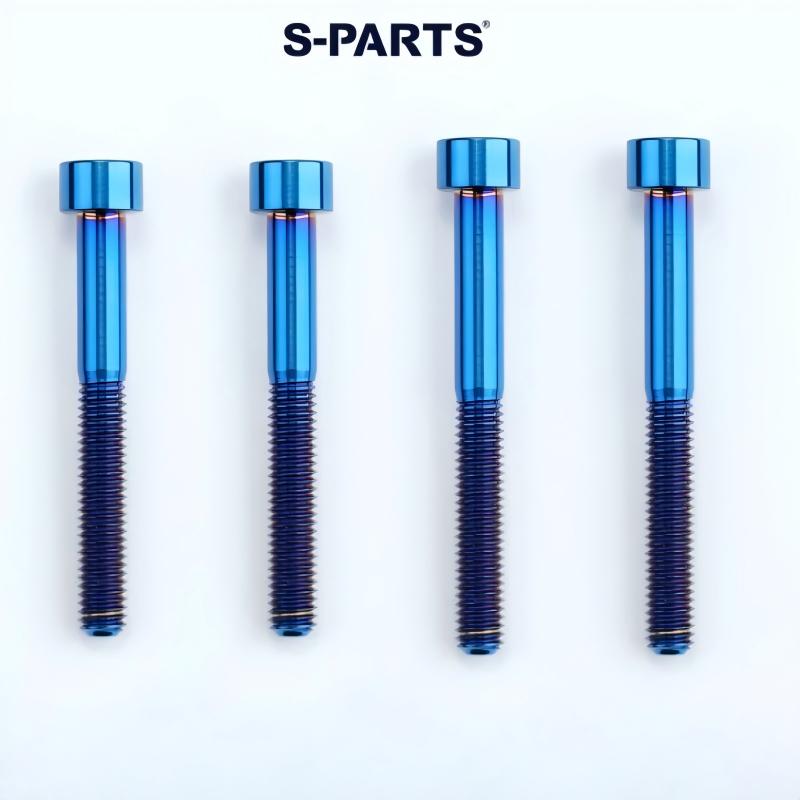

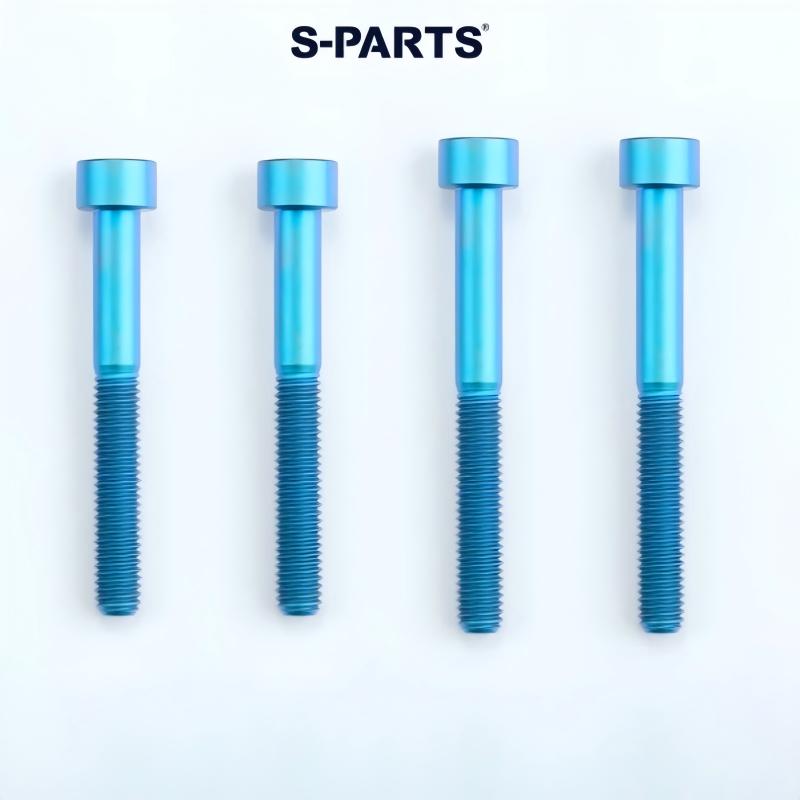

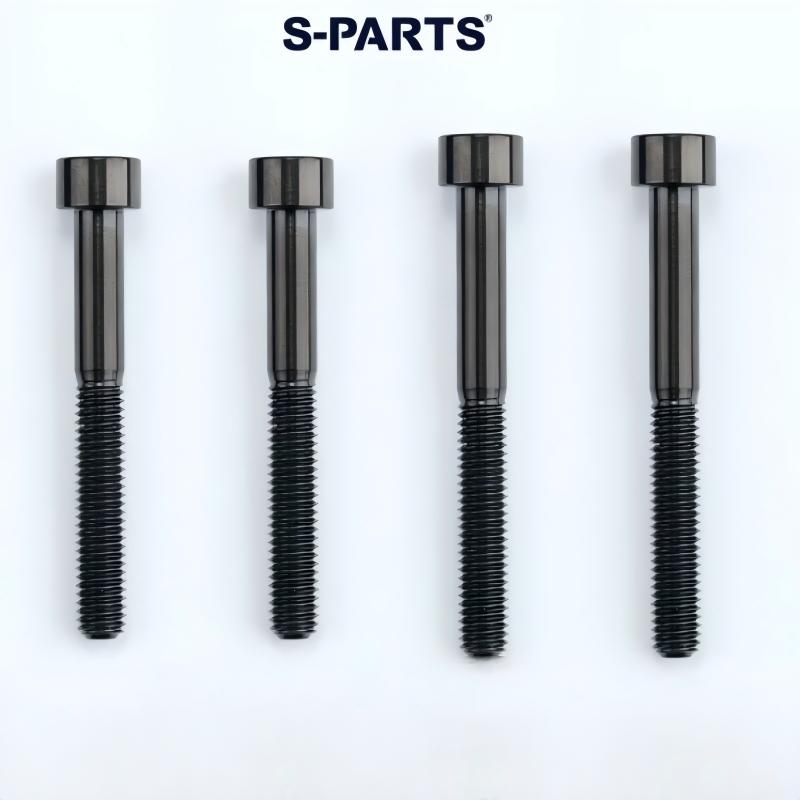

Handlebar Clamp Bolts – For 25mm Spacer Stack |
4 pcs/set |
29.4 g/set |
5mm Hex |
| 7 |
Fork Steerer Expander Limit Bolt |
1 pc |
0.8 g/pc |
T20 Torx |
| 8 |
Y1RS Fairing Cover Screw |
1 pc |
0.79 g/pc |
T20 Torx + 6mm Socket |
| 9 |

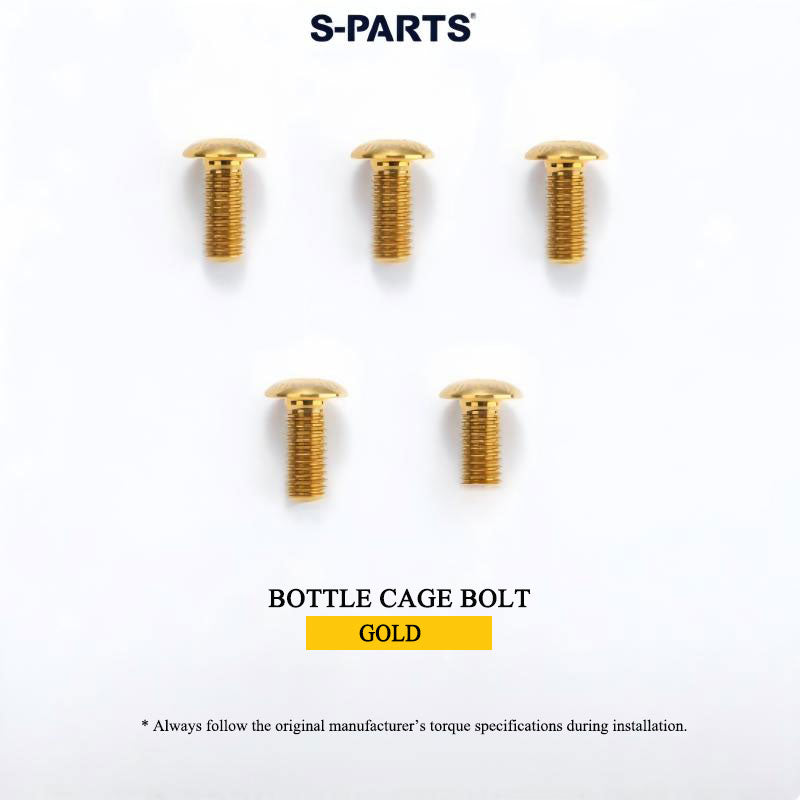

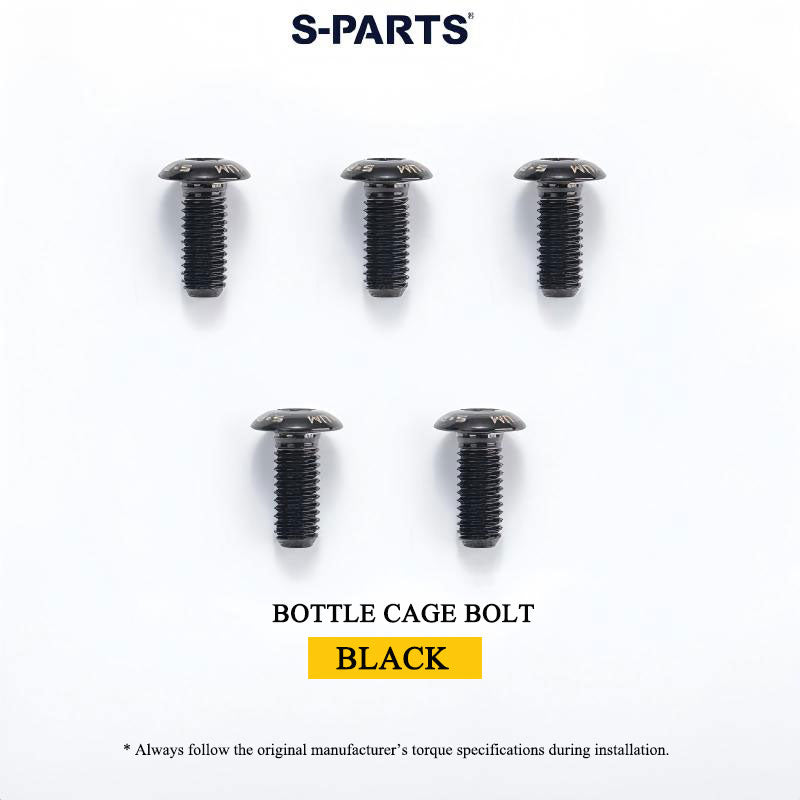

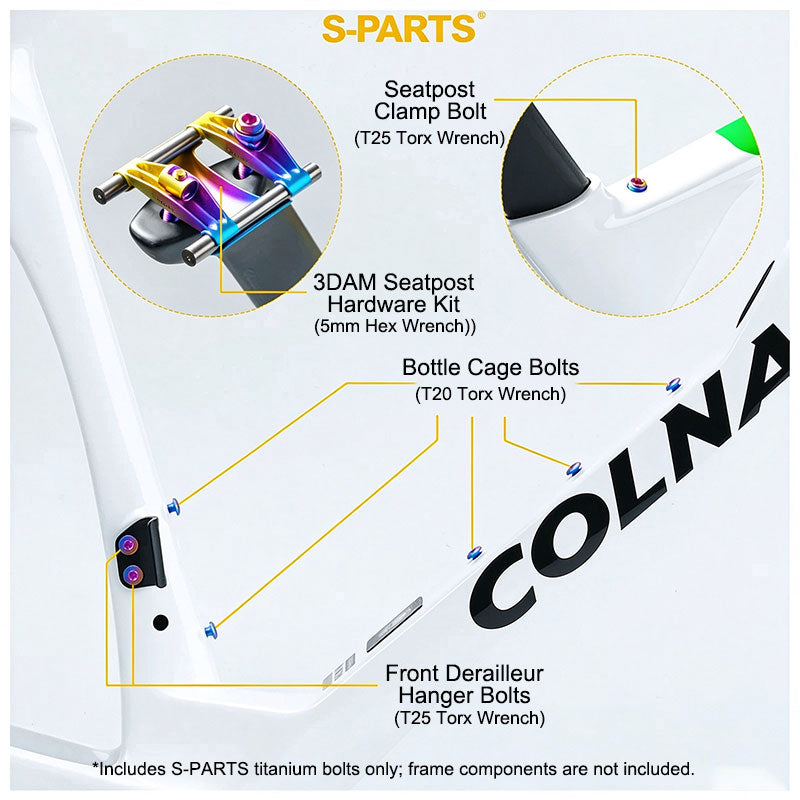

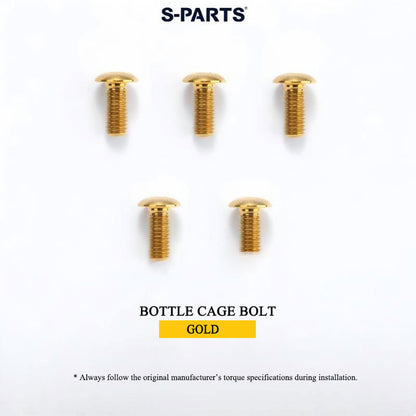

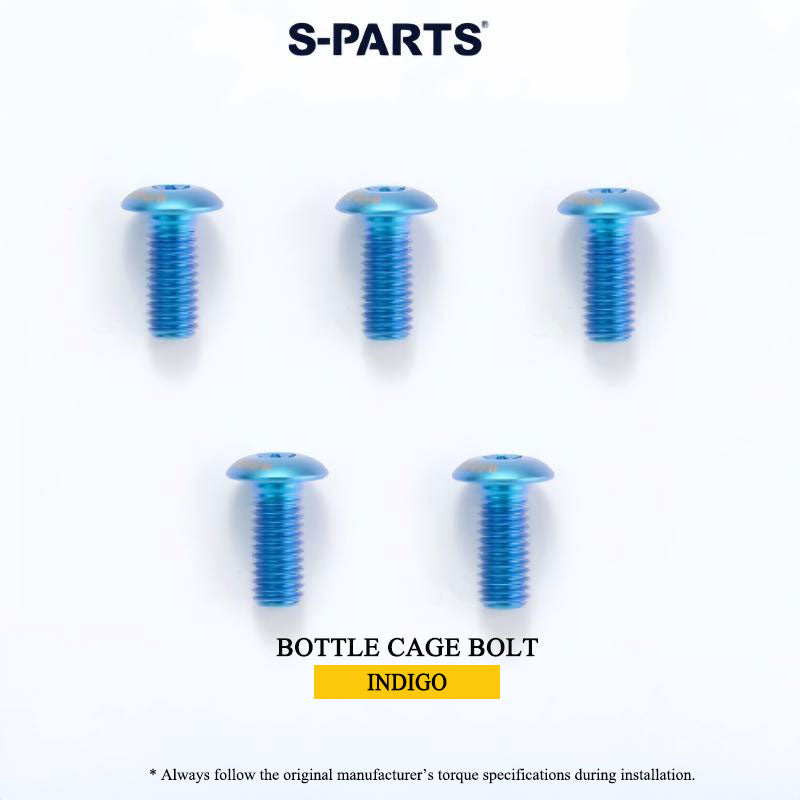

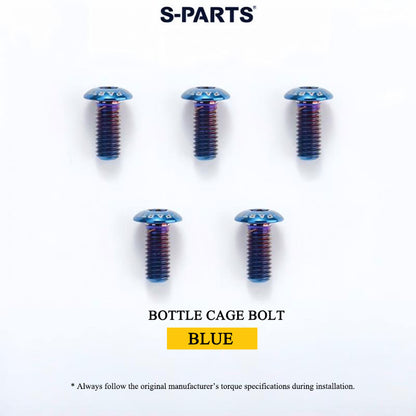

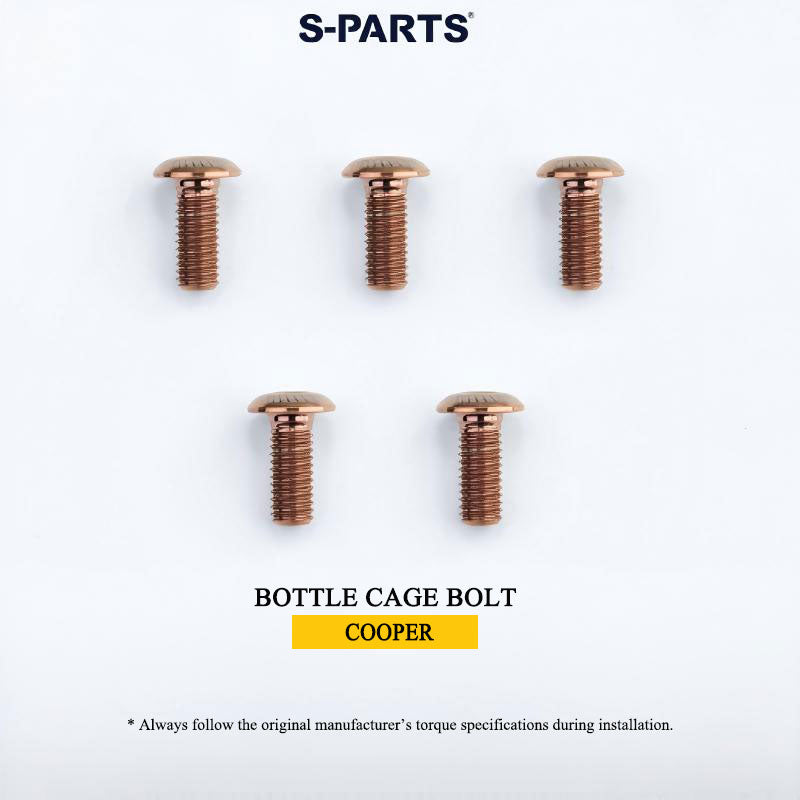

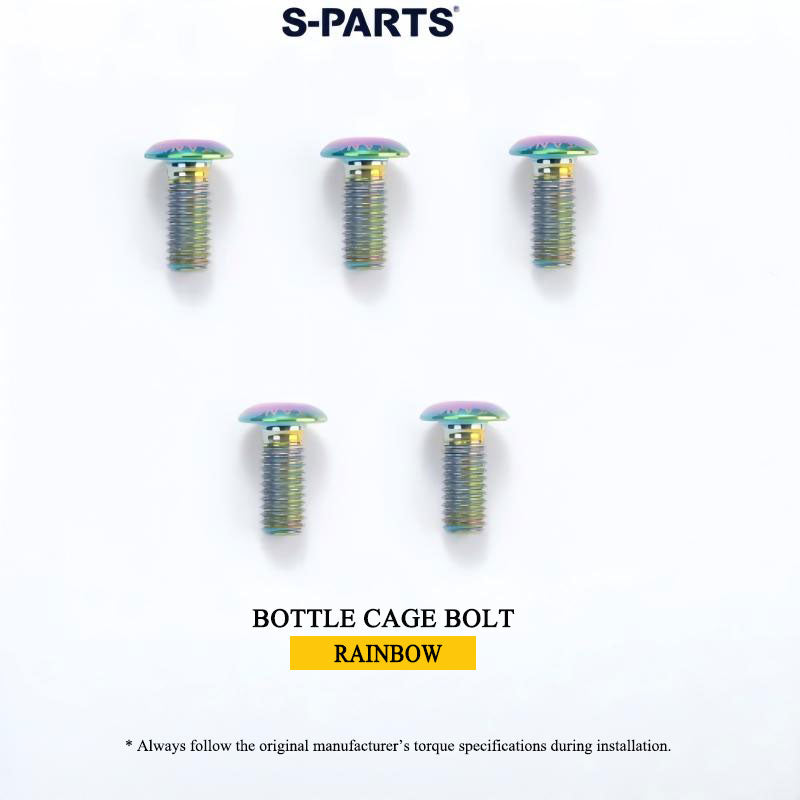

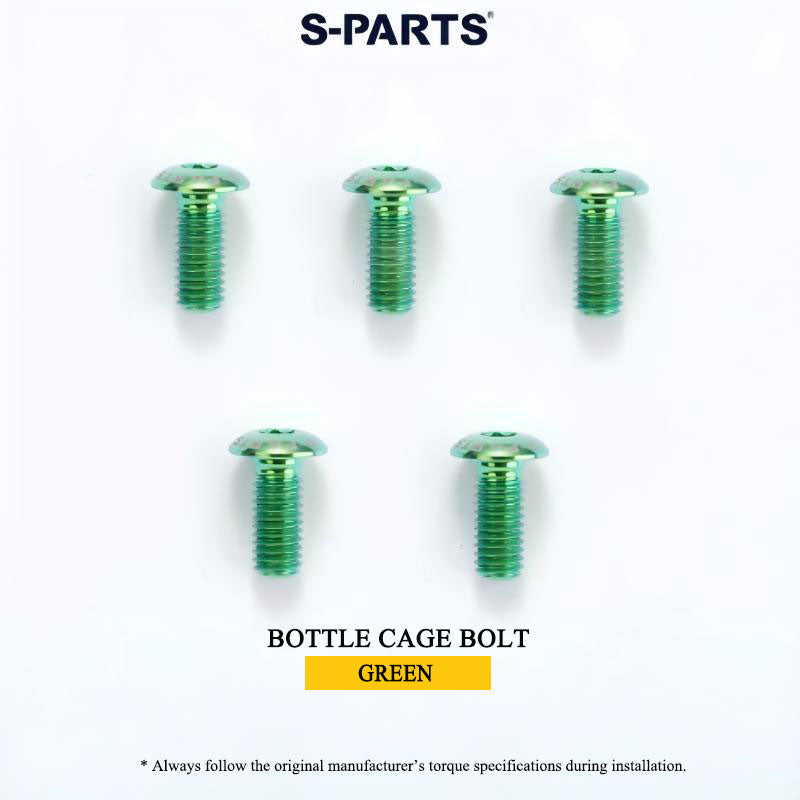

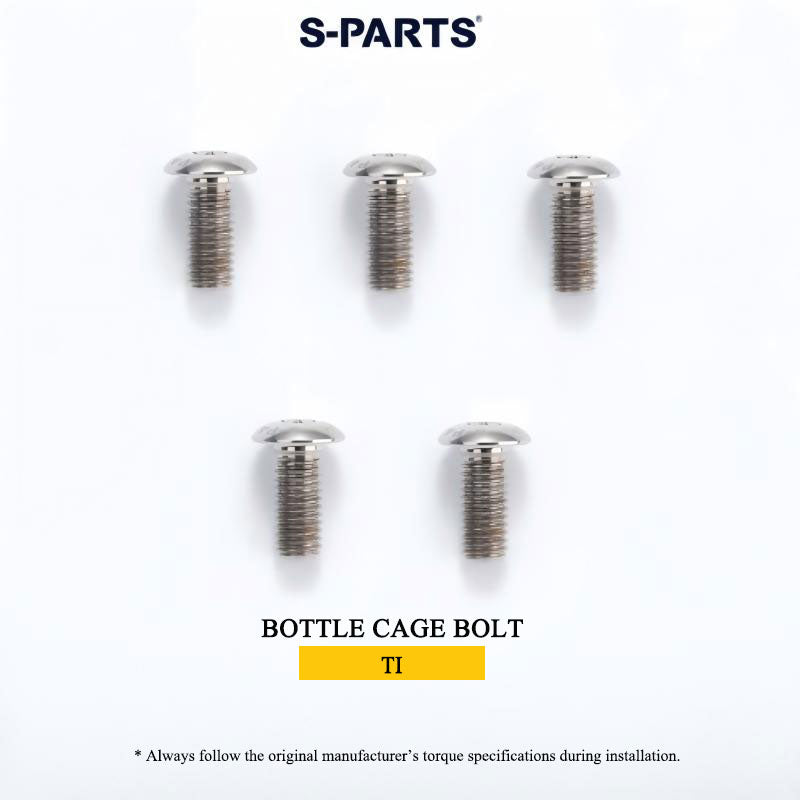

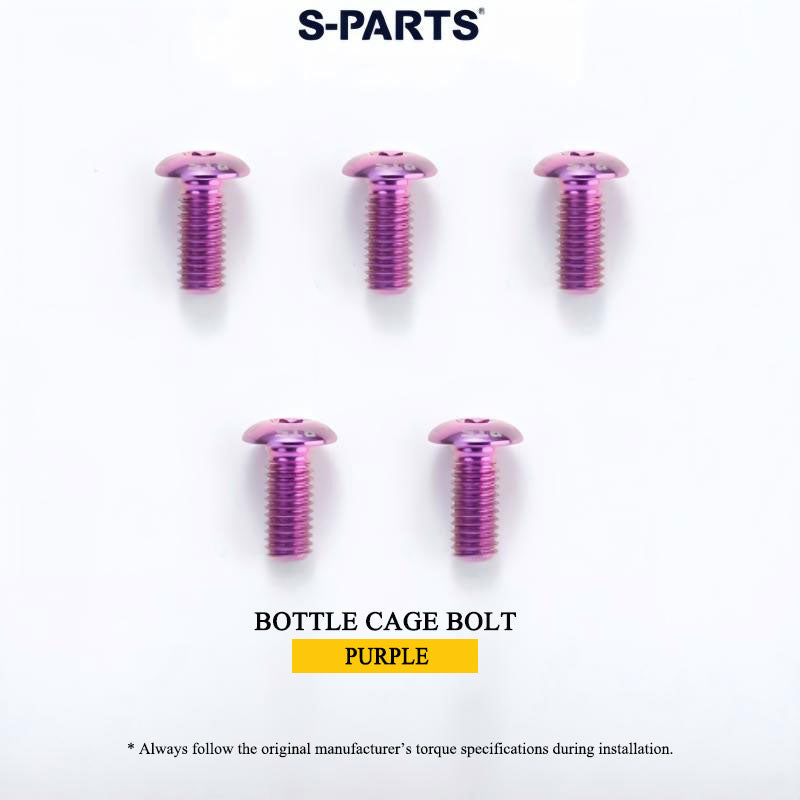

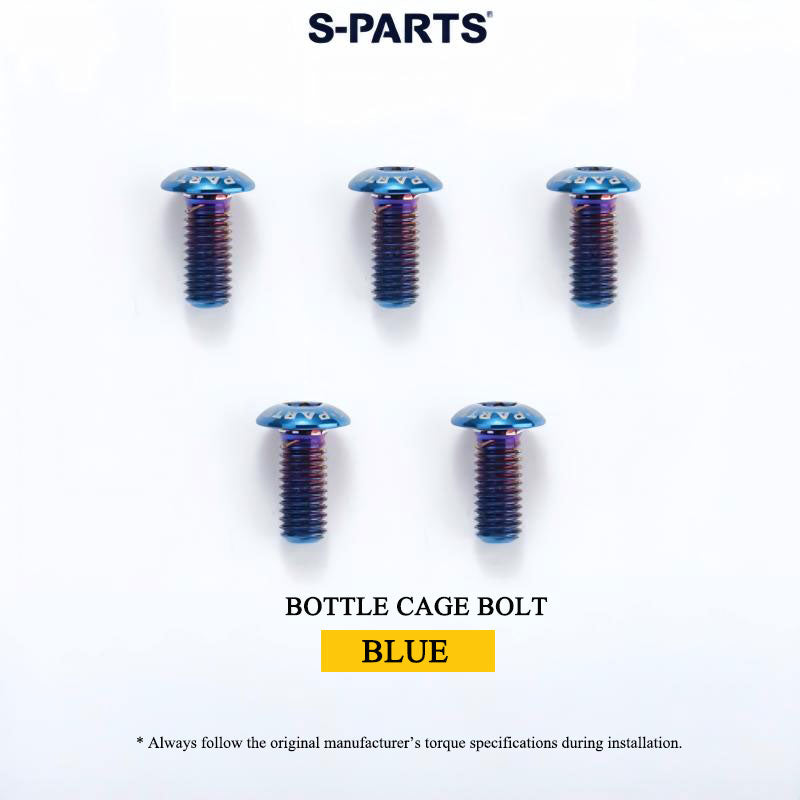

Bottle Cage Bolts |
5 pcs/set |
5.0 g/set |
T20 Torx |
| 10 |

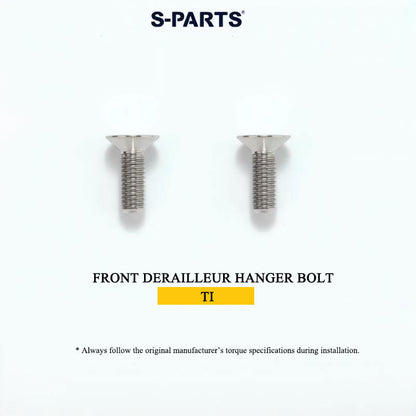

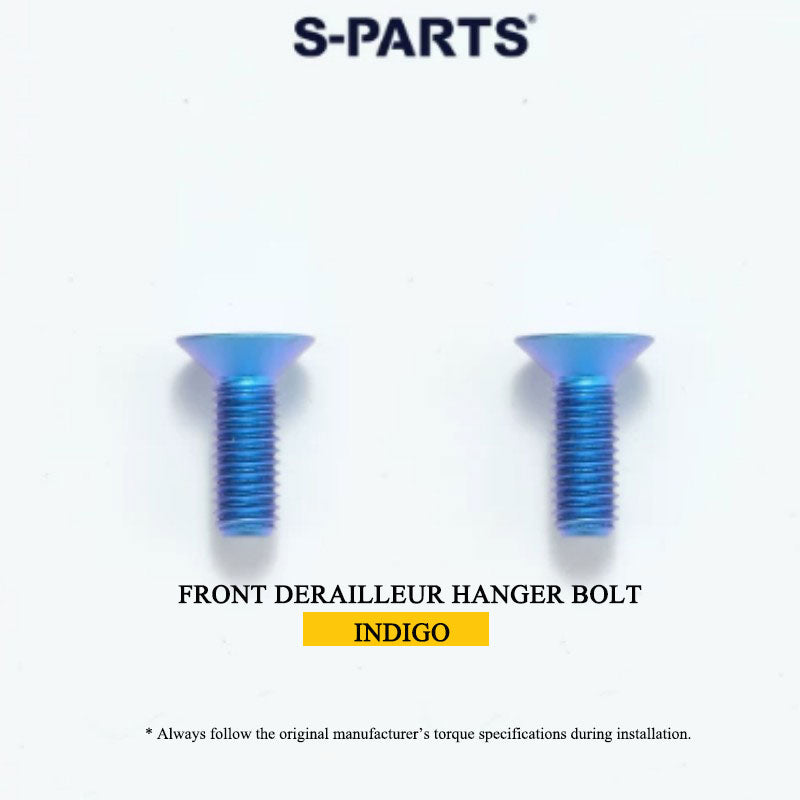

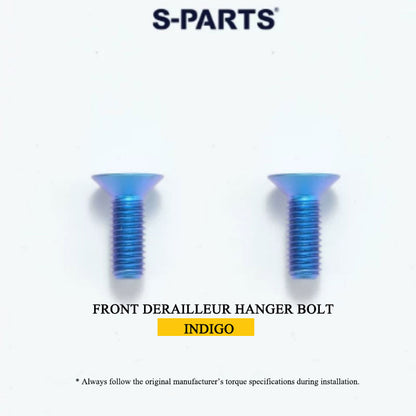

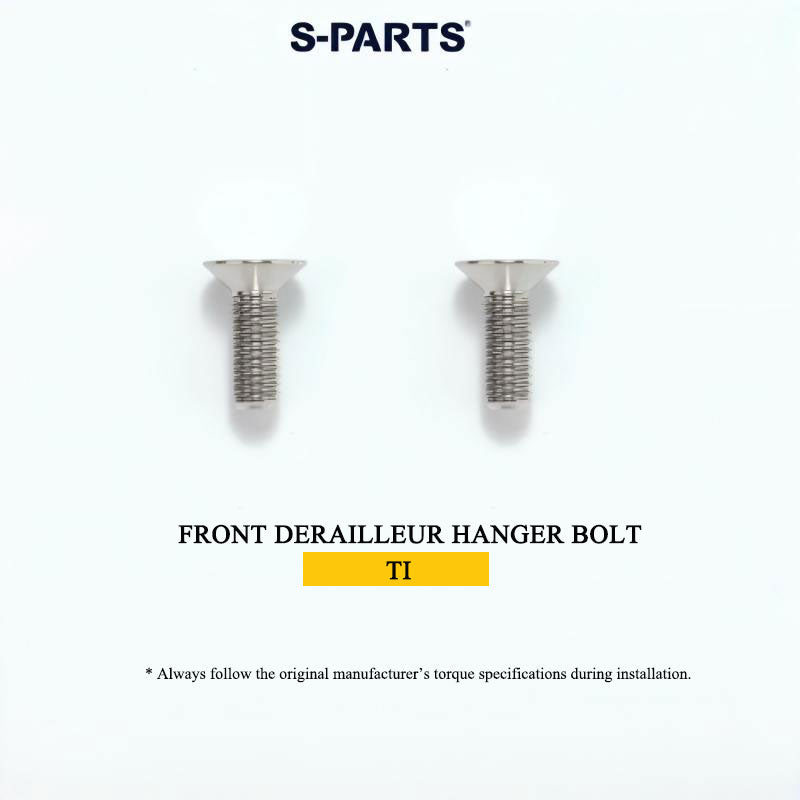

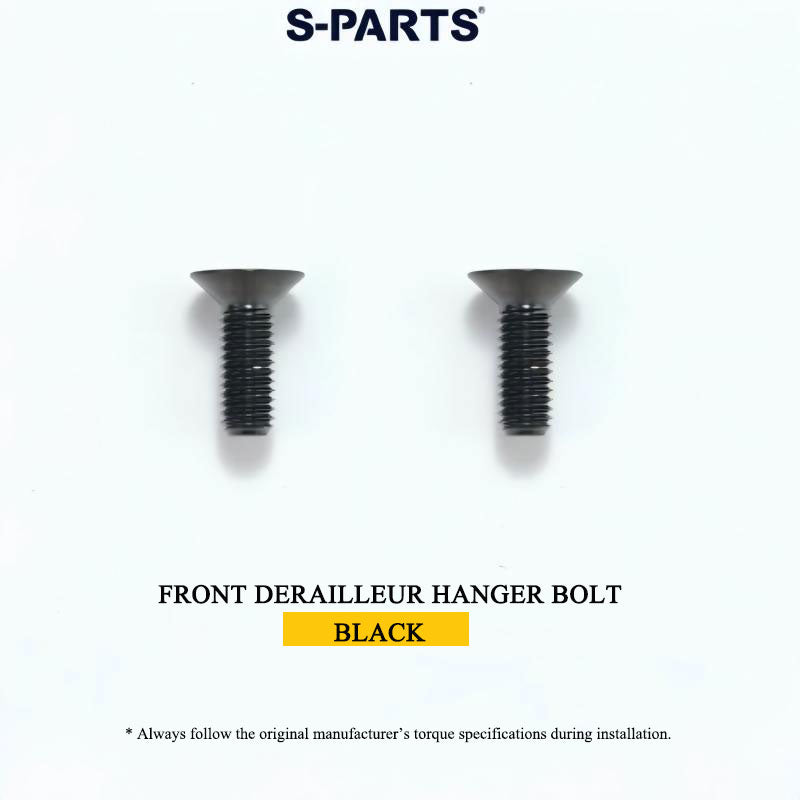

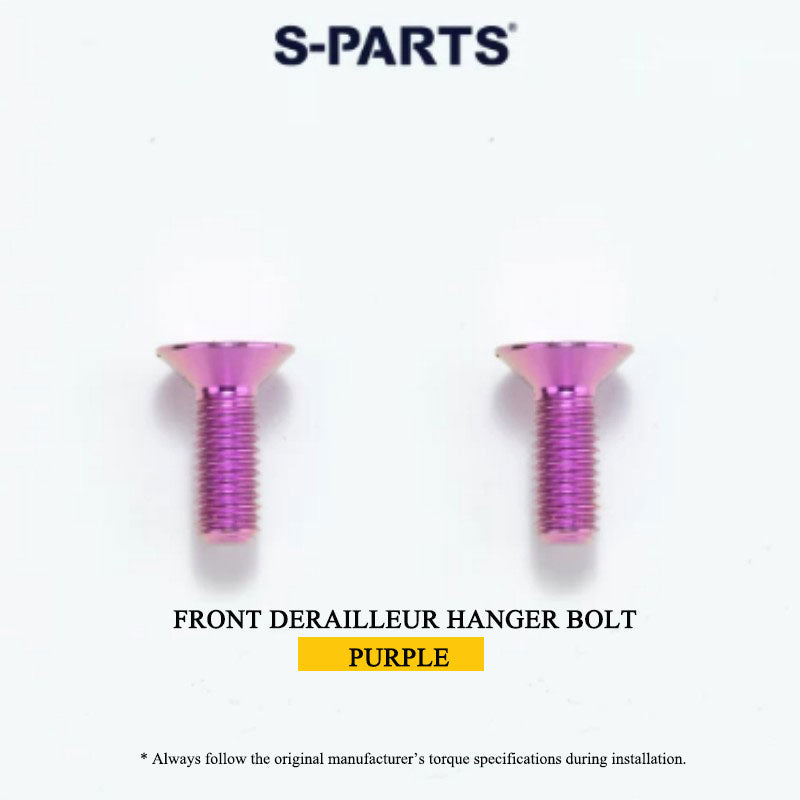

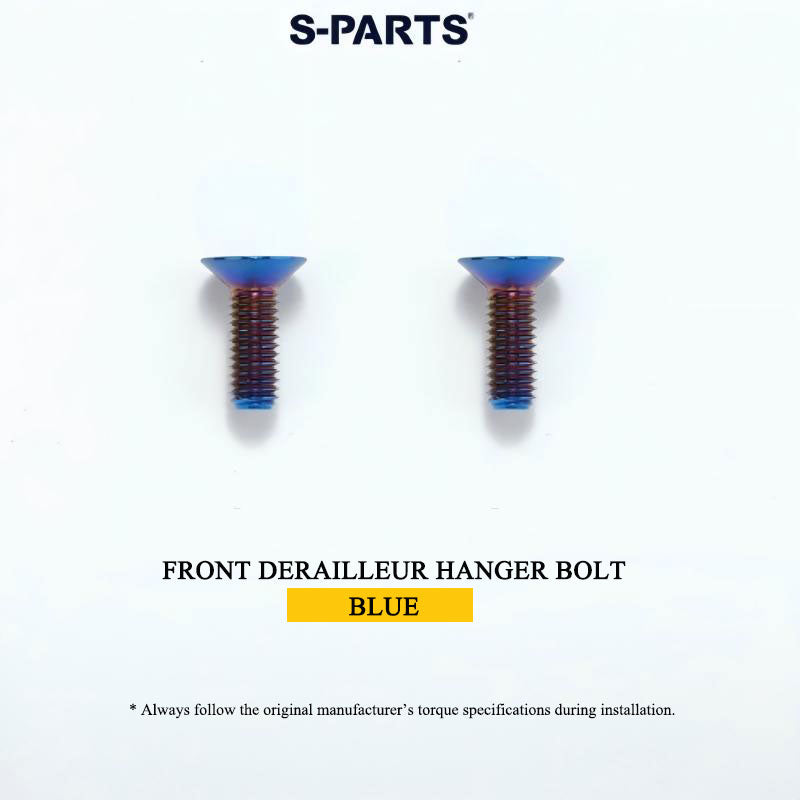

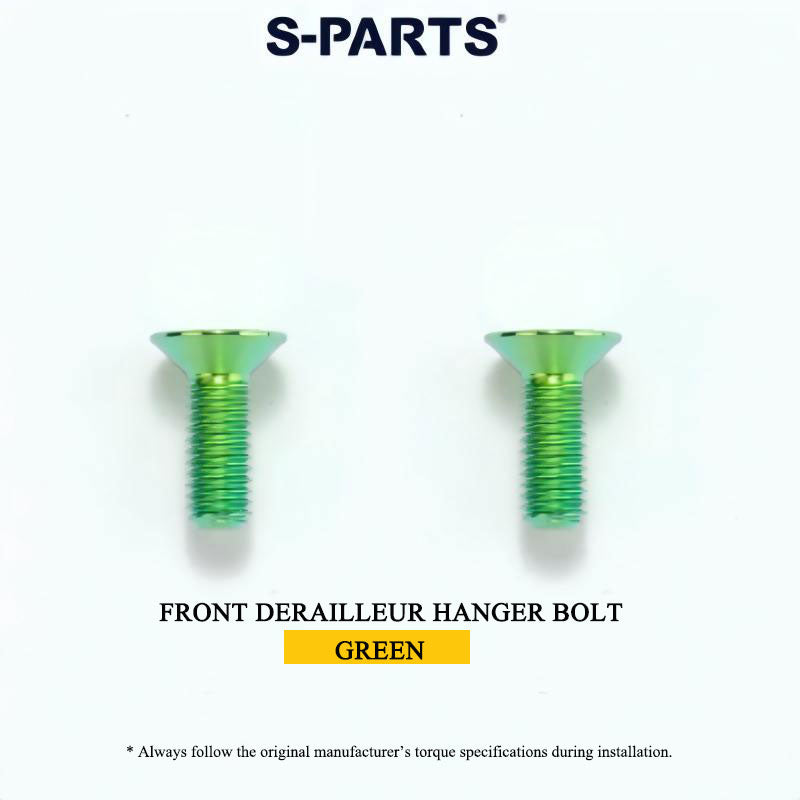

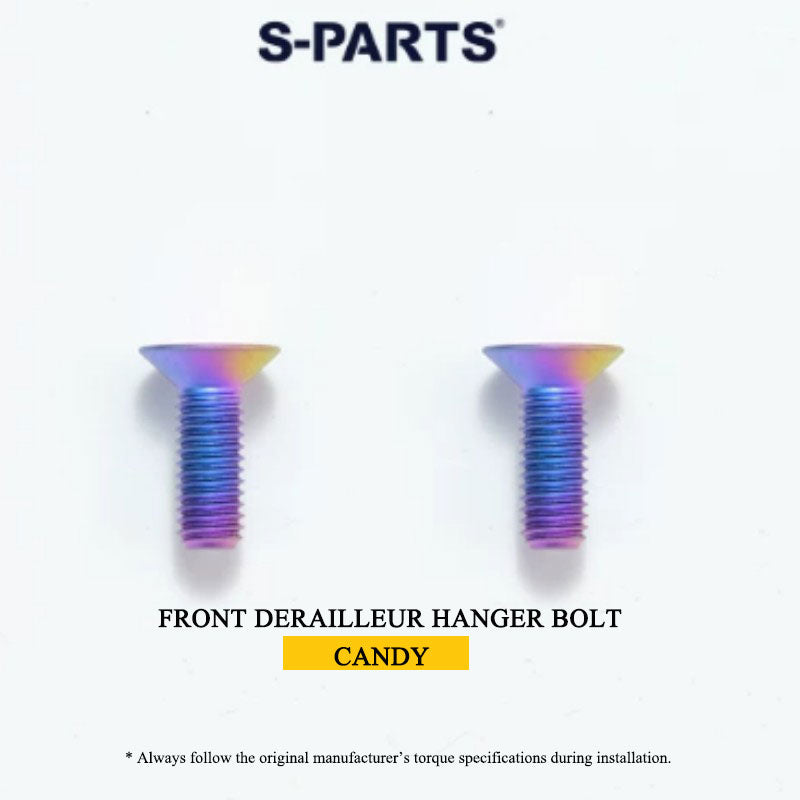

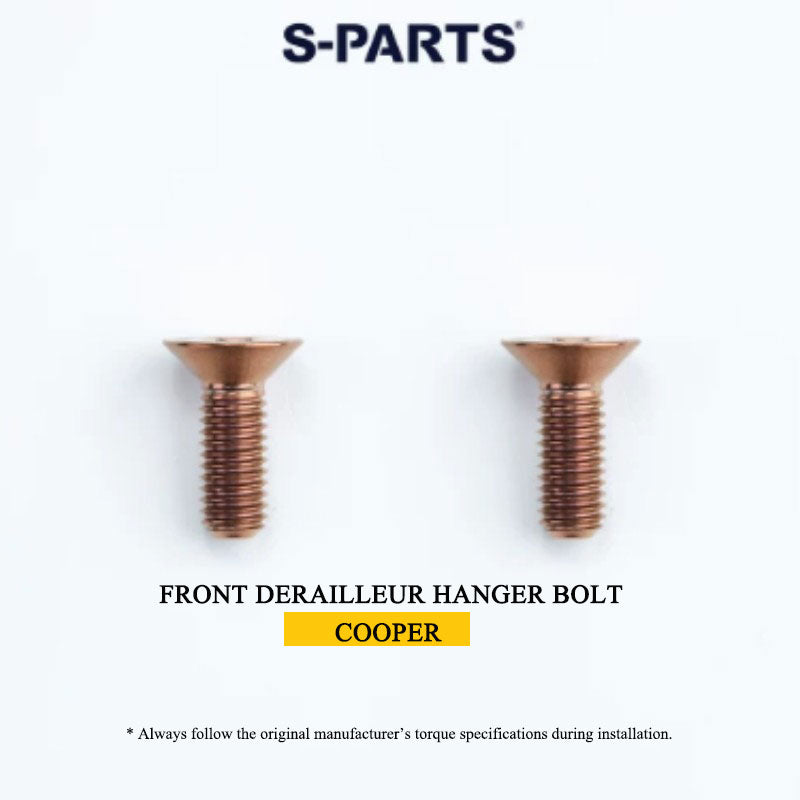

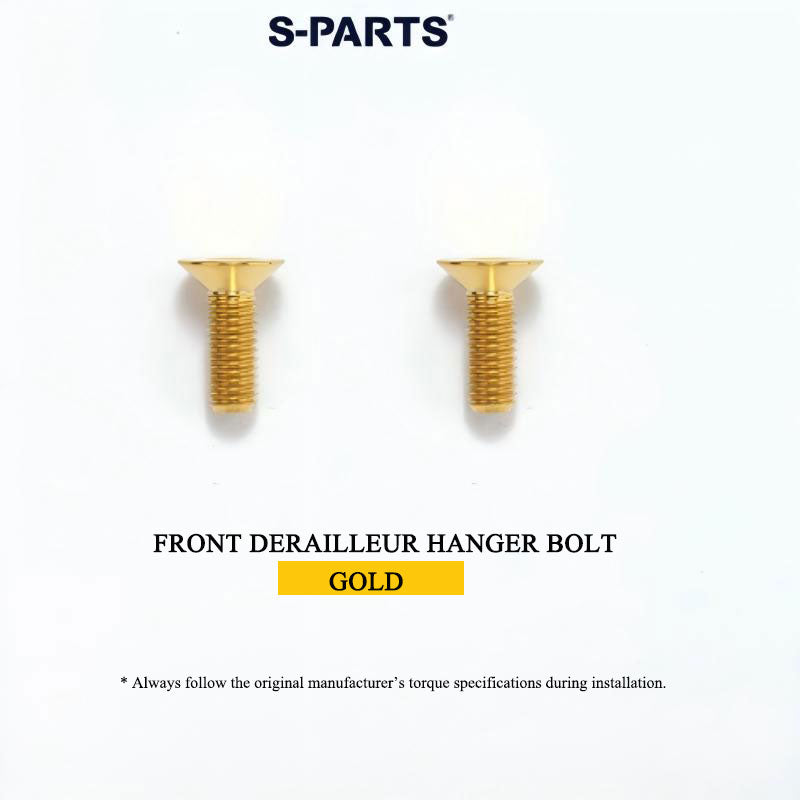

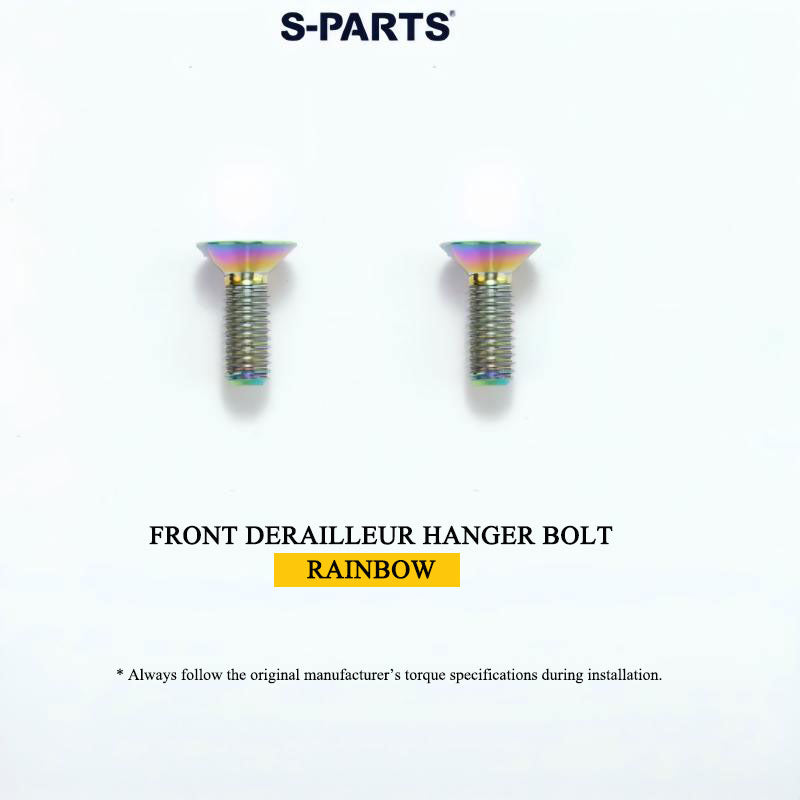

Front Derailleur Hanger Bolts |
2 pcs/set |
2.5 g/set |
T25 Torx |
| 11 |
Computer Mount Base Bolt |
1 pc |
1.57 g/pc |
T25 Torx |
| 12 |
Computer Mount Retaining Bolt |
1 pc |
1.81 g/pc |
T25 Torx |
| 13 |
Computer Base Bolt |
1 pc |
0.2 g/pc |
T10 Torx |
| 14 |
Y1RS Fork Steerer Expander Assembly – XS |
1 set |
48.2 g/set |
5mm Hex |
| 15 |
Y1RS Fork Steerer Expander Assembly – S |
1 set |
54.3 g/set |
5mm Hex |
| 16 |
Y1RS Fork Steerer Expander Assembly – M |
1 set |
60.3 g/set |
5mm Hex |
| 17 |
Y1RS Fork Steerer Expander Assembly – L |
1 set |
68.4 g/set |
5mm Hex |
| 18 |

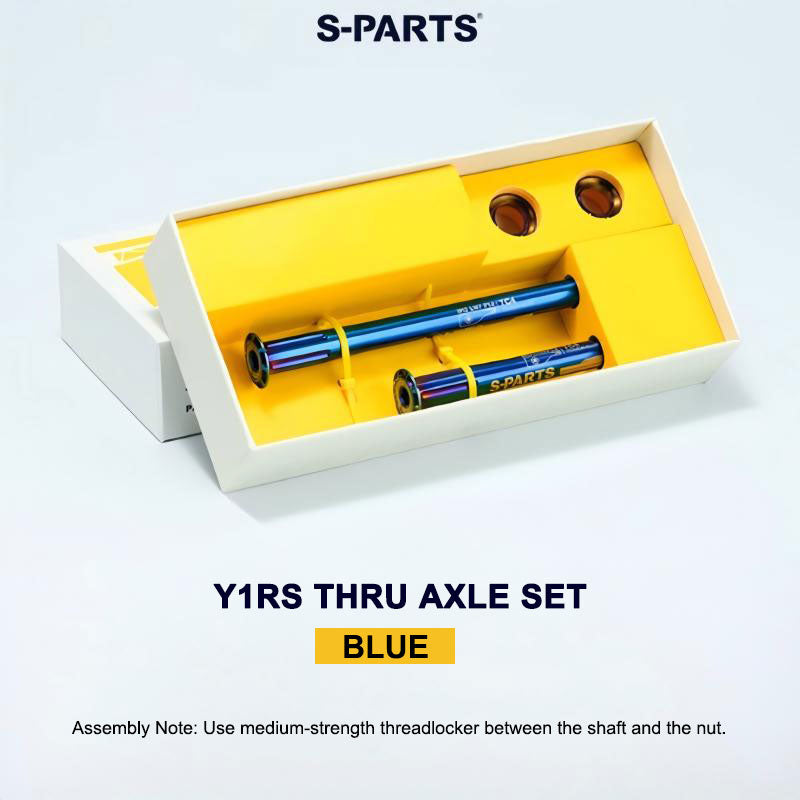

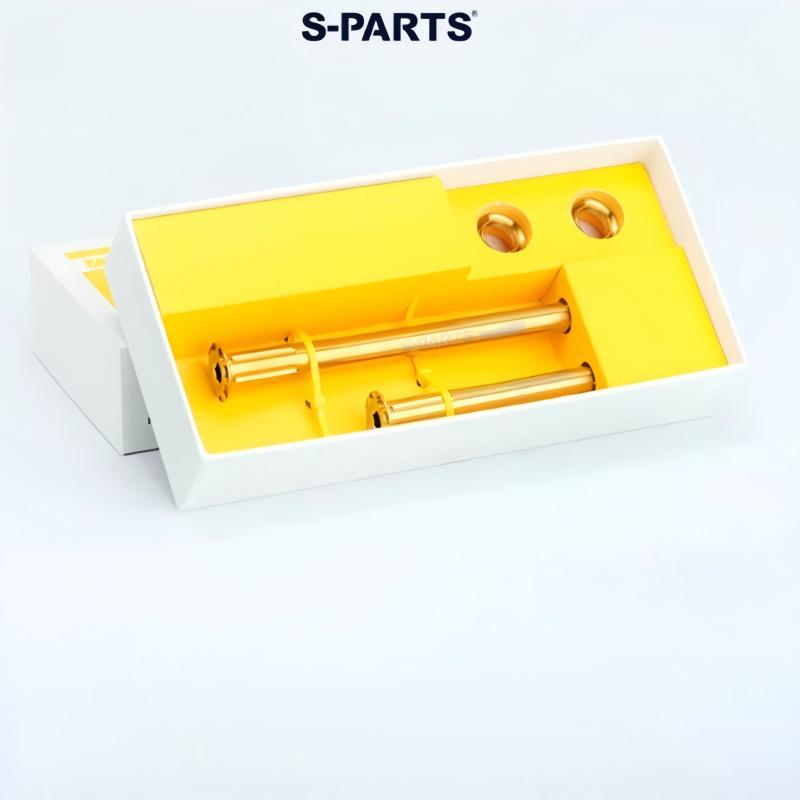

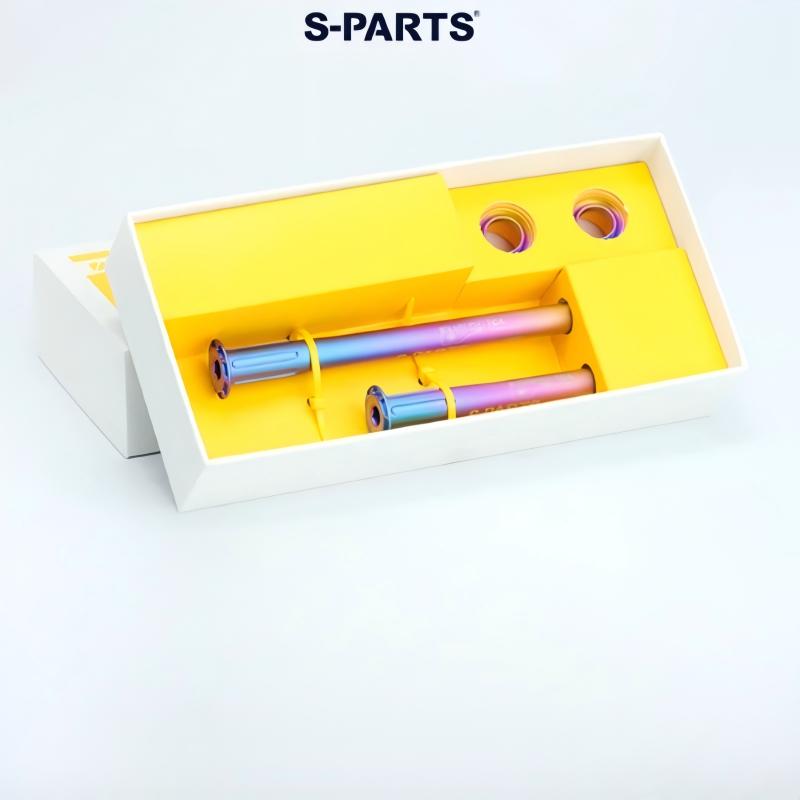

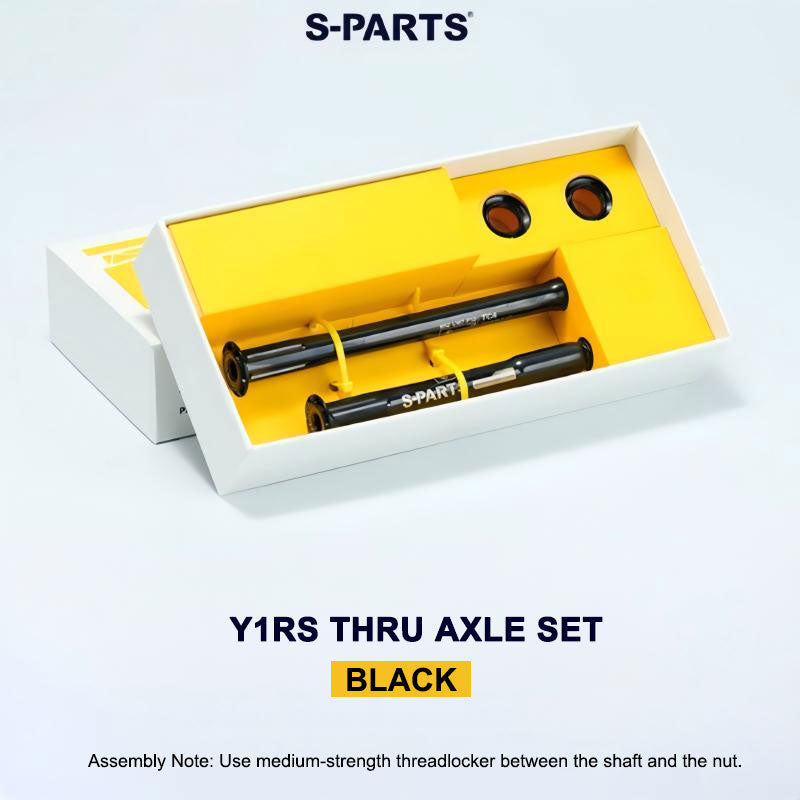

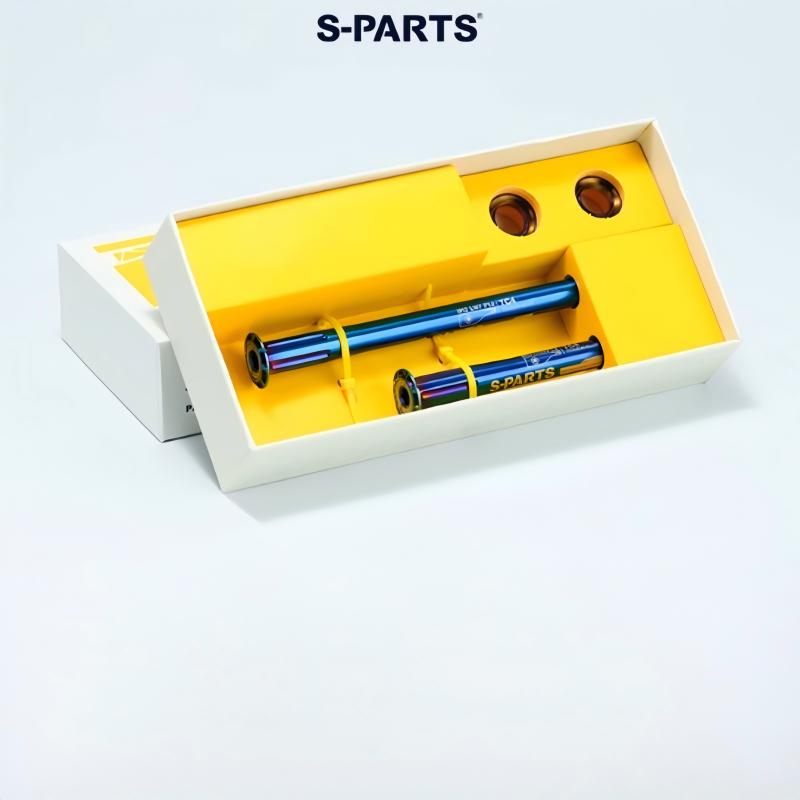

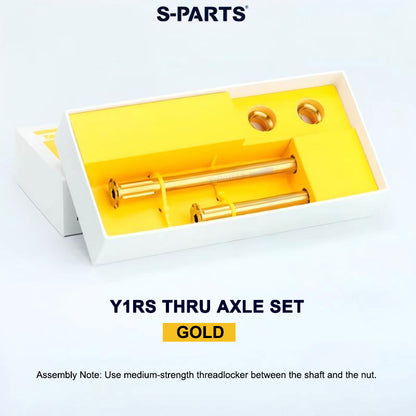

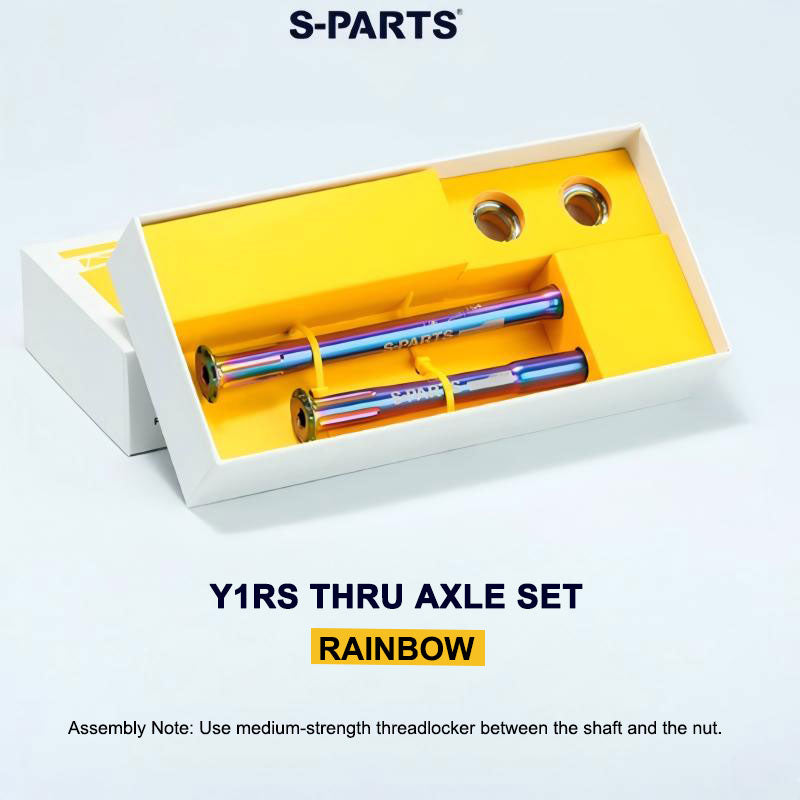

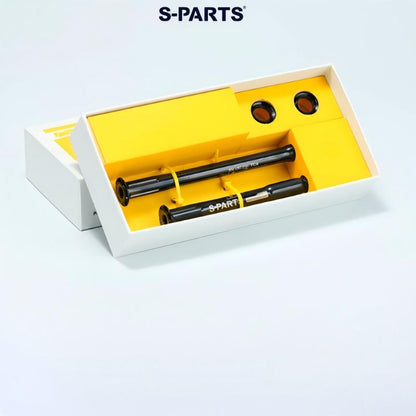

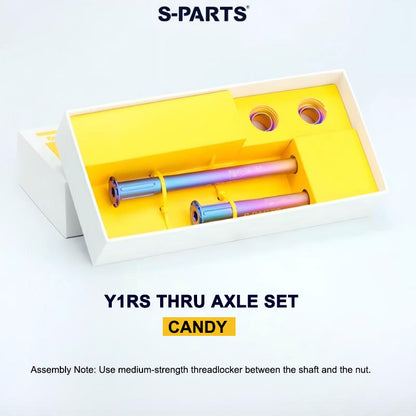

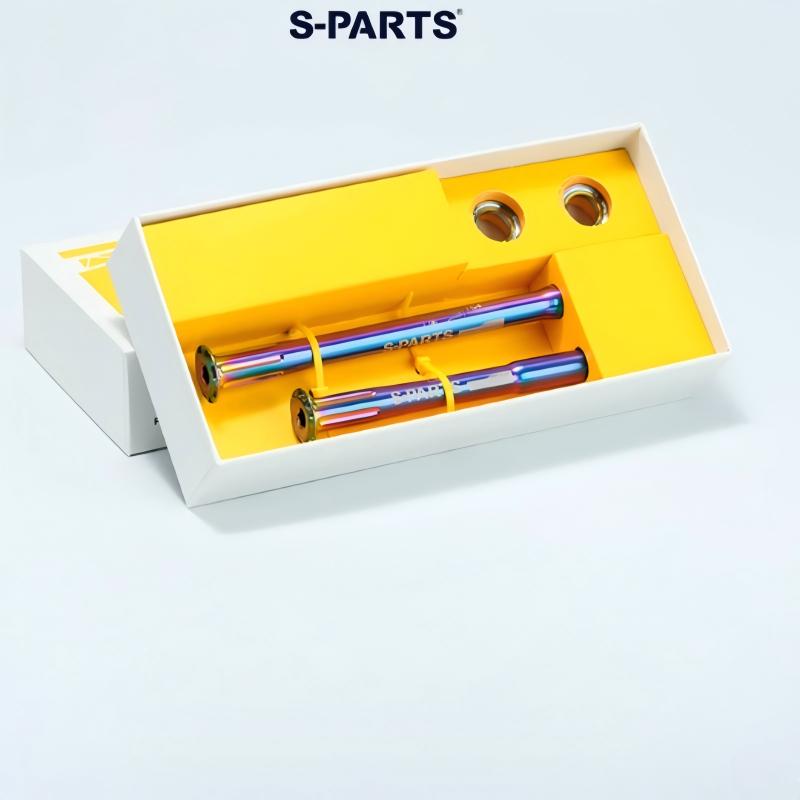

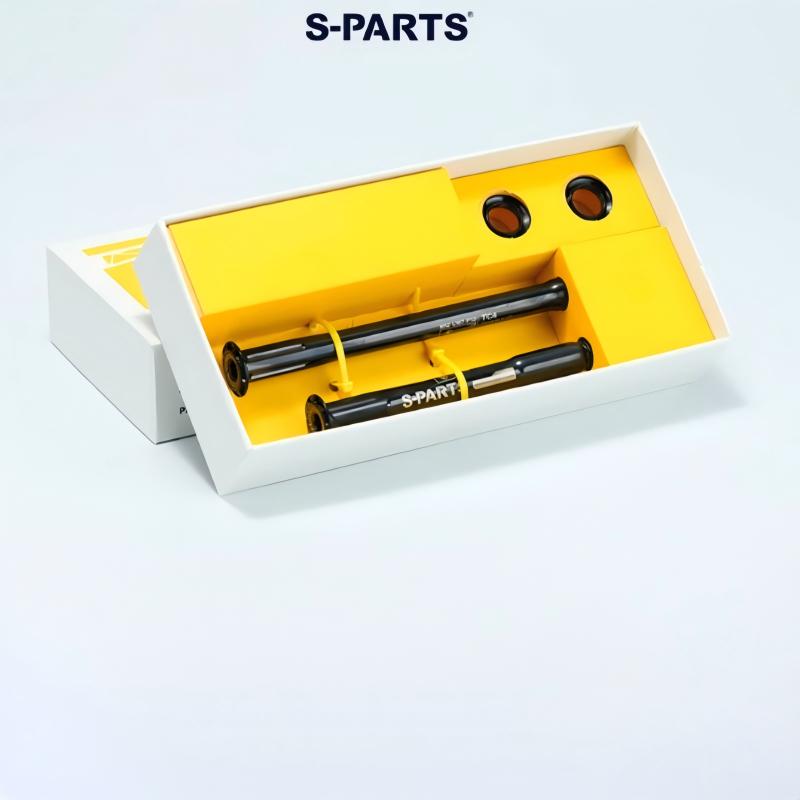

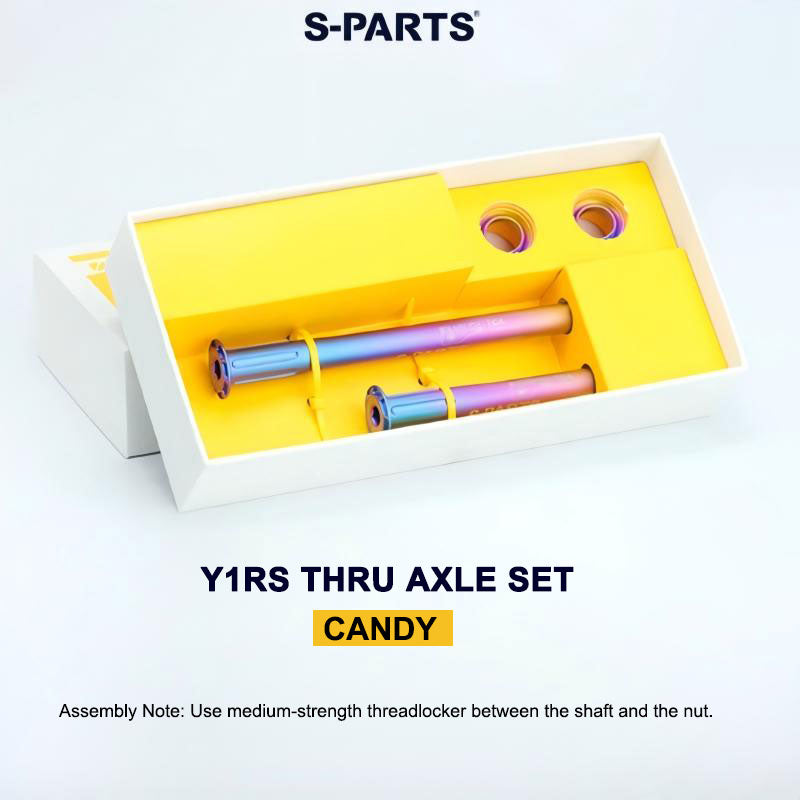

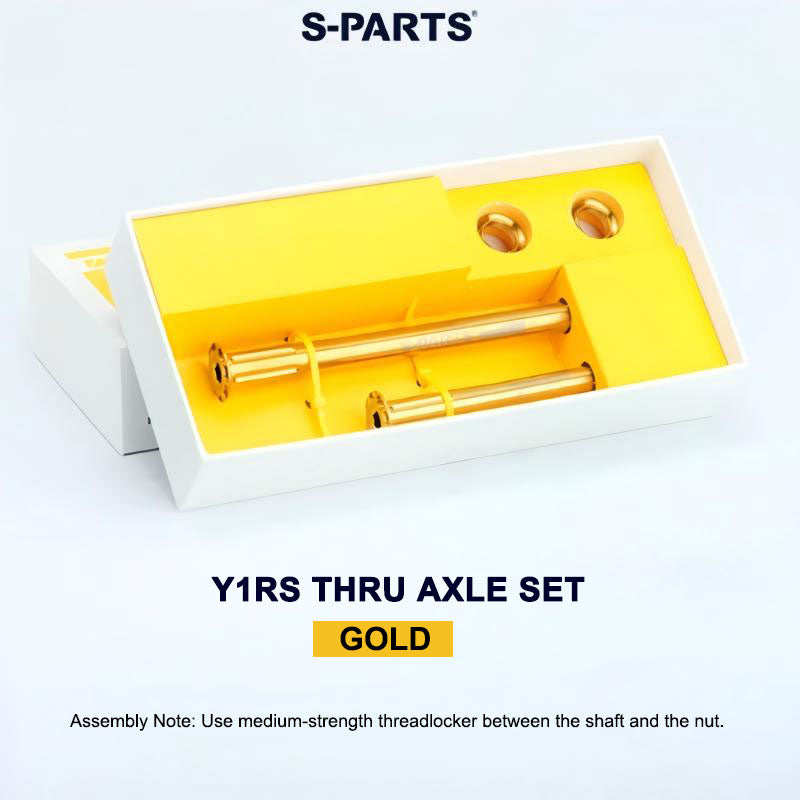

Y1RS Thru Axle Set |
1 set |
47.5 g/set |
5mm & 6mm Hex |
Y1RS Fork Steerer Expander Assembly – Variants 14–17
Each size-specific set includes:
- Y1RS Fork Steerer Expander Shaft
- Y1RS Fork Steerer Expander Splined Nut
- Y1RS Fork Steerer Expander Bolt
| Size |
Shaft Weight |
Splined Nut Weight |
Expander Bolt Weight |
Set Weight |
| XS |
31.5 g/pc |
7.15 g/pc |
9.65 g/pc |
48.2 g/set |
| S |
37.6 g/pc |
7.15 g/pc |
9.65 g/pc |
54.3 g/set |
| M |
43.5 g/pc |
7.15 g/pc |
9.65 g/pc |
60.3 g/set |
| L |
51.6 g/pc |
7.15 g/pc |
9.65 g/pc |
68.4 g/set |
The Splined Nut is compatible only with the S-PARTS Fork Steerer Expander Shaft.
Apply medium-strength threadlocker between the expander shaft and splined nut during assembly.
Material & Manufacturing
S-PARTS uses Grade 5 Titanium (Ti-6Al-4V) selected to meet its proprietary S-level material standards.
S-PARTS works with a metal raw material supply chain serving Xi'an's civilian aerospace industry and maintains control over the production process throughout manufacturing.
Based on S-PARTS testing, the titanium alloy used in these components has an average tensile strength exceeding 1050 MPa. Its strength performance is comparable to 10.9-grade steel components, while its weight is approximately half that of steel.
Designed for the Y1RS

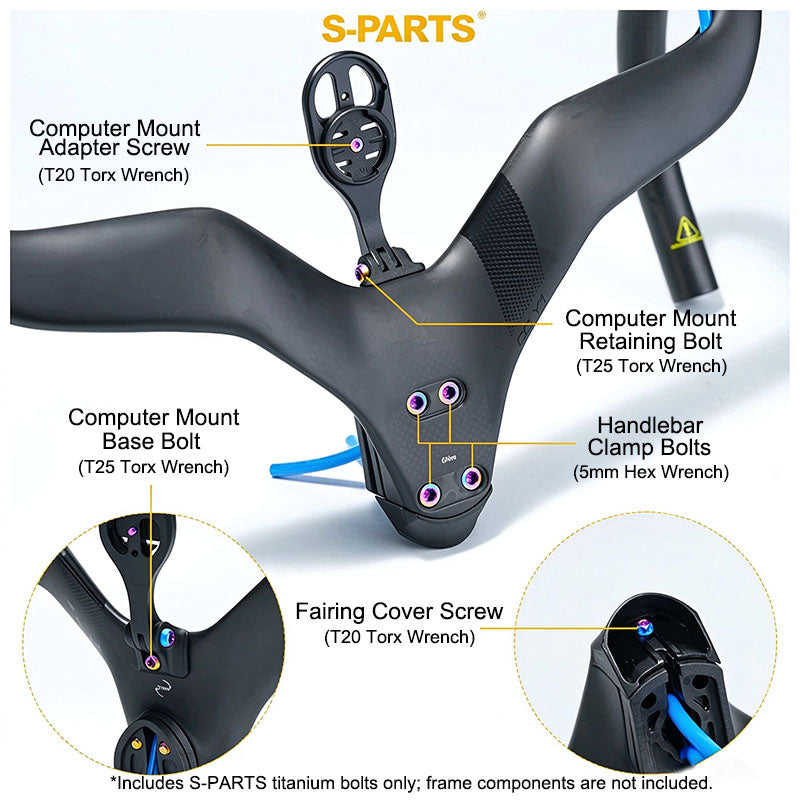

The Y1RS uses different fastener designs and mounting interfaces throughout the bike. S-PARTS develops corresponding titanium hardware for individual mounting locations rather than applying a single universal bolt design.
Different bolt head styles and configurations, including countersunk and button-head designs as well as the specified A2 and A3 configurations, are selected according to the individual mounting location.
The contact surface is matched to the corresponding bolt head design to provide a consistent interface for torque application.
A More Cohesive Y1RS Look
The S-PARTS full-bike titanium hardware upgrade is designed around key fastening points throughout the Y1RS, covering multiple high-visibility areas of the bike.
Replacing selected original hardware with coordinated titanium components helps reduce the visual inconsistency of mixed factory hardware and creates a more cohesive overall appearance.
The result is a more unified visual finish that integrates the individual hardware components into the overall design of the Y1RS.
Finish Options
Available finishes:
- Gold
- Rainbow
- Raw Titanium
- Black
- Blue
- Green
- Purple
- Candy
- Indigo
- Copper
Color finishes are produced using vacuum coating and anodizing processes, depending on the finish.

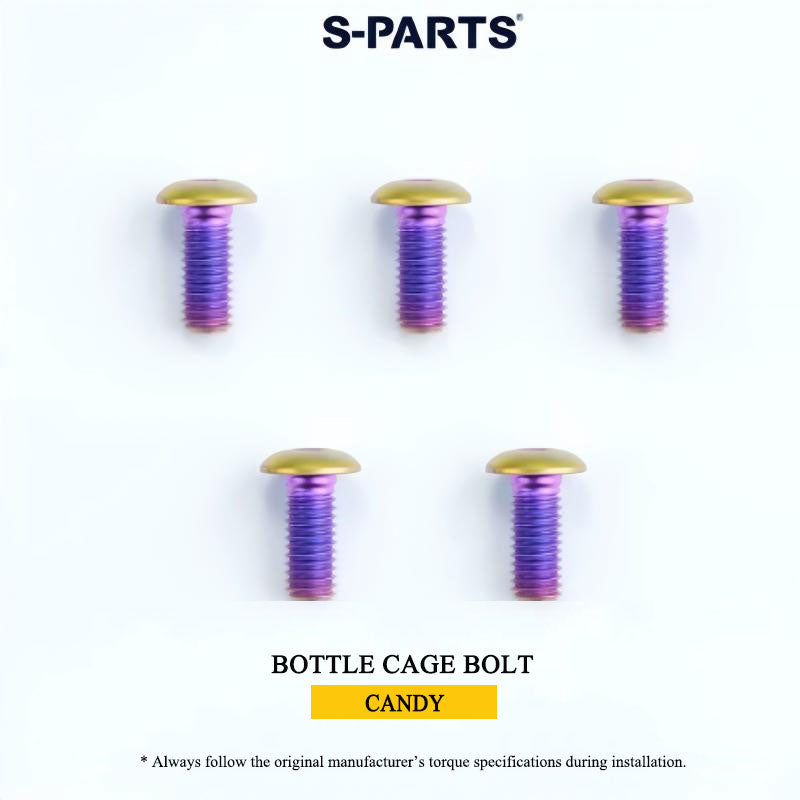

The Candy finish has a naturally flowing color pattern. Due to the coloring process, the distribution of color is intentionally random, so individual pieces may vary slightly in appearance.
Some screws and bolts may show white lines around the threaded area. This is a normal result of the coloring process and does not affect normal use.
Before Ordering
Please select the correct variant before ordering. Quantity, weight, spacer stack configuration, tool interface and application vary by variant.
For Variants 14–17, select the correct XS, S, M or L Fork Steerer Expander Assembly for your Y1RS configuration.
