COLNAGO Y1RS Grade 5 Titanium Fork Steerer Expander Kit (XS / S / M / L)
COLNAGO Y1RS Grade 5 Titanium Fork Steerer Expander Kit (XS / S / M / L)
Couldn't load pickup availability
Product Description

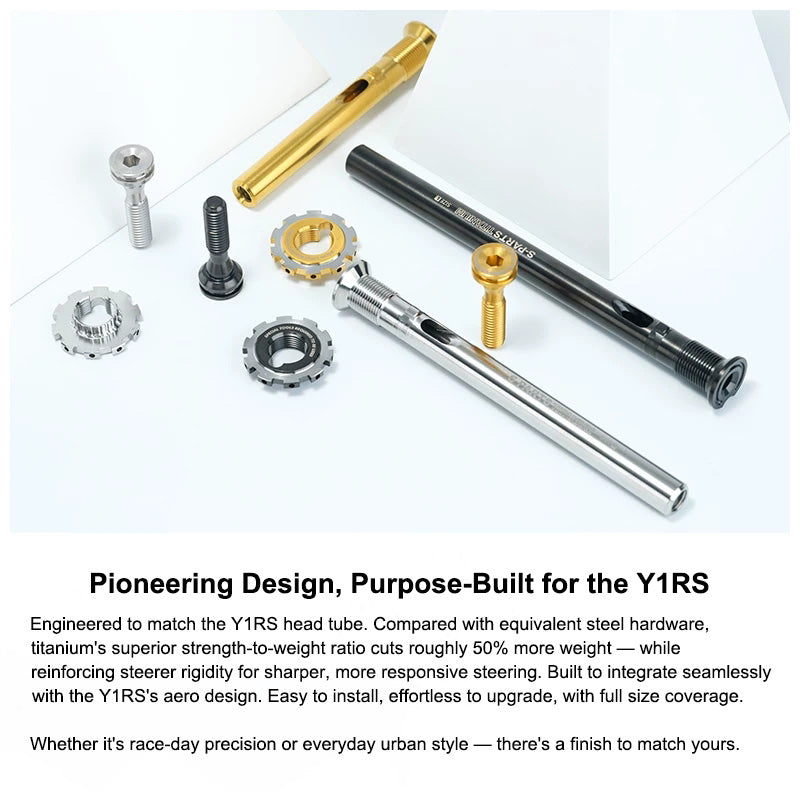

S-PARTS Grade 5 Titanium Fork Steerer Expander for COLNAGO Y1RS

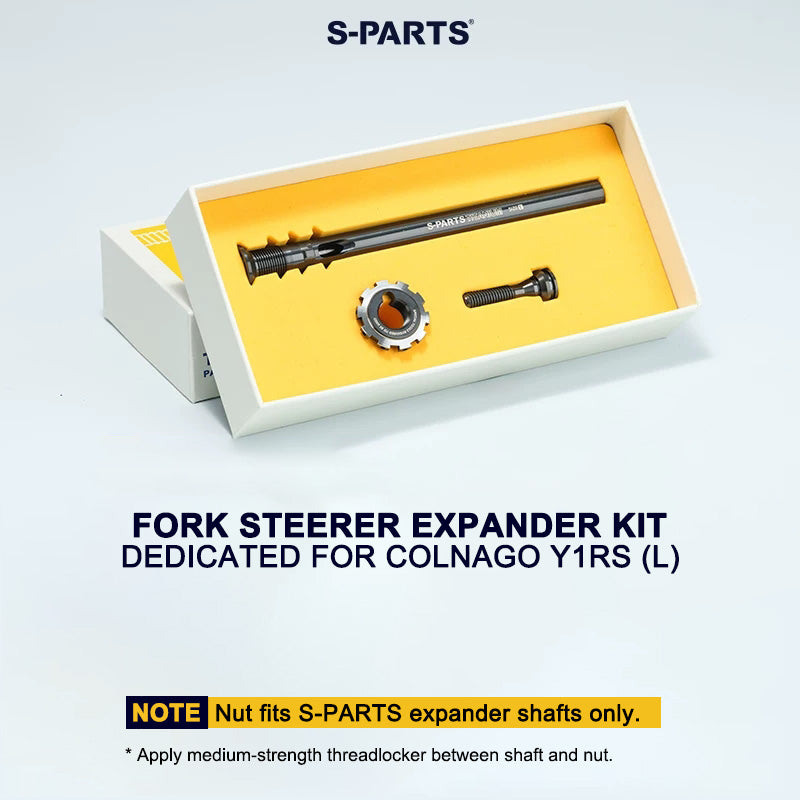

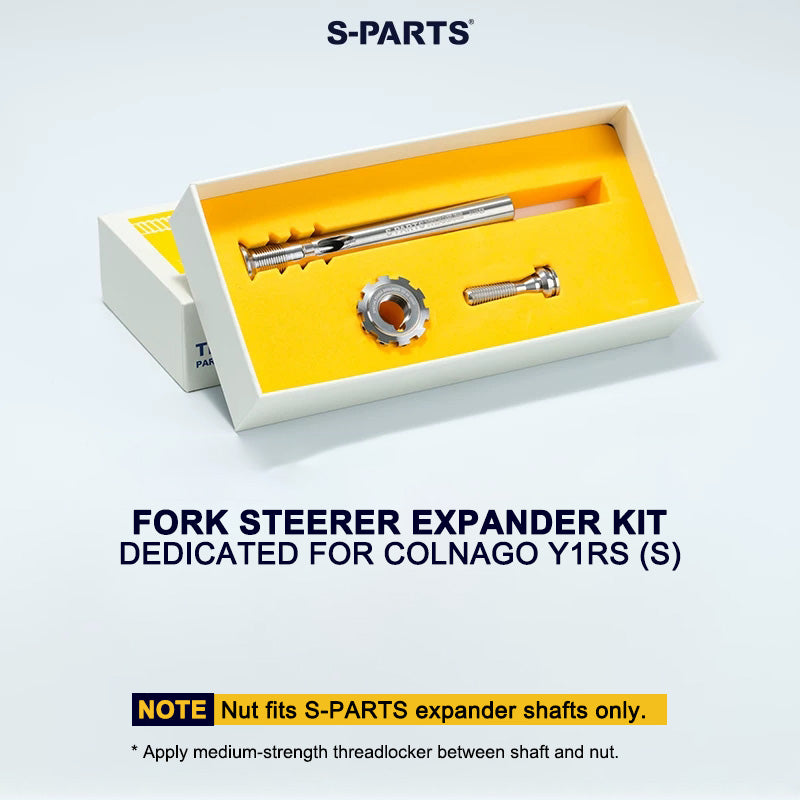

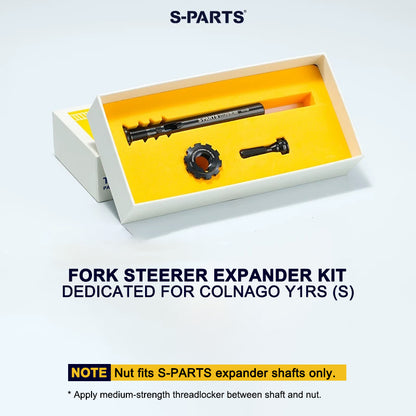

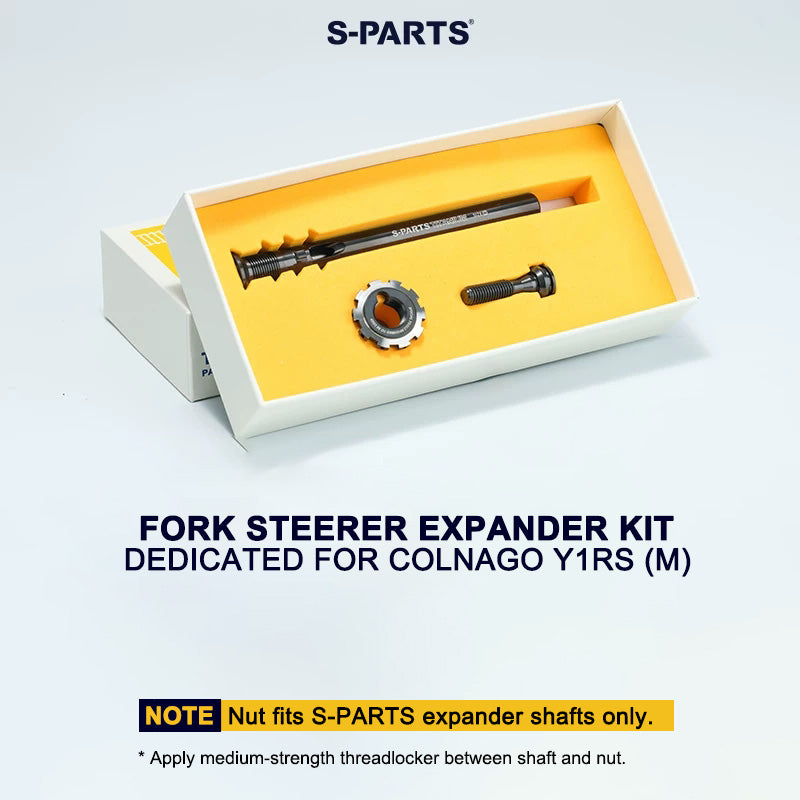

Designed specifically for the COLNAGO Y1RS, this S-PARTS Fork Steerer Expander Kit is available in XS, S, M, and L sizes. Each size-specific kit includes a Y1RS-specific fork steerer expander shaft, splined expander nut, and expander bolt.
Made from Grade 5 Titanium (Ti-6Al-4V), the components combine high strength, low weight, corrosion resistance, and fatigue resistance. The titanium material has tensile strength comparable to 10.9-grade steel, while the titanium hardware provides approximately 50% weight reduction compared with comparable steel hardware, based on the supplied product specifications.
Key Specifications
| Specification | Details |
|---|---|
| Compatibility | COLNAGO Y1RS |
| Product Type | Fork Steerer Expander |
| Material | Grade 5 Titanium (Ti-6Al-4V) |
| Available Sizes | XS / S / M / L |
| Available Colors | Gold / Raw Titanium / Black |
| Tool Required | 5 mm Hex Key |
Component Weights
| Component | Size | Weight |
|---|---|---|
| Fork Steerer Expander Shaft | XS | 31.5 g/pc |
| Fork Steerer Expander Shaft | S | 37.6 g/pc |
| Fork Steerer Expander Shaft | M | 43.5 g/pc |
| Fork Steerer Expander Shaft | L | 51.6 g/pc |
| Splined Expander Nut | All Sizes | 7.15 g/pc |
| Expander Bolt | All Sizes | 9.65 g/pc |
Complete Set Weight
| Size | Complete Set Weight |
|---|---|
| XS | 48.2 g/set |
| S | 54.3 g/set |
| M | 60.3 g/set |
| L | 68.4 g/set |

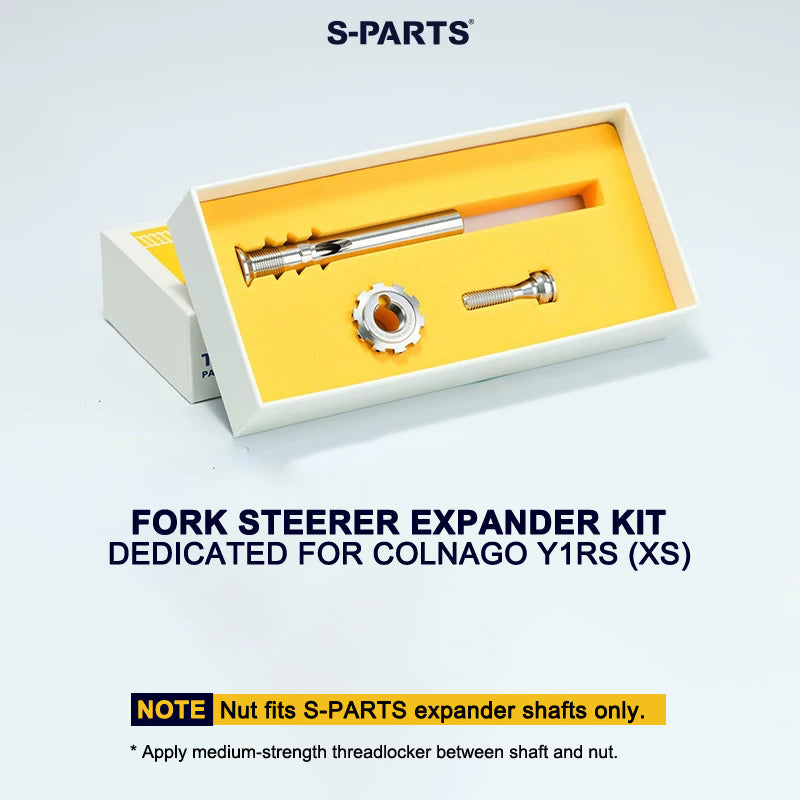

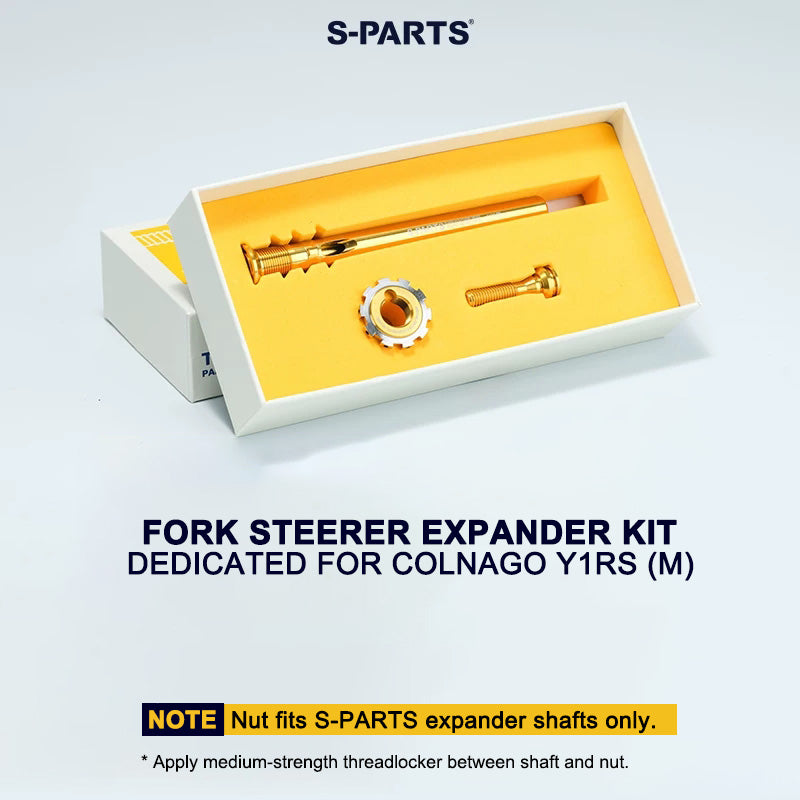

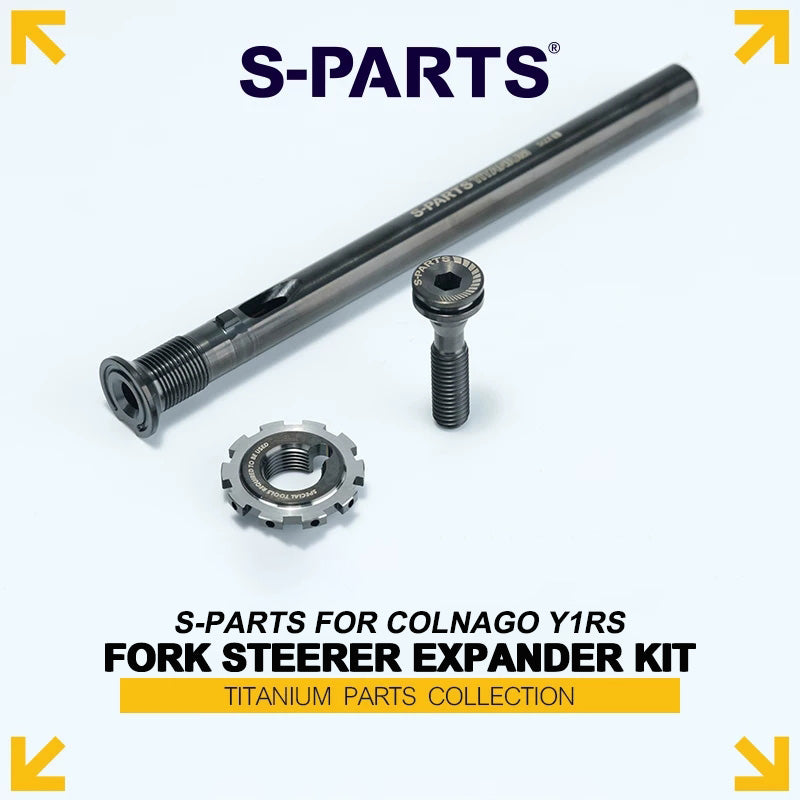

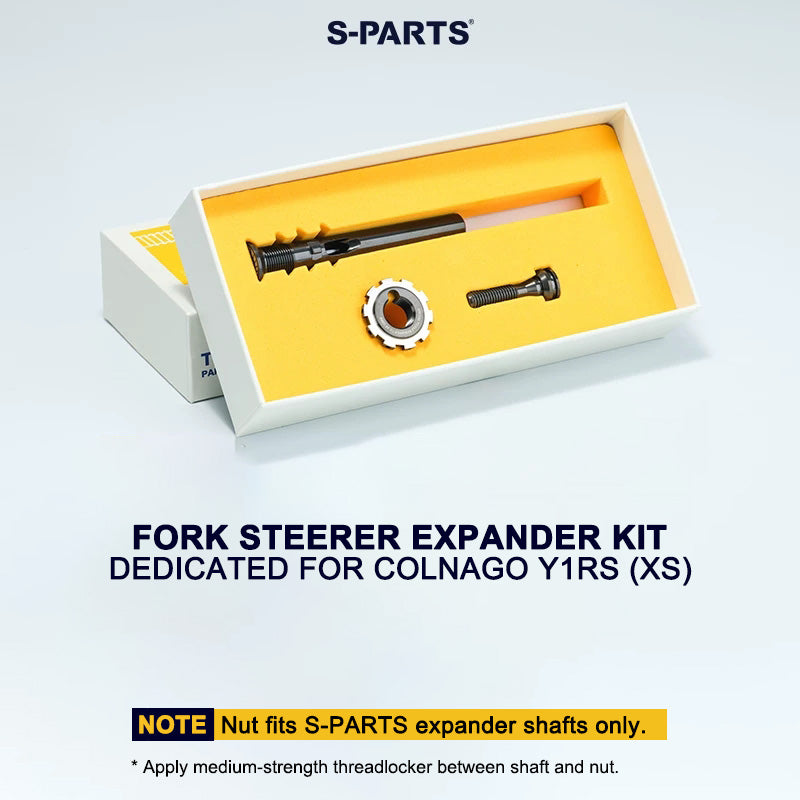

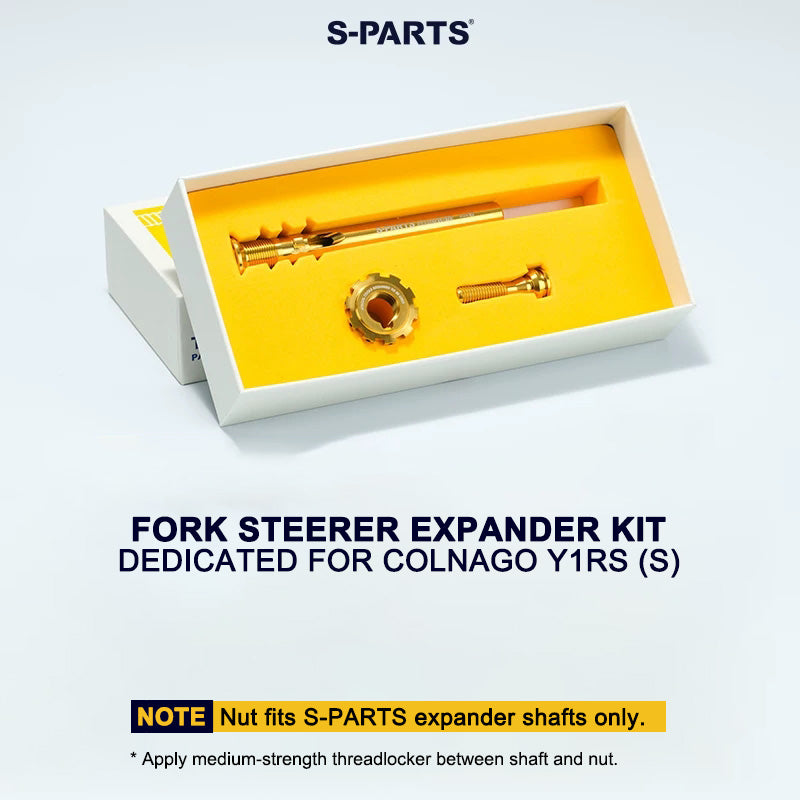

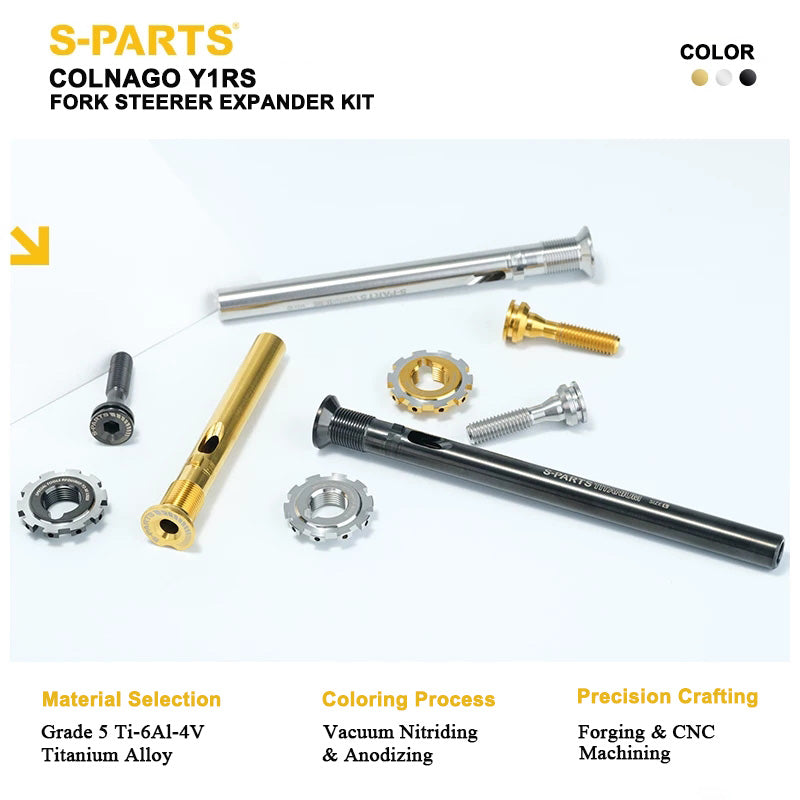

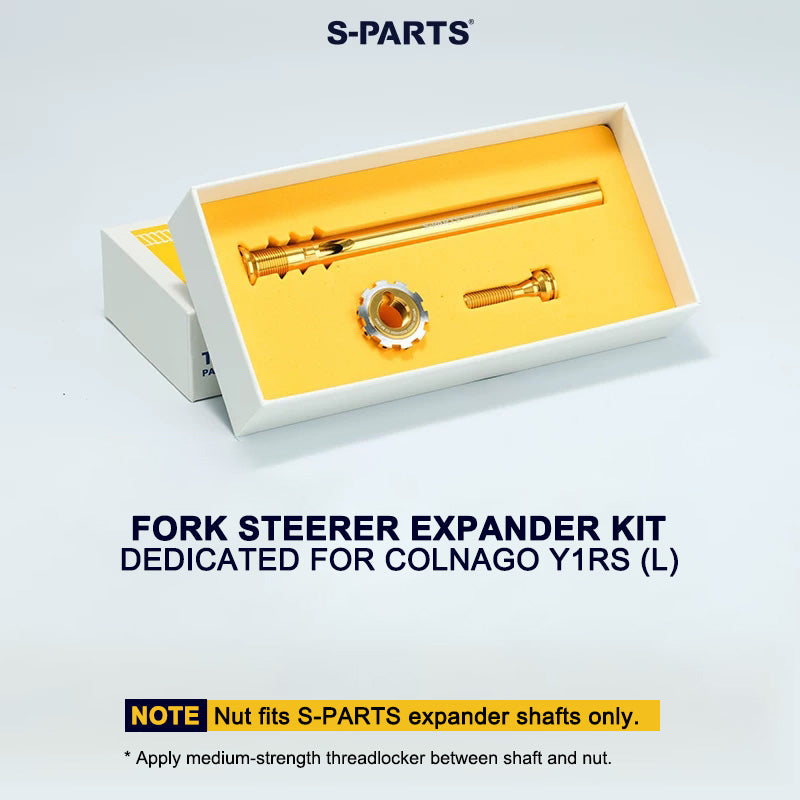

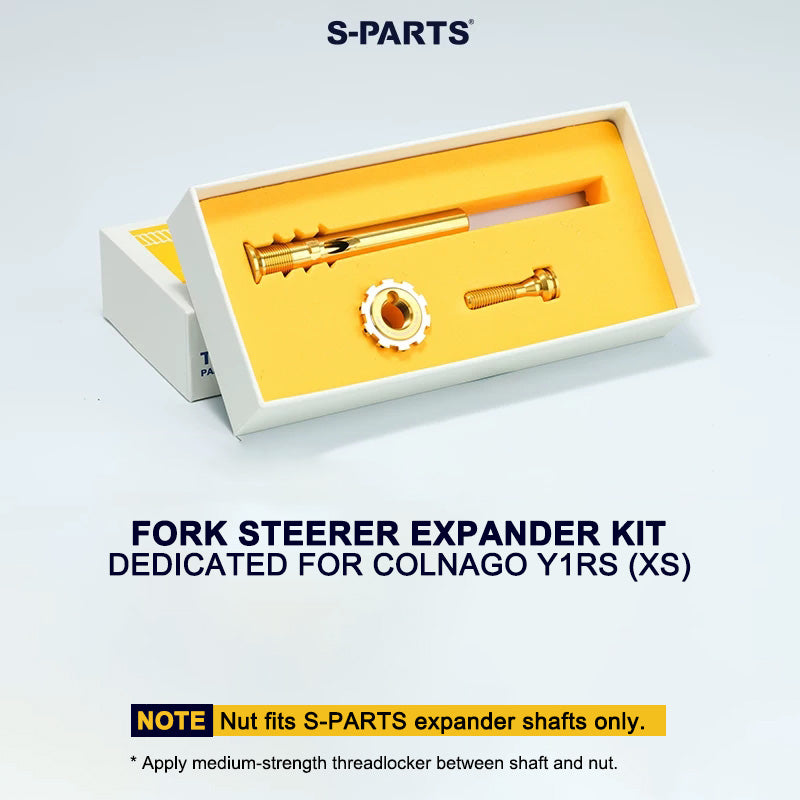

Included Components

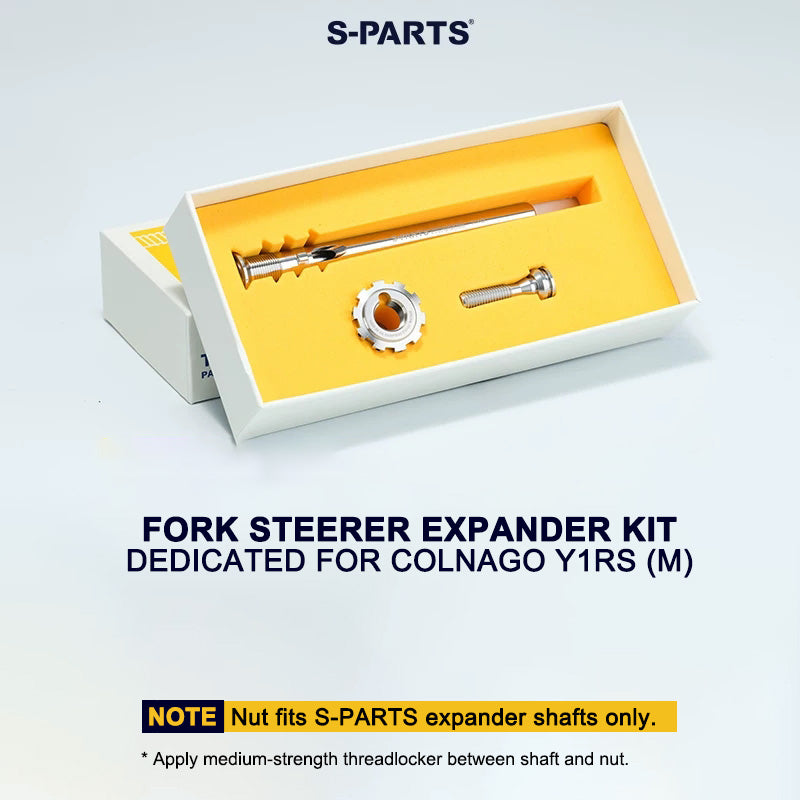

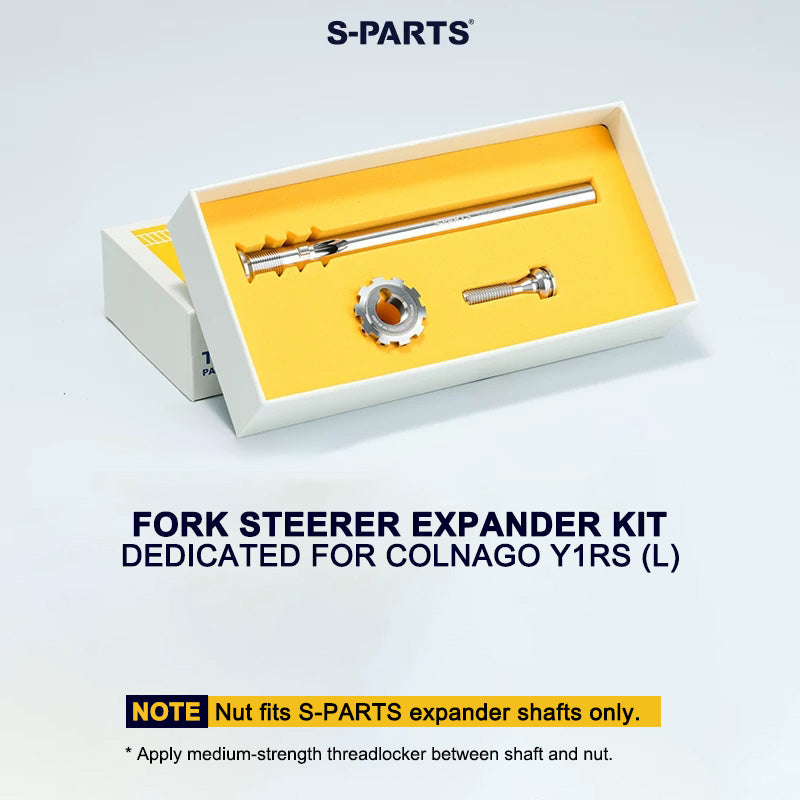

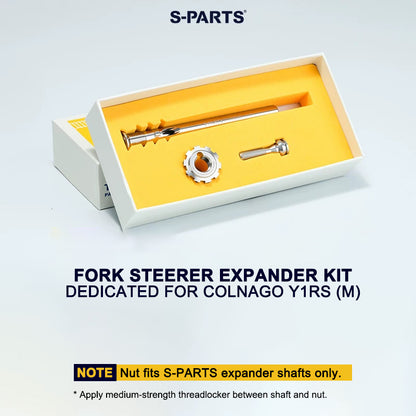

Each size-specific kit includes:

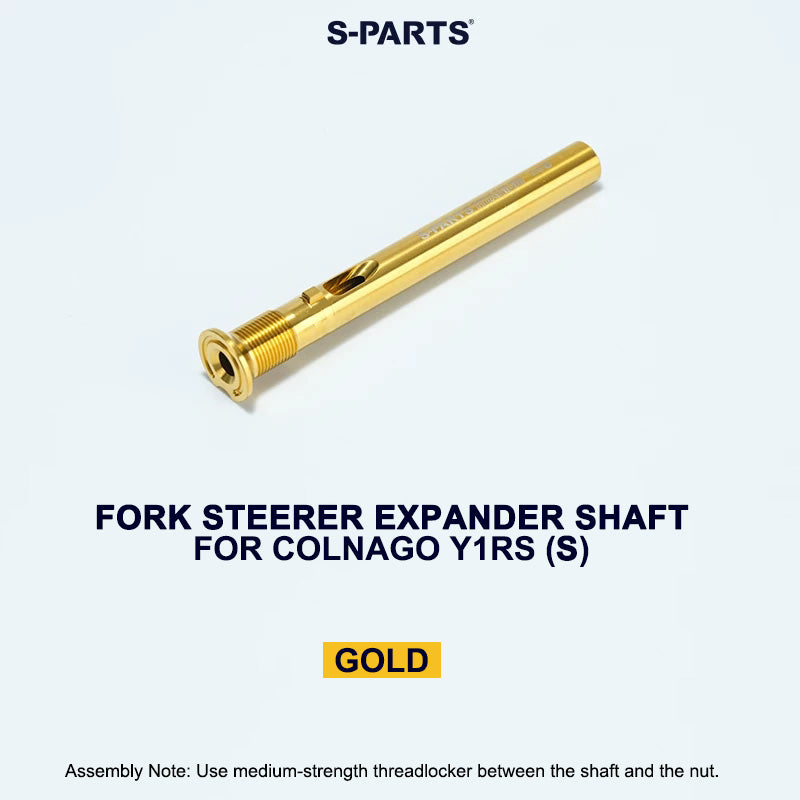

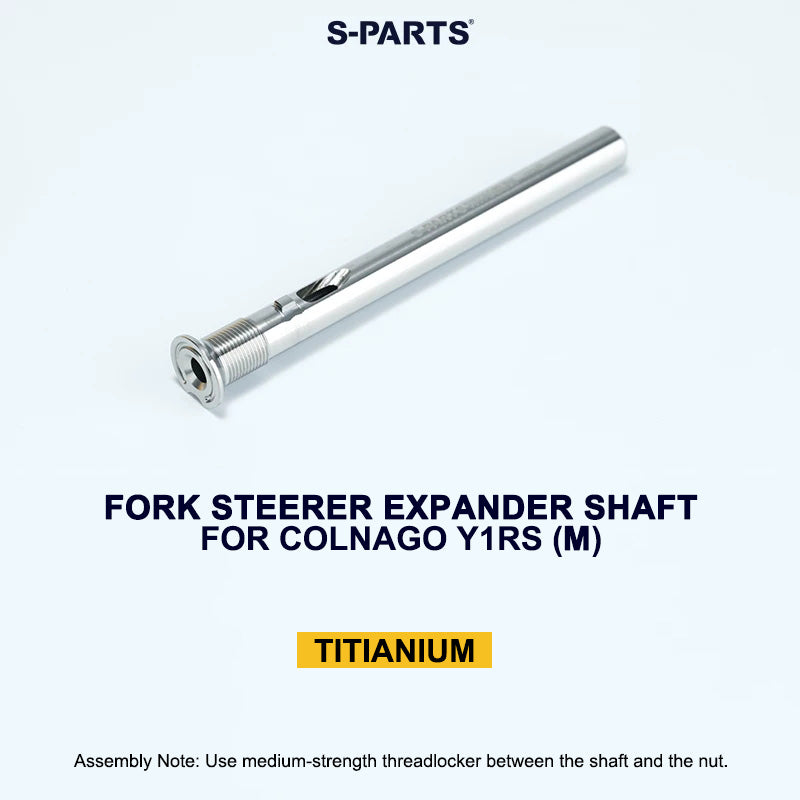

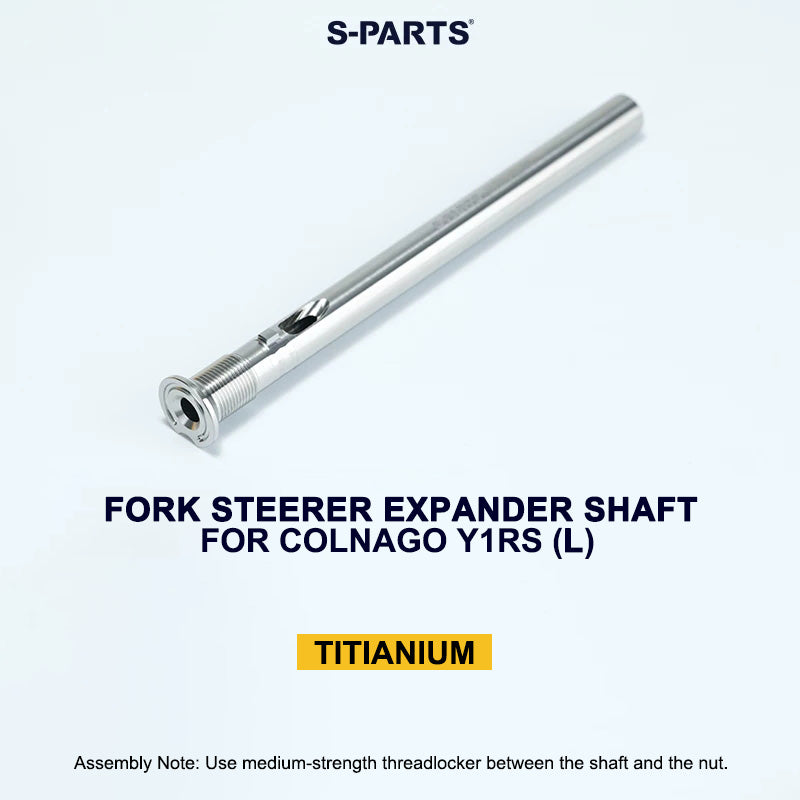

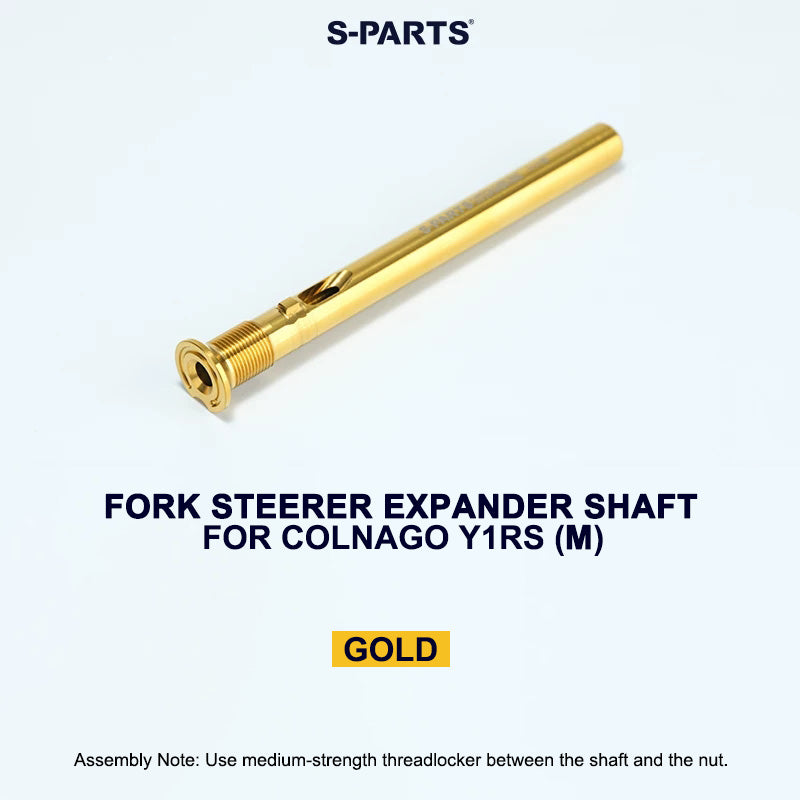

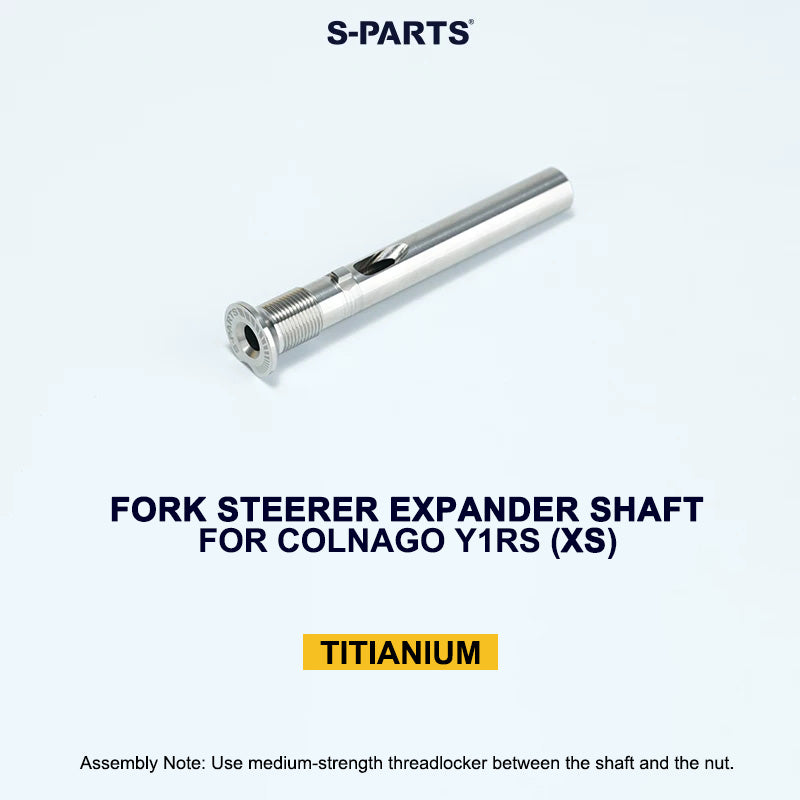

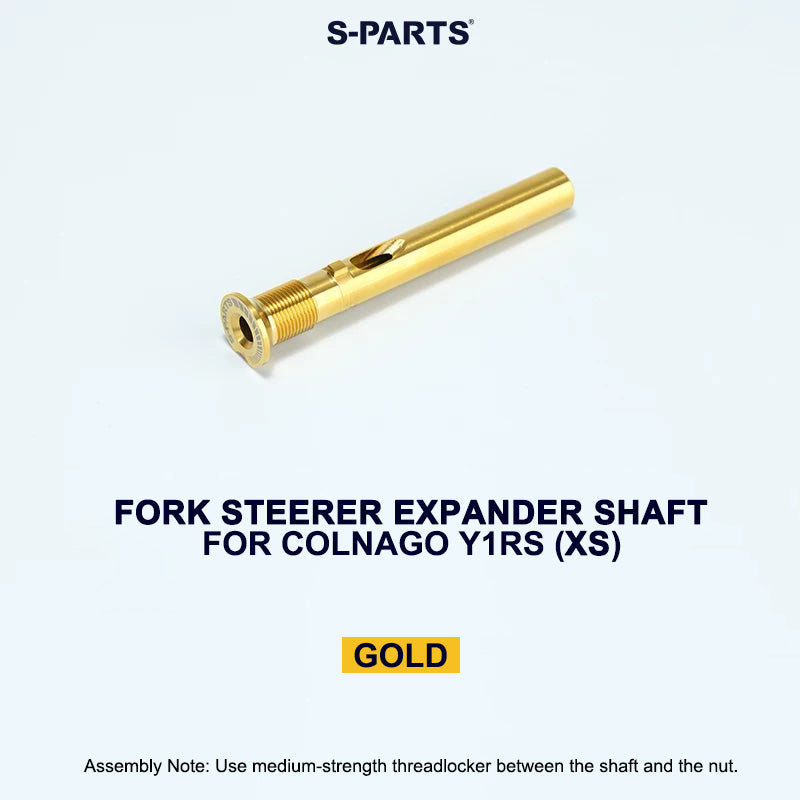

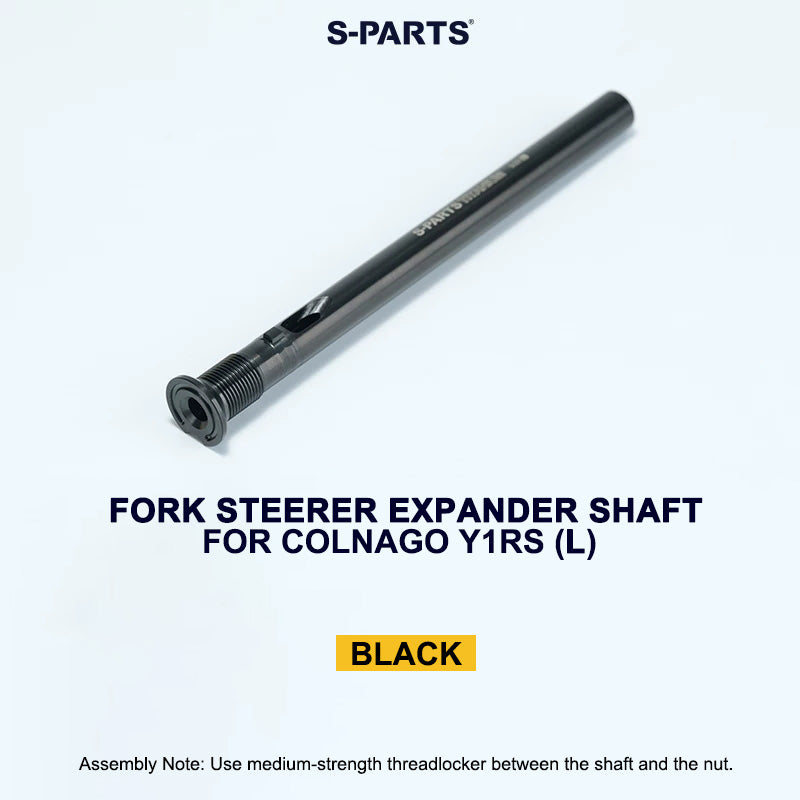

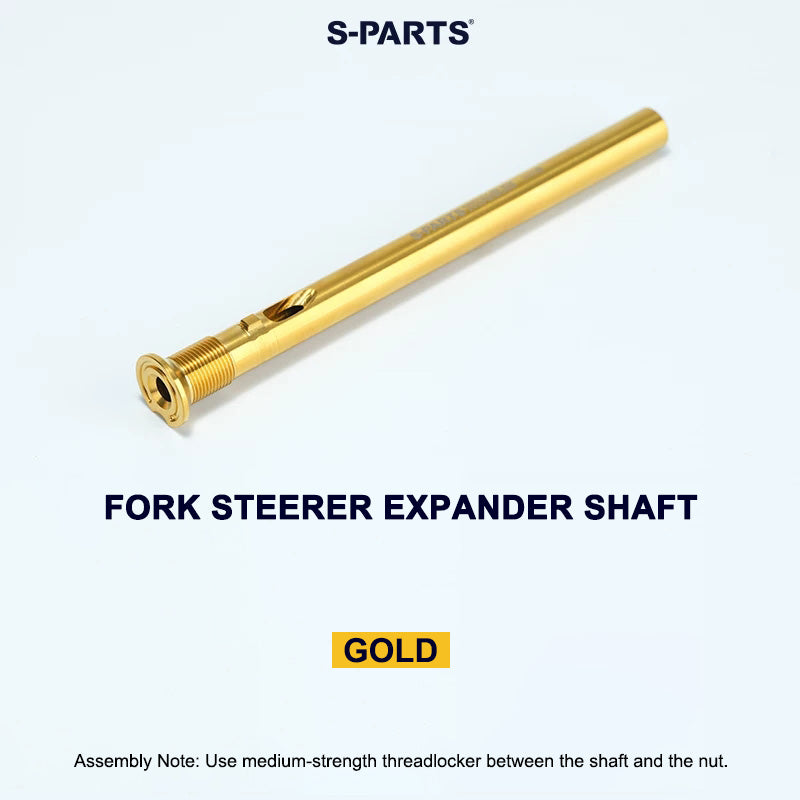

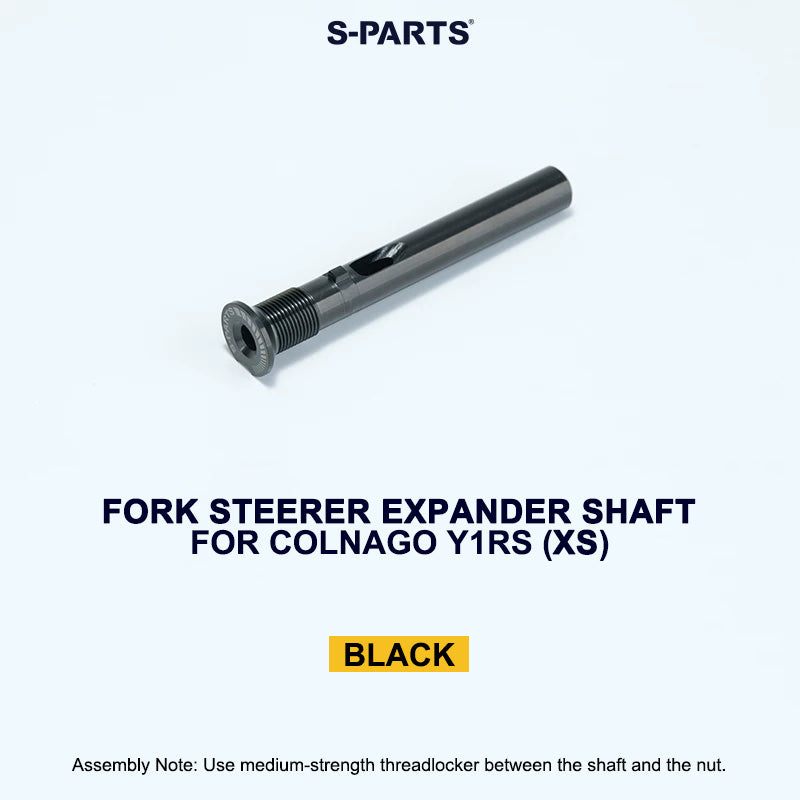

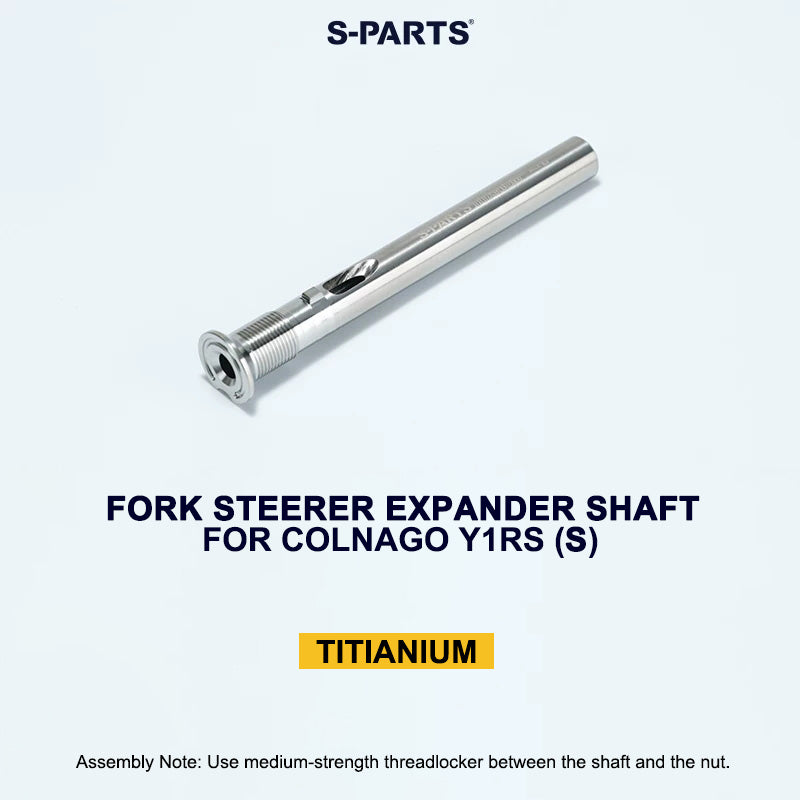

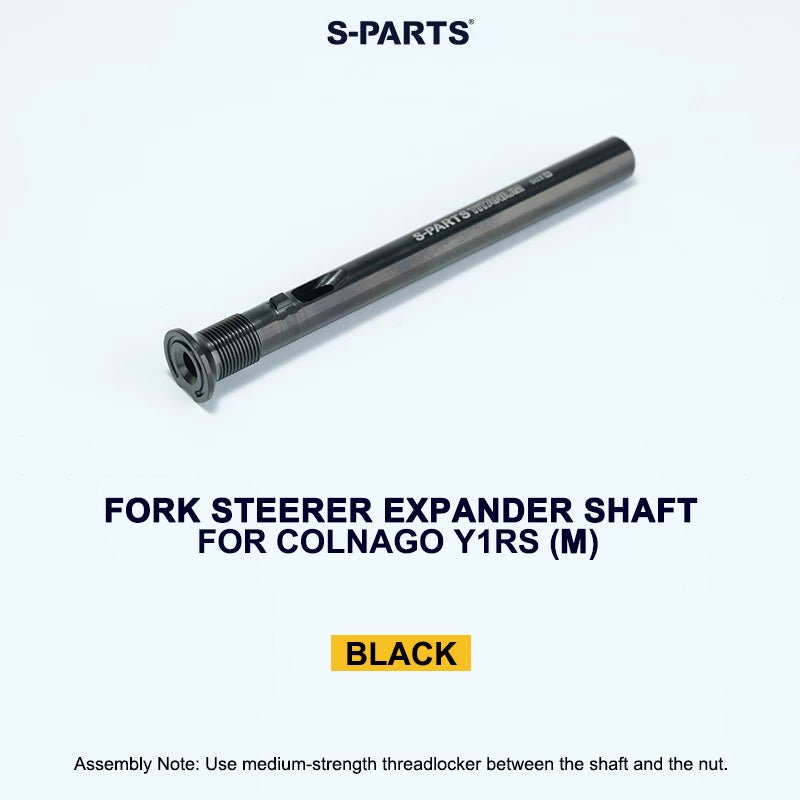

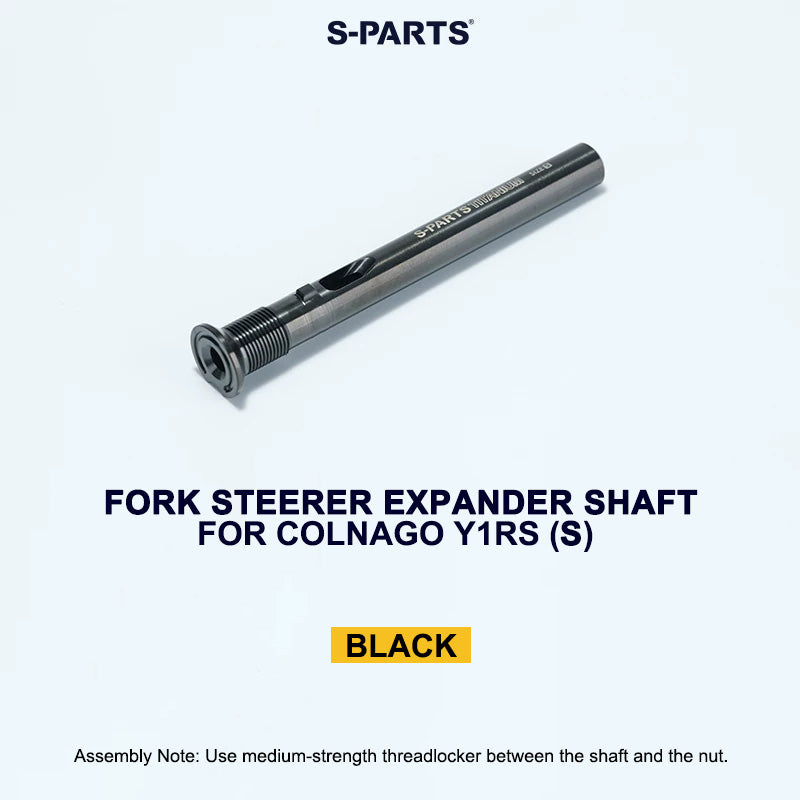

- 1 × COLNAGO Y1RS Fork Steerer Expander Shaft

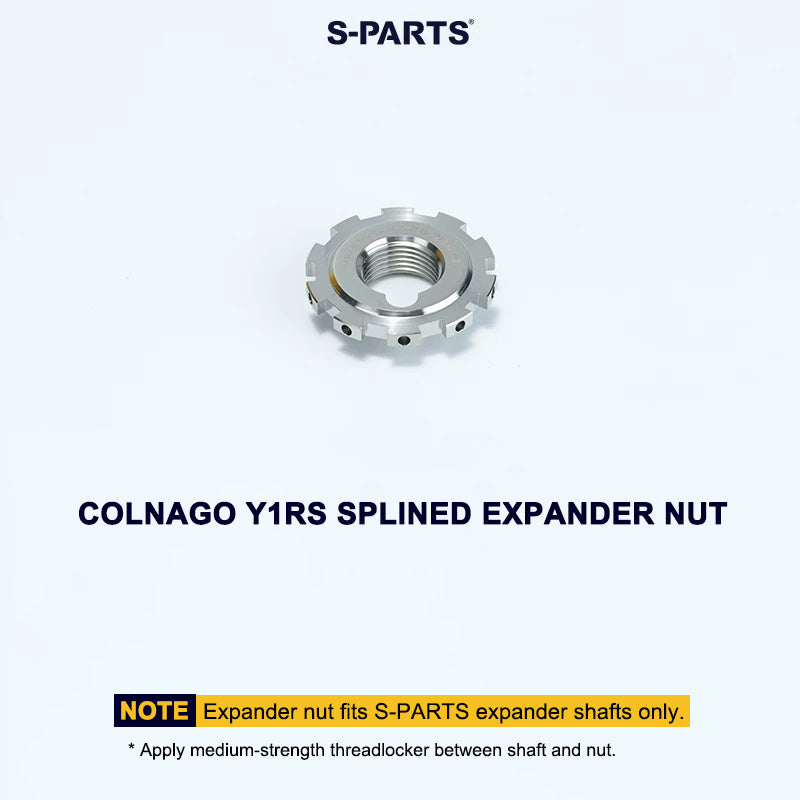

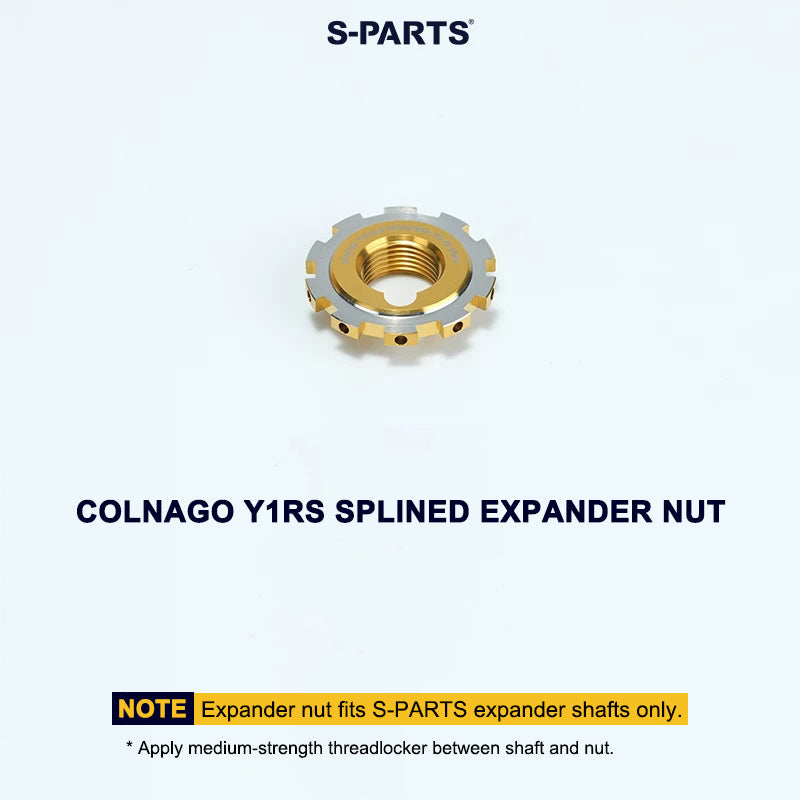

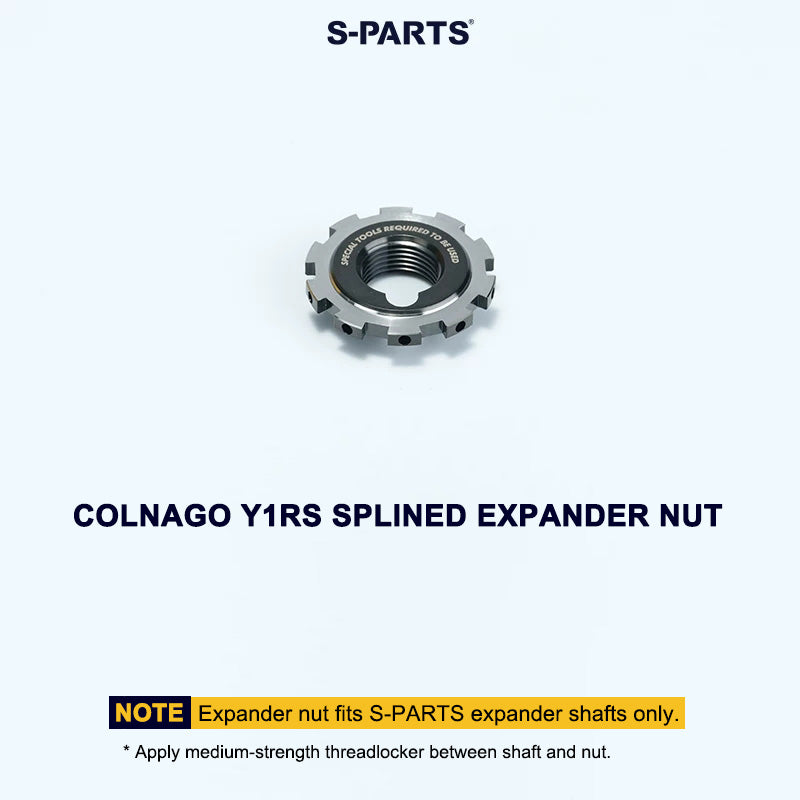

- 1 × Y1RS Splined Expander Nut

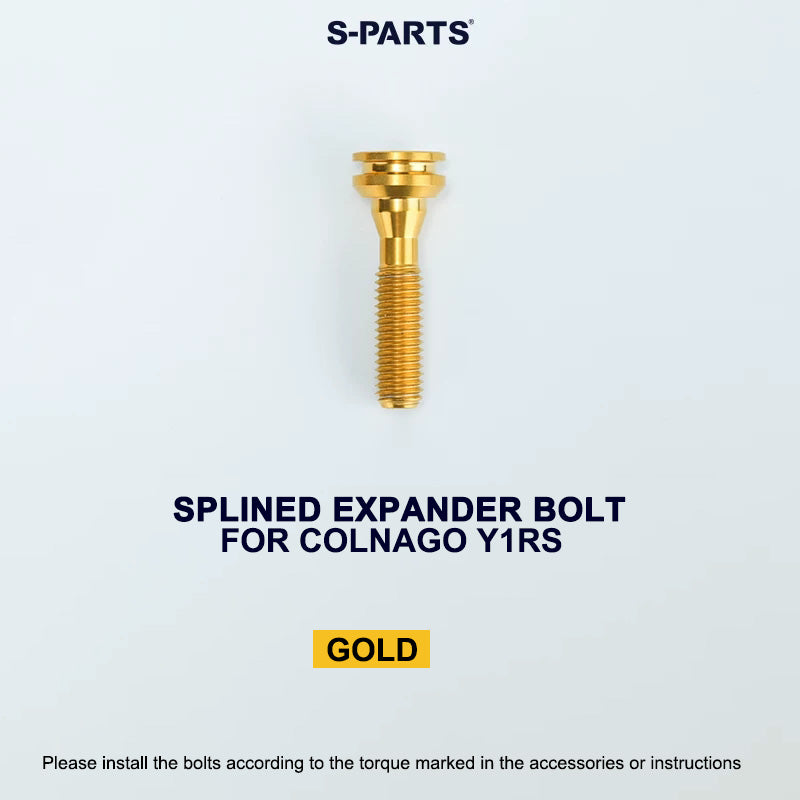

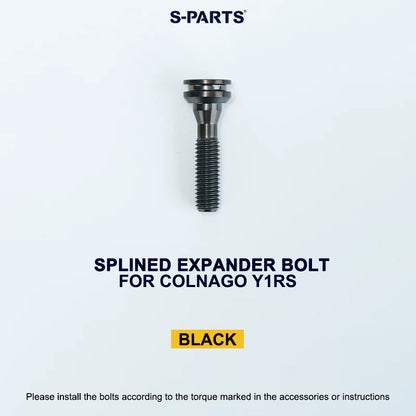

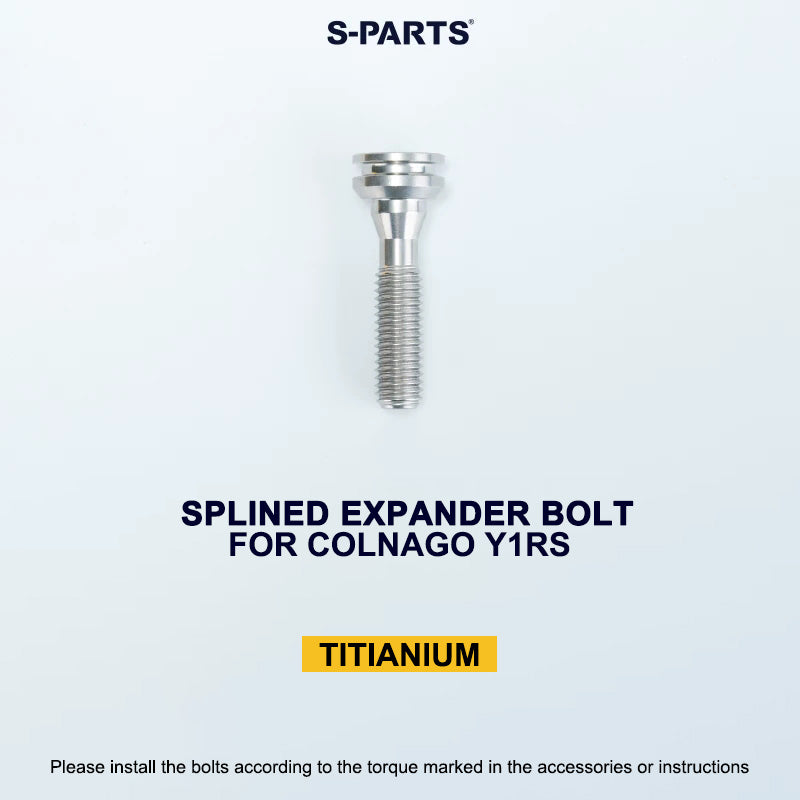

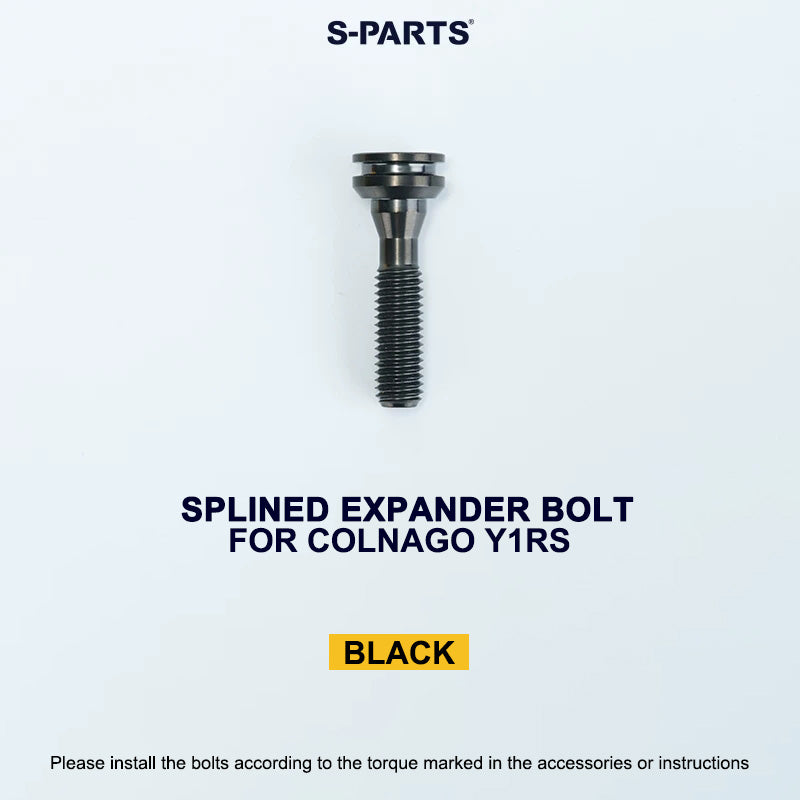

- 1 × Y1RS Expander Bolt
Key Features
Purpose-Built for COLNAGO Y1RS
Designed specifically for the COLNAGO Y1RS, with dedicated XS, S, M, and L versions to cover the available size configurations.

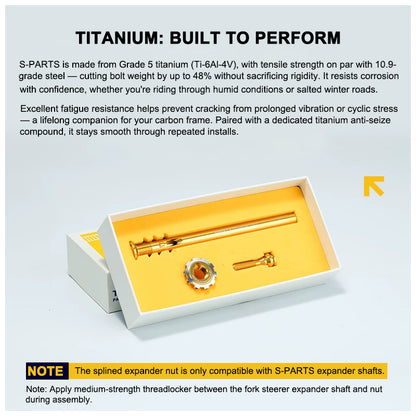

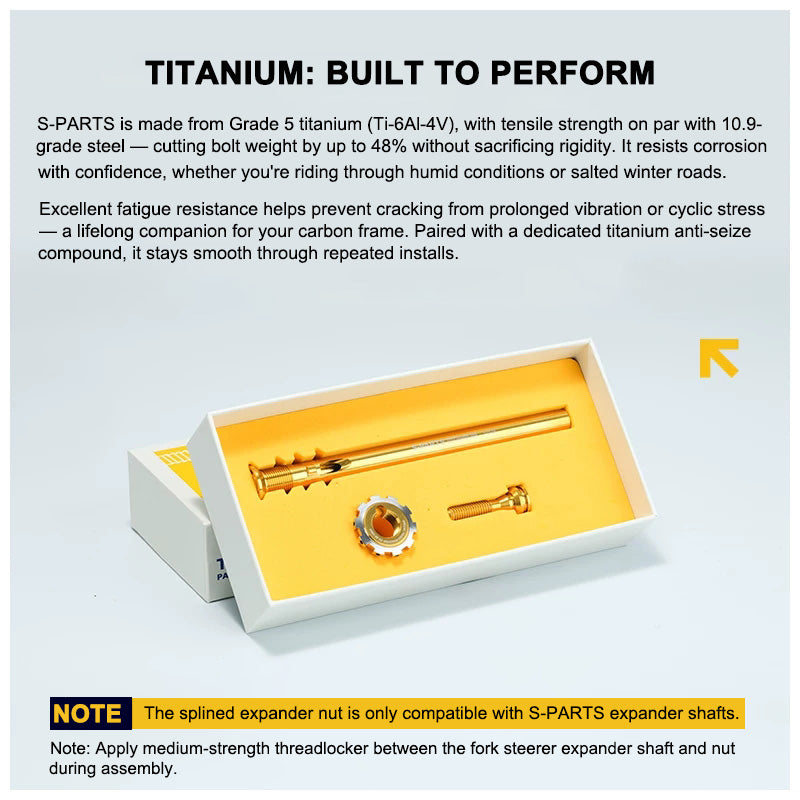

Grade 5 Titanium Construction
Made from Grade 5 Titanium (Ti-6Al-4V). Its tensile strength is comparable to 10.9-grade steel, while its corrosion resistance makes it well suited to bicycle components exposed to moisture and changing riding conditions.
Lightweight Upgrade
Compared with comparable steel hardware, the titanium construction provides approximately 50% weight reduction, helping reduce unnecessary weight in the front-end hardware.

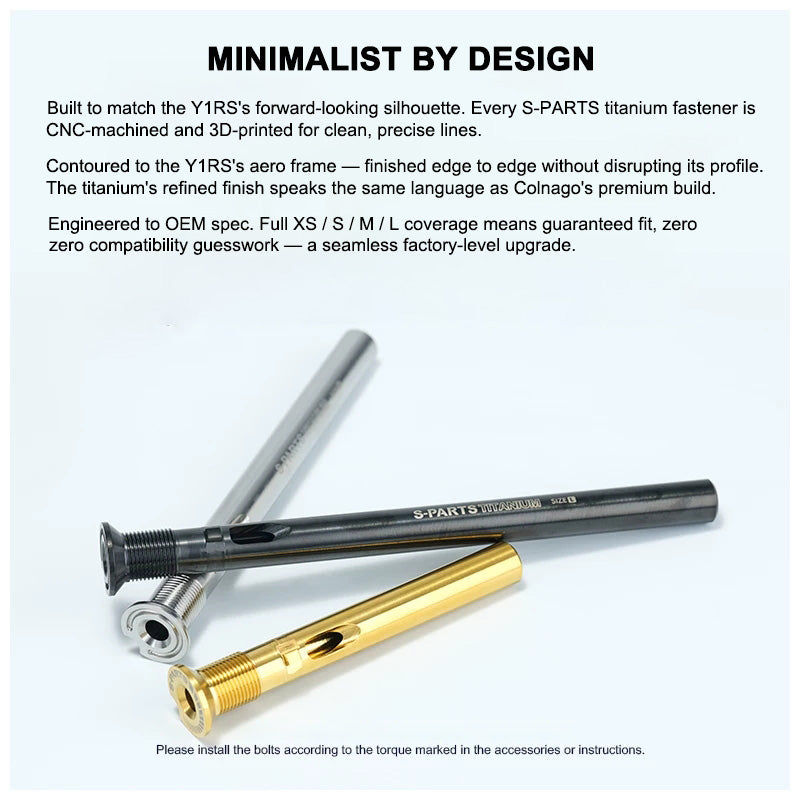

Precision CNC & 3D-Printing Processes
The components are manufactured using CNC machining and 3D-printing processes, with carefully finished edges designed to complement the clean, distinctive lines of the COLNAGO Y1RS.
Steering Precision and Response
Designed to reinforce steerer rigidity and support more precise, responsive steering, complementing the aerodynamic design of the Y1RS.
Corrosion & Fatigue Resistance
The titanium construction provides excellent corrosion resistance and resistance to metal fatigue, helping the components withstand moisture, vibration, and repeated loading during long-term use.
Installation
- Tool required: 5 mm hex key.
- Apply medium-strength threadlocker between the fork steerer expander shaft and the splined expander nut during assembly.
- Apply a suitable titanium anti-seize compound during installation to help prevent seizing and make future disassembly easier.
- Important: The splined expander nut is compatible only with S-PARTS fork steerer expander shafts.
- Select the correct XS, S, M, or L version for your COLNAGO Y1RS configuration.
Available Finishes
- Gold
- Raw Titanium
- Black
