Product Description

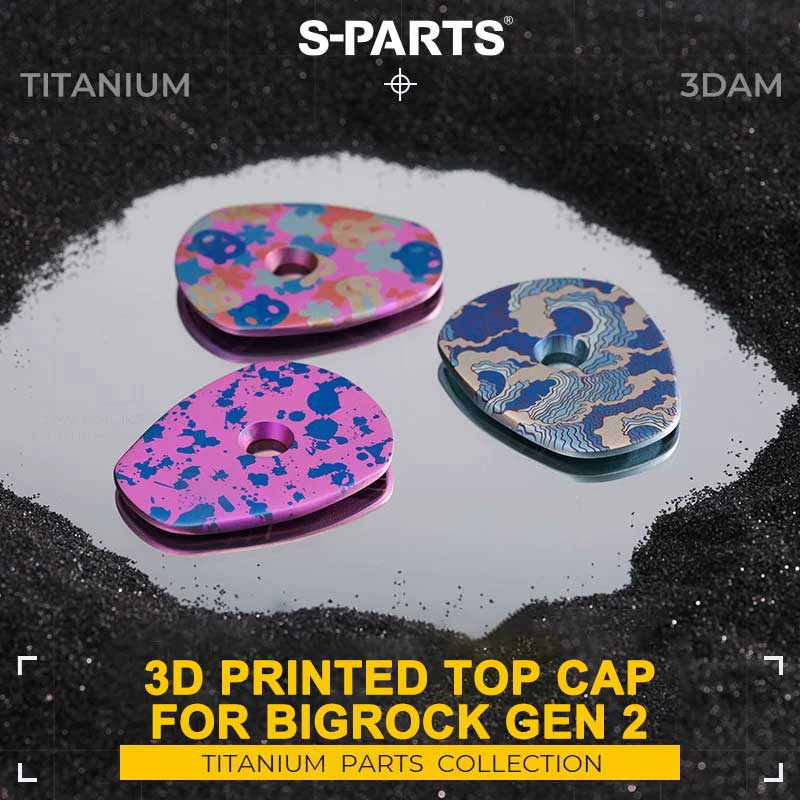

S-PARTS BIGROCK Gen 2 3DAM Titanium Headset Top Cap

Exclusive 3D Printed Titanium Upgrade for BIGROCK Gen 2 Cockpit

Designed specifically for the BIGROCK Gen 2 integrated cockpit, the S-PARTS 3DAM Titanium Headset Top Cap combines advanced metal additive manufacturing technology with unique titanium artwork.

Unlike traditional CNC machining, which removes material from a solid block, metal 3D printing builds the component layer by layer using titanium powder. This manufacturing method allows S-PARTS to create optimized lightweight structures, complex surface designs, and distinctive patterns that are difficult to achieve with conventional machining.

With a weight of only 8.7g per set, this titanium headset top cap delivers a perfect balance of lightweight performance, structural strength, and personalized bicycle aesthetics.

Note: This is a proprietary non-standard shaped headset top cap designed only for BIGROCK Gen 2 integrated cockpit systems. It is not compatible with standard round headset top cap designs.

Product Specifications

Available Finishes

S-PARTS combines titanium anodizing technology with custom-designed patterns to create unique surface finishes inspired by geometry, nature, and modern cycling aesthetics.

Available options:

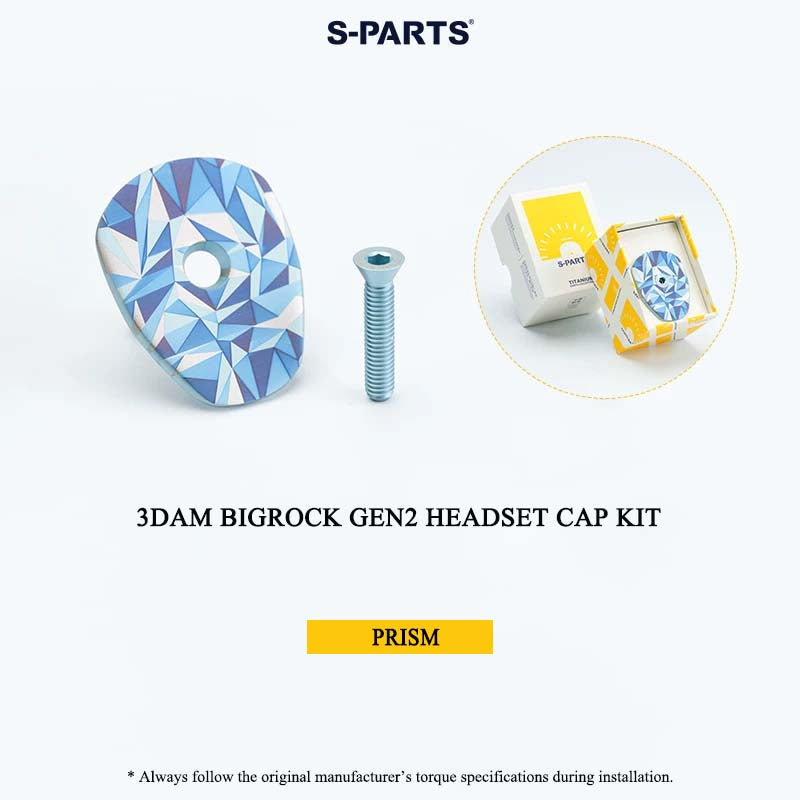

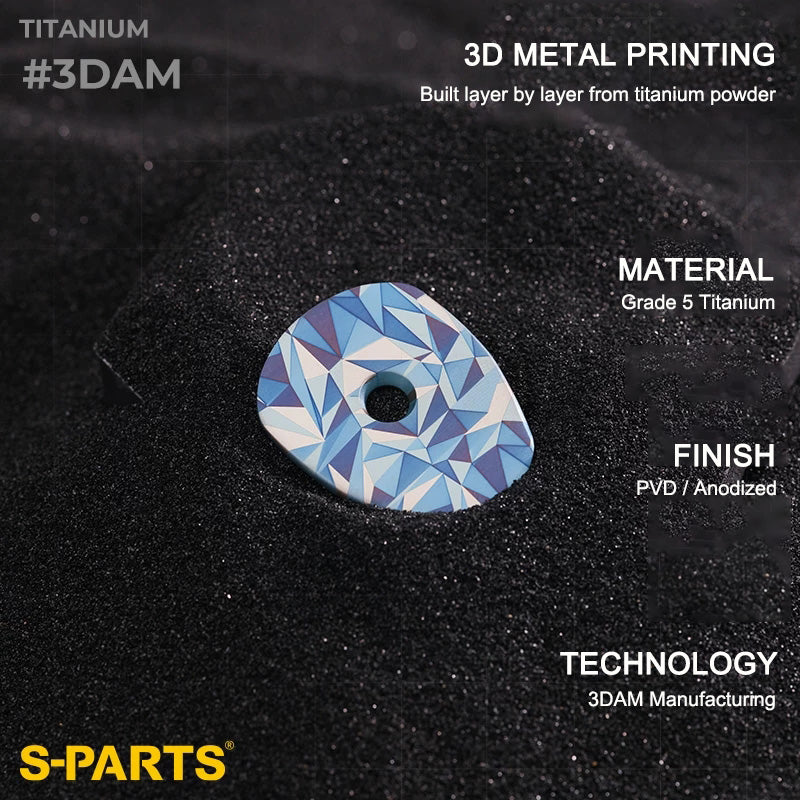

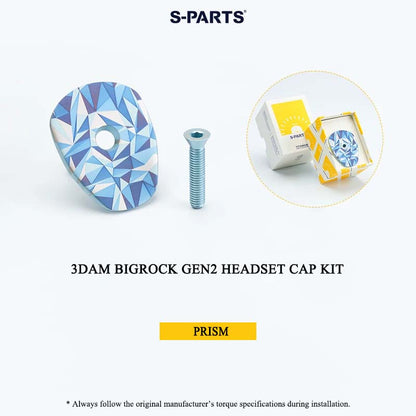

• Prism – prism-effect titanium finish with shifting rainbow reflections

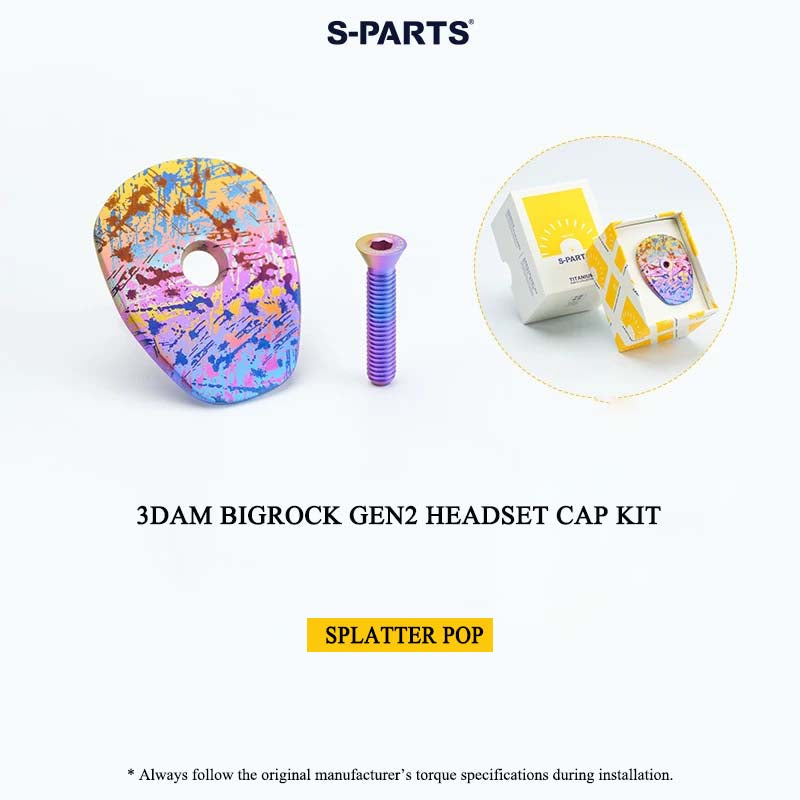

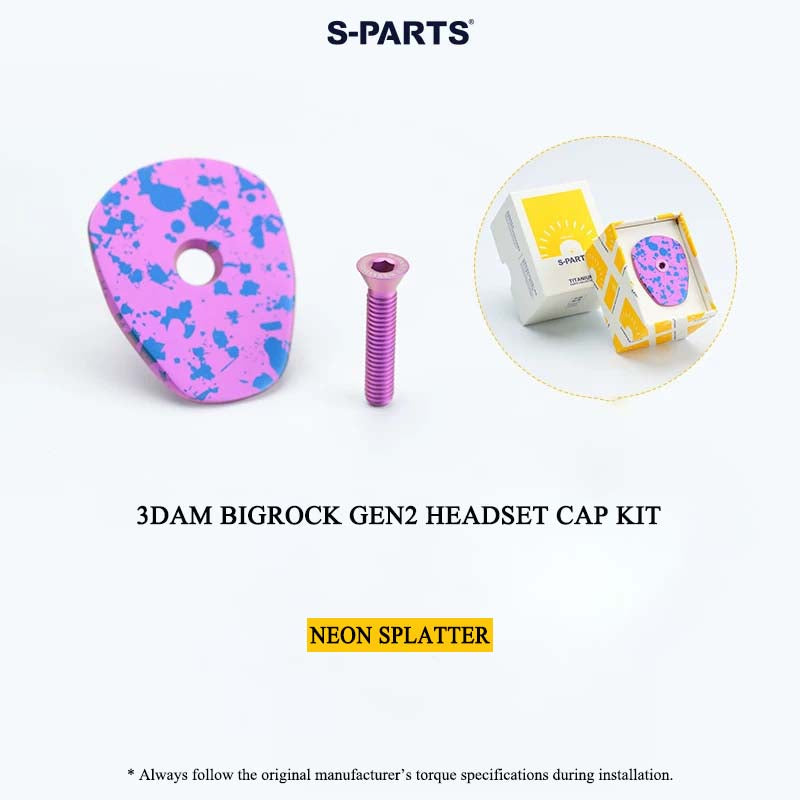

• Neon Splatter – vibrant high-saturation splash pattern

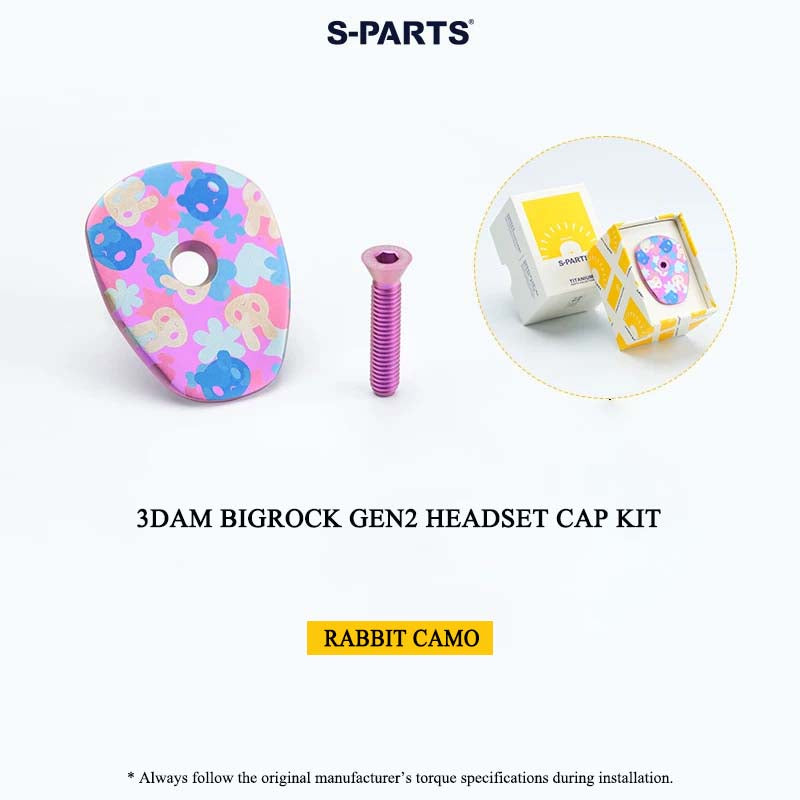

• Bunny Camo – camouflage-inspired artistic texture

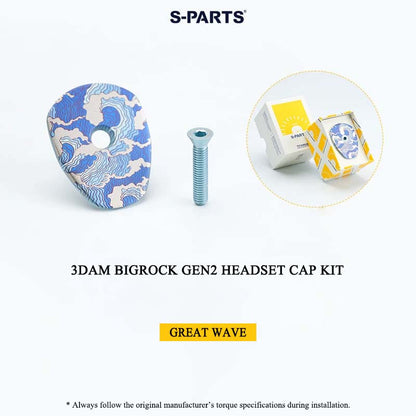

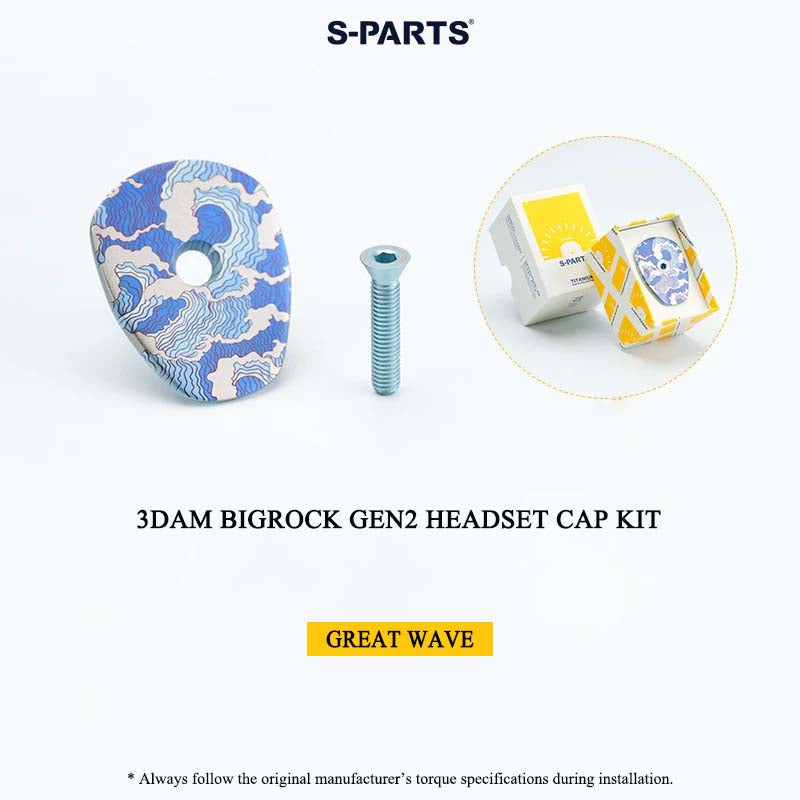

• Great Wave (Kanagawa) – inspired by the iconic Japanese wave artwork

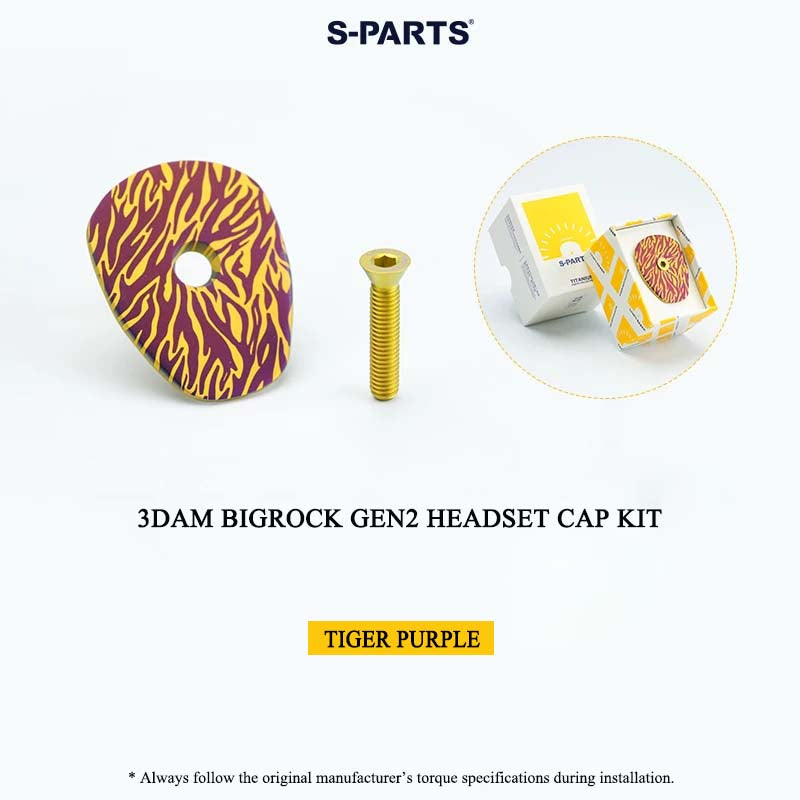

• Tiger Purple-Gold – purple and gold gradient titanium finish

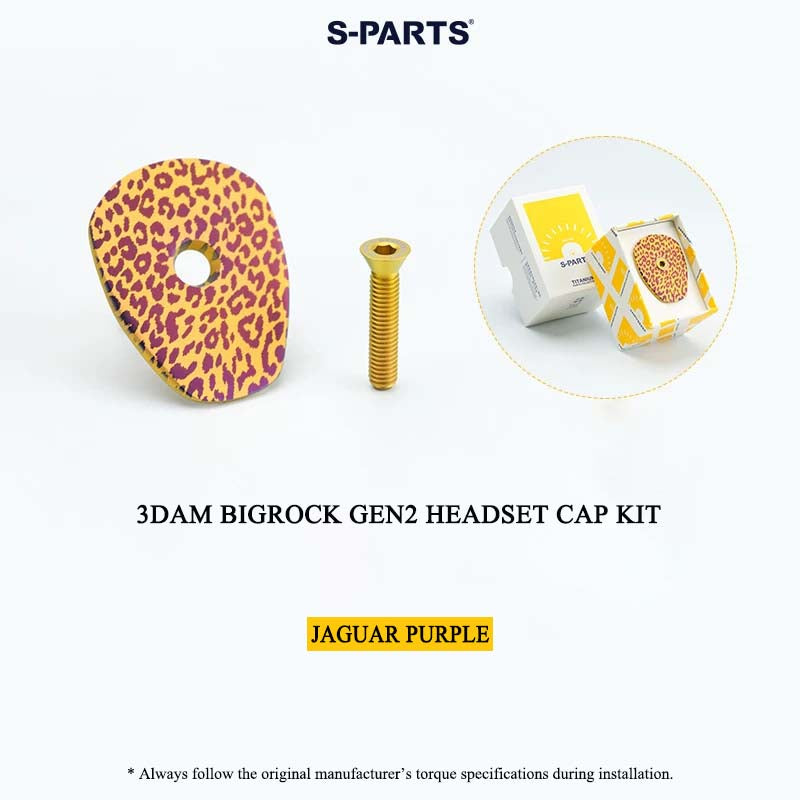

• Jaguar Purple-Gold – premium animal-inspired pattern with titanium color effects

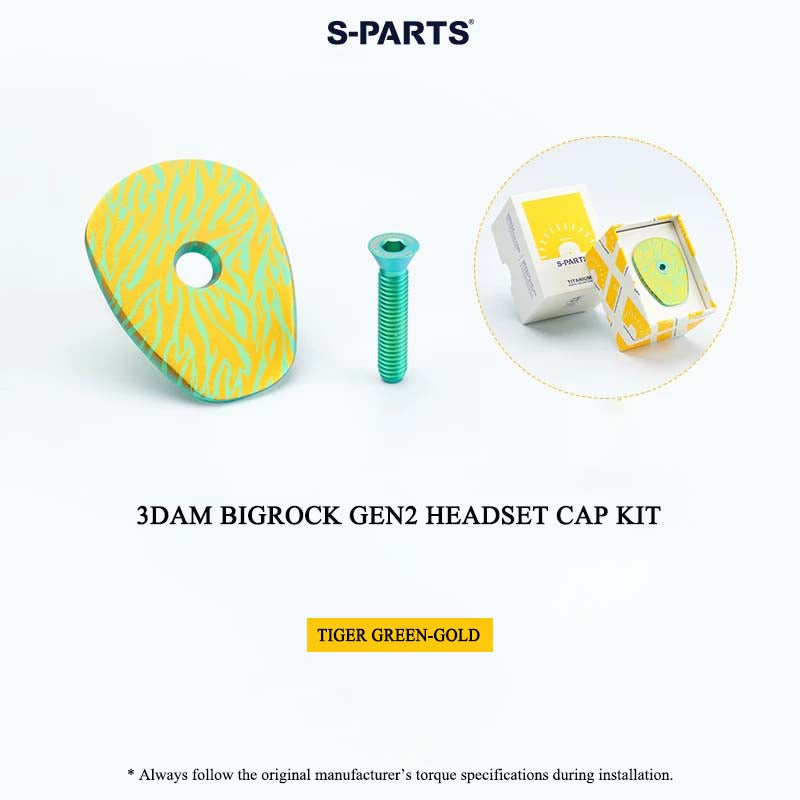

• Tiger Green-Gold – green and gold titanium gradient finish

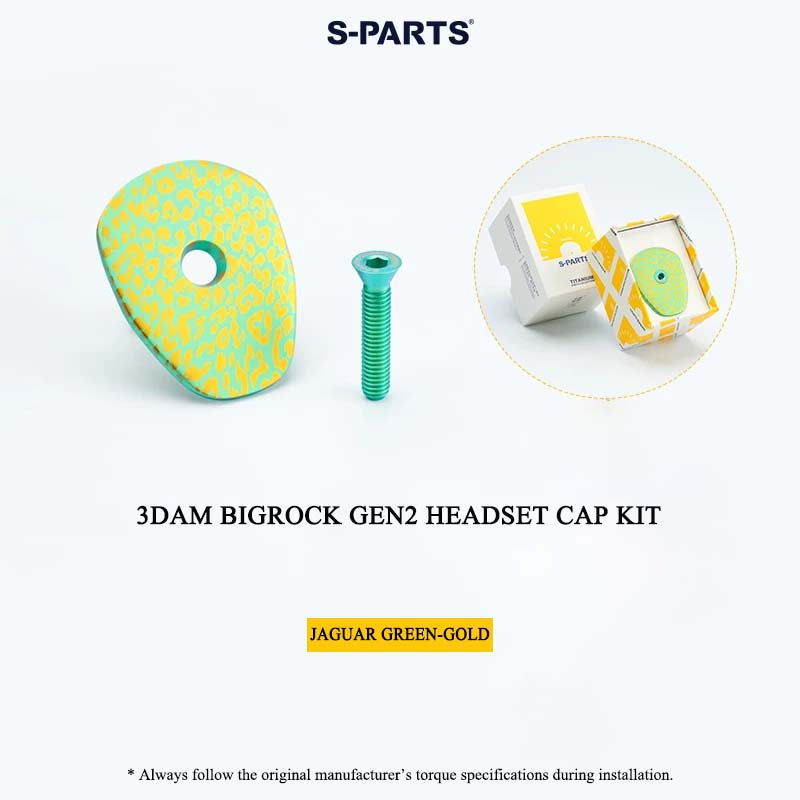

• Jaguar Green-Gold – unique green-gold titanium artwork

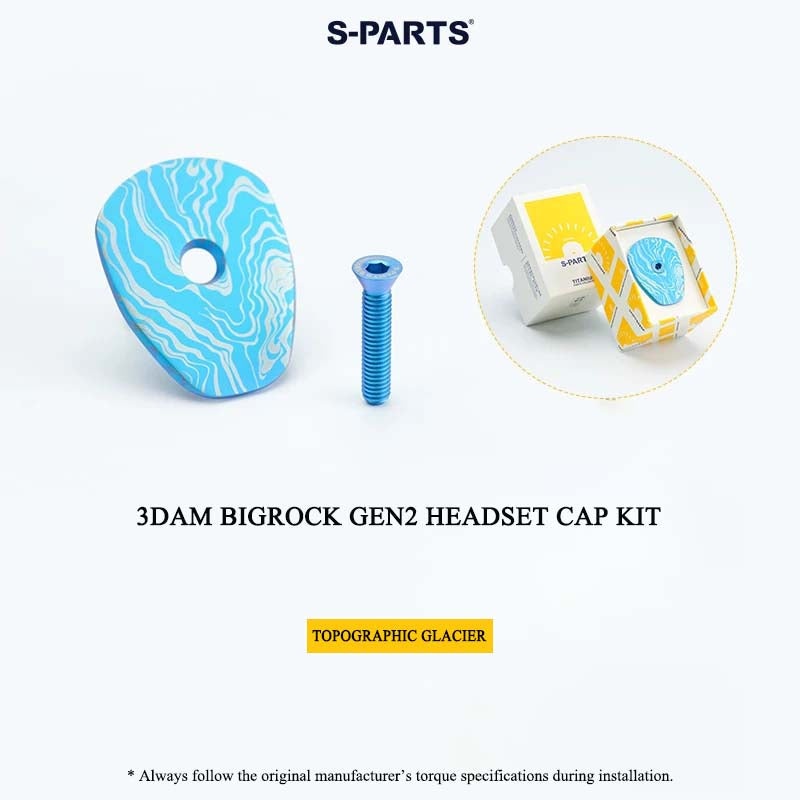

• Topographic Glacier – topographic contour-inspired surface design

Key Features

● BIGROCK Gen 2 Exclusive Fitment

Custom-designed specifically for the BIGROCK Gen 2 integrated cockpit with its unique non-standard shape.

● Lightweight Grade 5 Titanium Construction

Made from premium Ti-6Al-4V (Grade 5 Titanium) alloy, offering excellent strength-to-weight ratio and corrosion resistance.

● Advanced 3D Printed Titanium Manufacturing

Produced through professional SLM metal additive manufacturing technology, enabling complex lightweight structures beyond traditional machining limitations.

● Unique Titanium Artistic Finishes

Multiple custom patterns and anodized titanium colors create a distinctive cockpit upgrade that stands apart from ordinary components.

● Engineering Meets Cycling Art

A small but highly visible upgrade that combines performance engineering with personalized style.

Advanced Titanium 3D Printing Technology

From Digital Design to Titanium Performance

Metal additive manufacturing uses digital 3D modeling technology to build components layer by layer from titanium powder.

Compared with traditional machining methods that remove material from a solid block, 3D printing allows engineers to:

• Create complex geometric structures
• Optimize material distribution
• Reduce unnecessary weight
• Achieve unique surface designs

This technology is especially valuable in weight-sensitive applications such as high-performance bicycles, motorcycles, and automotive components.

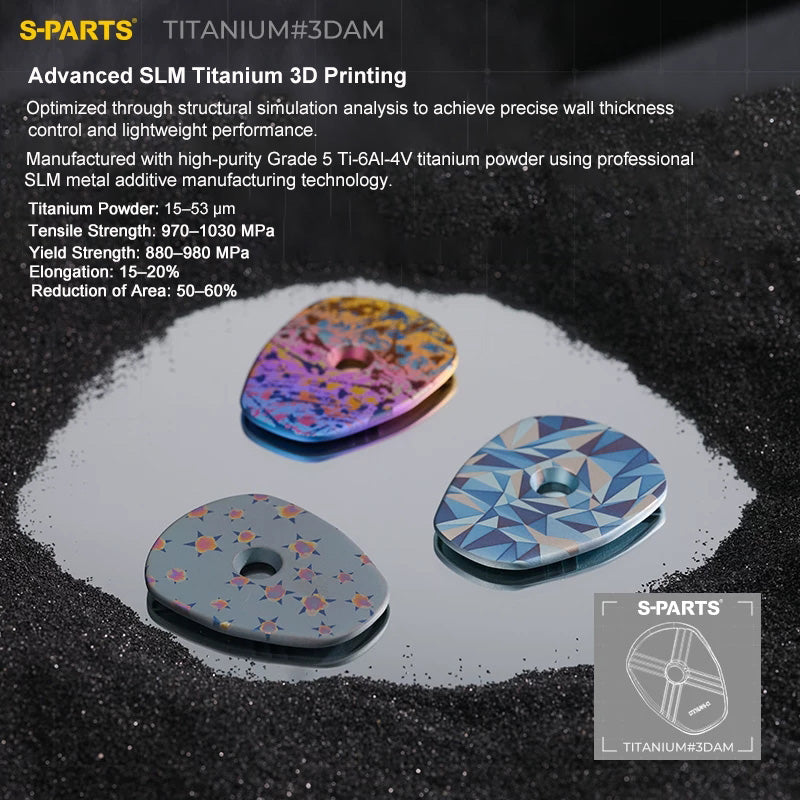

Optimized Structure & Material Performance

S-PARTS uses professional simulation analysis during product development to optimize wall thickness and structural design according to different stress areas.

The components are manufactured using high-purity Grade 5 titanium powder with particle size controlled at:

15–53 μm

After heat treatment, the printed titanium material achieves excellent mechanical performance:

• Tensile Strength: 970–1030 MPa
• Yield Strength: 880–980 MPa
• Elongation: 15–20%
• Reduction of Area: 50–60%

The performance is comparable to traditional forged TC4 titanium components while providing greater freedom for lightweight and artistic design.

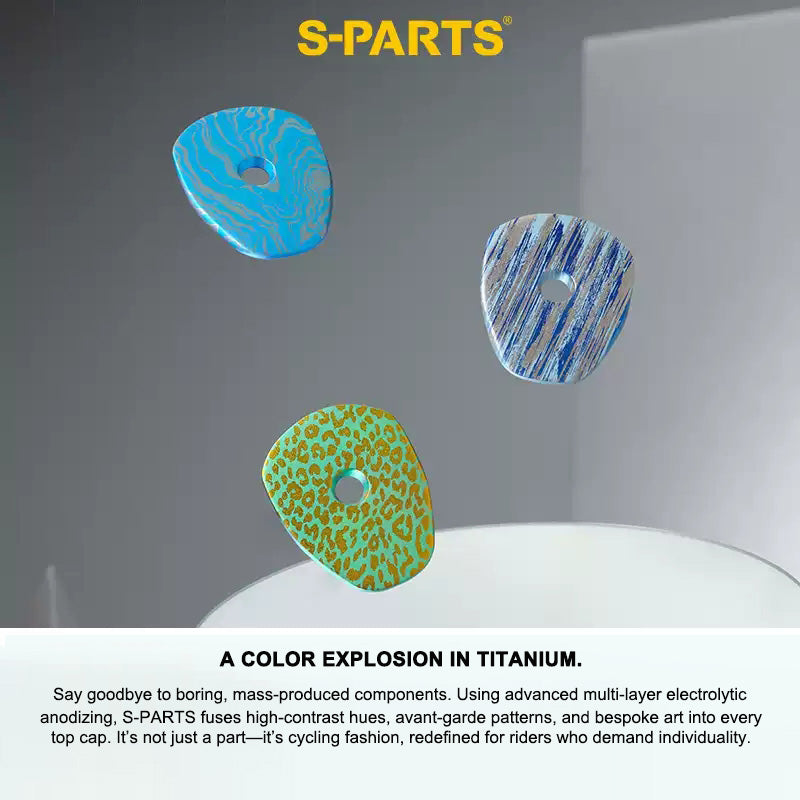

Multi-Layer Titanium Anodized Finish

Each S-PARTS 3DAM titanium component receives a carefully developed multi-layer electrochemical coloring process.

The finish combines:

• Natural titanium texture
• High-saturation color effects
• Custom graphic patterns

Creating a unique visual identity that cannot be replicated by ordinary aluminum or carbon components.

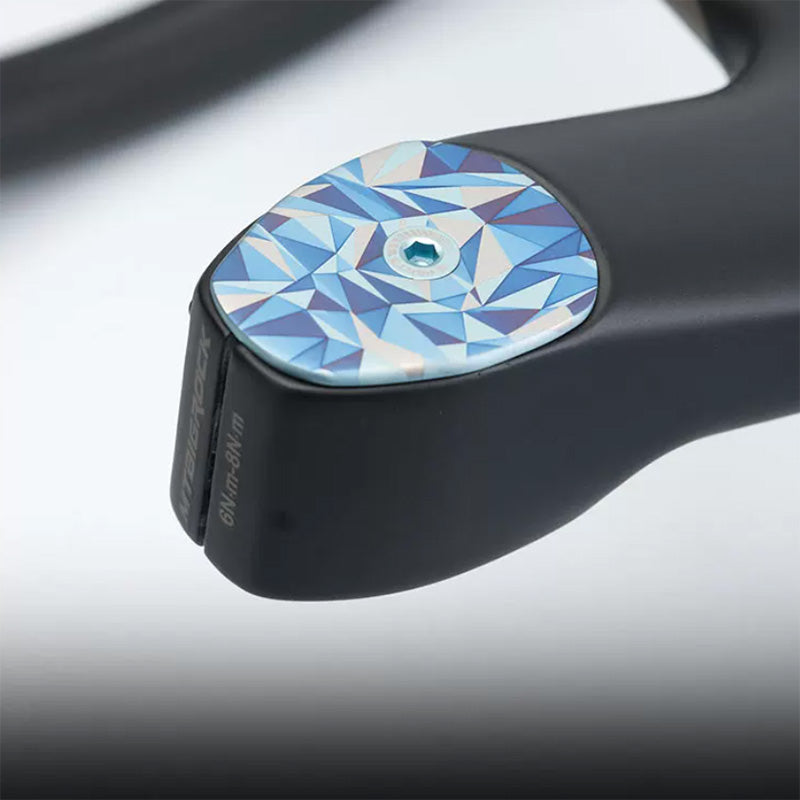

Installation Notes

• Designed exclusively for BIGROCK Gen 2 integrated cockpit systems.
• Use a 4mm hex Allen key for installation.

• Do not exceed the recommended torque specification from the cockpit manufacturer.

S-PARTS 3DAM Philosophy

3D printing is not simply a replacement for traditional manufacturing. At S-PARTS, we combine digital design, titanium material expertise, and precision finishing to explore new possibilities in lightweight bicycle components.

From titanium powder to the final anodized surface, every S-PARTS 3DAM component represents the balance between engineering performance and cycling aesthetics.

More than a component. A signature detail for your bike.
