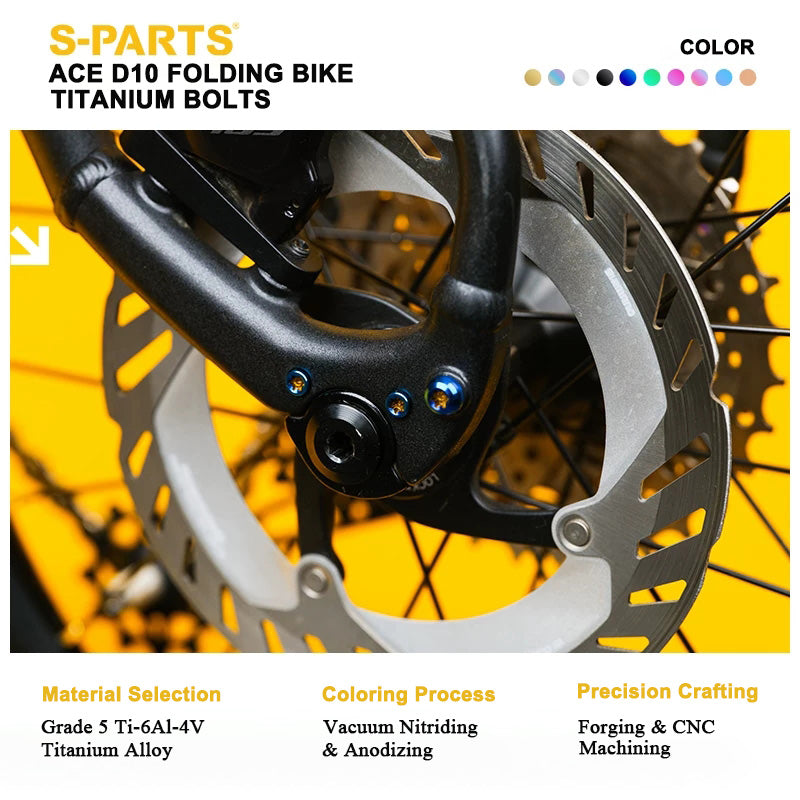

S-PARTS ACE D10 Folding Bike Titanium Bolt Upgrade
Upgrade key fastening points on your ACE D10 folding bike with S-PARTS Grade 5 Titanium (Ti-6Al-4V) hardware.
With 18 individual bolt options, this range covers the head tube, folding hinges, handlebar, saddle, frame, rear suspension, crank and rear derailleur.
Key Specifications
| Specification | Details |
|---|---|
| Application | ACE D10 Folding Bike |
| Material | Grade 5 Titanium (Ti-6Al-4V) |
| Average Tensile Strength | >1,050 MPa |
| Weight Advantage | Approximately 50% of comparable steel fasteners |
| Available Colors | Gold, Rainbow, Titanium, Black, Blue, Green, Purple, Candy, Indigo, Copper |
| Tools | T10, T20, T25, T30 Torx; 3 mm, 4 mm, 5 mm Hex |
| Options | 18 individual variants |
18 Variant Options
| Variant | Part | Quantity | Weight | Tool |
|---|---|---|---|---|
| 1 | Head Tube Top Cap Bolt | 1 pc | 3.4 g | T30 Torx |

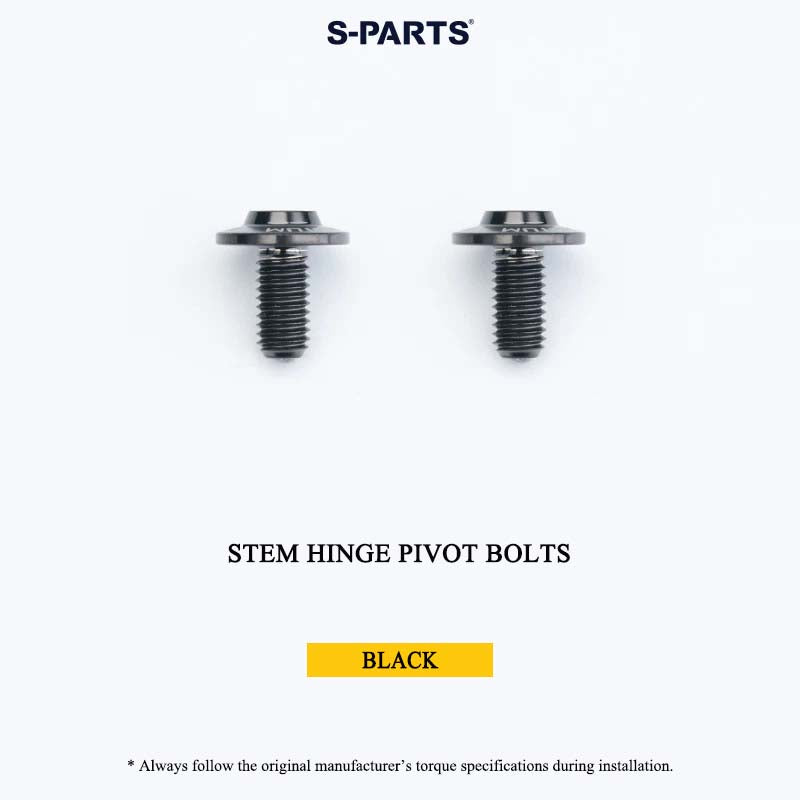

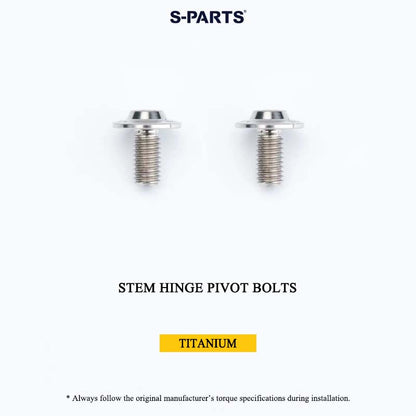

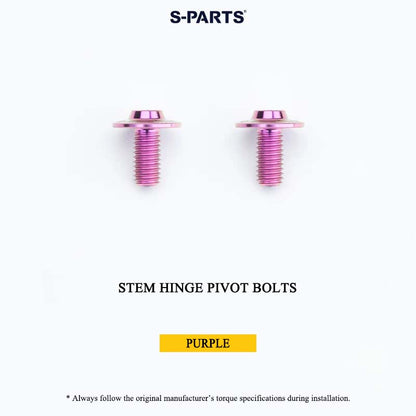

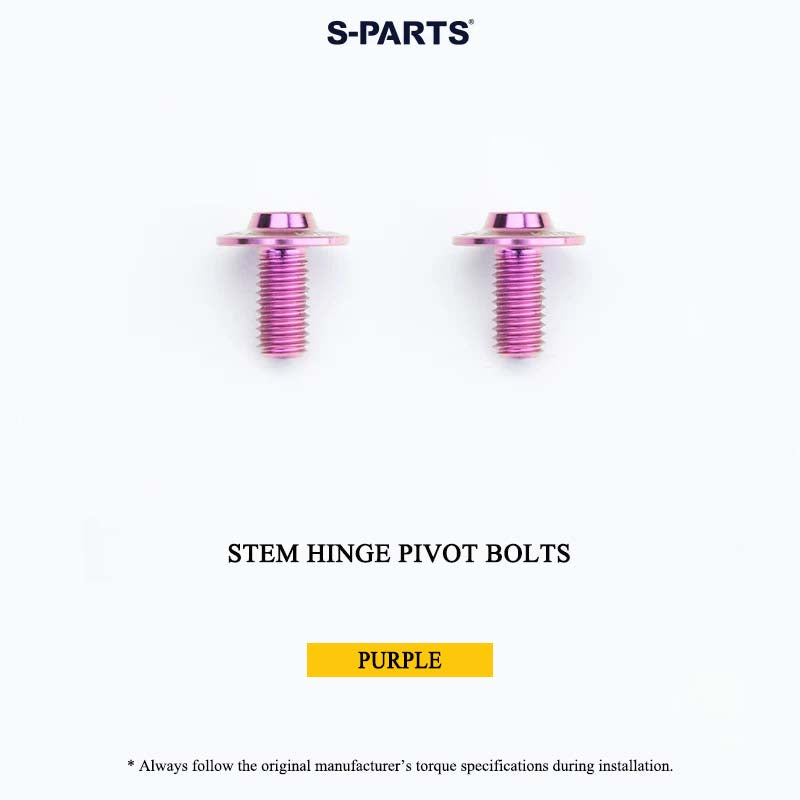

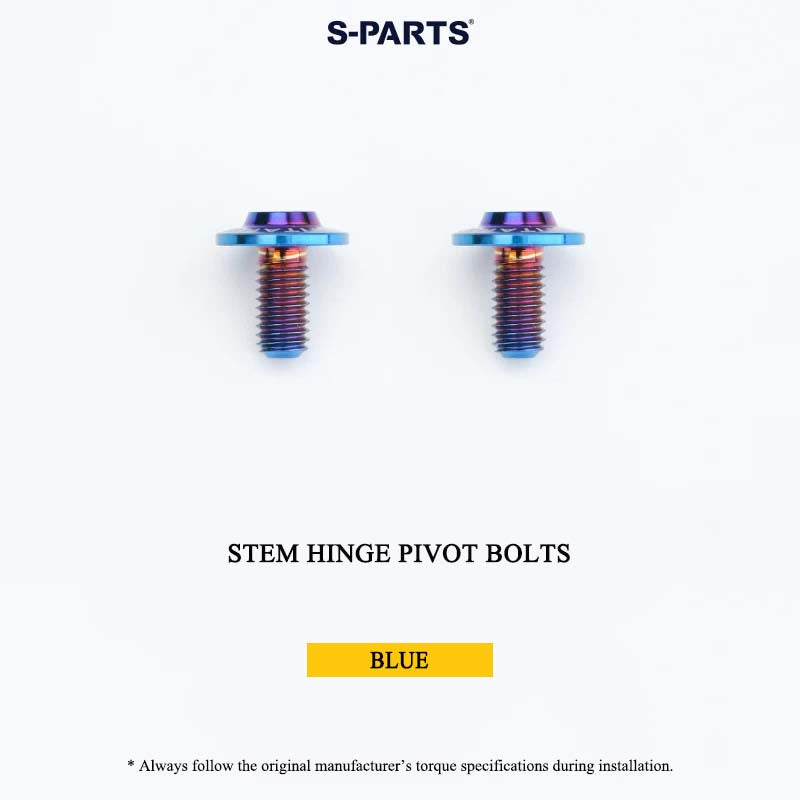

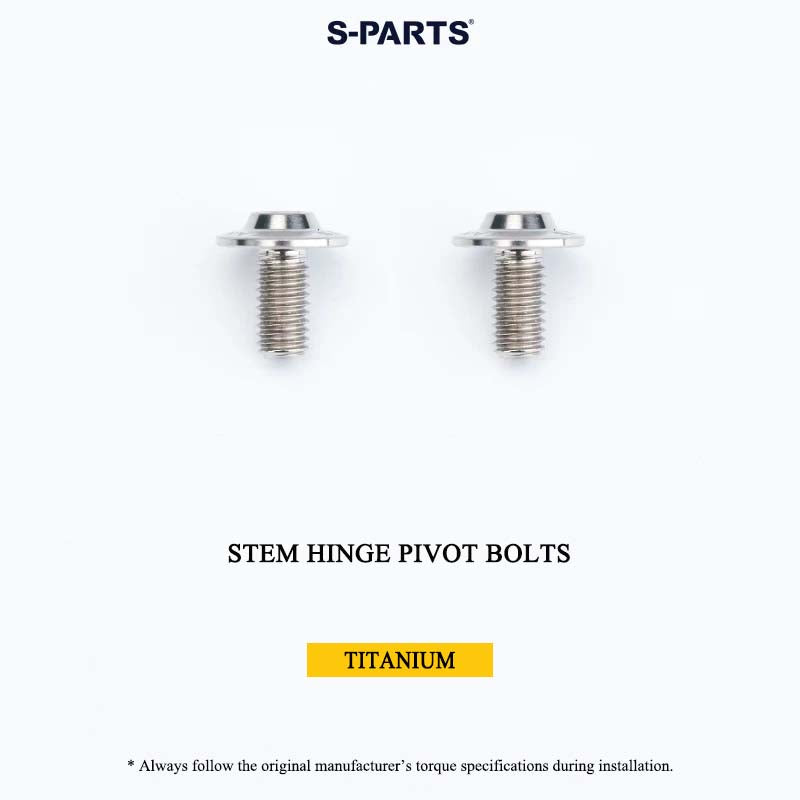

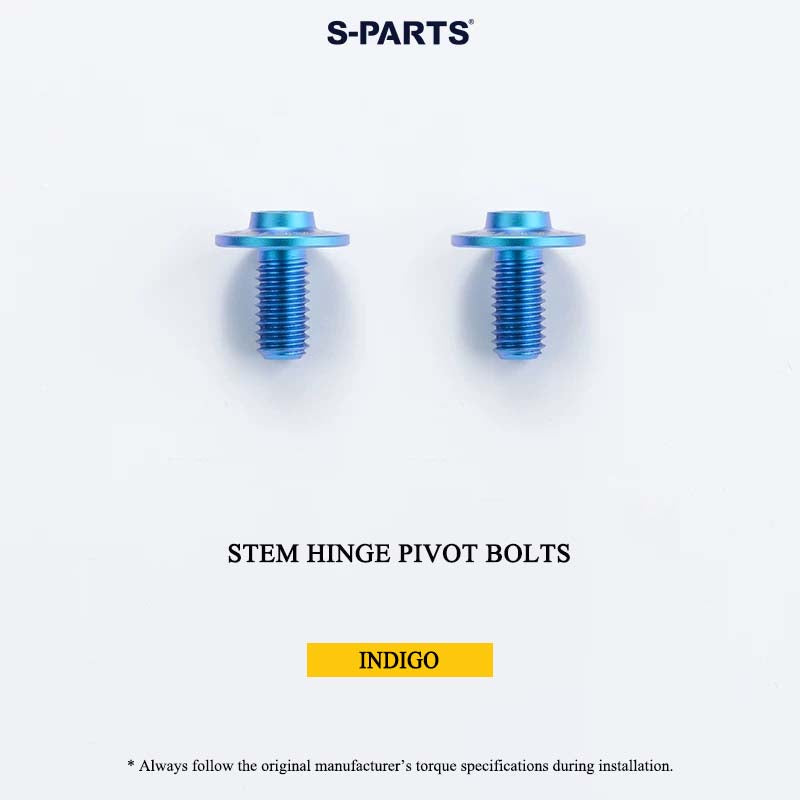

| 2 | Head Tube Folding Hinge Pivot Bolts | 2 pcs | 2.8 g/set | T25 Torx |

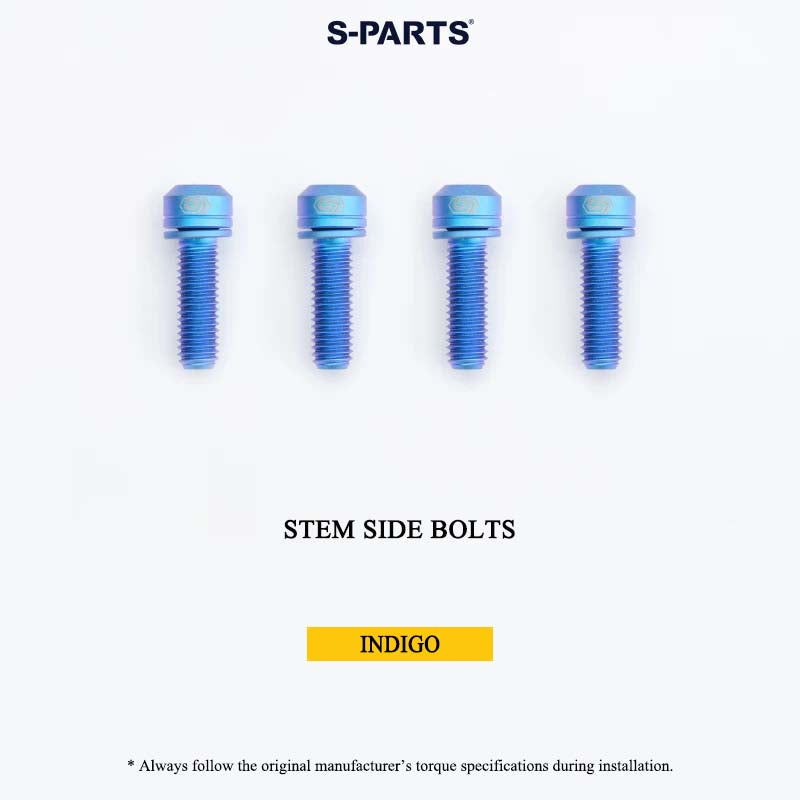

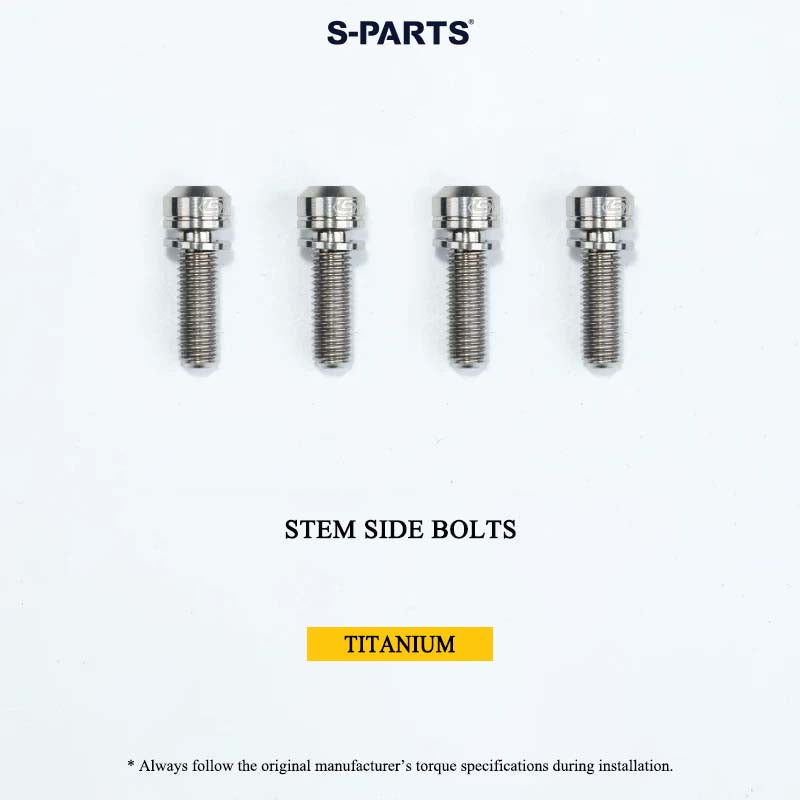

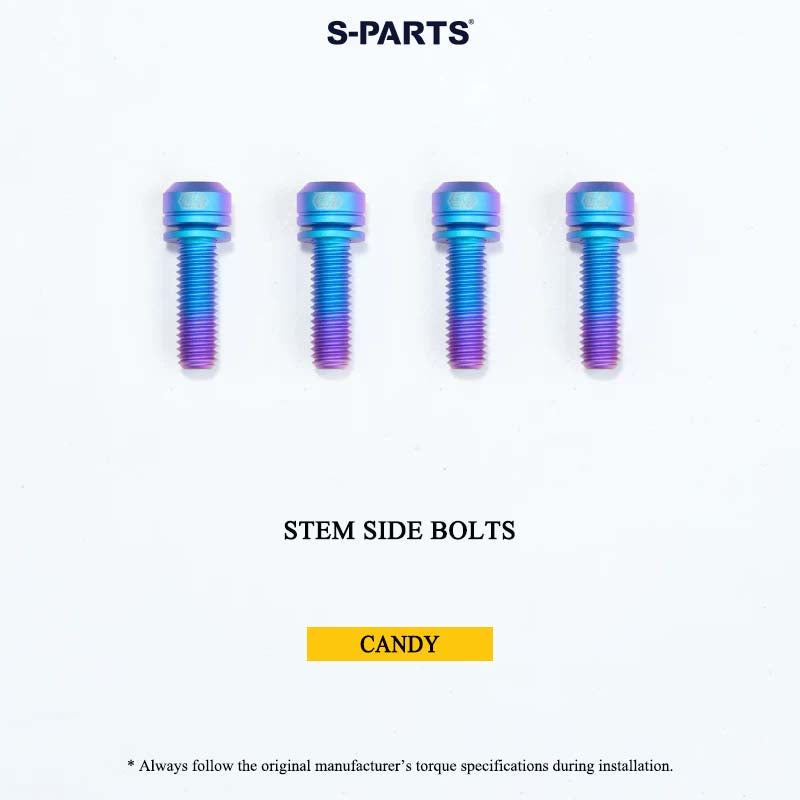

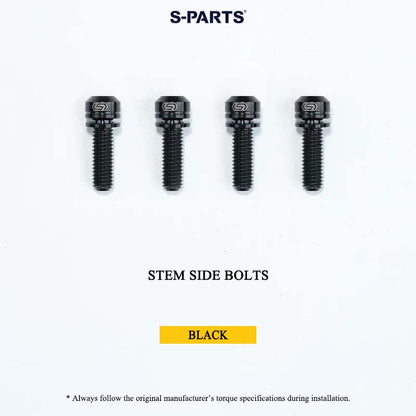

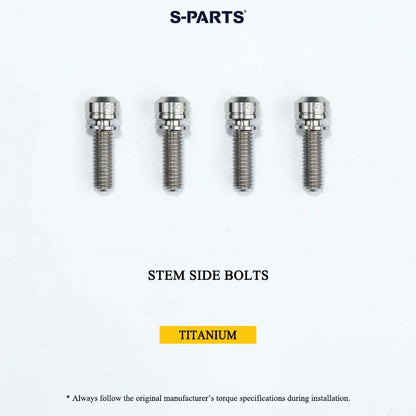

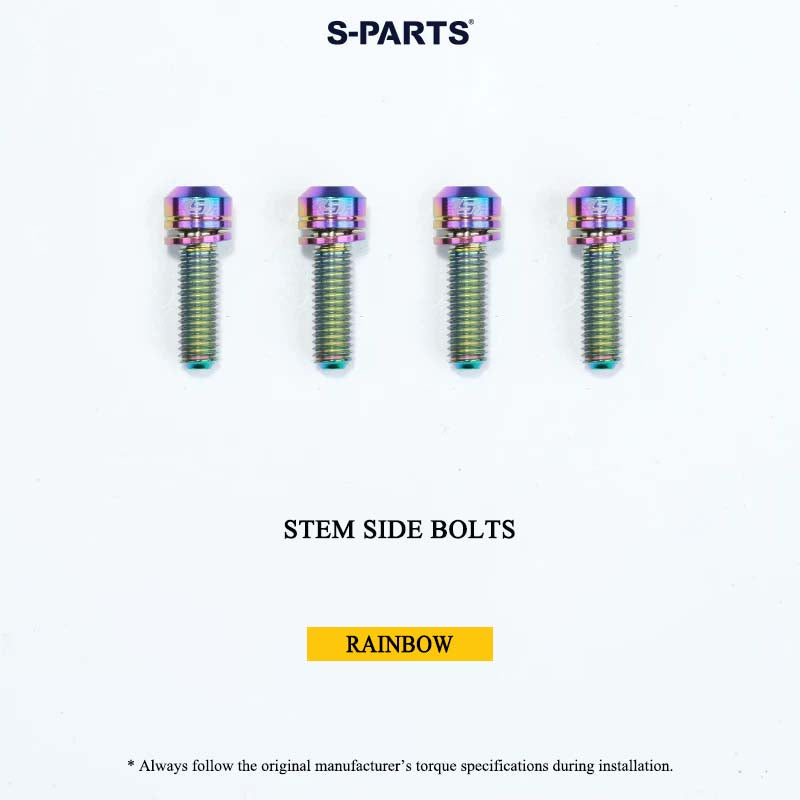

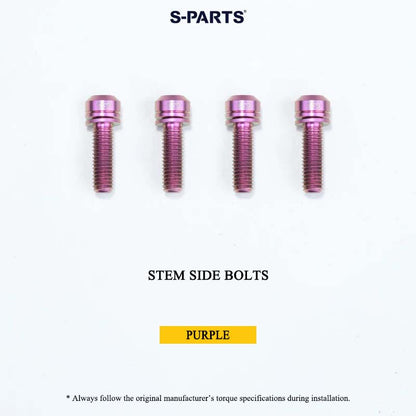

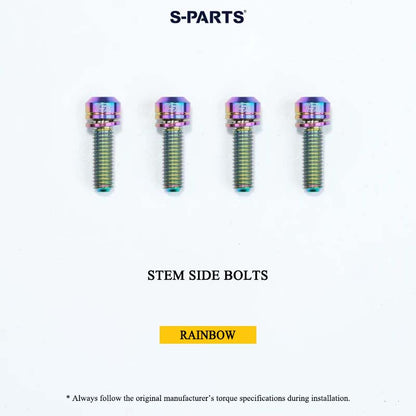

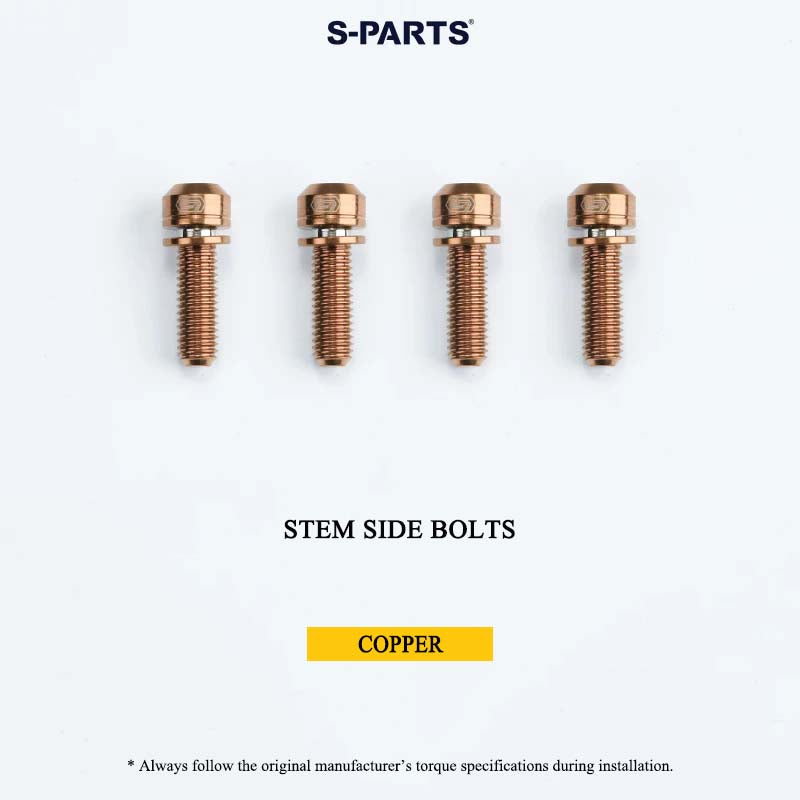

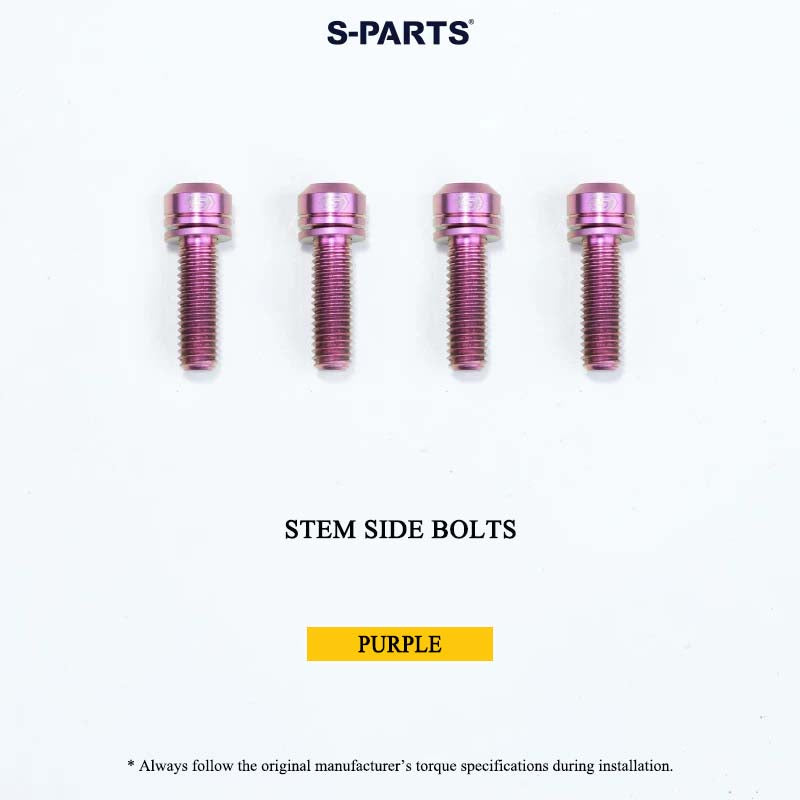

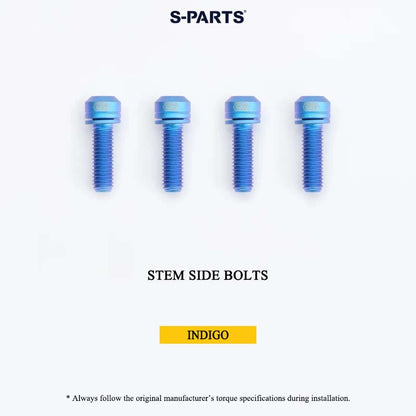

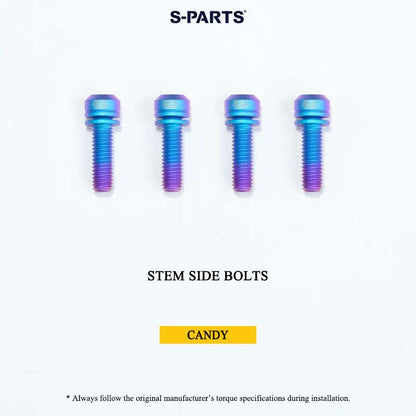

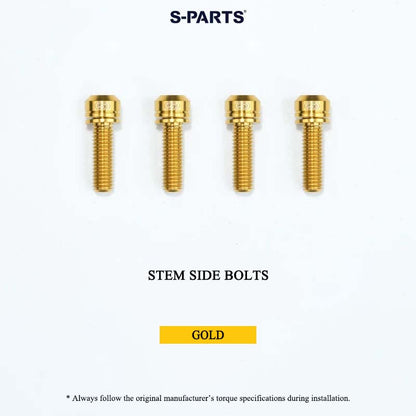

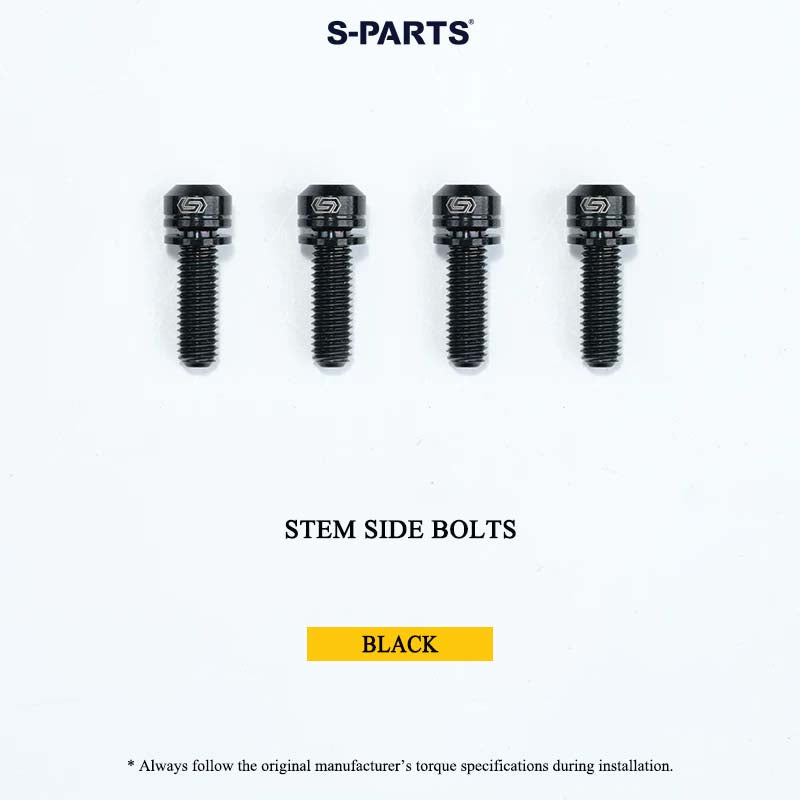

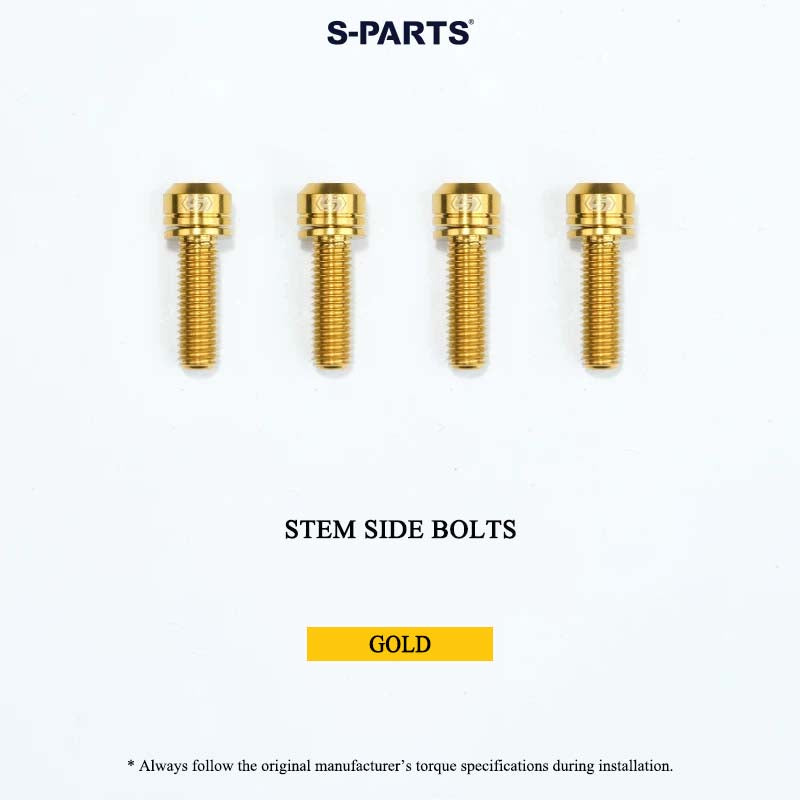

| 3 | Head Tube Side Bolts | 4 pcs | 8.1 g/set | T25 Torx |

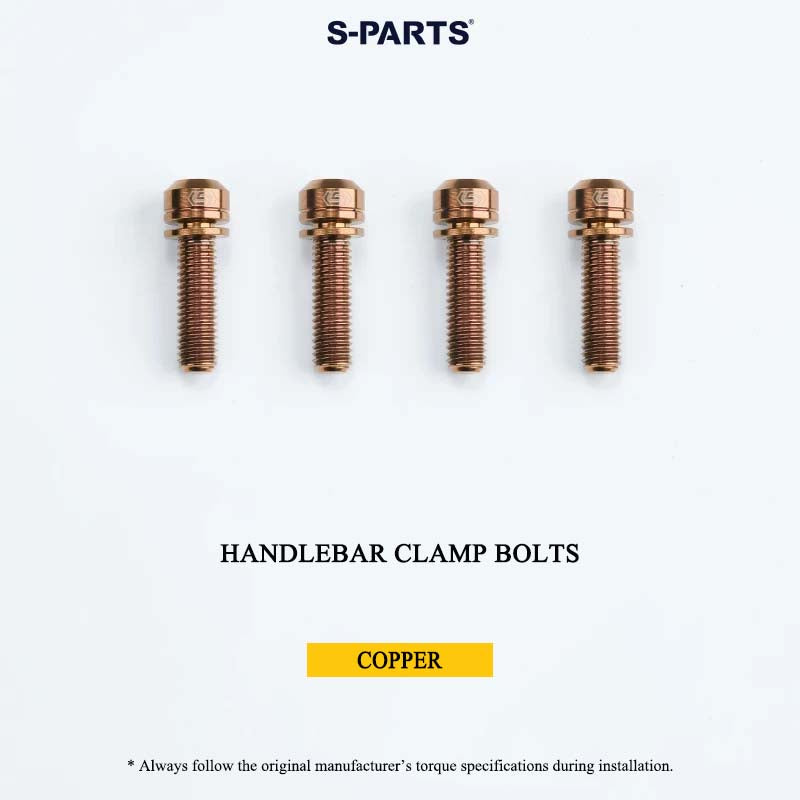

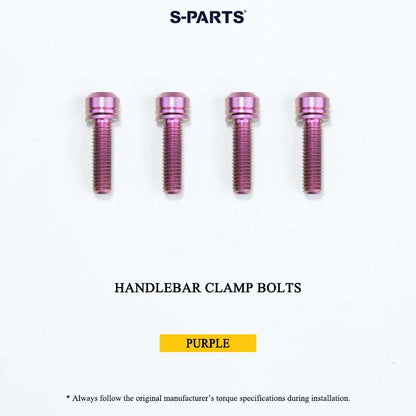

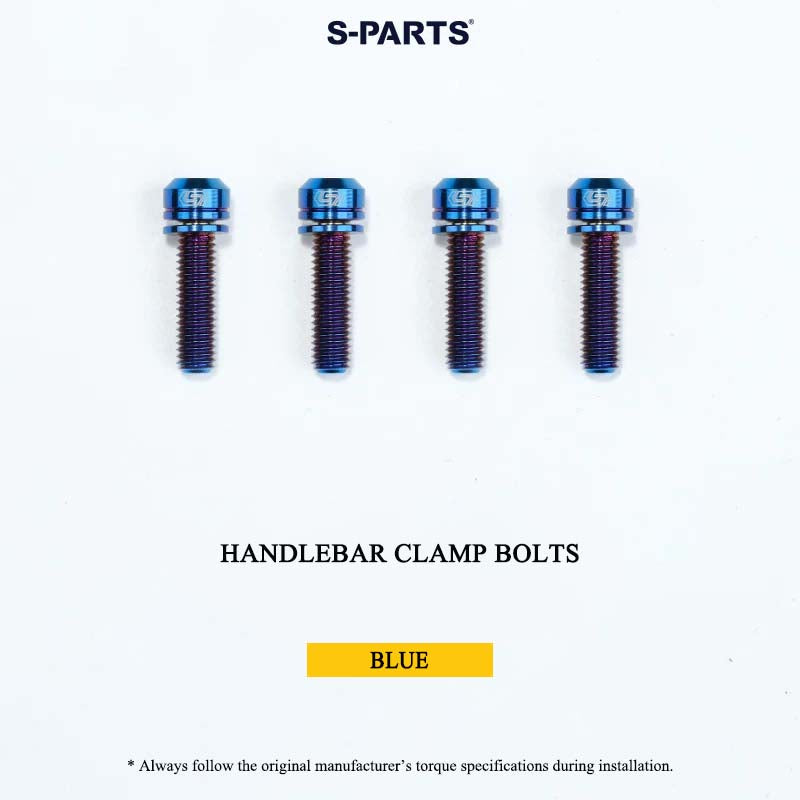

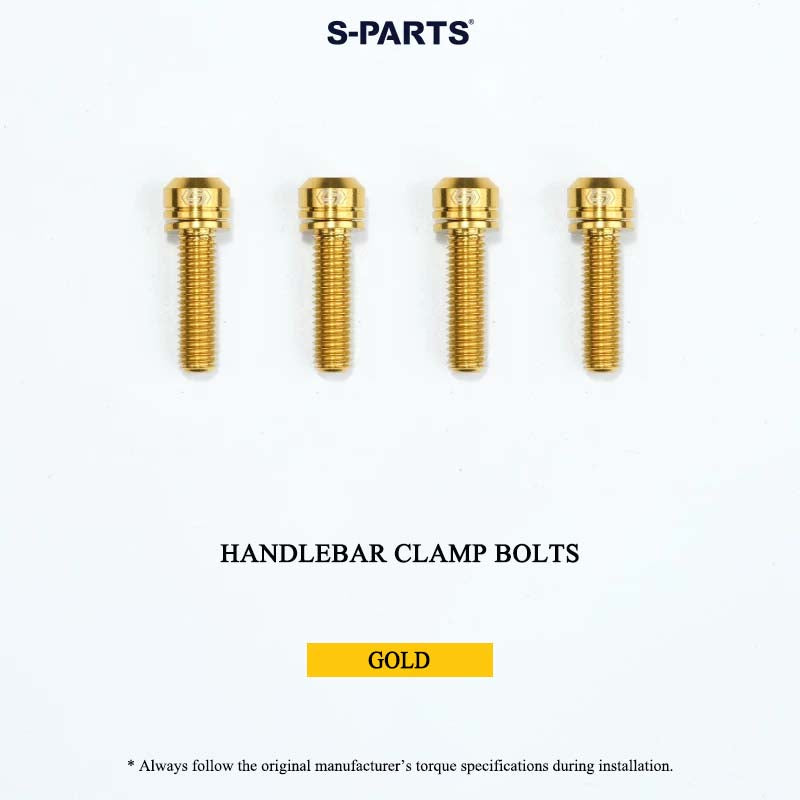

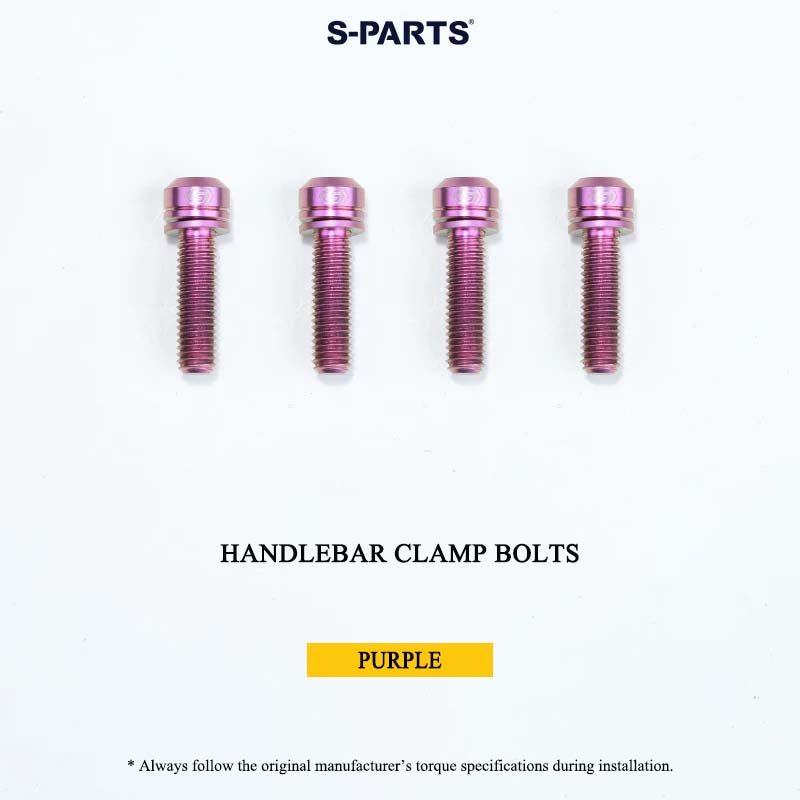

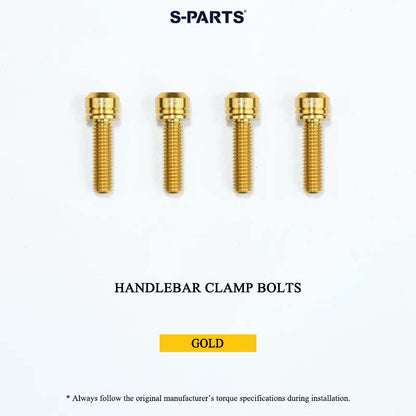

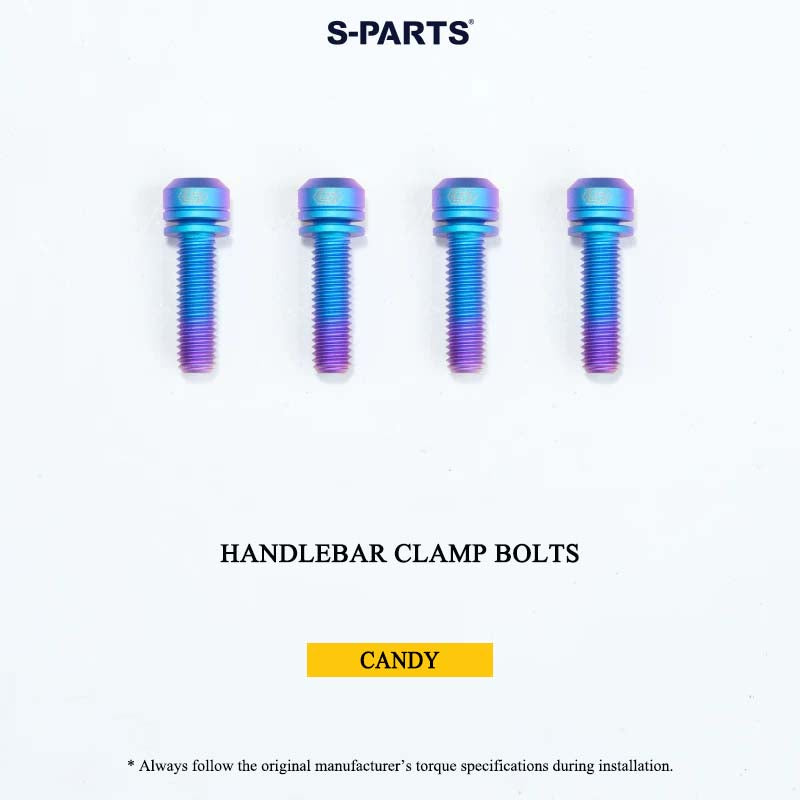

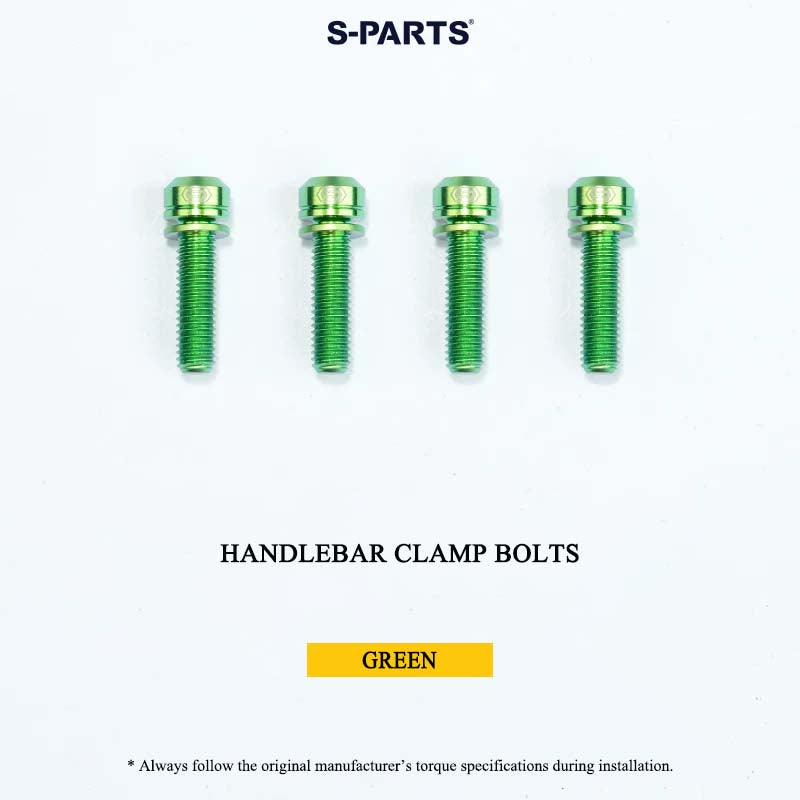

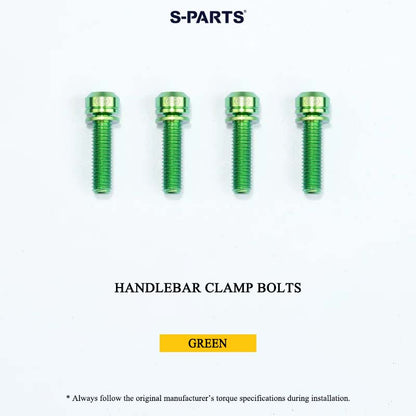

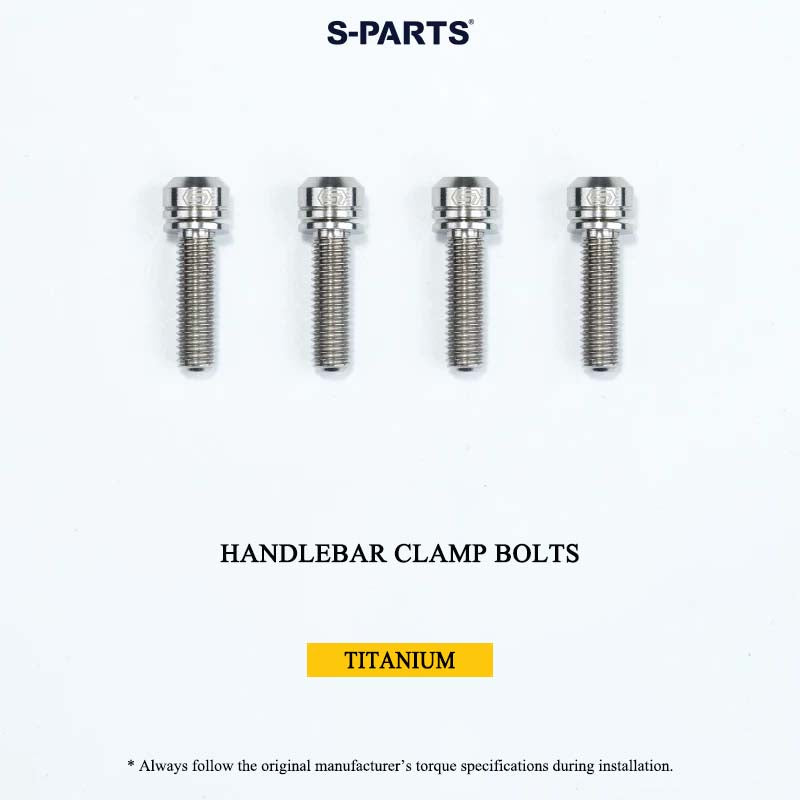

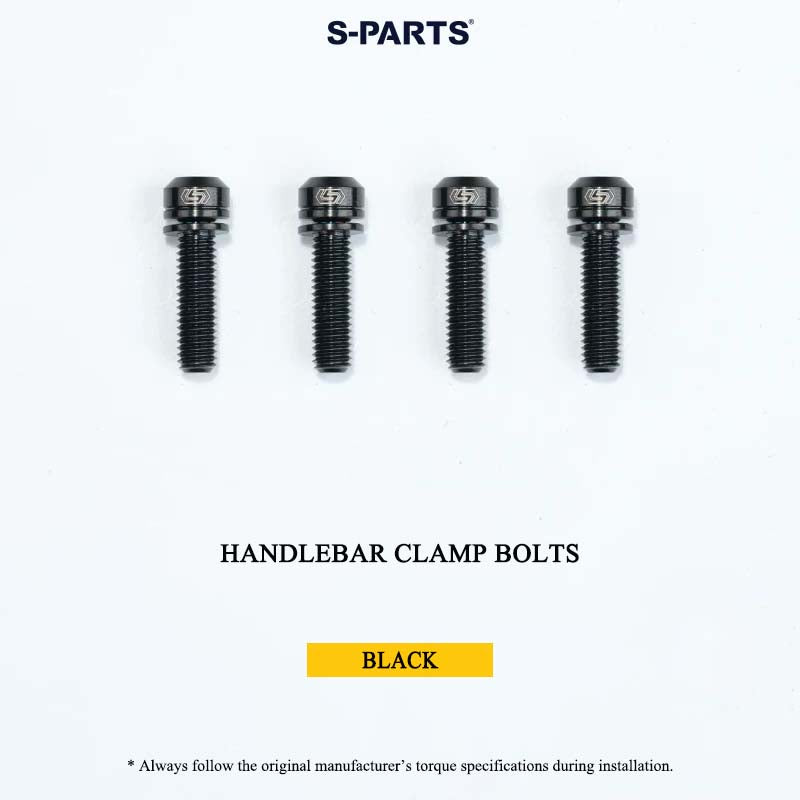

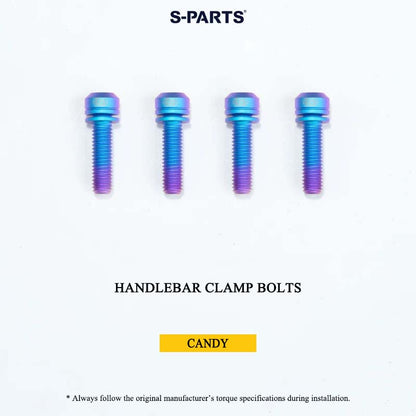

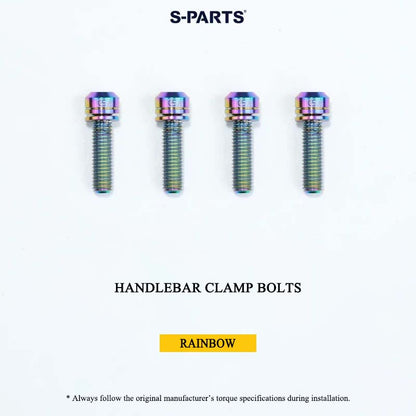

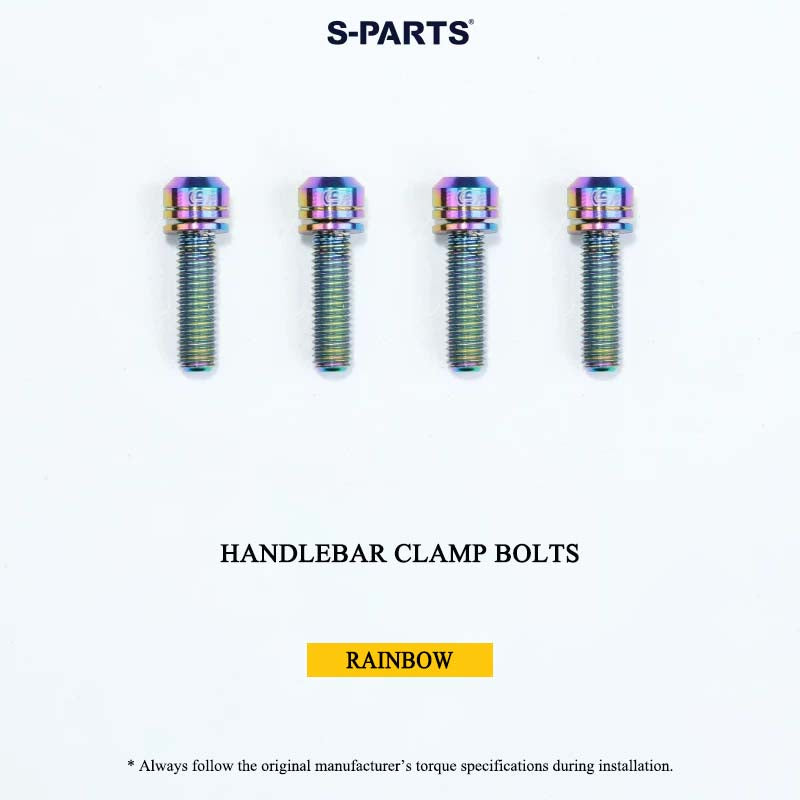

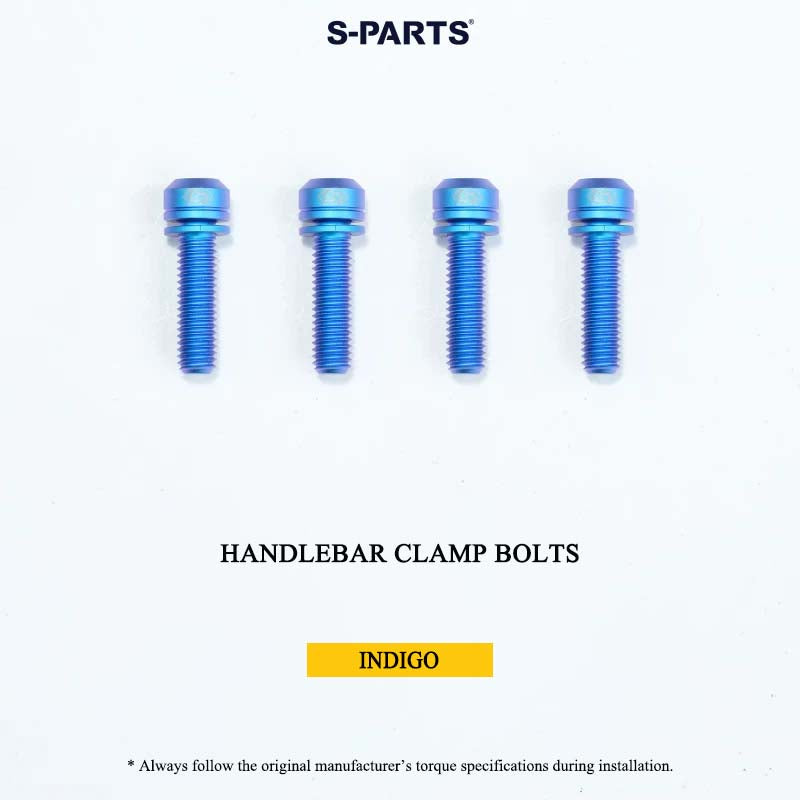

| 4 | Handlebar Clamp Bolts | 4 pcs | 8.8 g/set | T25 Torx |

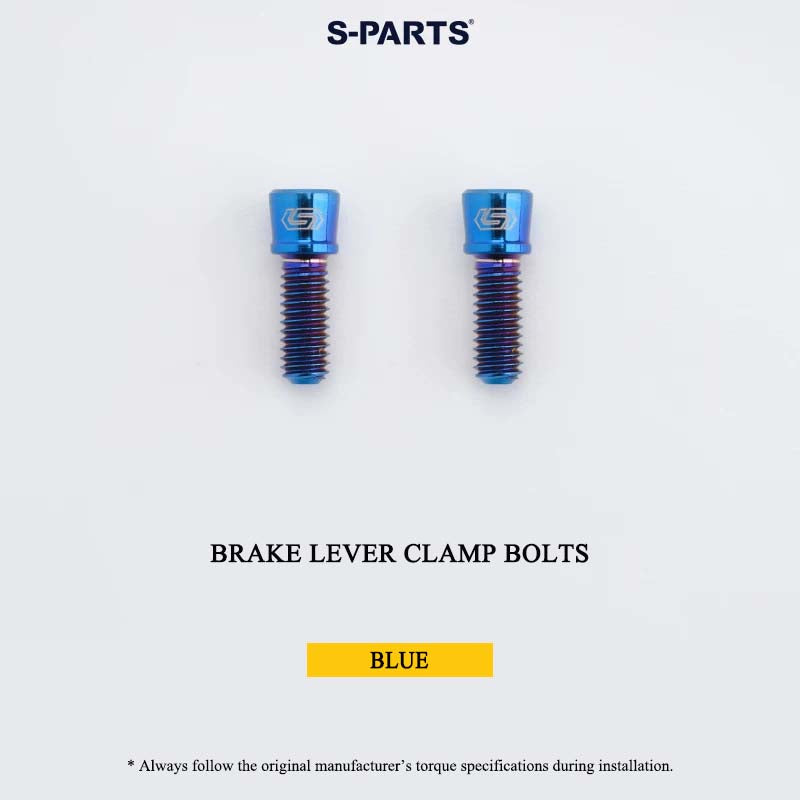

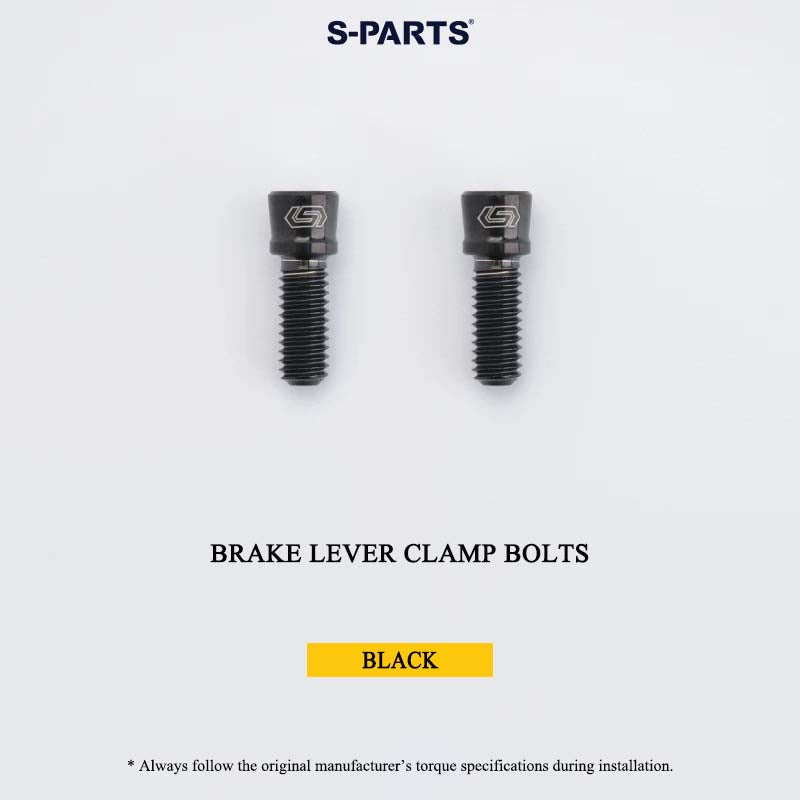

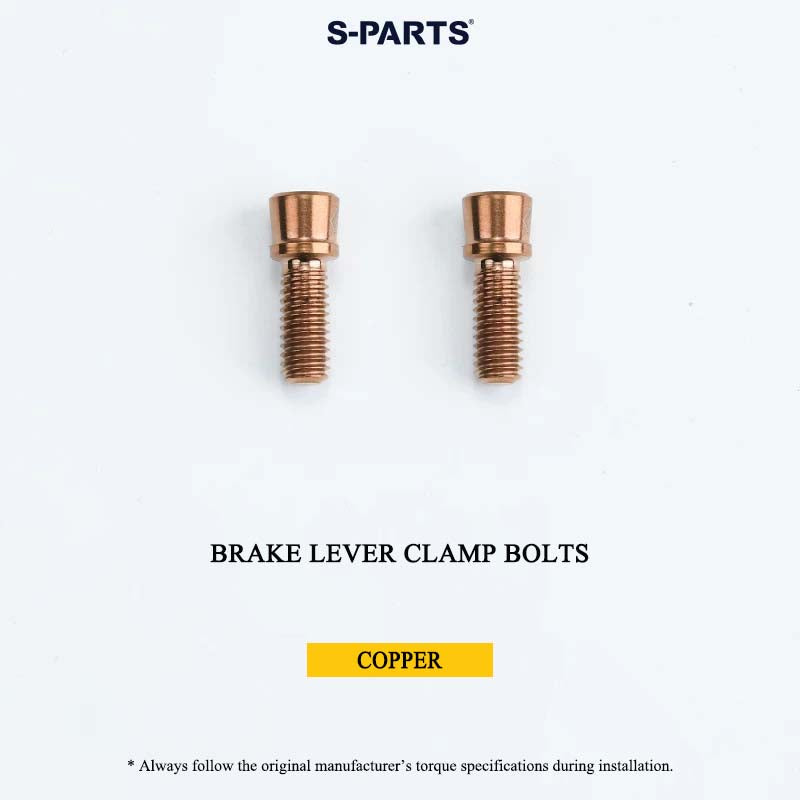

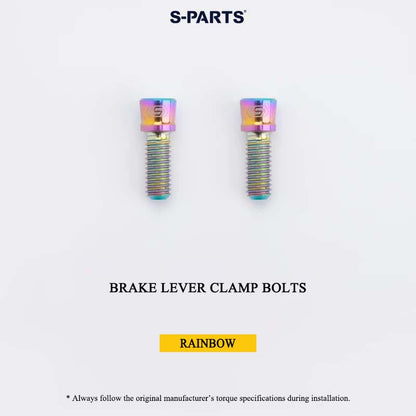

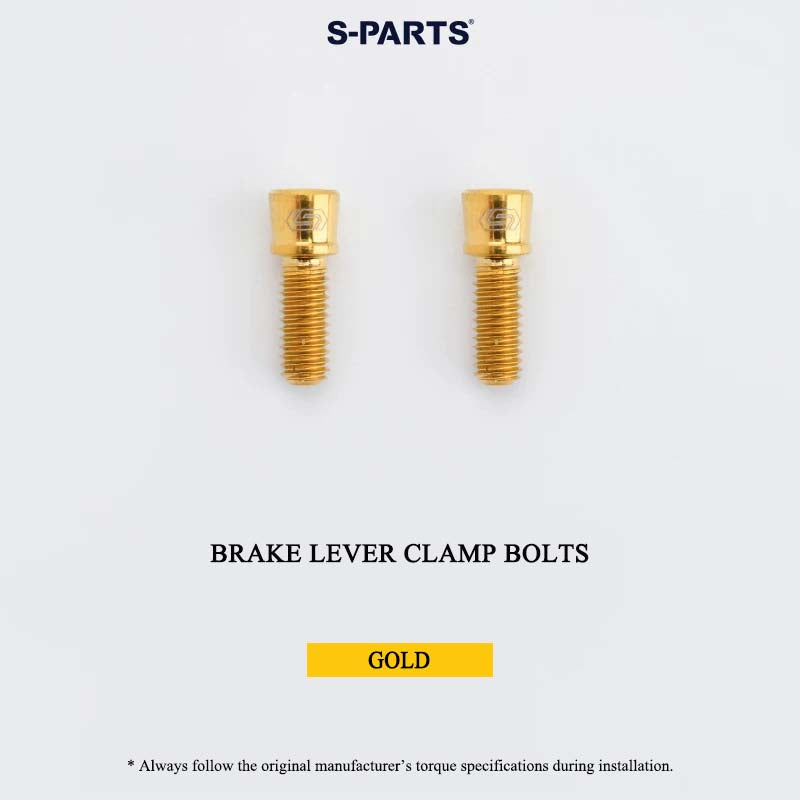

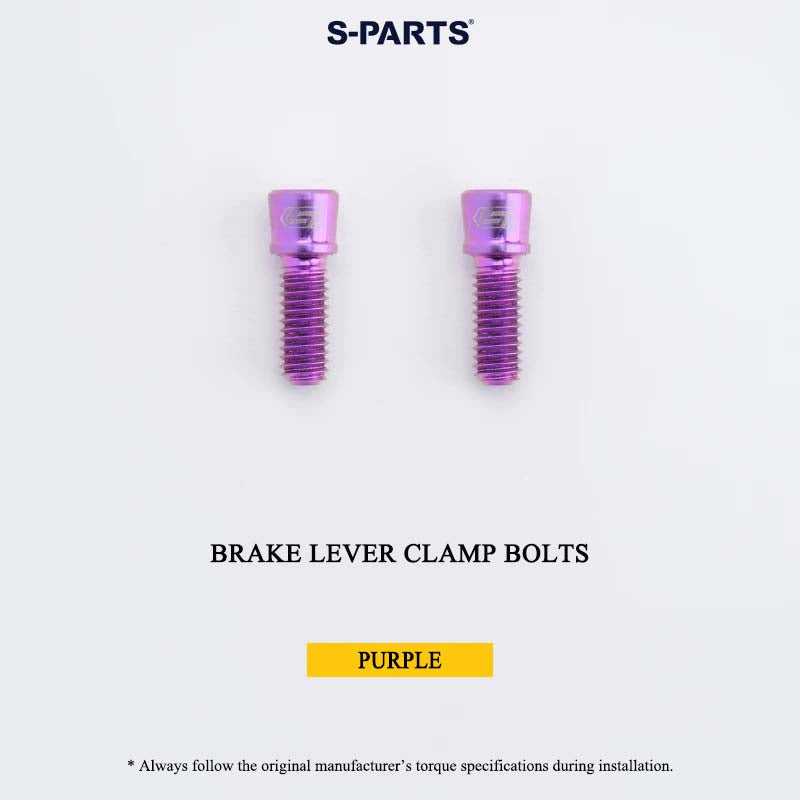

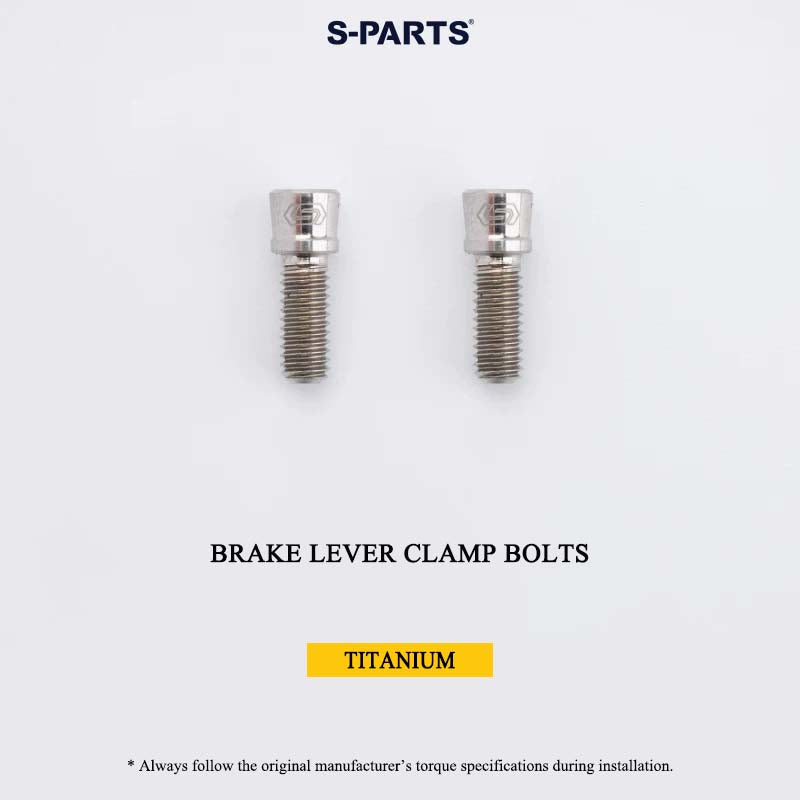

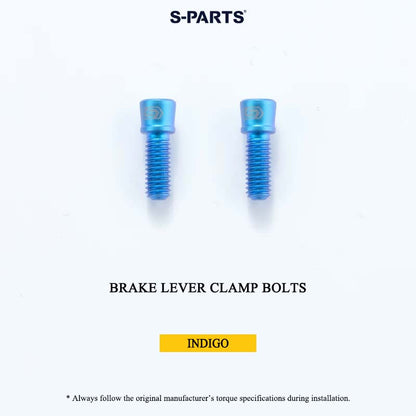

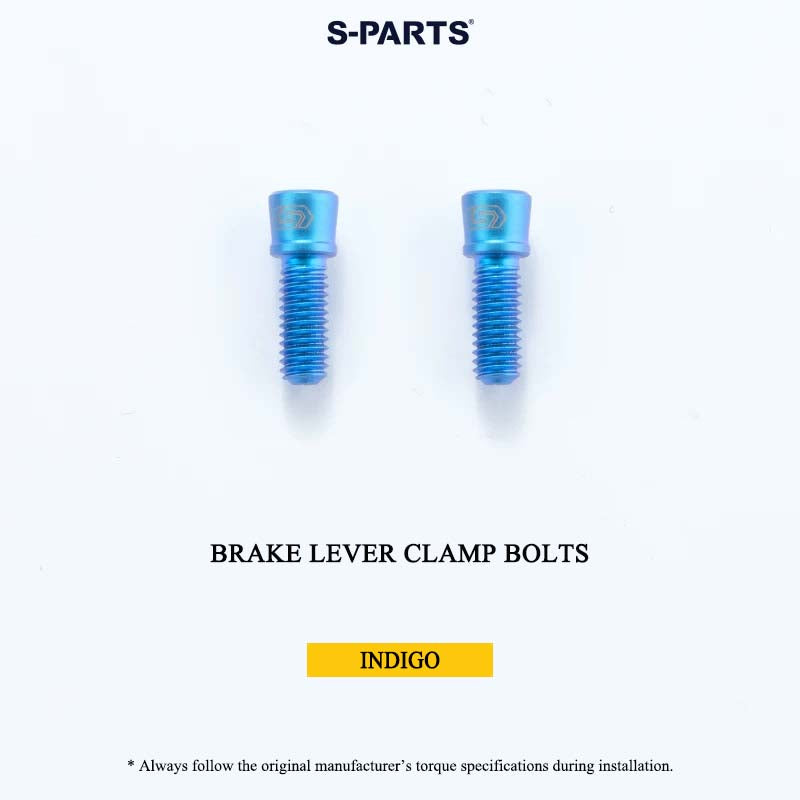

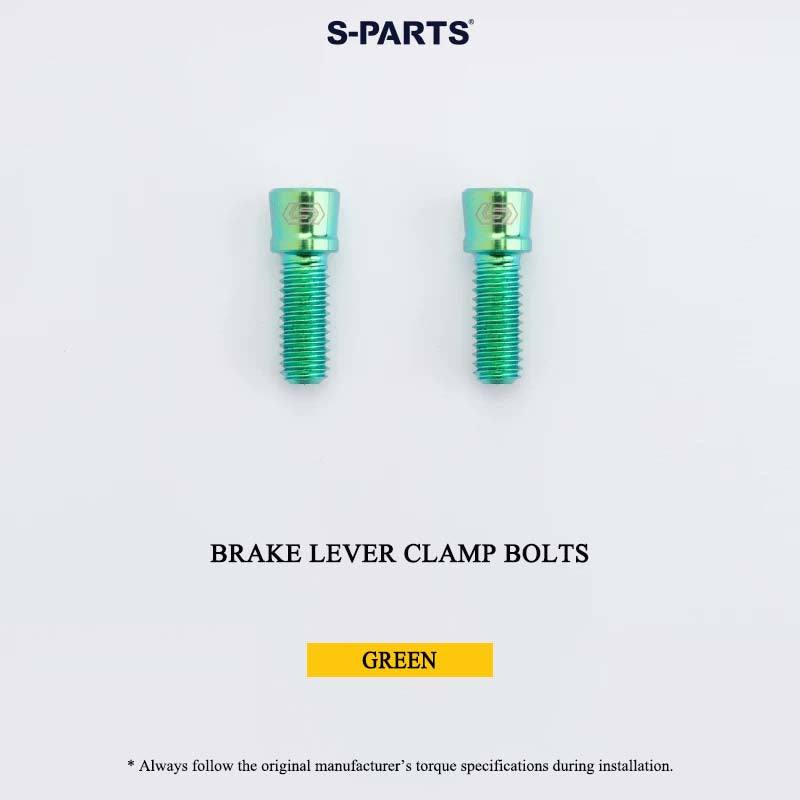

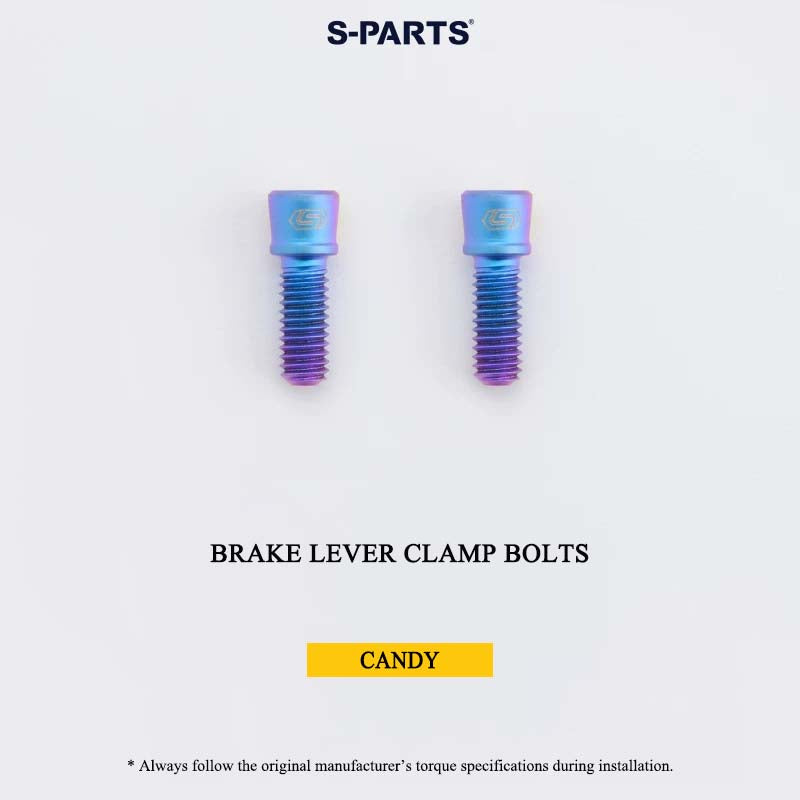

| 5 | Brake Lever Clamp Bolts | 2 pcs | 1.5 g/set | 3 mm Hex |
| 6 | Shifter Clamp Bolt | 1 pc | 1.89 g | T25 Torx |

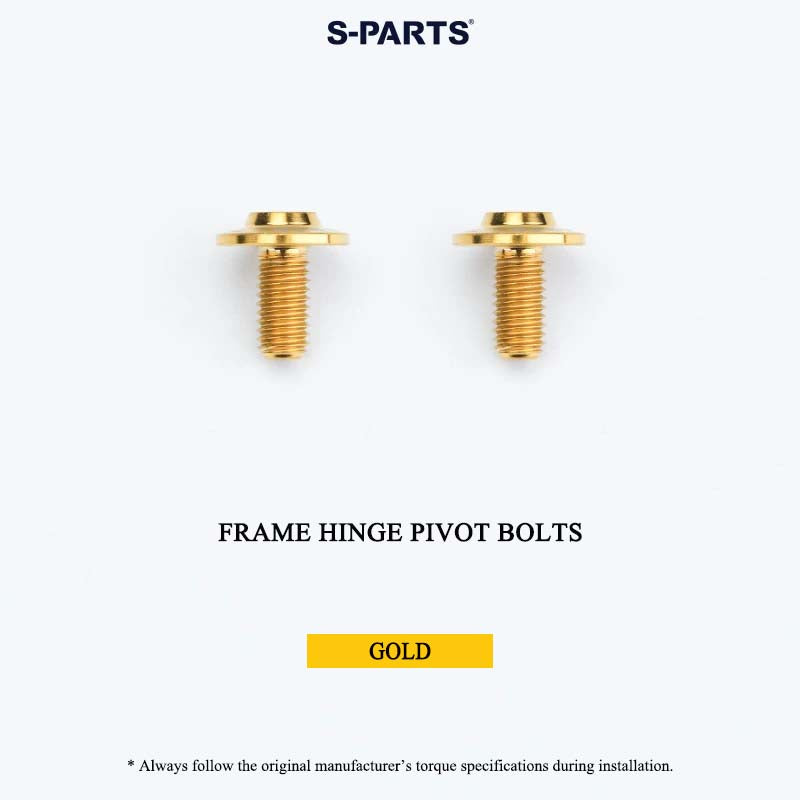

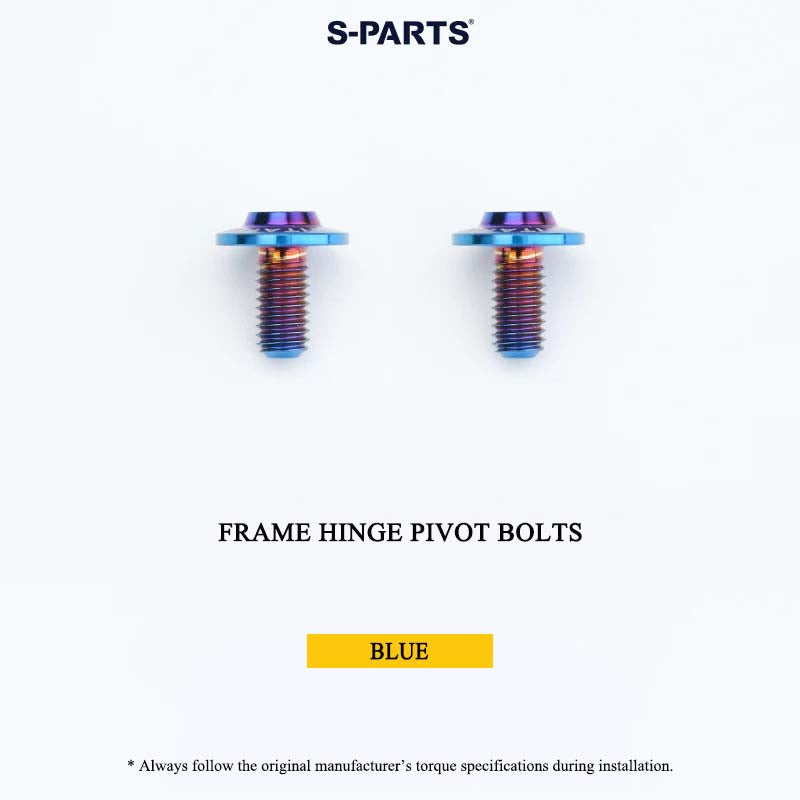

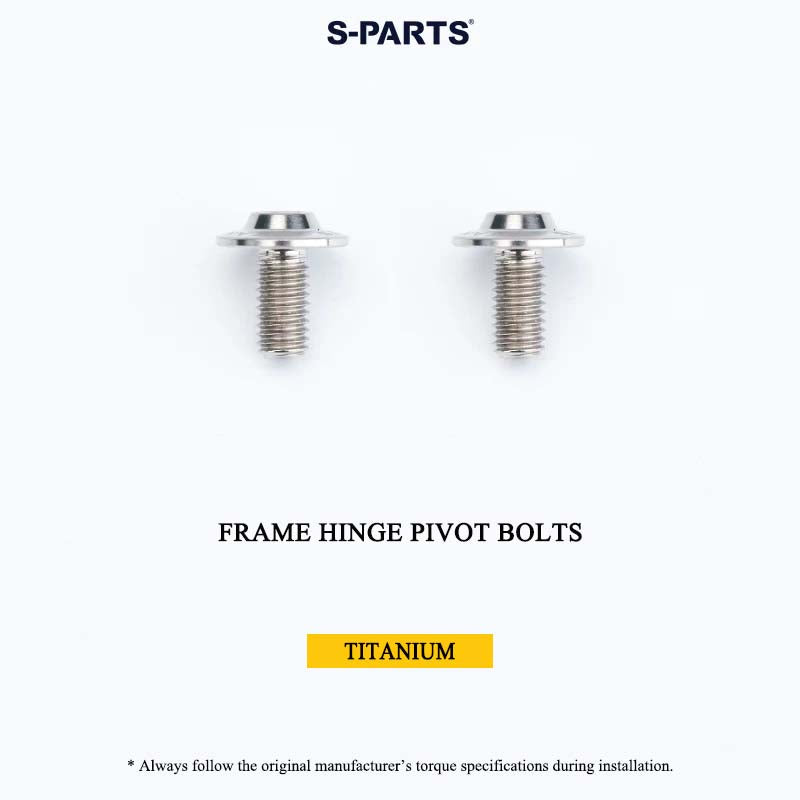

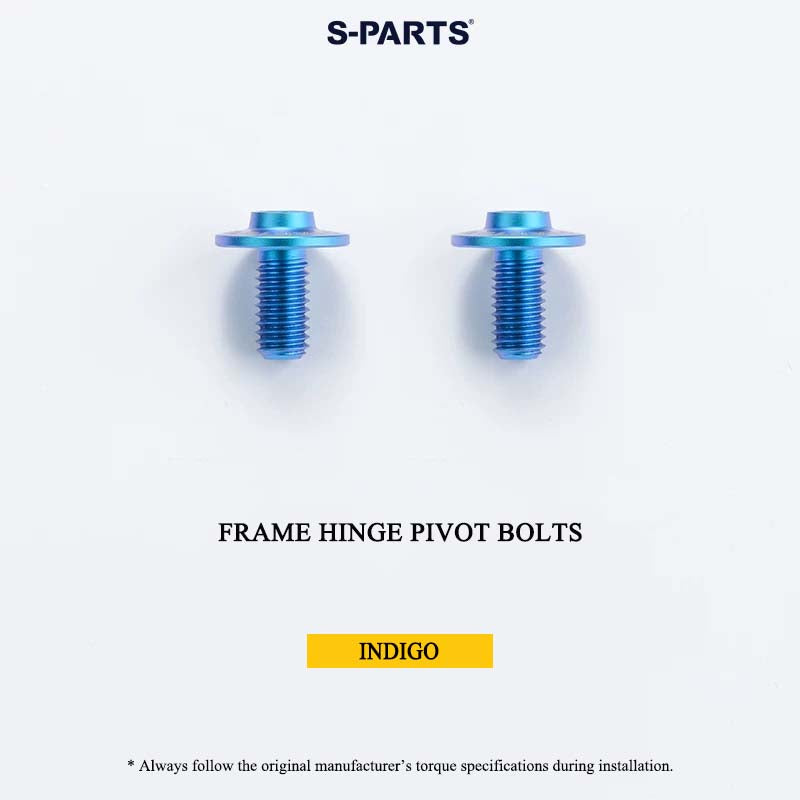

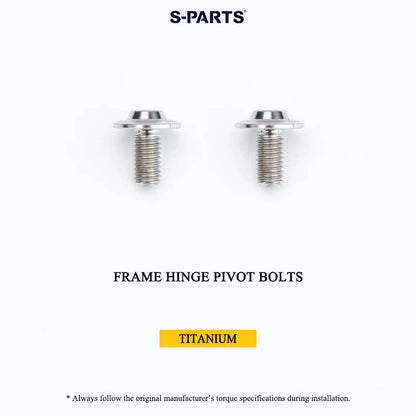

| 7 | Frame Folding Hinge Pivot Bolts | 2 pcs | 2.8 g/set | T25 Torx |

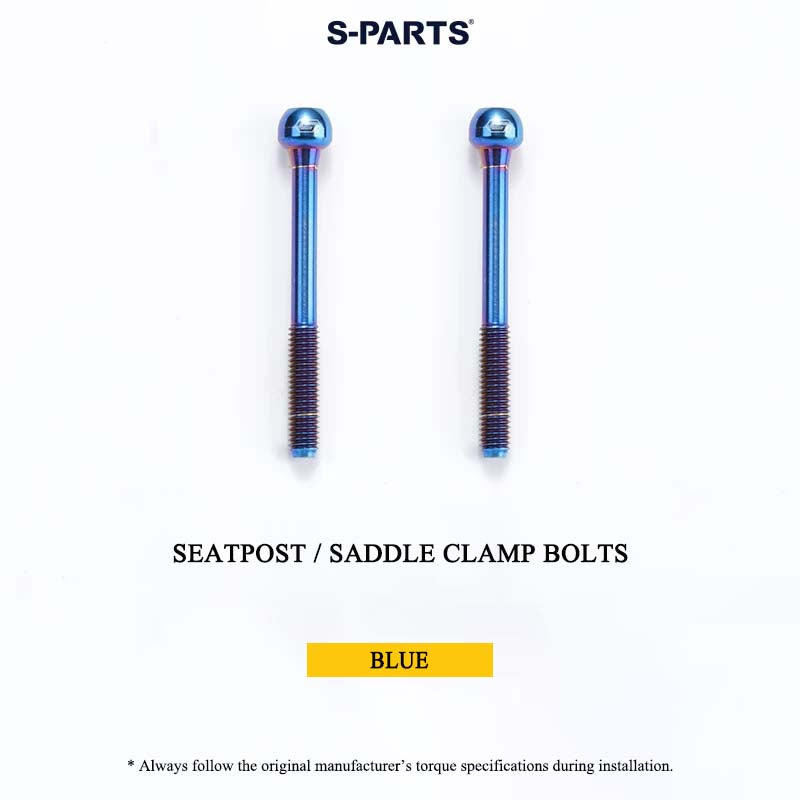

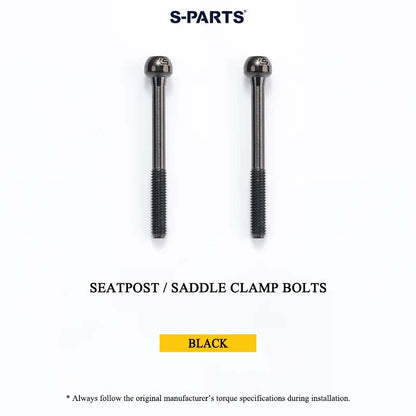

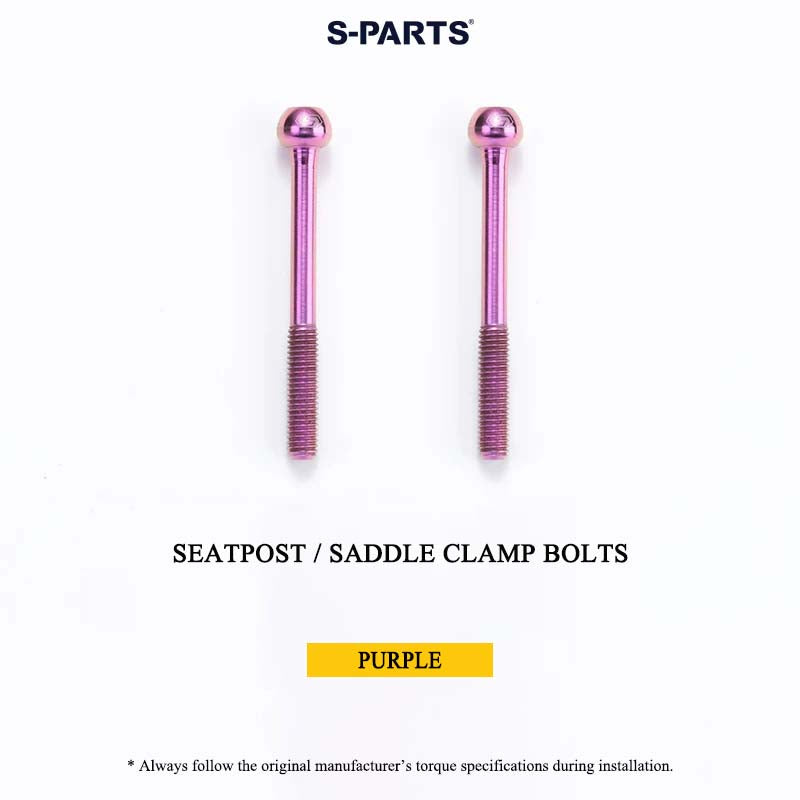

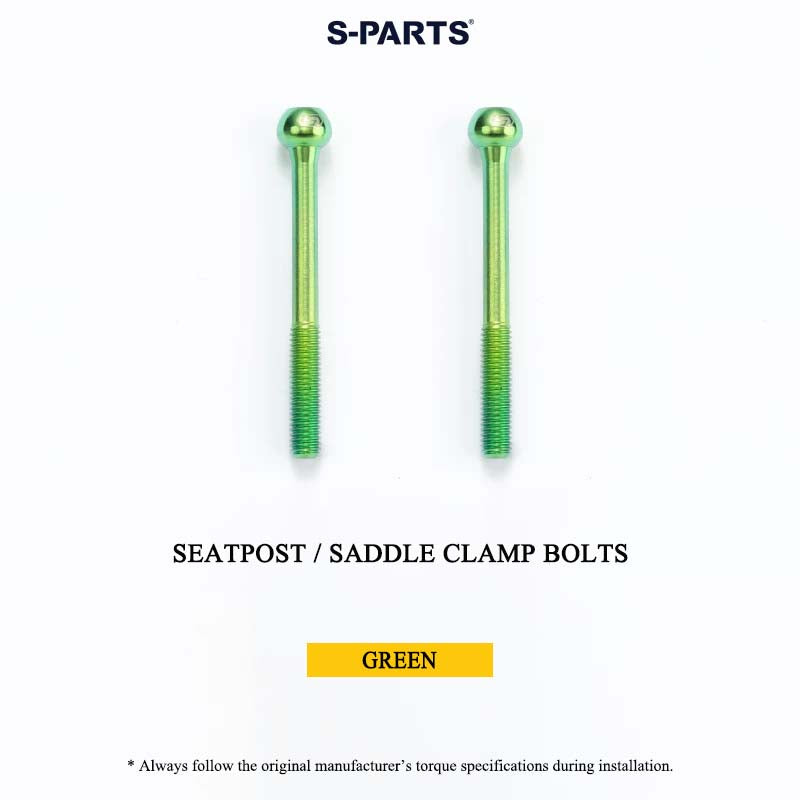

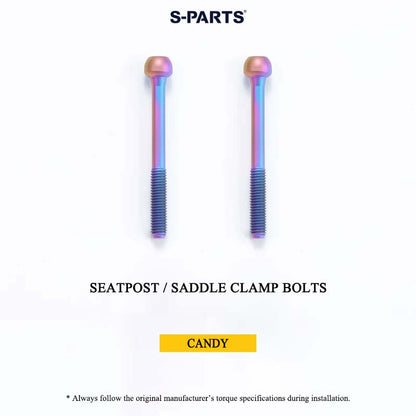

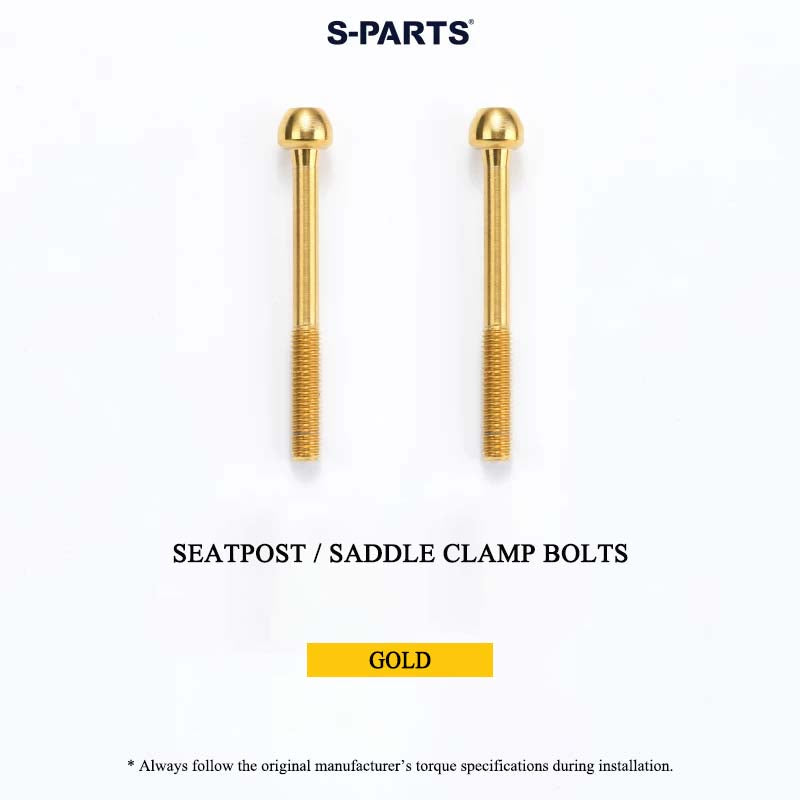

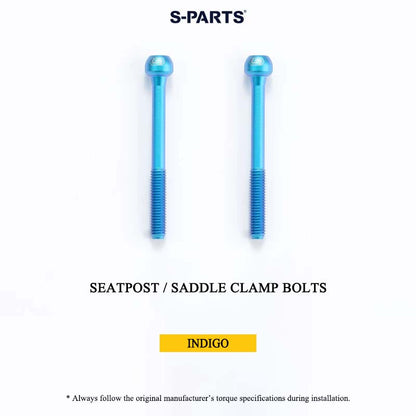

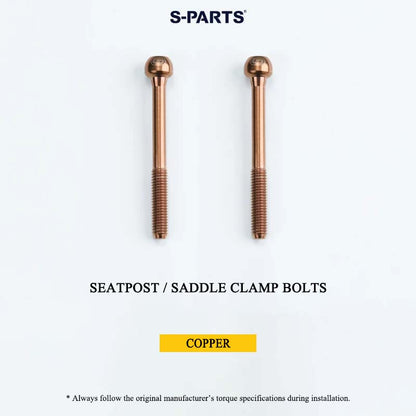

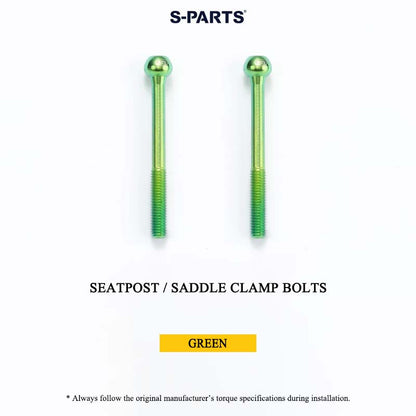

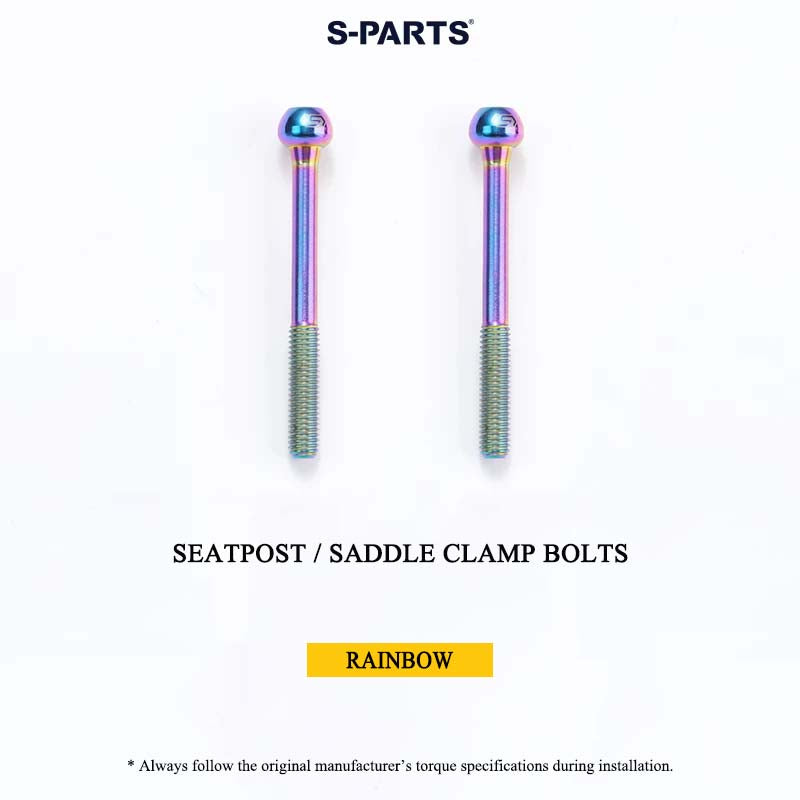

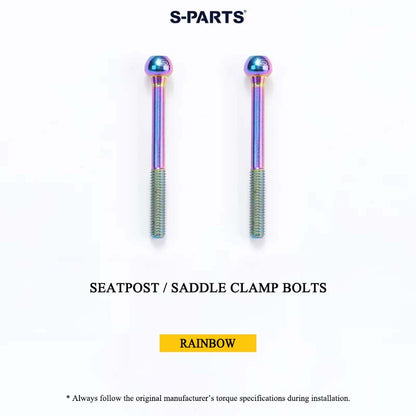

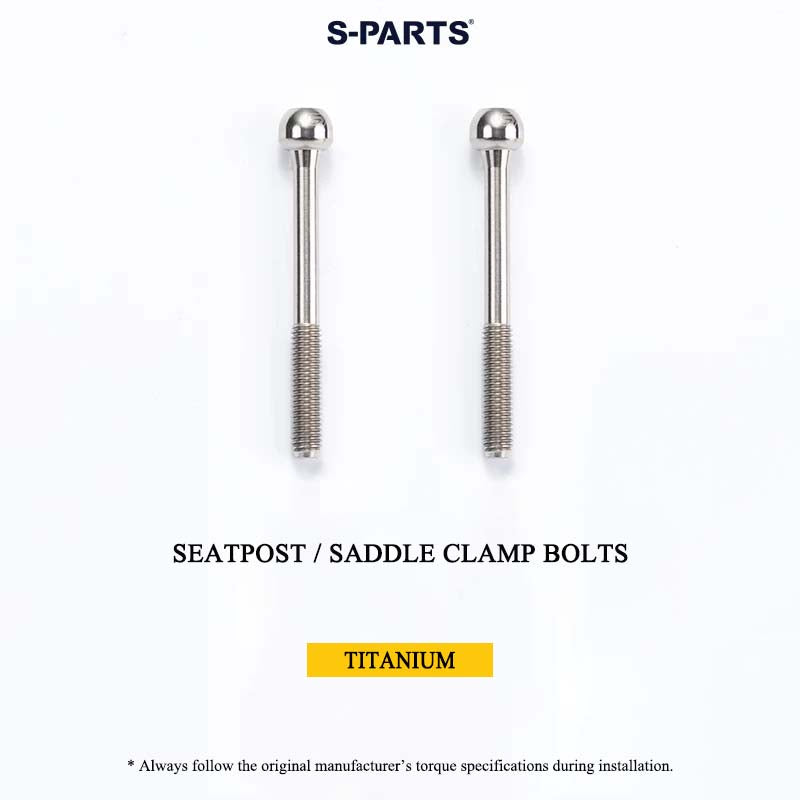

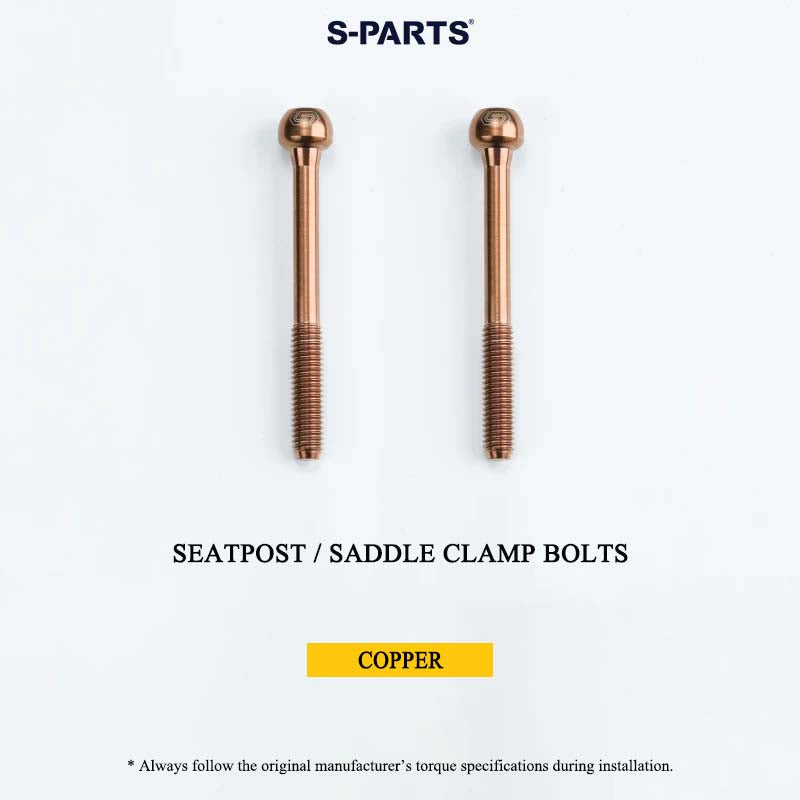

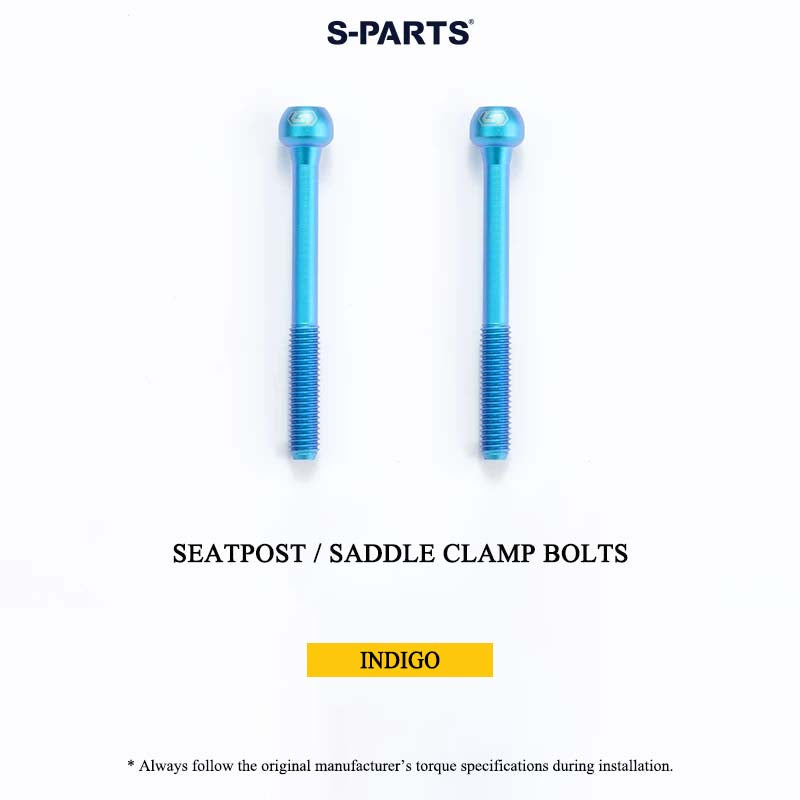

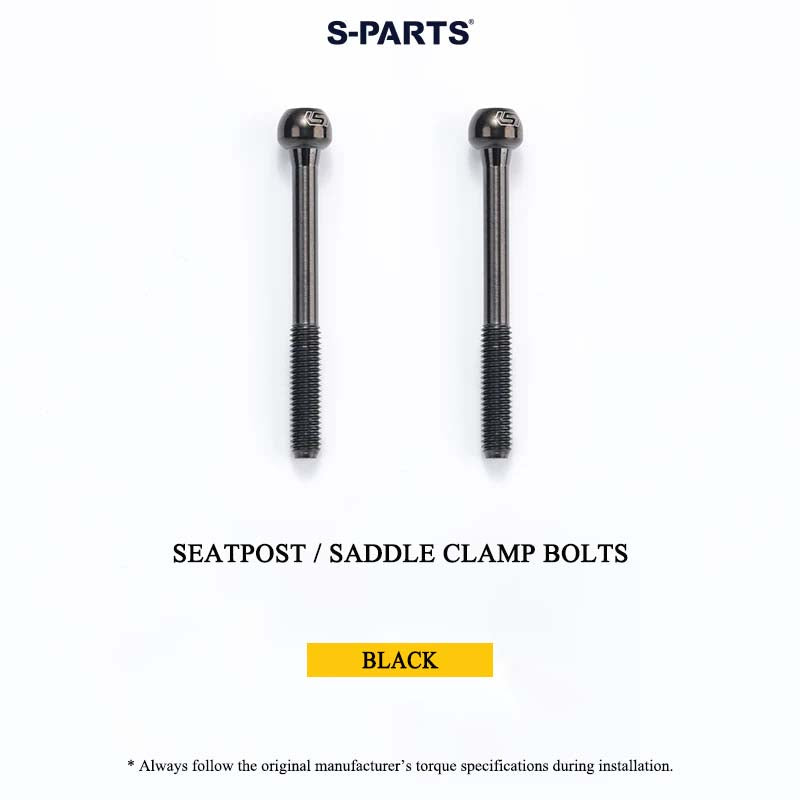

| 8 | Seatpost / Saddle Clamp Bolts | 2 pcs | 7.7 g/set | 4 mm Hex |

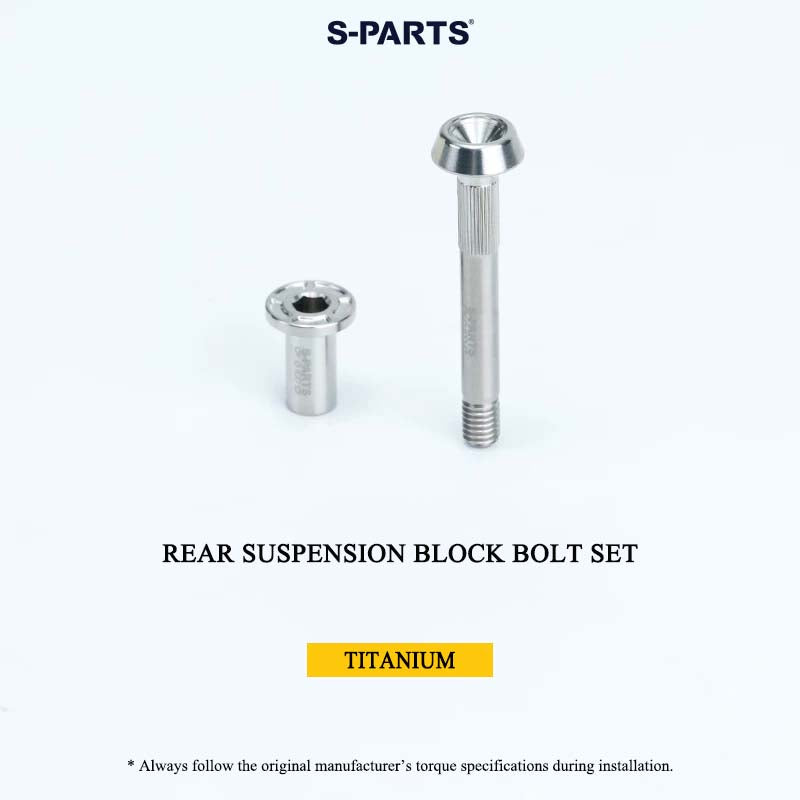

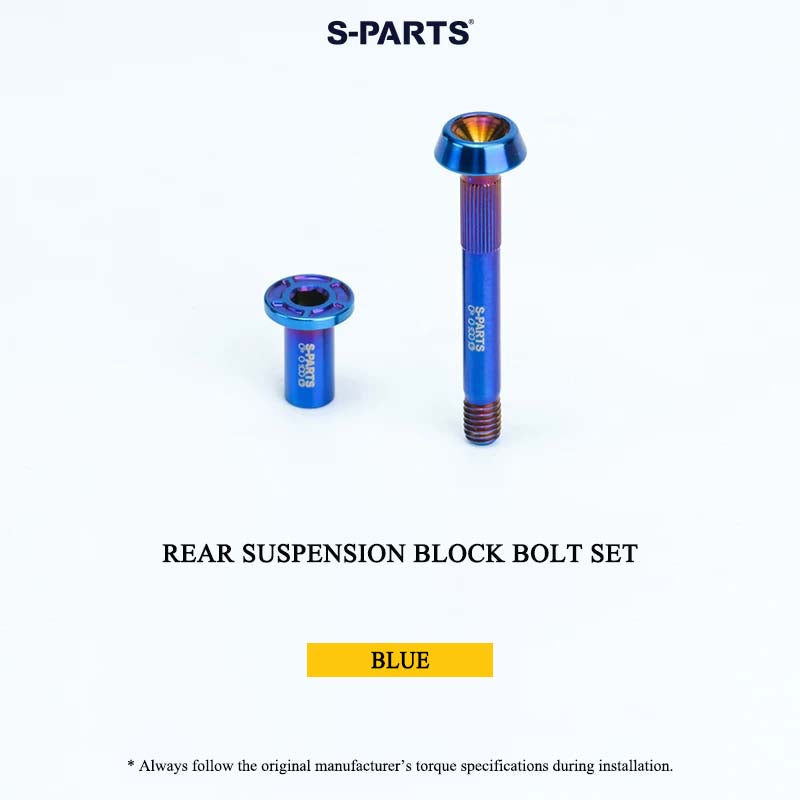

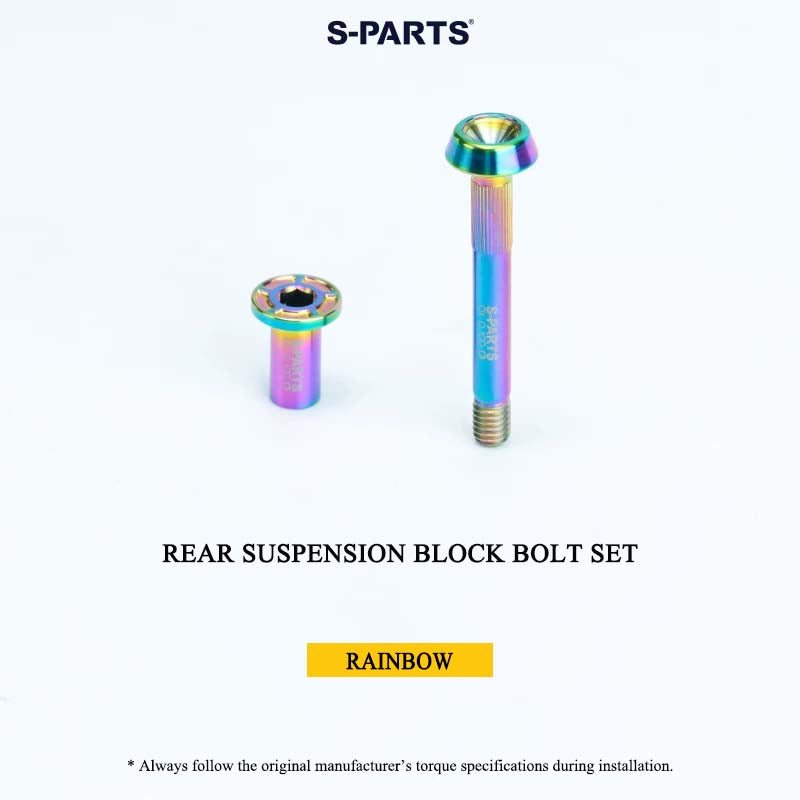

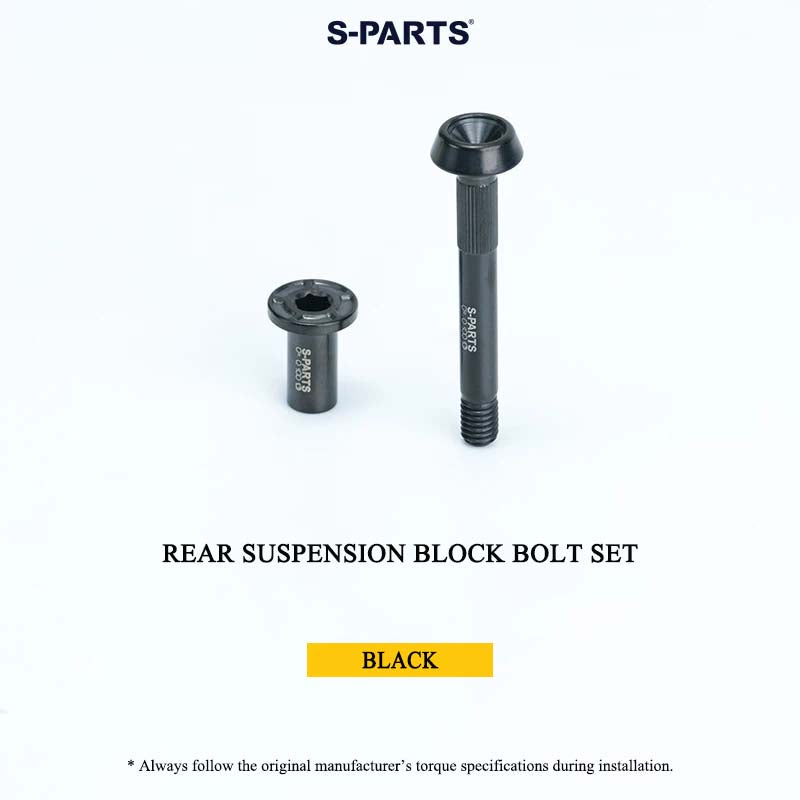

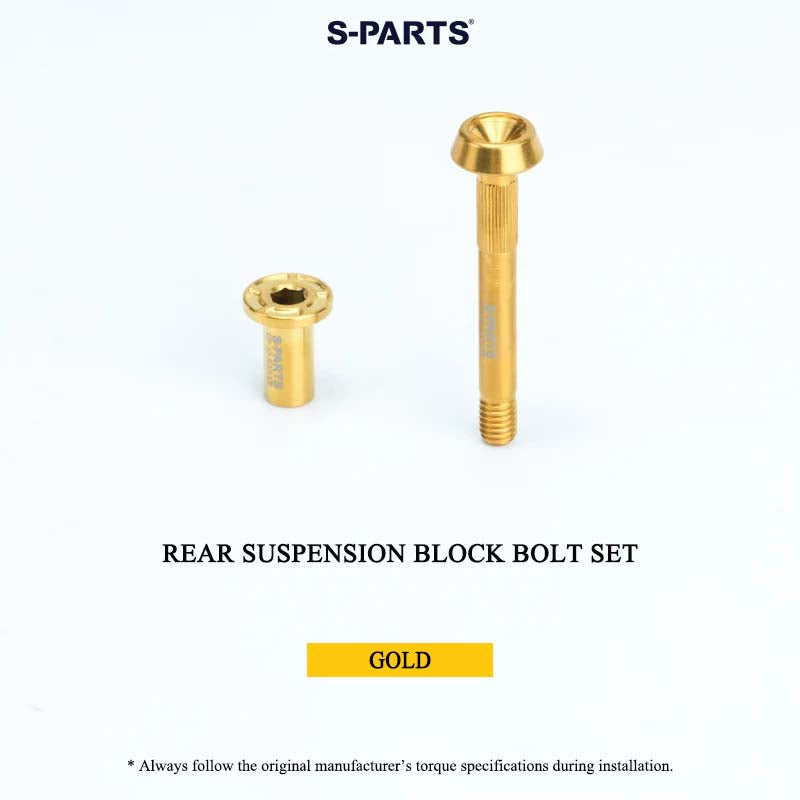

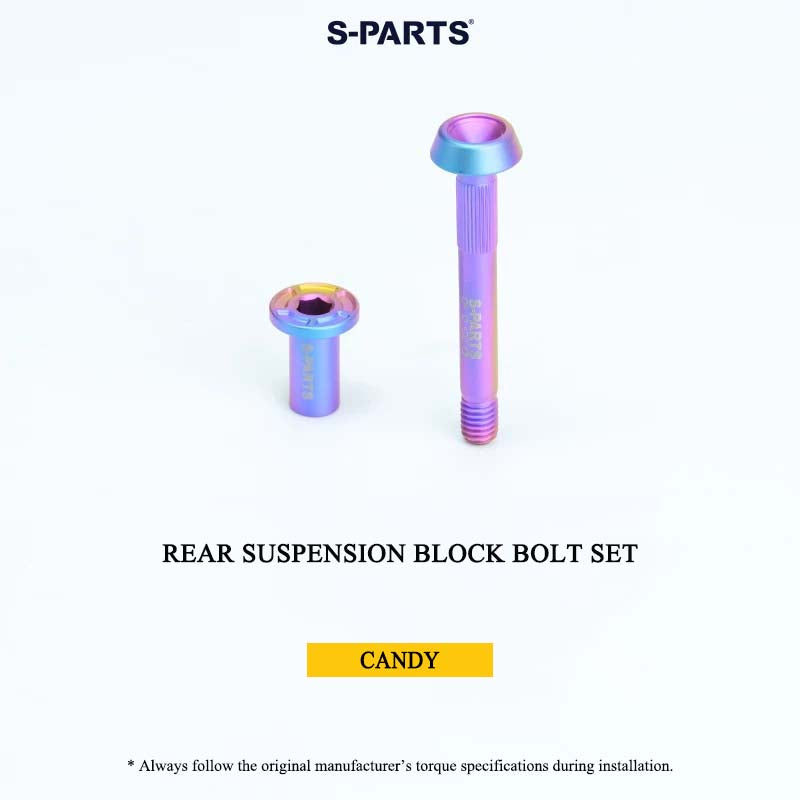

| 9 | Rear Suspension Block Bolt Set | 1 set | 10.7 g/set | 5 mm Hex |

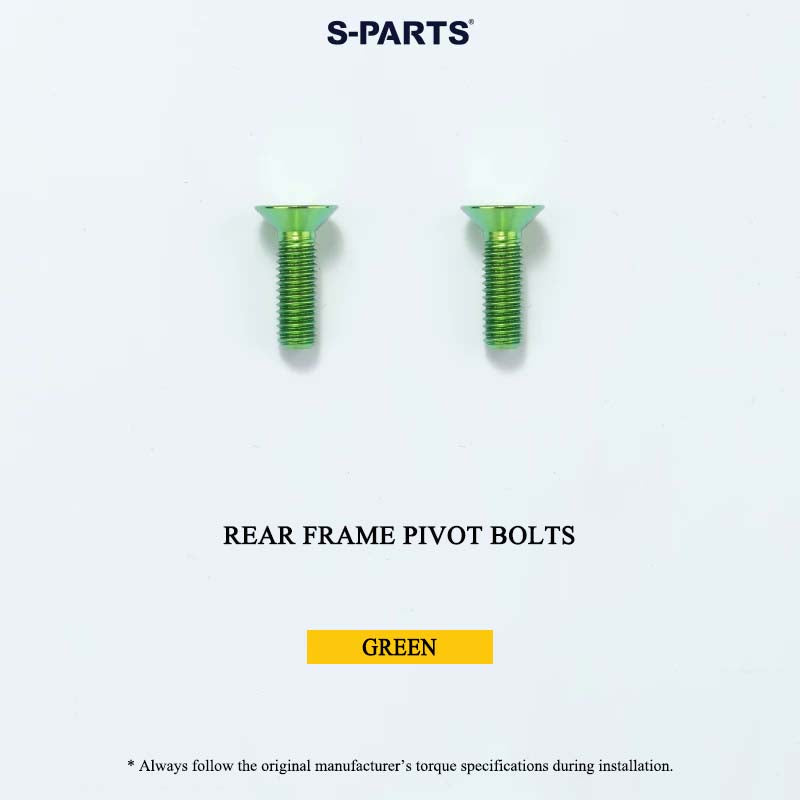

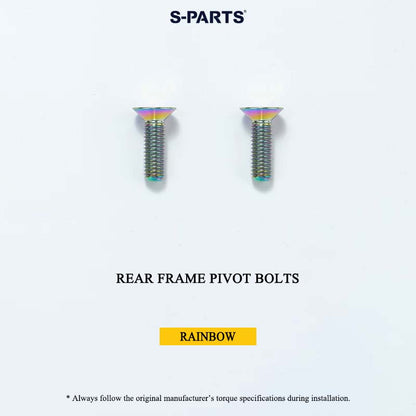

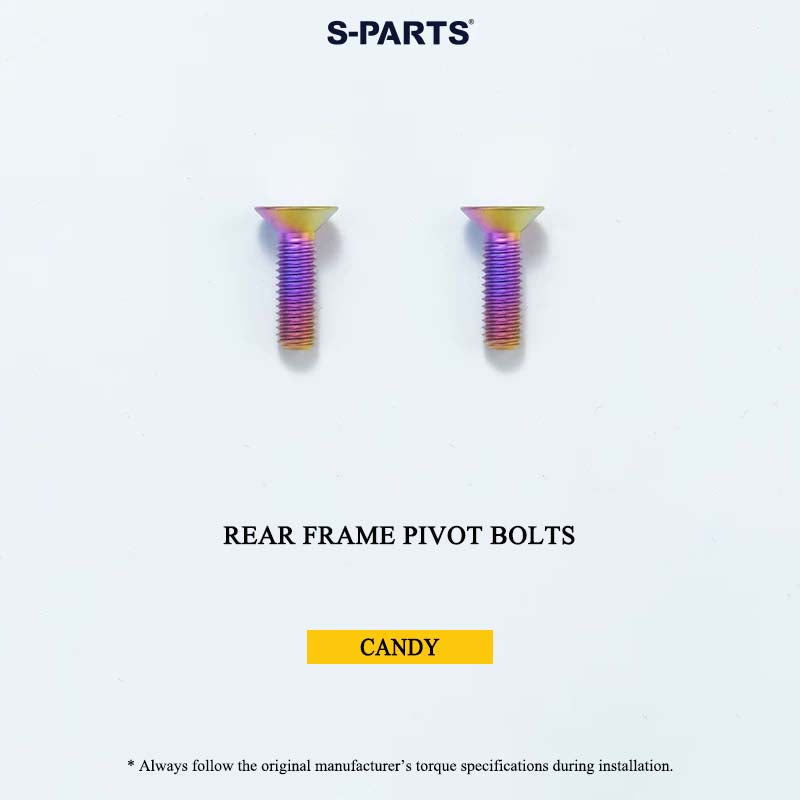

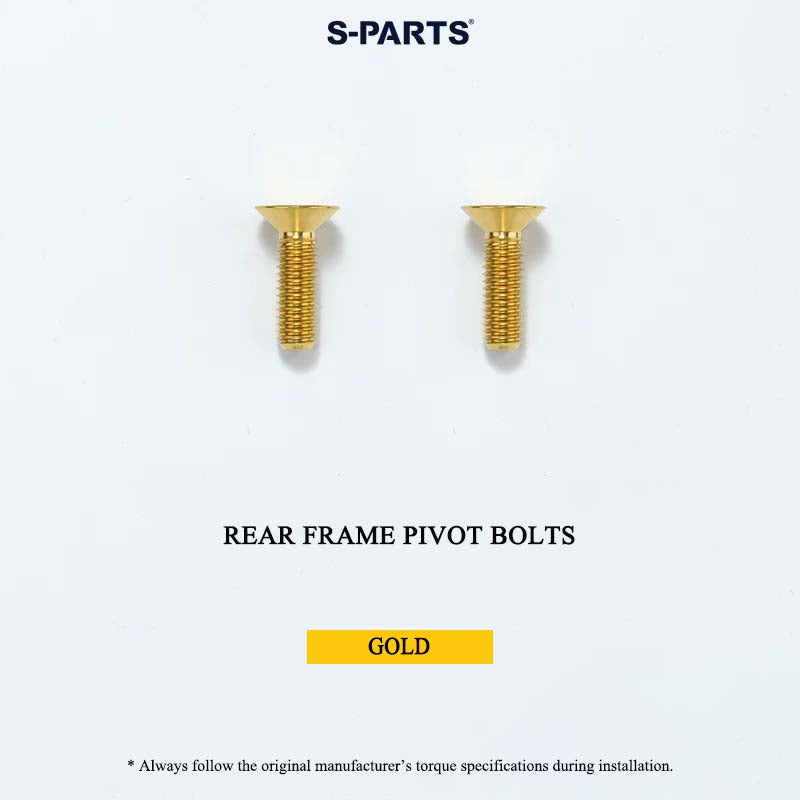

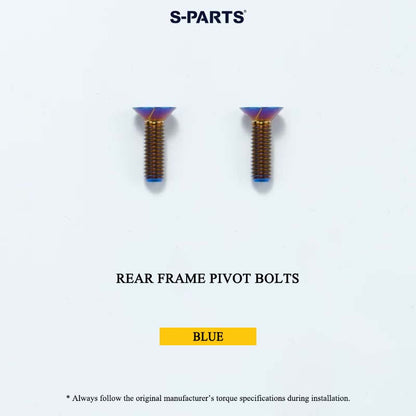

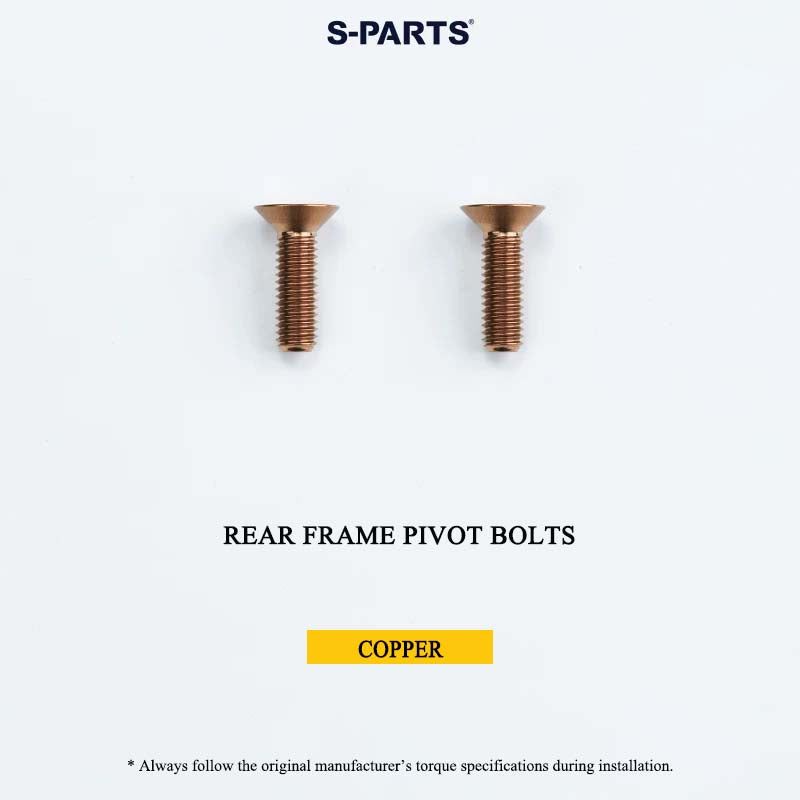

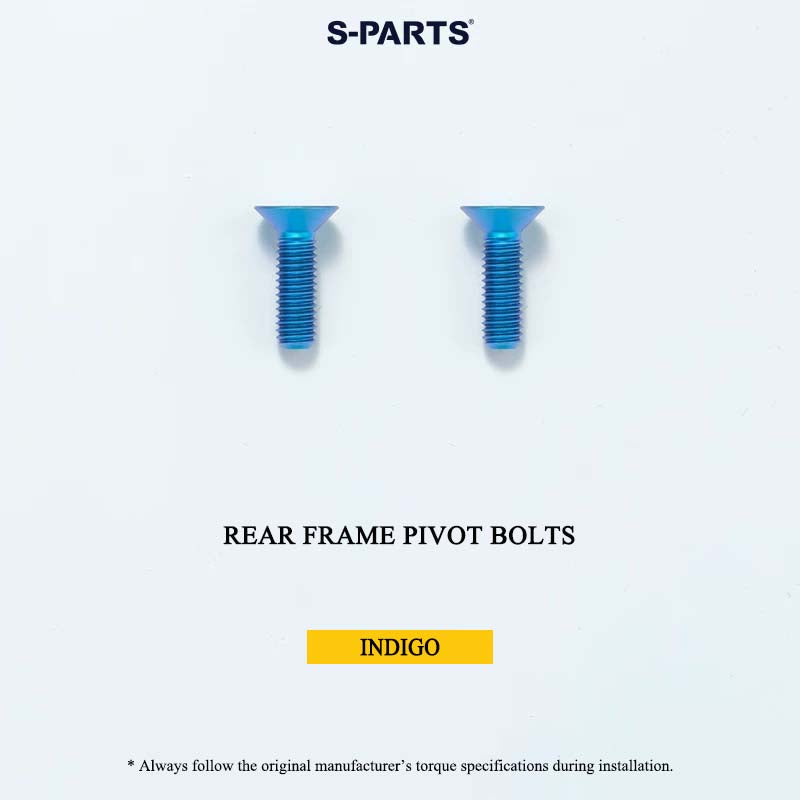

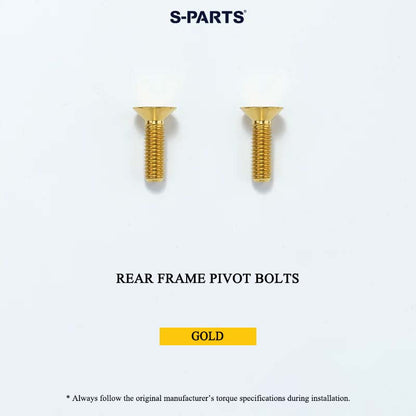

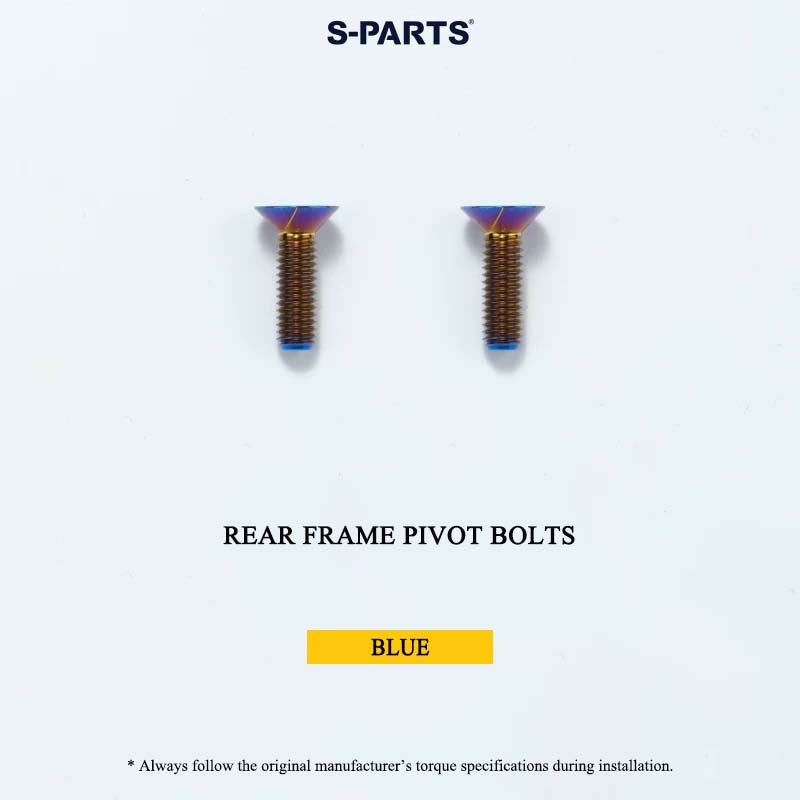

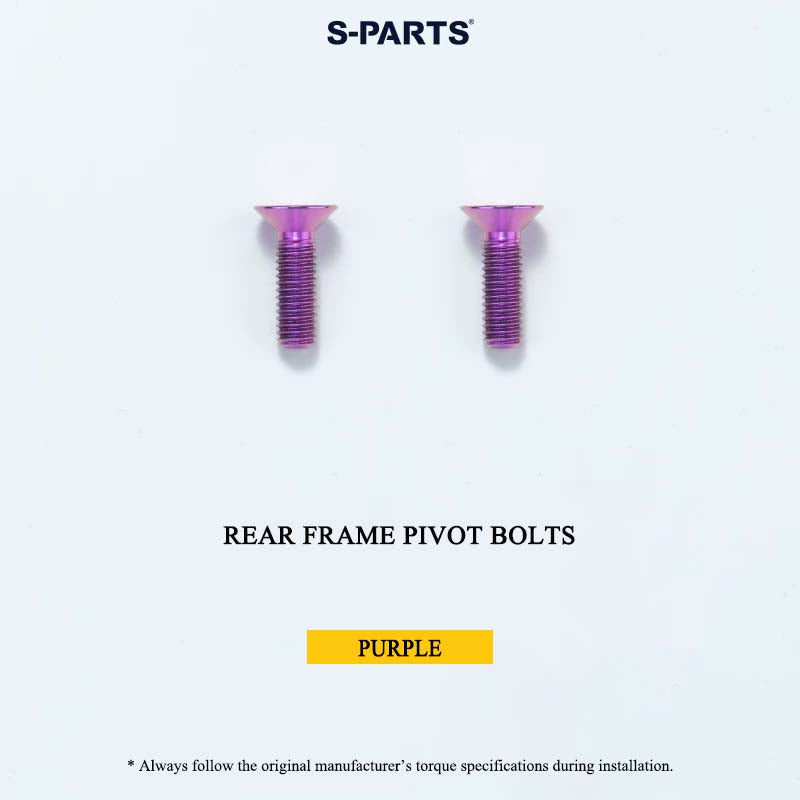

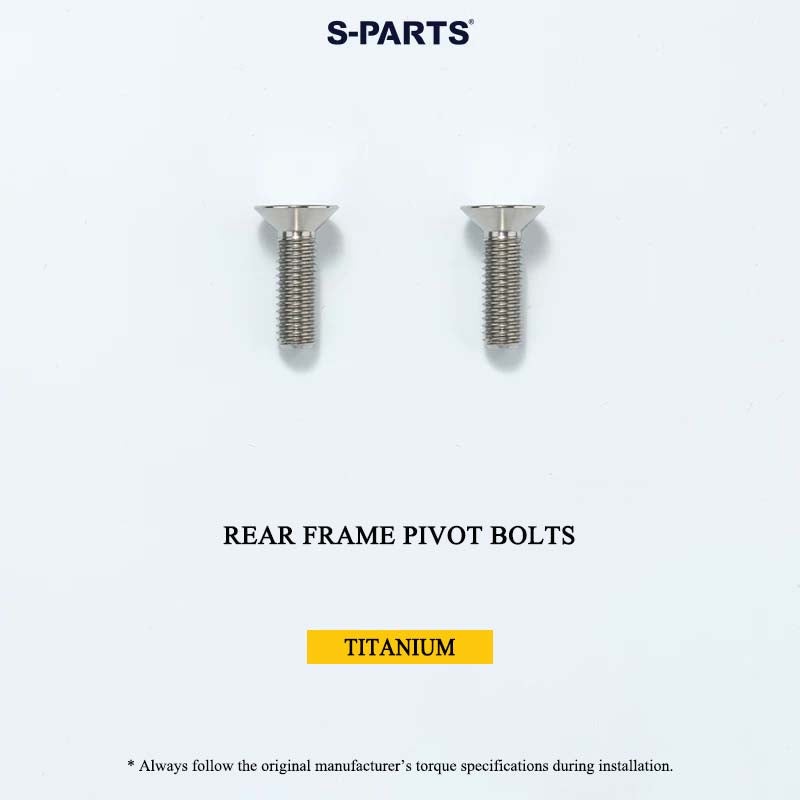

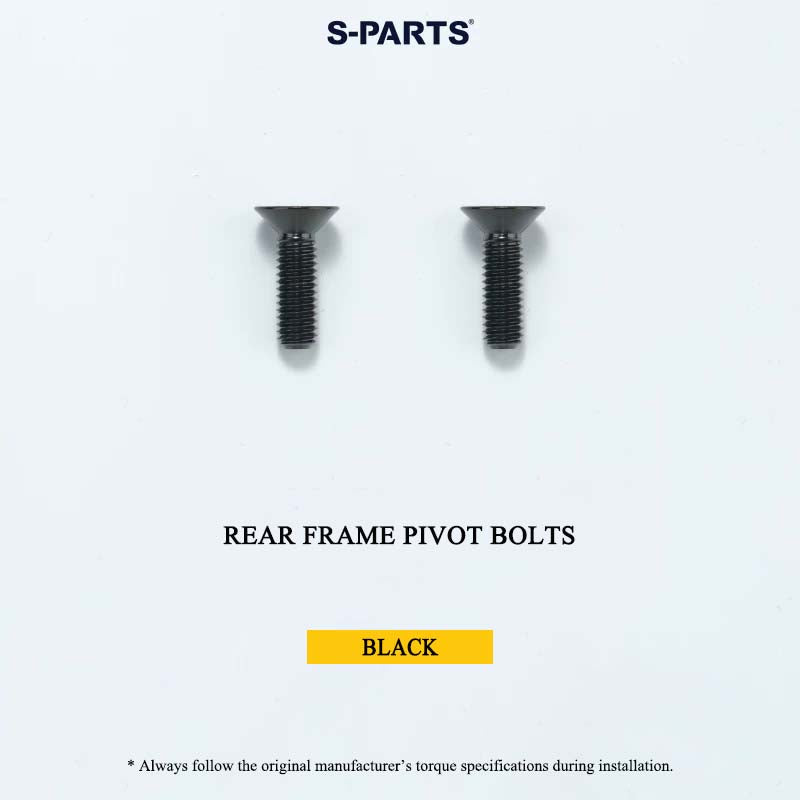

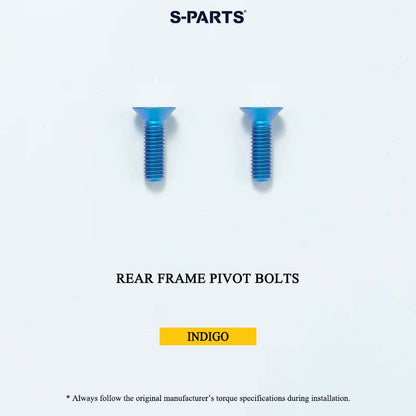

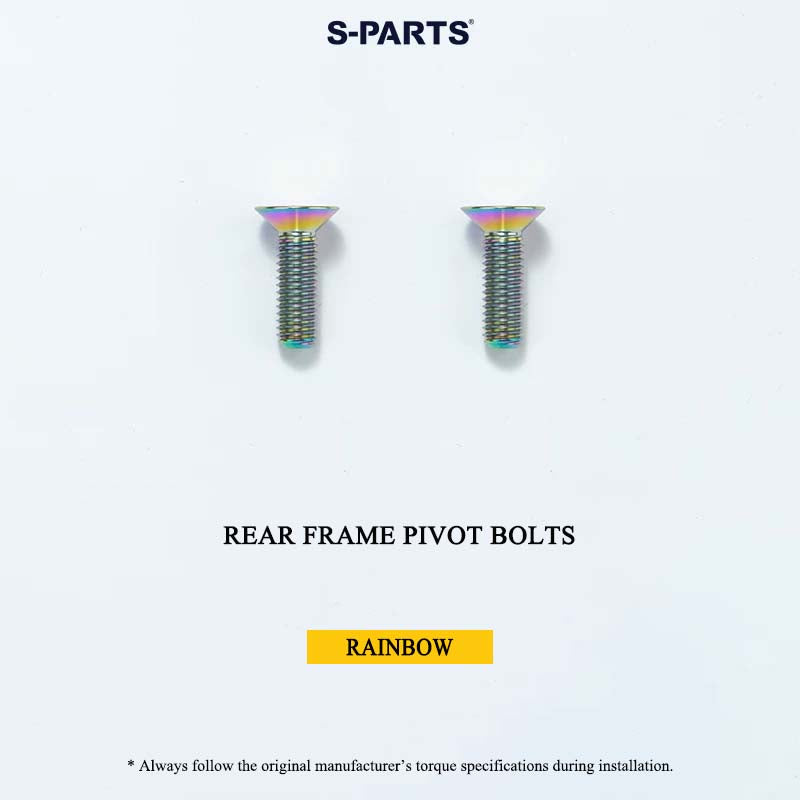

| 10 | Rear Frame Pivot Bolts | 2 pcs | 5.0 g/set | T30 Torx |

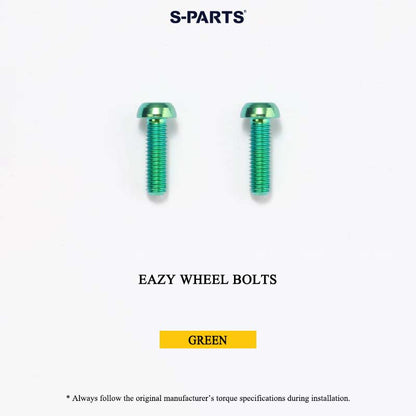

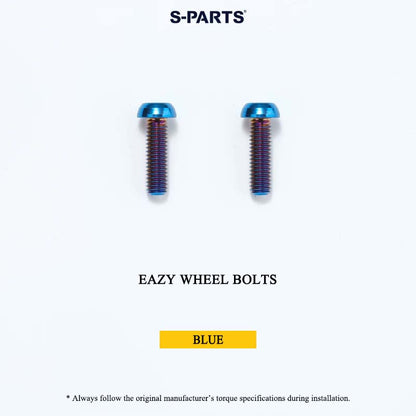

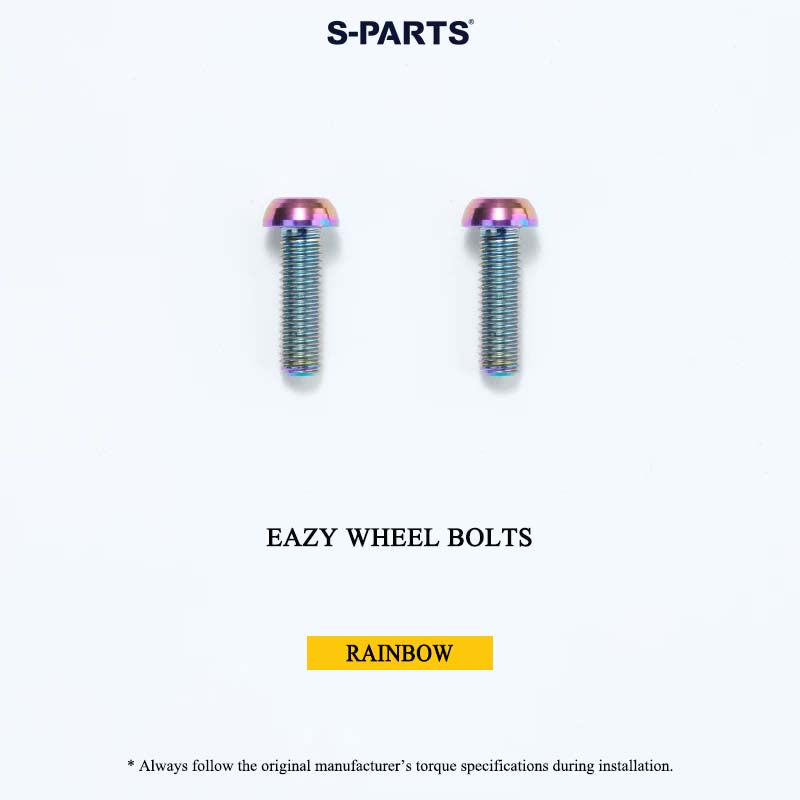

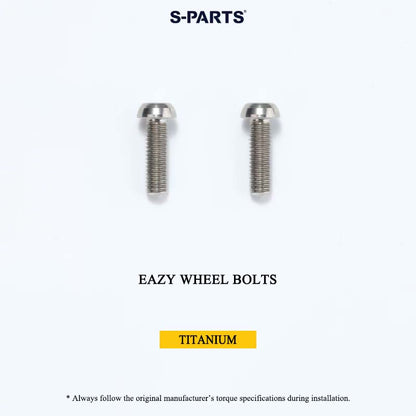

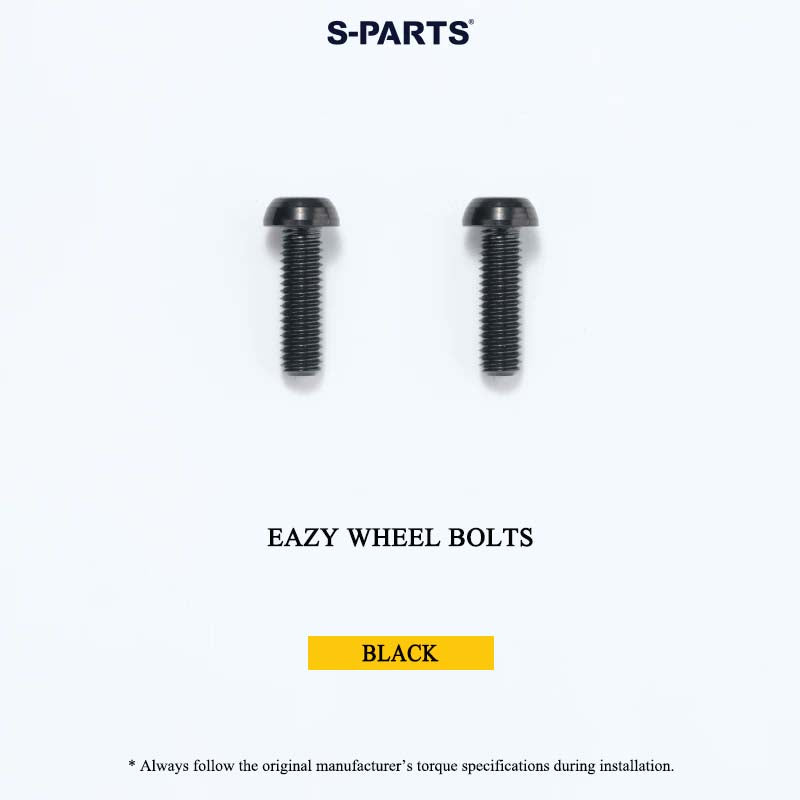

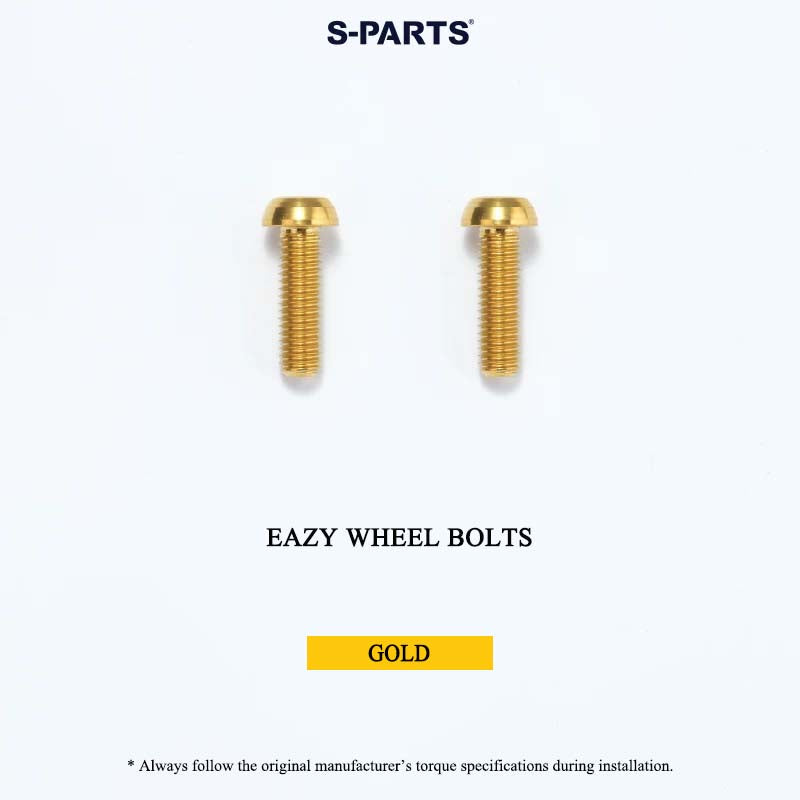

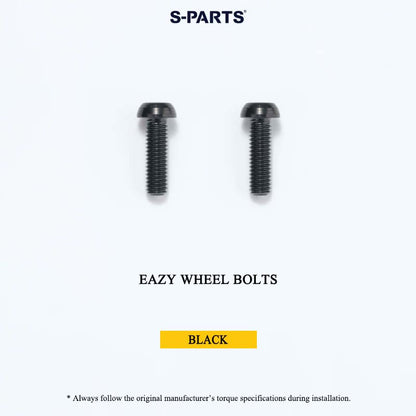

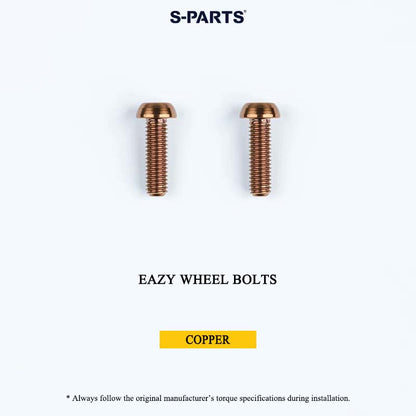

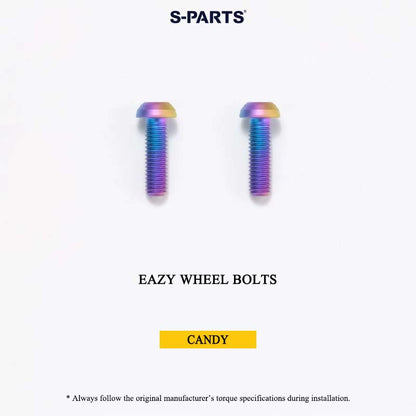

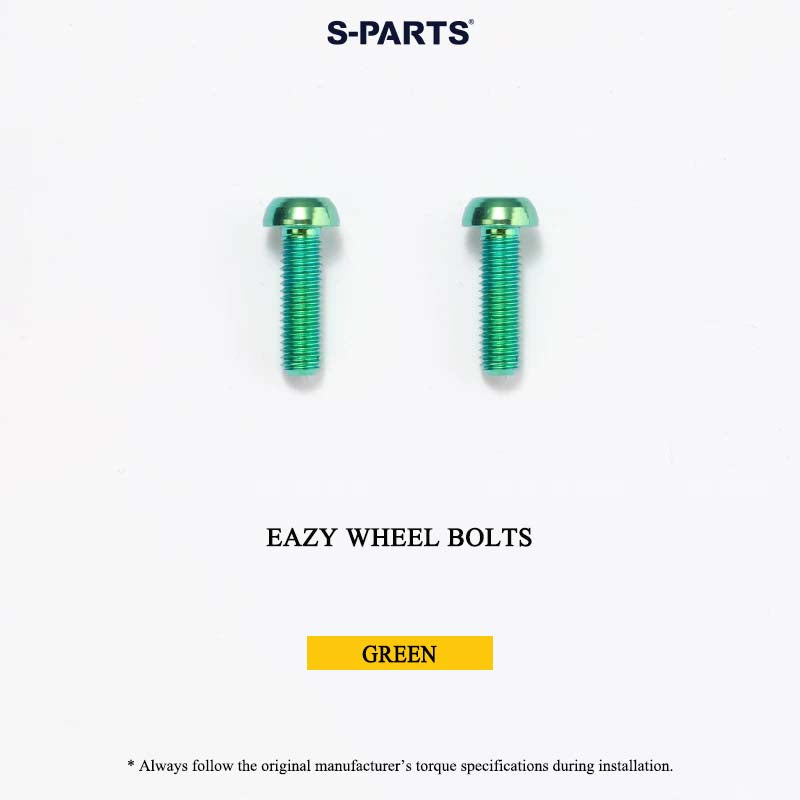

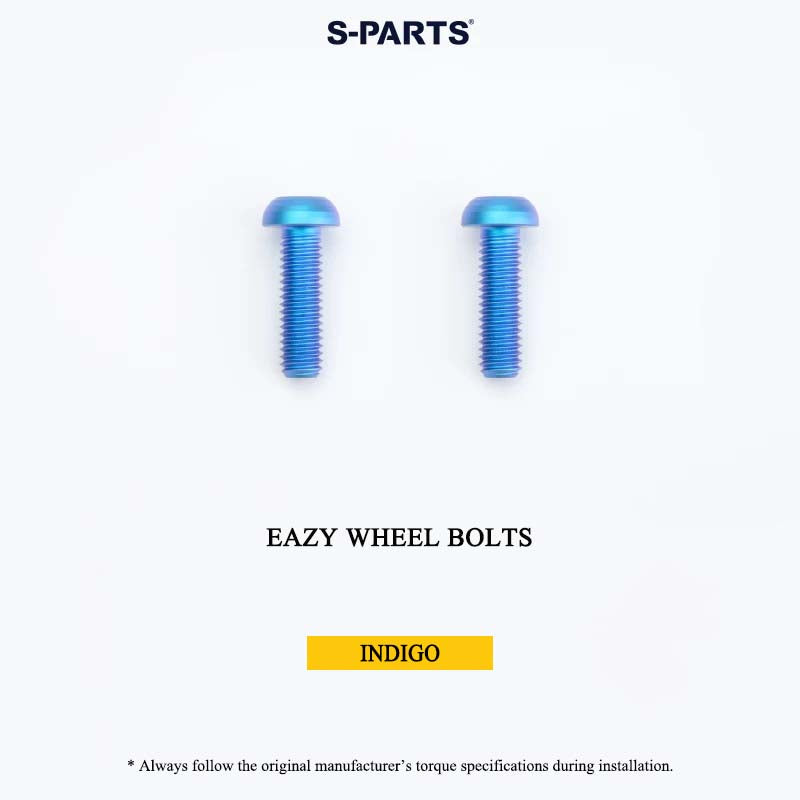

| 11 | Easy Wheel Bolts | 2 pcs | 6.0 g/set | T30 Torx |

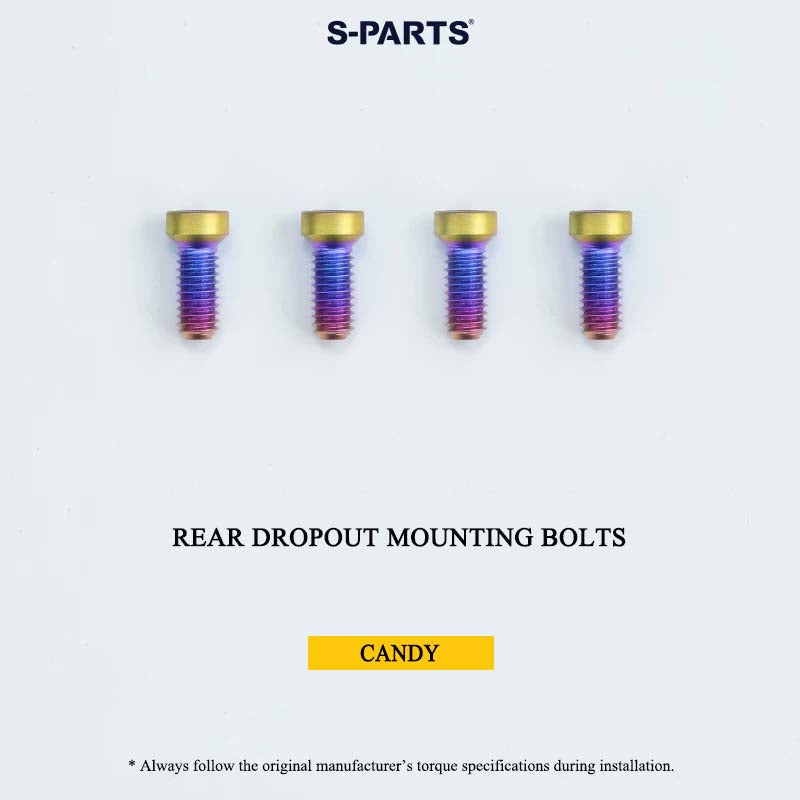

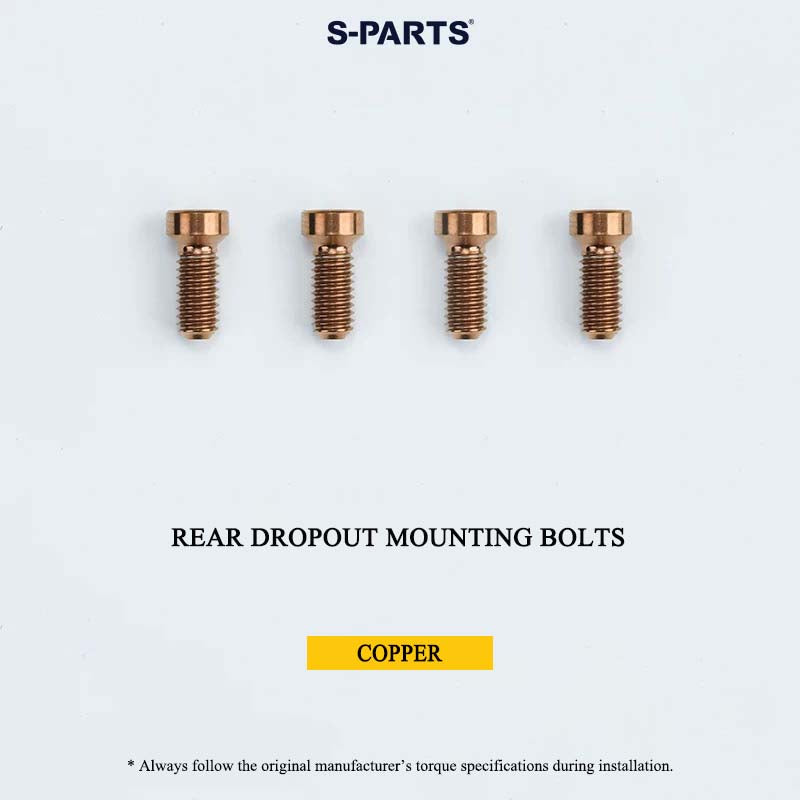

| 12 | Rear Dropout Mounting Bolts | 4 pcs | 2.4 g/set | T20 Torx |

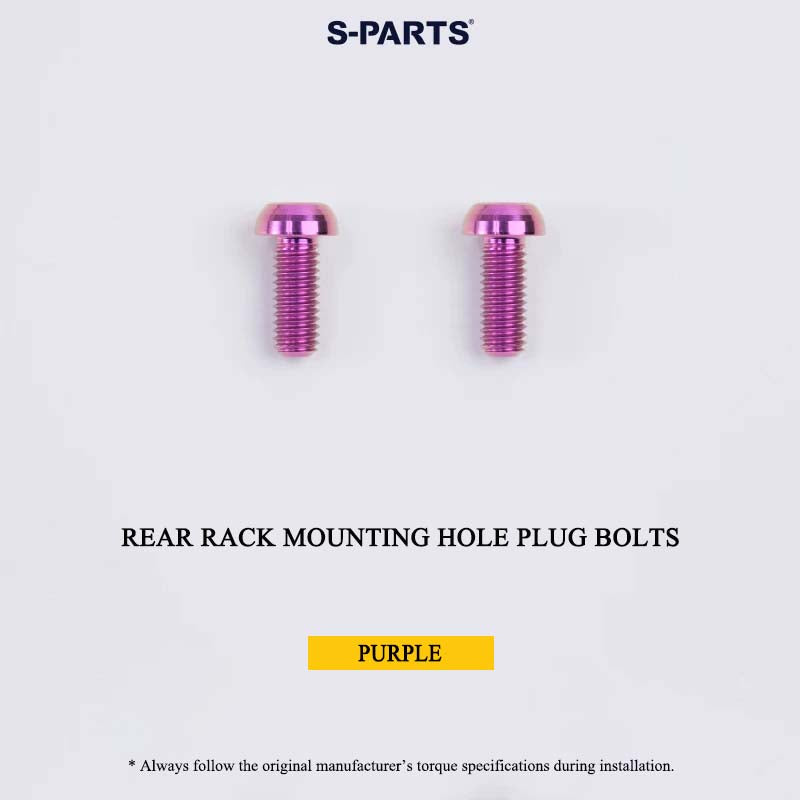

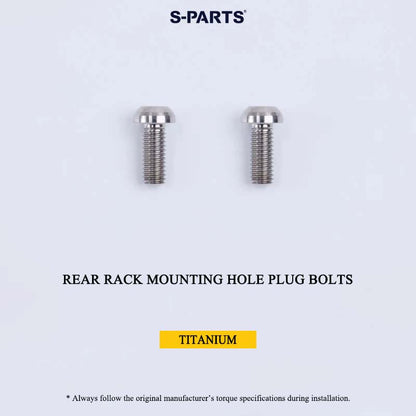

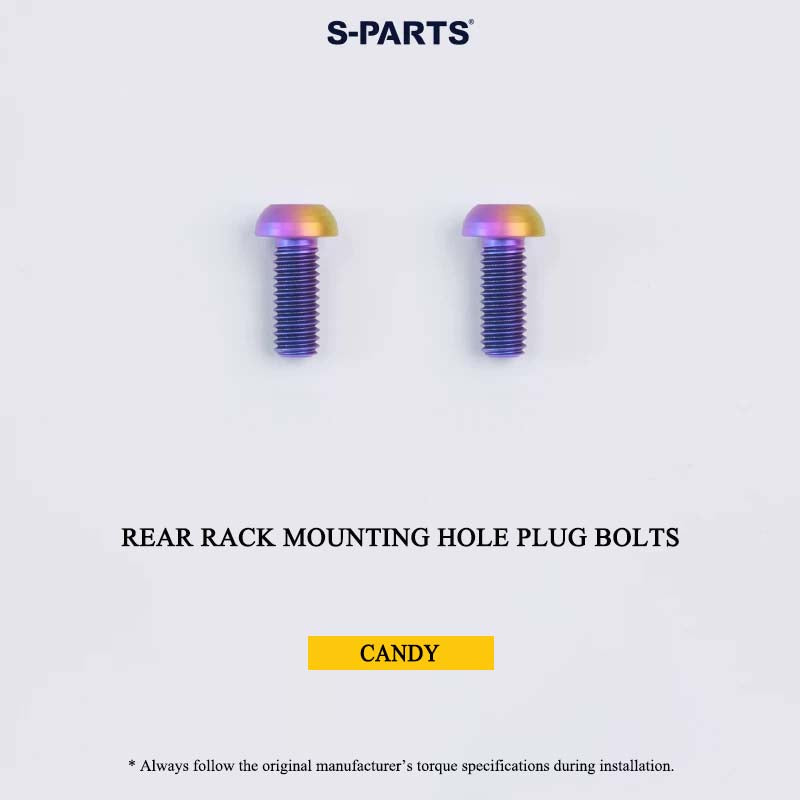

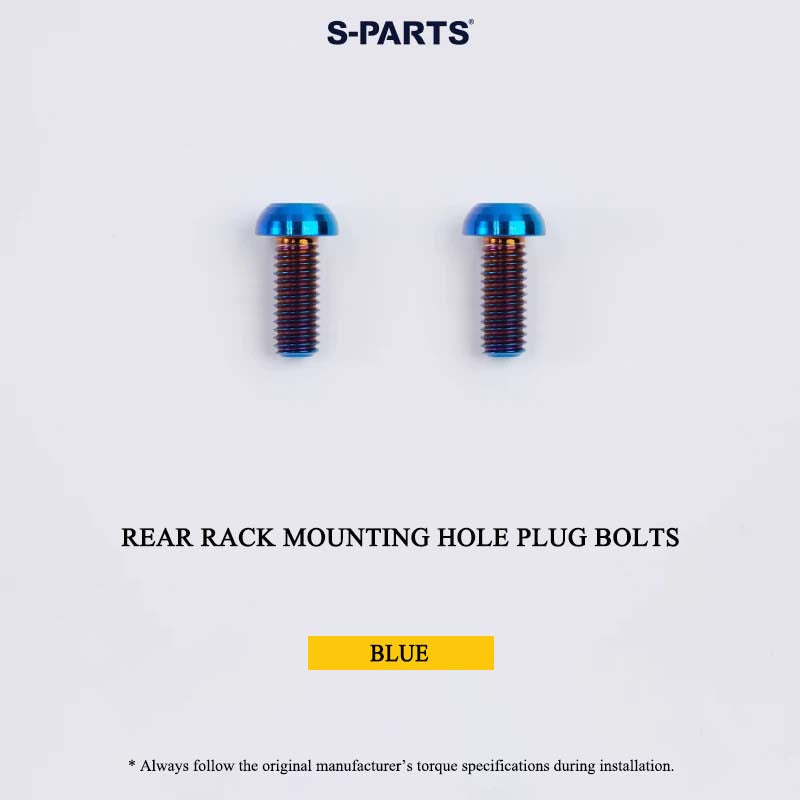

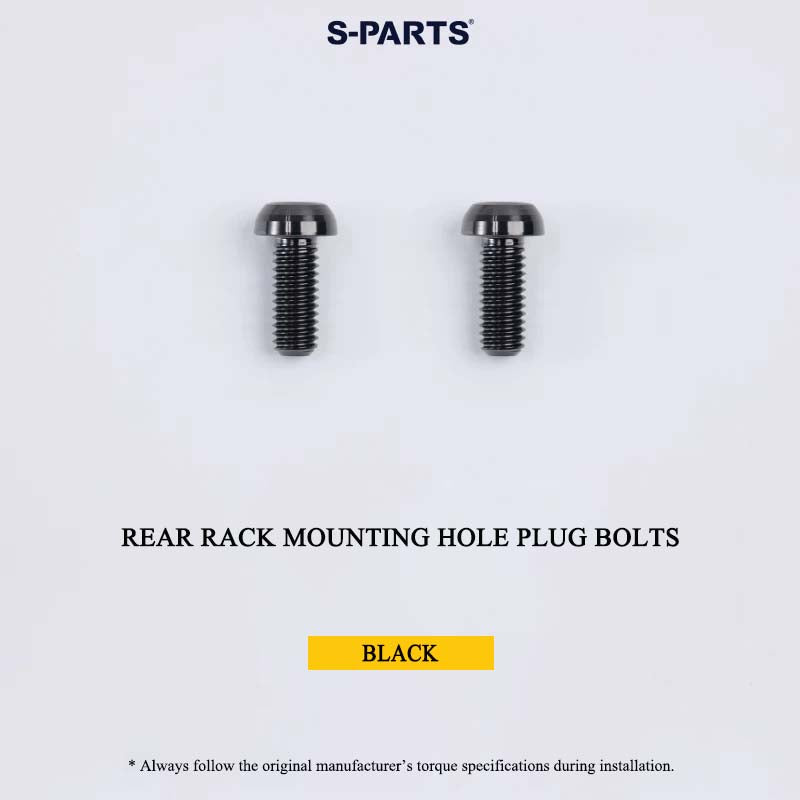

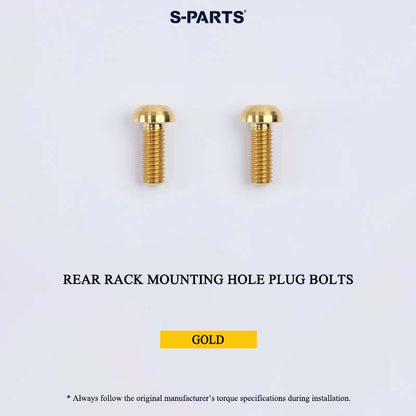

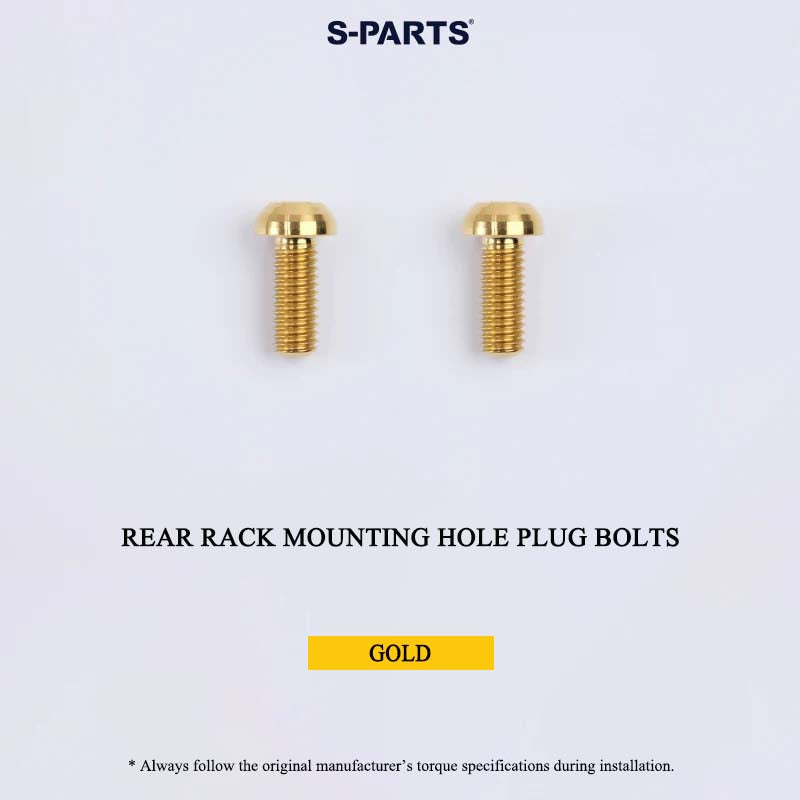

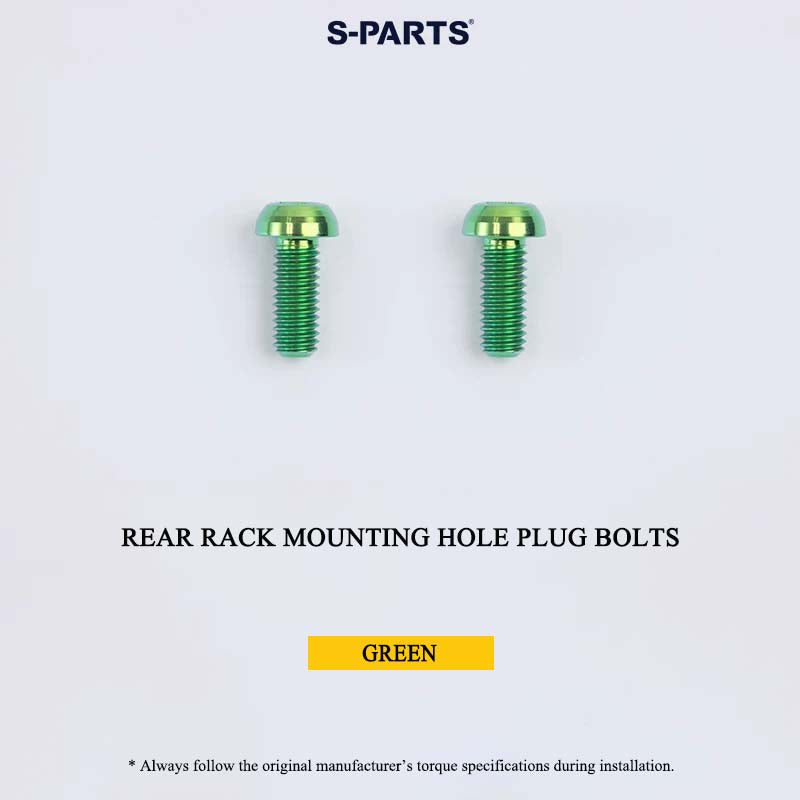

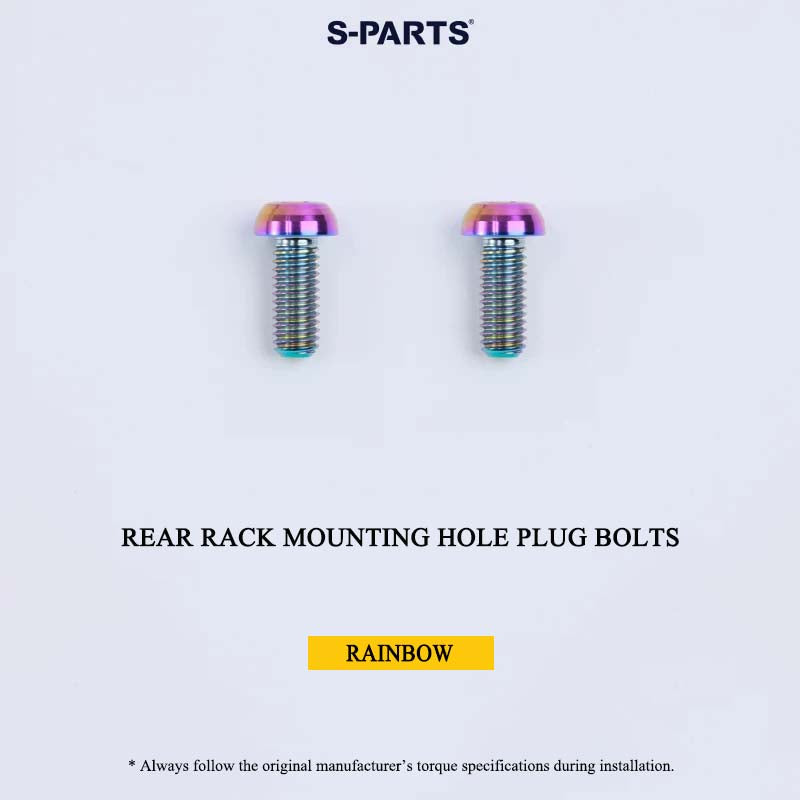

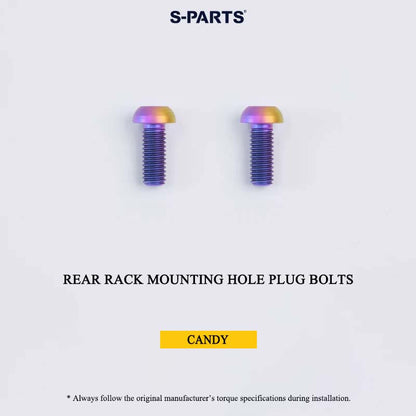

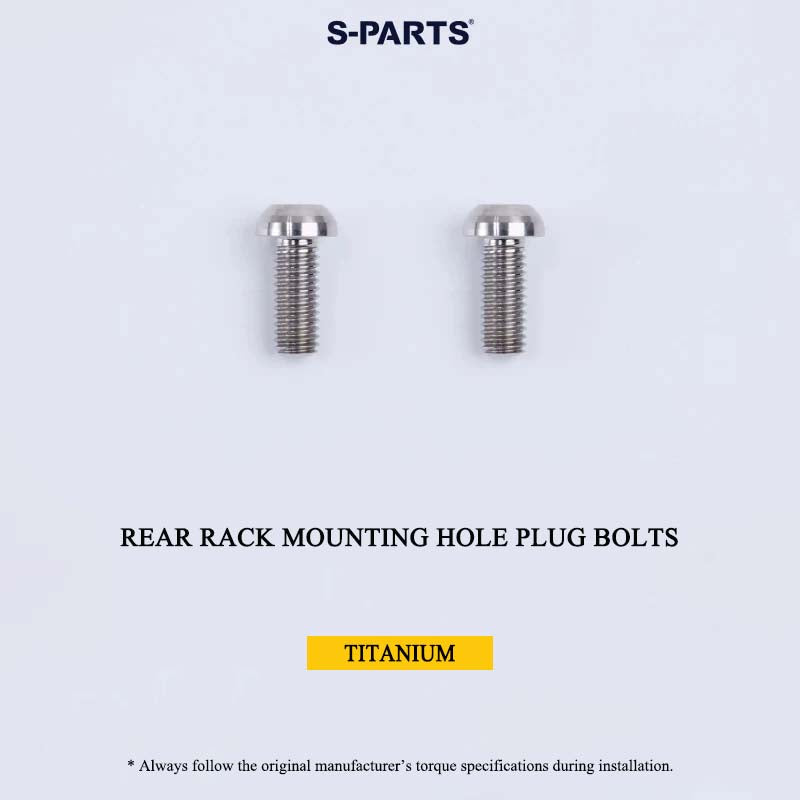

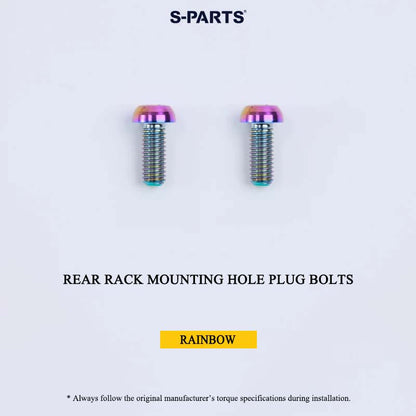

| 13 | Rear Rack Mounting Hole Plug Bolts | 2 pcs | 2.8 g/set | T25 Torx |

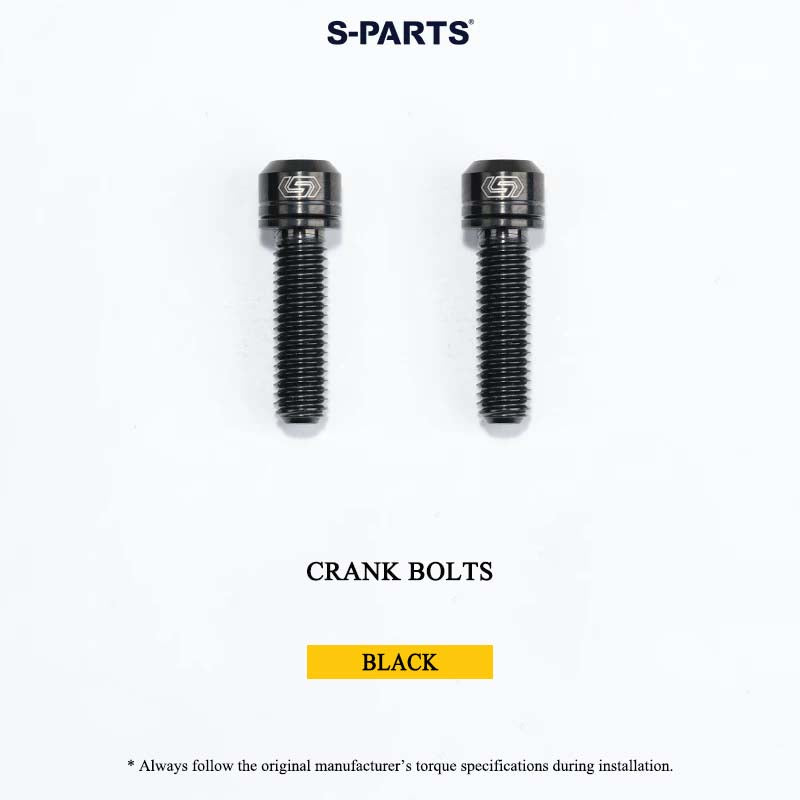

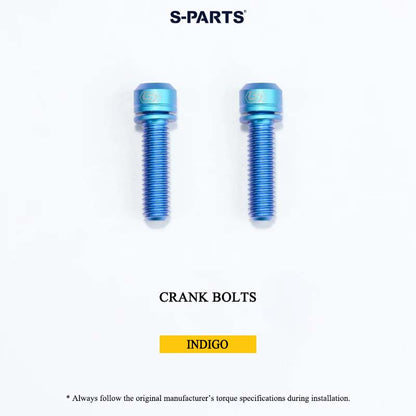

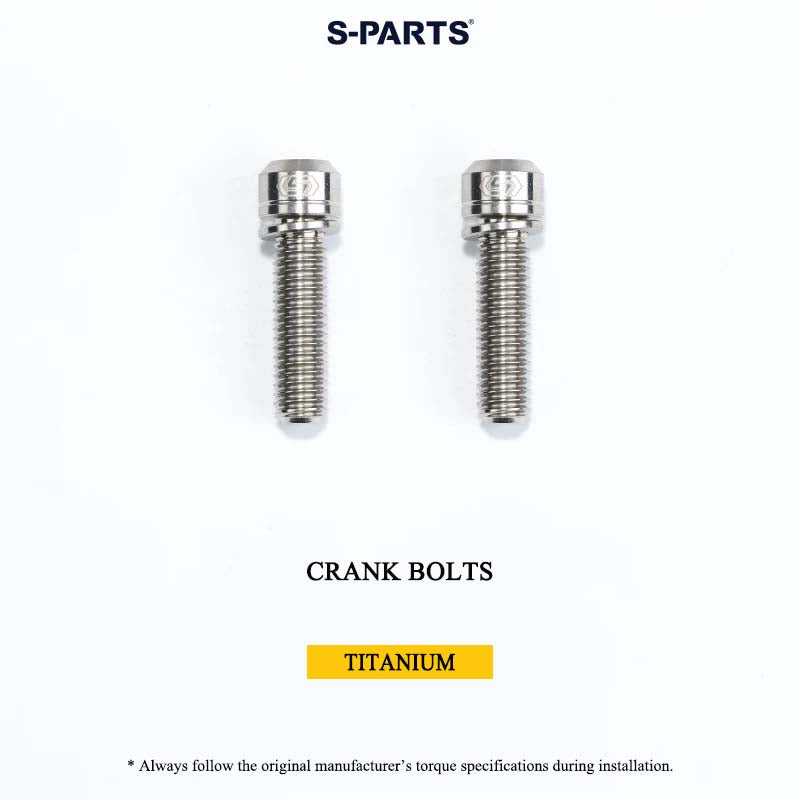

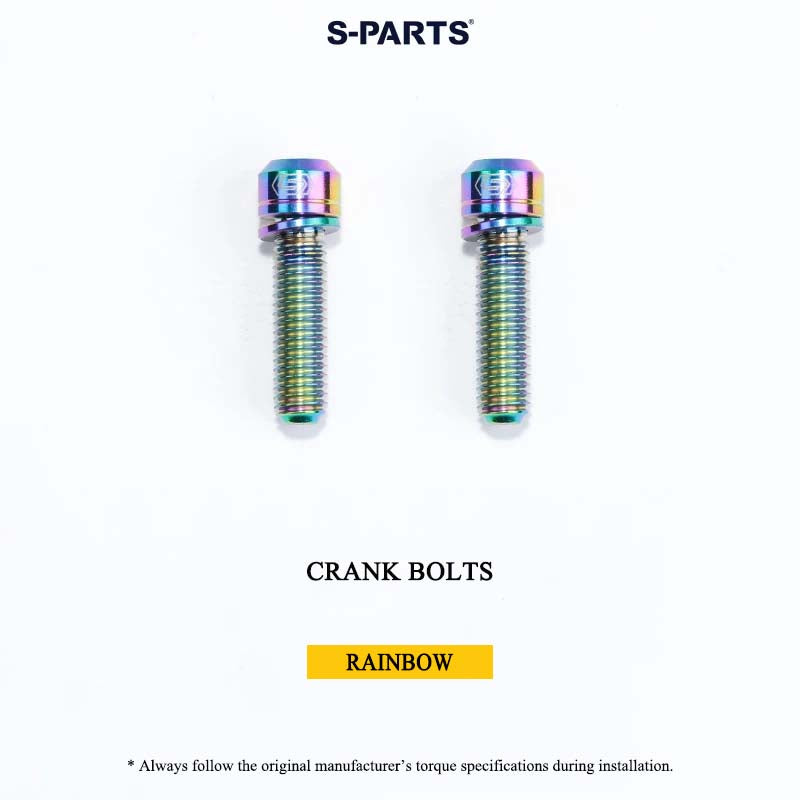

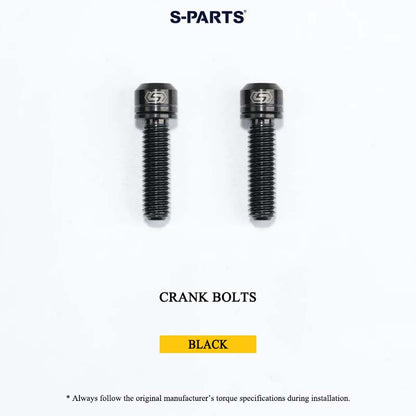

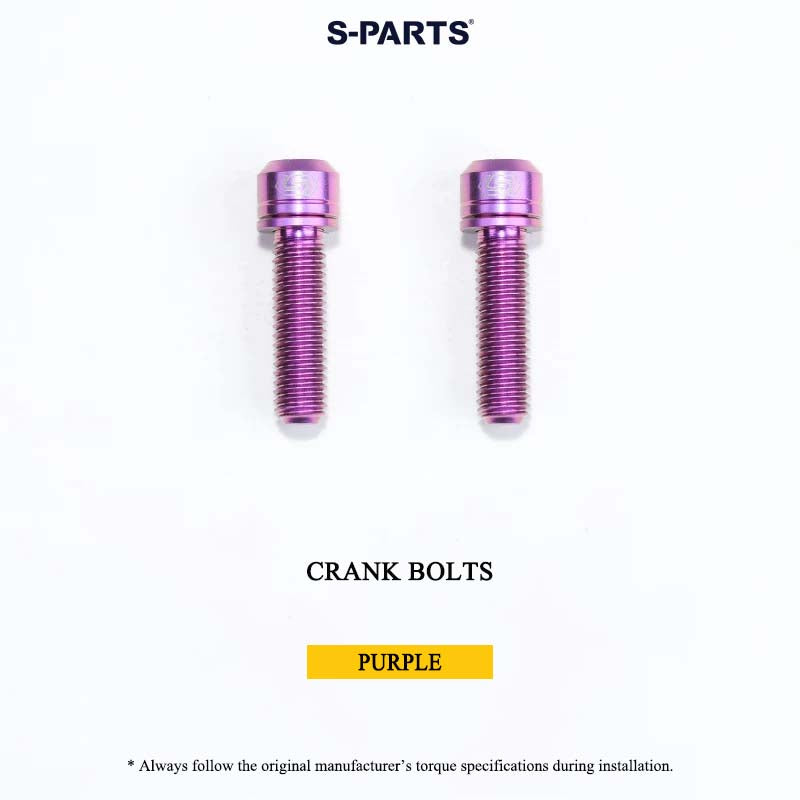

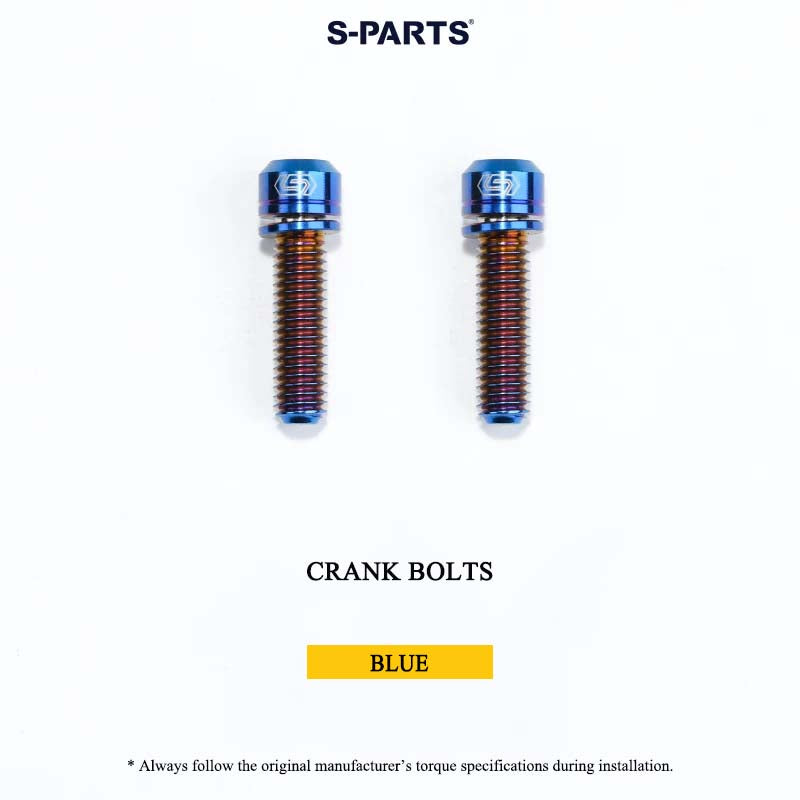

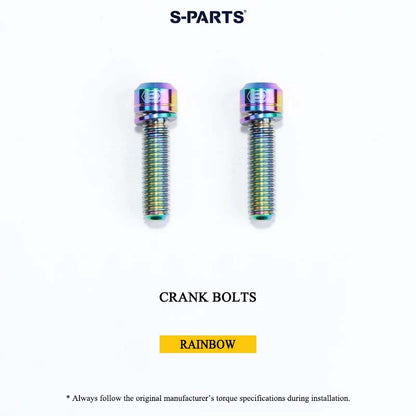

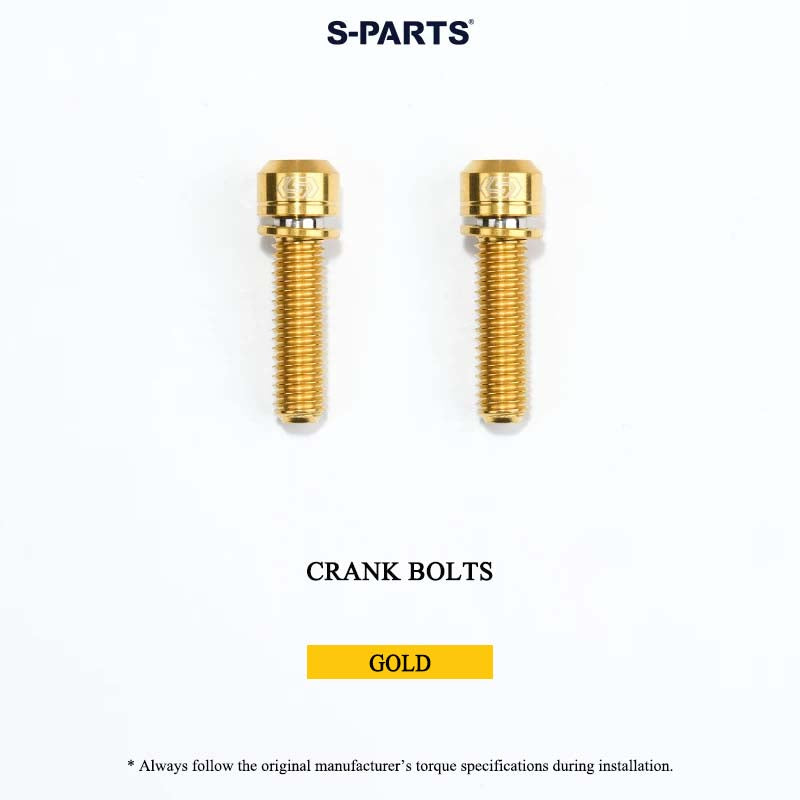

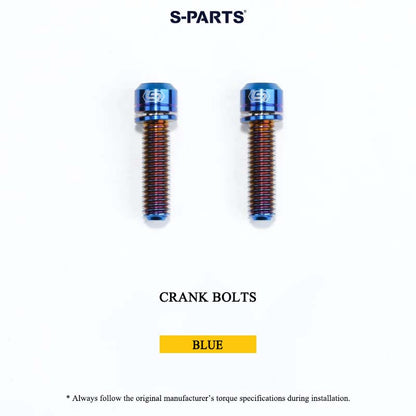

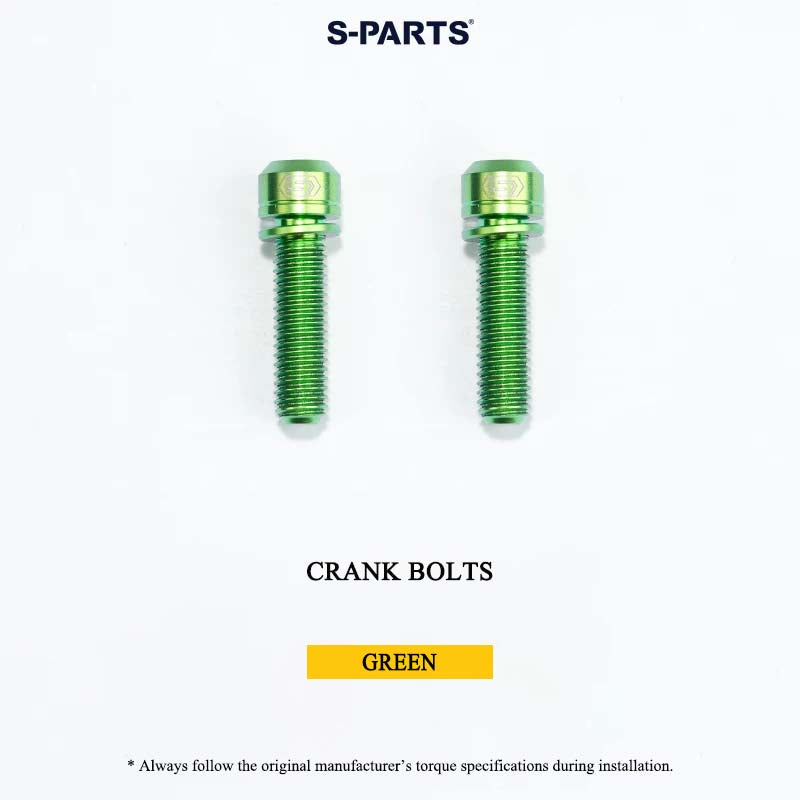

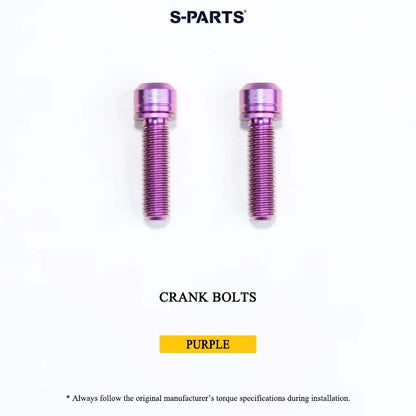

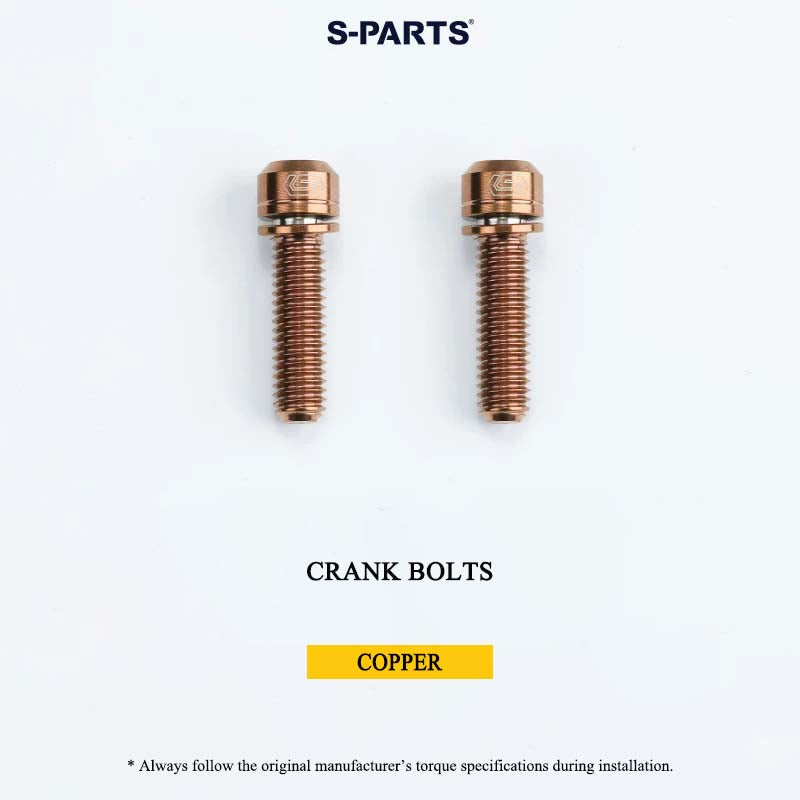

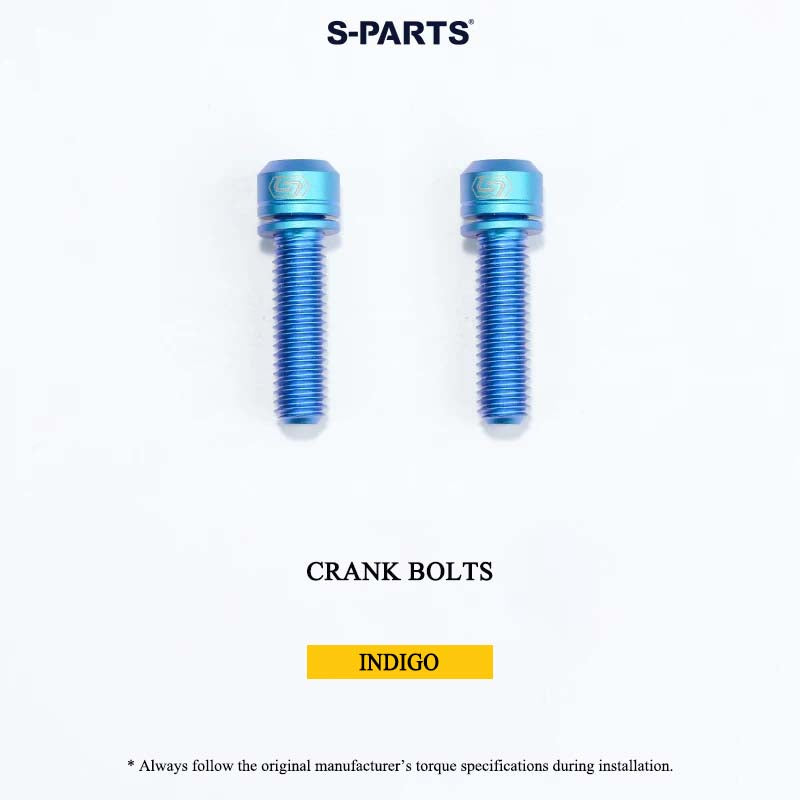

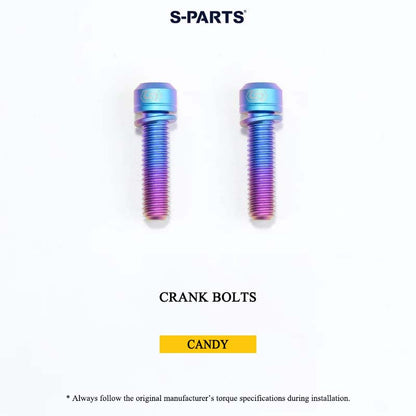

| 14 | Crank Bolts | 2 pcs | 7.0 g/set | T30 Torx |

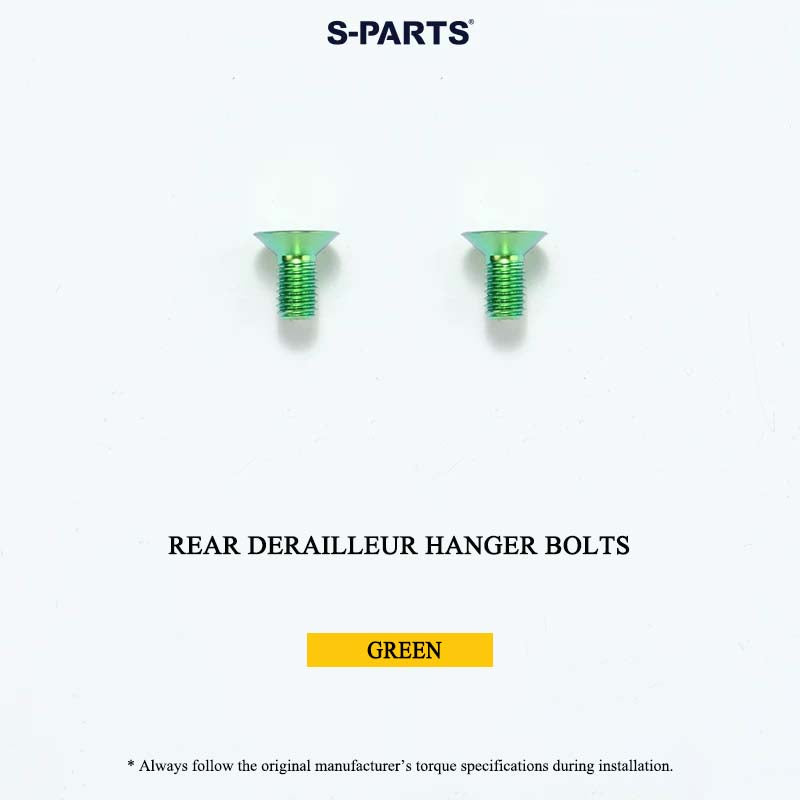

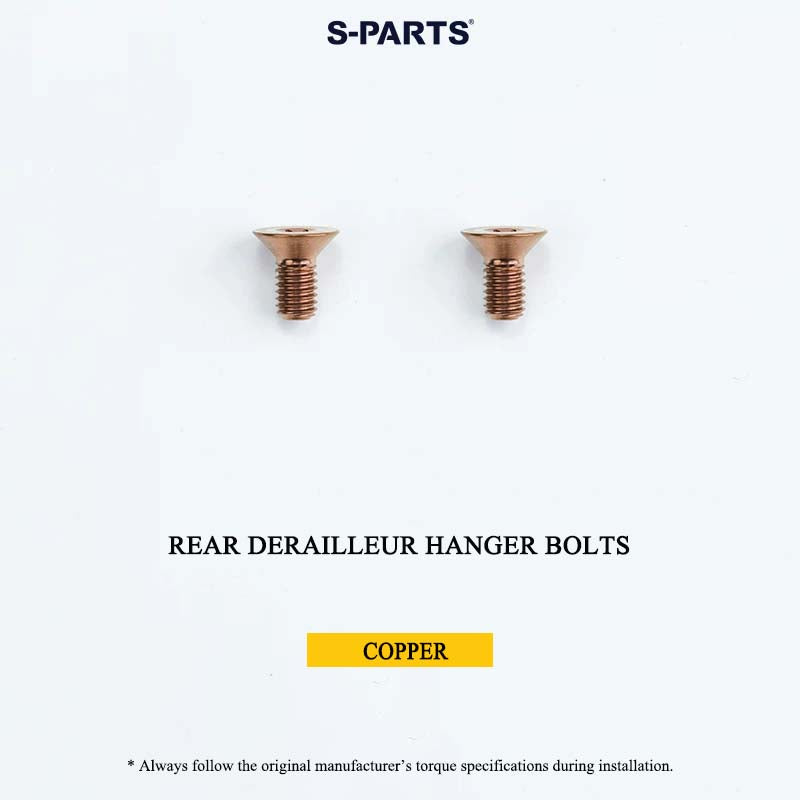

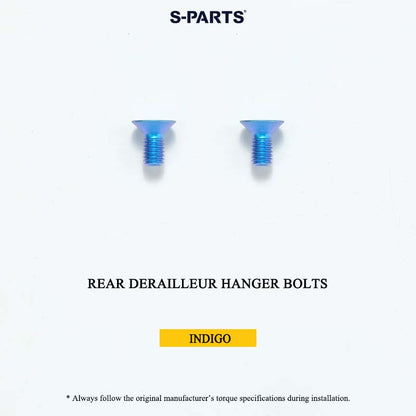

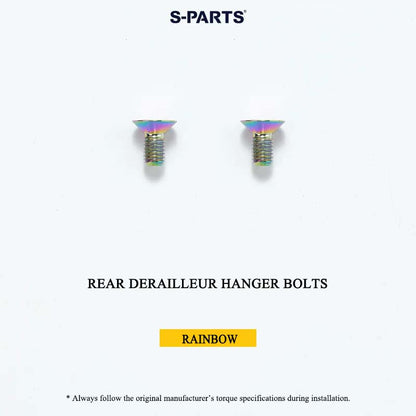

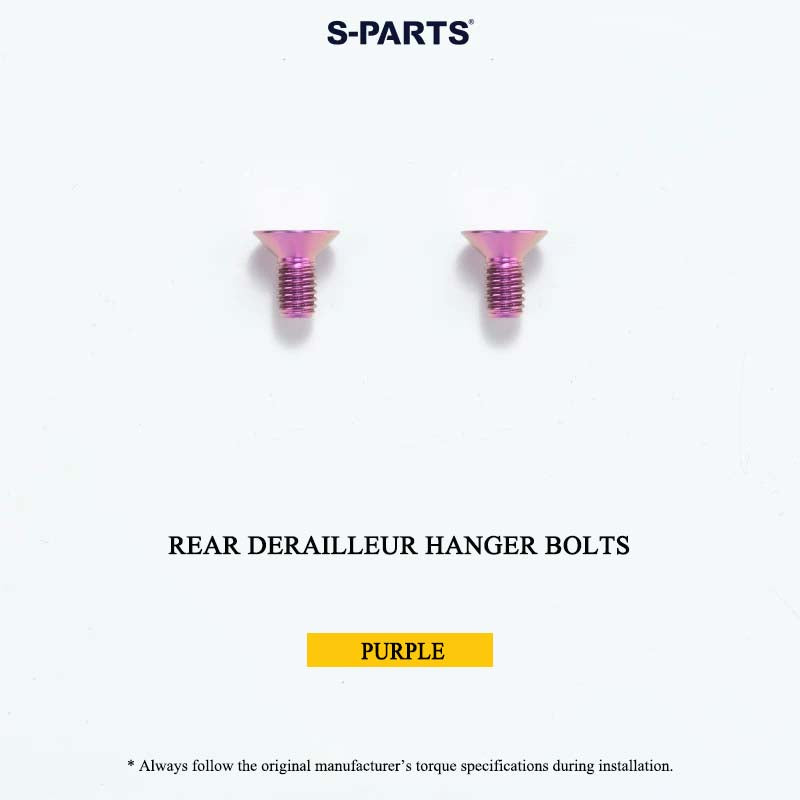

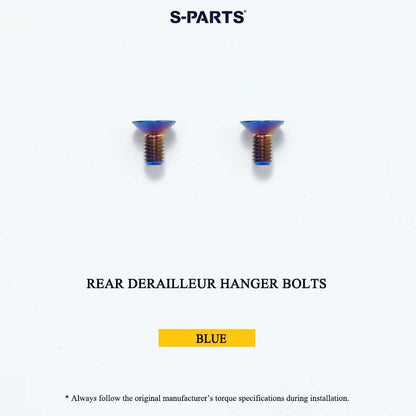

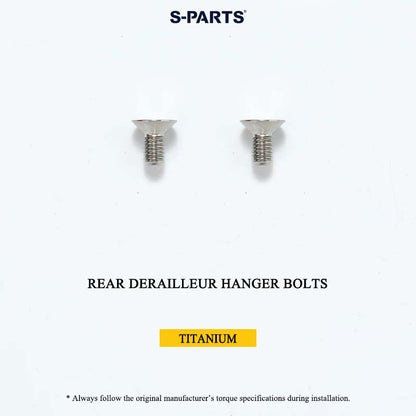

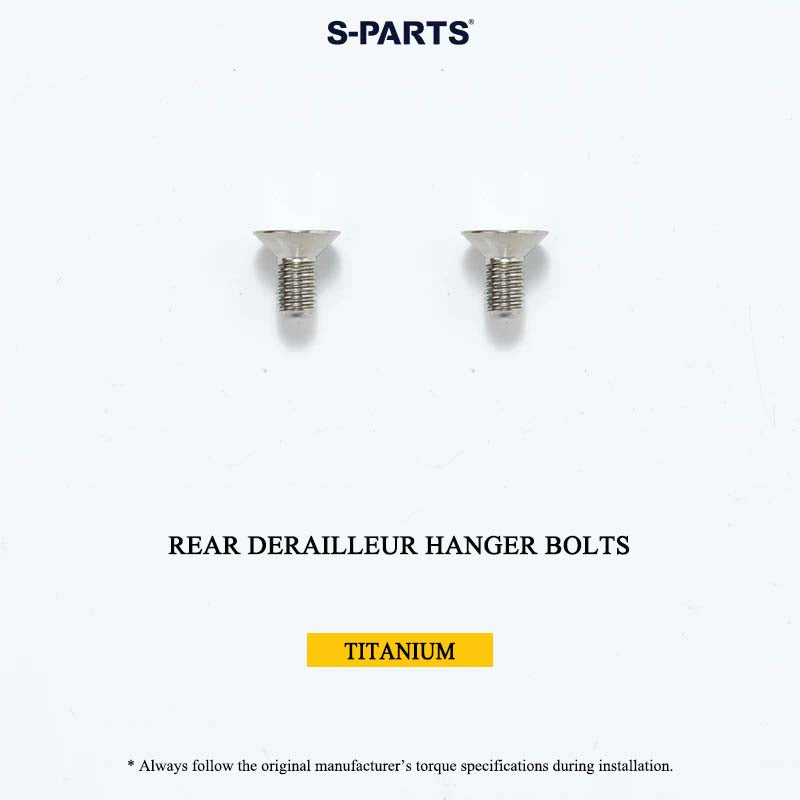

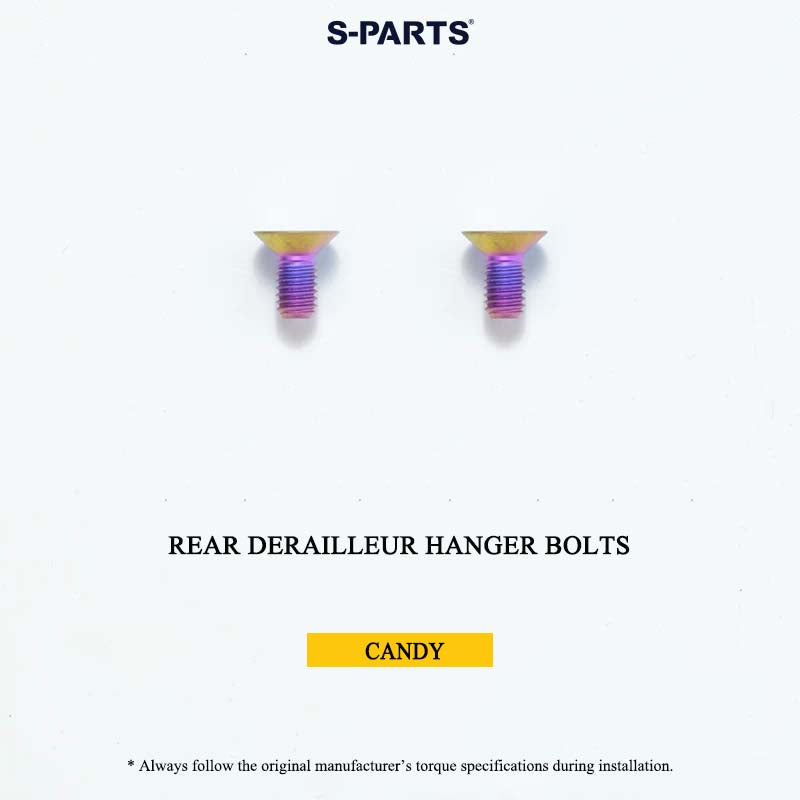

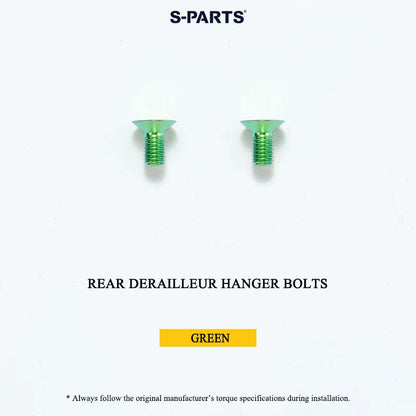

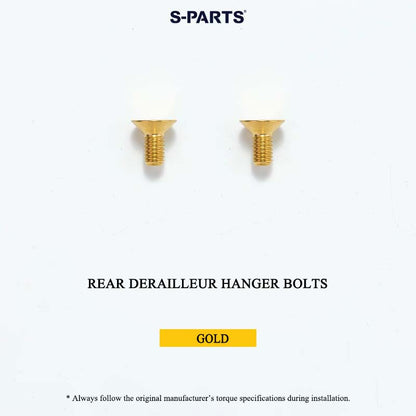

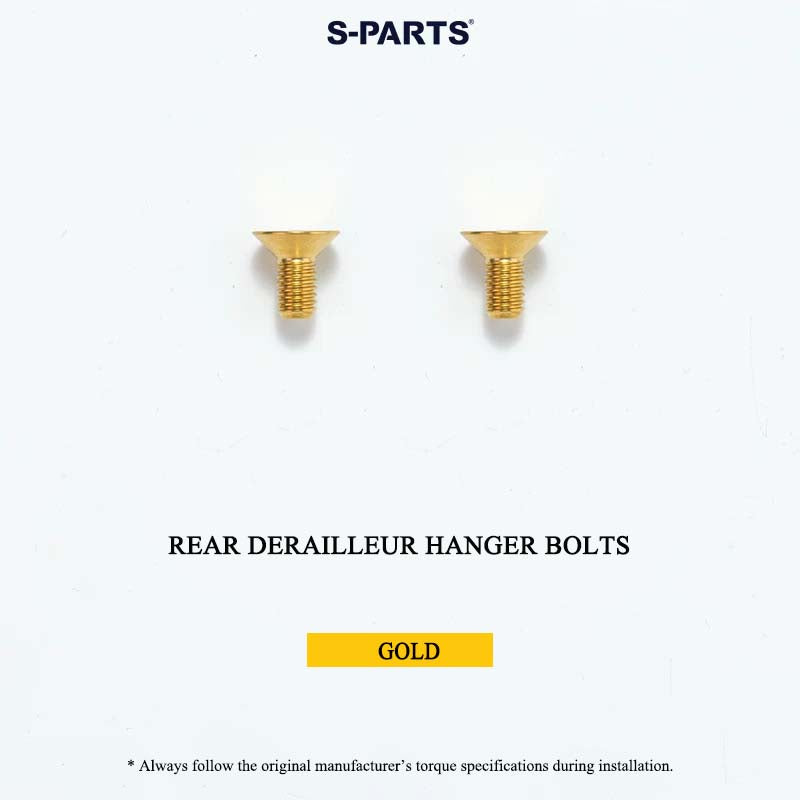

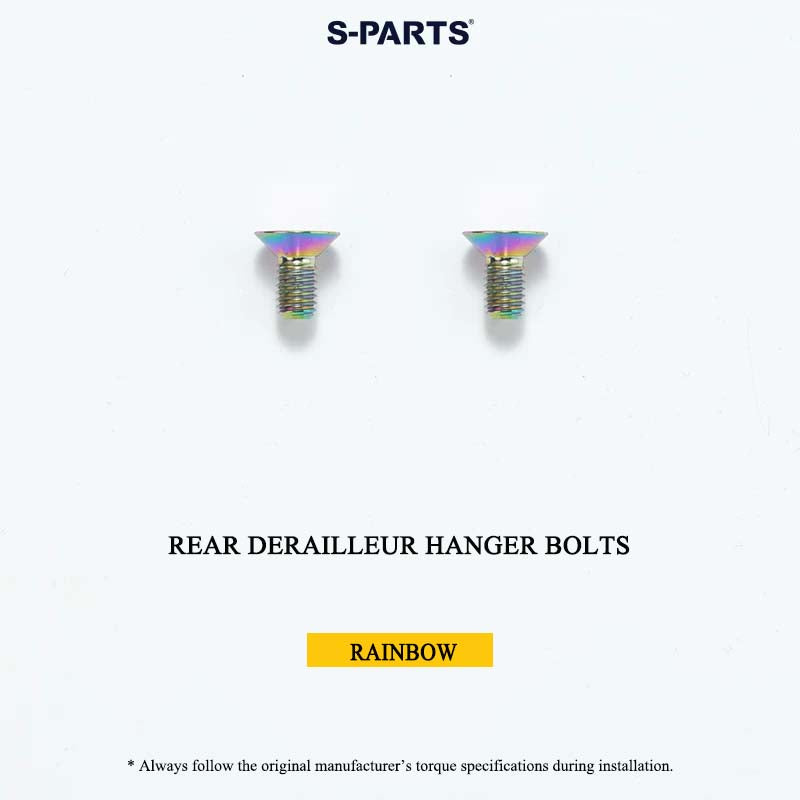

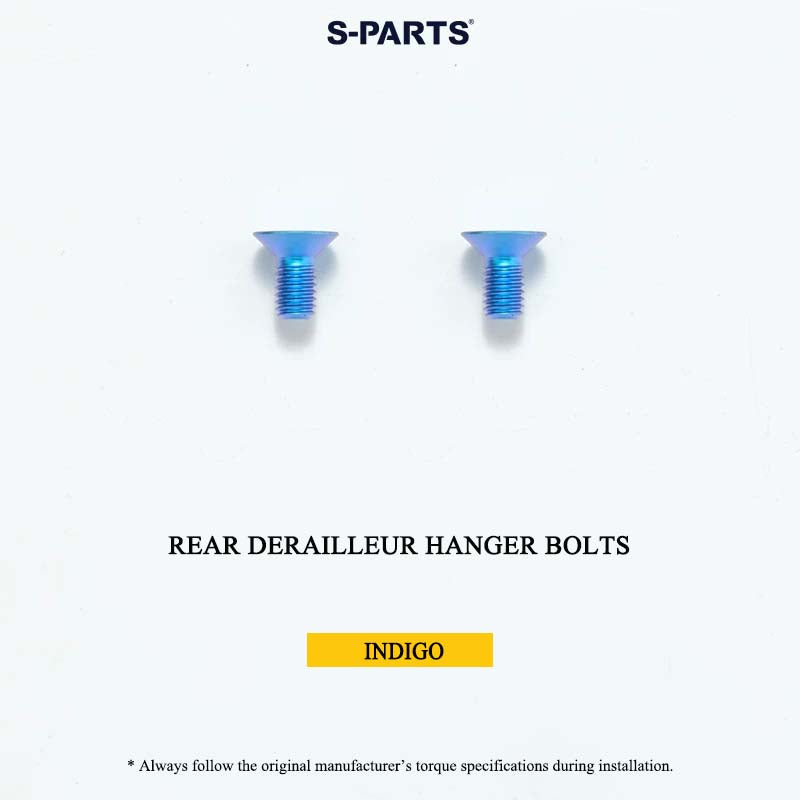

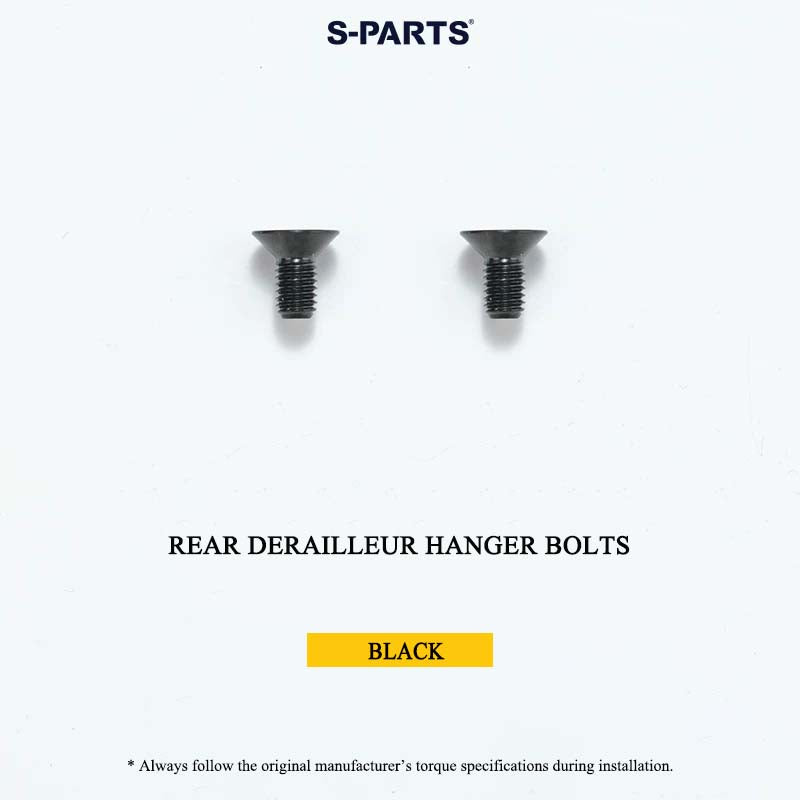

| 15 | Rear Derailleur Hanger Bolts | 2 pcs | 2.0 g/set | T25 Torx |
| 16 | Jockey Wheel Mounting Bolt | 1 pc | 2.97 g | T30 Torx |
| 17 | Rear Derailleur Cable Anchor Bolt | 1 pc | 1.14 g | T25 Torx |
| 18 | Rear Derailleur H/L Limit Screw | 1 pc | 0.5 g | T10 Torx |
Part Breakdown
(1) Head Tube Catch Pin (2) Head Tube Catch Pin Screw (3) Headpost Top Cap Bolt(4) Headpost Hinge Pivot Bolt (5) Headpost Side Pinch Bolts (6) Handlebar Clamp Bolts (7) Brake Lever Clamp Bolts (8) Shifter Clamp Bolt (9) Frame Hinge Pivot Bolts (10) Seatpost / Saddle Clamp Bolts (11) Rear Shock Mount Bolt Set (12) Rear Frame Hinge Pivot Bolts (13) Easy Wheel Bolts (14) Rear Dropout Mounting Bolts (15) Rear Rack Mounting Hole Plug Bolts (16) Crankset Pinch Bolts (17) Rear Derailleur Hanger Bolts (18) Rear Derailleur H-L Limit Screws (19) Jockey Wheel Mounting Bolt (20) Rear Derailleur Cable Anchor Bolt (21) Rear Derailleur Cage Limit Screw

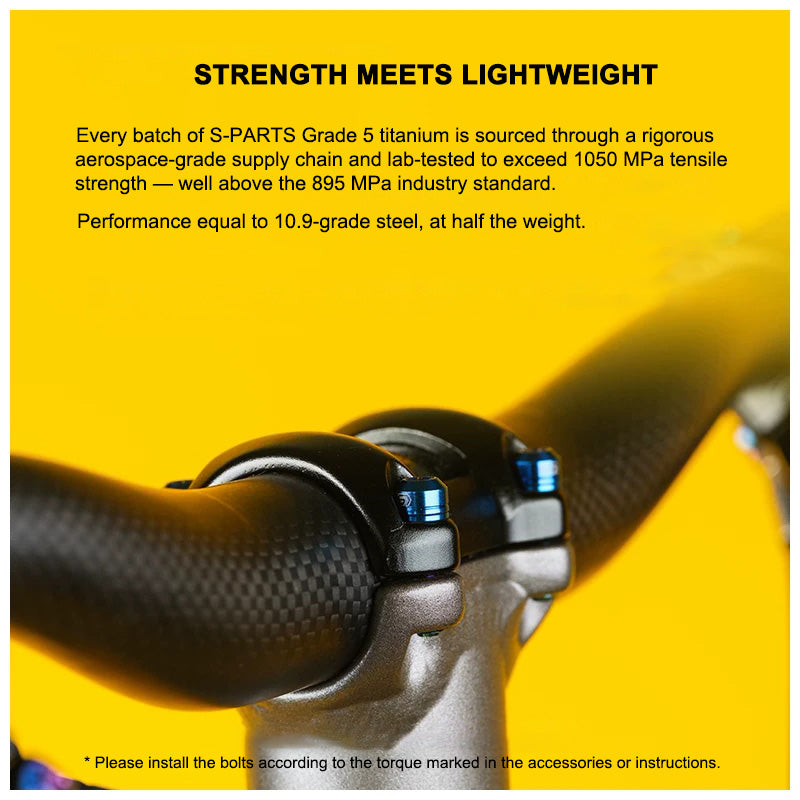

Grade 5 Titanium | High Strength, Lower Weight
S-PARTS Grade 5 Titanium (Ti-6Al-4V) fasteners deliver an average tensile strength of over 1,050 MPa.
Under comparable conditions, their overall mechanical performance is comparable to 10.9-grade steel fasteners, while their weight is approximately half that of steel fasteners.
For riders focused on lightweight upgrades, titanium provides a high strength-to-weight ratio while maintaining the performance expected from precision fastening hardware.
Precision CNC Manufacturing
S-PARTS fastening components are manufactured using military-grade precision composite CNC machining equipment, supported by a micron-level tolerance control system.
This precision manufacturing process helps achieve accurate dimensions, consistent threads and clean thread engagement across the components.
S-PARTS Material Selection
S-PARTS works with a metal raw-material supply chain serving the civilian aerospace industry in Xi'an, China.
Through long-term laboratory comparison and testing, titanium alloy materials are selected according to S-PARTS material standards for strength, consistency and application requirements.
S-PARTS Forging & Tooling
S-PARTS also uses custom tooling and 650°C hot forging for applicable forged components. For its crank covers, each custom forging die is used no more than 300 times to help maintain processing consistency and dimensional accuracy.
This forging specification applies to the relevant forged components and does not mean that all 18 fastener variants in this product are hot-forged.

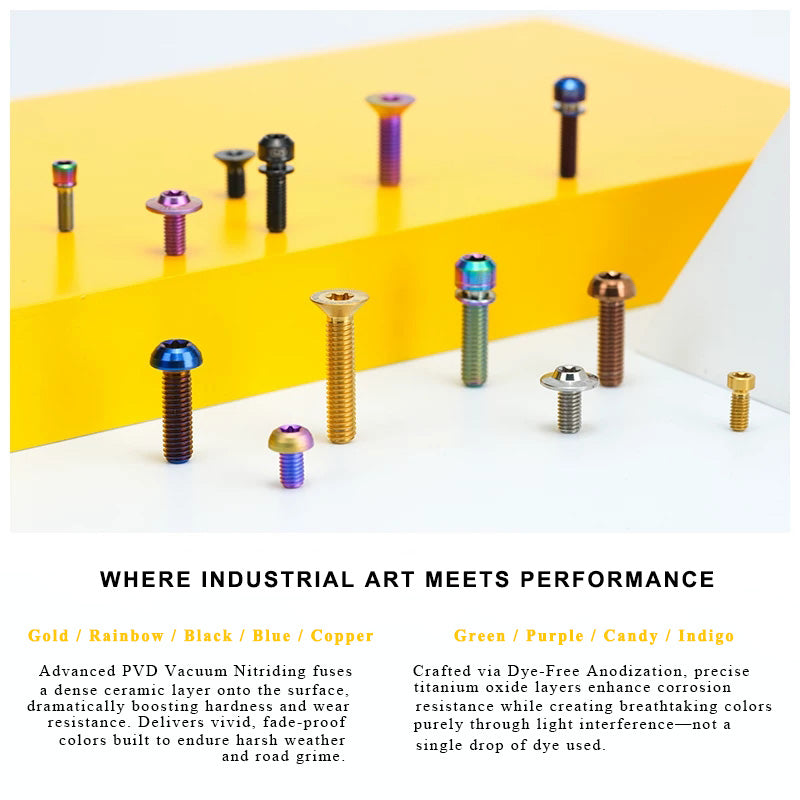

Color Options
Gold · Rainbow · Titanium · Black · Blue · Green · Purple · Candy · Indigo · Copper
Vacuum-Nitrided / PVD Colors
Gold, Rainbow, Black, Blue and Copper use S-PARTS' vacuum-nitriding / PVD coloring process.
Anodized Colors
Green, Purple, Candy and Indigo use an anodizing process.
Titanium
Titanium is offered as a separate color option. The supplied product information does not specify a separate coloring process for this color.
Finish Notes
Candy Finish:
The Candy finish has a naturally flowing and variable color appearance. Color distribution may vary from piece to piece due to the coloring process, so individual parts may have different color patterns.
This variation is a normal characteristic of the finish.
Thread Area:
Fine white line markings may appear around the threaded areas of some colored titanium bolts. This is a normal appearance associated with the coloring process and does not mean the bolt is defective.
Variant Selection
Each option is sold as an individual variant with its own specified quantity, weight and installation tool. Please match the variant number with the required location in the product image before ordering.
