9pcs Titanium Bolt Kit for Brembo RCS Master Cylinder – Lever, Pivot, Banjo Bolts
9pcs Titanium Bolt Kit for Brembo RCS Master Cylinder – Lever, Pivot, Banjo Bolts
Couldn't load pickup availability
Description:
Enhance your Brembo RCS master cylinder with this premium 9-piece titanium bolt kit, precision CNC-machined from Grade 5 Titanium (Ti-6Al-4V) for superior strength, ultra-lightweight performance, and exceptional corrosion resistance.

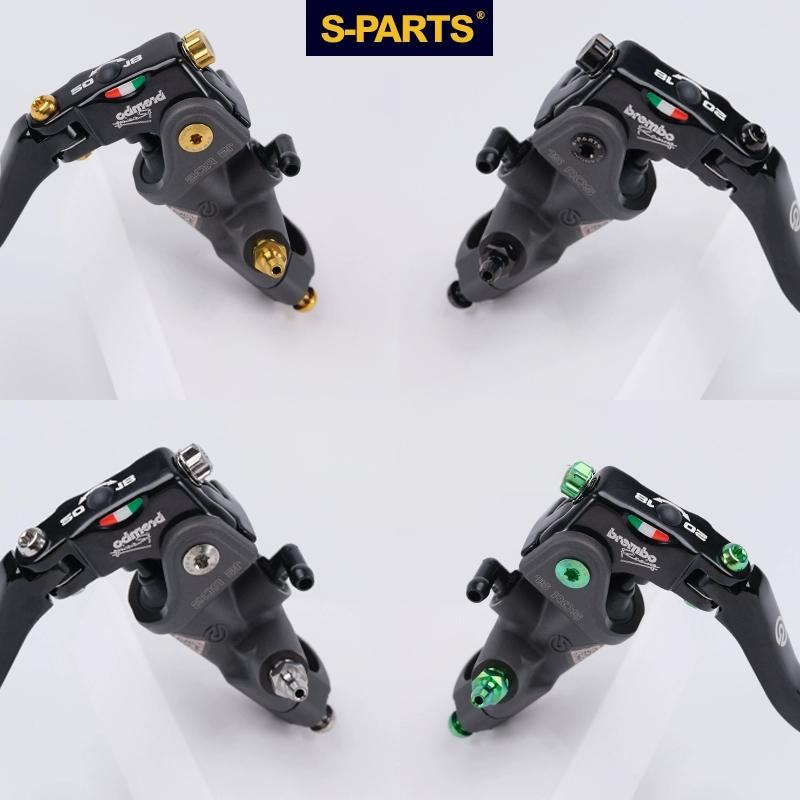

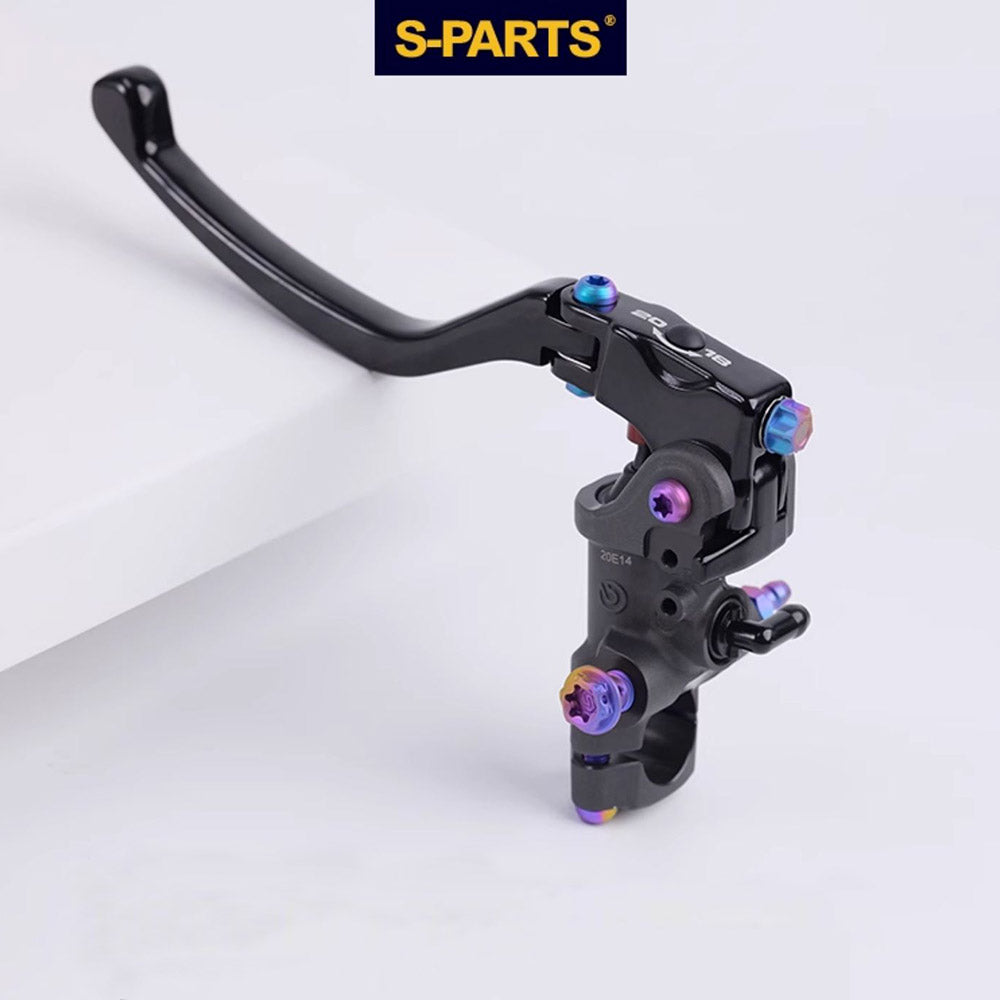

This kit replaces key OEM fasteners on the master cylinder assembly, offering improved durability, reduced weight, and striking custom color options to match your motorcycle’s style.

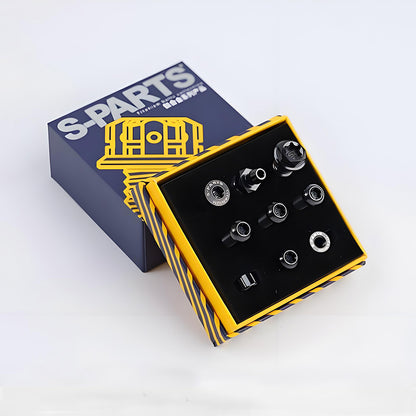

Kit Includes:

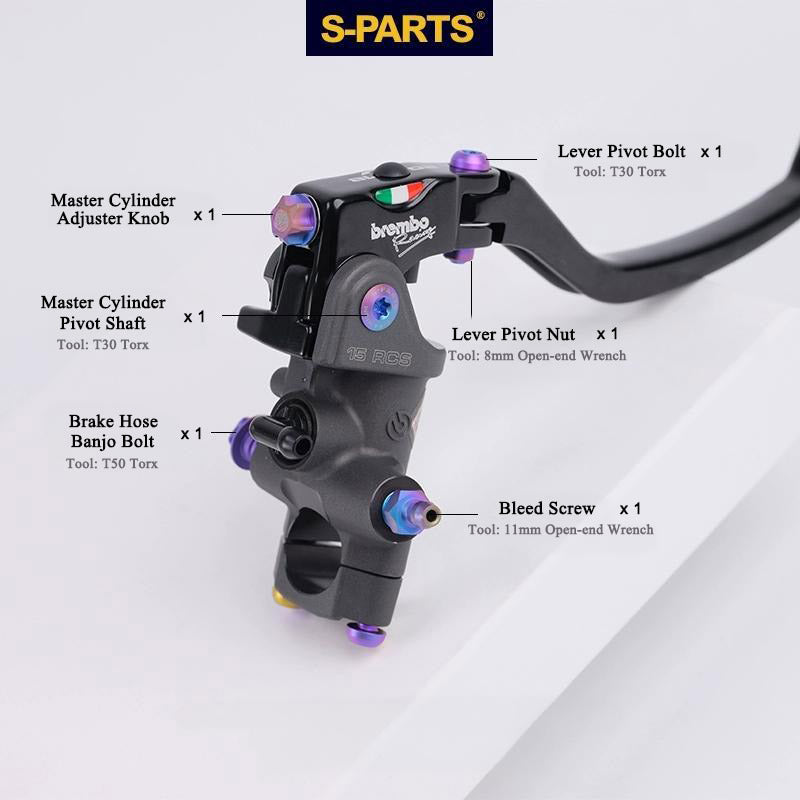

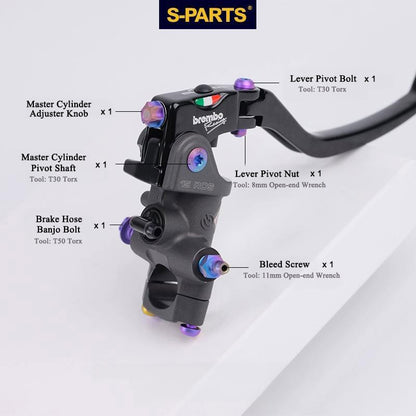

- Master Cylinder Adjuster Knob × 1 – Adjusts lever reach and brake feel.
- Master Cylinder Pivot Shaft × 1 – The main lever pivot axle.
- Lever Pivot Bolt × 1 – Secures the lever to the pivot shaft.
- Lever Pivot Nut × 1 – Locks the lever pivot bolt in place.
- Brake Hose Banjo Bolt × 1 – Secures the brake line banjo fitting.
- Bleed Screw × 1 – Allows brake fluid bleeding and air release.

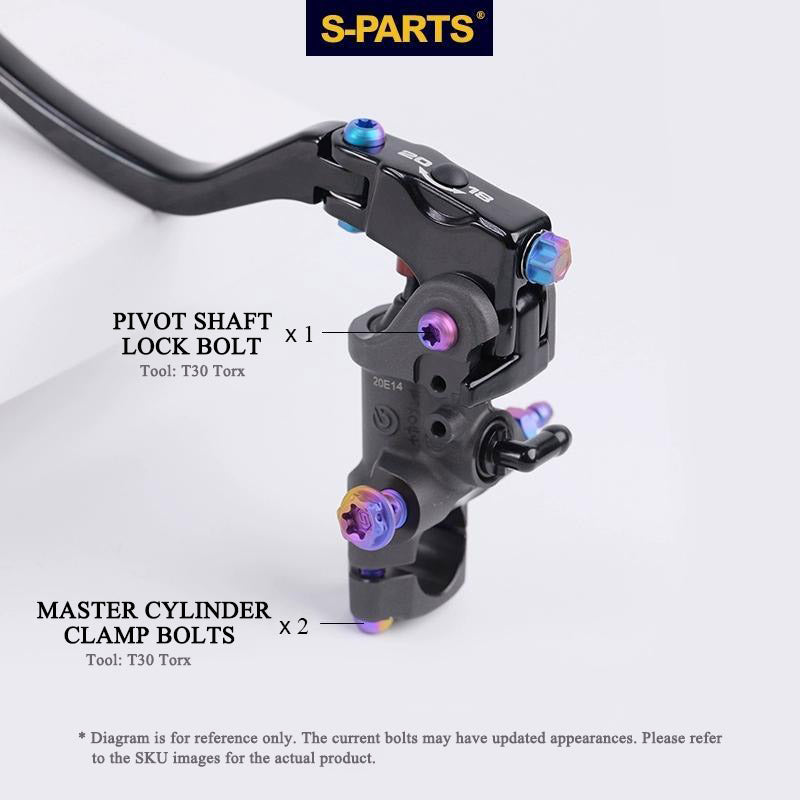

- Pivot Shaft Lock Bolt × 1 – Prevents pivot shaft movement.
- Master Cylinder Clamp Bolts × 2 – Secure the master cylinder clamp/base to the handlebar.
Explosion diagram:
| No. | Component | Quantity | Tool | Pre-applied Coatings |
| 1 | Master Cylinder Clamp Bolts | 2 pcs | T30 Toxy | Anti-seize compound |
| 2 | Brake Hose Banjo Bolt | 1 pcs | T50 Toxy | / |
| 3 | Bleed Screw | 1 pcs | 11mm open-end wrench | / |
| 4 | Master Cylinder Pivot Bolt | 1 pcs | T25 Toxy | / |
| 5 | Pivot Bolt Set Screw | 1 pcs | T30 Toxy | Medium-strength threadlocker |
| 6 | Lever Pivot Bolt | 1 pcs | T30 Toxy | / |
| 7 | Lever Pivot Nut | 1 pcs | 8mm open-end wrench | / |
| 8 | Adjuster Knob | 1 pcs | 2mm open-end wrench | / |
Note: The products marked in red are parts that S-PARTS has produced, is currently producing, or may produce in the future. The items you purchase do not include all of the above. Please refer to the product page at the time of purchase for the exact quantity and model.
Available Colors & Finishes:

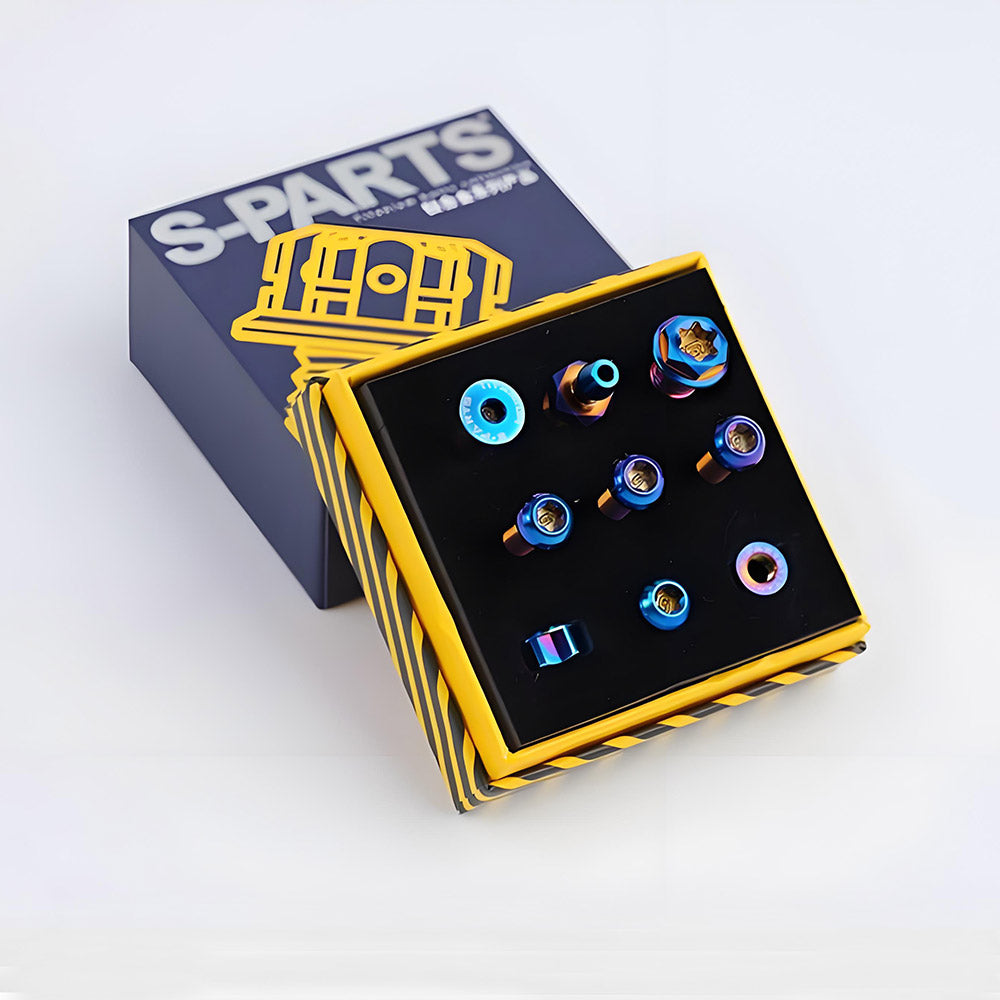

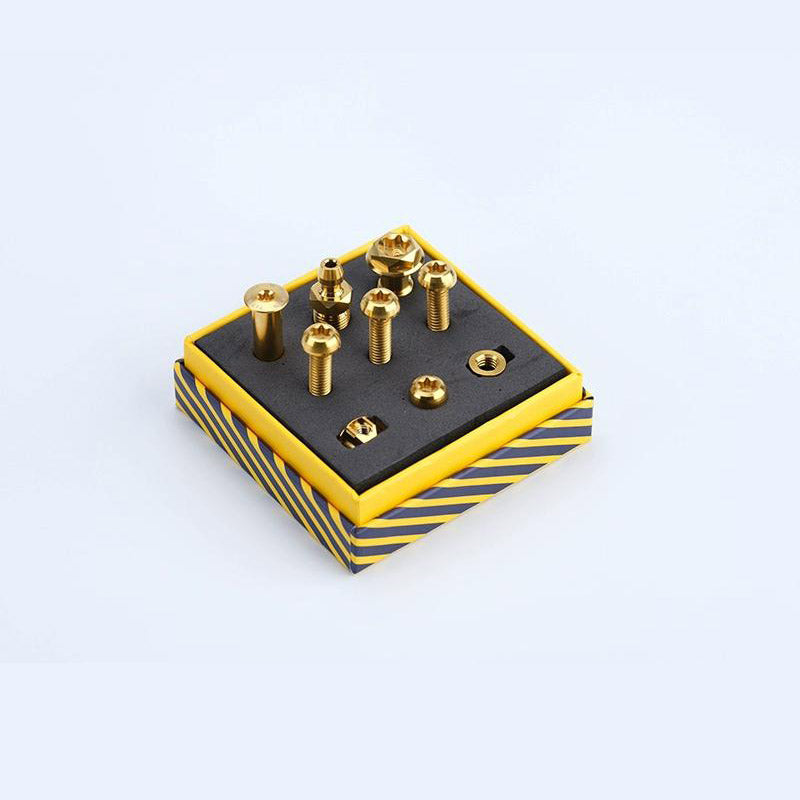

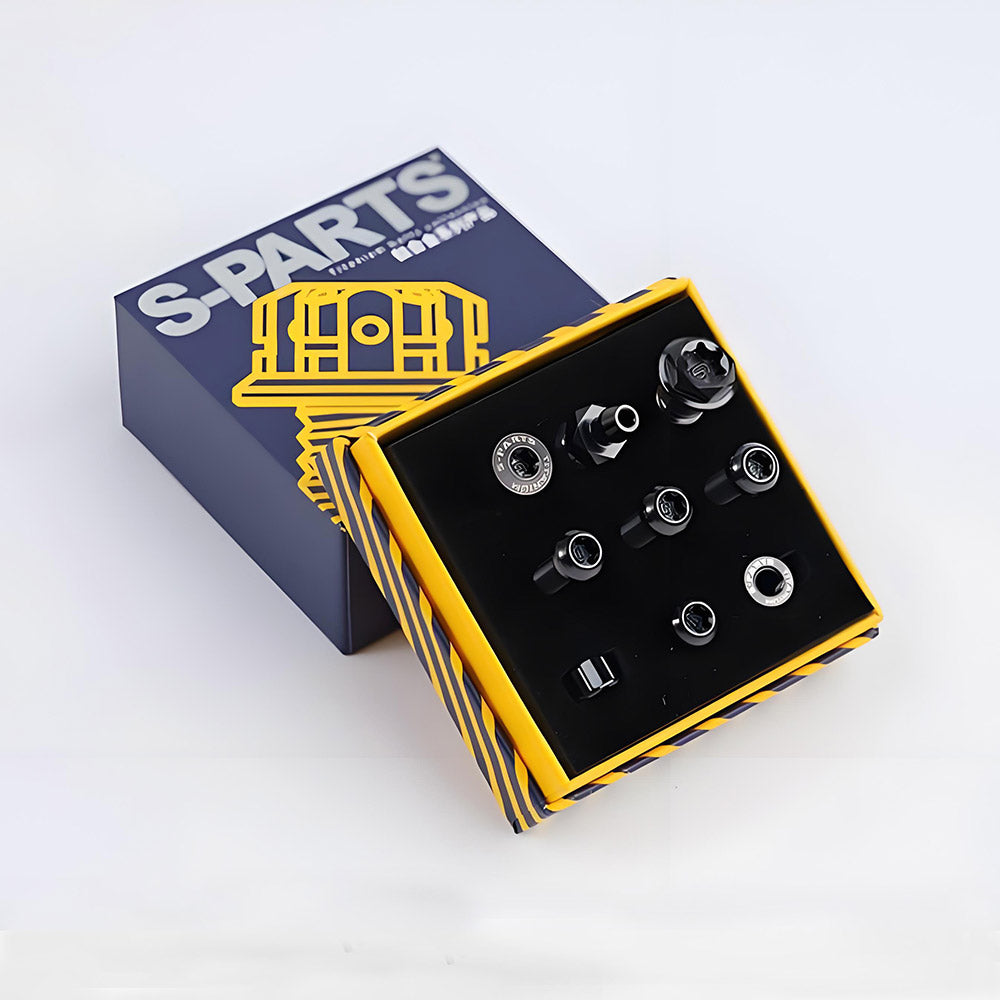

- Gold, Black, Blue: Produced using PVD vacuum nitriding coating, forming a dense nitride metal layer for higher surface hardness and impact resistance. The vivid color penetrates beneath the surface, ensuring long-lasting brilliance resistant to fading from normal wear, rain, or mud.

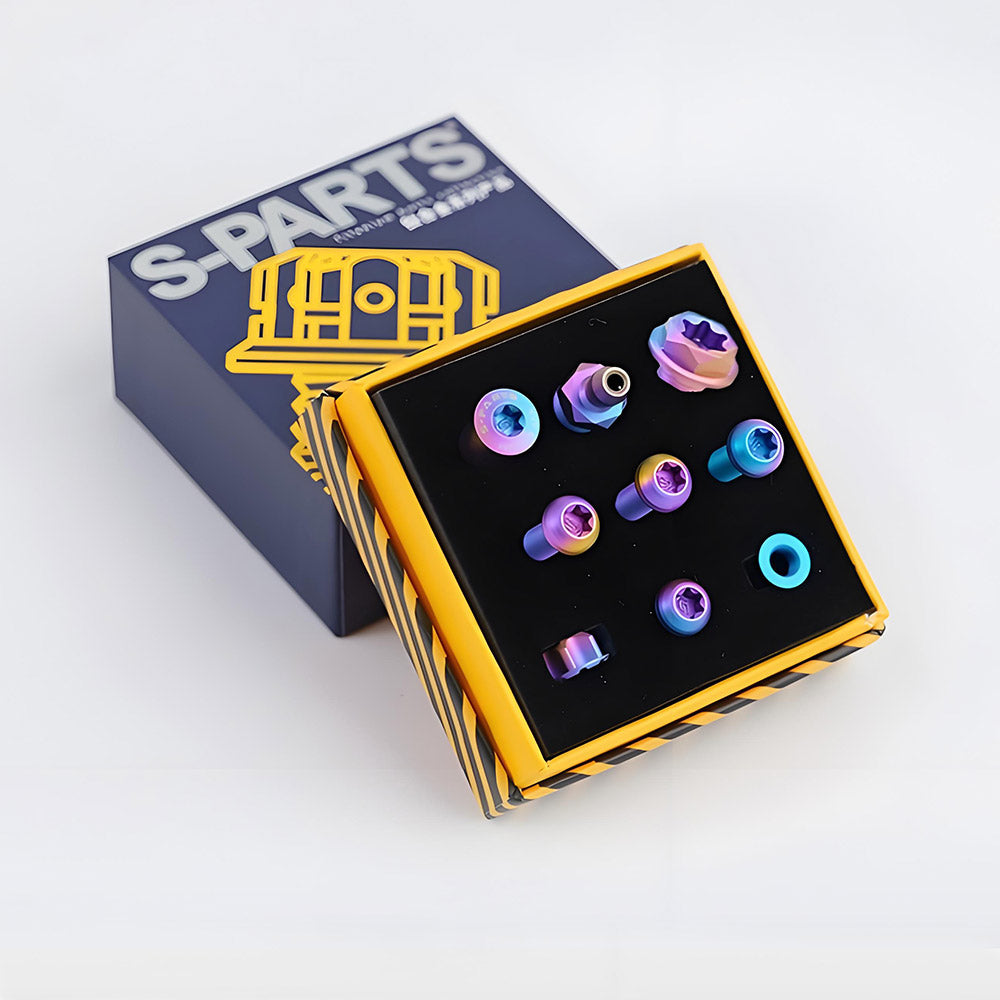

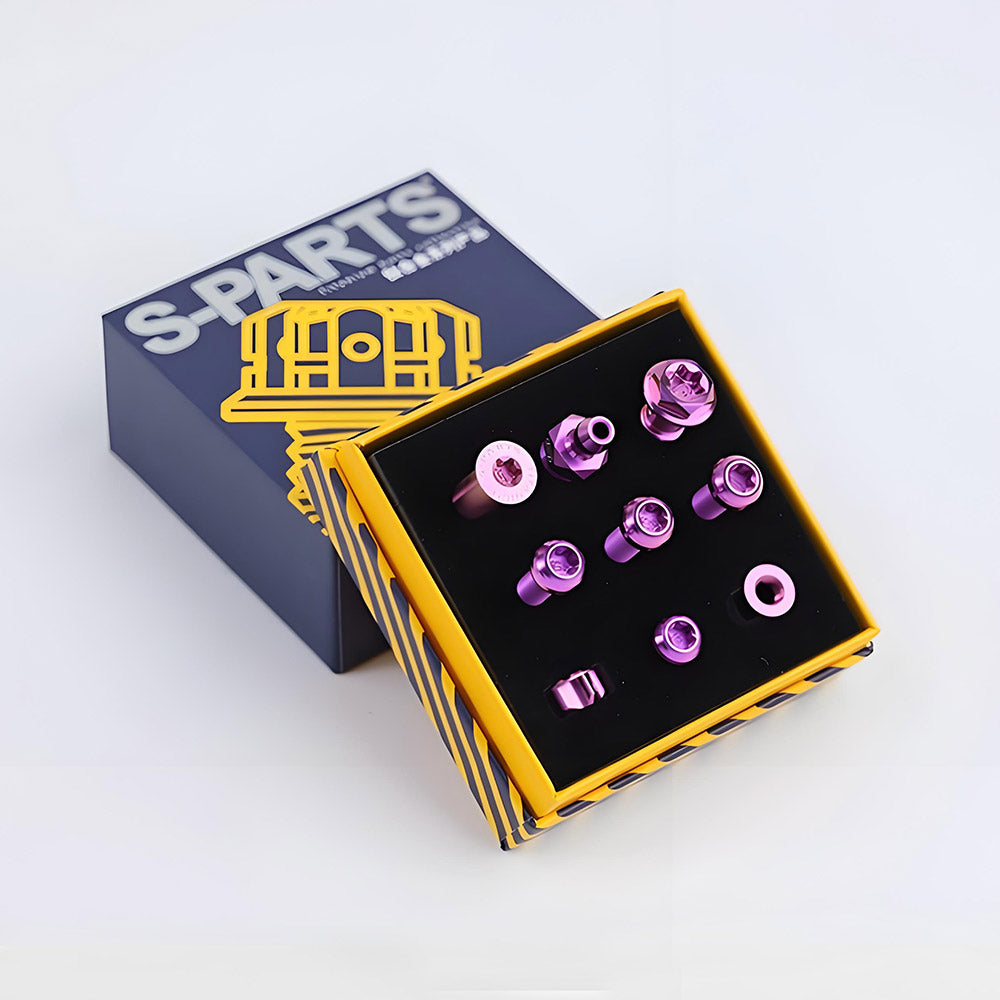

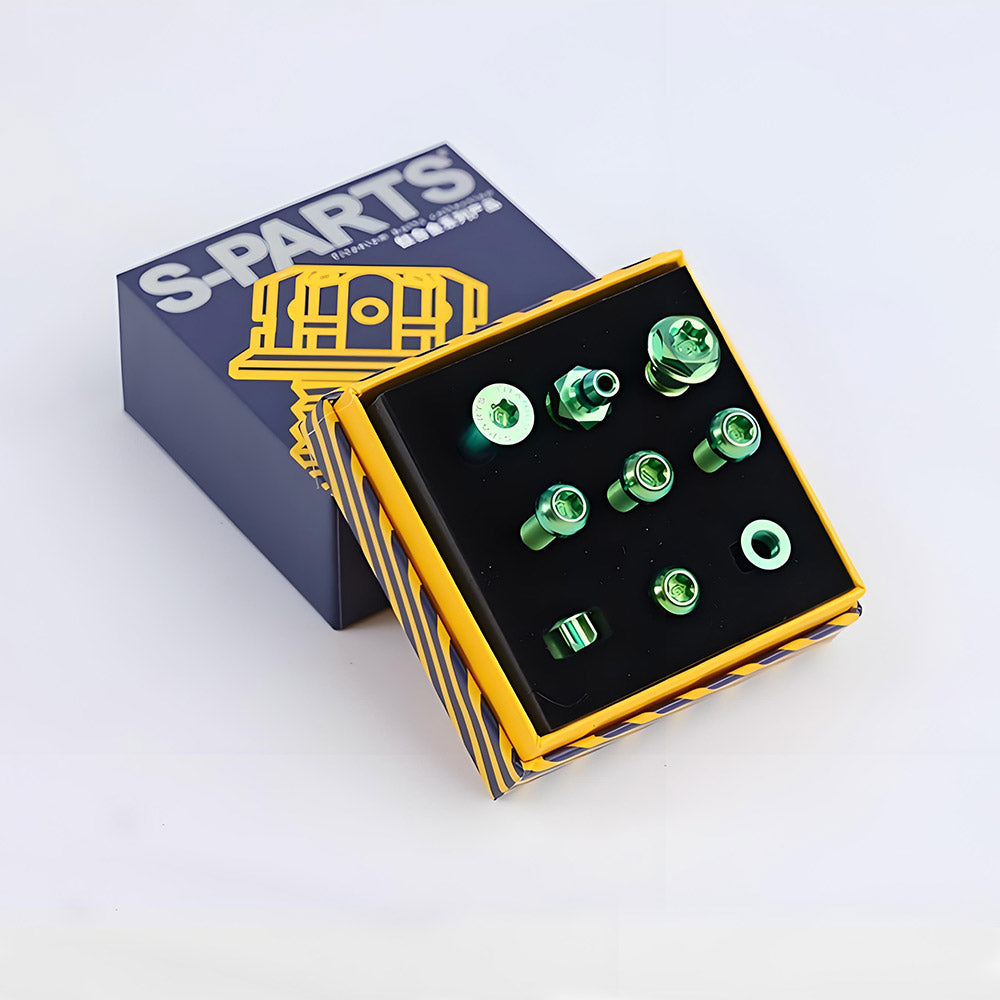

- Green, Purple, Candy: Produced using anodic oxidation, creating an oxide film of varying thickness on the titanium surface to improve hardness and corrosion resistance. The vibrant colors are the result of light interference through the oxide layer—no dyes used, just pure optical brilliance.
Features:

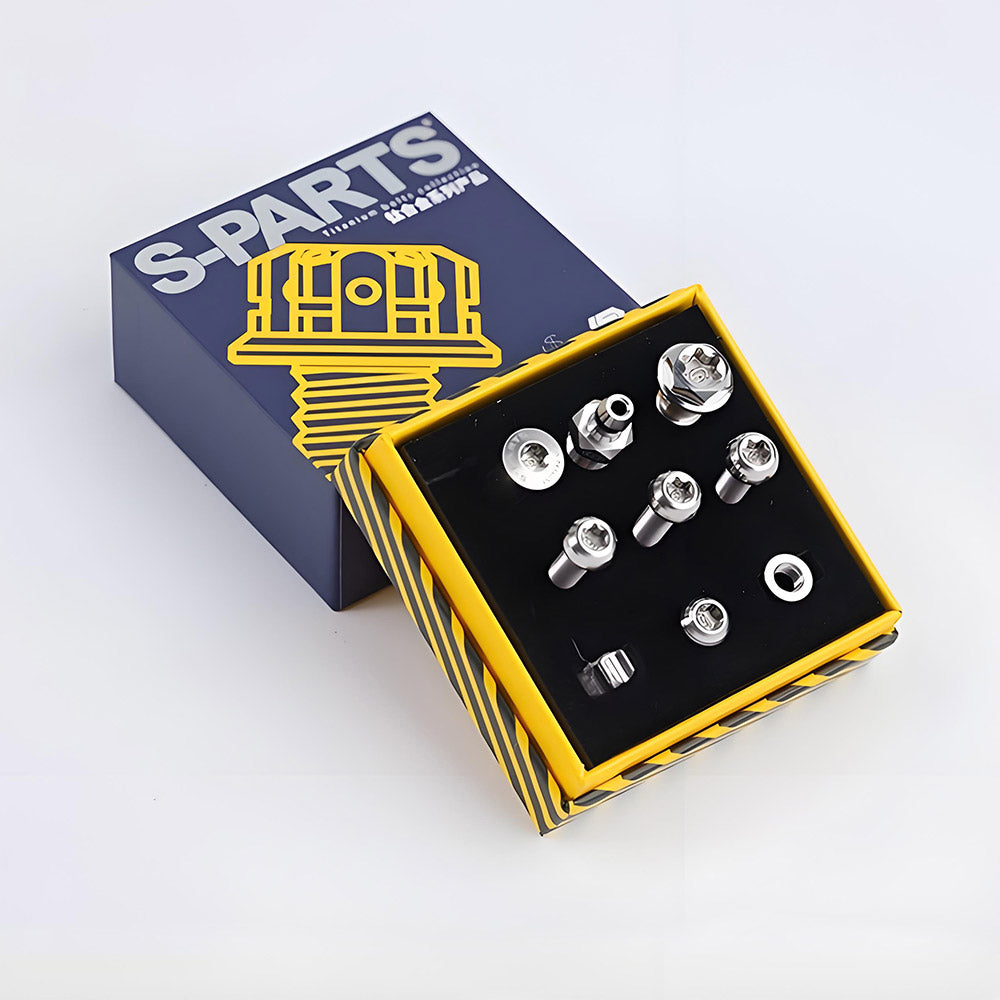

- Material: Grade 5 Titanium (Ti-6Al-4V) – lightweight, strong, and rust-proof.
- Precision CNC-machined for perfect fitment on Brembo RCS master cylinders.
- Direct OEM replacement bolts for performance and aesthetics.
- Available in multiple finishes to match or contrast your bike’s color scheme.
