Product Description

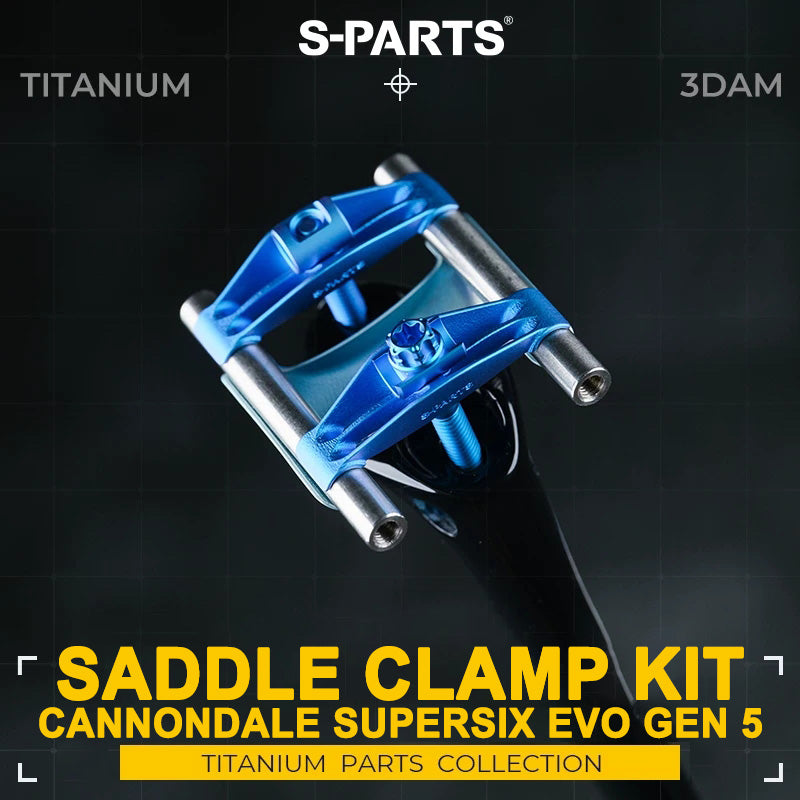

Upgrade your Cannondale SuperSix EVO Gen 5 with the S-PARTS 3D Printed Titanium Two-Bolt Saddle Clamp Kit. Built around a simulation-optimized lower cradle and saddle rail clamps, this lightweight titanium hardware system comes with matching Grade 5 titanium bolts, nuts and washers. Choose the complete kit, a bolt kit or individual replacement parts.
Key Specifications
| Compatibility |
Cannondale SuperSix EVO Gen 5, including LAB71, Hi-MOD and standard carbon models |
| Product Type |
Two-bolt saddle clamp hardware kit and individual components |
| Complete Kit Weight |
34.8 g/set (1.23 oz) |
| Bolt Kit Weight |
15.7 g/set (0.55 oz) |
| 3D Printed Parts |
Lower cradle and saddle rail clamps, made from Ti-6Al-4V titanium alloy powder |
| Bolts, Nuts & Washers |
Grade 5 titanium (Ti-6Al-4V) |
| Tools |
T30 Torx wrench. Individual front and rear bolts can also be tightened with an 8 mm socket wrench; the socket does not fit during saddle installation on the kits. |
| Front Bolt Torque |
3–4 Nm (26.6–35.4 in-lb), recommended |
| Rear Bolt Torque |
6–7 Nm (53.1–61.9 in-lb), recommended |
| Maximum Rider Weight |
90 kg (198 lb) |
| Finishes |
Up to 16 colors and graphic finishes, varies by part (Copper on selected parts) |
Available Variants
| Variant |
Specifications & Included Components |
Weight |
Tools |

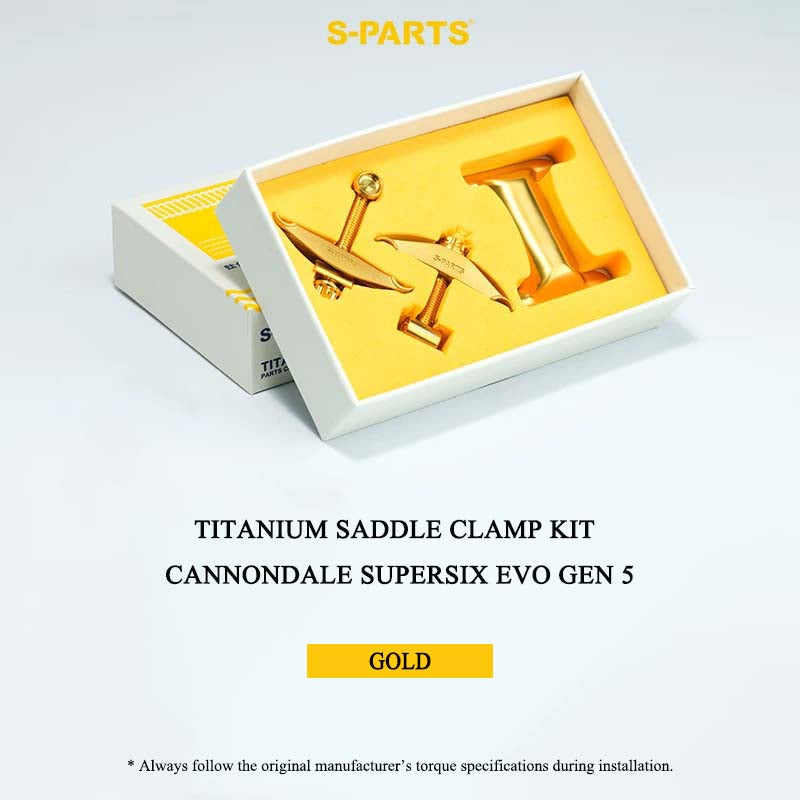

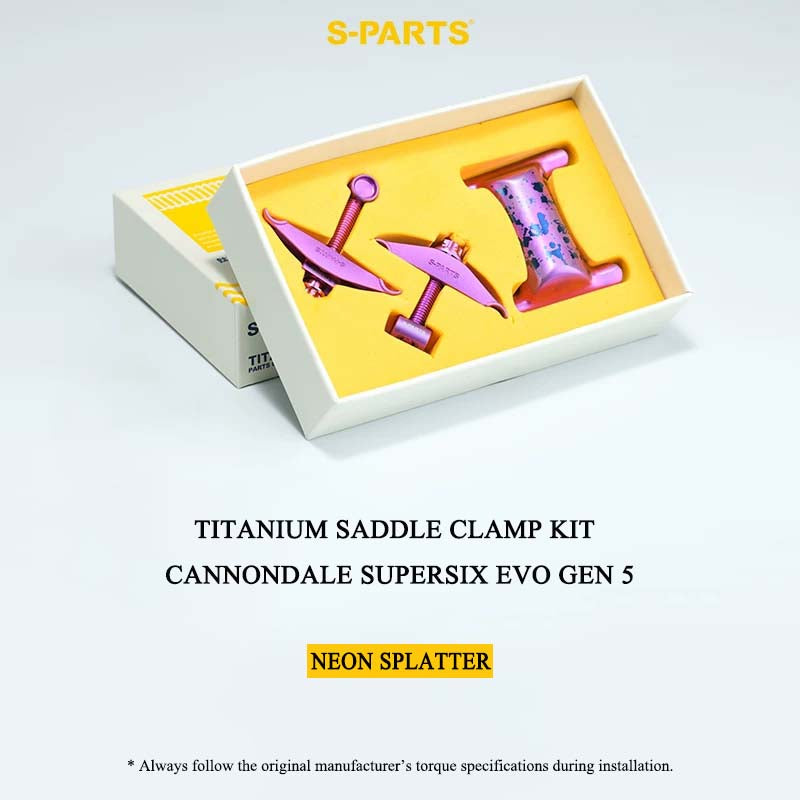

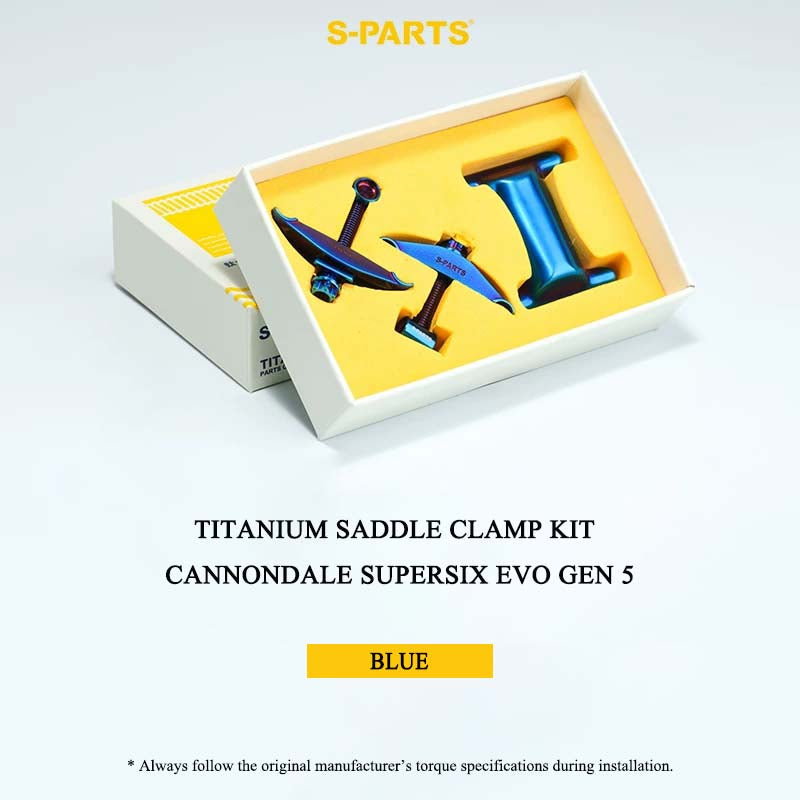

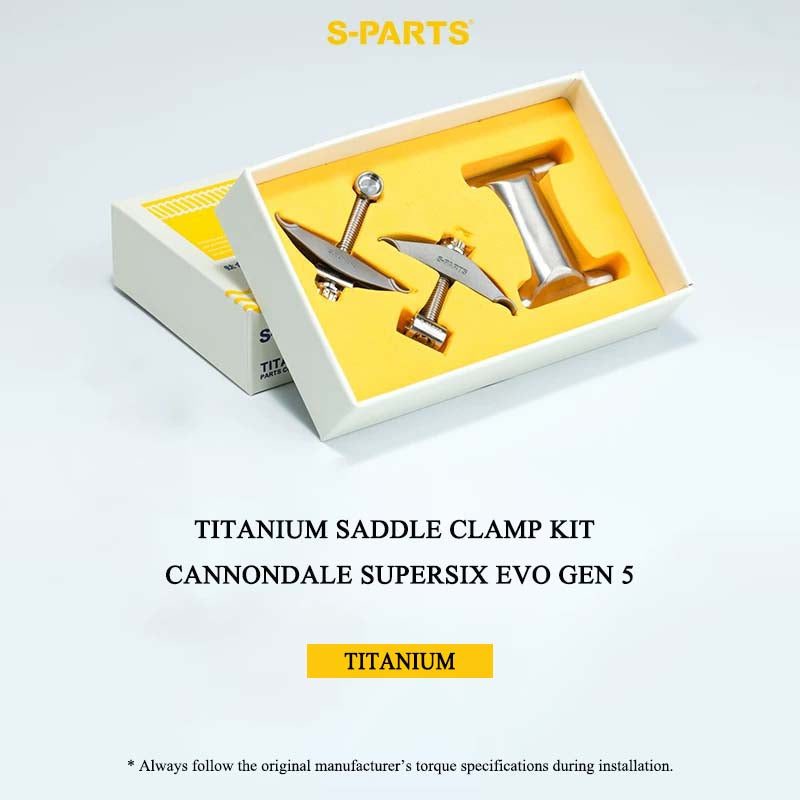

| 1. Complete 3D Printed Titanium Kit |
1 lower cradle, 2 saddle rail clamps, 1 front bolt, 1 rear bolt, 2 barrel nuts, 1 spherical washer, 1 half-round washer |
34.8 g/set (1.23 oz) |
T30 Torx wrench |

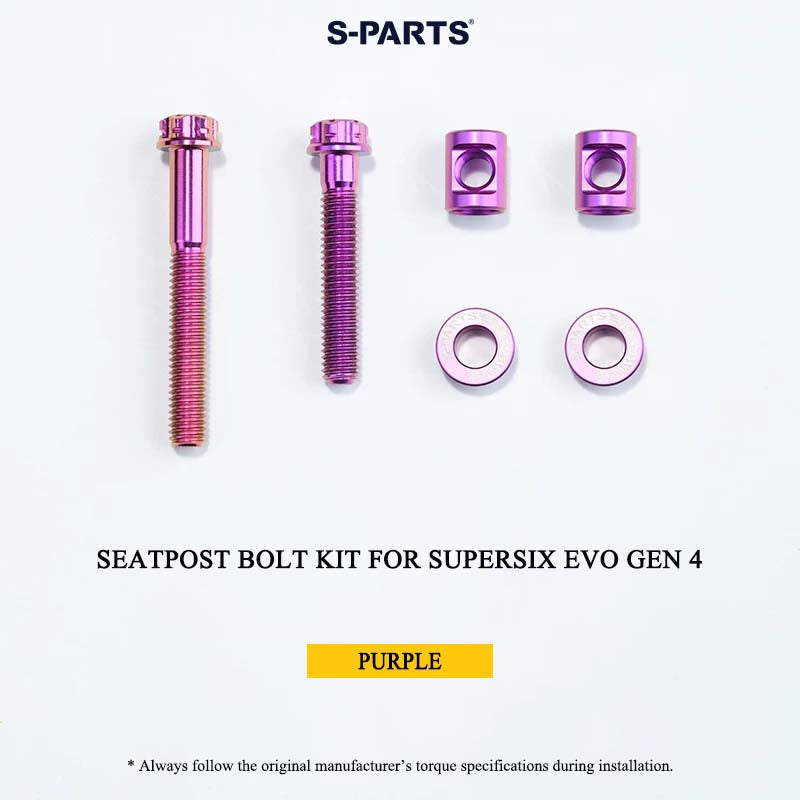

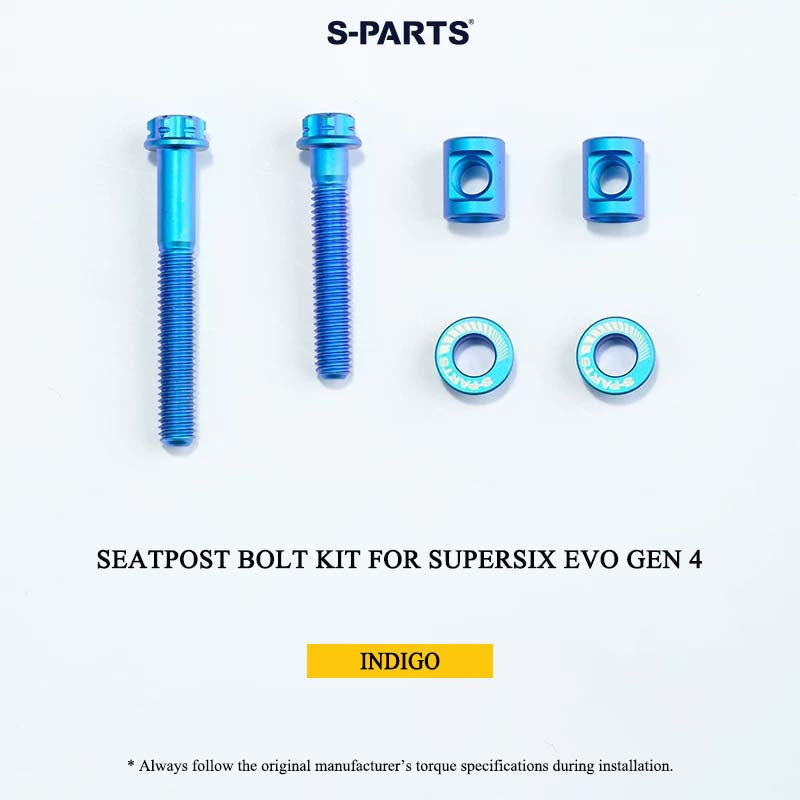

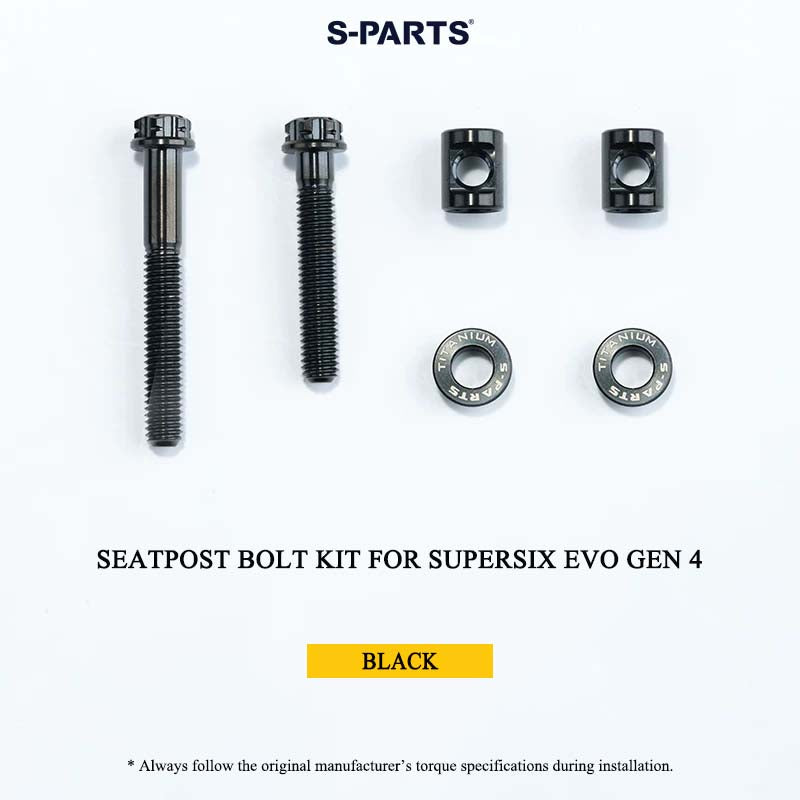

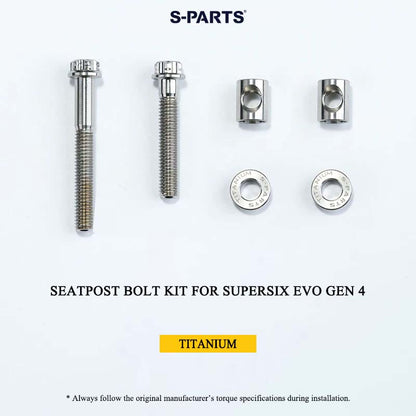

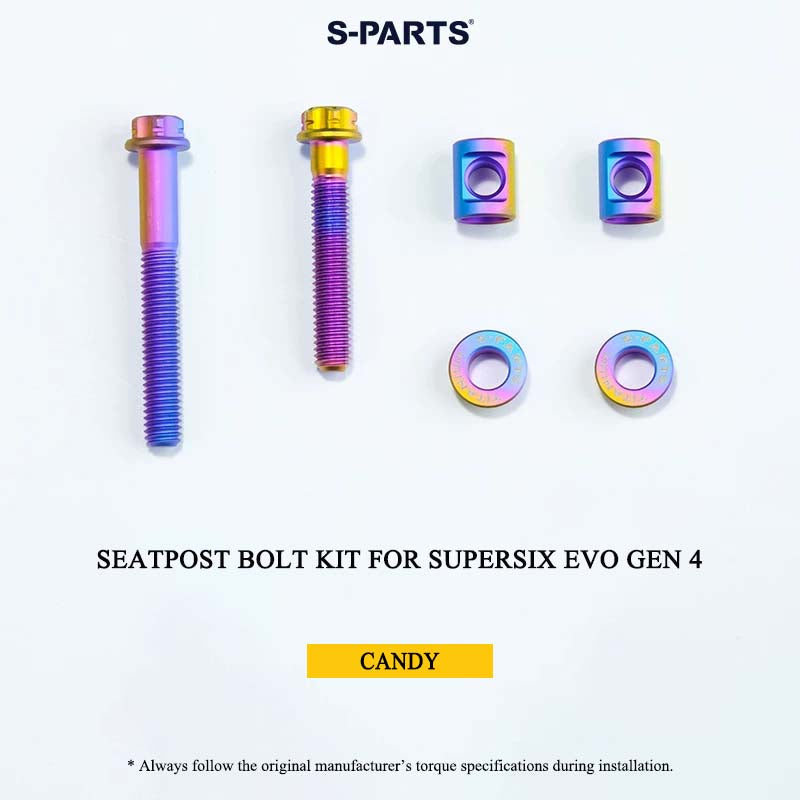

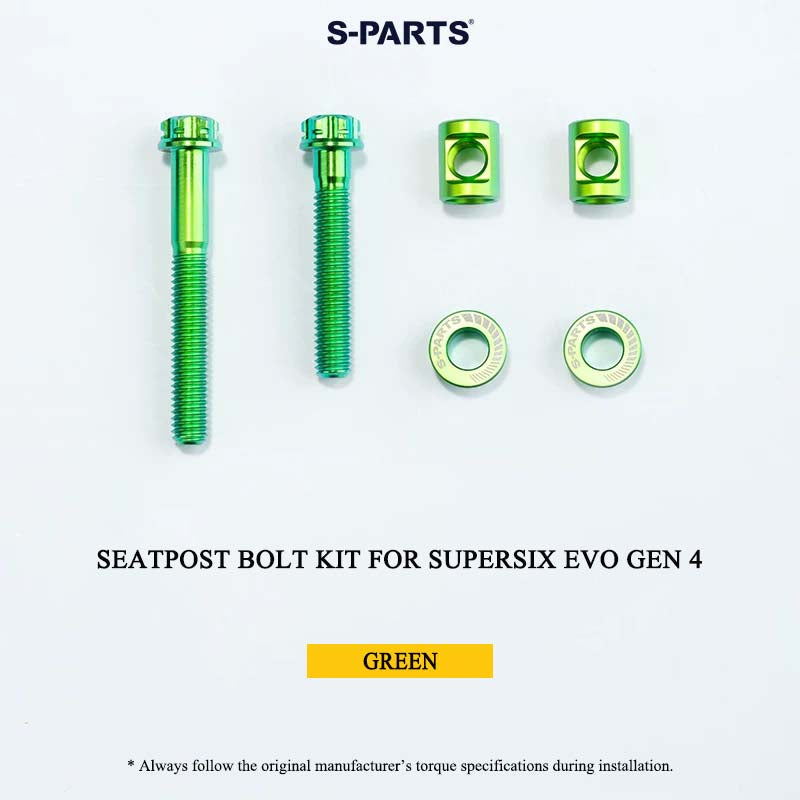

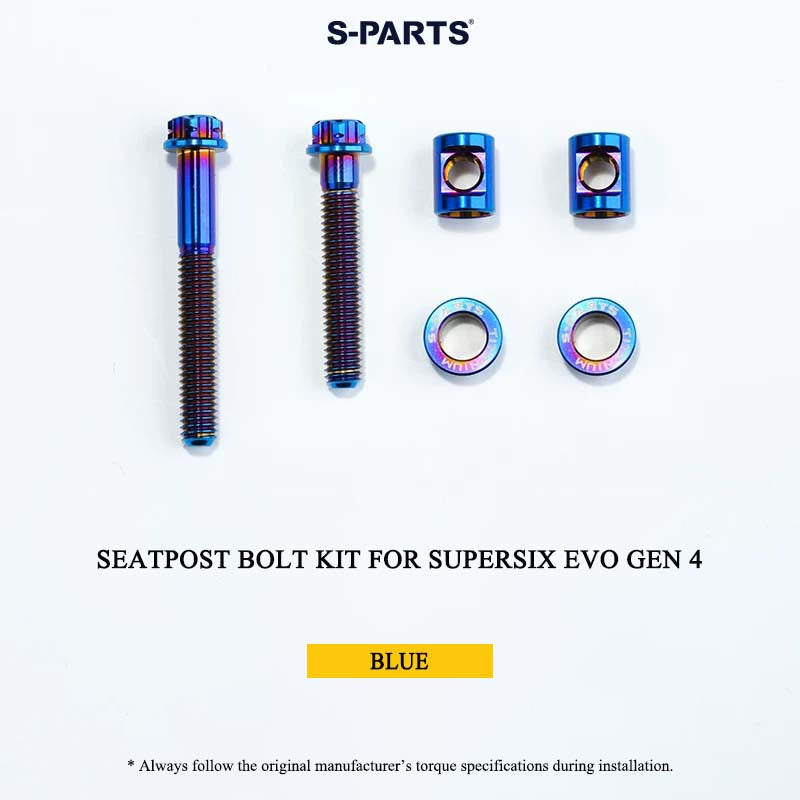

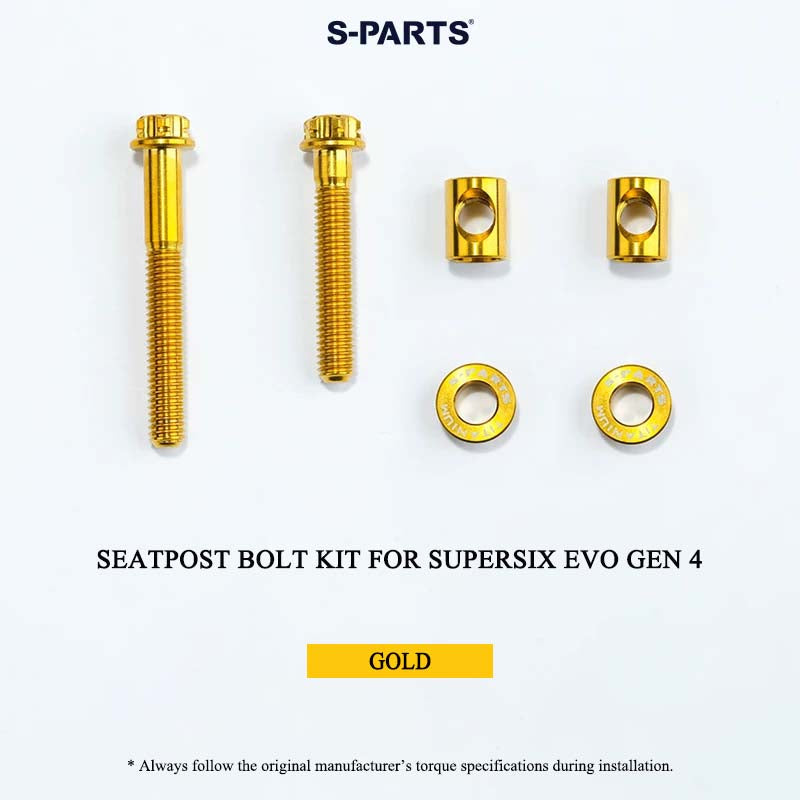

| 2. Seatpost Hardware Kit |
1 front bolt, 1 rear bolt, 2 barrel nuts, 1 spherical washer, 1 half-round washer |
15.7 g/set (0.55 oz) |
T30 Torx wrench |

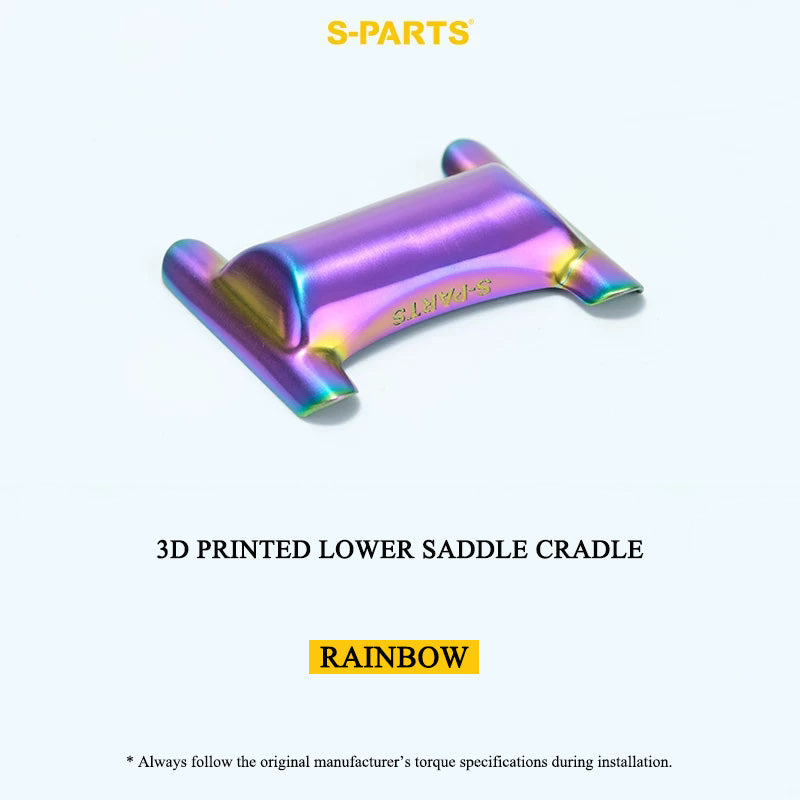

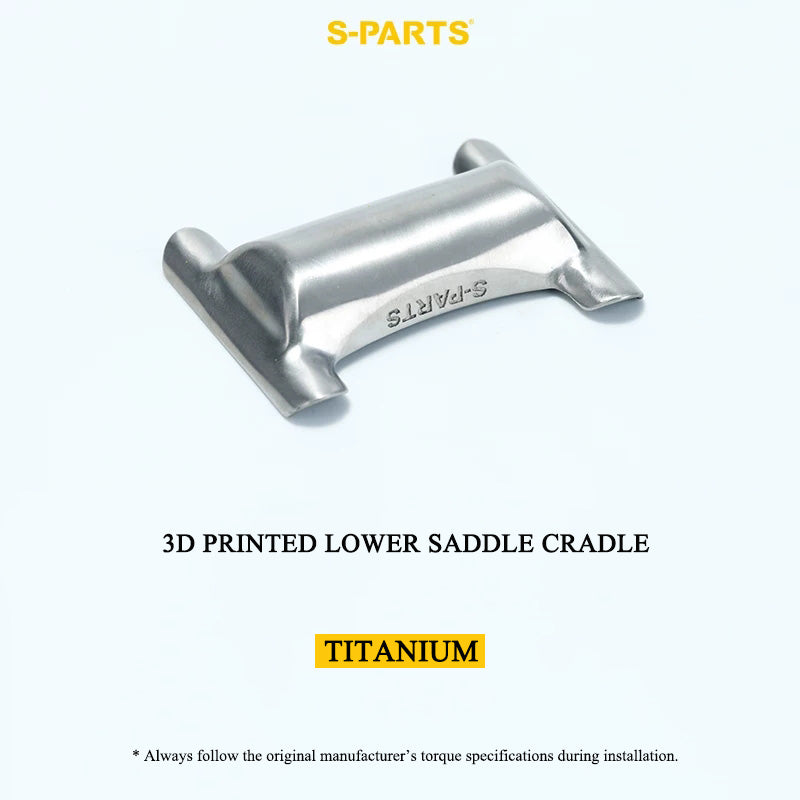

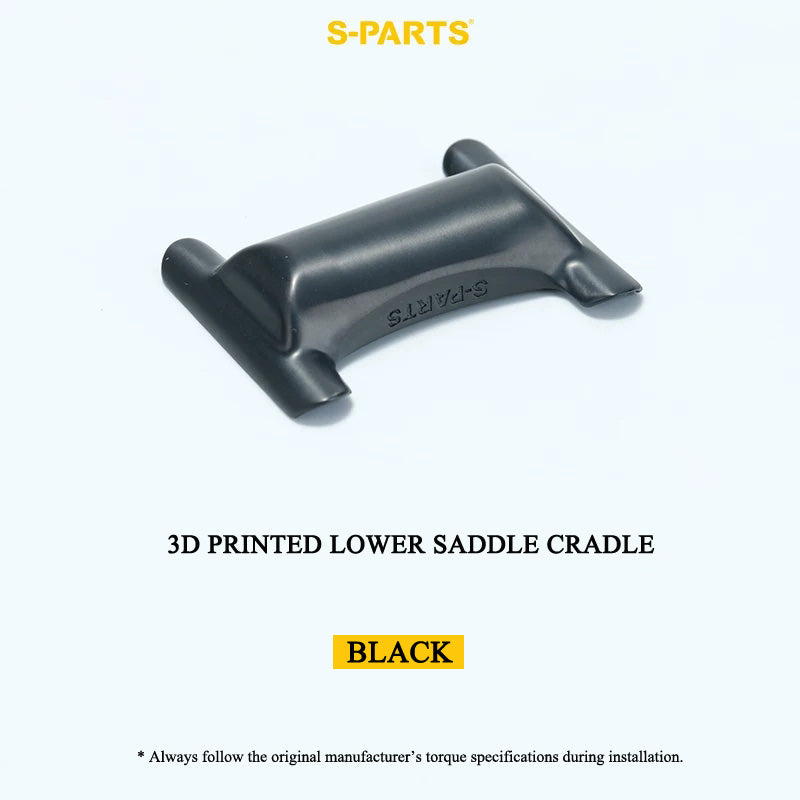

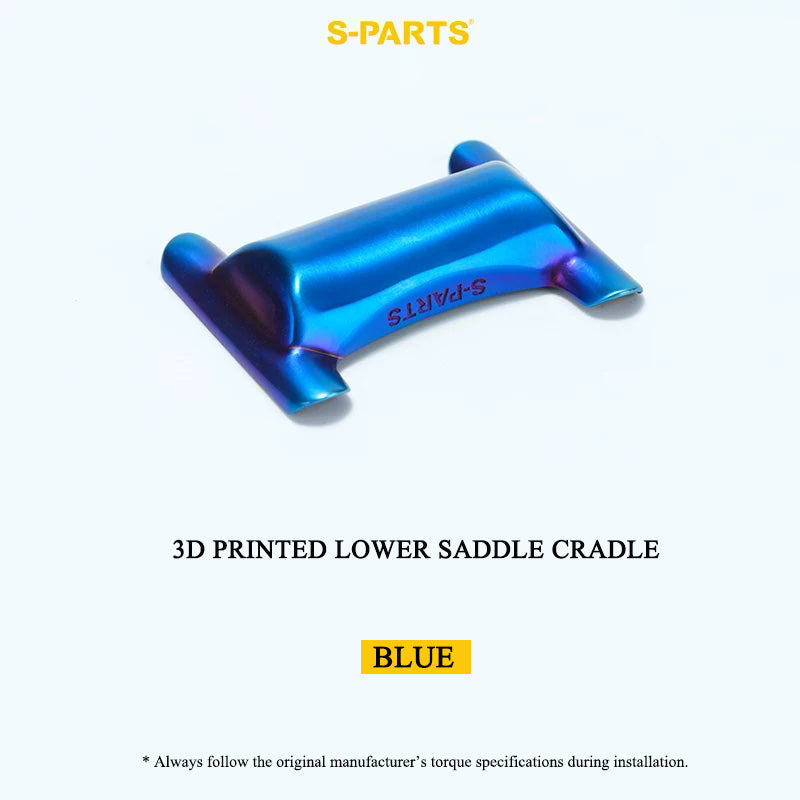

| 3. 3D Printed Titanium Lower Cradle |
Individual replacement lower cradle |
7.5 g/pc (0.26 oz) |
— |
| 4. Rear Clamping Bolt |
M6 × 35 mm (1.38 in) |
4.42 g/pc (0.16 oz) |
T30 Torx wrench or 8 mm socket wrench |
| 5. Front Clamping Bolt |
M6 × 45 mm (1.77 in) |
5.62 g/pc (0.20 oz) |
T30 Torx wrench or 8 mm socket wrench |
| 6. Titanium Barrel Nut |
M6; H12 × D9.5 mm |
1.82 g/pc (0.06 oz) |
— |
| 7. Titanium Spherical Washer |
M6, sold individually |
0.91 g/pc (0.03 oz) |
— |

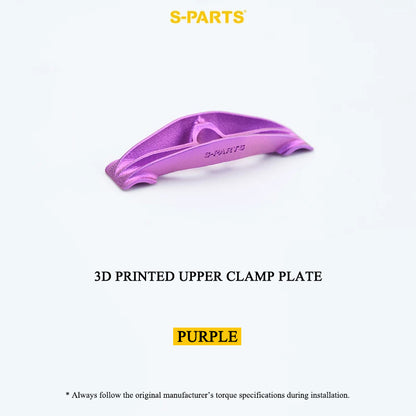

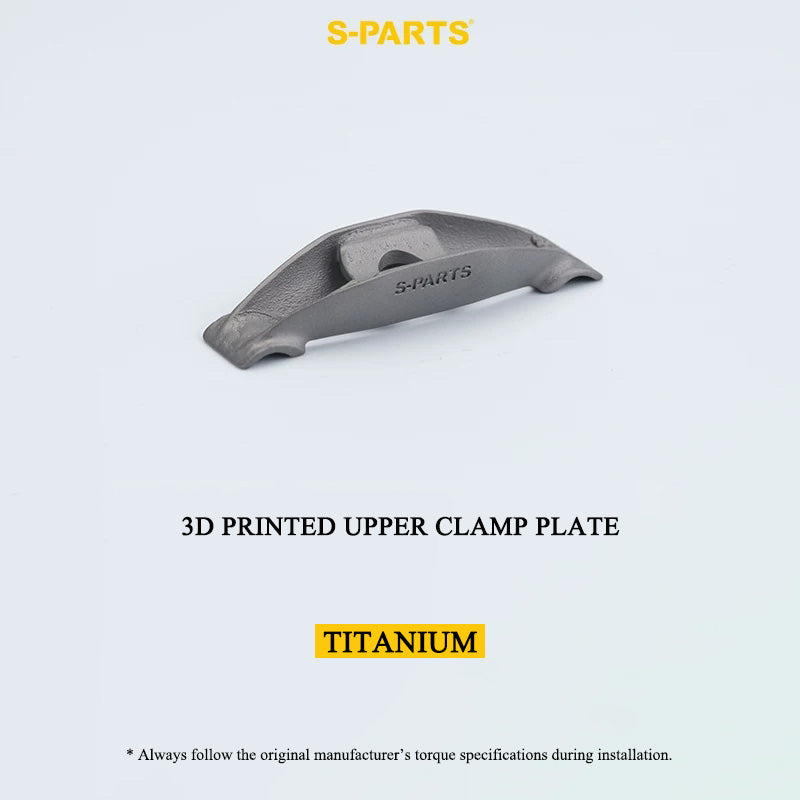

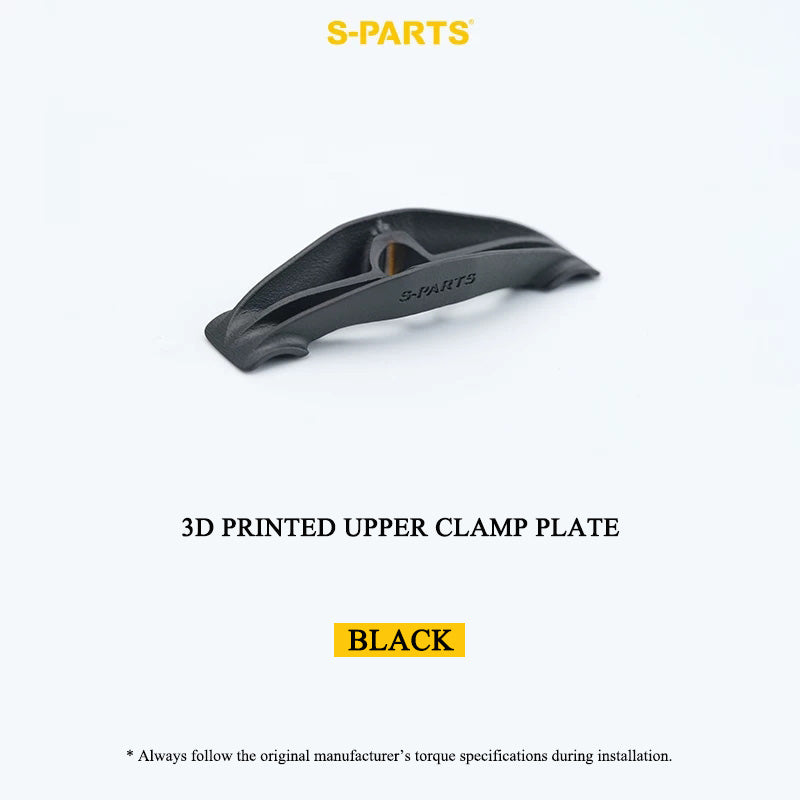

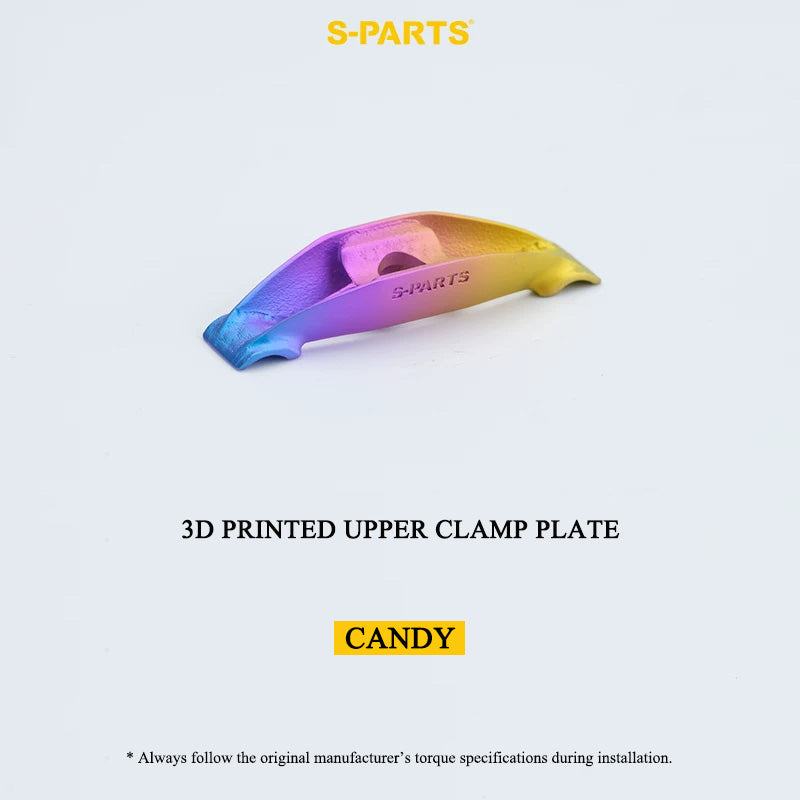

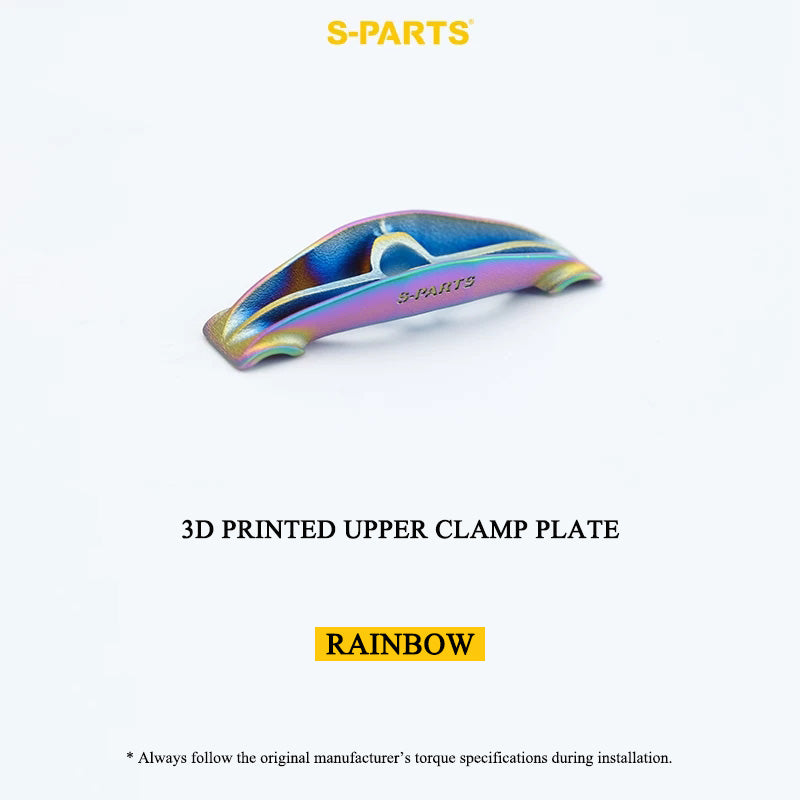

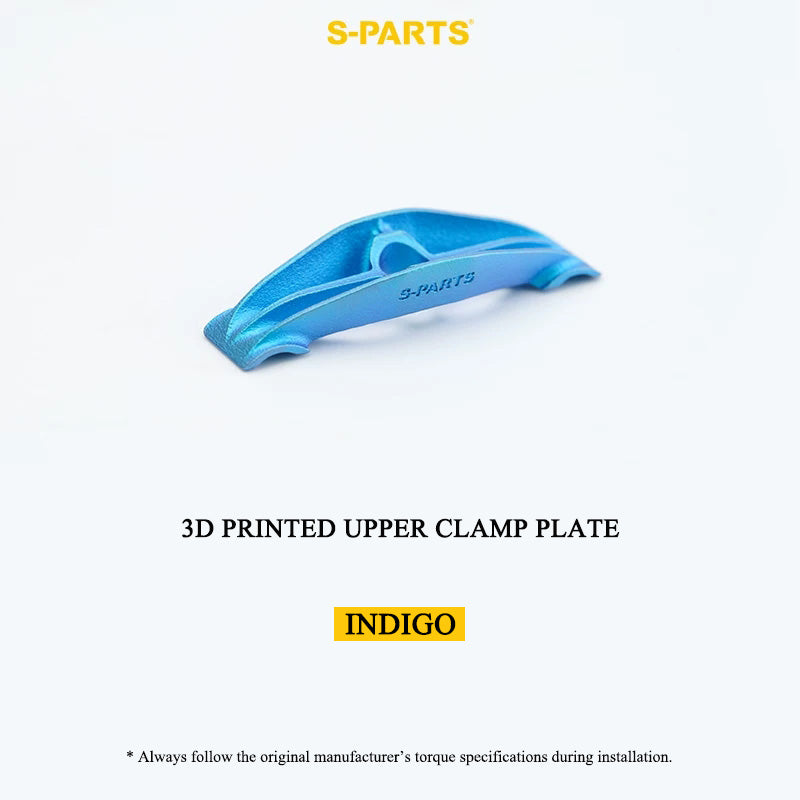

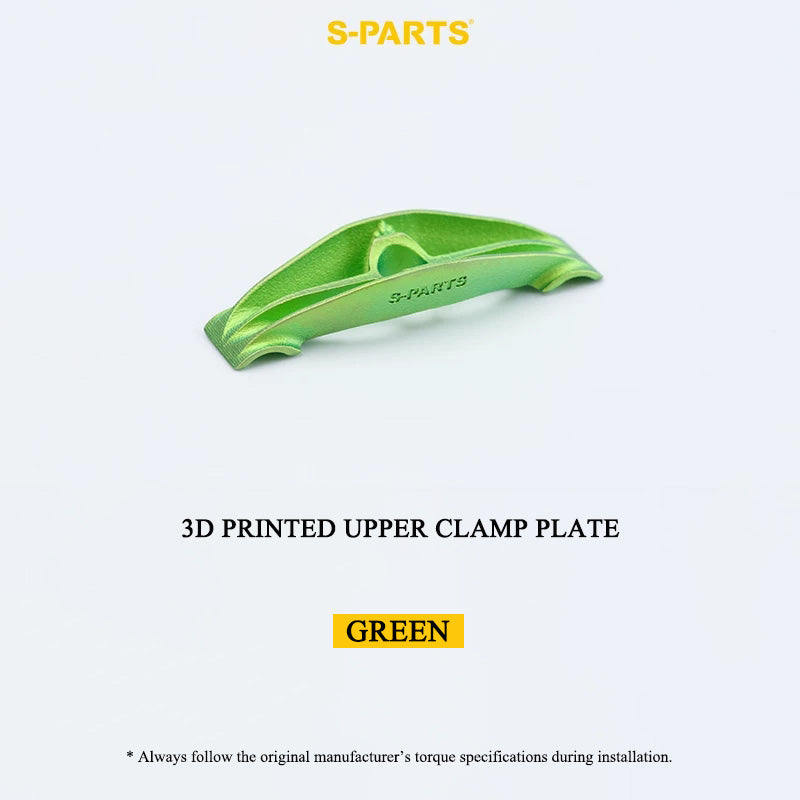

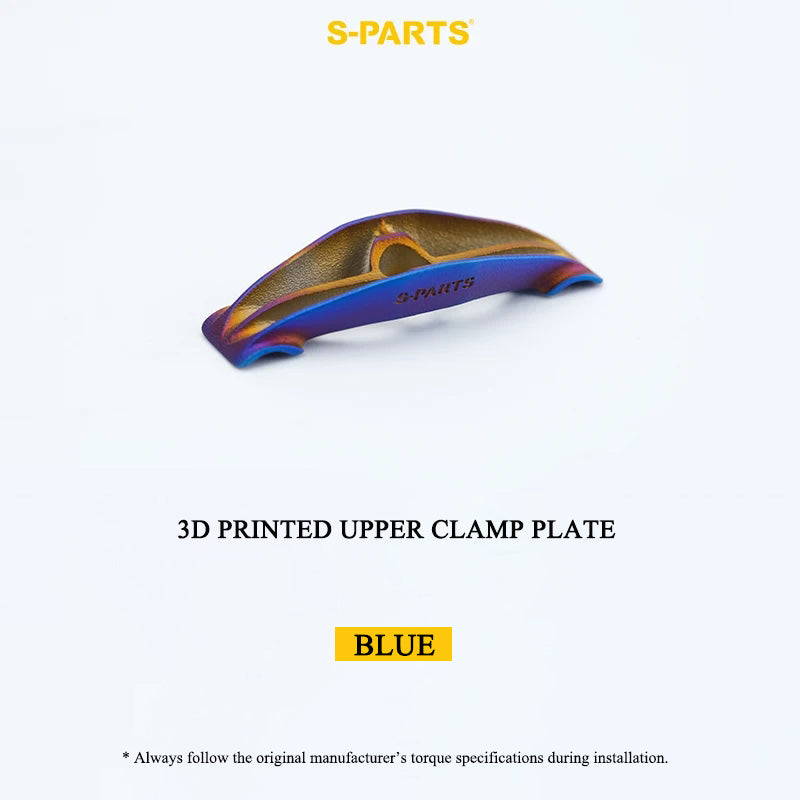

| 8. 3D Printed Titanium Saddle Rail Clamp |
Sold individually (the complete kit includes 2) |
5.4 g/pc (0.19 oz) |
— |

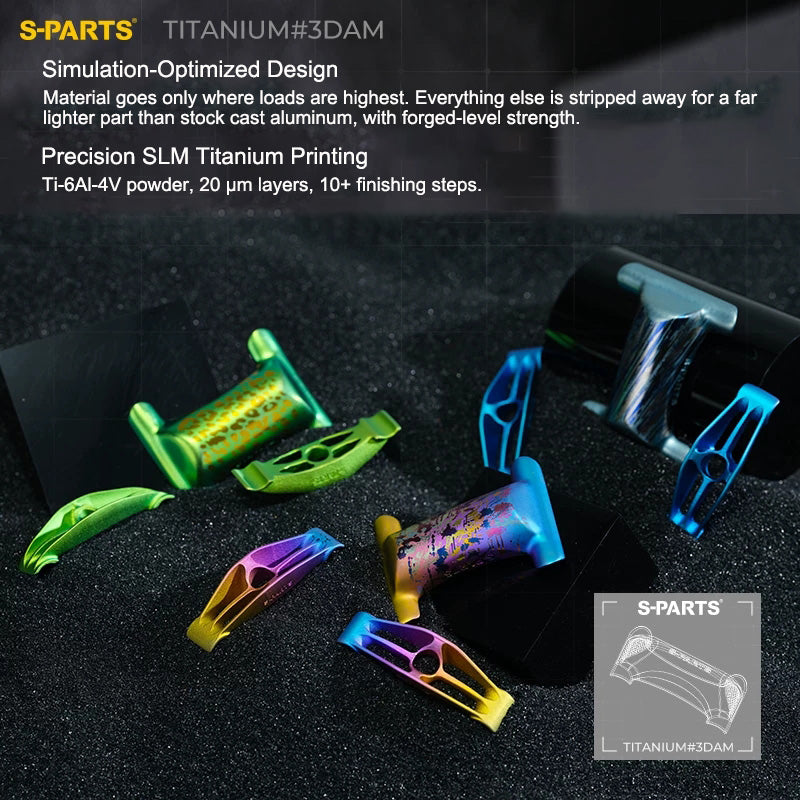

Lightweight, Simulation-Optimized Design
S-PARTS uses engineering simulation to fine-tune wall thickness across each component according to the loads it sees. Material is concentrated where the clamp carries load, and non-critical areas are kept thin to remove unnecessary weight.
Compared with the original cast aluminum parts, this design is significantly lighter while aiming for strength comparable to forged components. The thin-wall shell also follows the clean, minimalist, aero-inspired lines of modern carbon road bikes.
SLM Metal 3D Printing Process

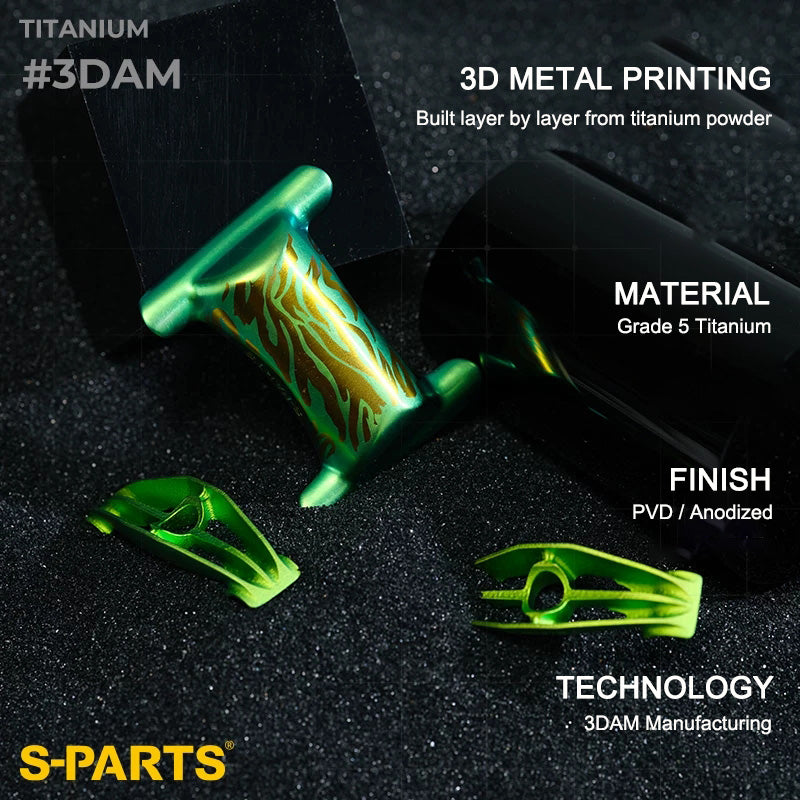

The lower cradle and saddle rail clamps are printed on an industrial selective laser melting (SLM) metal 3D printer using high-purity Ti-6Al-4V titanium powder, built layer by layer at a 20 μm powder layer thickness.
After printing, each part goes through stress-relief annealing, manual support removal and grinding, thread tapping and surface finishing. The bolts, barrel nuts and washers are made from Grade 5 titanium and produced separately.
Titanium Colors & Graphic Finishes

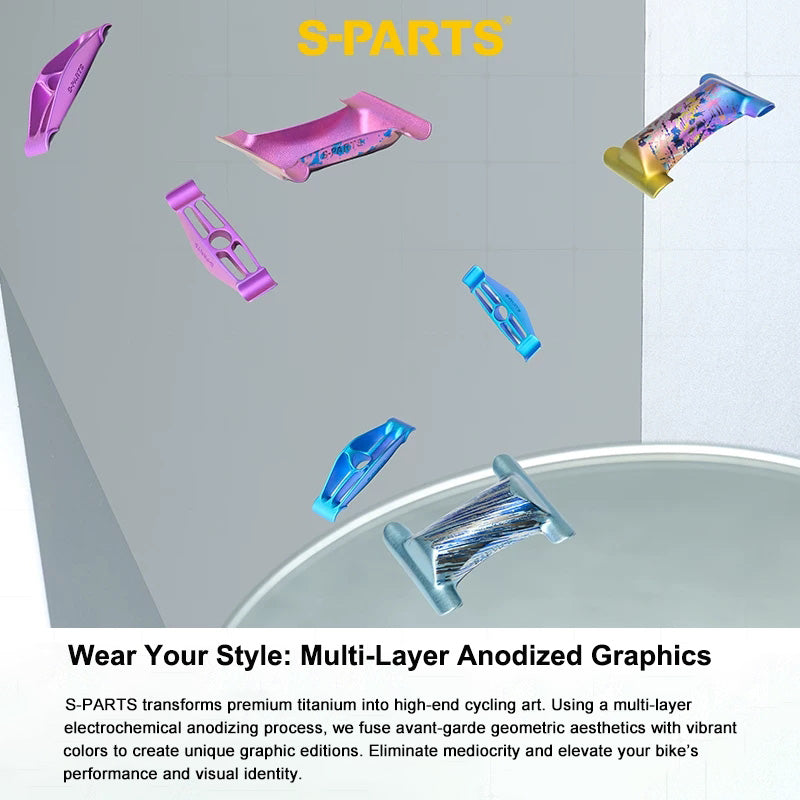

Colors are created with multi-layer electrolytic anodizing on the titanium surface, an electrochemical process rather than paint, so there is no paint layer to peel. Gold is produced by vacuum nitriding. Selected graphic finishes add more ways to personalize your bike.
Variant 1 – Complete Kit & Variant 3 – Lower Cradle

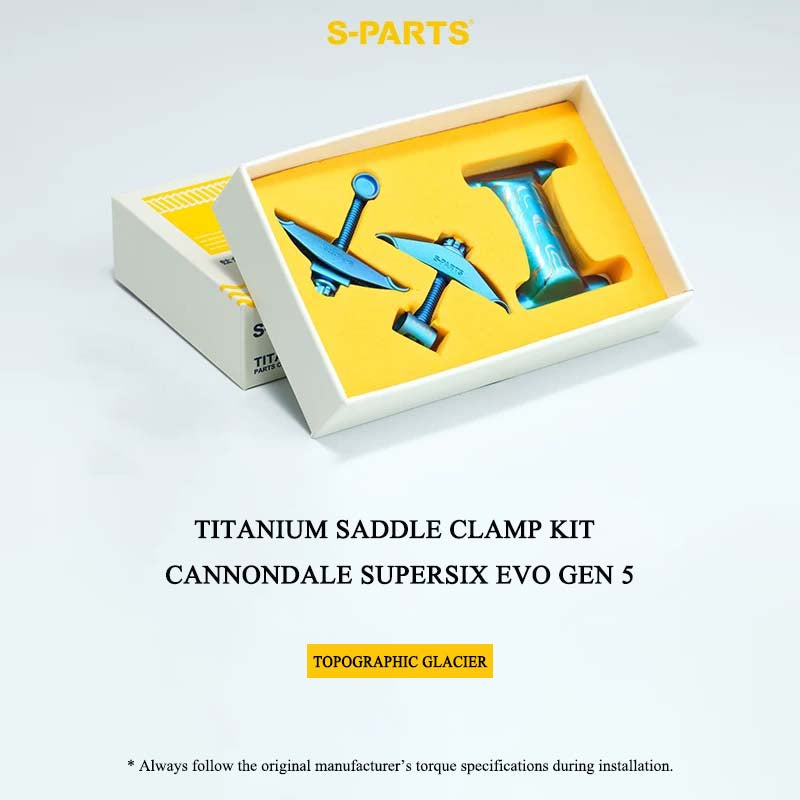

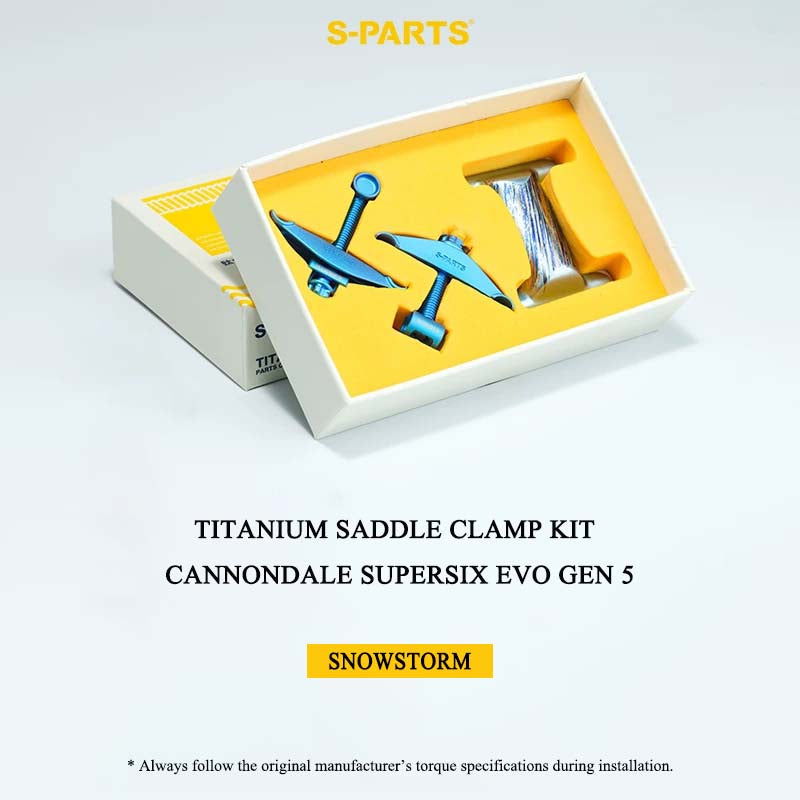

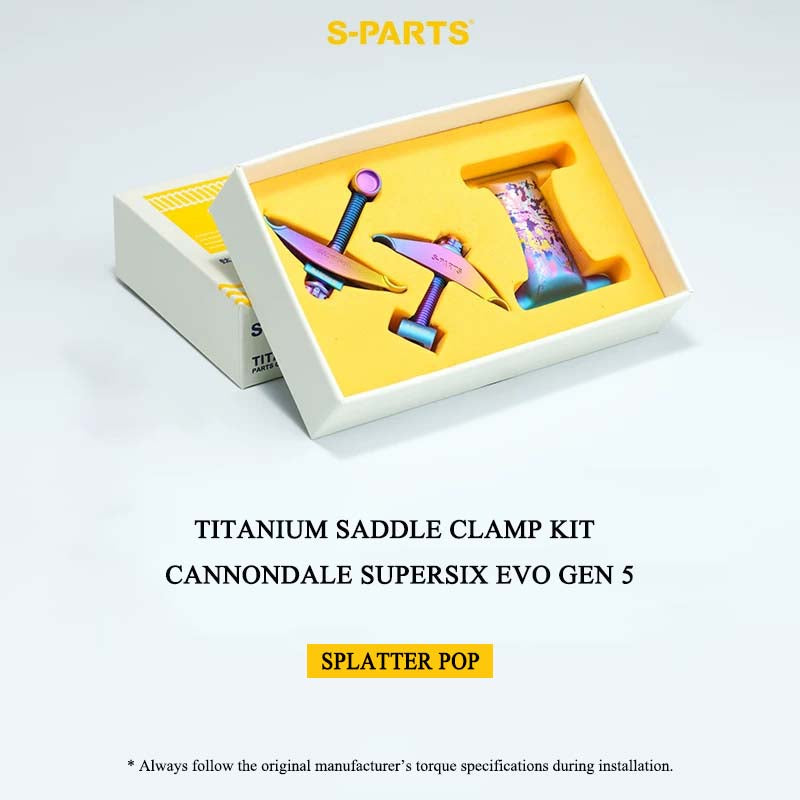

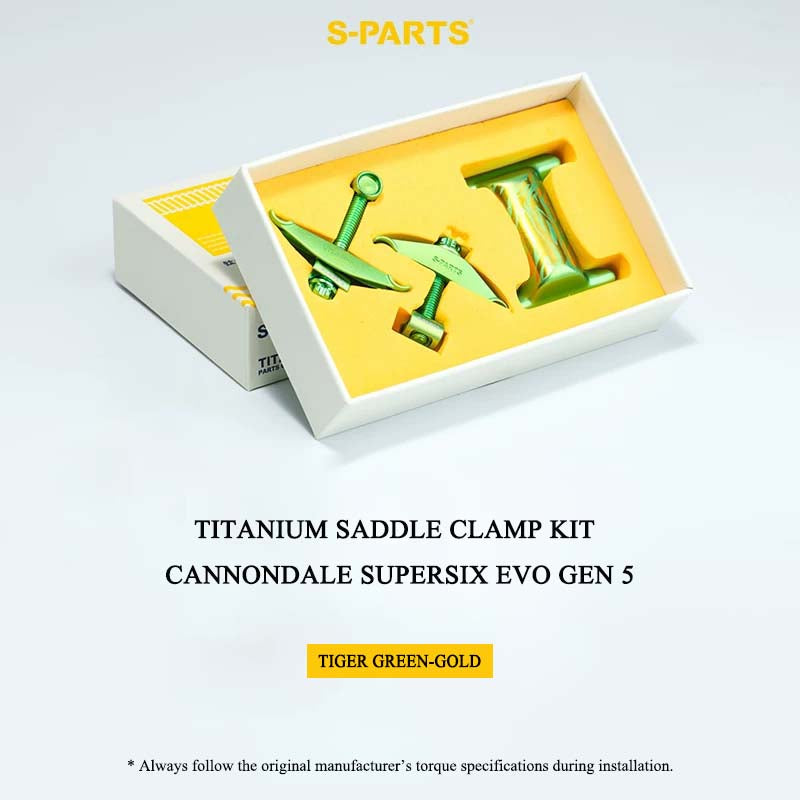

Gold, Rainbow, Natural Titanium, Black, Blue, Purple, Green, Candy, Indigo, Hawaii (Splatter Pop), Nebula (Neon Splatter), Tiger Green-Gold, Jaguar Green-Gold, Snowstorm, Topographic Glacier. Variant 3 is also available in Copper.
Variant 2 – Bolt Kit, Variants 4 & 5 – Bolts
Gold, Rainbow, Natural Titanium, Black, Blue, Purple, Green, Candy, Indigo.
Variants 6, 7 & 8 – Barrel Nut, Spherical Washer, Saddle Rail Clamp
Gold, Rainbow, Natural Titanium, Black, Blue, Purple, Green, Candy, Indigo, Copper.
Please choose from the finishes offered for your selected variant.
Installation & Torque

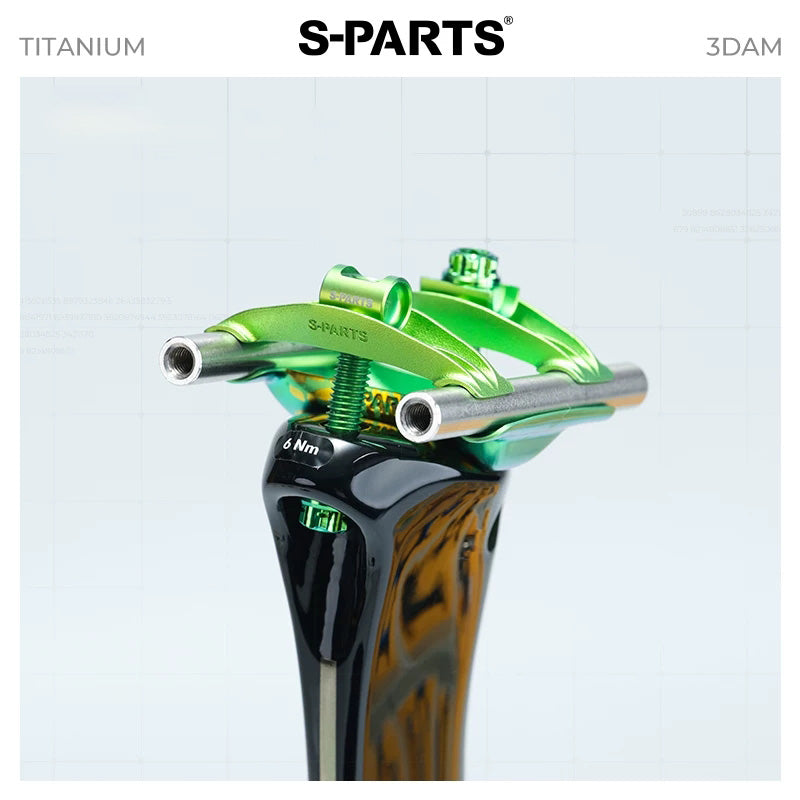

Correct saddle rail alignment is essential. Adjust the position of the saddle rail clamps along the saddle rails so the tightened bolt assembly sits at 80°–90° to the rails. Installing outside this range may damage the parts.
-
Front bolt (M6 × 45 mm): recommended torque 3–4 Nm (26.6–35.4 in-lb)
-
Rear bolt (M6 × 35 mm): recommended torque 6–7 Nm (53.1–61.9 in-lb)
-
Maximum rider weight: 90 kg (198 lb)
-
Tool note: The bolts accept either a T30 Torx wrench or an 8 mm socket wrench. When installing the complete kit or the Bolt Kit, use the T30 Torx wrench, as an 8 mm socket does not fit into the saddle clamp area.
S-PARTS is an independent aftermarket brand and is not affiliated with or endorsed by Cannondale. Cannondale and SuperSix EVO are trademarks of their respective owners.
