3D-Printed Titanium Seatpost Clamp Kit & Parts for Pinarello Dogma F 3DAM | Grade 5 Titanium
3D-Printed Titanium Seatpost Clamp Kit & Parts for Pinarello Dogma F 3DAM | Grade 5 Titanium
Couldn't load pickup availability
Product Description

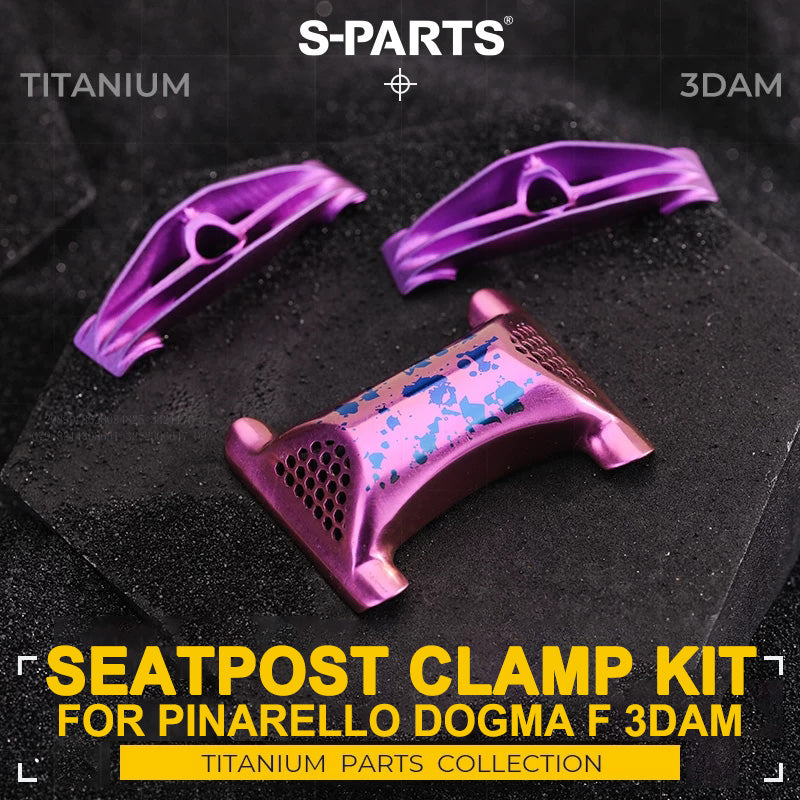

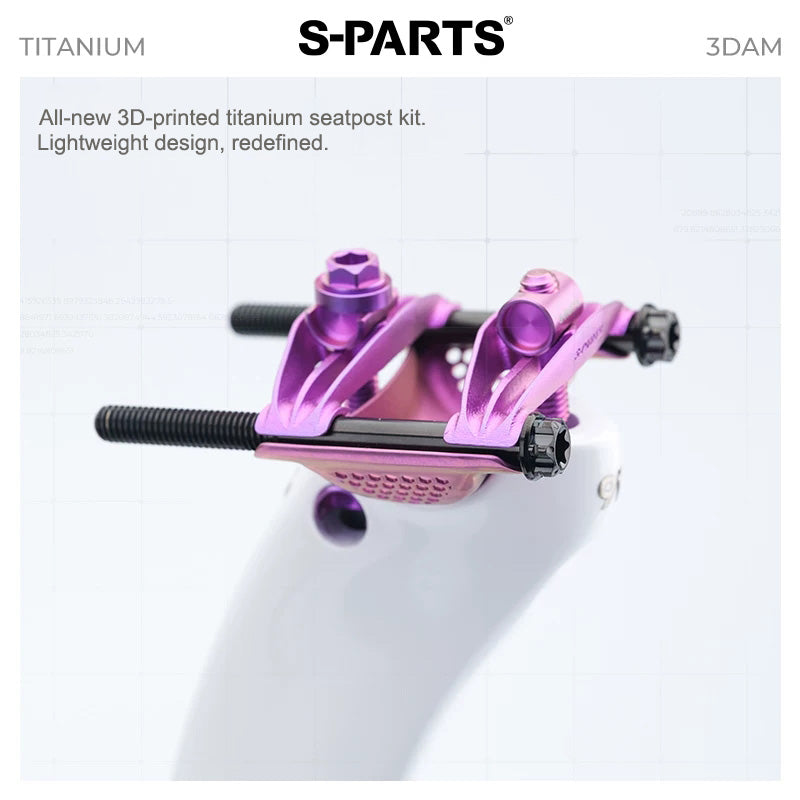

Upgrade your Pinarello Dogma F 3DAM seatpost with S-PARTS 3D-printed Grade 5 titanium hardware. Choose the complete saddle clamp kit at 32.8 g, or buy the lower saddle cradle, saddle clamps, nuts, washers and bolts individually. Parts come in anodized colors and patterned finishes.
Key Specifications
| Material | Grade 5 titanium (3D-printed parts: Grade 5 titanium powder; nuts, washers and bolts: Grade 5 titanium alloy) |
|---|---|
| Complete Kit Weight | 32.8 g per set |

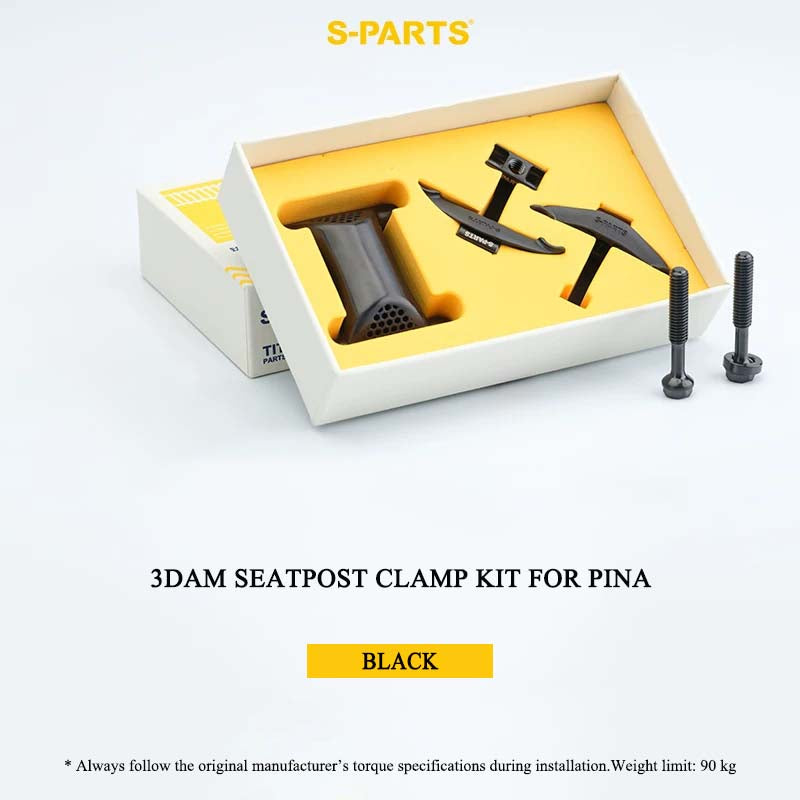

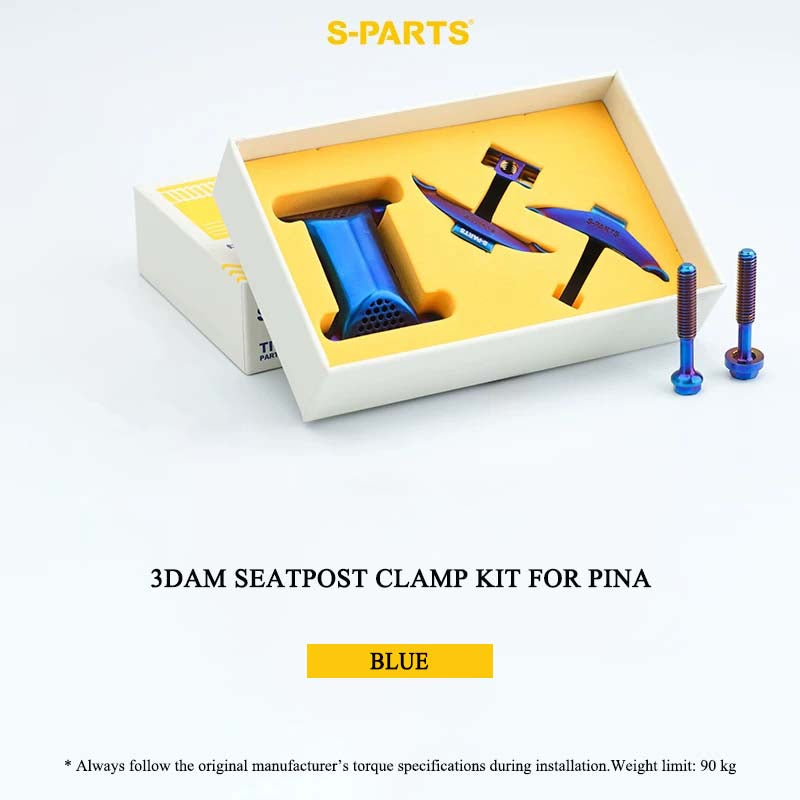

| Complete Kit Contents | 1 lower saddle cradle, 2 3DAM saddle clamps, 1 short cylindrical nut, 1 long half-cylinder nut, 1 half-cylinder washer, 2 stepped seatpost bolts, 1 concave washer |
| Rider Weight Limit | 90 kg (198 lb) |
| Recommended Torque | Front bolt: 4-5 Nm / Rear bolt: 6-7 Nm |
| Manufacturing | SLM metal 3D printing, 20 μm powder layers |
| Finish | Anodized color |
| Fits | Pinarello Dogma F 3DAM seatpost |
Variants: Sizes and Weights
| Variant | Size | Weight |
|---|---|---|

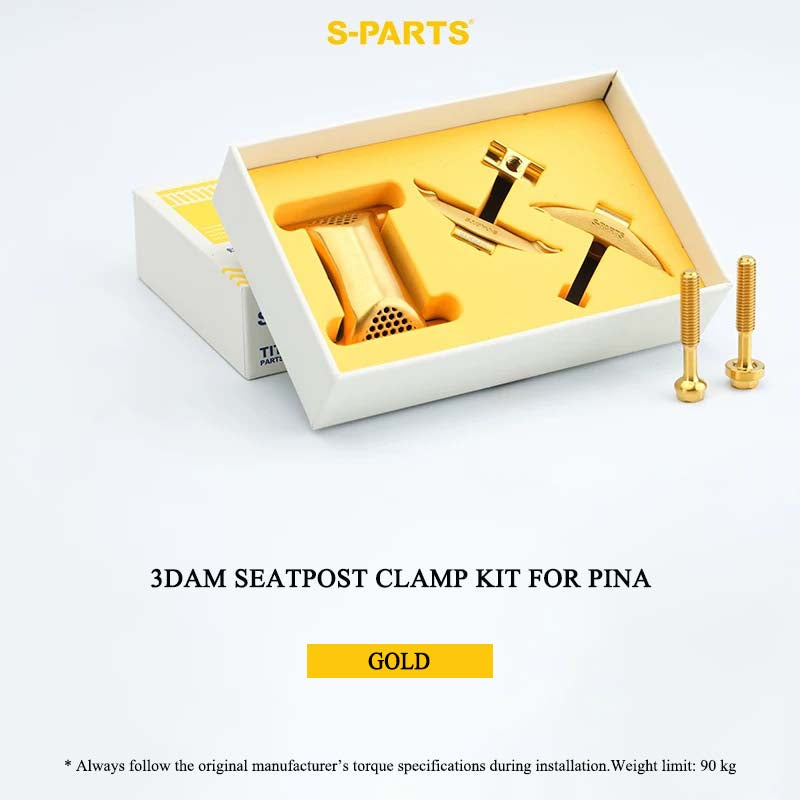

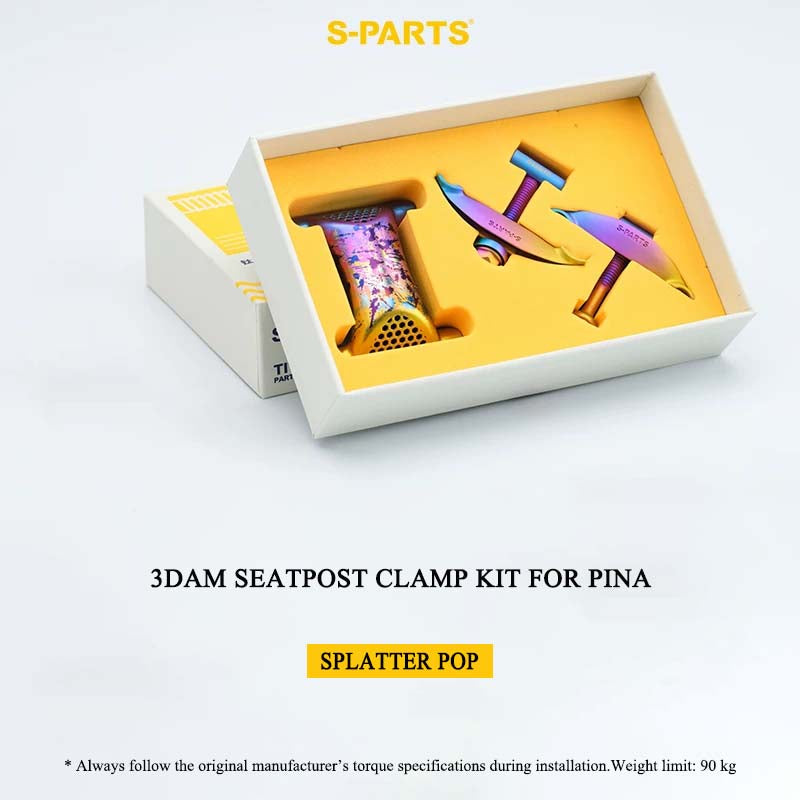

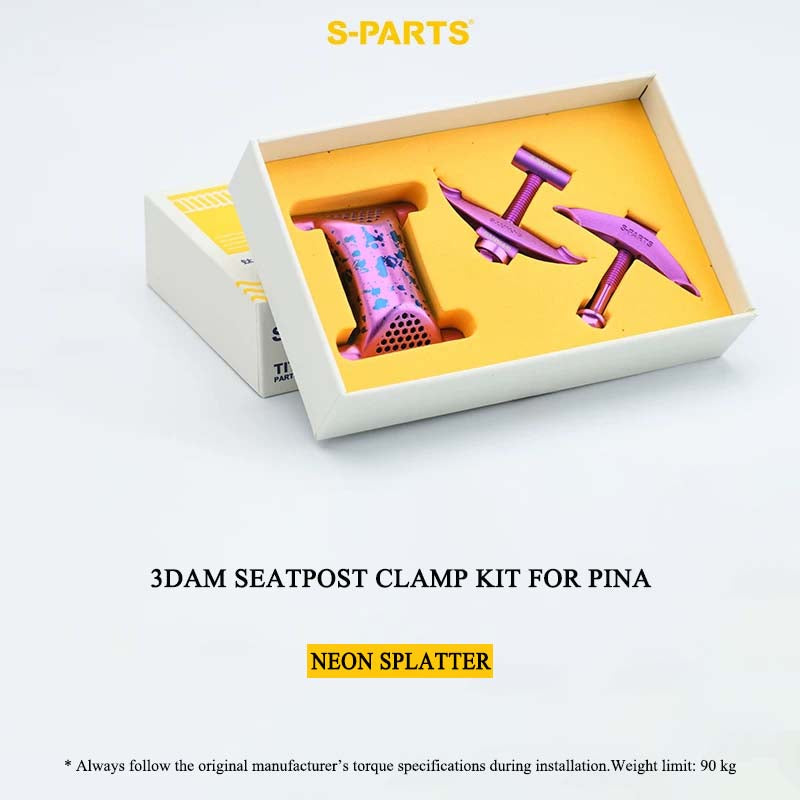

| Complete Kit (3D-Printed 3DAM Seatpost Clamp Set) | - | 32.8 g/set |

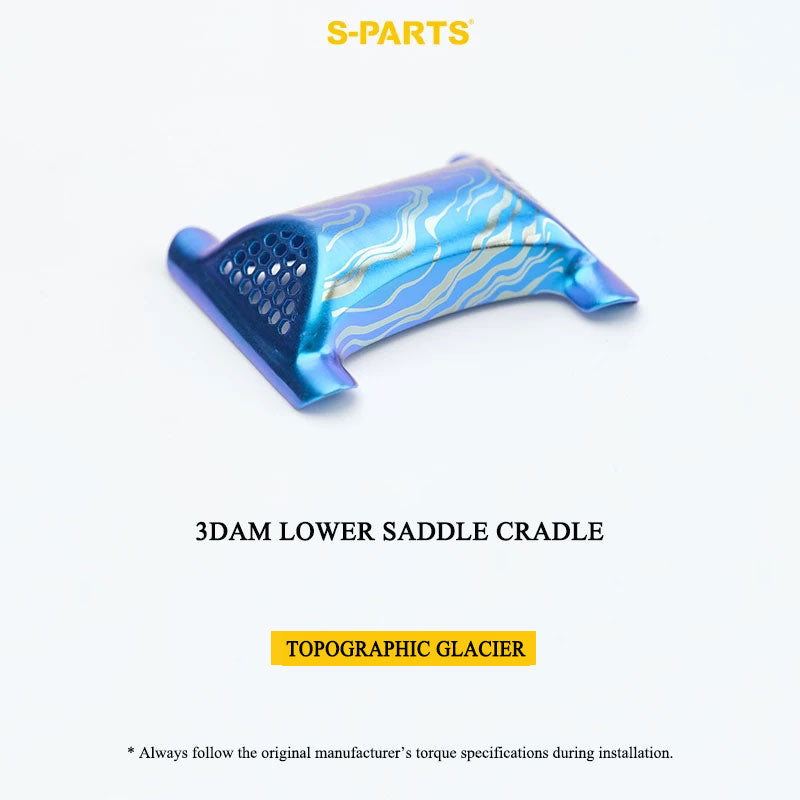

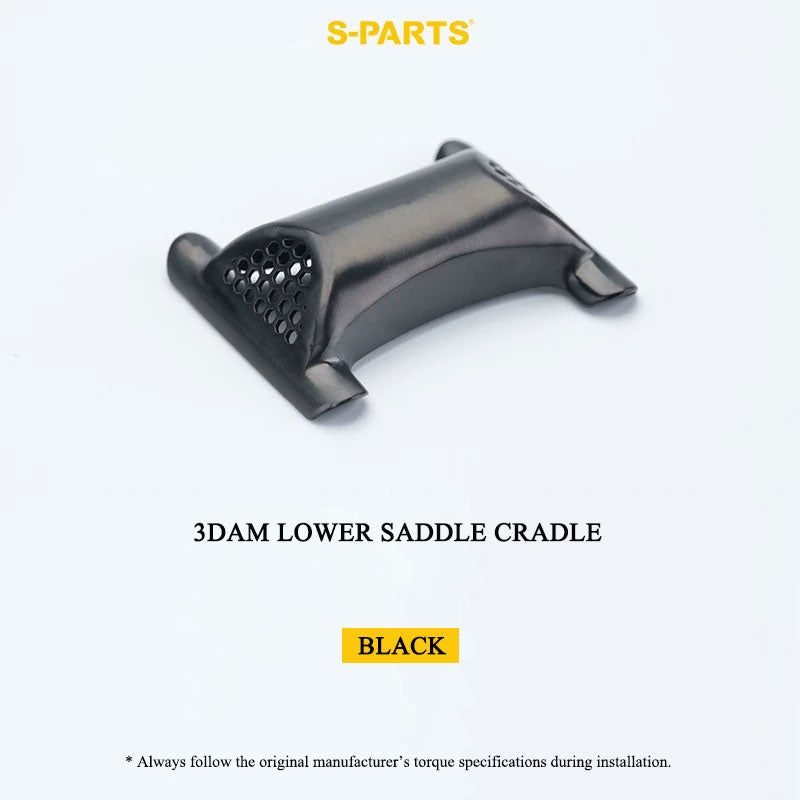

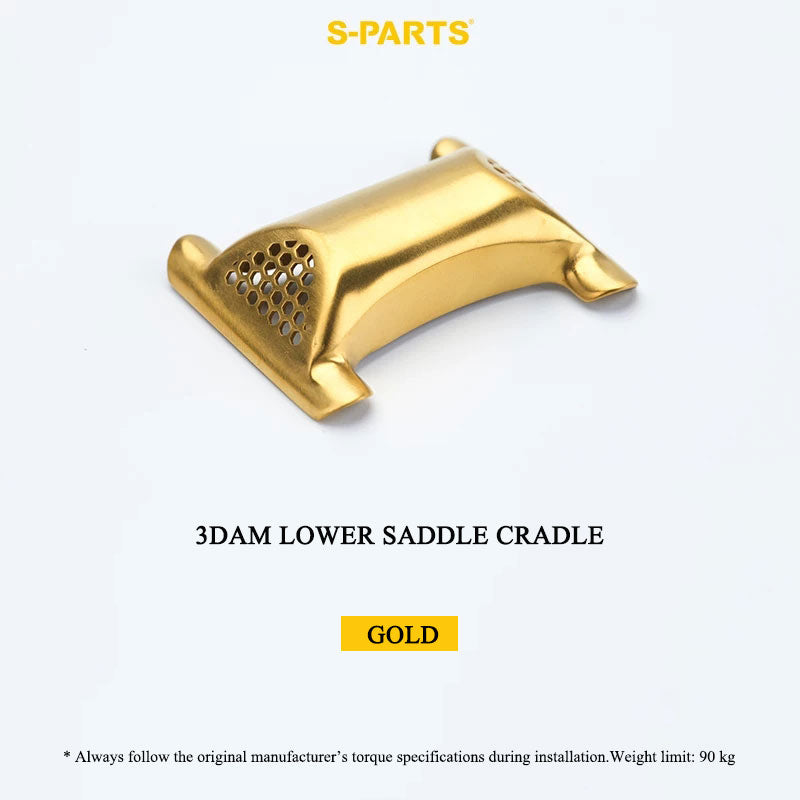

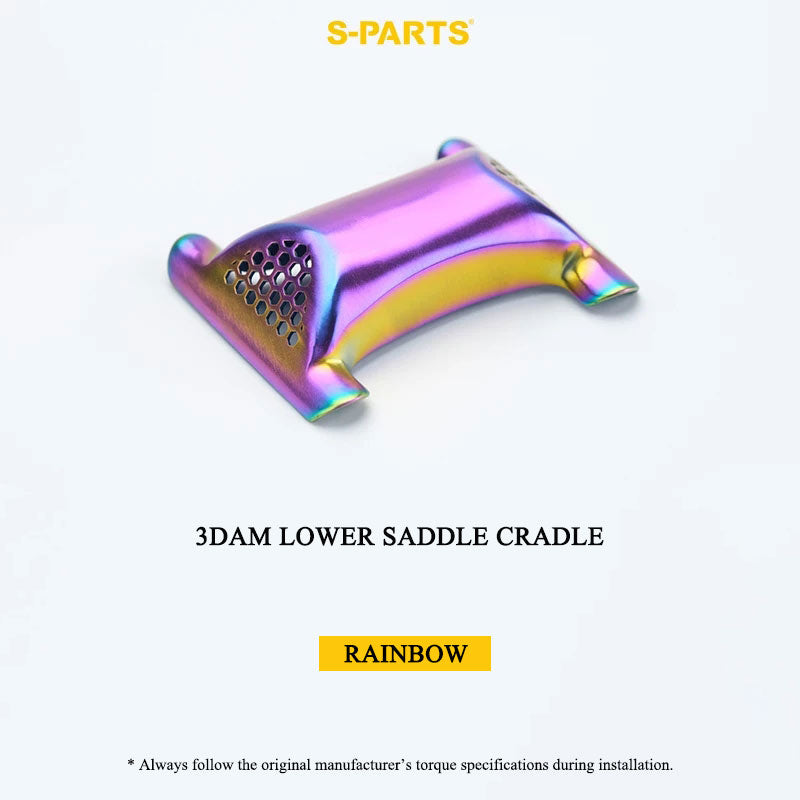

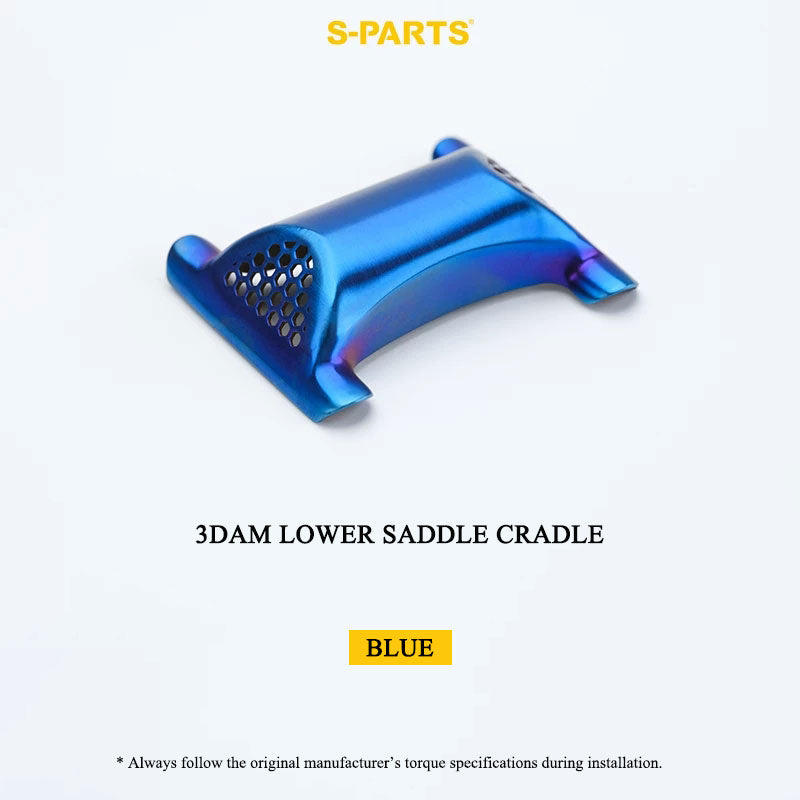

| 3D-Printed Lower Saddle Cradle | - | 8.3 g/pc |
| 3DAM Saddle Clamp (3D-Printed) | - | 5.4 g/pc |
| Short Cylindrical Nut | M6, Ø9.5 × H12 mm | 1.82 g/pc |
| Long Half-Cylinder Nut | M6, Ø9.8 × H19 mm | 1.92 g/pc |

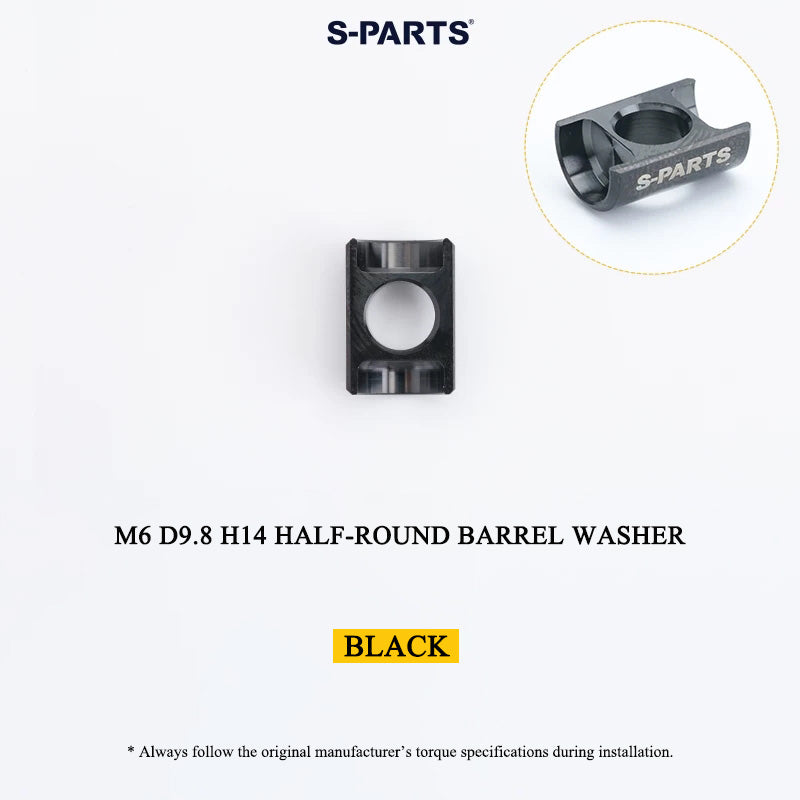

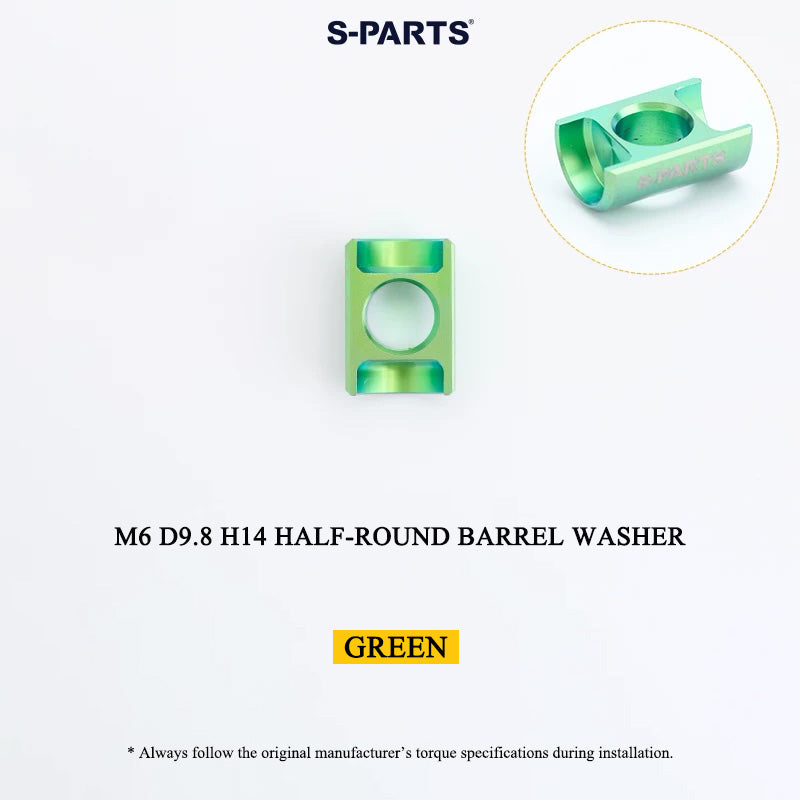

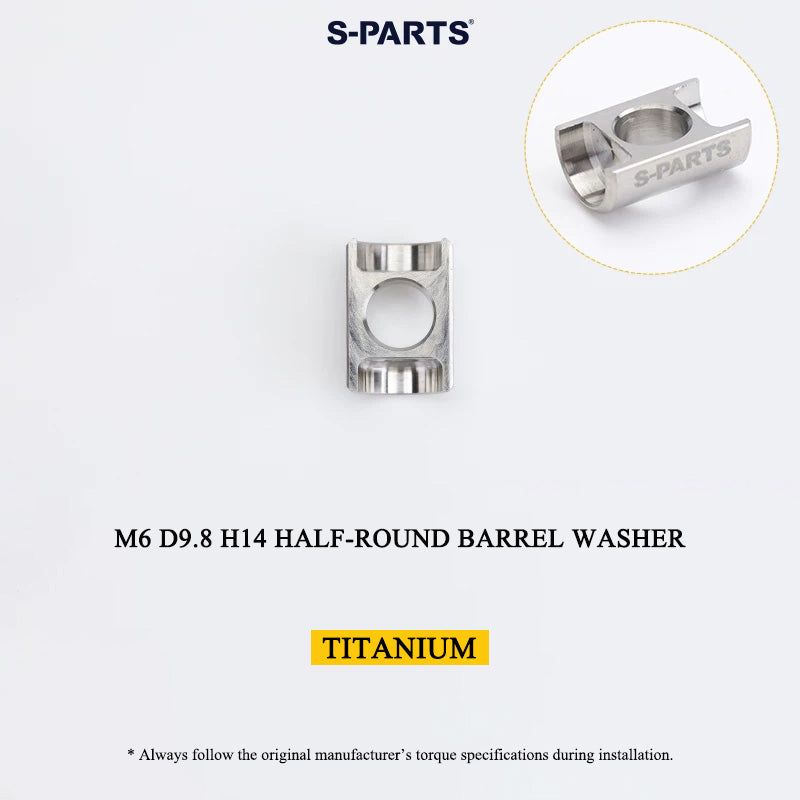

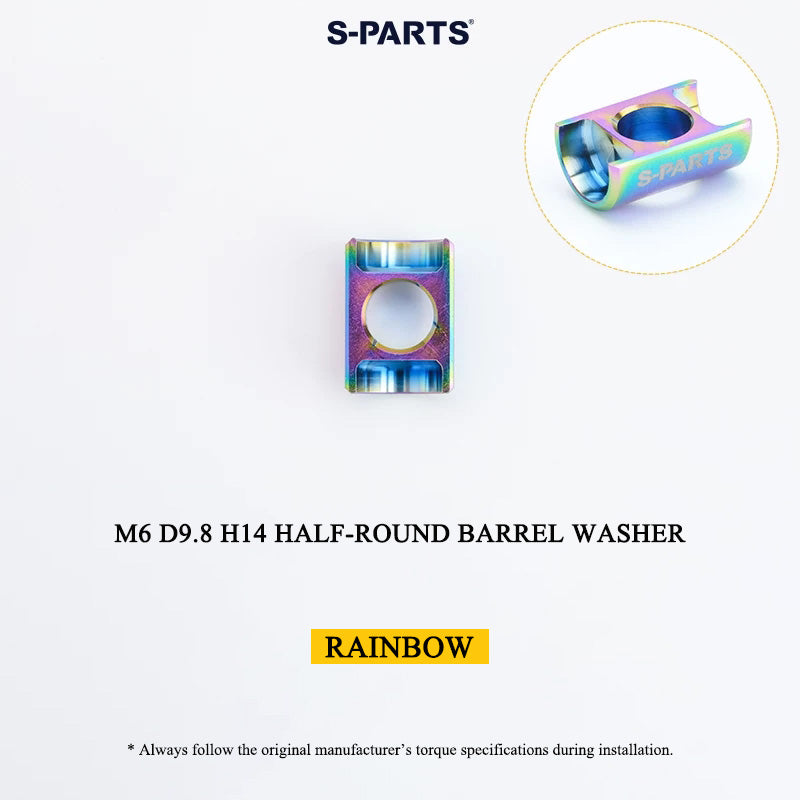

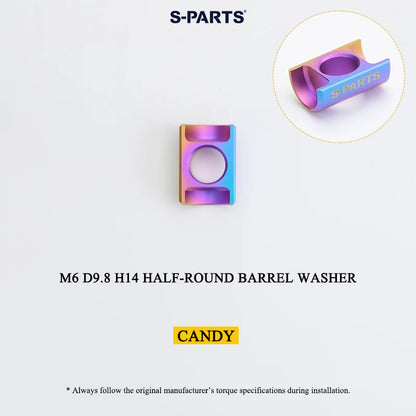

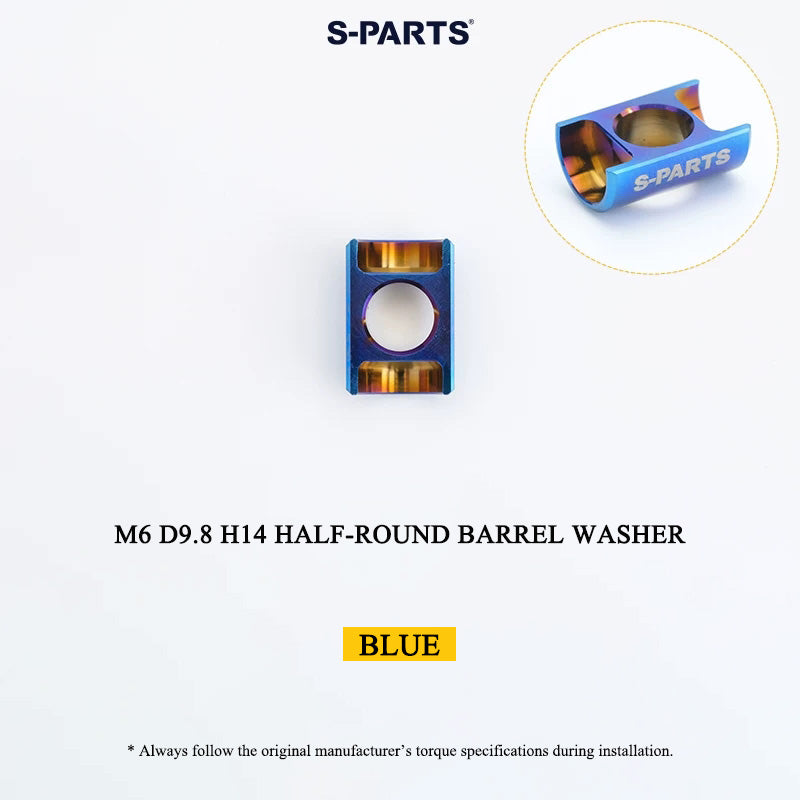

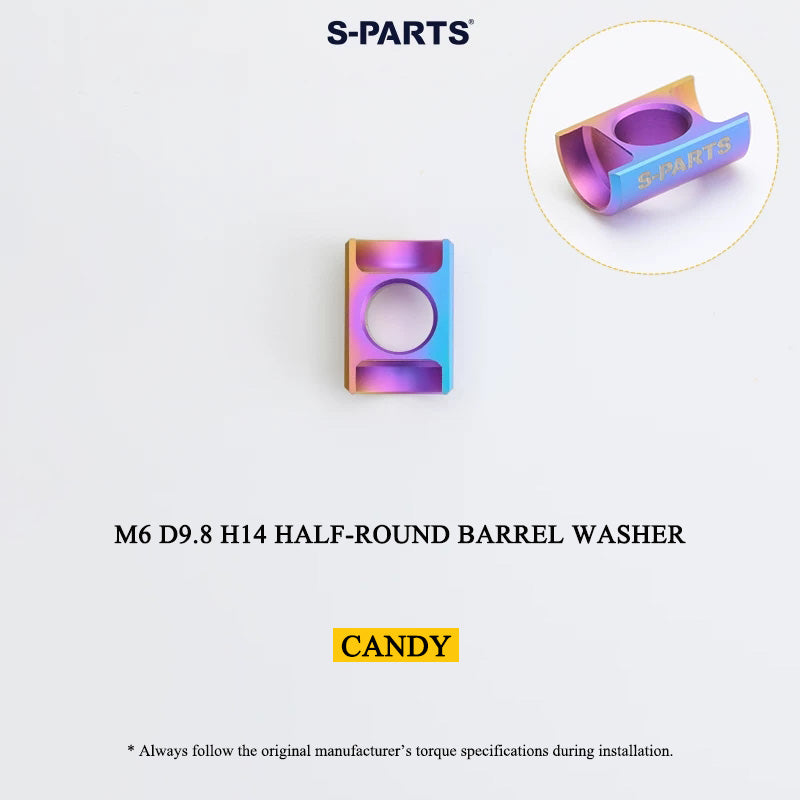

| Half-Cylinder Washer | M6, Ø9.8 × H14 mm | 1.3 g/pc |
| Stepped Seatpost Bolt | M6 × 35 mm | 4.13 g/pc |

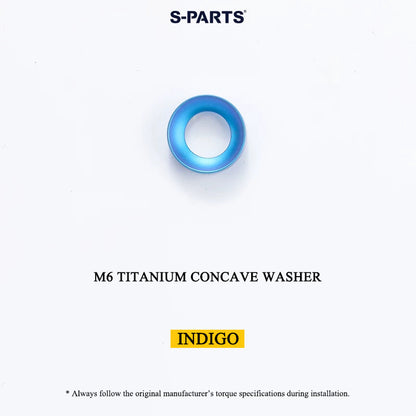

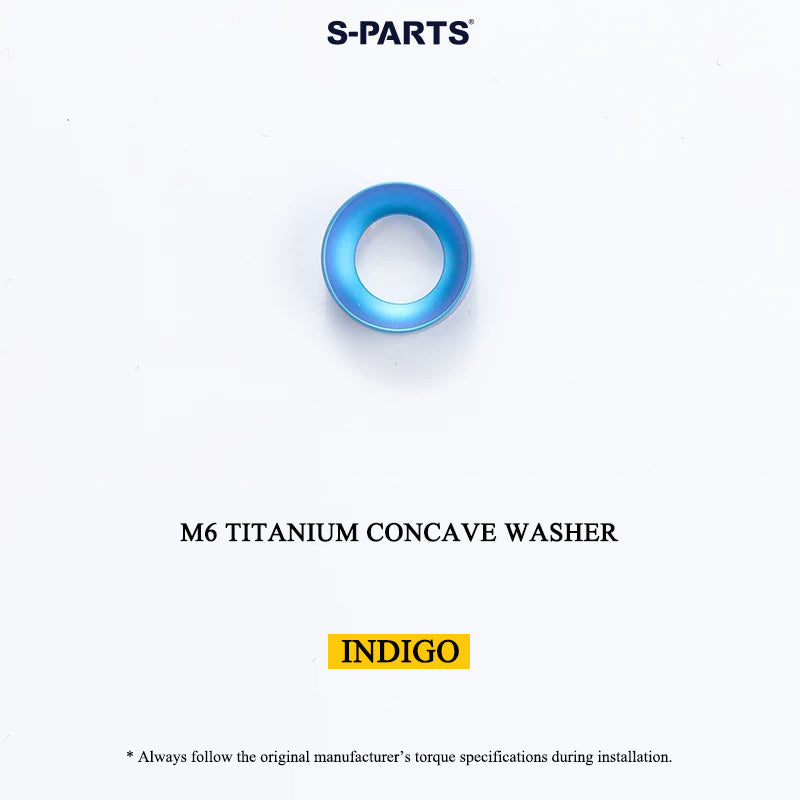

| Concave Washer | M6 | 0.6 g/pc |
Color Availability
Solid colors: Gold, Titanium, Black, Blue, Purple, Green, Candy and Indigo.
| Variant | Solid Colors | Copper | Patterned Finishes |
|---|---|---|---|
| Complete Kit | Yes | - | Yes |

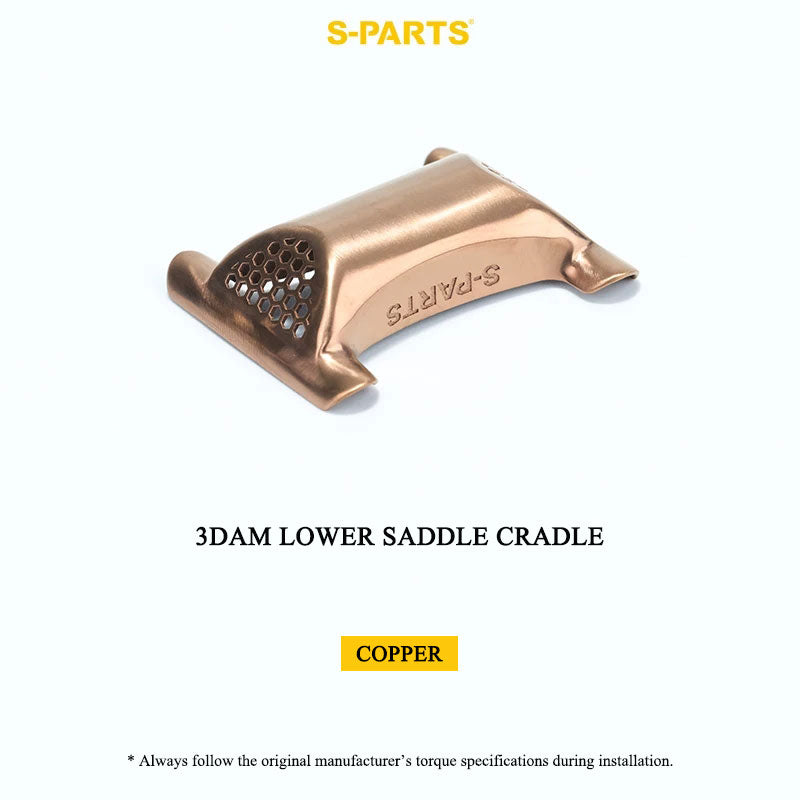

| Lower Saddle Cradle | Yes | Yes | Yes |
| 3DAM Saddle Clamp | Yes | Yes | - |
| Short Cylindrical Nut | Yes | Yes | - |
| Long Half-Cylinder Nut | Yes | Yes | - |
| Half-Cylinder Washer | Yes | Yes | - |
| Stepped Seatpost Bolt | Yes | - | - |
| Concave Washer | Yes | Yes | - |

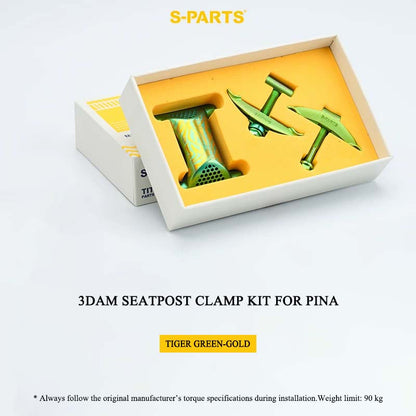

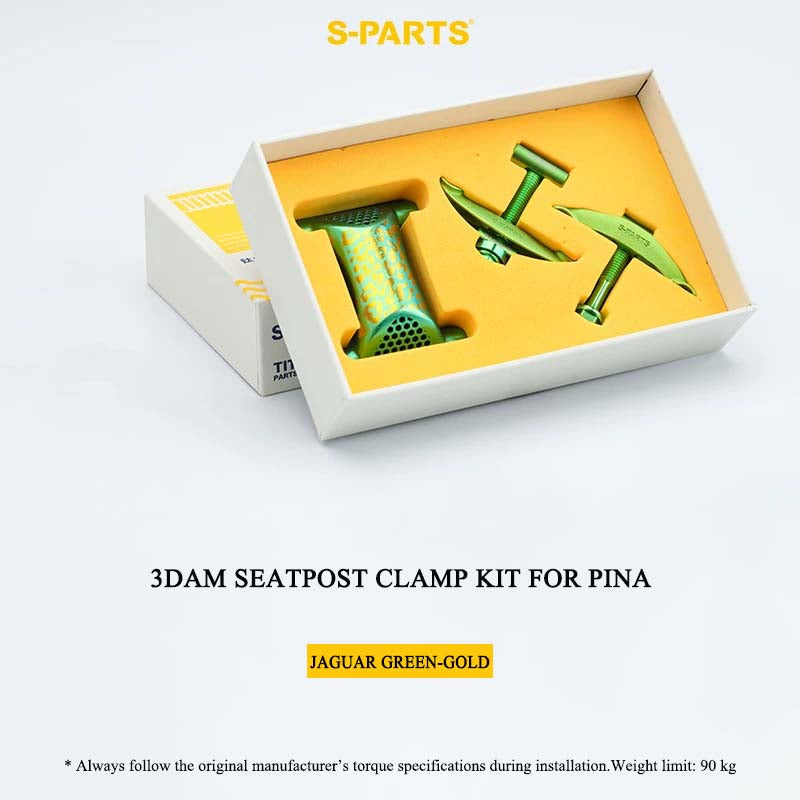

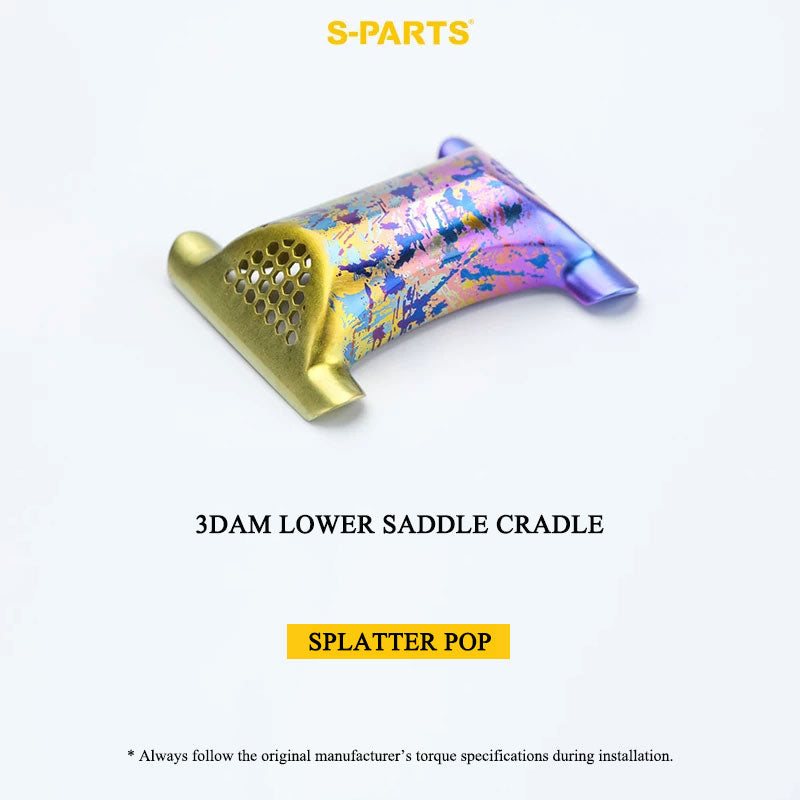

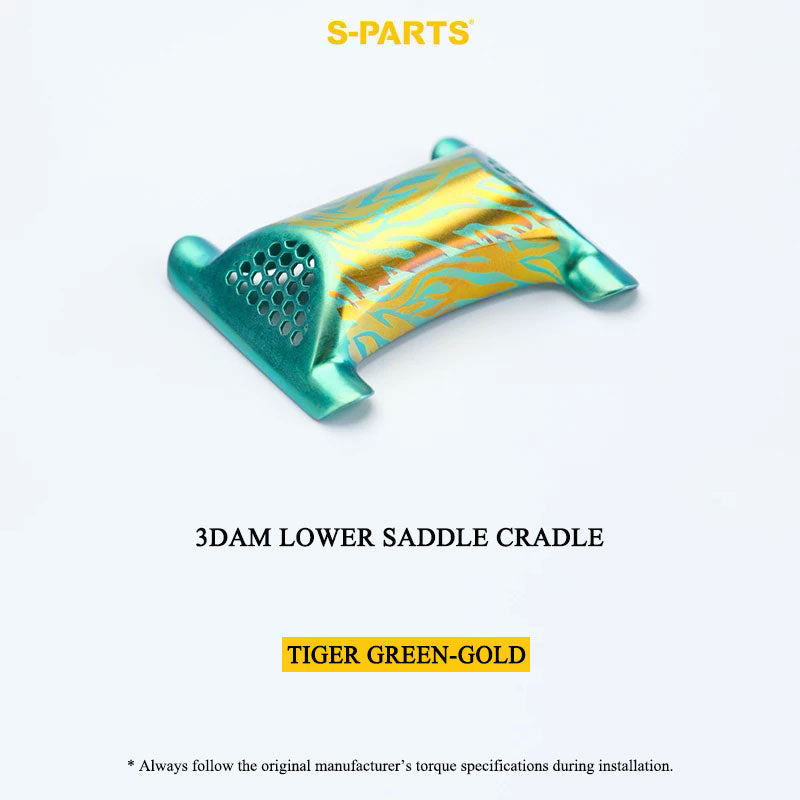

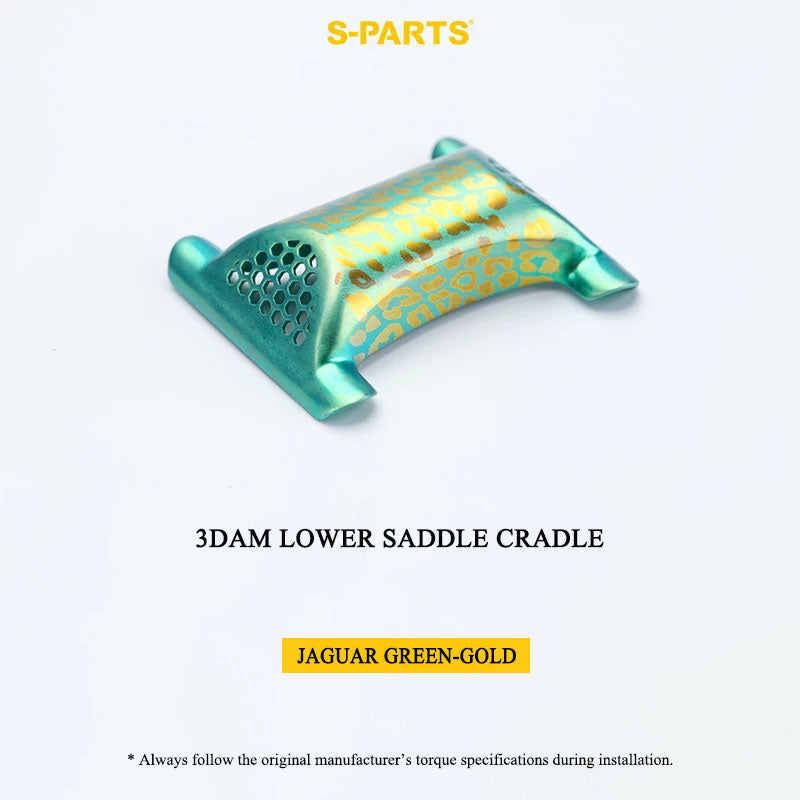

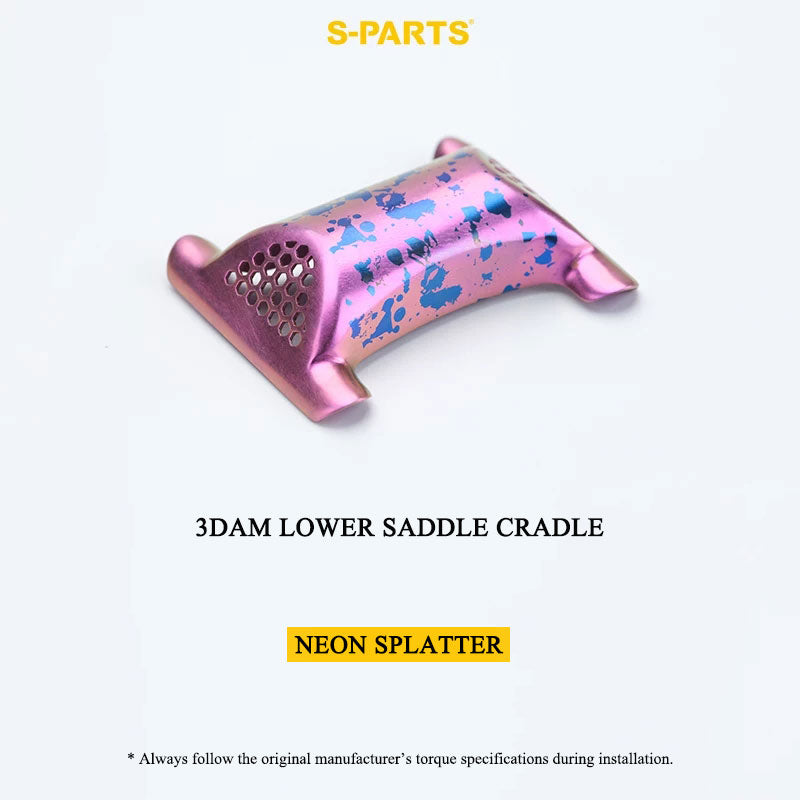

Patterned finishes: Splatter Pop, Neon Splatter, Tiger Green-Gold, Jaguar Green-Gold, Snowstorm and Topographic Glacier.

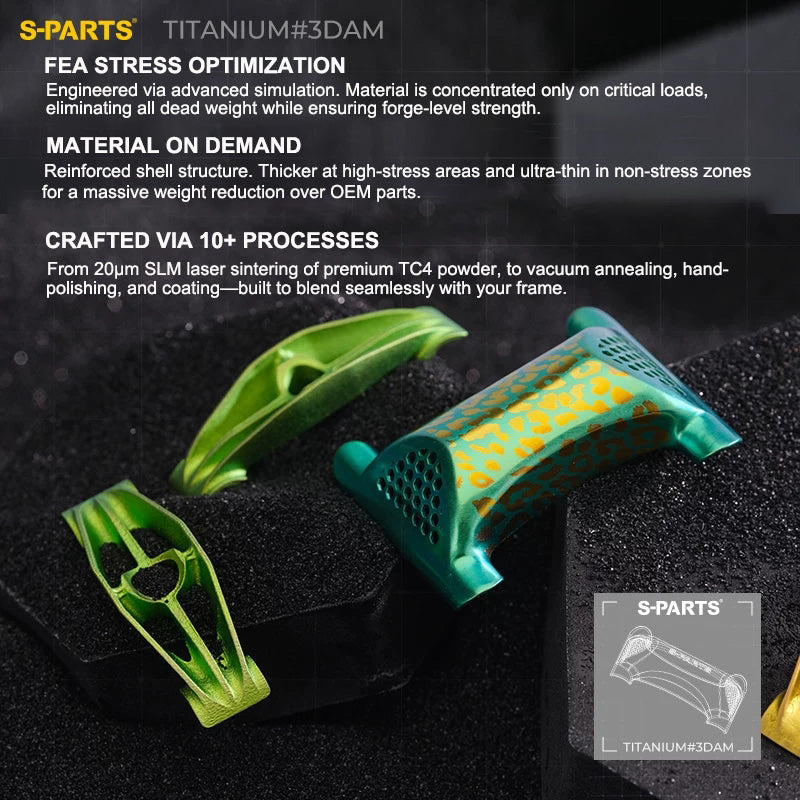

Lighter Than the Original Cast Aluminum Parts
S-PARTS uses mechanical simulation to calculate how load is distributed through each part. Material is concentrated where stress is highest and removed where it is not: thicker at the load points, ultra-thin elsewhere. The result is a weight significantly lower than the original cast aluminum parts.

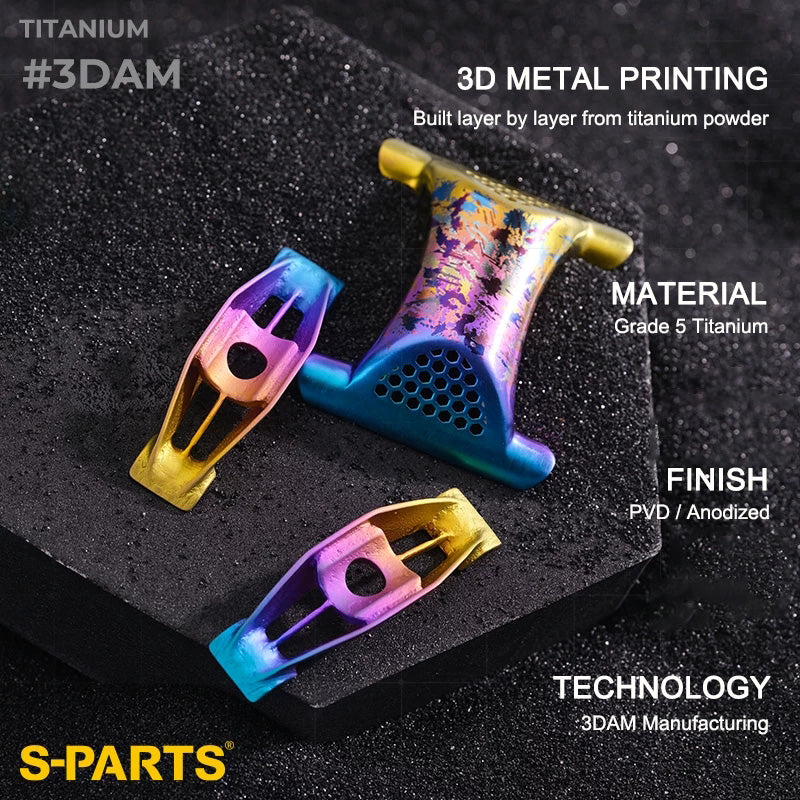

Precision SLM 3D Printing
Every printed part is made on an industrial SLM metal 3D printer from high-purity Grade 5 titanium powder, with a 20 μm powder layer for a fine surface. Each part then goes through more than ten steps, including stress-relief annealing, hand finishing to remove supports, thread tapping and surface treatment.

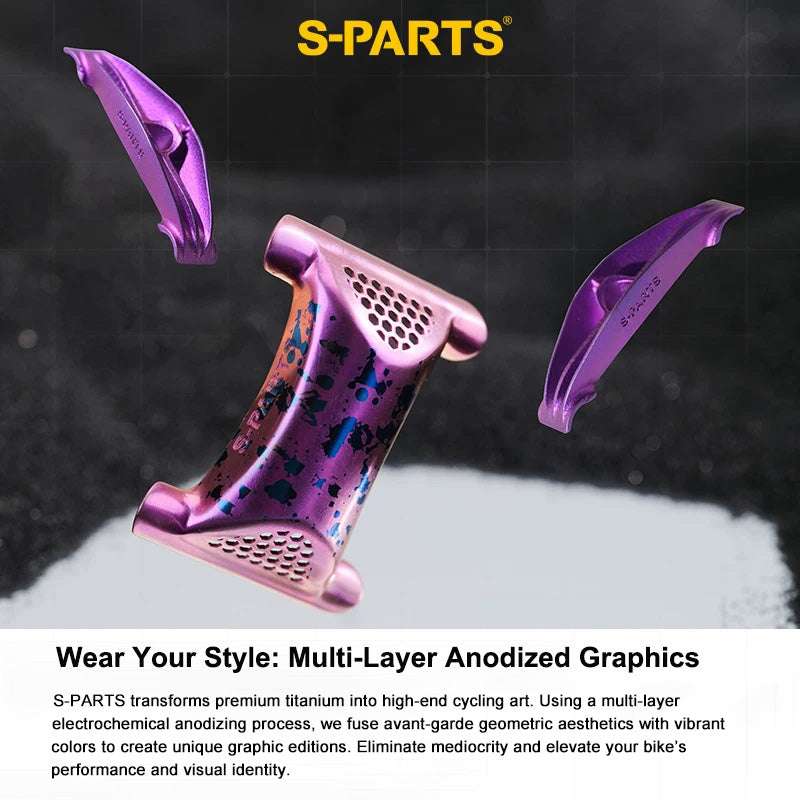

Anodized Colors and Patterns
Multi-layer anodizing creates vivid color on the titanium surface, from solid colors to bold patterns. The thin-shell design suits the clean lines of a carbon road bike.
Installation Notes
- Bolt-to-rail angle: 80° to 90°. Adjust the saddle clamps and the saddle rail position so that, once tightened, the bolt set sits at 80° to 90° to the rails. Installing outside this range risks damage.
- Recommended torque: front bolt 4-5 Nm, rear bolt 6-7 Nm.
- Rider weight limit: 90 kg (198 lb).
S-PARTS is an independent brand and is not affiliated with Pinarello. Pinarello and Dogma are trademarks of their respective owners and are used here only to describe compatibility.
