3D Printed Titanium Seat Clamp Kit & Parts for Cervélo S5 Seesaw Seatpost
3D Printed Titanium Seat Clamp Kit & Parts for Cervélo S5 Seesaw Seatpost
Couldn't load pickup availability
Product Description
Key Specifications
| Compatibility | Cervélo S5 seesaw (rocker-style) seatpost |
|---|---|
| Material | Grade 5 titanium (Ti-6Al-4V) |
| Manufacturing | Selective laser melting (SLM) 3D printing for the seat clamp base and saddle clamps; precision-machined fasteners |
| Bolt Sizes | Front stepped bolt M5 × 47 mm; rear stepped bolt M5 × 30 mm |
| Tool Required | 4 mm hex key for the seatpost bolts |
| Recommended Torque | Front: 3–4 Nm (27–35 lb-in); rear: 6 Nm (53 lb-in) |
| Bolt-to-Rail Angle | 80°–90° after tightening |
| Rider Weight Limit | 90 kg (198 lbs) |
| Finish | Anodized colors and patterns (varies by variant, see below) |
Choose Your Variant
| # | Item | Size / Contents | Weight | Tool |
|---|---|---|---|---|

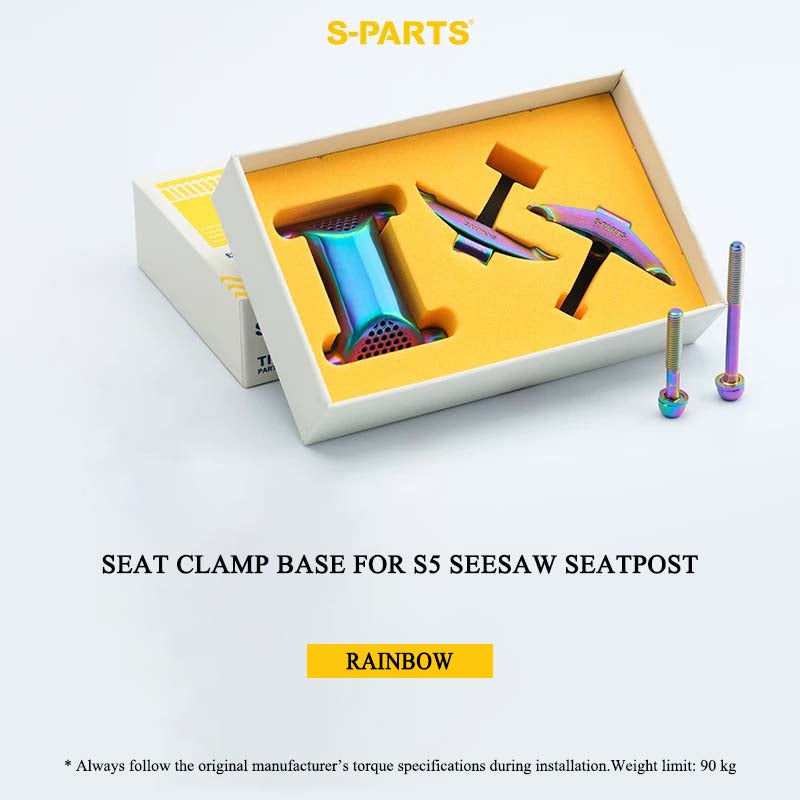

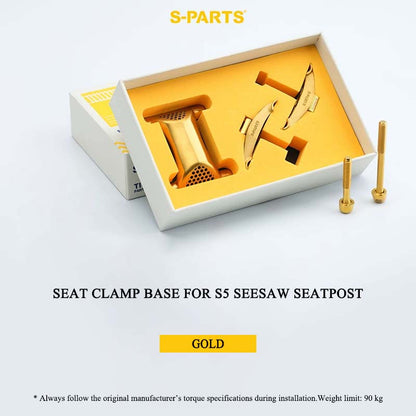

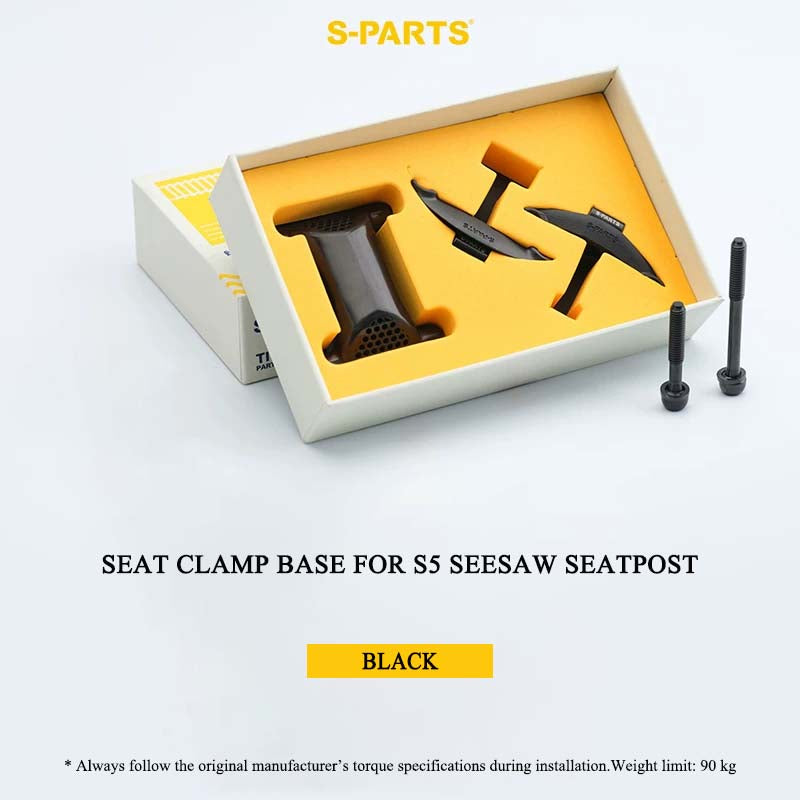

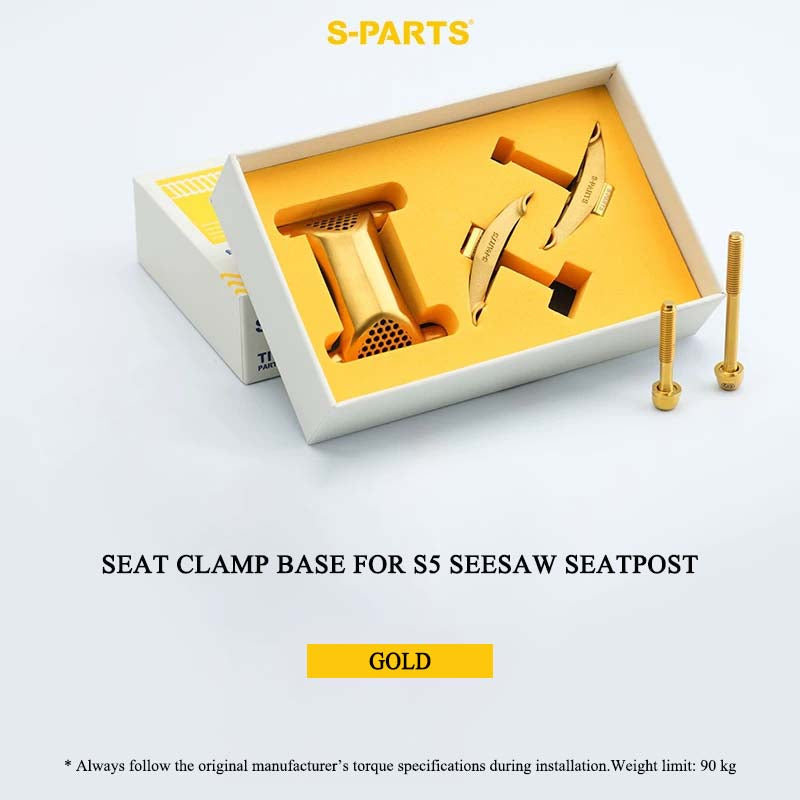

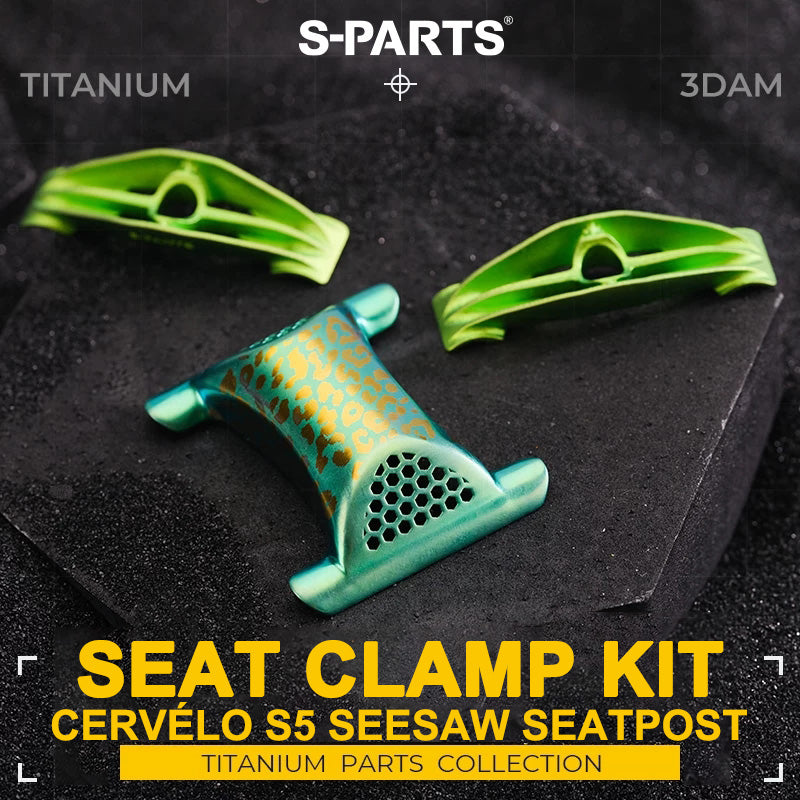

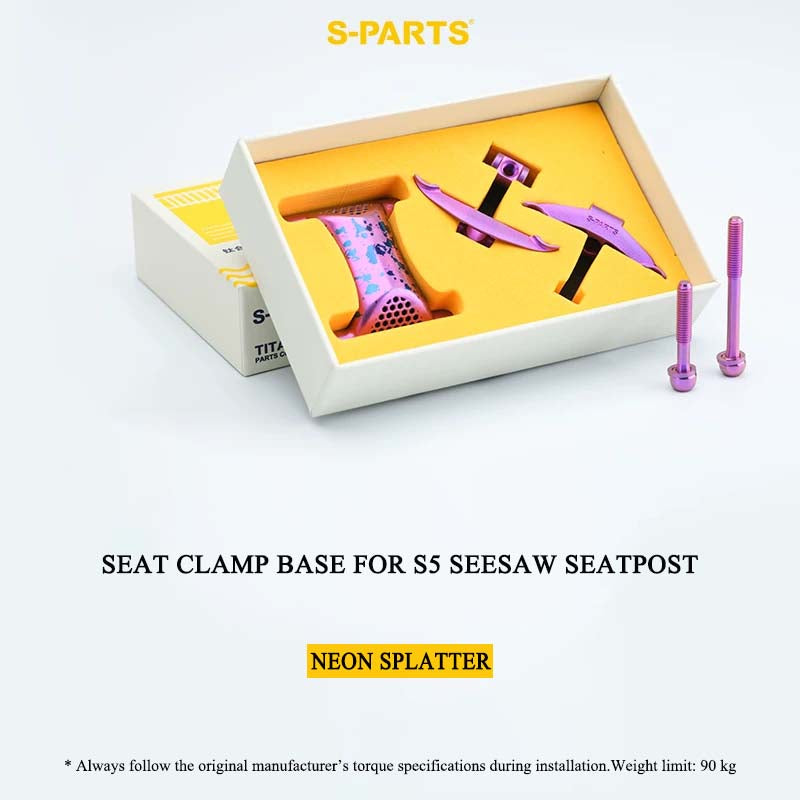

| 1 | Complete Seat Clamp Kit | 1 seat clamp base, 2 saddle clamps, 2 stepped seatpost bolts (front and rear), 1 half-round washer, 1 cylindrical nut, 2 concave washers | 29.8 g/set | 4 mm hex |
| 2 | 3D Printed Seat Clamp Base | Designed for Cervélo S5 | 8.3 g/pc | – |
| 3 | 3D Printed Saddle Clamp | Designed for Cervélo S5 | 5.4 g/pc | – |
| 4 | Cylindrical Nut | M6, Ø9.5 × H12 mm | 2.1 g/pc | – |

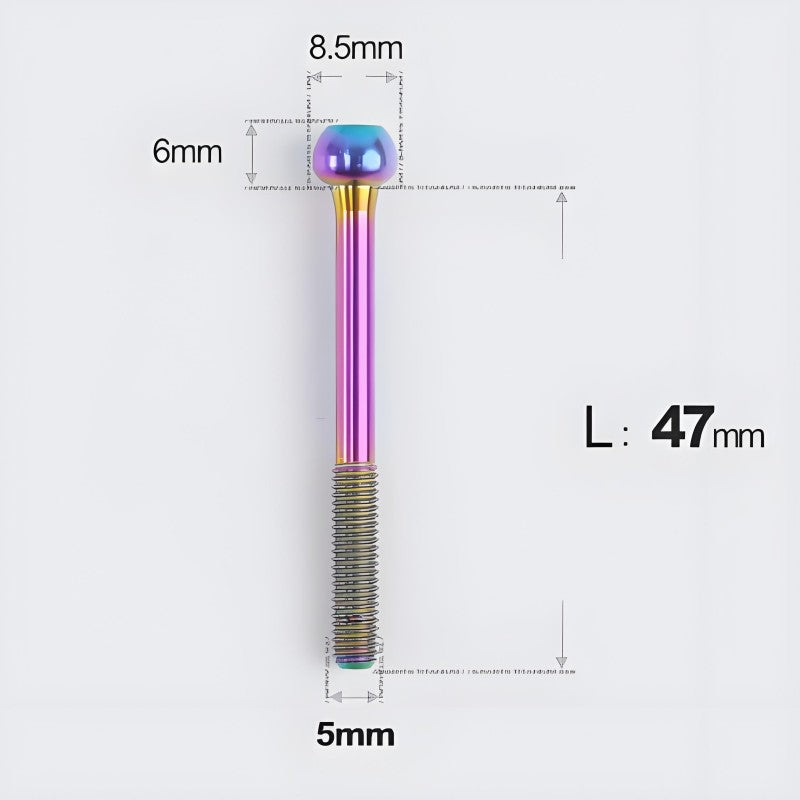

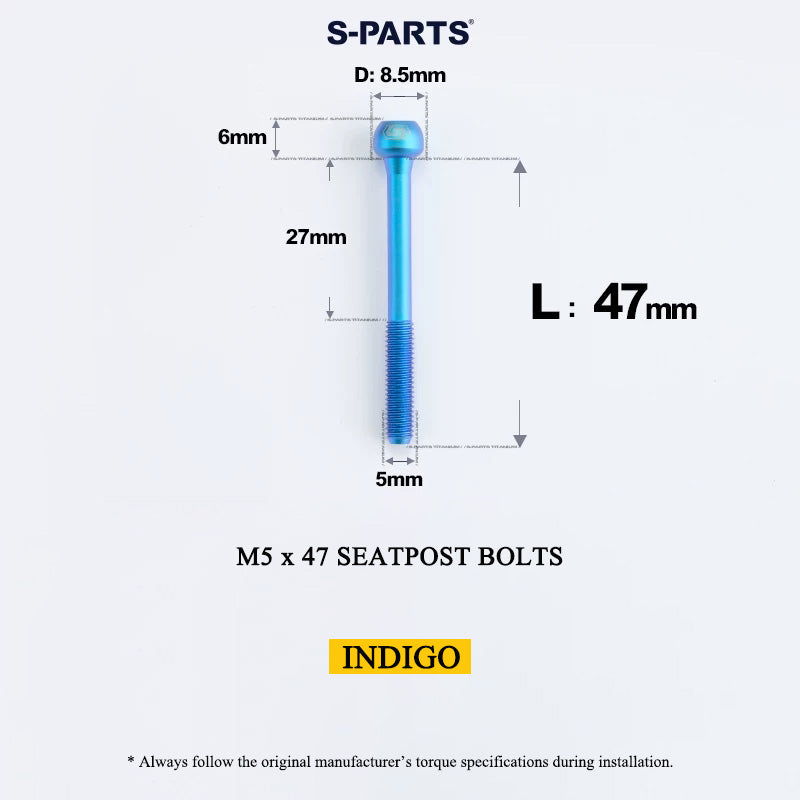

| 5 | Front Stepped Seatpost Bolt | M5 × 47 mm | 3.87 g/pc | 4 mm hex |

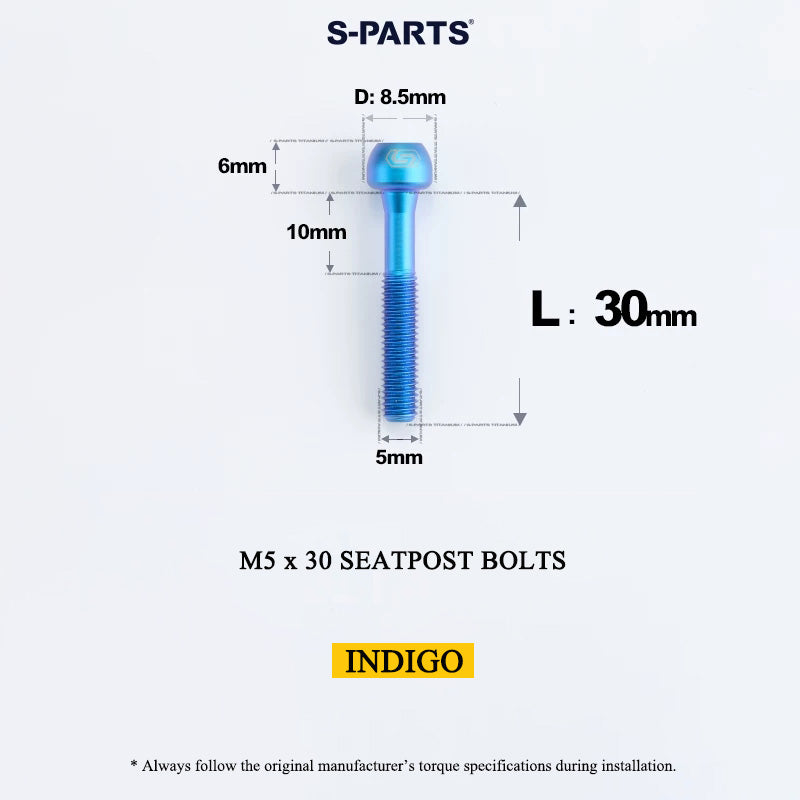

| 6 | Rear Stepped Seatpost Bolt | M5 × 30 mm | 2.95 g/pc | 4 mm hex |

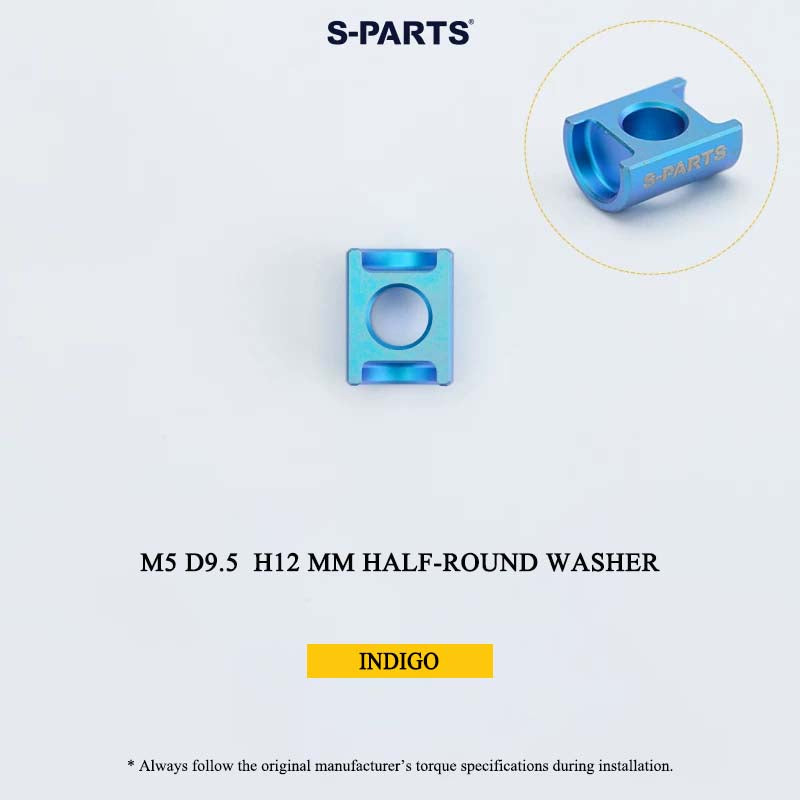

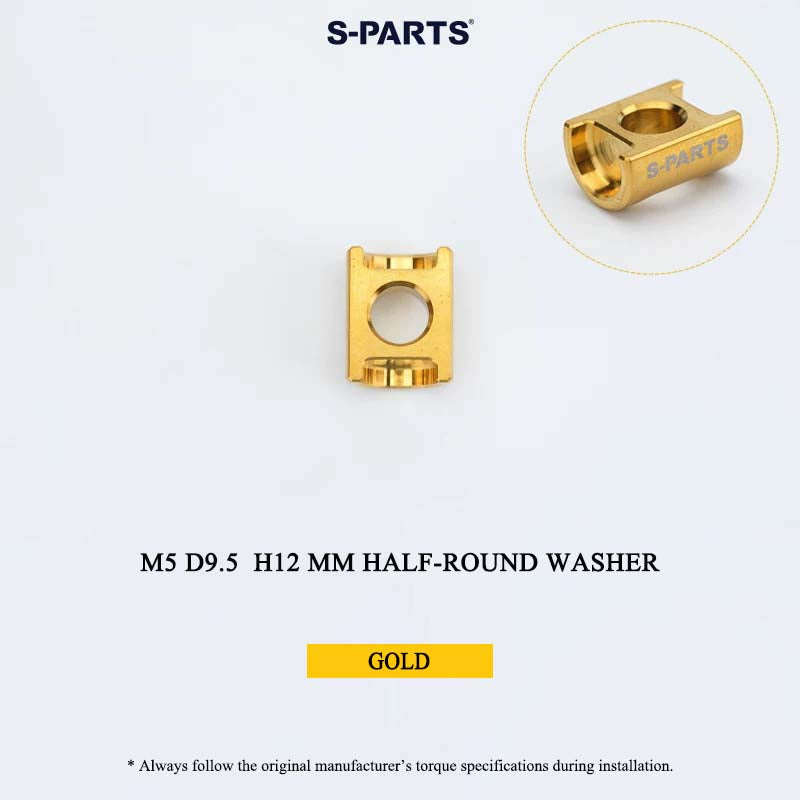

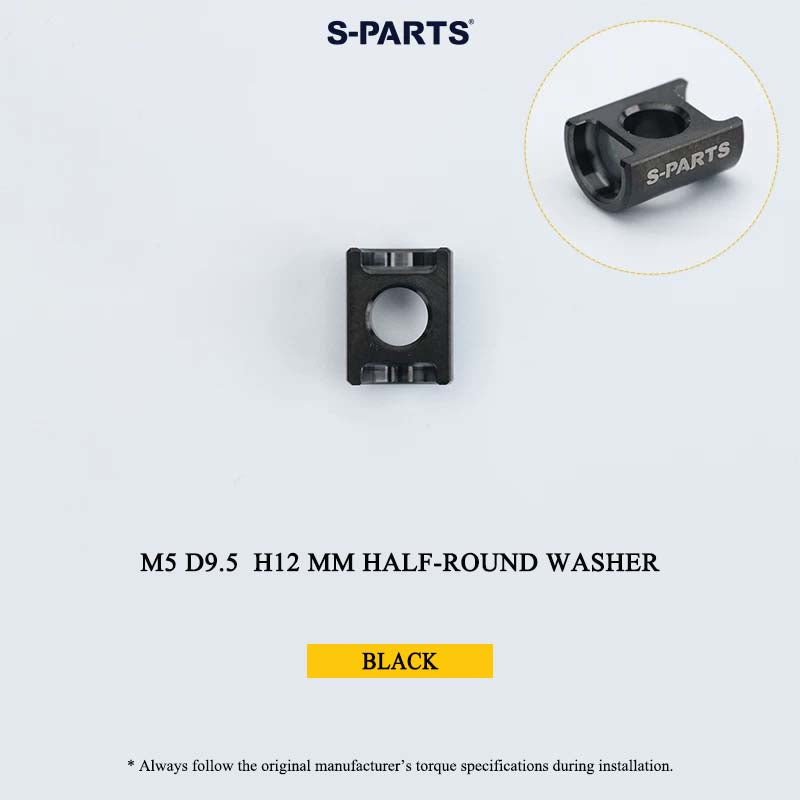

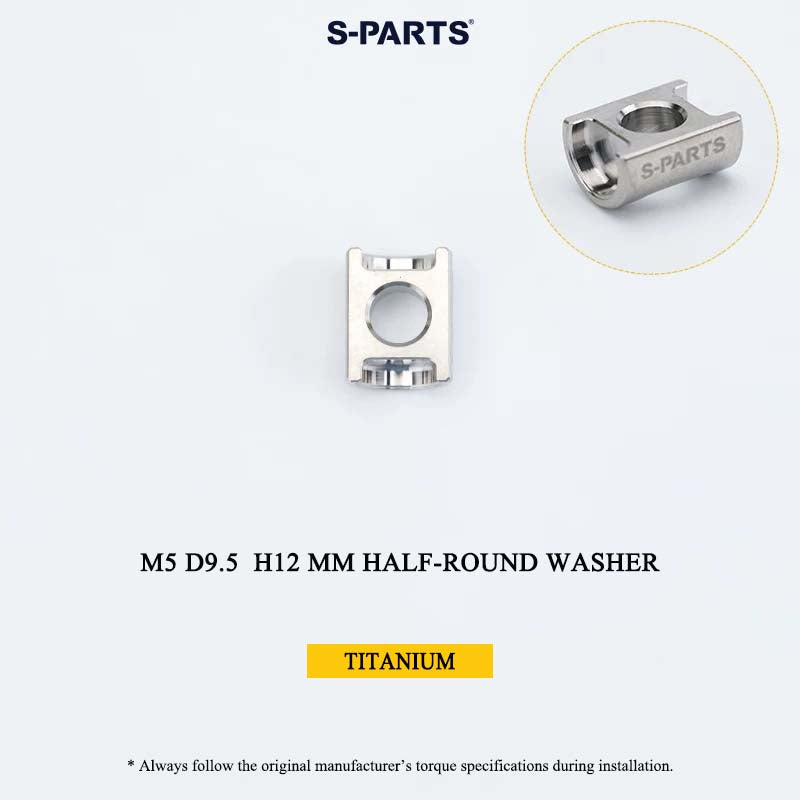

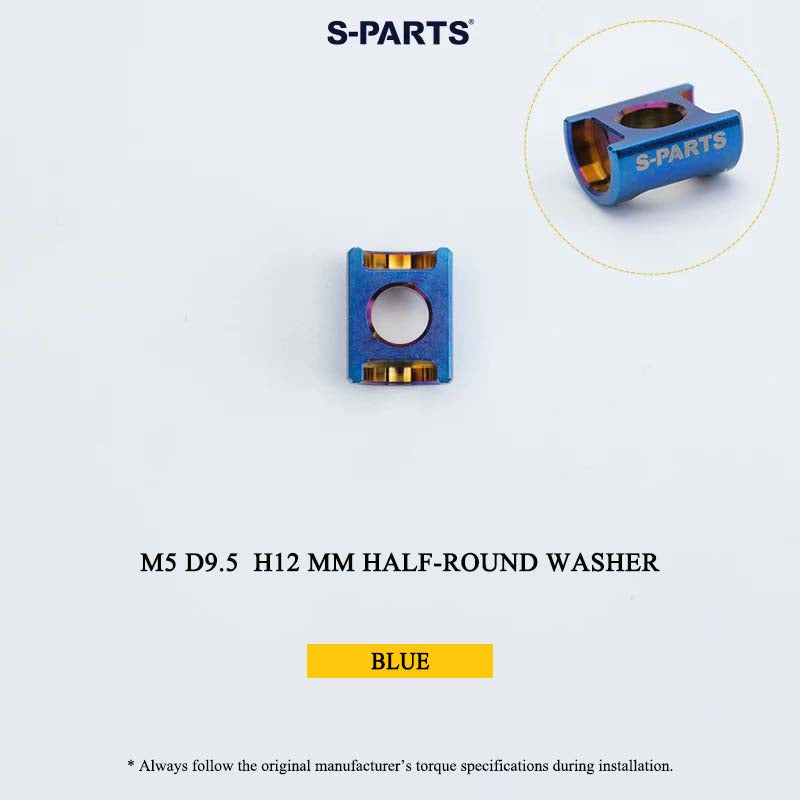

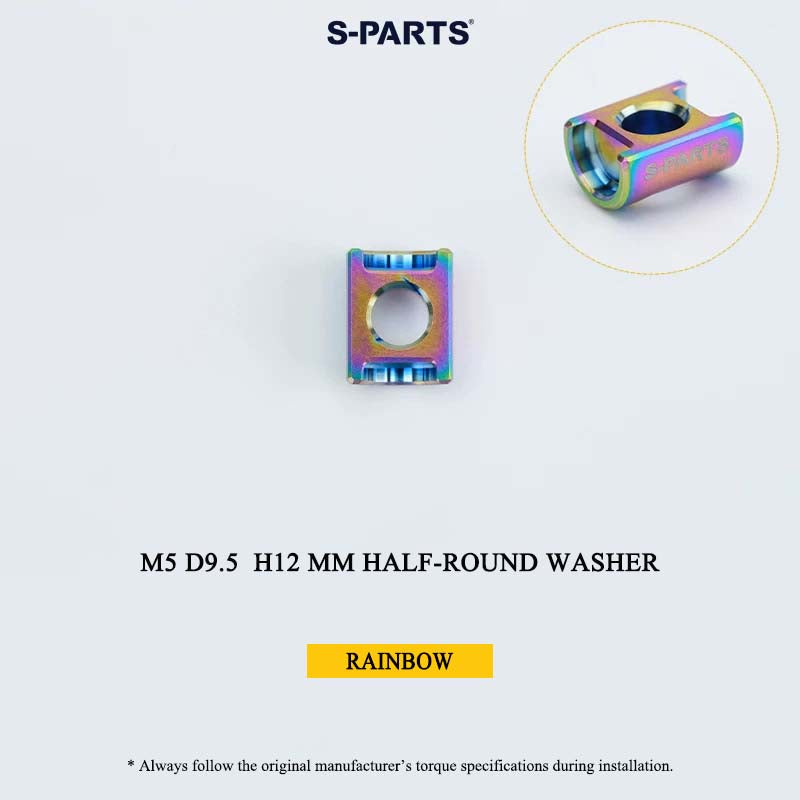

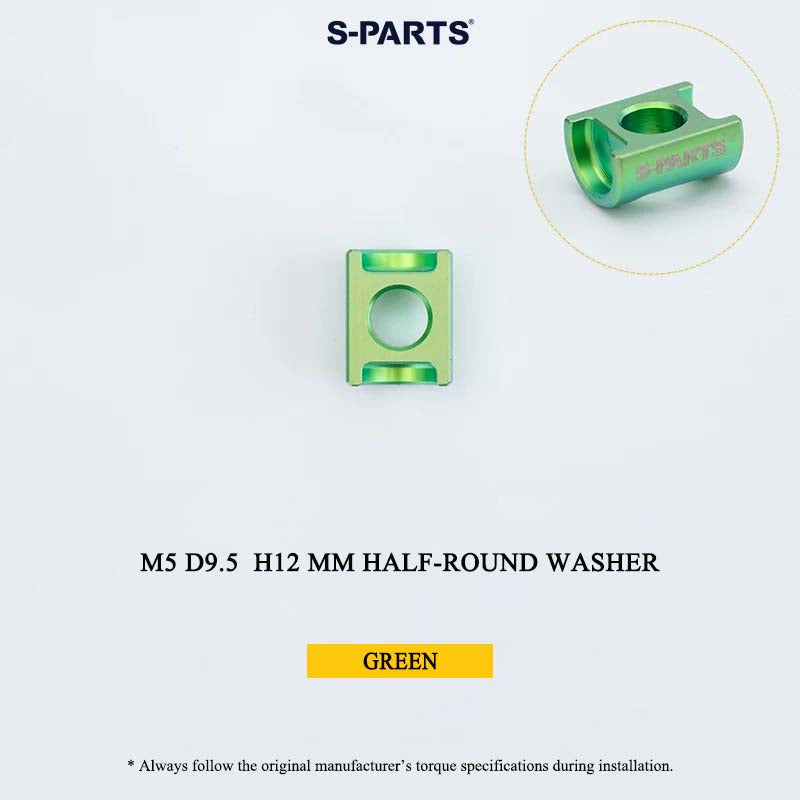

| 7 | Half-Round Washer | M5, Ø9.5 × H12 mm | 1.5 g/pc | – |
| 8 | Concave Washer | M6 | 0.13 g/pc | T25 Torx |
Installation Guide
Adjust the saddle clamps and the saddle rail position so that the tightened bolts sit at 80°–90° to the rails. Installing beyond this angle risks damage.
- Front bolt: Tighten to 3–4 Nm (27–35 lb-in).
- Rear bolt: Tighten to 6 Nm (53 lb-in).
- Weight limit: 90 kg (198 lbs). Always use a torque wrench.

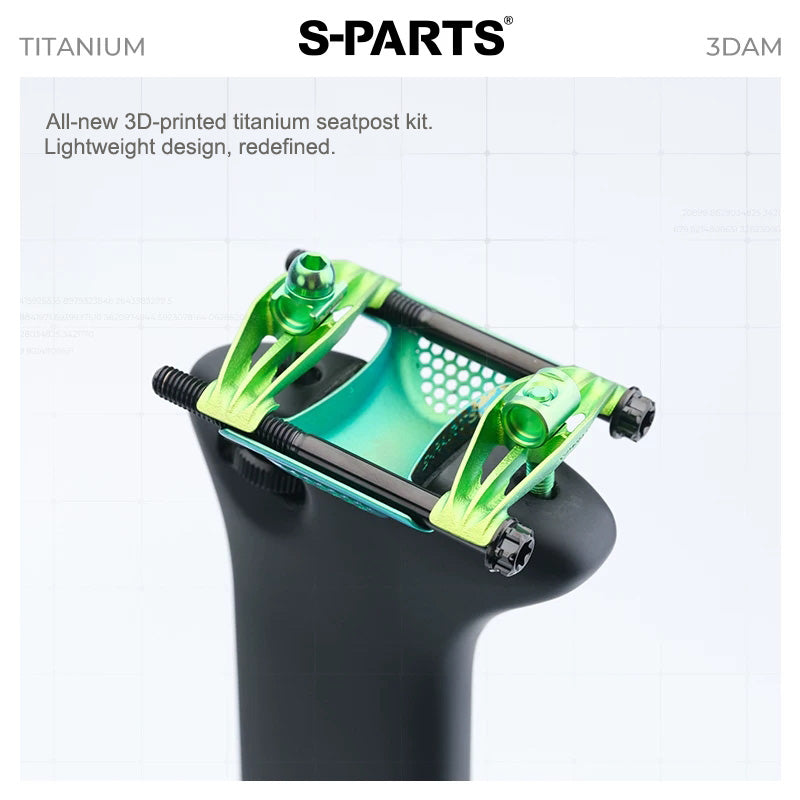

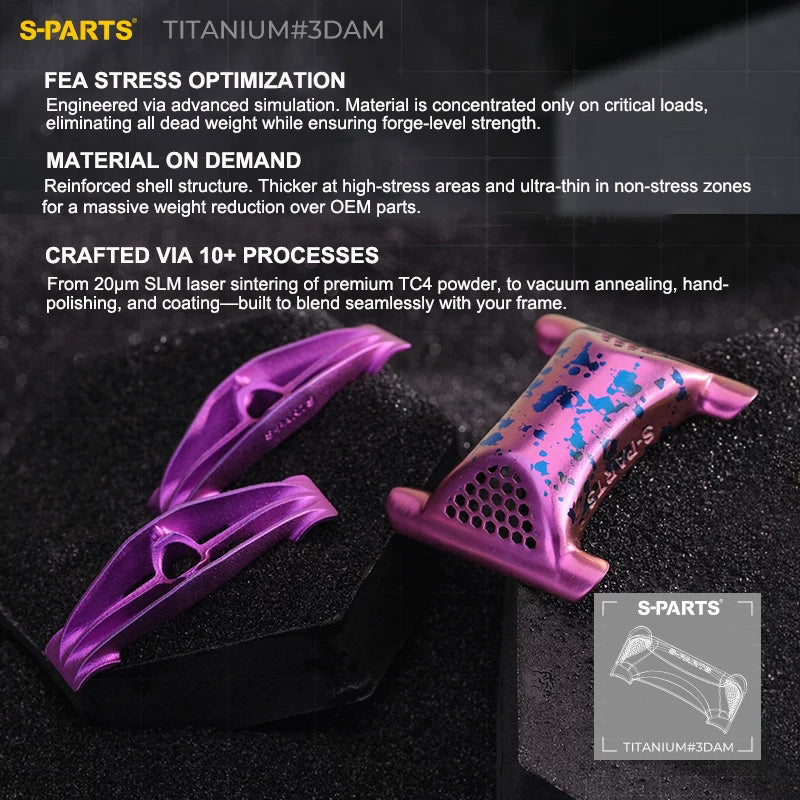

Lightweight by Design
S-PARTS uses mechanical simulation to calculate load distribution, then places material only where the forces are highest and removes it everywhere else. The result is a much lighter part than stock cast aluminum, with strength comparable to forged components.
Precision SLM Titanium 3D Printing

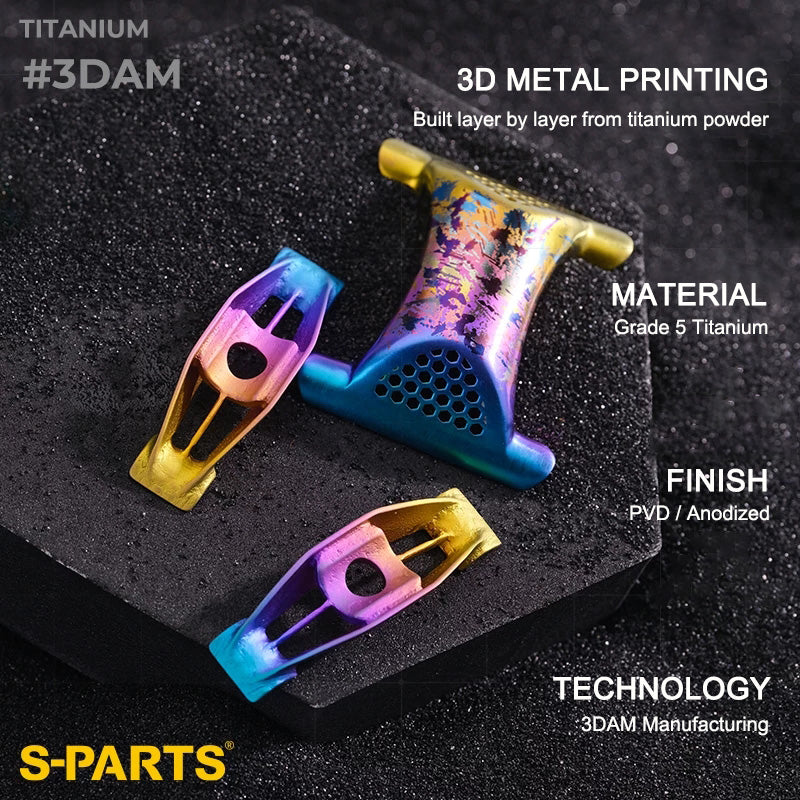

The seat clamp base and saddle clamps are made on industrial SLM (selective laser melting) metal printers using high-purity Grade 5 titanium (Ti-6Al-4V) powder. A 20-micron powder layer gives a fine, smooth surface.
Each part goes through more than ten steps, including stress-relief annealing, hand grinding to remove supports, thread tapping and surface coating, so it fits the frame cleanly.
Colors & Patterns

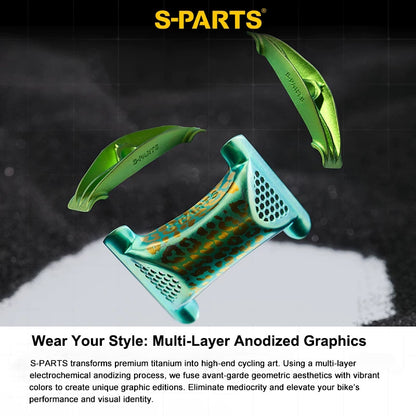

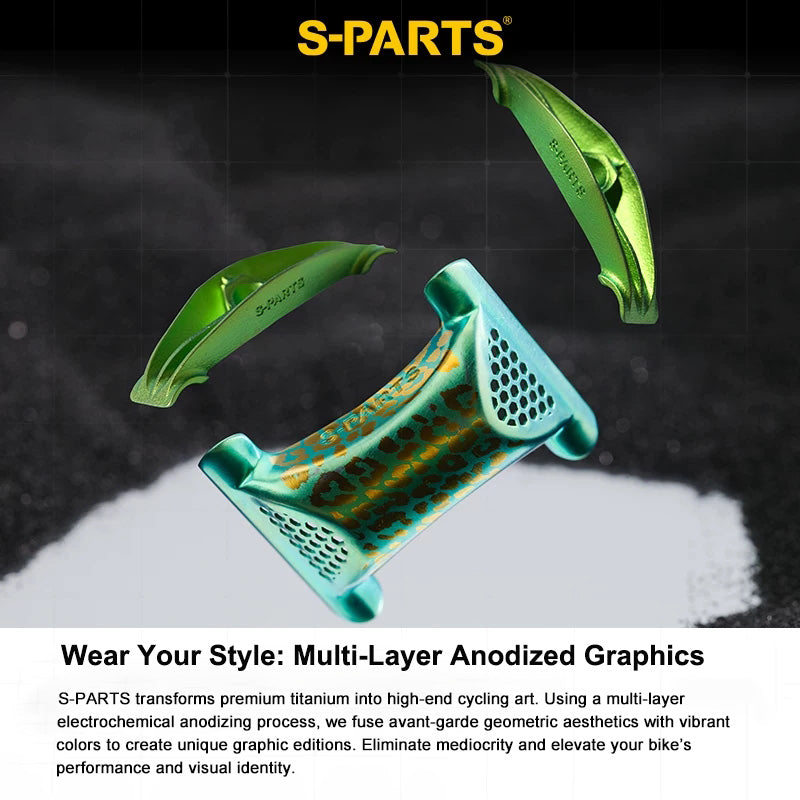

Patterns are available only for the Complete Kit (1) and the Seat Clamp Base (2). Multi-layer electrolytic anodizing creates saturated, durable color on the titanium surface.
| Variant | Colors | Patterns |
|---|---|---|

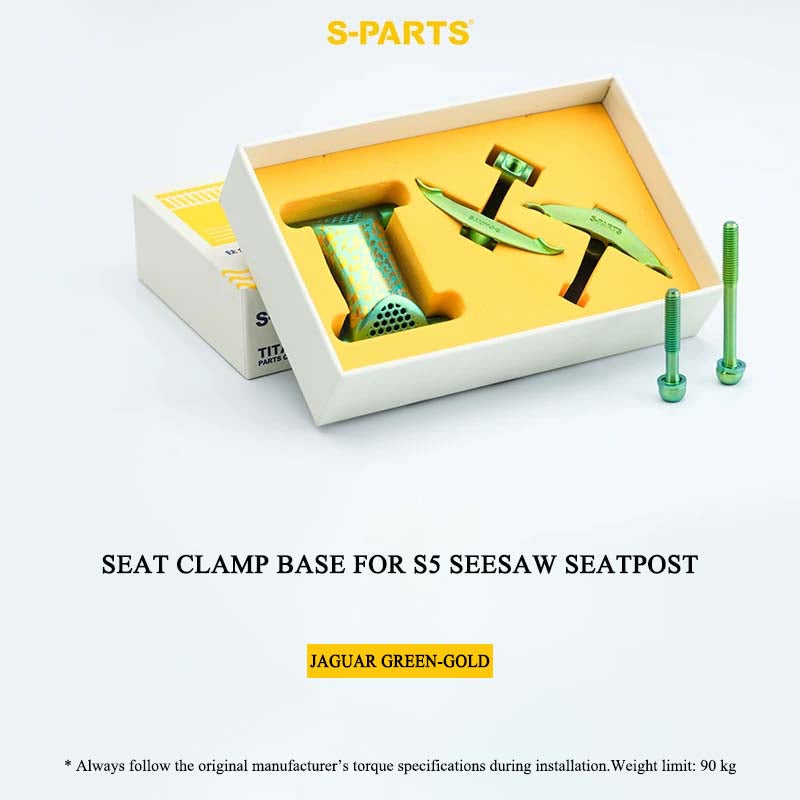

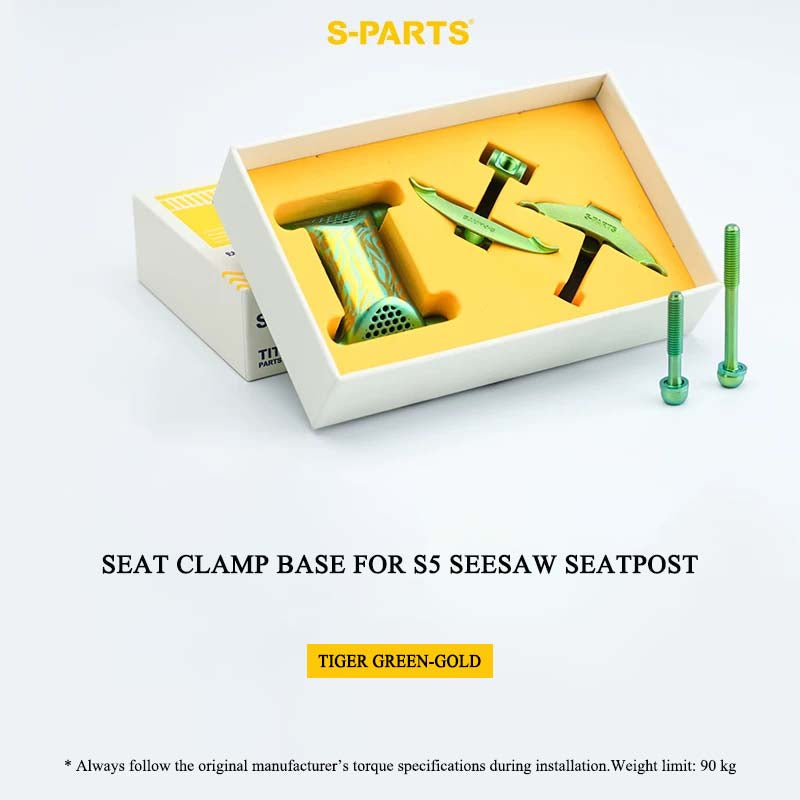

| 1. Complete Kit | Gold, Rainbow, Titanium, Black, Blue, Purple, Green, Candy, Indigo, Copper | Splatter Pop, Neon Splatter, Tiger Green-Gold, Jaguar Green-Gold, Snowstorm, Topographic Glacier |
| 2. Seat Clamp Base | Gold, Rainbow, Titanium, Black, Blue, Purple, Green, Candy, Indigo, Copper | Splatter Pop, Neon Splatter, Tiger Green-Gold, Jaguar Green-Gold, Snowstorm, Topographic Glacier |
| 3–8. All other parts | Gold, Rainbow, Titanium, Black, Blue, Purple, Green, Candy, Indigo, Copper | – |
Clean Look for Modern Carbon Road Bikes
The thin-wall shell and flowing lines follow the lightweight, minimalist look of modern carbon road bikes, with no unnecessary decoration.
