Product Description

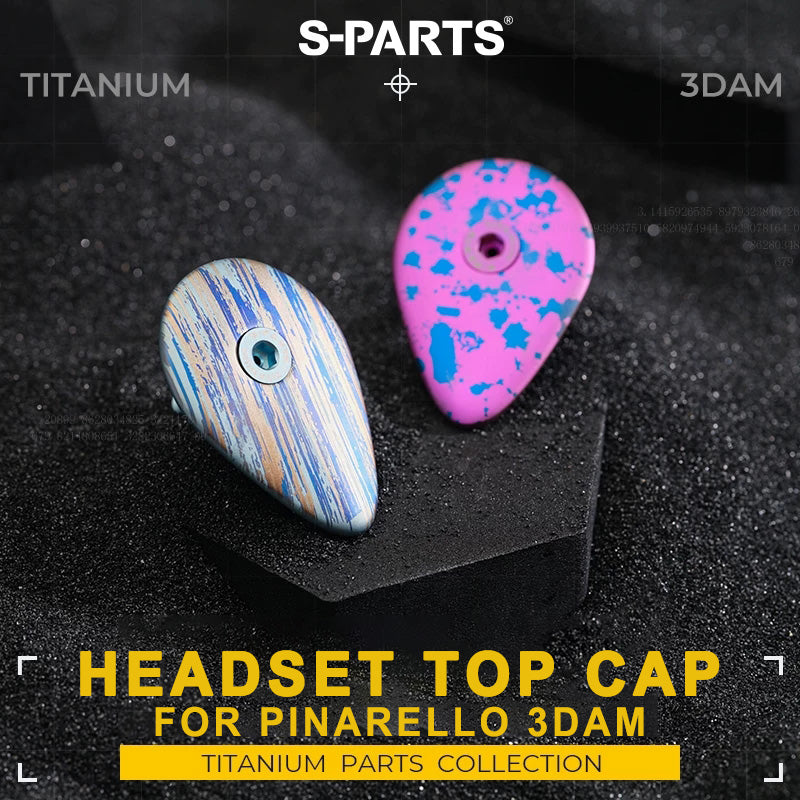

Ultralight 3D-printed Grade 5 titanium (Ti-6Al-4V) headset top cap for the Pinarello 3DAM integrated handlebar, engineered in two model-specific versions: 2024 & Earlier models (7.92 g/set) and 2025 models (8.47 g/set). Available in 15 vibrant anodized finishes and custom graphic patterns. Installs easily with a standard 4 mm hex key.
Which Version Do I Need?
| Version | Compatibility Fitment | Weight | Tool Required |
|---|---|---|---|
| Variant 1: Pre-2025 Top Cap Set | Pinarello 3DAM integrated handlebar (2024 and earlier models) | 7.92 g / set | 4 mm hex key |
| Variant 2: 2025 Top Cap Set | Pinarello 3DAM integrated handlebar (2025 models) | 8.47 g / set | 4 mm hex key |
Important: The two versions feature subtle architectural differences and are not interchangeable. Please choose the exact version matching your handlebar model year. If you are unsure about your setup, contact us with your handlebar details before ordering.
Key Specifications
| Specification | Details |
|---|---|
| Compatibility | Pinarello 3DAM integrated handlebars (Select 2024 & Earlier or 2025 version) |
| Material | Grade 5 titanium alloy powder (Ti-6Al-4V) |
| Weight | Variant 1 (2024 & Earlier): 7.92 g/set | Variant 2 (2025): 8.47 g/set |
| Manufacturing Process | Metal 3D printing (SLM / Laser Powder Bed Fusion), vacuum annealed |
| Surface Finish | Multi-layer electrolytic anodizing / laser graphic patterns |
| Tool Required | 4 mm hex key |
Colors and Graphic Patterns

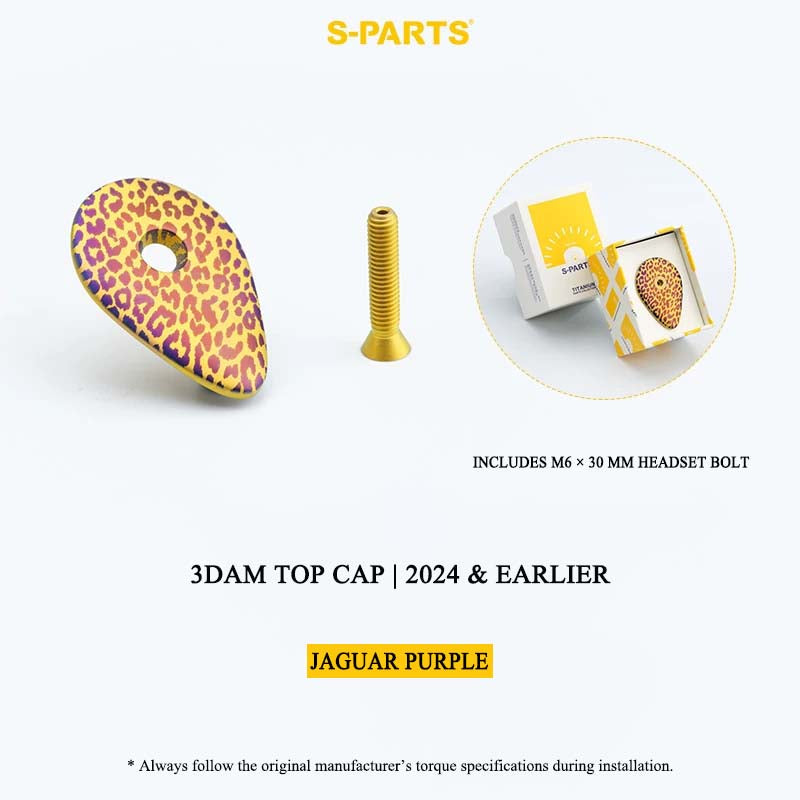

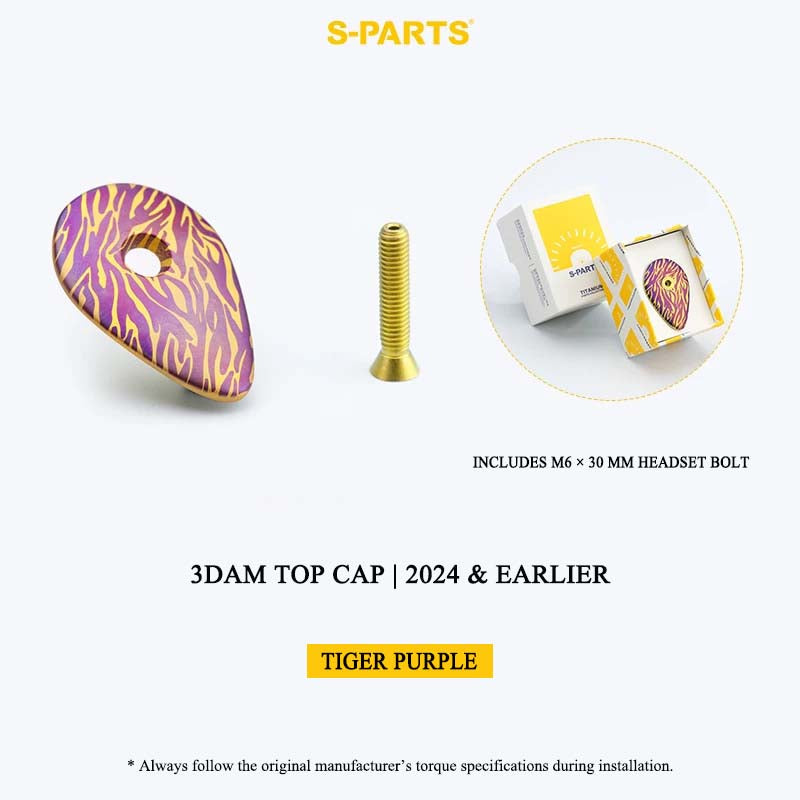

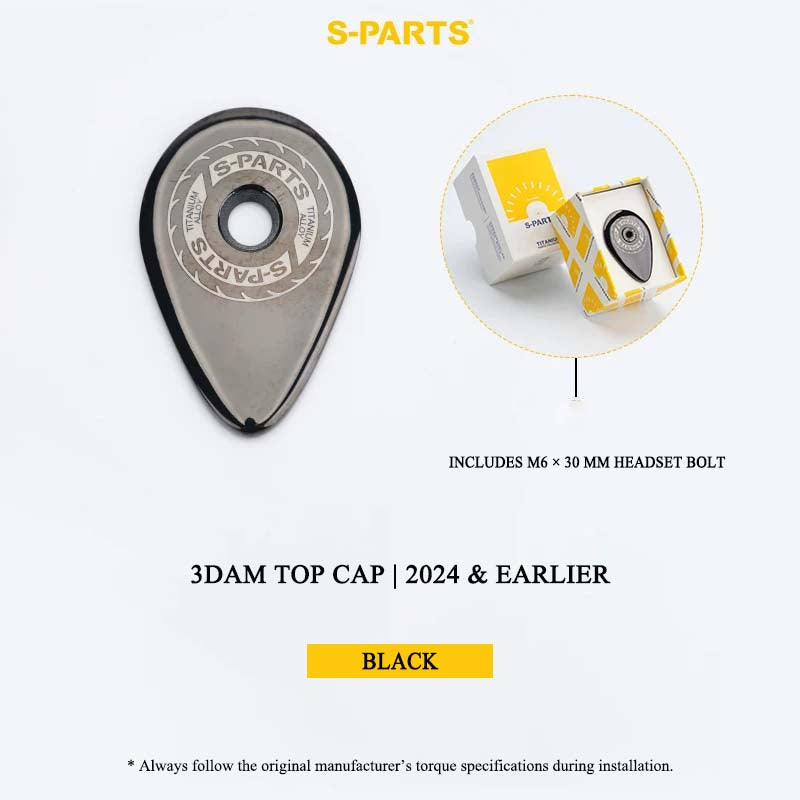

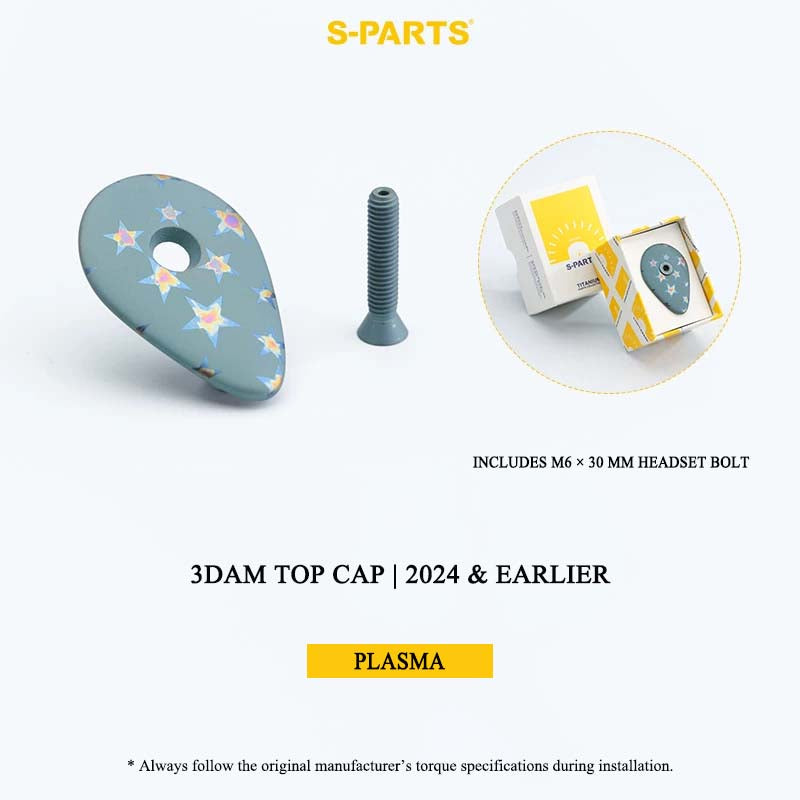

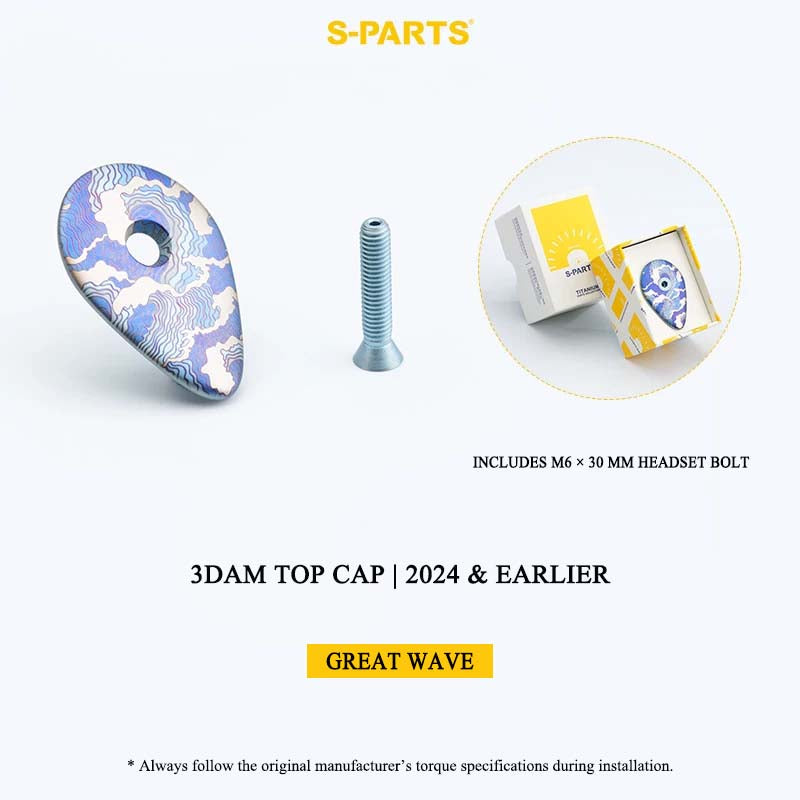

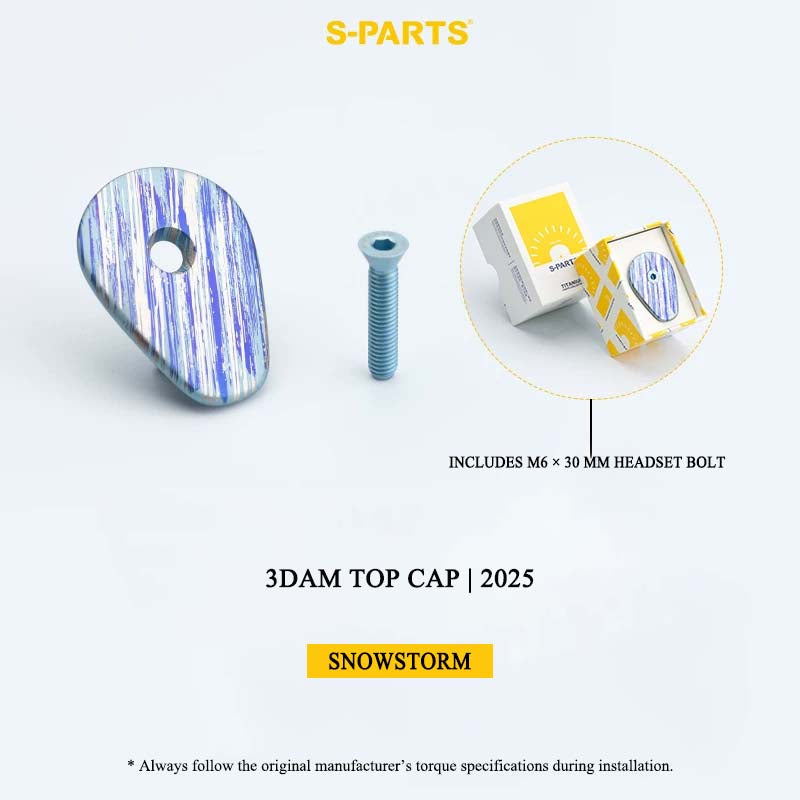

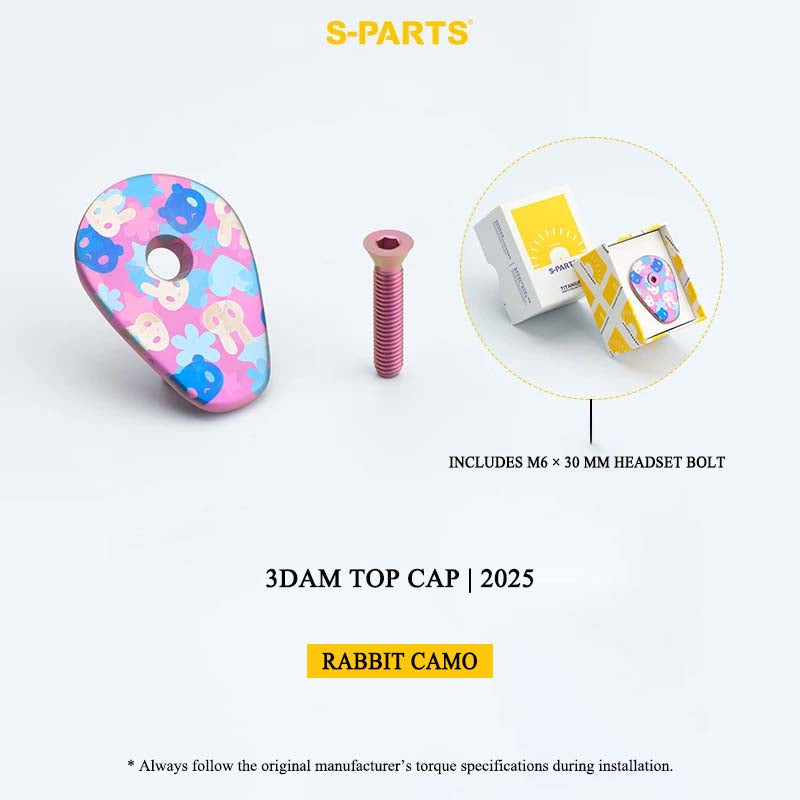

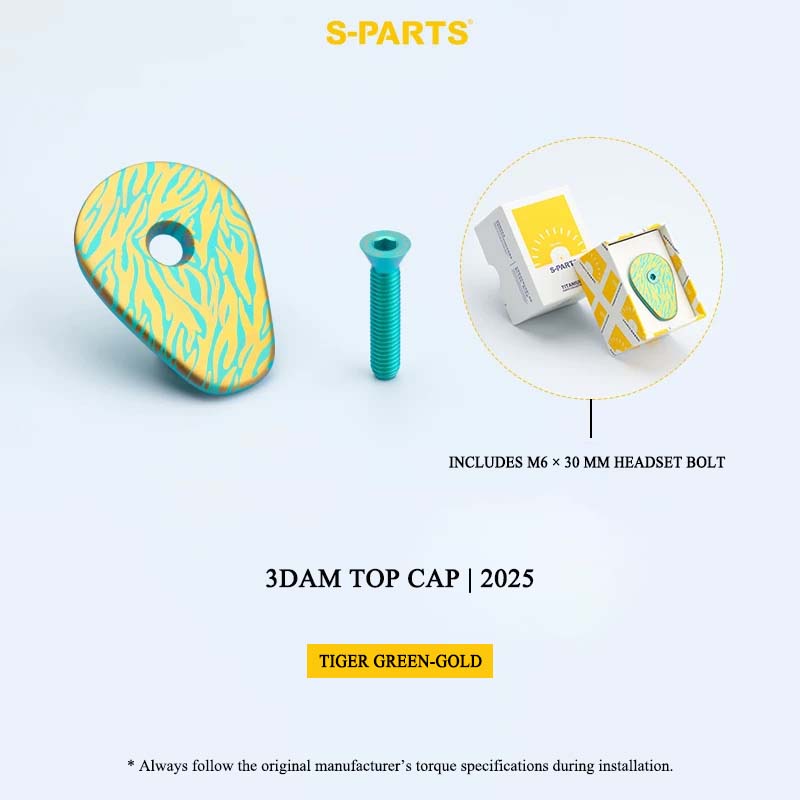

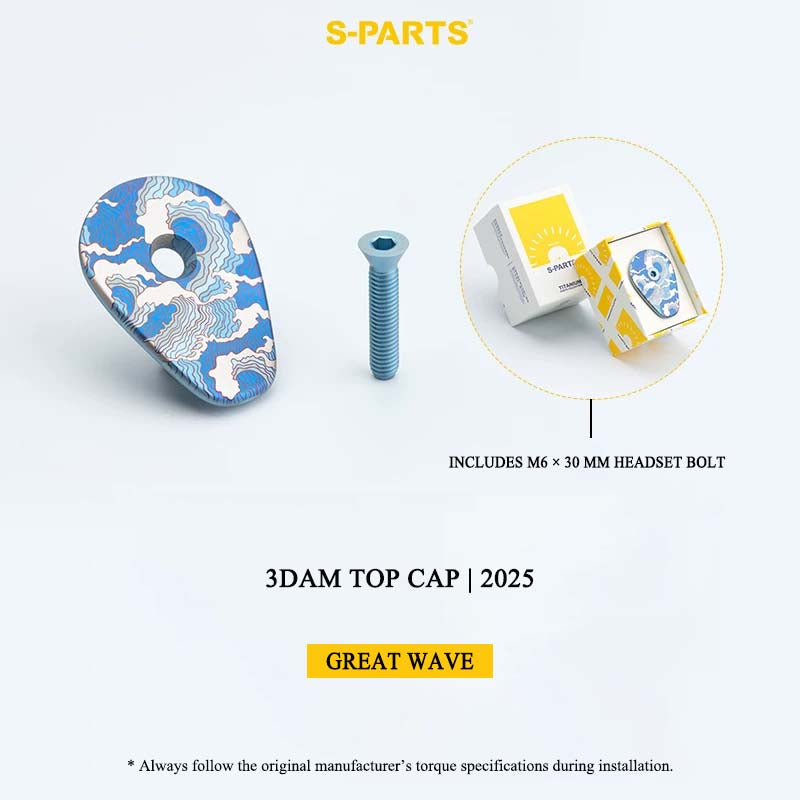

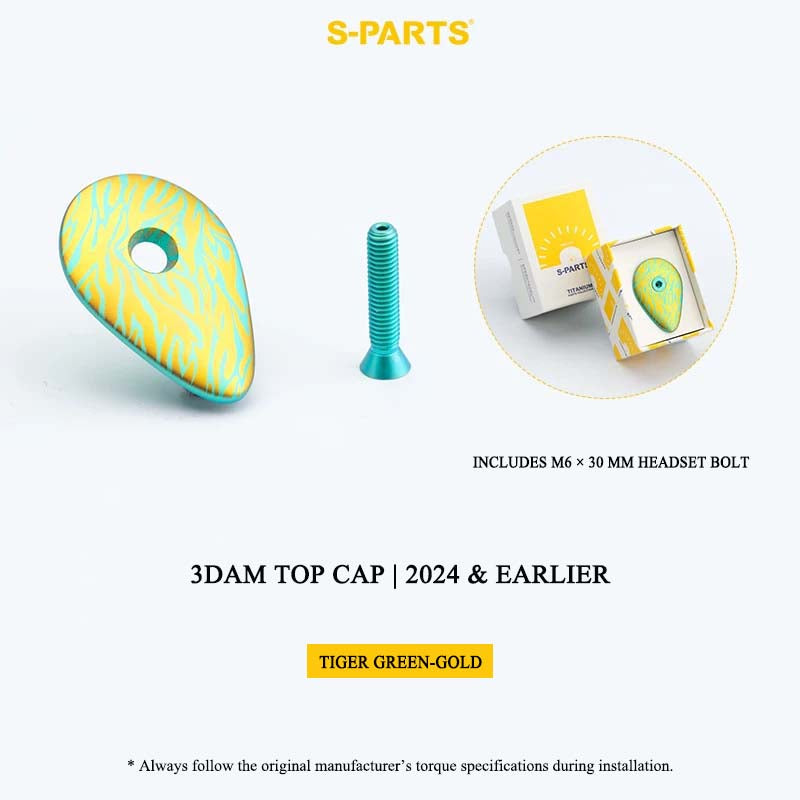

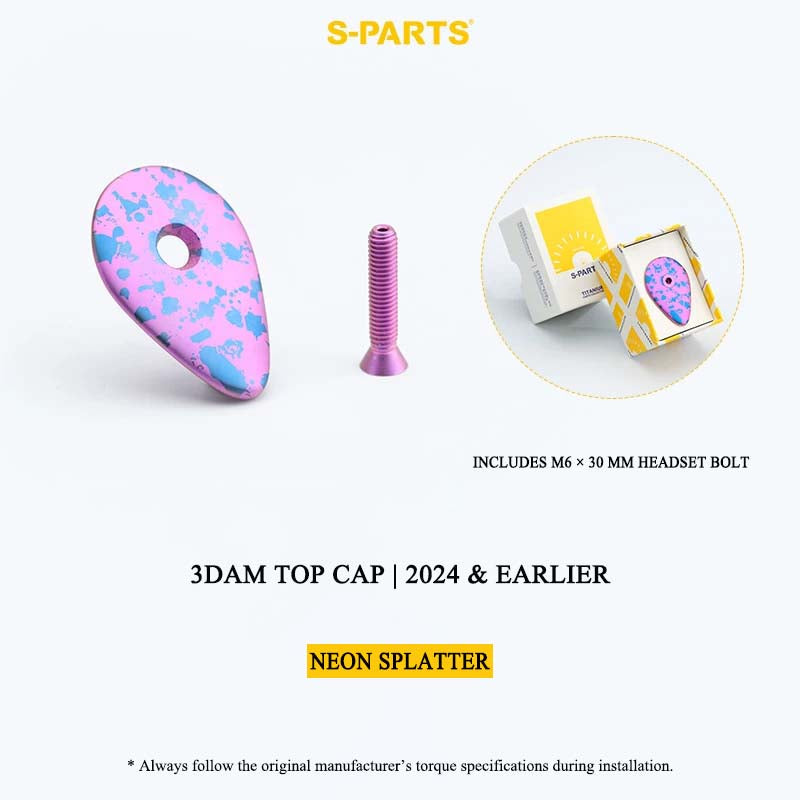

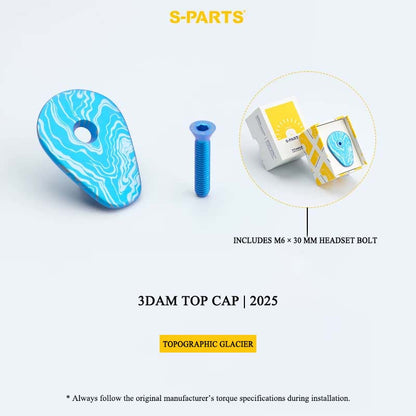

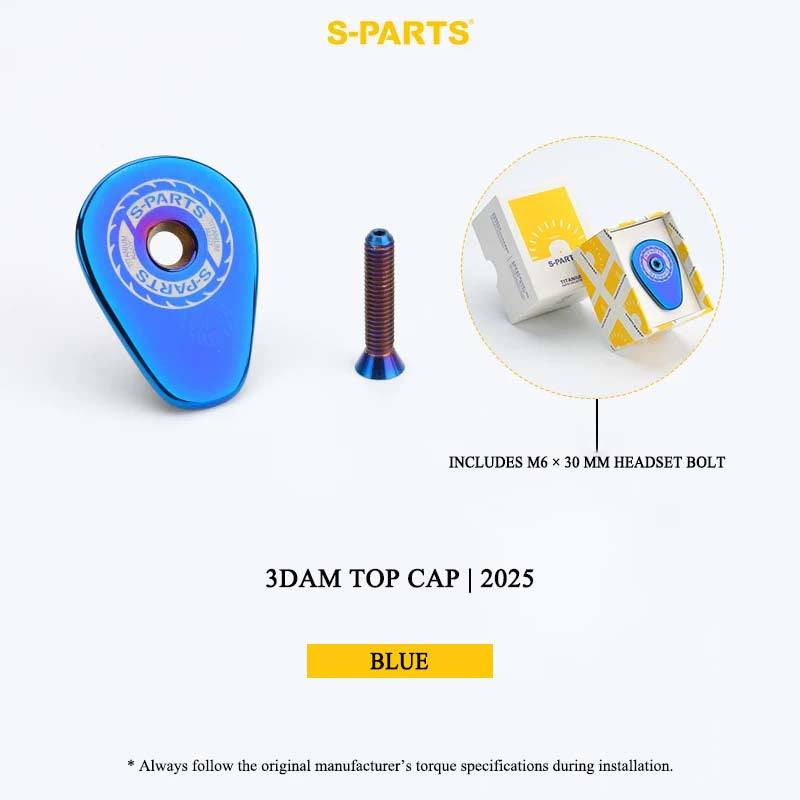

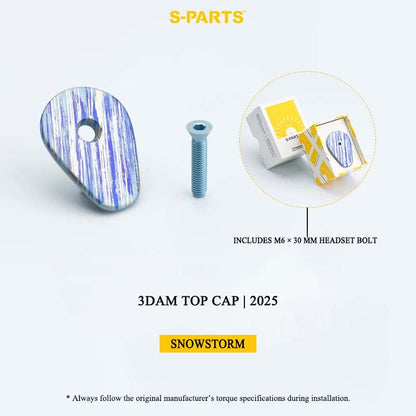

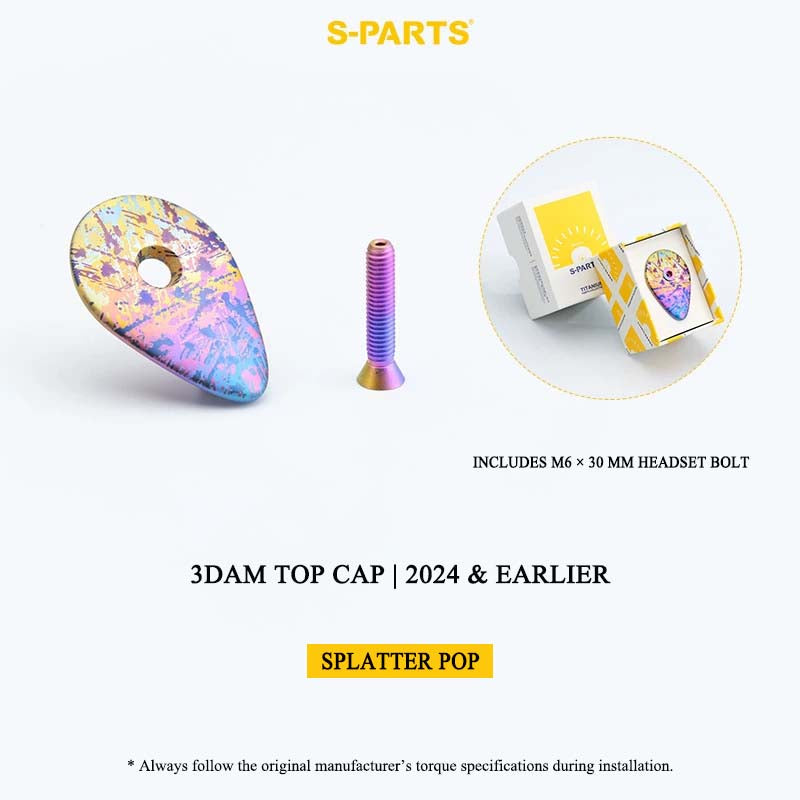

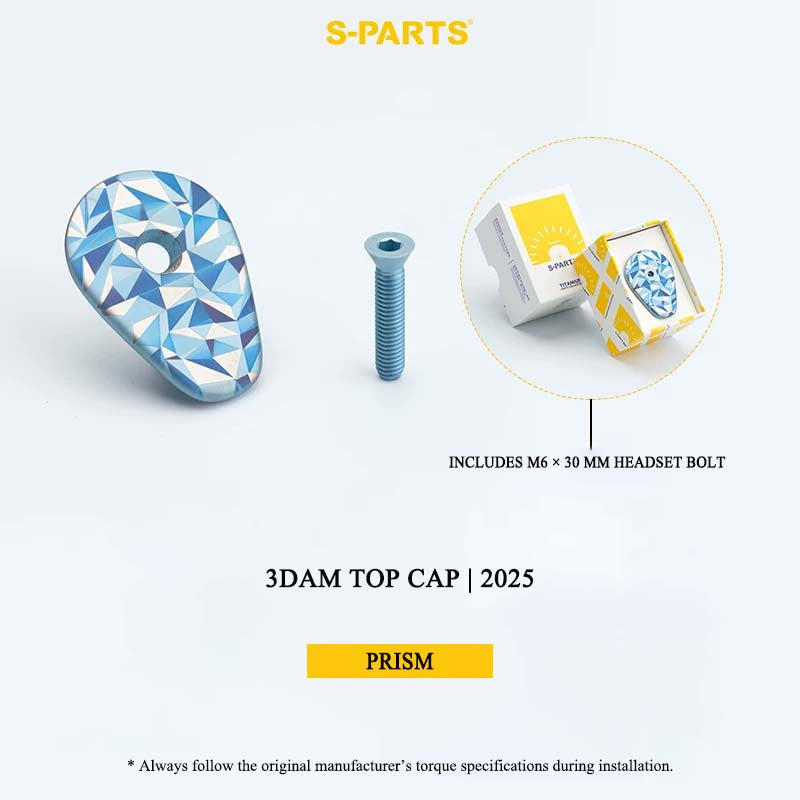

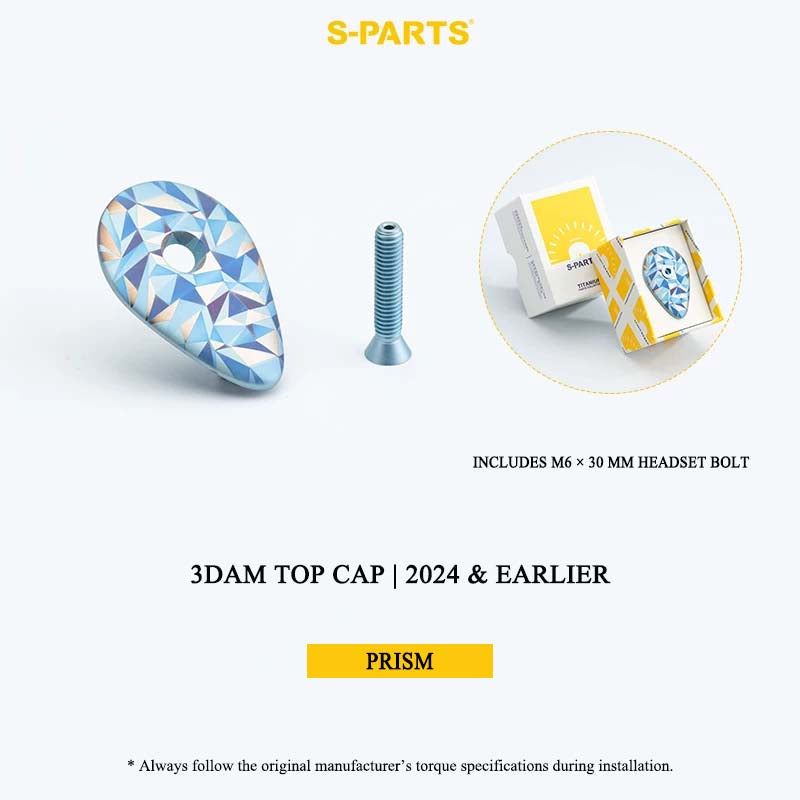

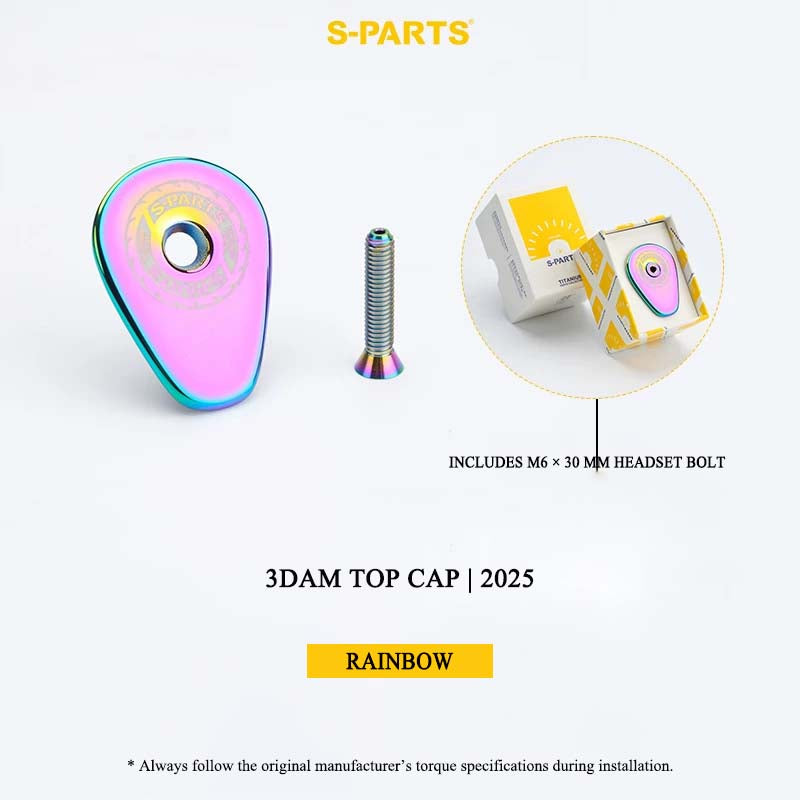

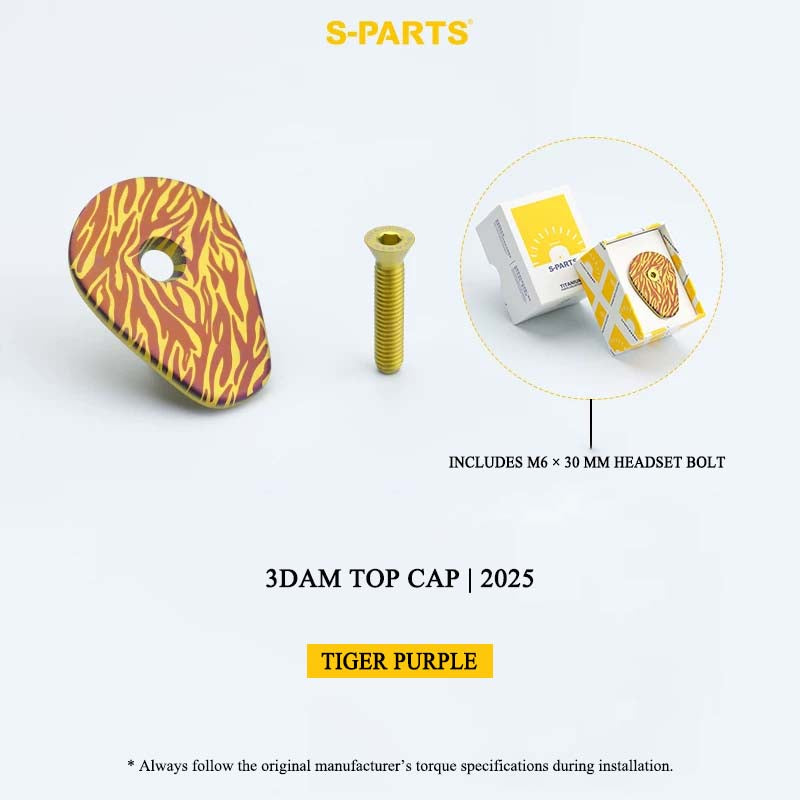

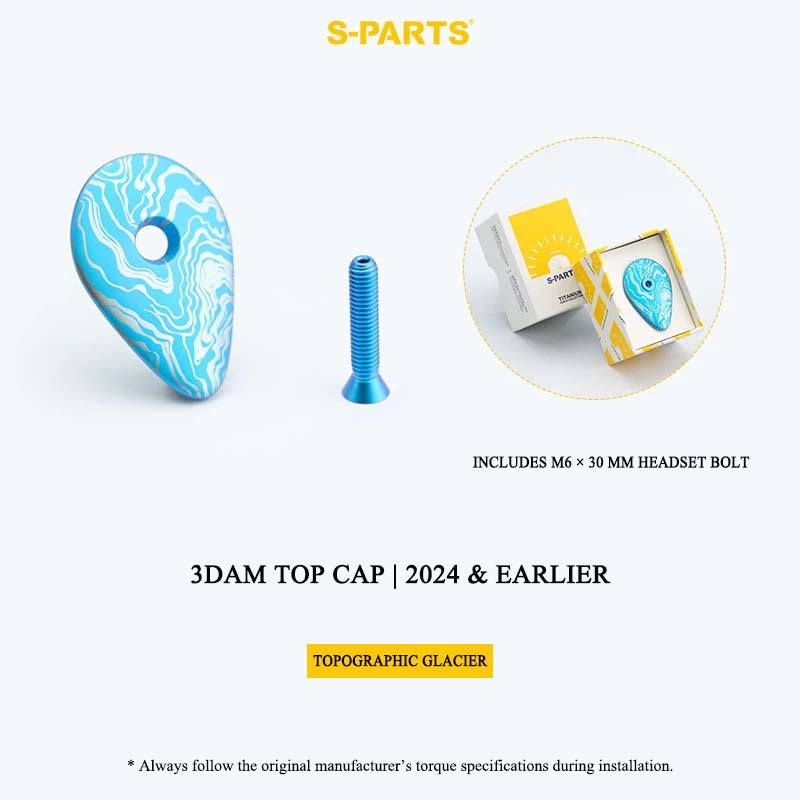

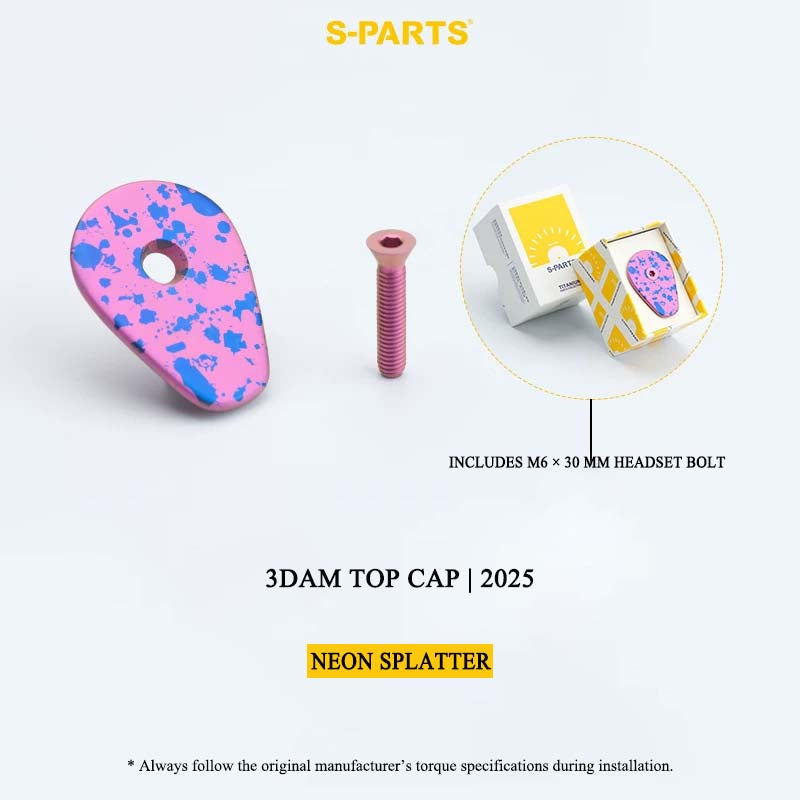

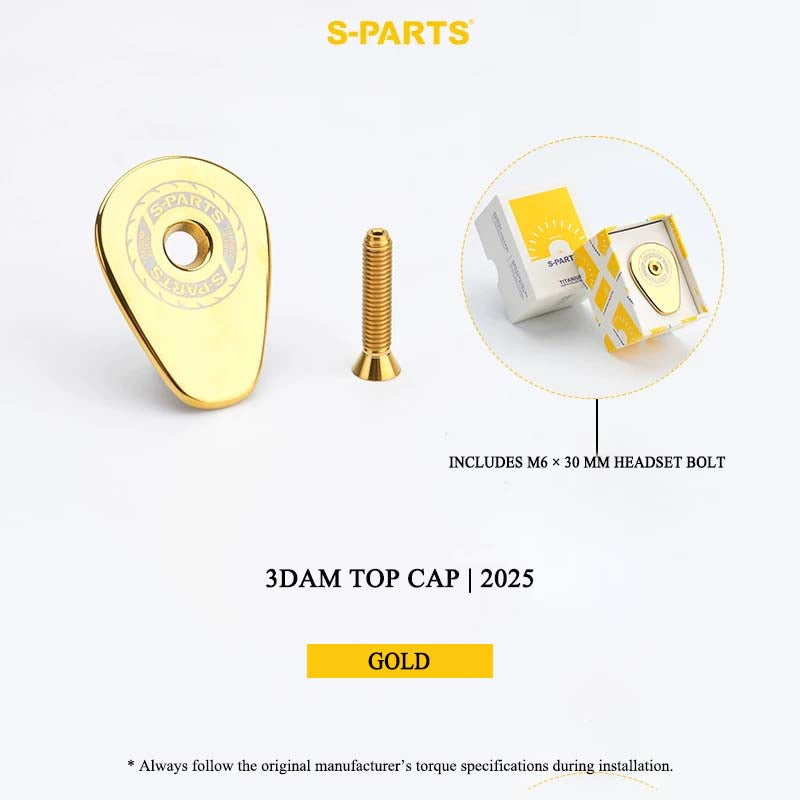

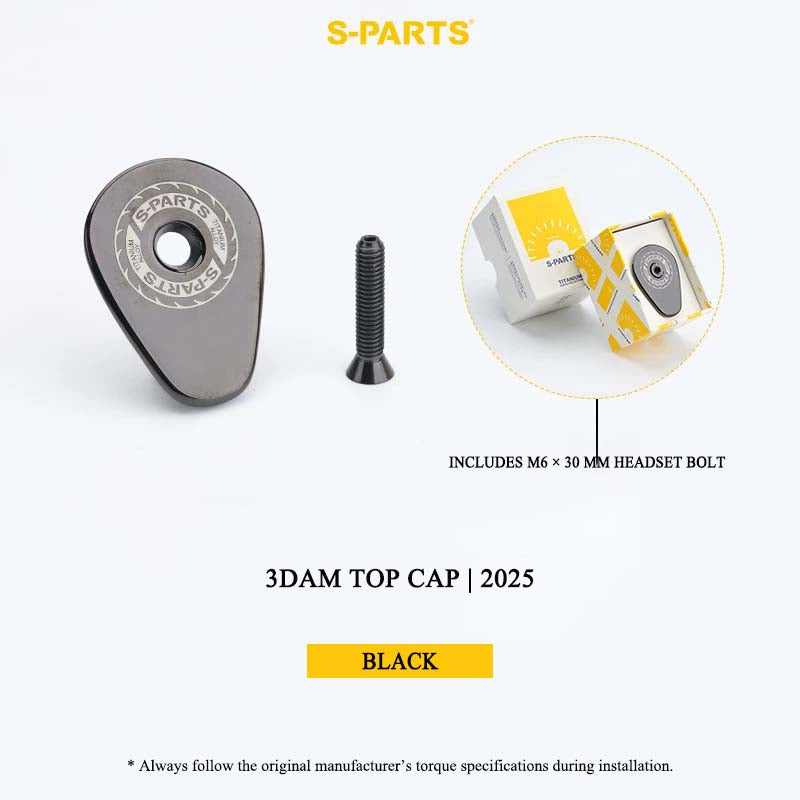

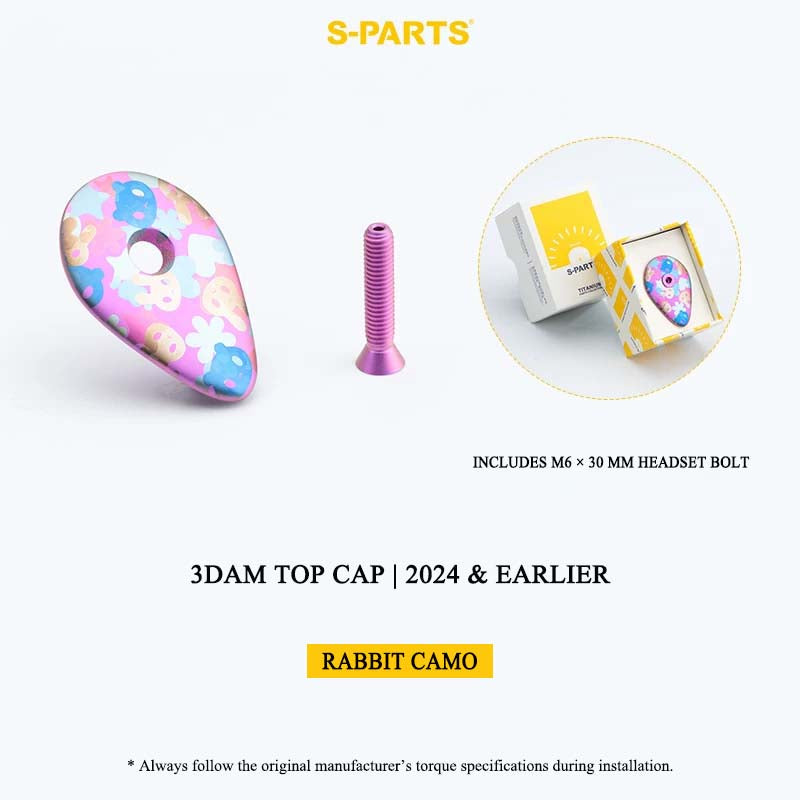

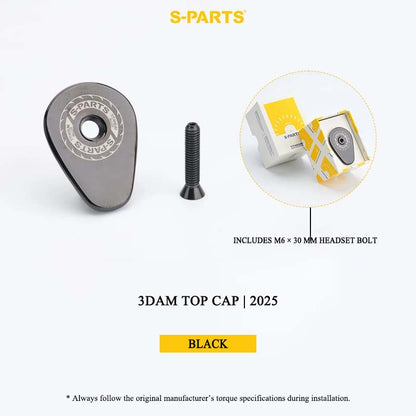

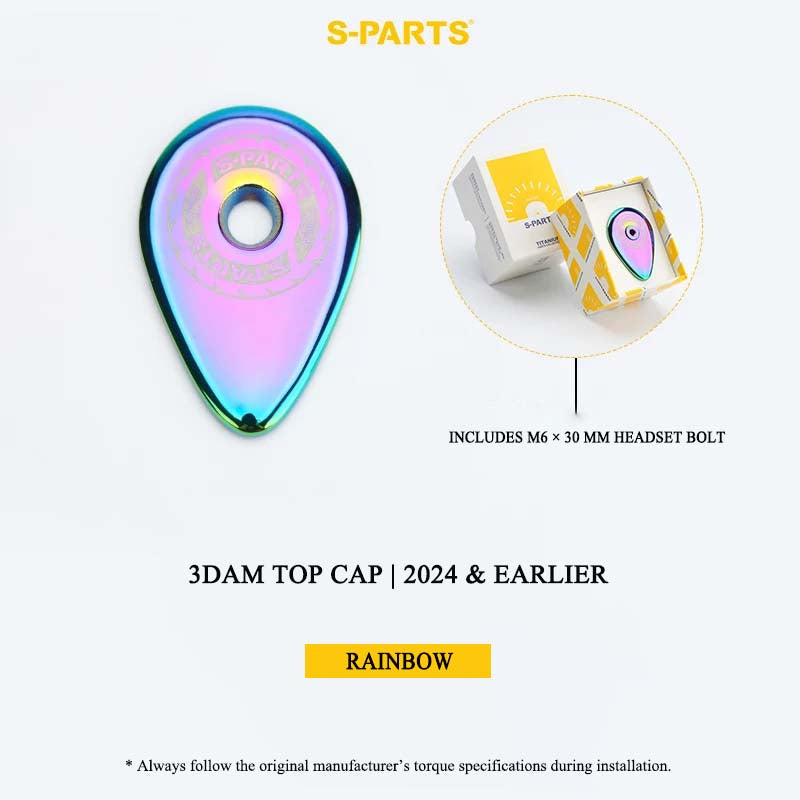

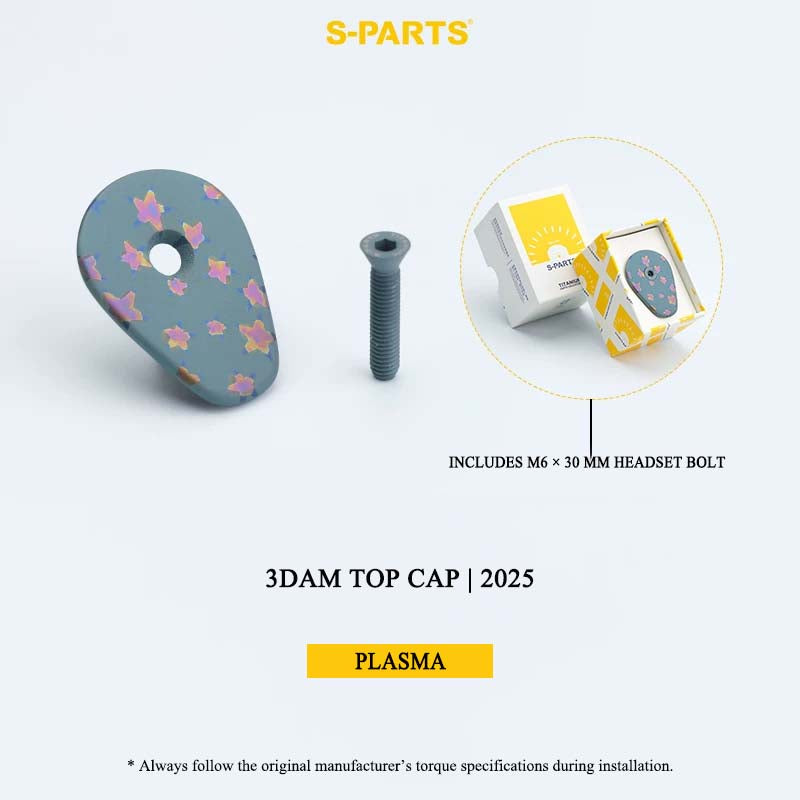

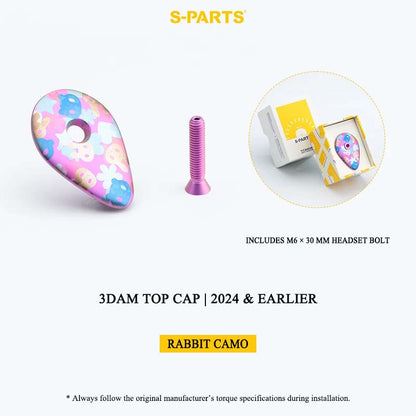

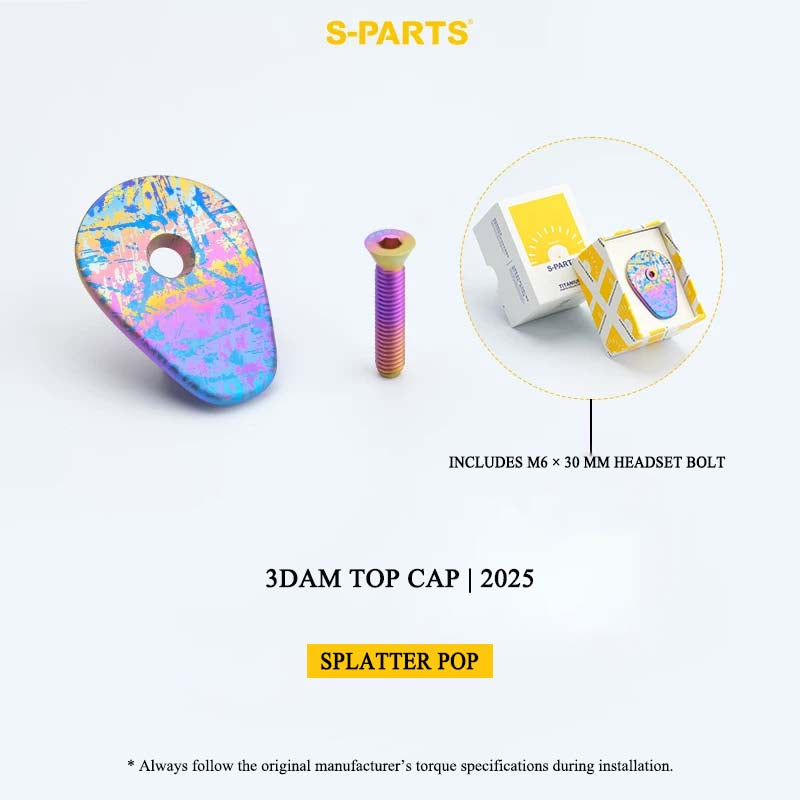

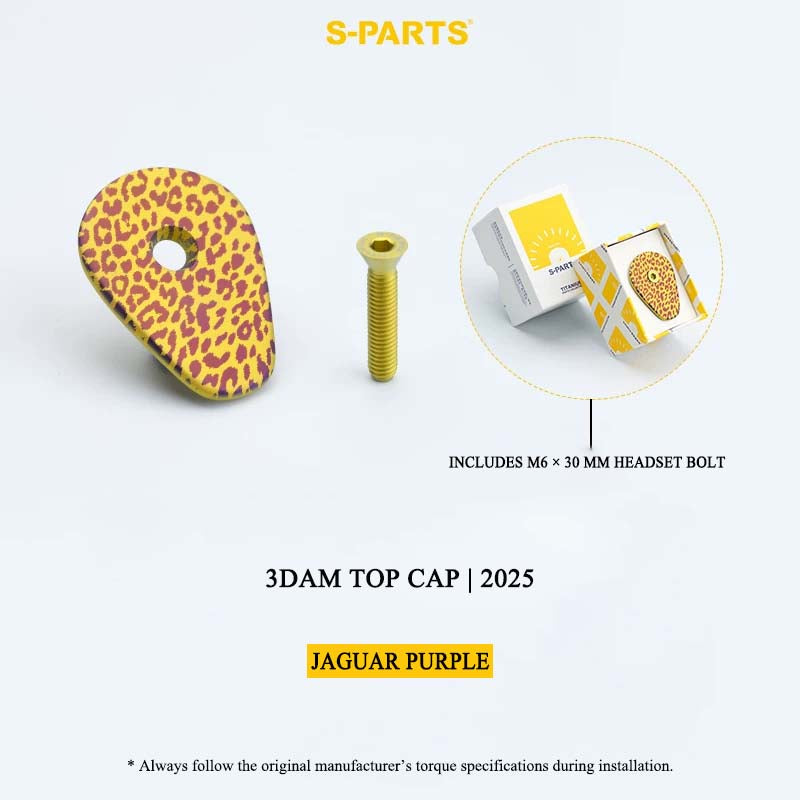

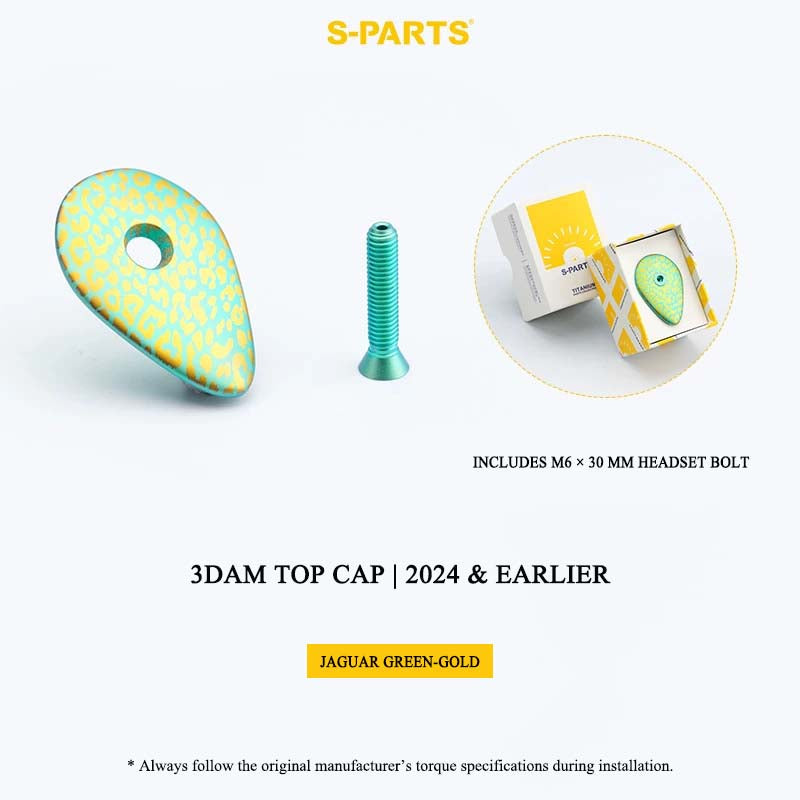

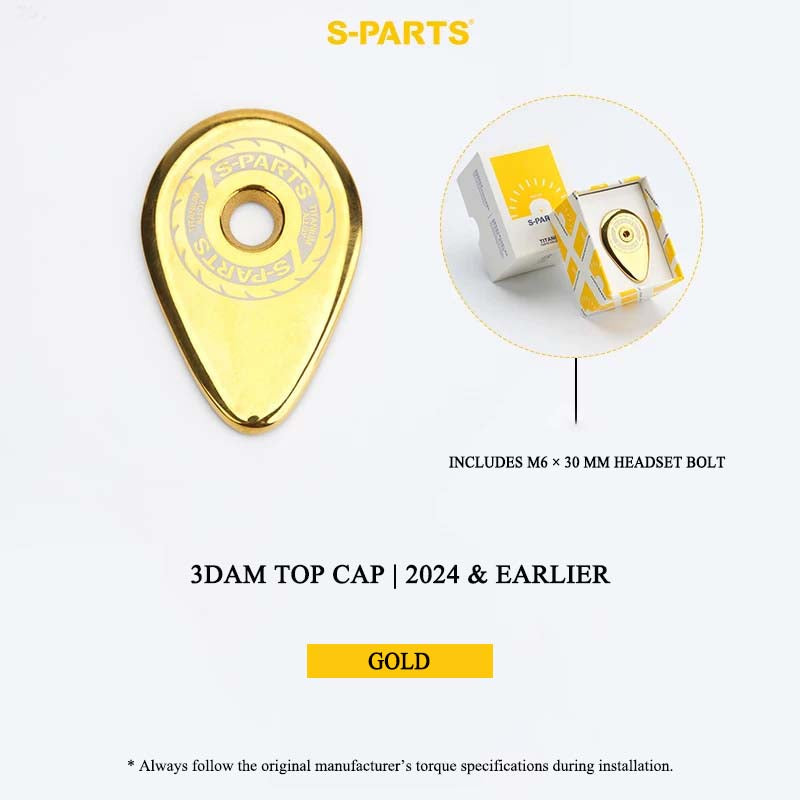

Headset top cap options (Variant 1 & Variant 2): Gold, Rainbow (Oil Slick), Black, Blue, Plasma, Prism, Splatter Pop, Neon Splatter, Rabbit Camo, Great Wave, Tiger Purple-Gold, Jaguar Purple-Gold, Tiger Green-Gold, Jaguar Green-Gold, Topographic Glacier.
Replacement bolt options (Variant 3): Gold, Rainbow (Oil Slick), Raw Titanium, Black, Blue, Green, Purple.
Every finish is created via multi-layer electrolytic anodizing, fusing vibrant color directly into the titanium surface. From bold geometric motifs to high-saturation custom colorways, S-PARTS lets you tailor your cockpit to match your bike's aesthetic.
Variant 3: Replacement Headset Cap Bolt
| Specification | Details |
|---|---|
| Thread Size | M6 x 30 mm |
| Head Design | 10 mm diameter, compact hollow-head design |
| Material | Grade 5 titanium alloy (Ti-6Al-4V) |
| Weight | 2.75 g / pc |
| Tool Required | 4 mm hex key |
*Note: Variant 3 is a dedicated repair/replacement bolt for the headset cap. Bolt only; top cap is not included.
Why 3D-Printed Titanium?

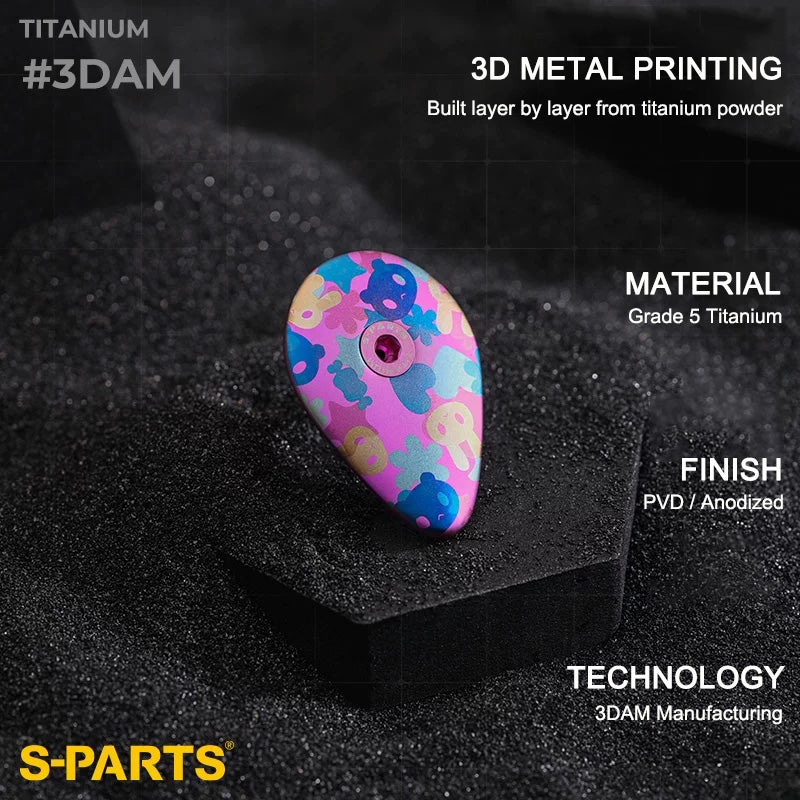

Metal 3D printing (additive manufacturing) builds components layer by layer from fine titanium powder instead of machining material away from a solid billet. This enables complex curves, ultra-thin walls, and hollowed-out internal structures that are virtually impossible to achieve with traditional CNC machining—allowing precise material placement only where needed to shave critical weight.
S-PARTS optimizes each top cap using SIMULIA FEA mechanical stress simulation to fine-tune wall thickness across all load points. Built on industrial BLT (Bright Laser Technologies) SLM printers using high-purity 15–53 µm Ti-6Al-4V titanium powder, every piece meets stringent ASTM international material standards.
Material Properties and Quality Assurance
Following additive production, components undergo vacuum stress-relief annealing to maximize structural fatigue resistance, followed by precise support removal, surface polishing, and custom anodizing.
In accordance with published supplier data for annealed printed material, the Ti-6Al-4V exhibits exceptional mechanical performance: 970–1,030 MPa tensile strength, 880–980 MPa yield strength, 15–20% elongation, and 50–60% reduction of area—delivering reliability on par with forged titanium hardware.
