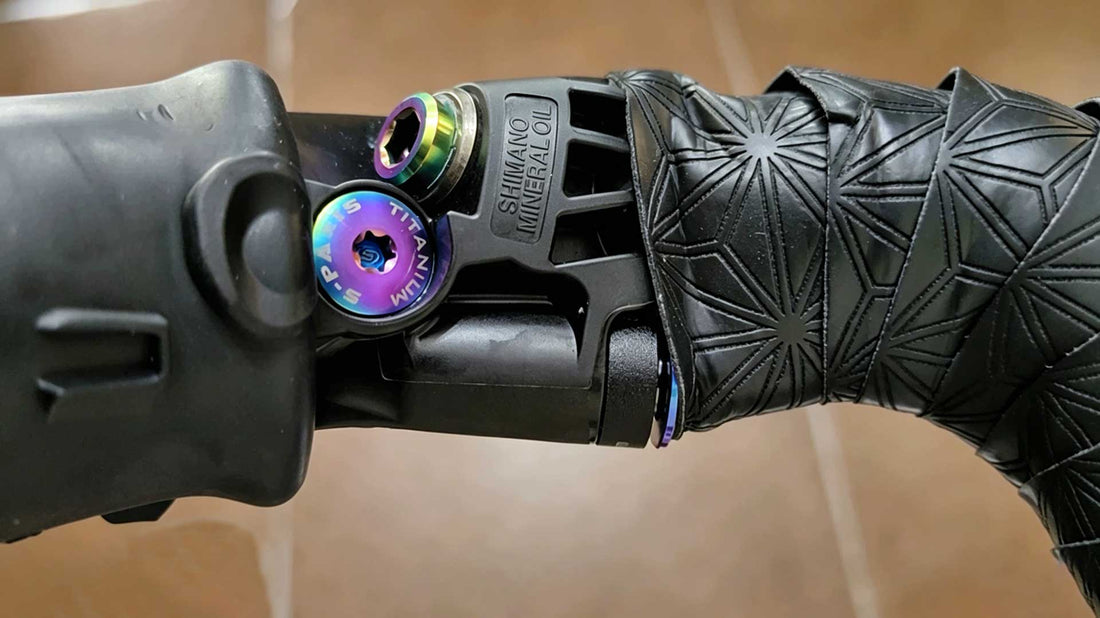

What I Learned After Replacing Mine with Titanium Hardware

If you’ve ever worked on a Shimano R8170, R7170 or 9170 hydraulic setup, you probably already know this:

The bleed port screw is tiny… but once it gets damaged, rounded, overtightened, or starts leaking oil, it suddenly becomes a surprisingly annoying little part.

I originally started paying attention to this screw during a routine brake bleed on my own bike. The OEM screw was still usable, but after repeated servicing, the tool engagement didn’t feel quite as sharp anymore, and I also started noticing some light corrosion around the area from sweat and moisture exposure.

That’s what eventually made me curious enough to try a titanium replacement version.

This isn’t meant to be some ultra-official workshop manual. It’s really just a practical rider-to-rider write-up based on what I noticed during installation, servicing, and long-term use.

Quick Specs

The shorter M7×4 version can work too, but personally I still prefer the original-length M7×6.6 version. The extra thread engagement just feels a little more reassuring during installation.

The First Thing I Noticed Was How Dirty the Port Actually Gets

This sounds obvious, but honestly, I think most people rush through this part.

Before installing the new screw, I cleaned the bleed port area using:

• a cotton swab
• a lint-free cloth
• and a small amount of isopropyl alcohol

There was actually more residue inside the threads than I expected. Tiny oil deposits and dirt buildup can affect sealing more than people realize.

After cleaning everything properly, the new screw threaded in noticeably smoother.

If the screw feels gritty, uneven, or unusually tight during installation, stop immediately and check the threads first instead of forcing it.

One Thing I Changed My Mind About

At first, I considered using a tiny amount of anti-seize or medium-strength threadlocker on the screw threads.

But after spending more time working around Shimano hydraulic systems, I eventually decided against it.

Since this screw is directly related to the brake fluid circuit, introducing unnecessary compounds near the oil port just doesn’t feel worth the risk to me anymore.

Even a small amount of liquid threadlocker or anti-seize could potentially contaminate the hydraulic system if applied carelessly.

I know some riders use threadlocker here without issues, but personally I’d rather keep the threads completely clean and dry.

In my experience, proper cleaning, the OEM sealing O-ring, and correct torque already provide more than enough sealing security.

The O-Ring Ended Up Being More Important Than I Expected

This was probably the biggest thing I noticed after doing the swap.

The titanium screw itself worked perfectly fine, but the actual sealing performance still depends heavily on the OEM sealing ring.

If the O-ring is:

• flattened
• cracked
• hardened
• or damaged

…you can still end up with leakage regardless of what screw material you use.

Now whenever I replace a bleed port screw, I always inspect the sealing ring first before installing anything.

Honestly, the condition of that tiny O-ring matters more than whether the screw is titanium or steel.

I Honestly Didn’t Expect Torque to Matter This Much

One thing I see pretty often is people assuming titanium automatically means:

“stronger = tighter is safer”

That’s really not the case here.

The brake lever body is aluminum, and the bleed port screw itself is extremely small. Overtightening is one of the easiest ways to damage the threads.

I stayed within:

0.5–0.7 N·m

And honestly, that already feels tighter than many people expect for such a tiny fastener.

If you don’t own a low-range torque wrench yet, this is actually one of those small jobs where it genuinely helps.

Why I Still Ended Up Preferring Titanium

To be honest, this upgrade isn’t going to completely transform your bike.

You’re not suddenly dropping huge amounts of weight from a single bleed screw.

But after using both, I still ended up preferring the titanium version for a few reasons.

Better corrosion resistance

Especially if you:

• sweat heavily
• ride near the coast
• wash your bike often
• or ride in wet conditions regularly

Titanium simply stays looking better over time.

Cleaner overall appearance

On higher-end road builds, small hardware details actually make more visual difference than people think.

Especially on modern Shimano Di2 setups, the titanium finish just looks cleaner and more premium compared to aging steel hardware.

Less “stuck” feeling during servicing

After several brake bleeds, I noticed the titanium screw still came out looking cleaner than the original steel version.

Less discoloration.
Less corrosion.
Less of that slightly seized feeling during removal.

It’s a small detail, but if you service your own bikes often enough, you start appreciating these things.

Common Mistakes I’ve Seen People Make

Here are probably the most common problems riders run into with bleed port screws:

Most of these are honestly avoidable if you slow down and take your time during installation.

What If the Original Screw Is Already Damaged?

I’ve seen this happen pretty often, especially on bikes that have already gone through years of brake servicing.

If the OEM screw is rounded or seized:

• don’t force it aggressively
• use the correct T20 tool
• apply steady pressure
• and work slowly

If necessary, a precision screw extractor works much better than trying random improvised methods.

The real danger usually isn’t the screw itself — it’s damaging the aluminum threads inside the lever body.

And once that happens, the repair gets annoying very quickly.

OEM vs Titanium — Is It Actually Worth It?

Honestly, the OEM Shimano screw already works perfectly fine.

This definitely isn’t a mandatory upgrade.

But titanium hardware does offer a few things I’ve personally grown to appreciate:

• better corrosion resistance
• cleaner long-term appearance
• lighter material density
• and smoother long-term servicing

For riders who enjoy:

• lightweight builds
• detailed component upgrades
• clean aesthetics
• and doing their own maintenance

…it’s one of those small upgrades that ends up being surprisingly satisfying over time.

I’ve gradually started using titanium hardware across:

• brake systems
• stem bolts
• bottle cage bolts
• derailleur hardware

And once you start noticing how quickly small steel hardware can age compared to the rest of the bike, it honestly starts making sense.

For anyone interested in upgrading small corrosion-prone components, I’ve also had good experiences using lightweight Titanium Shimano Bolts on several other parts of my bikes as well.

Most riders probably won’t think twice about a bleed port screw.

I didn’t either at first.

But after servicing hydraulic systems more often, I started realizing that these tiny details are usually the first places where corrosion, rounded tools, and wear begin showing up.

And for a part this small, upgrading it once and not worrying about it again is actually kind of nice.
