How to Choose the Right Bottle Cage Bolt and Install It Properly
Most riders spend a lot of time choosing the perfect bottle cage but very little time thinking about the bolts that hold it to the bike.
In reality, using the wrong bottle cage bolt can cause scratched bottles, poor fitment, rattling cages, or even damaged frame inserts. We've also seen riders install perfectly good bottle cages only to discover that the bolt heads interfere with bottle insertion every time they ride.
The good news is that choosing the right bottle cage bolt is actually quite simple once you understand how different bottle cage designs are intended to work.
The Most Important Rule
Before discussing bolt styles, there's one simple rule that applies to almost every bottle cage on the market:
The bolt head should never sit higher than the surface of the bottle cage.
If the bolt protrudes above the cage, it can contact the bottle during insertion and removal. Over time, this leads to visible wear marks and scratches on the bottle.
That's why choosing the correct bolt head style is just as important as choosing the correct bolt length.
Three Common Bottle Cage Designs and the Correct Bolt Choice

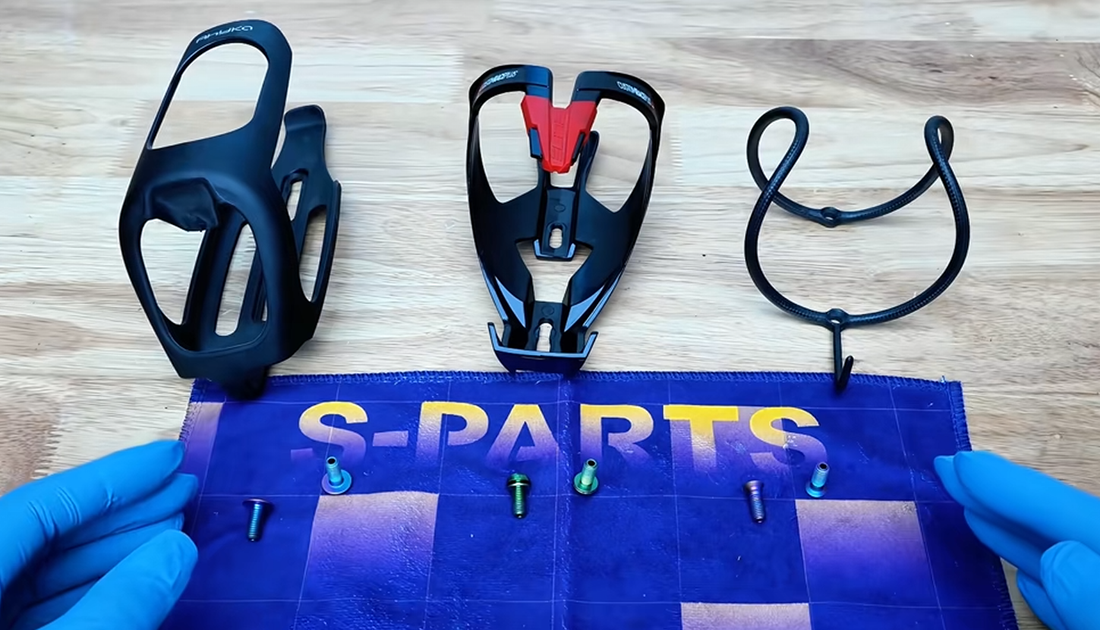

The image below shows three common bottle cage designs. Although all three perform the same job, the mounting areas around the bolt holes are completely different, which means they require different bolt head styles.
Bottle Cage #1 – Flat Head Bolts Only
This style of bottle cage has very little clearance around the mounting holes.
If a button-head bolt with an integrated washer is installed, the bolt head will sit noticeably above the cage surface. As the bottle slides in and out during normal use, it may rub directly against the bolt head and eventually become scratched.
For this type of bottle cage, we recommend using our Flat Head Titanium Bottle Cage Bolts.
The lower-profile head sits much closer to the cage surface, helping prevent bottle contact while maintaining a clean appearance.
Bottle Cage #2 – Flat Head or Button Head Bolts Both Work
This bottle cage provides a deeper mounting pocket around the bolt holes, giving you more flexibility when selecting hardware.
Both our Flat Head Titanium Bottle Cage Bolts and Button Head Titanium Bottle Cage Bolts with Integrated Washer can be used successfully here.
Riders looking for the lowest possible profile generally prefer the flat-head version, while those who want a larger contact area under the bolt head often choose the button-head design.
Either option works well with this style of bottle cage.
Bottle Cage #3 – Countersunk Bolts Required
Wire-style bottle cages and certain minimalist designs are often manufactured with countersunk mounting holes.
For these cages, a standard flat-head or button-head bolt will not sit correctly inside the mounting area.
Instead, we recommend using our Countersunk Titanium Bottle Cage Bolts, which allow the bolt head to sit flush with the cage and provide the cleanest installation possible.
Using the correct countersunk hardware also ensures that the bottle cage sits properly against the frame mounting bosses.
Not Sure Which Bottle Cage Bolt You Need?
Not every bottle cage follows the exact designs shown above.
Different brands use different mounting recesses, mounting plate thicknesses, and bolt hole shapes. Choosing the correct bolt length can sometimes be just as important as choosing the correct head style.
If you're not sure which bolt style or bolt length is right for your setup, feel free to contact us before ordering.
Simply send a few photos of your bottle cage and frame mounting area to spartsbolts@gmail.com, and our technical team will help identify the most suitable bolt style and length.
To help us recommend the correct hardware, please include:
- A photo of the bottle cage
- A close-up photo of the mounting holes
- Your bike model (if known)
- Existing bolt dimensions (if available)
In most cases, we can recommend the correct hardware from a few photos.
Choosing the Correct Bolt Length
Most modern bicycle frames use M5 bottle cage mounting bosses, but bolt length requirements can vary depending on the bottle cage design and any accessories mounted underneath.
When replacing existing hardware, matching the original bolt length is usually the safest approach.
A bolt that is too short may not engage enough threads.
A bolt that is too long can bottom out before the bottle cage is fully secured.
Tools You'll Need
Before installation, prepare the following:
- Bottle cage bolts
- Appropriate hex or Torx bit
- Driver handle or socket screwdriver
- Torque wrench
- Titanium anti-seize compound
Using a torque wrench is strongly recommended, especially when working with carbon fiber components.
Why Anti-Seize Matters for Titanium Bolts
Titanium hardware offers excellent strength, corrosion resistance, and weight savings.
However, titanium threads can occasionally gall when threaded into aluminum inserts. Applying a small amount of anti-seize compound helps prevent thread seizure and makes future maintenance significantly easier.
Only a thin coating is required.
Installation Procedure
Step 1: Apply Anti-Seize
Apply a small amount of anti-seize compound to the threads of each bolt before installation.
Only a thin coating is needed. This helps prevent thread galling and makes future removal easier, especially when titanium bolts are installed into aluminum frame inserts.
Step 2: Position the Bottle Cage
Align the bottle cage with the frame mounting bosses and select the correct bolts for your bottle cage design.
Make sure both mounting holes are properly aligned before threading the bolts into the frame.
Step 3: Start Both Bolts by Hand
Start both bolts by hand and alternate between the upper and lower bolt as you thread them into the frame.
Continue tightening only until you begin to feel light resistance.
At this stage, the bottle cage should be held in position, but neither bolt should be fully tightened.
If you feel unusual resistance or binding while threading the bolts, stop immediately and check the thread alignment before continuing.
Step 4: Alternate Between Bolts
When securing the bottle cage, always alternate between the upper and lower bolt.
Avoid fully tightening one bolt before the other.
Alternating between both bolts allows the bottle cage to seat evenly against the frame and helps distribute clamping force more uniformly.
Step 5: Pre-Tighten to 2 Nm
Set your torque wrench to 2 Nm and begin the initial tightening process.
Continue alternating between the upper and lower bolt until both bolts reach 2 Nm.
This pre-tightening step helps ensure that the bottle cage is correctly positioned before final tightening.
Step 6: Set the Torque Value and Fully Tighten
Set the torque wrench to 3 Nm and tighten both bolts evenly until they reach the specified torque value.
Do not over-tighten, as excessive torque may damage the frame mounting bosses or the bolts.
Recommended Torque Values
Carbon Fiber Frames or Carbon Bottle Cages
Recommended torque:
- 2 - 3 Nm
Carbon components do not require excessive torque. Overtightening can damage both the bottle cage and the frame.
- Aluminum or Titanium Frames
Recommended torque:
- 3 - 4 Nm
Avoid using excessive force. More torque does not improve security and may damage the threads over time.
Common Installation Mistakes
Tightening One Bolt Completely First
This can pull the cage out of alignment and create uneven clamping pressure.
Always alternate between bolts during installation.
Installing Bolts Dry
Dry installation increases the likelihood of thread galling and can make future removal much more difficult.
Starting the Bolts with a Tool
One of the most common causes of damaged frame inserts is cross-threading.
Always start the bolts by hand first before reaching for a wrench or driver.
Before Your Next Ride
Once the installation is complete, insert and remove your water bottle several times.
This simple check immediately reveals whether the bolt heads are sitting too high or contacting the bottle.
It's a small detail that many riders overlook, but it's also one of the quickest ways to confirm you've selected the correct hardware for your bottle cage.
A properly chosen bottle cage bolt should be something you never notice during a ride—and that's exactly how it should be.
